The thesis focuses on designing and fabricating an inset-fed rectangular microstrip patch antenna, analyzing the effects of its dimensions and substrate parameters on radiation characteristics like bandwidth and beam-width. The design is based on a frequency of operation at 3.3 GHz and features a substrate with a dielectric constant of 2.94 and thickness of 1.6 mm. Simulated results show an operation at 2.2 GHz with a gain of 3.49 dB, aligning closely with measured outcomes.

1. TASK:MICROSTRIP PATCH ANTENNA
DESIGN AND SIMULATION
Vengalam Mahendra
Reg no:16MCE0036

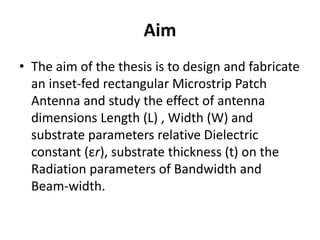

2. Aim
• The aim of the thesis is to design and fabricate
an inset-fed rectangular Microstrip Patch
Antenna and study the effect of antenna
dimensions Length (L) , Width (W) and
substrate parameters relative Dielectric
constant (εr), substrate thickness (t) on the
Radiation parameters of Bandwidth and
Beam-width.

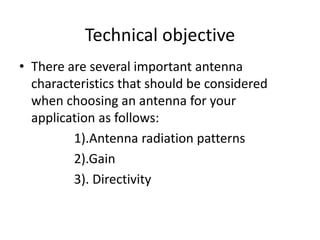

3. Technical objective
• There are several important antenna
characteristics that should be considered
when choosing an antenna for your
application as follows:
1).Antenna radiation patterns
2).Gain
3). Directivity

4. Design
• The three essential
parameters for the design of
a rectangular Microstrip
Patch Antenna
• Frequency of operation
(fo)=3.3GHZ
• Dielectric constant of the
substrate (εr)=2.94
• Height of dielectric substrate
(h)=1.6mm

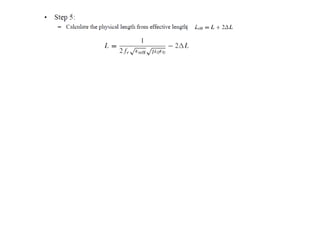

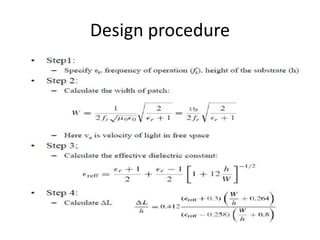

5. Design procedure

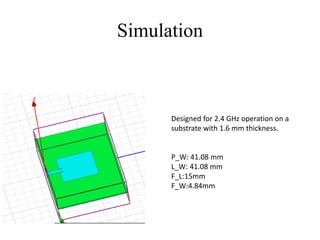

7. Simulation
Designed for 2.4 GHz operation on a
substrate with 1.6 mm thickness.
P_W: 41.08 mm
L_W: 41.08 mm
F_L:15mm
F_W:4.84mm

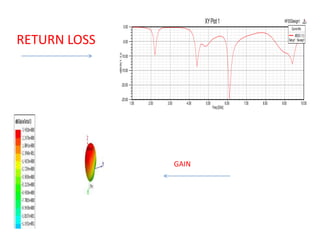

8. 1.00 2.00 3.00 4.00 5.00 6.00 7.00 8.00 9.00 10.00
Freq[GHz]
-25.00
-20.00
-15.00
-10.00
-5.00
0.00
dB(S(1,1))
HFSSDesign1XYPlot1 ANSOFT
CurveInfo
dB(S(1,1))
Setup1:Sweep1
RETURN LOSS
GAIN

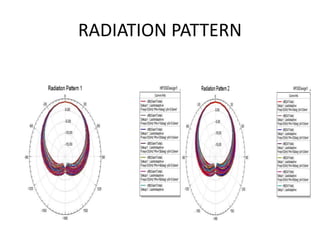

9. RADIATION PATTERN

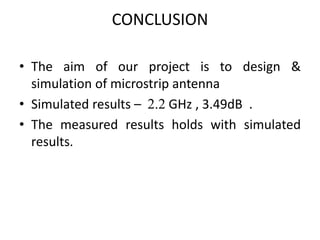

10. CONCLUSION
• The aim of our project is to design &
simulation of microstrip antenna
• Simulated results – 2.2 GHz , 3.49dB .
• The measured results holds with simulated
results.
