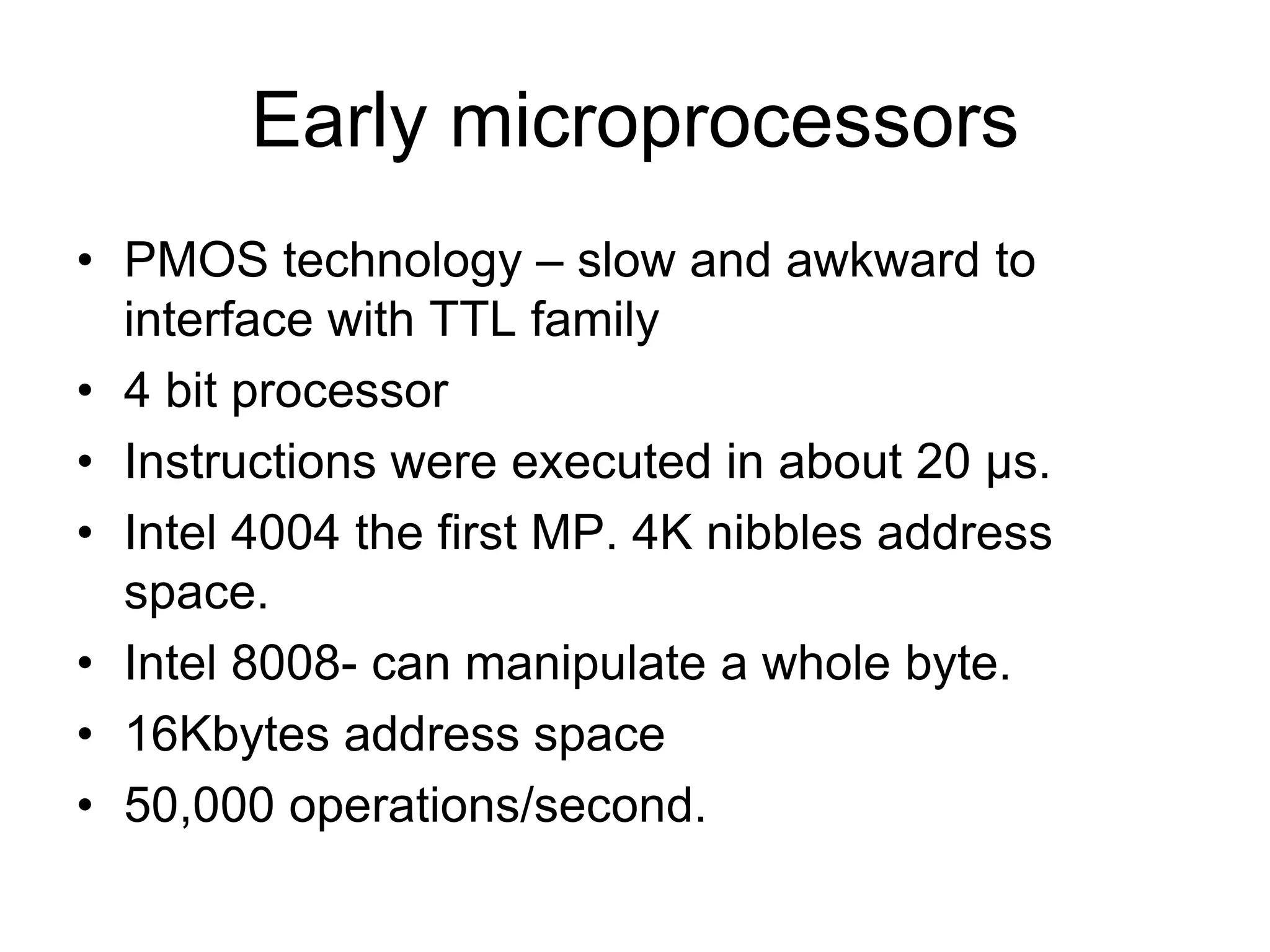

2. • PMOS technology – slow and awkward to
interface with TTL family
• 4 bit processor
• Instructions were executed in about 20 µs.
• Intel 4004 the first MP. 4K nibbles address
space.
• Intel 8008- can manipulate a whole byte.
• 16Kbytes address space
• 50,000 operations/second.
Early microprocessors
3. N-channel MOSFET
• 1970.
• Faster than P-MOS.
• Work with +ve supply; easy to interface with
TTL.
• 1973 Intel 8080 MP.
• 500,000 operations/second.
• 64K bytes memory.
• Upward software compatible with 8008.
• Other brands are MC6800, Fairchild’s F-8 etc.
4. Basic types of MP
• Two types
– Single component microprocessors
– Bit sliced microprocessors
• Can be cascaded to allow functioning systems with
word size from 4 bits to 200 bits.
5. Single component M Computer
• Composed of
– A processor
– read only memory (for program storage)
– Read/Write memory (for data storage)
– Input/output connections for interfacing
– Timer as event counter
• Intel 8048, Motorola 6805R2.
– Oven, washing machine, dish washer etc.
6. Modern MP
• 8, 16, 32, 64 bits are available.
• Intel 8085, Motorola 6800 – 8 bit word 16 bit
address.
• Intel 8088, 8086, Motorola 68000 – 16 bits word,
20 bits address.
• 80186 – never used.
• 286 – real mode and protected mode; 16MB
memory
• 386 – paging, 4GB memory, 32 bits word
• 486 – math coprocessor, L1 cache
7. Modern MP
• Pentium
– 64 bits i/o off the chip but process 32bits word, exception floating
point processed 64 bits, cache doubled, instruction pipelining.
• Pentium Pro
– L2 cache, Improved pipelining
• Pentium MMX
– Multi-Media extensions, 57 new inter instruc mostly used for
multimedia programming
• Pentium II, III, IV
– Pentium pro with MMX tech, increased L2 cache, full 64 bit
operation
• RISC
– Reduced instruction set processor, uniform length instruc, faster
in operation, cannot perform may different thing as CISC.
8. Basic MP architecture
• Fetch, decode,
execute.
• PC increment.
• First instruction
is a fetch
– 0000H for 8085
– FFFF0H for
8086, 8088
RegisterArray
control
Instruction
Register
ALU
Data Bus
Address Bus
Control
Bus
AF,
BC,
DE,
HL,
SP,
PC
many
more
10. • Interfacing needs bus
• Isolation and separation of signals from
different devices connected to MP.
– Unidirectional
– Bidirectional
• LS373, 244
11. Memory map
• Pictorial representation of the whole range
of memory address space.
– Defines which memory system is where, their
sizes etc.
• Address space or range.
– 8086 has 1M address space in minimum
mode.
– 8085 has 64K address sspace.
12. Address Decoding
• Address decoder is a digital ckt that indicates
that a particular area of memory is being
addressed, or pointed to, by the MP.
• Absolute address decoding
– Decode an address to one single output
– Decode 10110 so that u can get a signal from the
decoder when it receives exactly that bit pattern.
• Partial address decoding
– Some bits are used as don’t care so that decoder
gives a signal for a range of consecutive bit patterns.
13. 1 0 1 1 0 10110
a b c d e
a b c d e
Can use decoder IC with gates to
achieve exact decoded o/p
Logic 1
8 input NAND gate implementation
Active low o/p signal
Absolute decoding
3to8linedcd
101
0
7
o/p
14. Partial decoding
• When a range of addresses are deconded then it is called partial
decoding. For example, if we need to generate a control signal for
an address generated by the MP within the range FFF0 – FFFF,
then it is called partial decoding.
• Decoder, multiplexer can be used for address decoding
1 1 1 1 1 1 1 1 1 1 1 1 x x x x
A15
A14
A4
16. Flag register
S Z AC P CY 1. S : after the execution of an
arithmetic operation, if bit 7 of
the result is 1, then sign flag is
set.
2. Z : bit is set if ALU operation
results a zero in the Acc or
registers.
3. AC: bit is set, when a carry is
generated by bit 3 and passed
on bit 4.
4. P: parity bit is set when the
result has even number of 1s.
5. CY = carry is set when result
generates a carry. Also a
borrow flag.
17. Accumulator
• Hold data for manipulation (arithmetic, logical).
• Whenever the operation combines two words,
either arithmetically or logically, the accumulator
contains one word (say A) and the other
word(say B) may be contained in a register or in
memory location. After the operation the result is
placed in the Acc replacing the word A.
• Major working register. MP can directly work on
Acc.
• Programmed data tranfer.
18. General purpose registers
• Six registers.
• B, C, D, E, H and L can store 8 bit data.
• They can be combined to perform some
16 bit operation.
19. ALU
• Arithmetic logic unit.
• Two input ports, one output port.
• Perform AND, OR, ExOR, Add, subtract,
complement, Increment, Decrement, shift left,
shift right.
• ALUs two temporary registers are connected to
MPs internal bus from which it can take data
from any registers. It can place data directly to
data bus through its single output port.
20. Program counter
• Its job is to keep track of what instruction is
being used and what the next instruction will be.
• For 8085 it is 16 bit long.
• Can get data from internal bus as well as
memory location.
• PC automatically increments to point to the next
memory during the execution of the present
instruction.
• PC value can be changed by some instructions.
21. Stack pointer
• 16 bit register acts as memory pointer.
• Can save the value of the program counter
for later use.
• points to a region of memory which is
called stack. follows LIFO algorithm.
• After every stack operation SP points to
next available location of the stack.
Usually decrements.
22. Memory address register
• PC sends address to MAR. MAR points to the
location of the memory where the content is to
be fetched from.
• PC increments but MAR does not.
• If the content is an instruction, IR decodes it.
During execution if it is required to fetch another
word from memory, PC is loaded with the value
• PC again sends it to the MAR and fetch
operation starts.
25. 8085
• 40 pin DIP.
• +5V
• 3 - 5MHz
– ADD BUS
– DATA BUS
– CONTROL STATUS
– POWER SUPPLY AND
FREQ
– EXTERNALLY INITIATED
SIGNALS
– SERIAL I/O PORTS
21 – 28
HIGH ORDER
ADD BUS
5V GND
30 ALE
29 S0
33 S1
34 IO/M’
32 RD’
31 WR’
CLK OUTRESET OUT
HLDA 38
INTA 11
RESET IN 36
HOLD 39
READY 35
INTR 10
RST5.5 9
RST6.5 8
RST7.5 7
TRAP 6
SOD 4
SID 5
12 – 19
MUX ADD/
DATA BUS
2040
X1 X2
3 37
26. • Address bus 16 bits
– A8 to A15 unidirectional. Higher 8 bit
– AD0 to AD7 multiplexed with data. This pins
are bidirectional when used as data bus.
• Data bus 8 bit long: AD0 to AD7
ADD/DATA bus
Data bus
D
G
Q’
OC
AD7
AD6
AD5
AD0
ALE
GND
Address bus.
Lower 8 bit
Address bus.
higher 8 bit
A8
A15
27. Control signals
• ALE – active high output
used to latch the lower 8
address bits.
• RD, WR - active low
output signals.
• IO/M – output signal to
differentiate memory and
IO operation.
• S1 and S0 – status output
signal. Identify various
operations.
Machine
cycle
IO/M’ S1 S0 Control
signals
Opcode
fetch
0 1 1 RD=0
Memory
read
0 1 0 RD=0
Memory
write
0 0 1 WR=0
I/O read 1 1 0 RD=0
I/O write 1 0 1 WR=0
Interrupt
Ackn
1 1 1 INTA=0
Halt Z 0 0 RD,
WR =Z
and
INTA=1
Hold Z X X
Reset Z X X
28. External control signals
• INTR – interrupt request. Input signal
• INTA – interrupt acknowledge. o/p signal.
• RST7.5,RST 6.5, RST5.5 – restart interrupts.
Vectored interrupts. Higher priority.
• TRAP - Nonmaskable interrupt. Highest priority.
• Hold – request for the control of buses. O/P
signal
• HLDA – Hold Acknowledge. I/P signal
• READY – I/P signal. When low Mp waits for
integral number of clock cycles until it goes high.
30. 8080 functional block diagram
W
Temp Reg (8)
Z
Temp Reg (8)
H
(8)
L
(8)
B
(8)
C
(8)
D
(8)
E
(8)
Stack pointer
(16)
Program counter (16)
Incrementer/decrementer
Latch (16)
RegSelect
MUX
Address buffer (8) Data/Add buffer (8)
Instru
Register (8)
Instru
DecoderFlags
Accumu Temp Reg
Timing & control
Interrupt control Serial I/O control
31. Timing diaga. of Memory cycle
CLK
A15-A8
AD7-AD0
IO/M
RD
MEMRD
A7-A0 A7-A0
Data from
MPU
Data from
memory
WR
MEMWR
T1 T2 T3
ALE
T1 T2 T3
READ Cycle WRITE Cycle
32. Interfacing A Memory Chip
Memory
Chip
3 to 8
decoder
E1 E2 E3
A15
A14IO/M
A13
A12
A11
Q1
CEA10
A9
A0
D7
D0
D6
RD
WR
A15 A14 A13 A12 A11 A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0
• 2K Byte memory
• Memory address space of the chip:
8800H to 8FFFH
1 0 0 0 1 X X X X X X X X X X X
MEMSEL
8 8 - F 0 - F 0 - F
33. MVI A,32H Instruction
2000H 3EH ;MVI A, 32H
2001H 32H
00H; low-
order Add
3E; opcode
T1 T2 T3 T4 T1 T2 T3
20H; high-order address
01H; low-
order Add
32H; Data
Unspecified 20H; High-order address
Status IO/M=0,S1=1,S0=1; opcode fetch Status IO/M=0,S1=1,S0=0; data read
RD
ALE
AD7-AD0
A15-A8
M1 (Opcode-fetch) M2 (Memory Read)
34. OUT/IN instruction
• port address: 50H
2050 D3
2051 50
• Let input port address is 30H
2150 DB
2151 30
OUT 50H sends acc content to I/O address 50H
IN 30H reads content from I/O address 30H and
stores the value in accum
35. IN 30H instruction
50H DB from
memory
21H Port add 30H
Data from
Accumula
T1 T2 T3 T4 T1 T2 T3 T1 T2 T3
21H unspec
ified
Port addre
30H
51H
Port add
30H
IO/M
M1 M2 M3
RD
MEMRD
IORD
ALE
AD7-AD0
A15-A8
CLK
36. T1 T2 T3 T4 T1 T2 T3 T1 T2 T3
20H Port add, 50H20H unspec
ified
IO/M
OUT 50H instruction
M1 M2 M3
50H Port addre
50H
Data from
Accumula51H
Port add
50H
Opcode
D3
RD
MEMRD
IORD
ALE
AD7-AD0
A15-A8
CLK
IOWR
37. Device selection & Data Transfer
• Decode the IO address.
• Combine it with control
the signal to generate a
unique IO select pulse
that is generated only
when both signals are
asserted.
• Use it to activate the IO
port
• Address decoding can
be absolute or partial Decoder
Addresslines
Enable
Databus
IOR or IOW
NOR
To
Peripherals
Latch
Or
Tri-state
Buffer
38. Interfacing LED for display
• Given port add: FFH
• Use octal latch as o/p port.
• Steps for IO select pulse:
– Decode FF
– Use IO/M to make the port output only
– Use WR signal to write data to the port
39. IO/M
A7
A0 Q7
A10
A9
A0
+5 V
WR
IOSEL
A1
G
OE
D FF
MVI A, data
OUT FFH
HLT
* To interface a 7-segment display
you need to decide about the type of
7-segment: common anode or
common cathode
* Power supply connection to the LED
segments will be opposite.
* For common cathode a 0 is sent to
the respective pin to lit it up.
40. Interfacing DIP switches
•Let port address: 07H –
00H
•Partial decoding
•Must use pull-up
resistors.
IN 07H instruction reads
a byte into accumulator
from port 07H
3 to 8
decoder
E1 E2 E3
IO/M
A7
A5
Q0
D0
+5 V
RD
IOSELA6
OE
A4
A3
D1
D7
