Module 1 8086

MODULE 1 MCA-203 MICROPROCESSORS AND EMBEDDED SYSTEM ADMN 2014-‘17
Dept. of Computer Science And Applications, SJCET, Palai Page 2
1.1INTRODUCTION TO 8086
• It is a 16-bit μp.
• Has a 20 bit address bus can access up to 220
memory locations (1 MB).
• It can support up to 64K I/O ports.
• It provides 14, 16 -bit registers.
• It has multiplexed address and data bus AD0- AD15 and A16 – A19.
• Designed to operate in two modes, Minimum and Maximum.
• It requires +5V power supply.
• A 40 pin dual in line package.
• Address ranges from 00000H to FFFFFH
1.2REGISTER ORGANIZATION OF 8086
All the registers of 8086 are 16-bit registers. The general purpose registers can be used as either 8-bit
registers or 16-bit registers. The register set of 8086 can be categorized into 4 different groups. The
register organization of 8086 is shown in the figure.
Fig 1 Register organization of 8086
General Purpose Registers
• The first four registers are sometimes referred as data registers. They are the ax, bx, cx and dx
registers.

Fig 2 general purpose registers with functions
Pointers and Index Registers
 Used to keep offset addresses.
 Used in various forms of memory addressing.
SP: Stack pointer
– Used to access the stack segment
BP: Base Pointer
– Primarily used to access data on the stack
– Can be used to access data in other segments
 SI: Source Index register
– is required for some string operations
– When string operations are performed, the SI register points to memory locations in the data segment
which is addressed by the DS register. Thus, SI is associated with the DS in string operations.
 DI: Destination Index register
– is also required for some string operations.
– When string operations are performed, the DI register points to memory locations in the data segment
which is addressed by the ES register. Thus, DI is associated with the ES in string operations.
Segment Registers
 4 segments registers
 Code Segment register (CS)
 Data Segment register (DS)
 Extra Segment register (ES)
 Stack Segment register (SS).
CS: is used for addressing memory location in the code segment of the memory, where the executable
program is stored.
DS: points to the data segment of the memory where the data is stored.

ES: also refers to a segment in the memory which is another data segment in the memory.
SS: is used for addressing stack segment of the memory. The stack segment is that segment of memory
which is used to store stack data.
Flag Register
 A flag indicates some conditions produced by the execution of an instruction or controls .
 In 8086 contains
 a 16 bit flag register
 9 of the 16 are active flags and remaining 7 are undefined.
 6 flags indicates some conditions- status flags
 3 flags –control Flags
Fig 3 flag registers in 8086
Fig 4 status flags with purposes
Fig 5 control flags with purposes

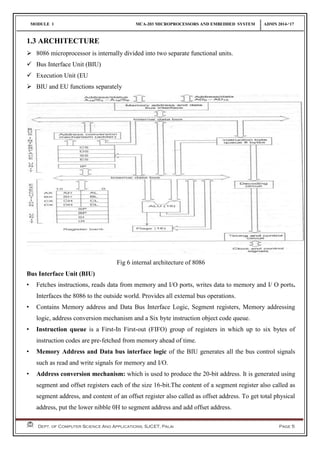

1.3 ARCHITECTURE
 8086 microprocessor is internally divided into two separate functional units.
 Bus Interface Unit (BIU)
 Execution Unit (EU
 BIU and EU functions separately
Fig 6 internal architecture of 8086
Bus Interface Unit (BIU)
• Fetches instructions, reads data from memory and I/O ports, writes data to memory and I/ O ports.
Interfaces the 8086 to the outside world. Provides all external bus operations.
• Contains Memory address and Data Bus Interface Logic, Segment registers, Memory addressing
logic, address conversion mechanism and a Six byte instruction object code queue.
• Instruction queue is a First-In First-out (FIFO) group of registers in which up to six bytes of
instruction codes are pre-fetched from memory ahead of time.
• Memory Address and Data bus interface logic of the BIU generates all the bus control signals
such as read and write signals for memory and I/O.
• Address conversion mechanism: which is used to produce the 20-bit address. It is generated using
segment and offset registers each of the size 16-bit.The content of a segment register also called as
segment address, and content of an offset register also called as offset address. To get total physical
address, put the lower nibble 0H to segment address and add offset address.

Fig 7 address conversion mechanism in 8086
Fig 8 example of address conversion
• Segment registers: hold the base address of where a particular segment begins in memory.
Execution Unit (EU):
• Executes instructions that have already been fetched by the BIU.
• Contains decoder, flags ,ALU,Timing and Control circuit and Register banks
• Decoder: translates instructions.
• ALU: perform arithmetic and logic operations.
• Register banks: eight 16-bit general registers. These are AX, BX, CX, DX, SP, BP, SI and DI.
• Flags: holds the status flags after an ALU operation.
• Timing and control Circuit: Generates control signals for internal and external operations of the
microprocessor
1.4 MEMORY SEGMENTATION
 The memory is organized as segmented memory.
 Physically available memory may be divided into a number of logical segments.
 The size of each segment is 64 KB
 A segment may be located anywhere in the memory
 Each of these segments can be used for a specific function.
 Code segment is used for storing the instructions.
 The stack segment used as a stack and it is used to store the return addresses.

 Data and extra segments are used for storing data byte.
Fig 9 memory segmentation in 8086
1.5 PINS AND SIGNALS
Pin diagram is shows all the signal pins used by the microprocessor and the sequence of the signals and
their connections. 8086 microprocessor is a 40 pin IC which operate on 5volt power supply.
Fig 10 pin diagram of 8086
AD0-AD15 (Bidirectional): Address/Data bus
 These are multiplexed address/ data bus.
 When AD lines are used to transmit memory address the symbol A is used instead of
AD, for example A0-A15.

 When data are transmitted over AD lines the symbol D is used in place of AD, for
example D0-D7, D8-D15 or D0-D15.

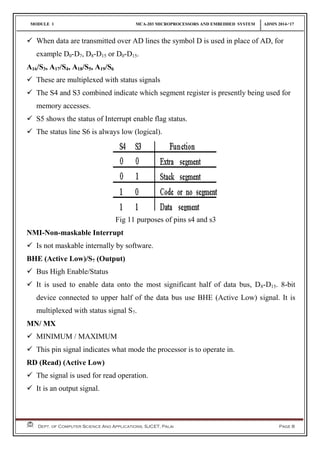

A16/S3, A17/S4, A18/S5, A19/S6
 These are multiplexed with status signals
 The S4 and S3 combined indicate which segment register is presently being used for
memory accesses.
 S5 shows the status of Interrupt enable flag status.
 The status line S6 is always low (logical).
Fig 11 purposes of pins s4 and s3
NMI-Non-maskable Interrupt
 Is not maskable internally by software.
BHE (Active Low)/S7 (Output)
 Bus High Enable/Status
 It is used to enable data onto the most significant half of data bus, D8-D15. 8-bit
device connected to upper half of the data bus use BHE (Active Low) signal. It is
multiplexed with status signal S7.
MN/ MX
 MINIMUM / MAXIMUM
 This pin signal indicates what mode the processor is to operate in.
RD (Read) (Active Low)
 The signal is used for read operation.
 It is an output signal.

 input is tested by the ‘WAIT’ instruction
 8086 will enter a wait state after execution of the WAIT instruction and will resume
execution only when the is made low by an active hardware.
 This is used to synchronize an external activity to the processor internal operation.
READY
 This is the acknowledgement from the slow device or memory that they have
completed the data transfer.
RESET (Input)
 Causes the processor to immediately terminate its present activity.
 The signal must be active HIGH for at least four clock cycles.
CLK
 The clock input provides the basic timing for processor operation and bus control
activity.
INTR (Interrupt Request)
 This is a triggered input. This is sampled during the last clock cycles of each
instruction to determine the availability of the request. If any interrupt request is
pending, the processor enters the interrupt acknowledge cycle.
DT/ (Data Transmit/ Receive)
 Output signal from the processor to control the direction of data flow through the data
transceivers.
(Data Enable)
 Output signal from the processor used as output enable for the transceivers
ALE (Address Latch Enable)
 Used to demultiplex the address and data lines using external latches
M/
 Used to differentiate memory access and I/O access. For memory reference
instructions, it is high. For IN and OUT instructions, it is low.
: Write control signal

 asserted low Whenever processor writes data to memory or I/O port
(Interrupt Acknowledge)
 When the interrupt request is accepted by the processor, the output is low on this line.
HOLD
 Input signal to the processor form the bus masters as a request to grant the control of
the bus.
HLDA (Hold Acknowledge)
 Acknowledge signal by the processor to the bus master requesting the control of the
bus through HOLD.

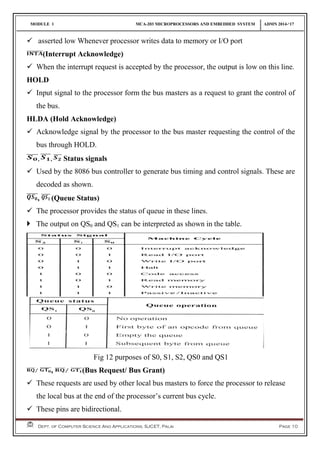

, , Status signals
 Used by the 8086 bus controller to generate bus timing and control signals. These are
decoded as shown.
, (Queue Status)
 The processor provides the status of queue in these lines.
 The output on QS0 and QS1 can be interpreted as shown in the table.
Fig 12 purposes of S0, S1, S2, QS0 and QS1
, (Bus Request/ Bus Grant)
 These requests are used by other local bus masters to force the processor to release
the local bus at the end of the processor’s current bus cycle.
 These pins are bidirectional.

 The request on will have higher priority than
 An output signal activated by the LOCK prefix instruction.
 The 8086 output low on the pin while executing an instruction prefixed by
LOCK to prevent other bus masters from gaining control of the system bus.
1.6 PHYSICAL MEMORY ORGANIZATION
 In an 8086 based system, the 1Mbyte memory is physically organized as odd bank and even bank,
each of 512kbytes, addressed in parallel by the processor.
 Byte data with even address is transferred on D0-D7 and byte data with odd address is transferred
on D8-D15.
 The processor provides two enable signals, BHE and A0 for selecting of either even or odd or both
the banks.
Fig 13 memory selection pins
Fig 14 physical memory organization

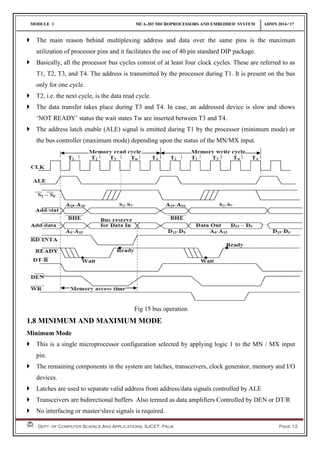

1.7 GENERAL BUS OPERATION
 The 8086 has a combined address and data bus commonly referred as a time multiplexed address
and data bus.
 The main reason behind multiplexing address and data over the same pins is the maximum
utilization of processor pins and it facilitates the use of 40 pin standard DIP package.
 The bus can be demultiplexed using a few latches and transceivers, whenever required.

 The main reason behind multiplexing address and data over the same pins is the maximum
utilization of processor pins and it facilitates the use of 40 pin standard DIP package.
 Basically, all the processor bus cycles consist of at least four clock cycles. These are referred to as
T1, T2, T3, and T4. The address is transmitted by the processor during T1. It is present on the bus
only for one cycle.
 T2, i.e. the next cycle, is the data read cycle.
 The data transfer takes place during T3 and T4. In case, an addressed device is slow and shows
‘NOT READY’ status the wait states Tw are inserted between T3 and T4.
 The address latch enable (ALE) signal is emitted during T1 by the processor (minimum mode) or
the bus controller (maximum mode) depending upon the status of the MN/MX input.
Fig 15 bus operation
1.8 MINIMUM AND MAXIMUM MODE
Minimum Mode
 This is a single microprocessor configuration selected by applying logic 1 to the MN / MX input
pin.
 The remaining components in the system are latches, transceivers, clock generator, memory and I/O
devices.
 Latches are used to separate valid address from address/data signals controlled by ALE
 Transceivers are bidirectional buffers Also termed as data amplifiers Controlled by DEN or DT/R
 No interfacing or master/slave signals is required.

 No bus controller required.
 The DEN signal indicates the direction of data, i.e. from or to the processor.
 The system contains memory for the monitor and users program storage. Usually, EPROM are used
for monitor storage, while RAM for user’s program storage. A system may contain I/O devices
Fig 18 minimum mode operation of 8086

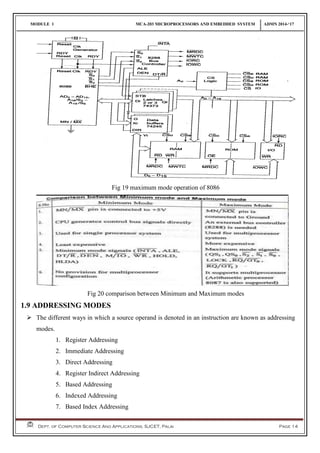

Maximum mode
 MN/MX connect to Ground
 Some control signals are generated externally by the 8288 bus controller chip
 8086 generates QS1, QS0, S0, S1, S2, LOCK, RQ/GT1, RQ/GT0 control signals.
 Max mode is used when math processor is used.
 Master/slave, multiplexing and several such control signals are required.
 The bus controller chip has input lines S2, S1, S0 and CLK. These inputs to 8288 are driven by
CPU.
 It derives the outputs ALE, DEN, DT/R, MRDC, MWTC, AMWC, IORC, IOWC and AIOWC.
The AEN, IOB and CEN pins are specially useful for multiprocessor systems.
 IORC, IOWC are I/O read command and I/O write command signals respectively. These signals
enable an IO interface to read or write the data from or to the address port.
 The MRDC, MWTC are memory read command and memory write command signals respectively
and may be used as memory read or write signals.

Fig 19 maximum mode operation of 8086
Fig 20 comparison between Minimum and Maximum modes
1.9 ADDRESSING MODES
 The different ways in which a source operand is denoted in an instruction are known as addressing
modes.
1. Register Addressing
2. Immediate Addressing
3. Direct Addressing
4. Register Indirect Addressing
5. Based Addressing
6. Indexed Addressing
7. Based Index Addressing

8. String Addressing
9. Direct I/O port Addressing
10. Indirect I/O port Addressing
11. Relative Addressing
12. Implied Addressing
1. Register Addressing
 The instruction will specify the name of the register which holds the data to be operated by the
instruction.
 Example:
MOV CL, DH
The content of 8-bit register DH is moved to another 8-bit register CL
(CL)  (DH)
2. Immediate Addressing
 an 8-bit or 16-bit data is specified as part of the instruction
 Example:
MOV DL, 08H
The 8-bit data (08H) given in the instruction is moved to DL (DL)  08H
3. Direct Addressing
 The address of the memory location at which the data operand is stored is given in the instruction.
The effective address is just a 16-bit number written directly in the instruction.
 Example:
MOV BX, [1354H]
MOV BL, [0400H]
The square brackets around the 1354H denotes the contents of the memory location. When
executed, this instruction will copy the contents of the memory location into BX register.
4. Register Indirect Addressing
 In Register indirect addressing, name of the register which holds the effective address (EA) will be
specified in the instruction.
 Registers used to hold EA are any of the following registers: BX, BP, DI and SI.
 Example:
MOV CX, [BX]
5. Based Addressing
 In Based Addressing, BX or BP is used to hold the base value for effective address and a signed 8-
bit or unsigned 16-bit displacement will be specified in the instruction.

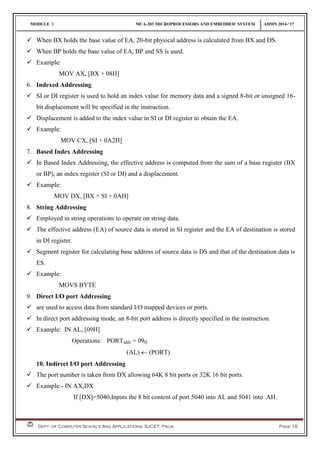

 When BX holds the base value of EA, 20-bit physical address is calculated from BX and DS.
 When BP holds the base value of EA, BP and SS is used.
 Example:
MOV AX, [BX + 08H]
6. Indexed Addressing
 SI or DI register is used to hold an index value for memory data and a signed 8-bit or unsigned 16-
bit displacement will be specified in the instruction.
 Displacement is added to the index value in SI or DI register to obtain the EA.
 Example:
MOV CX, [SI + 0A2H]
7. Based Index Addressing
 In Based Index Addressing, the effective address is computed from the sum of a base register (BX
or BP), an index register (SI or DI) and a displacement.
 Example:
MOV DX, [BX + SI + 0AH]
8. String Addressing
 Employed in string operations to operate on string data.
 The effective address (EA) of source data is stored in SI register and the EA of destination is stored
in DI register.
 Segment register for calculating base address of source data is DS and that of the destination data is
ES.
 Example:
MOVS BYTE
9. Direct I/O port Addressing
 are used to access data from standard I/O mapped devices or ports.
 In direct port addressing mode, an 8-bit port address is directly specified in the instruction.
 Example: IN AL, [09H]
Operations: PORTaddr = 09H
(AL)  (PORT)
10. Indirect I/O port Addressing
 The port number is taken from DX allowing 64K 8 bit ports or 32K 16 bit ports.
 Example:- IN AX,DX
If [DX]=5040,Inputs the 8 bit content of port 5040 into AL and 5041 into AH.

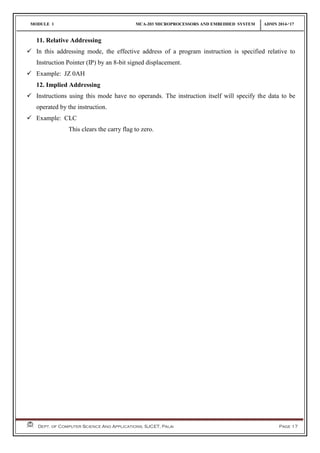

11. Relative Addressing
 In this addressing mode, the effective address of a program instruction is specified relative to
Instruction Pointer (IP) by an 8-bit signed displacement.
 Example: JZ 0AH
12. Implied Addressing
 Instructions using this mode have no operands. The instruction itself will specify the data to be
operated by the instruction.
 Example: CLC
This clears the carry flag to zero.

Module 1 8086

More Related Content

What's hot

Viewers also liked

Similar to Module 1 8086

More from Deepak John

Recently uploaded

Module 1 8086
