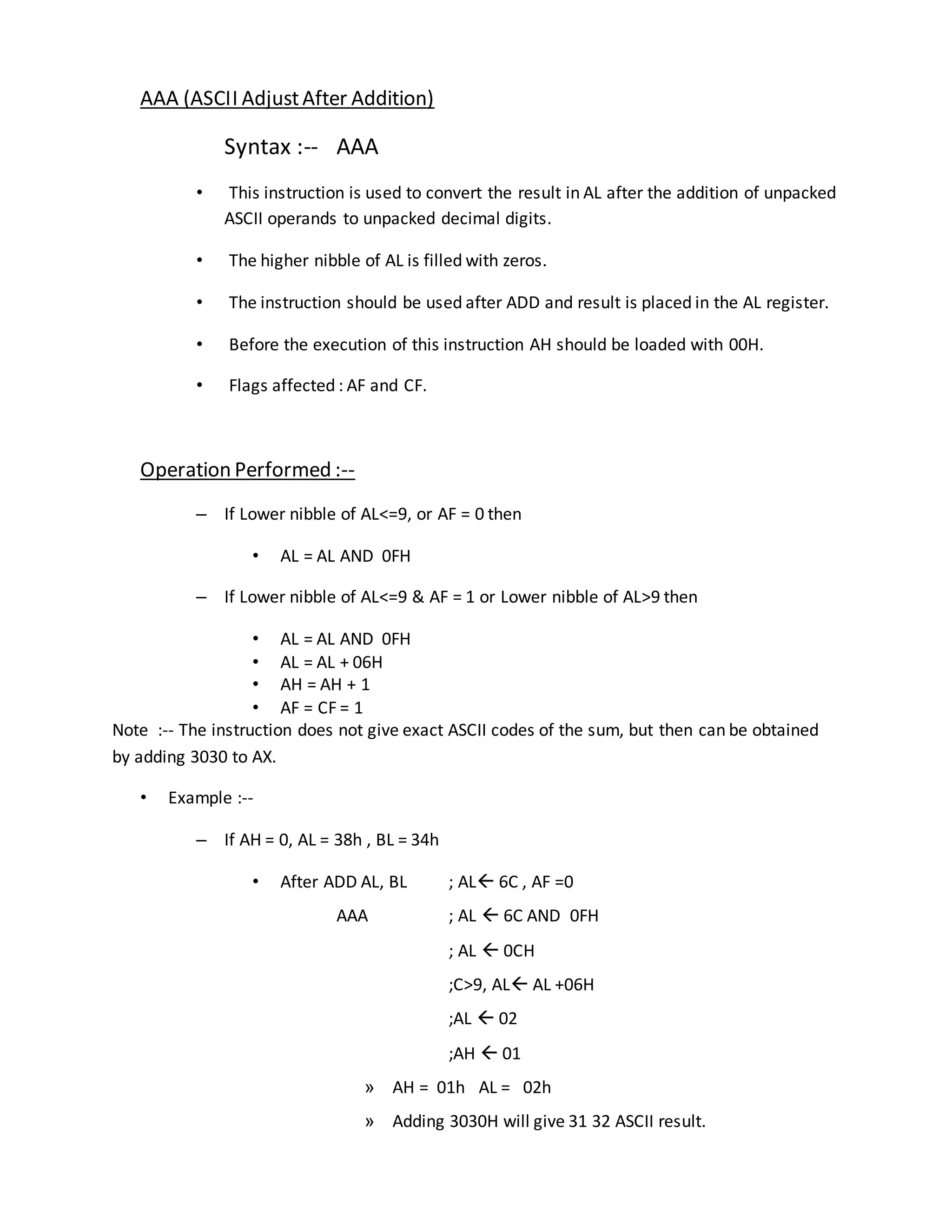

1. AAA (ASCII AdjustAfter Addition)
Syntax :-- AAA
• This instruction is used to convert the result in AL after the addition of unpacked
ASCII operands to unpacked decimal digits.
• The higher nibble of AL is filled with zeros.
• The instruction should be used after ADD and result is placed in the AL register.
• Before the execution of this instruction AH should be loaded with 00H.
• Flags affected : AF and CF.
Operation Performed :--
– If Lower nibble of AL<=9, or AF = 0 then
• AL = AL AND 0FH
– If Lower nibble of AL<=9 & AF = 1 or Lower nibble of AL>9 then
• AL = AL AND 0FH
• AL = AL + 06H
• AH = AH + 1
• AF = CF = 1
Note :-- The instruction does not give exact ASCII codes of the sum, but then can be obtained
by adding 3030 to AX.
• Example :--
– If AH = 0, AL = 38h , BL = 34h
• After ADD AL, BL ; AL 6C , AF =0
AAA ; AL  6C AND 0FH
; AL  0CH
;C>9, AL AL +06H
;AL  02
;AH  01
» AH = 01h AL = 02h
» Adding 3030H will give 31 32 ASCII result.

2. • AAS (ASCII AdjustAfter Subtraction )
Syntax :-- AAS
• This instruction is used to convert the result in AL after the subtraction of unpacked
ASCII operands to unpacked decimal digits..
• The higher nibble of AL is filled with zeros.
• The instruction should be used after SUB and result is placed in the AL register.
• Before the execution of this instruction AH should be loaded with 00H.
• Flags affected : AF and CF.
Operation Performed :--
– If Lower nibble of AL<=9, or AF = 0 then
• AL = AL AND AL 0FH
– If Lower nibble of AL<=9 & AF = 1 or Lower nibble of AL>9 then
• AL = AL AND AL 0FH
• AL = AL - 06H
• AH = AH - 1
• AF = CF = 1
Note :-- The instruction does not give exact ASCII codes of the difference, but then can be
obtained by adding 3030 to AX.
• Example1 :--
– If AH = 0, AL = 39h , BL = 35h
• After SUB AL, BL ; AL 04H , AF =0
AAS ; AL  04H AND 0FH
; AL  04H
; AH = 00h AL = 04h
» Adding 3030H will give 30 34 ASCII result.

3. • Example 2:--
– If AH = 0, AL = 35h , BL = 39h
• After SUB AL, BL ; AL FCH , AF =1
» AAS ; AL  FCH AND 0FH
; AL  0CH
; C>9 AL  AL -06
; AH  00 – 01
; AH FFH
; AL 04
AAM (ASCII AdjustAfter Multiplication)
Syntax :-- AAM
• This instruction is used to convert the product in AL after the multiplication into
unpacked BCD format.
• The higher nibble of multiplication operands is filled with zeros.
• The instruction should be used after MUL and result is placed in the AX register.
• The binary number in AL register is divided by 10 and quotient is stored in the register
AH, Remainder in AL.
• Flags affected : PF, SF and ZF
Operation Performed :--
• AL = AL MOD 10
• AH = AL / 10
• Example :--
1. If AH = 0, AL = 06h , BL = 08h
• After MUL BL ; AL 30H
AAM ; AL  30H MOD 10 (48/10)
; AL 08
; AH  AL / 10 (48 /10)
; AH  04 Hence AH = 04h AL = 08h

4. AAD (ASCII AdjustBeforeDivision)
Syntax :-- AAD
• This instruction is used to convert the unpacked BCD digitS in AH and AL
to the equivalent binary number in the AL register.
• The higher nibble of AH and AL are filled with zeros.
• The instruction should be used before division instruction.
• The instruction will place the quotient in AL register and Remainder in
AH.
• Flags affected : PF, SF and ZF
Operation Performed :--
• AL = AH * 10 + AL
• AH = 00
• Example:--
1. If AH = 05, AL = 08 , BL = 07H
• After AAD ; AL 05 * 10 + 08
; AL  3AH
; AH  00H
DIV BL ; Quo  08H , Rem  02H
AH = 02h
AL = 08h
