Joining
1. The document discusses various joining and fastening processes including welding, brazing, soldering, adhesive bonding, and mechanical fastening. 2. Welding processes are divided into fusion welding, solid-state welding, and high-energy beam welding. Common fusion welding techniques include oxy-fuel gas welding, shielded metal arc welding, and gas metal arc welding. 3. Solid-state welding techniques involve bonding materials without melting, using methods like friction welding, ultrasonic welding, and diffusion bonding. 4. Mechanical fastening is widely used due to its low cost, ease of assembly and disassembly, and ability
More Related Content
Joining
- 1.
- 2. WHY JOINING? Easeof manufacturing part by part. Manufacture as a single then assembling. To take part apart for repair or maintenance. Different properties for functional purpose. Ease of transporting as individual part. Source: http://archives.frederatorblogs.com/the_finster_finster_show/files/2008/04/finster-weld-board.jpg

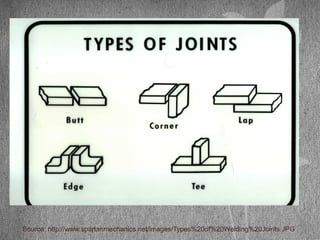

- 3.
- 4.

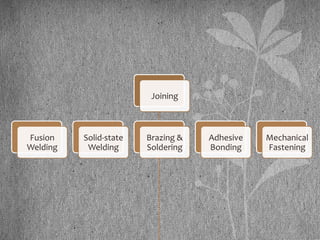

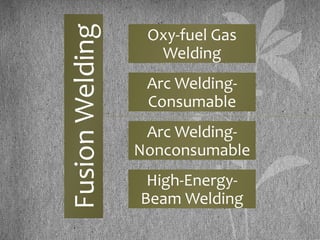

- 5. FusionWelding Oxy-fuel Gas Welding Arc Welding- Consumable ArcWelding- Nonconsumable High-Energy- Beam Welding
- 6. Oxy-Fuel Gas Welding •Fuelgas is used as the source of heat. •The most common used gas is acetylene. •For structural sheet-metal fabrication, automotive bodies and various other repair works. Source:http://www.corrosionist.com/oxyfuel%20gas%20welding.jpg
- 7.

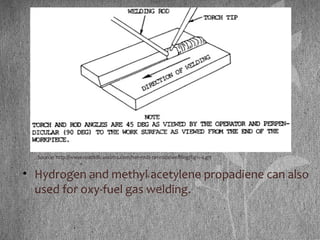

- 8. • Hydrogen andmethyl acetylene propadiene can also used for oxy-fuel gas welding. Source: http://www.roadkillcustoms.com/hot-rods-rat-rods/welding/fig11-4.gif
- 9.

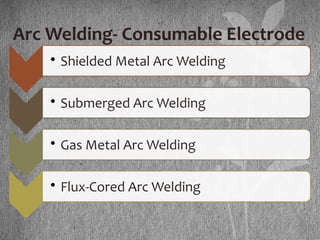

- 10. • Shielded MetalArc Welding • Submerged Arc Welding • Gas Metal Arc Welding • Flux-Cored Arc Welding Arc Welding- Consumable Electrode

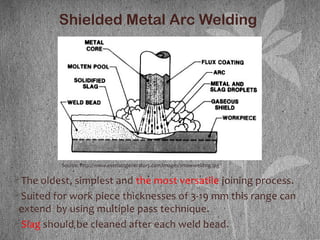

- 11. Shielded Metal ArcWelding The oldest, simplest and the most versatile joining process. Suited for work piece thicknesses of 3-19 mm this range can extend by using multiple pass technique. Slag should be cleaned after each weld bead. Source: http://www.everlastgenerators.com/images/smawwelding.jpg

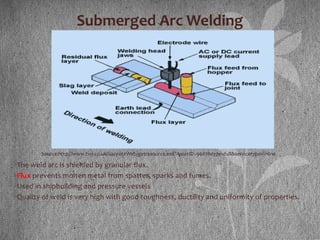

- 12. Submerged Arc Welding Theweld arc is shielded by granular flux. Flux prevents molten metal from spatter, sparks and fumes. Used in shipbuilding and pressure vessels Quality of weld is very high with good toughness, ductility and uniformity of properties. Source:http://www.twi.co.uk/EasysiteWeb/getresource.axd?AssetID=9687&type=full&servicetype=Inline

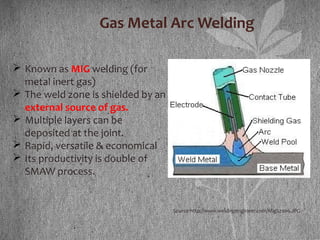

- 13. Gas Metal ArcWelding Source:http://www.weldingengineer.com/Mig%2006.JPG Known as MIG welding (for metal inert gas) The weld zone is shielded by an external source of gas. Multiple layers can be deposited at the joint. Rapid, versatile & economical Its productivity is double of SMAW process.

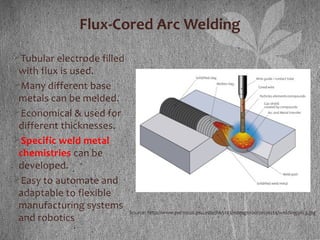

- 14. Flux-Cored Arc Welding Tubularelectrode filled with flux is used. Many different base metals can be melded. Economical & used for different thicknesses. Specific weld metal chemistries can be developed. Easy to automate and adaptable to flexible manufacturing systems and robotics Source: http://www.personal.psu.edu/jhk5143/edesgn100/project4/welding/pic3.jpg

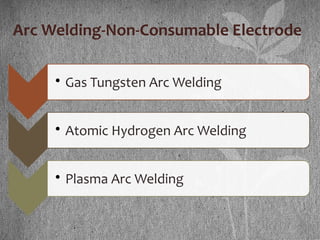

- 15. • Gas TungstenArc Welding • Atomic Hydrogen Arc Welding • Plasma Arc Welding Arc Welding-Non-Consumable Electrode

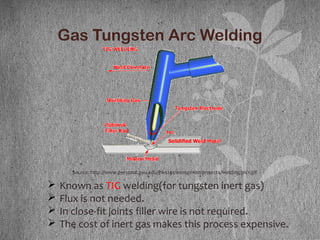

- 16. Gas Tungsten ArcWelding Source: http://www.personal.psu.edu/jhk5143/edesgn100/project4/welding/pic1.gif Known as TIG welding(for tungsten inert gas) Flux is not needed. In close-fit joints filler wire is not required. The cost of inert gas makes this process expensive.

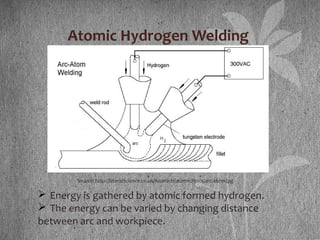

- 17. Atomic Hydrogen Welding Source:http://lateralscience.co.uk/AtomicH/atomicHpics/arc-atom.jpg Energy is gathered by atomic formed hydrogen. The energy can be varied by changing distance between arc and workpiece.

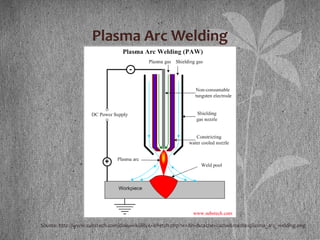

- 18. Plasma Arc Welding Source:http://www.substech.com/dokuwiki/lib/exe/fetch.php?w=&h=&cache=cache&media=plasma_arc_welding.png

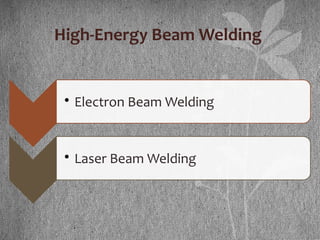

- 19. • Electron BeamWelding • Laser Beam Welding High-Energy Beam Welding

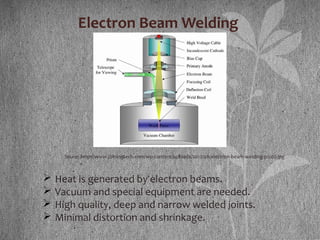

- 20. Electron Beam Welding Souce:http://www.joiningtech.com/wp-content/uploads/2012/08/electron-beam-welding-pic02.jpg Heat is generated by electron beams. Vacuum and special equipment are needed. High quality, deep and narrow welded joints. Minimal distortion and shrinkage.

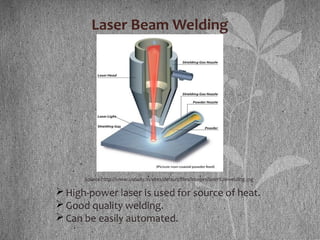

- 21. Laser Beam Welding High-powerlaser is used for source of heat. Good quality welding. Can be easily automated. Source:http://www.ustudy.in/sites/default/files/images/laser%20welding.jpg

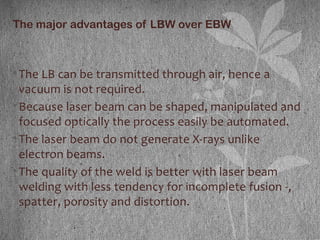

- 22. The major advantagesof LBW over EBW •The LB can be transmitted through air, hence a vacuum is not required. •Because laser beam can be shaped, manipulated and focused optically the process easily be automated. •The laser beam do not generate X-rays unlike electron beams. •The quality of the weld is better with laser beam welding with less tendency for incomplete fusion -, spatter, porosity and distortion.
- 23. • Cold Welding •Ultrasonic Welding • Friction Welding • Resistance Welding • Explosion Welding • Diffusion Welding Solid –State Welding

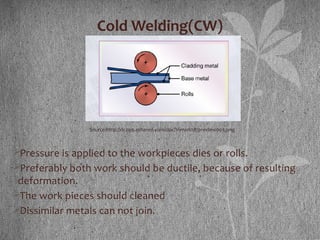

- 24. Cold Welding(CW) Pressure isapplied to the workpieces dies or rolls. Preferably both work should be ductile, because of resulting deformation. The work pieces should cleaned Dissimilar metals can not join. Source:http://dc299.4shared.com/doc/1nmxrl0R/preview003.png

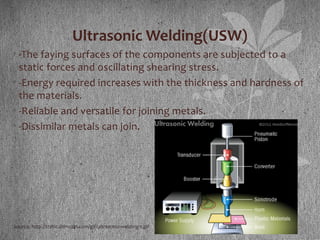

- 25. Ultrasonic Welding(USW) • -Thefaying surfaces of the components are subjected to a static forces and oscillating shearing stress. • -Energy required increases with the thickness and hardness of the materials. • -Reliable and versatile for joining metals. • -Dissimilar metals can join. Source: http://static.ddmcdn.com/gif/ultrasonic-welding-1.gif
- 26. Friction Welding(FRW) Processcan be fully automated. Can be used to join wide variety of materials. Source:http://www.kuka-systems.com/NR/rdonlyres/2DAC0F4D-BB7B-4916-A59D-91259B3391B5/0/reibschweissverfahren_250x200.jpg
- 27.

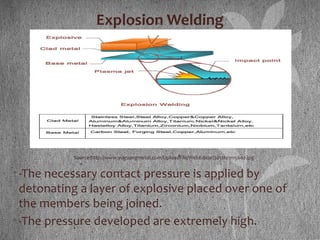

- 28. Explosion Welding •-The necessarycontact pressure is applied by detonating a layer of explosive placed over one of the members being joined. •-The pressure developed are extremely high. Source:http://www.yuguangmetal.com/UploadFile/WebEditor/2012103115602.jpg

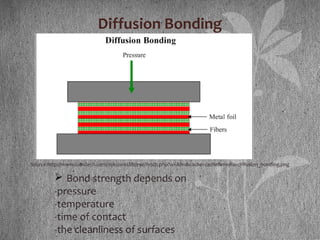

- 29. Diffusion Bonding Source:http://www.substech.com/dokuwiki/lib/exe/fetch.php?w=&h=&cache=cache&media=diffusion_bonding.png Bondstrength depends on -pressure -temperature -time of contact -the cleanliness of surfaces
- 30. BRAZING AND SOLDERING Brazing Strong Clean surface The choice of filler metal and its composition Small and thin parts. Source:http://www.abbottfurnace.com/images/technology/fundamentals/brazing/fundamentals-brazing-fig-2.gif

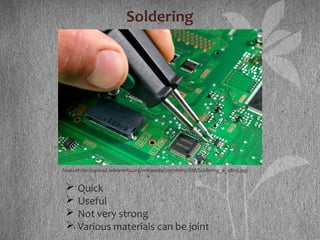

- 31. Soldering Sourcehttp://upload.wikimedia.org/wikipedia/commons/f/f8/Soldering_a_0805.jpg: Quick Useful Not very strong Various materials can be joint
- 32. Adhesive bonding Bookbinding, labeling,home furnishing, packaging and footwear. Used in aerospace, automotive, appliances and building products. Source:http://aluminium.matter.org.uk/content/media/images/joinAdhesedMan.gif

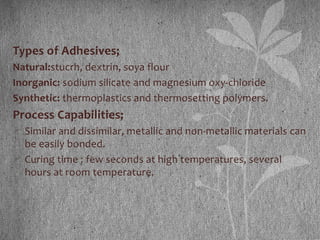

- 33. Types of Adhesives; Natural:stucrh,dextrin, soya flour Inorganic: sodium silicate and magnesium oxy-chloride Synthetic: thermoplastics and thermosetting polymers. Process Capabilities; Similar and dissimilar, metallic and non-metallic materials can be easily bonded. Curing time : few seconds at high temperatures, several hours at room temperature.

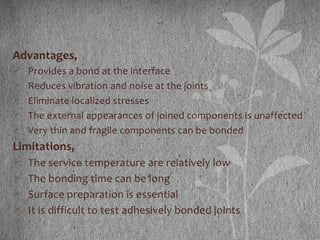

- 34. Advantages, Provides abond at the interface Reduces vibration and noise at the joints Eliminate localized stresses The external appearances of joined components is unaffected Very thin and fragile components can be bonded Limitations, The service temperature are relatively low The bonding time can be long Surface preparation is essential It is difficult to test adhesively bonded joints

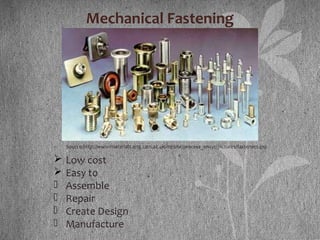

- 35. Mechanical Fastening Source:http://www-materials.eng.cam.ac.uk/mpsite/process_encyc/pictures/fasteners.jpg Lowcost Easy to - Assemble - Repair - Create Design - Manufacture

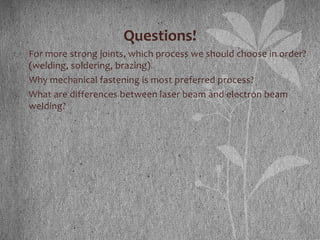

- 36. Questions! 1. For morestrong joints, which process we should choose in order? (welding, soldering, brazing) 2. Why mechanical fastening is most preferred process? 3. What are differences between laser beam and electron beam welding?
- 37. Links for Videos Arcwelding : https://www.youtube.com/watch?v=TeBX6cKKHWY Laser Beam Welding: https://www.youtube.com/watch?v=Gsj44ObhL24 Friction Welding: https://www.youtube.com/watch?v=-aEuAK8bsQg Diffusion Welding: ttps://www.youtube.com/watch?v=5EhMYMr834o Adhesive Bonding: https://www.youtube.com/watch?v=tMXyDKJ_Hqw
Editor's Notes
- #3 -The product is impossible or uneconomical to manufacture as a single piece. -The product is easier to manufacture in individual components, which are then assembled, than as a single piece. -The product may have to be taken apart for repair or maintenance during its service life. -Different properties may be desirable for functional purpose of the product. -Transportation of the product in individual components as subsequent assembly may be easier and more economical than transporting it as a single piece.
- #7 *Welding process that uses a fuel gas, combined with oxygen to produce a flame as the source of the heat required to melt the metals at the joint. *The most common used gas is acetylene. *Typically used for structural sheet-metal fabrication, automotive bodies and various other repair works. *Filler metals are used to supply additional metal to the weld zone during welding. They are available as filler rods or wire.

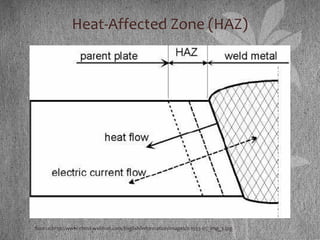

- #8 The heat affected zone is within the base metal itself. It has microstructure different than the base metal because it has been subjected to elevated temperatures for a period of time during welding.
- #9 *Other fuel gases, such as hydrogen and methyl acetylene propadiene can also be used in oxy-fuel gas welding. However, the temperatures developed by these gases are low; hence they are used for metals with low melting points, such as lead and for parts that are thin and small

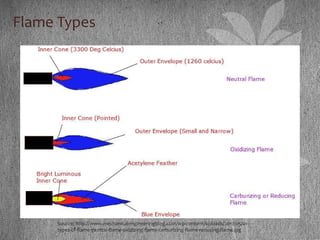

- #10 *Oxidizing flames form a thin protective layer of slag over the molten metal. *Carburizing flames is also used in cutting operations.
- #12 *One of the oldest, simplest, and the most versatile joining processes, currently about one-half of all industrial and maintenance welding is performed by this process. *The electrodes are in the shape of thin, long sticks hence this process is also known as stick welding. *The SMAW process is best suited for workpiece thicknesses of 3-19 mm, although this range can easily be extended by using multiple-pass techniques. *This process requires that slag( compounds of oxides, fluxes and electrode coating materials) be cleaned after each weld bead. *Slag should also be completely removed, such as by wire brushing, before another weld is applied for multiple-pass welding; thus labor costs are high as the material costs.
- #13 *The weld arc is shielded by granular flux(consisting of lime, silica, manganese oxide, calcium fluoride, and other elements) which is fed into the weld zone by gravity flow through a nozzle. *The thick layer of flux cover the molten metal and prevents weld spatter and sparks and suppresses the intense radiation and fumes. *The flux also acts as a thermal insulator, allowing deep penetration of heat into the workpiece. *Typical applications include thick-plate welding for shipbuilding and fabrication of pressure vessels. *The quality of the weld is very high, with good toughness, ductility and uniformity of properties. *The process provides very high welding productivity, depositing 4 to 10 times the amount of weld metal per hour as deposited by the SMAW process.
- #14 *Formerly called MIG welding (for metal inert gas) *In gas metal arc welding, the weld area is shielded by an external source of gas, such as argon, helium, carbon dioxide, or various other gas mixtures. *The consumable bare wire is fed automatically through a nozzle into the weld arc and multiple weld layers can be deposited at the joint. *The process is rapid, versatile and economical *Its productivity is double that of the SMAW process.
- #15 *This process is similar to gas metal arc welding, with the exception that the electrode is tubular in shape and is filled with flux. *The flux chemistry enables welding of many different base metals. *The flux-cored arc welding process combines the versatility of SMAW with the continuous and automatic electrode feeding feature of GMAW. *Economical and used for welding variety of joints with different thicknesses, mainly with steels, stainless steels and nickel alloys. *A major advantages of FCAW is the ease with which specific weld metal chemistries can be developed. *Easy to automate and readily adaptable to flexible manufacturing systems and robotics.
- #17 *Formerly known as TIG welding(for tungsten inert gas) *A filler metal is typically supplied from a filler wire. *It may be done without filler metals such as in close-fit joints. *Flux is not used, and the shielding gas is usually argon or helium or a mixture of the two. *AC is preferred for aluminum and magnesium because the cleaning action of AC removes oxides and improves weld quality. *Suitable for thin metals. *The cost of the inert gas makes this process more expensive than SMAW but it provides welds with very high quality and good surface finish.
- #18 *In AHW an arc is generated between two tungsten electrodes in a shielding atmosphere of flowing hydrogen gas. *Near the arc the hydrogen breaks down into its atomic form and absorb a large amount of heat from the arc. *The energy in AHW can easily be varied by changing the distance between the arc stream and the workpiece surface.
- #19 *A concentrated plasma arc is produced and directed toward the weld area. *Compared with other arc welding processes, PAW has a greater energy concentration hence deeper and narrower welds can be made, better arc stability, less thermal distortion and higher welding speeds. *A variety of metals can be welded, generally with thicknesses less than 6 mm. *Often used for butt and lap joints.
- #21 *Heat is generated by high-velocity, narrow-beam electrons. *The kinetic energy of beams is converted into heat as the electrons strike the workpiece. *The process requires special equipment to focus the beam on the workpiece and a vacuum. *EBW has the capability of producing high-quality, deep and narrow welds that are almost parallel sided and have small heat-affected zones. *Distortion and shrinkage in the weld are minimal and the weld quality is good with very high purity. *Typical applications include welding of aircraft, missile, nuclear and electronic components.
- #22 *LBW uses a high-power laser beam as the source of heat to produce fusion weld. I*t has high energy density therefore deep penetration capability. *Suitable for deep and narrow joints. *The efficiency of the process decreases with increasing reflectivity of the workpiece. *LBW produces welds of good quality with minimum shrinkage and distortion. *LBW has good strength and is generally ductile and free of porosity. *Typical applications transmission shaft components, thin electronic parts, automotive body panels.
- #25 *Pressure is applied to the workpieces dies or rolls. *Preferably both work should be ductile, because of resulting deformation. *The work pieces should cleaned *Dissimilar metals can not join.
- #27 -The heat required for welding is generated through friction at the interface of two members being joined; thus, the source of energy is mechanical. -One of the components remains stationary and the other one rotated at a high constant speed. The two parts to be joined are then brought into contact under an axial force.

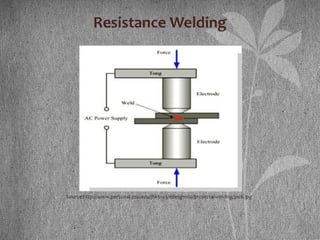

- #28 -A process which the heat required is produced by means of electerical resistance across the two components. -It doesn’t require; -consumable electrons -shielding gases -flux
