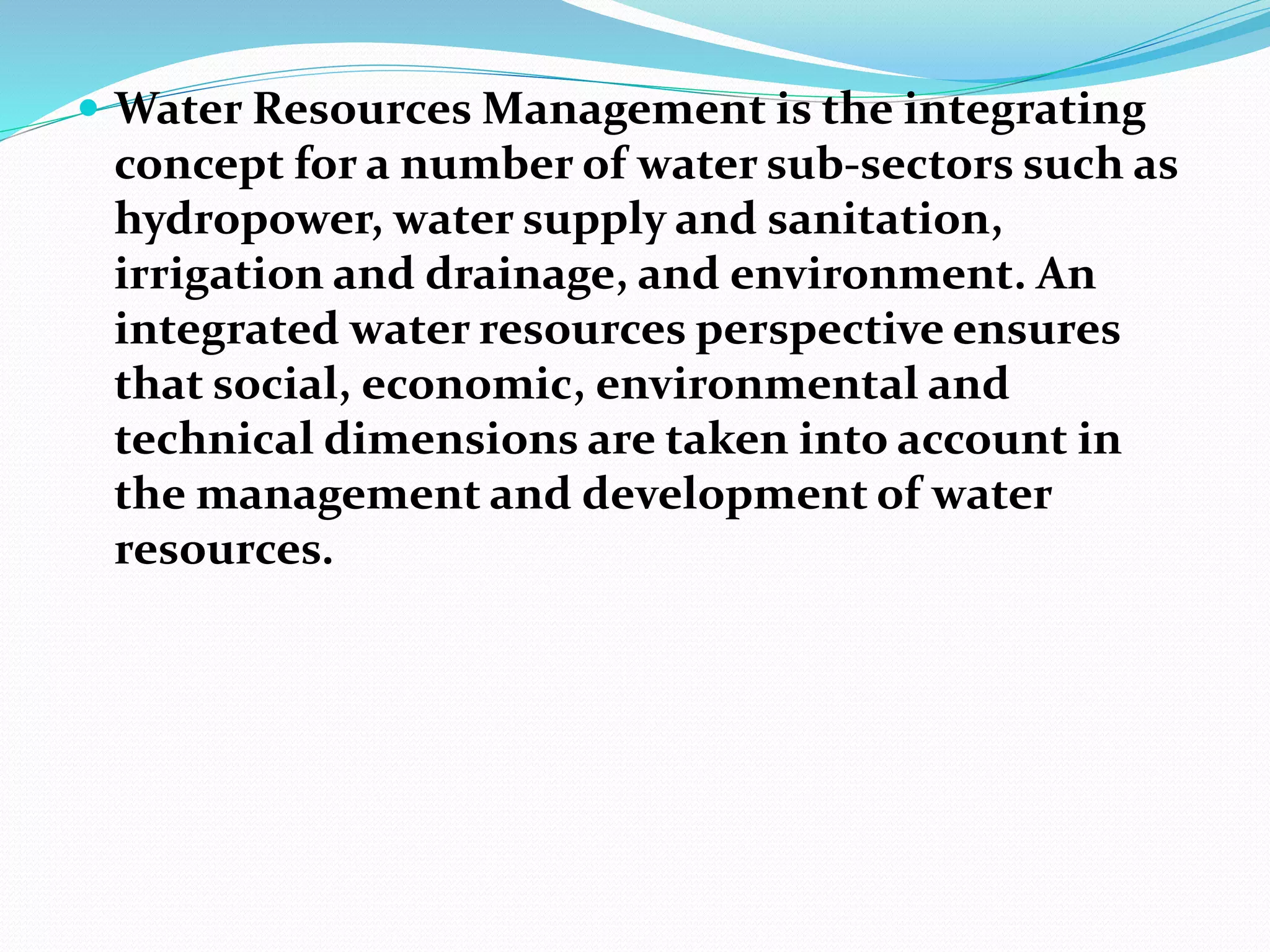

 Water Resources Management is the integrating
concept for a number of water sub-sectors such as
hydropower, water supply and sanitation,
irrigation and drainage, and environment. An
integrated water resources perspective ensures
that social, economic, environmental and
technical dimensions are taken into account in
the management and development of water
resources.

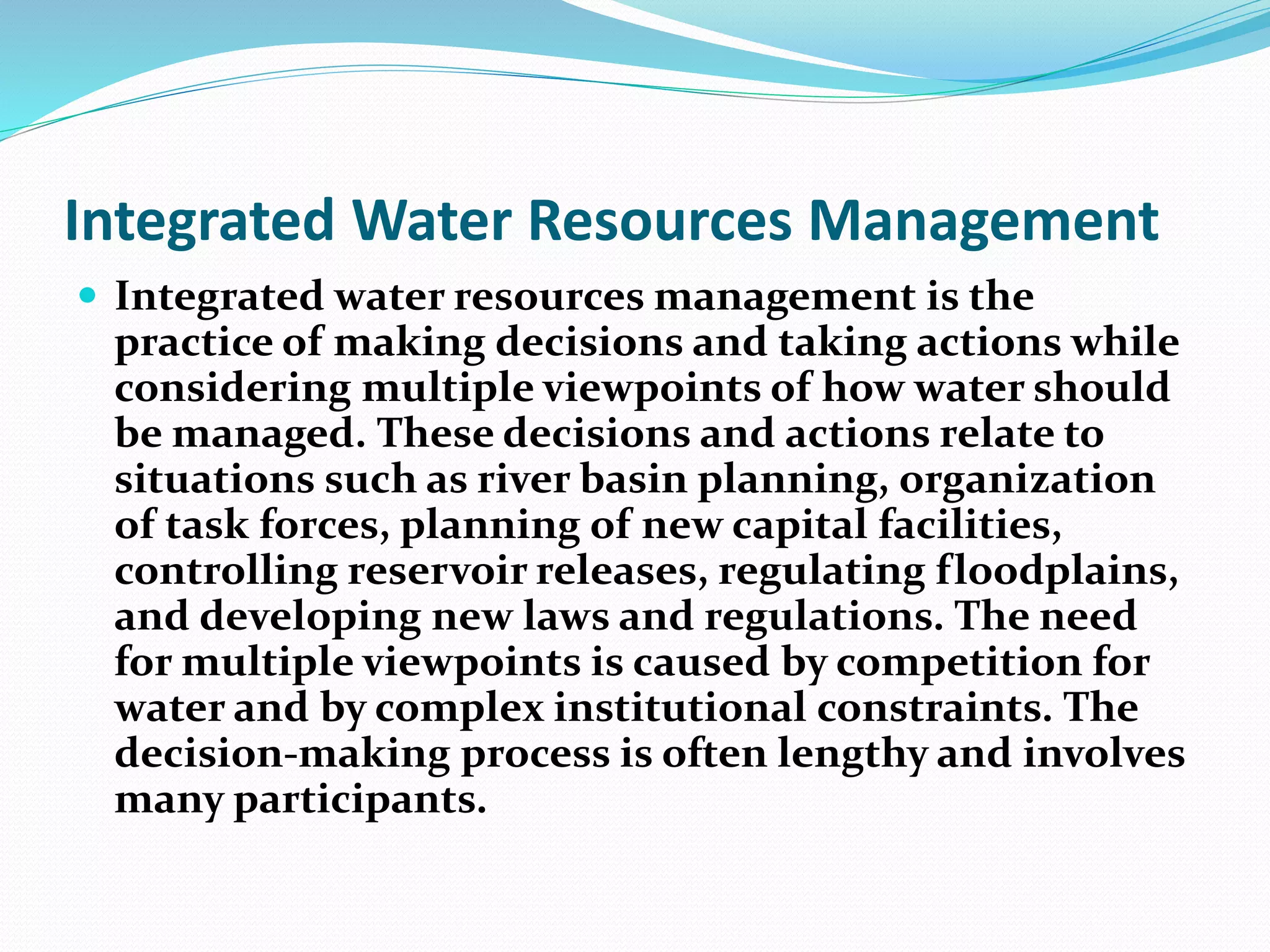

Integrated Water Resources Management
 Integrated water resources management is the
practice of making decisions and taking actions while
considering multiple viewpoints of how water should
be managed. These decisions and actions relate to
situations such as river basin planning, organization
of task forces, planning of new capital facilities,
controlling reservoir releases, regulating floodplains,
and developing new laws and regulations. The need
for multiple viewpoints is caused by competition for
water and by complex institutional constraints. The
decision-making process is often lengthy and involves
many participants.

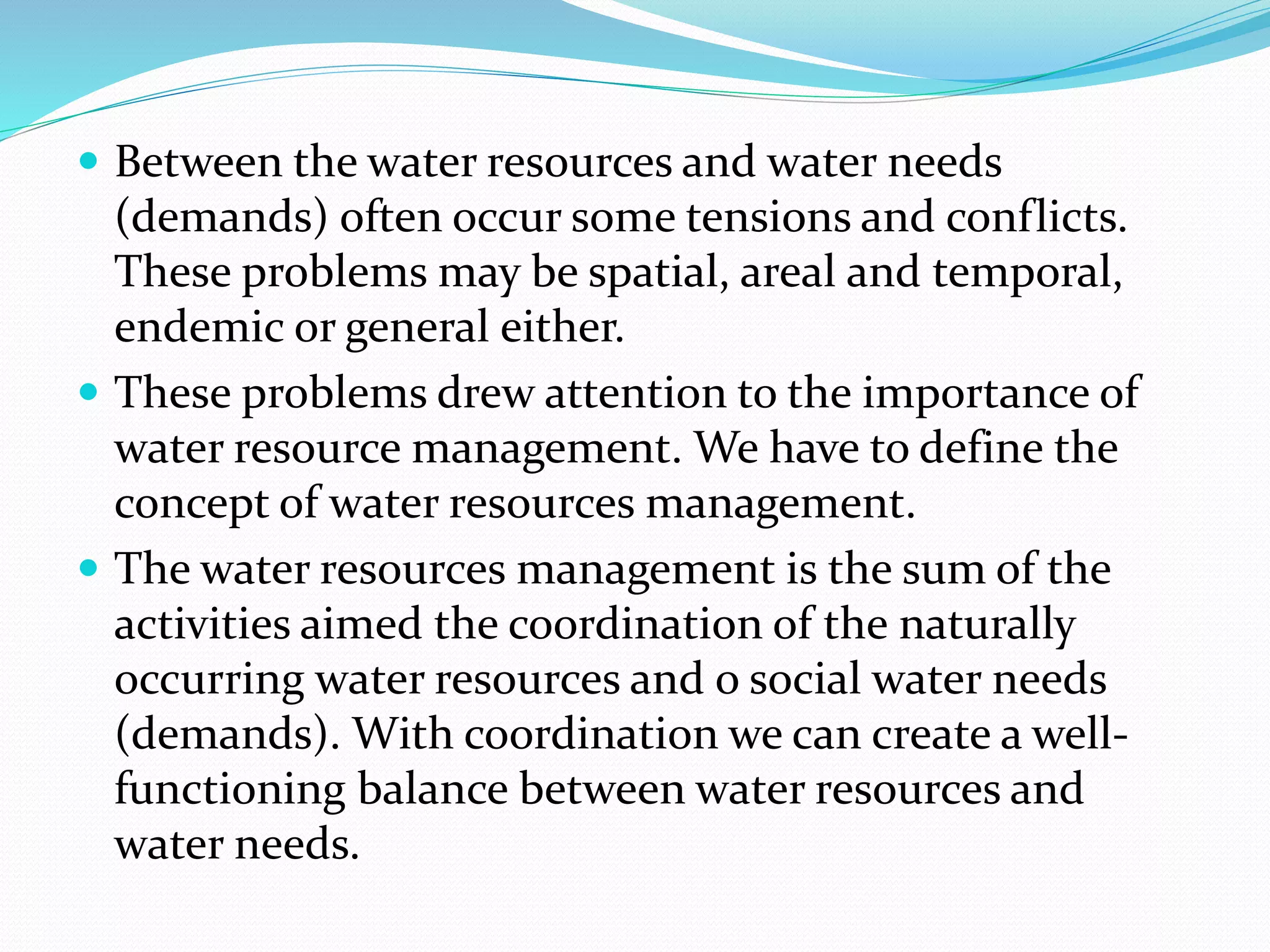

 Between the water resources and water needs
(demands) often occur some tensions and conflicts.
These problems may be spatial, areal and temporal,
endemic or general either.
 These problems drew attention to the importance of
water resource management. We have to define the
concept of water resources management.
 The water resources management is the sum of the
activities aimed the coordination of the naturally
occurring water resources and o social water needs
(demands). With coordination we can create a well-
functioning balance between water resources and
water needs.

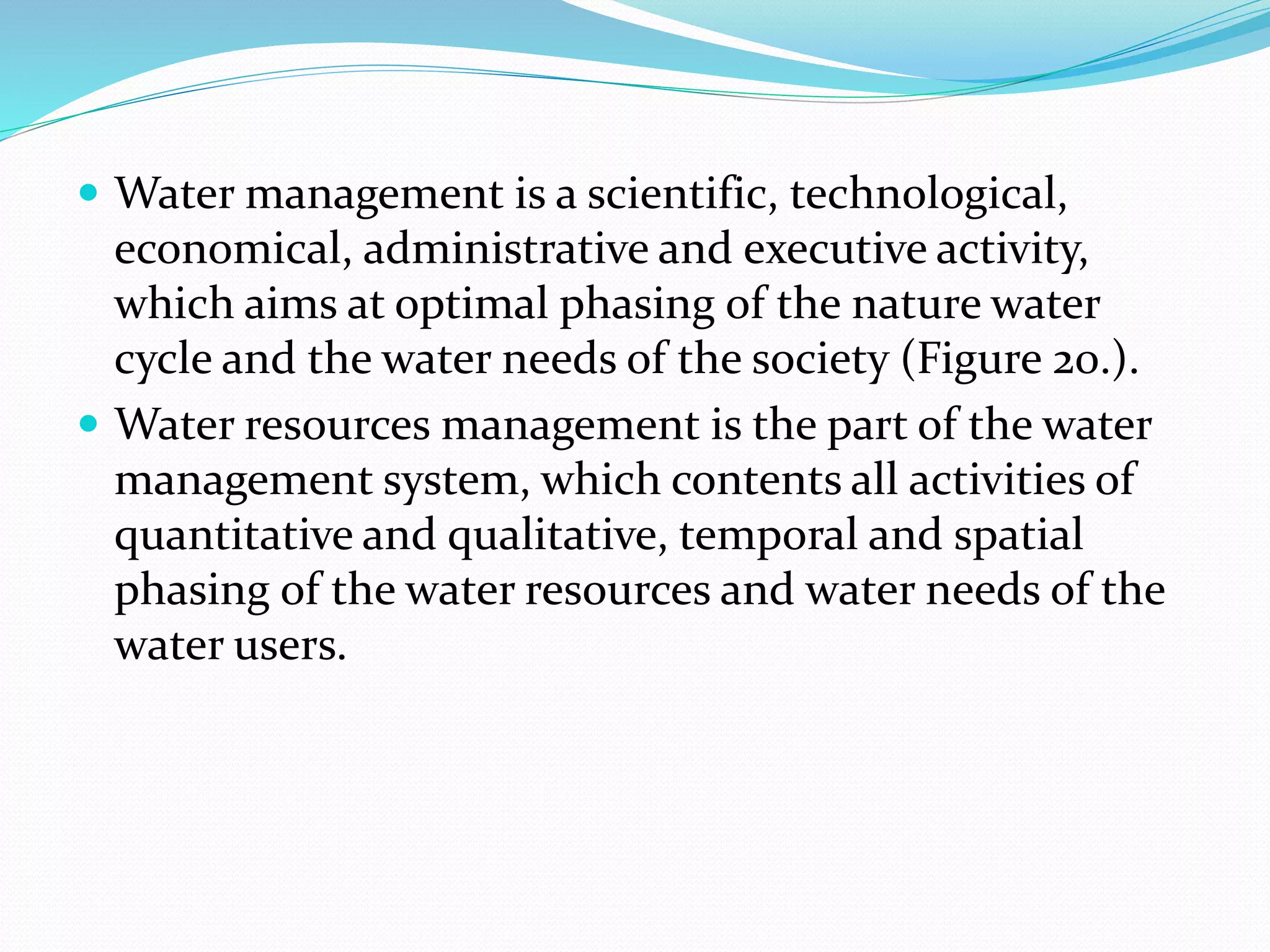

 Water management is a scientific, technological,
economical, administrative and executive activity,
which aims at optimal phasing of the nature water
cycle and the water needs of the society (Figure 20.).
 Water resources management is the part of the water
management system, which contents all activities of
quantitative and qualitative, temporal and spatial
phasing of the water resources and water needs of the
water users.

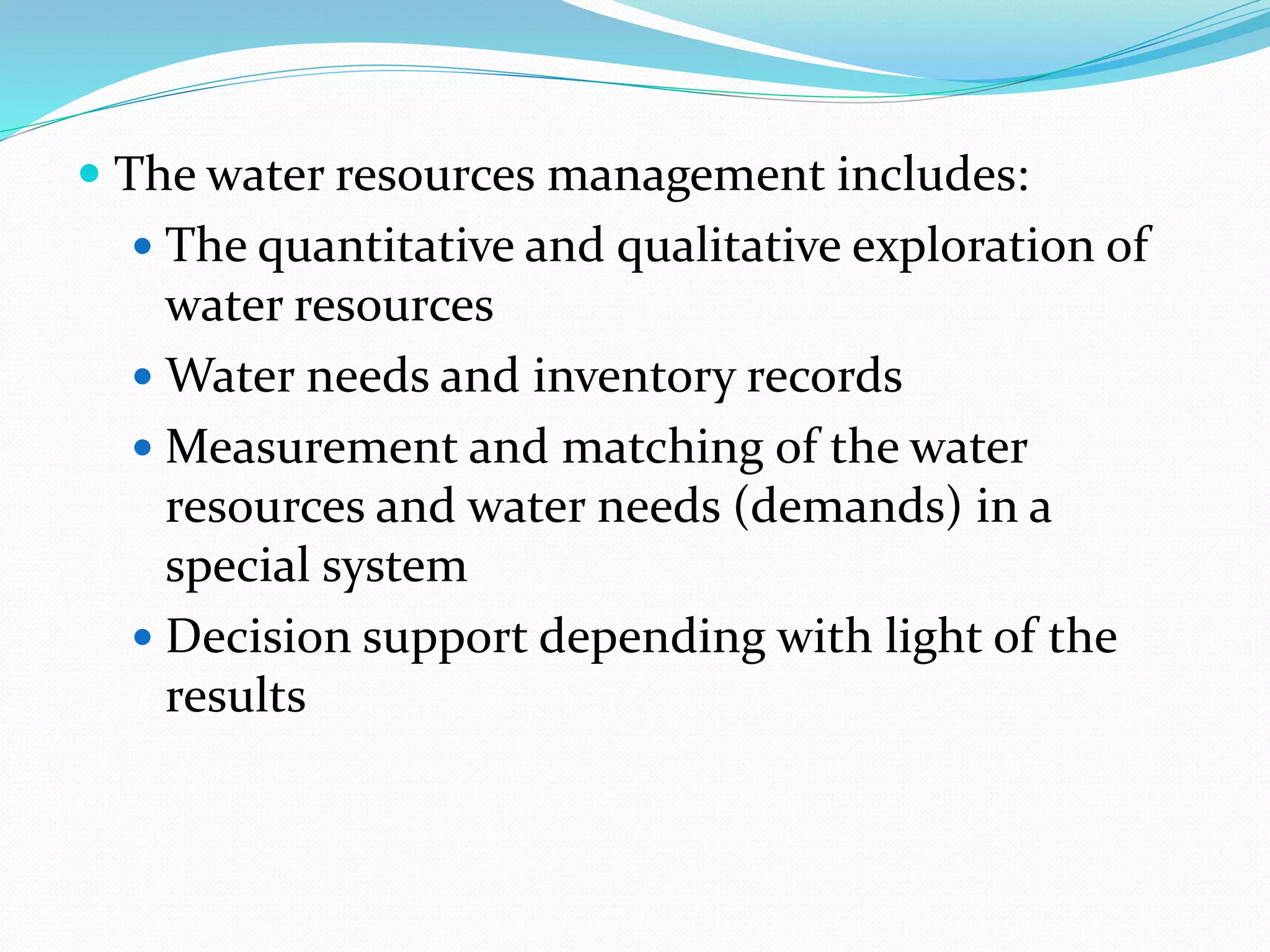

 The water resources management includes:
 The quantitative and qualitative exploration of
water resources
 Water needs and inventory records
 Measurement and matching of the water
resources and water needs (demands) in a
special system
 Decision support depending with light of the
results

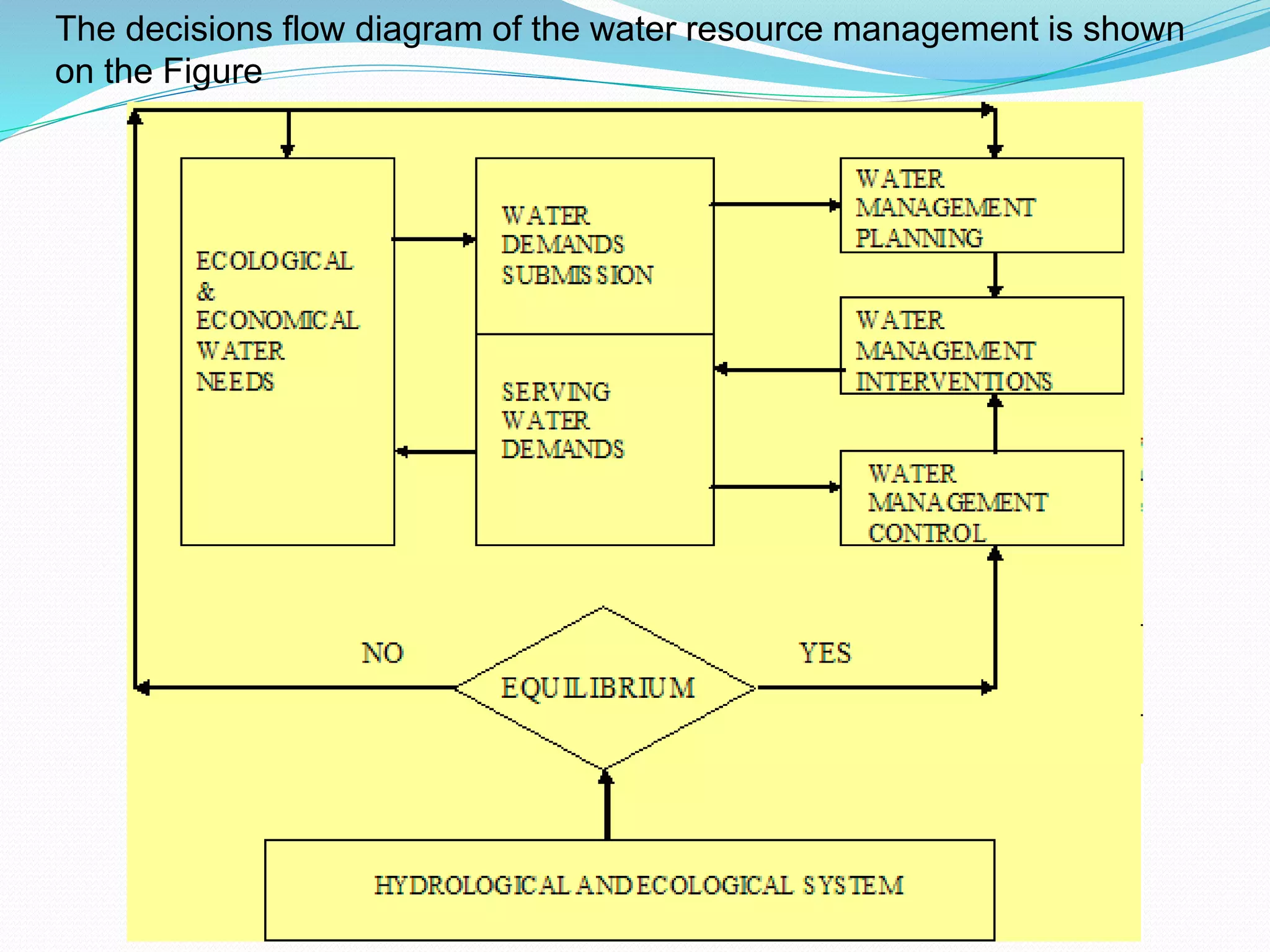

The decisions flow diagram of the water resource management is shown
on the Figure

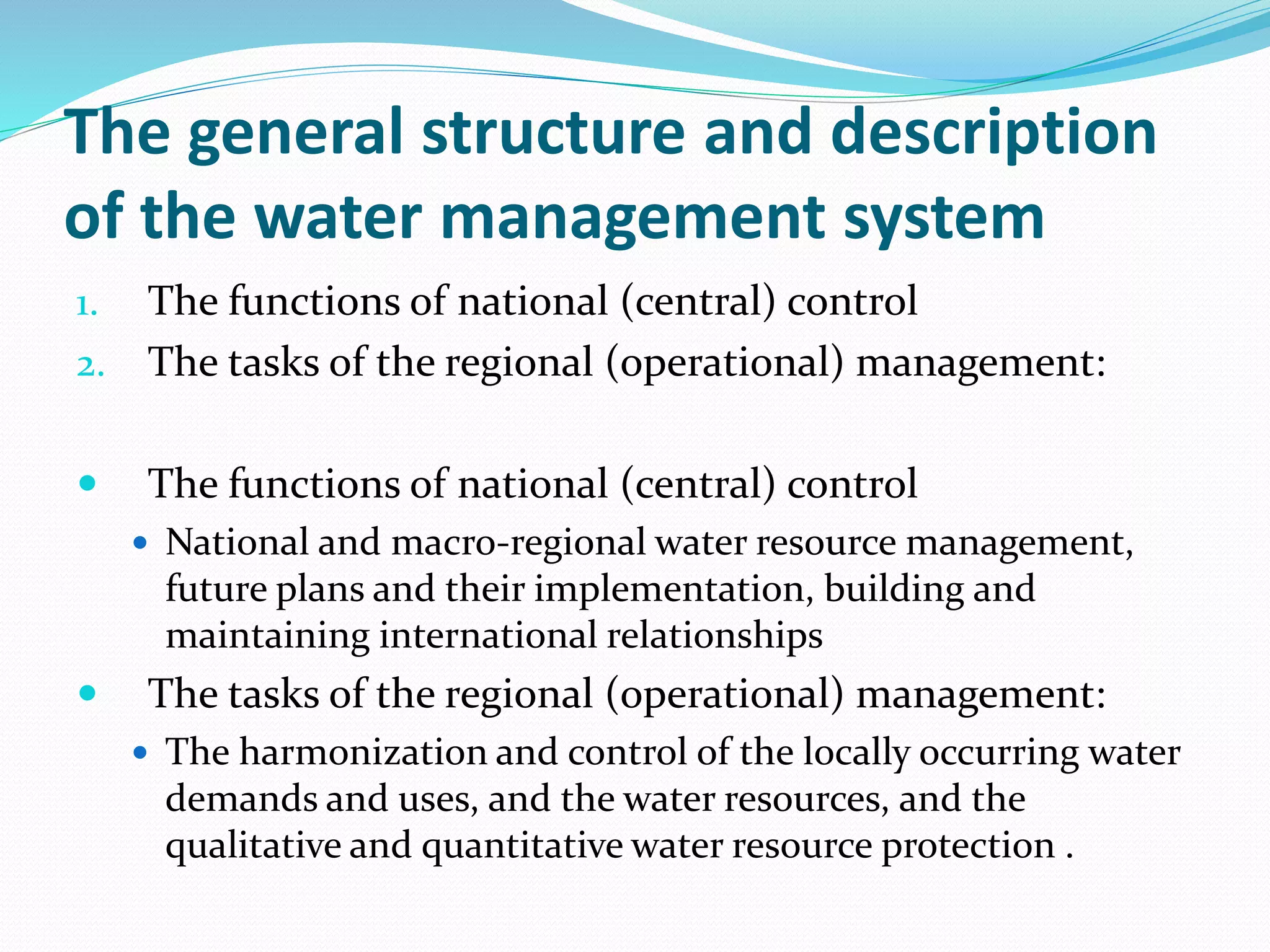

The general structure and description
of the water management system
1. The functions of national (central) control
2. The tasks of the regional (operational) management:
 The functions of national (central) control
 National and macro-regional water resource management,
future plans and their implementation, building and
maintaining international relationships
 The tasks of the regional (operational) management:
 The harmonization and control of the locally occurring water
demands and uses, and the water resources, and the
qualitative and quantitative water resource protection .

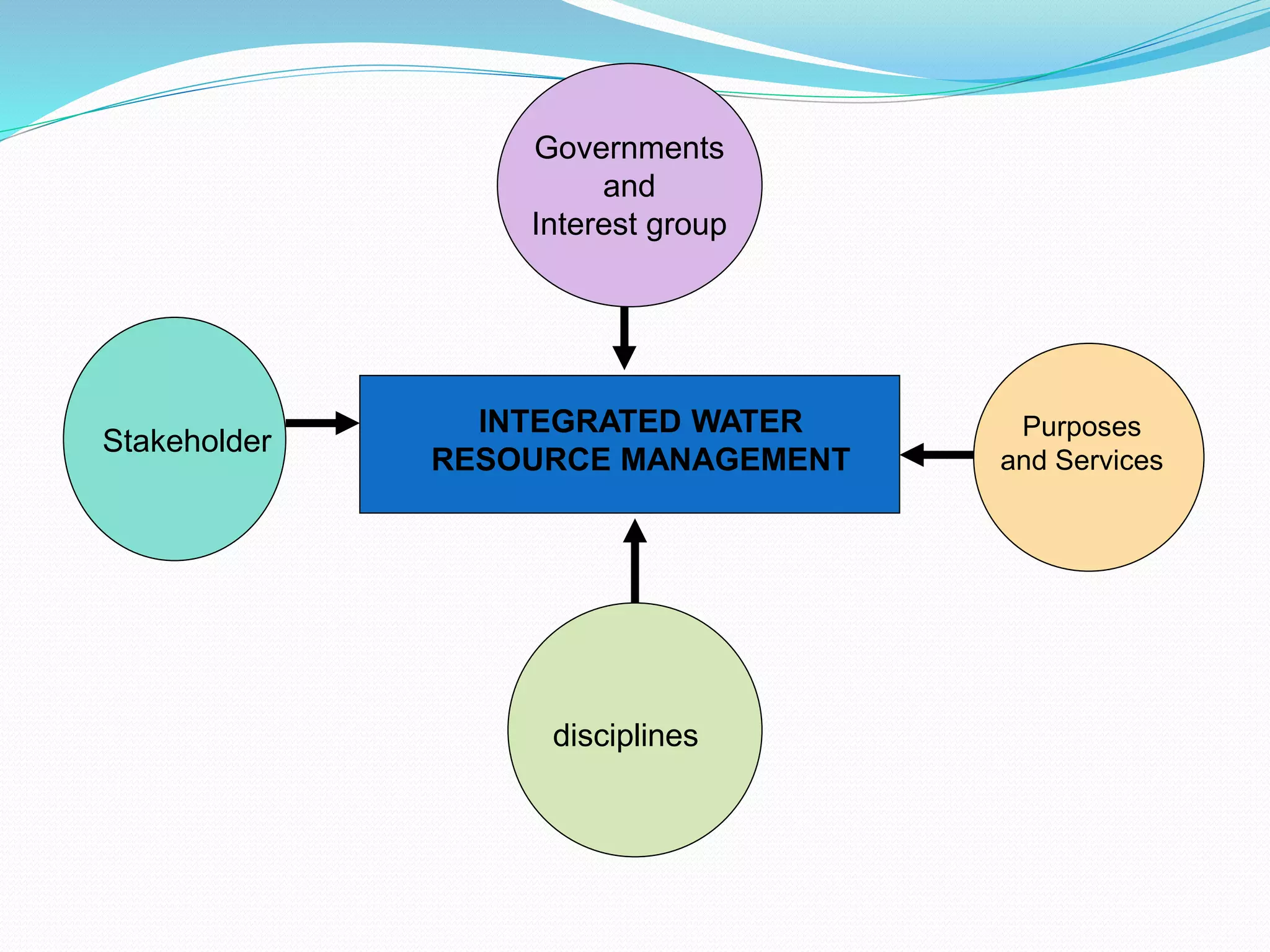

Stakeholder
Governments
and
Interest group
disciplines
Purposes
and Services
INTEGRATED WATER
RESOURCE MANAGEMENT

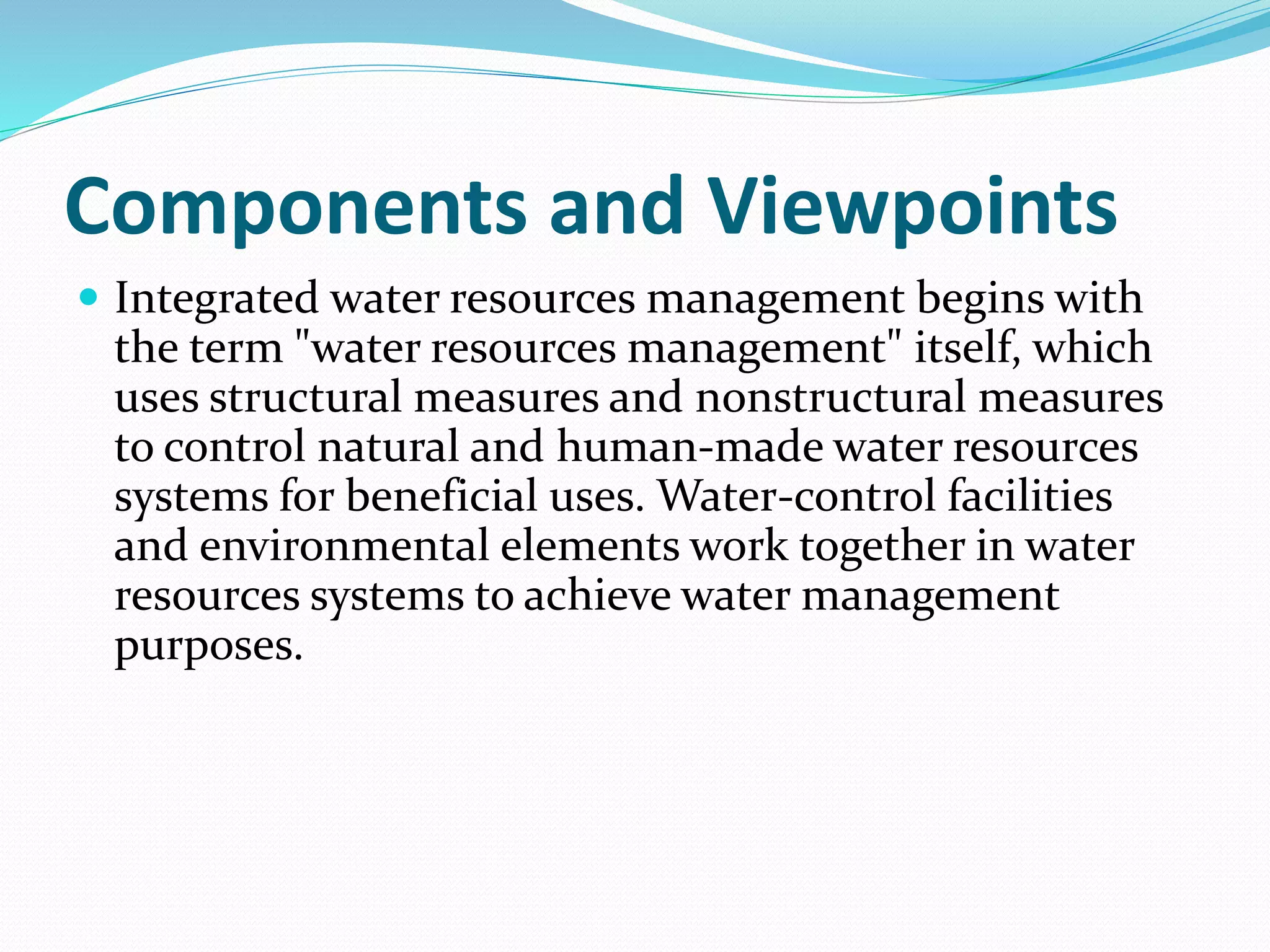

Components and Viewpoints
 Integrated water resources management begins with
the term "water resources management" itself, which
uses structural measures and nonstructural measures
to control natural and human-made water resources
systems for beneficial uses. Water-control facilities
and environmental elements work together in water
resources systems to achieve water management
purposes.

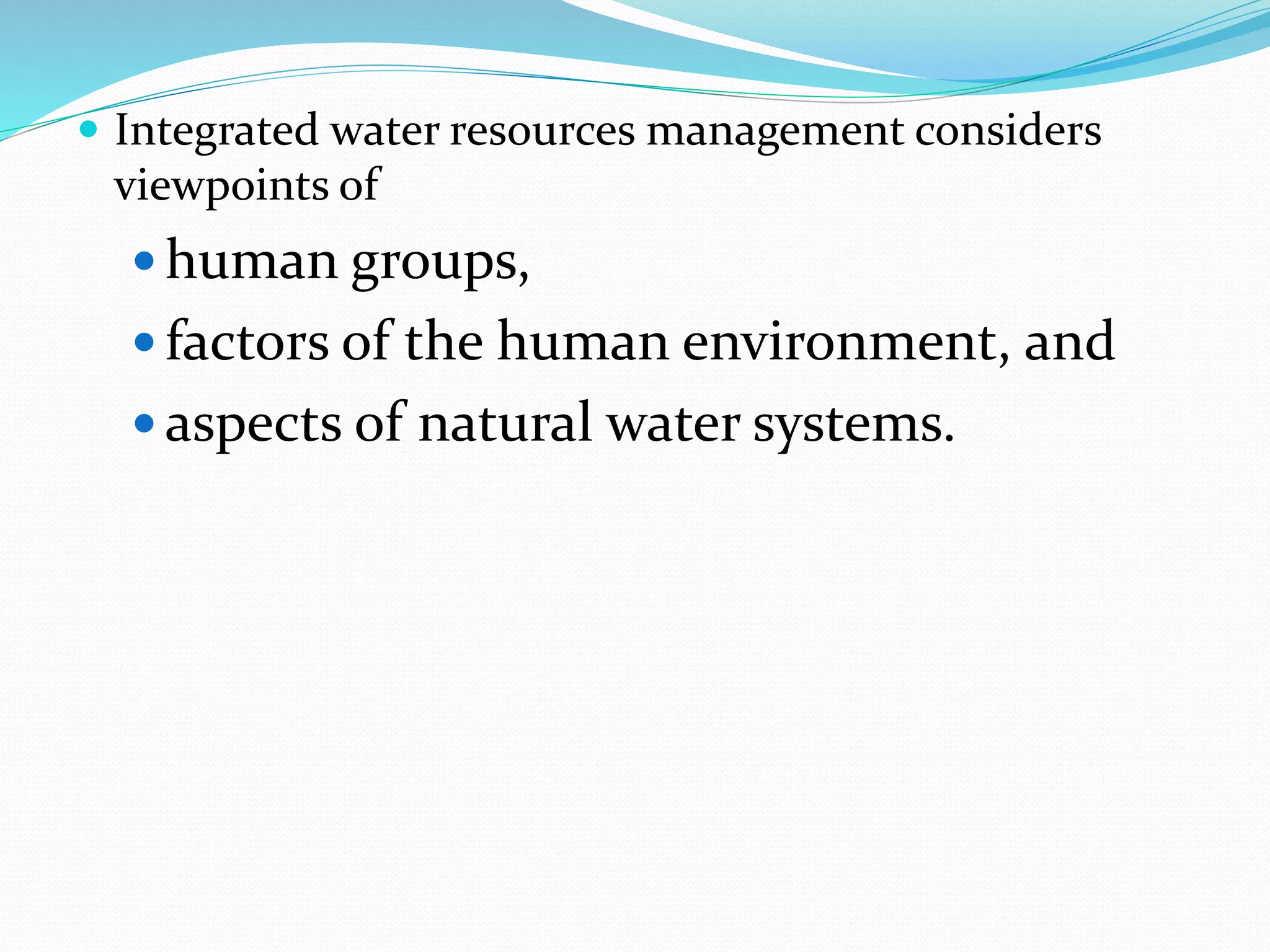

 Integrated water resources management considers
viewpoints of
 human groups,
 factors of the human environment, and
 aspects of natural water systems.

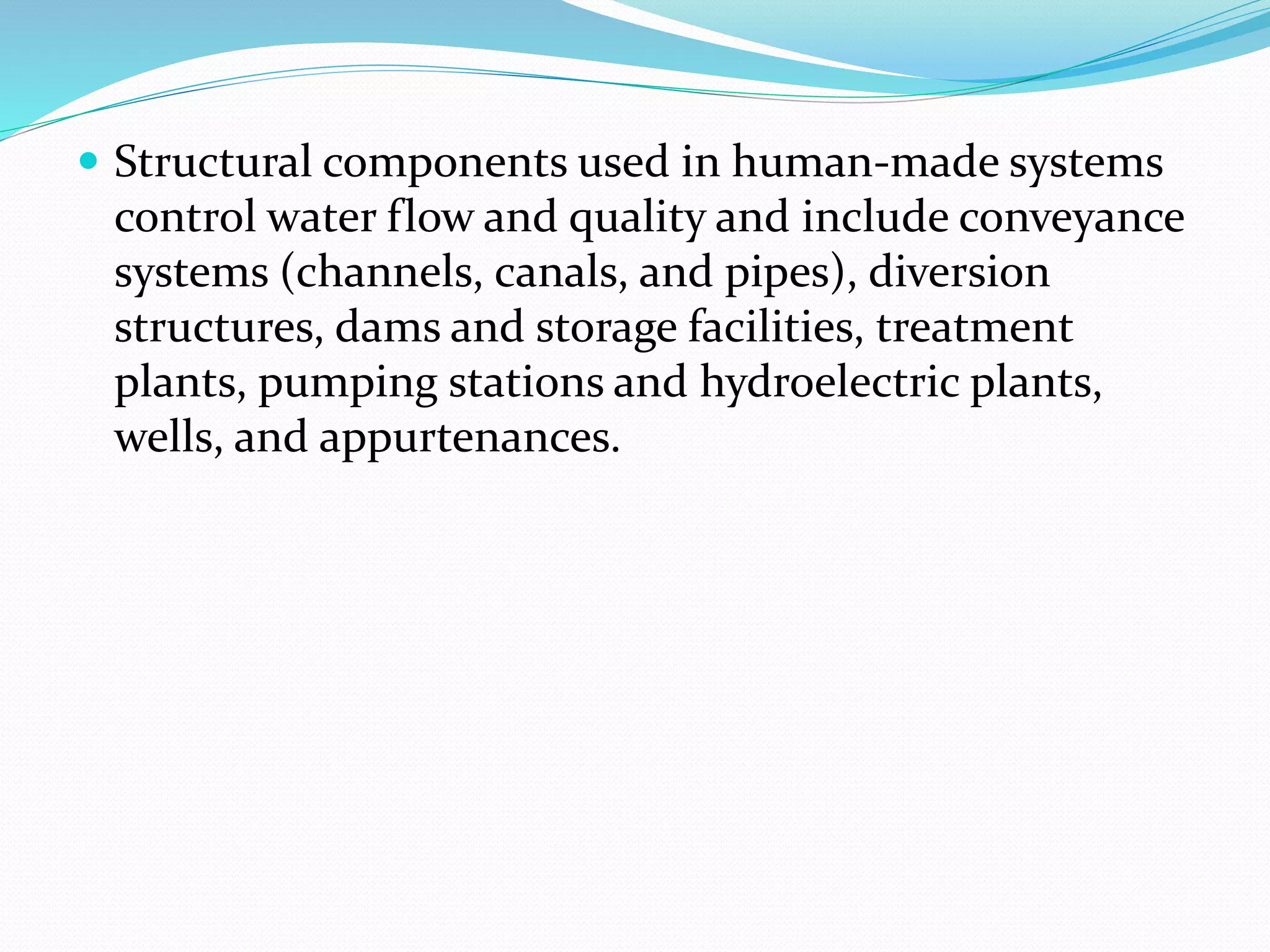

 Structural components used in human-made systems
control water flow and quality and include conveyance
systems (channels, canals, and pipes), diversion
structures, dams and storage facilities, treatment
plants, pumping stations and hydroelectric plants,
wells, and appurtenances.

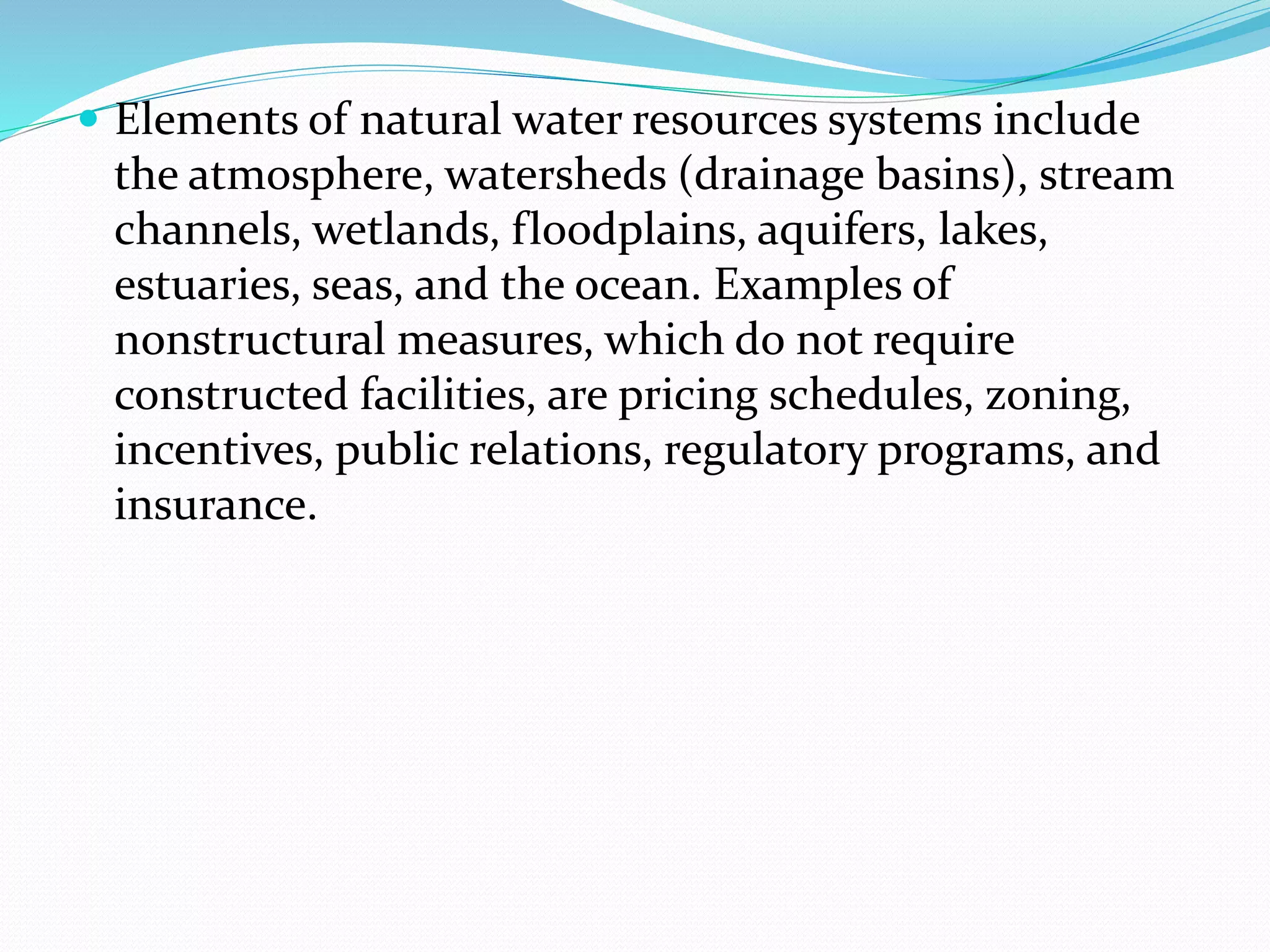

 Elements of natural water resources systems include
the atmosphere, watersheds (drainage basins), stream
channels, wetlands, floodplains, aquifers, lakes,
estuaries, seas, and the ocean. Examples of
nonstructural measures, which do not require
constructed facilities, are pricing schedules, zoning,
incentives, public relations, regulatory programs, and
insurance.

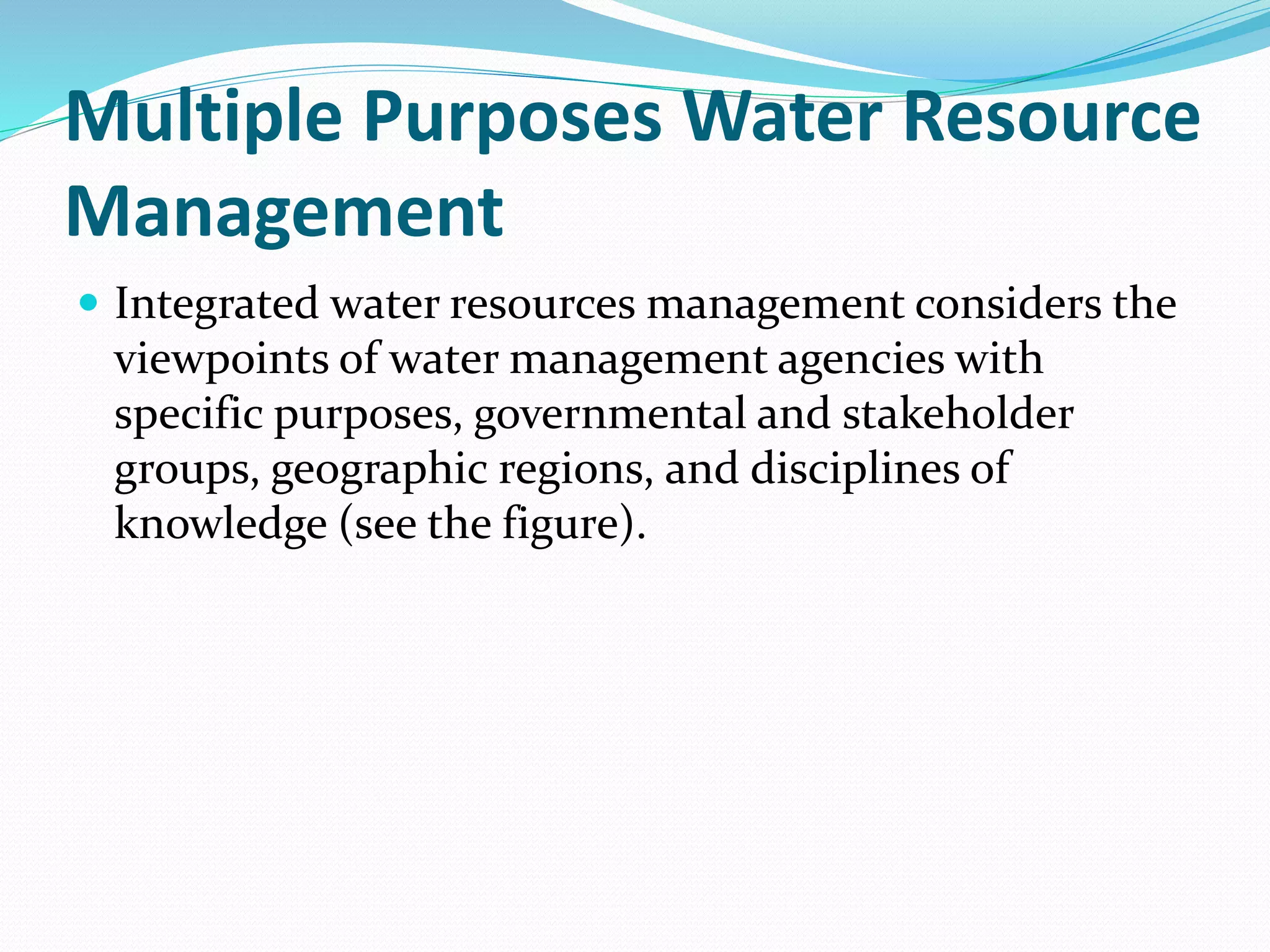

Multiple Purposes Water Resource
Management
 Integrated water resources management considers the
viewpoints of water management agencies with
specific purposes, governmental and stakeholder
groups, geographic regions, and disciplines of
knowledge (see the figure).

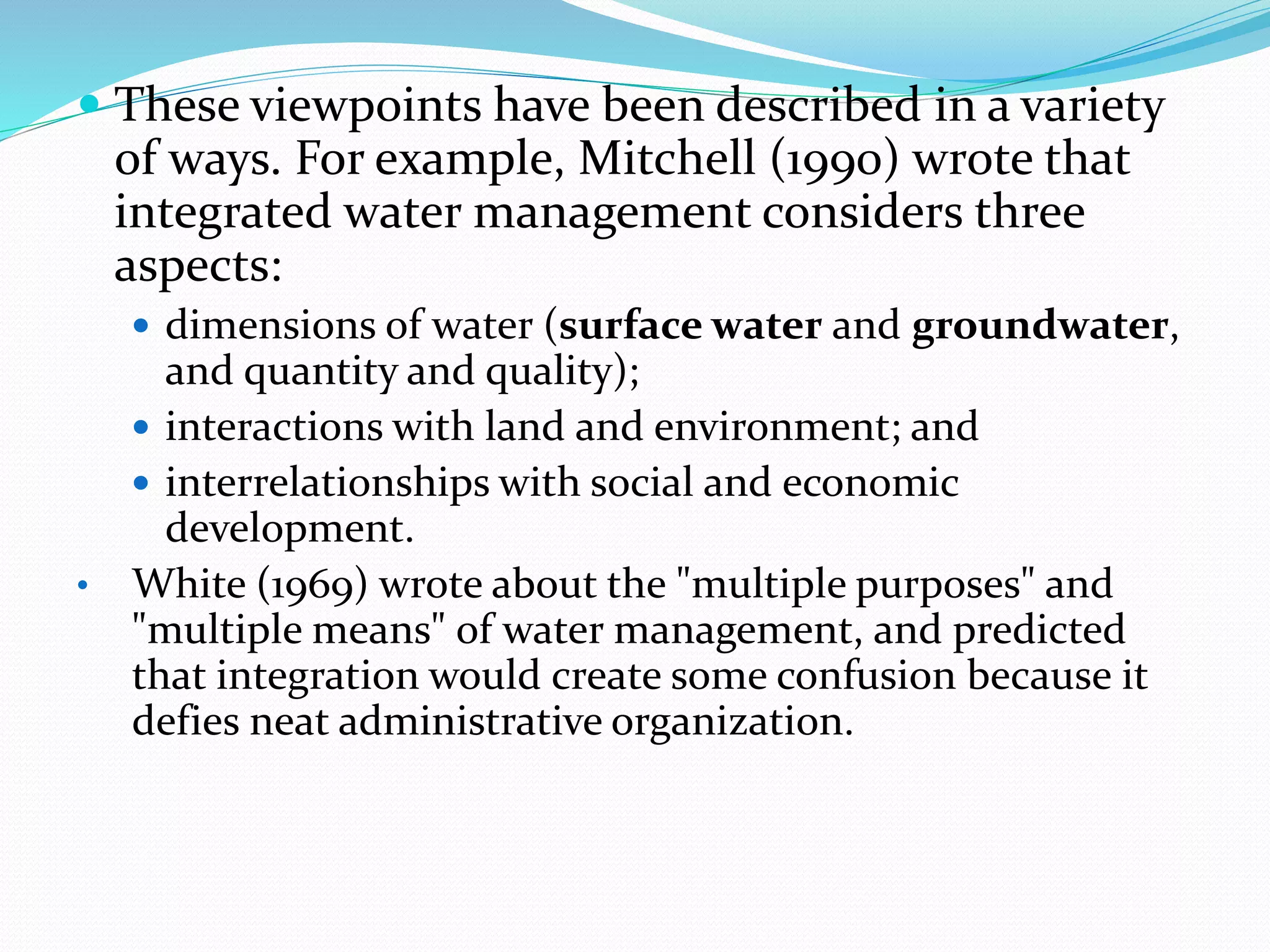

 These viewpoints have been described in a variety
of ways. For example, Mitchell (1990) wrote that
integrated water management considers three
aspects:
 dimensions of water (surface water and groundwater,
and quantity and quality);
 interactions with land and environment; and
 interrelationships with social and economic
development.
• White (1969) wrote about the "multiple purposes" and
"multiple means" of water management, and predicted
that integration would create some confusion because it
defies neat administrative organization.

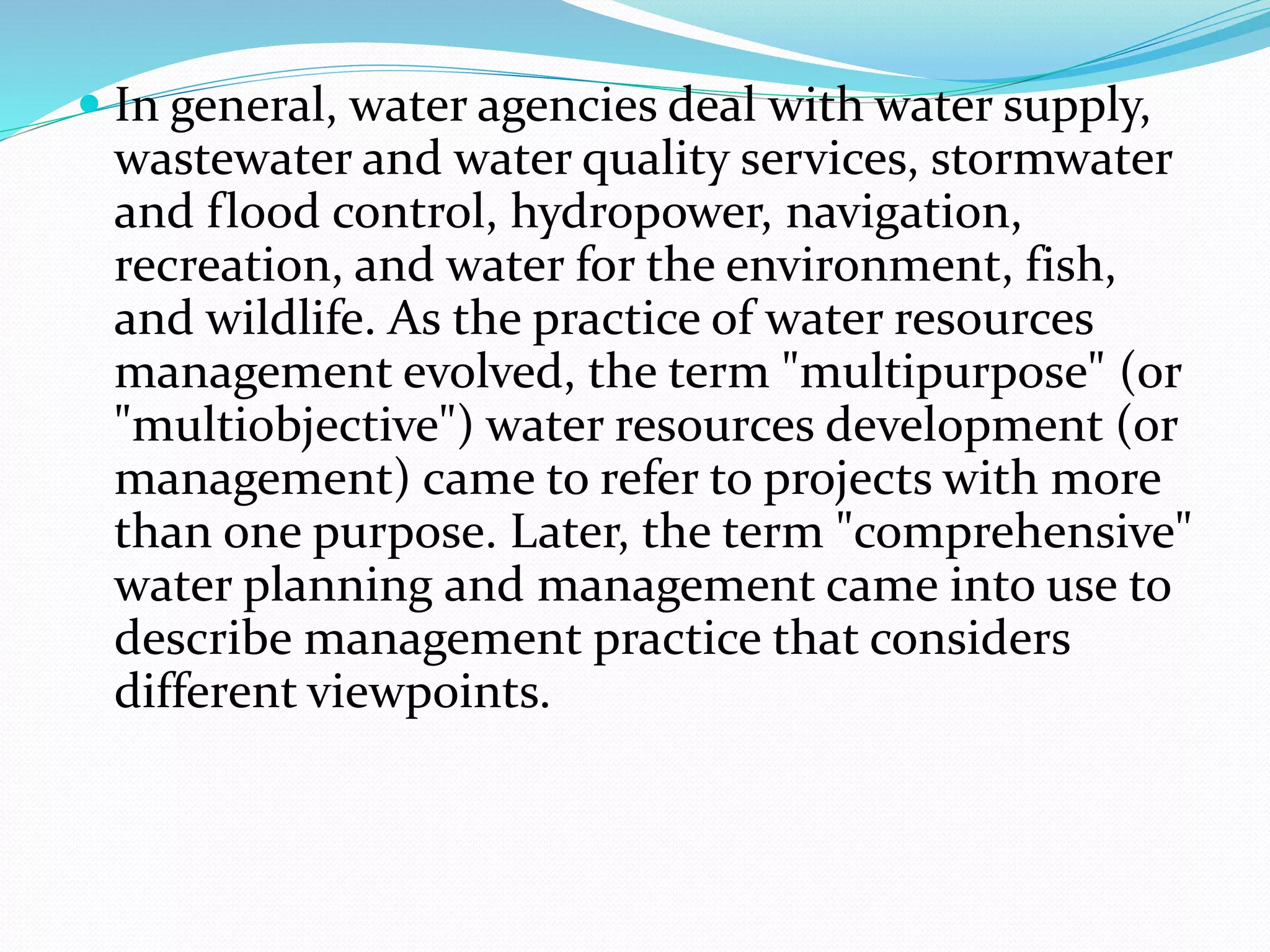

 In general, water agencies deal with water supply,
wastewater and water quality services, stormwater
and flood control, hydropower, navigation,
recreation, and water for the environment, fish,
and wildlife. As the practice of water resources
management evolved, the term "multipurpose" (or
"multiobjective") water resources development (or
management) came to refer to projects with more
than one purpose. Later, the term "comprehensive"
water planning and management came into use to
describe management practice that considers
different viewpoints.

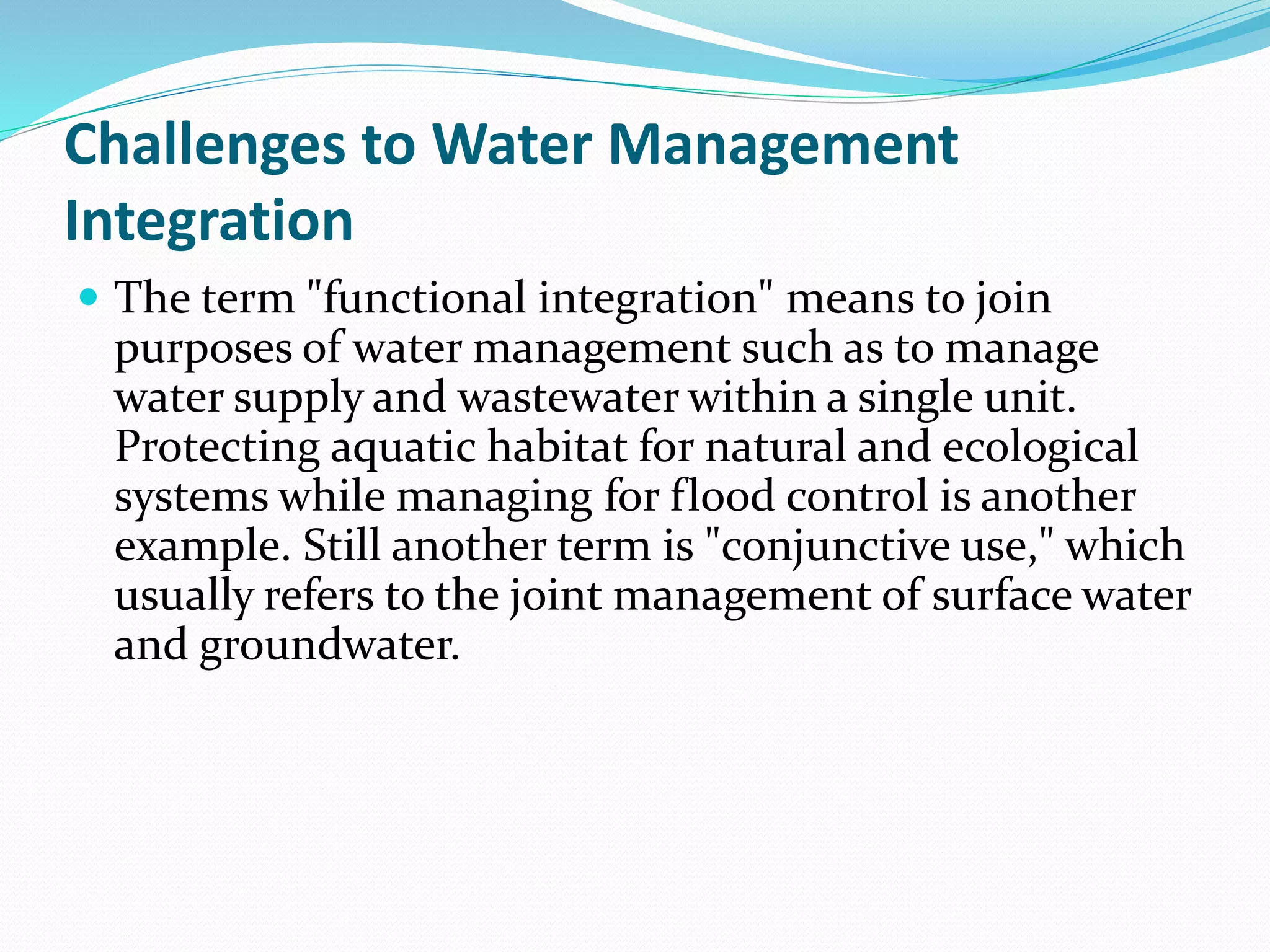

Challenges to Water Management
Integration
 The term "functional integration" means to join
purposes of water management such as to manage
water supply and wastewater within a single unit.
Protecting aquatic habitat for natural and ecological
systems while managing for flood control is another
example. Still another term is "conjunctive use," which
usually refers to the joint management of surface water
and groundwater.

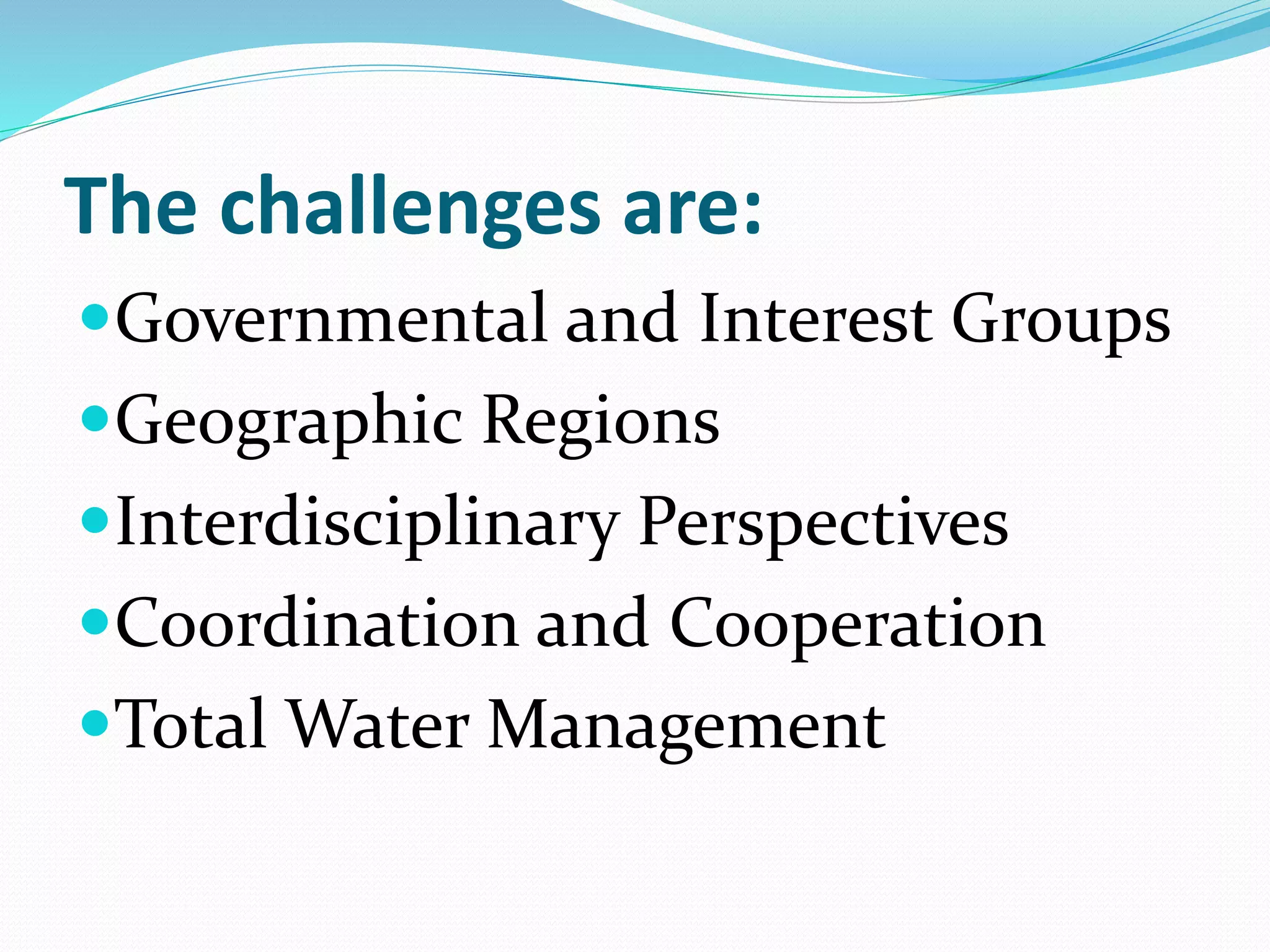

The challenges are:
Governmental and Interest Groups
Geographic Regions
Interdisciplinary Perspectives
Coordination and Cooperation
Total Water Management

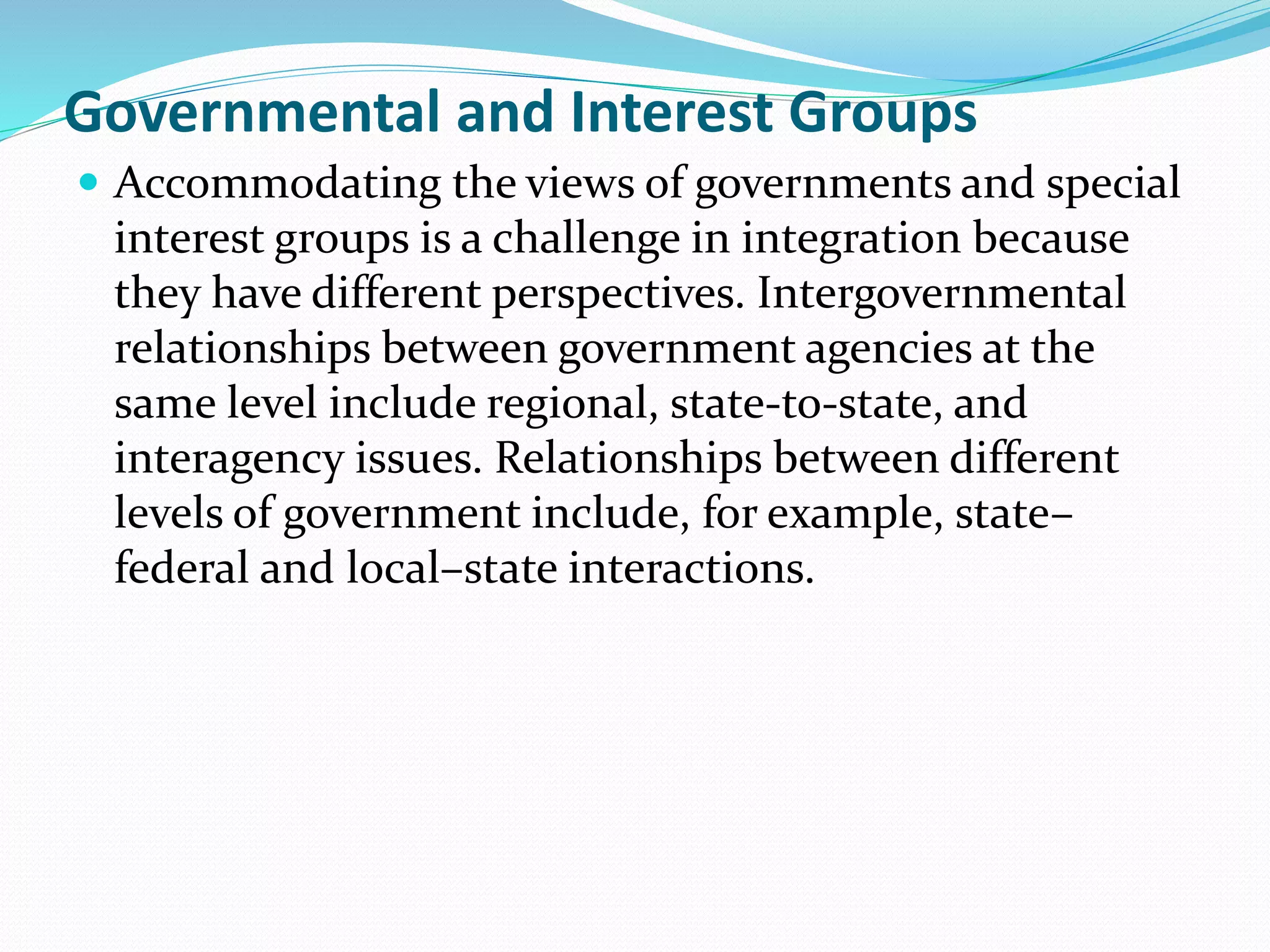

Governmental and Interest Groups
 Accommodating the views of governments and special
interest groups is a challenge in integration because
they have different perspectives. Intergovernmental
relationships between government agencies at the
same level include regional, state-to-state, and
interagency issues. Relationships between different
levels of government include, for example, state–
federal and local–state interactions.

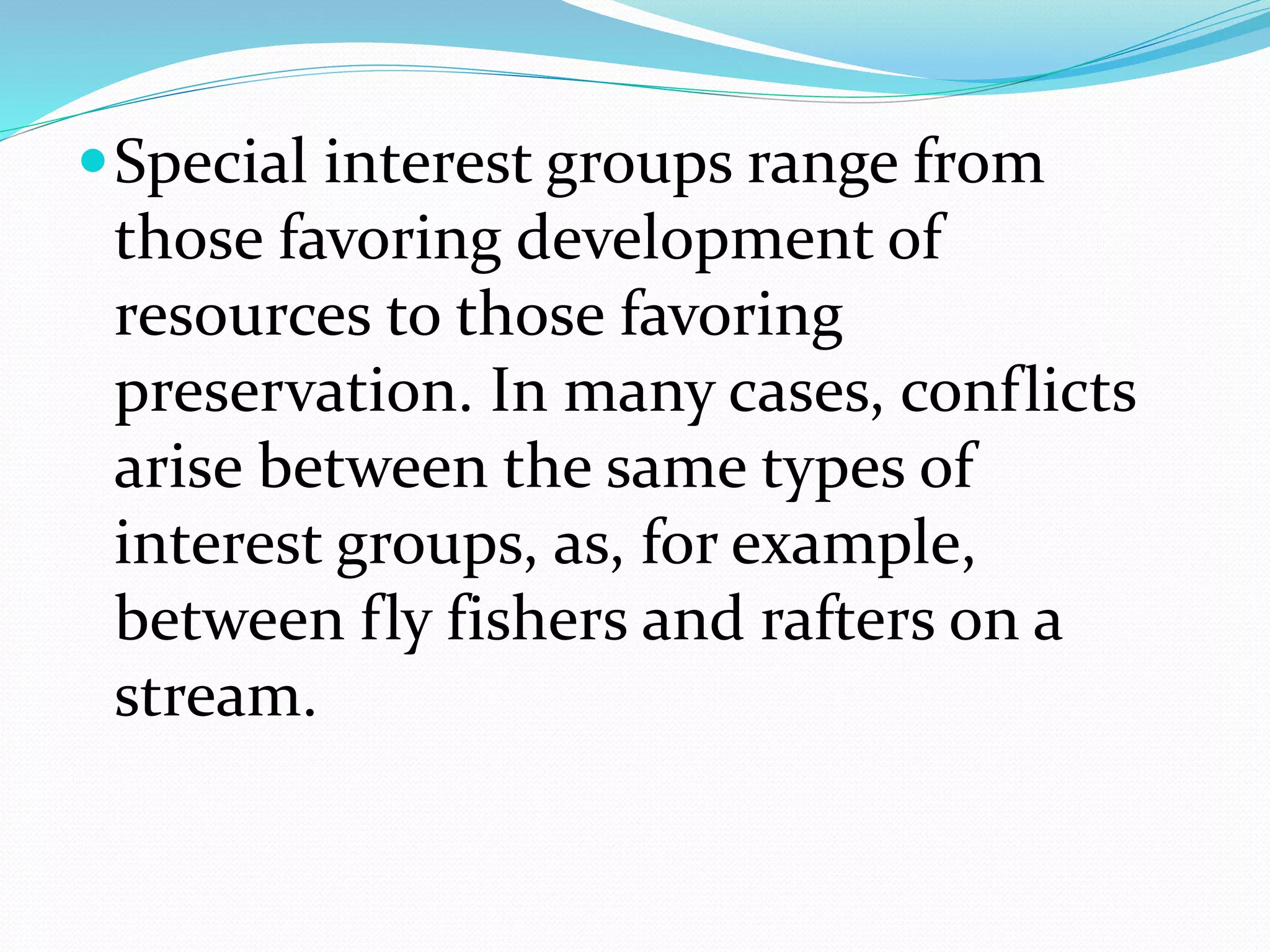

Special interest groups range from
those favoring development of
resources to those favoring
preservation. In many cases, conflicts
arise between the same types of
interest groups, as, for example,
between fly fishers and rafters on a
stream.

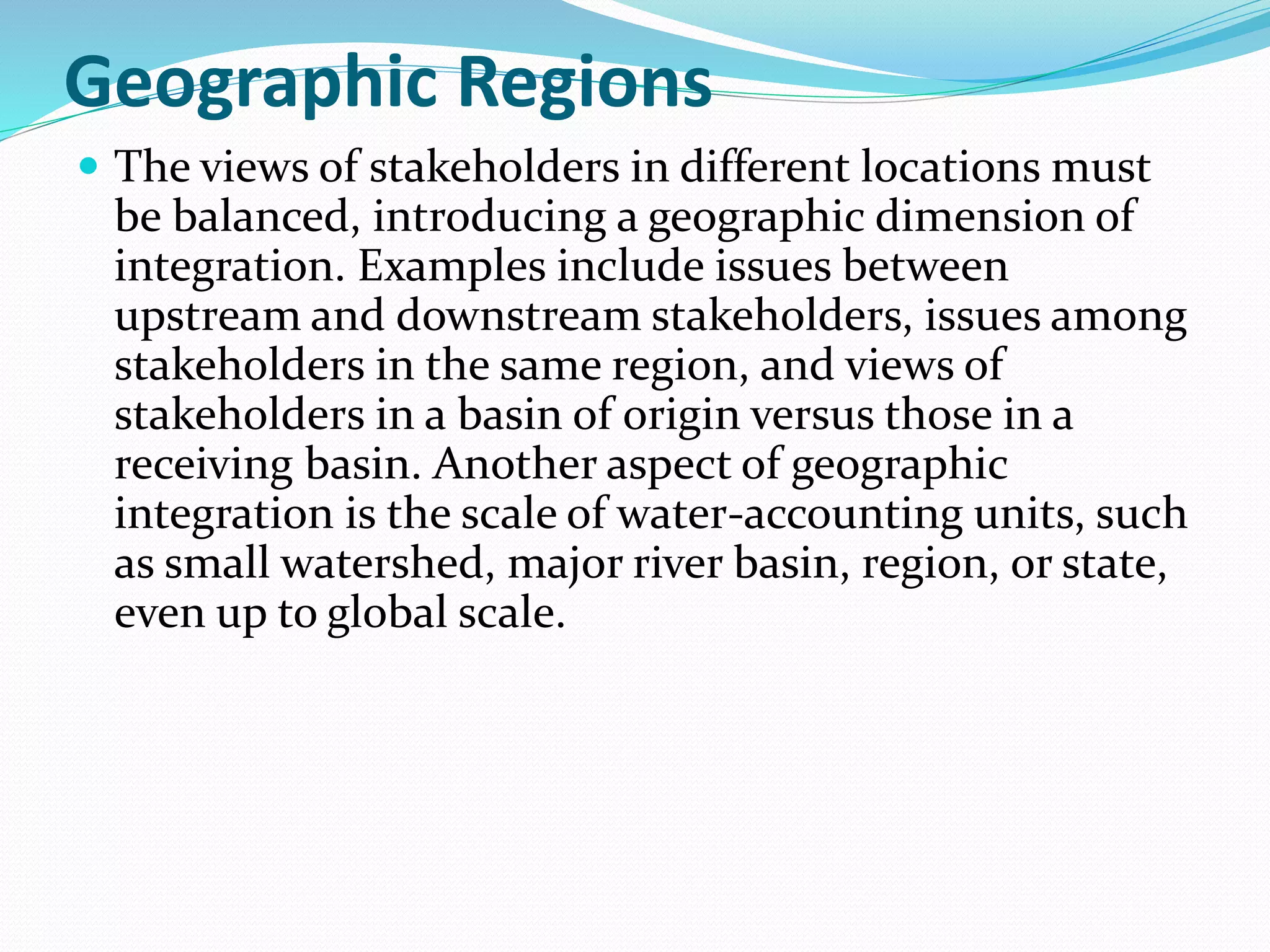

Geographic Regions
 The views of stakeholders in different locations must
be balanced, introducing a geographic dimension of
integration. Examples include issues between
upstream and downstream stakeholders, issues among
stakeholders in the same region, and views of
stakeholders in a basin of origin versus those in a
receiving basin. Another aspect of geographic
integration is the scale of water-accounting units, such
as small watershed, major river basin, region, or state,
even up to global scale.

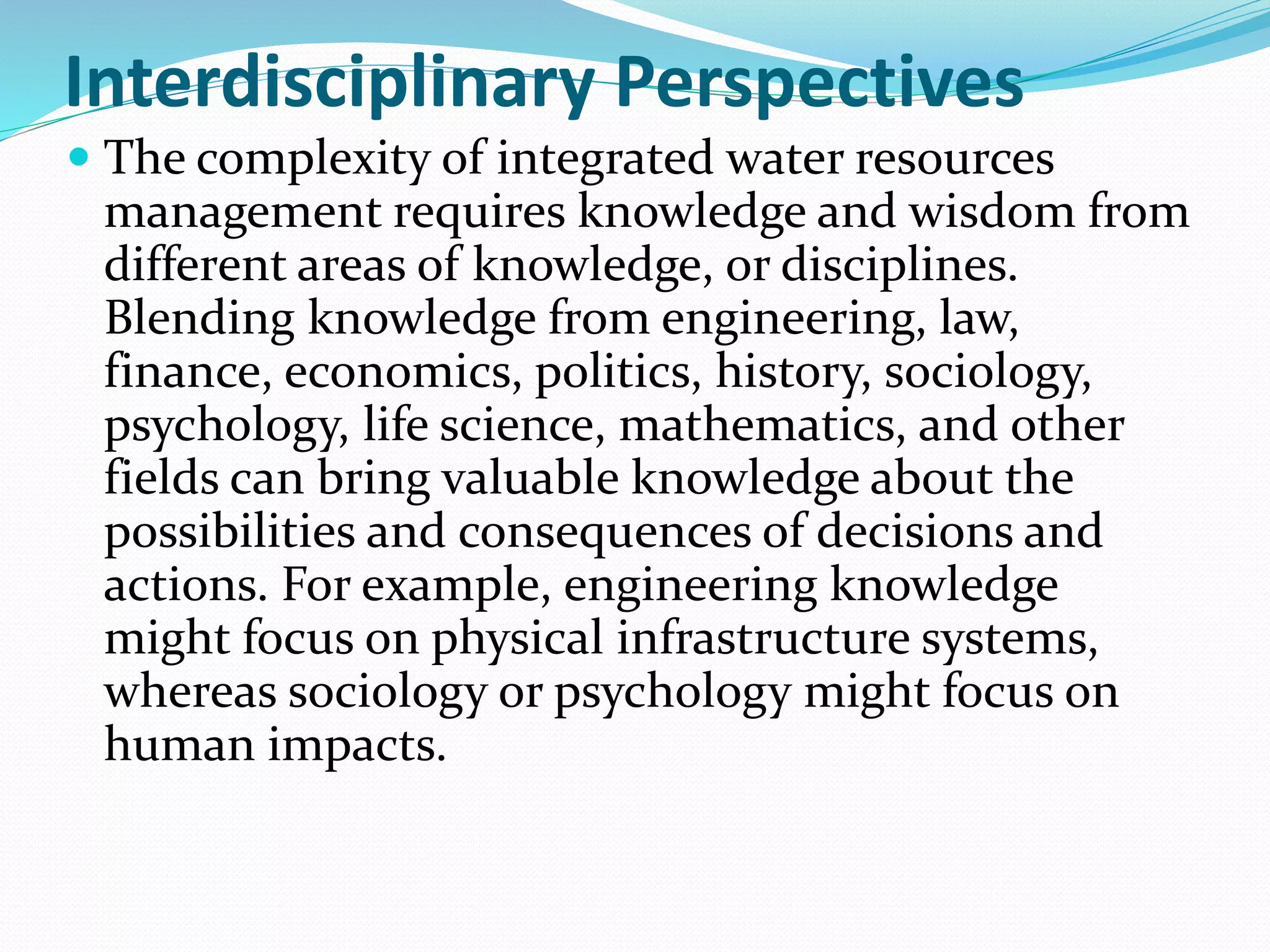

Interdisciplinary Perspectives
 The complexity of integrated water resources
management requires knowledge and wisdom from
different areas of knowledge, or disciplines.
Blending knowledge from engineering, law,
finance, economics, politics, history, sociology,
psychology, life science, mathematics, and other
fields can bring valuable knowledge about the
possibilities and consequences of decisions and
actions. For example, engineering knowledge
might focus on physical infrastructure systems,
whereas sociology or psychology might focus on
human impacts.

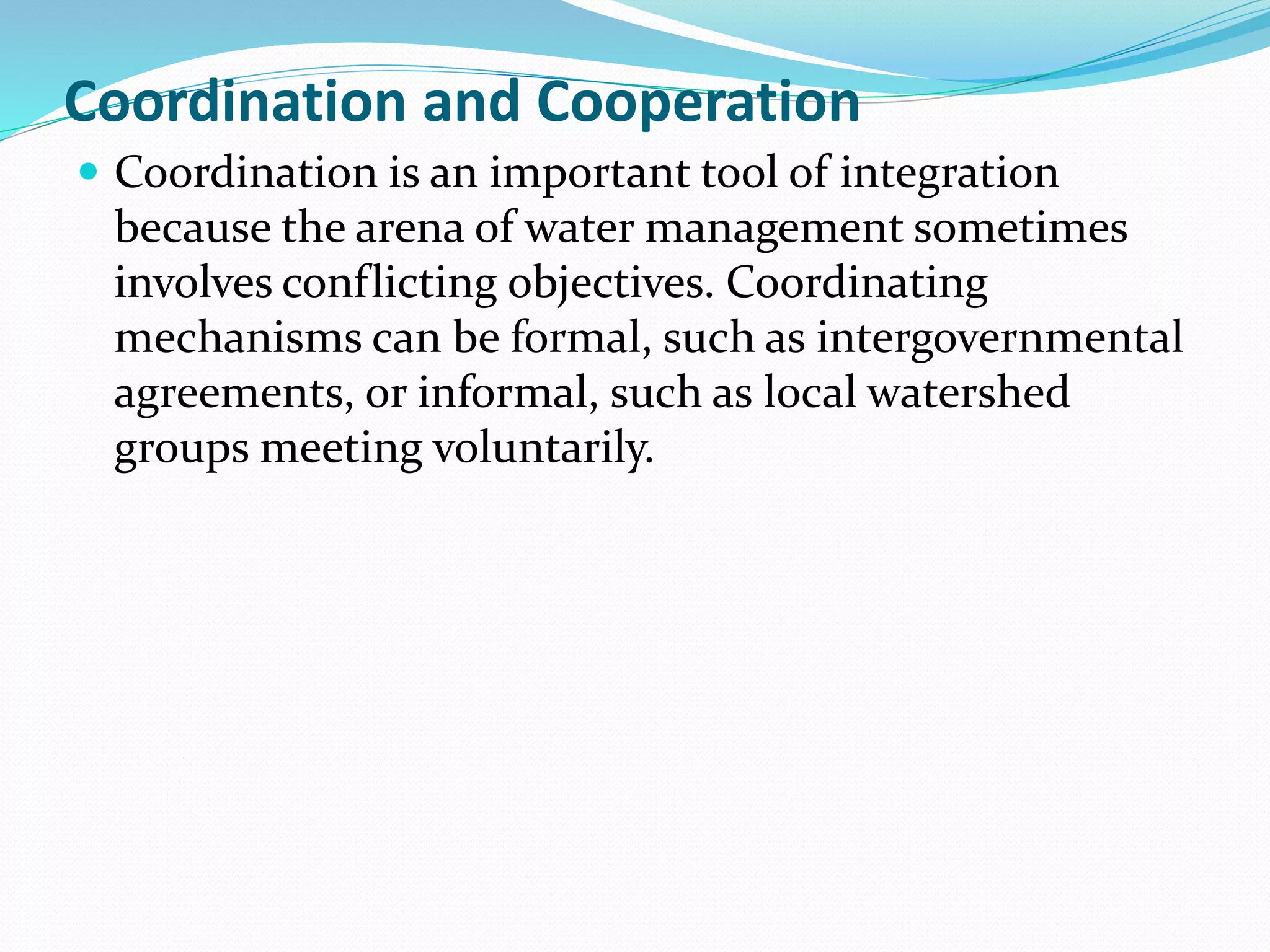

Coordination and Cooperation
 Coordination is an important tool of integration
because the arena of water management sometimes
involves conflicting objectives. Coordinating
mechanisms can be formal, such as intergovernmental
agreements, or informal, such as local watershed
groups meeting voluntarily.

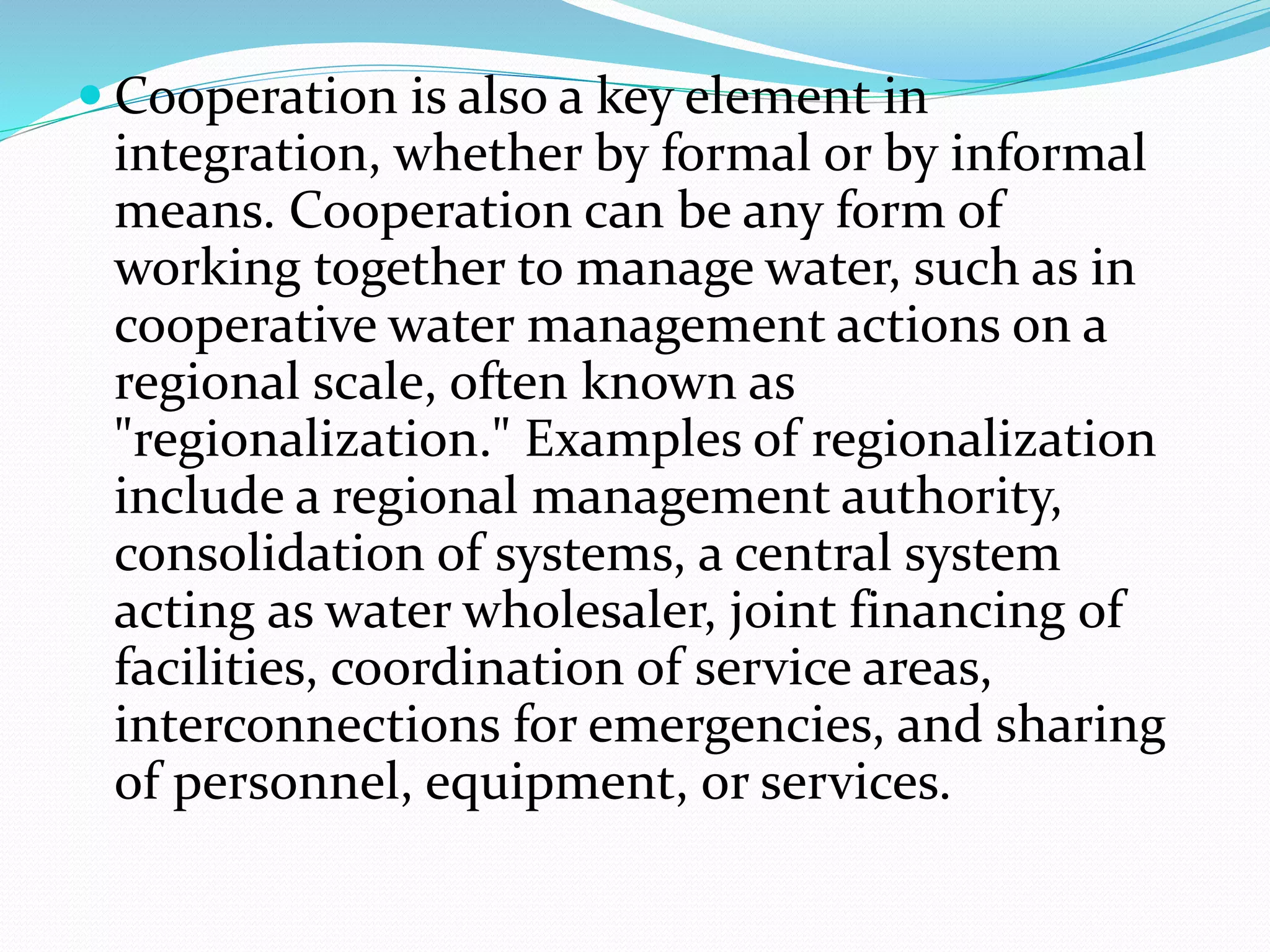

 Cooperation is also a key element in
integration, whether by formal or by informal
means. Cooperation can be any form of
working together to manage water, such as in
cooperative water management actions on a
regional scale, often known as
"regionalization." Examples of regionalization
include a regional management authority,
consolidation of systems, a central system
acting as water wholesaler, joint financing of
facilities, coordination of service areas,
interconnections for emergencies, and sharing
of personnel, equipment, or services.

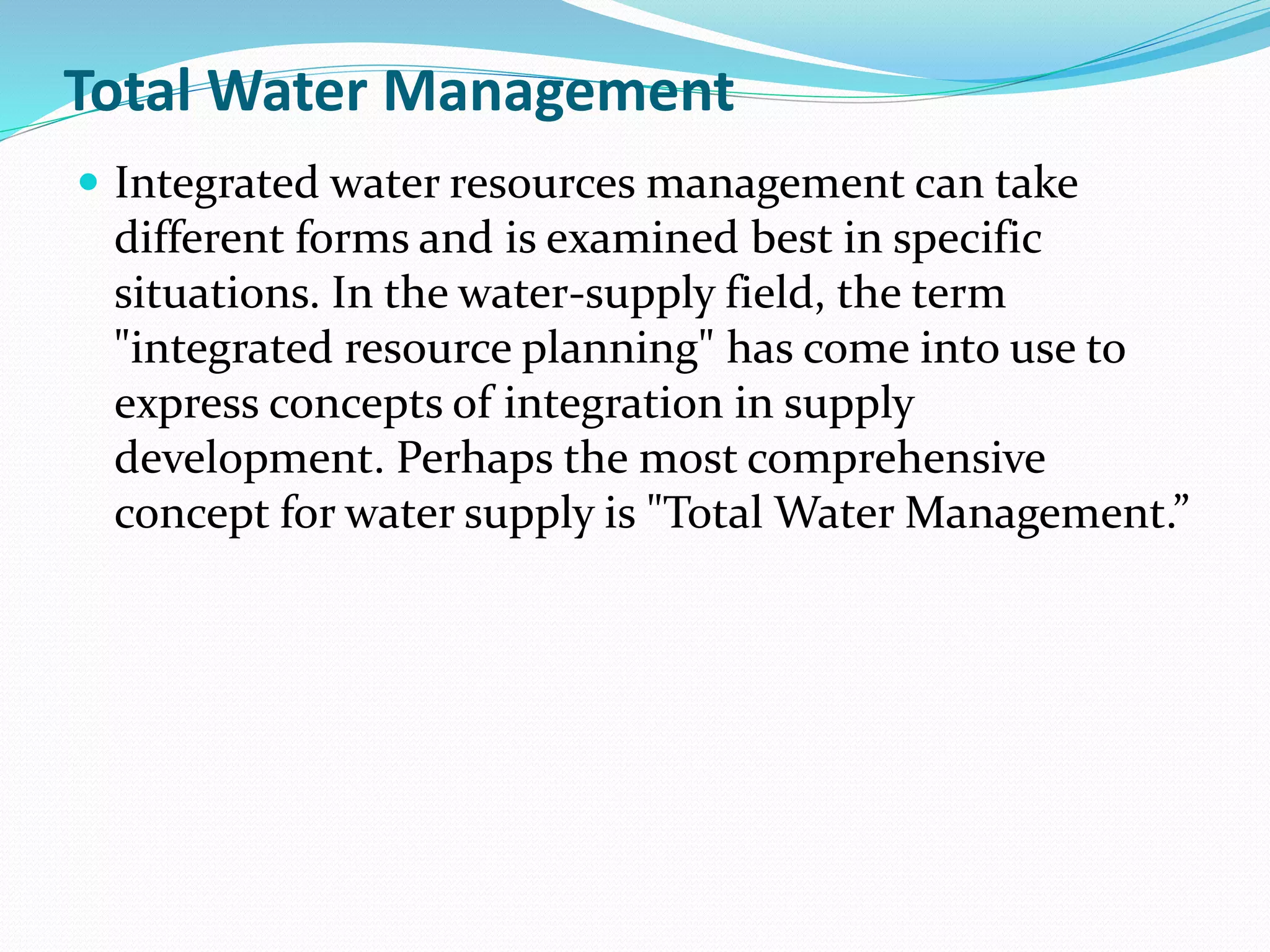

Total Water Management
 Integrated water resources management can take
different forms and is examined best in specific
situations. In the water-supply field, the term
"integrated resource planning" has come into use to
express concepts of integration in supply
development. Perhaps the most comprehensive
concept for water supply is "Total Water Management.”

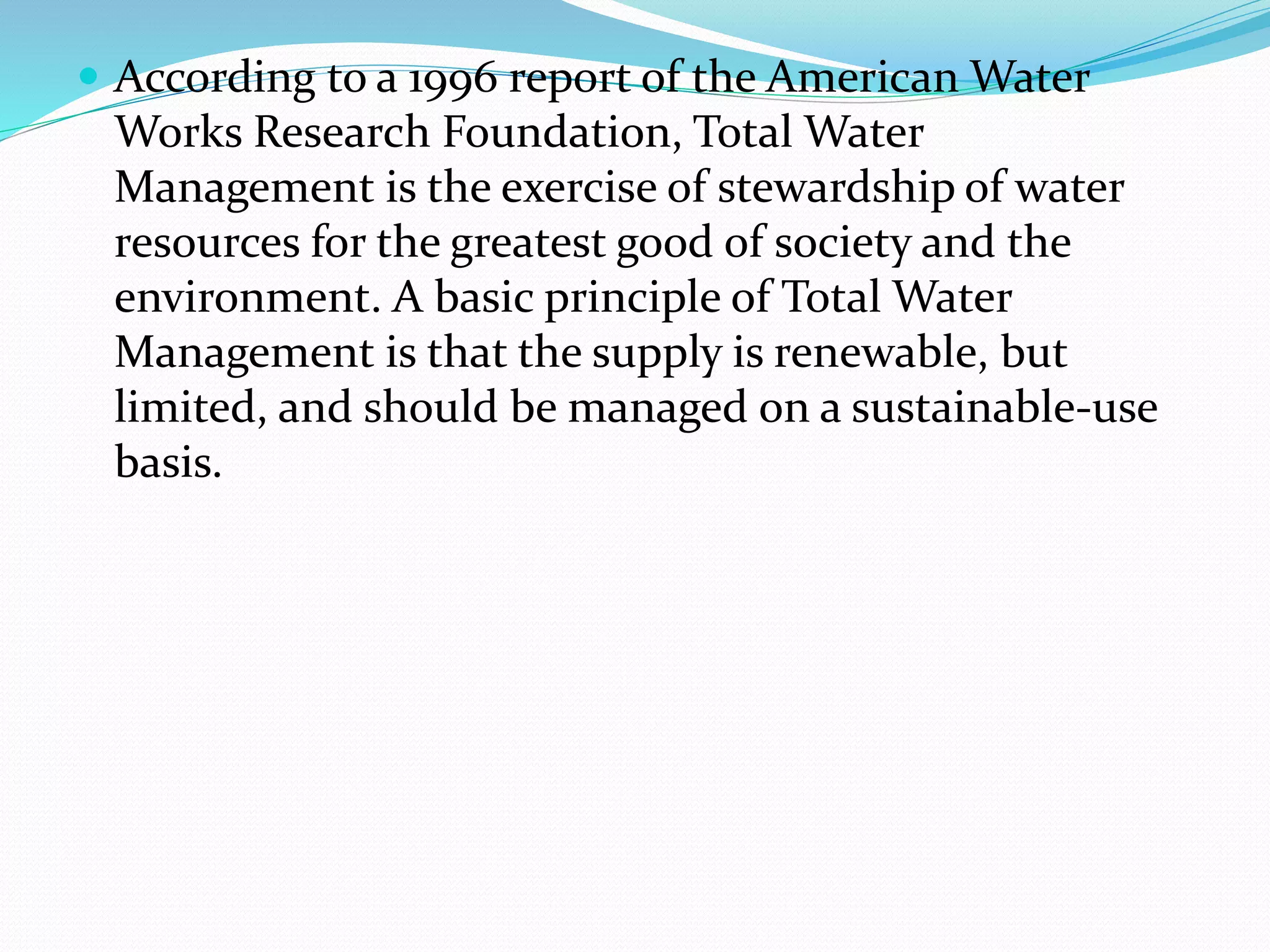

 According to a 1996 report of the American Water
Works Research Foundation, Total Water
Management is the exercise of stewardship of water
resources for the greatest good of society and the
environment. A basic principle of Total Water
Management is that the supply is renewable, but
limited, and should be managed on a sustainable-use
basis.

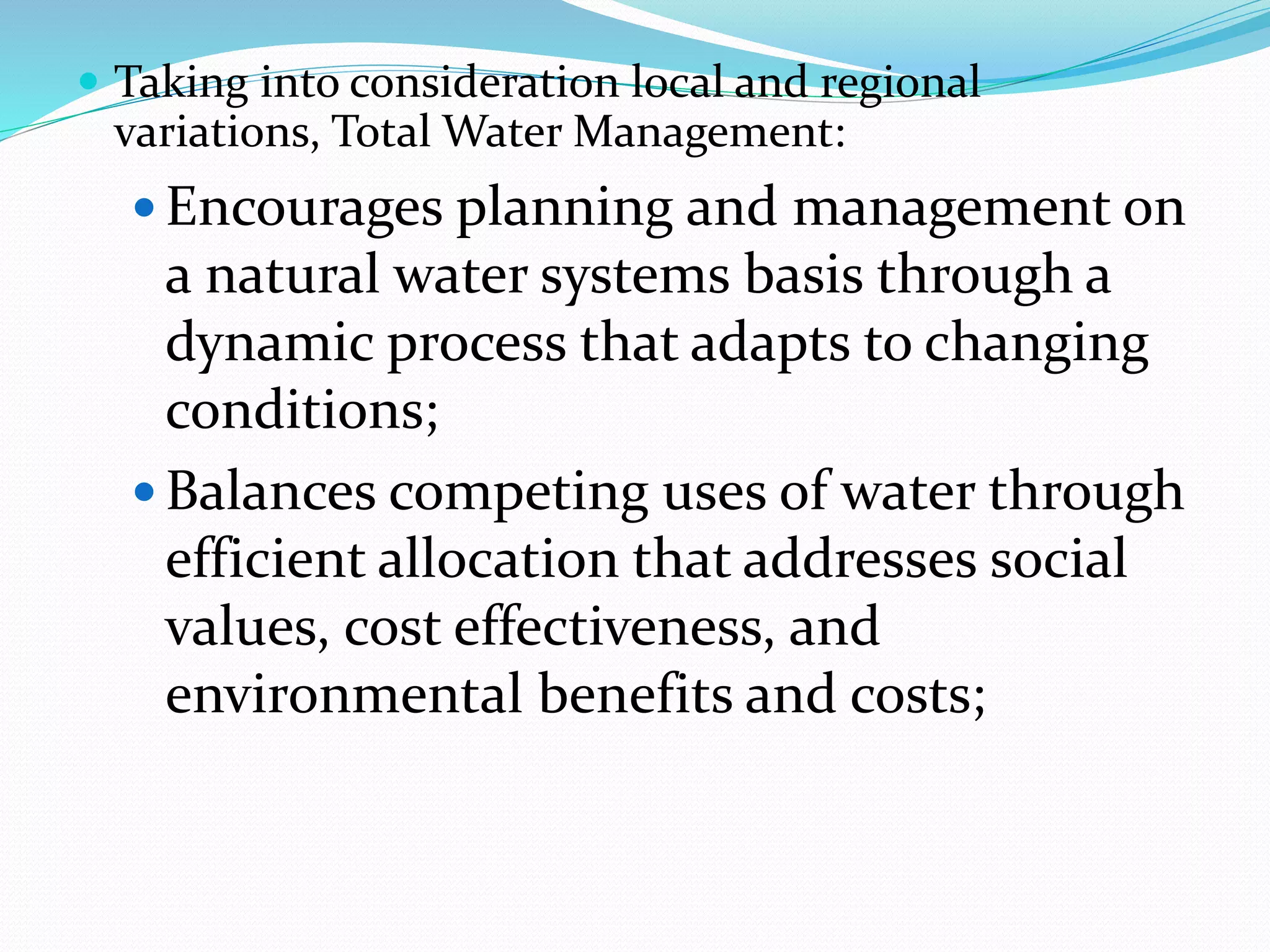

 Taking into consideration local and regional
variations, Total Water Management:
 Encourages planning and management on
a natural water systems basis through a
dynamic process that adapts to changing
conditions;
 Balances competing uses of water through
efficient allocation that addresses social
values, cost effectiveness, and
environmental benefits and costs;

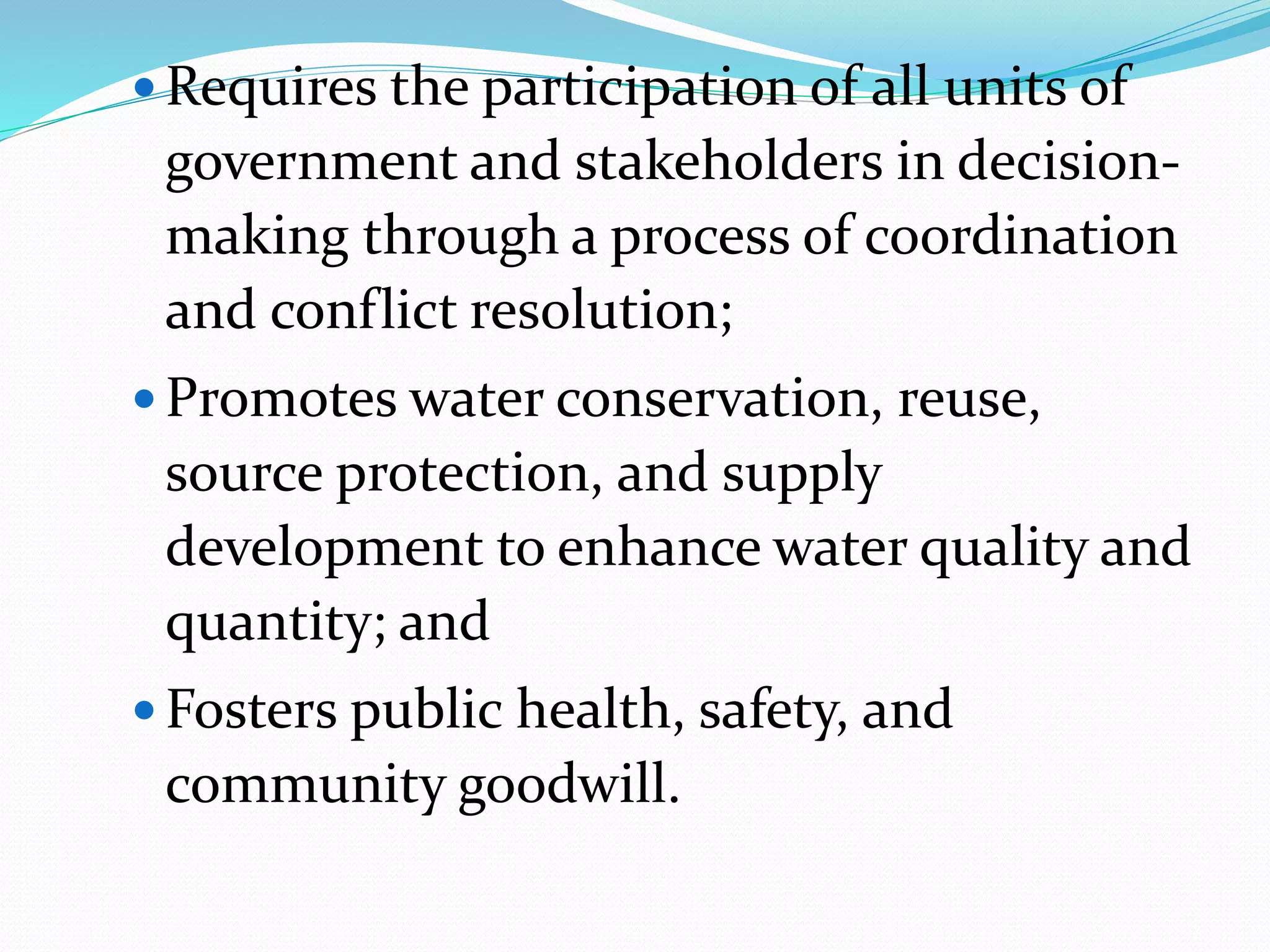

 Requires the participation of all units of
government and stakeholders in decision-
making through a process of coordination
and conflict resolution;
 Promotes water conservation, reuse,
source protection, and supply
development to enhance water quality and
quantity; and
 Fosters public health, safety, and
community goodwill.

More Related Content

What's hot

Surface Water
Surface WaterSurface Water
Integrated water resource management
Integrated water resource managementIntegrated water resource management
Integrated water resource management
CPWF Mekong

Introduction to Groundwater Modelling
Introduction to Groundwater ModellingIntroduction to Groundwater Modelling
Introduction to Groundwater ModellingC. P. Kumar

Integrated water resources management
Integrated water resources managementIntegrated water resources management
Integrated water resources management
Bikralla Acharya

06 115 water resources management
06 115 water resources management06 115 water resources management
06 115 water resources management
AHMED NADIM JILANI

Watershed management
Watershed  managementWatershed  management
Watershed management
Pramoda Raj

Groundwater and watershed management
Groundwater and watershed managementGroundwater and watershed management
Groundwater and watershed management
Haroon khan

Watershed management
Watershed  managementWatershed  management
Watershed management
Ghassan Hadi

Water resources management river basin manage
Water resources management river basin manageWater resources management river basin manage
Water resources management river basin manage
Mwl. Mapesa Nestory

Water availability: global and indian scenarios
Water availability: global and indian scenariosWater availability: global and indian scenarios
Water availability: global and indian scenarios
Muneer A

Estimation of runoff by table method
Estimation  of runoff by table methodEstimation  of runoff by table method
Estimation of runoff by table method
Aaliya Afroz

1. chapter 1 part 1 introduction to iwrm
1. chapter 1  part 1 introduction to iwrm1. chapter 1  part 1 introduction to iwrm
1. chapter 1 part 1 introduction to iwrmDima Mayzhanov

Water scarcity in india
Water scarcity in india Water scarcity in india
Water scarcity in india
nimmu307

Hydrology
HydrologyHydrology
Groundwater Management Powerpoint Presentation Slides
Groundwater Management Powerpoint Presentation SlidesGroundwater Management Powerpoint Presentation Slides
Groundwater Management Powerpoint Presentation Slides
SlideTeam

Sustainable Water Management Powerpoint Presentation Slides
Sustainable Water Management Powerpoint Presentation SlidesSustainable Water Management Powerpoint Presentation Slides
Sustainable Water Management Powerpoint Presentation Slides
SlideTeam

water and agriculture
water and agriculturewater and agriculture
water and agriculture
Vřáj Pàtêl

Watershed management
Watershed managementWatershed management
Watershed management
Chandra Mohan Gowda

Hydrology
HydrologyHydrology
Hydrology
FazilAfghan

Water and sustainable development
Water and sustainable developmentWater and sustainable development
Water and sustainable developmentSaisujan Piriya


What's hot (20)

Surface Water
Surface WaterSurface Water
Surface Water

Integrated water resource management
Integrated water resource managementIntegrated water resource management
Integrated water resource management

Introduction to Groundwater Modelling
Introduction to Groundwater ModellingIntroduction to Groundwater Modelling
Introduction to Groundwater Modelling

Integrated water resources management
Integrated water resources managementIntegrated water resources management
Integrated water resources management

06 115 water resources management
06 115 water resources management06 115 water resources management
06 115 water resources management

Watershed management
Watershed  managementWatershed  management
Watershed management

Groundwater and watershed management
Groundwater and watershed managementGroundwater and watershed management
Groundwater and watershed management

Watershed management
Watershed  managementWatershed  management
Watershed management

Water resources management river basin manage
Water resources management river basin manageWater resources management river basin manage
Water resources management river basin manage

Water availability: global and indian scenarios
Water availability: global and indian scenariosWater availability: global and indian scenarios
Water availability: global and indian scenarios

Estimation of runoff by table method
Estimation  of runoff by table methodEstimation  of runoff by table method
Estimation of runoff by table method

1. chapter 1 part 1 introduction to iwrm
1. chapter 1  part 1 introduction to iwrm1. chapter 1  part 1 introduction to iwrm
1. chapter 1 part 1 introduction to iwrm

Water scarcity in india
Water scarcity in india Water scarcity in india
Water scarcity in india

Hydrology
HydrologyHydrology
Hydrology

Groundwater Management Powerpoint Presentation Slides
Groundwater Management Powerpoint Presentation SlidesGroundwater Management Powerpoint Presentation Slides
Groundwater Management Powerpoint Presentation Slides

Sustainable Water Management Powerpoint Presentation Slides
Sustainable Water Management Powerpoint Presentation SlidesSustainable Water Management Powerpoint Presentation Slides
Sustainable Water Management Powerpoint Presentation Slides

water and agriculture
water and agriculturewater and agriculture
water and agriculture

Watershed management
Watershed managementWatershed management
Watershed management

Hydrology
HydrologyHydrology
Hydrology

Water and sustainable development
Water and sustainable developmentWater and sustainable development
Water and sustainable development


Similar to Introduction to Water Resource Management

River basin planning and IWRM.pptx
River basin planning and IWRM.pptxRiver basin planning and IWRM.pptx
River basin planning and IWRM.pptx
PriyankPatel449642

River basin planning and IWRM
River basin planning and IWRMRiver basin planning and IWRM
River basin planning and IWRM
patel Priyank Hiteshbhai

Copy of 06 115 water resources management
Copy of 06 115 water resources managementCopy of 06 115 water resources management
Copy of 06 115 water resources management
AHMED NADIM JILANI

Water sustainability principles
Water sustainability principlesWater sustainability principles
Water sustainability principles
U.S. Water Alliance

SWaRMA_IRBM_Module1_#2, River basin management: approach and challenges, Phil...
SWaRMA_IRBM_Module1_#2, River basin management: approach and challenges, Phil...SWaRMA_IRBM_Module1_#2, River basin management: approach and challenges, Phil...
SWaRMA_IRBM_Module1_#2, River basin management: approach and challenges, Phil...
ICIMOD

Dr bm iwrm implementation
Dr bm iwrm implementationDr bm iwrm implementation
Dr bm iwrm implementation
Drbasharat

Need for efficient water infrastructure and its impact on water resources man...
Need for efficient water infrastructure and its impact on water resources man...Need for efficient water infrastructure and its impact on water resources man...
Need for efficient water infrastructure and its impact on water resources man...Mazen Alqadi

Deep watershed management overview
Deep  watershed management   overviewDeep  watershed management   overview
Deep watershed management overview
Rajesh Davulluri

mpdf.pdf
mpdf.pdfmpdf.pdf
mpdf.pdf
SarojKarki16

David Harrison, The Nature Conservancy
David Harrison, The Nature ConservancyDavid Harrison, The Nature Conservancy
David Harrison, The Nature Conservancy
International Hydropower Association

How is integrated water resources management working at the local level
How is integrated water resources management working at the local levelHow is integrated water resources management working at the local level
How is integrated water resources management working at the local level
Alexander Decker

Synergy in the Watershed Management: Case Study on Citarum Watershed - Indonesia
Synergy in the Watershed Management: Case Study on Citarum Watershed - IndonesiaSynergy in the Watershed Management: Case Study on Citarum Watershed - Indonesia
Synergy in the Watershed Management: Case Study on Citarum Watershed - Indonesia
inventionjournals

IWRM Issues in the Caribbean
IWRM Issues in the Caribbean IWRM Issues in the Caribbean
IWRM Issues in the Caribbean
Global Water Partnership-Caribbean (GWP-C)

Stakeholders Management Strategic Plan June 2017.pdf
Stakeholders Management Strategic Plan June 2017.pdfStakeholders Management Strategic Plan June 2017.pdf
Stakeholders Management Strategic Plan June 2017.pdf
GedionMarkos

INTEGRATED WATERSHED MANAGEMENT by Geetha K.pptx
INTEGRATED WATERSHED MANAGEMENT by Geetha K.pptxINTEGRATED WATERSHED MANAGEMENT by Geetha K.pptx
INTEGRATED WATERSHED MANAGEMENT by Geetha K.pptx
hiiamkmohith

Air and aviation Law (Assignment On: National Water Law Policy, Bangladesh) +...
Air and aviation Law (Assignment On: National Water Law Policy, Bangladesh) +...Air and aviation Law (Assignment On: National Water Law Policy, Bangladesh) +...
Air and aviation Law (Assignment On: National Water Law Policy, Bangladesh) +...
Asian Paint Bangladesh Ltd

Watershed Managament_Unit 2.ppt
Watershed Managament_Unit 2.pptWatershed Managament_Unit 2.ppt
Watershed Managament_Unit 2.ppt
shrutik57

Mr. Dinesh Kumar IEWP @ Workshop on River Basin Management Planning and Gover...
Mr. Dinesh Kumar IEWP @ Workshop on River Basin Management Planning and Gover...Mr. Dinesh Kumar IEWP @ Workshop on River Basin Management Planning and Gover...
Mr. Dinesh Kumar IEWP @ Workshop on River Basin Management Planning and Gover...
India-EU Water Partnership

SWaRMA_IRBM_Module1_#1, Principles of IWRM and IRBM: Challenges for the Himal...
SWaRMA_IRBM_Module1_#1, Principles of IWRM and IRBM: Challenges for the Himal...SWaRMA_IRBM_Module1_#1, Principles of IWRM and IRBM: Challenges for the Himal...
SWaRMA_IRBM_Module1_#1, Principles of IWRM and IRBM: Challenges for the Himal...
ICIMOD


Similar to Introduction to Water Resource Management (20)

River basin planning and IWRM.pptx
River basin planning and IWRM.pptxRiver basin planning and IWRM.pptx
River basin planning and IWRM.pptx

River basin planning and IWRM
River basin planning and IWRMRiver basin planning and IWRM
River basin planning and IWRM

Copy of 06 115 water resources management
Copy of 06 115 water resources managementCopy of 06 115 water resources management
Copy of 06 115 water resources management

Water sustainability principles
Water sustainability principlesWater sustainability principles
Water sustainability principles

SWaRMA_IRBM_Module1_#2, River basin management: approach and challenges, Phil...
SWaRMA_IRBM_Module1_#2, River basin management: approach and challenges, Phil...SWaRMA_IRBM_Module1_#2, River basin management: approach and challenges, Phil...
SWaRMA_IRBM_Module1_#2, River basin management: approach and challenges, Phil...

Dr bm iwrm implementation
Dr bm iwrm implementationDr bm iwrm implementation
Dr bm iwrm implementation

Need for efficient water infrastructure and its impact on water resources man...
Need for efficient water infrastructure and its impact on water resources man...Need for efficient water infrastructure and its impact on water resources man...
Need for efficient water infrastructure and its impact on water resources man...

Deep watershed management overview
Deep  watershed management   overviewDeep  watershed management   overview
Deep watershed management overview

mpdf.pdf
mpdf.pdfmpdf.pdf
mpdf.pdf

David Harrison, The Nature Conservancy
David Harrison, The Nature ConservancyDavid Harrison, The Nature Conservancy
David Harrison, The Nature Conservancy

How is integrated water resources management working at the local level
How is integrated water resources management working at the local levelHow is integrated water resources management working at the local level
How is integrated water resources management working at the local level

Synergy in the Watershed Management: Case Study on Citarum Watershed - Indonesia
Synergy in the Watershed Management: Case Study on Citarum Watershed - IndonesiaSynergy in the Watershed Management: Case Study on Citarum Watershed - Indonesia
Synergy in the Watershed Management: Case Study on Citarum Watershed - Indonesia

IWRM Issues in the Caribbean
IWRM Issues in the Caribbean IWRM Issues in the Caribbean
IWRM Issues in the Caribbean

Stakeholders Management Strategic Plan June 2017.pdf
Stakeholders Management Strategic Plan June 2017.pdfStakeholders Management Strategic Plan June 2017.pdf
Stakeholders Management Strategic Plan June 2017.pdf

INTEGRATED WATERSHED MANAGEMENT by Geetha K.pptx
INTEGRATED WATERSHED MANAGEMENT by Geetha K.pptxINTEGRATED WATERSHED MANAGEMENT by Geetha K.pptx
INTEGRATED WATERSHED MANAGEMENT by Geetha K.pptx

Air and aviation Law (Assignment On: National Water Law Policy, Bangladesh) +...
Air and aviation Law (Assignment On: National Water Law Policy, Bangladesh) +...Air and aviation Law (Assignment On: National Water Law Policy, Bangladesh) +...
Air and aviation Law (Assignment On: National Water Law Policy, Bangladesh) +...

Watershed Managament_Unit 2.ppt
Watershed Managament_Unit 2.pptWatershed Managament_Unit 2.ppt
Watershed Managament_Unit 2.ppt

Mr. Dinesh Kumar IEWP @ Workshop on River Basin Management Planning and Gover...
Mr. Dinesh Kumar IEWP @ Workshop on River Basin Management Planning and Gover...Mr. Dinesh Kumar IEWP @ Workshop on River Basin Management Planning and Gover...
Mr. Dinesh Kumar IEWP @ Workshop on River Basin Management Planning and Gover...

SWaRMA_IRBM_Module1_#1, Principles of IWRM and IRBM: Challenges for the Himal...
SWaRMA_IRBM_Module1_#1, Principles of IWRM and IRBM: Challenges for the Himal...SWaRMA_IRBM_Module1_#1, Principles of IWRM and IRBM: Challenges for the Himal...
SWaRMA_IRBM_Module1_#1, Principles of IWRM and IRBM: Challenges for the Himal...

Colleen's UW Prof Project
Colleen's UW Prof ProjectColleen's UW Prof Project
Colleen's UW Prof Project


More from Kaium Chowdhury

Environmental pollution
Environmental pollutionEnvironmental pollution
Environmental pollution
Kaium Chowdhury

Environmental degradation
Environmental degradationEnvironmental degradation
Environmental degradation
Kaium Chowdhury

Climatic hazards of bangladeh
Climatic hazards of bangladehClimatic hazards of bangladeh
Climatic hazards of bangladeh
Kaium Chowdhury

Climate & temperature; climatic hazard
Climate & temperature; climatic hazardClimate & temperature; climatic hazard
Climate & temperature; climatic hazard
Kaium Chowdhury

Energy sources
Energy sourcesEnergy sources
Energy sources
Kaium Chowdhury

Energy sources, geography
Energy sources, geographyEnergy sources, geography
Energy sources, geography
Kaium Chowdhury

Energy resources, Geography
Energy resources, GeographyEnergy resources, Geography
Energy resources, Geography
Kaium Chowdhury

Sustainability, Sustainable Development
Sustainability, Sustainable DevelopmentSustainability, Sustainable Development
Sustainability, Sustainable Development
Kaium Chowdhury

Ruth allington geoscientists and sustainability tues pm
Ruth allington geoscientists and sustainability tues pmRuth allington geoscientists and sustainability tues pm
Ruth allington geoscientists and sustainability tues pm
Kaium Chowdhury

Resource, Geography
Resource, GeographyResource, Geography
Resource, Geography
Kaium Chowdhury

Introduction to sustainability
Introduction to sustainabilityIntroduction to sustainability
Introduction to sustainability
Kaium Chowdhury

Global warming-Climate Geography
Global warming-Climate GeographyGlobal warming-Climate Geography
Global warming-Climate Geography
Kaium Chowdhury

Criticism and assumption cristtaler
Criticism and assumption   cristtalerCriticism and assumption   cristtaler
Criticism and assumption cristtaler
Kaium Chowdhury

Central place theory-Human Geography
Central place theory-Human GeographyCentral place theory-Human Geography
Central place theory-Human Geography
Kaium Chowdhury

Temperature radiation climatology-Climatology Chapter
Temperature radiation climatology-Climatology ChapterTemperature radiation climatology-Climatology Chapter
Temperature radiation climatology-Climatology Chapter
Kaium Chowdhury

ITCZ-Climatology Chapter
ITCZ-Climatology ChapterITCZ-Climatology Chapter
ITCZ-Climatology Chapter
Kaium Chowdhury

ITCZ-1, Climatology Chapter-Climatology Chapter
ITCZ-1, Climatology Chapter-Climatology ChapterITCZ-1, Climatology Chapter-Climatology Chapter
ITCZ-1, Climatology Chapter-Climatology Chapter
Kaium Chowdhury

Insolation and temperature
Insolation and temperatureInsolation and temperature
Insolation and temperature
Kaium Chowdhury

Coriolis force and winds of the atmosphere -Climatology Chapter
Coriolis force and winds of the atmosphere -Climatology ChapterCoriolis force and winds of the atmosphere -Climatology Chapter
Coriolis force and winds of the atmosphere -Climatology Chapter
Kaium Chowdhury

Climatology-Climatology Chapter
Climatology-Climatology ChapterClimatology-Climatology Chapter
Climatology-Climatology Chapter
Kaium Chowdhury


More from Kaium Chowdhury (20)

Environmental pollution
Environmental pollutionEnvironmental pollution
Environmental pollution

Environmental degradation
Environmental degradationEnvironmental degradation
Environmental degradation

Climatic hazards of bangladeh
Climatic hazards of bangladehClimatic hazards of bangladeh
Climatic hazards of bangladeh

Climate & temperature; climatic hazard
Climate & temperature; climatic hazardClimate & temperature; climatic hazard
Climate & temperature; climatic hazard

Energy sources
Energy sourcesEnergy sources
Energy sources

Energy sources, geography
Energy sources, geographyEnergy sources, geography
Energy sources, geography

Energy resources, Geography
Energy resources, GeographyEnergy resources, Geography
Energy resources, Geography

Sustainability, Sustainable Development
Sustainability, Sustainable DevelopmentSustainability, Sustainable Development
Sustainability, Sustainable Development

Ruth allington geoscientists and sustainability tues pm
Ruth allington geoscientists and sustainability tues pmRuth allington geoscientists and sustainability tues pm
Ruth allington geoscientists and sustainability tues pm

Resource, Geography
Resource, GeographyResource, Geography
Resource, Geography

Introduction to sustainability
Introduction to sustainabilityIntroduction to sustainability
Introduction to sustainability

Global warming-Climate Geography
Global warming-Climate GeographyGlobal warming-Climate Geography
Global warming-Climate Geography

Criticism and assumption cristtaler
Criticism and assumption   cristtalerCriticism and assumption   cristtaler
Criticism and assumption cristtaler

Central place theory-Human Geography
Central place theory-Human GeographyCentral place theory-Human Geography
Central place theory-Human Geography

Temperature radiation climatology-Climatology Chapter
Temperature radiation climatology-Climatology ChapterTemperature radiation climatology-Climatology Chapter
Temperature radiation climatology-Climatology Chapter

ITCZ-Climatology Chapter
ITCZ-Climatology ChapterITCZ-Climatology Chapter
ITCZ-Climatology Chapter

ITCZ-1, Climatology Chapter-Climatology Chapter
ITCZ-1, Climatology Chapter-Climatology ChapterITCZ-1, Climatology Chapter-Climatology Chapter
ITCZ-1, Climatology Chapter-Climatology Chapter

Insolation and temperature
Insolation and temperatureInsolation and temperature
Insolation and temperature

Coriolis force and winds of the atmosphere -Climatology Chapter
Coriolis force and winds of the atmosphere -Climatology ChapterCoriolis force and winds of the atmosphere -Climatology Chapter
Coriolis force and winds of the atmosphere -Climatology Chapter

Climatology-Climatology Chapter
Climatology-Climatology ChapterClimatology-Climatology Chapter
Climatology-Climatology Chapter


Recently uploaded

Palestine last event orientationfvgnh .pptx
Palestine last event orientationfvgnh .pptxPalestine last event orientationfvgnh .pptx
Palestine last event orientationfvgnh .pptx
RaedMohamed3

Honest Reviews of Tim Han LMA Course Program.pptx
Honest Reviews of Tim Han LMA Course Program.pptxHonest Reviews of Tim Han LMA Course Program.pptx
Honest Reviews of Tim Han LMA Course Program.pptx
timhan337

The Roman Empire A Historical Colossus.pdf
The Roman Empire A Historical Colossus.pdfThe Roman Empire A Historical Colossus.pdf
The Roman Empire A Historical Colossus.pdf
kaushalkr1407

Thesis Statement for students diagnonsed withADHD.ppt
Thesis Statement for students diagnonsed withADHD.pptThesis Statement for students diagnonsed withADHD.ppt
Thesis Statement for students diagnonsed withADHD.ppt
EverAndrsGuerraGuerr

2024.06.01 Introducing a competency framework for languag learning materials ...
2024.06.01 Introducing a competency framework for languag learning materials ...2024.06.01 Introducing a competency framework for languag learning materials ...
2024.06.01 Introducing a competency framework for languag learning materials ...
Sandy Millin

TESDA TM1 REVIEWER FOR NATIONAL ASSESSMENT WRITTEN AND ORAL QUESTIONS WITH A...
TESDA TM1 REVIEWER  FOR NATIONAL ASSESSMENT WRITTEN AND ORAL QUESTIONS WITH A...TESDA TM1 REVIEWER  FOR NATIONAL ASSESSMENT WRITTEN AND ORAL QUESTIONS WITH A...
TESDA TM1 REVIEWER FOR NATIONAL ASSESSMENT WRITTEN AND ORAL QUESTIONS WITH A...
EugeneSaldivar

Instructions for Submissions thorugh G- Classroom.pptx
Instructions for Submissions thorugh G- Classroom.pptxInstructions for Submissions thorugh G- Classroom.pptx
Instructions for Submissions thorugh G- Classroom.pptx
Jheel Barad

Biological Screening of Herbal Drugs in detailed.
Biological Screening of Herbal Drugs in detailed.Biological Screening of Herbal Drugs in detailed.
Biological Screening of Herbal Drugs in detailed.
Ashokrao Mane college of Pharmacy Peth-Vadgaon

The Accursed House by Émile Gaboriau.pptx
The Accursed House by Émile Gaboriau.pptxThe Accursed House by Émile Gaboriau.pptx
The Accursed House by Émile Gaboriau.pptx
DhatriParmar

aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
siemaillard

Digital Tools and AI for Teaching Learning and Research
Digital Tools and AI for Teaching Learning and ResearchDigital Tools and AI for Teaching Learning and Research
Digital Tools and AI for Teaching Learning and Research
Vikramjit Singh

Model Attribute Check Company Auto Property
Model Attribute  Check Company Auto PropertyModel Attribute  Check Company Auto Property
Model Attribute Check Company Auto Property
Celine George

Unit 2- Research Aptitude (UGC NET Paper I).pdf
Unit 2- Research Aptitude (UGC NET Paper I).pdfUnit 2- Research Aptitude (UGC NET Paper I).pdf
Unit 2- Research Aptitude (UGC NET Paper I).pdf
Thiyagu K

The French Revolution Class 9 Study Material pdf free download
The French Revolution Class 9 Study Material pdf free downloadThe French Revolution Class 9 Study Material pdf free download
The French Revolution Class 9 Study Material pdf free download
Vivekanand Anglo Vedic Academy

The basics of sentences session 5pptx.pptx
The basics of sentences session 5pptx.pptxThe basics of sentences session 5pptx.pptx
The basics of sentences session 5pptx.pptx
heathfieldcps1

"Protectable subject matters, Protection in biotechnology, Protection of othe...
"Protectable subject matters, Protection in biotechnology, Protection of othe..."Protectable subject matters, Protection in biotechnology, Protection of othe...
"Protectable subject matters, Protection in biotechnology, Protection of othe...
SACHIN R KONDAGURI

Francesca Gottschalk - How can education support child empowerment.pptx
Francesca Gottschalk - How can education support child empowerment.pptxFrancesca Gottschalk - How can education support child empowerment.pptx
Francesca Gottschalk - How can education support child empowerment.pptx
EduSkills OECD

Home assignment II on Spectroscopy 2024 Answers.pdf
Home assignment II on Spectroscopy 2024 Answers.pdfHome assignment II on Spectroscopy 2024 Answers.pdf
Home assignment II on Spectroscopy 2024 Answers.pdf
Tamralipta Mahavidyalaya

special B.ed 2nd year old paper_20240531.pdf
special B.ed 2nd year old paper_20240531.pdfspecial B.ed 2nd year old paper_20240531.pdf
special B.ed 2nd year old paper_20240531.pdf
Special education needs

CACJapan - GROUP Presentation 1- Wk 4.pdf
CACJapan - GROUP Presentation 1- Wk 4.pdfCACJapan - GROUP Presentation 1- Wk 4.pdf
CACJapan - GROUP Presentation 1- Wk 4.pdf
camakaiclarkmusic


Recently uploaded (20)

Palestine last event orientationfvgnh .pptx
Palestine last event orientationfvgnh .pptxPalestine last event orientationfvgnh .pptx
Palestine last event orientationfvgnh .pptx

Honest Reviews of Tim Han LMA Course Program.pptx
Honest Reviews of Tim Han LMA Course Program.pptxHonest Reviews of Tim Han LMA Course Program.pptx
Honest Reviews of Tim Han LMA Course Program.pptx

The Roman Empire A Historical Colossus.pdf
The Roman Empire A Historical Colossus.pdfThe Roman Empire A Historical Colossus.pdf
The Roman Empire A Historical Colossus.pdf

Thesis Statement for students diagnonsed withADHD.ppt
Thesis Statement for students diagnonsed withADHD.pptThesis Statement for students diagnonsed withADHD.ppt
Thesis Statement for students diagnonsed withADHD.ppt

2024.06.01 Introducing a competency framework for languag learning materials ...
2024.06.01 Introducing a competency framework for languag learning materials ...2024.06.01 Introducing a competency framework for languag learning materials ...
2024.06.01 Introducing a competency framework for languag learning materials ...

TESDA TM1 REVIEWER FOR NATIONAL ASSESSMENT WRITTEN AND ORAL QUESTIONS WITH A...
TESDA TM1 REVIEWER  FOR NATIONAL ASSESSMENT WRITTEN AND ORAL QUESTIONS WITH A...TESDA TM1 REVIEWER  FOR NATIONAL ASSESSMENT WRITTEN AND ORAL QUESTIONS WITH A...
TESDA TM1 REVIEWER FOR NATIONAL ASSESSMENT WRITTEN AND ORAL QUESTIONS WITH A...

Instructions for Submissions thorugh G- Classroom.pptx
Instructions for Submissions thorugh G- Classroom.pptxInstructions for Submissions thorugh G- Classroom.pptx
Instructions for Submissions thorugh G- Classroom.pptx

Biological Screening of Herbal Drugs in detailed.
Biological Screening of Herbal Drugs in detailed.Biological Screening of Herbal Drugs in detailed.
Biological Screening of Herbal Drugs in detailed.

The Accursed House by Émile Gaboriau.pptx
The Accursed House by Émile Gaboriau.pptxThe Accursed House by Émile Gaboriau.pptx
The Accursed House by Émile Gaboriau.pptx

aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa

Digital Tools and AI for Teaching Learning and Research
Digital Tools and AI for Teaching Learning and ResearchDigital Tools and AI for Teaching Learning and Research
Digital Tools and AI for Teaching Learning and Research

Model Attribute Check Company Auto Property
Model Attribute  Check Company Auto PropertyModel Attribute  Check Company Auto Property
Model Attribute Check Company Auto Property

Unit 2- Research Aptitude (UGC NET Paper I).pdf
Unit 2- Research Aptitude (UGC NET Paper I).pdfUnit 2- Research Aptitude (UGC NET Paper I).pdf
Unit 2- Research Aptitude (UGC NET Paper I).pdf

The French Revolution Class 9 Study Material pdf free download
The French Revolution Class 9 Study Material pdf free downloadThe French Revolution Class 9 Study Material pdf free download
The French Revolution Class 9 Study Material pdf free download

The basics of sentences session 5pptx.pptx
The basics of sentences session 5pptx.pptxThe basics of sentences session 5pptx.pptx
The basics of sentences session 5pptx.pptx

"Protectable subject matters, Protection in biotechnology, Protection of othe...
"Protectable subject matters, Protection in biotechnology, Protection of othe..."Protectable subject matters, Protection in biotechnology, Protection of othe...
"Protectable subject matters, Protection in biotechnology, Protection of othe...

Francesca Gottschalk - How can education support child empowerment.pptx
Francesca Gottschalk - How can education support child empowerment.pptxFrancesca Gottschalk - How can education support child empowerment.pptx
Francesca Gottschalk - How can education support child empowerment.pptx

Home assignment II on Spectroscopy 2024 Answers.pdf
Home assignment II on Spectroscopy 2024 Answers.pdfHome assignment II on Spectroscopy 2024 Answers.pdf
Home assignment II on Spectroscopy 2024 Answers.pdf

special B.ed 2nd year old paper_20240531.pdf
special B.ed 2nd year old paper_20240531.pdfspecial B.ed 2nd year old paper_20240531.pdf
special B.ed 2nd year old paper_20240531.pdf

CACJapan - GROUP Presentation 1- Wk 4.pdf
CACJapan - GROUP Presentation 1- Wk 4.pdfCACJapan - GROUP Presentation 1- Wk 4.pdf
CACJapan - GROUP Presentation 1- Wk 4.pdf


Introduction to Water Resource Management

  • 1.
  • 2.  Water Resources Management is the integrating concept for a number of water sub-sectors such as hydropower, water supply and sanitation, irrigation and drainage, and environment. An integrated water resources perspective ensures that social, economic, environmental and technical dimensions are taken into account in the management and development of water resources.
  • 3. Integrated Water Resources Management  Integrated water resources management is the practice of making decisions and taking actions while considering multiple viewpoints of how water should be managed. These decisions and actions relate to situations such as river basin planning, organization of task forces, planning of new capital facilities, controlling reservoir releases, regulating floodplains, and developing new laws and regulations. The need for multiple viewpoints is caused by competition for water and by complex institutional constraints. The decision-making process is often lengthy and involves many participants.
  • 4.  Between the water resources and water needs (demands) often occur some tensions and conflicts. These problems may be spatial, areal and temporal, endemic or general either.  These problems drew attention to the importance of water resource management. We have to define the concept of water resources management.  The water resources management is the sum of the activities aimed the coordination of the naturally occurring water resources and o social water needs (demands). With coordination we can create a well- functioning balance between water resources and water needs.
  • 5.  Water management is a scientific, technological, economical, administrative and executive activity, which aims at optimal phasing of the nature water cycle and the water needs of the society (Figure 20.).  Water resources management is the part of the water management system, which contents all activities of quantitative and qualitative, temporal and spatial phasing of the water resources and water needs of the water users.
  • 6.
  • 7.  The water resources management includes:  The quantitative and qualitative exploration of water resources  Water needs and inventory records  Measurement and matching of the water resources and water needs (demands) in a special system  Decision support depending with light of the results
  • 8.
  • 9. The decisions flow diagram of the water resource management is shown on the Figure
  • 10.
  • 11. The general structure and description of the water management system 1. The functions of national (central) control 2. The tasks of the regional (operational) management:  The functions of national (central) control  National and macro-regional water resource management, future plans and their implementation, building and maintaining international relationships  The tasks of the regional (operational) management:  The harmonization and control of the locally occurring water demands and uses, and the water resources, and the qualitative and quantitative water resource protection .
  • 13.
  • 14. Components and Viewpoints  Integrated water resources management begins with the term "water resources management" itself, which uses structural measures and nonstructural measures to control natural and human-made water resources systems for beneficial uses. Water-control facilities and environmental elements work together in water resources systems to achieve water management purposes.
  • 15.  Integrated water resources management considers viewpoints of  human groups,  factors of the human environment, and  aspects of natural water systems.
  • 16.  Structural components used in human-made systems control water flow and quality and include conveyance systems (channels, canals, and pipes), diversion structures, dams and storage facilities, treatment plants, pumping stations and hydroelectric plants, wells, and appurtenances.
  • 17.  Elements of natural water resources systems include the atmosphere, watersheds (drainage basins), stream channels, wetlands, floodplains, aquifers, lakes, estuaries, seas, and the ocean. Examples of nonstructural measures, which do not require constructed facilities, are pricing schedules, zoning, incentives, public relations, regulatory programs, and insurance.
  • 18. Multiple Purposes Water Resource Management  Integrated water resources management considers the viewpoints of water management agencies with specific purposes, governmental and stakeholder groups, geographic regions, and disciplines of knowledge (see the figure).
  • 19.  These viewpoints have been described in a variety of ways. For example, Mitchell (1990) wrote that integrated water management considers three aspects:  dimensions of water (surface water and groundwater, and quantity and quality);  interactions with land and environment; and  interrelationships with social and economic development. • White (1969) wrote about the "multiple purposes" and "multiple means" of water management, and predicted that integration would create some confusion because it defies neat administrative organization.
  • 20.  In general, water agencies deal with water supply, wastewater and water quality services, stormwater and flood control, hydropower, navigation, recreation, and water for the environment, fish, and wildlife. As the practice of water resources management evolved, the term "multipurpose" (or "multiobjective") water resources development (or management) came to refer to projects with more than one purpose. Later, the term "comprehensive" water planning and management came into use to describe management practice that considers different viewpoints.
  • 21. Challenges to Water Management Integration  The term "functional integration" means to join purposes of water management such as to manage water supply and wastewater within a single unit. Protecting aquatic habitat for natural and ecological systems while managing for flood control is another example. Still another term is "conjunctive use," which usually refers to the joint management of surface water and groundwater.
  • 22. The challenges are: Governmental and Interest Groups Geographic Regions Interdisciplinary Perspectives Coordination and Cooperation Total Water Management
  • 23. Governmental and Interest Groups  Accommodating the views of governments and special interest groups is a challenge in integration because they have different perspectives. Intergovernmental relationships between government agencies at the same level include regional, state-to-state, and interagency issues. Relationships between different levels of government include, for example, state– federal and local–state interactions.
  • 24. Special interest groups range from those favoring development of resources to those favoring preservation. In many cases, conflicts arise between the same types of interest groups, as, for example, between fly fishers and rafters on a stream.
  • 25. Geographic Regions  The views of stakeholders in different locations must be balanced, introducing a geographic dimension of integration. Examples include issues between upstream and downstream stakeholders, issues among stakeholders in the same region, and views of stakeholders in a basin of origin versus those in a receiving basin. Another aspect of geographic integration is the scale of water-accounting units, such as small watershed, major river basin, region, or state, even up to global scale.
  • 26. Interdisciplinary Perspectives  The complexity of integrated water resources management requires knowledge and wisdom from different areas of knowledge, or disciplines. Blending knowledge from engineering, law, finance, economics, politics, history, sociology, psychology, life science, mathematics, and other fields can bring valuable knowledge about the possibilities and consequences of decisions and actions. For example, engineering knowledge might focus on physical infrastructure systems, whereas sociology or psychology might focus on human impacts.
  • 27. Coordination and Cooperation  Coordination is an important tool of integration because the arena of water management sometimes involves conflicting objectives. Coordinating mechanisms can be formal, such as intergovernmental agreements, or informal, such as local watershed groups meeting voluntarily.
  • 28.  Cooperation is also a key element in integration, whether by formal or by informal means. Cooperation can be any form of working together to manage water, such as in cooperative water management actions on a regional scale, often known as "regionalization." Examples of regionalization include a regional management authority, consolidation of systems, a central system acting as water wholesaler, joint financing of facilities, coordination of service areas, interconnections for emergencies, and sharing of personnel, equipment, or services.
  • 29. Total Water Management  Integrated water resources management can take different forms and is examined best in specific situations. In the water-supply field, the term "integrated resource planning" has come into use to express concepts of integration in supply development. Perhaps the most comprehensive concept for water supply is "Total Water Management.”
  • 30.  According to a 1996 report of the American Water Works Research Foundation, Total Water Management is the exercise of stewardship of water resources for the greatest good of society and the environment. A basic principle of Total Water Management is that the supply is renewable, but limited, and should be managed on a sustainable-use basis.
  • 31.  Taking into consideration local and regional variations, Total Water Management:  Encourages planning and management on a natural water systems basis through a dynamic process that adapts to changing conditions;  Balances competing uses of water through efficient allocation that addresses social values, cost effectiveness, and environmental benefits and costs;
  • 32.  Requires the participation of all units of government and stakeholders in decision- making through a process of coordination and conflict resolution;  Promotes water conservation, reuse, source protection, and supply development to enhance water quality and quantity; and  Fosters public health, safety, and community goodwill.
