Inspection Metrology
Measurement - a procedure in which an unknown
quantity is compared to a known standard, using an
accepted and consistent system of units
Metrology – the science of measurement
1
 Accuracy – how closely the measured value agrees with the
true value
 Precision – a measure of the repeatability of the measurement
process
 Rule of 10 – the measuring instrument must be ten time more precise
than the specified tolerance.
 Resolution(L.C.)– the smallest variation of the variable that
can be detected
 Speed of response – how long the instrument takes
to measure the variable
 Others: operating range, reliability, cost
2
Characteristics of Measuring Instruments

3. 20-10-2016
2

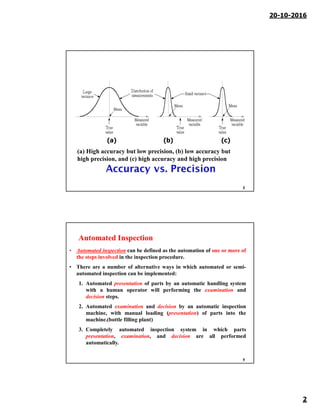

(a) High accuracy but low precision, (b) low accuracy but
high precision, and (c) high accuracy and high precision
(a) (b) (c)
3
• Automated inspection can be defined as the automation of one or more of
the steps involved in the inspection procedure.
• There are a number of alternative ways in which automated or semi-
automated inspection can be implemented:
1. Automated presentation of parts by an automatic handling system
with a human operator will performing the examination and
decision steps.
2. Automated examination and decision by an automatic inspection
machine, with manual loading (presentation) of parts into the
machine.(bottle filling plant)
3. Completely automated inspection system in which parts
presentation, examination, and decision are all performed
automatically.
Automated Inspection
4

4. 20-10-2016
3
Where and When to Inspect
• Inspection can be performed at any of several places in
production:
1. Receiving inspection, when raw materials and parts are
received from suppliers.
2. At various stages of manufacturing, and
3. Before shipment to the customer.
5
Off-Line and On-Line Inspection
• The timing of the inspection procedure in relation to the
manufacturing process is an important consideration in
quality control.
• Two alternative situations can be distinguished:
1. Off-line inspection.
2. On-line inspection.
6

5. 20-10-2016
4
Off-Line Inspection
• Off-line inspection is performed away from the manufacturing
process, and there is generally a time delay between processing
and inspection.
• Manual inspection is common.
7
On-Line Inspection
• The alternative to off-line inspection is on-line inspection, in
which the procedure is performed when the parts are made,
either as
 An integral step in the processing or assembly operation,
or
 Immediately afterward.
• Two on-line inspection procedures can be distinguished:
 On-line/in-process.
 On-line/post-process.
8

6. 20-10-2016
5
On-Line/ in-process Inspection
• This is achieved by performing the inspection procedure during the
manufacturing operation.
• As the parts are being made, the inspection procedure is measuring
or gauging the parts simultaneously.
• Technologically, automated on-line/in-process insection of the
product is usually difficult and expensive to implement, As an
alternative, on-line/ post-process procedures are often used. 9
On-Line/ post-process Inspection
• The measurement or gauging procedure is accomplished
immediately following the production process.
• Even though it follows the process, it is still considered an on-
line method because it is integrated with the manufacturing
workstation, and the results of the inspection can immediately
influence the production operation of the next part.
10

7. 20-10-2016
6
Contact and Non-contact Inspection Techniques
• Inspection techniques can be divided into two broad categories:
1. Contact Inspection.
2. Non-contact Inspection.
• In contact inspection, physical contact is made between the
object and the measuring or gauging instrument.
• In non-contact inspection no physical contact is made.
11
 Laser light beam is:
 Highly monochromatic - the light has a single wave length
 Highly collimated - the light rays are parallel
 These properties have motivated many applications in
measurement and inspection
Lasers Metrology
12

8. 20-10-2016
7

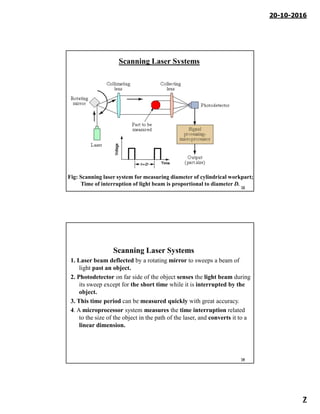

Fig: Scanning laser system for measuring diameter of cylindrical workpart;
Time of interruption of light beam is proportional to diameter D.
Scanning Laser Systems
13
1. Laser beam deflected by a rotating mirror to sweeps a beam of
light past an object.
2. Photodetector on far side of the object senses the light beam during
its sweep except for the short time while it is interrupted by the
object.
3. This time period can be measured quickly with great accuracy.
4. A microprocessor system measures the time interruption related
to the size of the object in the path of the laser, and converts it to a
linear dimension.
Scanning Laser Systems
14

9. 20-10-2016
8

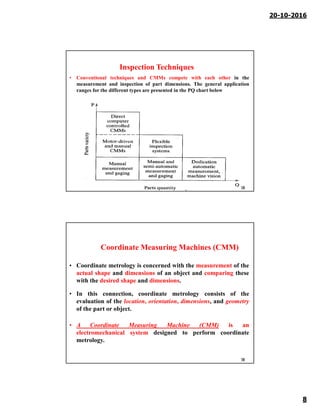

Inspection Techniques
• Conventional techniques and CMMs compete with each other in the
measurement and inspection of part dimensions. The general application
ranges for the different types are presented in the PQ chart below
15
Coordinate Measuring Machines (CMM)
• Coordinate metrology is concerned with the measurement of the
actual shape and dimensions of an object and comparing these
with the desired shape and dimensions.
• In this connection, coordinate metrology consists of the
evaluation of the location, orientation, dimensions, and geometry
of the part or object.
• A Coordinate Measuring Machine (CMM) is an
electromechanical system designed to perform coordinate
metrology.
16

10. 20-10-2016
9
Coordinate Measuring Machines

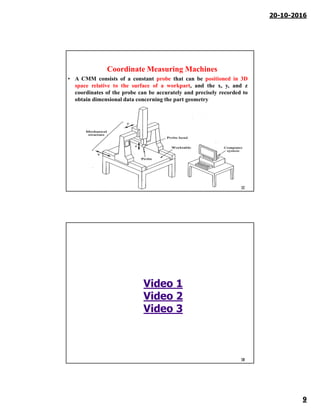

• A CMM consists of a constant probe that can be positioned in 3D
space relative to the surface of a workpart, and the x, y, and z
coordinates of the probe can be accurately and precisely recorded to
obtain dimensional data concerning the part geometry
17
18
Video 1
Video 2
Video 3

11. 20-10-2016
10
19

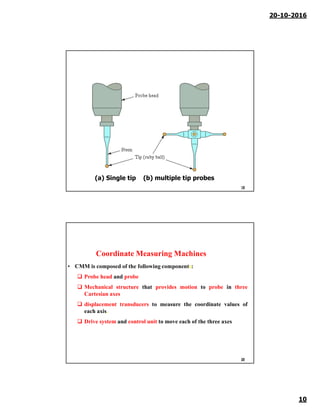

(a) Single tip (b) multiple tip probes
Coordinate Measuring Machines
• CMM is composed of the following components:
 Probe head and probe
 Mechanical structure that provides motion to probe in three
Cartesian axes
 displacement transducers to measure the coordinate values of
each axis.
 Drive system and control unit to move each of the three axes
20

12. 20-10-2016
11

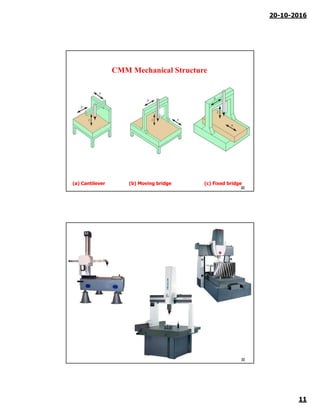

CMM Mechanical Structure
(a) Cantilever (b) Moving bridge (c) Fixed bridge
21
22

13. 20-10-2016
12
CMM Mechanical Structure
(d) Horizontal Arm (e) Gantry (f) Column
23
24

14. 20-10-2016
13

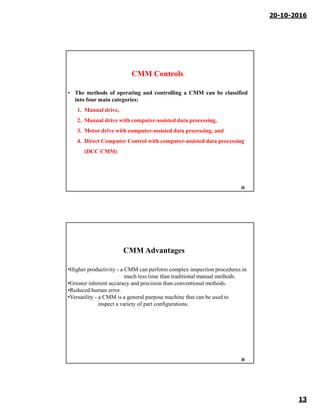

CMM Controls
• The methods of operating and controlling a CMM can be classified
into four main categories:
1. Manual drive,
2. Manual drive with computer-assisted data processing,
3. Motor drive with computer-assisted data processing, and
4. Direct Computer Control with computer-assisted data processing
(DCC CMM).
25
•Higher productivity - a CMM can perform complex inspection procedures in
much less time than traditional manual methods.
•Greater inherent accuracy and precision than conventional methods.
•Reduced human error.
•Versatility - a CMM is a general purpose machine that can be used to
inspect a variety of part configurations.
CMM Advantages
26

15. 20-10-2016
14
27

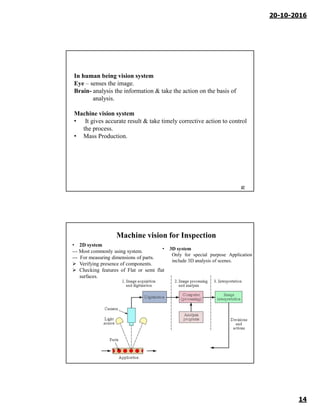

In human being vision system
Eye – senses the image.
Brain- analysis the information & take the action on the basis of
analysis.
Machine vision system
• It gives accurate result & take timely corrective action to control
the process.
• Mass Production.
28
Machine vision for Inspection
• 3D system
Only for special purpose Application
include 3D analysis of scenes.
• 2D system
--- Most commonly using system.
--- For measuring dimensions of parts.
 Verifying presence of components.
 Checking features of Flat or semi flat
surfaces.

16. 20-10-2016
15
29

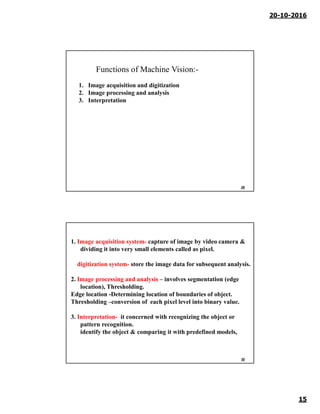

1. Image acquisition and digitization
2. Image processing and analysis
3. Interpretation
Functions of Machine Vision:-
30
1. Image acquisition system- capture of image by video camera &
dividing it into very small elements called as pixel.
digitization system- store the image data for subsequent analysis.
2. Image processing and analysis – involves segmentation (edge
location), Thresholding.
Edge location -Determining location of boundaries of object.
Thresholding –conversion of each pixel level into binary value.
3. Interpretation- it concerned with recognizing the object or
pattern recognition.
identify the object & comparing it with predefined models,

17. 20-10-2016
16
Image acquisition system-
capture of image/video -(image acquisition)
then digitize it by ADC( Analog to digital converter) and store
analysis.
(dividing it into very small elements called as pixel.)
 There are mainly five categories of lighting systems.
 Front lighting
 Back lighting
 Side lighting
 Structured lighting
 Strobe Lighting.
31
Front lighting:
-Light source is located at the same side of the camera.
-Produces a reflected light from the object that allow inspection of
surface features.
Back lighting:
-Light source is placed between behind the object being viewed by the
camera.
-This create dark image of the object that contrasts sharply with the
light background.
-This type is used for inspect parts dimension and distinguish between
part outlines.
32
dark image/Silhouette

18. 20-10-2016
17
33

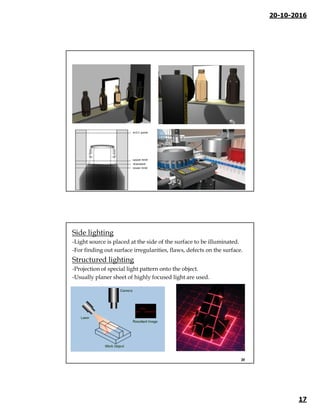

Side lighting
-Light source is placed at the side of the surface to be illuminated.
-For finding out surface irregularities, flaws, defects on the surface.
Structured lighting
-Projection of special light pattern onto the object.
-Usually planer sheet of highly focused light are used.
34

19. 20-10-2016
18

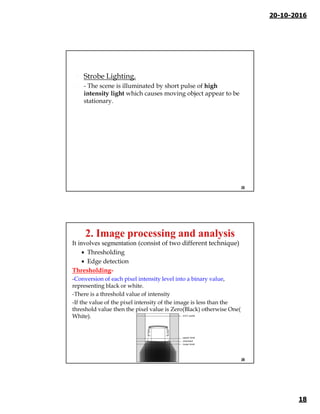

 Strobe Lighting.
 - The scene is illuminated by short pulse of high
intensity light which causes moving object appear to be
stationary.
35
It involves segmentation (consist of two different technique)
 Thresholding
 Edge detection
Thresholding-
-Conversion of each pixel intensity level into a binary value,
representing black or white.
-There is a threshold value of intensity
-If the value of the pixel intensity of the image is less than the
threshold value then the pixel value is Zero(Black) otherwise One(
White).
36

20. 20-10-2016
19

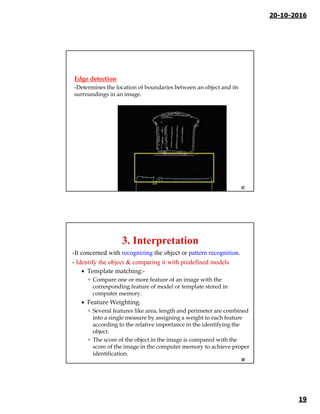

Edge detection
-Determines the location of boundaries between an object and its
surroundings in an image.
37
-It concerned with recognizing the object or pattern recognition.
- Identify the object & comparing it with predefined models
 Template matching:-
 Compare one or more feature of an image with the
corresponding feature of model or template stored in
computer memory.
 Feature Weighting.
 Several features like area, length and perimeter are combined
into a single measure by assigning a weight to each feature
according to the relative importance in the identifying the
object.
 The score of the object in the image is compared with the
score of the image in the computer memory to achieve proper
identification.
38

21. 20-10-2016
20

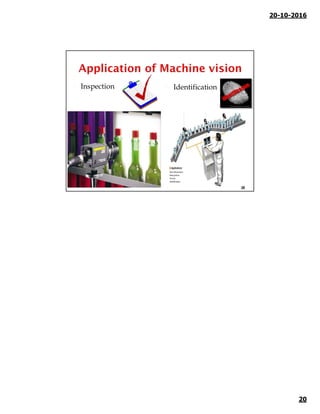

 Inspection  Identification
39
