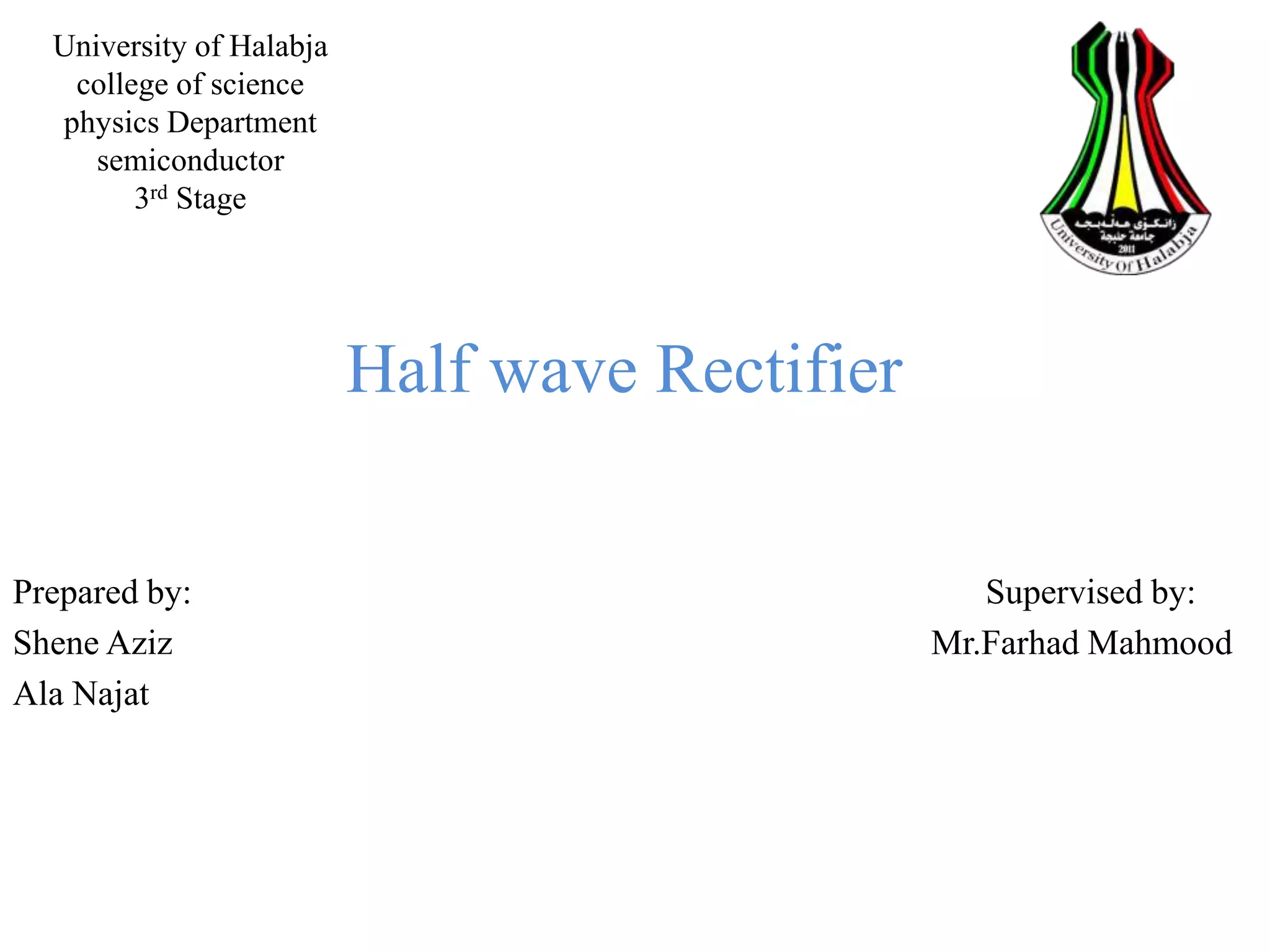

1. University of Halabja
college of science
physics Department
semiconductor
3rd Stage
Half wave Rectifier
Prepared by: Supervised by:
Shene Aziz Mr.Farhad Mahmood
Ala Najat

2. Outline
• What is Half -wave rectifier
• Working of a Half- wave rectifier
• What is Half -wave rectifier
• average value of the half wave rectified signal
• Characteristics of Half wave rectifier
• Ripple Factor ,Form Factor
• Advantages & Disadvantages

3. What is half wave rectifier
• A rectifier circuit in which the half part of the cycle either positive or
negative of AC is converted to DC is defined as the half wave rectifier.
• If the positive half cycle is considered then the negative half cycle of
source gets blocked or the negative cycle of the source is considered in that
case positive cycle gets blocked.

4. Working of a Half- wave rectifier
• The circuit consists of a single diode in series with the AC supply and the
load resistor .As the sufficient supply is provided the diode converts AC to
DC the resultant will be unidirectional by utilizing the half cycle of the
supply.

5. Average value of the half wave rectified
signal
• The average voltage equation for a half wave rectifier is VDC =
Vm/π.

6. Characteristics of Half wave rectifier
• RMS value of Half wave rectifier.
• RMS is defined as the root mean square value. For
load current the RMS value can be given as
• IRMS=Im/2
• VRMS=IRMS.RL
• VRMS=Im/2*RL
• E=Pdc/Pac
• The maximum efficiency produced is 40.6%

7. Ripple of half wave rectifier
Ripple factor determines how well a half wave rectifier can convert AC voltage to DC
voltage.

8. Form factor of half wave rectifier
• The form factor is the ratio of RMS value to the DC value.

9. Advantages
• Half wave rectifier is a simple circuit.
• It has a low cost.
• We can easy to use it.
• We can easily construct.
• It has a low number of component, therefore it is
cheap.
