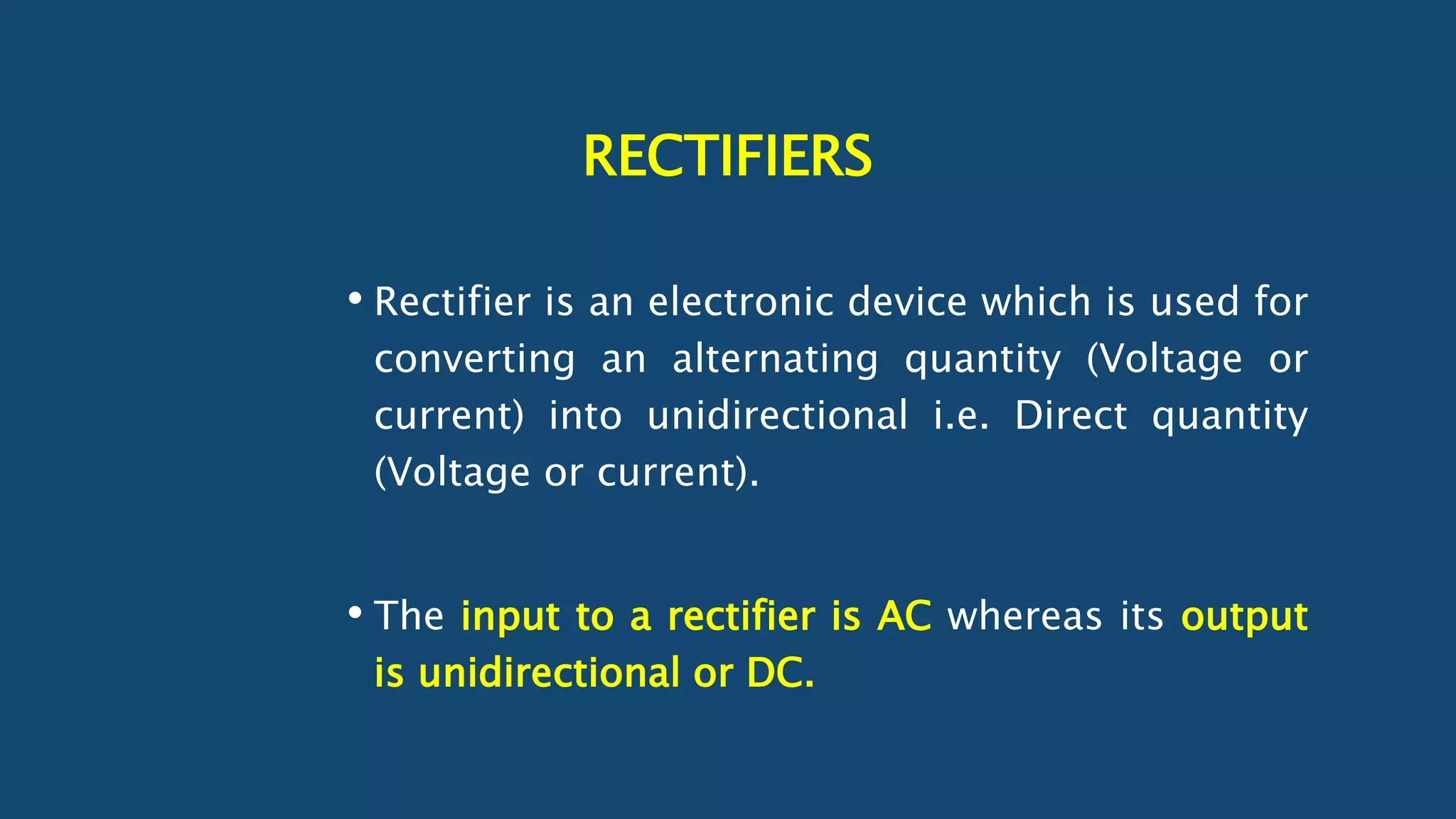

2. RECTIFIERS
• Rectifier is an electronic device which is used for
converting an alternating quantity (Voltage or
current) into unidirectional i.e. Direct quantity
(Voltage or current).
• The input to a rectifier is AC whereas its output
is unidirectional or DC.
3. NEED OF RECTIFIER
• Every electronic circuit needs a DC power
source for its operation.
• This DC voltage has to be obtained from
AC supply.
11. • Input of Half wave Rectifier is Vs=VmSin(ὠt)
• Diode D conducts for 0 to π duration and π to 2 π diode
does not conduct due to reverse bias.
• So the current through diode is
• Peak current Im is given by
12. Average or DC Current Idc
Average or DC output current of half wave rectifier is given
by
Vdc=
13. RMS Current Irms
The RMS current I is given by,
Substituting the value of I in above equation , and we get
Vrms=
14. Average or DC Output Voltage (Vdc)
• Average or DC output voltage of half wave rectifier is given by
• RMS Voltage (Vrms)
• RMS value of voltage across the load resistor is given by
15. DC Output Power (Pdc)
• The output dc power across the load resistor RL forms the
useful output power and is given by,
• Total AC Input Power
•
16. Rectifier Efficiency
• It is defined as the ratio of the dc output power Pdc to the a.c.
input Power Pi and is, therefore, given by,
• Rectifier Efficiency
• Maximum value of rectifier efficiency of a half wave rectifier is
only 40.6% and this is obtained when
17. Ripple Factor
• This is defined as ratio of the effective value of te a.c.
components of voltage (or current) to the direct or average
value.
18. Peak Inverse Voltage (PIV)
• It is the maximum reverse voltage which the rectifier is
required to withstand during nonconducting period.
• In half wave rectifier, PIV equals Vm,the peak value of applied
voltage.
• However on using a capacitor filter, the PIV ration of the
diode increases to 2 Vm.
19. Transformer Utilization Factor (TUF)
• It is defined as the ratio of dc power delivered to the load and
ac rating of the transformer secondary winding.
20. Regulation
• Regulation is the variation of output voltage with the
change in load current.
• Percentage Regulation
