1. GLASS INDUSTRY
RABIA AZIZ BS-III Chemistry
3/5/2017
1
RABIAAZIZ

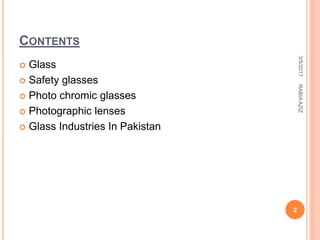

2. CONTENTS
 Glass
 Safety glasses
 Photo chromic glasses
 Photographic lenses
 Glass Industries In Pakistan
3/5/2017
2
RABIAAZIZ

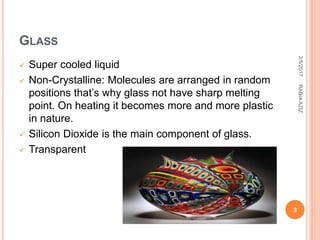

3. GLASS
 Super cooled liquid
 Non-Crystalline: Molecules are arranged in random
positions that’s why glass not have sharp melting
point. On heating it becomes more and more plastic
in nature.
 Silicon Dioxide is the main component of glass.
 Transparent
3/5/2017
3
RABIAAZIZ

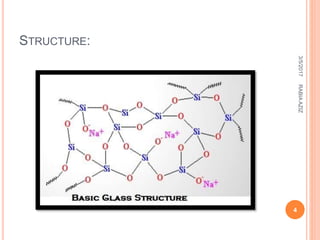

4. STRUCTURE:
3/5/2017
4
RABIAAZIZ

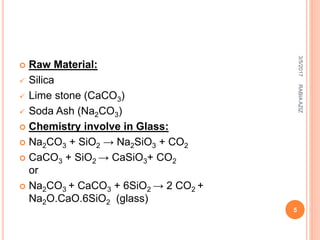

5.  Raw Material:
 Silica
 Lime stone (CaCO3)
 Soda Ash (Na2CO3)
 Chemistry involve in Glass:
 Na2CO3 + SiO2 → Na2SiO3 + CO2
 CaCO3 + SiO2 → CaSiO3+ CO2
or
 Na2CO3 + CaCO3 + 6SiO2 → 2 CO2 +
Na2O.CaO.6SiO2 (glass)
3/5/2017
5
RABIAAZIZ

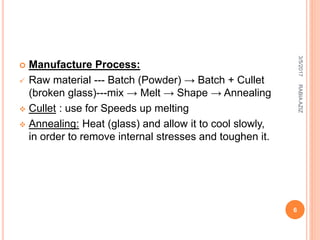

6.  Manufacture Process:
 Raw material --- Batch (Powder) → Batch + Cullet
(broken glass)---mix → Melt → Shape → Annealing
 Cullet : use for Speeds up melting
 Annealing: Heat (glass) and allow it to cool slowly,
in order to remove internal stresses and toughen it.
3/5/2017
6
RABIAAZIZ

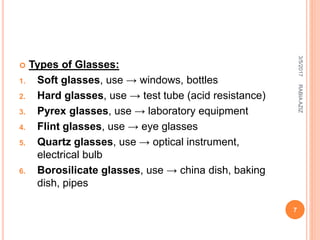

7.  Types of Glasses:
1. Soft glasses, use → windows, bottles
2. Hard glasses, use → test tube (acid resistance)
3. Pyrex glasses, use → laboratory equipment
4. Flint glasses, use → eye glasses
5. Quartz glasses, use → optical instrument,
electrical bulb
6. Borosilicate glasses, use → china dish, baking
dish, pipes
3/5/2017
7
RABIAAZIZ

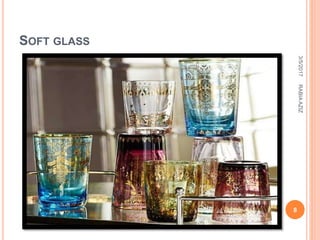

8. SOFT GLASS
3/5/2017
8
RABIAAZIZ

9. HARD GLASS
3/5/2017
9
RABIAAZIZ

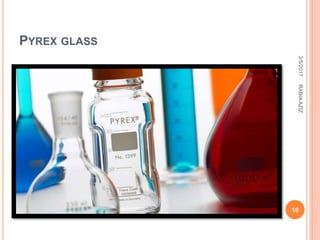

10. PYREX GLASS
3/5/2017
10
RABIAAZIZ

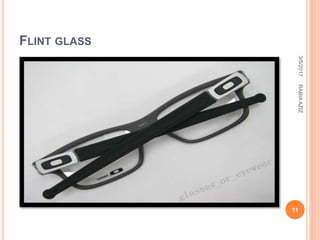

11. FLINT GLASS
3/5/2017
11
RABIAAZIZ

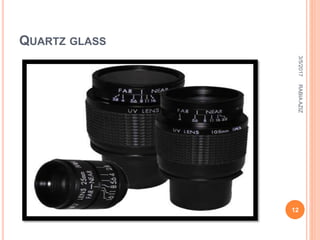

12. QUARTZ GLASS
3/5/2017
12
RABIAAZIZ

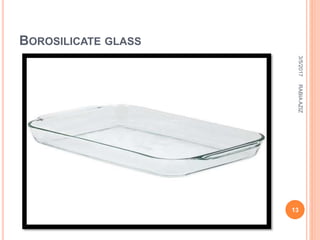

13. BOROSILICATE GLASS
3/5/2017
13
RABIAAZIZ

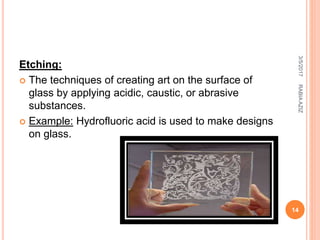

14. Etching:
 The techniques of creating art on the surface of
glass by applying acidic, caustic, or abrasive
substances.
 Example: Hydrofluoric acid is used to make designs
on glass.
3/5/2017
14
RABIAAZIZ

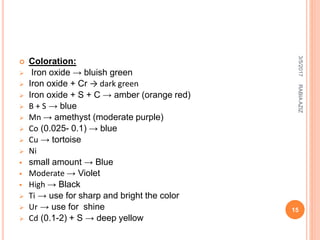

15.  Coloration:
 Iron oxide → bluish green
 Iron oxide + Cr → dark green
 Iron oxide + S + C → amber (orange red)
 B + S → blue
 Mn → amethyst (moderate purple)
 Co (0.025- 0.1) → blue
 Cu → tortoise
 Ni
 small amount → Blue
 Moderate → Violet
 High → Black
 Ti → use for sharp and bright the color
 Ur → use for shine
 Cd (0.1-2) + S → deep yellow
3/5/2017
15
RABIAAZIZ

16. SAFETY GLASSES
 Made up by sandwich plastic between two glasses
 Use → in Laboratory, welding, airplanes
 Plastic → Vinyl butyrol + methyl methacrylate
 Process:
I. Cutting
II. Inspection
III. Washed
IV. Adhesive
V. Temperature and pressure
VI. Finishing
3/5/2017
16
RABIAAZIZ

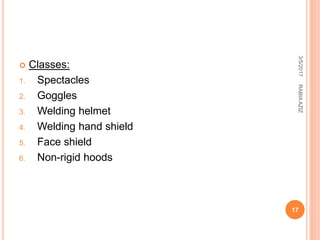

17.  Classes:
1. Spectacles
2. Goggles
3. Welding helmet
4. Welding hand shield
5. Face shield
6. Non-rigid hoods
3/5/2017
17
RABIAAZIZ

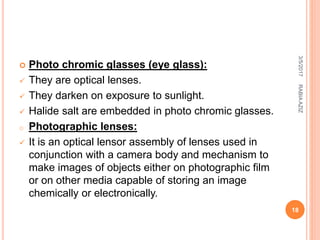

18.  Photo chromic glasses (eye glass):
 They are optical lenses.
 They darken on exposure to sunlight.
 Halide salt are embedded in photo chromic glasses.
o Photographic lenses:
 It is an optical lensor assembly of lenses used in
conjunction with a camera body and mechanism to
make images of objects either on photographic film
or on other media capable of storing an image
chemically or electronically.
3/5/2017
18
RABIAAZIZ

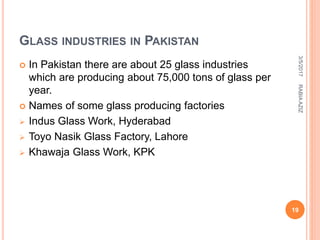

19. GLASS INDUSTRIES IN PAKISTAN
 In Pakistan there are about 25 glass industries
which are producing about 75,000 tons of glass per
year.
 Names of some glass producing factories
 Indus Glass Work, Hyderabad
 Toyo Nasik Glass Factory, Lahore
 Khawaja Glass Work, KPK
3/5/2017
19
RABIAAZIZ
