GIS & GPS PPt
The Global Positioning System (GPS) is a satellite-based navigation system consisting of three segments: space, control, and user. The space segment includes 24 satellites in orbit that transmit timing signals. The control segment consists of monitoring stations that track satellite orbits and clock corrections. The user segment includes any GPS receiver used for navigation or timing. GPS provides location and time information to users worldwide for applications like navigation, mapping, and tracking.
More Related Content
!["GPS" Global Positioning System [PDF]](https://cdn.slidesharecdn.com/ss_thumbnails/globalpositioningsystemgpsmainpdf-101105164539-phpapp01-thumbnail.jpg?width=640&height=640&fit=bounds)
GIS & GPS PPt
- 1. Introduction to the Global PositioningSystem (GPS)

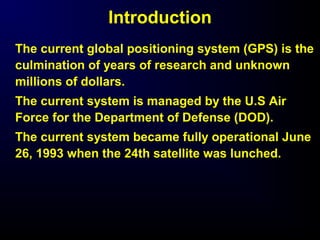

- 2. Introduction The current globalpositioning system (GPS) is the culmination of years of research and unknown millions of dollars. The current system is managed by the U.S Air Force for the Department of Defense (DOD). The current system became fully operational June 26, 1993 when the 24th satellite was lunched.
- 3. HISTORY OF GPS Thedesign of GPS is based partly on similar ground-based radio-navigation systems, such as LORAN and the Decca Navigator, developed in the early 1940s and used by the British Royal Navy during World War

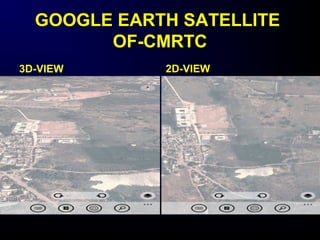

- 4. CMR Technical CampusLatitude 17.597370500000000000 CMR Technical Campus Longitude 78.486915400000040000 coordinate points of cmrtc ,kandlakoya
- 5.

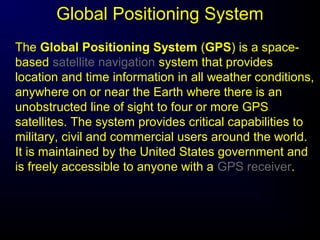

- 6. Global Positioning System TheGlobal Positioning System (GPS) is a space- based satellite navigation system that provides location and time information in all weather conditions, anywhere on or near the Earth where there is an unobstructed line of sight to four or more GPS satellites. The system provides critical capabilities to military, civil and commercial users around the world. It is maintained by the United States government and is freely accessible to anyone with a GPS receiver.

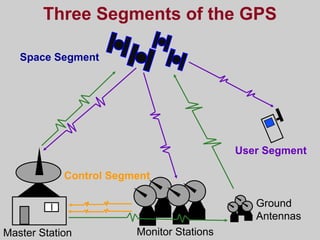

- 7. Control Segment Space Segment UserSegment Three Segments of the GPS Monitor Stations Ground Antennas Master Station

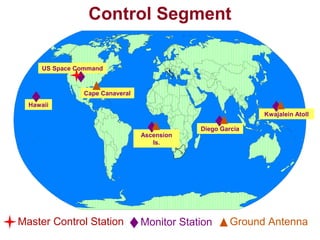

- 8. Kwajalein Atoll US SpaceCommand Control Segment Hawaii Ascension Is. Diego Garcia Cape Canaveral Ground AntennaMaster Control Station Monitor Station
- 9.

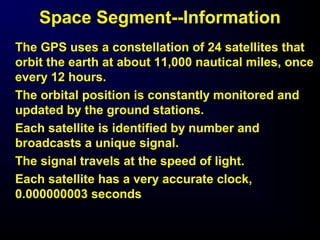

- 10. Space Segment--Information The GPSuses a constellation of 24 satellites that orbit the earth at about 11,000 nautical miles, once every 12 hours. The orbital position is constantly monitored and updated by the ground stations. Each satellite is identified by number and broadcasts a unique signal. The signal travels at the speed of light. Each satellite has a very accurate clock, 0.000000003 seconds

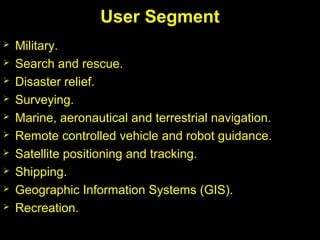

- 11. Military. Searchand rescue. Disaster relief. Surveying. Marine, aeronautical and terrestrial navigation. Remote controlled vehicle and robot guidance. Satellite positioning and tracking. Shipping. Geographic Information Systems (GIS). Recreation. User Segment

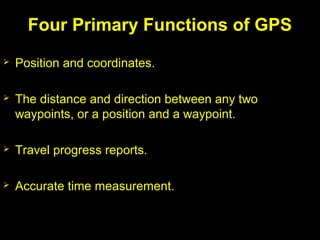

- 12. Position andcoordinates. The distance and direction between any two waypoints, or a position and a waypoint. Travel progress reports. Accurate time measurement. Four Primary Functions of GPS

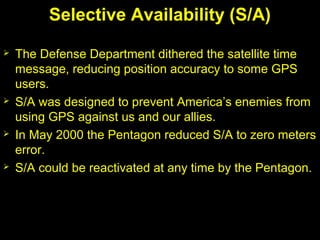

- 13. Selective Availability (S/A) The Defense Department dithered the satellite time message, reducing position accuracy to some GPS users. S/A was designed to prevent America’s enemies from using GPS against us and our allies. In May 2000 the Pentagon reduced S/A to zero meters error. S/A could be reactivated at any time by the Pentagon.
- 14. Sources of GPSError Standard Positioning Service (SPS ): Civilian Users Source Amount of Error Satellite clocks: 1.5 to 3.6 meters Orbital errors: < 1 meter Ionosphere: 5.0 to 7.0 meters Troposphere: 0.5 to 0.7 meters Receiver noise: 0.3 to 1.5 meters Multipath: 0.6 to 1.2 meters Selective Availability (see notes) User error: Up to a kilometer or more Errors are cumulative and increased by PDOP.

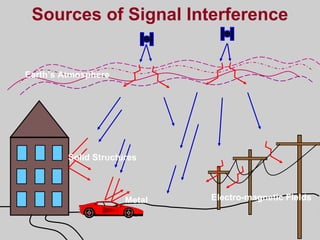

- 15. Sources of SignalInterference Earth’s Atmosphere Solid Structures Metal Electro-magnetic Fields

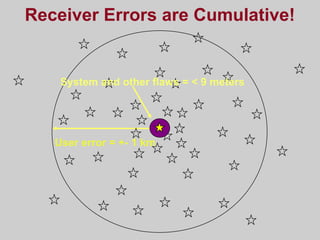

- 16. Receiver Errors areCumulative! User error = +- 1 km System and other flaws = < 9 meters
- 17. XTE(CDI) N (0000 ) (00 )N Desired Track (DTK)(xº) Active Leg Distance to W aypoint Bearing (X 0 ) Present Location Speed Over Ground (SOG) Tracking (TRK) (xº) Active GOTO Waypoint GPS Navigation Terminology Course Made Good (CMG) (CMG) (xº) Active From Waypoint

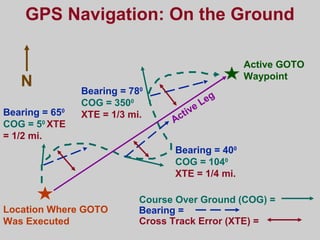

- 18. Active GOTO Waypoint Bearing = CourseOver Ground (COG) = Cross Track Error (XTE) = Location Where GOTO Was Executed Bearing = 650 COG = 50 XTE = 1/2 mi. Bearing = 780 COG = 3500 XTE = 1/3 mi. Bearing = 400 COG = 1040 XTE = 1/4 mi. Active Leg N GPS Navigation: On the Ground

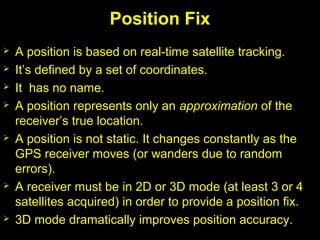

- 19. Position Fix Aposition is based on real-time satellite tracking. It’s defined by a set of coordinates. It has no name. A position represents only an approximation of the receiver’s true location. A position is not static. It changes constantly as the GPS receiver moves (or wanders due to random errors). A receiver must be in 2D or 3D mode (at least 3 or 4 satellites acquired) in order to provide a position fix. 3D mode dramatically improves position accuracy.

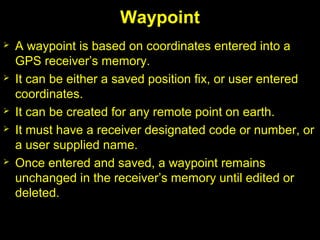

- 20. Waypoint A waypointis based on coordinates entered into a GPS receiver’s memory. It can be either a saved position fix, or user entered coordinates. It can be created for any remote point on earth. It must have a receiver designated code or number, or a user supplied name. Once entered and saved, a waypoint remains unchanged in the receiver’s memory until edited or deleted.

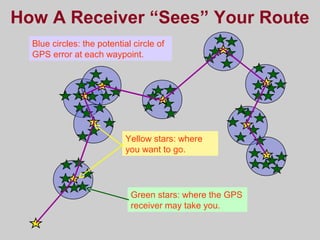

- 21. How A Receiver“Sees” Your Route Yellow stars: where you want to go. Green stars: where the GPS receiver may take you. Blue circles: the potential circle of GPS error at each waypoint.

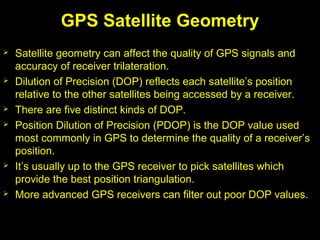

- 22. GPS Satellite Geometry Satellite geometry can affect the quality of GPS signals and accuracy of receiver trilateration. Dilution of Precision (DOP) reflects each satellite’s position relative to the other satellites being accessed by a receiver. There are five distinct kinds of DOP. Position Dilution of Precision (PDOP) is the DOP value used most commonly in GPS to determine the quality of a receiver’s position. It’s usually up to the GPS receiver to pick satellites which provide the best position triangulation. More advanced GPS receivers can filter out poor DOP values.

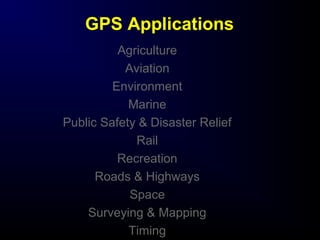

- 23. GPS Applications Agriculture Aviation Environment Marine Public Safety& Disaster Relief Rail Recreation Roads & Highways Space Surveying & Mapping Timing

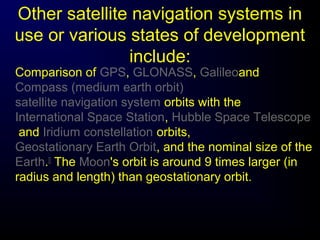

- 24. Other satellite navigationsystems in use or various states of development include: Comparison of GPS, GLONASS, Galileoand Compass (medium earth orbit) satellite navigation system orbits with the International Space Station, Hubble Space Telescope and Iridium constellation orbits, Geostationary Earth Orbit, and the nominal size of the Earth.[] The Moon's orbit is around 9 times larger (in radius and length) than geostationary orbit.

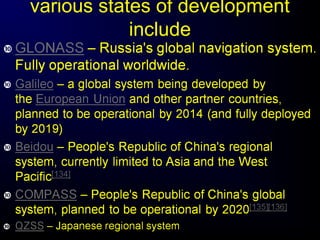

- 25. various states ofdevelopment include

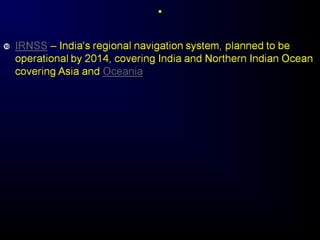

- 26.

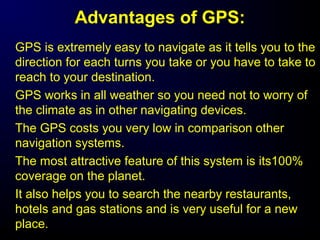

- 27. Advantages of GPS: GPSis extremely easy to navigate as it tells you to the direction for each turns you take or you have to take to reach to your destination. GPS works in all weather so you need not to worry of the climate as in other navigating devices. The GPS costs you very low in comparison other navigation systems. The most attractive feature of this system is its100% coverage on the planet. It also helps you to search the nearby restaurants, hotels and gas stations and is very useful for a new place.

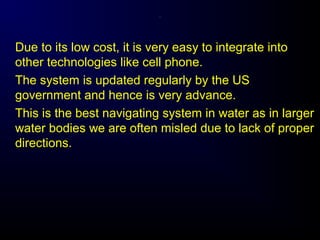

- 28. . Due to itslow cost, it is very easy to integrate into other technologies like cell phone. The system is updated regularly by the US government and hence is very advance. This is the best navigating system in water as in larger water bodies we are often misled due to lack of proper directions.

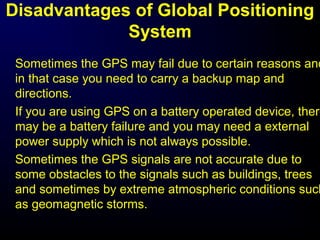

- 29. Disadvantages of GlobalPositioning System Sometimes the GPS may fail due to certain reasons and in that case you need to carry a backup map and directions. If you are using GPS on a battery operated device, there may be a battery failure and you may need a external power supply which is not always possible. Sometimes the GPS signals are not accurate due to some obstacles to the signals such as buildings, trees and sometimes by extreme atmospheric conditions such as geomagnetic storms.

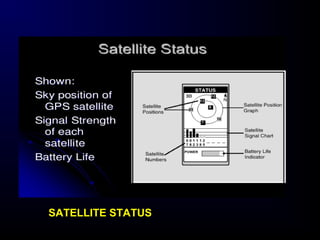

- 30.

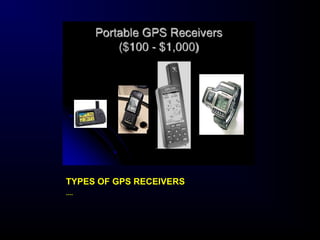

- 31. TYPES OF GPSRECEIVERS ....
- 32.
- 33.
