Genetics and Cellular Function

The document provides information about genetics and cellular function, including: 1) It describes DNA and RNA as the nucleic acids and discusses genes, DNA replication, chromosomes, and heredity. 2) Modern genetics such as Mendelian genetics, cytogenetics, molecular genetics, and genomic medicine are examined. 3) The molecular structure of DNA is explained, including that it is a double helix composed of nucleotides with nitrogenous bases of either purines or pyrimidines.

Education◦
Related topics:
Life Science•

Embed presentation

Downloaded 123 times

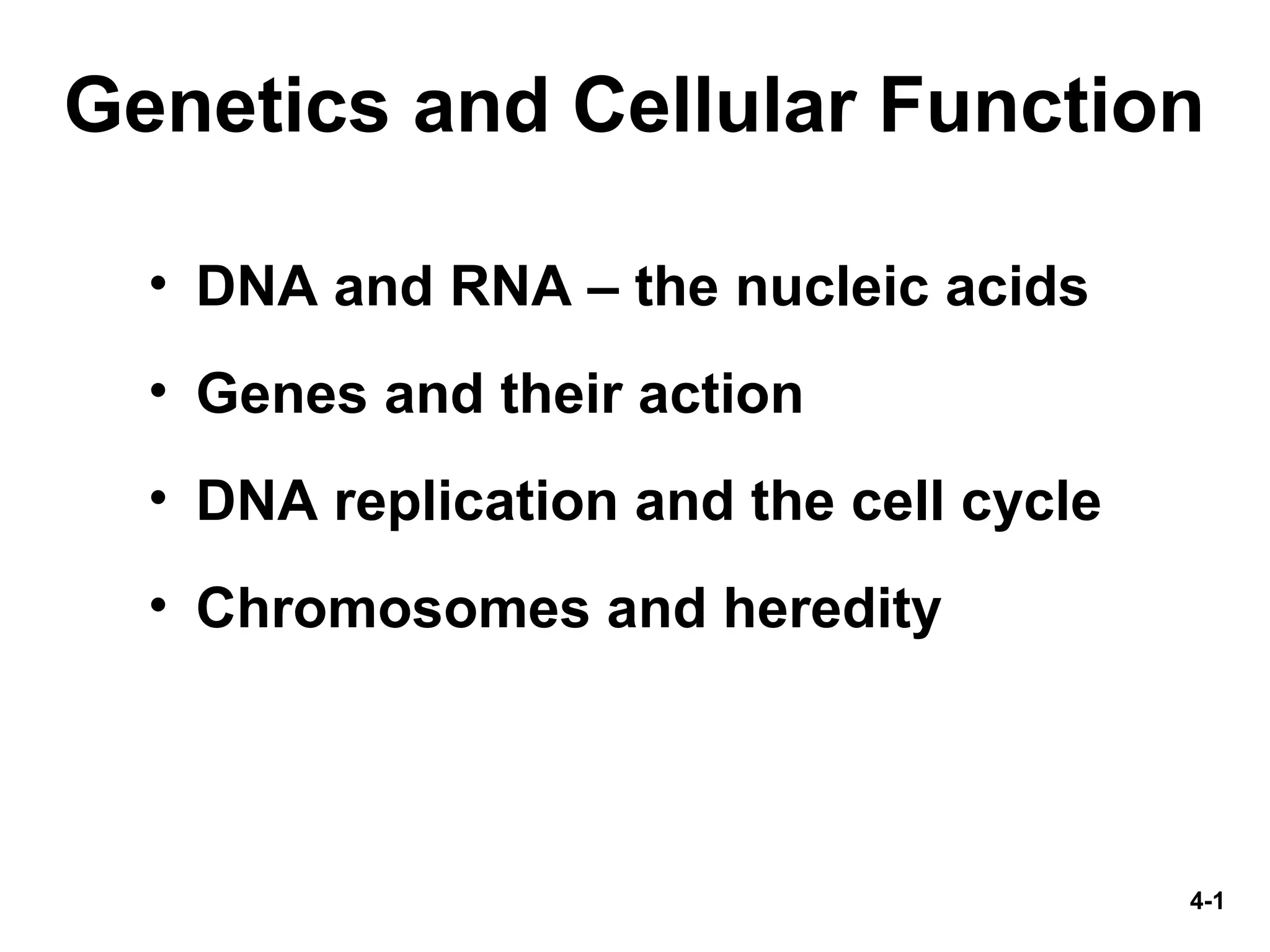

4-1 Genetics and Cellular Function • DNA and RNA – the nucleic acids • Genes and their action • DNA replication and the cell cycle • Chromosomes and heredity

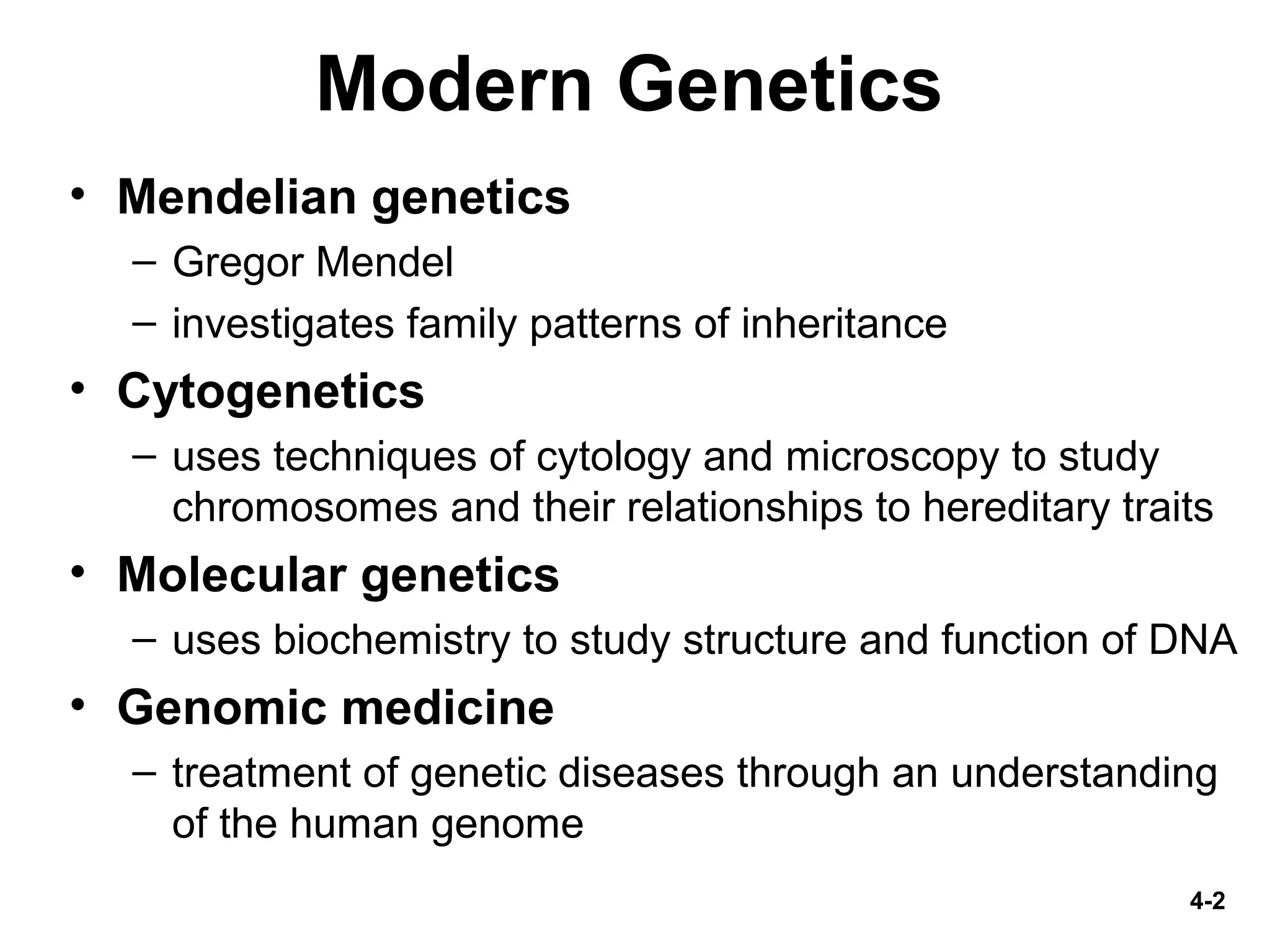

4-2 Modern Genetics • Mendelian genetics – Gregor Mendel – investigates family patterns of inheritance • Cytogenetics – uses techniques of cytology and microscopy to study chromosomes and their relationships to hereditary traits • Molecular genetics – uses biochemistry to study structure and function of DNA • Genomic medicine – treatment of genetic diseases through an understanding of the human genome

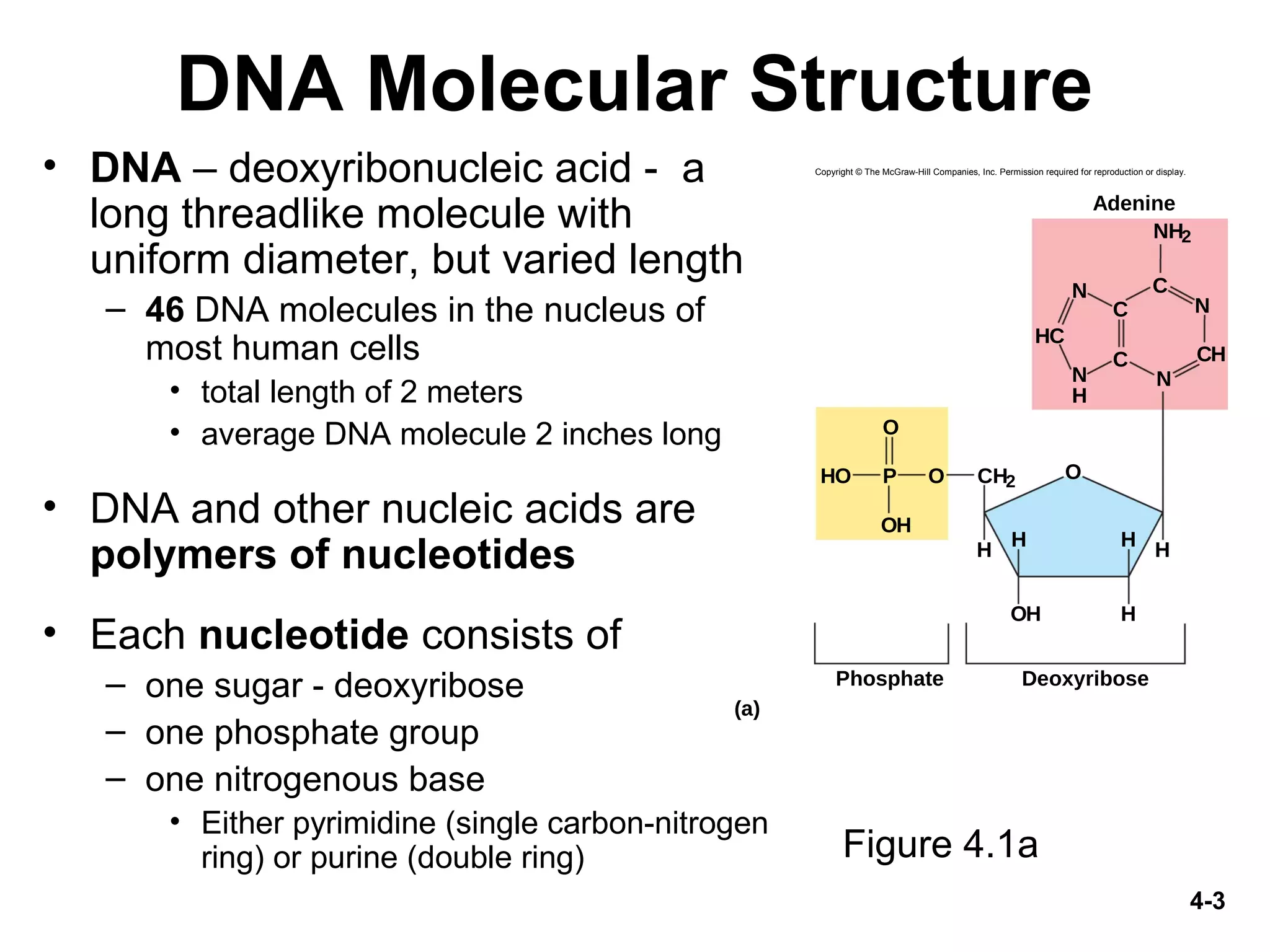

4-3 DNA Molecular Structure • DNA – deoxyribonucleic acid - a long threadlike molecule with uniform diameter, but varied length – 46 DNA molecules in the nucleus of most human cells • total length of 2 meters • average DNA molecule 2 inches long • DNA and other nucleic acids are polymers of nucleotides • Each nucleotide consists of – one sugar - deoxyribose – one phosphate group – one nitrogenous base • Either pyrimidine (single carbon-nitrogen ring) or purine (double ring) Figure 4.1a HC N C N NH2 N H C C CH N H CH2OHO O OH P H HOH HH O Adenine Phosphate Deoxyribose (a) Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.

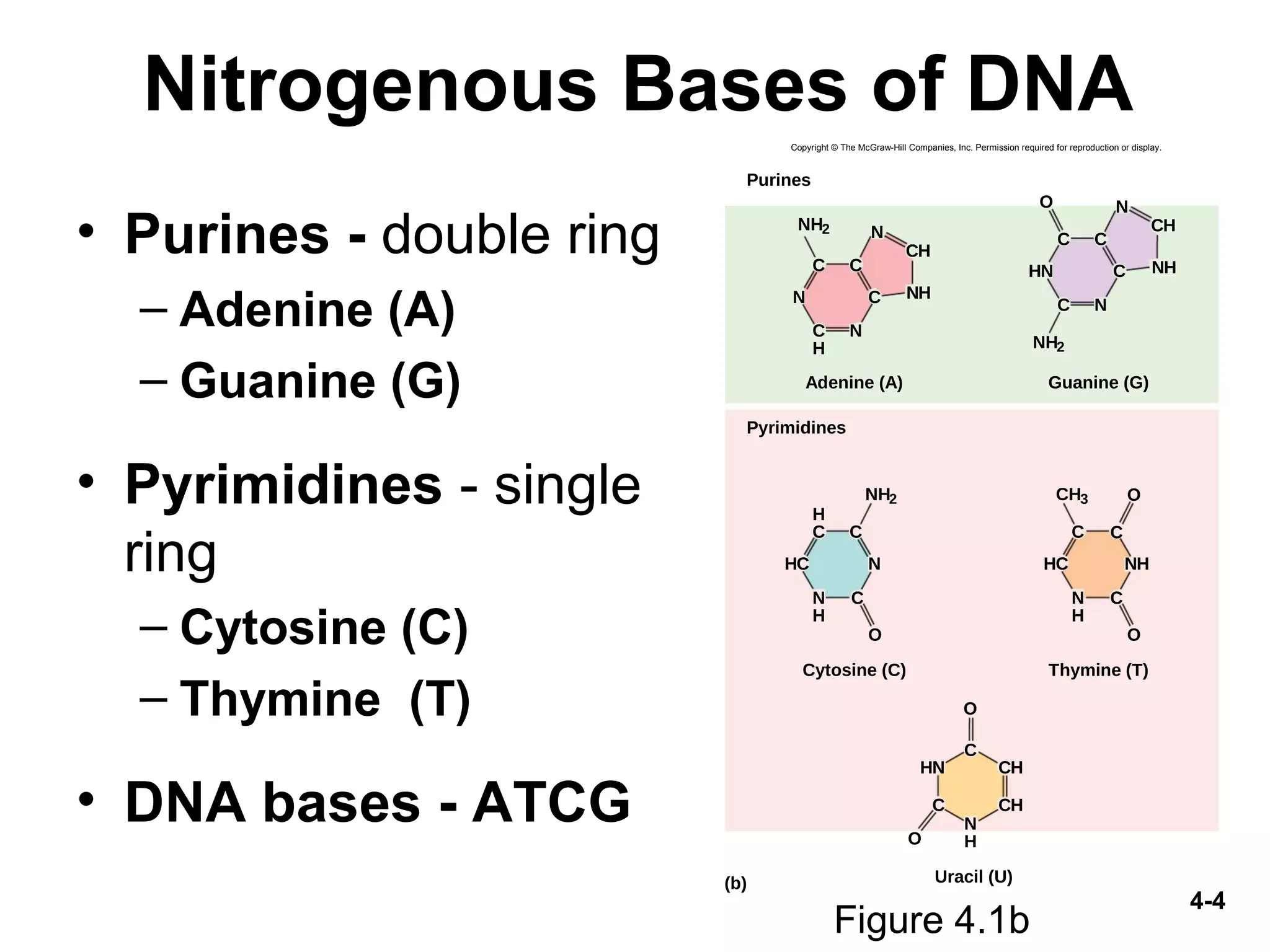

4-4 Nitrogenous Bases of DNA • Purines - double ring – Adenine (A) – Guanine (G) • Pyrimidines - single ring – Cytosine (C) – Thymine (T) • DNA bases - ATCG Figure 4.1b Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. C NH2 N NH C CH C H N N C Adenine (A) Purines C O N NH C CH C N HN C NH2 Guanine (G) H C NH2 C N H C HC N O Cytosine (C) Uracil (U) C C O C O CH HN CH N H N H C C HC CH3 NH O O Thymine (T) Pyrimidines (b)

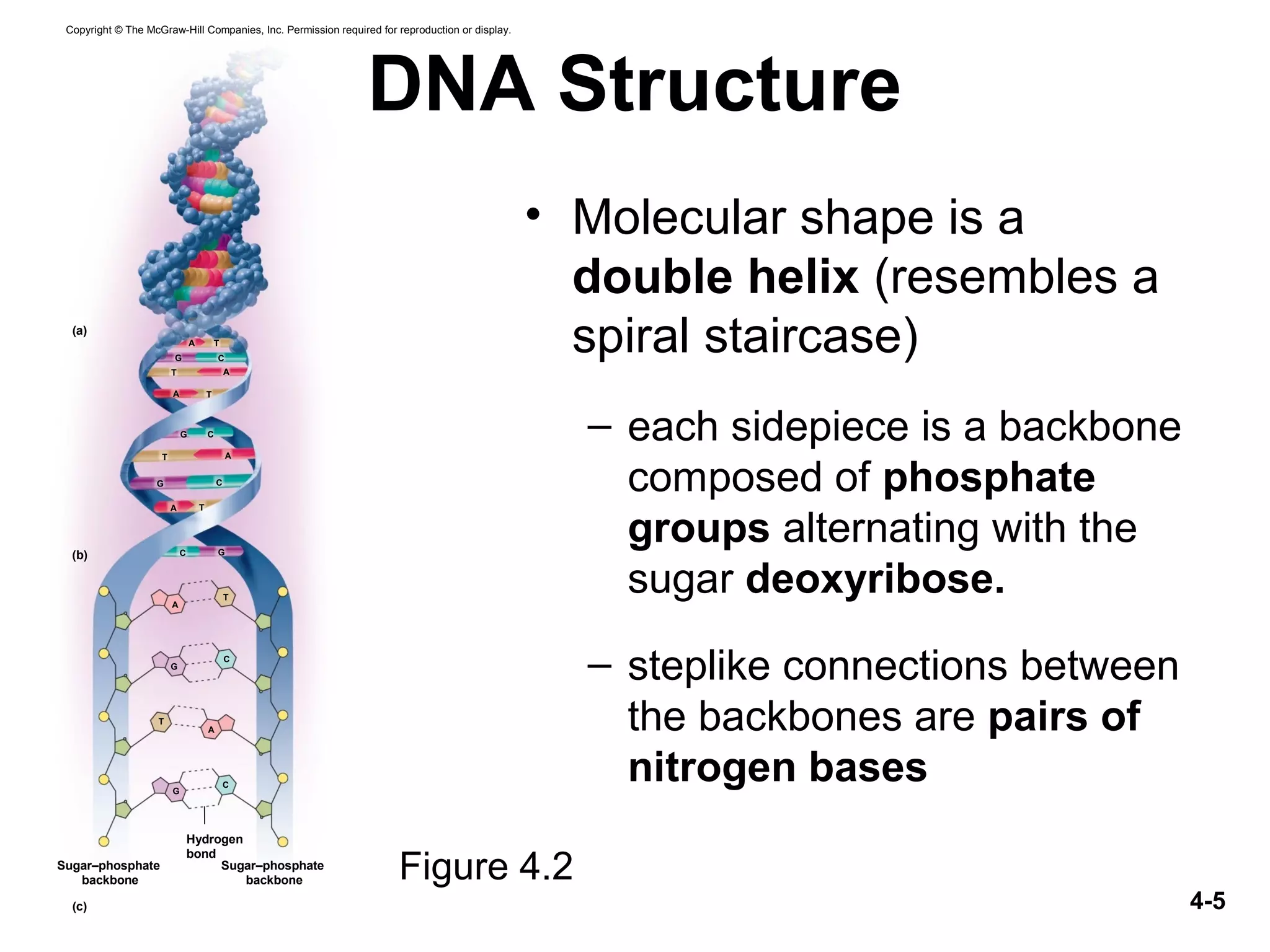

4-5 DNA Structure • Molecular shape is a double helix (resembles a spiral staircase) – each sidepiece is a backbone composed of phosphate groups alternating with the sugar deoxyribose. – steplike connections between the backbones are pairs of nitrogen bases Figure 4.2 (a) (b) (c) A T A T T A A T AT G C G G C C G C Sugar–phosphate backbone G A C T T G C Hydrogen bond A Sugar–phosphate backbone Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.

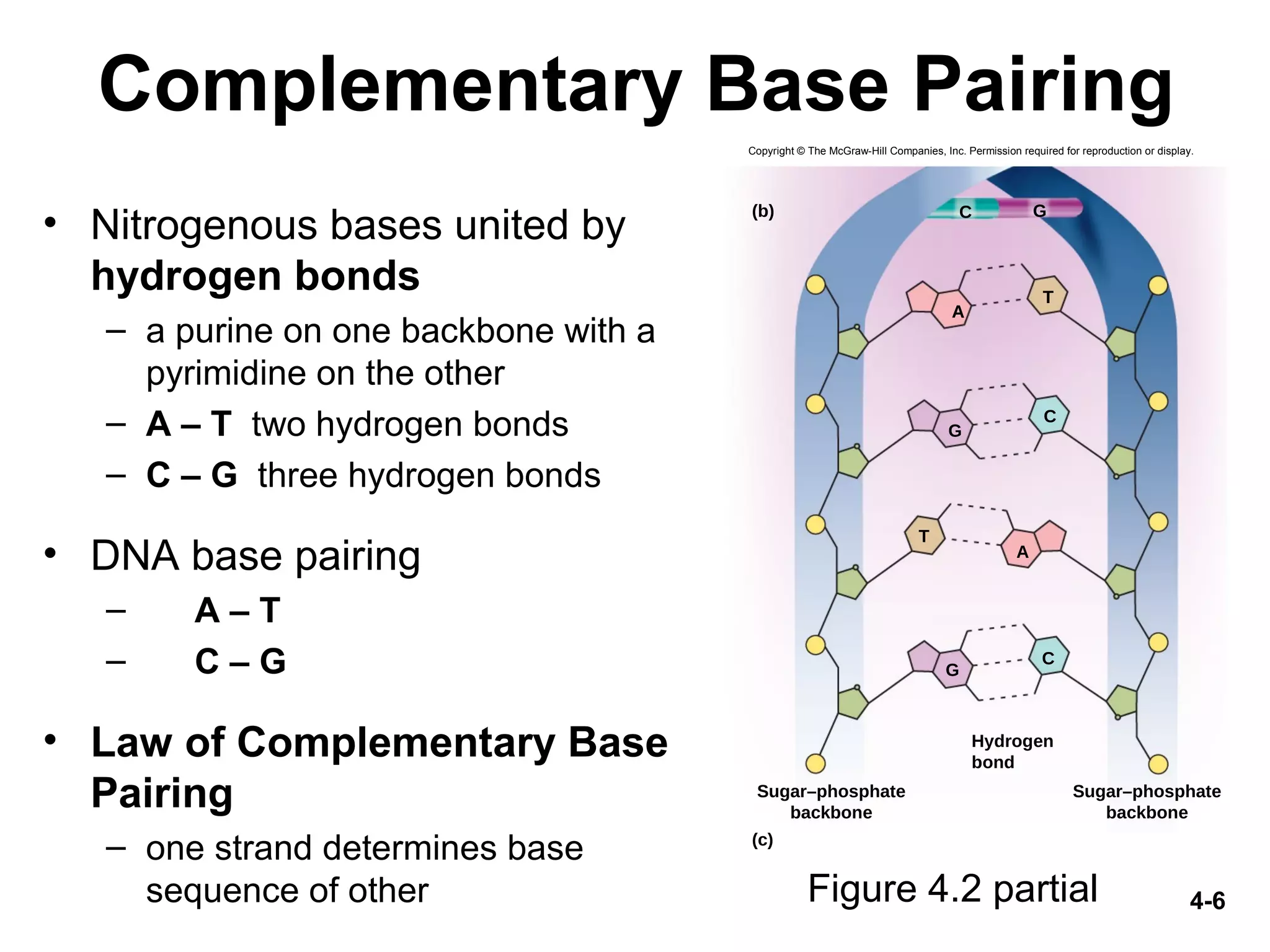

4-6 Complementary Base Pairing • Nitrogenous bases united by hydrogen bonds – a purine on one backbone with a pyrimidine on the other – A – T two hydrogen bonds – C – G three hydrogen bonds • DNA base pairing – A – T – C – G • Law of Complementary Base Pairing – one strand determines base sequence of other Figure 4.2 partial (b) (c) GC Sugar–phosphate backbone Sugar–phosphate backbone G A C T A T A T G C Hydrogen bond Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.

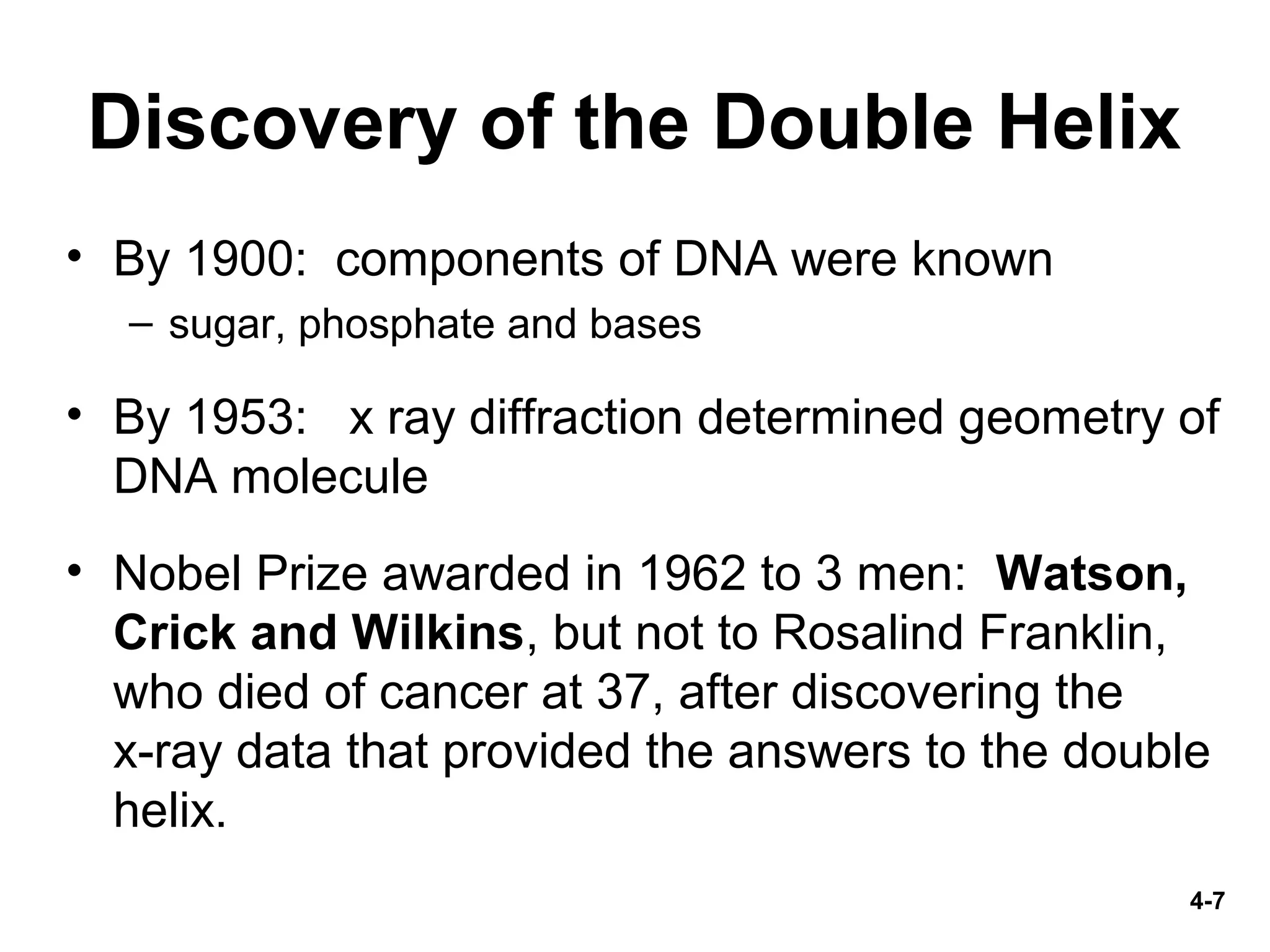

4-7 Discovery of the Double Helix • By 1900: components of DNA were known – sugar, phosphate and bases • By 1953: x ray diffraction determined geometry of DNA molecule • Nobel Prize awarded in 1962 to 3 men: Watson, Crick and Wilkins, but not to Rosalind Franklin, who died of cancer at 37, after discovering the x-ray data that provided the answers to the double helix.

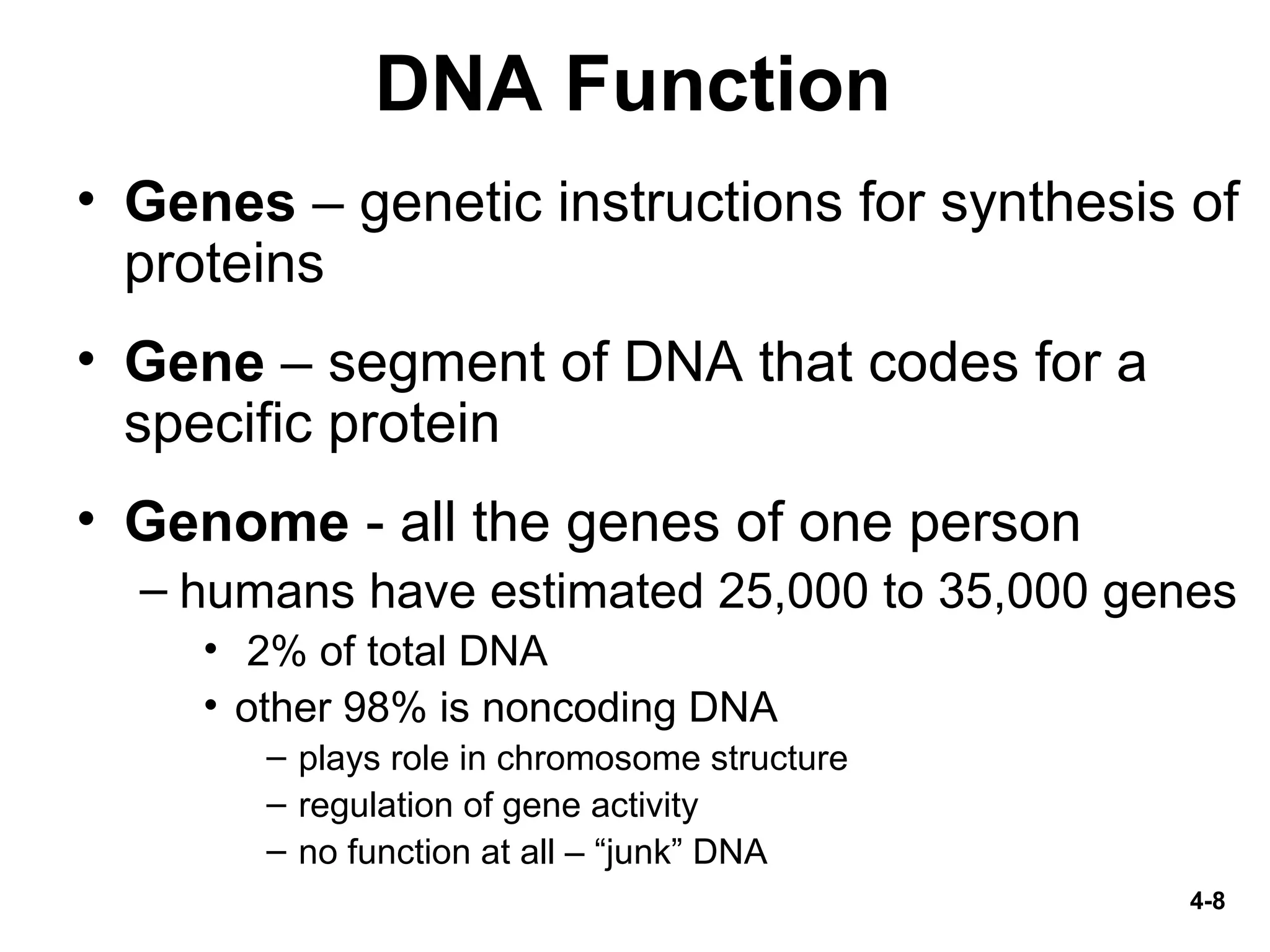

4-8 DNA Function • Genes – genetic instructions for synthesis of proteins • Gene – segment of DNA that codes for a specific protein • Genome - all the genes of one person – humans have estimated 25,000 to 35,000 genes • 2% of total DNA • other 98% is noncoding DNA – plays role in chromosome structure – regulation of gene activity – no function at all – “junk” DNA

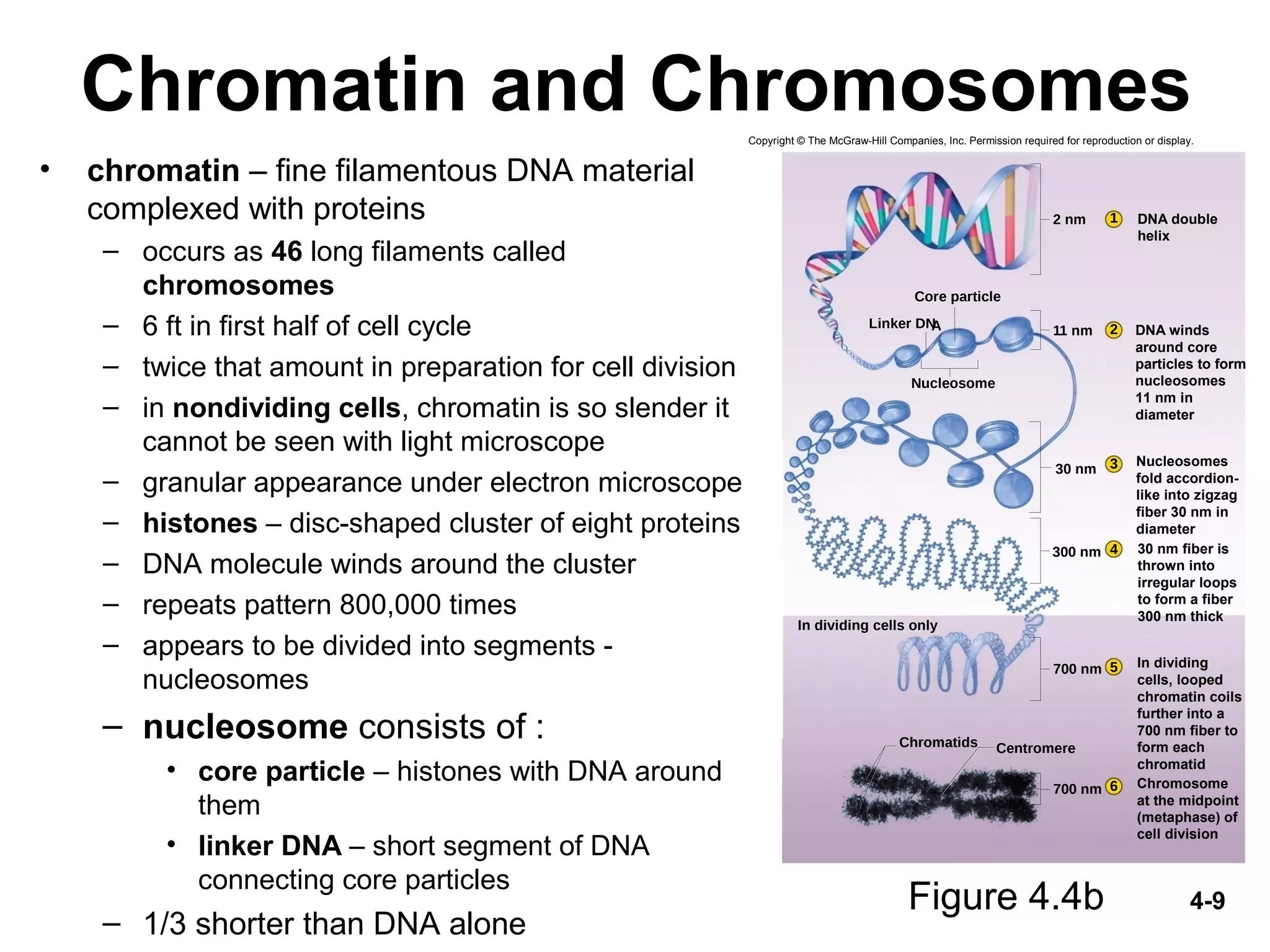

4-9 Chromatin and Chromosomes • chromatin – fine filamentous DNA material complexed with proteins – occurs as 46 long filaments called chromosomes – 6 ft in first half of cell cycle – twice that amount in preparation for cell division – in nondividing cells, chromatin is so slender it cannot be seen with light microscope – granular appearance under electron microscope – histones – disc-shaped cluster of eight proteins – DNA molecule winds around the cluster – repeats pattern 800,000 times – appears to be divided into segments - nucleosomes – nucleosome consists of : • core particle – histones with DNA around them • linker DNA – short segment of DNA connecting core particles – 1/3 shorter than DNA alone Figure 4.4b 2 nm 11 nm Nucleosome Linker DNA 300 nm 30 nm 700 nm 700 nm Core particle In dividing cells only Chromatids Centromere 1 2 3 4 5 6 30 nm fiber is thrown into irregular loops to form a fiber 300 nm thick Nucleosomes fold accordion- like into zigzag fiber 30 nm in diameter DNA winds around core particles to form nucleosomes 11 nm in diameter DNA double helix In dividing cells, looped chromatin coils further into a 700 nm fiber to form each chromatid Chromosome at the midpoint (metaphase) of cell division Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.

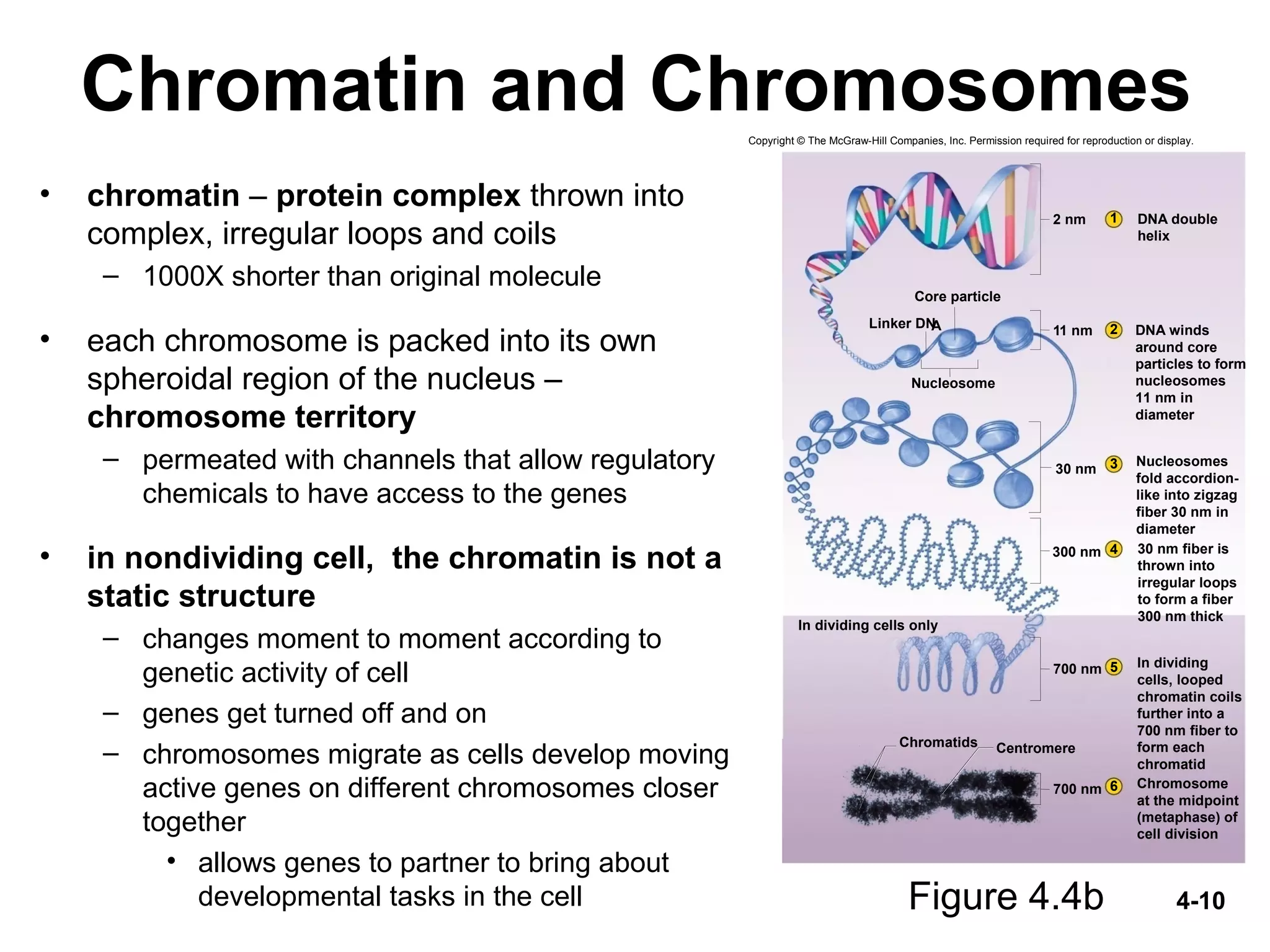

4-10 Chromatin and Chromosomes • chromatin – protein complex thrown into complex, irregular loops and coils – 1000X shorter than original molecule • each chromosome is packed into its own spheroidal region of the nucleus – chromosome territory – permeated with channels that allow regulatory chemicals to have access to the genes • in nondividing cell, the chromatin is not a static structure – changes moment to moment according to genetic activity of cell – genes get turned off and on – chromosomes migrate as cells develop moving active genes on different chromosomes closer together • allows genes to partner to bring about developmental tasks in the cell Figure 4.4b 2 nm 11 nm Nucleosome Linker DNA 300 nm 30 nm 700 nm 700 nm Core particle In dividing cells only Chromatids Centromere 1 2 3 4 5 6 30 nm fiber is thrown into irregular loops to form a fiber 300 nm thick Nucleosomes fold accordion- like into zigzag fiber 30 nm in diameter DNA winds around core particles to form nucleosomes 11 nm in diameter DNA double helix In dividing cells, looped chromatin coils further into a 700 nm fiber to form each chromatid Chromosome at the midpoint (metaphase) of cell division Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.

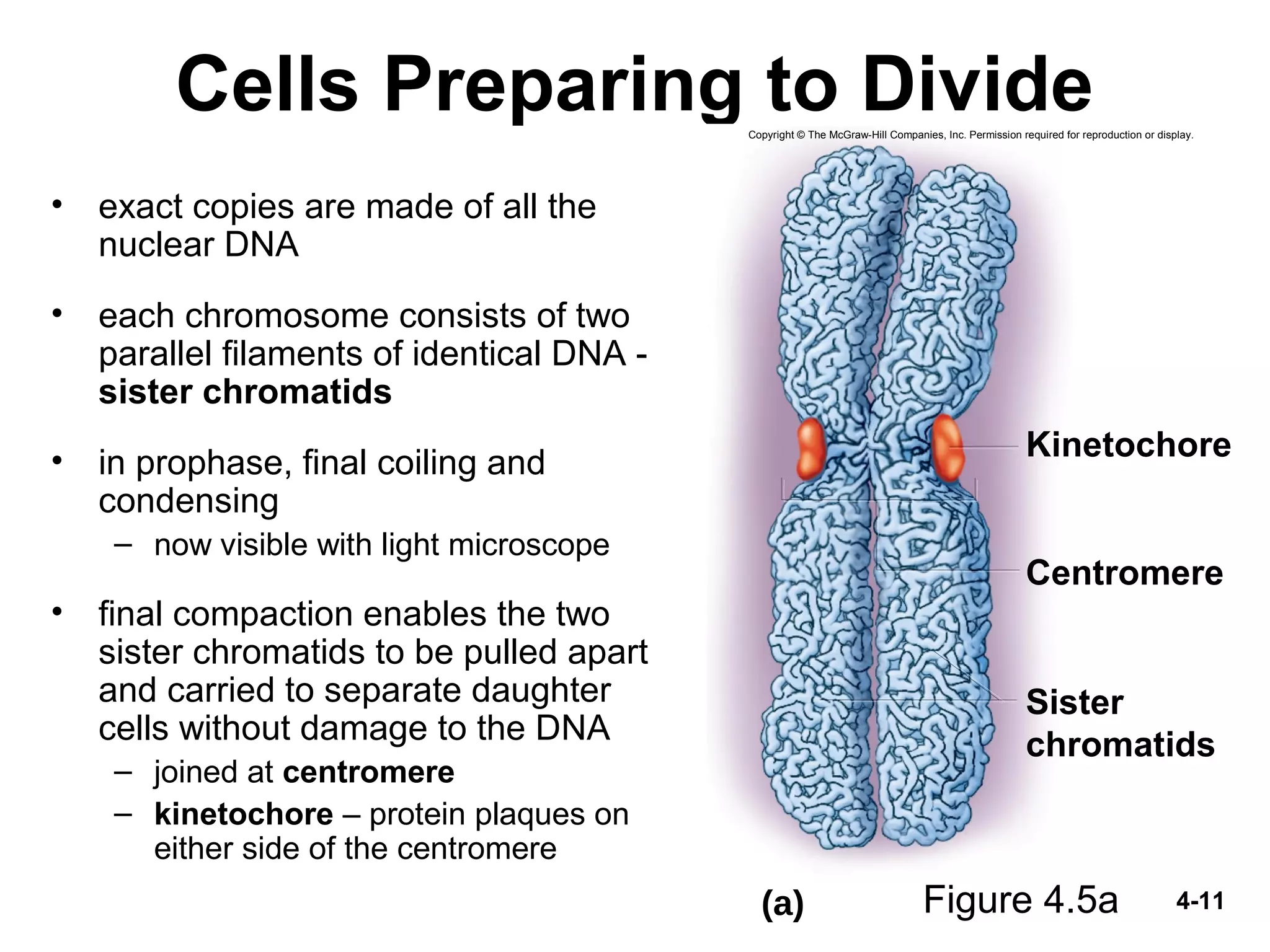

4-11 Cells Preparing to Divide • exact copies are made of all the nuclear DNA • each chromosome consists of two parallel filaments of identical DNA - sister chromatids • in prophase, final coiling and condensing – now visible with light microscope • final compaction enables the two sister chromatids to be pulled apart and carried to separate daughter cells without damage to the DNA – joined at centromere – kinetochore – protein plaques on either side of the centromere Figure 4.5a(a) Centromere Kinetochore Sister chromatids Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.

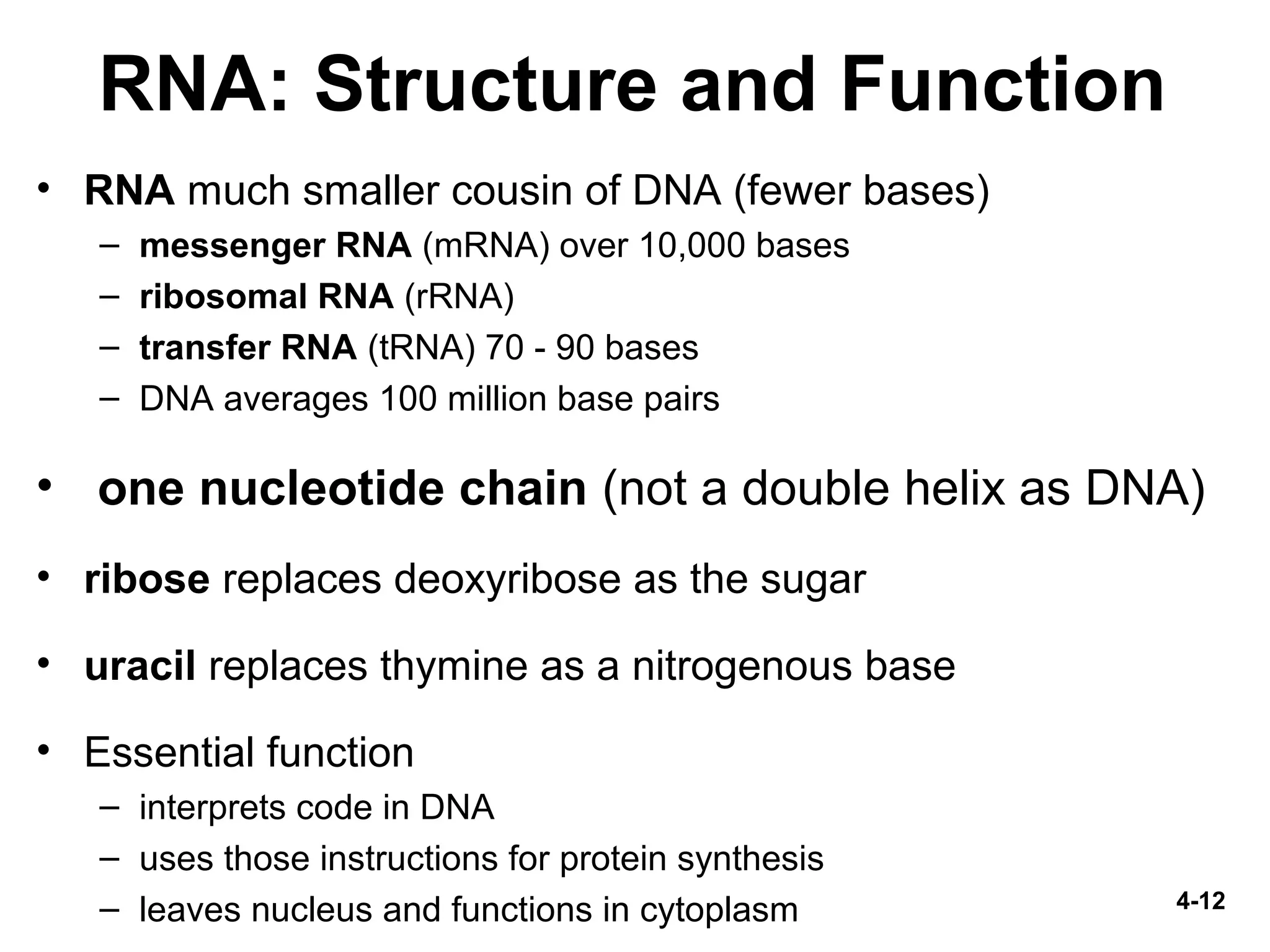

4-12 RNA: Structure and Function • RNA much smaller cousin of DNA (fewer bases) – messenger RNA (mRNA) over 10,000 bases – ribosomal RNA (rRNA) – transfer RNA (tRNA) 70 - 90 bases – DNA averages 100 million base pairs • one nucleotide chain (not a double helix as DNA) • ribose replaces deoxyribose as the sugar • uracil replaces thymine as a nitrogenous base • Essential function – interprets code in DNA – uses those instructions for protein synthesis – leaves nucleus and functions in cytoplasm

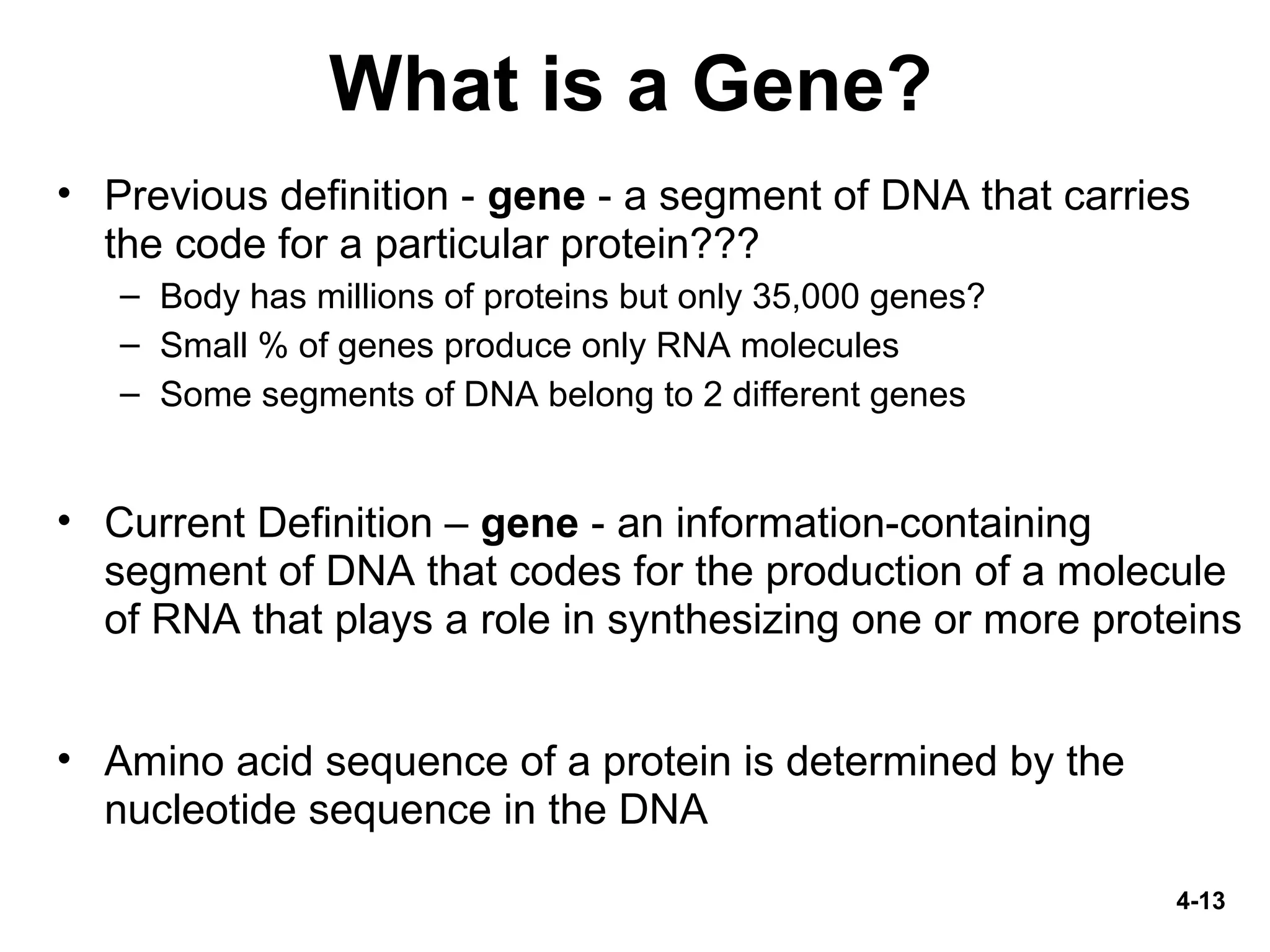

4-13 What is a Gene? • Previous definition - gene - a segment of DNA that carries the code for a particular protein??? – Body has millions of proteins but only 35,000 genes? – Small % of genes produce only RNA molecules – Some segments of DNA belong to 2 different genes • Current Definition – gene - an information-containing segment of DNA that codes for the production of a molecule of RNA that plays a role in synthesizing one or more proteins • Amino acid sequence of a protein is determined by the nucleotide sequence in the DNA

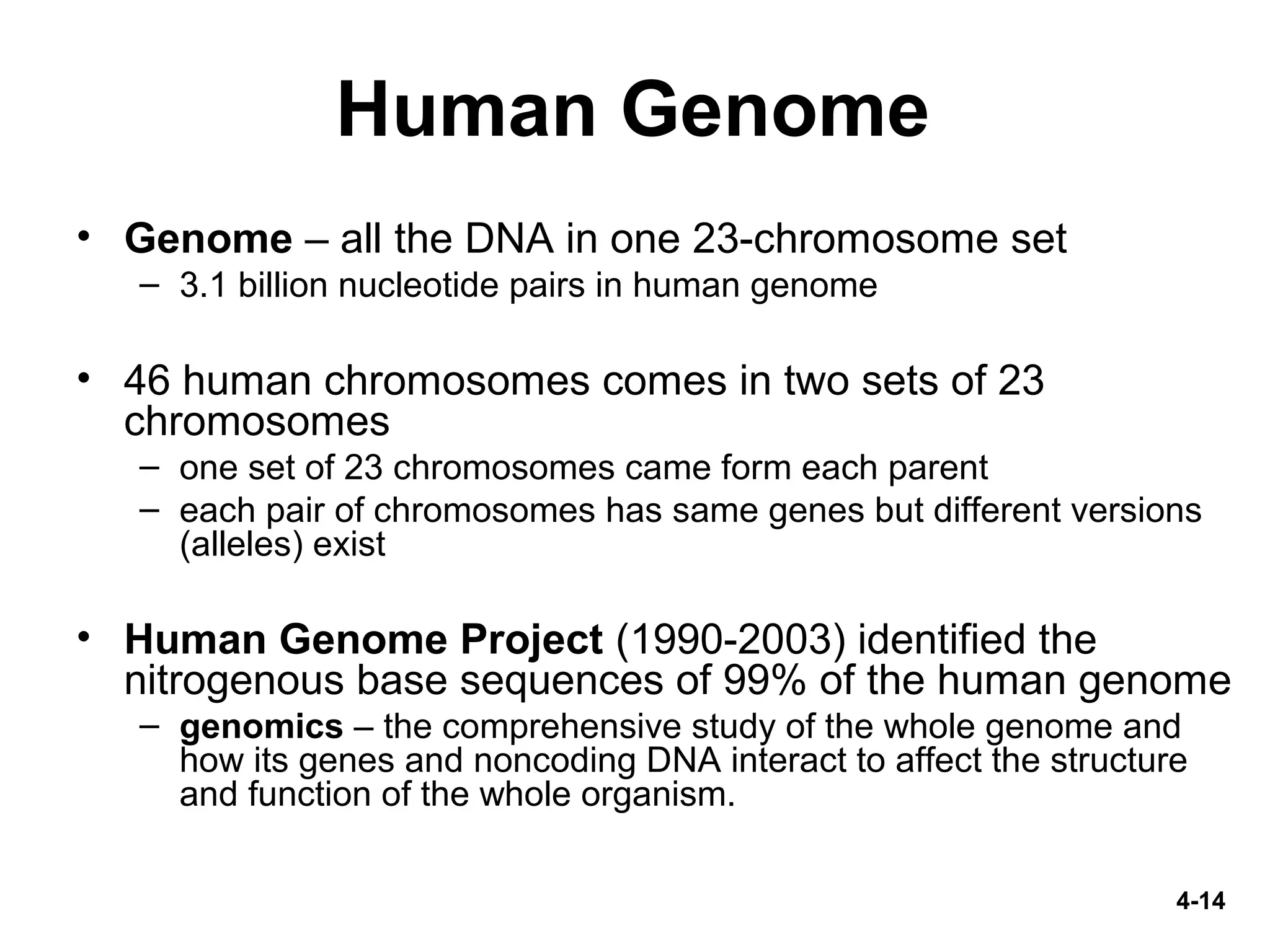

4-14 Human Genome • Genome – all the DNA in one 23-chromosome set – 3.1 billion nucleotide pairs in human genome • 46 human chromosomes comes in two sets of 23 chromosomes – one set of 23 chromosomes came form each parent – each pair of chromosomes has same genes but different versions (alleles) exist • Human Genome Project (1990-2003) identified the nitrogenous base sequences of 99% of the human genome – genomics – the comprehensive study of the whole genome and how its genes and noncoding DNA interact to affect the structure and function of the whole organism.

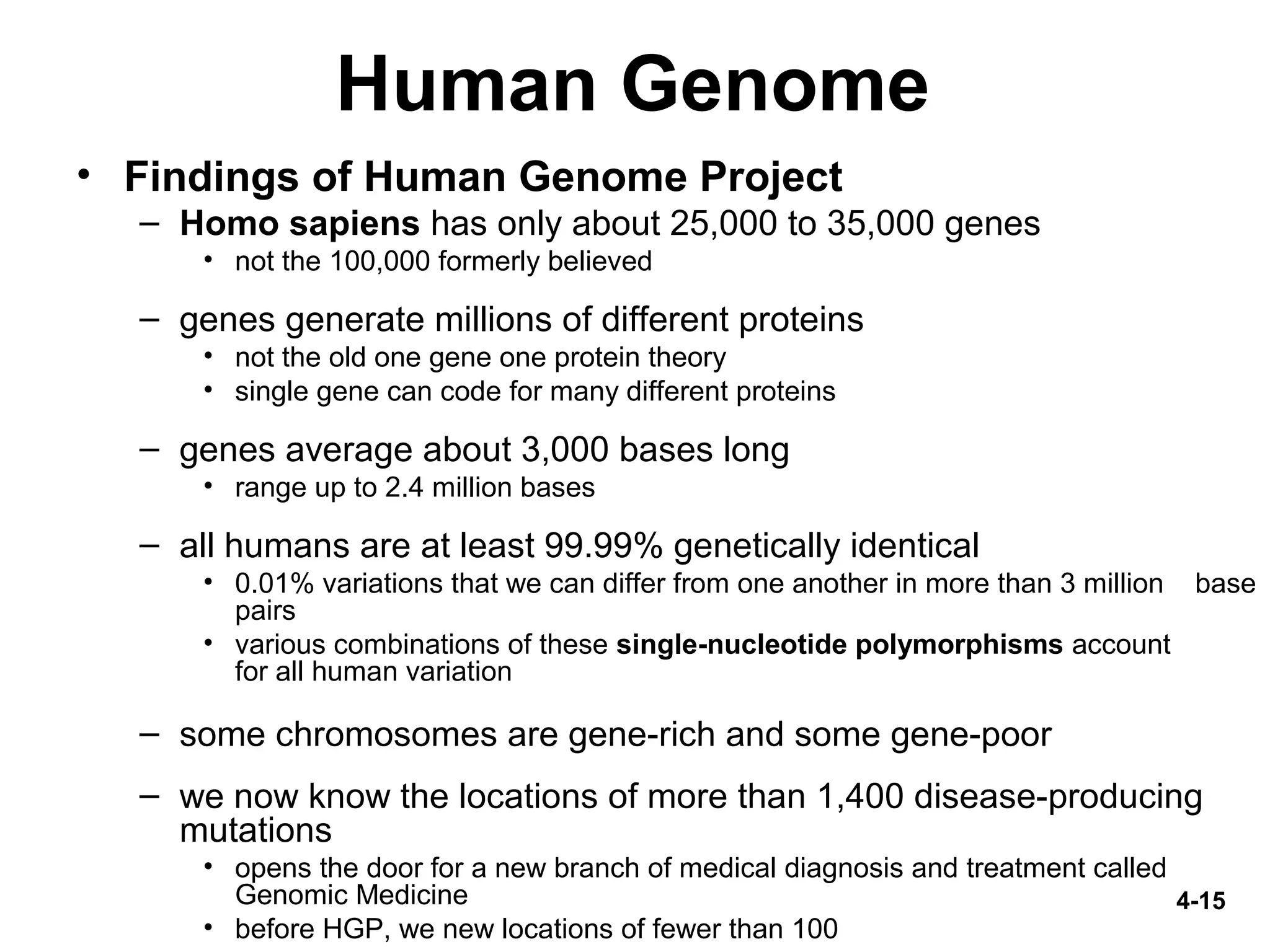

4-15 Human Genome • Findings of Human Genome Project – Homo sapiens has only about 25,000 to 35,000 genes • not the 100,000 formerly believed – genes generate millions of different proteins • not the old one gene one protein theory • single gene can code for many different proteins – genes average about 3,000 bases long • range up to 2.4 million bases – all humans are at least 99.99% genetically identical • 0.01% variations that we can differ from one another in more than 3 million base pairs • various combinations of these single-nucleotide polymorphisms account for all human variation – some chromosomes are gene-rich and some gene-poor – we now know the locations of more than 1,400 disease-producing mutations • opens the door for a new branch of medical diagnosis and treatment called Genomic Medicine • before HGP, we new locations of fewer than 100

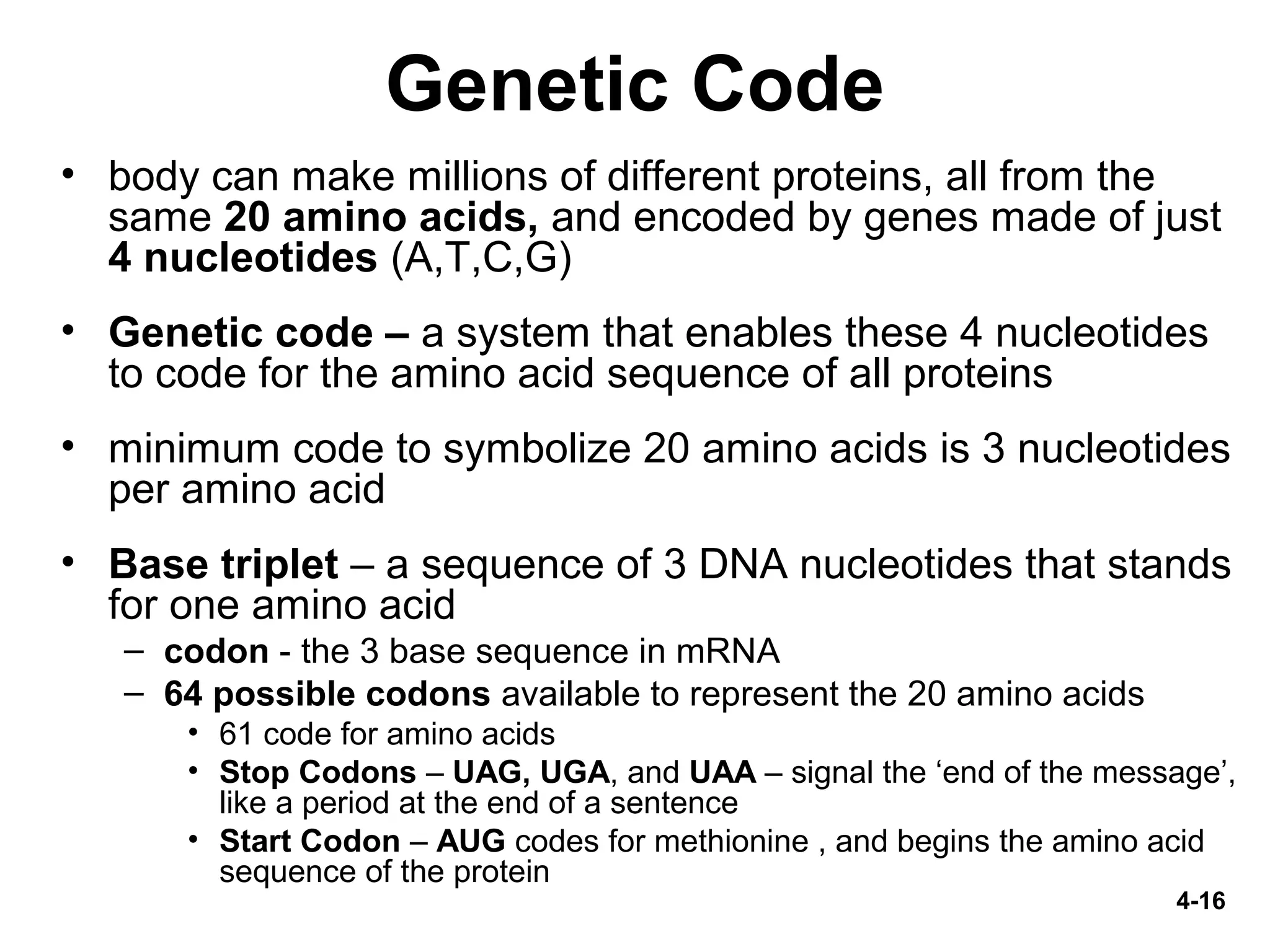

4-16 Genetic Code • body can make millions of different proteins, all from the same 20 amino acids, and encoded by genes made of just 4 nucleotides (A,T,C,G) • Genetic code – a system that enables these 4 nucleotides to code for the amino acid sequence of all proteins • minimum code to symbolize 20 amino acids is 3 nucleotides per amino acid • Base triplet – a sequence of 3 DNA nucleotides that stands for one amino acid – codon - the 3 base sequence in mRNA – 64 possible codons available to represent the 20 amino acids • 61 code for amino acids • Stop Codons – UAG, UGA, and UAA – signal the ‘end of the message’, like a period at the end of a sentence • Start Codon – AUG codes for methionine , and begins the amino acid sequence of the protein

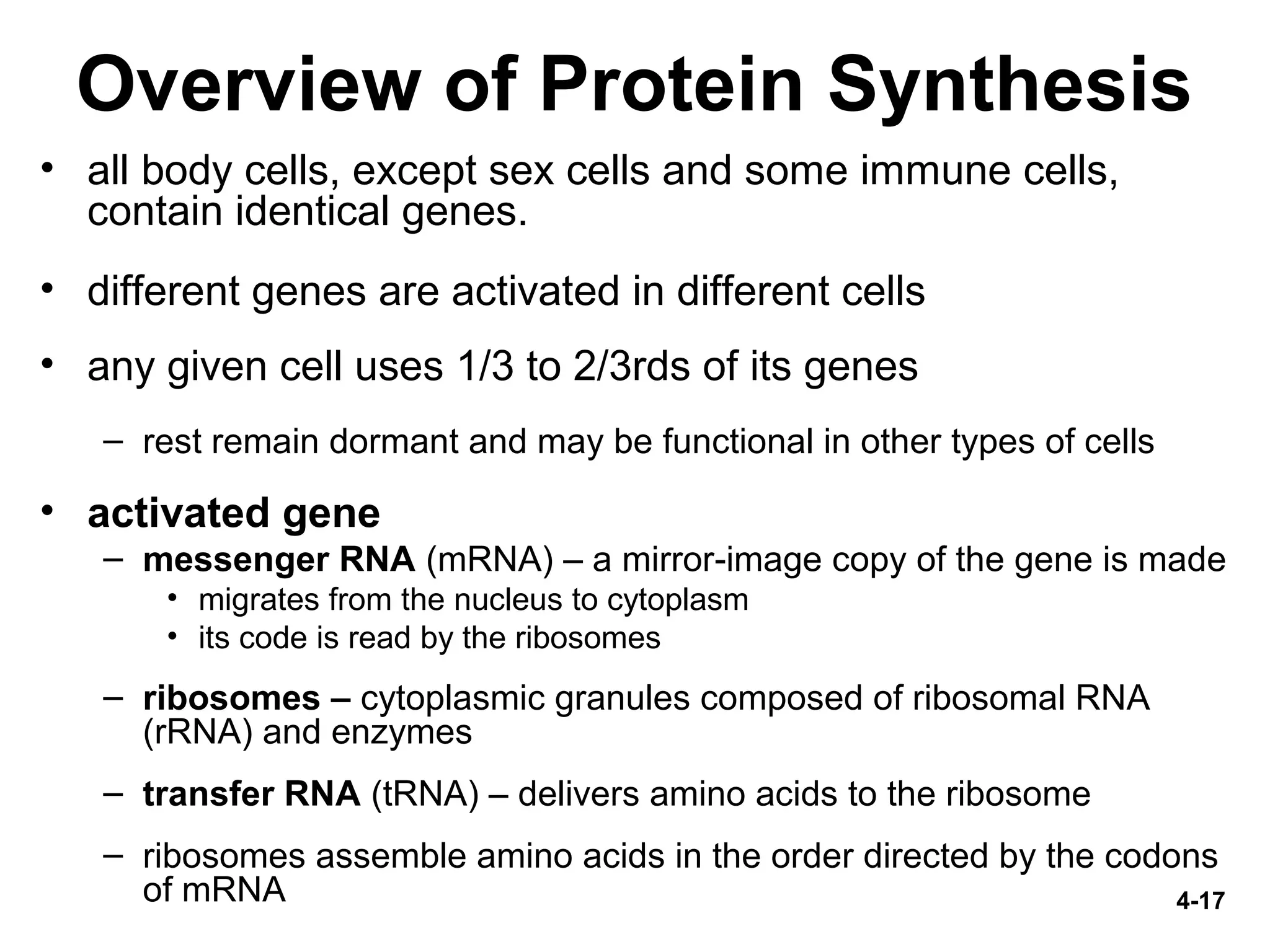

4-17 Overview of Protein Synthesis • all body cells, except sex cells and some immune cells, contain identical genes. • different genes are activated in different cells • any given cell uses 1/3 to 2/3rds of its genes – rest remain dormant and may be functional in other types of cells • activated gene – messenger RNA (mRNA) – a mirror-image copy of the gene is made • migrates from the nucleus to cytoplasm • its code is read by the ribosomes – ribosomes – cytoplasmic granules composed of ribosomal RNA (rRNA) and enzymes – transfer RNA (tRNA) – delivers amino acids to the ribosome – ribosomes assemble amino acids in the order directed by the codons of mRNA

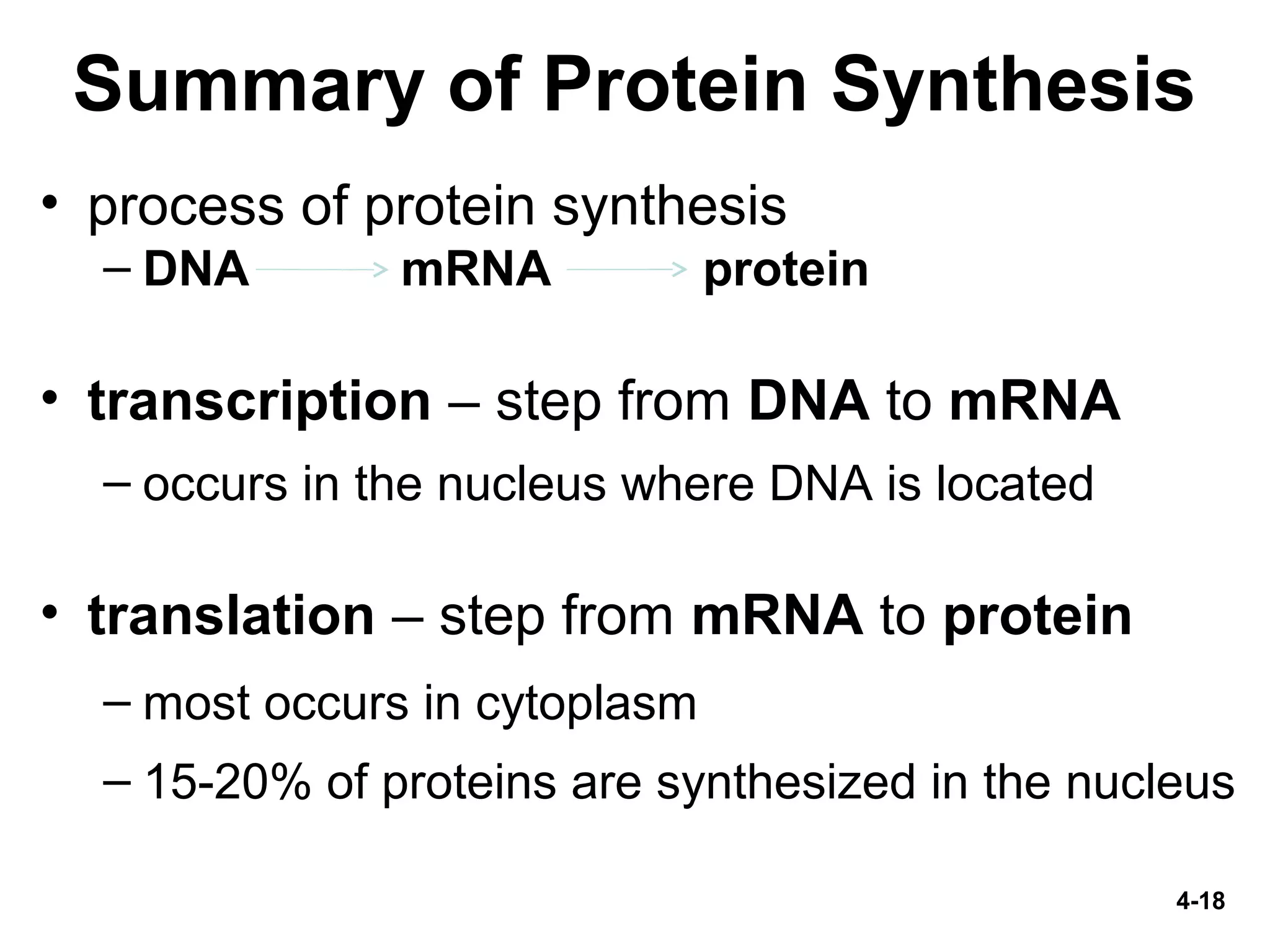

4-18 Summary of Protein Synthesis • process of protein synthesis – DNA mRNA protein • transcription – step from DNA to mRNA – occurs in the nucleus where DNA is located • translation – step from mRNA to protein – most occurs in cytoplasm – 15-20% of proteins are synthesized in the nucleus

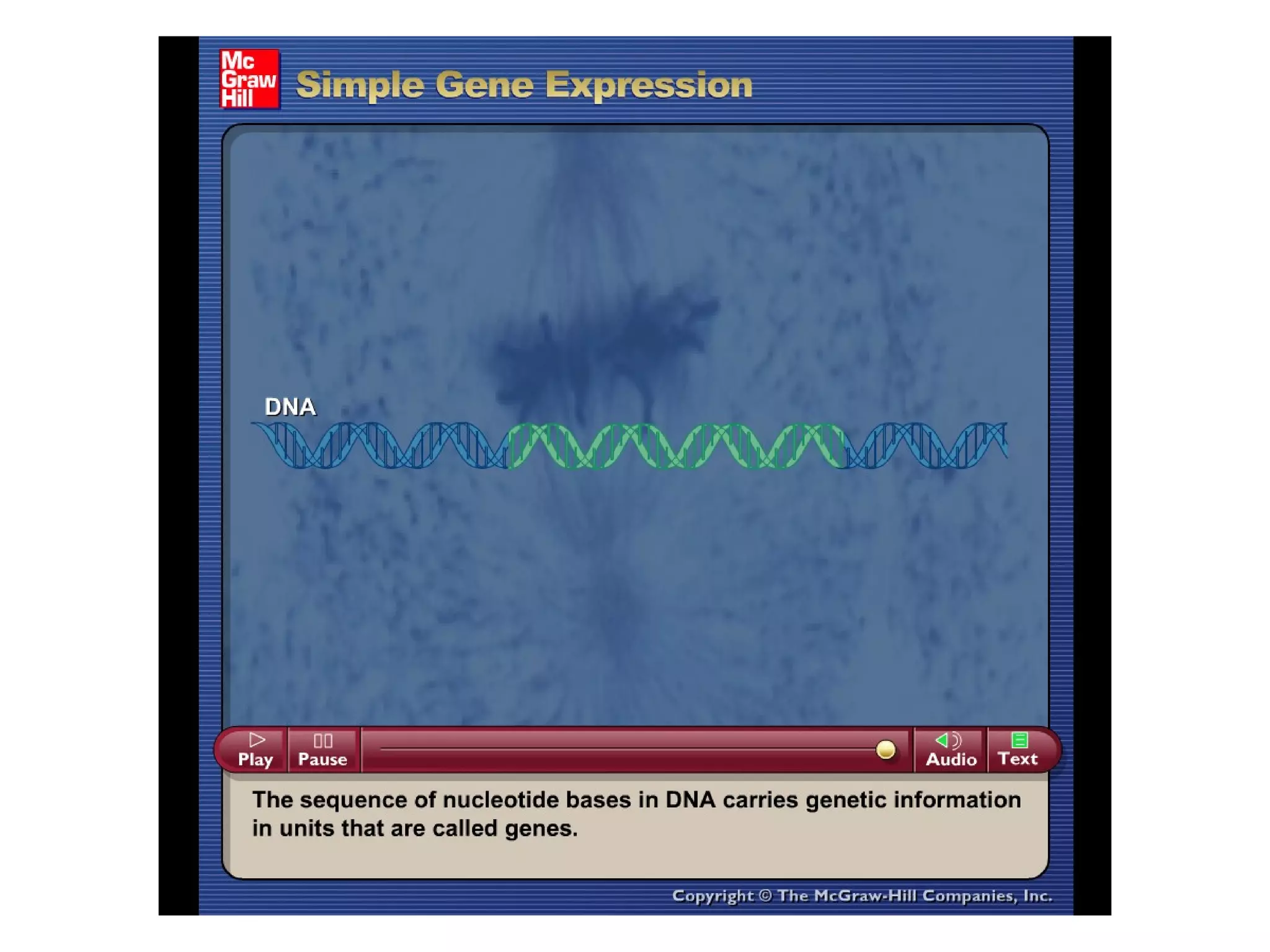

Please note that due to differing operating systems, some animations will not appear until the presentation is viewed in Presentation Mode (Slide Show view). You may see blank slides in the “Normal” or “Slide Sorter” views. All animations will appear after viewing in Presentation Mode and playing each animation. Most animations will require the latest version of the Flash Player, which is available at http://get.adobe.com/flashplayer.

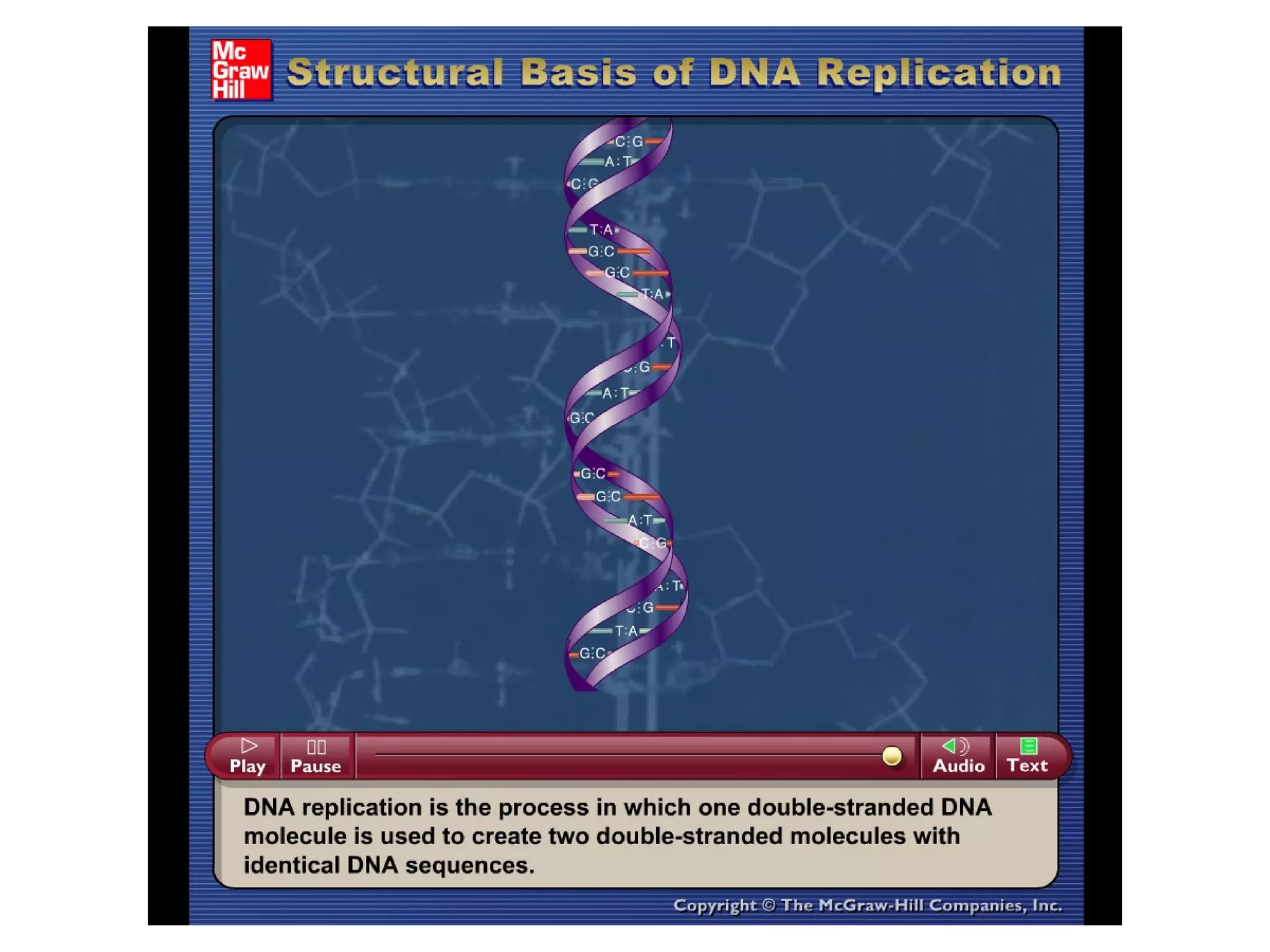

Please note that due to differing operating systems, some animations will not appear until the presentation is viewed in Presentation Mode (Slide Show view). You may see blank slides in the “Normal” or “Slide Sorter” views. All animations will appear after viewing in Presentation Mode and playing each animation. Most animations will require the latest version of the Flash Player, which is available at http://get.adobe.com/flashplayer.

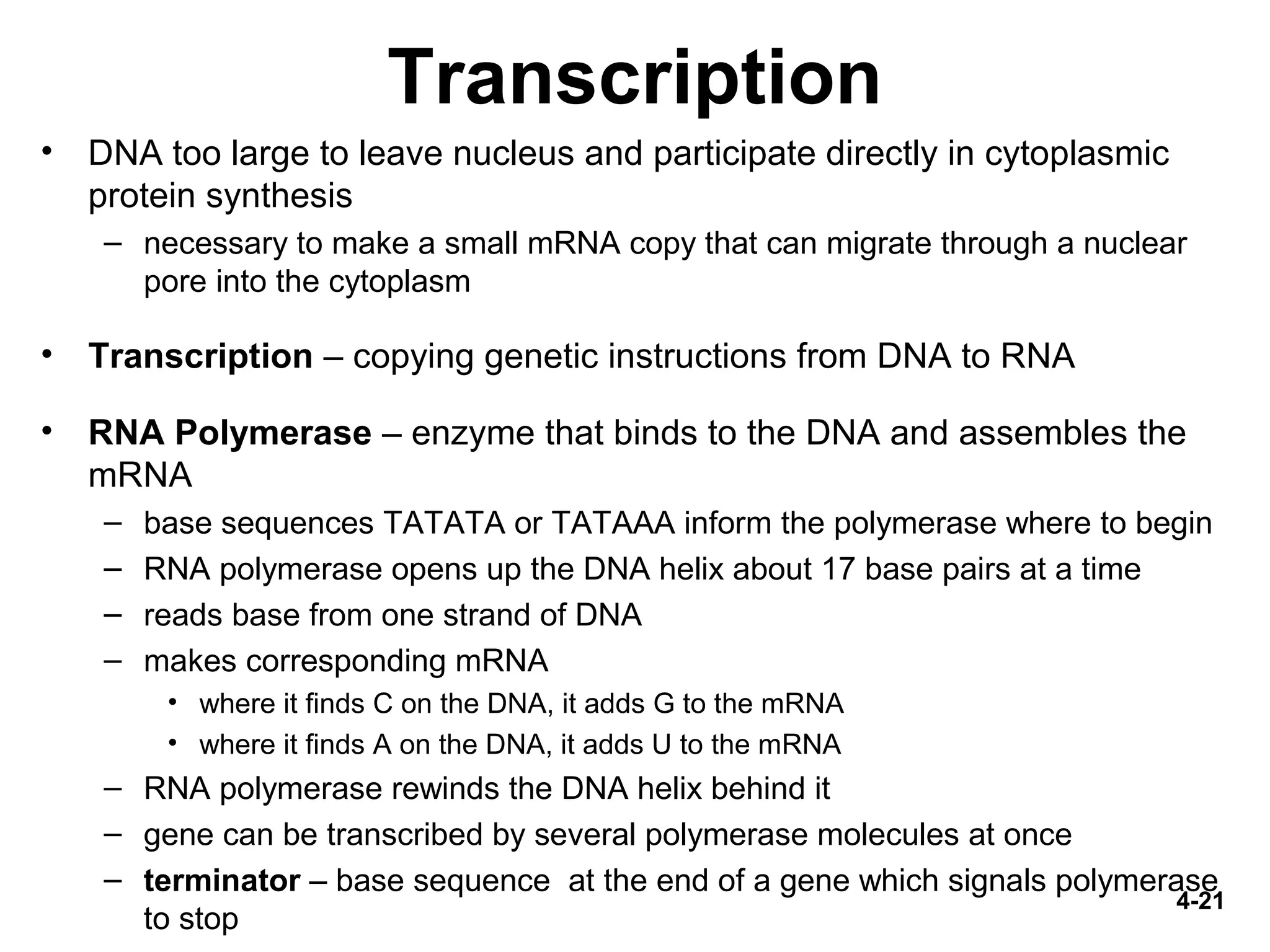

4-21 Transcription • DNA too large to leave nucleus and participate directly in cytoplasmic protein synthesis – necessary to make a small mRNA copy that can migrate through a nuclear pore into the cytoplasm • Transcription – copying genetic instructions from DNA to RNA • RNA Polymerase – enzyme that binds to the DNA and assembles the mRNA – base sequences TATATA or TATAAA inform the polymerase where to begin – RNA polymerase opens up the DNA helix about 17 base pairs at a time – reads base from one strand of DNA – makes corresponding mRNA • where it finds C on the DNA, it adds G to the mRNA • where it finds A on the DNA, it adds U to the mRNA – RNA polymerase rewinds the DNA helix behind it – gene can be transcribed by several polymerase molecules at once – terminator – base sequence at the end of a gene which signals polymerase to stop

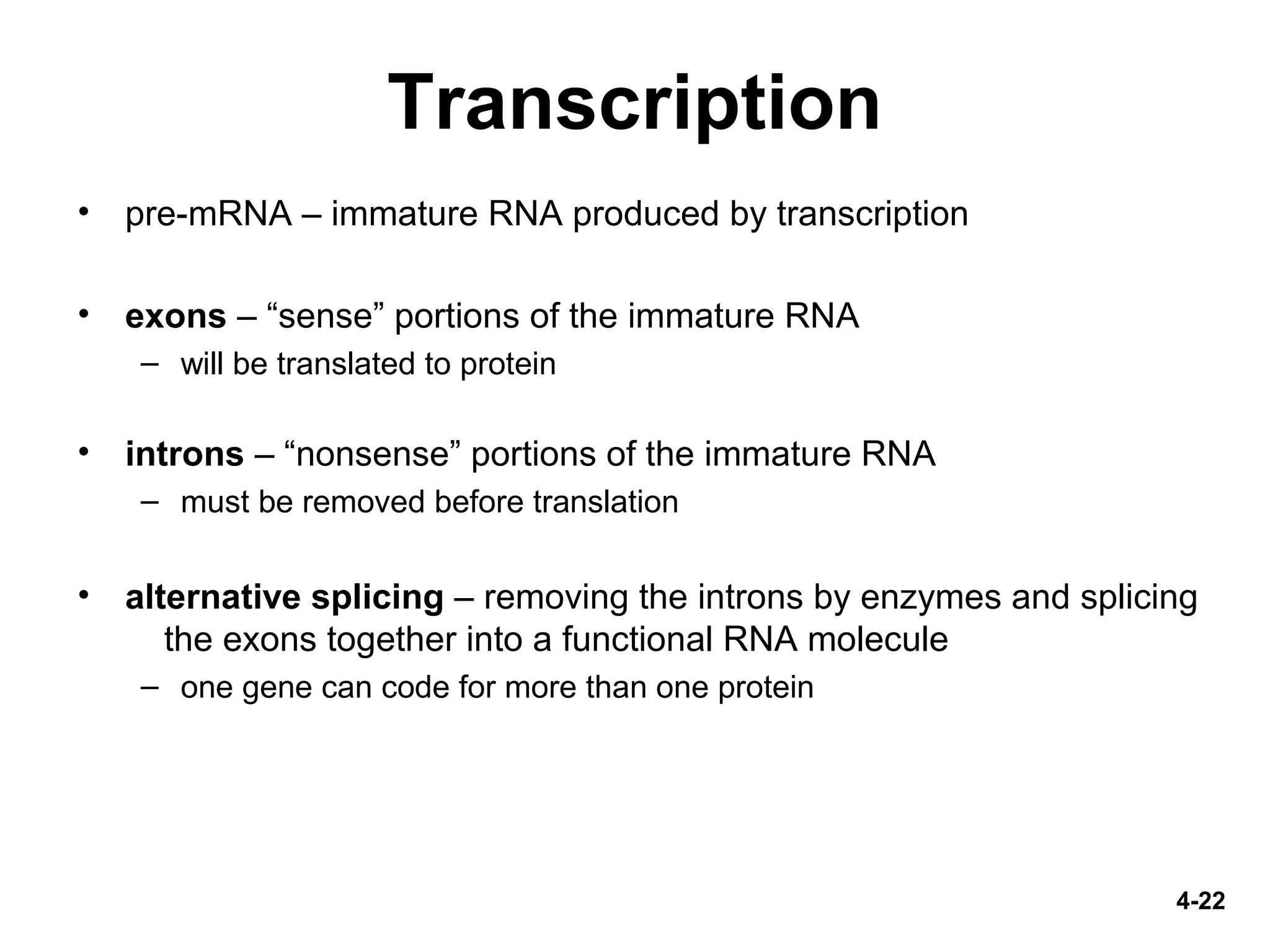

4-22 Transcription • pre-mRNA – immature RNA produced by transcription • exons – “sense” portions of the immature RNA – will be translated to protein • introns – “nonsense” portions of the immature RNA – must be removed before translation • alternative splicing – removing the introns by enzymes and splicing the exons together into a functional RNA molecule – one gene can code for more than one protein
Please note that due to differing operating systems, some animations will not appear until the presentation is viewed in Presentation Mode (Slide Show view). You may see blank slides in the “Normal” or “Slide Sorter” views. All animations will appear after viewing in Presentation Mode and playing each animation. Most animations will require the latest version of the Flash Player, which is available at http://get.adobe.com/flashplayer.

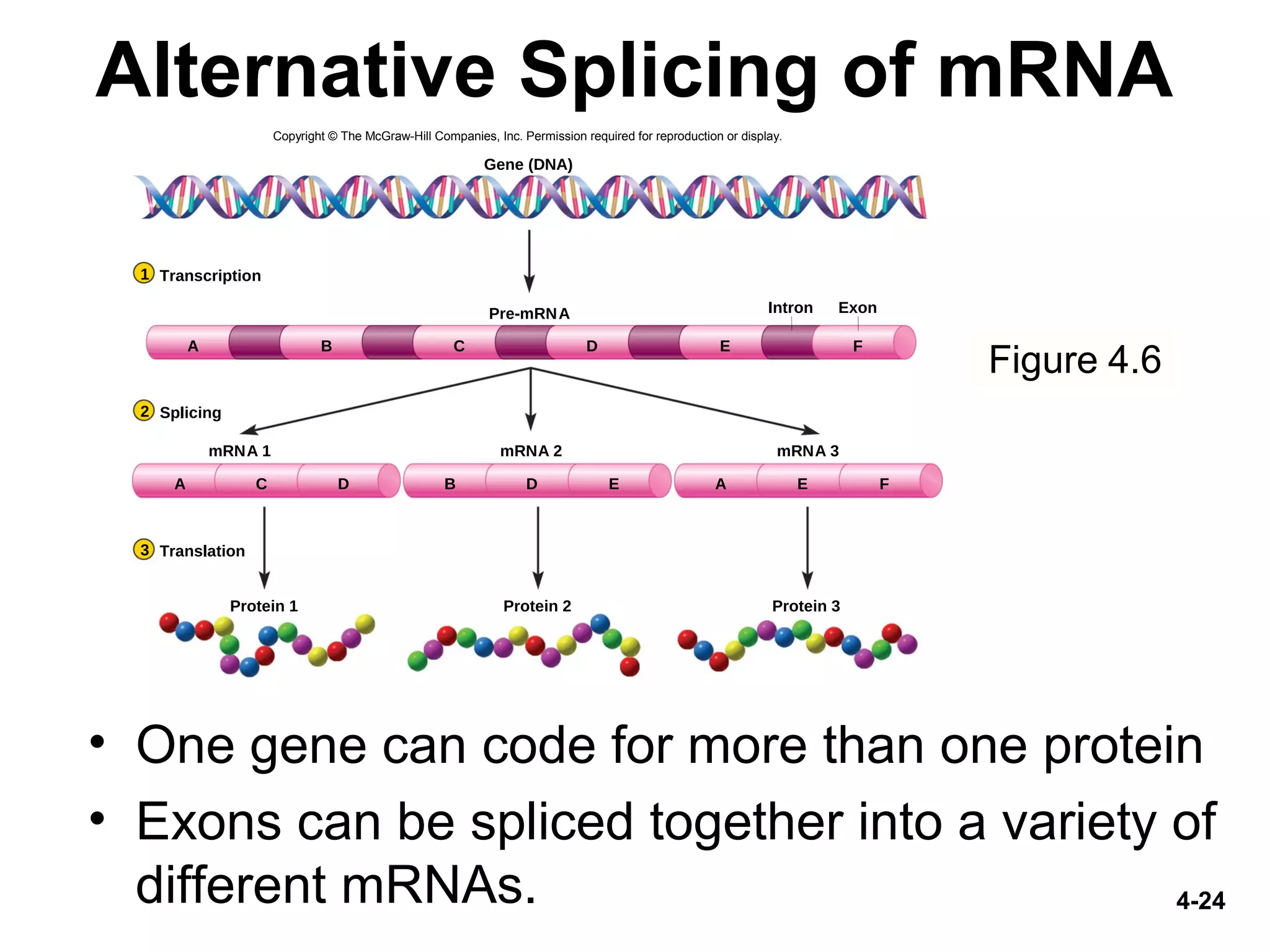

4-24 Alternative Splicing of mRNA • One gene can code for more than one protein • Exons can be spliced together into a variety of different mRNAs. Figure 4.6 Gene (DNA) Pre-mRNA Intron Exon mRNA 2mRNA 1 mRNA 3 Protein 2Protein 1 Protein 3 Transcription1 Translation3 Splicing2 A B C D E F A C D A E FB D E Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.

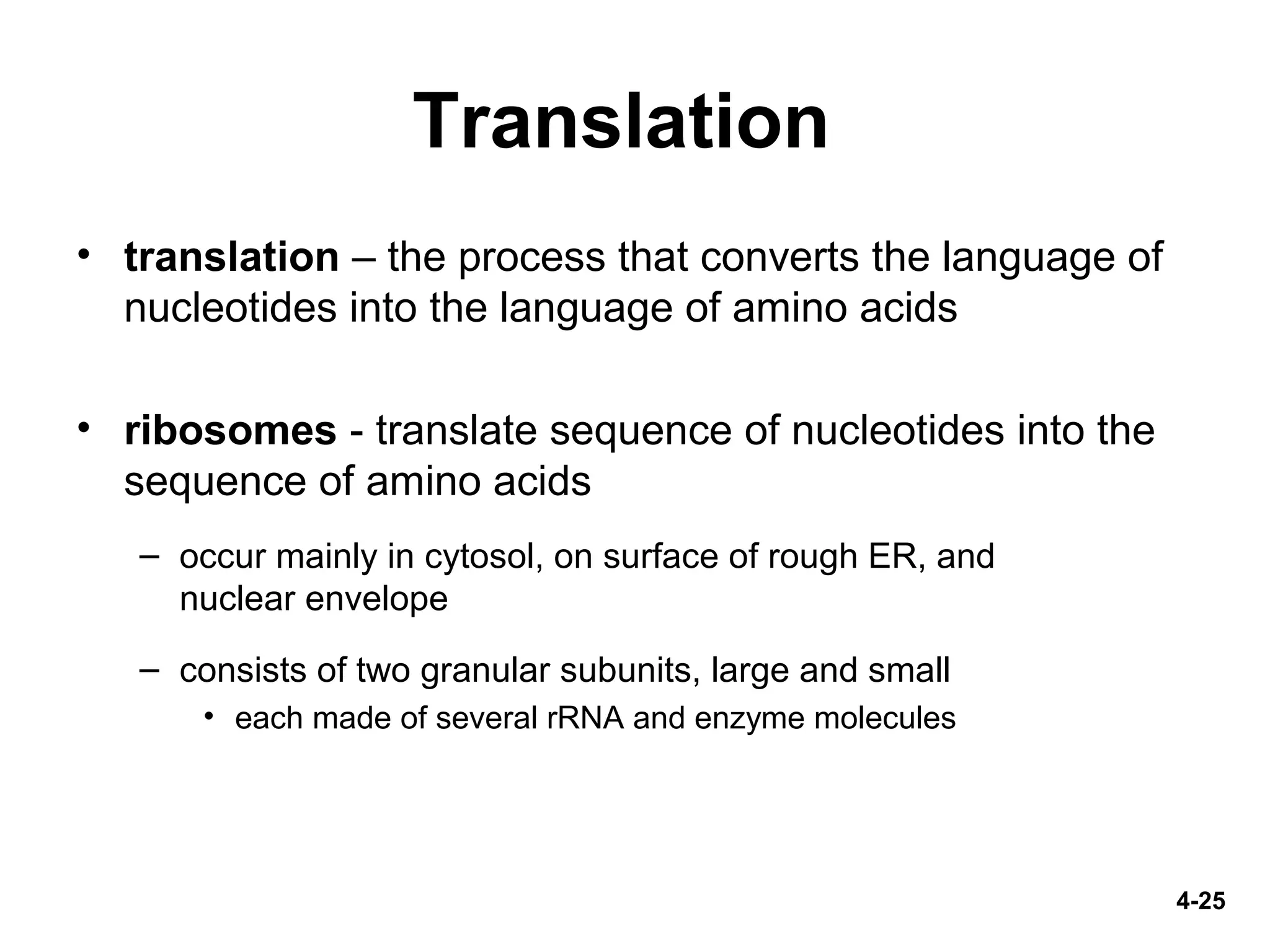

4-25 Translation • translation – the process that converts the language of nucleotides into the language of amino acids • ribosomes - translate sequence of nucleotides into the sequence of amino acids – occur mainly in cytosol, on surface of rough ER, and nuclear envelope – consists of two granular subunits, large and small • each made of several rRNA and enzyme molecules
4-26 Translation of mRNA • mRNA molecule begins with leader sequence – acts as binding site for small ribosomal subunit – large subunit attaches to small subunit – ribosome pulls mRNA molecule through it like a ribbon, reading the bases as it goes – when start codon (AUG) is reached, protein synthesis begins – all proteins begin with methionine when first synthesized Figure 4.7 Free amino acids Cytosol Free tRNA NucleusDNA G U A C G U C A U G C A Ribosomal subunits rejoin to repeat the process with the same or another mRNA. Protein 1 4 6 7 8 mRNA tRNA + PiATP ADP 3 5 2 tRNA is released from the ribosome and is available to pick up a new amino acid and repeat the process. After translating the entire mRNA, the ribosome dissociates into its two subunits. The preceding tRNA hands off the growing protein to the new tRNA, and the ribosome links the new amino acid to the protein. mRNA leaves the nucleus. tRNA binds an amino acid; binding consumes 1 ATP. Ribosome binds mRNA. tRNA anticodon binds to complementary mRNA codon. Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.

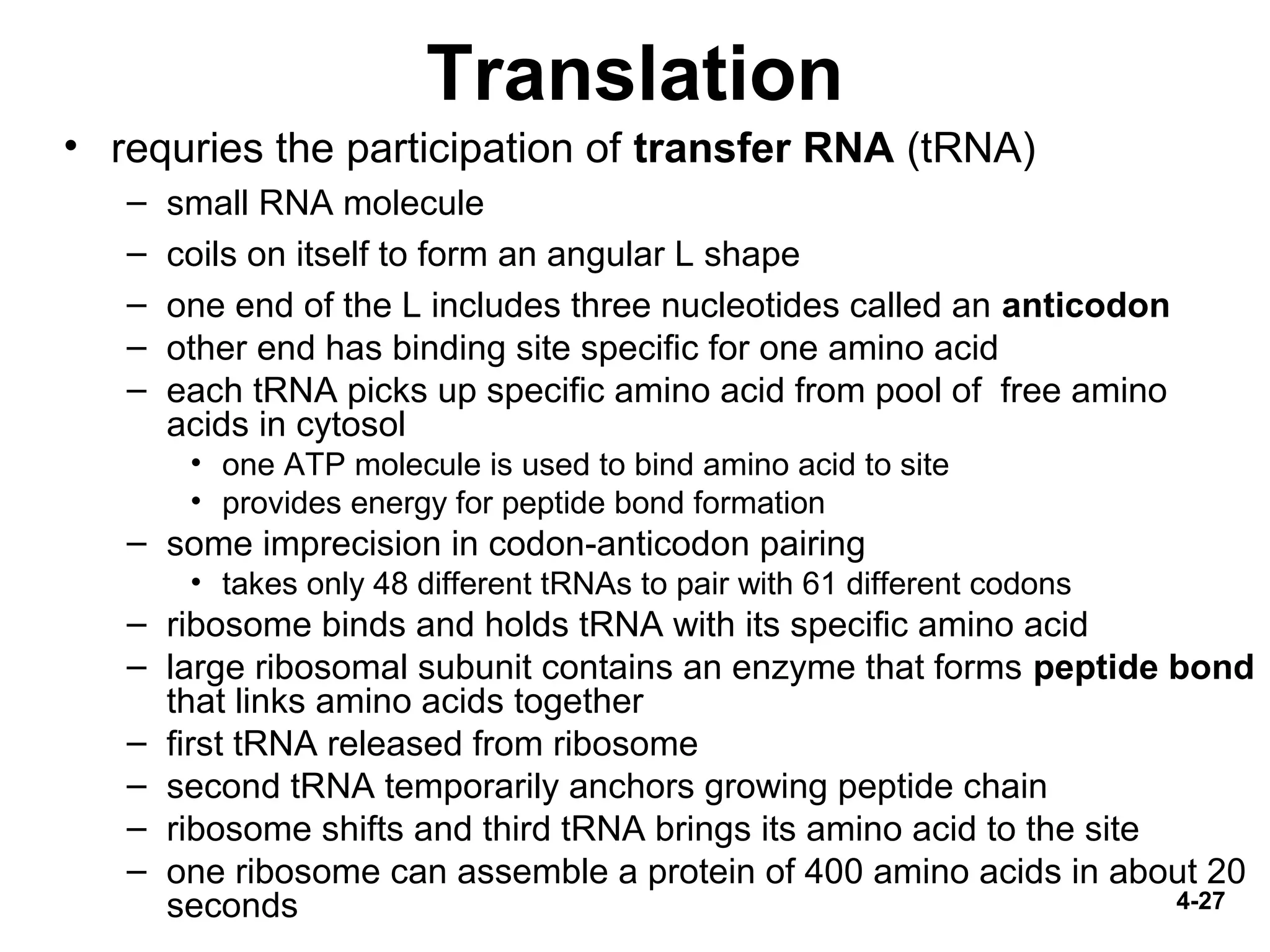

4-27 Translation • requries the participation of transfer RNA (tRNA) – small RNA molecule – coils on itself to form an angular L shape – one end of the L includes three nucleotides called an anticodon – other end has binding site specific for one amino acid – each tRNA picks up specific amino acid from pool of free amino acids in cytosol • one ATP molecule is used to bind amino acid to site • provides energy for peptide bond formation – some imprecision in codon-anticodon pairing • takes only 48 different tRNAs to pair with 61 different codons – ribosome binds and holds tRNA with its specific amino acid – large ribosomal subunit contains an enzyme that forms peptide bond that links amino acids together – first tRNA released from ribosome – second tRNA temporarily anchors growing peptide chain – ribosome shifts and third tRNA brings its amino acid to the site – one ribosome can assemble a protein of 400 amino acids in about 20 seconds

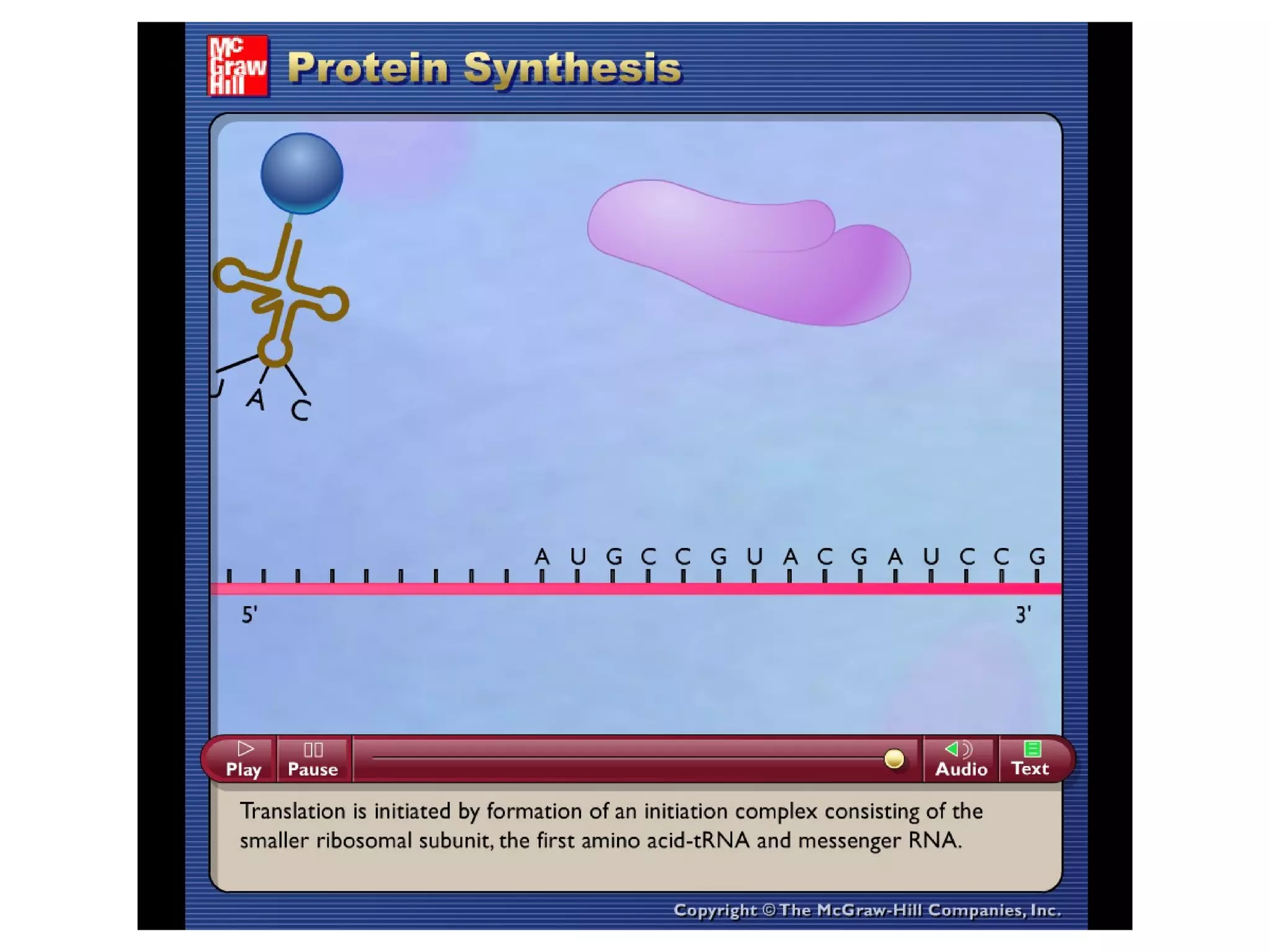

Please note that due to differing operating systems, some animations will not appear until the presentation is viewed in Presentation Mode (Slide Show view). You may see blank slides in the “Normal” or “Slide Sorter” views. All animations will appear after viewing in Presentation Mode and playing each animation. Most animations will require the latest version of the Flash Player, which is available at http://get.adobe.com/flashplayer.

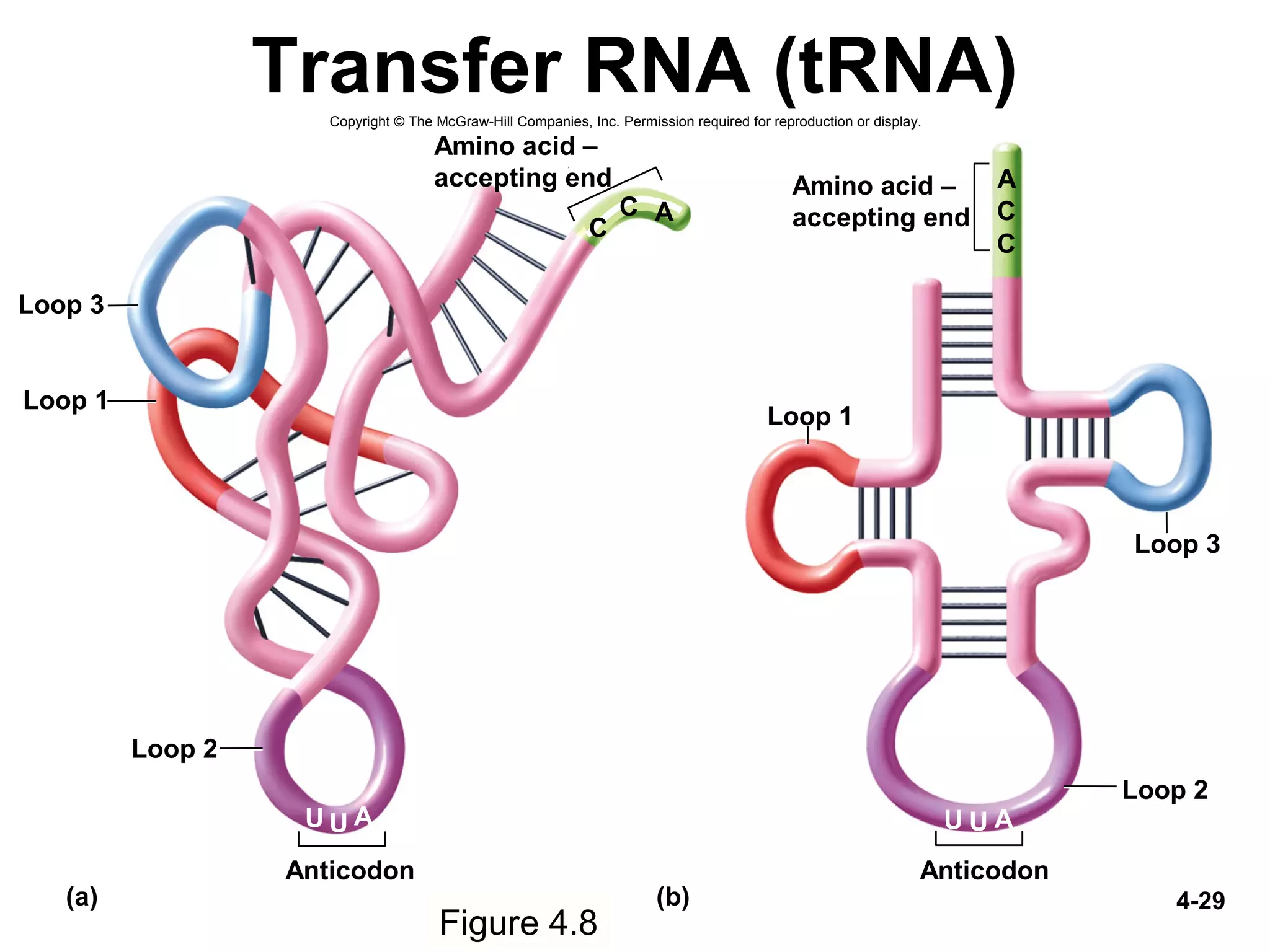

4-29 Transfer RNA (tRNA) Figure 4.8 Amino acid – accepting end Loop 1 Loop 3 Loop 2 C C U U A Anticodon A Amino acid – accepting end Loop 1 Loop 3 Loop 2 UU A A C C (a) (b) Anticodon Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.

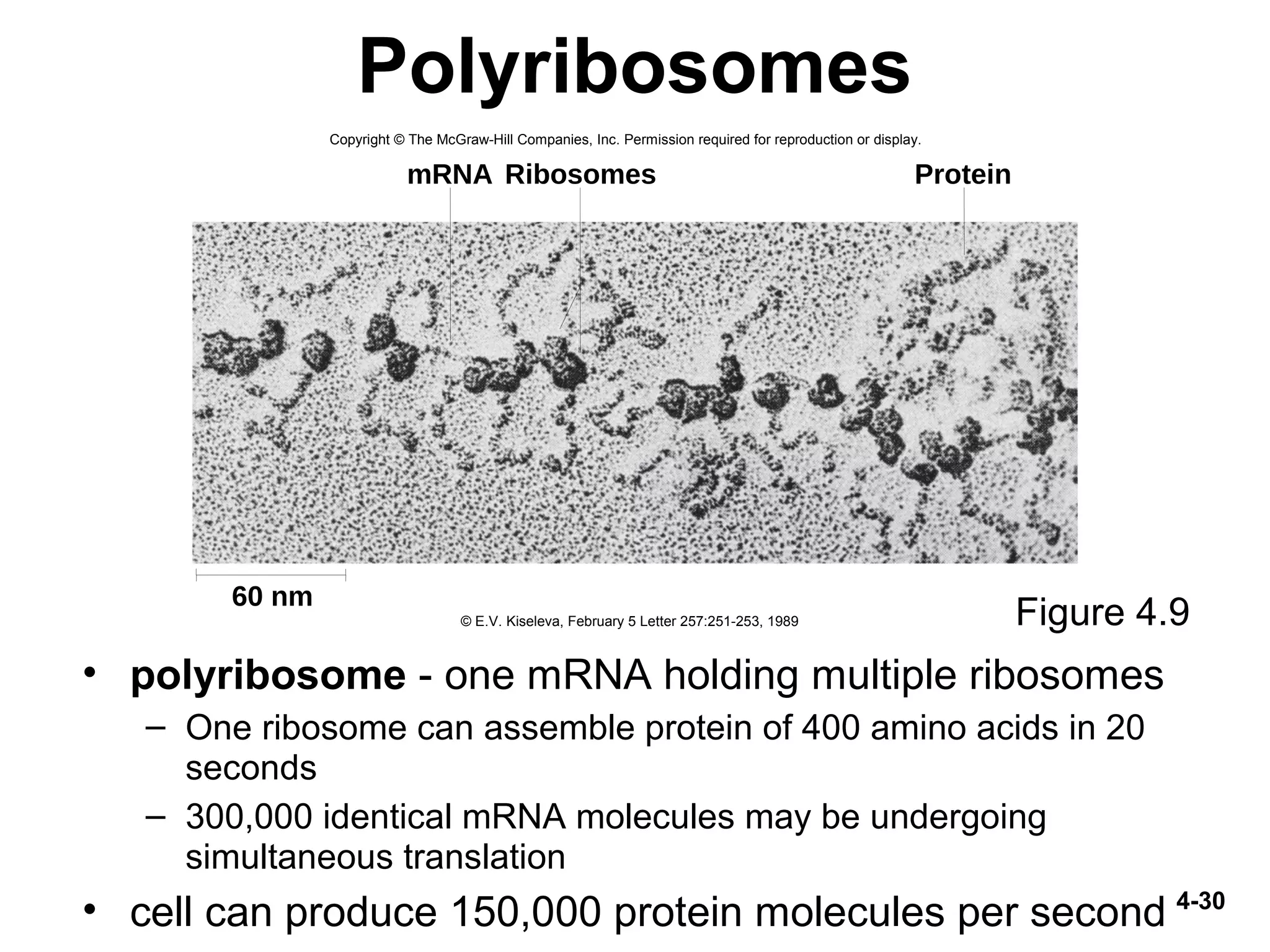

4-30 Polyribosomes • polyribosome - one mRNA holding multiple ribosomes – One ribosome can assemble protein of 400 amino acids in 20 seconds – 300,000 identical mRNA molecules may be undergoing simultaneous translation • cell can produce 150,000 protein molecules per second Figure 4.9 60 nm mRNA Ribosomes Protein Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. © E.V. Kiseleva, February 5 Letter 257:251-253, 1989

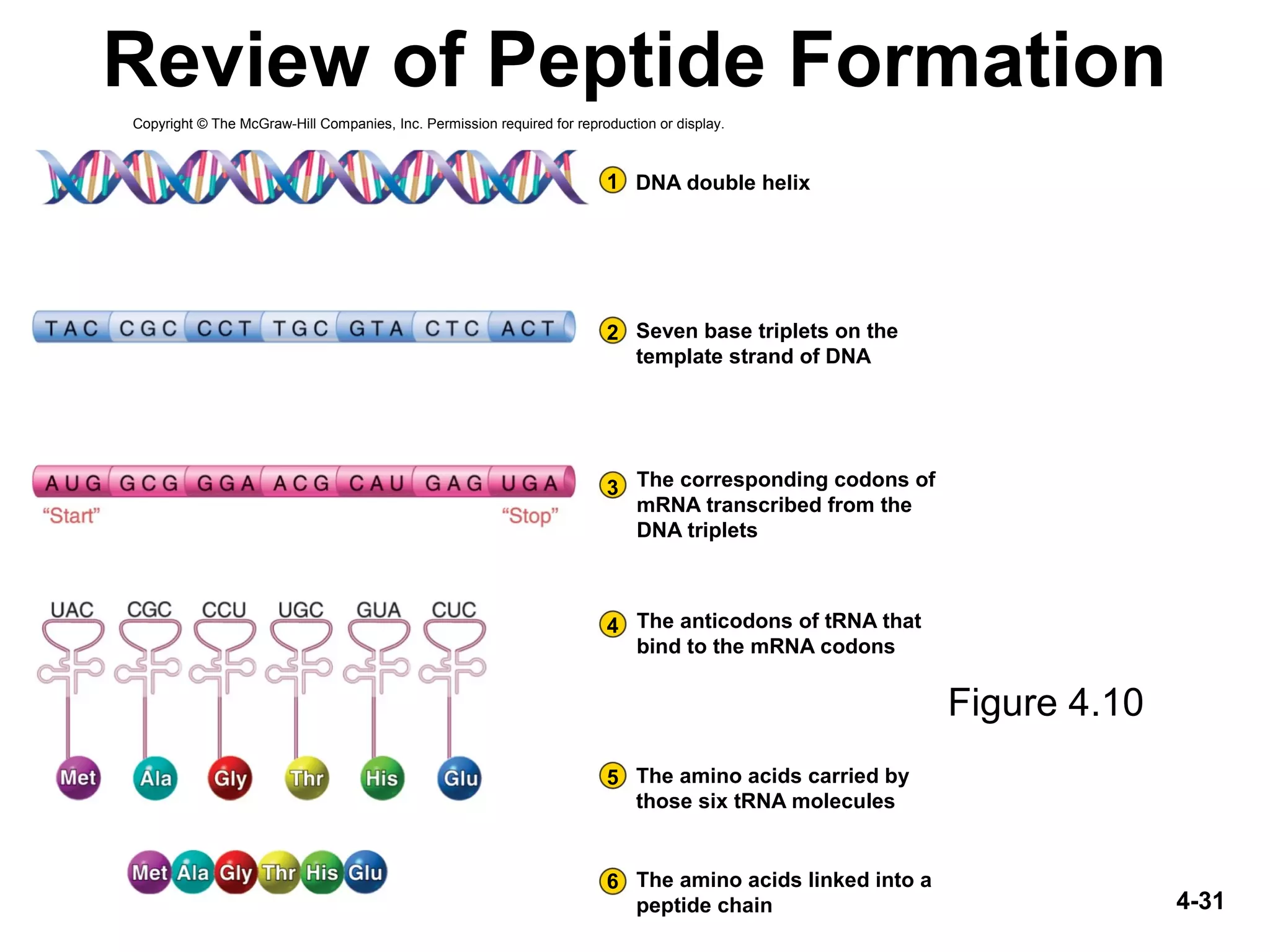

4-31 Review of Peptide Formation Figure 4.10 1 2 3 4 5 6 DNA double helix Seven base triplets on the template strand of DNA The corresponding codons of mRNA transcribed from the DNA triplets The anticodons of tRNA that bind to the mRNA codons The amino acids carried by those six tRNA molecules The amino acids linked into a peptide chain Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.

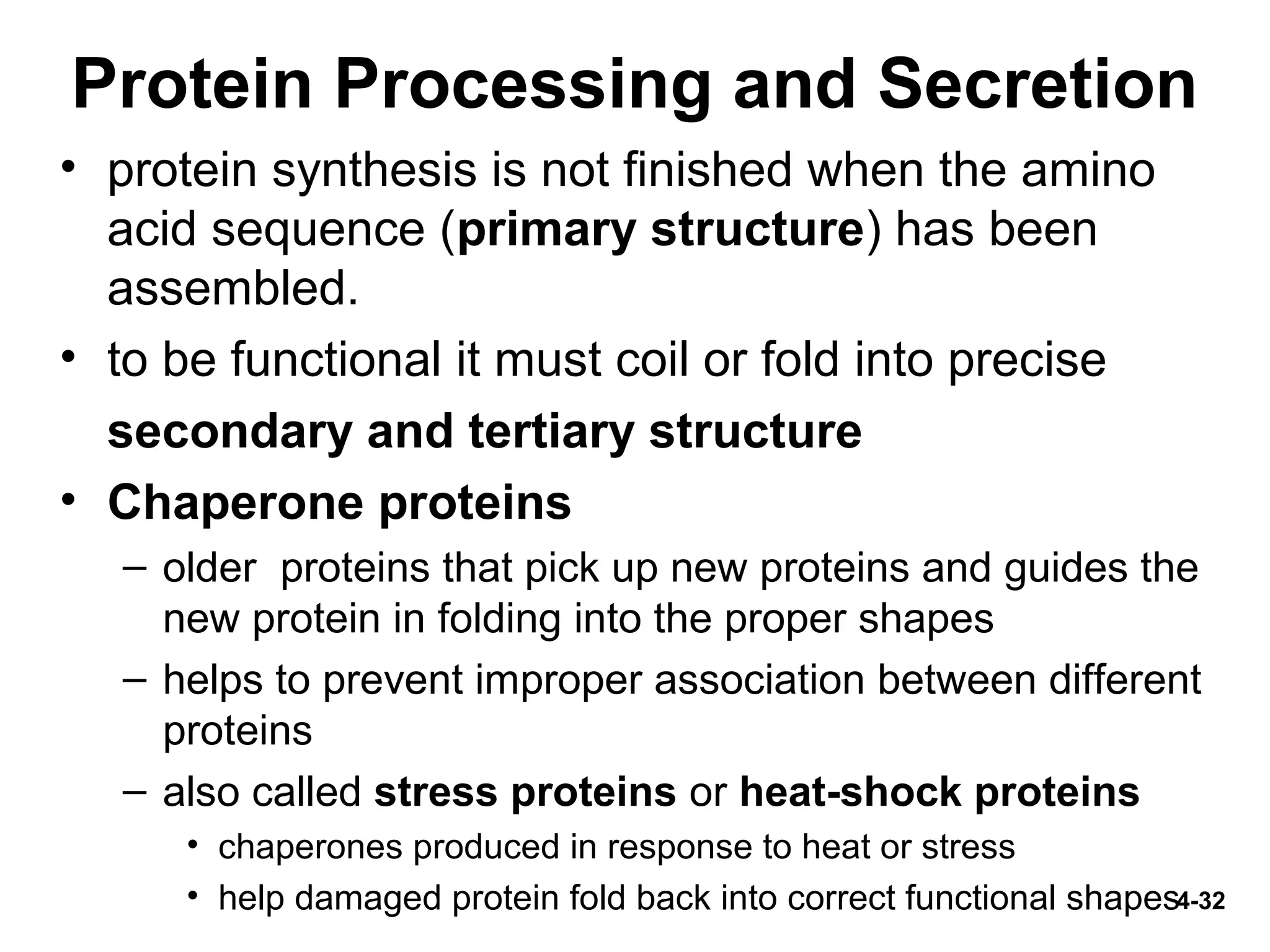

4-32 Protein Processing and Secretion • protein synthesis is not finished when the amino acid sequence (primary structure) has been assembled. • to be functional it must coil or fold into precise secondary and tertiary structure • Chaperone proteins – older proteins that pick up new proteins and guides the new protein in folding into the proper shapes – helps to prevent improper association between different proteins – also called stress proteins or heat-shock proteins • chaperones produced in response to heat or stress • help damaged protein fold back into correct functional shapes

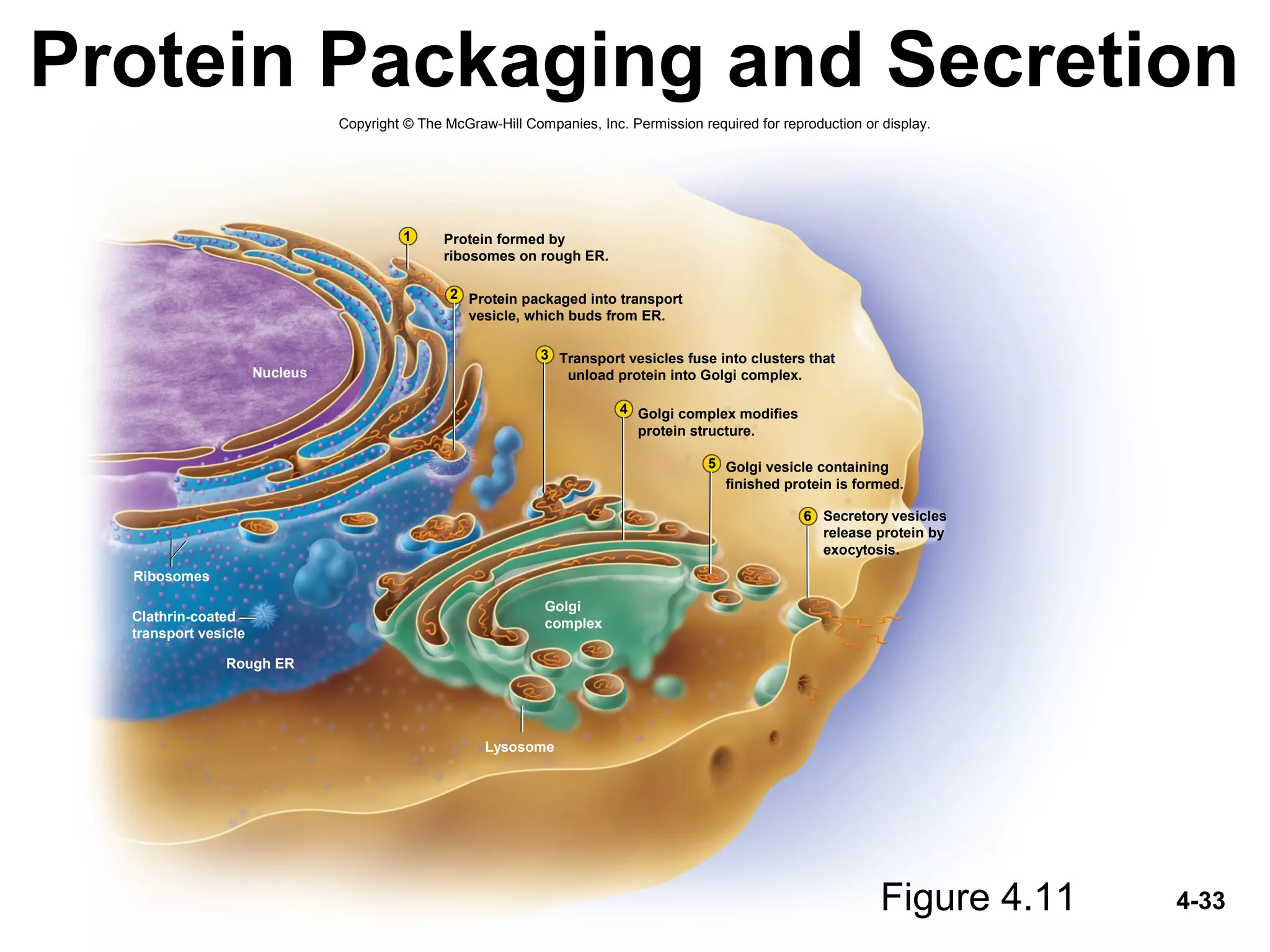

4-33 Protein Packaging and Secretion Figure 4.11 Nucleus Rough ER Golgi complex Lysosome Ribosomes Protein packaged into transport vesicle, which buds from ER. Transport vesicles fuse into clusters that unload protein into Golgi complex. Golgi complex modifies protein structure. Golgi vesicle containing finished protein is formed. Secretory vesicles release protein by exocytosis. 1 2 3 4 5 6 Clathrin-coated transport vesicle Protein formed by ribosomes on rough ER. Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.

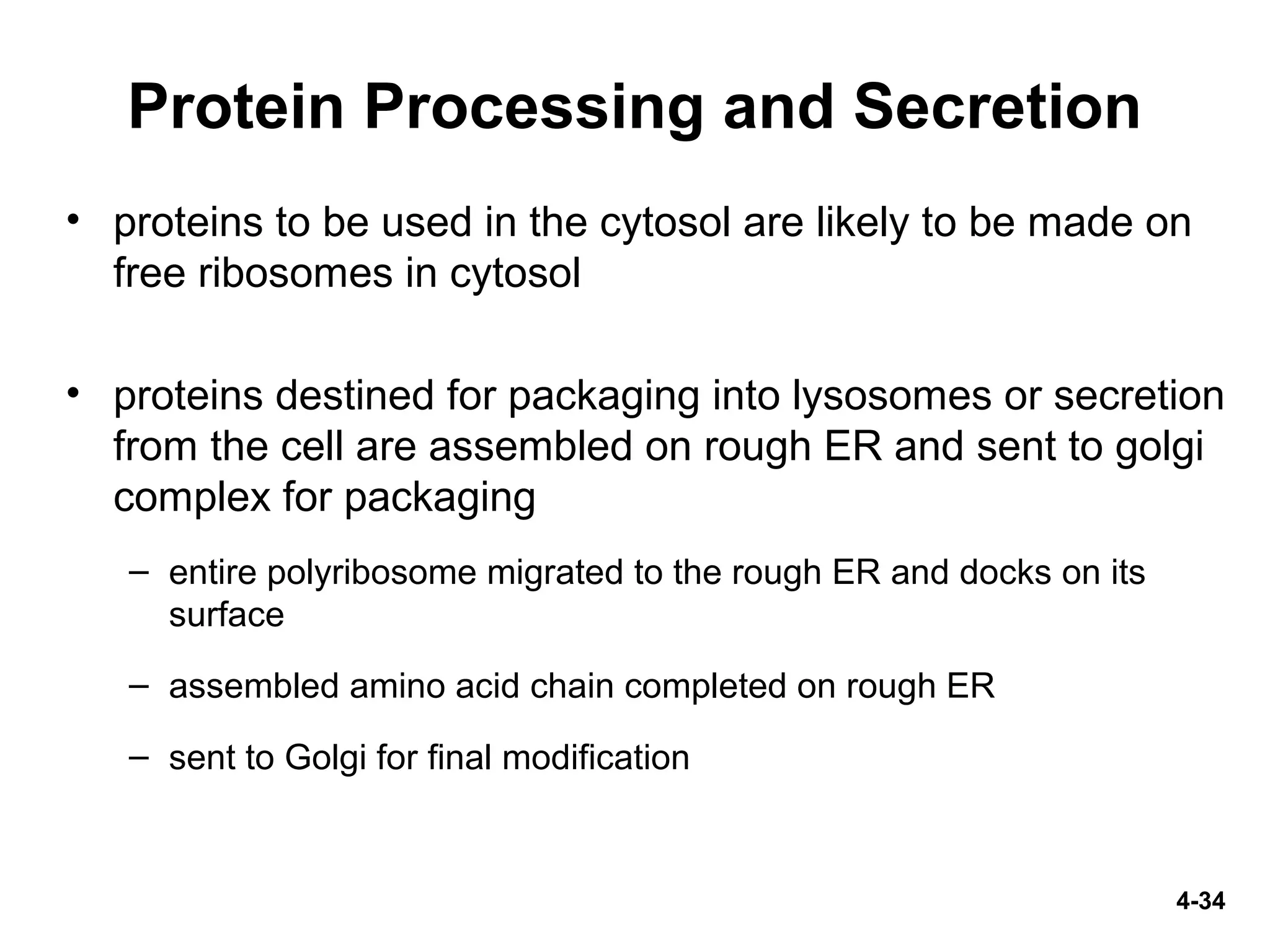

4-34 Protein Processing and Secretion • proteins to be used in the cytosol are likely to be made on free ribosomes in cytosol • proteins destined for packaging into lysosomes or secretion from the cell are assembled on rough ER and sent to golgi complex for packaging – entire polyribosome migrated to the rough ER and docks on its surface – assembled amino acid chain completed on rough ER – sent to Golgi for final modification

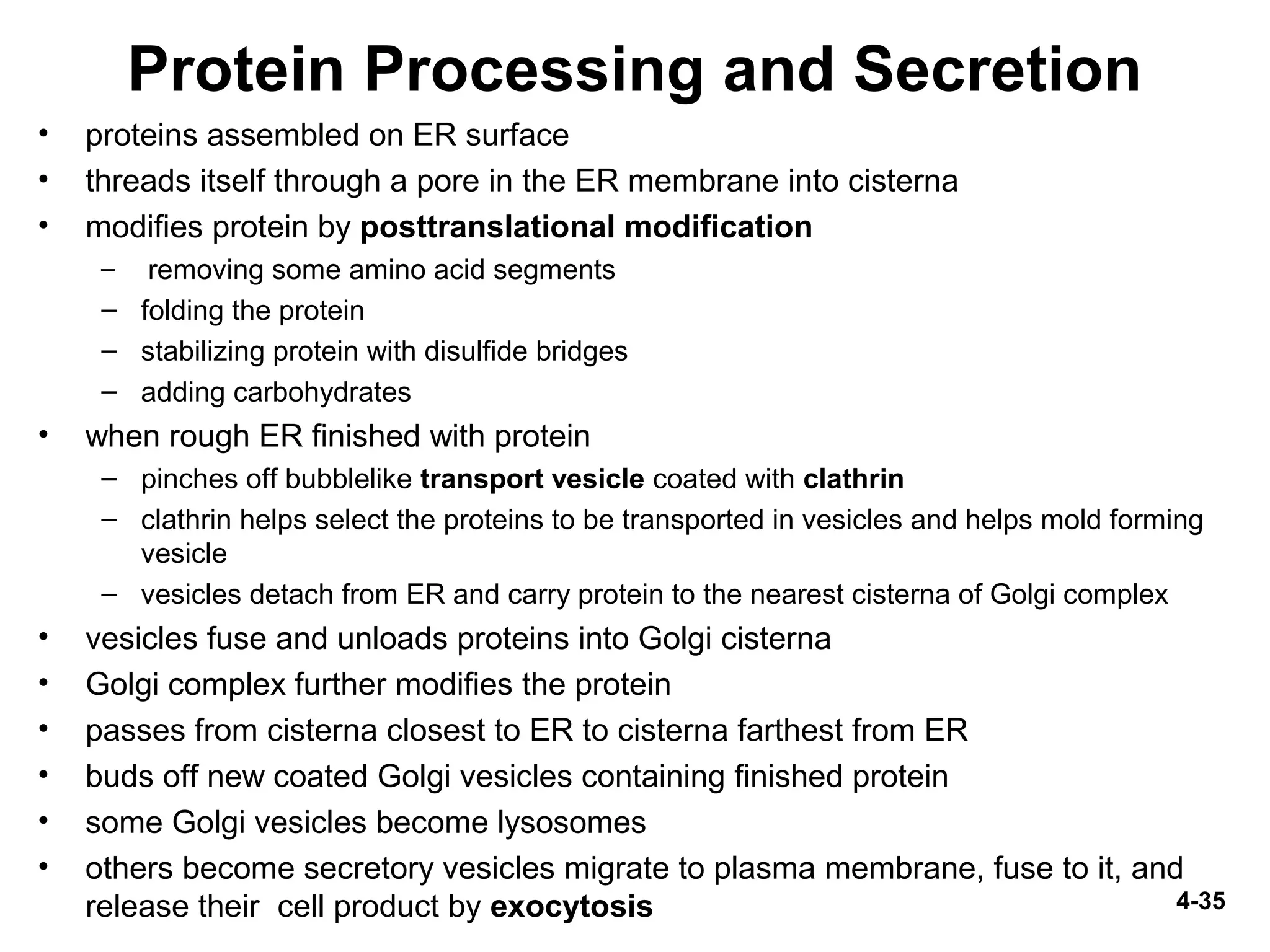

4-35 Protein Processing and Secretion • proteins assembled on ER surface • threads itself through a pore in the ER membrane into cisterna • modifies protein by posttranslational modification – removing some amino acid segments – folding the protein – stabilizing protein with disulfide bridges – adding carbohydrates • when rough ER finished with protein – pinches off bubblelike transport vesicle coated with clathrin – clathrin helps select the proteins to be transported in vesicles and helps mold forming vesicle – vesicles detach from ER and carry protein to the nearest cisterna of Golgi complex • vesicles fuse and unloads proteins into Golgi cisterna • Golgi complex further modifies the protein • passes from cisterna closest to ER to cisterna farthest from ER • buds off new coated Golgi vesicles containing finished protein • some Golgi vesicles become lysosomes • others become secretory vesicles migrate to plasma membrane, fuse to it, and release their cell product by exocytosis

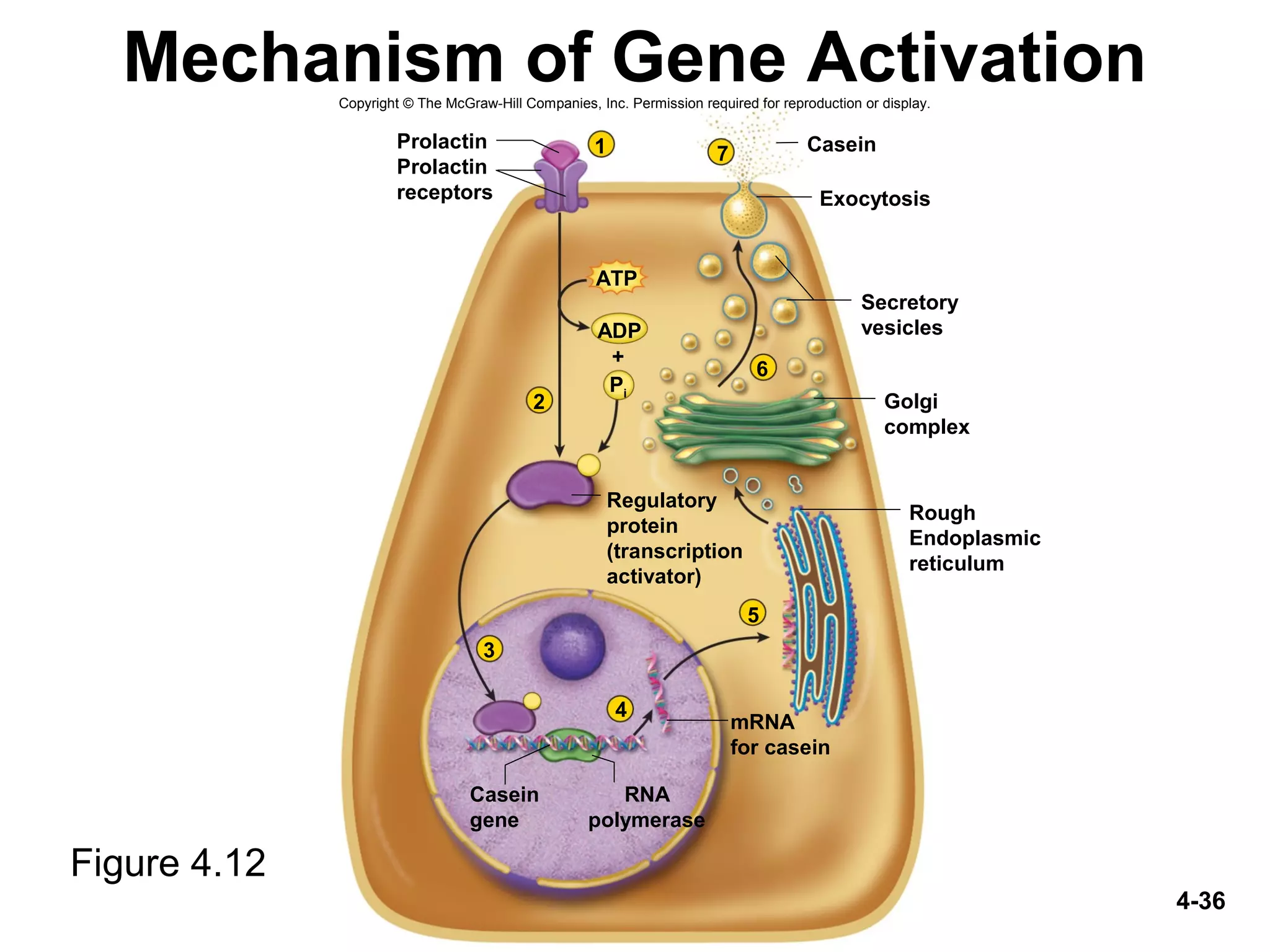

4-36 Mechanism of Gene Activation Figure 4.12 mRNA for casein Casein Exocytosis Regulatory protein (transcription activator) Casein gene RNA polymerase Rough Endoplasmic reticulum Golgi complex Secretory vesicles Prolactin Prolactin receptors 2 1 3 4 5 6 7 ATP Pi ADP + Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.

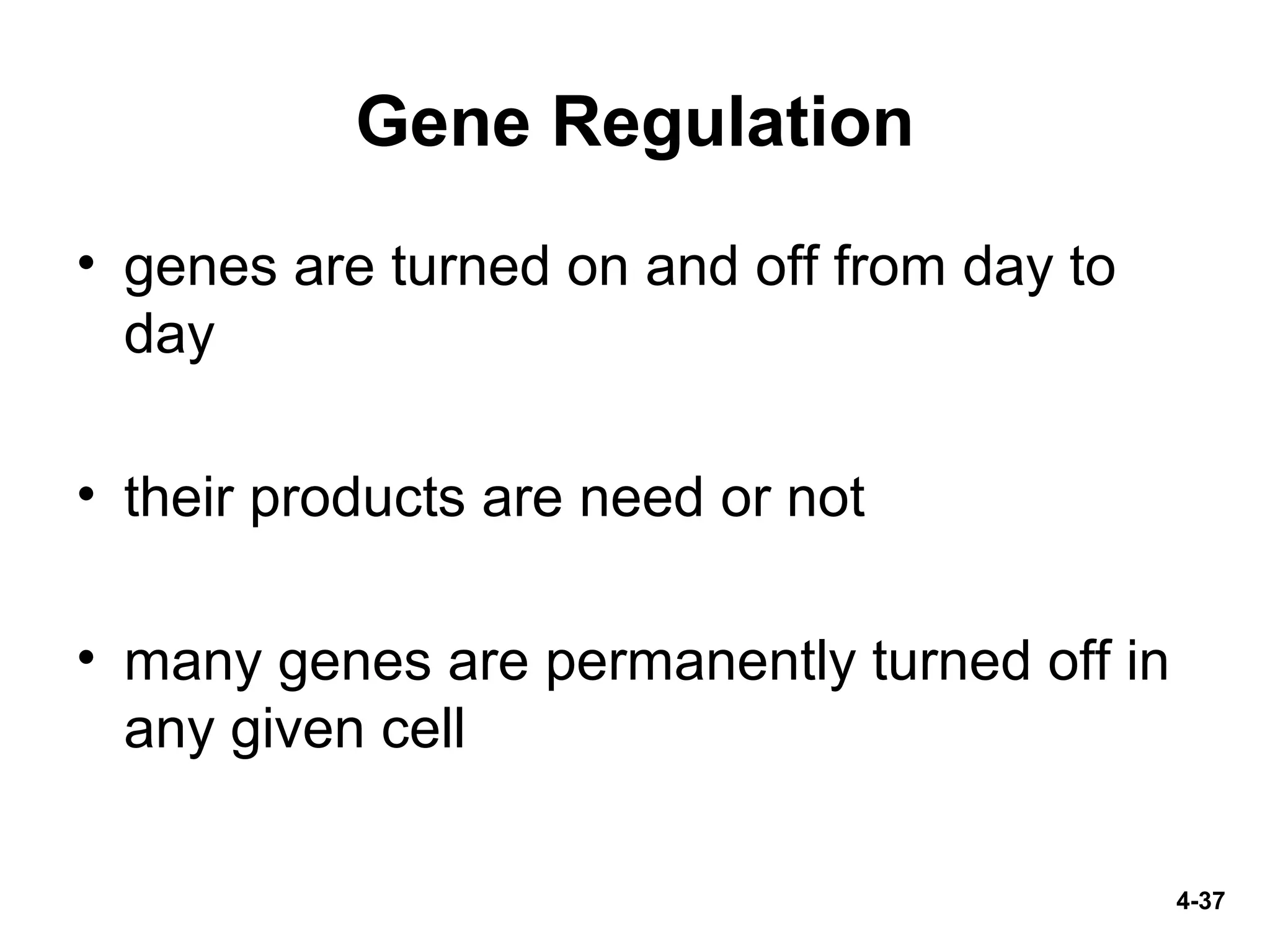

Gene Regulation • genes are turned on and off from day to day • their products are need or not • many genes are permanently turned off in any given cell 4-37

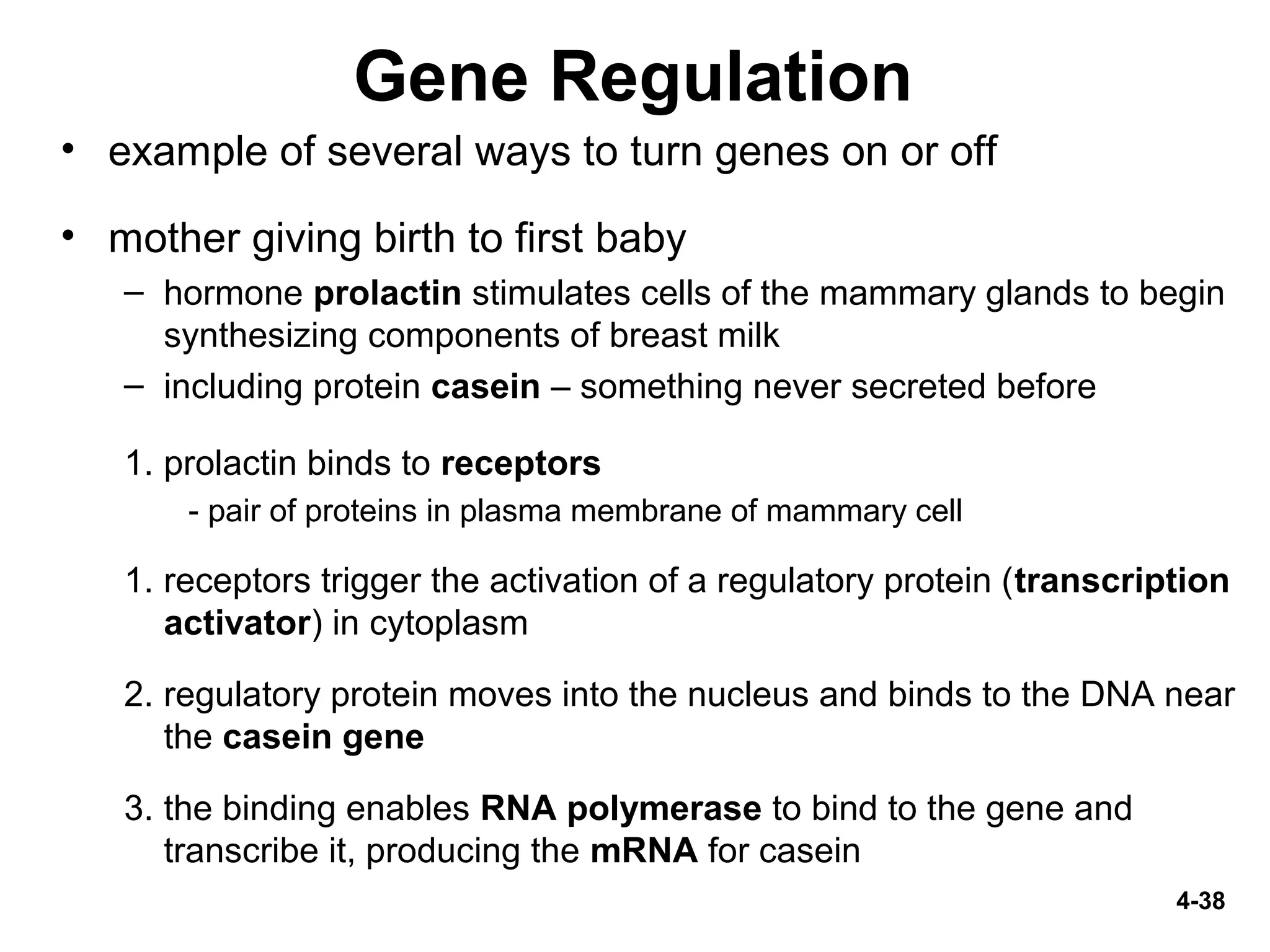

Gene Regulation • example of several ways to turn genes on or off • mother giving birth to first baby – hormone prolactin stimulates cells of the mammary glands to begin synthesizing components of breast milk – including protein casein – something never secreted before 1. prolactin binds to receptors - pair of proteins in plasma membrane of mammary cell 1. receptors trigger the activation of a regulatory protein (transcription activator) in cytoplasm 2. regulatory protein moves into the nucleus and binds to the DNA near the casein gene 3. the binding enables RNA polymerase to bind to the gene and transcribe it, producing the mRNA for casein 4-38
Please note that due to differing operating systems, some animations will not appear until the presentation is viewed in Presentation Mode (Slide Show view). You may see blank slides in the “Normal” or “Slide Sorter” views. All animations will appear after viewing in Presentation Mode and playing each animation. Most animations will require the latest version of the Flash Player, which is available at http://get.adobe.com/flashplayer.

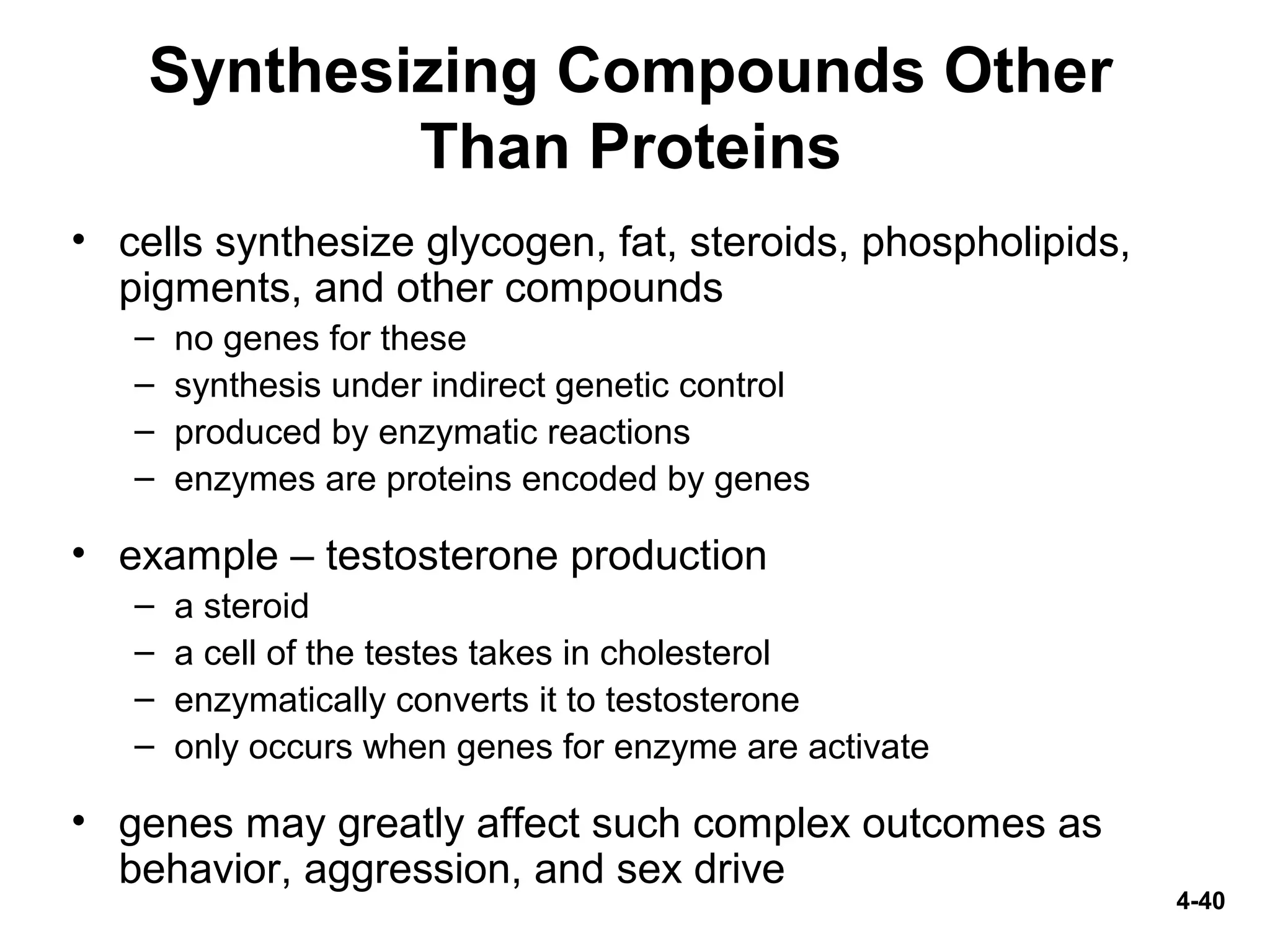

4-40 Synthesizing Compounds Other Than Proteins • cells synthesize glycogen, fat, steroids, phospholipids, pigments, and other compounds – no genes for these – synthesis under indirect genetic control – produced by enzymatic reactions – enzymes are proteins encoded by genes • example – testosterone production – a steroid – a cell of the testes takes in cholesterol – enzymatically converts it to testosterone – only occurs when genes for enzyme are activate • genes may greatly affect such complex outcomes as behavior, aggression, and sex drive

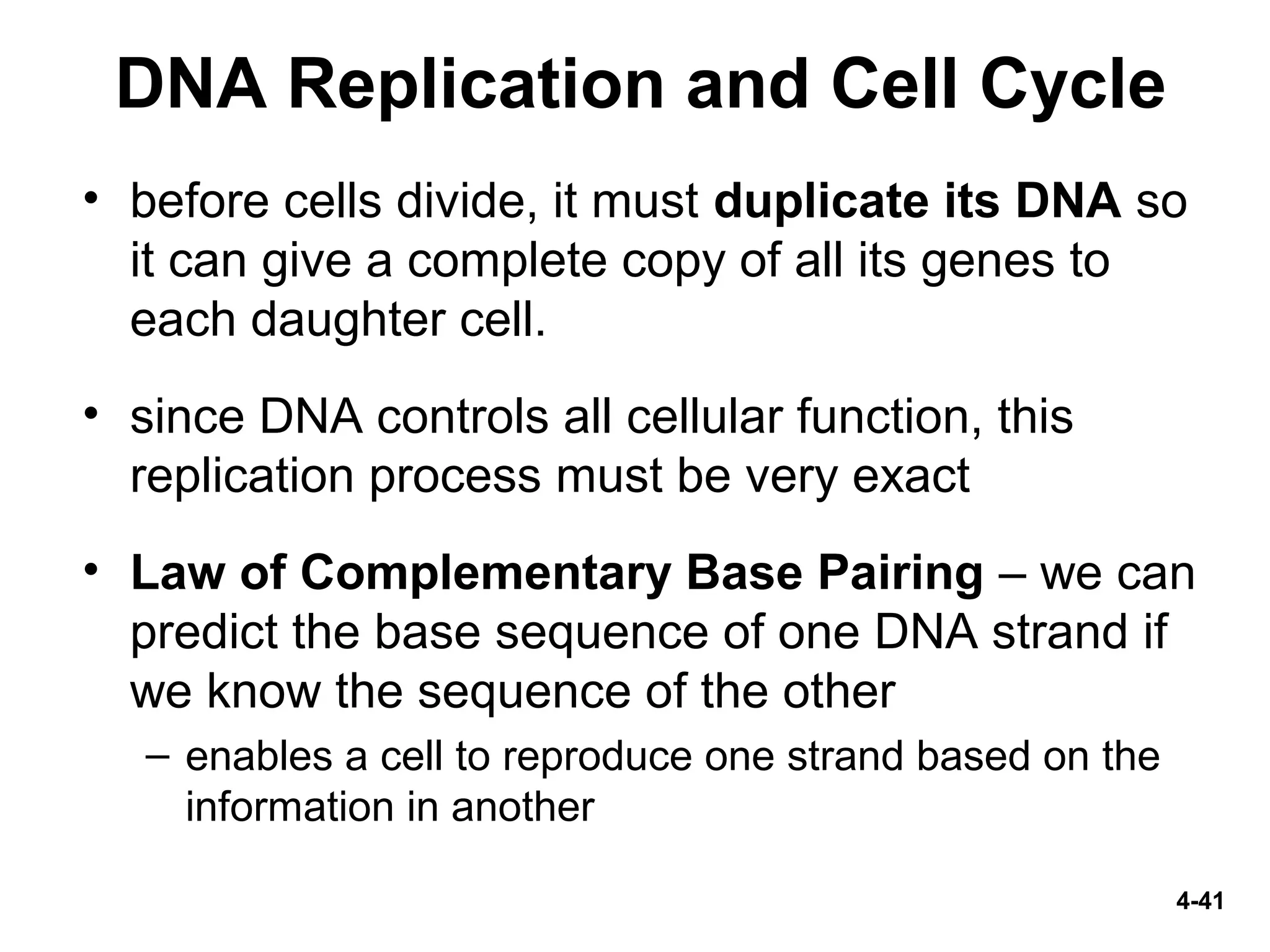

4-41 DNA Replication and Cell Cycle • before cells divide, it must duplicate its DNA so it can give a complete copy of all its genes to each daughter cell. • since DNA controls all cellular function, this replication process must be very exact • Law of Complementary Base Pairing – we can predict the base sequence of one DNA strand if we know the sequence of the other – enables a cell to reproduce one strand based on the information in another

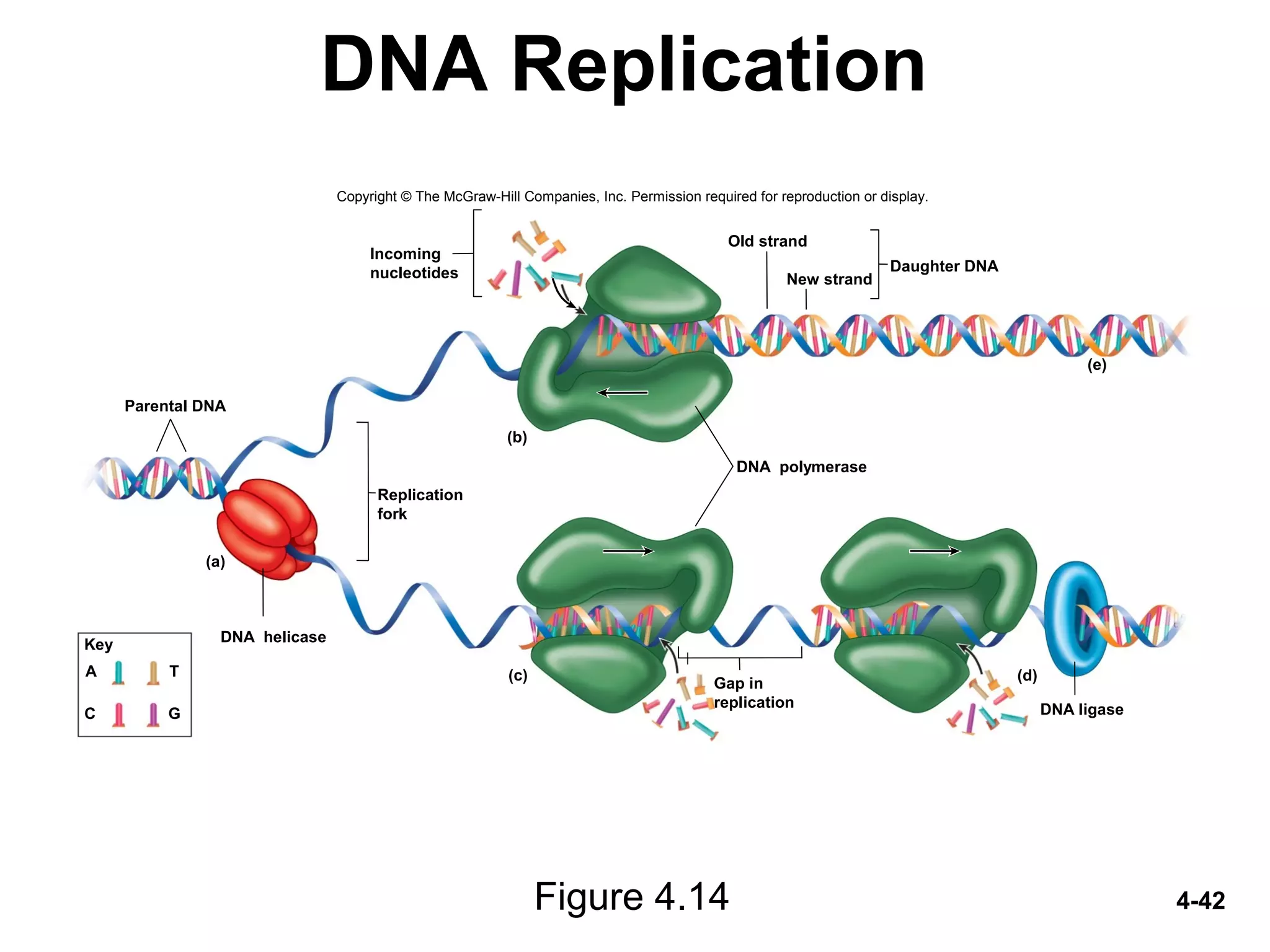

4-42 DNA Replication Figure 4.14 DNA polymerase Incoming nucleotides Key A T C G Parental DNA Gap in replication Daughter DNA Old strand New strand DNA ligase Replication fork (a) (b) (c) (d) (e) DNA helicase Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.

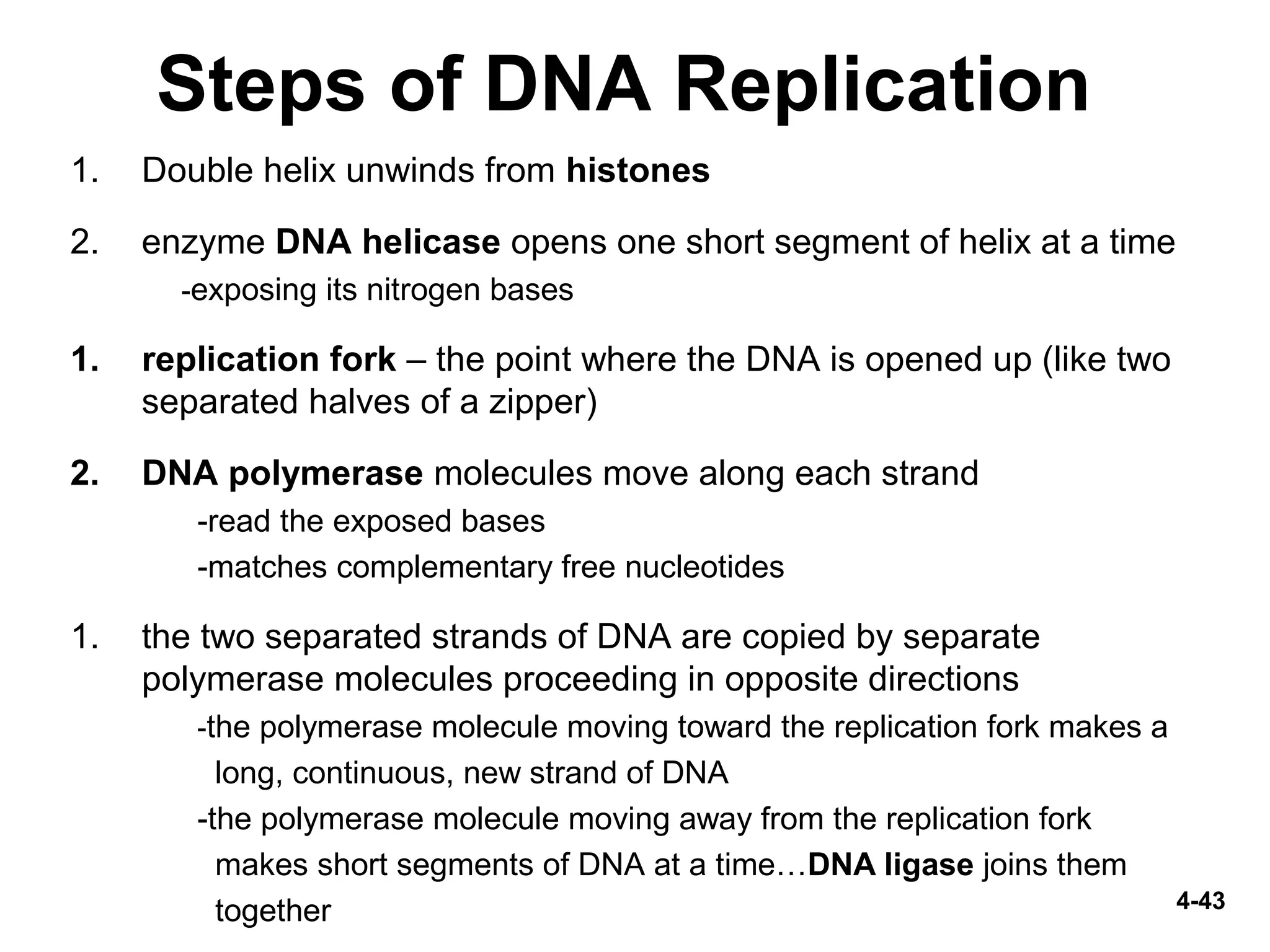

4-43 Steps of DNA Replication 1. Double helix unwinds from histones 2. enzyme DNA helicase opens one short segment of helix at a time -exposing its nitrogen bases 1. replication fork – the point where the DNA is opened up (like two separated halves of a zipper) 2. DNA polymerase molecules move along each strand -read the exposed bases -matches complementary free nucleotides 1. the two separated strands of DNA are copied by separate polymerase molecules proceeding in opposite directions -the polymerase molecule moving toward the replication fork makes a long, continuous, new strand of DNA -the polymerase molecule moving away from the replication fork makes short segments of DNA at a time…DNA ligase joins them together

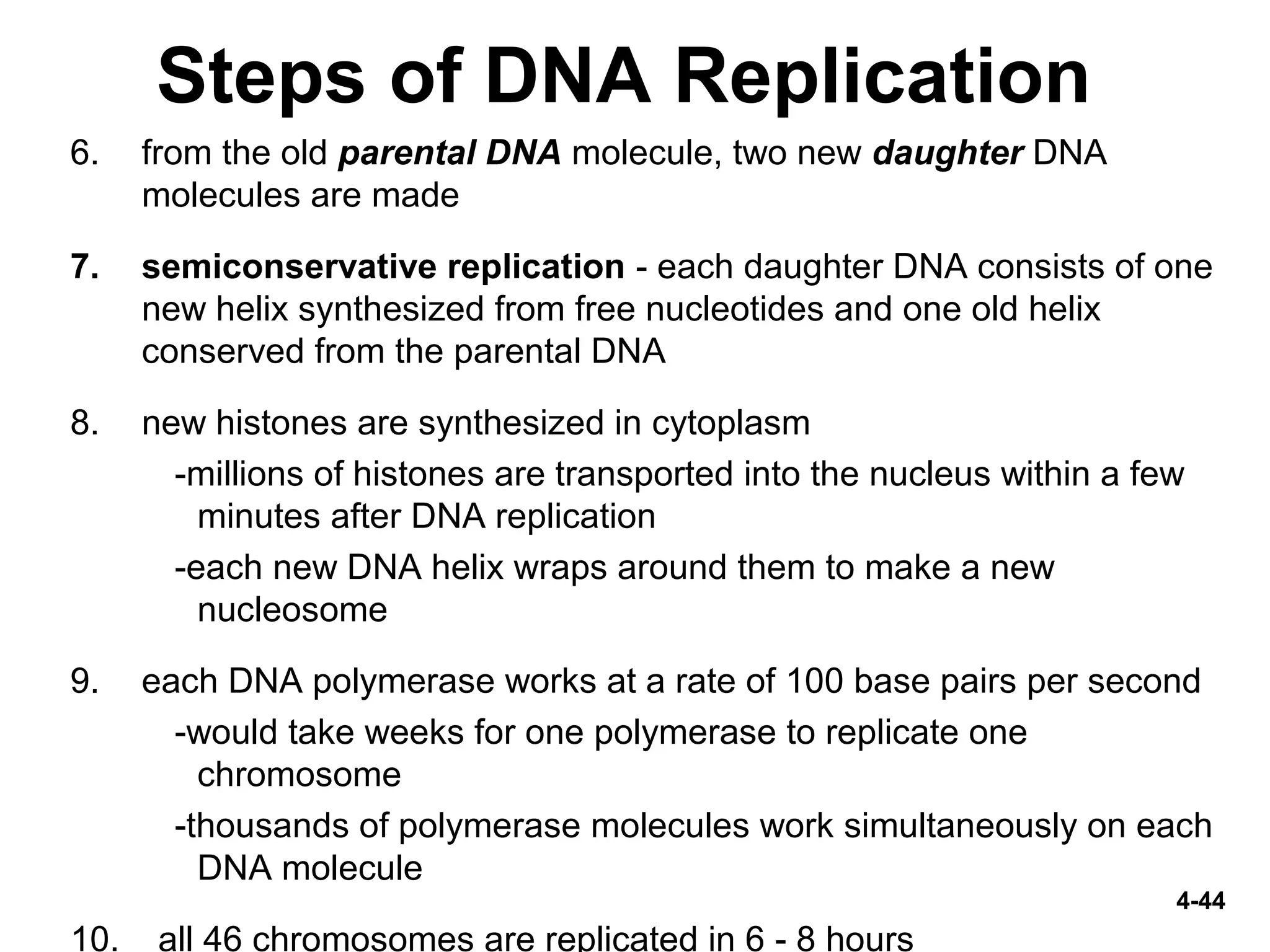

4-44 Steps of DNA Replication 6. from the old parental DNA molecule, two new daughter DNA molecules are made 7. semiconservative replication - each daughter DNA consists of one new helix synthesized from free nucleotides and one old helix conserved from the parental DNA 8. new histones are synthesized in cytoplasm -millions of histones are transported into the nucleus within a few minutes after DNA replication -each new DNA helix wraps around them to make a new nucleosome 9. each DNA polymerase works at a rate of 100 base pairs per second -would take weeks for one polymerase to replicate one chromosome -thousands of polymerase molecules work simultaneously on each DNA molecule 10. all 46 chromosomes are replicated in 6 - 8 hours

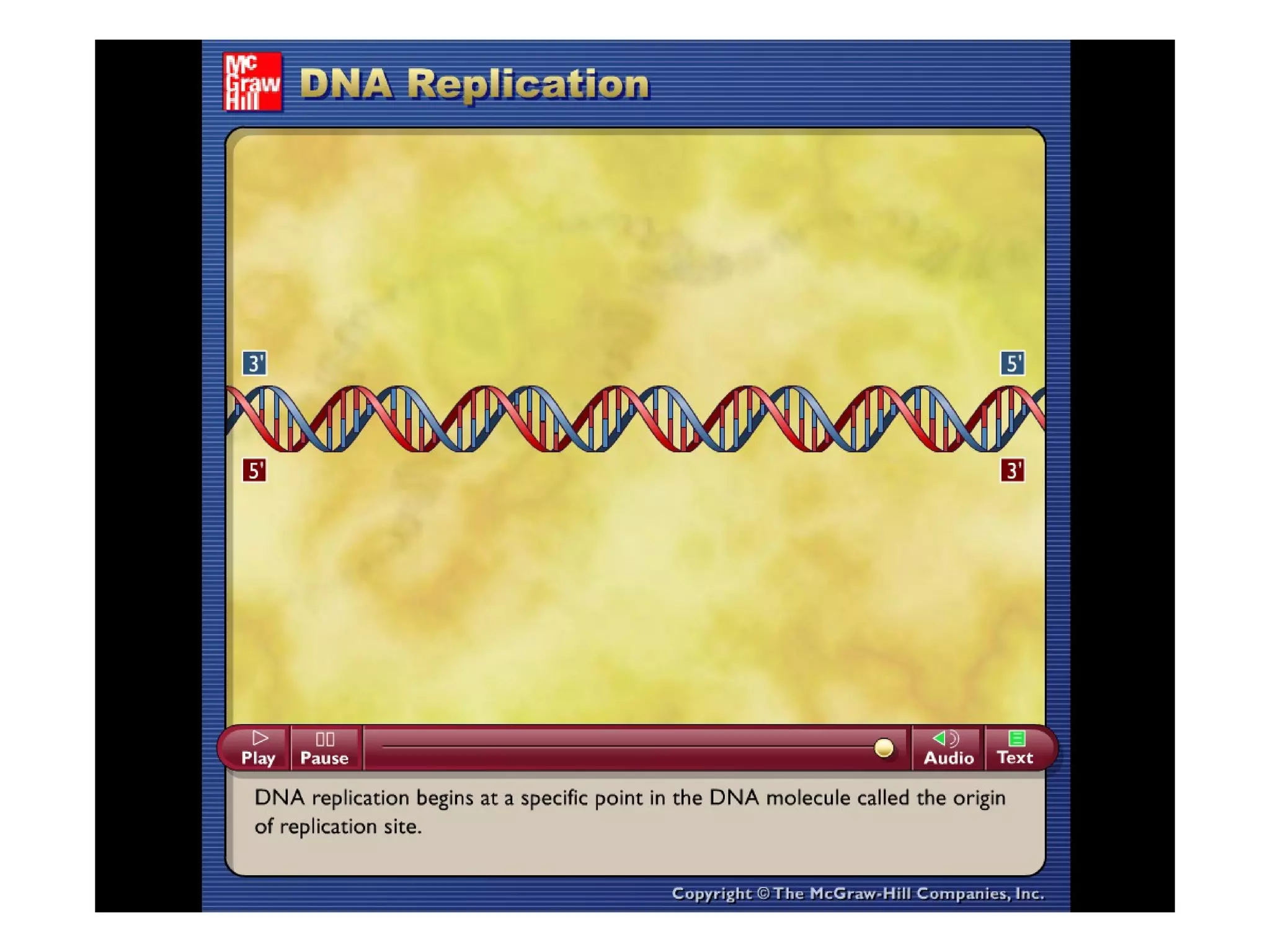

Please note that due to differing operating systems, some animations will not appear until the presentation is viewed in Presentation Mode (Slide Show view). You may see blank slides in the “Normal” or “Slide Sorter” views. All animations will appear after viewing in Presentation Mode and playing each animation. Most animations will require the latest version of the Flash Player, which is available at http://get.adobe.com/flashplayer.
4-46 Errors and Mutations • DNA polymerase does make mistakes – multiple modes for correction of replication errors – double checks the new base pair and tend to replace incorrect, biochemically unstable pairs with more stable correct pairs – result is only 1 error per 1 billion bases replicated • mutations - changes in DNA structure due to replication errors or environmental factors (radiation, viruses, chemicals) – some mutations cause no ill effects. others kill the cell, turn it cancerous or cause genetic defects in future generations.

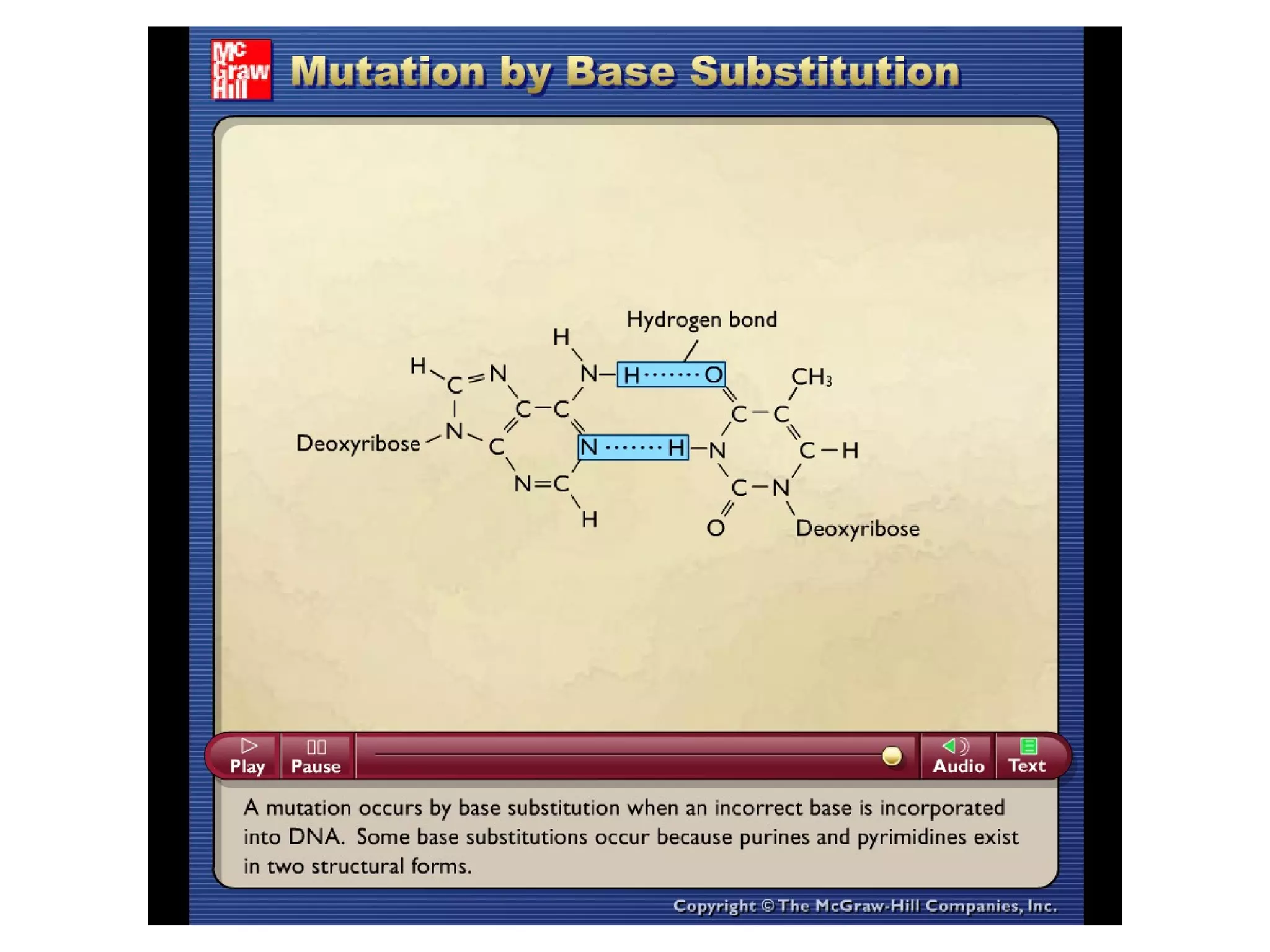

Please note that due to differing operating systems, some animations will not appear until the presentation is viewed in Presentation Mode (Slide Show view). You may see blank slides in the “Normal” or “Slide Sorter” views. All animations will appear after viewing in Presentation Mode and playing each animation. Most animations will require the latest version of the Flash Player, which is available at http://get.adobe.com/flashplayer.
Please note that due to differing operating systems, some animations will not appear until the presentation is viewed in Presentation Mode (Slide Show view). You may see blank slides in the “Normal” or “Slide Sorter” views. All animations will appear after viewing in Presentation Mode and playing each animation. Most animations will require the latest version of the Flash Player, which is available at http://get.adobe.com/flashplayer.

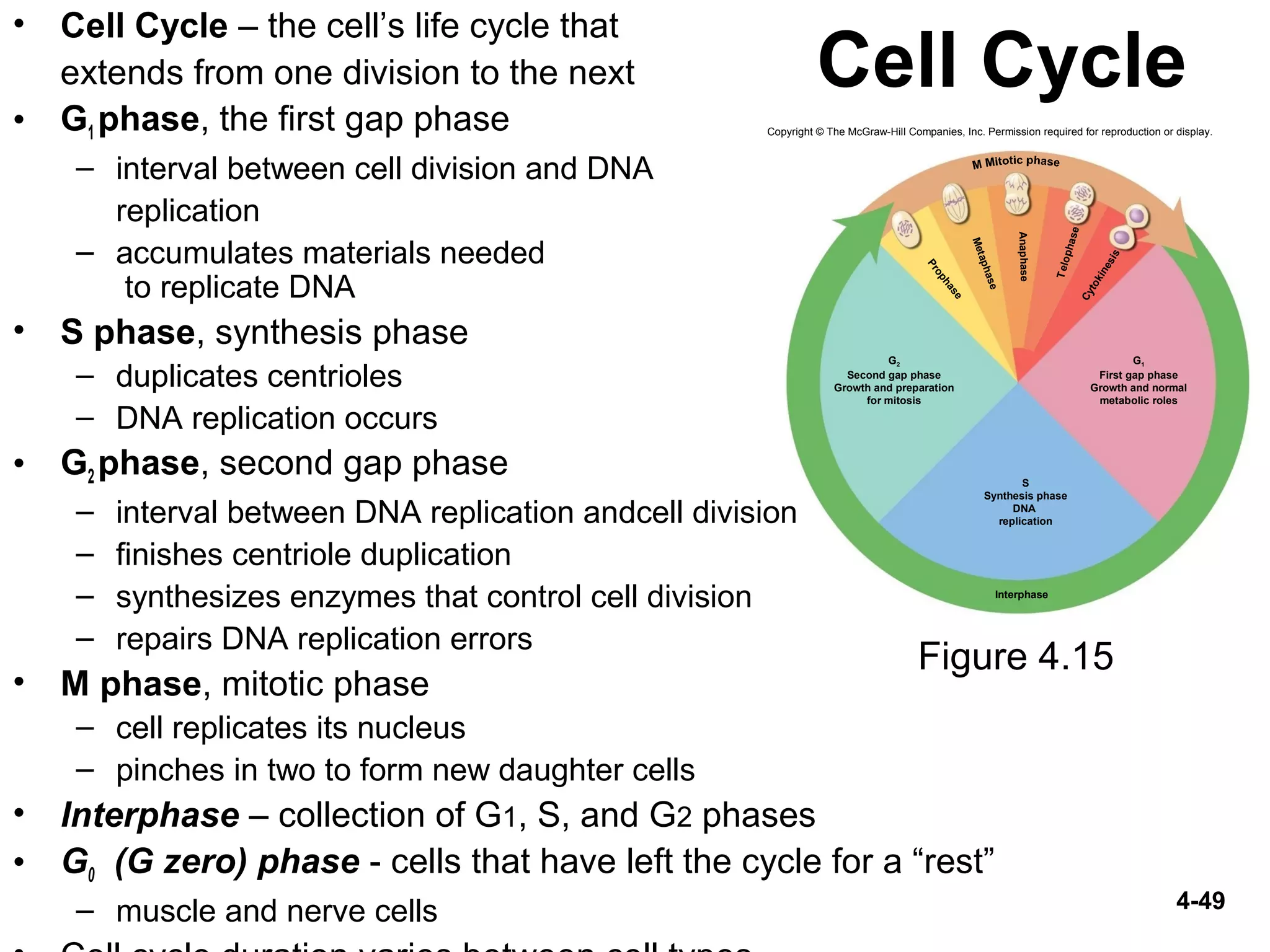

4-49 Cell Cycle • Cell Cycle – the cell’s life cycle that extends from one division to the next • G1 phase, the first gap phase – interval between cell division and DNA replication – accumulates materials needed to replicate DNA • S phase, synthesis phase – duplicates centrioles – DNA replication occurs • G2 phase, second gap phase – interval between DNA replication andcell division – finishes centriole duplication – synthesizes enzymes that control cell division – repairs DNA replication errors • M phase, mitotic phase – cell replicates its nucleus – pinches in two to form new daughter cells • Interphase – collection of G1, S, and G2 phases • G0 (G zero) phase - cells that have left the cycle for a “rest” – muscle and nerve cells Figure 4.15 Prophase Metaphase Anaphase Telophase Cytokinesis G2 Second gap phase Growth and preparation for mitosis G1 First gap phase Growth and normal metabolic roles S Synthesis phase DNA replication Interphase Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.
Please note that due to differing operating systems, some animations will not appear until the presentation is viewed in Presentation Mode (Slide Show view). You may see blank slides in the “Normal” or “Slide Sorter” views. All animations will appear after viewing in Presentation Mode and playing each animation. Most animations will require the latest version of the Flash Player, which is available at http://get.adobe.com/flashplayer.

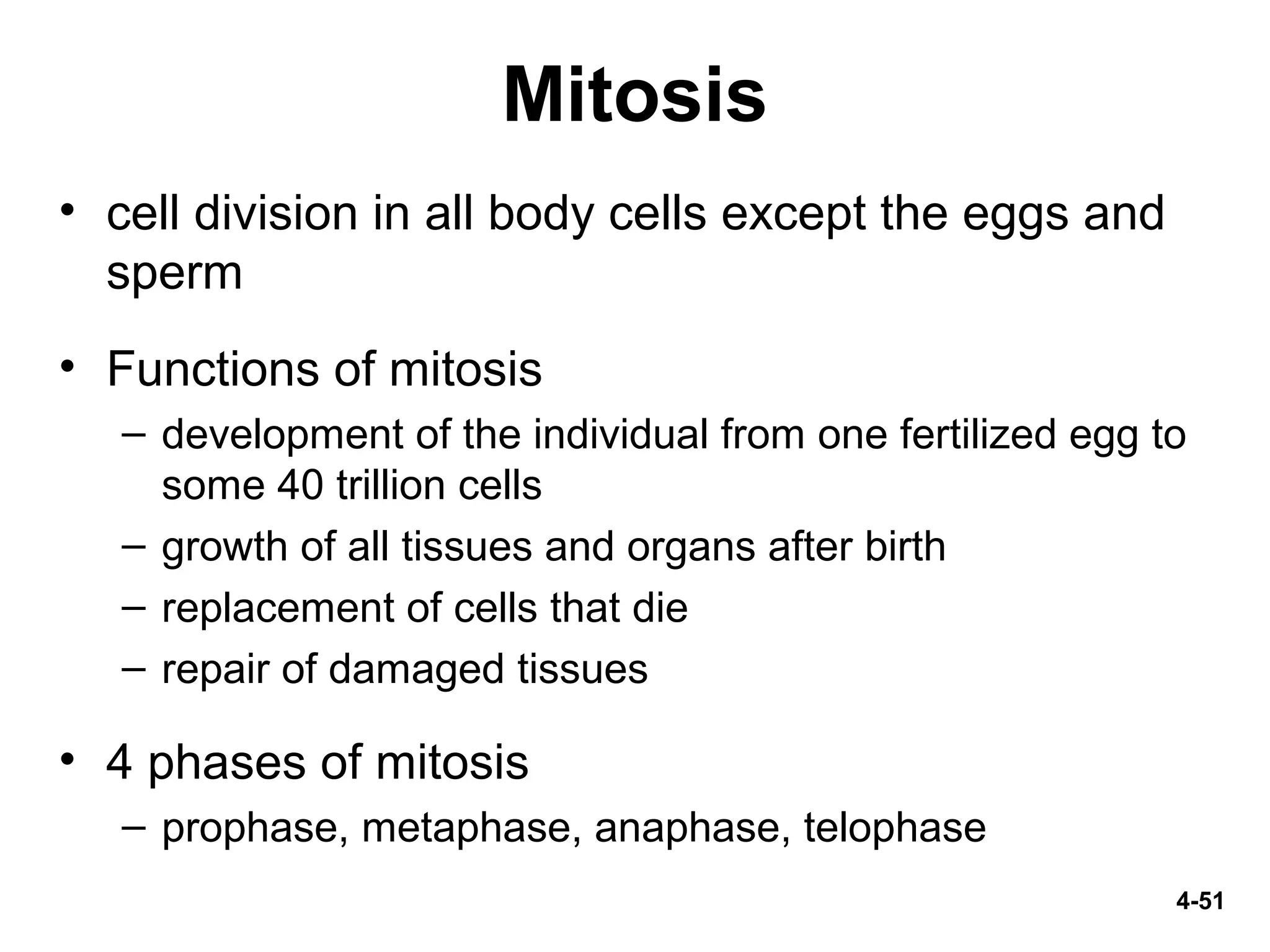

4-51 Mitosis • cell division in all body cells except the eggs and sperm • Functions of mitosis – development of the individual from one fertilized egg to some 40 trillion cells – growth of all tissues and organs after birth – replacement of cells that die – repair of damaged tissues • 4 phases of mitosis – prophase, metaphase, anaphase, telophase

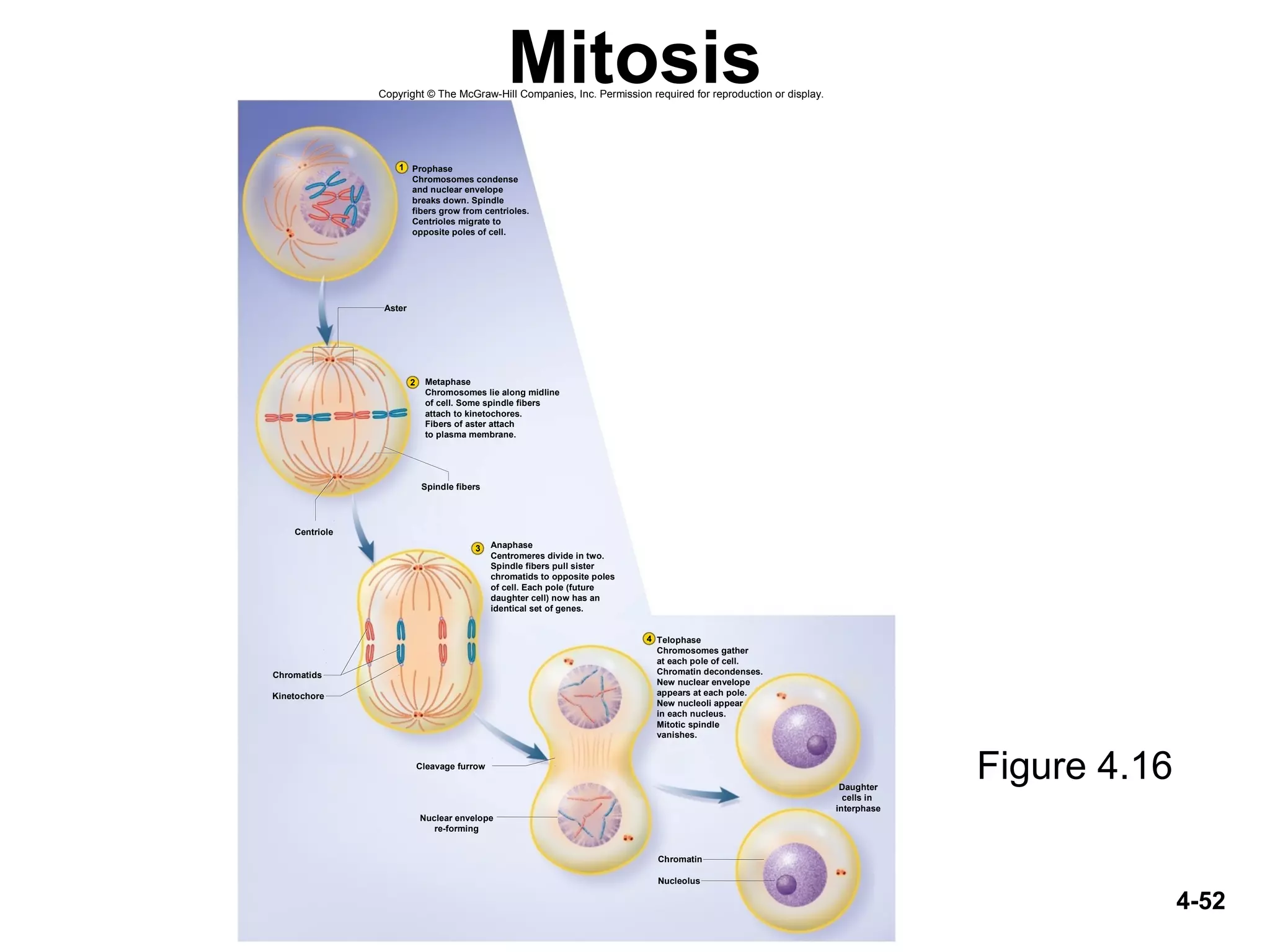

4-52 Mitosis Figure 4.16 Aster 2 3 1 4 Chromatids Centriole Spindle fibers Kinetochore Nucleolus Chromatin Cleavage furrow Metaphase Chromosomes lie along midline of cell. Some spindle fibers attach to kinetochores. Fibers of aster attach to plasma membrane. Anaphase Centromeres divide in two. Spindle fibers pull sister chromatids to opposite poles of cell. Each pole (future daughter cell) now has an identical set of genes. Telophase Chromosomes gather at each pole of cell. Chromatin decondenses. New nuclear envelope appears at each pole. New nucleoli appear in each nucleus. Mitotic spindle vanishes. Prophase Chromosomes condense and nuclear envelope breaks down. Spindle fibers grow from centrioles. Centrioles migrate to opposite poles of cell. Nuclear envelope re-forming Daughter cells in interphase Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.

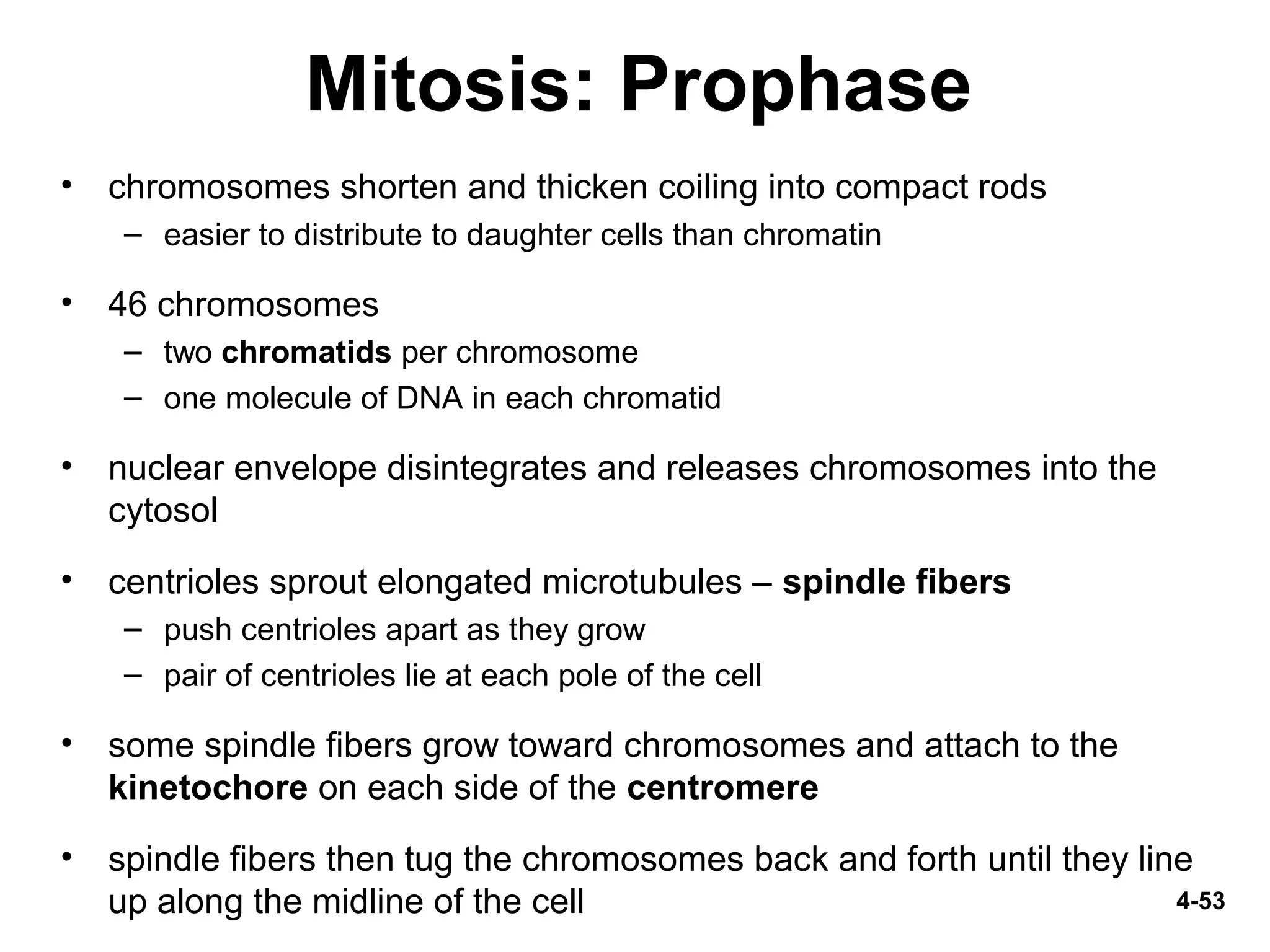

4-53 Mitosis: Prophase • chromosomes shorten and thicken coiling into compact rods – easier to distribute to daughter cells than chromatin • 46 chromosomes – two chromatids per chromosome – one molecule of DNA in each chromatid • nuclear envelope disintegrates and releases chromosomes into the cytosol • centrioles sprout elongated microtubules – spindle fibers – push centrioles apart as they grow – pair of centrioles lie at each pole of the cell • some spindle fibers grow toward chromosomes and attach to the kinetochore on each side of the centromere • spindle fibers then tug the chromosomes back and forth until they line up along the midline of the cell

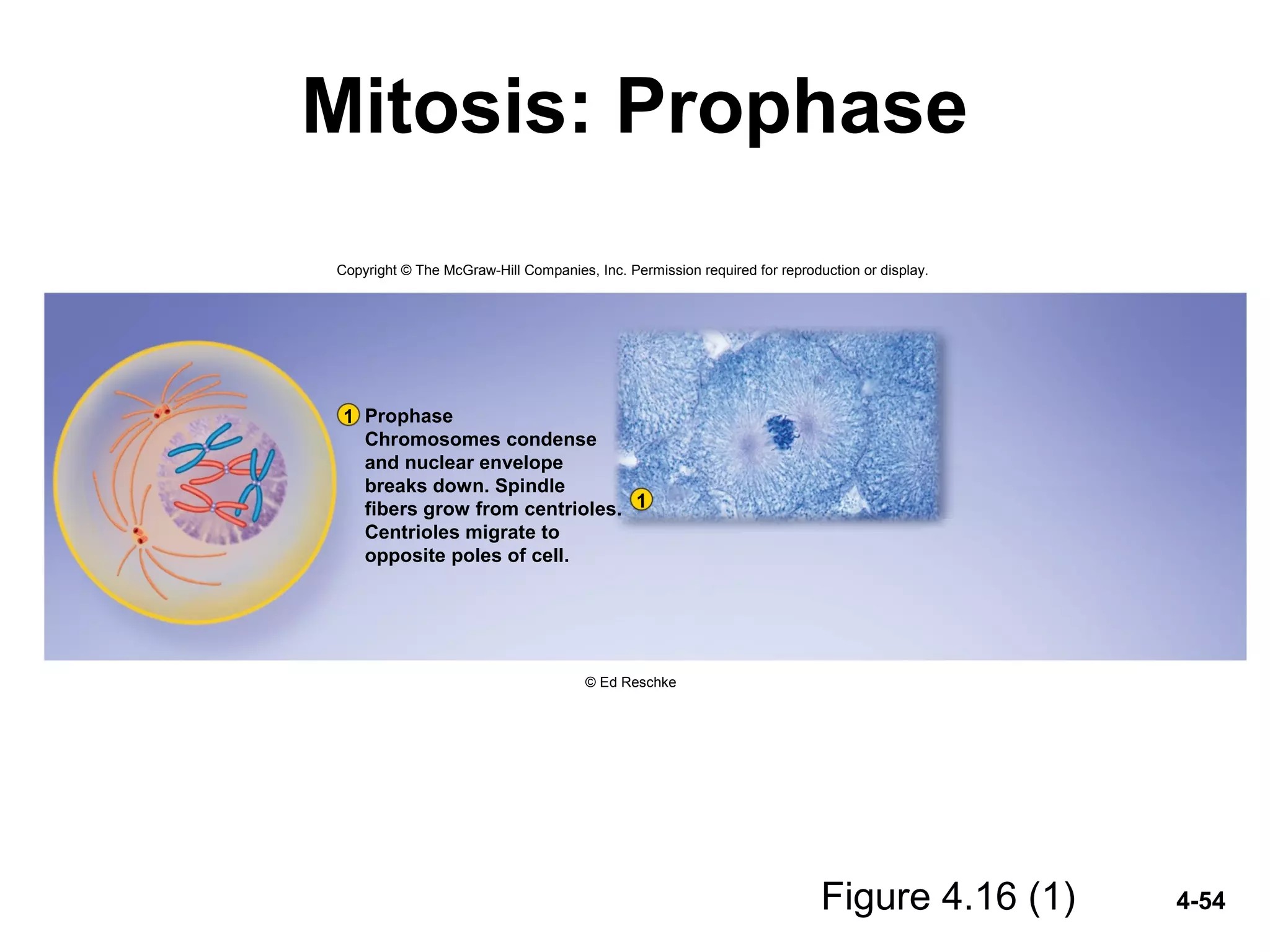

4-54 Mitosis: Prophase Figure 4.16 (1) 1 1 Prophase Chromosomes condense and nuclear envelope breaks down. Spindle fibers grow from centrioles. Centrioles migrate to opposite poles of cell. Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. © Ed Reschke

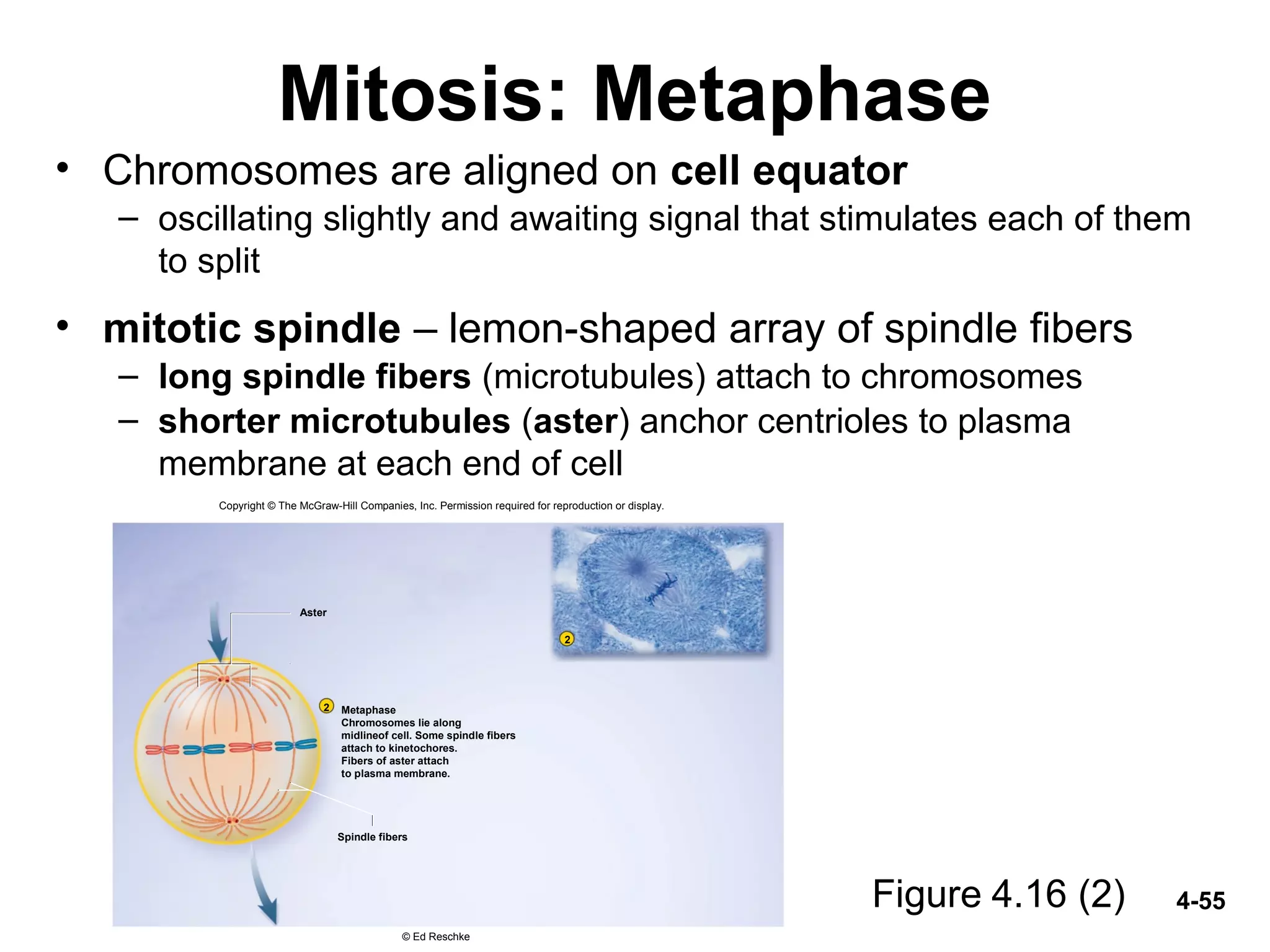

4-55 Mitosis: Metaphase • Chromosomes are aligned on cell equator – oscillating slightly and awaiting signal that stimulates each of them to split • mitotic spindle – lemon-shaped array of spindle fibers – long spindle fibers (microtubules) attach to chromosomes – shorter microtubules (aster) anchor centrioles to plasma membrane at each end of cell Figure 4.16 (2) Aster 2 2 Metaphase Chromosomes lie along midlineof cell. Some spindle fibers attach to kinetochores. Fibers of aster attach to plasma membrane. Spindle fibers Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. © Ed Reschke

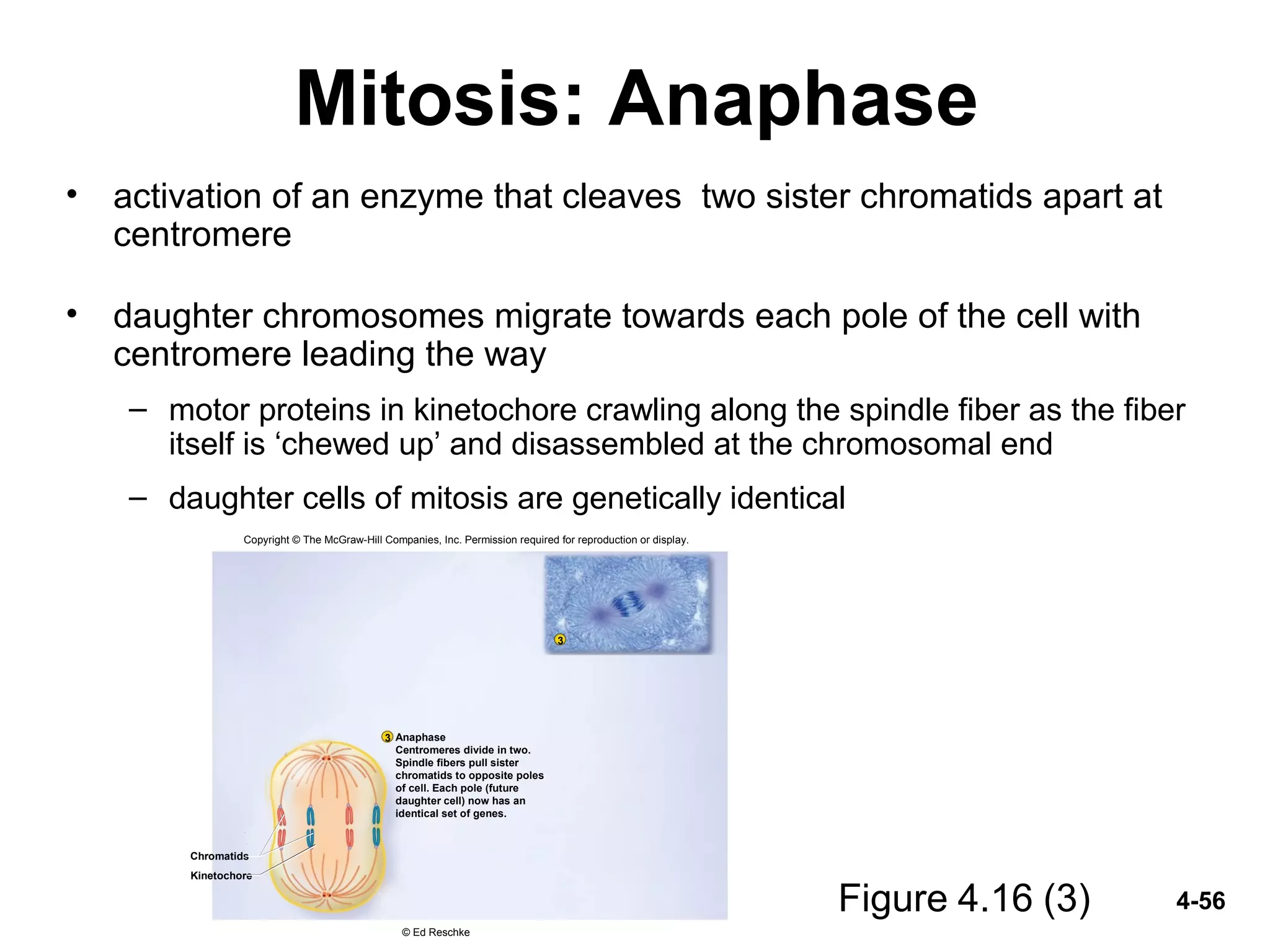

4-56 Mitosis: Anaphase • activation of an enzyme that cleaves two sister chromatids apart at centromere • daughter chromosomes migrate towards each pole of the cell with centromere leading the way – motor proteins in kinetochore crawling along the spindle fiber as the fiber itself is ‘chewed up’ and disassembled at the chromosomal end – daughter cells of mitosis are genetically identical Figure 4.16 (3) 3 3 Anaphase Centromeres divide in two. Spindle fibers pull sister chromatids to opposite poles of cell. Each pole (future daughter cell) now has an identical set of genes. Chromatids Kinetochore Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. © Ed Reschke

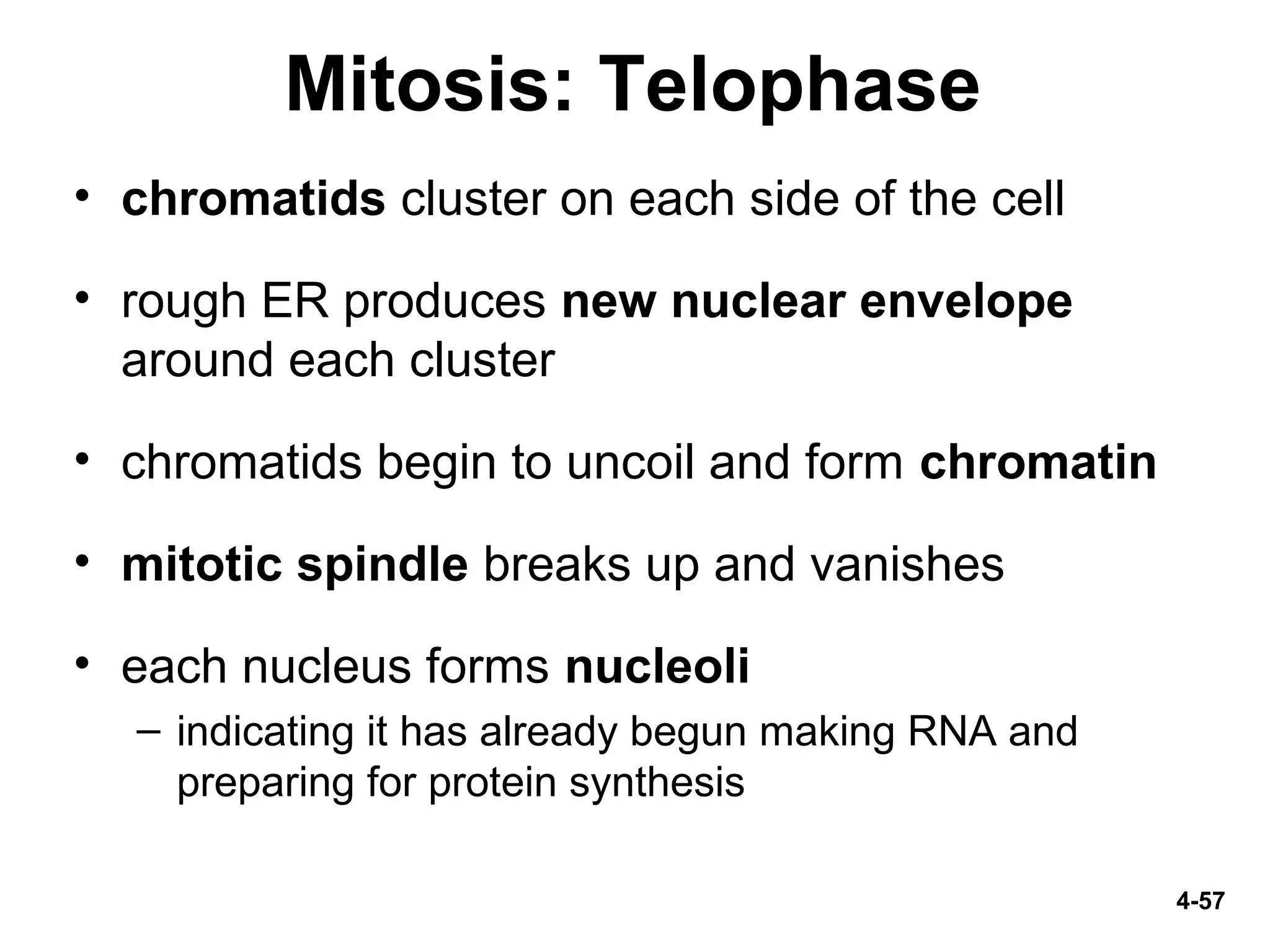

4-57 Mitosis: Telophase • chromatids cluster on each side of the cell • rough ER produces new nuclear envelope around each cluster • chromatids begin to uncoil and form chromatin • mitotic spindle breaks up and vanishes • each nucleus forms nucleoli – indicating it has already begun making RNA and preparing for protein synthesis

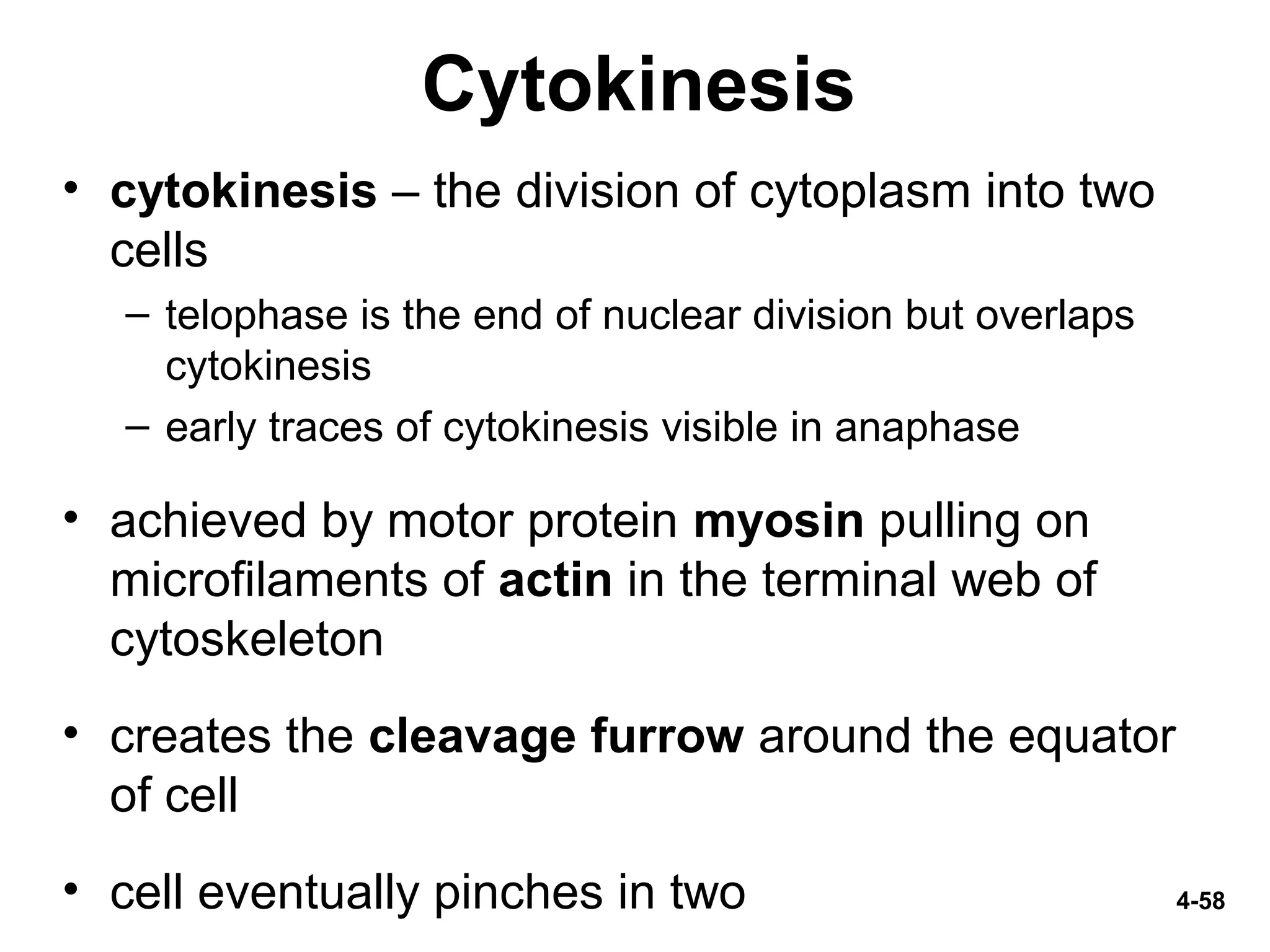

4-58 Cytokinesis • cytokinesis – the division of cytoplasm into two cells – telophase is the end of nuclear division but overlaps cytokinesis – early traces of cytokinesis visible in anaphase • achieved by motor protein myosin pulling on microfilaments of actin in the terminal web of cytoskeleton • creates the cleavage furrow around the equator of cell • cell eventually pinches in two

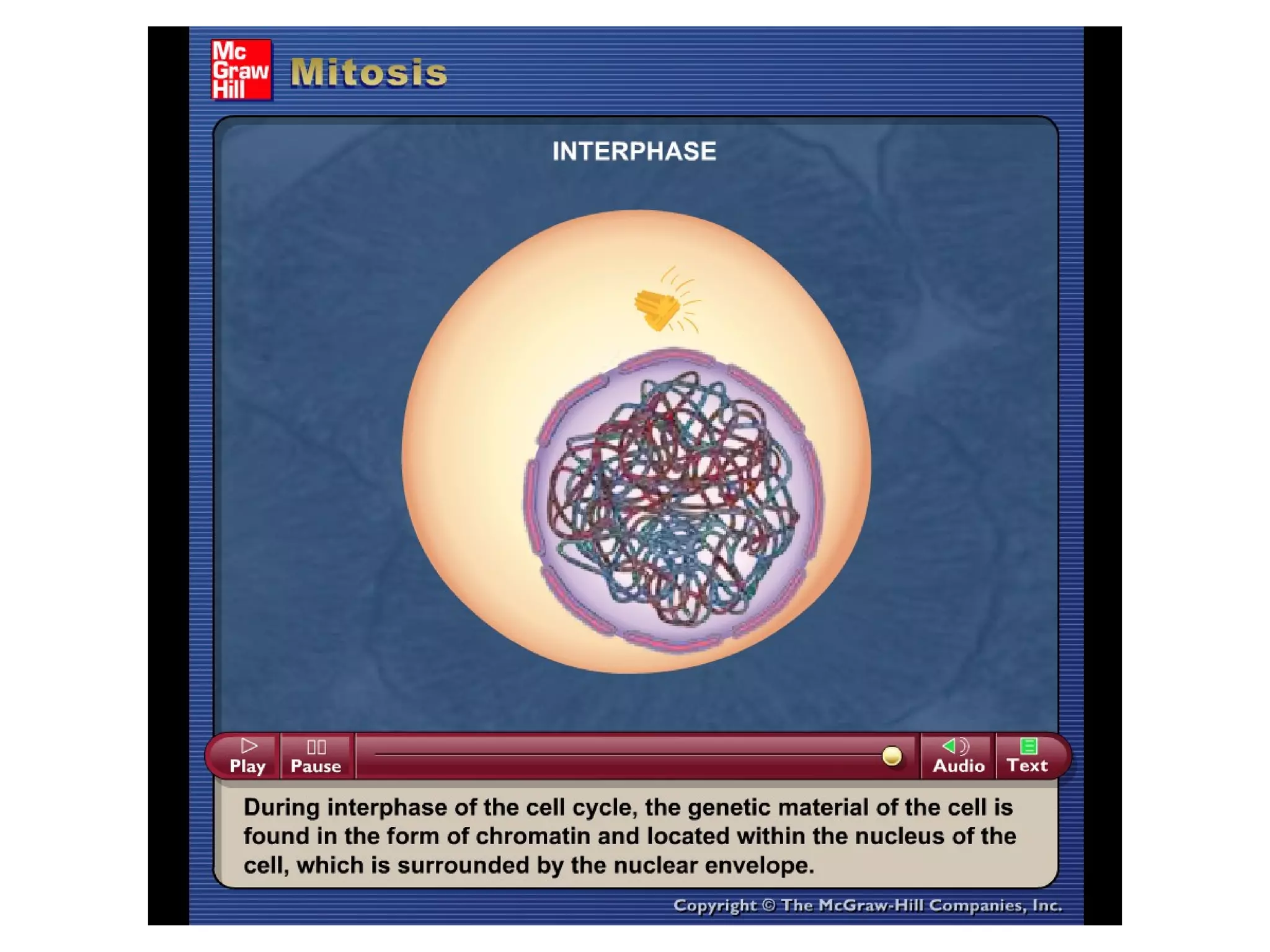

Please note that due to differing operating systems, some animations will not appear until the presentation is viewed in Presentation Mode (Slide Show view). You may see blank slides in the “Normal” or “Slide Sorter” views. All animations will appear after viewing in Presentation Mode and playing each animation. Most animations will require the latest version of the Flash Player, which is available at http://get.adobe.com/flashplayer.

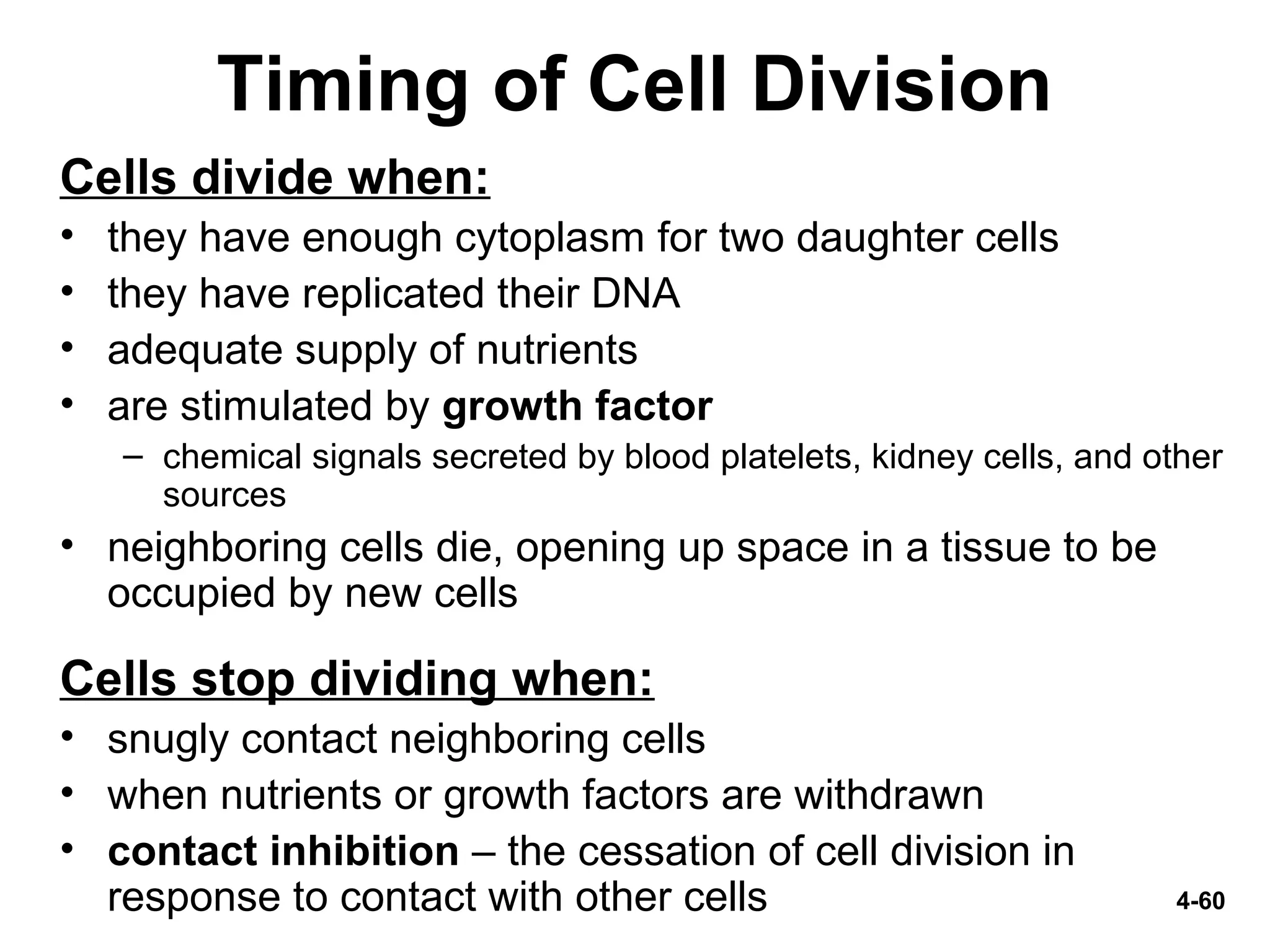

4-60 Timing of Cell Division Cells divide when: • they have enough cytoplasm for two daughter cells • they have replicated their DNA • adequate supply of nutrients • are stimulated by growth factor – chemical signals secreted by blood platelets, kidney cells, and other sources • neighboring cells die, opening up space in a tissue to be occupied by new cells Cells stop dividing when: • snugly contact neighboring cells • when nutrients or growth factors are withdrawn • contact inhibition – the cessation of cell division in response to contact with other cells

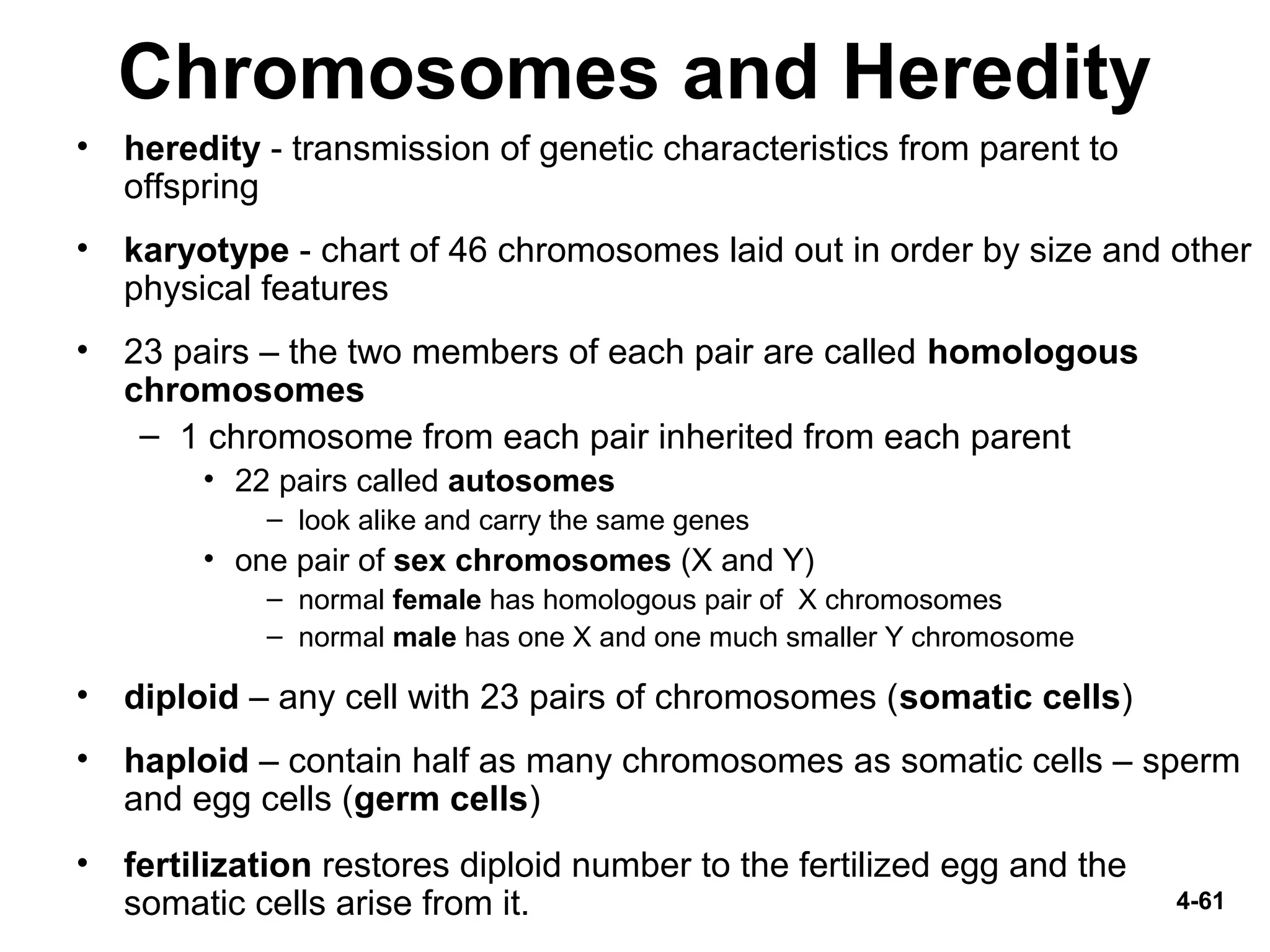

4-61 Chromosomes and Heredity • heredity - transmission of genetic characteristics from parent to offspring • karyotype - chart of 46 chromosomes laid out in order by size and other physical features • 23 pairs – the two members of each pair are called homologous chromosomes – 1 chromosome from each pair inherited from each parent • 22 pairs called autosomes – look alike and carry the same genes • one pair of sex chromosomes (X and Y) – normal female has homologous pair of X chromosomes – normal male has one X and one much smaller Y chromosome • diploid – any cell with 23 pairs of chromosomes (somatic cells) • haploid – contain half as many chromosomes as somatic cells – sperm and egg cells (germ cells) • fertilization restores diploid number to the fertilized egg and the somatic cells arise from it.
4-62 Karyotype of Normal Male Figure 4.17 Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. Peter Arnold, Inc.

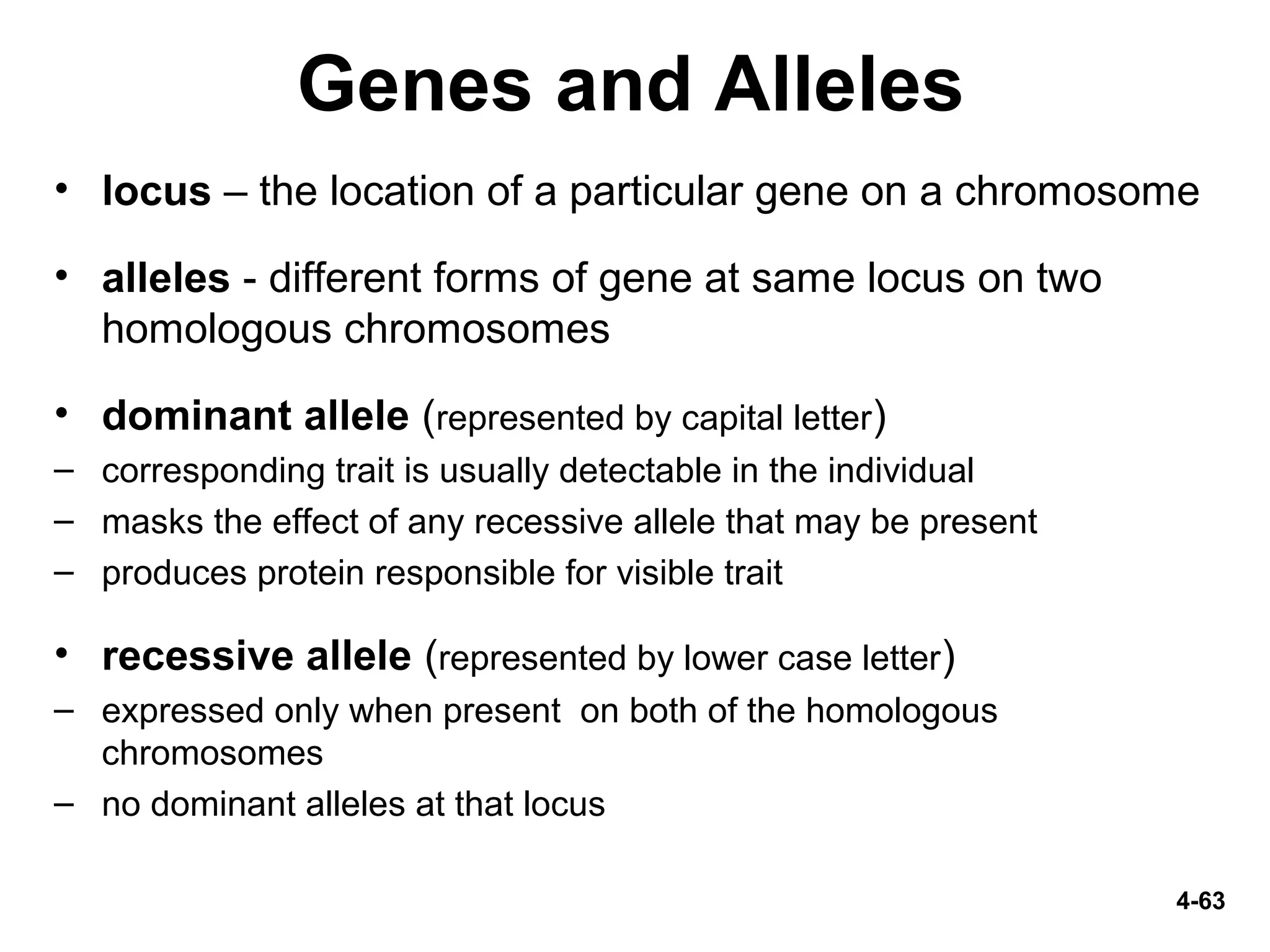

4-63 Genes and Alleles • locus – the location of a particular gene on a chromosome • alleles - different forms of gene at same locus on two homologous chromosomes • dominant allele (represented by capital letter) – corresponding trait is usually detectable in the individual – masks the effect of any recessive allele that may be present – produces protein responsible for visible trait • recessive allele (represented by lower case letter) – expressed only when present on both of the homologous chromosomes – no dominant alleles at that locus

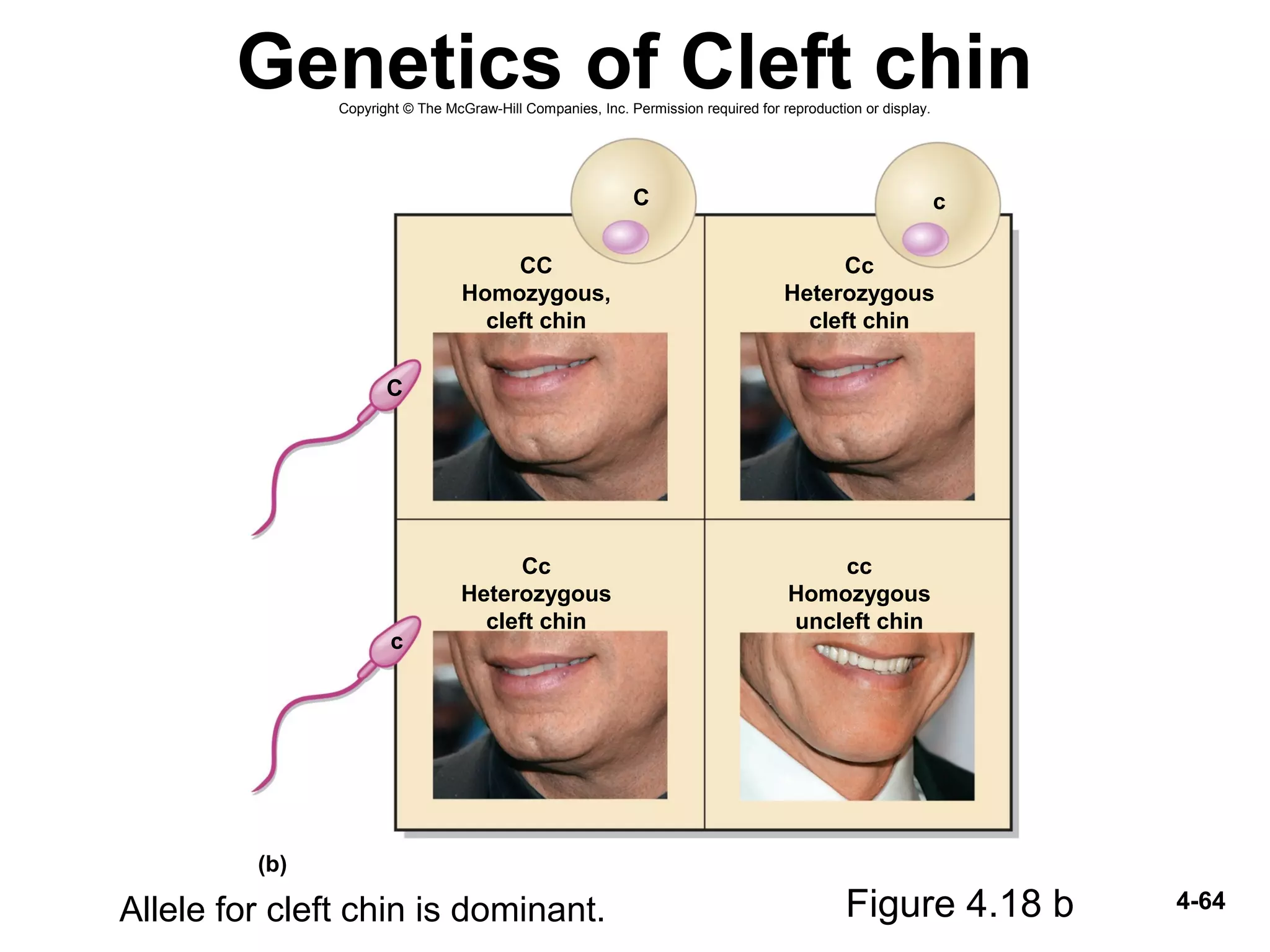

4-64 Genetics of Cleft chin Figure 4.18 bAllele for cleft chin is dominant. (b) C c c C Cc Heterozygous cleft chin Cc Heterozygous cleft chin cc Homozygous uncleft chin CC Homozygous, cleft chin Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.

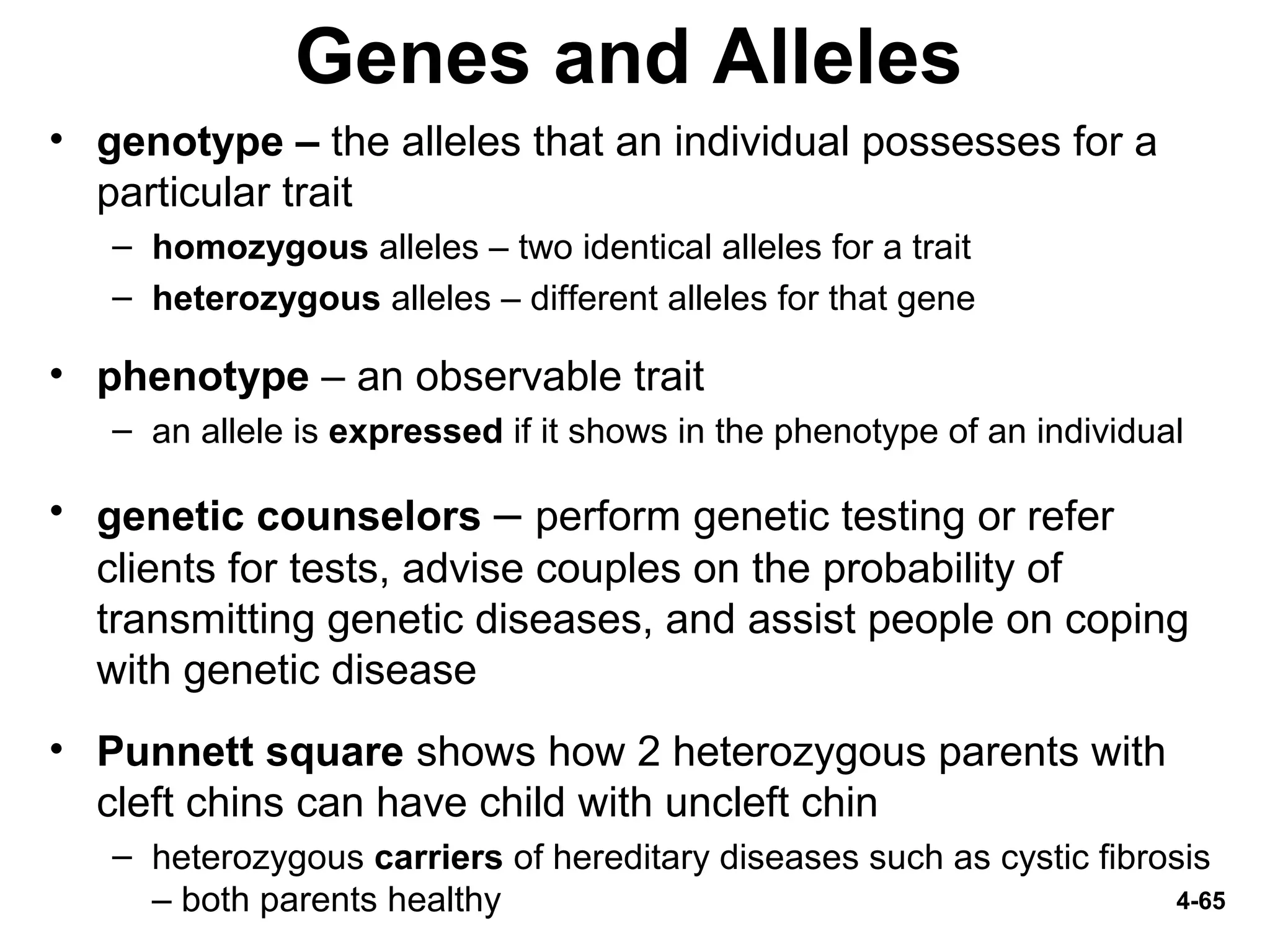

4-65 Genes and Alleles • genotype – the alleles that an individual possesses for a particular trait – homozygous alleles – two identical alleles for a trait – heterozygous alleles – different alleles for that gene • phenotype – an observable trait – an allele is expressed if it shows in the phenotype of an individual • genetic counselors – perform genetic testing or refer clients for tests, advise couples on the probability of transmitting genetic diseases, and assist people on coping with genetic disease • Punnett square shows how 2 heterozygous parents with cleft chins can have child with uncleft chin – heterozygous carriers of hereditary diseases such as cystic fibrosis – both parents healthy

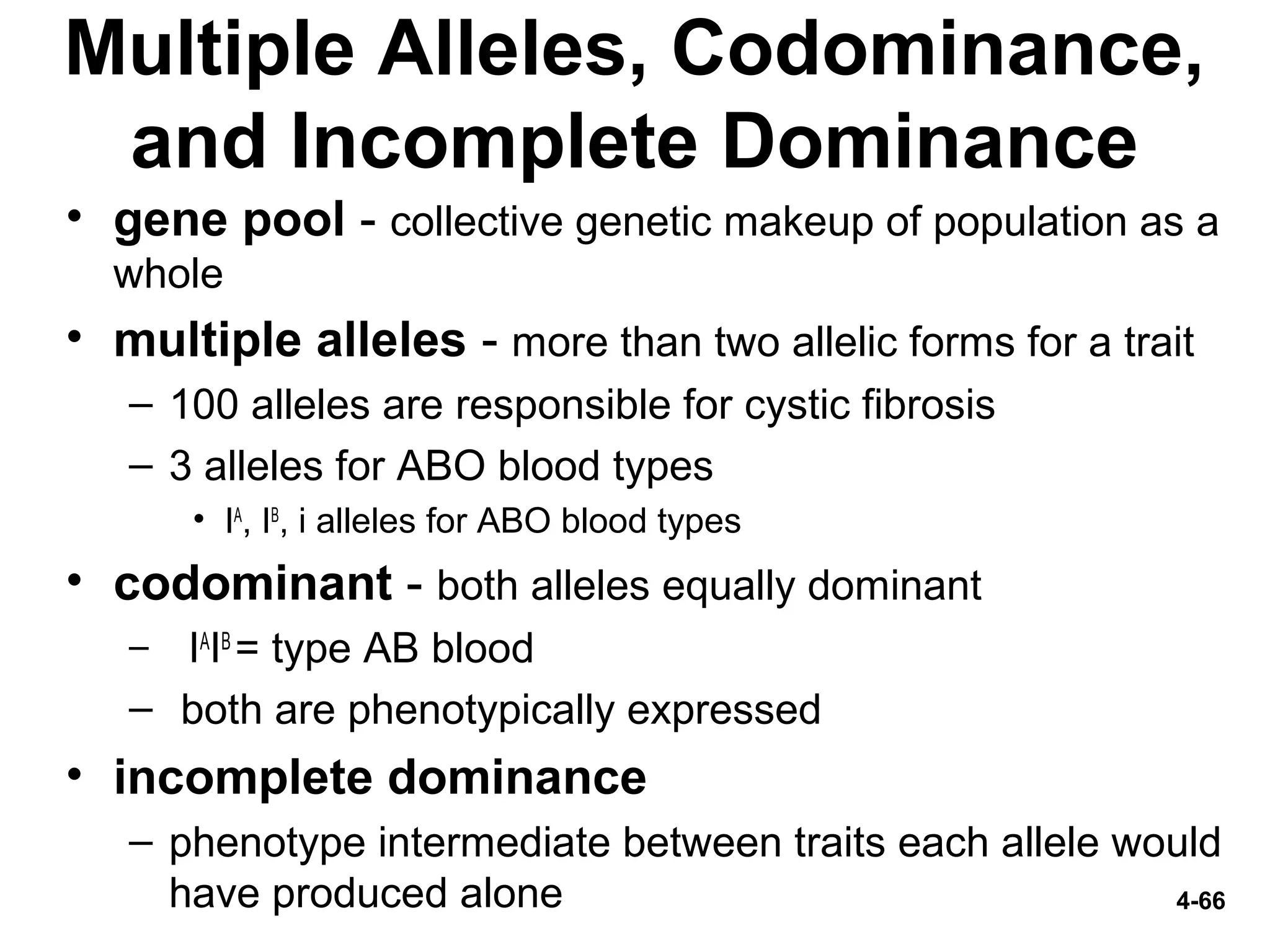

4-66 Multiple Alleles, Codominance, and Incomplete Dominance • gene pool - collective genetic makeup of population as a whole • multiple alleles - more than two allelic forms for a trait – 100 alleles are responsible for cystic fibrosis – 3 alleles for ABO blood types • IA , IB , i alleles for ABO blood types • codominant - both alleles equally dominant – IA IB = type AB blood – both are phenotypically expressed • incomplete dominance – phenotype intermediate between traits each allele would have produced alone

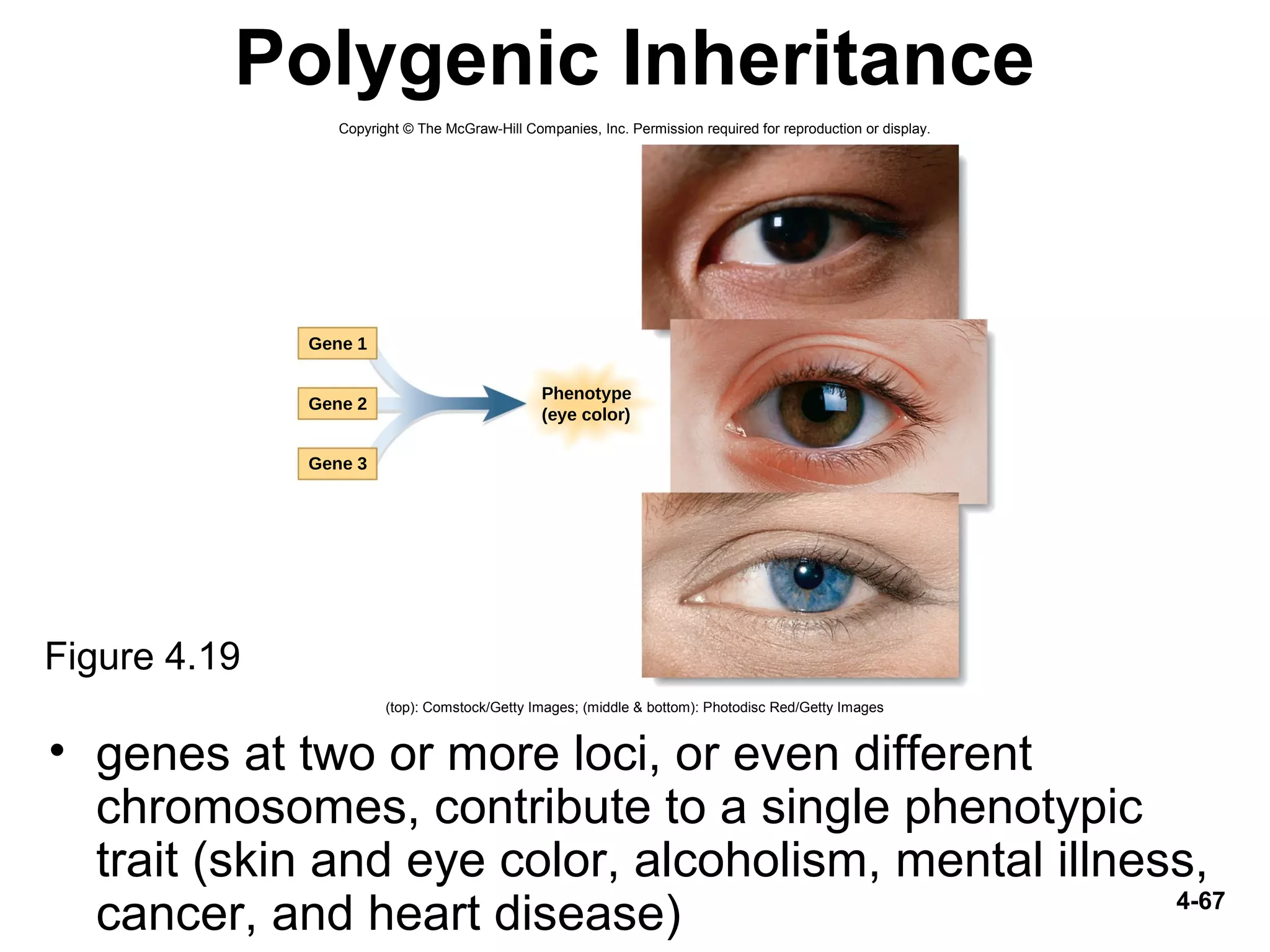

4-67 Polygenic Inheritance • genes at two or more loci, or even different chromosomes, contribute to a single phenotypic trait (skin and eye color, alcoholism, mental illness, cancer, and heart disease) Figure 4.19 Gene 1 Gene 2 Phenotype (eye color) Gene 3 Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. (top): Comstock/Getty Images; (middle & bottom): Photodisc Red/Getty Images

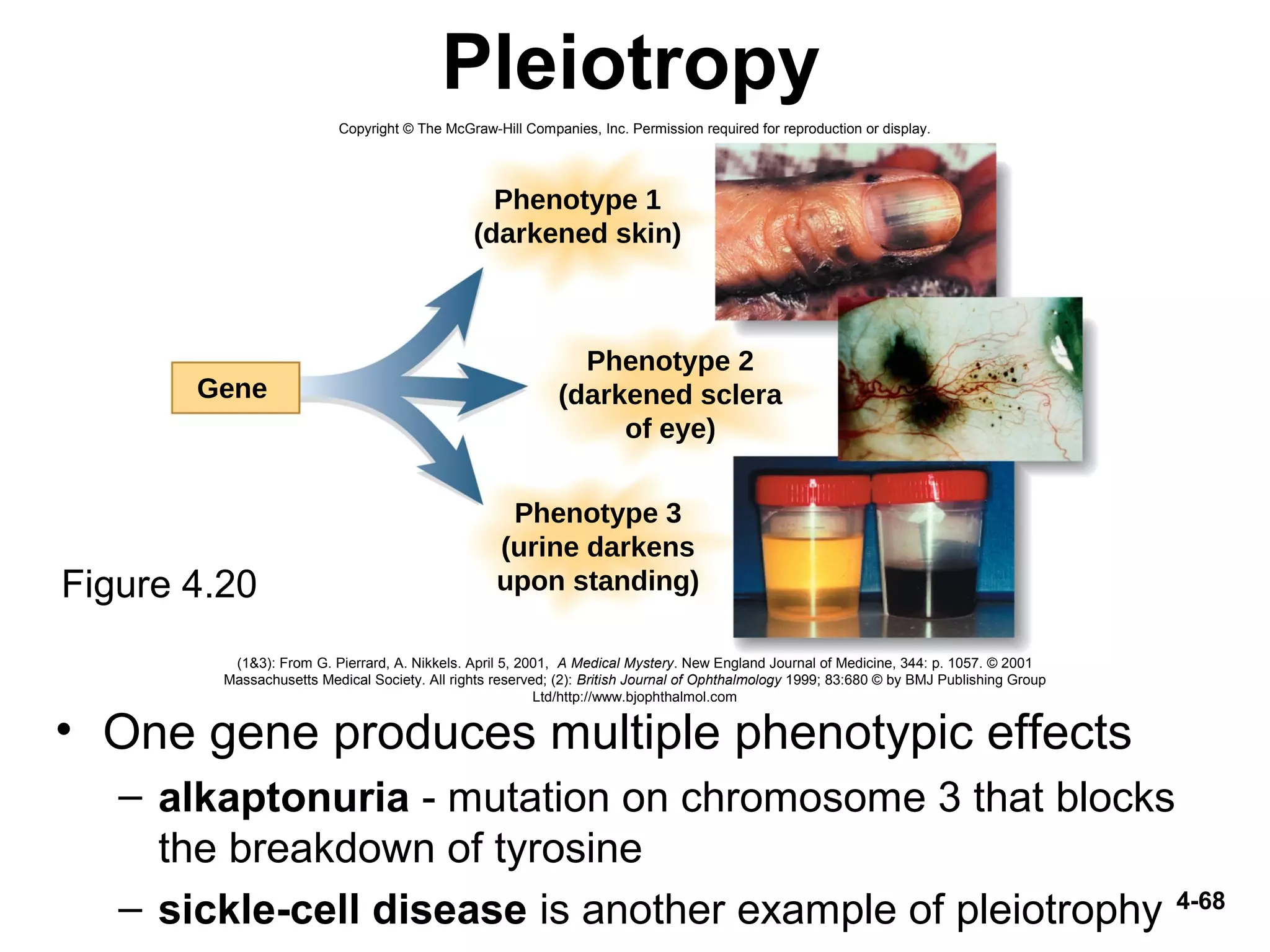

4-68 Pleiotropy • One gene produces multiple phenotypic effects – alkaptonuria - mutation on chromosome 3 that blocks the breakdown of tyrosine – sickle-cell disease is another example of pleiotrophy Figure 4.20 Gene Phenotype 3 (urine darkens upon standing) Phenotype 1 (darkened skin) Phenotype 2 (darkened sclera of eye) Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. (1&3): From G. Pierrard, A. Nikkels. April 5, 2001, A Medical Mystery. New England Journal of Medicine, 344: p. 1057. © 2001 Massachusetts Medical Society. All rights reserved; (2): British Journal of Ophthalmology 1999; 83:680 © by BMJ Publishing Group Ltd/http://www.bjophthalmol.com

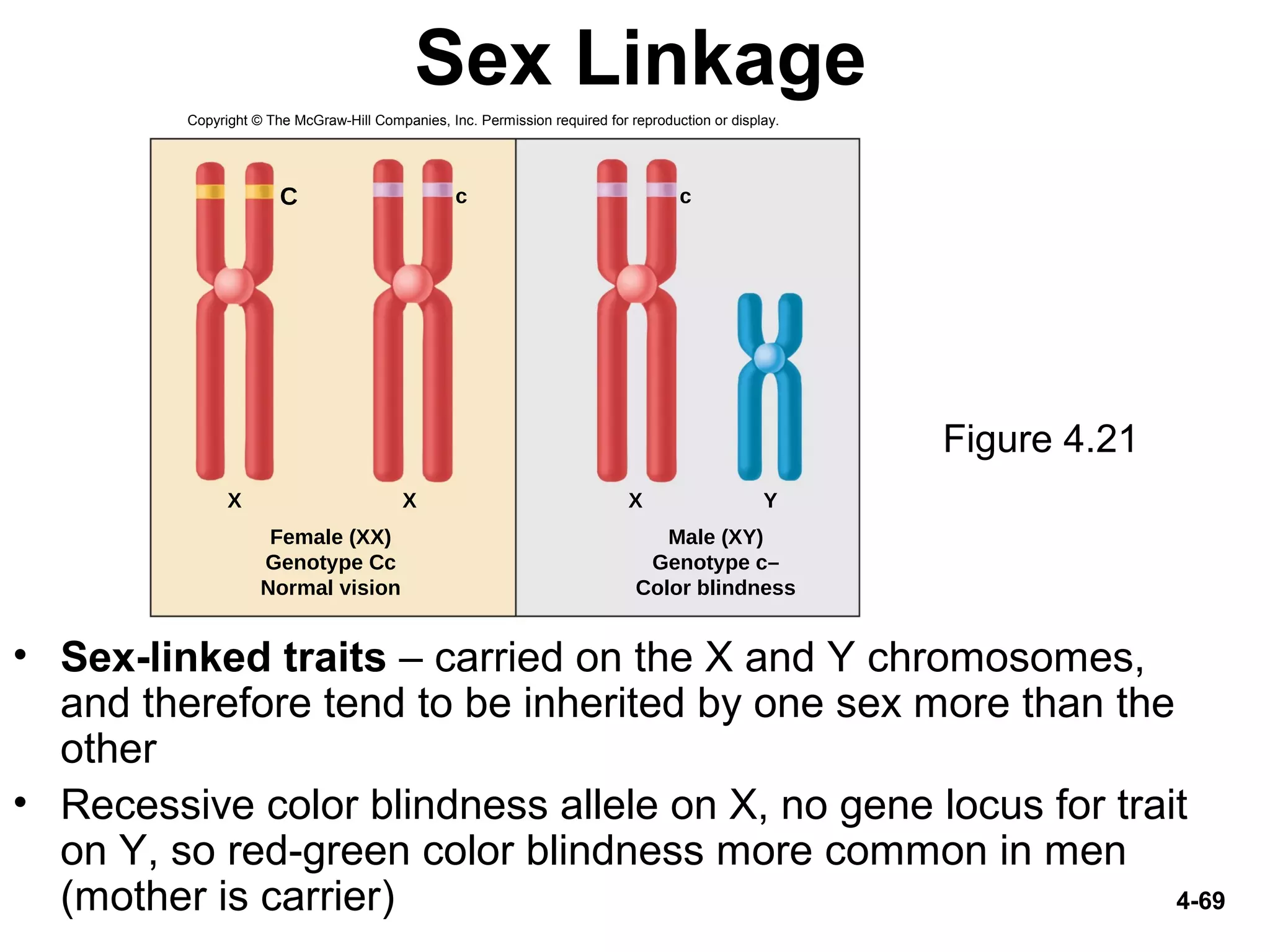

4-69 Sex Linkage • Sex-linked traits – carried on the X and Y chromosomes, and therefore tend to be inherited by one sex more than the other • Recessive color blindness allele on X, no gene locus for trait on Y, so red-green color blindness more common in men (mother is carrier) Figure 4.21 X X X Y C c c Female (XX) Genotype Cc Normal vision Male (XY) Genotype c– Color blindness Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.

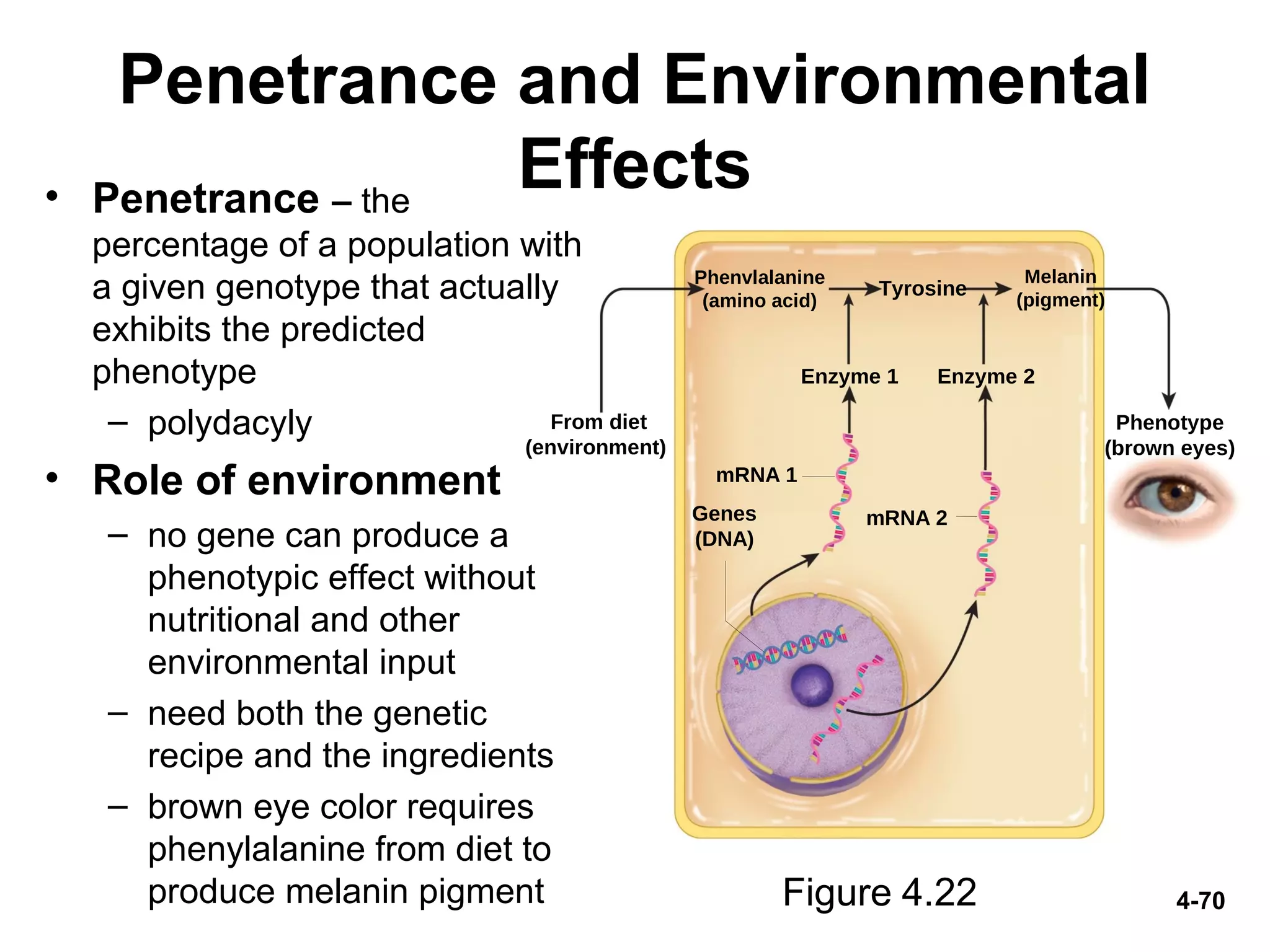

4-70 Penetrance and Environmental Effects• Penetrance – the percentage of a population with a given genotype that actually exhibits the predicted phenotype – polydacyly • Role of environment – no gene can produce a phenotypic effect without nutritional and other environmental input – need both the genetic recipe and the ingredients – brown eye color requires phenylalanine from diet to produce melanin pigment Figure 4.22 Phenotype (brown eyes) From diet (environment) Phenvlalanine (amino acid) Melanin (pigment) Genes (DNA) Tyrosine Enzyme 1 mRNA 1 Enzyme 2 mRNA 2

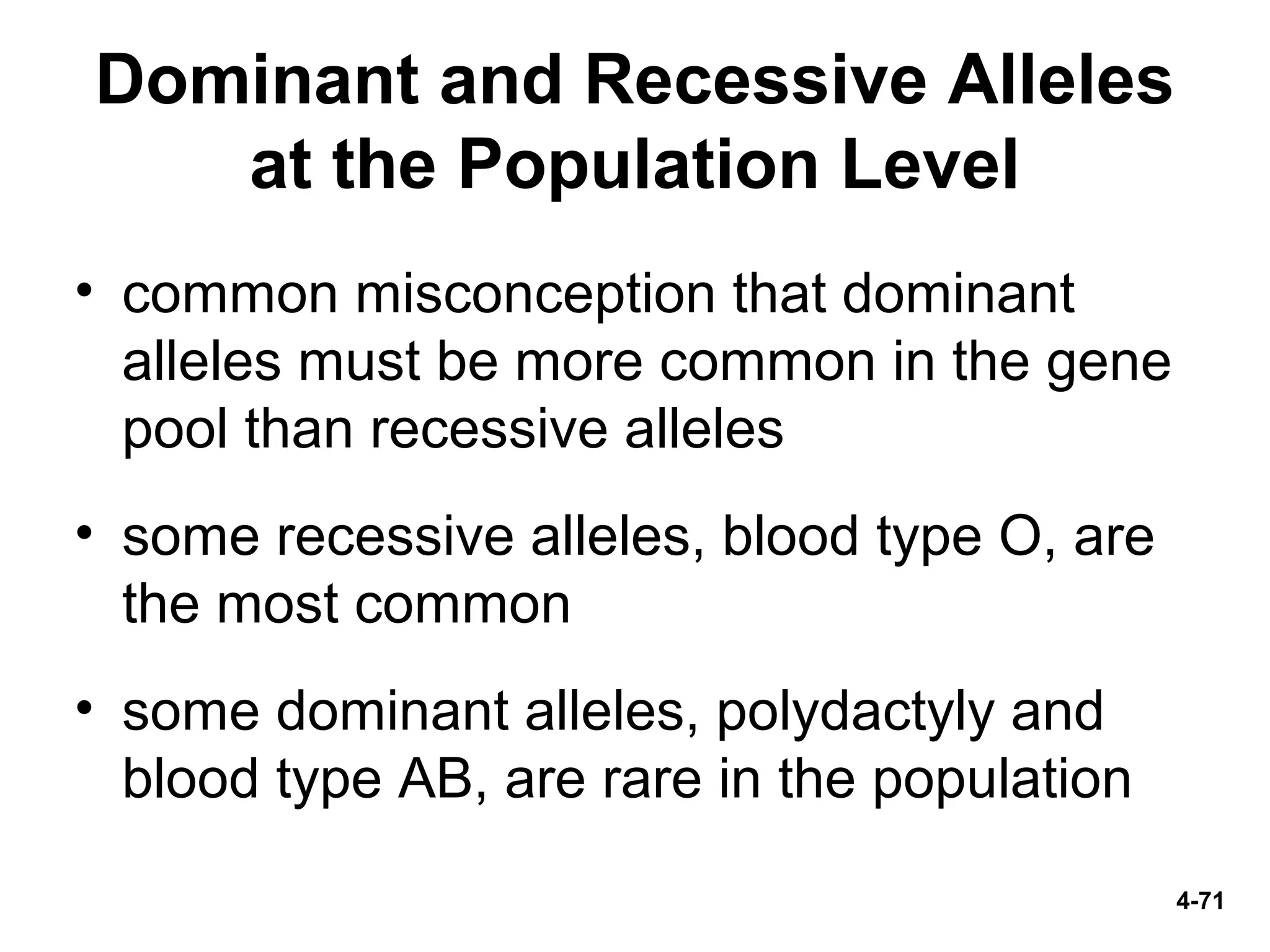

4-71 Dominant and Recessive Alleles at the Population Level • common misconception that dominant alleles must be more common in the gene pool than recessive alleles • some recessive alleles, blood type O, are the most common • some dominant alleles, polydactyly and blood type AB, are rare in the population

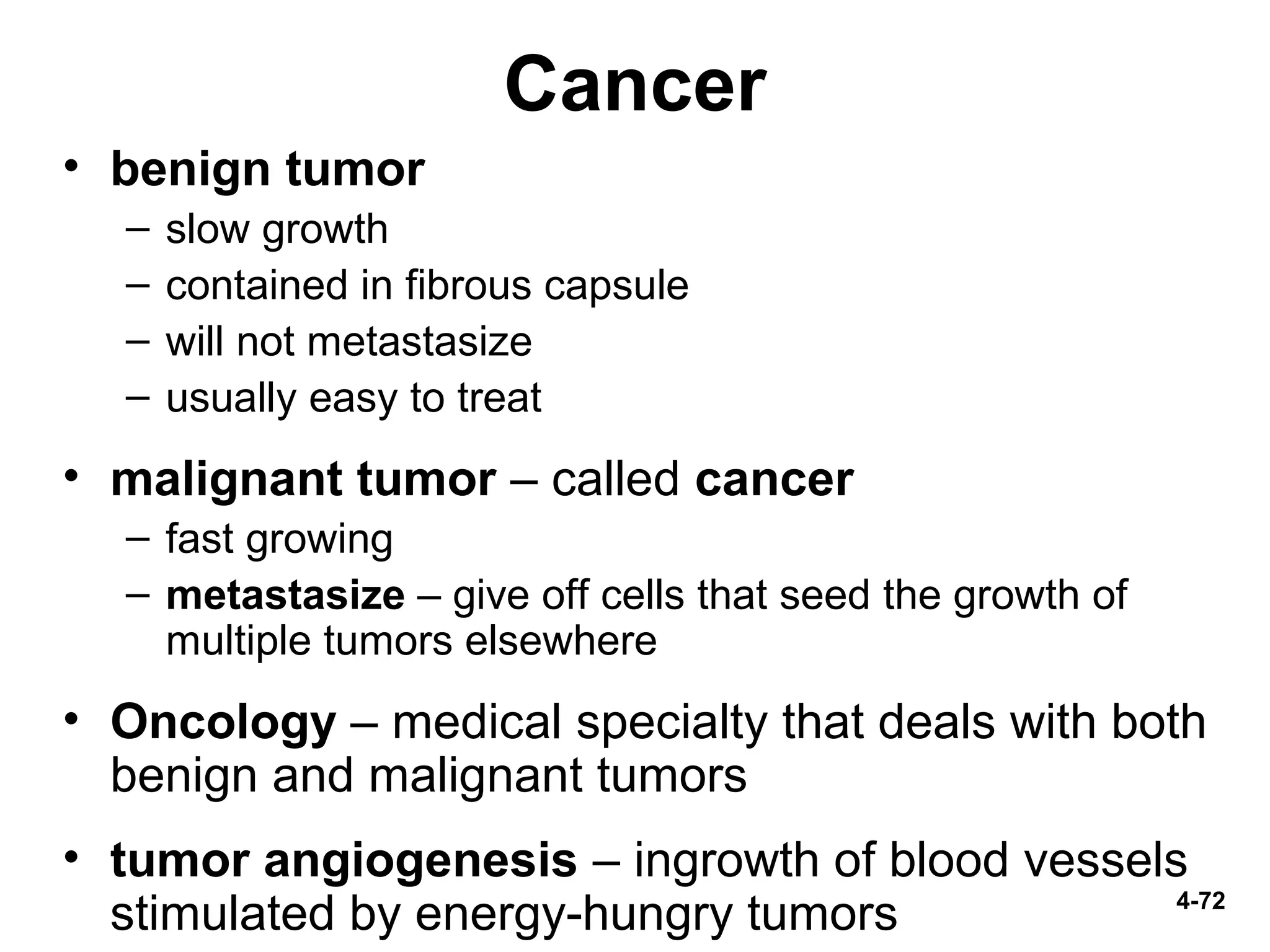

4-72 Cancer • benign tumor – slow growth – contained in fibrous capsule – will not metastasize – usually easy to treat • malignant tumor – called cancer – fast growing – metastasize – give off cells that seed the growth of multiple tumors elsewhere • Oncology – medical specialty that deals with both benign and malignant tumors • tumor angiogenesis – ingrowth of blood vessels stimulated by energy-hungry tumors

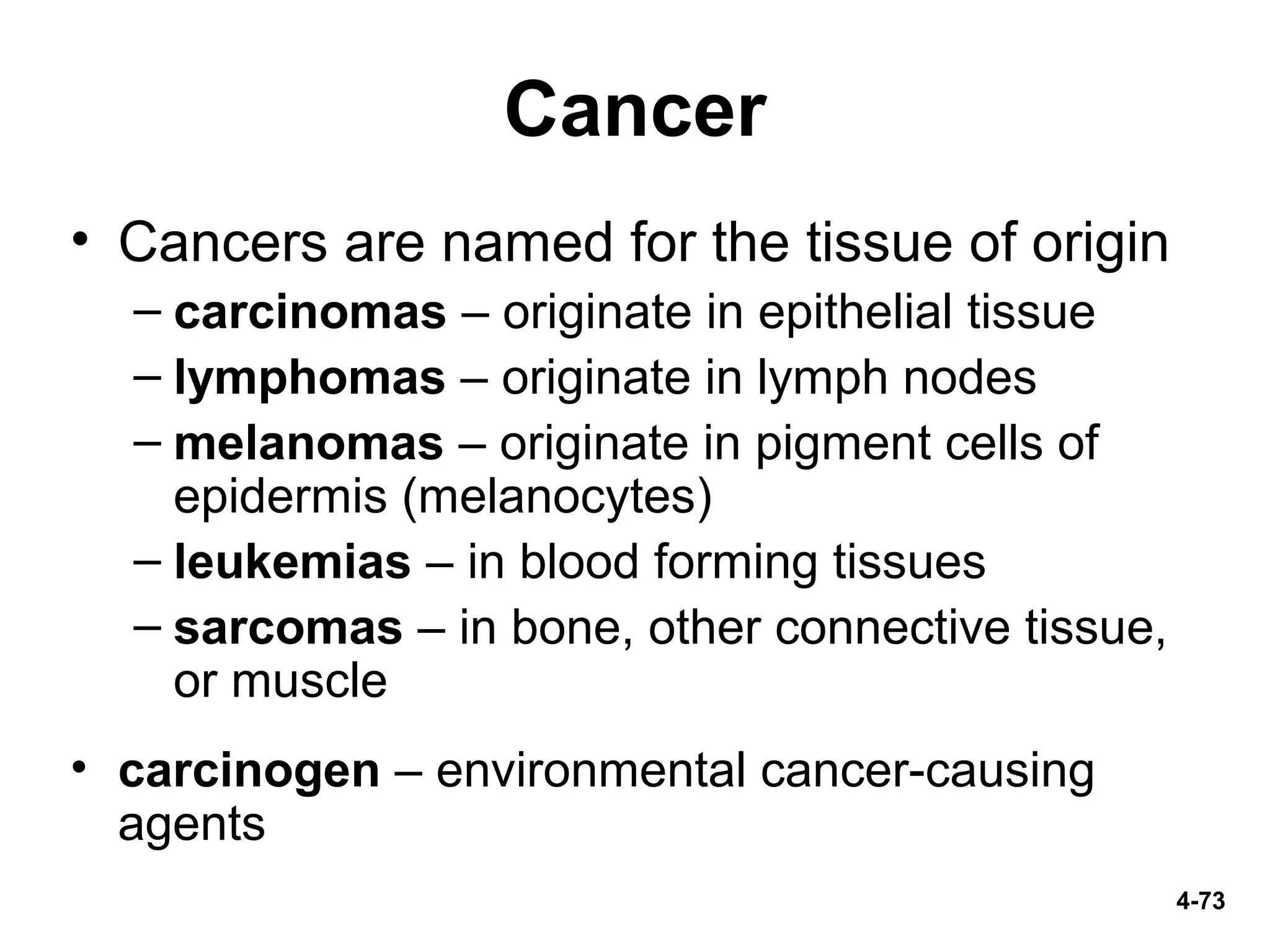

4-73 Cancer • Cancers are named for the tissue of origin – carcinomas – originate in epithelial tissue – lymphomas – originate in lymph nodes – melanomas – originate in pigment cells of epidermis (melanocytes) – leukemias – in blood forming tissues – sarcomas – in bone, other connective tissue, or muscle • carcinogen – environmental cancer-causing agents

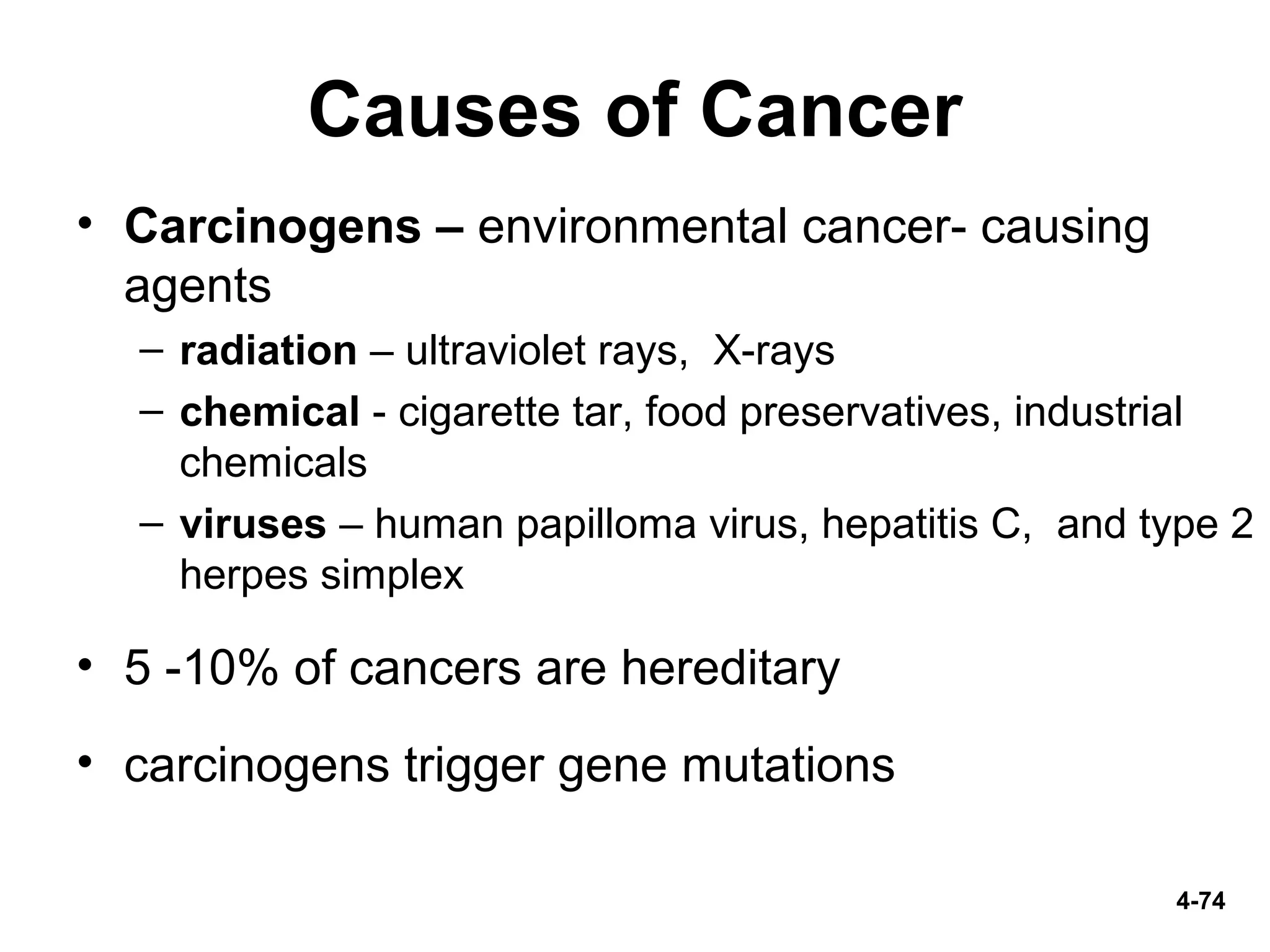

4-74 Causes of Cancer • Carcinogens – environmental cancer- causing agents – radiation – ultraviolet rays, X-rays – chemical - cigarette tar, food preservatives, industrial chemicals – viruses – human papilloma virus, hepatitis C, and type 2 herpes simplex • 5 -10% of cancers are hereditary • carcinogens trigger gene mutations

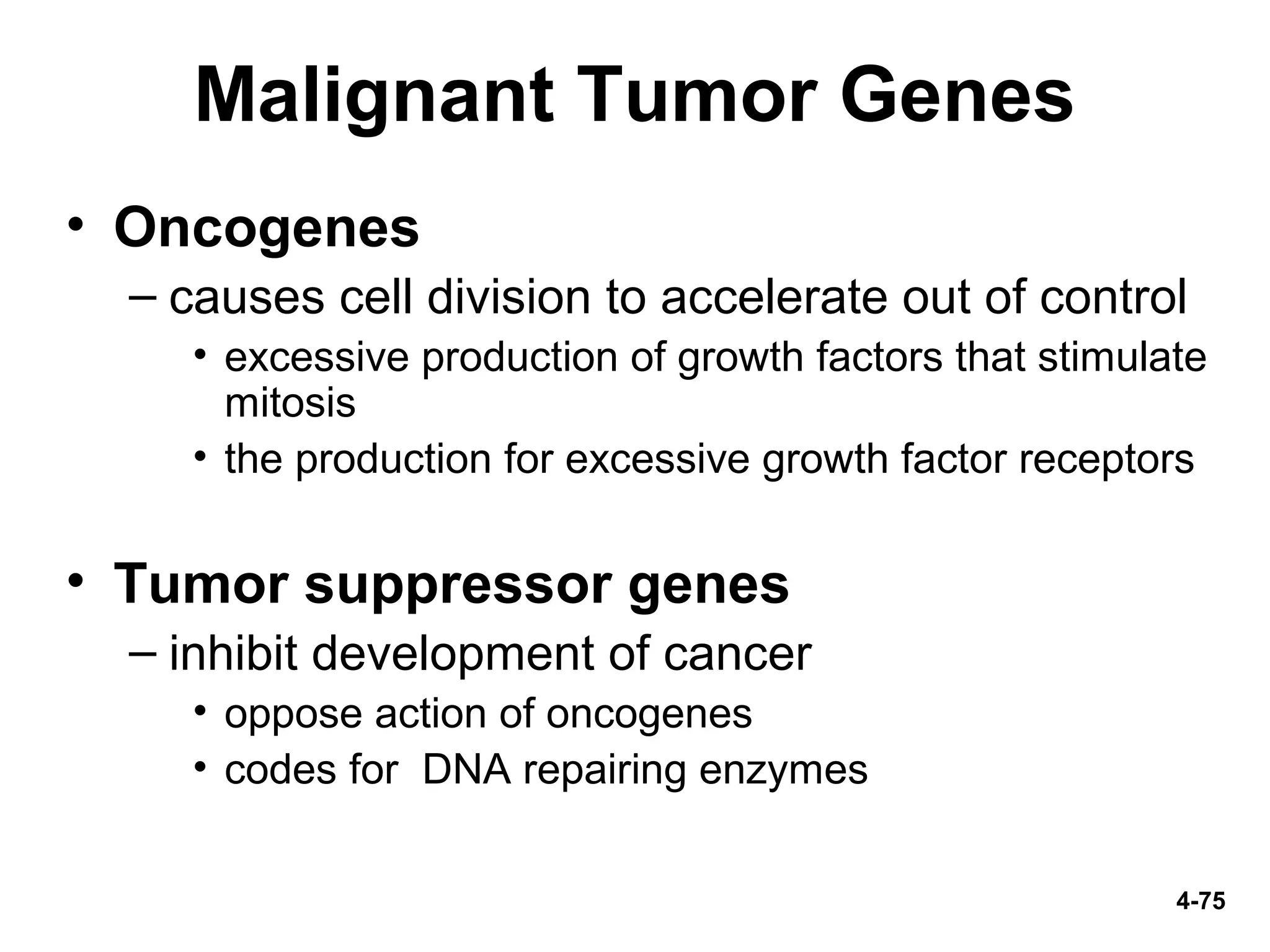

4-75 Malignant Tumor Genes • Oncogenes – causes cell division to accelerate out of control • excessive production of growth factors that stimulate mitosis • the production for excessive growth factor receptors • Tumor suppressor genes – inhibit development of cancer • oppose action of oncogenes • codes for DNA repairing enzymes

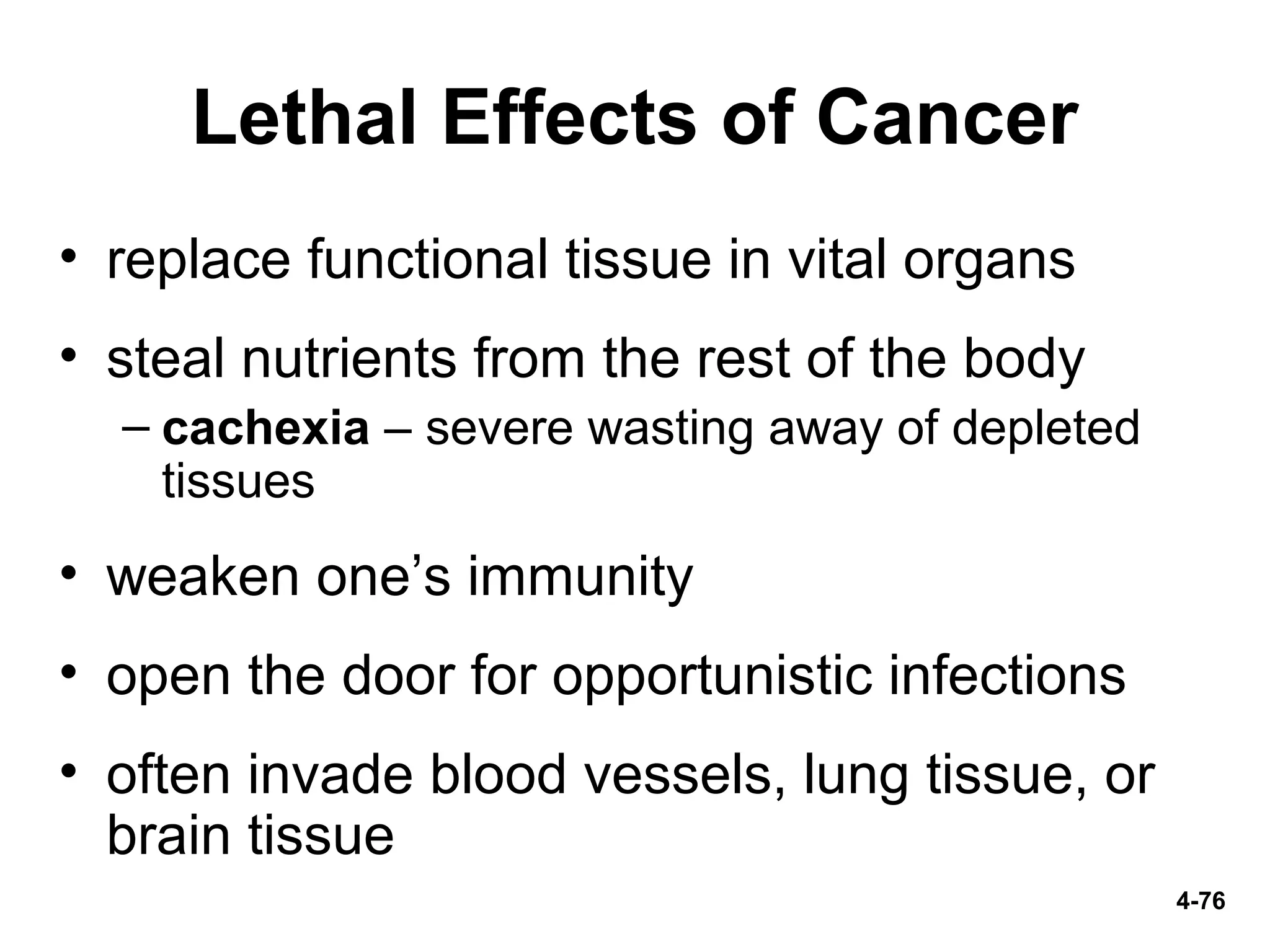

4-76 Lethal Effects of Cancer • replace functional tissue in vital organs • steal nutrients from the rest of the body – cachexia – severe wasting away of depleted tissues • weaken one’s immunity • open the door for opportunistic infections • often invade blood vessels, lung tissue, or brain tissue

More Related Content

PPTX
2 cell & cell cycle
bysandeep sharma

PPT
Chromosome structure
byPudhuvai Baveesh

PPTX
Cell cycle
byvagh sarman

PPTX
Cell cycle
byHamza Khan

PPTX
Genetics
byAthira Aravind

PPTX
EXTRA CHROMOSOMAL INHERITANCE & GENOME IMPRINTING
byBiswarup Nandi

PPT
Terminology related to genetics
byenamifat

PPTX
Structural Chromosomal Aberrations
byVinithasbabu5

2 cell & cell cycle
bysandeep sharma

Chromosome structure
byPudhuvai Baveesh

Cell cycle
byvagh sarman

Cell cycle
byHamza Khan

Genetics
byAthira Aravind

EXTRA CHROMOSOMAL INHERITANCE & GENOME IMPRINTING
byBiswarup Nandi

Terminology related to genetics
byenamifat

Structural Chromosomal Aberrations
byVinithasbabu5


What's hot

PPT
DNA structure, Functions and properties
byNamrata Chhabra

PPT
15 the chromosomal basis of inheritance
bykindarspirit

PPTX
Dna and chromosomes
byaljeirou

PPT
Mitosis and Meiosis
byReginald V. Finley Sr. M.Ed.

PPT
Meiosis
byPhil Cohen

PPT
Lecture 1 basic molecular biology
byRESEARCH ASSOCIATE - SKUAST

PPT
Mendelian genetics
byBahauddin Zakariya University lahore

PDF
Different Forms of DNA
byraghavworah

PPT
Cell Division
byJulie Roberts

PPT
Mendelian Laws of Inheritance
bySanjay Kr. Vishwakarma

PPTX
Cell cycle & cell division
byMerlin Jose

PPTX
Cladograms
byStephanie Beck

PPT
Human genetics
byshenell delfin

PPTX
Concepts in molecular biology
byOla Elgaddar

PPT
Probability, Mendel, and Genetics Powerpoint
byMrs. Henley

PPTX
Incomplete dominance
byRAJENDRACHAVHAN2

PPTX
4 - Molecular biology in medicine
byMartin Jellinek

PPTX
Dihybrid cross
byICHHA PURAK

PPT
Monohybrid cross
byjayarajgr

PPT
Classical Genetics
bycgales

DNA structure, Functions and properties
byNamrata Chhabra

15 the chromosomal basis of inheritance
bykindarspirit

Dna and chromosomes
byaljeirou

Mitosis and Meiosis
byReginald V. Finley Sr. M.Ed.

Meiosis
byPhil Cohen

Lecture 1 basic molecular biology
byRESEARCH ASSOCIATE - SKUAST

Mendelian genetics
byBahauddin Zakariya University lahore

Different Forms of DNA
byraghavworah

Cell Division
byJulie Roberts

Mendelian Laws of Inheritance
bySanjay Kr. Vishwakarma

Cell cycle & cell division
byMerlin Jose

Cladograms
byStephanie Beck

Human genetics
byshenell delfin

Concepts in molecular biology
byOla Elgaddar

Probability, Mendel, and Genetics Powerpoint
byMrs. Henley

Incomplete dominance
byRAJENDRACHAVHAN2

4 - Molecular biology in medicine
byMartin Jellinek

Dihybrid cross
byICHHA PURAK

Monohybrid cross
byjayarajgr

Classical Genetics
bycgales


Similar to Genetics and Cellular Function

PPT
BIOLOGY FORM 5 CHAPTER 5 - 5.3 A (DNA)
byNirmala Josephine

PPTX
8 Basic Genetic Mechanisms
bysaveena solanki

PPT
Biotechnology and its fundamental final (1).ppt
bybreenaawan

PPT
biotech.ppt
bybreenaawan

PPT
DNA: structure, organization and function
byenamifat

PPT
Biological information transfer
byTapeshwar Yadav

PPTX
Mutation, repair, recombination
byKamlesh Yadav

PPT
Nucleic acids
byOlena Rodina

PPT
Dna and genes
byabbasyr

PDF
(L-2) DNA and Chromosomes.pdf.................
byMhuzaifaAminrajput

PPT
ch-1.1.ppt biology DNA Highschool science
bygaryzhangmc

PPTX
Genetics and health
byNisha Yadav

PDF
Introduction to Bioinformatics with Bioinformatics Algorithms
bybarunbhattacharjee16

PPT
DNA_and_inheritance.ppt
bySani191640

PPT
DNA_and_inheritance.ppt (DNA_and_inheritance.ppt)
byJayAnneCorriano1

PPTX
The language of life (all the subtitles)first ppt 2 bimester
bySofia Paz

PDF
A voyage-inward-02
byRaman Kannan

PPTX
Macromolecules continued
byPaula Mills

PPTX
genetics-.pptx
byRupaSingh83

PDF
Genetics by Dr Shumaila
byHaifaShahid

BIOLOGY FORM 5 CHAPTER 5 - 5.3 A (DNA)
byNirmala Josephine

8 Basic Genetic Mechanisms
bysaveena solanki

Biotechnology and its fundamental final (1).ppt
bybreenaawan

biotech.ppt
bybreenaawan

DNA: structure, organization and function
byenamifat

Biological information transfer
byTapeshwar Yadav

Mutation, repair, recombination
byKamlesh Yadav

Nucleic acids
byOlena Rodina

Dna and genes
byabbasyr

(L-2) DNA and Chromosomes.pdf.................
byMhuzaifaAminrajput

ch-1.1.ppt biology DNA Highschool science
bygaryzhangmc

Genetics and health
byNisha Yadav

Introduction to Bioinformatics with Bioinformatics Algorithms
bybarunbhattacharjee16

DNA_and_inheritance.ppt
bySani191640

DNA_and_inheritance.ppt (DNA_and_inheritance.ppt)
byJayAnneCorriano1

The language of life (all the subtitles)first ppt 2 bimester
bySofia Paz

A voyage-inward-02
byRaman Kannan

Macromolecules continued
byPaula Mills

genetics-.pptx
byRupaSingh83

Genetics by Dr Shumaila
byHaifaShahid


More from getyourcheaton

PPT
Urinary system
bygetyourcheaton

PPT
Water, Electrolyte, And Acid-Base Balance
bygetyourcheaton

PPTX
Descriptive Statistics, Numerical Description
bygetyourcheaton

PPTX
Probability Distributions for Discrete Variables
bygetyourcheaton

PPT
Tissues and integumentary ac
bygetyourcheaton

PPTX
An Overview of Basic Statistics
bygetyourcheaton

PPTX
Intro to probability
bygetyourcheaton

PPT
Humanistic Theories: Carl Rogers
bygetyourcheaton

PPTX
Descriptive Statistics Part II: Graphical Description
bygetyourcheaton

PPTX
Probability Distributions for Continuous Variables
bygetyourcheaton

PPTX
Measures of Central Tendency, Variability, and Position
bygetyourcheaton

PPTX
Radical Behaviorism: B.F. Skinner
bygetyourcheaton

Urinary system
bygetyourcheaton

Water, Electrolyte, And Acid-Base Balance
bygetyourcheaton

Descriptive Statistics, Numerical Description
bygetyourcheaton

Probability Distributions for Discrete Variables
bygetyourcheaton

Tissues and integumentary ac
bygetyourcheaton

An Overview of Basic Statistics
bygetyourcheaton

Intro to probability
bygetyourcheaton

Humanistic Theories: Carl Rogers
bygetyourcheaton

Descriptive Statistics Part II: Graphical Description
bygetyourcheaton

Probability Distributions for Continuous Variables
bygetyourcheaton

Measures of Central Tendency, Variability, and Position
bygetyourcheaton

Radical Behaviorism: B.F. Skinner
bygetyourcheaton


Recently uploaded

PPTX
Unit I — General Physiology: Basic Concepts
byRAKESH SAJJAN

PPTX
Details of Muscular-and-Nervous-Tissues.pptx
byAshish Umale

PPTX
ICH Harmonization A Global Pathway to Unified Drug Regulation.pptx
byDr. Smita Kumbhar

PPTX
Cost of Capital - Cost of Equity, Cost of debenture, Cost of Preference share...
bySundar B N

PPTX
CROP RESIDUE MANAGEMANT AND ITS EFFECT ON SOIL HEALTH
byShraddha Maurya

PDF
FAMILY ASSESSMENT FORMAT - CHN practical
byDr. Sudhadevi Sadanandan

PDF
The Tale of Melon City poem ppt by Sahasra
bybitrasahasra

PPTX
How to Automate Quality Checks in Odoo 18 Quality App
byCeline George

PPTX
Hypothesis. its definition and typrs pptx
byMakarand Joshi

PDF
Orchard Floor Managment.pdf Orchard Floor Management
bybisensharad

PDF
Types of Vegetable Gardens, College of Agriculture Balaghat.pdf
bybisensharad

DOCX
Mobile applications Devlopment ReTest year 2025-2026
byDr. Mazin Mohamed alkathiri

PDF
Nutrients & Role in Horticulture.pdf, Dr. Sharad Bisen Horticulture
bybisensharad

PDF
The Drift Principle: When Information Accelerates Faster Than Minds Can Compress
byReality Drift Archive

PPTX
Rectal Surgery in Senior Citiizens .pptx
byJohn Thanakumar

PPTX
15 December 2025 Education for human flourishing Michael Stevenson .pptx
byEduSkills OECD

PDF
DHA OPTOMETRY MCQ Question /HAAD/MOH.pdf
byAnmol Singh

PPTX
Limpitlaw "Licensing: From Mindset to Milestones"
byNational Information Standards Organization (NISO)

PDF
Projecte de la porta d'i5B: Els animals marins
byeduardrubio1

PDF
NAVIGATE PHARMACY CAREER OPPORTUNITIES.pdf
byMd. Zakaria Faruki

Unit I — General Physiology: Basic Concepts
byRAKESH SAJJAN

Details of Muscular-and-Nervous-Tissues.pptx
byAshish Umale

ICH Harmonization A Global Pathway to Unified Drug Regulation.pptx
byDr. Smita Kumbhar

Cost of Capital - Cost of Equity, Cost of debenture, Cost of Preference share...
bySundar B N

CROP RESIDUE MANAGEMANT AND ITS EFFECT ON SOIL HEALTH
byShraddha Maurya

FAMILY ASSESSMENT FORMAT - CHN practical
byDr. Sudhadevi Sadanandan

The Tale of Melon City poem ppt by Sahasra
bybitrasahasra

How to Automate Quality Checks in Odoo 18 Quality App
byCeline George

Hypothesis. its definition and typrs pptx
byMakarand Joshi

Orchard Floor Managment.pdf Orchard Floor Management
bybisensharad

Types of Vegetable Gardens, College of Agriculture Balaghat.pdf
bybisensharad

Mobile applications Devlopment ReTest year 2025-2026
byDr. Mazin Mohamed alkathiri

Nutrients & Role in Horticulture.pdf, Dr. Sharad Bisen Horticulture
bybisensharad

The Drift Principle: When Information Accelerates Faster Than Minds Can Compress
byReality Drift Archive

Rectal Surgery in Senior Citiizens .pptx
byJohn Thanakumar

15 December 2025 Education for human flourishing Michael Stevenson .pptx
byEduSkills OECD

DHA OPTOMETRY MCQ Question /HAAD/MOH.pdf
byAnmol Singh

Limpitlaw "Licensing: From Mindset to Milestones"
byNational Information Standards Organization (NISO)

Projecte de la porta d'i5B: Els animals marins
byeduardrubio1

NAVIGATE PHARMACY CAREER OPPORTUNITIES.pdf
byMd. Zakaria Faruki


Genetics and Cellular Function

  • 1.
    4-1 Genetics and CellularFunction • DNA and RNA – the nucleic acids • Genes and their action • DNA replication and the cell cycle • Chromosomes and heredity
  • 2.
    4-2 Modern Genetics • Mendeliangenetics – Gregor Mendel – investigates family patterns of inheritance • Cytogenetics – uses techniques of cytology and microscopy to study chromosomes and their relationships to hereditary traits • Molecular genetics – uses biochemistry to study structure and function of DNA • Genomic medicine – treatment of genetic diseases through an understanding of the human genome
  • 3.
    4-3 DNA Molecular Structure •DNA – deoxyribonucleic acid - a long threadlike molecule with uniform diameter, but varied length – 46 DNA molecules in the nucleus of most human cells • total length of 2 meters • average DNA molecule 2 inches long • DNA and other nucleic acids are polymers of nucleotides • Each nucleotide consists of – one sugar - deoxyribose – one phosphate group – one nitrogenous base • Either pyrimidine (single carbon-nitrogen ring) or purine (double ring) Figure 4.1a HC N C N NH2 N H C C CH N H CH2OHO O OH P H HOH HH O Adenine Phosphate Deoxyribose (a) Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.
  • 4.
    4-4 Nitrogenous Bases ofDNA • Purines - double ring – Adenine (A) – Guanine (G) • Pyrimidines - single ring – Cytosine (C) – Thymine (T) • DNA bases - ATCG Figure 4.1b Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. C NH2 N NH C CH C H N N C Adenine (A) Purines C O N NH C CH C N HN C NH2 Guanine (G) H C NH2 C N H C HC N O Cytosine (C) Uracil (U) C C O C O CH HN CH N H N H C C HC CH3 NH O O Thymine (T) Pyrimidines (b)
  • 5.
    4-5 DNA Structure • Molecularshape is a double helix (resembles a spiral staircase) – each sidepiece is a backbone composed of phosphate groups alternating with the sugar deoxyribose. – steplike connections between the backbones are pairs of nitrogen bases Figure 4.2 (a) (b) (c) A T A T T A A T AT G C G G C C G C Sugar–phosphate backbone G A C T T G C Hydrogen bond A Sugar–phosphate backbone Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.
  • 6.
    4-6 Complementary Base Pairing •Nitrogenous bases united by hydrogen bonds – a purine on one backbone with a pyrimidine on the other – A – T two hydrogen bonds – C – G three hydrogen bonds • DNA base pairing – A – T – C – G • Law of Complementary Base Pairing – one strand determines base sequence of other Figure 4.2 partial (b) (c) GC Sugar–phosphate backbone Sugar–phosphate backbone G A C T A T A T G C Hydrogen bond Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.
  • 7.
    4-7 Discovery of theDouble Helix • By 1900: components of DNA were known – sugar, phosphate and bases • By 1953: x ray diffraction determined geometry of DNA molecule • Nobel Prize awarded in 1962 to 3 men: Watson, Crick and Wilkins, but not to Rosalind Franklin, who died of cancer at 37, after discovering the x-ray data that provided the answers to the double helix.
  • 8.
    4-8 DNA Function • Genes– genetic instructions for synthesis of proteins • Gene – segment of DNA that codes for a specific protein • Genome - all the genes of one person – humans have estimated 25,000 to 35,000 genes • 2% of total DNA • other 98% is noncoding DNA – plays role in chromosome structure – regulation of gene activity – no function at all – “junk” DNA
  • 9.
    4-9 Chromatin and Chromosomes •chromatin – fine filamentous DNA material complexed with proteins – occurs as 46 long filaments called chromosomes – 6 ft in first half of cell cycle – twice that amount in preparation for cell division – in nondividing cells, chromatin is so slender it cannot be seen with light microscope – granular appearance under electron microscope – histones – disc-shaped cluster of eight proteins – DNA molecule winds around the cluster – repeats pattern 800,000 times – appears to be divided into segments - nucleosomes – nucleosome consists of : • core particle – histones with DNA around them • linker DNA – short segment of DNA connecting core particles – 1/3 shorter than DNA alone Figure 4.4b 2 nm 11 nm Nucleosome Linker DNA 300 nm 30 nm 700 nm 700 nm Core particle In dividing cells only Chromatids Centromere 1 2 3 4 5 6 30 nm fiber is thrown into irregular loops to form a fiber 300 nm thick Nucleosomes fold accordion- like into zigzag fiber 30 nm in diameter DNA winds around core particles to form nucleosomes 11 nm in diameter DNA double helix In dividing cells, looped chromatin coils further into a 700 nm fiber to form each chromatid Chromosome at the midpoint (metaphase) of cell division Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.
  • 10.
    4-10 Chromatin and Chromosomes •chromatin – protein complex thrown into complex, irregular loops and coils – 1000X shorter than original molecule • each chromosome is packed into its own spheroidal region of the nucleus – chromosome territory – permeated with channels that allow regulatory chemicals to have access to the genes • in nondividing cell, the chromatin is not a static structure – changes moment to moment according to genetic activity of cell – genes get turned off and on – chromosomes migrate as cells develop moving active genes on different chromosomes closer together • allows genes to partner to bring about developmental tasks in the cell Figure 4.4b 2 nm 11 nm Nucleosome Linker DNA 300 nm 30 nm 700 nm 700 nm Core particle In dividing cells only Chromatids Centromere 1 2 3 4 5 6 30 nm fiber is thrown into irregular loops to form a fiber 300 nm thick Nucleosomes fold accordion- like into zigzag fiber 30 nm in diameter DNA winds around core particles to form nucleosomes 11 nm in diameter DNA double helix In dividing cells, looped chromatin coils further into a 700 nm fiber to form each chromatid Chromosome at the midpoint (metaphase) of cell division Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.
  • 11.
    4-11 Cells Preparing toDivide • exact copies are made of all the nuclear DNA • each chromosome consists of two parallel filaments of identical DNA - sister chromatids • in prophase, final coiling and condensing – now visible with light microscope • final compaction enables the two sister chromatids to be pulled apart and carried to separate daughter cells without damage to the DNA – joined at centromere – kinetochore – protein plaques on either side of the centromere Figure 4.5a(a) Centromere Kinetochore Sister chromatids Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.
  • 12.
    4-12 RNA: Structure andFunction • RNA much smaller cousin of DNA (fewer bases) – messenger RNA (mRNA) over 10,000 bases – ribosomal RNA (rRNA) – transfer RNA (tRNA) 70 - 90 bases – DNA averages 100 million base pairs • one nucleotide chain (not a double helix as DNA) • ribose replaces deoxyribose as the sugar • uracil replaces thymine as a nitrogenous base • Essential function – interprets code in DNA – uses those instructions for protein synthesis – leaves nucleus and functions in cytoplasm
  • 13.
    4-13 What is aGene? • Previous definition - gene - a segment of DNA that carries the code for a particular protein??? – Body has millions of proteins but only 35,000 genes? – Small % of genes produce only RNA molecules – Some segments of DNA belong to 2 different genes • Current Definition – gene - an information-containing segment of DNA that codes for the production of a molecule of RNA that plays a role in synthesizing one or more proteins • Amino acid sequence of a protein is determined by the nucleotide sequence in the DNA
  • 14.
    4-14 Human Genome • Genome– all the DNA in one 23-chromosome set – 3.1 billion nucleotide pairs in human genome • 46 human chromosomes comes in two sets of 23 chromosomes – one set of 23 chromosomes came form each parent – each pair of chromosomes has same genes but different versions (alleles) exist • Human Genome Project (1990-2003) identified the nitrogenous base sequences of 99% of the human genome – genomics – the comprehensive study of the whole genome and how its genes and noncoding DNA interact to affect the structure and function of the whole organism.
  • 15.
    4-15 Human Genome • Findingsof Human Genome Project – Homo sapiens has only about 25,000 to 35,000 genes • not the 100,000 formerly believed – genes generate millions of different proteins • not the old one gene one protein theory • single gene can code for many different proteins – genes average about 3,000 bases long • range up to 2.4 million bases – all humans are at least 99.99% genetically identical • 0.01% variations that we can differ from one another in more than 3 million base pairs • various combinations of these single-nucleotide polymorphisms account for all human variation – some chromosomes are gene-rich and some gene-poor – we now know the locations of more than 1,400 disease-producing mutations • opens the door for a new branch of medical diagnosis and treatment called Genomic Medicine • before HGP, we new locations of fewer than 100
  • 16.
    4-16 Genetic Code • bodycan make millions of different proteins, all from the same 20 amino acids, and encoded by genes made of just 4 nucleotides (A,T,C,G) • Genetic code – a system that enables these 4 nucleotides to code for the amino acid sequence of all proteins • minimum code to symbolize 20 amino acids is 3 nucleotides per amino acid • Base triplet – a sequence of 3 DNA nucleotides that stands for one amino acid – codon - the 3 base sequence in mRNA – 64 possible codons available to represent the 20 amino acids • 61 code for amino acids • Stop Codons – UAG, UGA, and UAA – signal the ‘end of the message’, like a period at the end of a sentence • Start Codon – AUG codes for methionine , and begins the amino acid sequence of the protein
  • 17.
    4-17 Overview of ProteinSynthesis • all body cells, except sex cells and some immune cells, contain identical genes. • different genes are activated in different cells • any given cell uses 1/3 to 2/3rds of its genes – rest remain dormant and may be functional in other types of cells • activated gene – messenger RNA (mRNA) – a mirror-image copy of the gene is made • migrates from the nucleus to cytoplasm • its code is read by the ribosomes – ribosomes – cytoplasmic granules composed of ribosomal RNA (rRNA) and enzymes – transfer RNA (tRNA) – delivers amino acids to the ribosome – ribosomes assemble amino acids in the order directed by the codons of mRNA
  • 18.
    4-18 Summary of ProteinSynthesis • process of protein synthesis – DNA mRNA protein • transcription – step from DNA to mRNA – occurs in the nucleus where DNA is located • translation – step from mRNA to protein – most occurs in cytoplasm – 15-20% of proteins are synthesized in the nucleus
  • 19.
    Please note thatdue to differing operating systems, some animations will not appear until the presentation is viewed in Presentation Mode (Slide Show view). You may see blank slides in the “Normal” or “Slide Sorter” views. All animations will appear after viewing in Presentation Mode and playing each animation. Most animations will require the latest version of the Flash Player, which is available at http://get.adobe.com/flashplayer.
  • 20.
    Please note thatdue to differing operating systems, some animations will not appear until the presentation is viewed in Presentation Mode (Slide Show view). You may see blank slides in the “Normal” or “Slide Sorter” views. All animations will appear after viewing in Presentation Mode and playing each animation. Most animations will require the latest version of the Flash Player, which is available at http://get.adobe.com/flashplayer.
  • 21.
    4-21 Transcription • DNA toolarge to leave nucleus and participate directly in cytoplasmic protein synthesis – necessary to make a small mRNA copy that can migrate through a nuclear pore into the cytoplasm • Transcription – copying genetic instructions from DNA to RNA • RNA Polymerase – enzyme that binds to the DNA and assembles the mRNA – base sequences TATATA or TATAAA inform the polymerase where to begin – RNA polymerase opens up the DNA helix about 17 base pairs at a time – reads base from one strand of DNA – makes corresponding mRNA • where it finds C on the DNA, it adds G to the mRNA • where it finds A on the DNA, it adds U to the mRNA – RNA polymerase rewinds the DNA helix behind it – gene can be transcribed by several polymerase molecules at once – terminator – base sequence at the end of a gene which signals polymerase to stop
  • 22.
    4-22 Transcription • pre-mRNA –immature RNA produced by transcription • exons – “sense” portions of the immature RNA – will be translated to protein • introns – “nonsense” portions of the immature RNA – must be removed before translation • alternative splicing – removing the introns by enzymes and splicing the exons together into a functional RNA molecule – one gene can code for more than one protein
  • 23.
    Please note thatdue to differing operating systems, some animations will not appear until the presentation is viewed in Presentation Mode (Slide Show view). You may see blank slides in the “Normal” or “Slide Sorter” views. All animations will appear after viewing in Presentation Mode and playing each animation. Most animations will require the latest version of the Flash Player, which is available at http://get.adobe.com/flashplayer.
  • 24.
    4-24 Alternative Splicing ofmRNA • One gene can code for more than one protein • Exons can be spliced together into a variety of different mRNAs. Figure 4.6 Gene (DNA) Pre-mRNA Intron Exon mRNA 2mRNA 1 mRNA 3 Protein 2Protein 1 Protein 3 Transcription1 Translation3 Splicing2 A B C D E F A C D A E FB D E Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.
  • 25.
    4-25 Translation • translation –the process that converts the language of nucleotides into the language of amino acids • ribosomes - translate sequence of nucleotides into the sequence of amino acids – occur mainly in cytosol, on surface of rough ER, and nuclear envelope – consists of two granular subunits, large and small • each made of several rRNA and enzyme molecules
  • 26.
    4-26 Translation of mRNA •mRNA molecule begins with leader sequence – acts as binding site for small ribosomal subunit – large subunit attaches to small subunit – ribosome pulls mRNA molecule through it like a ribbon, reading the bases as it goes – when start codon (AUG) is reached, protein synthesis begins – all proteins begin with methionine when first synthesized Figure 4.7 Free amino acids Cytosol Free tRNA NucleusDNA G U A C G U C A U G C A Ribosomal subunits rejoin to repeat the process with the same or another mRNA. Protein 1 4 6 7 8 mRNA tRNA + PiATP ADP 3 5 2 tRNA is released from the ribosome and is available to pick up a new amino acid and repeat the process. After translating the entire mRNA, the ribosome dissociates into its two subunits. The preceding tRNA hands off the growing protein to the new tRNA, and the ribosome links the new amino acid to the protein. mRNA leaves the nucleus. tRNA binds an amino acid; binding consumes 1 ATP. Ribosome binds mRNA. tRNA anticodon binds to complementary mRNA codon. Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.
  • 27.
    4-27 Translation • requries theparticipation of transfer RNA (tRNA) – small RNA molecule – coils on itself to form an angular L shape – one end of the L includes three nucleotides called an anticodon – other end has binding site specific for one amino acid – each tRNA picks up specific amino acid from pool of free amino acids in cytosol • one ATP molecule is used to bind amino acid to site • provides energy for peptide bond formation – some imprecision in codon-anticodon pairing • takes only 48 different tRNAs to pair with 61 different codons – ribosome binds and holds tRNA with its specific amino acid – large ribosomal subunit contains an enzyme that forms peptide bond that links amino acids together – first tRNA released from ribosome – second tRNA temporarily anchors growing peptide chain – ribosome shifts and third tRNA brings its amino acid to the site – one ribosome can assemble a protein of 400 amino acids in about 20 seconds
  • 28.
    Please note thatdue to differing operating systems, some animations will not appear until the presentation is viewed in Presentation Mode (Slide Show view). You may see blank slides in the “Normal” or “Slide Sorter” views. All animations will appear after viewing in Presentation Mode and playing each animation. Most animations will require the latest version of the Flash Player, which is available at http://get.adobe.com/flashplayer.
  • 29.
    4-29 Transfer RNA (tRNA) Figure4.8 Amino acid – accepting end Loop 1 Loop 3 Loop 2 C C U U A Anticodon A Amino acid – accepting end Loop 1 Loop 3 Loop 2 UU A A C C (a) (b) Anticodon Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.
  • 30.
    4-30 Polyribosomes • polyribosome -one mRNA holding multiple ribosomes – One ribosome can assemble protein of 400 amino acids in 20 seconds – 300,000 identical mRNA molecules may be undergoing simultaneous translation • cell can produce 150,000 protein molecules per second Figure 4.9 60 nm mRNA Ribosomes Protein Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. © E.V. Kiseleva, February 5 Letter 257:251-253, 1989
  • 31.
    4-31 Review of PeptideFormation Figure 4.10 1 2 3 4 5 6 DNA double helix Seven base triplets on the template strand of DNA The corresponding codons of mRNA transcribed from the DNA triplets The anticodons of tRNA that bind to the mRNA codons The amino acids carried by those six tRNA molecules The amino acids linked into a peptide chain Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.
  • 32.
    4-32 Protein Processing andSecretion • protein synthesis is not finished when the amino acid sequence (primary structure) has been assembled. • to be functional it must coil or fold into precise secondary and tertiary structure • Chaperone proteins – older proteins that pick up new proteins and guides the new protein in folding into the proper shapes – helps to prevent improper association between different proteins – also called stress proteins or heat-shock proteins • chaperones produced in response to heat or stress • help damaged protein fold back into correct functional shapes
  • 33.
    4-33 Protein Packaging andSecretion Figure 4.11 Nucleus Rough ER Golgi complex Lysosome Ribosomes Protein packaged into transport vesicle, which buds from ER. Transport vesicles fuse into clusters that unload protein into Golgi complex. Golgi complex modifies protein structure. Golgi vesicle containing finished protein is formed. Secretory vesicles release protein by exocytosis. 1 2 3 4 5 6 Clathrin-coated transport vesicle Protein formed by ribosomes on rough ER. Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.
  • 34.
    4-34 Protein Processing andSecretion • proteins to be used in the cytosol are likely to be made on free ribosomes in cytosol • proteins destined for packaging into lysosomes or secretion from the cell are assembled on rough ER and sent to golgi complex for packaging – entire polyribosome migrated to the rough ER and docks on its surface – assembled amino acid chain completed on rough ER – sent to Golgi for final modification
  • 35.
    4-35 Protein Processing andSecretion • proteins assembled on ER surface • threads itself through a pore in the ER membrane into cisterna • modifies protein by posttranslational modification – removing some amino acid segments – folding the protein – stabilizing protein with disulfide bridges – adding carbohydrates • when rough ER finished with protein – pinches off bubblelike transport vesicle coated with clathrin – clathrin helps select the proteins to be transported in vesicles and helps mold forming vesicle – vesicles detach from ER and carry protein to the nearest cisterna of Golgi complex • vesicles fuse and unloads proteins into Golgi cisterna • Golgi complex further modifies the protein • passes from cisterna closest to ER to cisterna farthest from ER • buds off new coated Golgi vesicles containing finished protein • some Golgi vesicles become lysosomes • others become secretory vesicles migrate to plasma membrane, fuse to it, and release their cell product by exocytosis
  • 36.
    4-36 Mechanism of GeneActivation Figure 4.12 mRNA for casein Casein Exocytosis Regulatory protein (transcription activator) Casein gene RNA polymerase Rough Endoplasmic reticulum Golgi complex Secretory vesicles Prolactin Prolactin receptors 2 1 3 4 5 6 7 ATP Pi ADP + Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.
  • 37.
    Gene Regulation • genesare turned on and off from day to day • their products are need or not • many genes are permanently turned off in any given cell 4-37
  • 38.
    Gene Regulation • exampleof several ways to turn genes on or off • mother giving birth to first baby – hormone prolactin stimulates cells of the mammary glands to begin synthesizing components of breast milk – including protein casein – something never secreted before 1. prolactin binds to receptors - pair of proteins in plasma membrane of mammary cell 1. receptors trigger the activation of a regulatory protein (transcription activator) in cytoplasm 2. regulatory protein moves into the nucleus and binds to the DNA near the casein gene 3. the binding enables RNA polymerase to bind to the gene and transcribe it, producing the mRNA for casein 4-38
  • 39.
    Please note thatdue to differing operating systems, some animations will not appear until the presentation is viewed in Presentation Mode (Slide Show view). You may see blank slides in the “Normal” or “Slide Sorter” views. All animations will appear after viewing in Presentation Mode and playing each animation. Most animations will require the latest version of the Flash Player, which is available at http://get.adobe.com/flashplayer.
  • 40.
    4-40 Synthesizing Compounds Other ThanProteins • cells synthesize glycogen, fat, steroids, phospholipids, pigments, and other compounds – no genes for these – synthesis under indirect genetic control – produced by enzymatic reactions – enzymes are proteins encoded by genes • example – testosterone production – a steroid – a cell of the testes takes in cholesterol – enzymatically converts it to testosterone – only occurs when genes for enzyme are activate • genes may greatly affect such complex outcomes as behavior, aggression, and sex drive
  • 41.
    4-41 DNA Replication andCell Cycle • before cells divide, it must duplicate its DNA so it can give a complete copy of all its genes to each daughter cell. • since DNA controls all cellular function, this replication process must be very exact • Law of Complementary Base Pairing – we can predict the base sequence of one DNA strand if we know the sequence of the other – enables a cell to reproduce one strand based on the information in another
  • 42.
    4-42 DNA Replication Figure 4.14 DNApolymerase Incoming nucleotides Key A T C G Parental DNA Gap in replication Daughter DNA Old strand New strand DNA ligase Replication fork (a) (b) (c) (d) (e) DNA helicase Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.
  • 43.
    4-43 Steps of DNAReplication 1. Double helix unwinds from histones 2. enzyme DNA helicase opens one short segment of helix at a time -exposing its nitrogen bases 1. replication fork – the point where the DNA is opened up (like two separated halves of a zipper) 2. DNA polymerase molecules move along each strand -read the exposed bases -matches complementary free nucleotides 1. the two separated strands of DNA are copied by separate polymerase molecules proceeding in opposite directions -the polymerase molecule moving toward the replication fork makes a long, continuous, new strand of DNA -the polymerase molecule moving away from the replication fork makes short segments of DNA at a time…DNA ligase joins them together
  • 44.
    4-44 Steps of DNAReplication 6. from the old parental DNA molecule, two new daughter DNA molecules are made 7. semiconservative replication - each daughter DNA consists of one new helix synthesized from free nucleotides and one old helix conserved from the parental DNA 8. new histones are synthesized in cytoplasm -millions of histones are transported into the nucleus within a few minutes after DNA replication -each new DNA helix wraps around them to make a new nucleosome 9. each DNA polymerase works at a rate of 100 base pairs per second -would take weeks for one polymerase to replicate one chromosome -thousands of polymerase molecules work simultaneously on each DNA molecule 10. all 46 chromosomes are replicated in 6 - 8 hours
  • 45.
    Please note thatdue to differing operating systems, some animations will not appear until the presentation is viewed in Presentation Mode (Slide Show view). You may see blank slides in the “Normal” or “Slide Sorter” views. All animations will appear after viewing in Presentation Mode and playing each animation. Most animations will require the latest version of the Flash Player, which is available at http://get.adobe.com/flashplayer.
  • 46.
    4-46 Errors and Mutations •DNA polymerase does make mistakes – multiple modes for correction of replication errors – double checks the new base pair and tend to replace incorrect, biochemically unstable pairs with more stable correct pairs – result is only 1 error per 1 billion bases replicated • mutations - changes in DNA structure due to replication errors or environmental factors (radiation, viruses, chemicals) – some mutations cause no ill effects. others kill the cell, turn it cancerous or cause genetic defects in future generations.
  • 47.

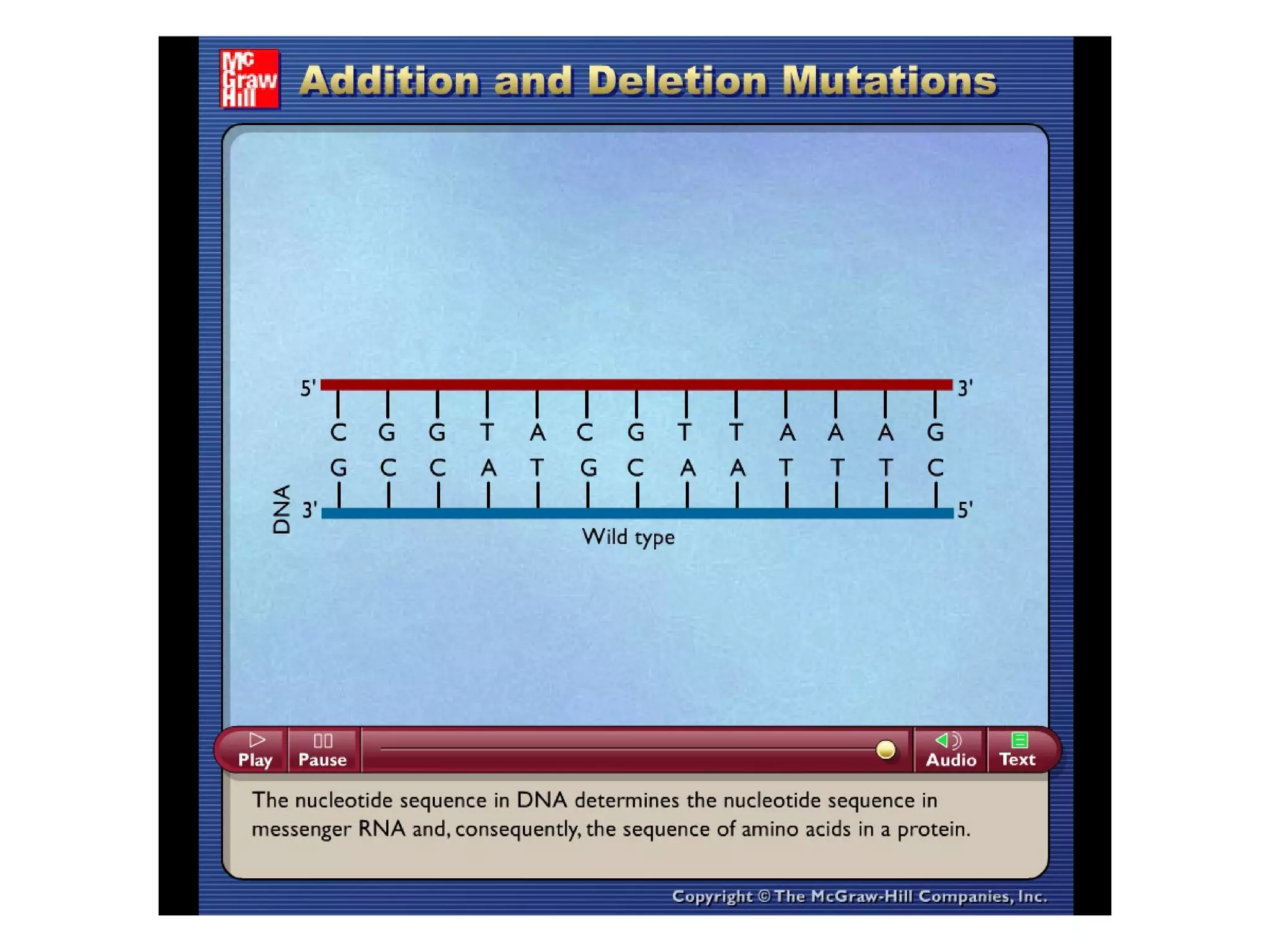

    Please note thatdue to differing operating systems, some animations will not appear until the presentation is viewed in Presentation Mode (Slide Show view). You may see blank slides in the “Normal” or “Slide Sorter” views. All animations will appear after viewing in Presentation Mode and playing each animation. Most animations will require the latest version of the Flash Player, which is available at http://get.adobe.com/flashplayer.
  • 48.
    Please note thatdue to differing operating systems, some animations will not appear until the presentation is viewed in Presentation Mode (Slide Show view). You may see blank slides in the “Normal” or “Slide Sorter” views. All animations will appear after viewing in Presentation Mode and playing each animation. Most animations will require the latest version of the Flash Player, which is available at http://get.adobe.com/flashplayer.
  • 49.
    4-49 Cell Cycle • CellCycle – the cell’s life cycle that extends from one division to the next • G1 phase, the first gap phase – interval between cell division and DNA replication – accumulates materials needed to replicate DNA • S phase, synthesis phase – duplicates centrioles – DNA replication occurs • G2 phase, second gap phase – interval between DNA replication andcell division – finishes centriole duplication – synthesizes enzymes that control cell division – repairs DNA replication errors • M phase, mitotic phase – cell replicates its nucleus – pinches in two to form new daughter cells • Interphase – collection of G1, S, and G2 phases • G0 (G zero) phase - cells that have left the cycle for a “rest” – muscle and nerve cells Figure 4.15 Prophase Metaphase Anaphase Telophase Cytokinesis G2 Second gap phase Growth and preparation for mitosis G1 First gap phase Growth and normal metabolic roles S Synthesis phase DNA replication Interphase Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.
  • 50.
    Please note thatdue to differing operating systems, some animations will not appear until the presentation is viewed in Presentation Mode (Slide Show view). You may see blank slides in the “Normal” or “Slide Sorter” views. All animations will appear after viewing in Presentation Mode and playing each animation. Most animations will require the latest version of the Flash Player, which is available at http://get.adobe.com/flashplayer.
  • 51.
    4-51 Mitosis • cell divisionin all body cells except the eggs and sperm • Functions of mitosis – development of the individual from one fertilized egg to some 40 trillion cells – growth of all tissues and organs after birth – replacement of cells that die – repair of damaged tissues • 4 phases of mitosis – prophase, metaphase, anaphase, telophase
  • 52.
    4-52 Mitosis Figure 4.16 Aster 2 3 1 4 Chromatids Centriole Spindle fibers Kinetochore Nucleolus Chromatin Cleavagefurrow Metaphase Chromosomes lie along midline of cell. Some spindle fibers attach to kinetochores. Fibers of aster attach to plasma membrane. Anaphase Centromeres divide in two. Spindle fibers pull sister chromatids to opposite poles of cell. Each pole (future daughter cell) now has an identical set of genes. Telophase Chromosomes gather at each pole of cell. Chromatin decondenses. New nuclear envelope appears at each pole. New nucleoli appear in each nucleus. Mitotic spindle vanishes. Prophase Chromosomes condense and nuclear envelope breaks down. Spindle fibers grow from centrioles. Centrioles migrate to opposite poles of cell. Nuclear envelope re-forming Daughter cells in interphase Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.
  • 53.
    4-53 Mitosis: Prophase • chromosomesshorten and thicken coiling into compact rods – easier to distribute to daughter cells than chromatin • 46 chromosomes – two chromatids per chromosome – one molecule of DNA in each chromatid • nuclear envelope disintegrates and releases chromosomes into the cytosol • centrioles sprout elongated microtubules – spindle fibers – push centrioles apart as they grow – pair of centrioles lie at each pole of the cell • some spindle fibers grow toward chromosomes and attach to the kinetochore on each side of the centromere • spindle fibers then tug the chromosomes back and forth until they line up along the midline of the cell
  • 54.
    4-54 Mitosis: Prophase Figure 4.16(1) 1 1 Prophase Chromosomes condense and nuclear envelope breaks down. Spindle fibers grow from centrioles. Centrioles migrate to opposite poles of cell. Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. © Ed Reschke
  • 55.
    4-55 Mitosis: Metaphase • Chromosomesare aligned on cell equator – oscillating slightly and awaiting signal that stimulates each of them to split • mitotic spindle – lemon-shaped array of spindle fibers – long spindle fibers (microtubules) attach to chromosomes – shorter microtubules (aster) anchor centrioles to plasma membrane at each end of cell Figure 4.16 (2) Aster 2 2 Metaphase Chromosomes lie along midlineof cell. Some spindle fibers attach to kinetochores. Fibers of aster attach to plasma membrane. Spindle fibers Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. © Ed Reschke
  • 56.
    4-56 Mitosis: Anaphase • activationof an enzyme that cleaves two sister chromatids apart at centromere • daughter chromosomes migrate towards each pole of the cell with centromere leading the way – motor proteins in kinetochore crawling along the spindle fiber as the fiber itself is ‘chewed up’ and disassembled at the chromosomal end – daughter cells of mitosis are genetically identical Figure 4.16 (3) 3 3 Anaphase Centromeres divide in two. Spindle fibers pull sister chromatids to opposite poles of cell. Each pole (future daughter cell) now has an identical set of genes. Chromatids Kinetochore Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. © Ed Reschke
  • 57.
    4-57 Mitosis: Telophase • chromatidscluster on each side of the cell • rough ER produces new nuclear envelope around each cluster • chromatids begin to uncoil and form chromatin • mitotic spindle breaks up and vanishes • each nucleus forms nucleoli – indicating it has already begun making RNA and preparing for protein synthesis
  • 58.
    4-58 Cytokinesis • cytokinesis –the division of cytoplasm into two cells – telophase is the end of nuclear division but overlaps cytokinesis – early traces of cytokinesis visible in anaphase • achieved by motor protein myosin pulling on microfilaments of actin in the terminal web of cytoskeleton • creates the cleavage furrow around the equator of cell • cell eventually pinches in two
  • 59.
    Please note thatdue to differing operating systems, some animations will not appear until the presentation is viewed in Presentation Mode (Slide Show view). You may see blank slides in the “Normal” or “Slide Sorter” views. All animations will appear after viewing in Presentation Mode and playing each animation. Most animations will require the latest version of the Flash Player, which is available at http://get.adobe.com/flashplayer.
  • 60.
    4-60 Timing of CellDivision Cells divide when: • they have enough cytoplasm for two daughter cells • they have replicated their DNA • adequate supply of nutrients • are stimulated by growth factor – chemical signals secreted by blood platelets, kidney cells, and other sources • neighboring cells die, opening up space in a tissue to be occupied by new cells Cells stop dividing when: • snugly contact neighboring cells • when nutrients or growth factors are withdrawn • contact inhibition – the cessation of cell division in response to contact with other cells
  • 61.
    4-61 Chromosomes and Heredity •heredity - transmission of genetic characteristics from parent to offspring • karyotype - chart of 46 chromosomes laid out in order by size and other physical features • 23 pairs – the two members of each pair are called homologous chromosomes – 1 chromosome from each pair inherited from each parent • 22 pairs called autosomes – look alike and carry the same genes • one pair of sex chromosomes (X and Y) – normal female has homologous pair of X chromosomes – normal male has one X and one much smaller Y chromosome • diploid – any cell with 23 pairs of chromosomes (somatic cells) • haploid – contain half as many chromosomes as somatic cells – sperm and egg cells (germ cells) • fertilization restores diploid number to the fertilized egg and the somatic cells arise from it.
  • 62.
    4-62 Karyotype of NormalMale Figure 4.17 Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. Peter Arnold, Inc.
  • 63.
    4-63 Genes and Alleles •locus – the location of a particular gene on a chromosome • alleles - different forms of gene at same locus on two homologous chromosomes • dominant allele (represented by capital letter) – corresponding trait is usually detectable in the individual – masks the effect of any recessive allele that may be present – produces protein responsible for visible trait • recessive allele (represented by lower case letter) – expressed only when present on both of the homologous chromosomes – no dominant alleles at that locus
  • 64.
    4-64 Genetics of Cleftchin Figure 4.18 bAllele for cleft chin is dominant. (b) C c c C Cc Heterozygous cleft chin Cc Heterozygous cleft chin cc Homozygous uncleft chin CC Homozygous, cleft chin Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.
  • 65.
    4-65 Genes and Alleles •genotype – the alleles that an individual possesses for a particular trait – homozygous alleles – two identical alleles for a trait – heterozygous alleles – different alleles for that gene • phenotype – an observable trait – an allele is expressed if it shows in the phenotype of an individual • genetic counselors – perform genetic testing or refer clients for tests, advise couples on the probability of transmitting genetic diseases, and assist people on coping with genetic disease • Punnett square shows how 2 heterozygous parents with cleft chins can have child with uncleft chin – heterozygous carriers of hereditary diseases such as cystic fibrosis – both parents healthy
  • 66.
    4-66 Multiple Alleles, Codominance, andIncomplete Dominance • gene pool - collective genetic makeup of population as a whole • multiple alleles - more than two allelic forms for a trait – 100 alleles are responsible for cystic fibrosis – 3 alleles for ABO blood types • IA , IB , i alleles for ABO blood types • codominant - both alleles equally dominant – IA IB = type AB blood – both are phenotypically expressed • incomplete dominance – phenotype intermediate between traits each allele would have produced alone
  • 67.
    4-67 Polygenic Inheritance • genesat two or more loci, or even different chromosomes, contribute to a single phenotypic trait (skin and eye color, alcoholism, mental illness, cancer, and heart disease) Figure 4.19 Gene 1 Gene 2 Phenotype (eye color) Gene 3 Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. (top): Comstock/Getty Images; (middle & bottom): Photodisc Red/Getty Images
  • 68.
    4-68 Pleiotropy • One geneproduces multiple phenotypic effects – alkaptonuria - mutation on chromosome 3 that blocks the breakdown of tyrosine – sickle-cell disease is another example of pleiotrophy Figure 4.20 Gene Phenotype 3 (urine darkens upon standing) Phenotype 1 (darkened skin) Phenotype 2 (darkened sclera of eye) Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. (1&3): From G. Pierrard, A. Nikkels. April 5, 2001, A Medical Mystery. New England Journal of Medicine, 344: p. 1057. © 2001 Massachusetts Medical Society. All rights reserved; (2): British Journal of Ophthalmology 1999; 83:680 © by BMJ Publishing Group Ltd/http://www.bjophthalmol.com
  • 69.
    4-69 Sex Linkage • Sex-linkedtraits – carried on the X and Y chromosomes, and therefore tend to be inherited by one sex more than the other • Recessive color blindness allele on X, no gene locus for trait on Y, so red-green color blindness more common in men (mother is carrier) Figure 4.21 X X X Y C c c Female (XX) Genotype Cc Normal vision Male (XY) Genotype c– Color blindness Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.
  • 70.
    4-70 Penetrance and Environmental Effects•Penetrance – the percentage of a population with a given genotype that actually exhibits the predicted phenotype – polydacyly • Role of environment – no gene can produce a phenotypic effect without nutritional and other environmental input – need both the genetic recipe and the ingredients – brown eye color requires phenylalanine from diet to produce melanin pigment Figure 4.22 Phenotype (brown eyes) From diet (environment) Phenvlalanine (amino acid) Melanin (pigment) Genes (DNA) Tyrosine Enzyme 1 mRNA 1 Enzyme 2 mRNA 2
  • 71.
    4-71 Dominant and RecessiveAlleles at the Population Level • common misconception that dominant alleles must be more common in the gene pool than recessive alleles • some recessive alleles, blood type O, are the most common • some dominant alleles, polydactyly and blood type AB, are rare in the population
  • 72.
    4-72 Cancer • benign tumor –slow growth – contained in fibrous capsule – will not metastasize – usually easy to treat • malignant tumor – called cancer – fast growing – metastasize – give off cells that seed the growth of multiple tumors elsewhere • Oncology – medical specialty that deals with both benign and malignant tumors • tumor angiogenesis – ingrowth of blood vessels stimulated by energy-hungry tumors
  • 73.
    4-73 Cancer • Cancers arenamed for the tissue of origin – carcinomas – originate in epithelial tissue – lymphomas – originate in lymph nodes – melanomas – originate in pigment cells of epidermis (melanocytes) – leukemias – in blood forming tissues – sarcomas – in bone, other connective tissue, or muscle • carcinogen – environmental cancer-causing agents
  • 74.
    4-74 Causes of Cancer •Carcinogens – environmental cancer- causing agents – radiation – ultraviolet rays, X-rays – chemical - cigarette tar, food preservatives, industrial chemicals – viruses – human papilloma virus, hepatitis C, and type 2 herpes simplex • 5 -10% of cancers are hereditary • carcinogens trigger gene mutations
  • 75.
    4-75 Malignant Tumor Genes •Oncogenes – causes cell division to accelerate out of control • excessive production of growth factors that stimulate mitosis • the production for excessive growth factor receptors • Tumor suppressor genes – inhibit development of cancer • oppose action of oncogenes • codes for DNA repairing enzymes
  • 76.
    4-76 Lethal Effects ofCancer • replace functional tissue in vital organs • steal nutrients from the rest of the body – cachexia – severe wasting away of depleted tissues • weaken one’s immunity • open the door for opportunistic infections • often invade blood vessels, lung tissue, or brain tissue

Editor's Notes
