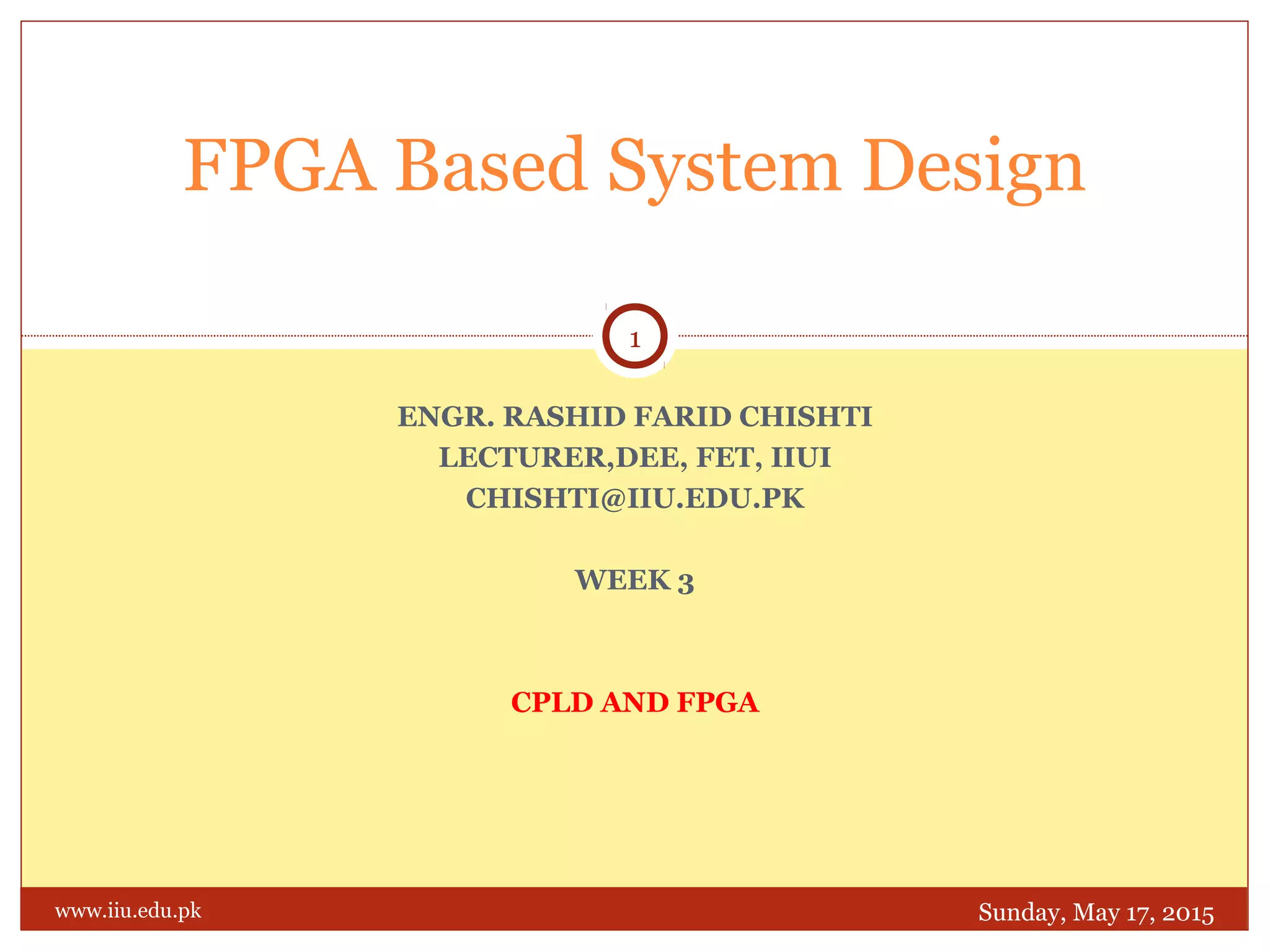

1. ENGR. RASHID FARID CHISHTI
LECTURER,DEE, FET, IIUI
CHISHTI@IIU.EDU.PK
WEEK 3
CPLD AND FPGA
FPGA Based System Design
Sunday, May 17, 2015
1
www.iiu.edu.pk

2. PAL-like
block
I/Oblock
PAL-like
block
I/Oblock
PAL-like
block
I/Oblock
PAL-like
block
I/Oblock
Interconnection wires

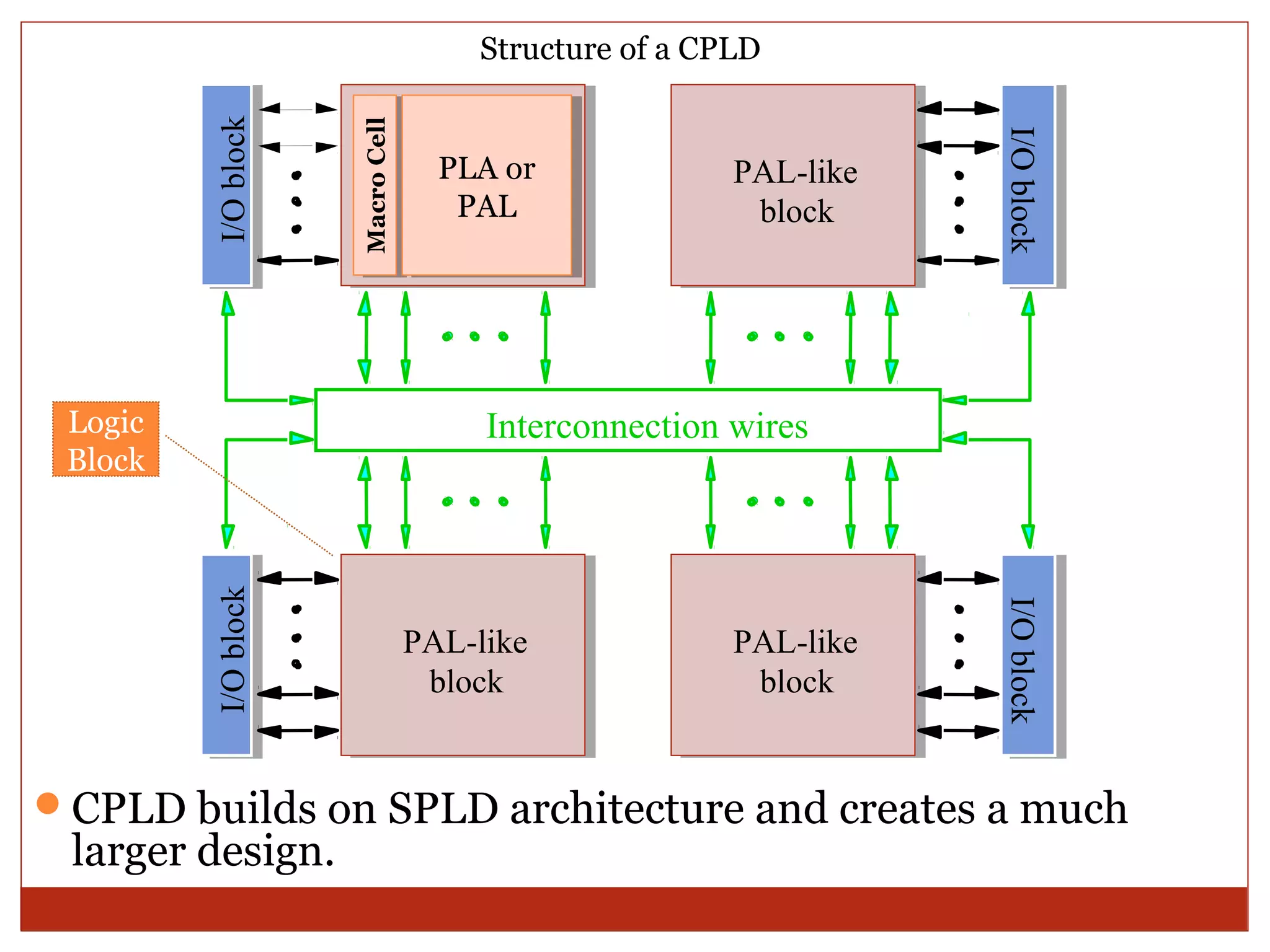

Structure of a CPLD
Logic
Block
CPLD builds on SPLD architecture and creates a much
larger design.
MacroCellMacroCell
PLA or
PAL
PLA or
PAL

3. CPLD can be used to integrate the functions of a number of
SPLDs into a single device.
The CPLD consists of a number of logic blocks (sometimes
referred to as functional blocks), each of which contains a
macrocell and either a PLA or PAL circuit arrangement.
In the center of the design is a global programmable
interconnect. This interconnect allows connections to the
logic block macrocells and the I/O cell arrays (the digital
I/O cells of the CPLD connecting to the pins of the CPLD
package).
CPLDs utilize nonvolatile memory such as EPROM,
EEPROM, and flash memory
CPLD
Sunday, May 17, 2015
3
www.iiu.edu.pk

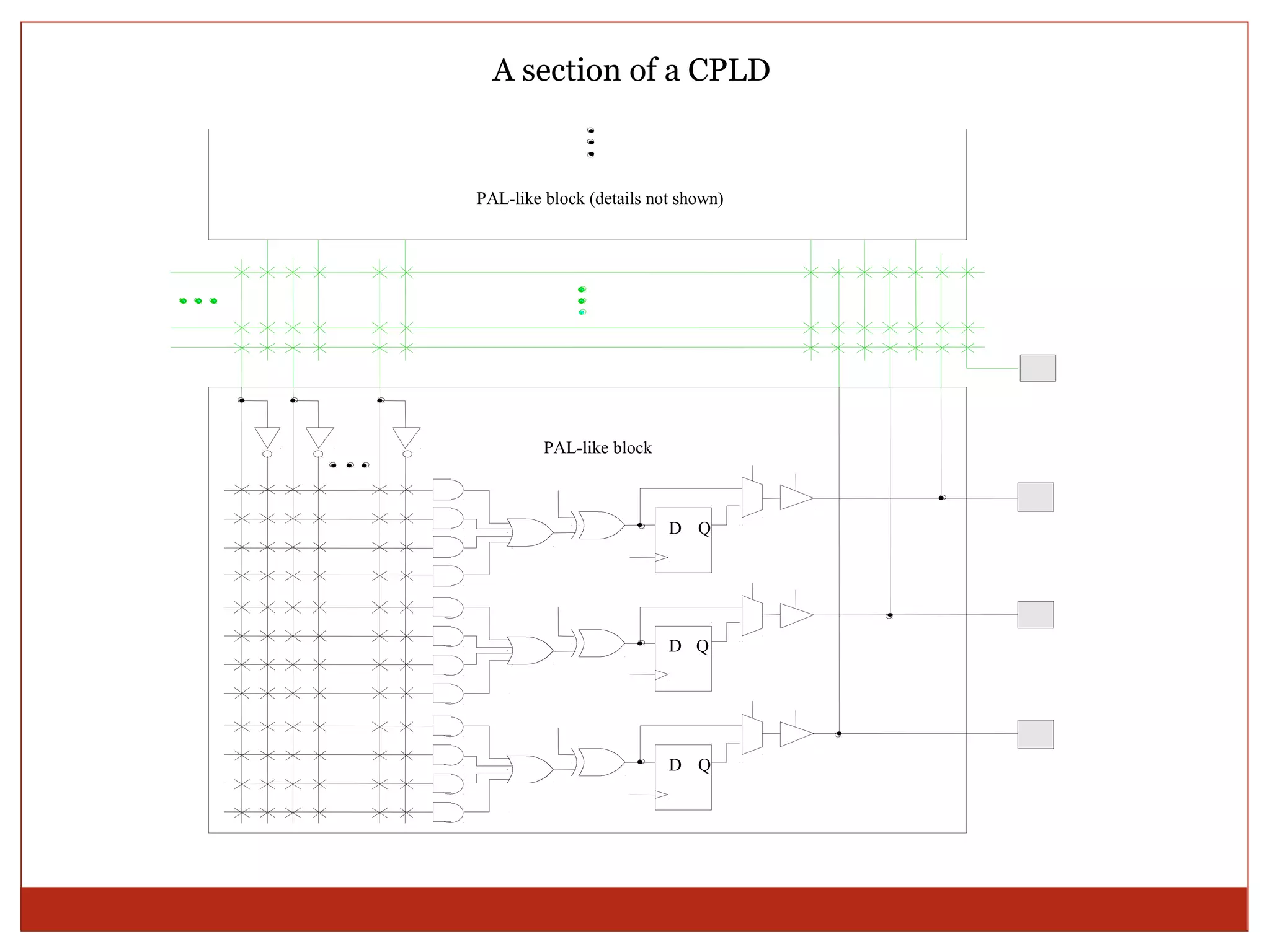

4. A section of a CPLD
D Q
D Q
D Q
PAL-like block (details not shown)
PAL-like block

5. Sunday, May 17, 2015
5
www.iiu.edu.pk

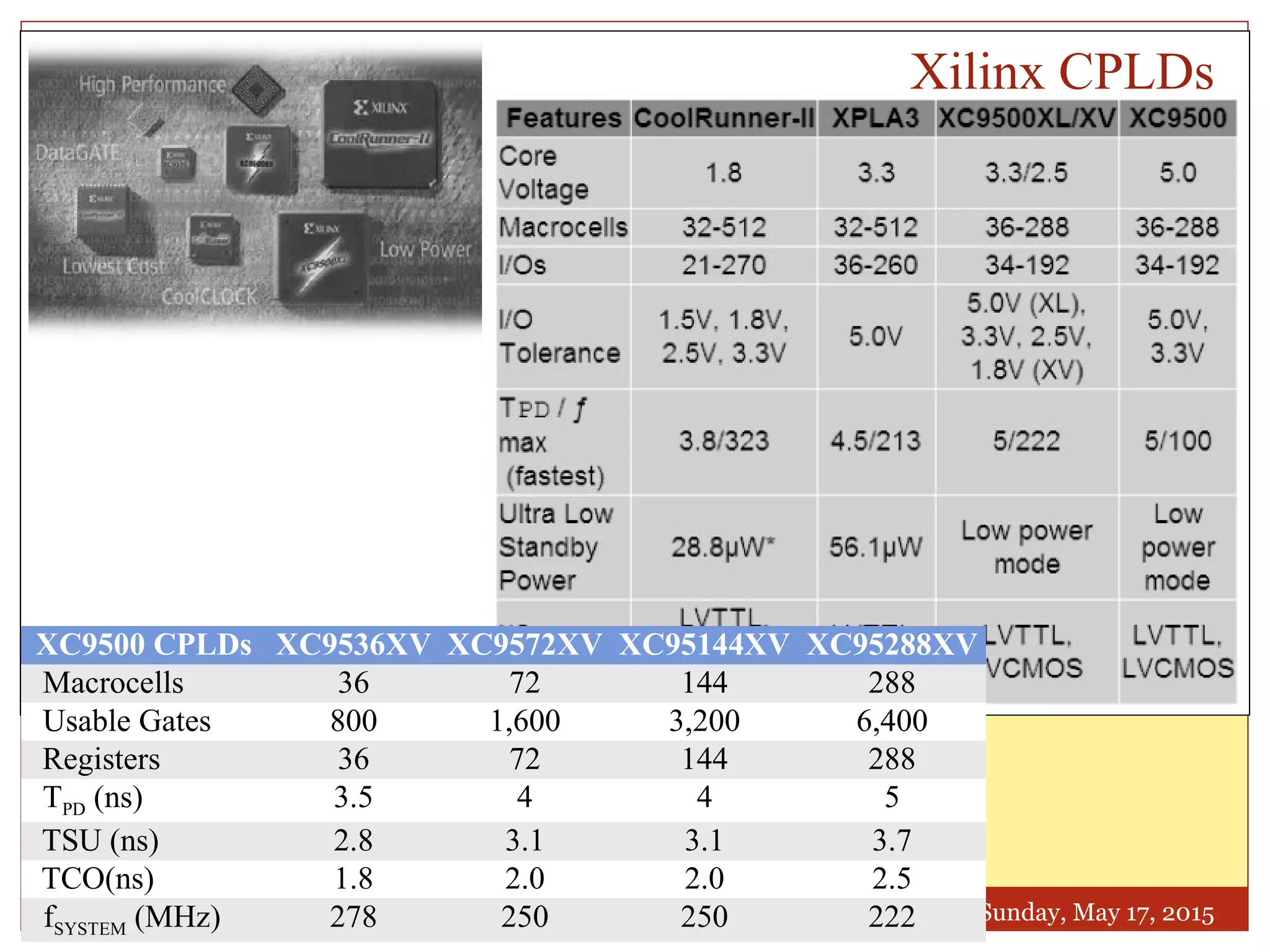

XC9500 CPLDs XC9536XV XC9572XV XC95144XV XC95288XV
Macrocells 36 72 144 288
Usable Gates 800 1,600 3,200 6,400
Registers 36 72 144 288
TPD (ns) 3.5 4 4 5
TSU (ns) 2.8 3.1 3.1 3.7
TCO(ns) 1.8 2.0 2.0 2.5
fSYSTEM (MHz) 278 250 250 222

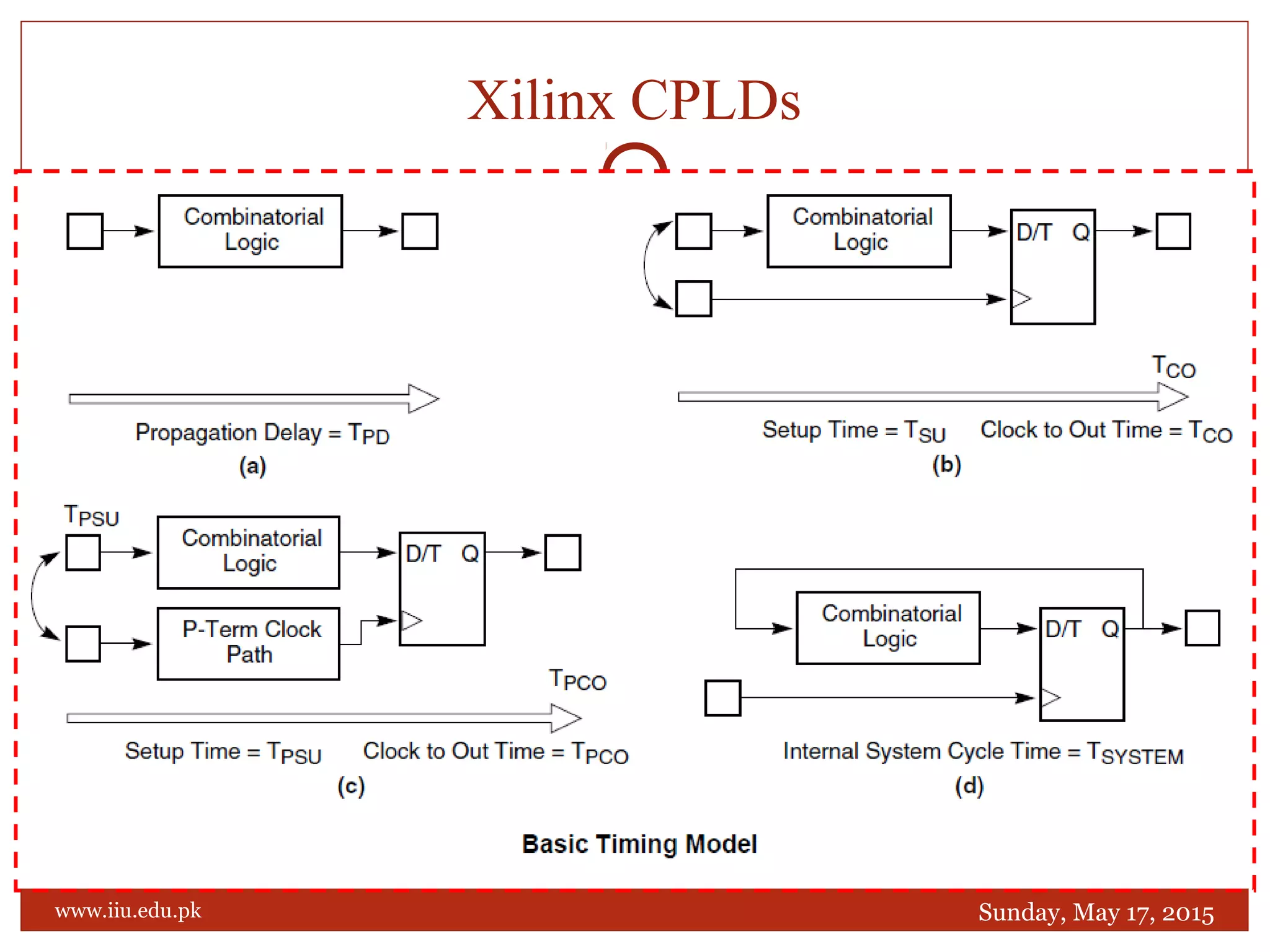

Xilinx CPLDs

6. Xilinx CPLDs
Sunday, May 17, 2015www.iiu.edu.pk

7. Sunday, May 17, 2015
7
www.iiu.edu.pk

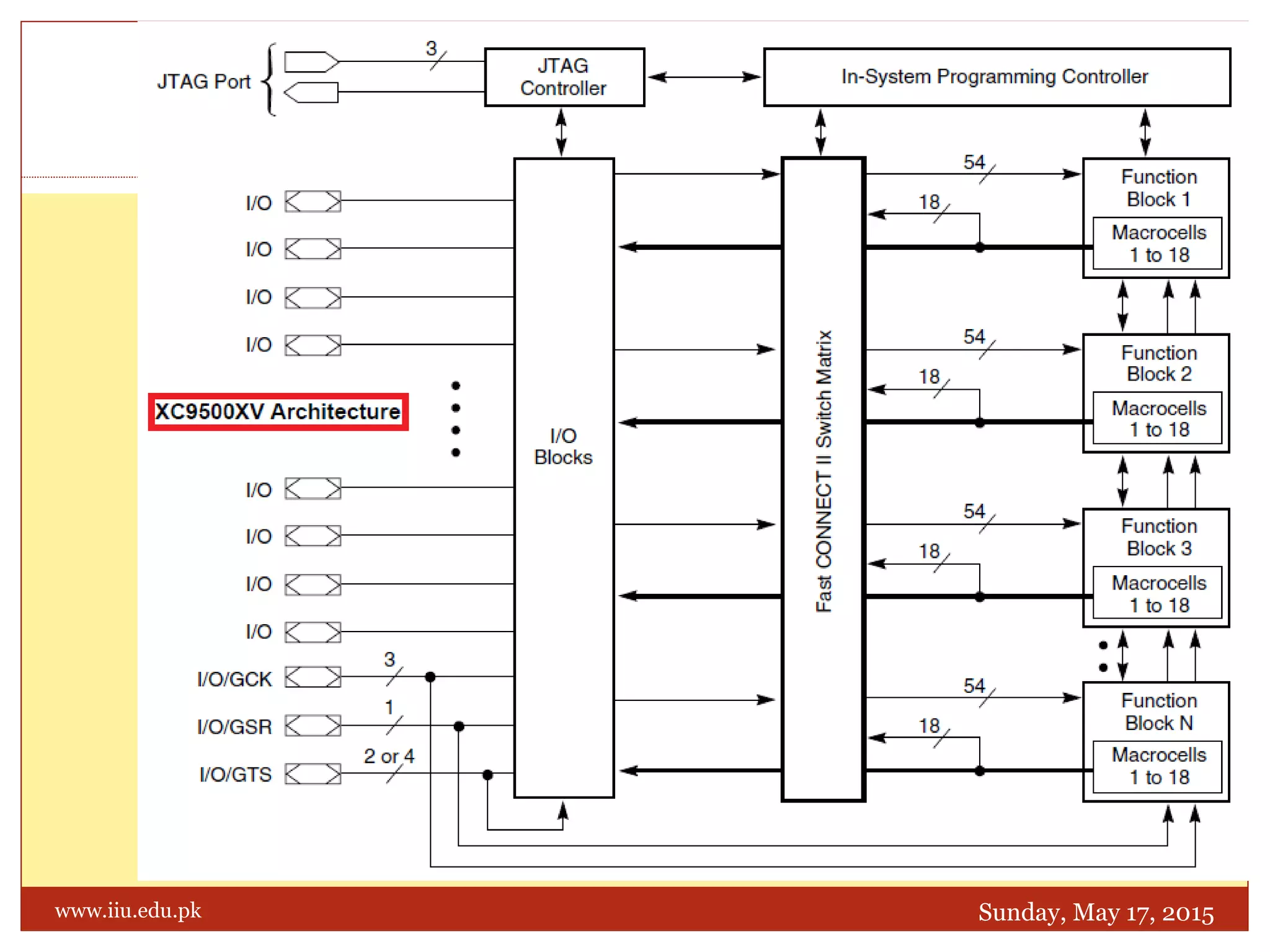

8. Xilinx XC9500 CPLD
Sunday, May 17, 2015
8
www.iiu.edu.pk
The Xilinx XC9500 family of CPLDs are flash-based (EEPROM)
and in-system programmable.
The devices are organized as an array of functional blocks in a PAL-
like structure with wide AND gates and fast flip-flops.
Each function block contains up to 18 independent macrocells (see
Figure 8-49), and can accommodate 54 inputs and drive 18 outputs
(depending on the packaging).
A FastCONNECT switch-matrix technology ensures that an
application can be fully routed even when the device utilization is
high.

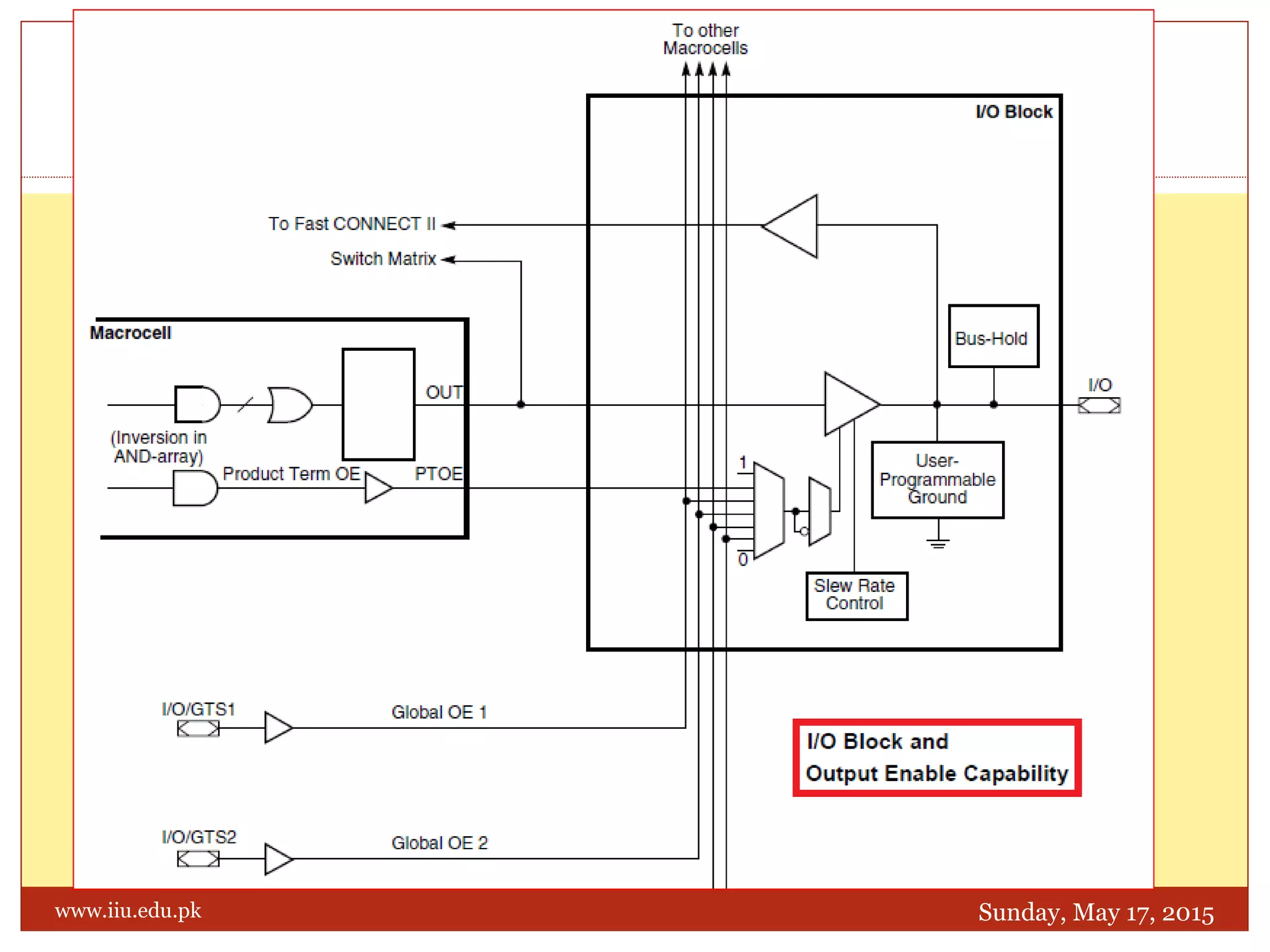

I/O blocks (IOBs) buffer the inputs and outputs to the device and
also receive the global clock and S-R signals.
The output buffers have a programmable slew rate.
The Xilinx XC9500 family of CPLDs are flash-based (EEPROM)
and in-system programmable.
The devices are organized as an array of functional blocks in a PAL-
like structure with wide AND gates and fast flip-flops.
Each function block contains up to 18 independent macrocells (see
Figure 8-49), and can accommodate 54 inputs and drive 18 outputs
(depending on the packaging).
A FastCONNECT switch-matrix technology ensures that an
application can be fully routed even when the device utilization is
high.
I/O blocks (IOBs) buffer the inputs and outputs to the device and
also receive the global clock and S-R signals.
The output buffers have a programmable slew rate.

9. Sunday, May 17, 2015
9
www.iiu.edu.pk

10. Sunday, May 17, 2015
10
www.iiu.edu.pk

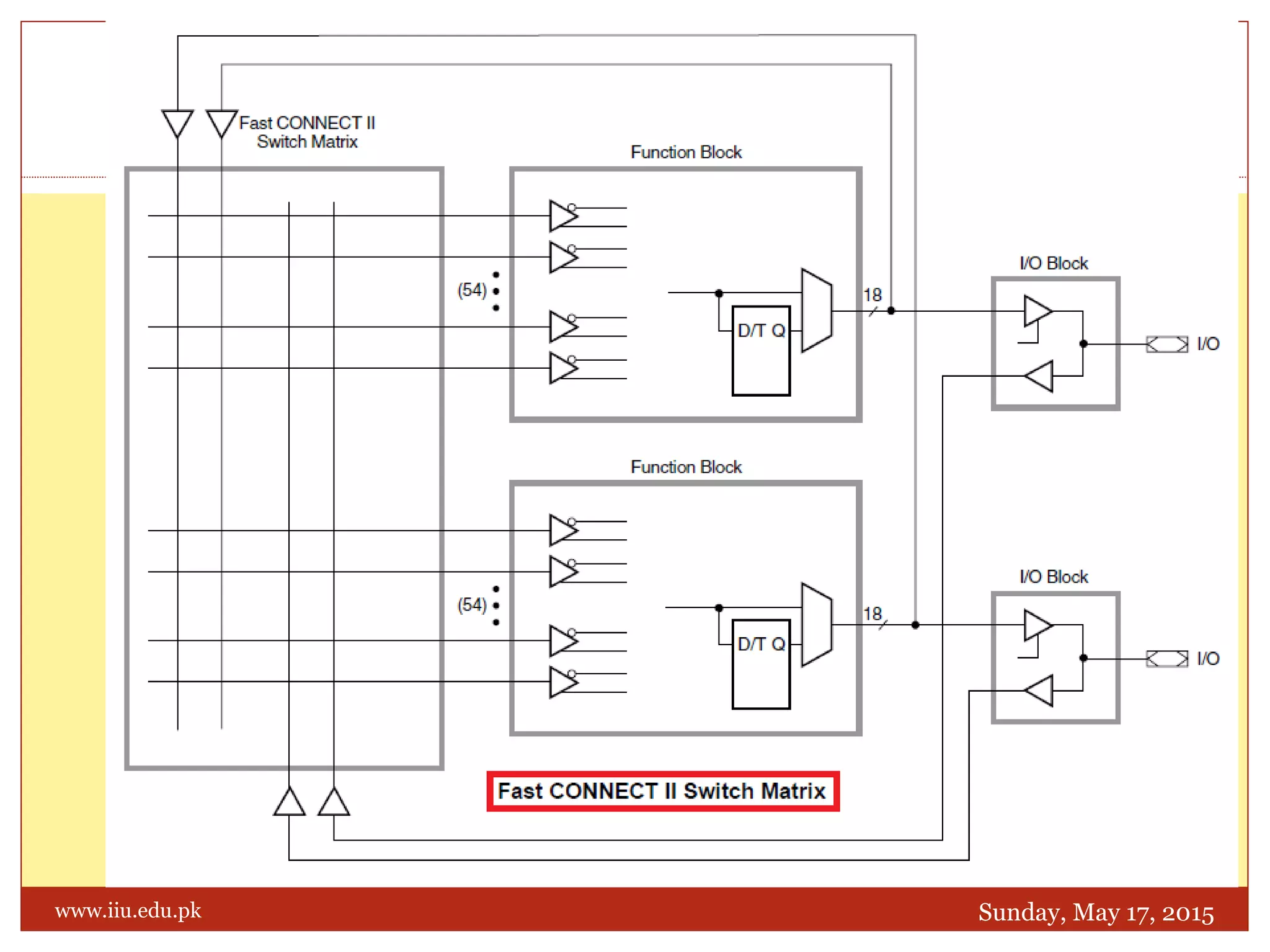

11. Sunday, May 17, 2015
11
www.iiu.edu.pk

12. Sunday, May 17, 2015
12
www.iiu.edu.pk

13. Xilinx XC9500 CPLD
Sunday, May 17, 2015
13
www.iiu.edu.pk

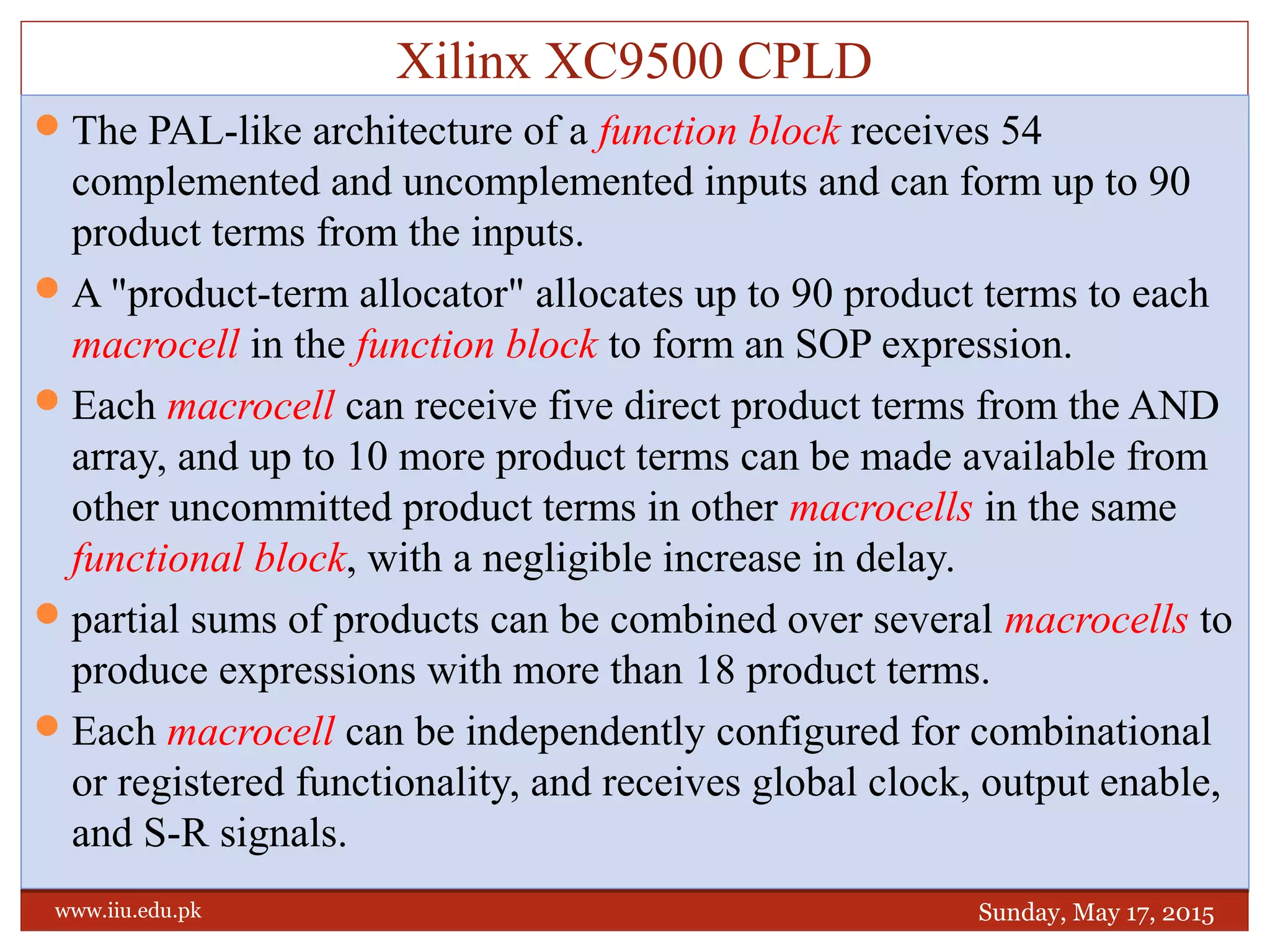

The PAL-like architecture of a function block receives 54
complemented and uncomplemented inputs and can form up to 90
product terms from the inputs.

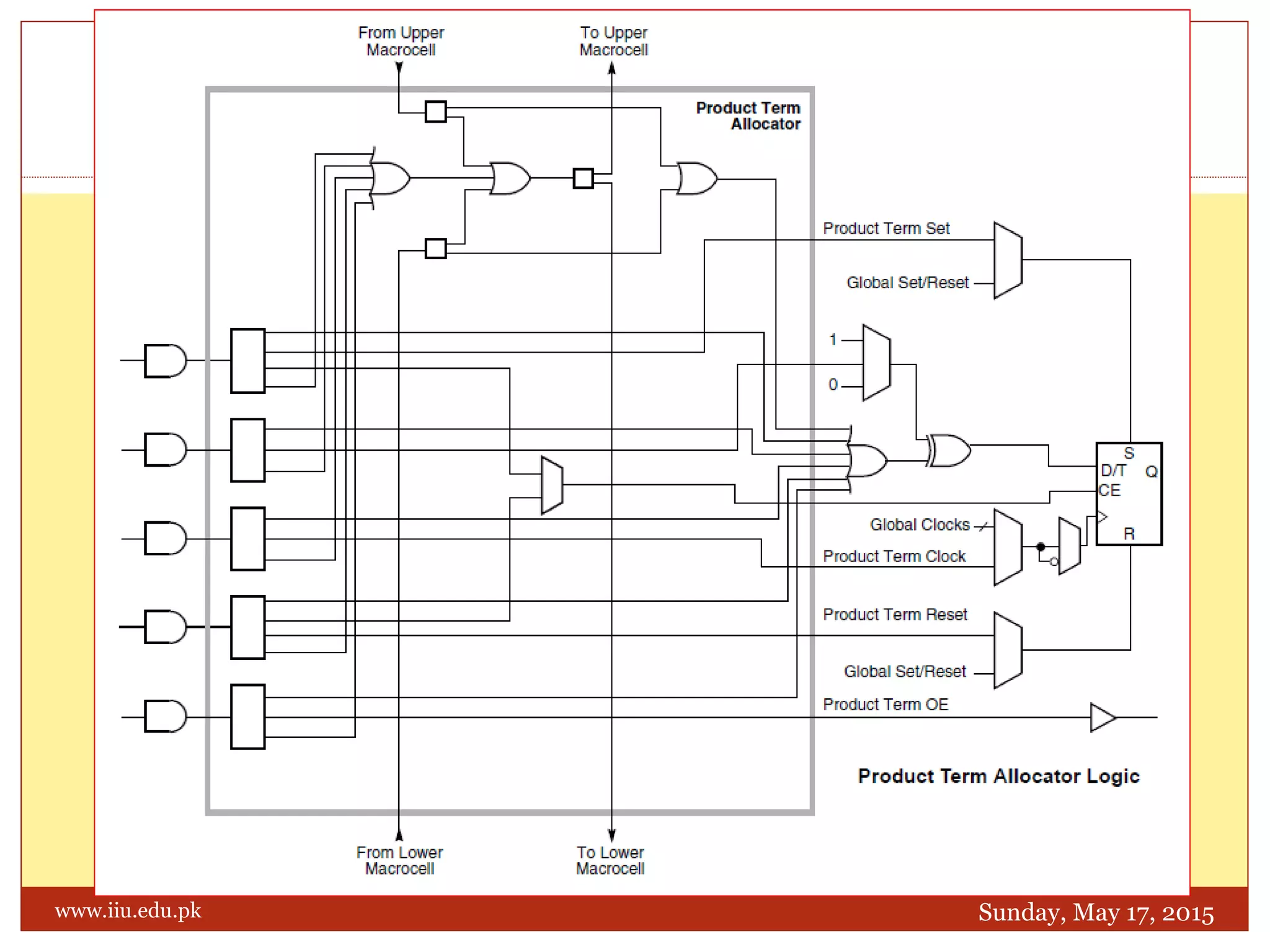

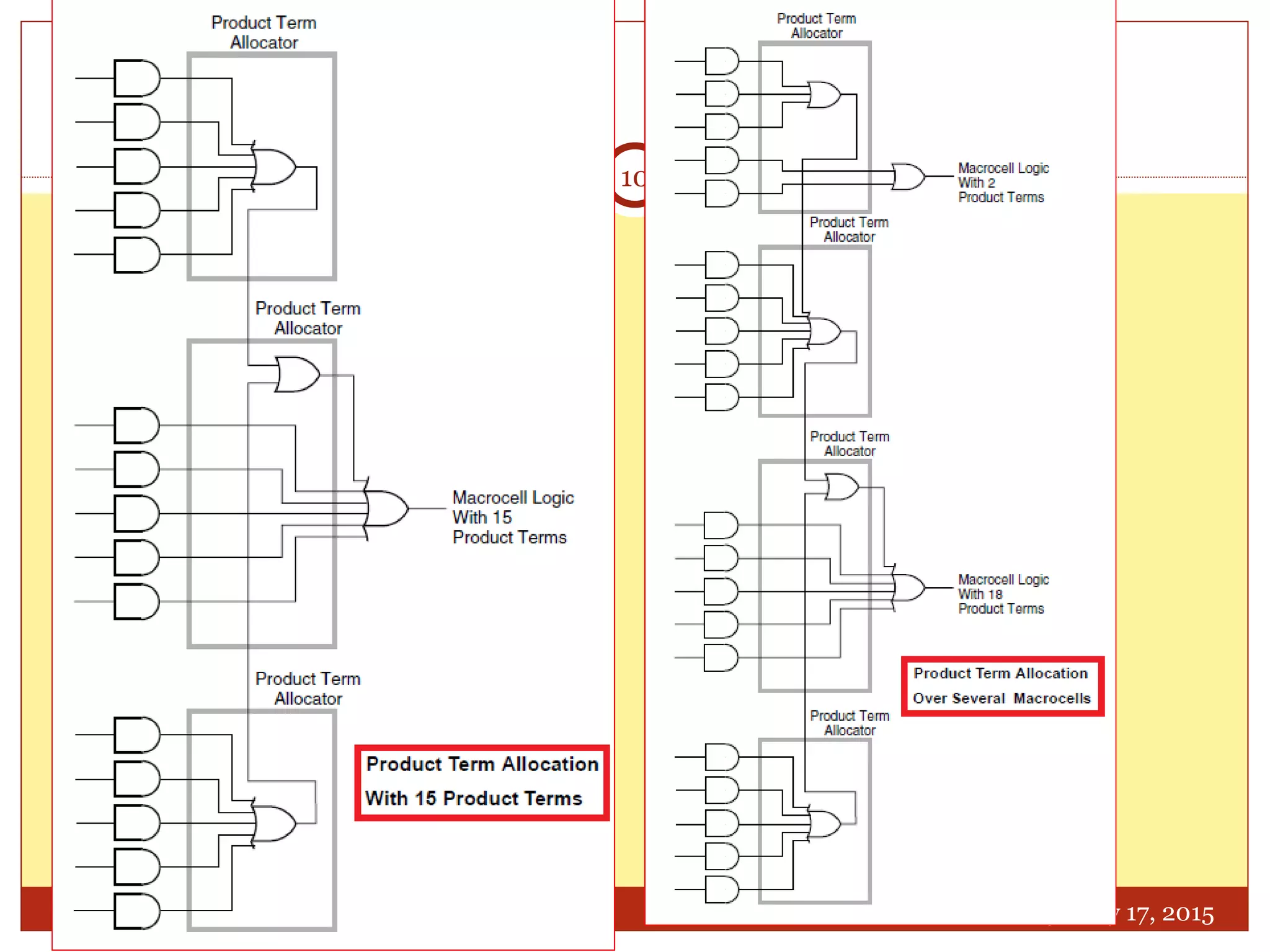

A "product-term allocator" allocates up to 90 product terms to each
macrocell in the function block to form an SOP expression.
Each macrocell can receive five direct product terms from the AND
array, and up to 10 more product terms can be made available from
other uncommitted product terms in other macrocells in the same
functional block, with a negligible increase in delay.
partial sums of products can be combined over several macrocells to
produce expressions with more than 18 product terms.
Each macrocell can be independently configured for combinational
or registered functionality, and receives global clock, output enable,
and S-R signals.
The PAL-like architecture of a function block receives 54
complemented and uncomplemented inputs and can form up to 90
product terms from the inputs.
A "product-term allocator" allocates up to 90 product terms to each
macrocell in the function block to form an SOP expression.
Each macrocell can receive five direct product terms from the AND
array, and up to 10 more product terms can be made available from
other uncommitted product terms in other macrocells in the same
functional block, with a negligible increase in delay.
partial sums of products can be combined over several macrocells to
produce expressions with more than 18 product terms.
Each macrocell can be independently configured for combinational
or registered functionality, and receives global clock, output enable,
and S-R signals.

14. Xilinx XC9500 CPLD
Sunday, May 17, 2015
14
www.iiu.edu.pk

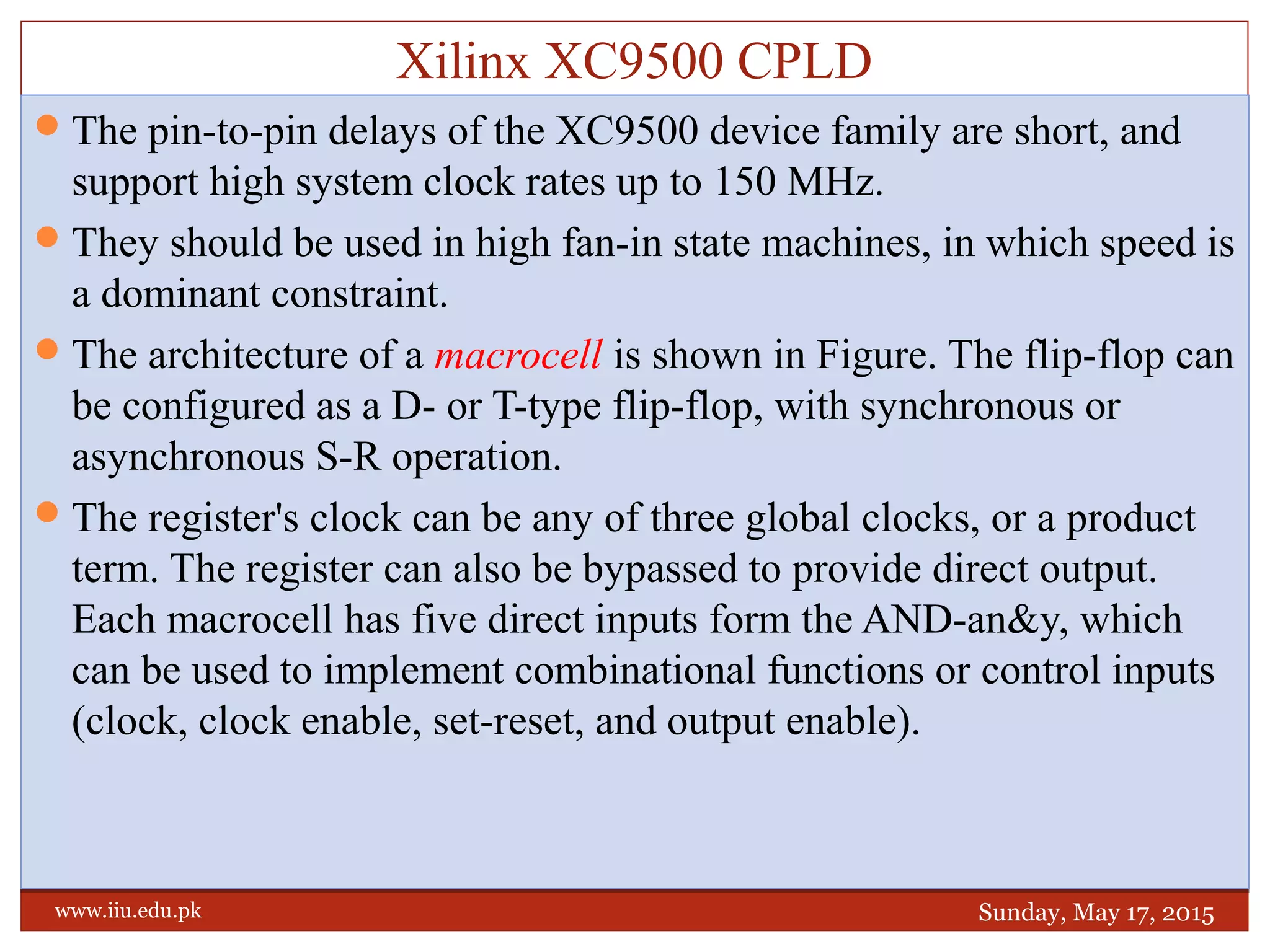

The pin-to-pin delays of the XC9500 device family are short, and
support high system clock rates up to 150 MHz.
They should be used in high fan-in state machines, in which speed is
a dominant constraint.

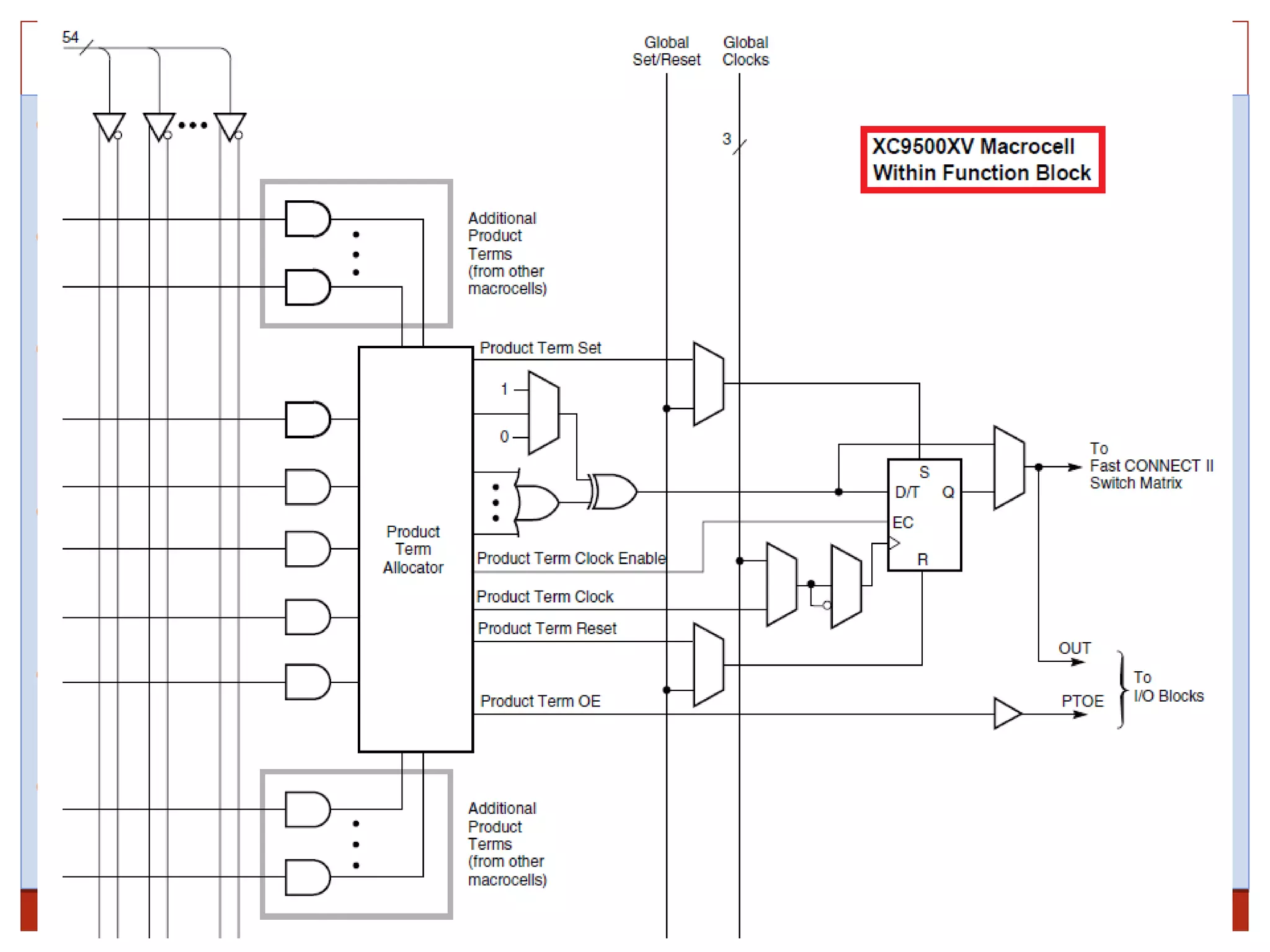

The architecture of a macrocell is shown in Figure. The flip-flop can
be configured as a D- or T-type flip-flop, with synchronous or
asynchronous S-R operation.
The register's clock can be any of three global clocks, or a product
term. The register can also be bypassed to provide direct output.
Each macrocell has five direct inputs form the AND-an&y, which
can be used to implement combinational functions or control inputs
(clock, clock enable, set-reset, and output enable).
The pin-to-pin delays of the XC9500 device family are short, and
support high system clock rates up to 150 MHz.
They should be used in high fan-in state machines, in which speed is
a dominant constraint.
The architecture of a macrocell is shown in Figure. The flip-flop can
be configured as a D- or T-type flip-flop, with synchronous or
asynchronous S-R operation.
The register's clock can be any of three global clocks, or a product
term. The register can also be bypassed to provide direct output.
Each macrocell has five direct inputs form the AND-an&y, which
can be used to implement combinational functions or control inputs
(clock, clock enable, set-reset, and output enable).

15. Sunday, May 17, 2015www.iiu.edu.pk
15

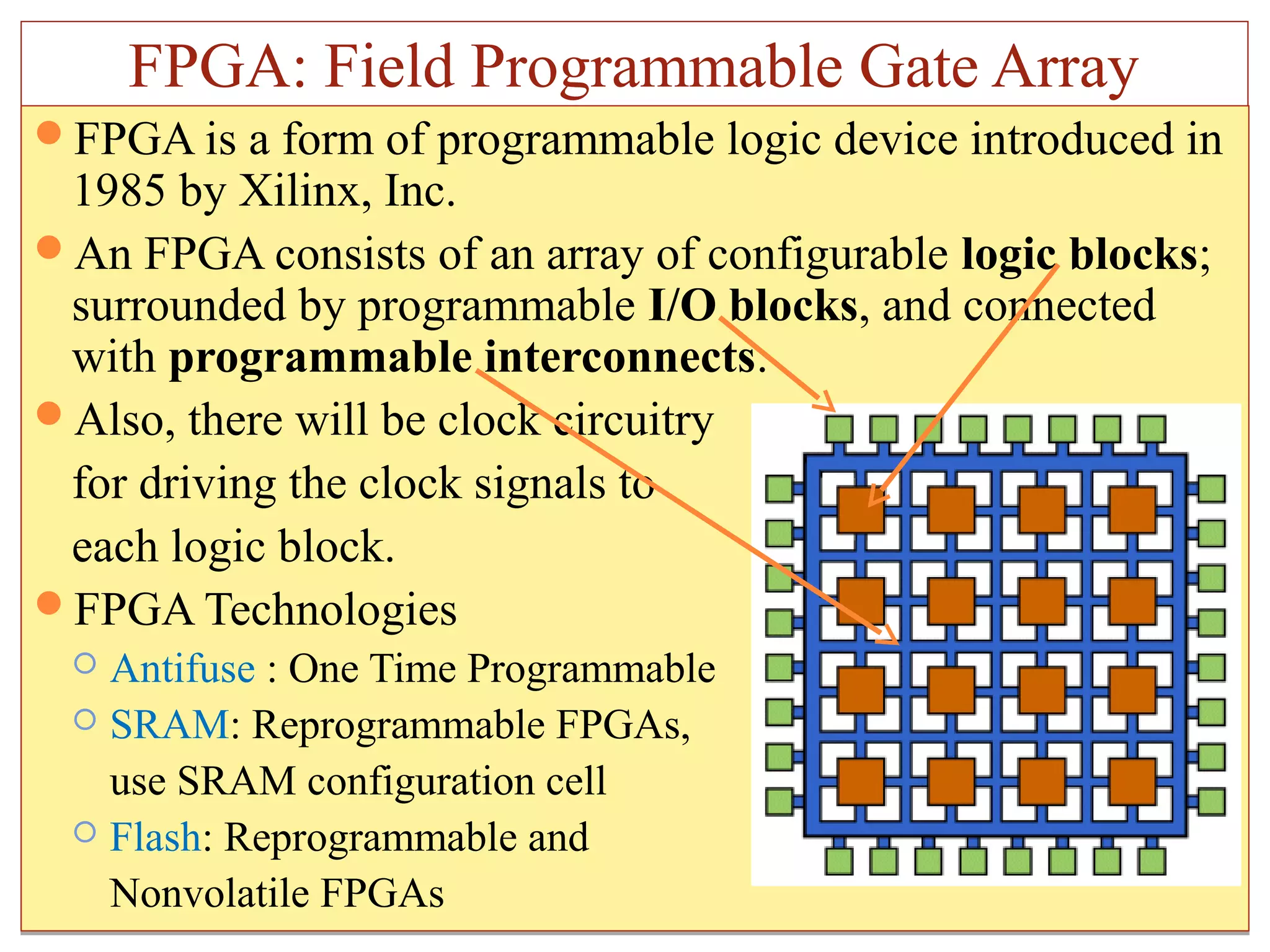

FPGA is a form of programmable logic device introduced in
1985 by Xilinx, Inc.
An FPGA consists of an array of configurable logic blocks;
surrounded by programmable I/O blocks, and connected
with programmable interconnects.
Also, there will be clock circuitry
for driving the clock signals to
each logic block.
FPGA Technologies
 Antifuse : One Time Programmable
 SRAM: Reprogrammable FPGAs,
use SRAM configuration cell
 Flash: Reprogrammable and
Nonvolatile FPGAs
FPGA is a form of programmable logic device introduced in
1985 by Xilinx, Inc.
An FPGA consists of an array of configurable logic blocks;
surrounded by programmable I/O blocks, and connected
with programmable interconnects.
Also, there will be clock circuitry
for driving the clock signals to
each logic block.
FPGA Technologies
 Antifuse : One Time Programmable
 SRAM: Reprogrammable FPGAs,
use SRAM configuration cell
 Flash: Reprogrammable and
Nonvolatile FPGAs
FPGA: Field Programmable Gate Array

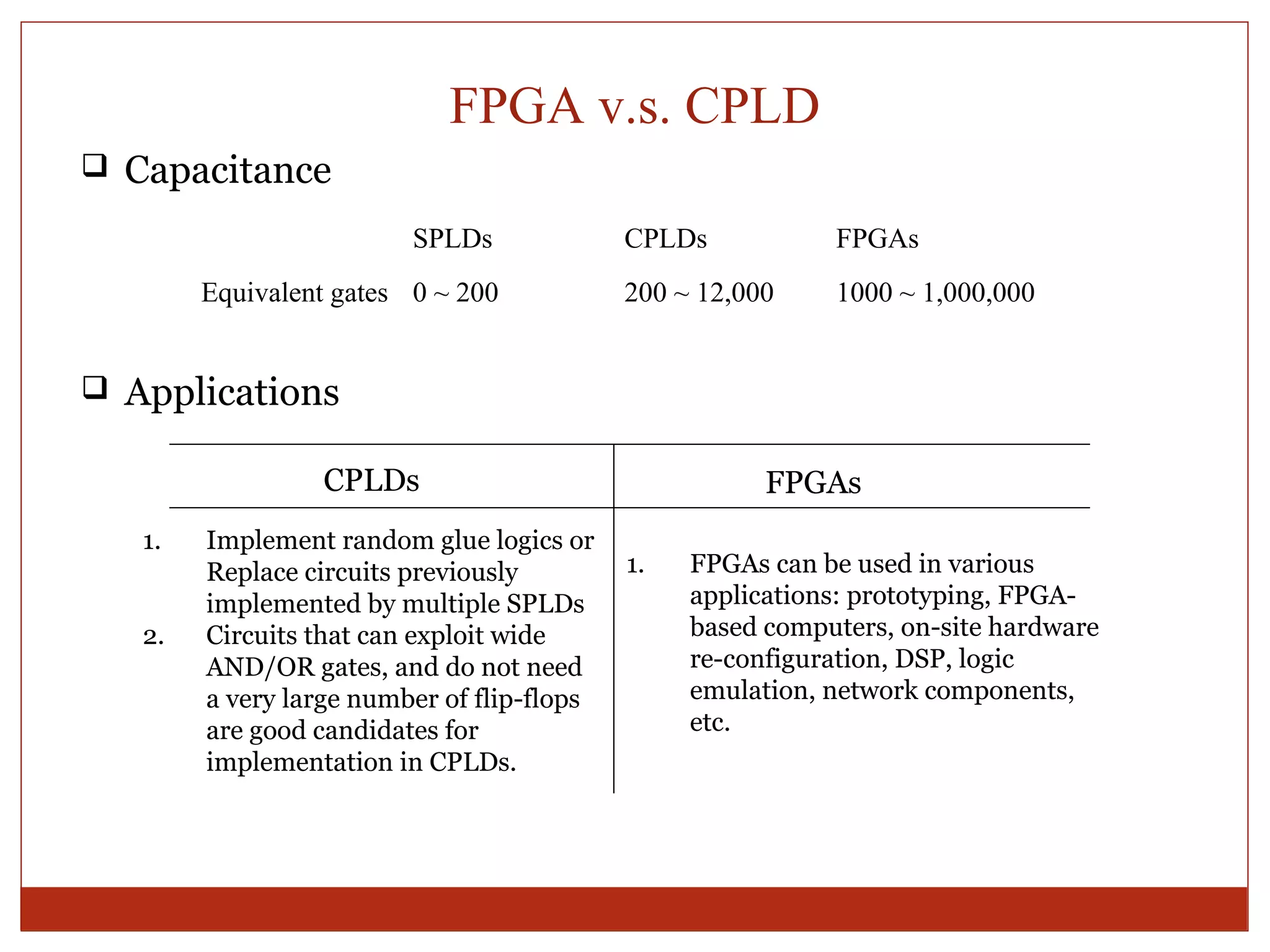

16. FPGA v.s. CPLD
 Capacitance
SPLDs CPLDs FPGAs
Equivalent gates 0 ~ 200 200 ~ 12,000 1000 ~ 1,000,000
 Applications
CPLDs FPGAs
1. Implement random glue logics or
Replace circuits previously
implemented by multiple SPLDs
2. Circuits that can exploit wide
AND/OR gates, and do not need
a very large number of flip-flops
are good candidates for
implementation in CPLDs.
1. FPGAs can be used in various
applications: prototyping, FPGA-
based computers, on-site hardware
re-configuration, DSP, logic
emulation, network components,
etc.

17. Sunday, May 17, 2015www.iiu.edu.pk
17

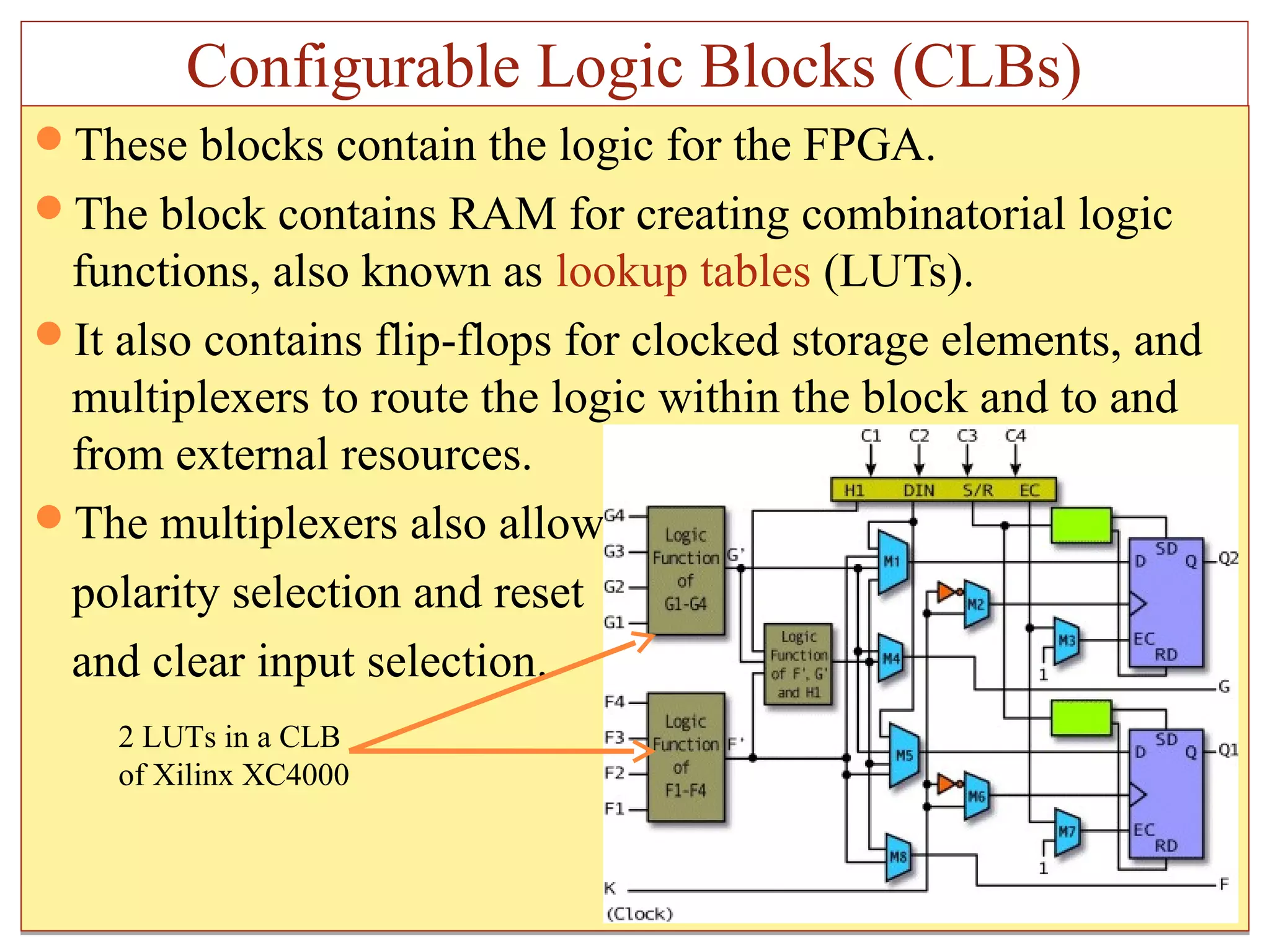

These blocks contain the logic for the FPGA.
The block contains RAM for creating combinatorial logic
functions, also known as lookup tables (LUTs).
It also contains flip-flops for clocked storage elements, and
multiplexers to route the logic within the block and to and
from external resources.
The multiplexers also allow
polarity selection and reset
and clear input selection.
These blocks contain the logic for the FPGA.
The block contains RAM for creating combinatorial logic
functions, also known as lookup tables (LUTs).
It also contains flip-flops for clocked storage elements, and
multiplexers to route the logic within the block and to and
from external resources.
The multiplexers also allow
polarity selection and reset
and clear input selection.
Configurable Logic Blocks (CLBs)
2 LUTs in a CLB
of Xilinx XC4000

18. Gates are combined to
create complex circuits
Multiplexer Example
 If S=0, Z=A
 If S=1, Z=B
Very Common Digital
Circuit
Heavily Used in FPGA
S input is controlled by
Configuration memory bit
Combinational Logic Functions
Sunday, May 17, 2015
18
www.iiu.edu.pk
0
0
1
1
1
0
1
ZA
0
B
0
0
0
0
S
0
1
1
0
0
0
1
1
1
0
1
01
1
1
1
1
0
1
0

19. Sunday, May 17, 2015www.iiu.edu.pk 19
0
0
1
1
0
1
0
1
1
0
0
1
x
1
x
2
(b) f
1
x
1
x
2
x
1
x
2
+=
f
1

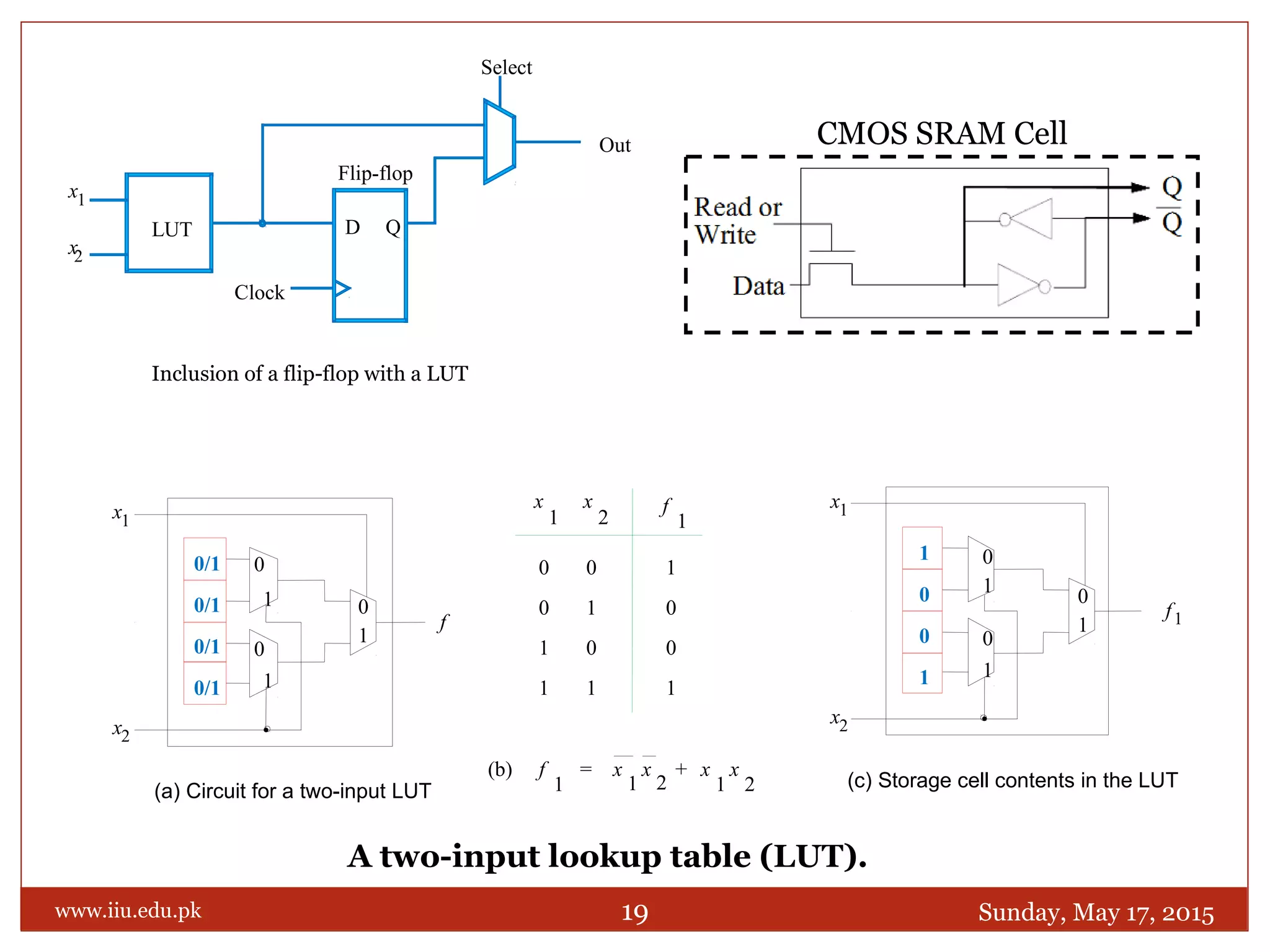

A two-input lookup table (LUT).
(c) Storage cell contents in the LUT
x1
x2
1
0
0
1
f1
1
1
0
0
1
0
(a) Circuit for a two-input LUT
x1
x2
f
0/1
0/1
0/1
0/1
1
1
0
0
1
0
Out
D Q
Clock
Select
Flip-flop
LUT
Inclusion of a flip-flop with a LUT
x1
x2
CMOS SRAM Cell

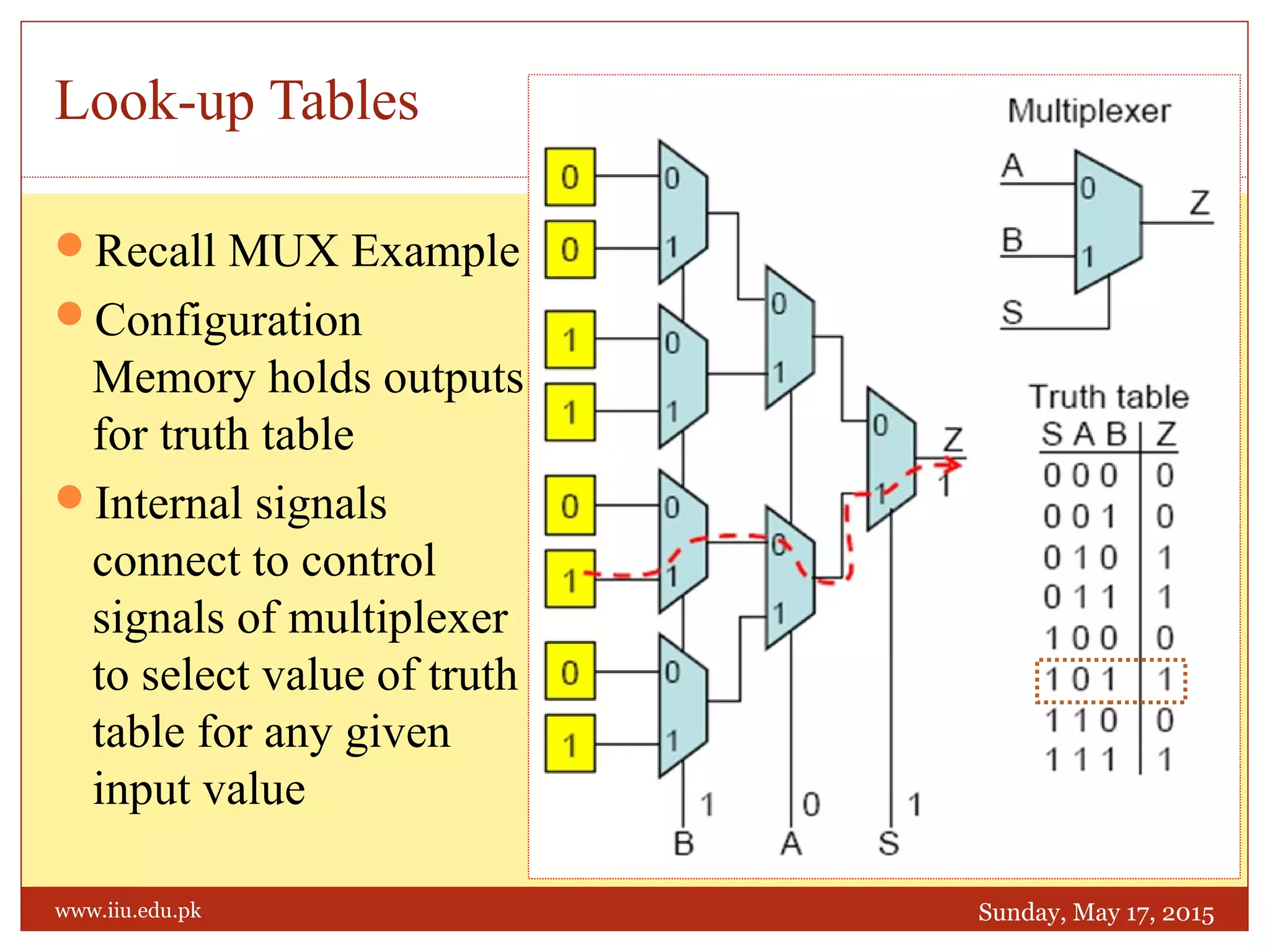

20. Recall MUX Example
Configuration
Memory holds outputs
for truth table
Internal signals
connect to control
signals of multiplexer
to select value of truth
table for any given
input value
Look-up Tables
Sunday, May 17, 2015
20
www.iiu.edu.pk

21. Sunday, May 17, 2015www.iiu.edu.pk 21

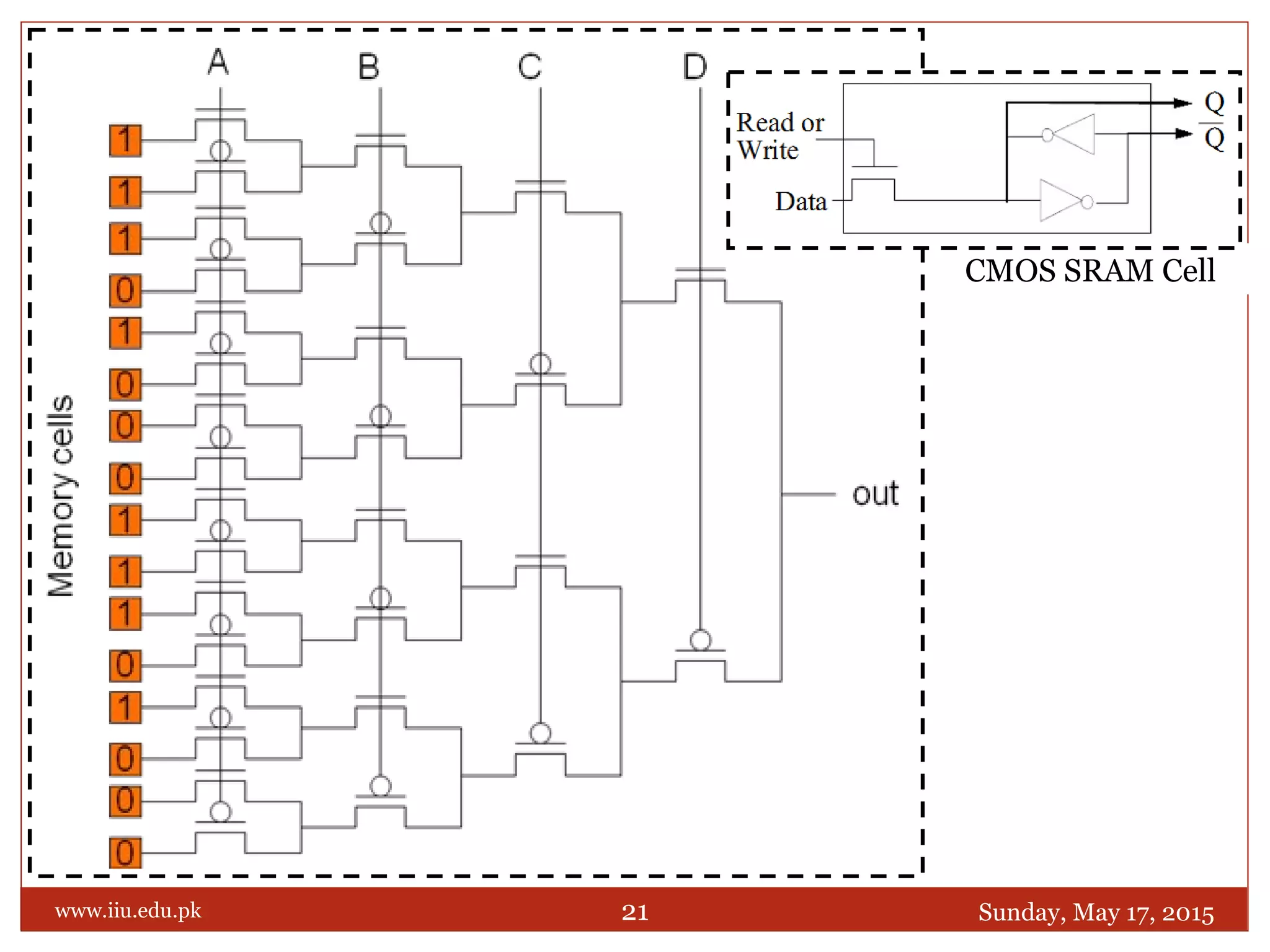

CMOS SRAM Cell

22. Sunday, May 17, 2015www.iiu.edu.pk 22

23. Sunday, May 17, 2015www.iiu.edu.pk 23

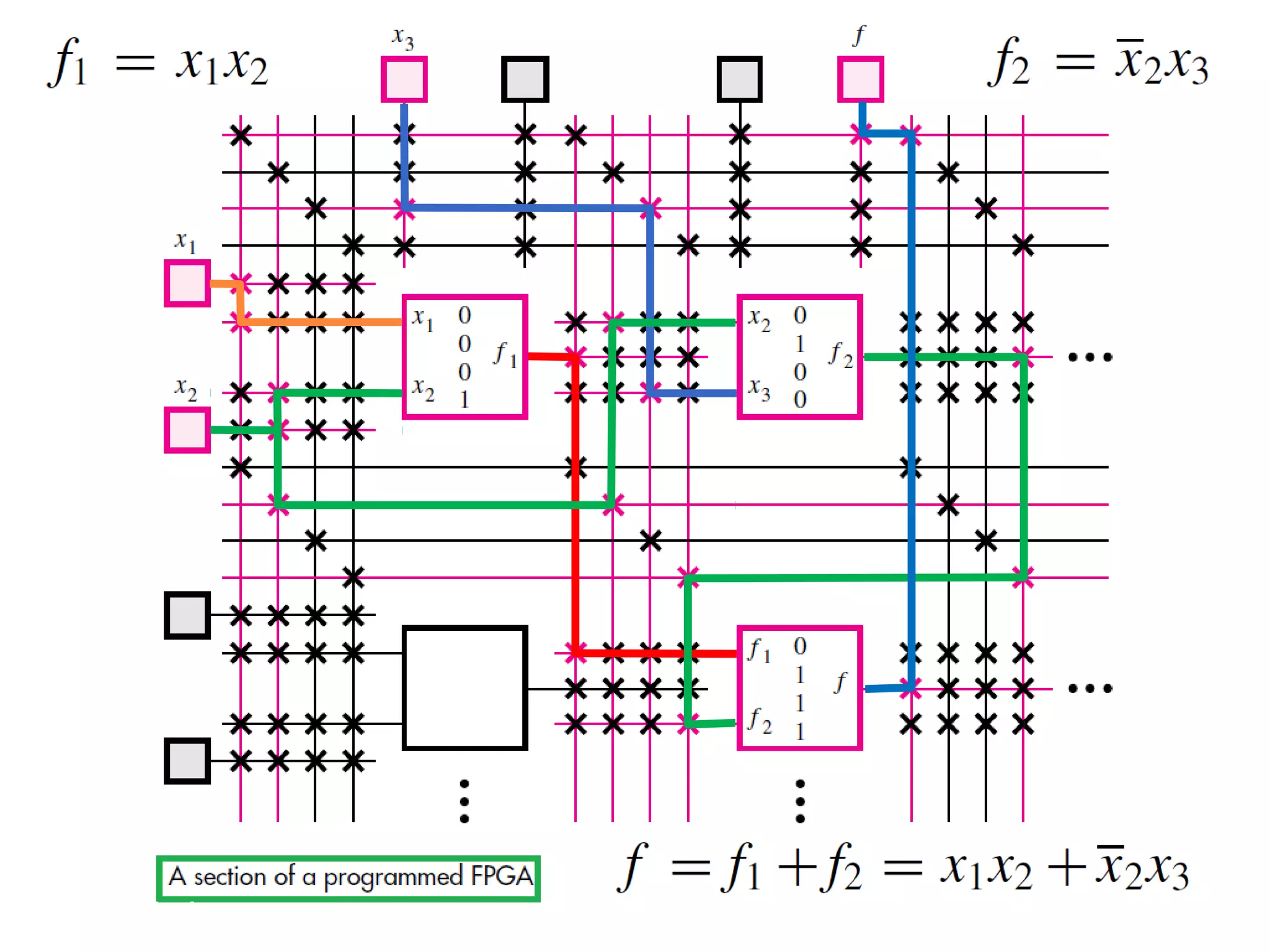

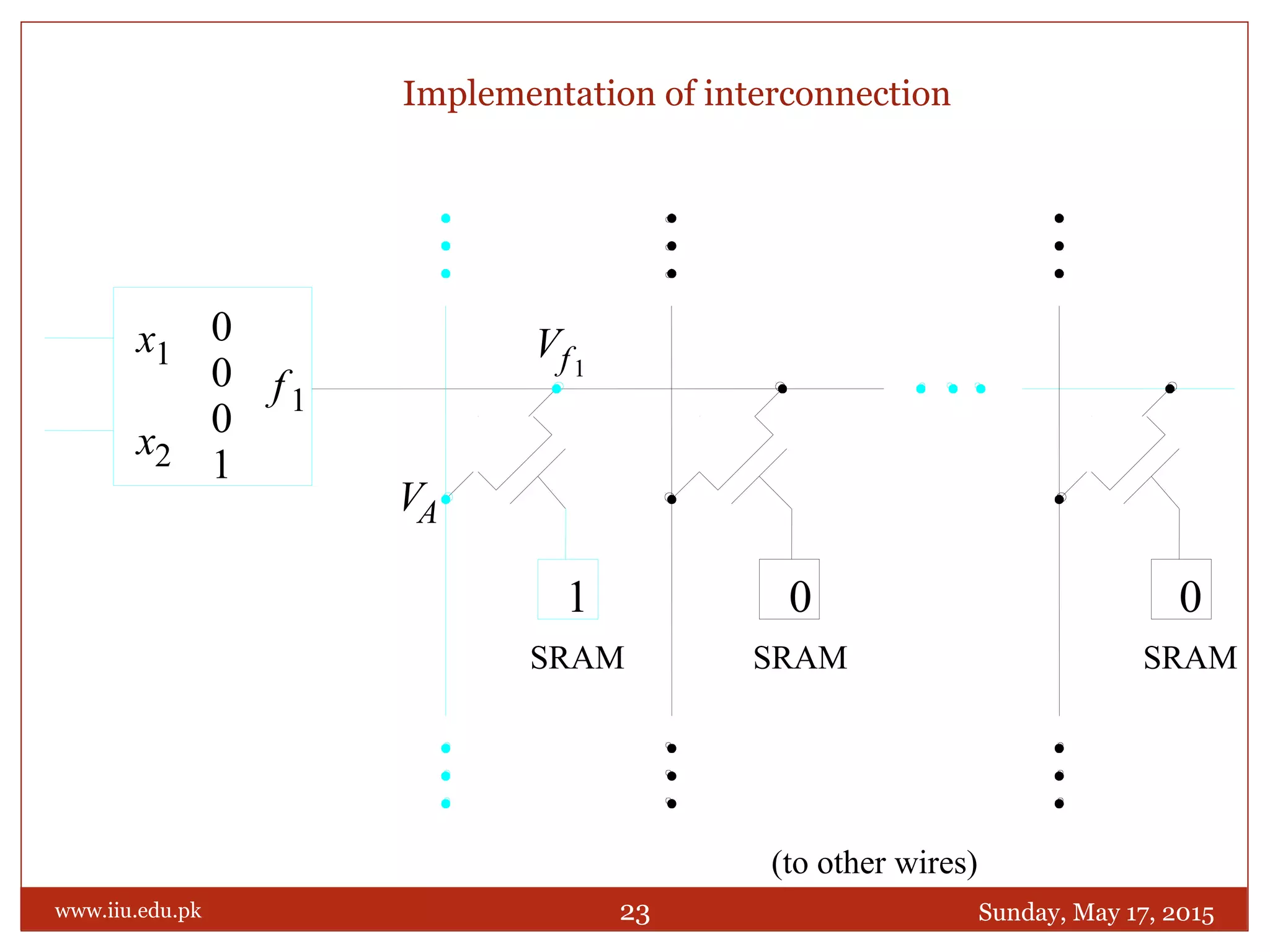

Implementation of interconnection
1 0
Vf1
VA
0
0
0
0
1
x1
x2
f1
SRAM SRAM SRAM
(to other wires)

24. Sunday, May 17, 2015
24
www.iiu.edu.pk

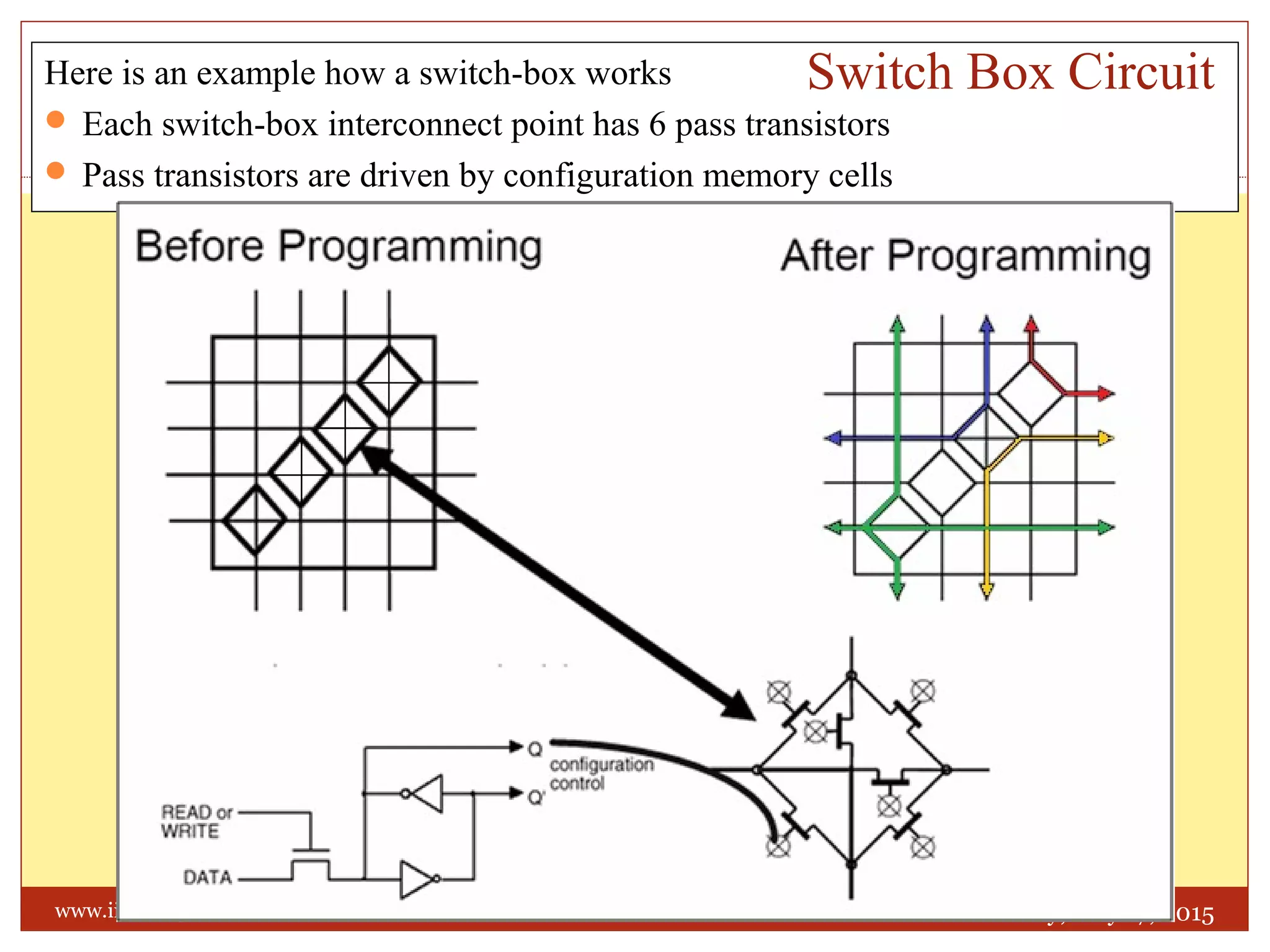

Here is an example how a switch-box works
 Each switch-box interconnect point has 6 pass transistors
 Pass transistors are driven by configuration memory cells
Switch Box Circuit

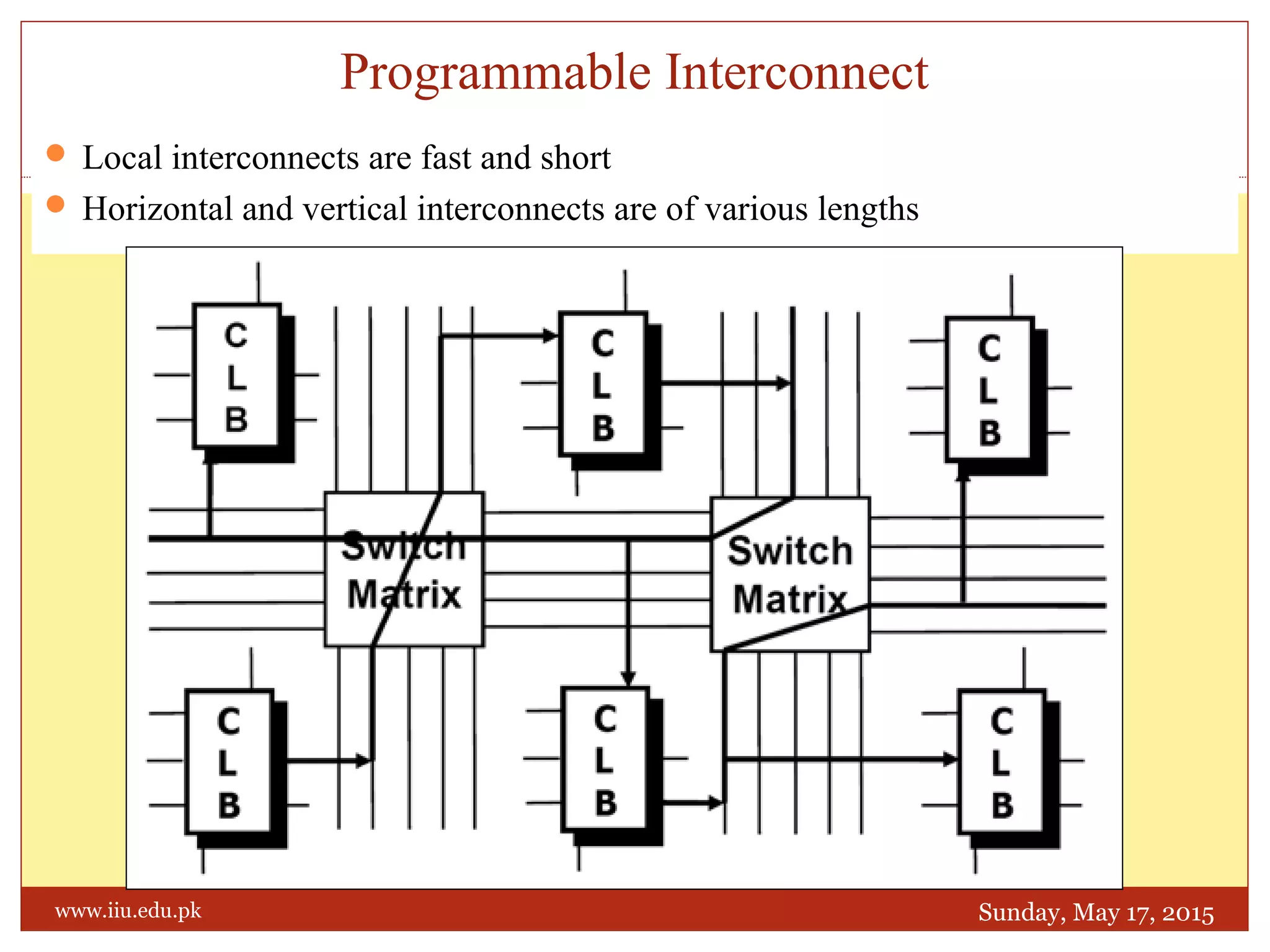

25. Programmable Interconnect
Sunday, May 17, 2015
25
www.iiu.edu.pk
 Local interconnects are fast and short
 Horizontal and vertical interconnects are of various lengths

26. Sunday, May 17, 2015www.iiu.edu.pk
26

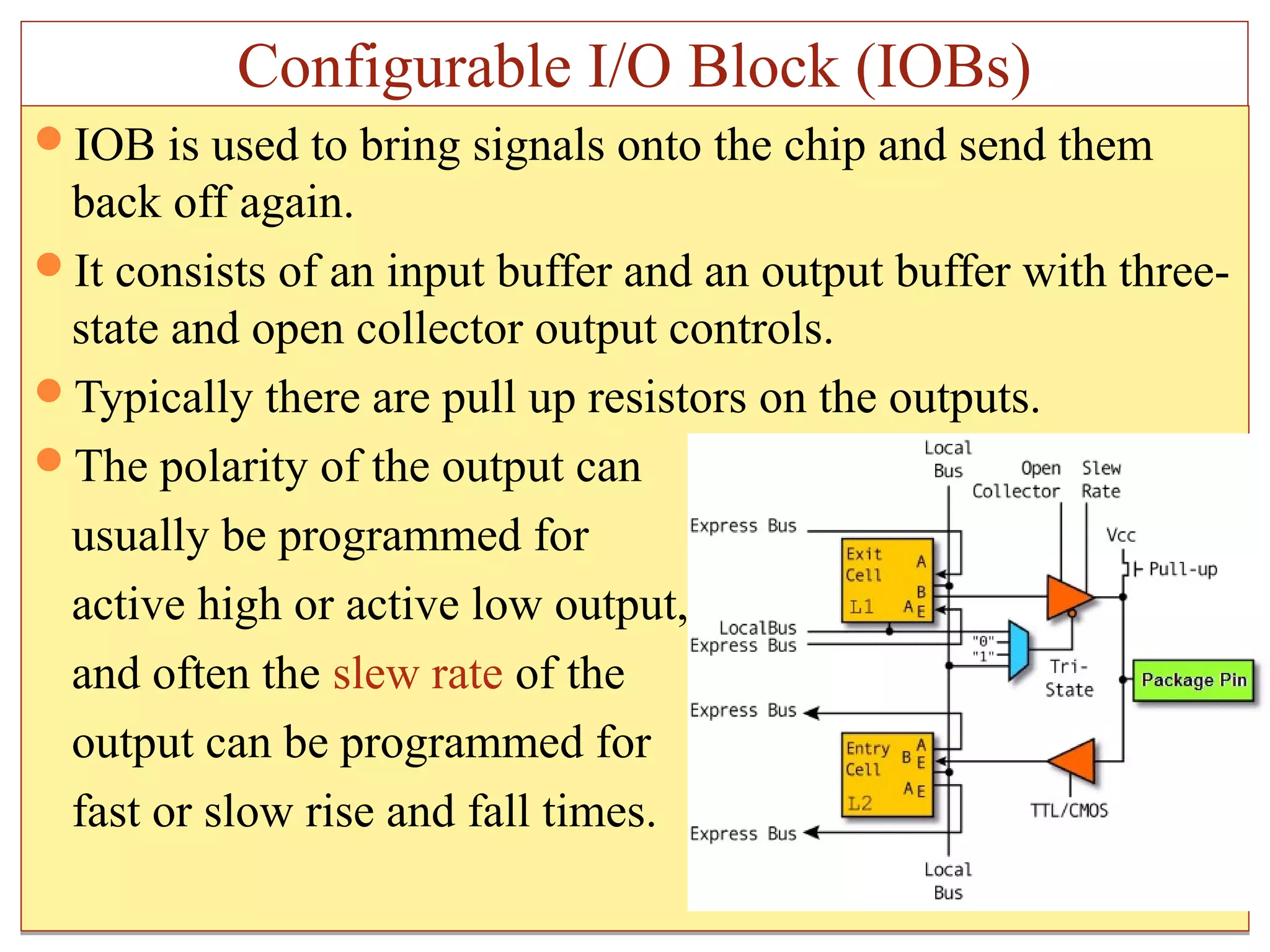

IOB is used to bring signals onto the chip and send them
back off again.
It consists of an input buffer and an output buffer with three-
state and open collector output controls.
Typically there are pull up resistors on the outputs.
The polarity of the output can
usually be programmed for
active high or active low output,
and often the slew rate of the
output can be programmed for
fast or slow rise and fall times.
IOB is used to bring signals onto the chip and send them
back off again.
It consists of an input buffer and an output buffer with three-
state and open collector output controls.
Typically there are pull up resistors on the outputs.
The polarity of the output can
usually be programmed for
active high or active low output,
and often the slew rate of the
output can be programmed for
fast or slow rise and fall times.
Configurable I/O Block (IOBs)
