Electronics deals with the flow of electrons in electrical circuits and components. The evolution of electronics occurred through three key developments: vacuum tubes, transistors, and integrated circuits. Transistors revolutionized electronics by making components smaller, lighter, and less expensive. The invention of the integrated circuit in 1958 marked the beginning of microelectronics and allowed large numbers of components to be placed on a single microchip. Electronics now impacts modern society in many areas including communication, entertainment, healthcare, transportation, and more. Emerging technologies include memristors, organic electronics, and electronic textiles.

1. EVOLUTION AND IMPACT OF
ELECTRONICS

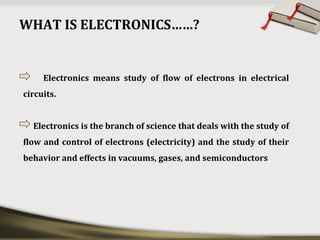

2. WHAT IS ELECTRONICS……?
Electronics means study of flow of electrons in electrical
circuits.
Electronics is the branch of science that deals with the study of
flow and control of electrons (electricity) and the study of their
behavior and effects in vacuums, gases, and semiconductors

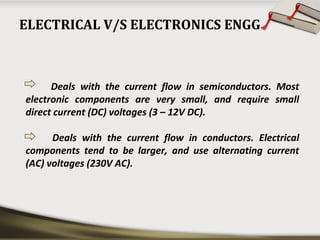

3. ELECTRICAL V/S ELECTRONICS ENGG
Deals with the current flow in semiconductors. Most
electronic components are very small, and require small
direct current (DC) voltages (3 – 12V DC).
Deals with the current flow in conductors. Electrical
components tend to be larger, and use alternating current
(AC) voltages (230V AC).

4. EVOLUTION OF ELCTRONICS
Evolution of electronics is mainly through 3 key components
1.The vacuum tube
2.The transistor
3. The integrated circuits

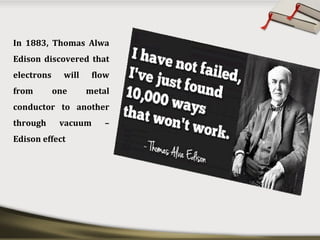

5. In 1883, Thomas Alwa
Edison discovered that
electrons will flow
from one metal
conductor to another
through vacuum –
Edison effect

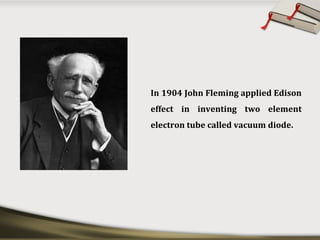

6. In 1904 John Fleming applied Edison
effect in inventing two element
electron tube called vacuum diode.

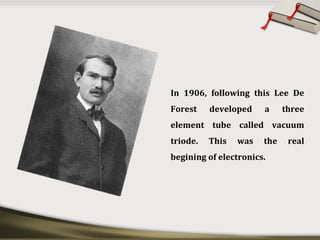

7. In 1906, following this Lee De
Forest developed a three
element tube called vacuum
triode. This was the real
begining of electronics.

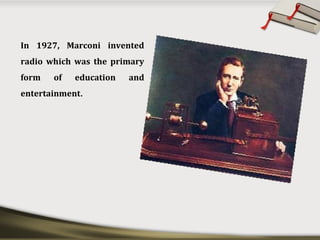

8. In 1927, Marconi invented
radio which was the primary
form of education and
entertainment.

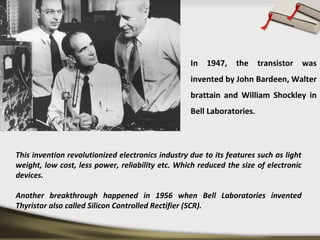

9. In 1947, the transistor was
invented by John Bardeen, Walter
brattain and William Shockley in
Bell Laboratories.
This invention revolutionized electronics industry due to its features such as light
weight, low cost, less power, reliability etc. Which reduced the size of electronic
devices.
Another breakthrough happened in 1956 when Bell Laboratories invented
Thyristor also called Silicon Controlled Rectifier (SCR).

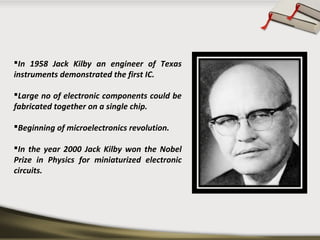

10. In 1958 Jack Kilby an engineer of Texas
instruments demonstrated the first IC.
Large no of electronic components could be
fabricated together on a single chip.
Beginning of microelectronics revolution.
In the year 2000 Jack Kilby won the Nobel
Prize in Physics for miniaturized electronic
circuits.

11. As the technology advanced, no of components fabricated on a single chip
also increased. This advancement in chip fabrication is accordingly called
as SSI, MSI, LSI, VLSI, ULSI etc. This resulted the new era of computers,
mobile phones, microprocessors etc. 4 bit microprocessor was developed by
Intel in 1971.

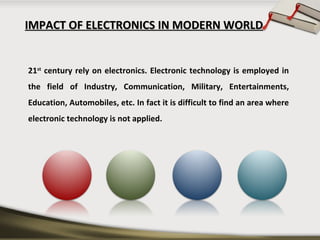

13. IMPACT OF ELECTRONICS IN MODERN WORLDIMPACT OF ELECTRONICS IN MODERN WORLD
21st
century rely on electronics. Electronic technology is employed in
the field of Industry, Communication, Military, Entertainments,
Education, Automobiles, etc. In fact it is difficult to find an area where
electronic technology is not applied.

14. ELECTRONICS IN INDUSTRYELECTRONICS IN INDUSTRY
Electronics play a vital role in industries such as Chemical, Automobile, Rubber
and Textile for automation.
• Electronic computers used for calculation, problem solving & storing records
• Automatic control systems
• Quality control of materials
• Lightning system
• Security system
• Robots used in hazardous environment

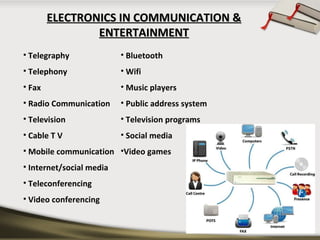

15. ELECTRONICS IN COMMUNICATION &ELECTRONICS IN COMMUNICATION &
ENTERTAINMENTENTERTAINMENT
• Telegraphy
• Telephony
• Fax
• Radio Communication
• Television
• Cable T V
• Mobile communication
• Internet/social media
• Teleconferencing
• Video conferencing
• Bluetooth
• Wifi
• Music players
• Public address system
• Television programs
• Social media
•Video games

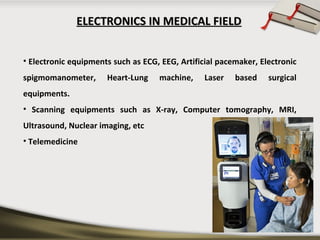

16. ELECTRONICS IN MEDICAL FIELDELECTRONICS IN MEDICAL FIELD
• Electronic equipments such as ECG, EEG, Artificial pacemaker, Electronic
spigmomanometer, Heart-Lung machine, Laser based surgical
equipments.
• Scanning equipments such as X-ray, Computer tomography, MRI,
Ultrasound, Nuclear imaging, etc
• Telemedicine

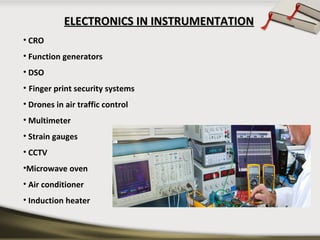

17. ELECTRONICS IN INSTRUMENTATIONELECTRONICS IN INSTRUMENTATION
• CRO
• Function generators
• DSO
• Finger print security systems
• Drones in air traffic control
• Multimeter
• Strain gauges
• CCTV
•Microwave oven
• Air conditioner
• Induction heater

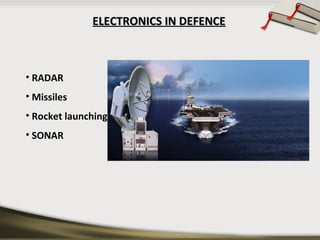

18. ELECTRONICS IN DEFENCEELECTRONICS IN DEFENCE
• RADAR
• Missiles
• Rocket launching
• SONAR

19. EMERGING ELECTRONICSEMERGING ELECTRONICS
• Memristor
• Organic electronics
• Bio electronics
• LiFi
• Electronic textiles
• Organic LED
