2. NO. NAME STUDENT ID
1 CALVIN WONG PING KET 0322481
2 CHAN TIAN JI 0320831
3 VIVIAN TAY HUEY SHUEN 0323869
4 WONG JIA JING 0327221
5 YEAP PHAY SHIAN 0322243
6 SOO PING ZHENG 0331365
7 SOO YON LI 0322821
8 TAM ZHAO WEI 0322587
9 LOO SIAH MONG 0321995
10 MICHELLE TUNG MAN KAYE 0324175
11 LEE FONG YEN 0321976
12 LEE JIA KIAM 0320029
13 LEE LIN HUI 0322797
14 ELISSA CHANG YUH TING 0326909
15 FARAH AIDA 0322962

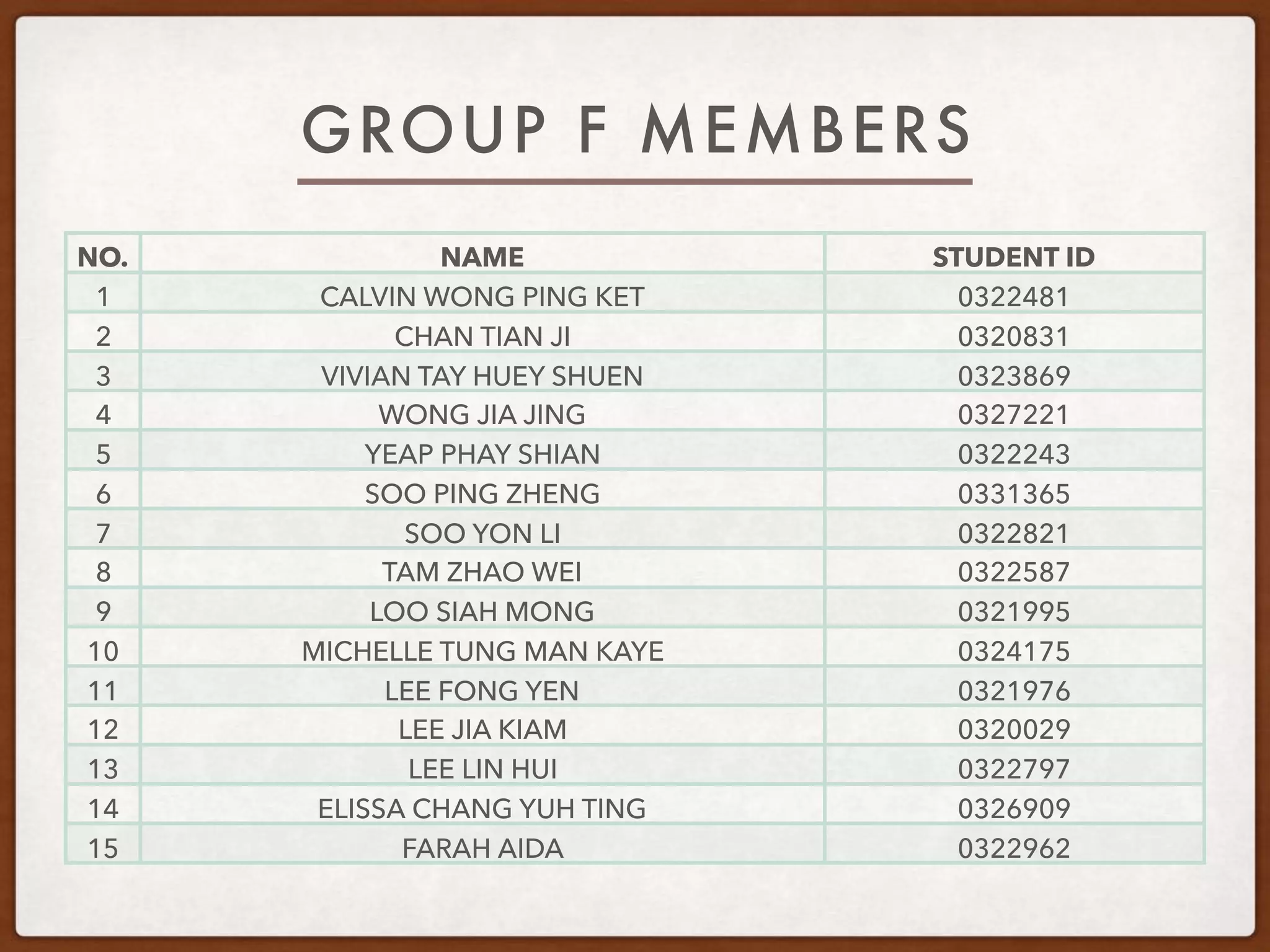

GROUP F MEMBERS
7. BRISTOL TECHNOLOGY
Client : Bristol Trading Sdn Bhd
Proposed Project : Proposed Corporate Headquarters For
Bristol Trading Sdn Bhd on lot 5178, 5179 and 8609
Location : Mukim Kajang, Daerah Hulu Langat, Selangor Darul
Ehsan.
PROJECT DETAIL
8. Contract Sum : Lump sum of RM4,898,990.00
Date of Possession of Site : 21st May 2003
Date of Completion : 21st January 2004
Completion Period : 8 months (inclusive of public holidays)
Quantities provided in the Bills of Quantity act only as a
guidance where contractor shall compute their own quantities.
CONTRACT DETAIL
9. Liquidated and Ascertain Damages for non-completion :
RM 2,000.00 per day
Defects Liability Period : 12 months from the date of
Certificate of Practical Completion
Completion Period of final measurement and valuation :
6 months from the date of Certificate of Practical Completion
CONTRACT DETAIL
17. GROSS FLOOR AREA
TO BE MEASURED
LOWER GROUND FLOOR PLAN OFFICE
GROUND FLOOR PLAN GALLERY & FOYER
MEZZANINE FLOOR PLAN GALLERY, MEETING & TRAINING ROOM
FIRST FLOOR PLAN OFFICE
ROOF PLAN CEO OFFICE
19. NET FLOOR AREA
Total area of all enclosed spaces fulfilling
the main functional requirements of the
building.
USABLE AREA
CIRCULATION AREA
Total area of all enclosed spaces forming
entrance halls, corridors, staircases, lift
wells, connecting links and the like.
20. NET FLOOR AREA
ANCILLARY AREA
INTERNAL DIVISION
Total area of all enclosed spaces forming
entrance halls, corridors, staircases, lift
wells, connecting links and the like.
Total area of all enclosed spaces for
lavatories, cloakrooms, kitchens, cleaner’s
room, lift, plant and tank rooms and the
like, supplementary to main function of
the building.
42. Total Cost of Element : RM 140,636.10
Cost per m2 GFA : 30.19
Element Unit Quantity : 1585 m2
Element Unit Rate : 88.73
Element Ratio per m2 GFA : 0.340
Reinforced Concrete : 12,399 m3
Reinforcement (kg) : 27,537 kg
Formwork (m2) : 778 m2
1. SUBSTRUCTURE
1.1 Work Below Lowest Floor Finish
45. Total Cost of Element : RM 307,836.20
Cost per m2 GFA : 66.09
Element Unit Quantity : 4658 m2
Element Unit Rate : 65.54
Element Ratio per m2 GFA : 1.008
Reinforced Concrete : 345 m3
Reinforcement (kg) : 70,257 kg
Formwork (m2) : 4462 m2
2. SUPERSTRUCTURE
2.1 Frame
47. Total Cost of Element : RM 233,346.70
Cost per m2 GFA : 50.10
Element Unit Quantity : 3278 m2
Element Unit Rate : 71.19
Element Ratio per m2 GFA : 0.704 m2
Reinforced Concrete : 421.00 m3
Reinforcement (kg) : 41,342.00 kg
Formwork (m2) : 2,812.00 m2
2. SUPERSTRUCTURE
2.2 Upper Floors
49. Total Cost of Element : RM 407,168.30
Cost per m2 GFA : 87.41
Element Unit Quantity : 1,671 m2
Element Unit Rate : 243.67
Element Ratio per m2 GFA : 0.359
Reinforced Concrete : -
Reinforcement (kg) : -
Formwork (m2) : -
2. SUPERSTRUCTURE
2.3 Roof
53. Total Cost of Element : RM 98,529.00
Cost per m2 GFA : 21.15
Element Unit Quantity : -
Element Unit Rate : -
Element Ratio per m2 GFA : -
Reinforced Concrete : 64 m2
Reinforcement (kg) : 1791 kg
Formwork (m2) : 352 m2
2. SUPERSTRUCTURE
2.4 Stairs
55. Total Cost of Element : RM 135,746.00
Cost per m2 GFA : 29.14
Element Unit Quantity : 2,114 m2
Element Unit Rate : 64.21
Element Ratio per m2 GFA : 0.450
Reinforced Concrete : -
Reinforcement (kg) : -
Formwork (m2) : -
2. SUPERSTRUCTURE
2.5 External Walls
57. Total Cost of Element : RM 402,028.90
Cost per m2 GFA : 86.31
Element Unit Quantity : 763 m2
Element Unit Rate : 526.91
Element Ratio per m2 GFA : 0.164
Reinforced Concrete : -
Reinforcement (kg) : -
Formwork (m2) : -
2. SUPERSTRUCTURE
2.6 Windows & External Doors
59. Total Cost of Element : RM 63,218.90
Cost per m2 GFA : 13.57
Element Unit Quantity : 2142 m2
Element Unit Rate : 29.51
Element Ratio per m2 GFA : 0.460
Reinforced Concrete : -
Reinforcement (kg) : -
Formwork (m2) : -
2. SUPERSTRUCTURE
2.7 Internal Walls & Partitions
61. Total Cost of Element : RM 24,346.90
Cost per m2 GFA : 53.01
Element Unit Quantity : 614 m2
Element Unit Rate : 39.65
Element Ratio per m2 GFA : 0.132
Reinforced Concrete : -
Reinforcement (kg) : -
Formwork (m2) : -
2. SUPERSTRUCTURE
2.8 Internal Doors
64. Total Cost of Element : RM33,140
Cost per m2 GFA : 7.11
Element Unit Quantity : 1657
Element Unit Rate : 20.00
Element Ratio per m2 GFA : 0.356
Reinforced Concrete : -
Reinforcement (kg) : -
Formwork (m2) : -
3. FINISHES
3.1 Wall Finishes
66. Total Cost of Element : RM103,748
Cost per m2 GFA : 22.27
Element Unit Quantity : 5608
Element Unit Rate : 18.50
Element Ratio per m2 GFA : 1.204
Reinforced Concrete : -
Reinforcement (kg) : -
Formwork (m2) : -
3. FINISHES
3.2 Internal Wall Finishes
72. Total Cost of Element : RM35,395
Cost per m2 GFA : 7.60
Element Unit Quantity : 211 No.
Element Unit Rate : 167.75
Element Ratio per m2 GFA : 0.045
Reinforced Concrete : -
Reinforcement (kg) : -
Formwork (m2) : -
5.1 Sanitary Appliances
5. SERVICES
76. Total Cost of Element : RM 120,000.00
Cost per m2 GFA : RM25.76
Element Unit Quantity : -
Element Unit Rate : -
Element Ratio per m2 GFA : -
Reinforced Concrete : -
Reinforcement (kg) : -
Formwork (m2) : -
6. EXTERNAL WORKS
6.1 Site Work
78. Total Cost of Element : RM 14,860.00
Cost per m2 GFA : RM3.19
Element Unit Quantity : -
Element Unit Rate : -
Element Ratio per m2 GFA : -
Reinforced Concrete : -
Reinforcement (kg) : -
Formwork (m2) : -
6. EXTERNAL WORKS
6.2 Drainage
