The document provides details of an elemental cost analysis for a residential construction project consisting of two blocks, A and B, with a total gross floor area of 2023 square meters. It includes information on the project scope, building plans, area breakdowns by usage, and a brief cost summary. The total contract sum is RM1,588,044.50 with contingencies of 5.6% of the contract sum.

1. Elemental Cost Analysis
GROUP E
Group Members :
Calvin Wong Kim Ming 0323642
Chan Wei Lun 0326117
Ee Hui Teng 0322548
Fong Kah Yan 0322815
Gillian Chong Yeong Lin 0323941
Koh Ee Sing 0323855
Kok Ka Shing 0323553
Loh Mun Tong 0323680
Loh Wen Jun 0323551
Muhammad Fareez 0322961
Sew Yue Ling 0327032
Tan Jia San 0322406
Vivian Chin Kha Yee 0331228
Yeong Poh Ling 0323590

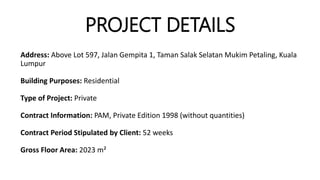

2. PROJECT DETAILS
Address: Above Lot 597, Jalan Gempita 1, Taman Salak Selatan Mukim Petaling, Kuala
Lumpur
Building Purposes: Residential
Type of Project: Private
Contract Information: PAM, Private Edition 1998 (without quantities)
Contract Period Stipulated by Client: 52 weeks
Gross Floor Area: 2023 m²

3. KEY PLAN

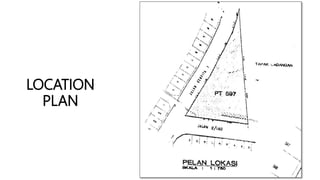

4. LOCATION
PLAN

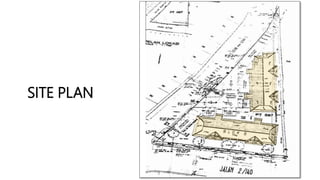

5. SITE PLAN

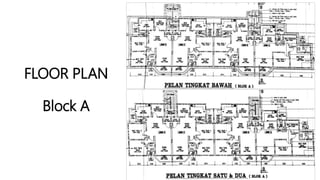

6. FLOOR PLAN
Block A

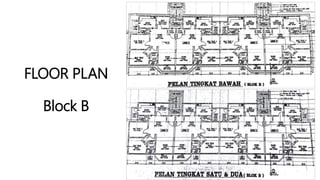

7. FLOOR PLAN
Block B

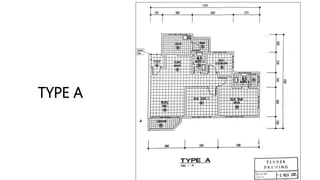

8. TYPE A

9. Type BTYPE B

10. Type CTYPE C

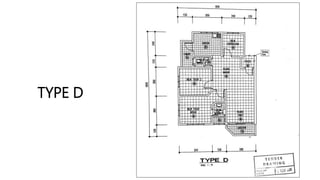

11. Type DTYPE D

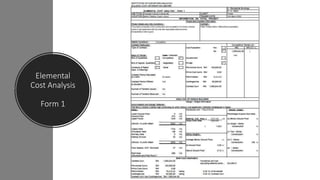

12. Elemental
Cost Analysis
Form 1

13. Elemental
Cost Analysis
Form 1

14. Elemental
Cost Analysis
Form 1

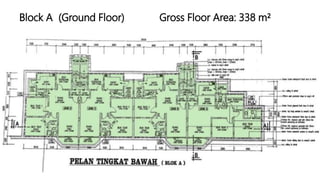

15. Block A (Ground Floor) Gross Floor Area: 338 m²

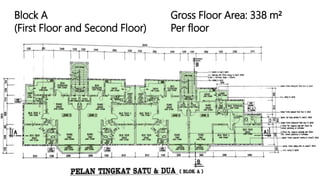

16. Gross Floor Area: 338 m²
Per floor
Block A
(First Floor and Second Floor)

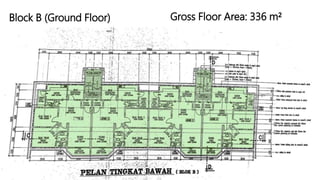

17. Gross Floor Area: 336 m²Block B (Ground Floor)

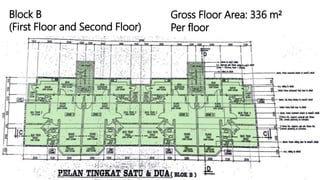

18. Gross Floor Area: 336 m²
Per floor
Block B
(First Floor and Second Floor)

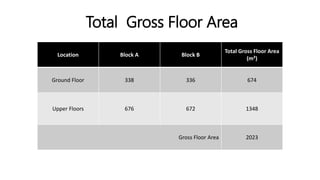

19. Total Gross Floor Area
Location Block A Block B
Total Gross Floor Area
(m²)
Ground Floor 338 336 674
Upper Floors 676 672 1348
Gross Floor Area 2023

20. Total area of all enclosed spaces fulfilling the main
functional requirements of the building (e.g. office
space, shop space, public house drinking area, etc.).
USABLE

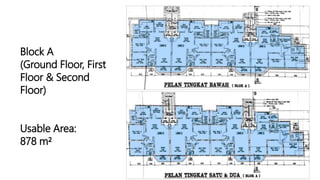

21. Block A
(Ground Floor, First
Floor & Second
Floor)
Usable Area:
878 m²

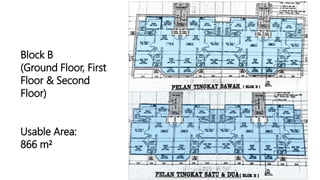

22. Block B
(Ground Floor, First
Floor & Second
Floor)
Usable Area:
866 m²

23. Total area of enclosed spaces forming entrance halls,
corridors, staircases, lift wells, connecting links and
the like.
CIRCULATION

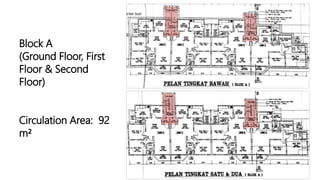

24. Block A
(Ground Floor, First
Floor & Second
Floor)
Circulation Area: 92
m²

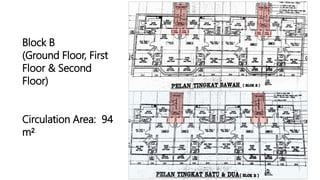

25. Block B
(Ground Floor, First
Floor & Second
Floor)
Circulation Area: 94
m²

26. Total area of all enclosed spaces for lavatories,
cloakrooms, kitchens, cleaner’s rooms, lift, plant and
tank rooms and the like, supplementary to main
function of the building.
ANCILLARY

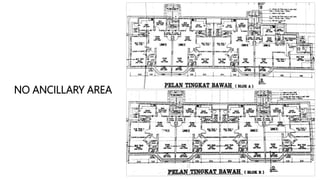

27. NO ANCILLARY AREA

28. The area occupied by partitions, columns, internal
structure or party walls.
Note : The sum of the areas falling in the categories
defined above wil equal the Gross Floor Area.
INTERNAL DIVISION

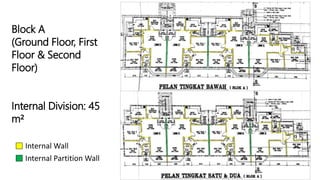

29. Block A
(Ground Floor, First
Floor & Second
Floor)
Internal Division: 45
m²
Internal Partition Wall
Internal Wall

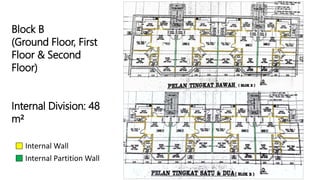

30. Block B
(Ground Floor, First
Floor & Second
Floor)
Internal Division: 48
m²
Internal Partition Wall
Internal Wall

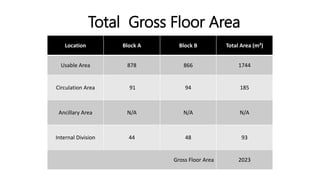

31. Total Gross Floor Area
Location Block A Block B Total Area (m²)
Usable Area 878 866 1744
Circulation Area 91 94 185
Ancillary Area N/A N/A N/A
Internal Division 44 48 93
Gross Floor Area 2023

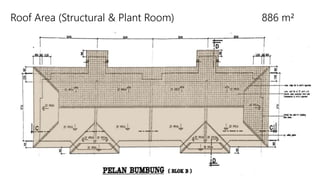

32. Roof Area (Structural & Plant Room) 886 m²

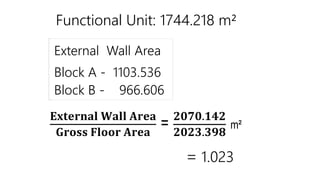

33. 𝐄𝐱𝐭𝐞𝐫𝐧𝐚𝐥 𝐖𝐚𝐥𝐥 𝐀𝐫𝐞𝐚
𝐆𝐫𝐨𝐬𝐬 𝐅𝐥𝐨𝐨𝐫 𝐀𝐫𝐞𝐚
=
𝟐𝟎𝟕𝟎.𝟏𝟒𝟐
𝟐𝟎𝟐𝟑.𝟑𝟗𝟖
m²
= 1.023
Functional Unit: 1744.218 m²
External Wall Area
Block A - 1103.536
Block B - 966.606

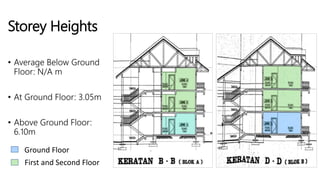

34. Storey Heights
• Average Below Ground
Floor: N/A m
• At Ground Floor: 3.05m
• Above Ground Floor:
6.10m
Ground Floor
First and Second Floor

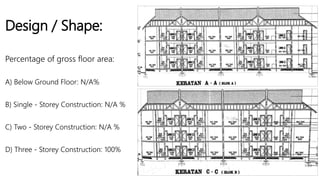

35. Design / Shape:
Percentage of gross floor area:
A) Below Ground Floor: N/A%
B) Single - Storey Construction: N/A %
C) Two - Storey Construction: N/A %
D) Three - Storey Construction: 100%

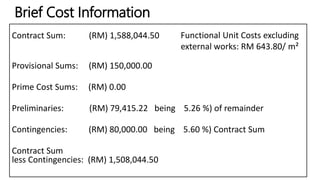

36. Brief Cost Information
Contract Sum: (RM) 1,588,044.50
Provisional Sums: (RM) 150,000.00
Prime Cost Sums: (RM) 0.00
Preliminaries: (RM) 79,415.22 being 5.26 %) of remainder
Contingencies: (RM) 80,000.00 being 5.60 %) Contract Sum
Contract Sum
less Contingencies: (RM) 1,508,044.50
Functional Unit Costs excluding
external works: RM 643.80/ m²

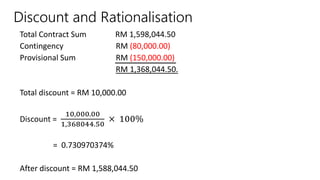

37. Discount and Rationalisation
Total Contract Sum RM 1,598,044.50
Contingency RM (80,000.00)
Provisional Sum RM (150,000.00)
RM 1,368,044.50.
Total discount = RM 10,000.00
Discount =
10,000.00
1,368044.50
× 100%
= 0.730970374%
After discount = RM 1,588,044.50

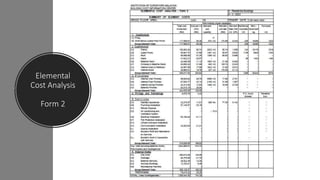

38. Elemental
Cost Analysis
Form 2

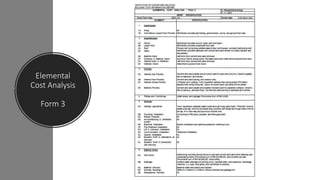

39. Elemental
Cost Analysis
Form 3

40. THANK YOU
