The document provides an elemental cost analysis for the construction of a proposed primary school comprising four-storey buildings and a one-storey canteen building. It includes details of the project such as location, gross floor area, contract sum, and completion dates. The analysis then breaks down costs for each construction element, including piling, framing, floors, walls, finishes, services, and site works. Charts and tables show quantities and costs for materials like concrete, reinforcement, and formwork. The total project cost was RM 7,249,424.43 based on a 4717.07 square meter gross floor area.

1. Elemental Cost Analysis
(ECA)
SCHOOL OF ARCHITECTURE BUILDING AND DESIGN
BACHELOR OF QUANTITY SURVEYING
MEASUREMENT IV (QSB60404)

2. Group member:
Pang Kai Yun 0319844
Sam Wei Yin 0320364
Yeo Kai Wen 0319844
Chow Kah Yien 0320300
Tan Hwee Min 0326057
Terence Tan Peng Ong 0320275
Loh Jiun Shen 0325910
Teh Qing Da 0318590
Lim Jie Qi 0318313
Marco Leong 0320026
Le Jia Nian 0319957

3. PROJECT INFO
Project:
Proposed a primary school of four storey building comprising with 36
unit of classrooms, offices, library, labs, store and others facilities and
one storey building of canteen.
Location:
Above Lot 110012, Persiaran Lestari Perdana 5, Mukim Petaling, Daerah
Petaling, Selangor Darul Ehsan.

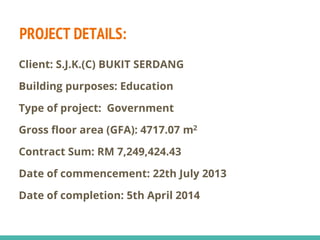

4. PROJECT DETAILS:
Client: S.J.K.(C) BUKIT SERDANG
Building purposes: Education
Type of project: Government
Gross floor area (GFA): 4717.07 m2
Contract Sum: RM 7,249,424.43
Date of commencement: 22th July 2013
Date of completion: 5th April 2014

5. LOCATION PLAN

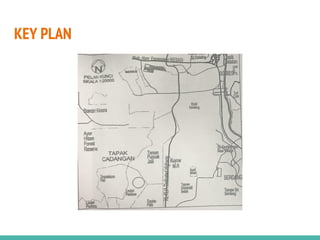

6. KEY PLAN

7. SITE PLAN

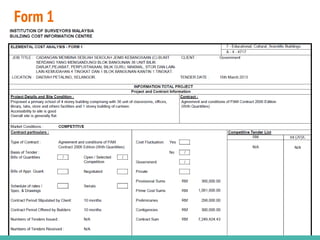

8. Form 1

9. Form 1

10. Form 1

11. Gross Floor Area

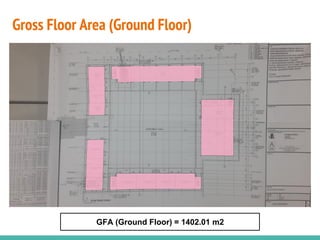

12. Gross Floor Area (Ground Floor)
GFA (Ground Floor) = 1402.01 m2

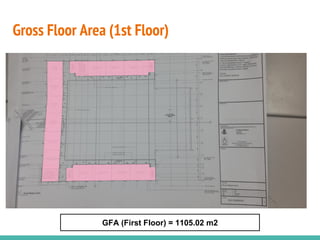

13. Gross Floor Area (1st Floor)
GFA (First Floor) = 1105.02 m2

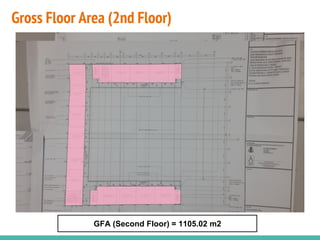

14. Gross Floor Area (2nd Floor)
GFA (Second Floor) = 1105.02 m2

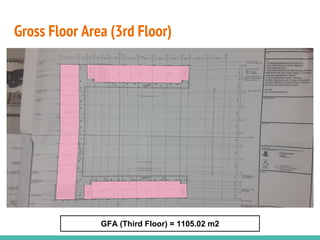

15. Gross Floor Area (3rd Floor)
GFA (Third Floor) = 1105.02 m2

16. Total Gross Floor Area
TOTAL GROSS FLOOR AREA
= 1402.01 + 1105.02 + 1105.02 + 1105.02
= 4717.07 m2

17. NET FLOOR AREA
USABLE AREA
CIRCULATION AREA
ANCILLARY AREA
INTERNAL DIVISION

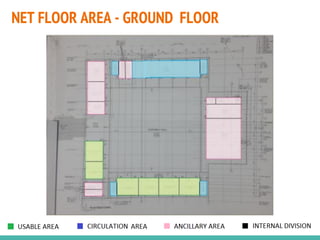

18. NET FLOOR AREA - GROUND FLOOR

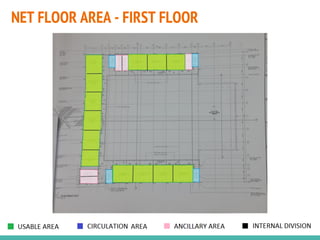

19. NET FLOOR AREA - FIRST FLOOR

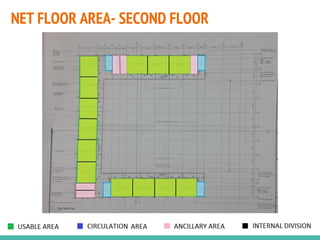

20. NET FLOOR AREA- SECOND FLOOR

21. NET FLOOR AREA - THIRD FLOOR

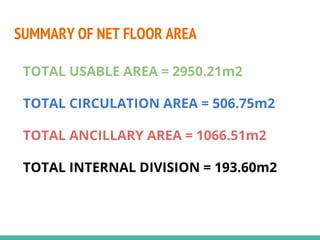

22. SUMMARY OF NET FLOOR AREA
TOTAL USABLE AREA = 2950.21m2
TOTAL CIRCULATION AREA = 506.75m2
TOTAL ANCILLARY AREA = 1066.51m2
TOTAL INTERNAL DIVISION = 193.60m2

23. FLOOR SPACE NOT
ENCLOSED

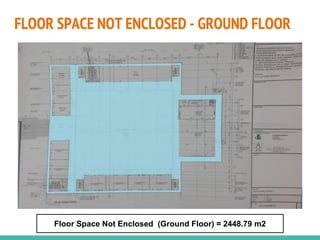

24. FLOOR SPACE NOT ENCLOSED - GROUND FLOOR
Floor Space Not Enclosed (Ground Floor) = 2448.79 m2

25. FLOOR SPACE NOT ENCLOSED - 1ST FLOOR
Floor Space Not Enclosed (First Floor) = 317.34 m2

26. FLOOR SPACE NOT ENCLOSED - 2ND FLOOR
Floor Space Not Enclosed (Second Floor) = 317.34 m2

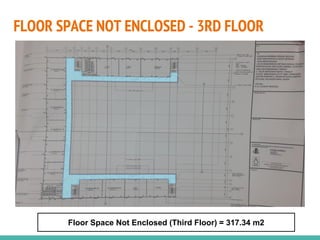

27. FLOOR SPACE NOT ENCLOSED - 3RD FLOOR
Floor Space Not Enclosed (Third Floor) = 317.34 m2

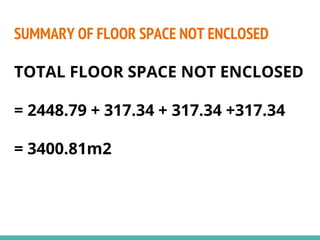

28. SUMMARY OF FLOOR SPACE NOT ENCLOSED
TOTAL FLOOR SPACE NOT ENCLOSED
= 2448.79 + 317.34 + 317.34 +317.34
= 3400.81m2

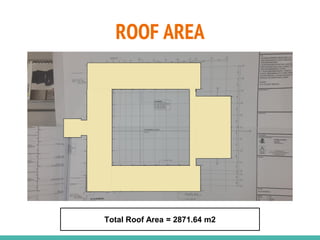

29. Total Roof Area = 2871.64 m2
ROOF AREA

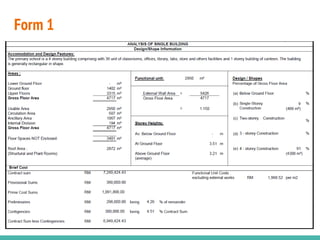

30. Form 1

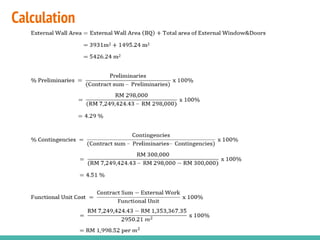

31. Calculation

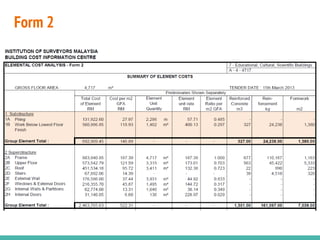

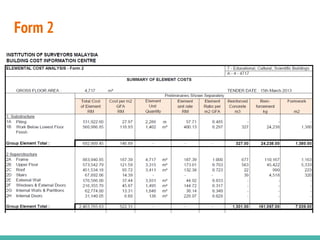

32. Form 2

33. Form 2

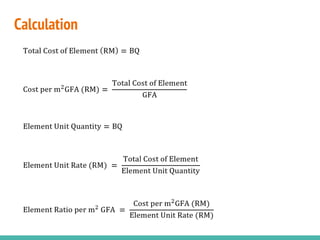

34. Calculation

35. Form 2

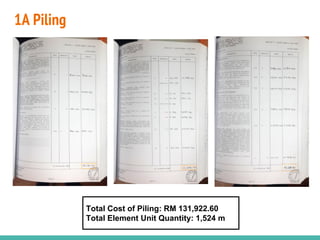

36. 1A Piling
Total Cost of Piling: RM 131,922.60
Total Element Unit Quantity: 1,524 m

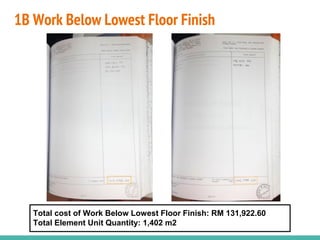

37. 1B Work Below Lowest Floor Finish
Total cost of Work Below Lowest Floor Finish: RM 131,922.60
Total Element Unit Quantity: 1,402 m2

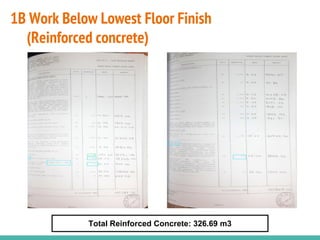

38. 1B Work Below Lowest Floor Finish
(Reinforced concrete)
Total Reinforced Concrete: 326.69 m3

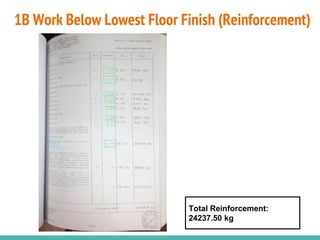

39. 1B Work Below Lowest Floor Finish (Reinforcement)
Total Reinforcement:
24237.50 kg

40. 1B Work Below Lowest Floor Finish (Formwork)
Total Formwork:
1379.50 m2

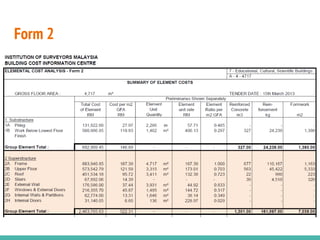

41. Form 2

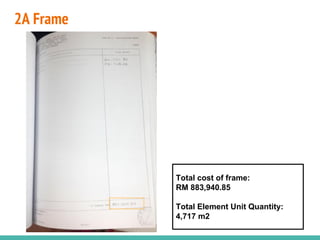

42. 2A Frame
Total cost of frame:
RM 883,940.85
Total Element Unit Quantity:
4,717 m2

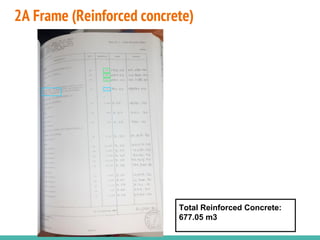

43. 2A Frame (Reinforced concrete)
Total Reinforced Concrete:
677.05 m3

44. 2A Frame (Reinforcement)
Total Reinforcement:
110,167.00 kg

45. 2A Frame (Formwork)
Total Formwork:
1,163 m2

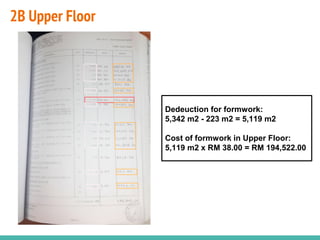

46. 2B Upper Floor
Dedeuction for formwork:
5,342 m2 - 223 m2 = 5,119 m2
Cost of formwork in Upper Floor:
5,119 m2 x RM 38.00 = RM 194,522.00

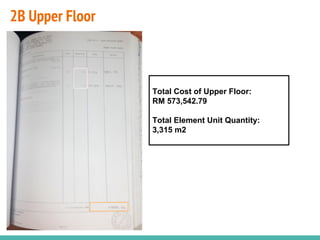

47. 2B Upper Floor
Total Cost of Upper Floor:
RM 573,542.79
Total Element Unit Quantity:
3,315 m2

48. 2B Upper Floor (Reinforced concrete)
Total Reinforced Concrete:
562.90 m3

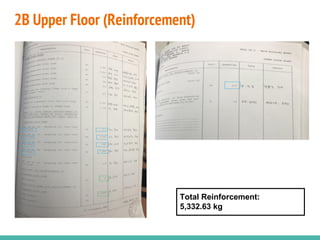

49. 2B Upper Floor (Reinforcement)
Total Reinforcement:
5,332.63 kg

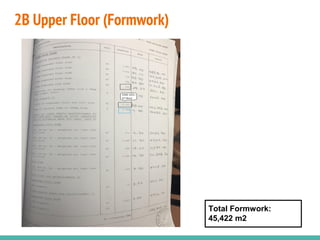

50. 2B Upper Floor (Formwork)
Total Formwork:
45,422 m2

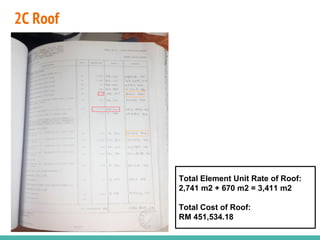

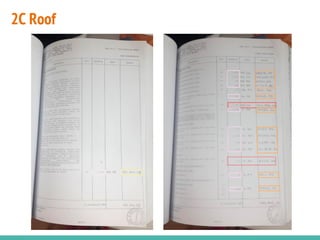

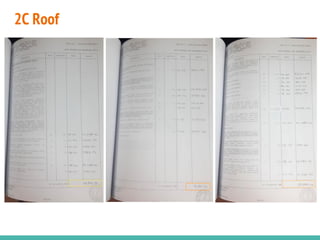

51. 2C Roof

52. 2C Roof

53. 2C Roof
Total Element Unit Rate of Roof:
2,741 m2 + 670 m2 = 3,411 m2
Total Cost of Roof:
RM 451,534.18

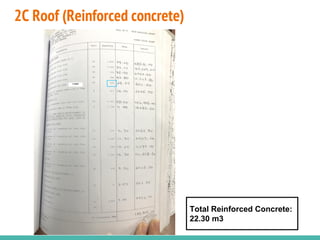

54. 2C Roof (Reinforced concrete)
Total Reinforced Concrete:
22.30 m3

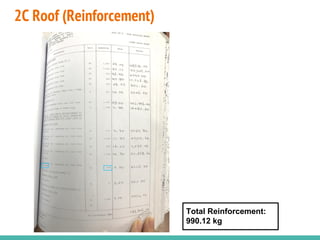

55. 2C Roof (Reinforcement)
Total Reinforcement:
990.12 kg

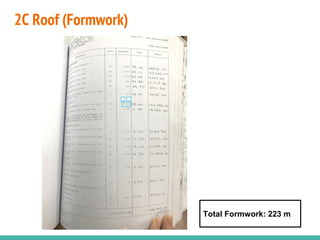

56. 2C Roof (Formwork)
Total Formwork: 223 m

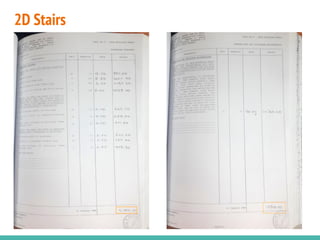

57. 2D Stairs

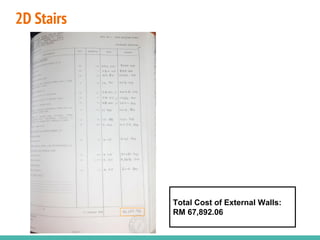

58. 2D Stairs
Total Cost of External Walls:
RM 67,892.06

59. 2D Stairs (Reinforced concrete)
Total Reinforced Concrete:

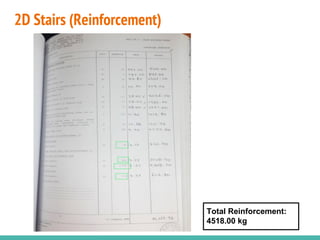

38.74 m3

60. 2D Stairs (Reinforcement)
Total Reinforcement:
4518.00 kg

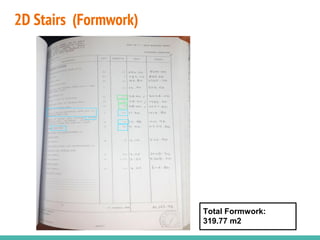

61. 2D Stairs (Formwork)
Total Formwork:
319.77 m2

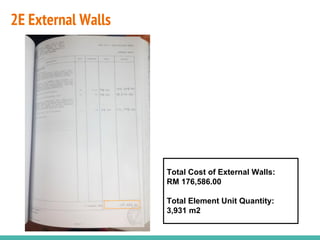

62. 2E External Walls
Total Cost of External Walls:
RM 176,586.00
Total Element Unit Quantity:
3,931 m2

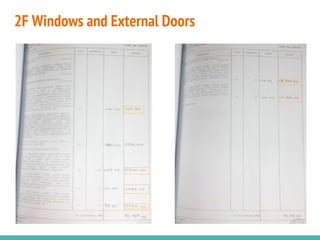

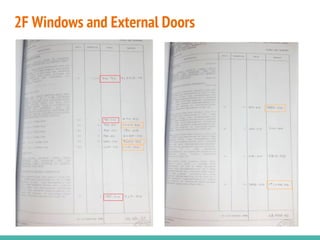

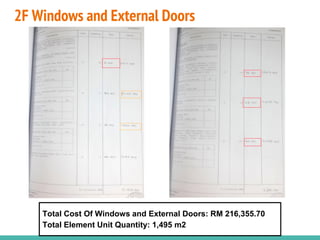

63. 2F Windows and External Doors

64. 2F Windows and External Doors

65. 2F Windows and External Doors
Total Cost Of Windows and External Doors: RM 216,355.70
Total Element Unit Quantity: 1,495 m2

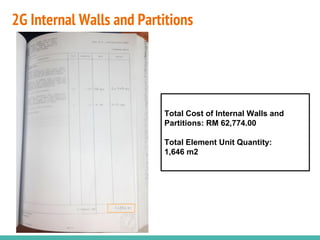

66. 2G Internal Walls and Partitions
Total Cost of Internal Walls and
Partitions: RM 62,774.00
Total Element Unit Quantity:
1,646 m2

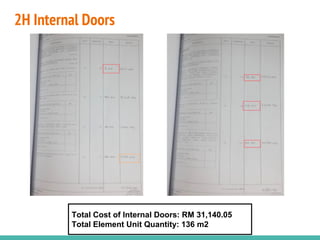

67. 2H Internal Doors

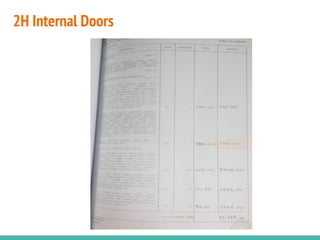

68. 2H Internal Doors

69. 2H Internal Doors
Total Cost of Internal Doors: RM 31,140.05
Total Element Unit Quantity: 136 m2

70. Form 2

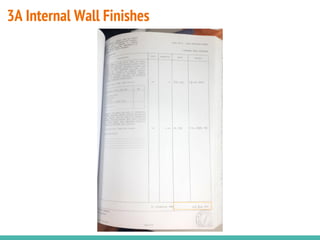

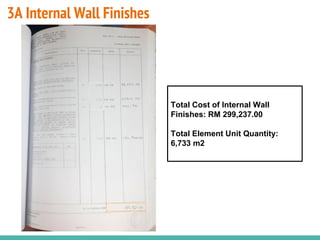

71. 3A Internal Wall Finishes

72. 3A Internal Wall Finishes
Total Cost of Internal Wall
Finishes: RM 299,237.00
Total Element Unit Quantity:
6,733 m2

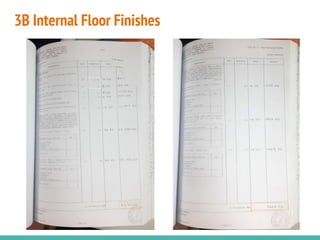

73. 3B Internal Floor Finishes

74. 3B Internal Floor Finishes
Total cost of internal floor finishes：RM 112,050.50
Total Element Unit Quantity: 5,555 m2

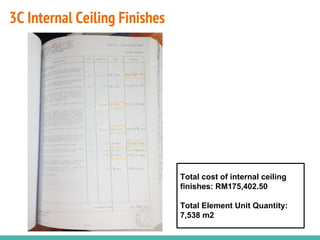

75. 3C Internal Ceiling Finishes
Total cost of internal ceiling
finishes: RM175,402.50
Total Element Unit Quantity:
7,538 m2

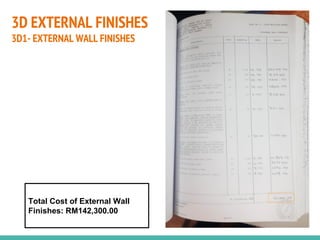

76. 3D EXTERNAL FINISHES
3D1- EXTERNAL WALL FINISHES
Total Cost of External Wall
Finishes: RM142,300.00

77. 3D EXTERNAL FINISHES
3D2- EXTERNAL FLOOR FINISHES
Total Cost of External Floor
Finishes: RM120,610.00

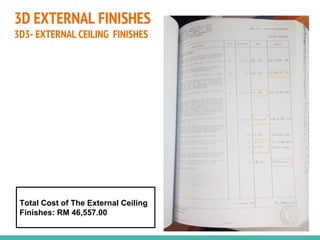

78. 3D EXTERNAL FINISHES
3D3- EXTERNAL CEILING FINISHES
Total Cost of The External Ceiling
Finishes: RM 46,557.00

79. 3D- EXTERNAL FINISHES
TOTAL COST OF EXTERNAL FINISHES
= RM 142,300.00 + RM 120,610.00 + RM 46,557.00
= RM 309,467.00

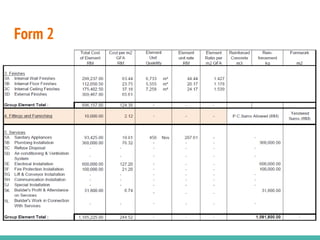

80. Form 2

81. 4 FITTINGS AND FURNISHES
Total cost of fittings and
furnishes RM 10,000.00

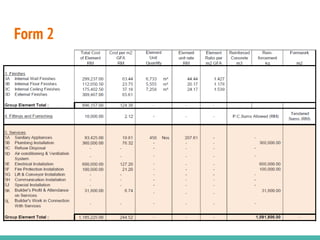

82. Form 2

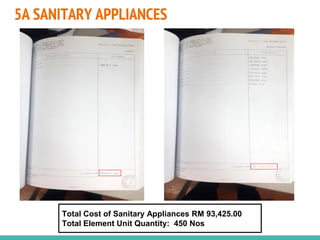

83. 5A SANITARY APPLIANCES
Total Cost of Sanitary Appliances RM 93,425.00
Total Element Unit Quantity: 450 Nos

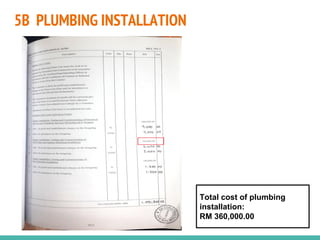

84. 5B PLUMBING INSTALLATION
Total cost of plumbing
installation:
RM 360,000.00

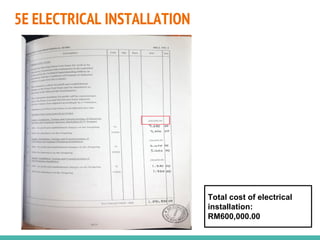

85. 5E ELECTRICAL INSTALLATION
Total cost of electrical
installation:
RM600,000.00

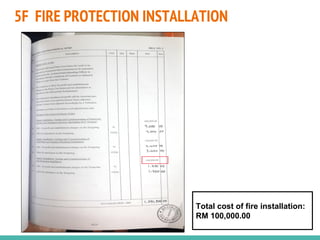

86. 5F FIRE PROTECTION INSTALLATION
Total cost of fire installation:
RM 100,000.00

87. 5K BUILDER’S PROFIT AND ATTENDANCE ON SERVICES
Total cost of builder’s profit and
attendance on services:
RM 31,800.00

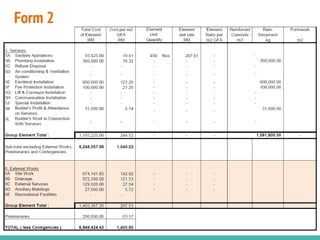

88. Form 2

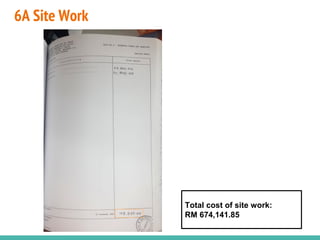

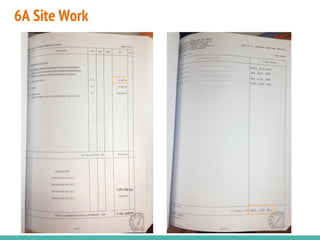

89. 6A Site Work

90. 6A Site Work
Total cost of site work:
RM 674,141.85

91. 6B Drainage
Total Cost of Drainage: RM 572,299.50

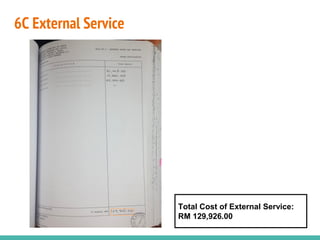

92. 6C External Service
Total Cost of External Service:
RM 129,926.00

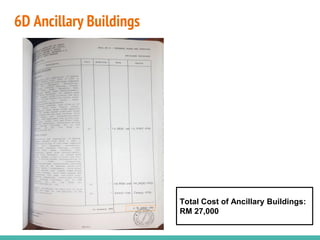

93. 6D Ancillary Buildings
Total Cost of Ancillary Buildings:
RM 27,000

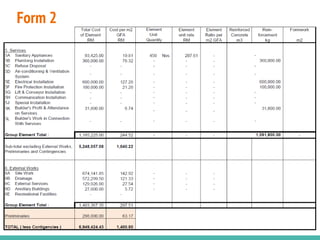

94. Form 2

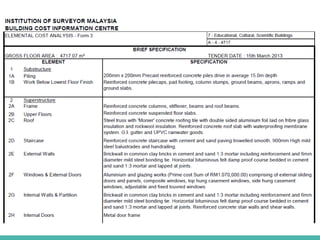

95. Form 3

98. THANK YOU !
