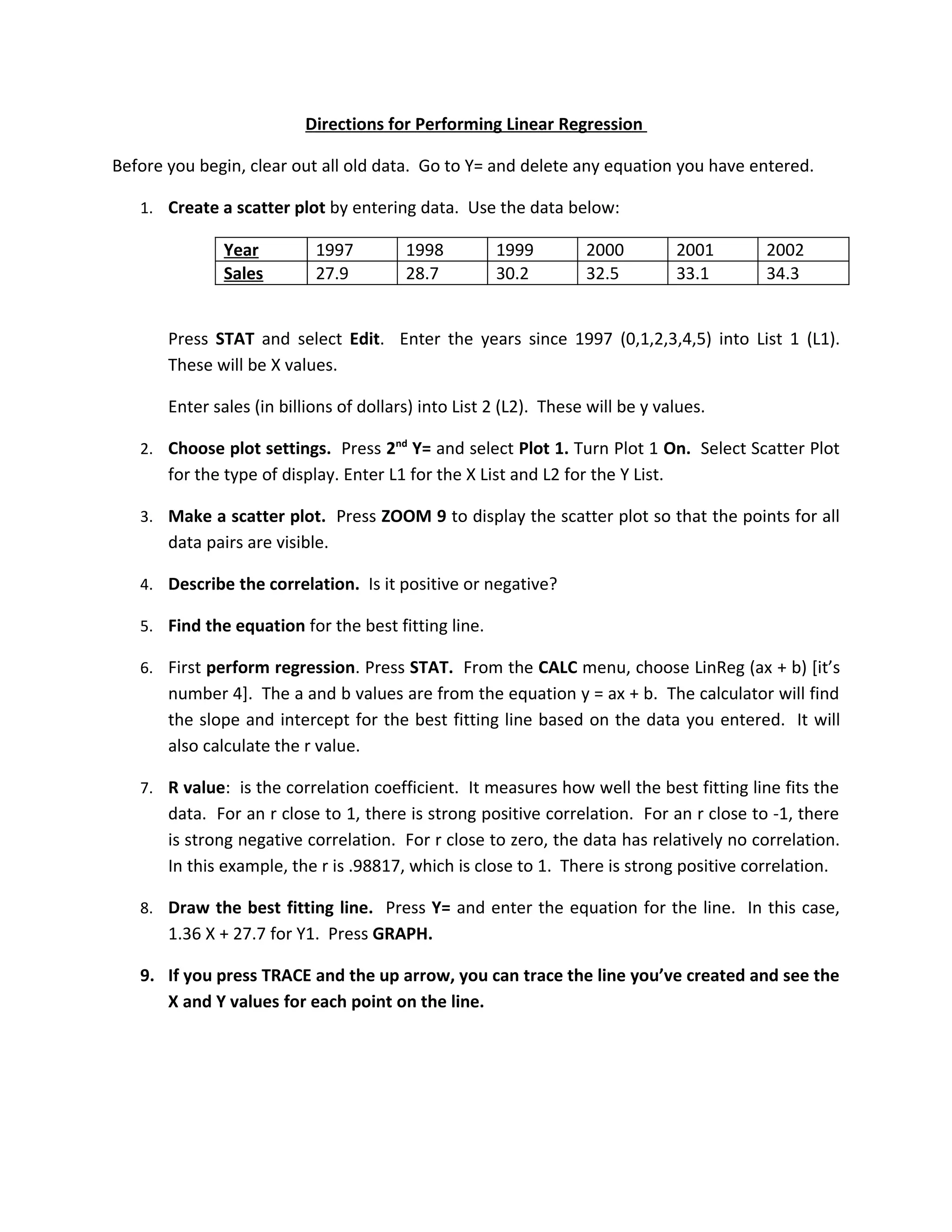

![Directions for Performing Linear Regression
Before you begin, clear out all old data. Go to Y= and delete any equation you have entered.
1. Create a scatter plot by entering data. Use the data below:
Year 1997 1998 1999 2000 2001 2002
Sales 27.9 28.7 30.2 32.5 33.1 34.3
Press STAT and select Edit. Enter the years since 1997 (0,1,2,3,4,5) into List 1 (L1).
These will be X values.
Enter sales (in billions of dollars) into List 2 (L2). These will be y values.
2. Choose plot settings. Press 2nd Y= and select Plot 1. Turn Plot 1 On. Select Scatter Plot
for the type of display. Enter L1 for the X List and L2 for the Y List.
3. Make a scatter plot. Press ZOOM 9 to display the scatter plot so that the points for all
data pairs are visible.
4. Describe the correlation. Is it positive or negative?
5. Find the equation for the best fitting line.
6. First perform regression. Press STAT. From the CALC menu, choose LinReg (ax + b) [it’s
number 4]. The a and b values are from the equation y = ax + b. The calculator will find
the slope and intercept for the best fitting line based on the data you entered. It will
also calculate the r value.
7. R value: is the correlation coefficient. It measures how well the best fitting line fits the
data. For an r close to 1, there is strong positive correlation. For an r close to -1, there
is strong negative correlation. For r close to zero, the data has relatively no correlation.
In this example, the r is .98817, which is close to 1. There is strong positive correlation.
8. Draw the best fitting line. Press Y= and enter the equation for the line. In this case,
1.36 X + 27.7 for Y1. Press GRAPH.
9. If you press TRACE and the up arrow, you can trace the line you’ve created and see the
X and Y values for each point on the line.](https://image.slidesharecdn.com/directionsforperforminglinearregression-091118121428-phpapp01/75/Directions-For-Performing-Linear-Regression-1-2048.jpg)
Uploaded bySt. Mary Magdalen School
Directions For Performing Linear Regression
The document provides directions for performing linear regression on a dataset containing yearly sales figures from 1997 to 2002. It instructs the user to [1] enter the data into lists for the x and y values, [2] create a scatter plot of the data, [3] determine if the correlation is positive or negative, and [4] perform linear regression analysis to find the equation of the best fitting line and calculate the correlation coefficient.
