Deep Foundation
DEFINITION
1.

Deep Foundations are those
 in which the depth of the foundation is very large
in comparison to its width.
 Which are not constructed by ordinary methods
of open pit excavations.

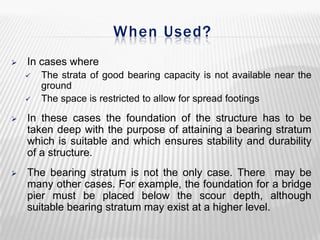

When Used?


In cases where



The strata of good bearing capacity is not available near the
ground
The space is restricted to allow for spread footings



In these cases the foundation of the structure has to be
taken deep with the purpose of attaining a bearing stratum
which is suitable and which ensures stability and durability
of a structure.



The bearing stratum is not the only case. There may be
many other cases. For example, the foundation for a bridge
pier must be placed below the scour depth, although
suitable bearing stratum may exist at a higher level.

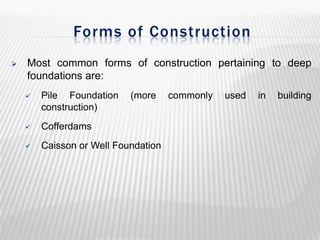

Forms of Construction


Most common forms of construction pertaining to deep
foundations are:


Pile Foundation
construction)

(more



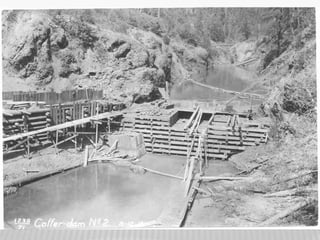

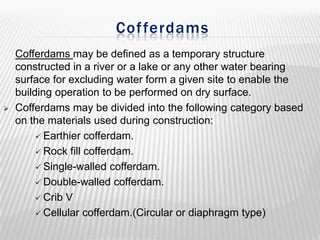

Cofferdams



Caisson or Well Foundation

commonly

used

in

building

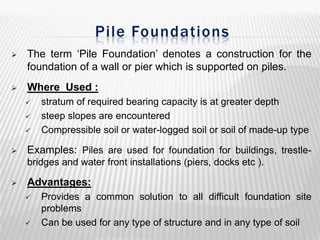

Pile Foundations


The term ‘Pile Foundation’ denotes a construction for the
foundation of a wall or pier which is supported on piles.



Where Used :






stratum of required bearing capacity is at greater depth
steep slopes are encountered
Compressible soil or water-logged soil or soil of made-up type

Examples: Piles are used for foundation for buildings, trestlebridges and water front installations (piers, docks etc ).



Advantages:




Provides a common solution to all difficult foundation site
problems
Can be used for any type of structure and in any type of soil
Pile Foundations(contd.)
Situations Which Demand Pile Foundation :
















Sub-soil water table is so high that it can easily affect the other foundations.
Load coming form the structure is heavy and non uniform.
Where grillage or raft foundations are either very costly or their adoption
impossible due to local difficulties.
When it is not possible to maintain foundation trenches in dry condition by
pumping, due to very heavy inflow of seepage or capillary water.
When it is not possible to timber the excavation trenches in the case of deep
strip foundation. (strip foundation- spread footing under wall ).
When overlay soil is compressible, and water-logged and firm hard bearing
strata is located at quite a large depth.
When structures are located on river-bed or sea-shore and foundations are
likely to be scoured due to action of water.
Large fluctuations in sub-soil water level.
Canal or deep drainage lines exist near the foundations.
In the construction of docks, piers and other marine structures they are used as
fender piles.

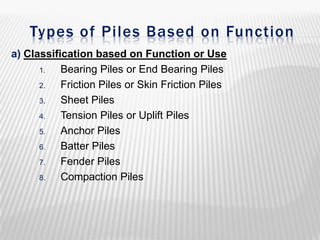

Types of Piles Based on Function
a) Classification based on Function or Use
1.
Bearing Piles or End Bearing Piles
2.
Friction Piles or Skin Friction Piles
3.
Sheet Piles
4.
Tension Piles or Uplift Piles
5.
Anchor Piles
6.
Batter Piles
7.
Fender Piles
8.
Compaction Piles
Types of Piles Based on Function
(contd)

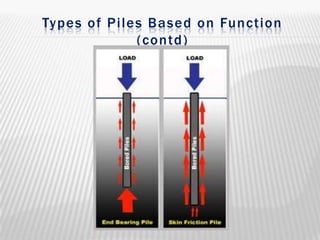

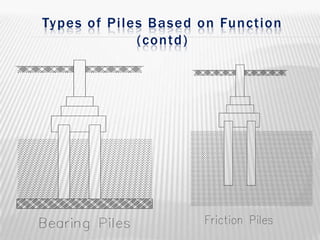

Bearing Piles


Driven into the ground until a hard stratum is reached.



Acts

as

pillars

supporting

the

super-structure

and

transmitting the load to the ground.


Piles, by themselves do not support the load, rather acts
as a medium to transmit the load from the foundation to
the resisting sub-stratum.
Types of Piles Based on Function
(contd)

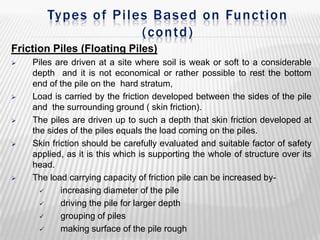

Friction Piles (Floating Piles)










Piles are driven at a site where soil is weak or soft to a considerable
depth and it is not economical or rather possible to rest the bottom
end of the pile on the hard stratum,
Load is carried by the friction developed between the sides of the pile
and the surrounding ground ( skin friction).
The piles are driven up to such a depth that skin friction developed at
the sides of the piles equals the load coming on the piles.
Skin friction should be carefully evaluated and suitable factor of safety
applied, as it is this which is supporting the whole of structure over its
head.
The load carrying capacity of friction pile can be increased by
increasing diameter of the pile

driving the pile for larger depth

grouping of piles

making surface of the pile rough
Types of Piles Based on Function
(contd)
Types of Piles Based on Function
(contd)
Types of Piles Based on Function
(contd)

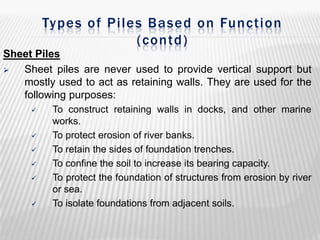

Sheet Piles

Sheet piles are never used to provide vertical support but
mostly used to act as retaining walls. They are used for the
following purposes:









To construct retaining walls in docks, and other marine
works.
To protect erosion of river banks.
To retain the sides of foundation trenches.
To confine the soil to increase its bearing capacity.
To protect the foundation of structures from erosion by river
or sea.
To isolate foundations from adjacent soils.
Types of Piles Based on Function
(contd)

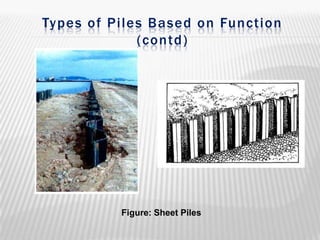

Figure: Sheet Piles
Types of Piles Based on Function
(contd)

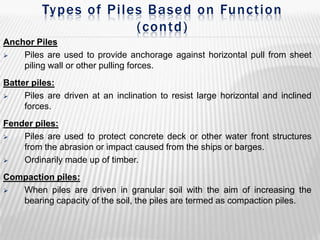

Anchor Piles

Piles are used to provide anchorage against horizontal pull from sheet
piling wall or other pulling forces.

Batter piles:

Piles are driven at an inclination to resist large horizontal and inclined
forces.
Fender piles:

Piles are used to protect concrete deck or other water front structures
from the abrasion or impact caused from the ships or barges.

Ordinarily made up of timber.
Compaction piles:

When piles are driven in granular soil with the aim of increasing the
bearing capacity of the soil, the piles are termed as compaction piles.

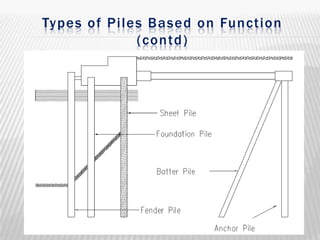

Types of Piles Based on Function
(contd)
Types of Piles Based on Function
(contd)

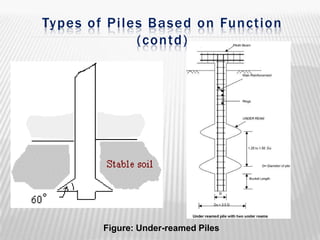

Figure: Under-reamed Piles

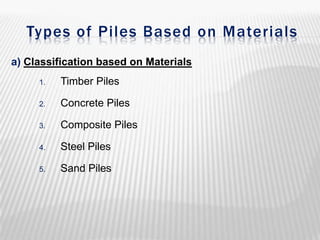

Types of Piles Based on Materials
a) Classification based on Materials
1.

Timber Piles

2.

Concrete Piles

3.

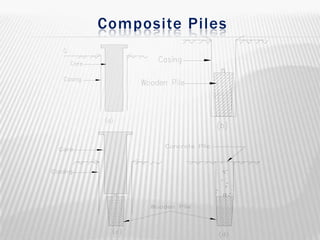

Composite Piles

4.

Steel Piles

5.

Sand Piles
Types of Piles Based on Materials
(contd)

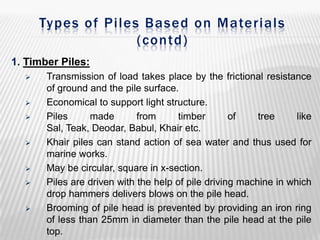

1. Timber Piles:












Transmission of load takes place by the frictional resistance
of ground and the pile surface.
Economical to support light structure.
Piles
made
from
timber
of
tree
like
Sal, Teak, Deodar, Babul, Khair etc.
Khair piles can stand action of sea water and thus used for
marine works.
May be circular, square in x-section.
Piles are driven with the help of pile driving machine in which
drop hammers delivers blows on the pile head.
Brooming of pile head is prevented by providing an iron ring
of less than 25mm in diameter than the pile head at the pile
top.
Types of Piles Based on Materials
(contd)

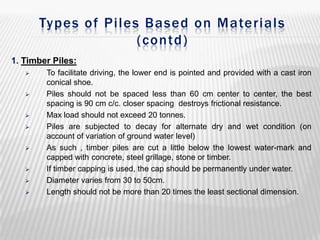

1. Timber Piles:













To facilitate driving, the lower end is pointed and provided with a cast iron
conical shoe.
Piles should not be spaced less than 60 cm center to center, the best
spacing is 90 cm c/c. closer spacing destroys frictional resistance.
Max load should not exceed 20 tonnes.
Piles are subjected to decay for alternate dry and wet condition (on
account of variation of ground water level)
As such , timber piles are cut a little below the lowest water-mark and
capped with concrete, steel grillage, stone or timber.
If timber capping is used, the cap should be permanently under water.
Diameter varies from 30 to 50cm.
Length should not be more than 20 times the least sectional dimension.
Types of Piles Based on Materials
(contd)

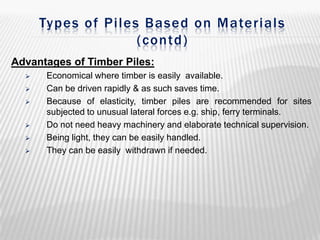

Advantages of Timber Piles:








Economical where timber is easily available.
Can be driven rapidly & as such saves time.
Because of elasticity, timber piles are recommended for sites
subjected to unusual lateral forces e.g. ship, ferry terminals.
Do not need heavy machinery and elaborate technical supervision.
Being light, they can be easily handled.
They can be easily withdrawn if needed.
Types of Piles Based on Materials
(contd)
Disadvantages of Timber Piles:









Timber piles must be cut off below the permanent ground water
level to prevent decay.
Liable to decay or deteriorate by salt water/insects.
Restricted length. It is rather difficult to procure piles in required
size and length.
Low bearing capacity.
They are not very durable unless suitably treated.
It is difficult or rather impossible to drive these piles into hard
stratum
Types of Piles Based on Materials
(contd)
Types of Piles Based on Materials
(contd)

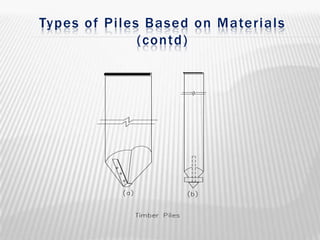

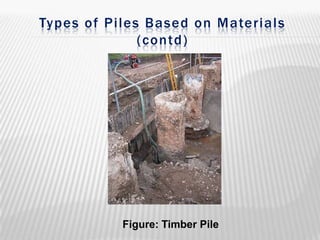

Figure: Timber Pile

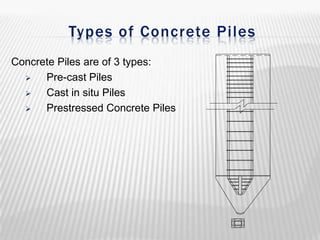

Types of Concrete Piles
Concrete Piles are of 3 types:

Pre-cast Piles

Cast in situ Piles

Prestressed Concrete Piles
Concrete Piles ( contd)

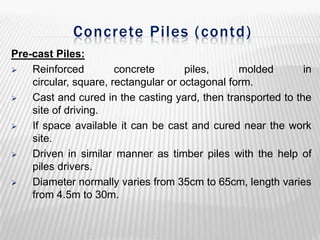

Pre-cast Piles:

Reinforced
concrete
piles,
molded
in
circular, square, rectangular or octagonal form.

Cast and cured in the casting yard, then transported to the
site of driving.

If space available it can be cast and cured near the work
site.

Driven in similar manner as timber piles with the help of
piles drivers.

Diameter normally varies from 35cm to 65cm, length varies
from 4.5m to 30m.
Concrete Piles ( contd)

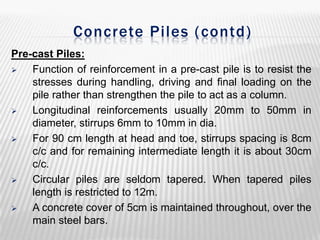

Pre-cast Piles:

Function of reinforcement in a pre-cast pile is to resist the
stresses during handling, driving and final loading on the
pile rather than strengthen the pile to act as a column.

Longitudinal reinforcements usually 20mm to 50mm in
diameter, stirrups 6mm to 10mm in dia.

For 90 cm length at head and toe, stirrups spacing is 8cm
c/c and for remaining intermediate length it is about 30cm
c/c.

Circular piles are seldom tapered. When tapered piles
length is restricted to 12m.

A concrete cover of 5cm is maintained throughout, over the
main steel bars.
Concrete Piles ( contd)

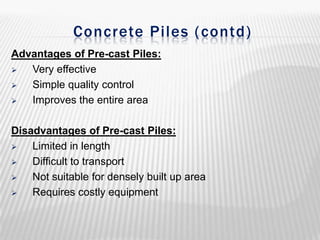

Advantages of Pre-cast Piles:

Very effective

Simple quality control

Improves the entire area
Disadvantages of Pre-cast Piles:

Limited in length

Difficult to transport

Not suitable for densely built up area

Requires costly equipment
Concrete Piles ( contd)
Concrete Piles ( contd)

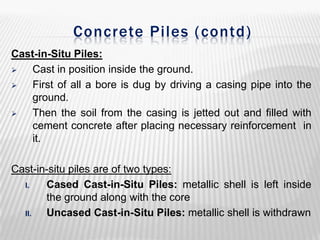

Cast-in-Situ Piles:

Cast in position inside the ground.

First of all a bore is dug by driving a casing pipe into the
ground.

Then the soil from the casing is jetted out and filled with
cement concrete after placing necessary reinforcement in
it.
Cast-in-situ piles are of two types:
I.
Cased Cast-in-Situ Piles: metallic shell is left inside
the ground along with the core
II.
Uncased Cast-in-Situ Piles: metallic shell is withdrawn
Concrete Piles ( contd)

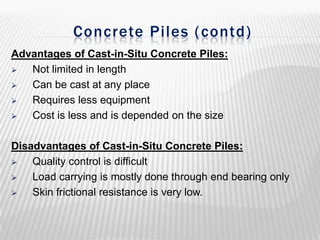

Advantages of Cast-in-Situ Concrete Piles:

Not limited in length

Can be cast at any place

Requires less equipment

Cost is less and is depended on the size
Disadvantages of Cast-in-Situ Concrete Piles:

Quality control is difficult

Load carrying is mostly done through end bearing only

Skin frictional resistance is very low.
Concrete Piles ( contd)

Figure: Cast-in-Situ Pile

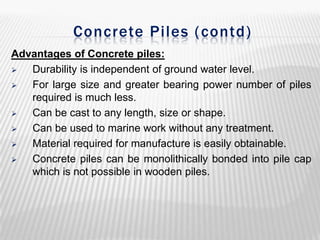

Concrete Piles ( contd)
Advantages of Concrete piles:

Durability is independent of ground water level.

For large size and greater bearing power number of piles
required is much less.

Can be cast to any length, size or shape.

Can be used to marine work without any treatment.

Material required for manufacture is easily obtainable.

Concrete piles can be monolithically bonded into pile cap
which is not possible in wooden piles.
Concrete Piles ( contd)
Disadvantages of Concrete piles:

Costlier than timber piles.

Can not be driven rapidly.

Required elaborate tech supervision and heavy driving
machines.

Must be reinforced to withstand handling stresses.

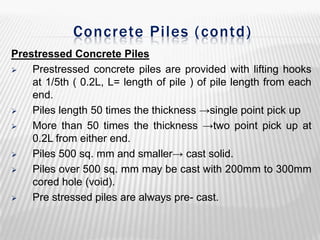

Concrete Piles ( contd)

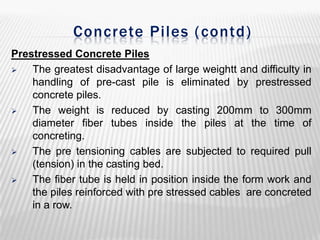

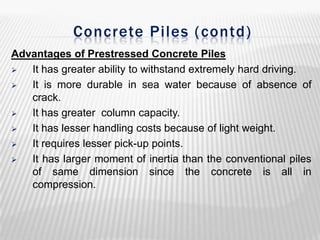

Prestressed Concrete Piles

The greatest disadvantage of large weightt and difficulty in
handling of pre-cast pile is eliminated by prestressed
concrete piles.

The weight is reduced by casting 200mm to 300mm
diameter fiber tubes inside the piles at the time of
concreting.

The pre tensioning cables are subjected to required pull
(tension) in the casting bed.

The fiber tube is held in position inside the form work and
the piles reinforced with pre stressed cables are concreted
in a row.
Concrete Piles ( contd)
Prestressed Concrete Piles

Prestressed concrete piles are provided with lifting hooks
at 1/5th ( 0.2L, L= length of pile ) of pile length from each
end.

Piles length 50 times the thickness →single point pick up

More than 50 times the thickness →two point pick up at
0.2L from either end.

Piles 500 sq. mm and smaller→ cast solid.

Piles over 500 sq. mm may be cast with 200mm to 300mm
cored hole (void).

Pre stressed piles are always pre- cast.
Concrete Piles ( contd)
Advantages of Prestressed Concrete Piles

It has greater ability to withstand extremely hard driving.

It is more durable in sea water because of absence of
crack.

It has greater column capacity.

It has lesser handling costs because of light weight.

It requires lesser pick-up points.

It has larger moment of inertia than the conventional piles
of same dimension since the concrete is all in
compression.

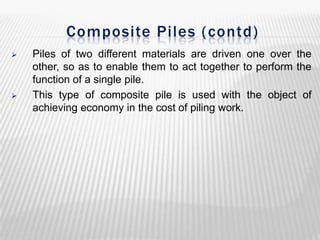

Composite Piles (contd)




Piles of two different materials are driven one over the
other, so as to enable them to act together to perform the
function of a single pile.
This type of composite pile is used with the object of
achieving economy in the cost of piling work.
Composite Piles

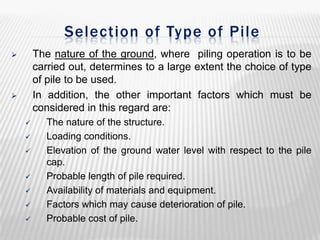

Selection of Type of Pile
The nature of the ground, where piling operation is to be
carried out, determines to a large extent the choice of type
of pile to be used.
In addition, the other important factors which must be
considered in this regard are:















The nature of the structure.
Loading conditions.
Elevation of the ground water level with respect to the pile
cap.
Probable length of pile required.
Availability of materials and equipment.
Factors which may cause deterioration of pile.
Probable cost of pile.

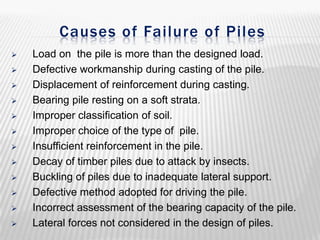

Causes of Failure of Piles















Load on the pile is more than the designed load.
Defective workmanship during casting of the pile.
Displacement of reinforcement during casting.
Bearing pile resting on a soft strata.
Improper classification of soil.
Improper choice of the type of pile.
Insufficient reinforcement in the pile.
Decay of timber piles due to attack by insects.
Buckling of piles due to inadequate lateral support.
Defective method adopted for driving the pile.
Incorrect assessment of the bearing capacity of the pile.
Lateral forces not considered in the design of piles.

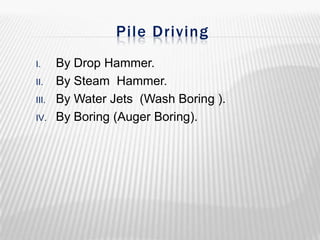

Pile Driving
I.
II.
III.
IV.

By Drop Hammer.
By Steam Hammer.
By Water Jets (Wash Boring ).
By Boring (Auger Boring).
Cof ferdams



Cofferdams may be defined as a temporary structure
constructed in a river or a lake or any other water bearing
surface for excluding water form a given site to enable the
building operation to be performed on dry surface.
Cofferdams may be divided into the following category based
on the materials used during construction:
 Earthier cofferdam.
 Rock fill cofferdam.
 Single-walled cofferdam.
 Double-walled cofferdam.
 Crib V
 Cellular cofferdam.(Circular or diaphragm type)
Earthen Cofferdams






It essentially consists of an earthen embankment built
around the area to be enclosed.
It is constructed where the depth of the water is not much
and the velocity of the current is very low.
The top width of the embankment is not less than 1 m and
the slopes vary from 1:1.5 to 1:2. The earth used to built
these cofferdams is a mixture od clay and sand or clay and
gravel
Deep foundation

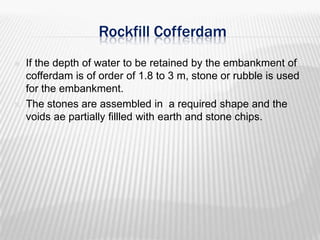

Rockfill Cofferdam




If the depth of water to be retained by the embankment of
cofferdam is of order of 1.8 to 3 m, stone or rubble is used
for the embankment.
The stones are assembled in a required shape and the
voids ae partially fillled with earth and stone chips.

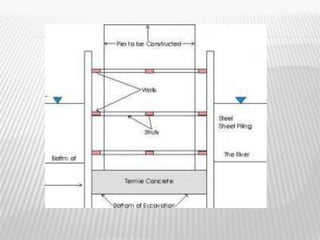

Single walled Cofferdams






This type of cofferdam is used in places where the area to
be enclosed is very small and he depth of water is more,
say 4.5 to 6m.
Timber piles known as guide piles are first driven in to the
river bed. Longitudinal runners called wales are then bolted
to these at suitable distance apart. Steel or wooden sheet
piles are then driven into the river bed along the wales and
secured to them by bolts.
To increase the stability the sheets on two faces are braced
by trussed arrangement of struts.
Deep foundation

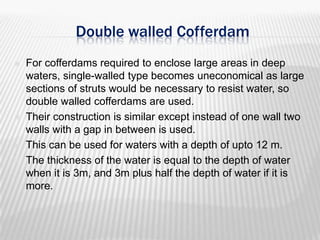

Double walled Cofferdam







For cofferdams required to enclose large areas in deep
waters, single-walled type becomes uneconomical as large
sections of struts would be necessary to resist water, so
double walled cofferdams are used.
Their construction is similar except instead of one wall two
walls with a gap in between is used.
This can be used for waters with a depth of upto 12 m.
The thickness of the water is equal to the depth of water
when it is 3m, and 3m plus half the depth of water if it is
more.

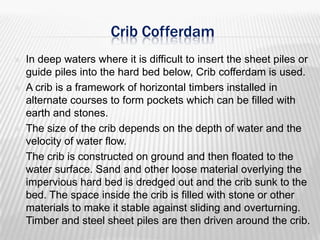

Crib Cofferdam








In deep waters where it is difficult to insert the sheet piles or
guide piles into the hard bed below, Crib cofferdam is used.
A crib is a framework of horizontal timbers installed in
alternate courses to form pockets which can be filled with
earth and stones.
The size of the crib depends on the depth of water and the
velocity of water flow.
The crib is constructed on ground and then floated to the
water surface. Sand and other loose material overlying the
impervious hard bed is dredged out and the crib sunk to the
bed. The space inside the crib is filled with stone or other
materials to make it stable against sliding and overturning.
Timber and steel sheet piles are then driven around the crib.
Deep foundation

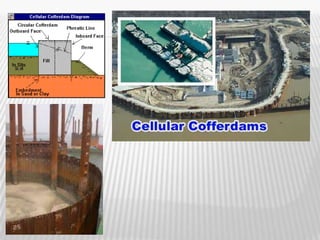

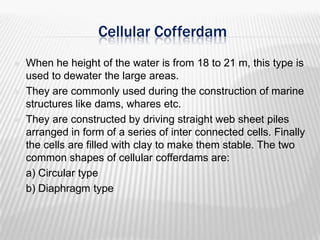

Cellular Cofferdam









When he height of the water is from 18 to 21 m, this type is
used to dewater the large areas.
They are commonly used during the construction of marine
structures like dams, whares etc.
They are constructed by driving straight web sheet piles
arranged in form of a series of inter connected cells. Finally
the cells are filled with clay to make them stable. The two
common shapes of cellular cofferdams are:
a) Circular type
b) Diaphragm type
Deep foundation

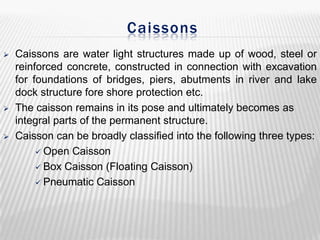

Caissons






Caissons are water light structures made up of wood, steel or
reinforced concrete, constructed in connection with excavation
for foundations of bridges, piers, abutments in river and lake
dock structure fore shore protection etc.
The caisson remains in its pose and ultimately becomes as
integral parts of the permanent structure.
Caisson can be broadly classified into the following three types:
 Open Caisson
 Box Caisson (Floating Caisson)
 Pneumatic Caisson

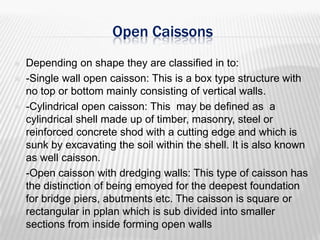

Open Caissons







Depending on shape they are classified in to:
-Single wall open caisson: This is a box type structure with
no top or bottom mainly consisting of vertical walls.
-Cylindrical open caisson: This may be defined as a
cylindrical shell made up of timber, masonry, steel or
reinforced concrete shod with a cutting edge and which is
sunk by excavating the soil within the shell. It is also known
as well caisson.
-Open caisson with dredging walls: This type of caisson has
the distinction of being emoyed for the deepest foundation
for bridge piers, abutments etc. The caisson is square or
rectangular in pplan which is sub divided into smaller
sections from inside forming open walls
Deep foundation
Box Caisson


It is similar to open caisson except it is closed at the bottom.
Caisson is cast and cured on land and then launched in
water and towed to the site for sinking. They are used where
the strata of sufficient bearing capacity is available near the
ground.

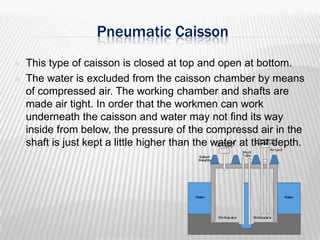

Pneumatic Caisson



This type of caisson is closed at top and open at bottom.
The water is excluded from the caisson chamber by means
of compressed air. The working chamber and shafts are
made air tight. In order that the workmen can work
underneath the caisson and water may not find its way
inside from below, the pressure of the compressd air in the
shaft is just kept a little higher than the water at that depth.

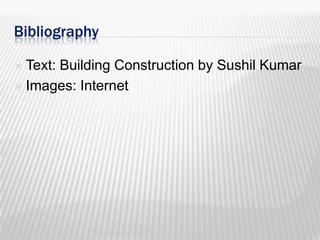

Bibliography
Text: Building Construction by Sushil Kumar
 Images: Internet


More Related Content

What's hot

Retaining wall
 Retaining wall  Retaining wall
Retaining wall
kamariya keyur

Foundation selection
Foundation selectionFoundation selection
Foundation selection
dhara dattani

Pile foundation
Pile foundationPile foundation
Pile foundation
Parth Desani

Foundation
FoundationFoundation
Foundation
bakht zamin

Chapter 1 PILE FOUNDATIONS
Chapter 1 PILE FOUNDATIONSChapter 1 PILE FOUNDATIONS
Chapter 1 PILE FOUNDATIONS
KHUSHBU SHAH

Pile foundation ppt
Pile foundation pptPile foundation ppt
Pile foundation ppt
Surat Construction PVT LTD

DIFFERENT TYPE OF SHALLOW FOUNDATION
DIFFERENT TYPE OF SHALLOW FOUNDATIONDIFFERENT TYPE OF SHALLOW FOUNDATION
DIFFERENT TYPE OF SHALLOW FOUNDATION
bishal120

TYPES OF PILE FOUNDATION & APPLICATIONS
TYPES OF PILE FOUNDATION & APPLICATIONSTYPES OF PILE FOUNDATION & APPLICATIONS
TYPES OF PILE FOUNDATION & APPLICATIONS
Maharshi Dave

Retaining Walls
Retaining WallsRetaining Walls
Retaining Walls
Mereia Kali

Foundation
FoundationFoundation
Foundation
Dr. Ramesh B

footing
footingfooting
footing
illpa

Foundation types
Foundation typesFoundation types
Foundation types
Ashwini Ingale

Footing and Its Types
Footing and Its TypesFooting and Its Types
Footing and Its Types
Abid Javaid

Staircase design
Staircase designStaircase design
Staircase design
Pritesh Parmar

Caisson
CaissonCaisson
Foundation & Footings
Foundation & FootingsFoundation & Footings
Foundation & Footings
ShahriarEbnBashar1

Deep foundation
Deep foundationDeep foundation
Retaining walls
Retaining wallsRetaining walls
Retaining walls
Rahul

Pile foundation
Pile  foundation Pile  foundation
Pile foundation
Sherchandra Shrestha

Raft foundations
Raft foundationsRaft foundations
Raft foundations
hatim ahmed


What's hot (20)

Retaining wall
 Retaining wall  Retaining wall
Retaining wall

Foundation selection
Foundation selectionFoundation selection
Foundation selection

Pile foundation
Pile foundationPile foundation
Pile foundation

Foundation
FoundationFoundation
Foundation

Chapter 1 PILE FOUNDATIONS
Chapter 1 PILE FOUNDATIONSChapter 1 PILE FOUNDATIONS
Chapter 1 PILE FOUNDATIONS

Pile foundation ppt
Pile foundation pptPile foundation ppt
Pile foundation ppt

DIFFERENT TYPE OF SHALLOW FOUNDATION
DIFFERENT TYPE OF SHALLOW FOUNDATIONDIFFERENT TYPE OF SHALLOW FOUNDATION
DIFFERENT TYPE OF SHALLOW FOUNDATION

TYPES OF PILE FOUNDATION & APPLICATIONS
TYPES OF PILE FOUNDATION & APPLICATIONSTYPES OF PILE FOUNDATION & APPLICATIONS
TYPES OF PILE FOUNDATION & APPLICATIONS

Retaining Walls
Retaining WallsRetaining Walls
Retaining Walls

Foundation
FoundationFoundation
Foundation

footing
footingfooting
footing

Foundation types
Foundation typesFoundation types
Foundation types

Footing and Its Types
Footing and Its TypesFooting and Its Types
Footing and Its Types

Staircase design
Staircase designStaircase design
Staircase design

Caisson
CaissonCaisson
Caisson

Foundation & Footings
Foundation & FootingsFoundation & Footings
Foundation & Footings

Deep foundation
Deep foundationDeep foundation
Deep foundation

Retaining walls
Retaining wallsRetaining walls
Retaining walls

Pile foundation
Pile  foundation Pile  foundation
Pile foundation

Raft foundations
Raft foundationsRaft foundations
Raft foundations


Viewers also liked

ALL ABOUT DEEP FOUNDATIONS
ALL ABOUT DEEP FOUNDATIONSALL ABOUT DEEP FOUNDATIONS
ALL ABOUT DEEP FOUNDATIONS
jagrutib22

Sand island dlnr
Sand island dlnrSand island dlnr
Sand island dlnr
Honolulu Civil Beat

Lesson4
Lesson4Lesson4
Coffer dams 01
Coffer dams 01Coffer dams 01
Coffer dams 01
juwes

Project Controls Expo - 31st Oct 2012 - Delay Analysis Letting the Evidence S...
Project Controls Expo - 31st Oct 2012 - Delay Analysis Letting the Evidence S...Project Controls Expo - 31st Oct 2012 - Delay Analysis Letting the Evidence S...
Project Controls Expo - 31st Oct 2012 - Delay Analysis Letting the Evidence S...
Project Controls Expo

types of coffer dam
types of coffer dam types of coffer dam
types of coffer dam
VINAY PATEL

Types of-cofferdams
Types of-cofferdamsTypes of-cofferdams
Types of-cofferdams
venkat eswar

2 1 excavation_basementconstruction
2 1 excavation_basementconstruction2 1 excavation_basementconstruction
2 1 excavation_basementconstruction
vietcgxd

Cofferdam
CofferdamCofferdam
Cofferdam
sauravsaxena3

Caissons
CaissonsCaissons
basement excavation, underpinning
basement excavation, underpinningbasement excavation, underpinning
basement excavation, underpinning
Okwera David

Coffer Dams and Caissons
Coffer Dams and CaissonsCoffer Dams and Caissons
Coffer Dams and Caissons
Rizwan Samor

Soil ppt
Soil pptSoil ppt
Soil ppt
Chasey Ciudad

Type of caissons
Type of caissonsType of caissons
Type of caissons
AB MAKASANA

Coffer dam and its type
Coffer dam and its typeCoffer dam and its type
Coffer dam and its type
Gaurang Kakadiya

Caisson foundation.ppt
Caisson foundation.pptCaisson foundation.ppt
Caisson foundation.ppt
Tarique048

Soil Erosion
Soil ErosionSoil Erosion
Soil Erosion
jbgruver

Cofferdam
CofferdamCofferdam
Cofferdam
ubaidpvkd

Underwater construction
Underwater construction Underwater construction
Underwater construction
Pranay Kumar

soil erosion
soil erosionsoil erosion
soil erosion
cheergalsal


Viewers also liked (20)

ALL ABOUT DEEP FOUNDATIONS
ALL ABOUT DEEP FOUNDATIONSALL ABOUT DEEP FOUNDATIONS
ALL ABOUT DEEP FOUNDATIONS

Sand island dlnr
Sand island dlnrSand island dlnr
Sand island dlnr

Lesson4
Lesson4Lesson4
Lesson4

Coffer dams 01
Coffer dams 01Coffer dams 01
Coffer dams 01

Project Controls Expo - 31st Oct 2012 - Delay Analysis Letting the Evidence S...
Project Controls Expo - 31st Oct 2012 - Delay Analysis Letting the Evidence S...Project Controls Expo - 31st Oct 2012 - Delay Analysis Letting the Evidence S...
Project Controls Expo - 31st Oct 2012 - Delay Analysis Letting the Evidence S...

types of coffer dam
types of coffer dam types of coffer dam
types of coffer dam

Types of-cofferdams
Types of-cofferdamsTypes of-cofferdams
Types of-cofferdams

2 1 excavation_basementconstruction
2 1 excavation_basementconstruction2 1 excavation_basementconstruction
2 1 excavation_basementconstruction

Cofferdam
CofferdamCofferdam
Cofferdam

Caissons
CaissonsCaissons
Caissons

basement excavation, underpinning
basement excavation, underpinningbasement excavation, underpinning
basement excavation, underpinning

Coffer Dams and Caissons
Coffer Dams and CaissonsCoffer Dams and Caissons
Coffer Dams and Caissons

Soil ppt
Soil pptSoil ppt
Soil ppt

Type of caissons
Type of caissonsType of caissons
Type of caissons

Coffer dam and its type
Coffer dam and its typeCoffer dam and its type
Coffer dam and its type

Caisson foundation.ppt
Caisson foundation.pptCaisson foundation.ppt
Caisson foundation.ppt

Soil Erosion
Soil ErosionSoil Erosion
Soil Erosion

Cofferdam
CofferdamCofferdam
Cofferdam

Underwater construction
Underwater construction Underwater construction
Underwater construction

soil erosion
soil erosionsoil erosion
soil erosion


Similar to Deep foundation

Deep Foundation
Deep FoundationDeep Foundation
Deep Foundation
TanvirShovon6

Lec 7 pile foundation
Lec 7 pile foundationLec 7 pile foundation
Lec 7 pile foundation
Ghulam Yasin

Pile Foundation by Pratik Solanki (tes.google.com/site/infodiplomacivil/)
Pile Foundation by Pratik Solanki (tes.google.com/site/infodiplomacivil/)Pile Foundation by Pratik Solanki (tes.google.com/site/infodiplomacivil/)
Pile Foundation by Pratik Solanki (tes.google.com/site/infodiplomacivil/)
Pratik Solanki

1.PILE FOUNDATION (ACE) 2160601 GTU
1.PILE FOUNDATION (ACE) 2160601 GTU1.PILE FOUNDATION (ACE) 2160601 GTU
1.PILE FOUNDATION (ACE) 2160601 GTU
VATSAL PATEL

Module 3 pile types and construction
Module 3   pile types and constructionModule 3   pile types and construction
Module 3 pile types and construction
Amelie P

Chapter 15
Chapter 15Chapter 15
Chapter 15
SantistebanCampos

foundation.pptx
foundation.pptxfoundation.pptx
foundation.pptx
AnshSingh813445

DEEP FOUNDATION
DEEP FOUNDATIONDEEP FOUNDATION
DEEP FOUNDATION
FAISAL ANSARI

2.foundation
2.foundation2.foundation
2.foundation
Amynaah Amye

Chapter 4 deep foundation ( bi )
Chapter 4 deep foundation ( bi )Chapter 4 deep foundation ( bi )
Chapter 4 deep foundation ( bi )
AmiRul AFiq

Pile footing.pptx
Pile footing.pptxPile footing.pptx
Pile footing.pptx
SHAIKJUNAID23

Pile foundation
Pile foundationPile foundation
Pile foundation
Latif Hyder Wadho

Types Of Foundation
Types Of FoundationTypes Of Foundation
Types Of Foundation
stooty s

Advance Construction & Equipment
Advance Construction & EquipmentAdvance Construction & Equipment
Advance Construction & Equipment
Aditya Mistry

Pile foundation
Pile foundationPile foundation
Pile foundation
JNTUK

LECT 6 UPDATE.pdf
LECT  6 UPDATE.pdfLECT  6 UPDATE.pdf
LECT 6 UPDATE.pdf
DRJULAIDAKALIWON

Different types of pile
Different types of pile Different types of pile
Different types of pile
Gaurang Kakadiya

DEEP FOUNDATION
DEEP FOUNDATIONDEEP FOUNDATION
DEEP FOUNDATION
dhara dattani

Pile foundation
Pile foundationPile foundation
Pile foundation
Aglaia Connect

Pilefoundation
PilefoundationPilefoundation
Pilefoundation
Arpan Patel


Similar to Deep foundation (20)

Deep Foundation
Deep FoundationDeep Foundation
Deep Foundation

Lec 7 pile foundation
Lec 7 pile foundationLec 7 pile foundation
Lec 7 pile foundation

Pile Foundation by Pratik Solanki (tes.google.com/site/infodiplomacivil/)
Pile Foundation by Pratik Solanki (tes.google.com/site/infodiplomacivil/)Pile Foundation by Pratik Solanki (tes.google.com/site/infodiplomacivil/)
Pile Foundation by Pratik Solanki (tes.google.com/site/infodiplomacivil/)

1.PILE FOUNDATION (ACE) 2160601 GTU
1.PILE FOUNDATION (ACE) 2160601 GTU1.PILE FOUNDATION (ACE) 2160601 GTU
1.PILE FOUNDATION (ACE) 2160601 GTU

Module 3 pile types and construction
Module 3   pile types and constructionModule 3   pile types and construction
Module 3 pile types and construction

Chapter 15
Chapter 15Chapter 15
Chapter 15

foundation.pptx
foundation.pptxfoundation.pptx
foundation.pptx

DEEP FOUNDATION
DEEP FOUNDATIONDEEP FOUNDATION
DEEP FOUNDATION

2.foundation
2.foundation2.foundation
2.foundation

Chapter 4 deep foundation ( bi )
Chapter 4 deep foundation ( bi )Chapter 4 deep foundation ( bi )
Chapter 4 deep foundation ( bi )

Pile footing.pptx
Pile footing.pptxPile footing.pptx
Pile footing.pptx

Pile foundation
Pile foundationPile foundation
Pile foundation

Types Of Foundation
Types Of FoundationTypes Of Foundation
Types Of Foundation

Advance Construction & Equipment
Advance Construction & EquipmentAdvance Construction & Equipment
Advance Construction & Equipment

Pile foundation
Pile foundationPile foundation
Pile foundation

LECT 6 UPDATE.pdf
LECT  6 UPDATE.pdfLECT  6 UPDATE.pdf
LECT 6 UPDATE.pdf

Different types of pile
Different types of pile Different types of pile
Different types of pile

DEEP FOUNDATION
DEEP FOUNDATIONDEEP FOUNDATION
DEEP FOUNDATION

Pile foundation
Pile foundationPile foundation
Pile foundation

Pilefoundation
PilefoundationPilefoundation
Pilefoundation


More from Hamzah Meraj, Faculty of Architecture, Jamia Millia Islamia, New delhi

Ophthalmology hospital
Ophthalmology hospital Ophthalmology hospital
Housing Policies-BJP/UPA/STATE -Tushar bansal
Housing Policies-BJP/UPA/STATE -Tushar bansalHousing Policies-BJP/UPA/STATE -Tushar bansal
Housing Policies-BJP/UPA/STATE -Tushar bansal
Hamzah Meraj, Faculty of Architecture, Jamia Millia Islamia, New delhi

Housing Policies-BJP/UPA/STATE -Shobha suraj
Housing Policies-BJP/UPA/STATE -Shobha surajHousing Policies-BJP/UPA/STATE -Shobha suraj
Housing Policies-BJP/UPA/STATE
Housing Policies-BJP/UPA/STATE Housing Policies-BJP/UPA/STATE
Housing Policies-BJP/UPA/STATE
Housing Policies-BJP/UPA/STATE Housing Policies-BJP/UPA/STATE
Housing Policies- Lalit kumar
Housing Policies- Lalit kumarHousing Policies- Lalit kumar
National Policies and programs on Habitat- Lakshay mittal
National Policies and programs on Habitat- Lakshay mittalNational Policies and programs on Habitat- Lakshay mittal
National Policies and programs on Habitat- Lakshay mittal
Hamzah Meraj, Faculty of Architecture, Jamia Millia Islamia, New delhi

national Housing Policies- Kadambani singh
national Housing Policies- Kadambani singhnational Housing Policies- Kadambani singh
National Housing Policies- Jyoti arora
National Housing Policies- Jyoti aroraNational Housing Policies- Jyoti arora
Housing Policies- Janbaz ali
Housing Policies- Janbaz aliHousing Policies- Janbaz ali
housing policies -Bushra fatima
housing policies -Bushra fatimahousing policies -Bushra fatima
housing decisions, policies and yojnas by BJP-Batul zainab
housing decisions, policies and yojnas by BJP-Batul zainabhousing decisions, policies and yojnas by BJP-Batul zainab
housing decisions, policies and yojnas by BJP-Batul zainab
Hamzah Meraj, Faculty of Architecture, Jamia Millia Islamia, New delhi

SAMAJWADI AWAS YOJNA - Anubhav singh
SAMAJWADI AWAS YOJNA - Anubhav singhSAMAJWADI AWAS YOJNA - Anubhav singh
National Policies and programmes on habitat- Apoorva singh
National Policies and programmes on habitat- Apoorva singhNational Policies and programmes on habitat- Apoorva singh
National Policies and programmes on habitat- Apoorva singh
Hamzah Meraj, Faculty of Architecture, Jamia Millia Islamia, New delhi

Digital green architecture - Phare Tower
Digital green architecture  - Phare TowerDigital green architecture  - Phare Tower
Up state housing policy-02
Up state housing policy-02Up state housing policy-02
Housing policies BJP & UPA
Housing policies BJP & UPAHousing policies BJP & UPA
Up state hosuing policies-01
Up state hosuing policies-01Up state hosuing policies-01
Positive impact of human activities
Positive impact of human activities Positive impact of human activities
Net zero energy building
Net zero energy buildingNet zero energy building

More from Hamzah Meraj, Faculty of Architecture, Jamia Millia Islamia, New delhi (20)

Ophthalmology hospital
Ophthalmology hospital Ophthalmology hospital
Ophthalmology hospital

Housing Policies-BJP/UPA/STATE -Tushar bansal
Housing Policies-BJP/UPA/STATE -Tushar bansalHousing Policies-BJP/UPA/STATE -Tushar bansal
Housing Policies-BJP/UPA/STATE -Tushar bansal

Housing Policies-BJP/UPA/STATE -Shobha suraj
Housing Policies-BJP/UPA/STATE -Shobha surajHousing Policies-BJP/UPA/STATE -Shobha suraj
Housing Policies-BJP/UPA/STATE -Shobha suraj

Housing Policies-BJP/UPA/STATE
Housing Policies-BJP/UPA/STATE Housing Policies-BJP/UPA/STATE
Housing Policies-BJP/UPA/STATE

Housing Policies-BJP/UPA/STATE
Housing Policies-BJP/UPA/STATE Housing Policies-BJP/UPA/STATE
Housing Policies-BJP/UPA/STATE

Housing Policies- Lalit kumar
Housing Policies- Lalit kumarHousing Policies- Lalit kumar
Housing Policies- Lalit kumar

National Policies and programs on Habitat- Lakshay mittal
National Policies and programs on Habitat- Lakshay mittalNational Policies and programs on Habitat- Lakshay mittal
National Policies and programs on Habitat- Lakshay mittal

national Housing Policies- Kadambani singh
national Housing Policies- Kadambani singhnational Housing Policies- Kadambani singh
national Housing Policies- Kadambani singh

National Housing Policies- Jyoti arora
National Housing Policies- Jyoti aroraNational Housing Policies- Jyoti arora
National Housing Policies- Jyoti arora

Housing Policies- Janbaz ali
Housing Policies- Janbaz aliHousing Policies- Janbaz ali
Housing Policies- Janbaz ali

housing policies -Bushra fatima
housing policies -Bushra fatimahousing policies -Bushra fatima
housing policies -Bushra fatima

housing decisions, policies and yojnas by BJP-Batul zainab
housing decisions, policies and yojnas by BJP-Batul zainabhousing decisions, policies and yojnas by BJP-Batul zainab
housing decisions, policies and yojnas by BJP-Batul zainab

SAMAJWADI AWAS YOJNA - Anubhav singh
SAMAJWADI AWAS YOJNA - Anubhav singhSAMAJWADI AWAS YOJNA - Anubhav singh
SAMAJWADI AWAS YOJNA - Anubhav singh

National Policies and programmes on habitat- Apoorva singh
National Policies and programmes on habitat- Apoorva singhNational Policies and programmes on habitat- Apoorva singh
National Policies and programmes on habitat- Apoorva singh

Digital green architecture - Phare Tower
Digital green architecture  - Phare TowerDigital green architecture  - Phare Tower
Digital green architecture - Phare Tower

Up state housing policy-02
Up state housing policy-02Up state housing policy-02
Up state housing policy-02

Housing policies BJP & UPA
Housing policies BJP & UPAHousing policies BJP & UPA
Housing policies BJP & UPA

Up state hosuing policies-01
Up state hosuing policies-01Up state hosuing policies-01
Up state hosuing policies-01

Positive impact of human activities
Positive impact of human activities Positive impact of human activities
Positive impact of human activities

Net zero energy building
Net zero energy buildingNet zero energy building
Net zero energy building


Recently uploaded

Node JS Interview Question PDF By ScholarHat
Node JS Interview Question PDF By ScholarHatNode JS Interview Question PDF By ScholarHat
Node JS Interview Question PDF By ScholarHat
Scholarhat

Lange and Roberts "DEIA in the Scholarly Landscape Session 5: DEIA in Peer Re...
Lange and Roberts "DEIA in the Scholarly Landscape Session 5: DEIA in Peer Re...Lange and Roberts "DEIA in the Scholarly Landscape Session 5: DEIA in Peer Re...
Lange and Roberts "DEIA in the Scholarly Landscape Session 5: DEIA in Peer Re...
National Information Standards Organization (NISO)

Imagination in Computer Science Research
Imagination in Computer Science ResearchImagination in Computer Science Research
Imagination in Computer Science Research
Abhik Roychoudhury

How to Manage Line Discount in Odoo 17 POS
How to Manage Line Discount in Odoo 17 POSHow to Manage Line Discount in Odoo 17 POS
How to Manage Line Discount in Odoo 17 POS
Celine George

DepEd School Calendar 2024-2025 DO_s2024_008
DepEd School Calendar 2024-2025 DO_s2024_008DepEd School Calendar 2024-2025 DO_s2024_008
DepEd School Calendar 2024-2025 DO_s2024_008
Glenn Rivera

10th Social Studies Enrichment Material (Abhyasa Deepika) EM.pdf
10th Social Studies Enrichment Material (Abhyasa Deepika) EM.pdf10th Social Studies Enrichment Material (Abhyasa Deepika) EM.pdf
10th Social Studies Enrichment Material (Abhyasa Deepika) EM.pdf
SSRCreations

New Features in Odoo 17 Sign - Odoo 17 Slides
New Features in Odoo 17 Sign - Odoo 17 SlidesNew Features in Odoo 17 Sign - Odoo 17 Slides
New Features in Odoo 17 Sign - Odoo 17 Slides
Celine George

11EHS Term 3 Week 1 Unit 1 Review: Feedback and improvementpptx
11EHS Term 3 Week 1 Unit 1 Review: Feedback and improvementpptx11EHS Term 3 Week 1 Unit 1 Review: Feedback and improvementpptx
11EHS Term 3 Week 1 Unit 1 Review: Feedback and improvementpptx
mansk2

Introduction to Banking System in India.ppt
Introduction to Banking System in India.pptIntroduction to Banking System in India.ppt
Introduction to Banking System in India.ppt
Dr. S. Bulomine Regi

Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)
Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)
Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)
Cátedra Banco Santander

C# Interview Questions PDF By ScholarHat.pdf
C# Interview Questions PDF By ScholarHat.pdfC# Interview Questions PDF By ScholarHat.pdf
C# Interview Questions PDF By ScholarHat.pdf
Scholarhat

E-learning Odoo 17 New features - Odoo 17 Slides
E-learning Odoo 17  New features - Odoo 17 SlidesE-learning Odoo 17  New features - Odoo 17 Slides
E-learning Odoo 17 New features - Odoo 17 Slides
Celine George

How to Empty a One2Many Field in Odoo 17
How to Empty a One2Many Field in Odoo 17How to Empty a One2Many Field in Odoo 17
How to Empty a One2Many Field in Odoo 17
Celine George

The Cruelty of Animal Testing in the Industry.pdf
The Cruelty of Animal Testing in the Industry.pdfThe Cruelty of Animal Testing in the Industry.pdf
The Cruelty of Animal Testing in the Industry.pdf
luzmilaglez334

How to Manage Early Receipt Printing in Odoo 17 POS
How to Manage Early Receipt Printing in Odoo 17 POSHow to Manage Early Receipt Printing in Odoo 17 POS
How to Manage Early Receipt Printing in Odoo 17 POS
Celine George

MathematicsGrade7-Presentation-July-12024.pptx
MathematicsGrade7-Presentation-July-12024.pptxMathematicsGrade7-Presentation-July-12024.pptx
MathematicsGrade7-Presentation-July-12024.pptx
nolicaliso1

C Interview Questions PDF By Scholarhat.pdf
C Interview Questions PDF By Scholarhat.pdfC Interview Questions PDF By Scholarhat.pdf
C Interview Questions PDF By Scholarhat.pdf
Scholarhat

How to Manage Access Rights & User Types in Odoo 17
How to Manage Access Rights & User Types in Odoo 17How to Manage Access Rights & User Types in Odoo 17
How to Manage Access Rights & User Types in Odoo 17
Celine George

RDBMS Lecture Notes Unit4 chapter12 VIEW
RDBMS Lecture Notes Unit4 chapter12 VIEWRDBMS Lecture Notes Unit4 chapter12 VIEW
RDBMS Lecture Notes Unit4 chapter12 VIEW
Murugan Solaiyappan

Our Guide to the July 2024 USPS® Rate Change
Our Guide to the July 2024 USPS® Rate ChangeOur Guide to the July 2024 USPS® Rate Change
Our Guide to the July 2024 USPS® Rate Change
Postal Advocate Inc.


Recently uploaded (20)

Node JS Interview Question PDF By ScholarHat
Node JS Interview Question PDF By ScholarHatNode JS Interview Question PDF By ScholarHat
Node JS Interview Question PDF By ScholarHat

Lange and Roberts "DEIA in the Scholarly Landscape Session 5: DEIA in Peer Re...
Lange and Roberts "DEIA in the Scholarly Landscape Session 5: DEIA in Peer Re...Lange and Roberts "DEIA in the Scholarly Landscape Session 5: DEIA in Peer Re...
Lange and Roberts "DEIA in the Scholarly Landscape Session 5: DEIA in Peer Re...

Imagination in Computer Science Research
Imagination in Computer Science ResearchImagination in Computer Science Research
Imagination in Computer Science Research

How to Manage Line Discount in Odoo 17 POS
How to Manage Line Discount in Odoo 17 POSHow to Manage Line Discount in Odoo 17 POS
How to Manage Line Discount in Odoo 17 POS

DepEd School Calendar 2024-2025 DO_s2024_008
DepEd School Calendar 2024-2025 DO_s2024_008DepEd School Calendar 2024-2025 DO_s2024_008
DepEd School Calendar 2024-2025 DO_s2024_008

10th Social Studies Enrichment Material (Abhyasa Deepika) EM.pdf
10th Social Studies Enrichment Material (Abhyasa Deepika) EM.pdf10th Social Studies Enrichment Material (Abhyasa Deepika) EM.pdf
10th Social Studies Enrichment Material (Abhyasa Deepika) EM.pdf

New Features in Odoo 17 Sign - Odoo 17 Slides
New Features in Odoo 17 Sign - Odoo 17 SlidesNew Features in Odoo 17 Sign - Odoo 17 Slides
New Features in Odoo 17 Sign - Odoo 17 Slides

11EHS Term 3 Week 1 Unit 1 Review: Feedback and improvementpptx
11EHS Term 3 Week 1 Unit 1 Review: Feedback and improvementpptx11EHS Term 3 Week 1 Unit 1 Review: Feedback and improvementpptx
11EHS Term 3 Week 1 Unit 1 Review: Feedback and improvementpptx

Introduction to Banking System in India.ppt
Introduction to Banking System in India.pptIntroduction to Banking System in India.ppt
Introduction to Banking System in India.ppt

Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)
Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)
Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)

C# Interview Questions PDF By ScholarHat.pdf
C# Interview Questions PDF By ScholarHat.pdfC# Interview Questions PDF By ScholarHat.pdf
C# Interview Questions PDF By ScholarHat.pdf

E-learning Odoo 17 New features - Odoo 17 Slides
E-learning Odoo 17  New features - Odoo 17 SlidesE-learning Odoo 17  New features - Odoo 17 Slides
E-learning Odoo 17 New features - Odoo 17 Slides

How to Empty a One2Many Field in Odoo 17
How to Empty a One2Many Field in Odoo 17How to Empty a One2Many Field in Odoo 17
How to Empty a One2Many Field in Odoo 17

The Cruelty of Animal Testing in the Industry.pdf
The Cruelty of Animal Testing in the Industry.pdfThe Cruelty of Animal Testing in the Industry.pdf
The Cruelty of Animal Testing in the Industry.pdf

How to Manage Early Receipt Printing in Odoo 17 POS
How to Manage Early Receipt Printing in Odoo 17 POSHow to Manage Early Receipt Printing in Odoo 17 POS
How to Manage Early Receipt Printing in Odoo 17 POS

MathematicsGrade7-Presentation-July-12024.pptx
MathematicsGrade7-Presentation-July-12024.pptxMathematicsGrade7-Presentation-July-12024.pptx
MathematicsGrade7-Presentation-July-12024.pptx

C Interview Questions PDF By Scholarhat.pdf
C Interview Questions PDF By Scholarhat.pdfC Interview Questions PDF By Scholarhat.pdf
C Interview Questions PDF By Scholarhat.pdf

How to Manage Access Rights & User Types in Odoo 17
How to Manage Access Rights & User Types in Odoo 17How to Manage Access Rights & User Types in Odoo 17
How to Manage Access Rights & User Types in Odoo 17

RDBMS Lecture Notes Unit4 chapter12 VIEW
RDBMS Lecture Notes Unit4 chapter12 VIEWRDBMS Lecture Notes Unit4 chapter12 VIEW
RDBMS Lecture Notes Unit4 chapter12 VIEW

Our Guide to the July 2024 USPS® Rate Change
Our Guide to the July 2024 USPS® Rate ChangeOur Guide to the July 2024 USPS® Rate Change
Our Guide to the July 2024 USPS® Rate Change


Deep foundation

  • 2. DEFINITION 1. Deep Foundations are those  in which the depth of the foundation is very large in comparison to its width.  Which are not constructed by ordinary methods of open pit excavations.
  • 3. When Used?  In cases where   The strata of good bearing capacity is not available near the ground The space is restricted to allow for spread footings  In these cases the foundation of the structure has to be taken deep with the purpose of attaining a bearing stratum which is suitable and which ensures stability and durability of a structure.  The bearing stratum is not the only case. There may be many other cases. For example, the foundation for a bridge pier must be placed below the scour depth, although suitable bearing stratum may exist at a higher level.
  • 4. Forms of Construction  Most common forms of construction pertaining to deep foundations are:  Pile Foundation construction) (more  Cofferdams  Caisson or Well Foundation commonly used in building
  • 5. Pile Foundations  The term ‘Pile Foundation’ denotes a construction for the foundation of a wall or pier which is supported on piles.  Where Used :     stratum of required bearing capacity is at greater depth steep slopes are encountered Compressible soil or water-logged soil or soil of made-up type Examples: Piles are used for foundation for buildings, trestlebridges and water front installations (piers, docks etc ).  Advantages:   Provides a common solution to all difficult foundation site problems Can be used for any type of structure and in any type of soil
  • 6. Pile Foundations(contd.) Situations Which Demand Pile Foundation :           Sub-soil water table is so high that it can easily affect the other foundations. Load coming form the structure is heavy and non uniform. Where grillage or raft foundations are either very costly or their adoption impossible due to local difficulties. When it is not possible to maintain foundation trenches in dry condition by pumping, due to very heavy inflow of seepage or capillary water. When it is not possible to timber the excavation trenches in the case of deep strip foundation. (strip foundation- spread footing under wall ). When overlay soil is compressible, and water-logged and firm hard bearing strata is located at quite a large depth. When structures are located on river-bed or sea-shore and foundations are likely to be scoured due to action of water. Large fluctuations in sub-soil water level. Canal or deep drainage lines exist near the foundations. In the construction of docks, piers and other marine structures they are used as fender piles.
  • 7. Types of Piles Based on Function a) Classification based on Function or Use 1. Bearing Piles or End Bearing Piles 2. Friction Piles or Skin Friction Piles 3. Sheet Piles 4. Tension Piles or Uplift Piles 5. Anchor Piles 6. Batter Piles 7. Fender Piles 8. Compaction Piles
  • 8. Types of Piles Based on Function (contd) Bearing Piles  Driven into the ground until a hard stratum is reached.  Acts as pillars supporting the super-structure and transmitting the load to the ground.  Piles, by themselves do not support the load, rather acts as a medium to transmit the load from the foundation to the resisting sub-stratum.
  • 9. Types of Piles Based on Function (contd) Friction Piles (Floating Piles)      Piles are driven at a site where soil is weak or soft to a considerable depth and it is not economical or rather possible to rest the bottom end of the pile on the hard stratum, Load is carried by the friction developed between the sides of the pile and the surrounding ground ( skin friction). The piles are driven up to such a depth that skin friction developed at the sides of the piles equals the load coming on the piles. Skin friction should be carefully evaluated and suitable factor of safety applied, as it is this which is supporting the whole of structure over its head. The load carrying capacity of friction pile can be increased by increasing diameter of the pile  driving the pile for larger depth  grouping of piles  making surface of the pile rough
  • 10. Types of Piles Based on Function (contd)
  • 11. Types of Piles Based on Function (contd)
  • 12. Types of Piles Based on Function (contd) Sheet Piles  Sheet piles are never used to provide vertical support but mostly used to act as retaining walls. They are used for the following purposes:       To construct retaining walls in docks, and other marine works. To protect erosion of river banks. To retain the sides of foundation trenches. To confine the soil to increase its bearing capacity. To protect the foundation of structures from erosion by river or sea. To isolate foundations from adjacent soils.
  • 13. Types of Piles Based on Function (contd) Figure: Sheet Piles
  • 14. Types of Piles Based on Function (contd) Anchor Piles  Piles are used to provide anchorage against horizontal pull from sheet piling wall or other pulling forces. Batter piles:  Piles are driven at an inclination to resist large horizontal and inclined forces. Fender piles:  Piles are used to protect concrete deck or other water front structures from the abrasion or impact caused from the ships or barges.  Ordinarily made up of timber. Compaction piles:  When piles are driven in granular soil with the aim of increasing the bearing capacity of the soil, the piles are termed as compaction piles.
  • 15. Types of Piles Based on Function (contd)
  • 16. Types of Piles Based on Function (contd) Figure: Under-reamed Piles
  • 17. Types of Piles Based on Materials a) Classification based on Materials 1. Timber Piles 2. Concrete Piles 3. Composite Piles 4. Steel Piles 5. Sand Piles
  • 18. Types of Piles Based on Materials (contd) 1. Timber Piles:        Transmission of load takes place by the frictional resistance of ground and the pile surface. Economical to support light structure. Piles made from timber of tree like Sal, Teak, Deodar, Babul, Khair etc. Khair piles can stand action of sea water and thus used for marine works. May be circular, square in x-section. Piles are driven with the help of pile driving machine in which drop hammers delivers blows on the pile head. Brooming of pile head is prevented by providing an iron ring of less than 25mm in diameter than the pile head at the pile top.
  • 19. Types of Piles Based on Materials (contd) 1. Timber Piles:         To facilitate driving, the lower end is pointed and provided with a cast iron conical shoe. Piles should not be spaced less than 60 cm center to center, the best spacing is 90 cm c/c. closer spacing destroys frictional resistance. Max load should not exceed 20 tonnes. Piles are subjected to decay for alternate dry and wet condition (on account of variation of ground water level) As such , timber piles are cut a little below the lowest water-mark and capped with concrete, steel grillage, stone or timber. If timber capping is used, the cap should be permanently under water. Diameter varies from 30 to 50cm. Length should not be more than 20 times the least sectional dimension.
  • 20. Types of Piles Based on Materials (contd) Advantages of Timber Piles:       Economical where timber is easily available. Can be driven rapidly & as such saves time. Because of elasticity, timber piles are recommended for sites subjected to unusual lateral forces e.g. ship, ferry terminals. Do not need heavy machinery and elaborate technical supervision. Being light, they can be easily handled. They can be easily withdrawn if needed.
  • 21. Types of Piles Based on Materials (contd) Disadvantages of Timber Piles:       Timber piles must be cut off below the permanent ground water level to prevent decay. Liable to decay or deteriorate by salt water/insects. Restricted length. It is rather difficult to procure piles in required size and length. Low bearing capacity. They are not very durable unless suitably treated. It is difficult or rather impossible to drive these piles into hard stratum
  • 22. Types of Piles Based on Materials (contd)
  • 23. Types of Piles Based on Materials (contd) Figure: Timber Pile
  • 24. Types of Concrete Piles Concrete Piles are of 3 types:  Pre-cast Piles  Cast in situ Piles  Prestressed Concrete Piles
  • 25. Concrete Piles ( contd) Pre-cast Piles:  Reinforced concrete piles, molded in circular, square, rectangular or octagonal form.  Cast and cured in the casting yard, then transported to the site of driving.  If space available it can be cast and cured near the work site.  Driven in similar manner as timber piles with the help of piles drivers.  Diameter normally varies from 35cm to 65cm, length varies from 4.5m to 30m.
  • 26. Concrete Piles ( contd) Pre-cast Piles:  Function of reinforcement in a pre-cast pile is to resist the stresses during handling, driving and final loading on the pile rather than strengthen the pile to act as a column.  Longitudinal reinforcements usually 20mm to 50mm in diameter, stirrups 6mm to 10mm in dia.  For 90 cm length at head and toe, stirrups spacing is 8cm c/c and for remaining intermediate length it is about 30cm c/c.  Circular piles are seldom tapered. When tapered piles length is restricted to 12m.  A concrete cover of 5cm is maintained throughout, over the main steel bars.
  • 27. Concrete Piles ( contd) Advantages of Pre-cast Piles:  Very effective  Simple quality control  Improves the entire area Disadvantages of Pre-cast Piles:  Limited in length  Difficult to transport  Not suitable for densely built up area  Requires costly equipment
  • 29. Concrete Piles ( contd) Cast-in-Situ Piles:  Cast in position inside the ground.  First of all a bore is dug by driving a casing pipe into the ground.  Then the soil from the casing is jetted out and filled with cement concrete after placing necessary reinforcement in it. Cast-in-situ piles are of two types: I. Cased Cast-in-Situ Piles: metallic shell is left inside the ground along with the core II. Uncased Cast-in-Situ Piles: metallic shell is withdrawn
  • 30. Concrete Piles ( contd) Advantages of Cast-in-Situ Concrete Piles:  Not limited in length  Can be cast at any place  Requires less equipment  Cost is less and is depended on the size Disadvantages of Cast-in-Situ Concrete Piles:  Quality control is difficult  Load carrying is mostly done through end bearing only  Skin frictional resistance is very low.
  • 31. Concrete Piles ( contd) Figure: Cast-in-Situ Pile
  • 32. Concrete Piles ( contd) Advantages of Concrete piles:  Durability is independent of ground water level.  For large size and greater bearing power number of piles required is much less.  Can be cast to any length, size or shape.  Can be used to marine work without any treatment.  Material required for manufacture is easily obtainable.  Concrete piles can be monolithically bonded into pile cap which is not possible in wooden piles.
  • 33. Concrete Piles ( contd) Disadvantages of Concrete piles:  Costlier than timber piles.  Can not be driven rapidly.  Required elaborate tech supervision and heavy driving machines.  Must be reinforced to withstand handling stresses.
  • 34. Concrete Piles ( contd) Prestressed Concrete Piles  The greatest disadvantage of large weightt and difficulty in handling of pre-cast pile is eliminated by prestressed concrete piles.  The weight is reduced by casting 200mm to 300mm diameter fiber tubes inside the piles at the time of concreting.  The pre tensioning cables are subjected to required pull (tension) in the casting bed.  The fiber tube is held in position inside the form work and the piles reinforced with pre stressed cables are concreted in a row.
  • 35. Concrete Piles ( contd) Prestressed Concrete Piles  Prestressed concrete piles are provided with lifting hooks at 1/5th ( 0.2L, L= length of pile ) of pile length from each end.  Piles length 50 times the thickness →single point pick up  More than 50 times the thickness →two point pick up at 0.2L from either end.  Piles 500 sq. mm and smaller→ cast solid.  Piles over 500 sq. mm may be cast with 200mm to 300mm cored hole (void).  Pre stressed piles are always pre- cast.
  • 36. Concrete Piles ( contd) Advantages of Prestressed Concrete Piles  It has greater ability to withstand extremely hard driving.  It is more durable in sea water because of absence of crack.  It has greater column capacity.  It has lesser handling costs because of light weight.  It requires lesser pick-up points.  It has larger moment of inertia than the conventional piles of same dimension since the concrete is all in compression.
  • 37. Composite Piles (contd)   Piles of two different materials are driven one over the other, so as to enable them to act together to perform the function of a single pile. This type of composite pile is used with the object of achieving economy in the cost of piling work.
  • 39. Selection of Type of Pile The nature of the ground, where piling operation is to be carried out, determines to a large extent the choice of type of pile to be used. In addition, the other important factors which must be considered in this regard are:          The nature of the structure. Loading conditions. Elevation of the ground water level with respect to the pile cap. Probable length of pile required. Availability of materials and equipment. Factors which may cause deterioration of pile. Probable cost of pile.
  • 40. Causes of Failure of Piles             Load on the pile is more than the designed load. Defective workmanship during casting of the pile. Displacement of reinforcement during casting. Bearing pile resting on a soft strata. Improper classification of soil. Improper choice of the type of pile. Insufficient reinforcement in the pile. Decay of timber piles due to attack by insects. Buckling of piles due to inadequate lateral support. Defective method adopted for driving the pile. Incorrect assessment of the bearing capacity of the pile. Lateral forces not considered in the design of piles.
  • 41. Pile Driving I. II. III. IV. By Drop Hammer. By Steam Hammer. By Water Jets (Wash Boring ). By Boring (Auger Boring).
  • 42. Cof ferdams  Cofferdams may be defined as a temporary structure constructed in a river or a lake or any other water bearing surface for excluding water form a given site to enable the building operation to be performed on dry surface. Cofferdams may be divided into the following category based on the materials used during construction:  Earthier cofferdam.  Rock fill cofferdam.  Single-walled cofferdam.  Double-walled cofferdam.  Crib V  Cellular cofferdam.(Circular or diaphragm type)
  • 43. Earthen Cofferdams    It essentially consists of an earthen embankment built around the area to be enclosed. It is constructed where the depth of the water is not much and the velocity of the current is very low. The top width of the embankment is not less than 1 m and the slopes vary from 1:1.5 to 1:2. The earth used to built these cofferdams is a mixture od clay and sand or clay and gravel
  • 45. Rockfill Cofferdam   If the depth of water to be retained by the embankment of cofferdam is of order of 1.8 to 3 m, stone or rubble is used for the embankment. The stones are assembled in a required shape and the voids ae partially fillled with earth and stone chips.
  • 46. Single walled Cofferdams    This type of cofferdam is used in places where the area to be enclosed is very small and he depth of water is more, say 4.5 to 6m. Timber piles known as guide piles are first driven in to the river bed. Longitudinal runners called wales are then bolted to these at suitable distance apart. Steel or wooden sheet piles are then driven into the river bed along the wales and secured to them by bolts. To increase the stability the sheets on two faces are braced by trussed arrangement of struts.
  • 48. Double walled Cofferdam     For cofferdams required to enclose large areas in deep waters, single-walled type becomes uneconomical as large sections of struts would be necessary to resist water, so double walled cofferdams are used. Their construction is similar except instead of one wall two walls with a gap in between is used. This can be used for waters with a depth of upto 12 m. The thickness of the water is equal to the depth of water when it is 3m, and 3m plus half the depth of water if it is more.
  • 49. Crib Cofferdam     In deep waters where it is difficult to insert the sheet piles or guide piles into the hard bed below, Crib cofferdam is used. A crib is a framework of horizontal timbers installed in alternate courses to form pockets which can be filled with earth and stones. The size of the crib depends on the depth of water and the velocity of water flow. The crib is constructed on ground and then floated to the water surface. Sand and other loose material overlying the impervious hard bed is dredged out and the crib sunk to the bed. The space inside the crib is filled with stone or other materials to make it stable against sliding and overturning. Timber and steel sheet piles are then driven around the crib.
  • 51. Cellular Cofferdam      When he height of the water is from 18 to 21 m, this type is used to dewater the large areas. They are commonly used during the construction of marine structures like dams, whares etc. They are constructed by driving straight web sheet piles arranged in form of a series of inter connected cells. Finally the cells are filled with clay to make them stable. The two common shapes of cellular cofferdams are: a) Circular type b) Diaphragm type
  • 53. Caissons    Caissons are water light structures made up of wood, steel or reinforced concrete, constructed in connection with excavation for foundations of bridges, piers, abutments in river and lake dock structure fore shore protection etc. The caisson remains in its pose and ultimately becomes as integral parts of the permanent structure. Caisson can be broadly classified into the following three types:  Open Caisson  Box Caisson (Floating Caisson)  Pneumatic Caisson
  • 54. Open Caissons     Depending on shape they are classified in to: -Single wall open caisson: This is a box type structure with no top or bottom mainly consisting of vertical walls. -Cylindrical open caisson: This may be defined as a cylindrical shell made up of timber, masonry, steel or reinforced concrete shod with a cutting edge and which is sunk by excavating the soil within the shell. It is also known as well caisson. -Open caisson with dredging walls: This type of caisson has the distinction of being emoyed for the deepest foundation for bridge piers, abutments etc. The caisson is square or rectangular in pplan which is sub divided into smaller sections from inside forming open walls
  • 56. Box Caisson  It is similar to open caisson except it is closed at the bottom. Caisson is cast and cured on land and then launched in water and towed to the site for sinking. They are used where the strata of sufficient bearing capacity is available near the ground.
  • 57. Pneumatic Caisson   This type of caisson is closed at top and open at bottom. The water is excluded from the caisson chamber by means of compressed air. The working chamber and shafts are made air tight. In order that the workmen can work underneath the caisson and water may not find its way inside from below, the pressure of the compressd air in the shaft is just kept a little higher than the water at that depth.
  • 58. Bibliography Text: Building Construction by Sushil Kumar  Images: Internet 
