RETAINING WALLS
BY
K.P.VINEETH
 What is retaining wall
 Parts of retaining wall
 Types of retaining wall
 Earth pressures
 Principles of the design of retaining wall
 Drainage of back fills
 Theories required to solve problem
 Design of retaining wall
Contents
What is a Retaining wall?
Retaining wall is a
structure used for
maintaining the
ground surfaces at
different elevations on
either side of it.
All permanent walls and components shall be
designed for a minimum service life of 75 years.
Corrosion protection is required for all permanent
and temporary walls in aggressive environments.
Retaining walls are usually built to hold back soil
mass.
They are also provided to maintain the grounds at
two different levels.
PARTS
STEM
or
Wall Slab
TOE HEEL
KEY
BACKFILL
FRONT
Types of retaining walls
1. Gravity Retaining Walls
2. Semi-Gravity Retaining Walls
3. Cantilever Retaining Walls
4. Counter fort Retaining Walls
The “gravity wall” provides stability by
virtue of its own weight , and therefore,
is rather massive in size.
It is usually built in stone masonry, and
occasionally in plain concrete
Gravity Walls
 The thickness of wall
is also governed by
need to eliminate or
limit the resulting
tensile stress to its
permissible limit .
 Plain concrete
gravity walls are not
used for heights
exceeding about 3m,
for obvious economic
reasons.
 Stress developed is very low.
 These walls are so proportioned
that no tension is developed
anywhere and the resultant of
forces remain within the middle
third of the base.
Semi-Gravity Walls
Semi-gravity walls resist
external forces by the
combined action of self
weight, weight of soil
above footing and the
flexural resistance of the
wall components.
concrete cantilever wall is an
example and consists of a reinforced
concrete stem and a base footing.
These walls are non-proprietary.
Cantilever Wall
 The “Cantilever wall ” is the
most common type of
retaining structure and is
generally economical for
heights up to about 8m.
 The structure consists of
vertical stem , and a base
slab, made up of two
distinct regions, viz., a heel
slab and a toe slab
 “Stem” acts as a vertical
cantilever under the lateral
earth pressure
 “Heel slab” acts as a
horizontal cantilever under
the action of weight of the
retained earth (minus soil
pressure acting upwards from
below)
 “Toe slab ” acts as a
cantilever under the action of
resulting soil pressure acting
upward.
 It resists the horizontal
earth pressure as well as
other vertical pressure by
way of bending of various
components acting as
cantilevers.
 May be L shaped or T
shaped.
Counterfort Wall
 Stem and Heel slab are strengthened by
providing counterforts at some suitable
intervals.
 The stability of the wall is maintained
essentially by the weight of the earth on
the heel slab plus the self weight of the
structure.

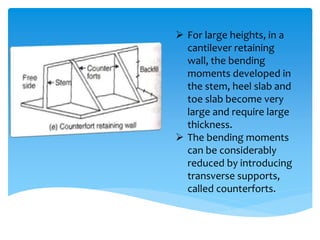

 For large heights, in a
cantilever retaining
wall, the bending
moments developed in
the stem, heel slab and
toe slab become very
large and require large
thickness.
 The bending moments
can be considerably
reduced by introducing
transverse supports,
called counterforts.
Counterfort wall are placed at regular
intervals of about1/3 to ½ of the wall
height, interconnecting the stem with
the heel slab.
The counterforts are concealed within
the retained earth on the rear side of the
wall.
Type equation here.
This wall is
economical for
heights above
(approximately) 7m.
The counterforts subdivide
the vertical slab (stem)
into rectangular panels
and support them on two
sides(suspender-style),
and themselves behave
essentially as vertical
cantilever beams of T-
section and varying depth.
EARTH PRESSURES
 PRESSURE AT REST
 ACTIVE EARTH PRESSURE
 PASSIVE EARTH PRESSURE
PRESSURE AT REST
When the soil behind the wall is
prevented from lateral movement
(towards or away from soil) of wall,
the pressure is known as earth
pressure at rest.
PRESSURE AT REST
This is the case when wall has a
considerable rigidity.
Basement walls generally fall in
this category.
ACTIVE EARTH PRESSURE
If a retaining wall is allowed to move
away from the soil accompanied by a
lateral soil expansion, the earth
pressure decreases with the increasing
expansion.
ACTIVE EARTH PRESSURE
A shear failure of the soil is resulted with
any further expansion and a sliding
wedge tends to move forward and
downward. The earth pressure associated
with this state of failure is the minimum
pressure and is known as active earth
pressure.
PASSIVE EARTH PRESSURE
If a retaining wall is allowed to move
towards the soil accompanied by a lateral
soil compression, the earth pressure
increase with the increasing compression
in the soil.
Principle of the design of
retaining wall
SLIDING:
Ability of the retaining wall structure to overcome the
horizontal force applied to the wall
Factor of safety = 1.5
OVERTURNING:
Ability of the retaining wall structure to overcome the
overturning moment created by the rotational forces
applied to the wall.
Factor of safety = 1.5
BEARING CAPACITY:
Ability of the underlying soil to support the weight of the
retaining wall structure.
Factor of safety = 2.0
 NO TENSION:
There should be no tension at the base of the
wall.
when the eccentricity (e) is greater than b/6 ,
tension develops at the heel
DRAINAGE OF THE BACK FILL
DRAINAGE
Sand + Stone Filter
Weepers
Or
Weep Holes
DRAINAGE
Drainage Pipes f 100-200 mm @ 2.5 to 4 m
DRAINAGE (Alternate)
Perforated Pipe
Suited for short walls
RANKIE’S THEORY
Assumptions
• The soil mass is semi-infinite, homogeneous, dry and
cohesionless
• The ground surface is plane which may be horizontal
or inclined.
• The back of the wall is vertical and smooth(No
shearing stresses are developed between the wall
and soil).
• The wall yields about the base and satisfies the
deformation conditions for plastic equilibrium.
When soil surface is horizontal:
d = 0


sin1
sin1


=ahC
H
H/3

When soil surface is inclined:
H
H/3
d
dd
dd
d 22
22
coscoscos
coscoscos
cos


=aC
Coulomb’s Theory
Assumptions
• The back fill is homogeneous, dry ,cohesionless ,
isotropic and ideally plastic material.
• The slip surface is plane which passes through the
heel of the wall.
• The wall surface is rough. The resultant earth
pressure on the wall is inclined at an angle of δ to
the normal to the wall, where δ is the angle of the
friction between the wall and the backfill.
• The sliding wedge itself acts as rigid body.
where KA is the active earth
pressure coefficient.
DESIGN OF RETAINING WALLS
General proportions of gravity
retaining wall
When surface is inclined:
When surface is horizontal:
General proportions of cantilever
retaining wall
 Bulkheads are very similar in design and
construction as standard retaining walls.
The primary difference in definition
between a bulkhead and retaining wall is
that a bulkhead is retaining earth on one
side, and is partially surrounded by water
on the other.
 Materials used in the construction of bulkheads
vary, but generally are the same as those used for
the construction of the piers.
 Masonry is often used as a bulkhead material.
Masonry can take the form of brick, block, or poured
concrete.
 The largest problem with the bulkhead systems is
erosion of the backfill area. As the backfill begins to
erode, the granular surface is affected, as is the
drainage. The increase in hydrostatic pressure,
coupled with the lateral forces of the earth itself,
tend to push the units over.
Disadvantage:
What is anchored bulkhead?
If tie rods or anchor rods are anchored
close to the upper ends of sheet pile walls, the sheet
pile walls are called bulkheads or anchored sheet pile
walls. The tie or anchor rods are buried in the backfill
at a considerable distance from the back of the wall.
The ties or anchored rods reduce the lateral
deflection, the bending moment and the depth of
penetration.
Anchored Bulkhead
Anchored bulkhead are extensively used in water front
structures. They are constructed by driving a row of sheet pile
to the required depth. The soil in front of the wall is dredged
out to required depth in front of the wall and behind the wall it
is backfilled by suitable soil. The wall is supported at the top by
tie rods and at the bottom by passive earth resistance.
How Anchored Bulkhead determined?
In anchored bulkheads the depth of penetration is
determined by:
 The free earth support method
 The fixed earth support method
In free earth support method
the depth of penetration is not
sufficient to provide end
restraint. The wall is assumed
to be freely supported by tie
rods at the top and by the
passive earth resistance of soil
at the bottom. The forces
acting on the wall as well as
the deflected shape of the
wall are shown in Fig.1 below.
Free Earth Support Method:
T = Tension in the tie rod per unit length
d = Depth of penetration below dredge line
pa = Active pressure in the wall
ppm = Mobilized passive resistance = ppF
The depth of penetration d is found out by taking moment of all forces
about the line of action of the tie rod.
Or, Pa×23(h+d)−a−Ppm×23(d+h)−a=0
Once d is known, the tension in the tie rod is found out by summing all
the horizontal forces i.e.,
pa – ppm – T = 0
In order to guard excess dredging, scouring and presence of pockets of
weak soils the depth of penetration is increased by 20 to 40 %. With this
increasing the depth of penetration, a factor of safety of 1.5 to is
ensured.
Fixed Earth Support Method:
 In fixed earth support method, the depth of
penetration is adequate and soil below the dredge
line provides considerable anchorage. The wall acts as
propped cantilever beam and cannot rotate
freely at its lower end as shown in Fig.3 and the point
of contra flexure lies close to the dredge line.
 Prevention of free rotation at the bottom develops
full passive resistance at the back of the wall above
the lower end. This resistance is replaced by a
concentrated force RD at 0.2 d above the lower end of
the pile
Analysis:
In the analysis, two beams, one above the point of
contraflexure and another below the point of contraflexure, are
considered. The position of the point of contraflexure, y is a
function of angle of internal friction of the soil ɸ. For sands, y is
given by,
ɸ 20 30 40
Y 0.25h 0.08h -0.006h
For approximate analysis 'y' may be assumed as zero and the point of
contrafiexure lie at the dredge level.
By considering the upper beam, the unknown forces RC and T can be found out by
∑M and ∑H = 0.
. In the case of lower beam as shown in Fig.3 force RD and depth of
penetration d are not known.
. By taking moment of all forces about the base of the pile the depth of
penetration can be
found out. The depth of penetration thus obtained by fixed earth support
methodis increased by 20 to 40 %.
1.Check the stability of a cantilever concrete retaining
wall having a stem thickness of 0.4m uniform
throughout, 6.0m height bed block thickness 0.8 m
and a projection of 2.5 m on the heel side and 1.5 m on
the toe side. The unit weight of the wall material is
25kN/m3. The soil has a unit weight of 18 kN/m3 and an
angle of internal friction of 360.Take in to account a
uniform surcharge on the ground of 50kN/m2. The
ground level on the toe side is 1.2 m high above the
base of the wall
Questions

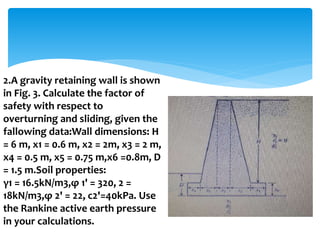

2.A gravity retaining wall is shown
in Fig. 3. Calculate the factor of
safety with respect to
overturning and sliding, given the
fallowing data:Wall dimensions: H
= 6 m, x1 = 0.6 m, x2 = 2m, x3 = 2 m,
x4 = 0.5 m, x5 = 0.75 m,x6 =0.8m, D
= 1.5 m.Soil properties:
γ1 = 16.5kN/m3,φ 1' = 320, 2 =
18kN/m3,φ 2' = 22, c2'=40kPa. Use
the Rankine active earth pressure
in your calculations.
3.Figure 1 shows a section of a
cantilever wall with dimensions and
forces acting there on. Check the
stability of the wall with respect to
(a) overturning, (b) sliding, and (c)
bearing capacity.
4.For the cantilever retaining wall shown in
Fig. 2, let the fallowing data be given:Wall
dimensions: H = 6.5 m, x1 = 0.50 m, x2 = 1.2
m, x3 = 1.35 m, x4 = 2.1 m, x5 = 1.0 m,D = 2.0
m, Φ= 150.Soil properties: 1 = 19.5kN/m3,
φ1' = 360, 2 = 17.0 kN/m3, φ2' = 10, c2'= 50
kPa.Calculate the factor of safety with
respect to overturning, sliding and bearing
capacity.
Retaining walls

More Related Content

What's hot

Retaining wall
Retaining wallRetaining wall
Bearing capacity of soil
Bearing capacity of soilBearing capacity of soil
Bearing capacity of soil
tirath prajapati

Pile foundation
Pile foundationPile foundation
Pile foundation
Parth Desani

Foundation types
Foundation typesFoundation types
Foundation types
Ashwini Ingale

Design of staircases
Design of staircasesDesign of staircases
Design of staircases
Jayvant Choudhary

Pile foundations
Pile foundationsPile foundations
Pile foundations
Sameer Thaiyam

Sheet pile presentation
Sheet pile presentationSheet pile presentation
Sheet pile presentation
Jahangirnagar University

Raft foundations
Raft foundationsRaft foundations
Raft foundations
hatim ahmed

Pile foundation ppt 2 (usefulsearch.org) (useful search)
Pile foundation ppt 2 (usefulsearch.org) (useful search)Pile foundation ppt 2 (usefulsearch.org) (useful search)
Pile foundation ppt 2 (usefulsearch.org) (useful search)
Make Mannan

Modes of failure of retaining walls
Modes of failure of retaining wallsModes of failure of retaining walls
Modes of failure of retaining walls
Ritesh Chinchawade

Chapter 1 PILE FOUNDATIONS
Chapter 1 PILE FOUNDATIONSChapter 1 PILE FOUNDATIONS
Chapter 1 PILE FOUNDATIONS
KHUSHBU SHAH

Counterfort Retaining Wall
Counterfort Retaining WallCounterfort Retaining Wall
Counterfort Retaining Wall
Kaizer Dave

Pile foundation ppt
Pile foundation pptPile foundation ppt
Pile foundation ppt
Surat Construction PVT LTD

TYPES OF FOUNDATION(PPT)
TYPES OF FOUNDATION(PPT)TYPES OF FOUNDATION(PPT)
TYPES OF FOUNDATION(PPT)
Er. SANTOSH PATASKAR (PATWA JI)

Grouting, guniting, jacketing
Grouting, guniting, jacketingGrouting, guniting, jacketing
Grouting, guniting, jacketing
Aditya Sanyal

TYPES OF PILE FOUNDATION & APPLICATIONS
TYPES OF PILE FOUNDATION & APPLICATIONSTYPES OF PILE FOUNDATION & APPLICATIONS
TYPES OF PILE FOUNDATION & APPLICATIONS
Maharshi Dave

Mat foundation
Mat foundationMat foundation
Mat foundation
Khushnuma Wasim

Retaining walls
Retaining wallsRetaining walls
Retaining walls
Lovepreet Guron

Working Stress Method v/s Limit State Method
Working Stress Method v/s Limit State MethodWorking Stress Method v/s Limit State Method
Working Stress Method v/s Limit State Method
MachenLink

Prestressed concrete
Prestressed concretePrestressed concrete
Prestressed concrete
Rajesh Burde


What's hot (20)

Retaining wall
Retaining wallRetaining wall
Retaining wall

Bearing capacity of soil
Bearing capacity of soilBearing capacity of soil
Bearing capacity of soil

Pile foundation
Pile foundationPile foundation
Pile foundation

Foundation types
Foundation typesFoundation types
Foundation types

Design of staircases
Design of staircasesDesign of staircases
Design of staircases

Pile foundations
Pile foundationsPile foundations
Pile foundations

Sheet pile presentation
Sheet pile presentationSheet pile presentation
Sheet pile presentation

Raft foundations
Raft foundationsRaft foundations
Raft foundations

Pile foundation ppt 2 (usefulsearch.org) (useful search)
Pile foundation ppt 2 (usefulsearch.org) (useful search)Pile foundation ppt 2 (usefulsearch.org) (useful search)
Pile foundation ppt 2 (usefulsearch.org) (useful search)

Modes of failure of retaining walls
Modes of failure of retaining wallsModes of failure of retaining walls
Modes of failure of retaining walls

Chapter 1 PILE FOUNDATIONS
Chapter 1 PILE FOUNDATIONSChapter 1 PILE FOUNDATIONS
Chapter 1 PILE FOUNDATIONS

Counterfort Retaining Wall
Counterfort Retaining WallCounterfort Retaining Wall
Counterfort Retaining Wall

Pile foundation ppt
Pile foundation pptPile foundation ppt
Pile foundation ppt

TYPES OF FOUNDATION(PPT)
TYPES OF FOUNDATION(PPT)TYPES OF FOUNDATION(PPT)
TYPES OF FOUNDATION(PPT)

Grouting, guniting, jacketing
Grouting, guniting, jacketingGrouting, guniting, jacketing
Grouting, guniting, jacketing

TYPES OF PILE FOUNDATION & APPLICATIONS
TYPES OF PILE FOUNDATION & APPLICATIONSTYPES OF PILE FOUNDATION & APPLICATIONS
TYPES OF PILE FOUNDATION & APPLICATIONS

Mat foundation
Mat foundationMat foundation
Mat foundation

Retaining walls
Retaining wallsRetaining walls
Retaining walls

Working Stress Method v/s Limit State Method
Working Stress Method v/s Limit State MethodWorking Stress Method v/s Limit State Method
Working Stress Method v/s Limit State Method

Prestressed concrete
Prestressed concretePrestressed concrete
Prestressed concrete


Similar to Retaining walls

Retaining Wall_Lecture.ppt
Retaining Wall_Lecture.pptRetaining Wall_Lecture.ppt
Retaining Wall_Lecture.ppt
atul625446

Retaining Wall_Lecture.ppt
Retaining Wall_Lecture.pptRetaining Wall_Lecture.ppt
Retaining Wall_Lecture.ppt
atul625446

Retainig wall.pdf
Retainig wall.pdfRetainig wall.pdf
Retainig wall.pdf
Olik3

Retaining wall ppt Final year Civil ENGINEERING
Retaining wall ppt Final year Civil ENGINEERINGRetaining wall ppt Final year Civil ENGINEERING
Retaining wall ppt Final year Civil ENGINEERING
Ravindra Puniya

Theory of structures
Theory of structuresTheory of structures
retaining walls ALIG.pdf
retaining walls ALIG.pdfretaining walls ALIG.pdf
retaining walls ALIG.pdf
14968

Retaining wall
Retaining wallRetaining wall
Retaining wall
Puneet Chhonker

Retaining_Wall_UOL.pptx
Retaining_Wall_UOL.pptxRetaining_Wall_UOL.pptx
Retaining_Wall_UOL.pptx
Doctor Sadaf Qasim

Differnt types of Retaining walls
Differnt types of Retaining wallsDiffernt types of Retaining walls
Differnt types of Retaining walls
Southern University Bangladesh

Lateral earth pressure Theories Design of retaining.pptx
Lateral earth pressure Theories   Design of retaining.pptxLateral earth pressure Theories   Design of retaining.pptx
Lateral earth pressure Theories Design of retaining.pptx
UmarSaba1

Lateral earth pressure Theories & Design of retaining.pptx
Lateral earth pressure Theories &  Design of retaining.pptxLateral earth pressure Theories &  Design of retaining.pptx
Lateral earth pressure Theories & Design of retaining.pptx
UmarSaba1

EARTH RETAINING STRUCTURES & TYPES OF RETAINING WALL.pptx
EARTH RETAINING STRUCTURES & TYPES OF RETAINING WALL.pptxEARTH RETAINING STRUCTURES & TYPES OF RETAINING WALL.pptx
EARTH RETAINING STRUCTURES & TYPES OF RETAINING WALL.pptx
Naqeeb Khan Niazi

Types of Retaining walls..
Types of Retaining walls..Types of Retaining walls..
Types of Retaining walls..
Shan Khan

Retaining wall
Retaining wallRetaining wall
Retaining wall
kajal018

Retaining wall - design of reinforced concrete structure
Retaining wall - design of reinforced concrete structureRetaining wall - design of reinforced concrete structure
Retaining wall - design of reinforced concrete structure
Kavin Raval

Rt wall
Rt wall Rt wall
Rt wall
scorpio12345

Retaining walls
Retaining wallsRetaining walls
Retaining walls
Ahmed Zaid

Various types of retaining walls
Various types of retaining wallsVarious types of retaining walls
Various types of retaining walls
hcseonline

Lateral Earth Pressure
Lateral Earth PressureLateral Earth Pressure
Lateral Earth Pressure
Fast-NU Lahore

Chapter 1 foundation
Chapter  1 foundationChapter  1 foundation
Chapter 1 foundation
karthikeyan kumarasamy


Similar to Retaining walls (20)

Retaining Wall_Lecture.ppt
Retaining Wall_Lecture.pptRetaining Wall_Lecture.ppt
Retaining Wall_Lecture.ppt

Retaining Wall_Lecture.ppt
Retaining Wall_Lecture.pptRetaining Wall_Lecture.ppt
Retaining Wall_Lecture.ppt

Retainig wall.pdf
Retainig wall.pdfRetainig wall.pdf
Retainig wall.pdf

Retaining wall ppt Final year Civil ENGINEERING
Retaining wall ppt Final year Civil ENGINEERINGRetaining wall ppt Final year Civil ENGINEERING
Retaining wall ppt Final year Civil ENGINEERING

Theory of structures
Theory of structuresTheory of structures
Theory of structures

retaining walls ALIG.pdf
retaining walls ALIG.pdfretaining walls ALIG.pdf
retaining walls ALIG.pdf

Retaining wall
Retaining wallRetaining wall
Retaining wall

Retaining_Wall_UOL.pptx
Retaining_Wall_UOL.pptxRetaining_Wall_UOL.pptx
Retaining_Wall_UOL.pptx

Differnt types of Retaining walls
Differnt types of Retaining wallsDiffernt types of Retaining walls
Differnt types of Retaining walls

Lateral earth pressure Theories Design of retaining.pptx
Lateral earth pressure Theories   Design of retaining.pptxLateral earth pressure Theories   Design of retaining.pptx
Lateral earth pressure Theories Design of retaining.pptx

Lateral earth pressure Theories & Design of retaining.pptx
Lateral earth pressure Theories &  Design of retaining.pptxLateral earth pressure Theories &  Design of retaining.pptx
Lateral earth pressure Theories & Design of retaining.pptx

EARTH RETAINING STRUCTURES & TYPES OF RETAINING WALL.pptx
EARTH RETAINING STRUCTURES & TYPES OF RETAINING WALL.pptxEARTH RETAINING STRUCTURES & TYPES OF RETAINING WALL.pptx
EARTH RETAINING STRUCTURES & TYPES OF RETAINING WALL.pptx

Types of Retaining walls..
Types of Retaining walls..Types of Retaining walls..
Types of Retaining walls..

Retaining wall
Retaining wallRetaining wall
Retaining wall

Retaining wall - design of reinforced concrete structure
Retaining wall - design of reinforced concrete structureRetaining wall - design of reinforced concrete structure
Retaining wall - design of reinforced concrete structure

Rt wall
Rt wall Rt wall
Rt wall

Retaining walls
Retaining wallsRetaining walls
Retaining walls

Various types of retaining walls
Various types of retaining wallsVarious types of retaining walls
Various types of retaining walls

Lateral Earth Pressure
Lateral Earth PressureLateral Earth Pressure
Lateral Earth Pressure

Chapter 1 foundation
Chapter  1 foundationChapter  1 foundation
Chapter 1 foundation


Recently uploaded

TIME TABLE MANAGEMENT SYSTEM testing.pptx
TIME TABLE MANAGEMENT SYSTEM testing.pptxTIME TABLE MANAGEMENT SYSTEM testing.pptx
TIME TABLE MANAGEMENT SYSTEM testing.pptx
CVCSOfficial

1FIDIC-CONSTRUCTION-CONTRACT-2ND-ED-2017-RED-BOOK.pdf
1FIDIC-CONSTRUCTION-CONTRACT-2ND-ED-2017-RED-BOOK.pdf1FIDIC-CONSTRUCTION-CONTRACT-2ND-ED-2017-RED-BOOK.pdf
1FIDIC-CONSTRUCTION-CONTRACT-2ND-ED-2017-RED-BOOK.pdf
MadhavJungKarki

Data Driven Maintenance | UReason Webinar
Data Driven Maintenance | UReason WebinarData Driven Maintenance | UReason Webinar
Data Driven Maintenance | UReason Webinar
UReason

Rainfall intensity duration frequency curve statistical analysis and modeling...
Rainfall intensity duration frequency curve statistical analysis and modeling...Rainfall intensity duration frequency curve statistical analysis and modeling...
Rainfall intensity duration frequency curve statistical analysis and modeling...
bijceesjournal

Embedded machine learning-based road conditions and driving behavior monitoring
Embedded machine learning-based road conditions and driving behavior monitoringEmbedded machine learning-based road conditions and driving behavior monitoring
Embedded machine learning-based road conditions and driving behavior monitoring
IJECEIAES

morris_worm_intro_and_source_code_analysis_.pdf
morris_worm_intro_and_source_code_analysis_.pdfmorris_worm_intro_and_source_code_analysis_.pdf
morris_worm_intro_and_source_code_analysis_.pdf
ycwu0509

Electric vehicle and photovoltaic advanced roles in enhancing the financial p...
Electric vehicle and photovoltaic advanced roles in enhancing the financial p...Electric vehicle and photovoltaic advanced roles in enhancing the financial p...
Electric vehicle and photovoltaic advanced roles in enhancing the financial p...
IJECEIAES

Software Engineering and Project Management - Software Testing + Agile Method...
Software Engineering and Project Management - Software Testing + Agile Method...Software Engineering and Project Management - Software Testing + Agile Method...
Software Engineering and Project Management - Software Testing + Agile Method...
Prakhyath Rai

Null Bangalore | Pentesters Approach to AWS IAM
Null Bangalore | Pentesters Approach to AWS IAMNull Bangalore | Pentesters Approach to AWS IAM
Null Bangalore | Pentesters Approach to AWS IAM
Divyanshu

22CYT12-Unit-V-E Waste and its Management.ppt
22CYT12-Unit-V-E Waste and its Management.ppt22CYT12-Unit-V-E Waste and its Management.ppt
22CYT12-Unit-V-E Waste and its Management.ppt
KrishnaveniKrishnara1

Digital Twins Computer Networking Paper Presentation.pptx
Digital Twins Computer Networking Paper Presentation.pptxDigital Twins Computer Networking Paper Presentation.pptx
Digital Twins Computer Networking Paper Presentation.pptx
aryanpankaj78

一比一原版(uofo毕业证书)美国俄勒冈大学毕业证如何办理
一比一原版(uofo毕业证书)美国俄勒冈大学毕业证如何办理一比一原版(uofo毕业证书)美国俄勒冈大学毕业证如何办理
一比一原版(uofo毕业证书)美国俄勒冈大学毕业证如何办理
upoux

Design and optimization of ion propulsion drone
Design and optimization of ion propulsion droneDesign and optimization of ion propulsion drone
Design and optimization of ion propulsion drone
bjmsejournal

学校原版美国波士顿大学毕业证学历学位证书原版一模一样
学校原版美国波士顿大学毕业证学历学位证书原版一模一样学校原版美国波士顿大学毕业证学历学位证书原版一模一样
学校原版美国波士顿大学毕业证学历学位证书原版一模一样
171ticu

2008 BUILDING CONSTRUCTION Illustrated - Ching Chapter 08 Doors and Windows.pdf
2008 BUILDING CONSTRUCTION Illustrated - Ching Chapter 08 Doors and Windows.pdf2008 BUILDING CONSTRUCTION Illustrated - Ching Chapter 08 Doors and Windows.pdf
2008 BUILDING CONSTRUCTION Illustrated - Ching Chapter 08 Doors and Windows.pdf
Yasser Mahgoub

Software Engineering and Project Management - Introduction, Modeling Concepts...
Software Engineering and Project Management - Introduction, Modeling Concepts...Software Engineering and Project Management - Introduction, Modeling Concepts...
Software Engineering and Project Management - Introduction, Modeling Concepts...
Prakhyath Rai

Prediction of Electrical Energy Efficiency Using Information on Consumer's Ac...
Prediction of Electrical Energy Efficiency Using Information on Consumer's Ac...Prediction of Electrical Energy Efficiency Using Information on Consumer's Ac...
Prediction of Electrical Energy Efficiency Using Information on Consumer's Ac...
PriyankaKilaniya

ITSM Integration with MuleSoft.pptx
ITSM  Integration with MuleSoft.pptxITSM  Integration with MuleSoft.pptx
ITSM Integration with MuleSoft.pptx
VANDANAMOHANGOUDA

Engineering Standards Wiring methods.pdf
Engineering Standards Wiring methods.pdfEngineering Standards Wiring methods.pdf
Engineering Standards Wiring methods.pdf
edwin408357

Properties Railway Sleepers and Test.pptx
Properties Railway Sleepers and Test.pptxProperties Railway Sleepers and Test.pptx
Properties Railway Sleepers and Test.pptx
MDSABBIROJJAMANPAYEL


Recently uploaded (20)

TIME TABLE MANAGEMENT SYSTEM testing.pptx
TIME TABLE MANAGEMENT SYSTEM testing.pptxTIME TABLE MANAGEMENT SYSTEM testing.pptx
TIME TABLE MANAGEMENT SYSTEM testing.pptx

1FIDIC-CONSTRUCTION-CONTRACT-2ND-ED-2017-RED-BOOK.pdf
1FIDIC-CONSTRUCTION-CONTRACT-2ND-ED-2017-RED-BOOK.pdf1FIDIC-CONSTRUCTION-CONTRACT-2ND-ED-2017-RED-BOOK.pdf
1FIDIC-CONSTRUCTION-CONTRACT-2ND-ED-2017-RED-BOOK.pdf

Data Driven Maintenance | UReason Webinar
Data Driven Maintenance | UReason WebinarData Driven Maintenance | UReason Webinar
Data Driven Maintenance | UReason Webinar

Rainfall intensity duration frequency curve statistical analysis and modeling...
Rainfall intensity duration frequency curve statistical analysis and modeling...Rainfall intensity duration frequency curve statistical analysis and modeling...
Rainfall intensity duration frequency curve statistical analysis and modeling...

Embedded machine learning-based road conditions and driving behavior monitoring
Embedded machine learning-based road conditions and driving behavior monitoringEmbedded machine learning-based road conditions and driving behavior monitoring
Embedded machine learning-based road conditions and driving behavior monitoring

morris_worm_intro_and_source_code_analysis_.pdf
morris_worm_intro_and_source_code_analysis_.pdfmorris_worm_intro_and_source_code_analysis_.pdf
morris_worm_intro_and_source_code_analysis_.pdf

Electric vehicle and photovoltaic advanced roles in enhancing the financial p...
Electric vehicle and photovoltaic advanced roles in enhancing the financial p...Electric vehicle and photovoltaic advanced roles in enhancing the financial p...
Electric vehicle and photovoltaic advanced roles in enhancing the financial p...

Software Engineering and Project Management - Software Testing + Agile Method...
Software Engineering and Project Management - Software Testing + Agile Method...Software Engineering and Project Management - Software Testing + Agile Method...
Software Engineering and Project Management - Software Testing + Agile Method...

Null Bangalore | Pentesters Approach to AWS IAM
Null Bangalore | Pentesters Approach to AWS IAMNull Bangalore | Pentesters Approach to AWS IAM
Null Bangalore | Pentesters Approach to AWS IAM

22CYT12-Unit-V-E Waste and its Management.ppt
22CYT12-Unit-V-E Waste and its Management.ppt22CYT12-Unit-V-E Waste and its Management.ppt
22CYT12-Unit-V-E Waste and its Management.ppt

Digital Twins Computer Networking Paper Presentation.pptx
Digital Twins Computer Networking Paper Presentation.pptxDigital Twins Computer Networking Paper Presentation.pptx
Digital Twins Computer Networking Paper Presentation.pptx

一比一原版(uofo毕业证书)美国俄勒冈大学毕业证如何办理
一比一原版(uofo毕业证书)美国俄勒冈大学毕业证如何办理一比一原版(uofo毕业证书)美国俄勒冈大学毕业证如何办理
一比一原版(uofo毕业证书)美国俄勒冈大学毕业证如何办理

Design and optimization of ion propulsion drone
Design and optimization of ion propulsion droneDesign and optimization of ion propulsion drone
Design and optimization of ion propulsion drone

学校原版美国波士顿大学毕业证学历学位证书原版一模一样
学校原版美国波士顿大学毕业证学历学位证书原版一模一样学校原版美国波士顿大学毕业证学历学位证书原版一模一样
学校原版美国波士顿大学毕业证学历学位证书原版一模一样

2008 BUILDING CONSTRUCTION Illustrated - Ching Chapter 08 Doors and Windows.pdf
2008 BUILDING CONSTRUCTION Illustrated - Ching Chapter 08 Doors and Windows.pdf2008 BUILDING CONSTRUCTION Illustrated - Ching Chapter 08 Doors and Windows.pdf
2008 BUILDING CONSTRUCTION Illustrated - Ching Chapter 08 Doors and Windows.pdf

Software Engineering and Project Management - Introduction, Modeling Concepts...
Software Engineering and Project Management - Introduction, Modeling Concepts...Software Engineering and Project Management - Introduction, Modeling Concepts...
Software Engineering and Project Management - Introduction, Modeling Concepts...

Prediction of Electrical Energy Efficiency Using Information on Consumer's Ac...
Prediction of Electrical Energy Efficiency Using Information on Consumer's Ac...Prediction of Electrical Energy Efficiency Using Information on Consumer's Ac...
Prediction of Electrical Energy Efficiency Using Information on Consumer's Ac...

ITSM Integration with MuleSoft.pptx
ITSM  Integration with MuleSoft.pptxITSM  Integration with MuleSoft.pptx
ITSM Integration with MuleSoft.pptx

Engineering Standards Wiring methods.pdf
Engineering Standards Wiring methods.pdfEngineering Standards Wiring methods.pdf
Engineering Standards Wiring methods.pdf

Properties Railway Sleepers and Test.pptx
Properties Railway Sleepers and Test.pptxProperties Railway Sleepers and Test.pptx
Properties Railway Sleepers and Test.pptx


Retaining walls

  • 2.  What is retaining wall  Parts of retaining wall  Types of retaining wall  Earth pressures  Principles of the design of retaining wall  Drainage of back fills  Theories required to solve problem  Design of retaining wall Contents
  • 3. What is a Retaining wall? Retaining wall is a structure used for maintaining the ground surfaces at different elevations on either side of it.
  • 4. All permanent walls and components shall be designed for a minimum service life of 75 years. Corrosion protection is required for all permanent and temporary walls in aggressive environments. Retaining walls are usually built to hold back soil mass. They are also provided to maintain the grounds at two different levels.
  • 6. Types of retaining walls 1. Gravity Retaining Walls 2. Semi-Gravity Retaining Walls 3. Cantilever Retaining Walls 4. Counter fort Retaining Walls
  • 7. The “gravity wall” provides stability by virtue of its own weight , and therefore, is rather massive in size. It is usually built in stone masonry, and occasionally in plain concrete Gravity Walls
  • 8.  The thickness of wall is also governed by need to eliminate or limit the resulting tensile stress to its permissible limit .  Plain concrete gravity walls are not used for heights exceeding about 3m, for obvious economic reasons.
  • 9.  Stress developed is very low.  These walls are so proportioned that no tension is developed anywhere and the resultant of forces remain within the middle third of the base.
  • 10. Semi-Gravity Walls Semi-gravity walls resist external forces by the combined action of self weight, weight of soil above footing and the flexural resistance of the wall components.
  • 11. concrete cantilever wall is an example and consists of a reinforced concrete stem and a base footing. These walls are non-proprietary.
  • 13.  The “Cantilever wall ” is the most common type of retaining structure and is generally economical for heights up to about 8m.  The structure consists of vertical stem , and a base slab, made up of two distinct regions, viz., a heel slab and a toe slab
  • 14.  “Stem” acts as a vertical cantilever under the lateral earth pressure  “Heel slab” acts as a horizontal cantilever under the action of weight of the retained earth (minus soil pressure acting upwards from below)  “Toe slab ” acts as a cantilever under the action of resulting soil pressure acting upward.
  • 15.  It resists the horizontal earth pressure as well as other vertical pressure by way of bending of various components acting as cantilevers.  May be L shaped or T shaped.
  • 16. Counterfort Wall  Stem and Heel slab are strengthened by providing counterforts at some suitable intervals.  The stability of the wall is maintained essentially by the weight of the earth on the heel slab plus the self weight of the structure.
  • 17.  For large heights, in a cantilever retaining wall, the bending moments developed in the stem, heel slab and toe slab become very large and require large thickness.  The bending moments can be considerably reduced by introducing transverse supports, called counterforts.
  • 18. Counterfort wall are placed at regular intervals of about1/3 to ½ of the wall height, interconnecting the stem with the heel slab. The counterforts are concealed within the retained earth on the rear side of the wall. Type equation here.
  • 19. This wall is economical for heights above (approximately) 7m. The counterforts subdivide the vertical slab (stem) into rectangular panels and support them on two sides(suspender-style), and themselves behave essentially as vertical cantilever beams of T- section and varying depth.
  • 20. EARTH PRESSURES  PRESSURE AT REST  ACTIVE EARTH PRESSURE  PASSIVE EARTH PRESSURE
  • 21. PRESSURE AT REST When the soil behind the wall is prevented from lateral movement (towards or away from soil) of wall, the pressure is known as earth pressure at rest.
  • 22. PRESSURE AT REST This is the case when wall has a considerable rigidity. Basement walls generally fall in this category.
  • 23. ACTIVE EARTH PRESSURE If a retaining wall is allowed to move away from the soil accompanied by a lateral soil expansion, the earth pressure decreases with the increasing expansion.
  • 24. ACTIVE EARTH PRESSURE A shear failure of the soil is resulted with any further expansion and a sliding wedge tends to move forward and downward. The earth pressure associated with this state of failure is the minimum pressure and is known as active earth pressure.
  • 25. PASSIVE EARTH PRESSURE If a retaining wall is allowed to move towards the soil accompanied by a lateral soil compression, the earth pressure increase with the increasing compression in the soil.
  • 26. Principle of the design of retaining wall
  • 27. SLIDING: Ability of the retaining wall structure to overcome the horizontal force applied to the wall Factor of safety = 1.5
  • 28. OVERTURNING: Ability of the retaining wall structure to overcome the overturning moment created by the rotational forces applied to the wall. Factor of safety = 1.5
  • 29. BEARING CAPACITY: Ability of the underlying soil to support the weight of the retaining wall structure. Factor of safety = 2.0
  • 30.  NO TENSION: There should be no tension at the base of the wall. when the eccentricity (e) is greater than b/6 , tension develops at the heel
  • 31. DRAINAGE OF THE BACK FILL
  • 32. DRAINAGE Sand + Stone Filter Weepers Or Weep Holes
  • 33. DRAINAGE Drainage Pipes f 100-200 mm @ 2.5 to 4 m
  • 35. RANKIE’S THEORY Assumptions • The soil mass is semi-infinite, homogeneous, dry and cohesionless • The ground surface is plane which may be horizontal or inclined. • The back of the wall is vertical and smooth(No shearing stresses are developed between the wall and soil). • The wall yields about the base and satisfies the deformation conditions for plastic equilibrium.
  • 36. When soil surface is horizontal:
  • 38.
  • 39.  When soil surface is inclined:
  • 41. Coulomb’s Theory Assumptions • The back fill is homogeneous, dry ,cohesionless , isotropic and ideally plastic material. • The slip surface is plane which passes through the heel of the wall. • The wall surface is rough. The resultant earth pressure on the wall is inclined at an angle of δ to the normal to the wall, where δ is the angle of the friction between the wall and the backfill. • The sliding wedge itself acts as rigid body.
  • 42. where KA is the active earth pressure coefficient.
  • 44. General proportions of gravity retaining wall When surface is inclined:
  • 45.
  • 46. When surface is horizontal:
  • 47. General proportions of cantilever retaining wall
  • 48.  Bulkheads are very similar in design and construction as standard retaining walls. The primary difference in definition between a bulkhead and retaining wall is that a bulkhead is retaining earth on one side, and is partially surrounded by water on the other.
  • 49.  Materials used in the construction of bulkheads vary, but generally are the same as those used for the construction of the piers.  Masonry is often used as a bulkhead material. Masonry can take the form of brick, block, or poured concrete.
  • 50.
  • 51.  The largest problem with the bulkhead systems is erosion of the backfill area. As the backfill begins to erode, the granular surface is affected, as is the drainage. The increase in hydrostatic pressure, coupled with the lateral forces of the earth itself, tend to push the units over. Disadvantage:
  • 52. What is anchored bulkhead? If tie rods or anchor rods are anchored close to the upper ends of sheet pile walls, the sheet pile walls are called bulkheads or anchored sheet pile walls. The tie or anchor rods are buried in the backfill at a considerable distance from the back of the wall. The ties or anchored rods reduce the lateral deflection, the bending moment and the depth of penetration. Anchored Bulkhead
  • 53. Anchored bulkhead are extensively used in water front structures. They are constructed by driving a row of sheet pile to the required depth. The soil in front of the wall is dredged out to required depth in front of the wall and behind the wall it is backfilled by suitable soil. The wall is supported at the top by tie rods and at the bottom by passive earth resistance.
  • 54. How Anchored Bulkhead determined? In anchored bulkheads the depth of penetration is determined by:  The free earth support method  The fixed earth support method
  • 55. In free earth support method the depth of penetration is not sufficient to provide end restraint. The wall is assumed to be freely supported by tie rods at the top and by the passive earth resistance of soil at the bottom. The forces acting on the wall as well as the deflected shape of the wall are shown in Fig.1 below. Free Earth Support Method:
  • 56.
  • 57. T = Tension in the tie rod per unit length d = Depth of penetration below dredge line pa = Active pressure in the wall ppm = Mobilized passive resistance = ppF The depth of penetration d is found out by taking moment of all forces about the line of action of the tie rod. Or, Pa×23(h+d)−a−Ppm×23(d+h)−a=0 Once d is known, the tension in the tie rod is found out by summing all the horizontal forces i.e., pa – ppm – T = 0 In order to guard excess dredging, scouring and presence of pockets of weak soils the depth of penetration is increased by 20 to 40 %. With this increasing the depth of penetration, a factor of safety of 1.5 to is ensured.
  • 58. Fixed Earth Support Method:  In fixed earth support method, the depth of penetration is adequate and soil below the dredge line provides considerable anchorage. The wall acts as propped cantilever beam and cannot rotate freely at its lower end as shown in Fig.3 and the point of contra flexure lies close to the dredge line.
  • 59.
  • 60.  Prevention of free rotation at the bottom develops full passive resistance at the back of the wall above the lower end. This resistance is replaced by a concentrated force RD at 0.2 d above the lower end of the pile
  • 61. Analysis: In the analysis, two beams, one above the point of contraflexure and another below the point of contraflexure, are considered. The position of the point of contraflexure, y is a function of angle of internal friction of the soil ɸ. For sands, y is given by,
  • 62. ɸ 20 30 40 Y 0.25h 0.08h -0.006h For approximate analysis 'y' may be assumed as zero and the point of contrafiexure lie at the dredge level. By considering the upper beam, the unknown forces RC and T can be found out by ∑M and ∑H = 0. . In the case of lower beam as shown in Fig.3 force RD and depth of penetration d are not known. . By taking moment of all forces about the base of the pile the depth of penetration can be found out. The depth of penetration thus obtained by fixed earth support methodis increased by 20 to 40 %.
  • 63. 1.Check the stability of a cantilever concrete retaining wall having a stem thickness of 0.4m uniform throughout, 6.0m height bed block thickness 0.8 m and a projection of 2.5 m on the heel side and 1.5 m on the toe side. The unit weight of the wall material is 25kN/m3. The soil has a unit weight of 18 kN/m3 and an angle of internal friction of 360.Take in to account a uniform surcharge on the ground of 50kN/m2. The ground level on the toe side is 1.2 m high above the base of the wall Questions
  • 64. 2.A gravity retaining wall is shown in Fig. 3. Calculate the factor of safety with respect to overturning and sliding, given the fallowing data:Wall dimensions: H = 6 m, x1 = 0.6 m, x2 = 2m, x3 = 2 m, x4 = 0.5 m, x5 = 0.75 m,x6 =0.8m, D = 1.5 m.Soil properties: γ1 = 16.5kN/m3,φ 1' = 320, 2 = 18kN/m3,φ 2' = 22, c2'=40kPa. Use the Rankine active earth pressure in your calculations.
  • 65. 3.Figure 1 shows a section of a cantilever wall with dimensions and forces acting there on. Check the stability of the wall with respect to (a) overturning, (b) sliding, and (c) bearing capacity.
  • 66. 4.For the cantilever retaining wall shown in Fig. 2, let the fallowing data be given:Wall dimensions: H = 6.5 m, x1 = 0.50 m, x2 = 1.2 m, x3 = 1.35 m, x4 = 2.1 m, x5 = 1.0 m,D = 2.0 m, Φ= 150.Soil properties: 1 = 19.5kN/m3, φ1' = 360, 2 = 17.0 kN/m3, φ2' = 10, c2'= 50 kPa.Calculate the factor of safety with respect to overturning, sliding and bearing capacity.
