Data Driven Game Design

Prof. Pier Luca Lanzi
Data-Driven Game Design
Pier Luca Lanzi & Daniele Loiacono

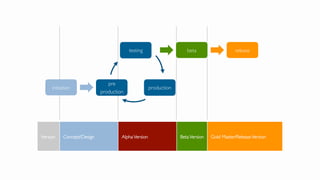

testing
production
pre
production
Version Concept/Design AlphaVersion BetaVersion Gold Master/ReleaseVersion
initiation
beta release

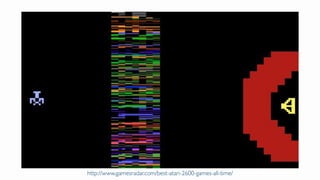

http://www.gamesradar.com/best-atari-2600-games-all-time/

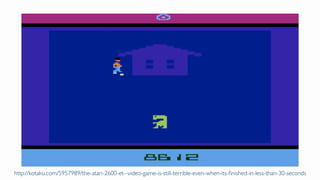

http://kotaku.com/5957989/the-atari-2600-et--video-game-is-still-terrible-even-when-its-ﬁnished-in-less-than-30-seconds

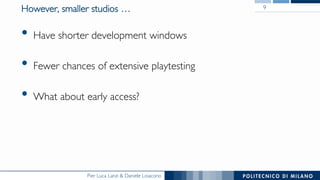

However, smaller studios …
•  Have shorter development windows
•  Fewer chances of extensive playtesting
•  What about early access?
9

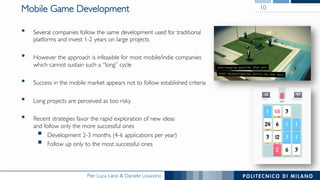

Mobile Game Development
•  Several companies follow the same development used for traditional
platforms and invest 1-2 years on large projects
•  However the approach is infeasible for most mobile/indie companies
which cannot sustain such a “long” cycle
•  Success in the mobile market appears not to follow established criteria
•  Long projects are perceived as too risky
•  Recent strategies favor the rapid exploration of new ideas
and follow only the more successful ones
§  Development 2-3 months (4-6 applications per year)
§  Follow up only to the most successful ones
10

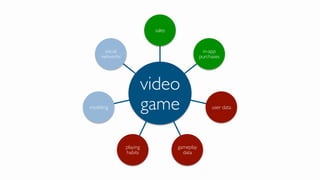

video
game
sales
in-app
purchases
user data
gameplay
data
playing
habits
modding
social
networks

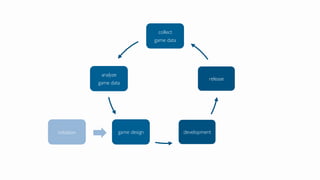

collect
game data
release
developmentgame design
analyze
game data
initiation

Predicting Churn in Aion (Dmitry Nozhnin)
•  Can we predict new players' churn the day
they logged in for the last time?
•  Churn = inactivity for 7 days
•  Variables considered
§ Playtime at current level, previous
level, and total during lifetime
§ Mobs killed per minute
(current/previous/lifetime)
§ Quests completed per minute (same)
§ Average playtime per play day
§ Days of play
§ Absenteeism rate (number of days skipped during the seven day free trial)
21

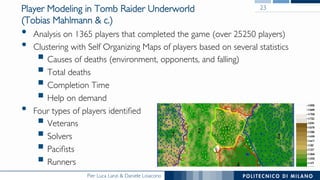

Player Modeling in Tomb Raider Underworld
(Tobias Mahlmann & c.)
•  Analysis on 1365 players that completed the game (over 25250 players)
•  Clustering with Self Organizing Maps of players based on several statistics
§ Causes of deaths (environment, opponents, and falling)
§ Total deaths
§ Completion Time
§ Help on demand
•  Four types of players identiﬁed
§ Veterans
§ Solvers
§ Paciﬁsts
§ Runners
23
Gaussian kernel. The learning rate is set to 0.7 but is
reased linearly during training reaching the value of 0.1 at
end of the 100 training epochs used. The training samples
presented in a randomly permuted order at each epoch
he algorithm.
n order to minimize the effect of non-deterministic se-
ion of initial weight values we repeat the training 20
es — using dissimilar initial weight vectors — and select

players’ social network
geographical distribution
friendship relations
gaming relations
player modeling
playing preferences
player groups
…

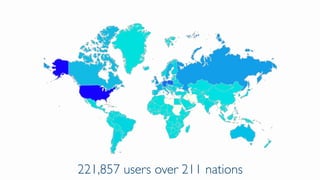

221,857 users over 211 nations

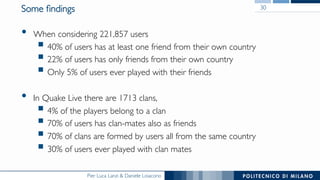

Some ﬁndings
•  When considering 221,857 users
§ 40% of users has at least one friend from their own country
§ 22% of users has only friends from their own country
§ Only 5% of users ever played with their friends

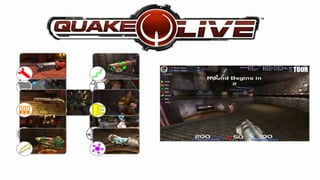

•  In Quake Live there are 1713 clans,
§ 4% of the players belong to a clan
§ 70% of users has clan-mates also as friends
§ 70% of clans are formed by users all from the same country
§ 30% of users ever played with clan mates
30

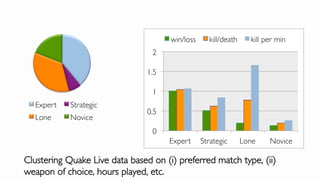

Clustering Quake Live data based on (i) preferred match type, (ii)
weapon of choice, hours played, etc.
Expert Strategic
Lone Novice
0
0.5
1
1.5
2
Expert Strategic Lone Novice
win/loss kill/death kill per min

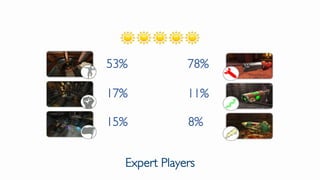

53%
17%
15%
78%
11%
8%
Expert Players

76%
13%
10%
75%
9%
6%
Strategic Players

87%
5%
4%
73%
14%
7%
Lone Players

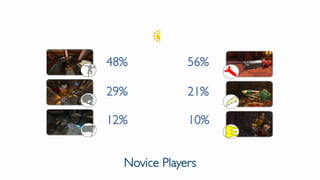

48%
29%
12%
56%
21%
10%
Novice Players

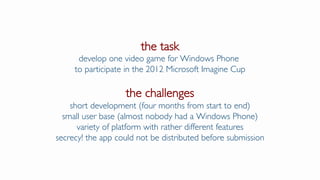

the task
develop one video game for Windows Phone
to participate in the 2012 Microsoft Imagine Cup
the challenges
short development (four months from start to end)
small user base (almost nobody had a Windows Phone)
variety of platform with rather different features
secrecy! the app could not be distributed before submission

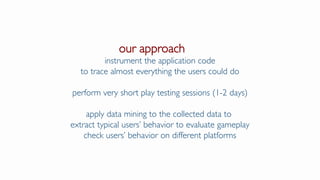

our approach
instrument the application code
to trace almost everything the users could do
perform very short play testing sessions (1-2 days)
apply data mining to the collected data to
extract typical users’ behavior to evaluate gameplay
check users’ behavior on different platforms

Bad Blood – A Serious Game About Diseases
•  Casual game for Windows phones developed during the
Videogame Design and Programming course at the
Politecnico di Milano
•  Bad Blood aims at spreading the knowledge about human
diseases through a series of games settled in blood
vessels, in the respiratory system, and in the brain
•  Five continents, in which players can select a speciﬁc
region (e.g., West Australia) that also corresponds to a
disease and thus to a speciﬁc scenario
•  Four game mechanics: attack, tap, survive and puzzle
39

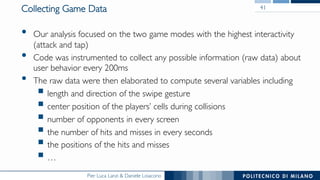

Collecting Game Data
•  Our analysis focused on the two game modes with the highest interactivity
(attack and tap)
•  Code was instrumented to collect any possible information (raw data) about
user behavior every 200ms
•  The raw data were then elaborated to compute several variables including
§ length and direction of the swipe gesture
§ center position of the players’ cells during collisions
§ number of opponents in every screen
§ the number of hits and misses in every seconds
§ the positions of the hits and misses
§ …
41

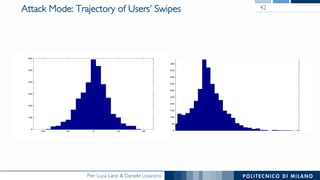

Attack Mode: Trajectory of Users’ Swipes 42

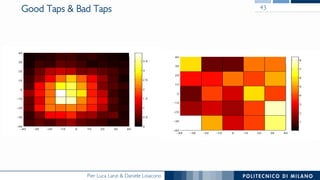

Good Taps & Bad Taps 43

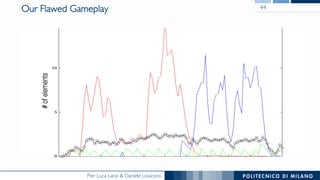

Our Flawed Gameplay 44

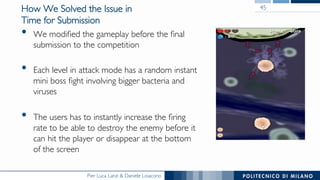

How We Solved the Issue in
Time for Submission
•  We modified the gameplay before the final
submission to the competition
•  Each level in attack mode has a random instant
mini boss fight involving bigger bacteria and
viruses
•  The users has to instantly increase the firing
rate to be able to destroy the enemy before it
can hit the player or disappear at the bottom
of the screen
45

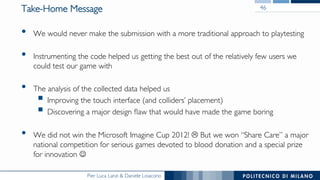

Take-Home Message
•  We would never make the submission with a more traditional approach to playtesting
•  Instrumenting the code helped us getting the best out of the relatively few users we
could test our game with
•  The analysis of the collected data helped us
§ Improving the touch interface (and colliders’ placement)
§ Discovering a major design ﬂaw that would have made the game boring
•  We did not win the Microsoft Imagine Cup 2012! L But we won “Share Care” a major
national competition for serious games devoted to blood donation and a special prize
for innovation J
46

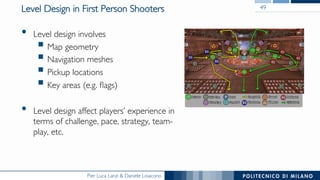

Level Design in First Person Shooters
•  Level design involves
§ Map geometry
§ Navigation meshes
§ Pickup locations
§ Key areas (e.g. ﬂags)
•  Level design affect players’ experience in
terms of challenge, pace, strategy, team-
play, etc.
49

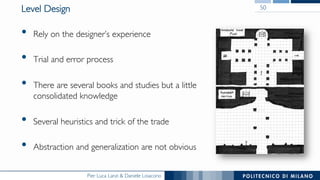

Level Design
•  Rely on the designer’s experience
•  Trial and error process
•  There are several books and studies but a little
consolidated knowledge
•  Several heuristics and trick of the trade
•  Abstraction and generalization are not obvious
50

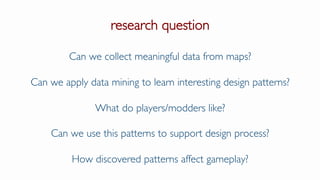

research question
Can we collect meaningful data from maps?
Can we apply data mining to learn interesting design patterns?
What do players/modders like?
Can we use this patterns to support design process?
How discovered patterns affect gameplay?

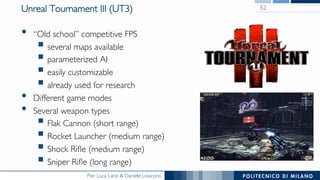

Unreal Tournament III (UT3)
•  “Old school” competitive FPS
§ several maps available
§ parameterized AI
§ easily customizable
§ already used for research
•  Different game modes
•  Several weapon types
§ Flak Cannon (short range)
§ Rocket Launcher (medium range)
§ Shock Riﬂe (medium range)
§ Sniper Riﬂe (long range)
52

Extended Game Server
Data Filtering Backend (Java)
Gephi Graph
Manipulation
Software
Custom Bots
(e.g., ﬁxed weapons,
explorer)
Weka Open Source
DataminingTool

Collected Data (1)
•  A graph representation of the maps
is obtained by the navigation mesh
•  Nodes features include
§ Type (Powerup/Ammo/Weapon/
Navigation)
§ Position
§ In/Out Degree
§ Closeness Centrality
§ Betweennes Centrality
§ Clustering Coefﬁcient
54

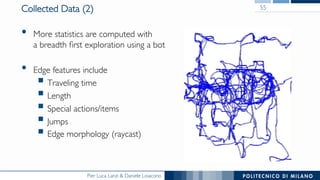

Collected Data (2)
•  More statistics are computed with
a breadth ﬁrst exploration using a bot
•  Edge features include
§ Traveling time
§ Length
§ Special actions/items
§ Jumps
§ Edge morphology (raycast)
55

Team Deathmatch Maps vs Duel Maps
Node Classification

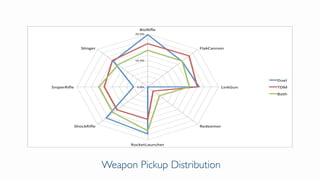

Weapon-Map Relationship

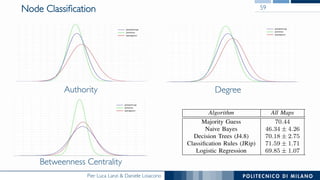

Node Classification
Authority
Betweenness Centrality
Degree
classification of c
Algorithm ammo pickups w
Majority Guess 62.90
Naive Bayes 42.32 ± 4.15
Decision Trees (J4.8) 67.89 ± 5.45
Classification Rules (JRip) 69.75 ± 5.58
Logistic Regression 69.54 ± 6.31
TABLE IV: Prediction of the node’s type (navigation node, ammo p
different algorithms applied to classify the nodes of all the maps, of D
Guess always predicts the most frequent class in the dataset and is r
Algorithm All Maps Du
Majority Guess 70.44 6
Naive Bayes 46.34 ± 4.26 46.3
Decision Trees (J4.8) 70.18 ± 2.75 70.1
Classification Rules (JRip) 71.59 ± 1.71 71.5
Logistic Regression 69.85 ± 1.07 69.8
classification of c
Algorithm ammo pickups w
Majority Guess 62.90
Naive Bayes 42.32 ± 4.15 4
Decision Trees (J4.8) 67.89 ± 5.45
Classification Rules (JRip) 69.75 ± 5.58 5
Logistic Regression 69.54 ± 6.31 6
TABLE IV: Prediction of the node’s type (navigation node, ammo p
different algorithms applied to classify the nodes of all the maps, of D
Guess always predicts the most frequent class in the dataset and is r
Algorithm All Maps Due
Majority Guess 70.44 6
Naive Bayes 46.34 ± 4.26 46.3
Decision Trees (J4.8) 70.18 ± 2.75 70.1
Classification Rules (JRip) 71.59 ± 1.71 71.5
Logistic Regression 69.85 ± 1.07 69.8
59

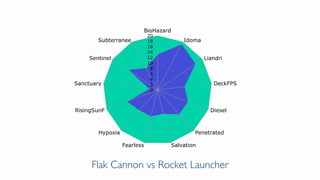

0
2
4
6
8
10
12
14
16
18
20
BioHazard
Idoma
Liandri
DeckFPS
Diesel
Penetrated
SalvationFearless
Hypoxia
RisingSunF
Sanctuary
Sentinel
Subterranee
Flak Cannon vs Rocket Launcher

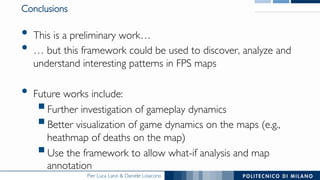

Conclusions
•  This is a preliminary work…
•  … but this framework could be used to discover, analyze and
understand interesting patterns in FPS maps
•  Future works include:
§ Further investigation of gameplay dynamics
§ Better visualization of game dynamics on the maps (e.g.,
heathmap of deaths on the map)
§ Use the framework to allow what-if analysis and map
annotation

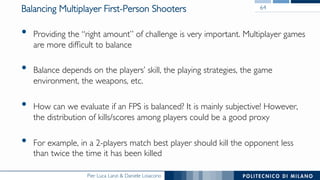

Balancing Multiplayer First-Person Shooters
•  Providing the “right amount” of challenge is very important. Multiplayer games
are more difﬁcult to balance
•  Balance depends on the players’ skill, the playing strategies, the game
environment, the weapons, etc.
•  How can we evaluate if an FPS is balanced? It is mainly subjective! However,
the distribution of kills/scores among players could be a good proxy
•  For example, in a 2-players match best player should kill the opponent less
than twice the time it has been killed
64

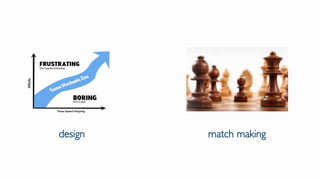

Balancing multiplayer games is both
a design and a matchmaking problem

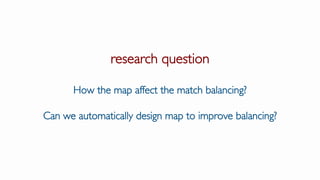

research question
How the map affect the match balancing?
Can we automatically design map to improve balancing?

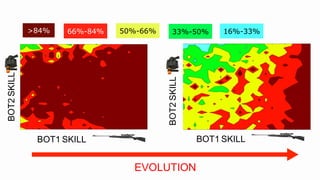

BOT1 SKILL
BOT2SKILL
BOT1 SKILL
BOT2SKILL

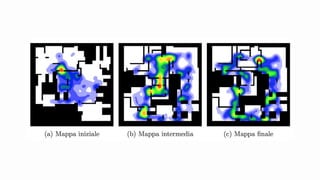

EVOLUTION
>84% 66%-84% 50%-66% 33%-50% 16%-33%

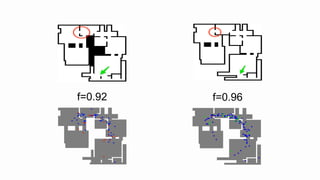

Take-Home Message
•  Good News
§ Maps can be evolved to improve balancing
§ It works (even better) with players with different weapons
§ It can be combined with other balancing approaches
•  Bad News
§ Bots are used to measure balancing (i.e., accuracy bias)
§ Requires modeling of player
72

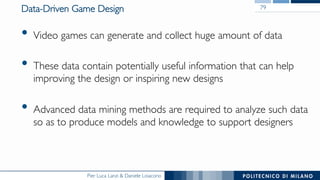

Data-Driven Game Design
•  Video games can generate and collect huge amount of data
•  These data contain potentially useful information that can help
improving the design or inspiring new designs
•  Advanced data mining methods are required to analyze such data
so as to produce models and knowledge to support designers
79

http://www.polimigamecollective.org
http://www.facebook.com/polimigamecollective
http://www.youtube.com/PierLucaLanzi
pierluca.lanzi@polimi.it

References
•  Churn
§  http://gamasutra.com/view/feature/170472/predicting_churn_datamining_your_.php?page=1
§  http://www.gamasutra.com/view/feature/176747/predicting_churn_when_do_veterans_.php?print=1
•  Player Modeling
§  http://julian.togelius.com/Mahlmann2010Predicting.pdf
81

Data Driven Game Design

More Related Content

What's hot

Viewers also liked

Similar to Data Driven Game Design

More from Pier Luca Lanzi

Recently uploaded

Data Driven Game Design
