“Acquire knowledge and
impart it to the people.”
Holy Prophet Mohammed (-‫ﷺ‬Sallallaho Alaihi Wa’Sallam)
Group Name:
THE TRANSWORKERS
Muhammad Ahad
BSITF13MM031
Content:
• Introduction to Data Centre.
• Data Center Network Design.
• Data Center Network Application
Architecture Models.

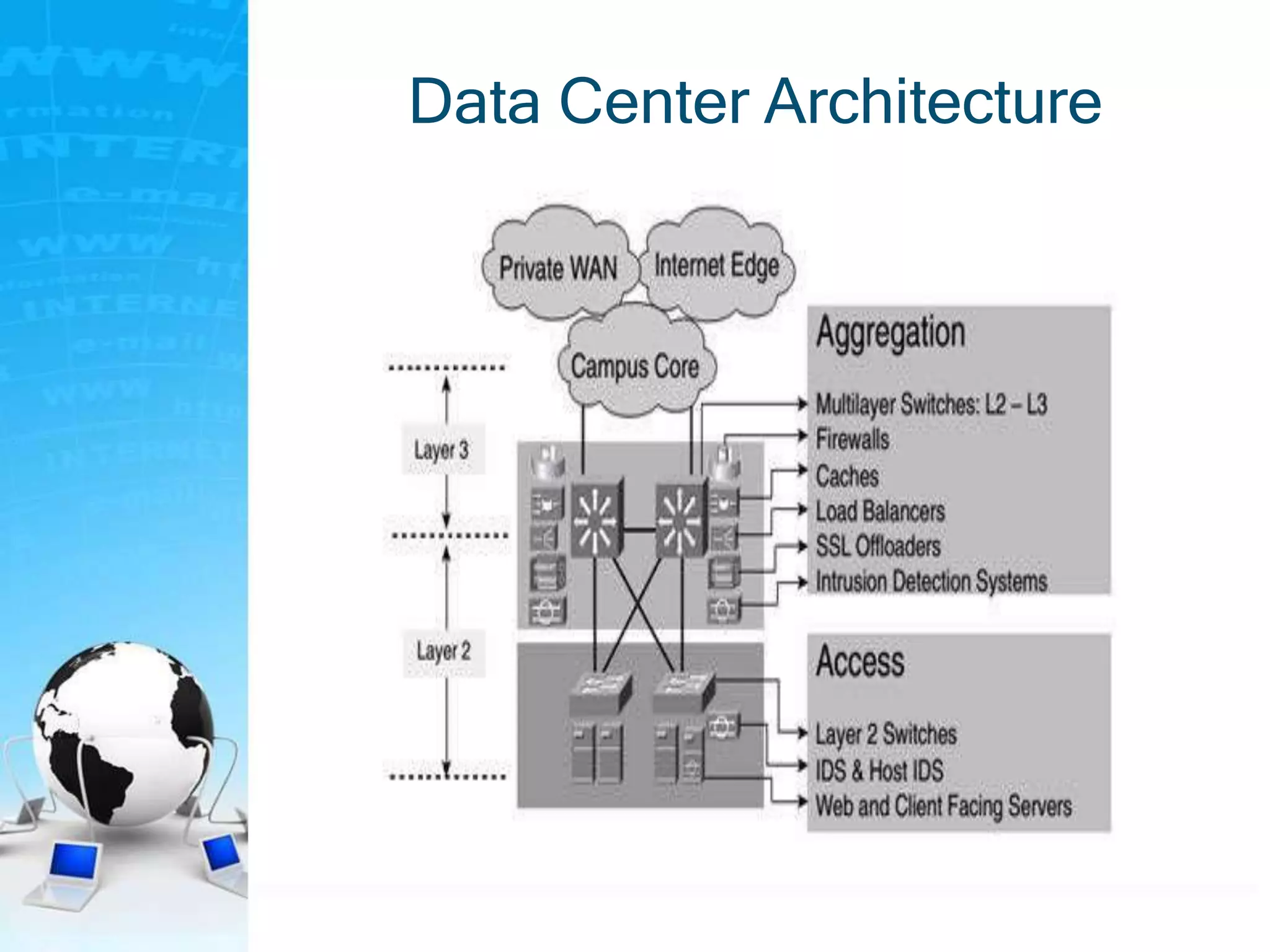

• Data Center Architecture.

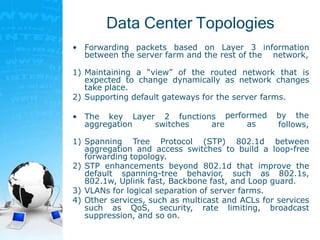

• Data Center Topologies.
• Data Center Services.

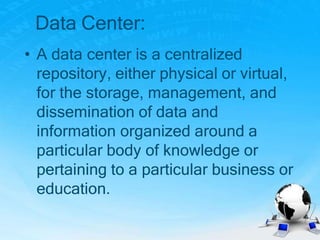

Data Center:
• A data center is a centralized
repository, either physical or virtual,
for the storage, management, and
dissemination of data and
information organized around a
particular body of knowledge or
pertaining to a particular business or
education.

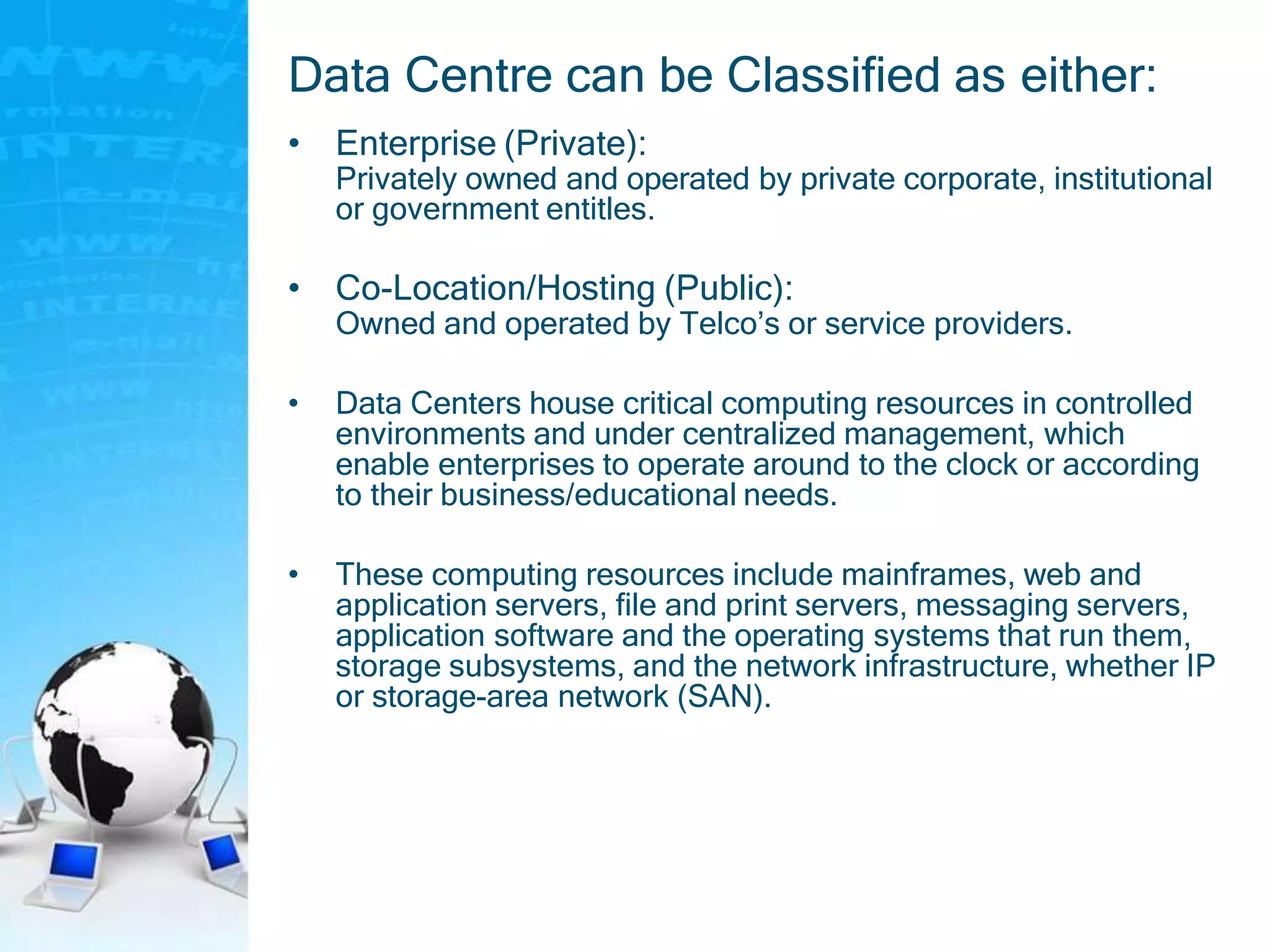

Data Centre can be Classified as either:
• Enterprise (Private):
Privately owned and operated by private corporate, institutional
or government entitles.
• Co-Location/Hosting (Public):
Owned and operated by Telco’s or service providers.
• Data Centers house critical computing resources in controlled
environments and under centralized management, which
enable enterprises to operate around to the clock or according
to their business/educational needs.
• These computing resources include mainframes, web and
application servers, file and print servers, messaging servers,
application software and the operating systems that run them,
storage subsystems, and the network infrastructure, whether IP
or storage-area network (SAN).

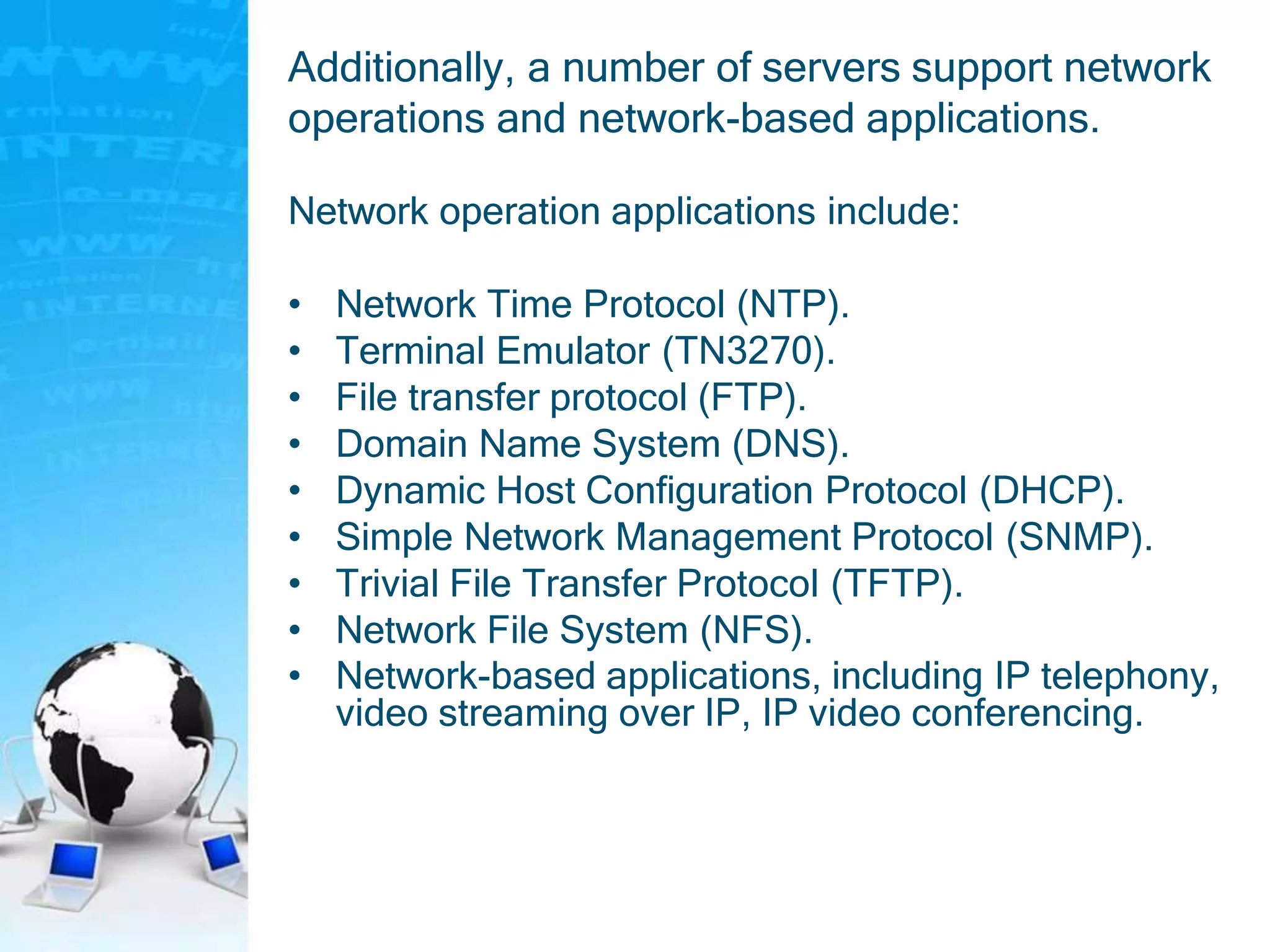

Additionally, a number of servers support network
operations and network-based applications.
Network operation applications include:
• Network Time Protocol (NTP).
• Terminal Emulator (TN3270).
• File transfer protocol (FTP).
• Domain Name System (DNS).
• Dynamic Host Configuration Protocol (DHCP).
• Simple Network Management Protocol (SNMP).
• Trivial File Transfer Protocol (TFTP).
• Network File System (NFS).
• Network-based applications, including IP telephony,
video streaming over IP, IP video conferencing.

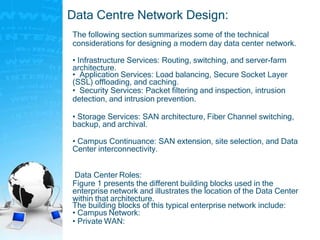

Data Centre Network Design:
The following section summarizes some of the technical
considerations for designing a modern day data center network.
• Infrastructure Services: Routing, switching, and server-farm
architecture.

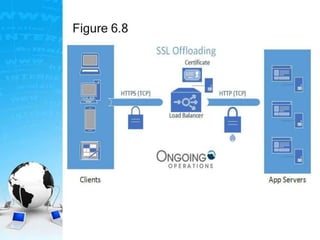

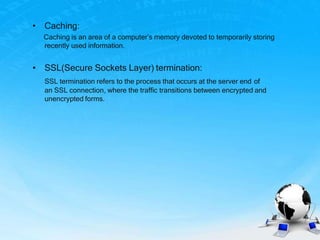

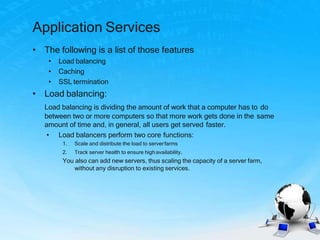

• Application Services: Load balancing, Secure Socket Layer
(SSL) offloading, and caching.
• Security Services: Packet filtering and inspection, intrusion
detection, and intrusion prevention.
• Storage Services: SAN architecture, Fiber Channel switching,
backup, and archival.
• Campus Continuance: SAN extension, site selection, and Data
Center interconnectivity.
Data Center Roles:
Figure 1 presents the different building blocks used in the
enterprise network and illustrates the location of the Data Center
within that architecture.
The building blocks of this typical enterprise network include:
• Campus Network:
• Private WAN:

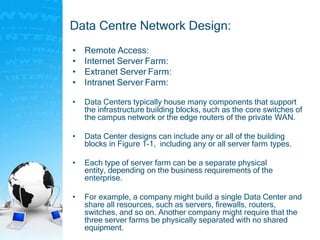

Data Centre Network Design:
• Remote Access:
• Internet Server Farm:
• Extranet Server Farm:
• Intranet Server Farm:
• Data Centers typically house many components that support
the infrastructure building blocks, such as the core switches of
the campus network or the edge routers of the private WAN.
• Data Center designs can include any or all of the building
blocks in Figure 1-1, including any or all server farm types.
• Each type of server farm can be a separate physical
entity, depending on the business requirements of the
enterprise.
• For example, a company might build a single Data Center and
share all resources, such as servers, firewalls, routers,
switches, and so on. Another company might require that the
three server farms be physically separated with no shared
equipment.
Figure 1-1:

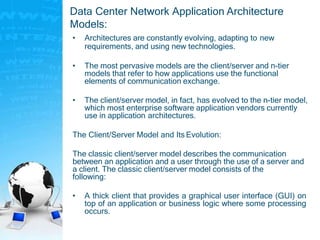

Data Center Network Application Architecture
Models:
• Architectures are constantly evolving, adapting to new
requirements, and using new technologies.
• The most pervasive models are the client/server and n-tier
models that refer to how applications use the functional
elements of communication exchange.
• The client/server model, in fact, has evolved to the n-tier model,
which most enterprise software application vendors currently
use in application architectures.
The Client/Server Model and Its Evolution:
The classic client/server model describes the communication
between an application and a user through the use of a server and
a client. The classic client/server model consists of the
following:
• A thick client that provides a graphical user interface (GUI) on
top of an application or business logic where some processing
occurs.

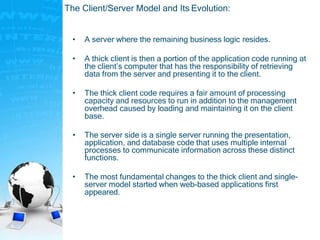

The Client/Server Model and Its Evolution:
• A server where the remaining business logic resides.
• A thick client is then a portion of the application code running at
the client’s computer that has the responsibility of retrieving
data from the server and presenting it to the client.
• The thick client code requires a fair amount of processing
capacity and resources to run in addition to the management
overhead caused by loading and maintaining it on the client
base.
• The server side is a single server running the presentation,
application, and database code that uses multiple internal
processes to communicate information across these distinct
functions.
• The most fundamental changes to the thick client and single-
server model started when web-based applications first
appeared.

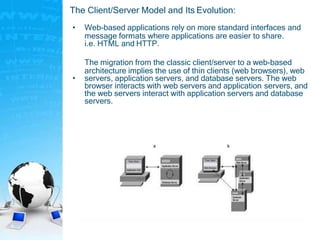

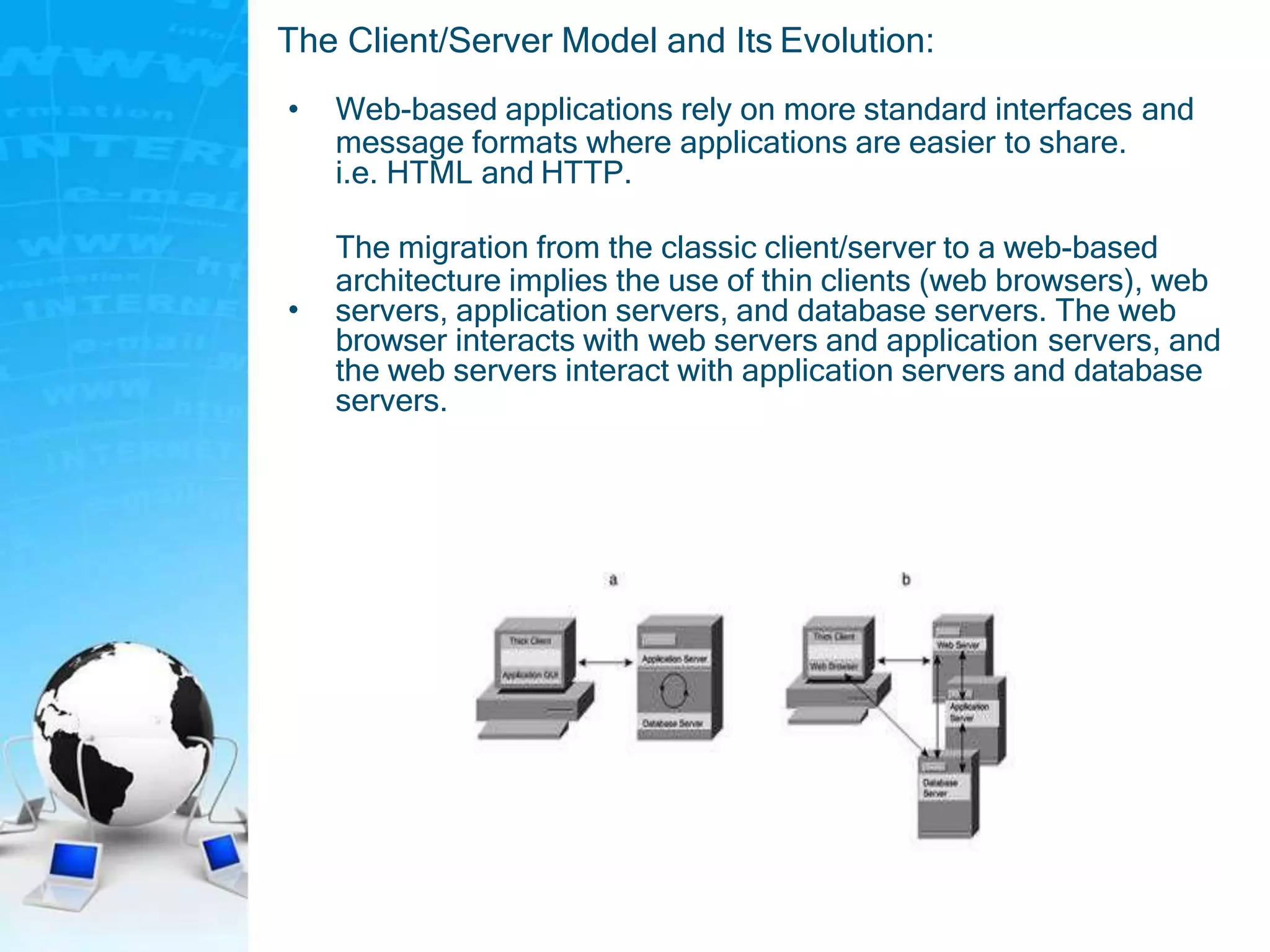

The Client/Server Model and Its Evolution:
• Web-based applications rely on more standard interfaces and
message formats where applications are easier to share.
i.e. HTML and HTTP.
•
The migration from the classic client/server to a web-based
architecture implies the use of thin clients (web browsers), web
servers, application servers, and database servers. The web
browser interacts with web servers and application servers, and
the web servers interact with application servers and database
servers.

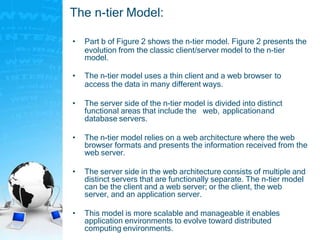

The n-tier Model:
• Part b of Figure 2 shows the n-tier model. Figure 2 presents the
evolution from the classic client/server model to the n-tier
model.
• The n-tier model uses a thin client and a web browser to
access the data in many different ways.
• The server side of the n-tier model is divided into distinct
functional areas that include the web, applicationand
database servers.
• The n-tier model relies on a web architecture where the web
browser formats and presents the information received from the
web server.
• The server side in the web architecture consists of multiple and
distinct servers that are functionally separate. The n-tier model
can be the client and a web server; or the client, the web
server, and an application server.
• This model is more scalable and manageable it enables
application environments to evolve toward distributed
computing environments.
The n-tier Model:

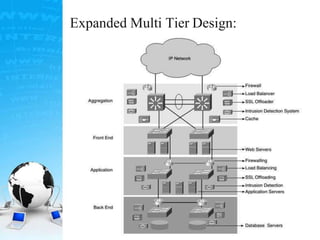

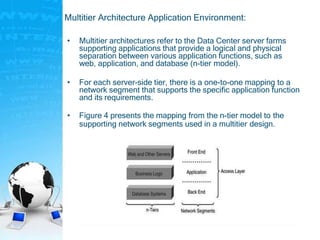

Multitier Architecture Application Environment:
• Multitier architectures refer to the Data Center server farms
supporting applications that provide a logical and physical
separation between various application functions, such as
web, application, and database (n-tier model).
• For each server-side tier, there is a one-to-one mapping to a
network segment that supports the specific application function
and its requirements.
• Figure 4 presents the mapping from the n-tier model to the
supporting network segments used in a multitier design.

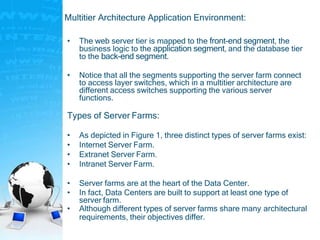

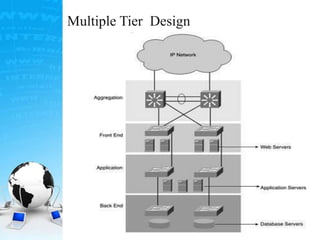

Multitier Architecture Application Environment:

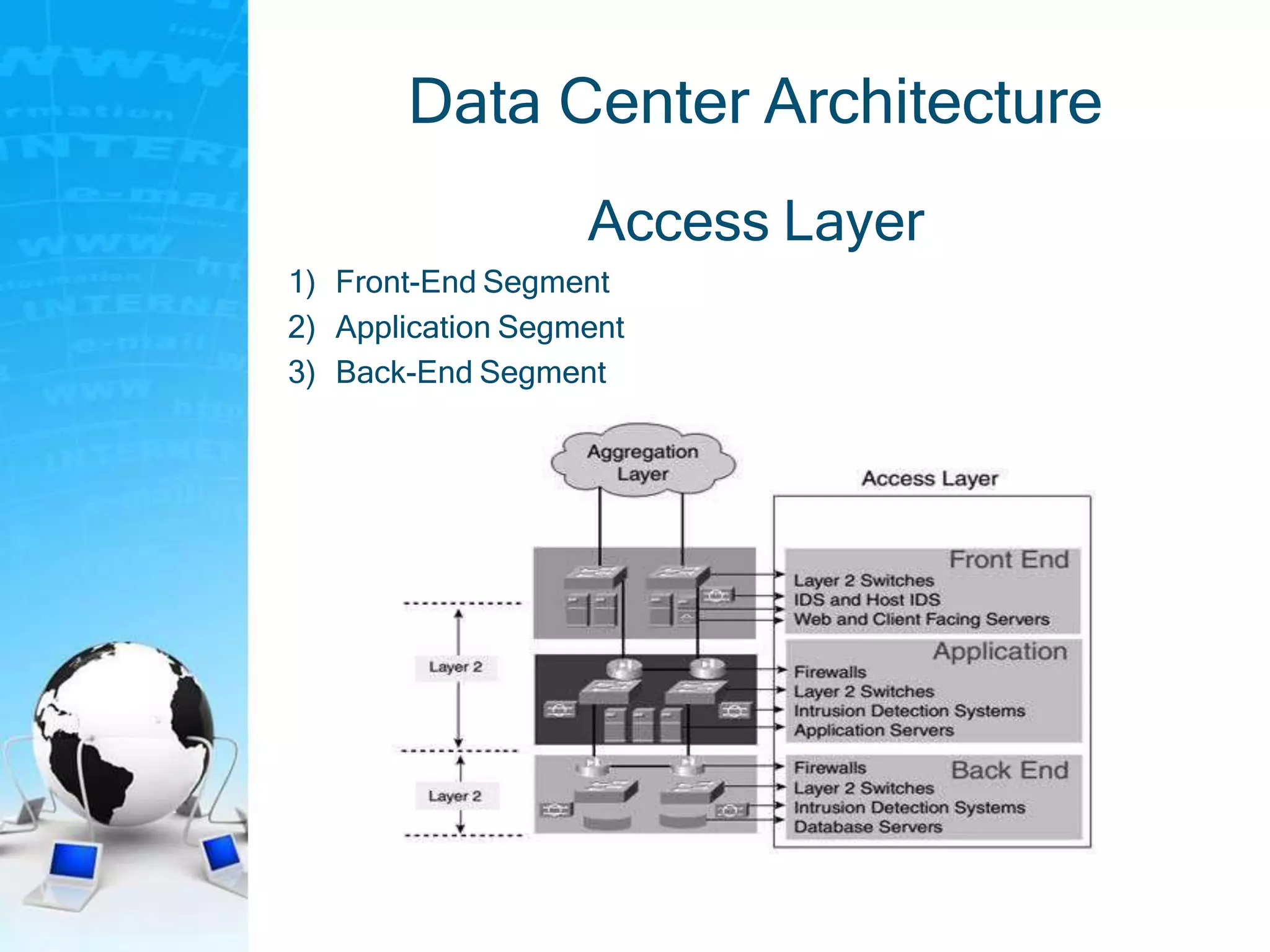

• The web server tier is mapped to the front-end segment, the
business logic to the application segment, and the database tier
to the back-end segment.
• Notice that all the segments supporting the server farm connect
to access layer switches, which in a multitier architecture are
different access switches supporting the various server
functions.
Types of Server Farms:
• As depicted in Figure 1, three distinct types of server farms exist:
• Internet Server Farm.
• Extranet Server Farm.
• Intranet Server Farm.
• Server farms are at the heart of the Data Center.
• In fact, Data Centers are built to support at least one type of
server farm.
• Although different types of server farms share many architectural
requirements, their objectives differ.

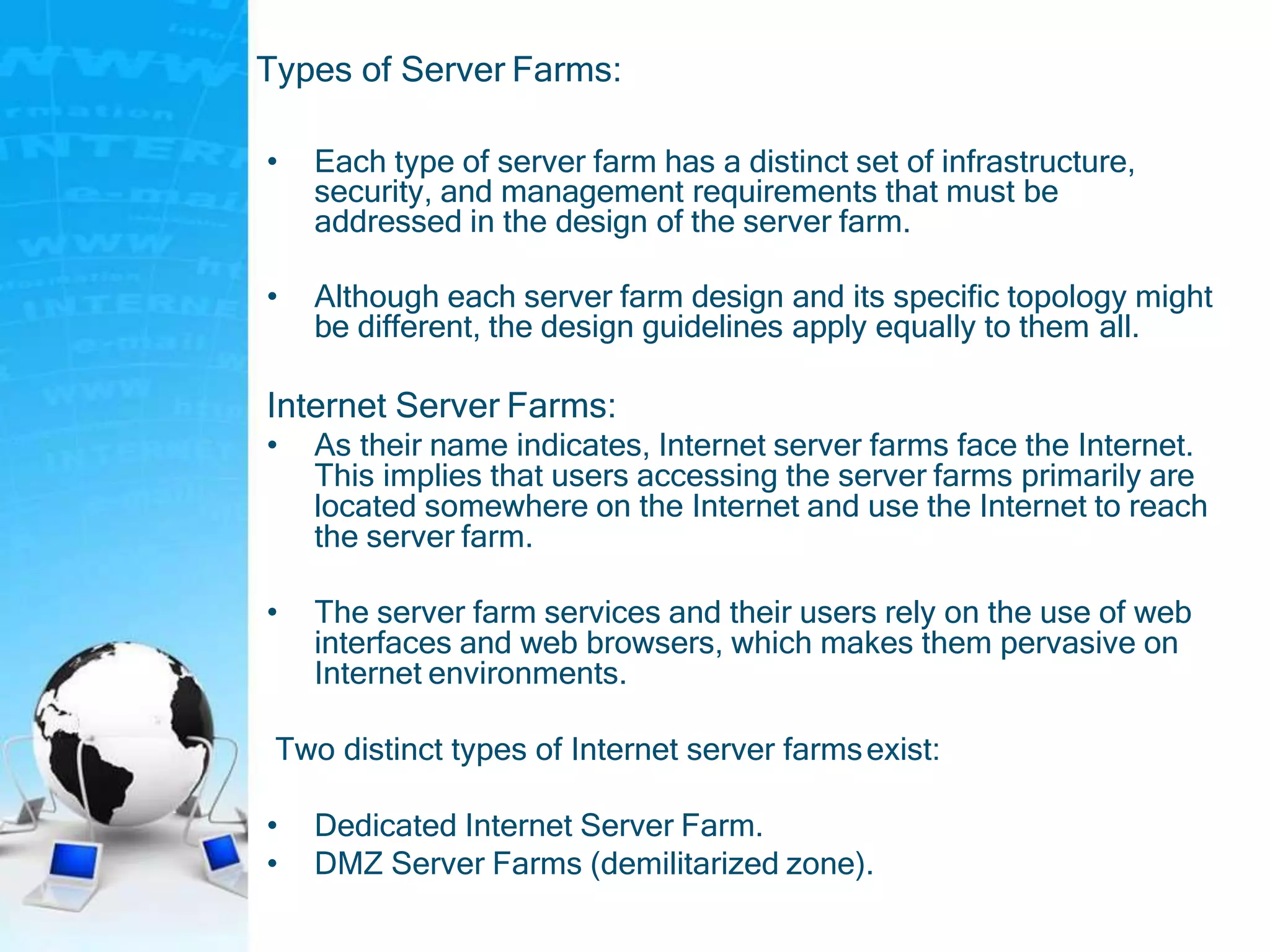

Types of Server Farms:
• Each type of server farm has a distinct set of infrastructure,
security, and management requirements that must be
addressed in the design of the server farm.
• Although each server farm design and its specific topology might
be different, the design guidelines apply equally to them all.
Internet Server Farms:
• As their name indicates, Internet server farms face the Internet.
This implies that users accessing the server farms primarily are
located somewhere on the Internet and use the Internet to reach
the server farm.
• The server farm services and their users rely on the use of web
interfaces and web browsers, which makes them pervasive on
Internet environments.
Two distinct types of Internet server farmsexist:
• Dedicated Internet Server Farm.
• DMZ Server Farms (demilitarized zone).
Dedicated / DMZ Internet Server Farm :
• The dedicated Internet server farm, shown in Figure is built to
support large-scale Internet-facing applications that support the
core business function. Typically, the core business function is
based on an Internet presence or Internet commerce.
• Security and scalability are a major concern in this type of server
farm. On one hand, most users accessing the server farm are
located on the Internet, thereby introducing higher security risks;
on the other hand, the number of likely users is very high, which
could easily cause scalability problems.
• The Data Center that supports this type of server farm is often
referred to as an Internet Data Center (IDC).
• The next type of Internet server farm, shown in Figure 6, is built
to support Internet-based applications in addition to Internet
access from the enterprise. This means that the infrastructure
supporting the server farms also is used to support Internet
access from enterprise users. These server farms typically are
located in the demilitarized zone (DMZ) because they are part of
the enterprise network yet are accessible from the Internet.
These server farms are referred to as DMZ server farms, to
differentiate them from the dedicated Internet server farms.

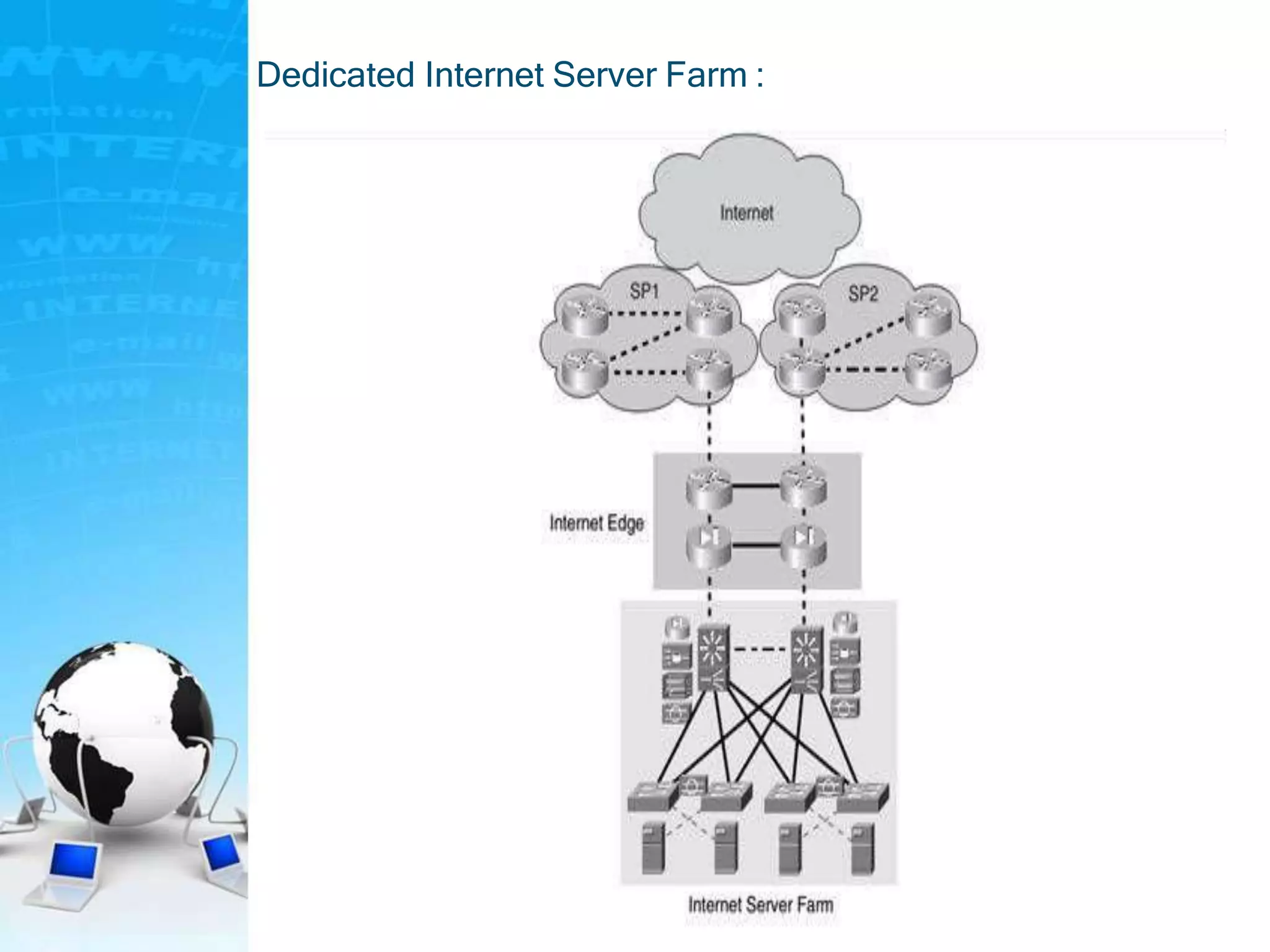

Dedicated Internet Server Farm :

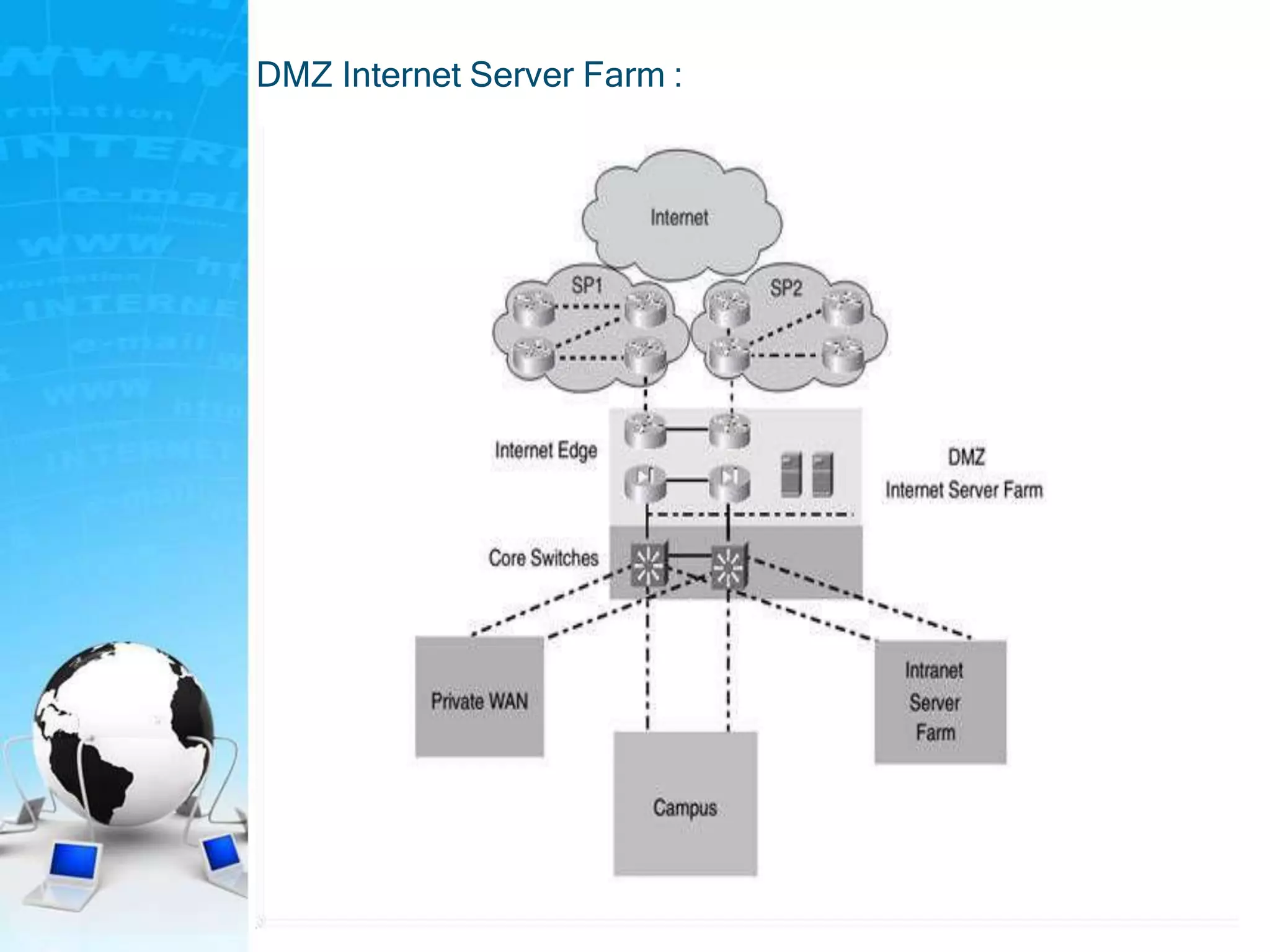

DMZ Internet Server Farm :

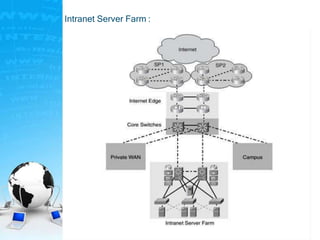

Intranet Server Farm :
• The evolution of the client/server model and the wide adoption of
web-based applications on the Internet was the foundation for
building intranets.
• Intranet server farms resemble the Internet server farms in their
ease of access, yet they are available only to the enterprise’s
internal users.
• Notice that the intranet server farm module is connected to the
core switches that form a portion of the enterprise backbone and
provide connectivity between the private WAN and Internet Edge
modules.
• Internet users typically are not permitted access to the intranet;
however, internal users using the Internet as transport have
access to the intranet using virtual private network (VPN)
technology.
• The Internet Edge module supports several functions that
include the following:
• Securing the enterprise network
• Controlling Internet access from the intranet
• Controlling access to the Internet server farms
• The Data Center provides additional security to further protect
the data in the intranet server farm. This is accomplished by
applying the security policies to the edge of the Data Center as
well as to the applicable application tiers when attempting to
harden communication between servers on different tiers.
Intranet Server Farm :

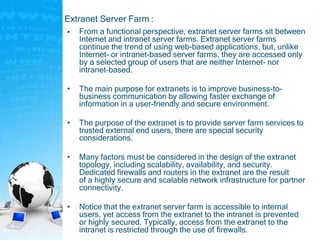

Extranet Server Farm :
• From a functional perspective, extranet server farms sit between
Internet and intranet server farms. Extranet server farms
continue the trend of using web-based applications, but, unlike
Internet- or intranet-based server farms, they are accessed only
by a selected group of users that are neither Internet- nor
intranet-based.
• The main purpose for extranets is to improve business-to-
business communication by allowing faster exchange of
information in a user-friendly and secure environment.
• The purpose of the extranet is to provide server farm services to
trusted external end users, there are special security
considerations.
• Many factors must be considered in the design of the extranet
topology, including scalability, availability, and security.
Dedicated firewalls and routers in the extranet are the result
of a highly secure and scalable network infrastructure for partner
connectivity.
• Notice that the extranet server farm is accessible to internal
users, yet access from the extranet to the intranet is prevented
or highly secured. Typically, access from the extranet to the
intranet is restricted through the use of firewalls.

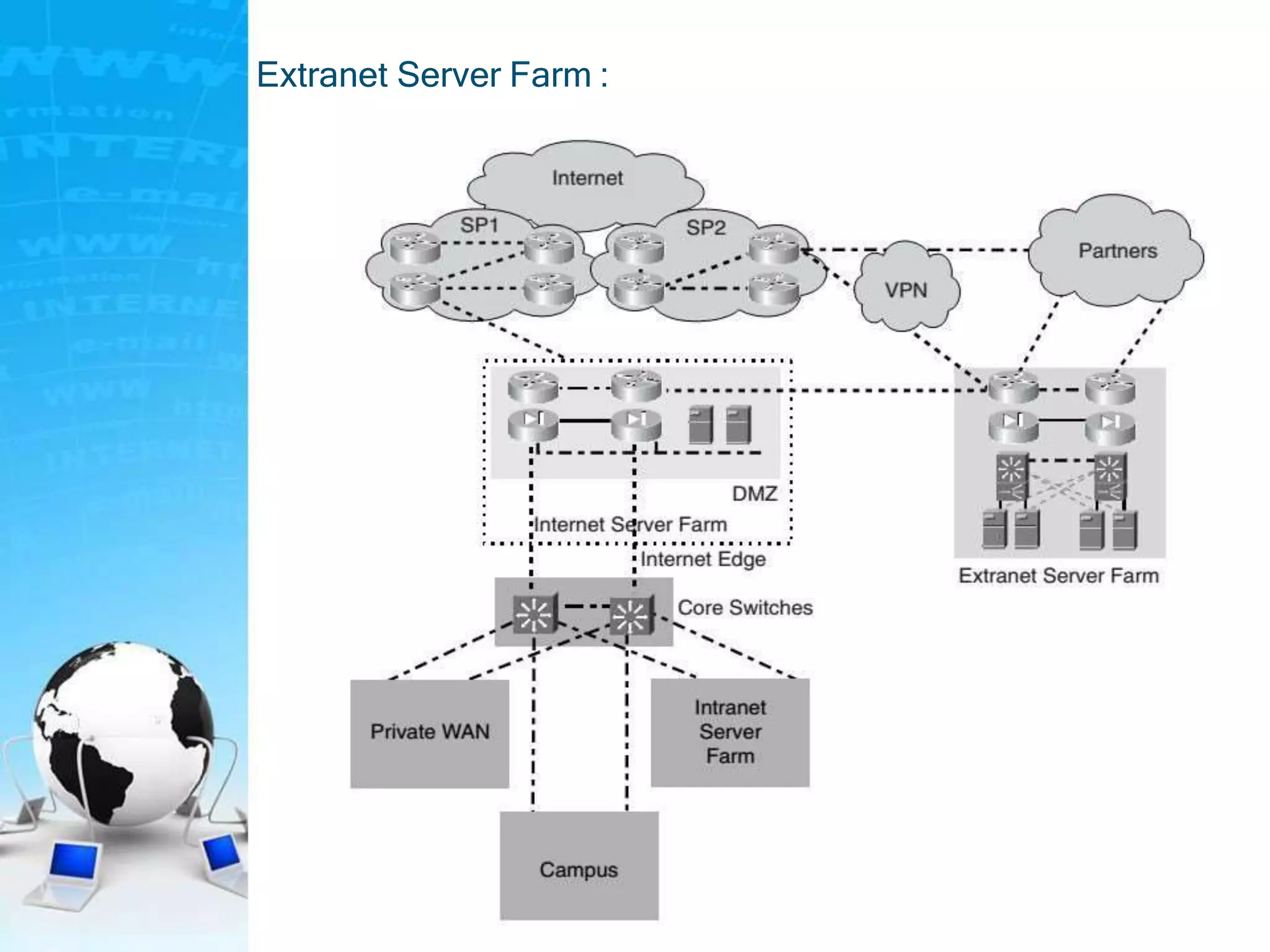

Extranet Server Farm :
Muhammad Asif
BSITF13MM033

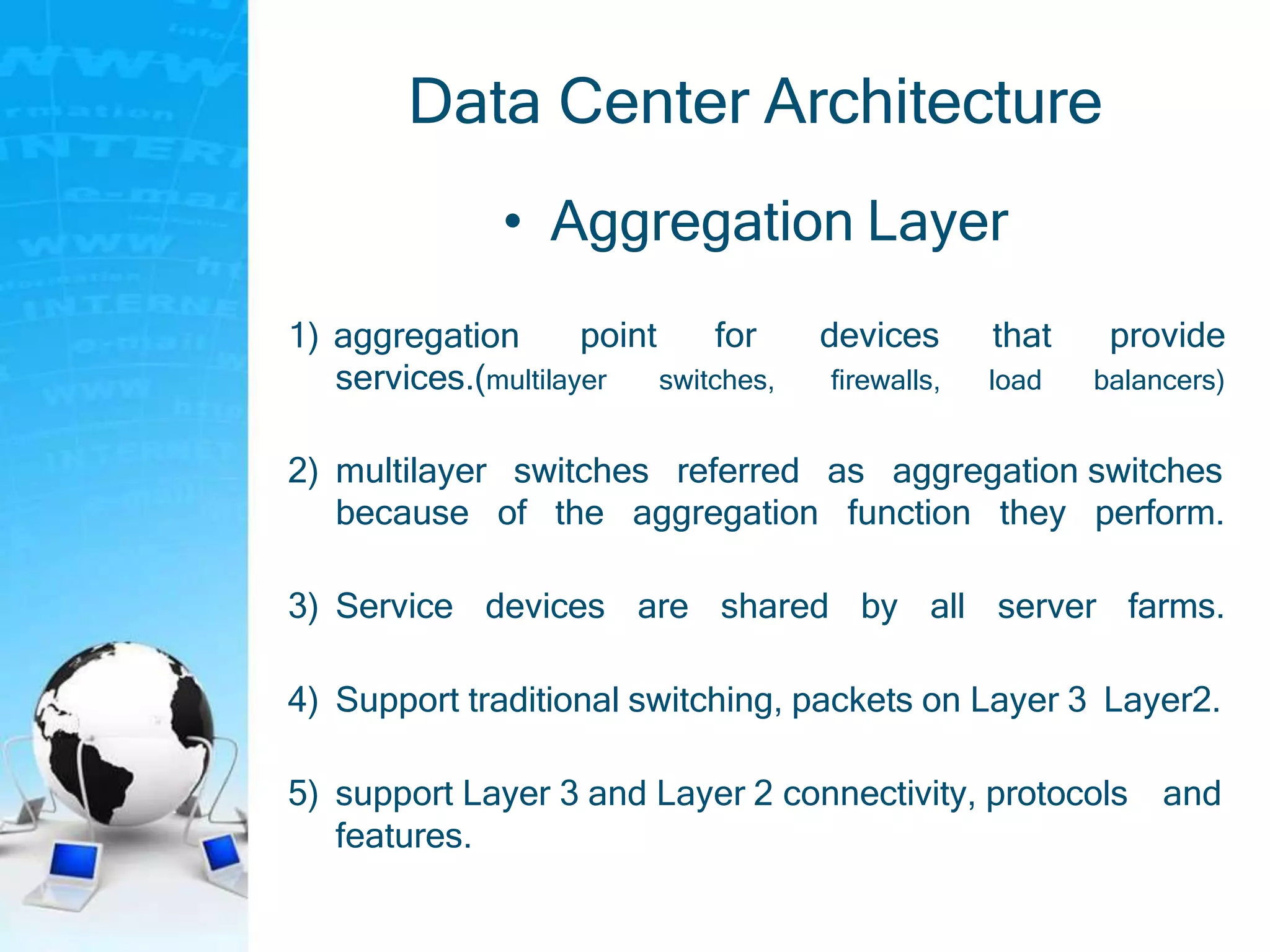

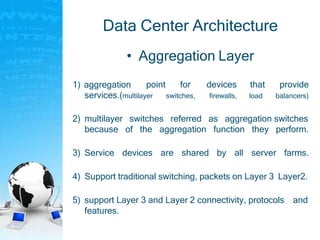

Data Center Architecture
• Aggregation Layer
1) aggregation point for
switches,
devices
firewalls,
that
load
provide
balancers)services.(multilayer
2) multilayer switches referred as aggregation switches
because of the aggregation function they perform.
3) Service devices are shared by all server farms.
4) Support traditional switching, packets on Layer 3 Layer2.
5) support Layer 3 and Layer 2 connectivity, protocols and
features.
Data Center Architecture
Data Center Architecture

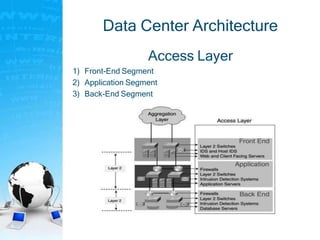

Access Layer
1) Front-End Segment
2) Application Segment
3) Back-End Segment

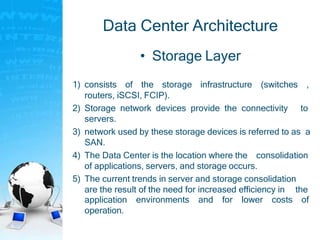

Data Center Architecture
• Storage Layer
1) consists of the storage infrastructure (switches ,
routers, iSCSI, FCIP).
2) Storage network devices provide the connectivity to
servers.
3) network used by these storage devices is referred to as a
SAN.
4) The Data Center is the location where the consolidation
of applications, servers, and storage occurs.
5) The current trends in server and storage consolidation
are the result of the need for increased efficiency in the
environments and for lower costs ofapplication
operation.
Data Center Architecture
• Data Center environments are expected to
support high-speed communication between
servers and storage and between storage devices.

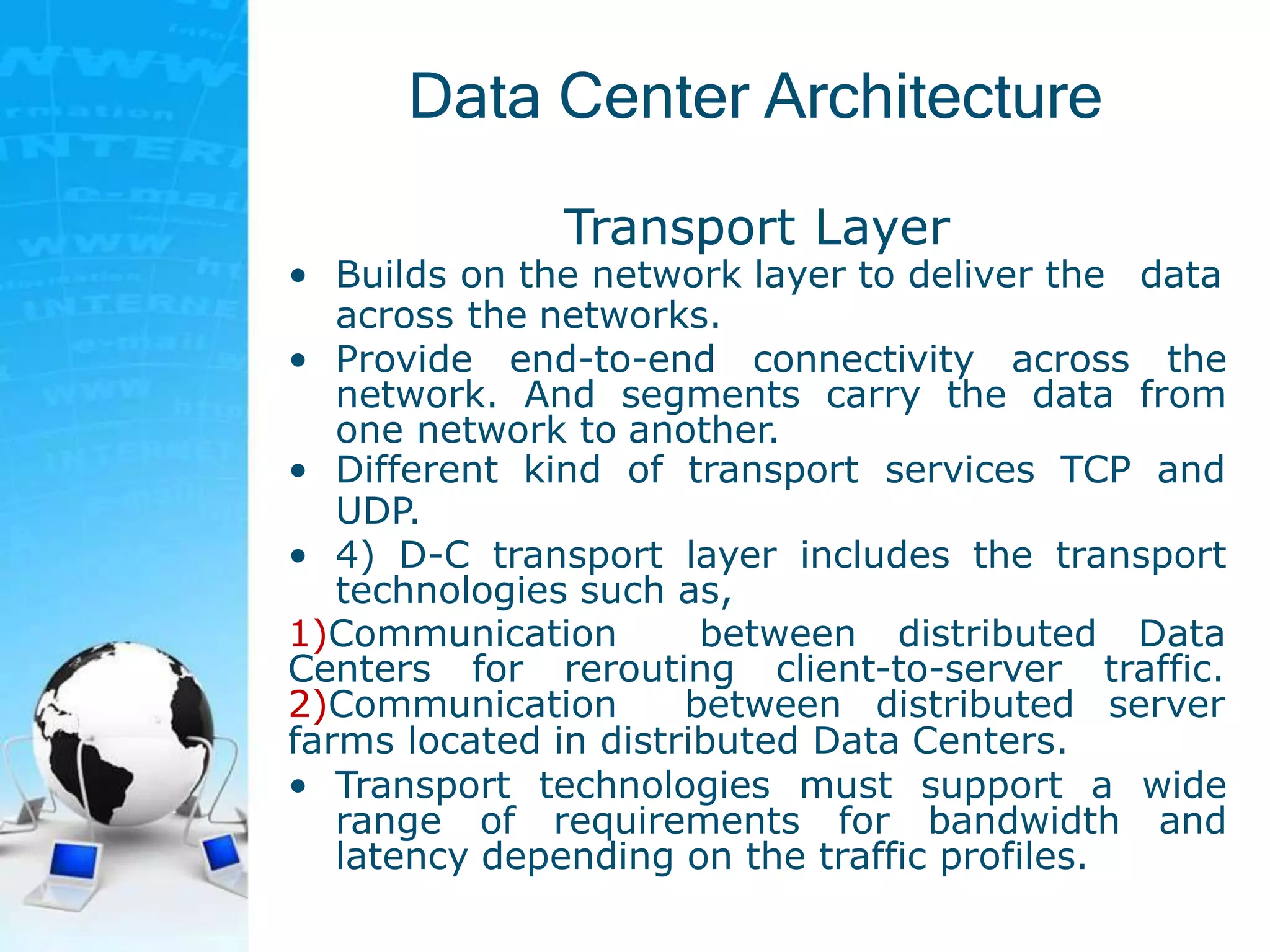

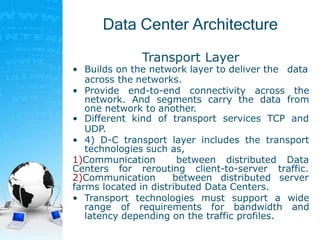

Data Center Architecture
Transport Layer
• Builds on the network layer to deliver the data
across the networks.
• Provide end-to-end connectivity across the
network. And segments carry the data from
one network to another.
• Different kind of transport services TCP and
UDP.
• 4) D-C transport layer includes the transport
technologies such as,
1)Communication between distributed Data
Centers for rerouting client-to-server traffic.
2)Communication between distributed server
farms located in distributed Data Centers.
• Transport technologies must support a wide
range of requirements for bandwidth and
latency depending on the traffic profiles.

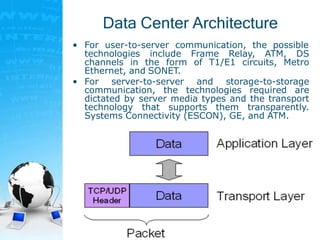

Data Center Architecture
• For user-to-server communication, the possible
technologies include Frame Relay, ATM, DS
channels in the form of T1/E1 circuits, Metro
Ethernet, and SONET.
• For server-to-server and storage-to-storage
communication, the technologies required are
dictated by server media types and the transport
technology that supports them transparently.
Systems Connectivity (ESCON), GE, and ATM.

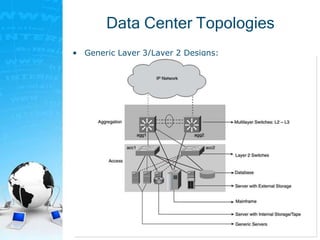

Data Center Topologies
• Generic Layer 3/Layer 2 Designs:
Data Center Topologies
• Forwarding packets based on Layer 3 information
between the server farm and the rest of the network,
1) Maintaining a “view” of the routed network that is
expected to change dynamically as network changes
take place.
2) Supporting default gateways for the server farms.
• The key Layer 2 functions
aggregation switches are
performed by the
as follows,
1) Spanning Tree Protocol (STP) 802.1d between
aggregation and access switches to build a loop-free
forwarding topology.
2) STP enhancements beyond 802.1d that improve the
default spanning-tree behavior, such as 802.1s,
802.1w, Uplink fast, Backbone fast, and Loop guard.
3) VLANs for logical separation of server farms.
4) Other services, such as multicast and ACLs for services
such as QoS, security, rate limiting, broadcast
suppression, and so on.
Nauman Ansar
BSITF13MM016
Topic # 1
Multiple Tier Designs

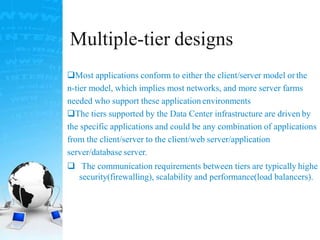

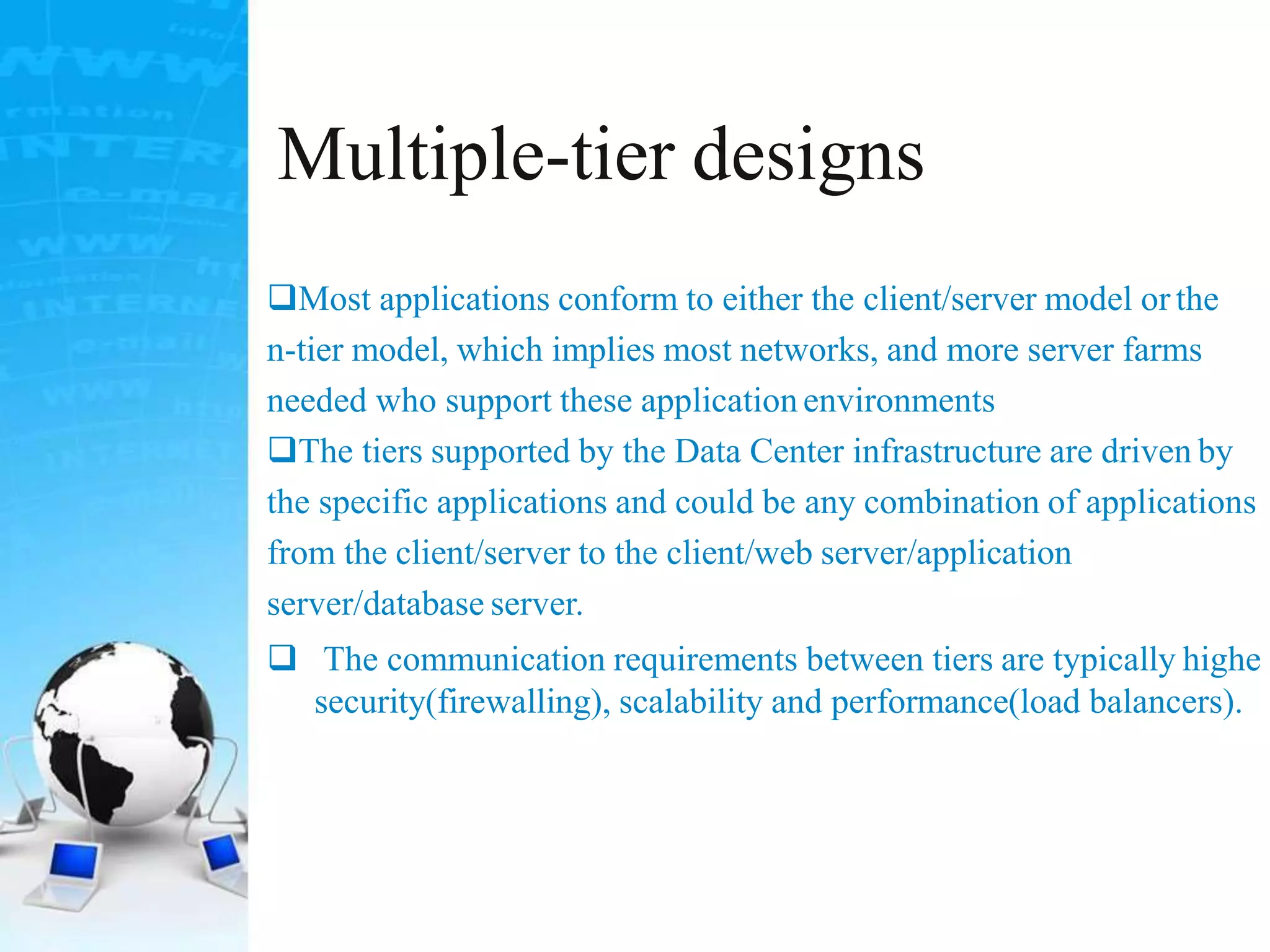

Multiple-tier designs
Most applications conform to either the client/server model or the
n-tier model, which implies most networks, and more server farms
needed who support these application environments
The tiers supported by the Data Center infrastructure are driven by
the specific applications and could be any combination of applications
from the client/server to the client/web server/application
server/database server.
 The communication requirements between tiers are typically highe
security(firewalling), scalability and performance(load balancers).
Multiple Tier Design
Example::
I. Suppose that you have multiple types of web servers supporting
different applications, and some of these applications follow the
n-tier model.
II. The server farm could be partitioned along the lines of applications
or functions.
 All web servers, regardless of the application(s) they support,
could be part of the same server farm
 the application servers could be part of a separate server
farm on a different subnet
III. The same logic used to scale the web tier, a load balancer logically
could be placed between the web tier and the application tier to
scale the application tier from the web tier perspective.

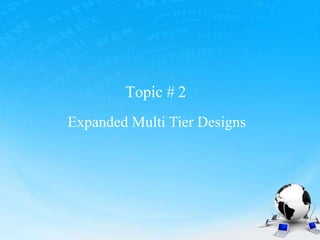

Topic # 2
Expanded Multi Tier Designs

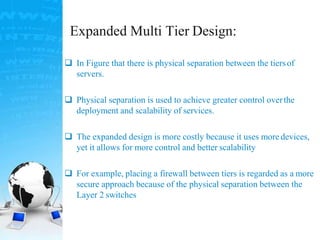

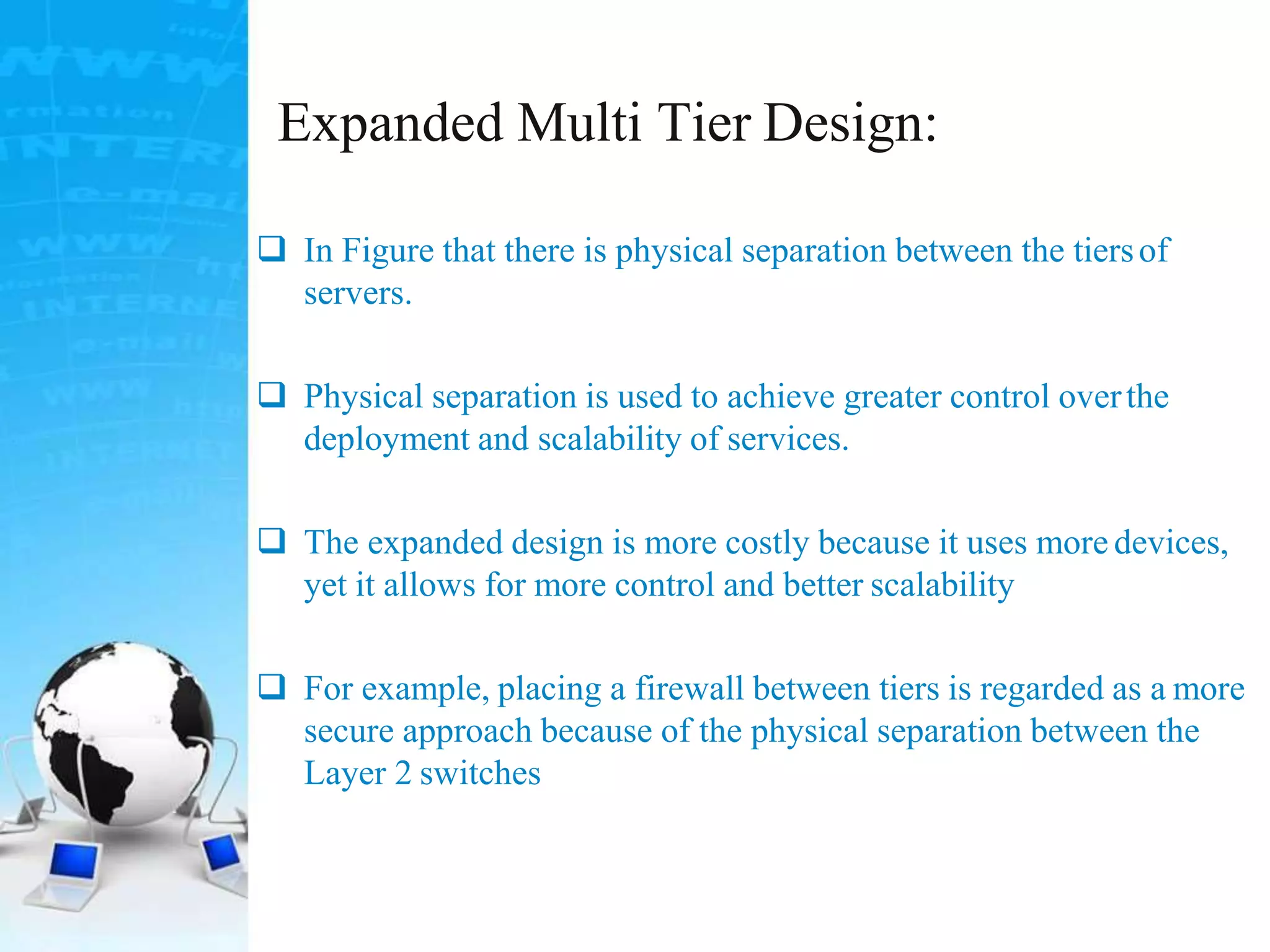

Expanded Multi Tier Design:
 In Figure that there is physical separation between the tiersof
servers.
 Physical separation is used to achieve greater control overthe
deployment and scalability of services.
 The expanded design is more costly because it uses more devices,
yet it allows for more control and better scalability
 For example, placing a firewall between tiers is regarded as a more
secure approach because of the physical separation between the
Layer 2 switches
Expanded Multi Tier Design:
Topic # 3
Collapsed Multi Tier Designs

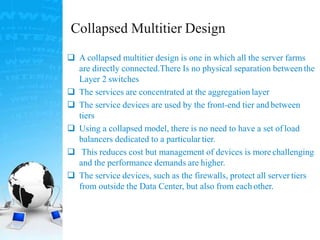

Collapsed Multitier Design
 A collapsed multitier design is one in which all the server farms
are directly connected.There Is no physical separation betweenthe
Layer 2 switches
 The services are concentrated at the aggregation layer
 The service devices are used by the front-end tier and between
tiers
 Using a collapsed model, there is no need to have a set of load
balancers dedicated to a particulartier.
 This reduces cost but management of devices is more challenging
and the performance demands are higher.
 The service devices, such as the firewalls, protect all server tiers
from outside the Data Center, but also from each other.

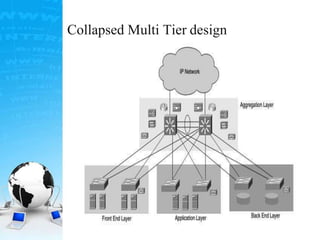

Collapsed Multi Tier design
Topic # 4
Fully Redundant Layer 2 and Layer 3 Designs

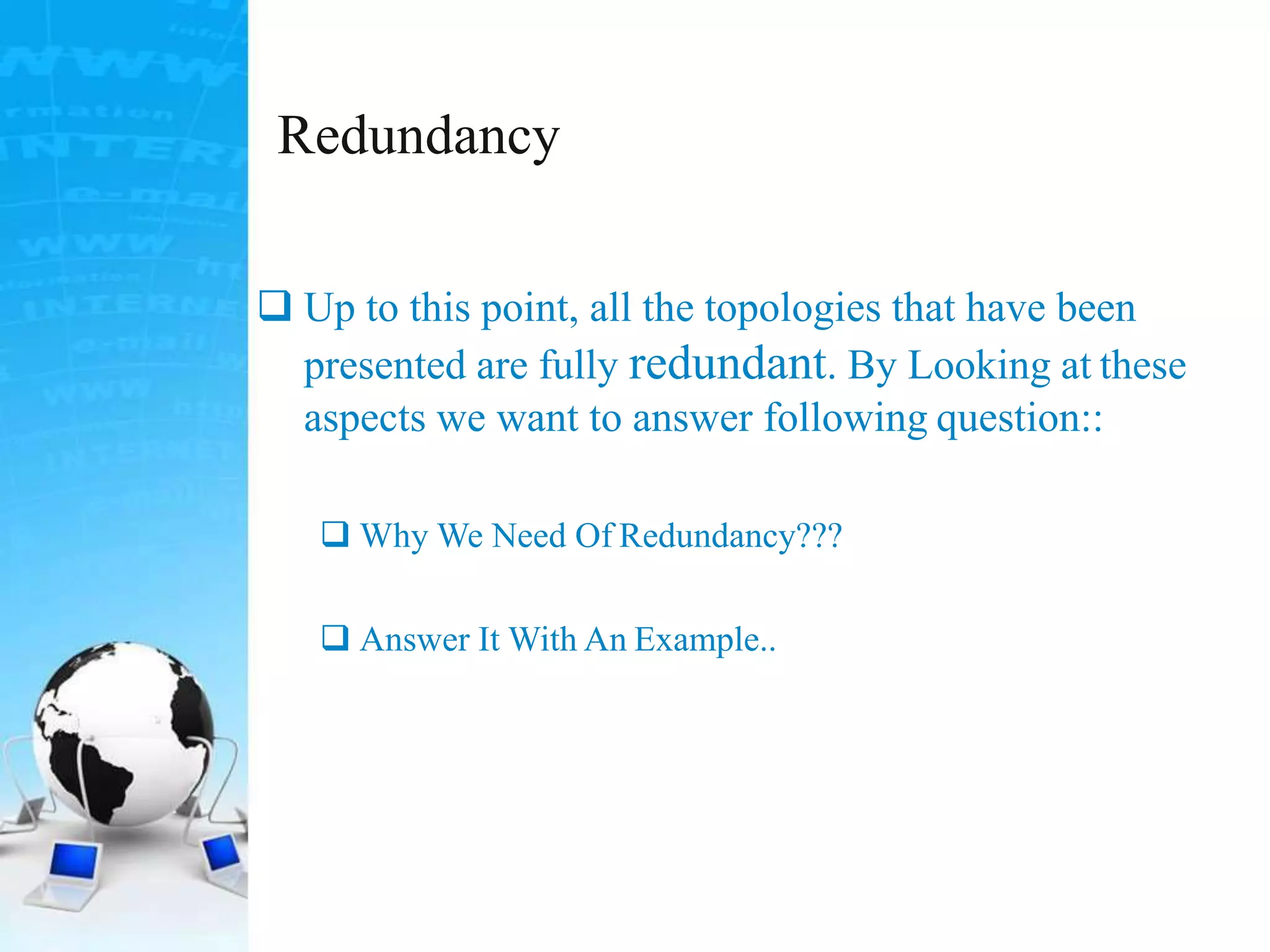

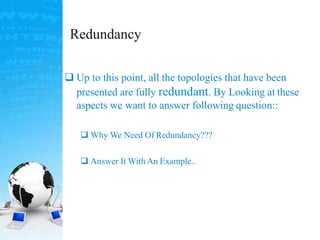

Redundancy
 Up to this point, all the topologies that have been
presented are fully redundant. By Looking at these
aspects we want to answer following question::
 Why We Need Of Redundancy???
 Answer It With An Example..

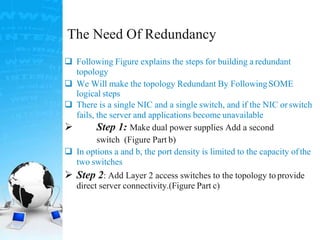

The Need Of Redundancy
 Following Figure explains the steps for building a redundant
topology
 We Will make the topology Redundant By FollowingSOME
logical steps
 There is a single NIC and a single switch, and if the NIC orswitch
fails, the server and applications become unavailable
 Step 1: Make dual power supplies Add a second
switch (Figure Part b)
 In options a and b, the port density is limited to the capacity ofthe
two switches
 Step 2: Add Layer 2 access switches to the topology to provide
direct server connectivity.(Figure Part c)

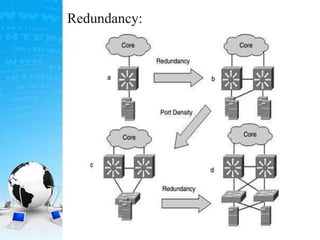

Redundancy:

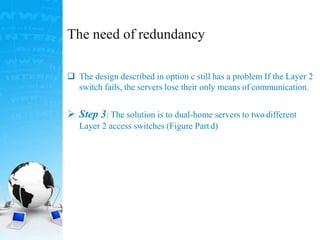

The need of redundancy
 The design described in option c still has a problem If the Layer 2
switch fails, the servers lose their only means of communication.
 Step 3: The solution is to dual-home servers to two different
Layer 2 access switches (Figure Part d)
Anas Nawaz
BSITF13MM012
Data Center Services
• This section presents an overview of the services supported by the
Data Center architecture Related technology and features make up
each service.
• Data Center Services is that
– IP Infrastructure Services
– Application Services
– Security Services
– Storage Services

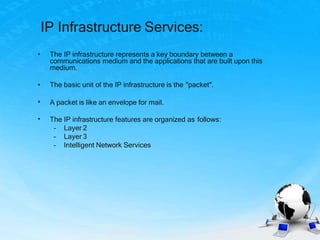

IP Infrastructure Services:
A packet is like an envelope for mail.
• The IP infrastructure represents a key boundary between a
communications medium and the applications that are built upon this
medium.
• The basic unit of the IP infrastructure is the "packet".
•
• The IP infrastructure features are organized as follows:
– Layer 2
– Layer 3
– Intelligent Network Services
Layer 2
• Layer 2 is a data link layer
• Layer 2 refers to the Data Link layer of the commonly-referenced
multilayered communication model, Open Systems Interconnection (OSI).
The Data Link layer is concerned with moving data across the physical links
in the network.
• The Open Systems Interconnection model (OSI model) is a
conceptual model that characterizes and standardizes the communication
functions of a telecommunication or computing.
• Layer 2 features support the Layer 2 adjacency between the server farms
and the service devices virtual local area network (VLANs),Media Access
Control (MAC), Spanning Tree Protocol (STP).

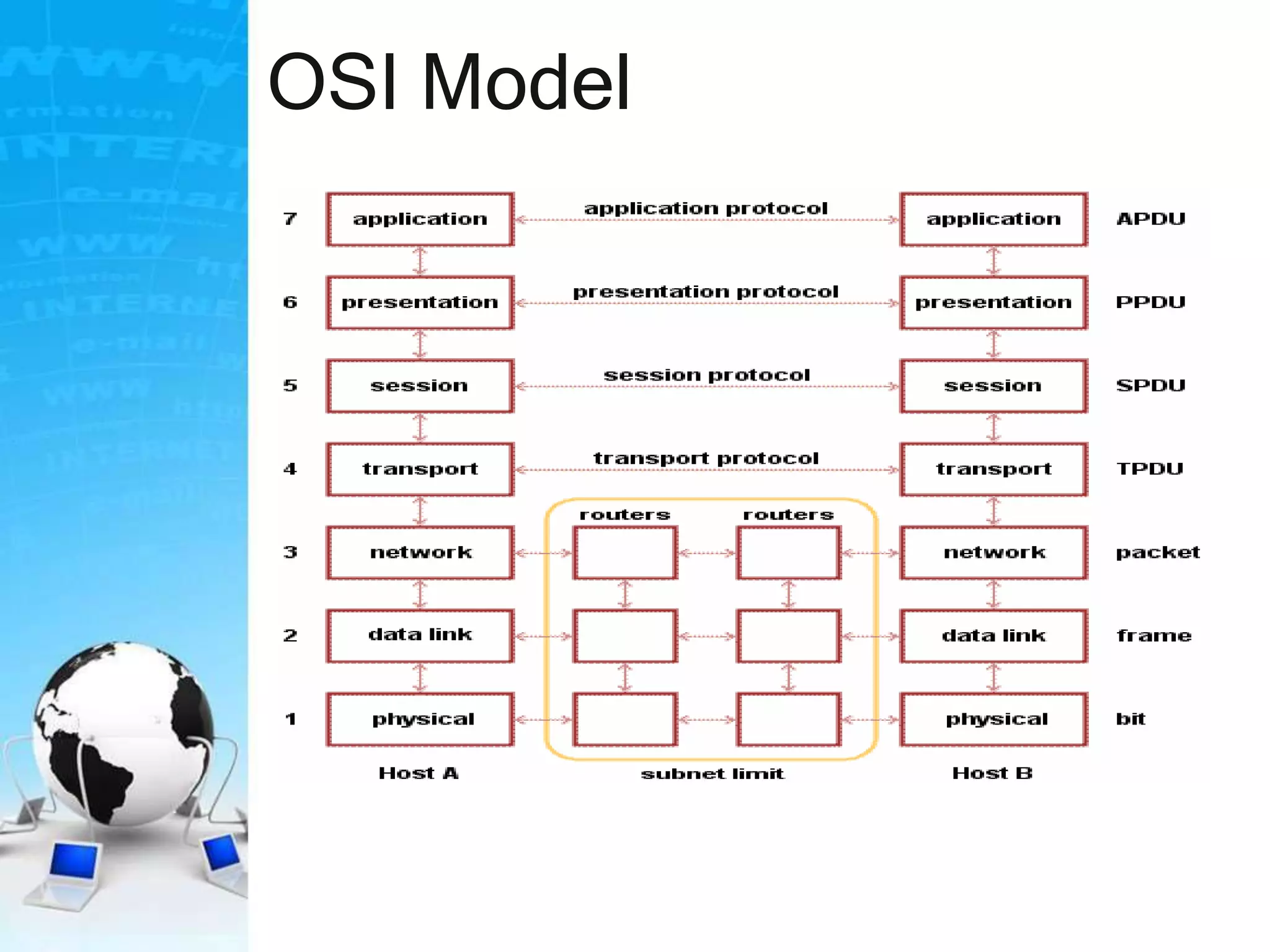

OSI Model

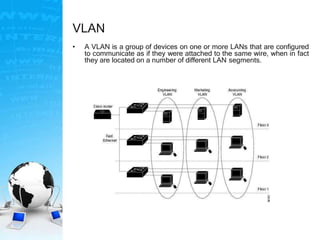

VLAN
• A VLAN is a group of devices on one or more LANs that are configured
to communicate as if they were attached to the same wire, when in fact
they are located on a number of different LAN segments.

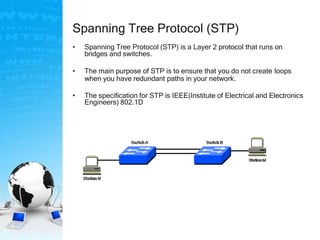

Spanning Tree Protocol (STP)
• Spanning Tree Protocol (STP) is a Layer 2 protocol that runs on
bridges and switches.
• The main purpose of STP is to ensure that you do not create loops
when you have redundant paths in your network.
• The specification for STP is IEEE(Institute of Electrical and Electronics
Engineers) 802.1D

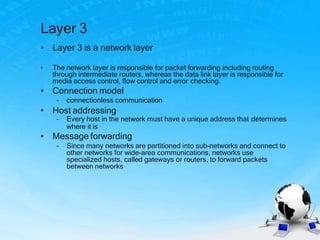

Layer 3
• Layer 3 is a network layer
• The network layer is responsible for packet forwarding including routing
through intermediate routers, whereas the data link layer is responsible for
media access control, flow control and error checking.
• Connection model
– connectionless communication
• Host addressing
– Every host in the network must have a unique address that determines
where it is
• Message forwarding
– Since many networks are partitioned into sub-networks and connect to
other networks for wide-area communications, networks use
specialized hosts, called gateways or routers, to forward packets
between networks

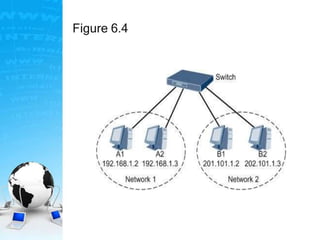

Figure 6.4

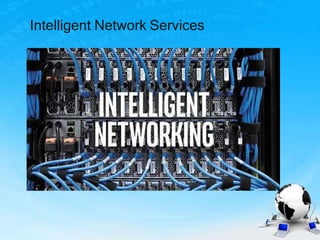

Intelligent Network Services
• The most common features are QoS and multicast
• Quality of service (QoS)
• is the overall performance of a telephony or computer network,
particularly the performance seen by the users of the network.
• important intelligent network services such as private
VLANs (PVLANs) and policy-based routing (PBR)
• private VLANs:
Private VLANs also known as port isolation, is a technique in computer
networking where a VLAN contains switch ports that are restricted such
that they can only communicate with a given "uplink". The restricted
ports are called "private ports"
• policy-based routing:
including source or destination network, source or destination address,
source or destination port, packet size, and packet classification among
others
Intelligent Network Services

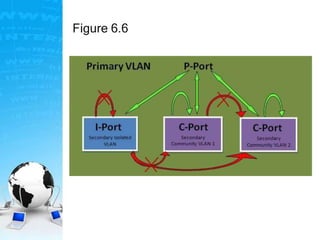

Figure 6.6

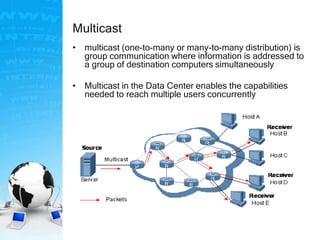

Multicast
• multicast (one-to-many or many-to-many distribution) is
group communication where information is addressed to
a group of destination computers simultaneously
• Multicast in the Data Center enables the capabilities
needed to reach multiple users concurrently
Application Services
• The following is a list of those features
• Load balancing
• Caching
• SSL termination
• Load balancing:
Load balancing is dividing the amount of work that a computer has to do
between two or more computers so that more work gets done in the same
amount of time and, in general, all users get served faster.
• Load balancers perform two core functions:
1. Scale and distribute the load to serverfarms
2. Track server health to ensure highavailability.
You also can add new servers, thus scaling the capacity of a server farm,
without any disruption to existing services.
• Caching:
Caching is an area of a computer’s memory devoted to temporarily storing
recently used information.
• SSL(Secure Sockets Layer) termination:
SSL termination refers to the process that occurs at the server end of
an SSL connection, where the traffic transitions between encrypted and
unencrypted forms.
Figure 6.8
• Service Deployment Options
• Design Considerations with Service Devices
Intrusion Detection System
Security Services
• Access control lists
An access control list (ACL), with respect to a computer file system, is a list
of permissions attached to an object. An ACL specifies which users or
system processes are granted access to objects , as well as what
operations are allowed on given objects.
ACLs filter packets. Packet filtering through ACLs can prevent unwanted
access to network infrastructure devices.
• Firewalls
A firewall is a system designed to prevent unauthorized access to or from a
private network. Firewalls can be implemented in both hardware and
software, or a combination of both.

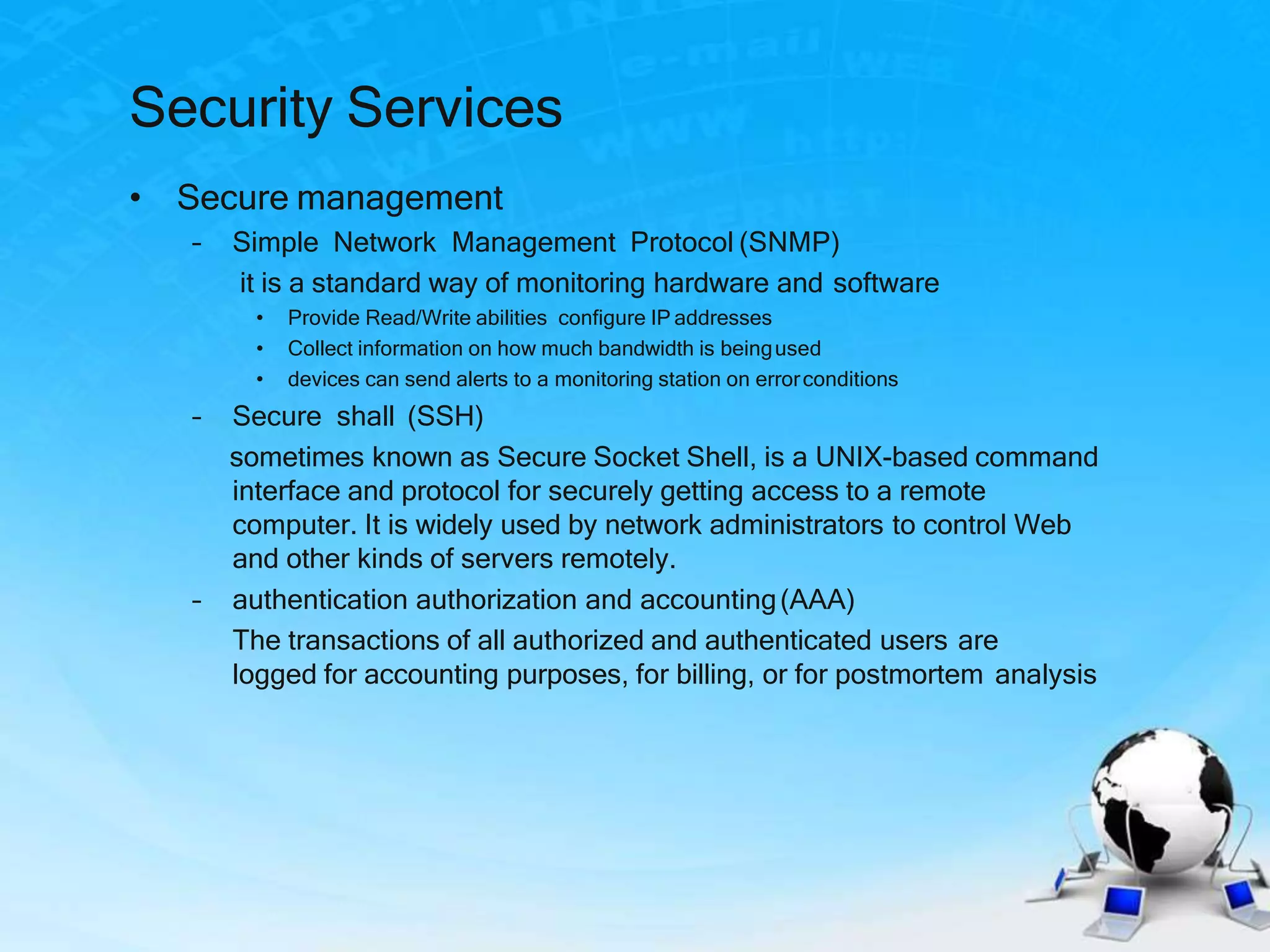

Security Services
• Secure management
– Simple Network Management Protocol (SNMP)
it is a standard way of monitoring hardware and software
• Provide Read/Write abilities configure IP addresses
• Collect information on how much bandwidth is beingused
• devices can send alerts to a monitoring station on errorconditions
– Secure shall (SSH)
sometimes known as Secure Socket Shell, is a UNIX-based command
interface and protocol for securely getting access to a remote
computer. It is widely used by network administrators to control Web
and other kinds of servers remotely.
– authentication authorization and accounting(AAA)
The transactions of all authorized and authenticated users are
logged for accounting purposes, for billing, or for postmortem analysis

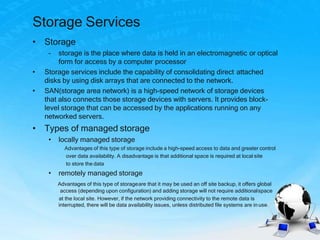

Storage Services
• Storage
– storage is the place where data is held in an electromagnetic or optical
form for access by a computer processor
• Storage services include the capability of consolidating direct attached
disks by using disk arrays that are connected to the network.
• SAN(storage area network) is a high-speed network of storage devices
that also connects those storage devices with servers. It provides block-
level storage that can be accessed by the applications running on any
networked servers.
• Types of managed storage
• locally managed storage
Advantages of this type of storage include a high-speed access to data and greater control
over data availability. A disadvantage is that additional space is required at local site
to store the data
• remotely managed storage
Advantages of this type of storageare that it may be used an off site backup, it offers global
access (depending upon configuration) and adding storage will not require additionalspace
at the local site. However, if the network providing connectivity to the remote data is
interrupted, there will be data availability issues, unless distributed file systems are in use.

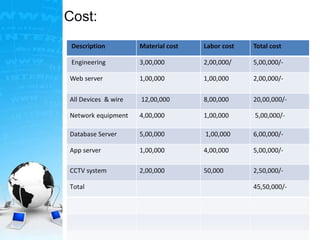

Cost:
.
Description Material cost Labor cost Total cost
Engineering 3,00,000 2,00,000/ 5,00,000/-
Web server 1,00,000 1,00,000 2,00,000/-
All Devices & wire 12,00,000 8,00,000 20,00,000/-
Network equipment 4,00,000 1,00,000 5,00,000/-
Database Server 5,00,000 1,00,000 6,00,000/-
App server 1,00,000 4,00,000 5,00,000/-
CCTV system 2,00,000 50,000 2,50,000/-
Total 45,50,000/-
Thank you for giving your precious time.

More Related Content

What's hot

Top 10 Data Center Success Criteria
Top 10 Data Center Success CriteriaTop 10 Data Center Success Criteria
Top 10 Data Center Success Criteria
Internap

DataCenter:: Infrastructure Presentation
DataCenter:: Infrastructure PresentationDataCenter:: Infrastructure Presentation
DataCenter:: Infrastructure Presentation
Muhammad Asad Rashid

Data centers
Data centersData centers
Data centers
tejaswi25

project report on DATACENTER
project report on DATACENTERproject report on DATACENTER
project report on DATACENTER
vivekprajapatiankur

Datacenter best practices design and implementation
Datacenter best practices design and implementationDatacenter best practices design and implementation
Datacenter best practices design and implementation
Anton An

Data centers on the Edge
Data centers on the EdgeData centers on the Edge
Data centers on the Edge
Schneider Electric

Data center design 2
Data center design 2Data center design 2
Data center design 2
Aditya Gupta

Data Center Infrastructure Management Powerpoint Presentation Slides
Data Center Infrastructure Management Powerpoint Presentation SlidesData Center Infrastructure Management Powerpoint Presentation Slides
Data Center Infrastructure Management Powerpoint Presentation Slides
SlideTeam

Data Center Tiers Explained
Data Center Tiers ExplainedData Center Tiers Explained
Data Center Tiers Explained
Data Cave

CERTIFIED Data Center Professional - CDCP
CERTIFIED Data Center Professional - CDCPCERTIFIED Data Center Professional - CDCP
CERTIFIED Data Center Professional - CDCP
APEXMarCom

Importance of data centers
Importance of data centersImportance of data centers
Importance of data centers
Tyrone Systems

Data center presentation toi -28022013
Data center presentation   toi -28022013Data center presentation   toi -28022013
Data center presentation toi -28022013Sanjay Belulkar

Data Center Infrastructure Management(DCIM)
Data Center Infrastructure Management(DCIM)Data Center Infrastructure Management(DCIM)
Data Center Infrastructure Management(DCIM)MD. IFTEKARUL ALAM

Introduction to data centre construction
Introduction to data centre constructionIntroduction to data centre construction
Introduction to data centre construction
Matthieu GALLEGO

Multi tiered hybrid data center design
Multi tiered hybrid data center designMulti tiered hybrid data center design
Multi tiered hybrid data center design
Mehmet Cetin

Data Center
Data CenterData Center
Data Center
dhana1663

Data center
Data centerData center
Data center
Shreya Srivastava

Modular Data Center Design
Modular Data Center DesignModular Data Center Design
Modular Data Center Design
ConsultingSpecifyingEngineer

Simplifying Data Center Design/ Build
Simplifying Data Center Design/ BuildSimplifying Data Center Design/ Build
Simplifying Data Center Design/ Build
Schneider Electric

Data center
Data centerData center
Data center
Mohammad Danish


What's hot (20)

Top 10 Data Center Success Criteria
Top 10 Data Center Success CriteriaTop 10 Data Center Success Criteria
Top 10 Data Center Success Criteria

DataCenter:: Infrastructure Presentation
DataCenter:: Infrastructure PresentationDataCenter:: Infrastructure Presentation
DataCenter:: Infrastructure Presentation

Data centers
Data centersData centers
Data centers

project report on DATACENTER
project report on DATACENTERproject report on DATACENTER
project report on DATACENTER

Datacenter best practices design and implementation
Datacenter best practices design and implementationDatacenter best practices design and implementation
Datacenter best practices design and implementation

Data centers on the Edge
Data centers on the EdgeData centers on the Edge
Data centers on the Edge

Data center design 2
Data center design 2Data center design 2
Data center design 2

Data Center Infrastructure Management Powerpoint Presentation Slides
Data Center Infrastructure Management Powerpoint Presentation SlidesData Center Infrastructure Management Powerpoint Presentation Slides
Data Center Infrastructure Management Powerpoint Presentation Slides

Data Center Tiers Explained
Data Center Tiers ExplainedData Center Tiers Explained
Data Center Tiers Explained

CERTIFIED Data Center Professional - CDCP
CERTIFIED Data Center Professional - CDCPCERTIFIED Data Center Professional - CDCP
CERTIFIED Data Center Professional - CDCP

Importance of data centers
Importance of data centersImportance of data centers
Importance of data centers

Data center presentation toi -28022013
Data center presentation   toi -28022013Data center presentation   toi -28022013
Data center presentation toi -28022013

Data Center Infrastructure Management(DCIM)
Data Center Infrastructure Management(DCIM)Data Center Infrastructure Management(DCIM)
Data Center Infrastructure Management(DCIM)

Introduction to data centre construction
Introduction to data centre constructionIntroduction to data centre construction
Introduction to data centre construction

Multi tiered hybrid data center design
Multi tiered hybrid data center designMulti tiered hybrid data center design
Multi tiered hybrid data center design

Data Center
Data CenterData Center
Data Center

Data center
Data centerData center
Data center

Modular Data Center Design
Modular Data Center DesignModular Data Center Design
Modular Data Center Design

Simplifying Data Center Design/ Build
Simplifying Data Center Design/ BuildSimplifying Data Center Design/ Build
Simplifying Data Center Design/ Build

Data center
Data centerData center
Data center


Viewers also liked

Tia 942 Data Center Standards
Tia 942 Data Center StandardsTia 942 Data Center Standards
Tia 942 Data Center Standards
Sri Chalasani

Ynpn 3.0 data center proposal
Ynpn 3.0   data center proposalYnpn 3.0   data center proposal
Ynpn 3.0 data center proposalynpnnational

Data Center Network Topologies
Data Center Network TopologiesData Center Network Topologies
Data Center Network Topologies
rjain51

Introduction to Data Center Network Architecture
Introduction to Data Center Network ArchitectureIntroduction to Data Center Network Architecture
Introduction to Data Center Network Architecture
Ankita Mahajan

MetaFabric™ Architecture Virtualized Data Center: Design and Implementation G...
MetaFabric™ Architecture Virtualized Data Center: Design and Implementation G...MetaFabric™ Architecture Virtualized Data Center: Design and Implementation G...
MetaFabric™ Architecture Virtualized Data Center: Design and Implementation G...
Juniper Networks

Designing Secure Cisco Data Centers
Designing Secure Cisco Data CentersDesigning Secure Cisco Data Centers
Designing Secure Cisco Data CentersCisco Russia

Presentation data center design overview
Presentation   data center design overviewPresentation   data center design overview
Presentation data center design overview
xKinAnx

Data Center Design Guide 4 1
Data Center Design Guide 4 1Data Center Design Guide 4 1
Data Center Design Guide 4 1Fiyaz Syed

The evolution of data center network fabrics
The evolution of data center network fabricsThe evolution of data center network fabrics
The evolution of data center network fabrics
Cisco Canada

Data center network architectures v1.3
Data center network architectures v1.3Data center network architectures v1.3
Data center network architectures v1.3
Jeong, Wookjae

Data Center Trends 2014
Data Center Trends 2014Data Center Trends 2014
Data Center Trends 2014
Belden Inc

Data Center Design Guide 4 2
Data Center Design Guide 4 2Data Center Design Guide 4 2
Data Center Design Guide 4 2Fiyaz Syed

Enterprise data center design and methodology
Enterprise data center design and methodologyEnterprise data center design and methodology
Enterprise data center design and methodologyCarlos León Araujo

Data flow in the data center
Data flow in the data centerData flow in the data center
Data flow in the data centerAdam Cataldo

What makes Equinix Hong Kong your most dependable data center choice?
What makes Equinix Hong Kong your most dependable data center choice?What makes Equinix Hong Kong your most dependable data center choice?
What makes Equinix Hong Kong your most dependable data center choice?
Equinix

Data Center Project Management: Key Components of a Successful System
Data Center Project Management:  Key Components of a Successful SystemData Center Project Management:  Key Components of a Successful System
Data Center Project Management: Key Components of a Successful System
dpsir

Cover Letter & Proposal - Network Infrastructure Plan
Cover Letter & Proposal - Network Infrastructure PlanCover Letter & Proposal - Network Infrastructure Plan
Cover Letter & Proposal - Network Infrastructure PlanRob Decker


Viewers also liked (19)

Tia 942 Data Center Standards
Tia 942 Data Center StandardsTia 942 Data Center Standards
Tia 942 Data Center Standards

Datacenter overview
Datacenter overviewDatacenter overview
Datacenter overview

Ynpn 3.0 data center proposal
Ynpn 3.0   data center proposalYnpn 3.0   data center proposal
Ynpn 3.0 data center proposal

Data Center Network Topologies
Data Center Network TopologiesData Center Network Topologies
Data Center Network Topologies

Introduction to Data Center Network Architecture
Introduction to Data Center Network ArchitectureIntroduction to Data Center Network Architecture
Introduction to Data Center Network Architecture

MetaFabric™ Architecture Virtualized Data Center: Design and Implementation G...
MetaFabric™ Architecture Virtualized Data Center: Design and Implementation G...MetaFabric™ Architecture Virtualized Data Center: Design and Implementation G...
MetaFabric™ Architecture Virtualized Data Center: Design and Implementation G...

Designing Secure Cisco Data Centers
Designing Secure Cisco Data CentersDesigning Secure Cisco Data Centers
Designing Secure Cisco Data Centers

Presentation data center design overview
Presentation   data center design overviewPresentation   data center design overview
Presentation data center design overview

Data Center Design Guide 4 1
Data Center Design Guide 4 1Data Center Design Guide 4 1
Data Center Design Guide 4 1

The evolution of data center network fabrics
The evolution of data center network fabricsThe evolution of data center network fabrics
The evolution of data center network fabrics

Data center network architectures v1.3
Data center network architectures v1.3Data center network architectures v1.3
Data center network architectures v1.3

Data Center Trends 2014
Data Center Trends 2014Data Center Trends 2014
Data Center Trends 2014

Data Center Design Guide 4 2
Data Center Design Guide 4 2Data Center Design Guide 4 2
Data Center Design Guide 4 2

Enterprise data center design and methodology
Enterprise data center design and methodologyEnterprise data center design and methodology
Enterprise data center design and methodology

Dmz data center
Dmz data centerDmz data center
Dmz data center

Data flow in the data center
Data flow in the data centerData flow in the data center
Data flow in the data center

What makes Equinix Hong Kong your most dependable data center choice?
What makes Equinix Hong Kong your most dependable data center choice?What makes Equinix Hong Kong your most dependable data center choice?
What makes Equinix Hong Kong your most dependable data center choice?

Data Center Project Management: Key Components of a Successful System
Data Center Project Management:  Key Components of a Successful SystemData Center Project Management:  Key Components of a Successful System
Data Center Project Management: Key Components of a Successful System

Cover Letter & Proposal - Network Infrastructure Plan
Cover Letter & Proposal - Network Infrastructure PlanCover Letter & Proposal - Network Infrastructure Plan
Cover Letter & Proposal - Network Infrastructure Plan


Similar to Data center proposal

Unit 4_Introduction to Server Farms.pptx
Unit 4_Introduction to Server Farms.pptxUnit 4_Introduction to Server Farms.pptx
Unit 4_Introduction to Server Farms.pptx
Rahul Borate

Client server architecture
Client server architectureClient server architecture
Client server architecture
RituBhargava7

Unit-I Introduction to Cloud Computing.pptx
Unit-I Introduction to Cloud Computing.pptxUnit-I Introduction to Cloud Computing.pptx
Unit-I Introduction to Cloud Computing.pptx
garkhot123

Mahika cloud services
Mahika cloud servicesMahika cloud services
Mahika cloud services
Somnath Sen

The Evolving Data Center – Past, Present and Future
The Evolving Data Center – Past, Present and FutureThe Evolving Data Center – Past, Present and Future
The Evolving Data Center – Past, Present and Future
Cisco Canada

Synapseindia mobile application architectures
Synapseindia mobile application architecturesSynapseindia mobile application architectures
Synapseindia mobile application architectures
Synapseindiappsdevelopment

Confused about what is cloud computing
Confused about what is cloud computingConfused about what is cloud computing
Confused about what is cloud computing
Mithi SkyConnect

CLOUD COMPUTING SERVICES - Cloud Reference Modal
CLOUD COMPUTING SERVICES - Cloud Reference ModalCLOUD COMPUTING SERVICES - Cloud Reference Modal
CLOUD COMPUTING SERVICES - Cloud Reference Modal
SwarnaSLcse

Cloud Computing.pptx
Cloud Computing.pptxCloud Computing.pptx
Cloud Computing.pptx
NikitaOG

Unit iii virtualitation
Unit iii   virtualitationUnit iii   virtualitation
Unit iii virtualitation
rajmurugaaa

_Chp4_Cloud Service Models claud computing basics
_Chp4_Cloud Service Models claud computing basics_Chp4_Cloud Service Models claud computing basics
_Chp4_Cloud Service Models claud computing basics
moeincanada007

Cloud Computing.pptx
Cloud Computing.pptxCloud Computing.pptx
Cloud Computing.pptx
raghurajsingh51

Introduction and Basics to web technology .pptx
Introduction and Basics to web technology .pptxIntroduction and Basics to web technology .pptx
Introduction and Basics to web technology .pptx
LEENASAHU42

Cloud computing
Cloud computingCloud computing
Cloud computing
Rohith Shankar

REP.01 NETW3205 Network Management
REP.01 NETW3205 Network ManagementREP.01 NETW3205 Network Management
REP.01 NETW3205 Network ManagementRicardo Pereira

Cloud computing explained
Cloud computing explained Cloud computing explained
Cloud computing explained
Juan Pablo

lecture5_4.pptx
lecture5_4.pptxlecture5_4.pptx
lecture5_4.pptx
RajeshSukte1

Cloud Computing Fundamentals
Cloud Computing FundamentalsCloud Computing Fundamentals
Cloud Computing Fundamentals
Sonia Nagpal

CC.pptx
CC.pptxCC.pptx

Similar to Data center proposal (20)

Unit 4_Introduction to Server Farms.pptx
Unit 4_Introduction to Server Farms.pptxUnit 4_Introduction to Server Farms.pptx
Unit 4_Introduction to Server Farms.pptx

Client server architecture
Client server architectureClient server architecture
Client server architecture

Unit-I Introduction to Cloud Computing.pptx
Unit-I Introduction to Cloud Computing.pptxUnit-I Introduction to Cloud Computing.pptx
Unit-I Introduction to Cloud Computing.pptx

Technical Architectures
Technical ArchitecturesTechnical Architectures
Technical Architectures

Mahika cloud services
Mahika cloud servicesMahika cloud services
Mahika cloud services

The Evolving Data Center – Past, Present and Future
The Evolving Data Center – Past, Present and FutureThe Evolving Data Center – Past, Present and Future
The Evolving Data Center – Past, Present and Future

Synapseindia mobile application architectures
Synapseindia mobile application architecturesSynapseindia mobile application architectures
Synapseindia mobile application architectures

Confused about what is cloud computing
Confused about what is cloud computingConfused about what is cloud computing
Confused about what is cloud computing

CLOUD COMPUTING SERVICES - Cloud Reference Modal
CLOUD COMPUTING SERVICES - Cloud Reference ModalCLOUD COMPUTING SERVICES - Cloud Reference Modal
CLOUD COMPUTING SERVICES - Cloud Reference Modal

Cloud Computing.pptx
Cloud Computing.pptxCloud Computing.pptx
Cloud Computing.pptx

Unit iii virtualitation
Unit iii   virtualitationUnit iii   virtualitation
Unit iii virtualitation

_Chp4_Cloud Service Models claud computing basics
_Chp4_Cloud Service Models claud computing basics_Chp4_Cloud Service Models claud computing basics
_Chp4_Cloud Service Models claud computing basics

Cloud Computing.pptx
Cloud Computing.pptxCloud Computing.pptx
Cloud Computing.pptx

Introduction and Basics to web technology .pptx
Introduction and Basics to web technology .pptxIntroduction and Basics to web technology .pptx
Introduction and Basics to web technology .pptx

Cloud computing
Cloud computingCloud computing
Cloud computing

REP.01 NETW3205 Network Management
REP.01 NETW3205 Network ManagementREP.01 NETW3205 Network Management
REP.01 NETW3205 Network Management

Cloud computing explained
Cloud computing explained Cloud computing explained
Cloud computing explained

lecture5_4.pptx
lecture5_4.pptxlecture5_4.pptx
lecture5_4.pptx

Cloud Computing Fundamentals
Cloud Computing FundamentalsCloud Computing Fundamentals
Cloud Computing Fundamentals

CC.pptx
CC.pptxCC.pptx
CC.pptx


More from Muhammad Ahad

11. operating-systems-part-2
11. operating-systems-part-211. operating-systems-part-2
11. operating-systems-part-2
Muhammad Ahad

11. operating-systems-part-1
11. operating-systems-part-111. operating-systems-part-1
11. operating-systems-part-1
Muhammad Ahad

10. compute-part-2
10. compute-part-210. compute-part-2
10. compute-part-2
Muhammad Ahad

10. compute-part-1
10. compute-part-110. compute-part-1
10. compute-part-1
Muhammad Ahad

09. storage-part-1
09. storage-part-109. storage-part-1
09. storage-part-1
Muhammad Ahad

08. networking-part-2
08. networking-part-208. networking-part-2
08. networking-part-2
Muhammad Ahad

08. networking
08. networking08. networking
08. networking
Muhammad Ahad

07. datacenters
07. datacenters07. datacenters
07. datacenters
Muhammad Ahad

06. security concept
06. security concept06. security concept
06. security concept
Muhammad Ahad

05. performance-concepts-26-slides
05. performance-concepts-26-slides05. performance-concepts-26-slides
05. performance-concepts-26-slides
Muhammad Ahad

05. performance-concepts
05. performance-concepts05. performance-concepts
05. performance-concepts
Muhammad Ahad

04. availability-concepts
04. availability-concepts04. availability-concepts
04. availability-concepts
Muhammad Ahad

03. non-functional-attributes-introduction-4-slides
03. non-functional-attributes-introduction-4-slides03. non-functional-attributes-introduction-4-slides
03. non-functional-attributes-introduction-4-slides
Muhammad Ahad

01. 03.-introduction-to-infrastructure
01. 03.-introduction-to-infrastructure01. 03.-introduction-to-infrastructure
01. 03.-introduction-to-infrastructure
Muhammad Ahad

01. 02. introduction (13 slides)
01.   02. introduction (13 slides)01.   02. introduction (13 slides)
01. 02. introduction (13 slides)
Muhammad Ahad

Chapter14
Chapter14Chapter14
Chapter14
Muhammad Ahad

Chapter13
Chapter13Chapter13
Chapter13
Muhammad Ahad

Chapter12
Chapter12Chapter12
Chapter12
Muhammad Ahad

Chapter11
Chapter11Chapter11
Chapter11
Muhammad Ahad

Chapter10
Chapter10Chapter10
Chapter10
Muhammad Ahad


More from Muhammad Ahad (20)

11. operating-systems-part-2
11. operating-systems-part-211. operating-systems-part-2
11. operating-systems-part-2

11. operating-systems-part-1
11. operating-systems-part-111. operating-systems-part-1
11. operating-systems-part-1

10. compute-part-2
10. compute-part-210. compute-part-2
10. compute-part-2

10. compute-part-1
10. compute-part-110. compute-part-1
10. compute-part-1

09. storage-part-1
09. storage-part-109. storage-part-1
09. storage-part-1

08. networking-part-2
08. networking-part-208. networking-part-2
08. networking-part-2

08. networking
08. networking08. networking
08. networking

07. datacenters
07. datacenters07. datacenters
07. datacenters

06. security concept
06. security concept06. security concept
06. security concept

05. performance-concepts-26-slides
05. performance-concepts-26-slides05. performance-concepts-26-slides
05. performance-concepts-26-slides

05. performance-concepts
05. performance-concepts05. performance-concepts
05. performance-concepts

04. availability-concepts
04. availability-concepts04. availability-concepts
04. availability-concepts

03. non-functional-attributes-introduction-4-slides
03. non-functional-attributes-introduction-4-slides03. non-functional-attributes-introduction-4-slides
03. non-functional-attributes-introduction-4-slides

01. 03.-introduction-to-infrastructure
01. 03.-introduction-to-infrastructure01. 03.-introduction-to-infrastructure
01. 03.-introduction-to-infrastructure

01. 02. introduction (13 slides)
01.   02. introduction (13 slides)01.   02. introduction (13 slides)
01. 02. introduction (13 slides)

Chapter14
Chapter14Chapter14
Chapter14

Chapter13
Chapter13Chapter13
Chapter13

Chapter12
Chapter12Chapter12
Chapter12

Chapter11
Chapter11Chapter11
Chapter11

Chapter10
Chapter10Chapter10
Chapter10


Recently uploaded

FIDO Alliance Osaka Seminar: Overview.pdf
FIDO Alliance Osaka Seminar: Overview.pdfFIDO Alliance Osaka Seminar: Overview.pdf
FIDO Alliance Osaka Seminar: Overview.pdf
FIDO Alliance

Introduction to CHERI technology - Cybersecurity
Introduction to CHERI technology - CybersecurityIntroduction to CHERI technology - Cybersecurity
Introduction to CHERI technology - Cybersecurity
mikeeftimakis1

The Future of Platform Engineering
The Future of Platform EngineeringThe Future of Platform Engineering
The Future of Platform Engineering
Jemma Hussein Allen

State of ICS and IoT Cyber Threat Landscape Report 2024 preview
State of ICS and IoT Cyber Threat Landscape Report 2024 previewState of ICS and IoT Cyber Threat Landscape Report 2024 preview
State of ICS and IoT Cyber Threat Landscape Report 2024 preview
Prayukth K V

Climate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing DaysClimate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing Days
Kari Kakkonen

PHP Frameworks: I want to break free (IPC Berlin 2024)
PHP Frameworks: I want to break free (IPC Berlin 2024)PHP Frameworks: I want to break free (IPC Berlin 2024)
PHP Frameworks: I want to break free (IPC Berlin 2024)
Ralf Eggert

FIDO Alliance Osaka Seminar: Passkeys at Amazon.pdf
FIDO Alliance Osaka Seminar: Passkeys at Amazon.pdfFIDO Alliance Osaka Seminar: Passkeys at Amazon.pdf
FIDO Alliance Osaka Seminar: Passkeys at Amazon.pdf
FIDO Alliance

GraphSummit Singapore | The Art of the Possible with Graph - Q2 2024
GraphSummit Singapore | The Art of the  Possible with Graph - Q2 2024GraphSummit Singapore | The Art of the  Possible with Graph - Q2 2024
GraphSummit Singapore | The Art of the Possible with Graph - Q2 2024
Neo4j

Communications Mining Series - Zero to Hero - Session 1
Communications Mining Series - Zero to Hero - Session 1Communications Mining Series - Zero to Hero - Session 1
Communications Mining Series - Zero to Hero - Session 1
DianaGray10

GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...
GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...
GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...
Neo4j

Microsoft - Power Platform_G.Aspiotis.pdf
Microsoft - Power Platform_G.Aspiotis.pdfMicrosoft - Power Platform_G.Aspiotis.pdf
Microsoft - Power Platform_G.Aspiotis.pdf
Uni Systems S.M.S.A.

SAP Sapphire 2024 - ASUG301 building better apps with SAP Fiori.pdf
SAP Sapphire 2024 - ASUG301 building better apps with SAP Fiori.pdfSAP Sapphire 2024 - ASUG301 building better apps with SAP Fiori.pdf
SAP Sapphire 2024 - ASUG301 building better apps with SAP Fiori.pdf
Peter Spielvogel

UiPath Test Automation using UiPath Test Suite series, part 5
UiPath Test Automation using UiPath Test Suite series, part 5UiPath Test Automation using UiPath Test Suite series, part 5
UiPath Test Automation using UiPath Test Suite series, part 5
DianaGray10

Monitoring Java Application Security with JDK Tools and JFR Events
Monitoring Java Application Security with JDK Tools and JFR EventsMonitoring Java Application Security with JDK Tools and JFR Events
Monitoring Java Application Security with JDK Tools and JFR Events
Ana-Maria Mihalceanu

By Design, not by Accident - Agile Venture Bolzano 2024
By Design, not by Accident - Agile Venture Bolzano 2024By Design, not by Accident - Agile Venture Bolzano 2024
By Design, not by Accident - Agile Venture Bolzano 2024
Pierluigi Pugliese

PCI PIN Basics Webinar from the Controlcase Team
PCI PIN Basics Webinar from the Controlcase TeamPCI PIN Basics Webinar from the Controlcase Team
PCI PIN Basics Webinar from the Controlcase Team
ControlCase

Uni Systems Copilot event_05062024_C.Vlachos.pdf
Uni Systems Copilot event_05062024_C.Vlachos.pdfUni Systems Copilot event_05062024_C.Vlachos.pdf
Uni Systems Copilot event_05062024_C.Vlachos.pdf
Uni Systems S.M.S.A.

GraphRAG is All You need? LLM & Knowledge Graph
GraphRAG is All You need? LLM & Knowledge GraphGraphRAG is All You need? LLM & Knowledge Graph
GraphRAG is All You need? LLM & Knowledge Graph
Guy Korland

Transcript: Selling digital books in 2024: Insights from industry leaders - T...
Transcript: Selling digital books in 2024: Insights from industry leaders - T...Transcript: Selling digital books in 2024: Insights from industry leaders - T...
Transcript: Selling digital books in 2024: Insights from industry leaders - T...
BookNet Canada

FIDO Alliance Osaka Seminar: FIDO Security Aspects.pdf
FIDO Alliance Osaka Seminar: FIDO Security Aspects.pdfFIDO Alliance Osaka Seminar: FIDO Security Aspects.pdf
FIDO Alliance Osaka Seminar: FIDO Security Aspects.pdf
FIDO Alliance


Recently uploaded (20)

FIDO Alliance Osaka Seminar: Overview.pdf
FIDO Alliance Osaka Seminar: Overview.pdfFIDO Alliance Osaka Seminar: Overview.pdf
FIDO Alliance Osaka Seminar: Overview.pdf

Introduction to CHERI technology - Cybersecurity
Introduction to CHERI technology - CybersecurityIntroduction to CHERI technology - Cybersecurity
Introduction to CHERI technology - Cybersecurity

The Future of Platform Engineering
The Future of Platform EngineeringThe Future of Platform Engineering
The Future of Platform Engineering

State of ICS and IoT Cyber Threat Landscape Report 2024 preview
State of ICS and IoT Cyber Threat Landscape Report 2024 previewState of ICS and IoT Cyber Threat Landscape Report 2024 preview
State of ICS and IoT Cyber Threat Landscape Report 2024 preview

Climate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing DaysClimate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing Days

PHP Frameworks: I want to break free (IPC Berlin 2024)
PHP Frameworks: I want to break free (IPC Berlin 2024)PHP Frameworks: I want to break free (IPC Berlin 2024)
PHP Frameworks: I want to break free (IPC Berlin 2024)

FIDO Alliance Osaka Seminar: Passkeys at Amazon.pdf
FIDO Alliance Osaka Seminar: Passkeys at Amazon.pdfFIDO Alliance Osaka Seminar: Passkeys at Amazon.pdf
FIDO Alliance Osaka Seminar: Passkeys at Amazon.pdf

GraphSummit Singapore | The Art of the Possible with Graph - Q2 2024
GraphSummit Singapore | The Art of the  Possible with Graph - Q2 2024GraphSummit Singapore | The Art of the  Possible with Graph - Q2 2024
GraphSummit Singapore | The Art of the Possible with Graph - Q2 2024

Communications Mining Series - Zero to Hero - Session 1
Communications Mining Series - Zero to Hero - Session 1Communications Mining Series - Zero to Hero - Session 1
Communications Mining Series - Zero to Hero - Session 1

GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...
GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...
GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...

Microsoft - Power Platform_G.Aspiotis.pdf
Microsoft - Power Platform_G.Aspiotis.pdfMicrosoft - Power Platform_G.Aspiotis.pdf
Microsoft - Power Platform_G.Aspiotis.pdf

SAP Sapphire 2024 - ASUG301 building better apps with SAP Fiori.pdf
SAP Sapphire 2024 - ASUG301 building better apps with SAP Fiori.pdfSAP Sapphire 2024 - ASUG301 building better apps with SAP Fiori.pdf
SAP Sapphire 2024 - ASUG301 building better apps with SAP Fiori.pdf

UiPath Test Automation using UiPath Test Suite series, part 5
UiPath Test Automation using UiPath Test Suite series, part 5UiPath Test Automation using UiPath Test Suite series, part 5
UiPath Test Automation using UiPath Test Suite series, part 5

Monitoring Java Application Security with JDK Tools and JFR Events
Monitoring Java Application Security with JDK Tools and JFR EventsMonitoring Java Application Security with JDK Tools and JFR Events
Monitoring Java Application Security with JDK Tools and JFR Events

By Design, not by Accident - Agile Venture Bolzano 2024
By Design, not by Accident - Agile Venture Bolzano 2024By Design, not by Accident - Agile Venture Bolzano 2024
By Design, not by Accident - Agile Venture Bolzano 2024

PCI PIN Basics Webinar from the Controlcase Team
PCI PIN Basics Webinar from the Controlcase TeamPCI PIN Basics Webinar from the Controlcase Team
PCI PIN Basics Webinar from the Controlcase Team

Uni Systems Copilot event_05062024_C.Vlachos.pdf
Uni Systems Copilot event_05062024_C.Vlachos.pdfUni Systems Copilot event_05062024_C.Vlachos.pdf
Uni Systems Copilot event_05062024_C.Vlachos.pdf

GraphRAG is All You need? LLM & Knowledge Graph
GraphRAG is All You need? LLM & Knowledge GraphGraphRAG is All You need? LLM & Knowledge Graph
GraphRAG is All You need? LLM & Knowledge Graph

Transcript: Selling digital books in 2024: Insights from industry leaders - T...
Transcript: Selling digital books in 2024: Insights from industry leaders - T...Transcript: Selling digital books in 2024: Insights from industry leaders - T...
Transcript: Selling digital books in 2024: Insights from industry leaders - T...

FIDO Alliance Osaka Seminar: FIDO Security Aspects.pdf
FIDO Alliance Osaka Seminar: FIDO Security Aspects.pdfFIDO Alliance Osaka Seminar: FIDO Security Aspects.pdf
FIDO Alliance Osaka Seminar: FIDO Security Aspects.pdf


Data center proposal

  • 4. Content: • Introduction to Data Centre. • Data Center Network Design. • Data Center Network Application Architecture Models. • Data Center Architecture. • Data Center Topologies. • Data Center Services.
  • 5. Data Center: • A data center is a centralized repository, either physical or virtual, for the storage, management, and dissemination of data and information organized around a particular body of knowledge or pertaining to a particular business or education.
  • 6. Data Centre can be Classified as either: • Enterprise (Private): Privately owned and operated by private corporate, institutional or government entitles. • Co-Location/Hosting (Public): Owned and operated by Telco’s or service providers. • Data Centers house critical computing resources in controlled environments and under centralized management, which enable enterprises to operate around to the clock or according to their business/educational needs. • These computing resources include mainframes, web and application servers, file and print servers, messaging servers, application software and the operating systems that run them, storage subsystems, and the network infrastructure, whether IP or storage-area network (SAN).
  • 7. Additionally, a number of servers support network operations and network-based applications. Network operation applications include: • Network Time Protocol (NTP). • Terminal Emulator (TN3270). • File transfer protocol (FTP). • Domain Name System (DNS). • Dynamic Host Configuration Protocol (DHCP). • Simple Network Management Protocol (SNMP). • Trivial File Transfer Protocol (TFTP). • Network File System (NFS). • Network-based applications, including IP telephony, video streaming over IP, IP video conferencing.
  • 8. Data Centre Network Design: The following section summarizes some of the technical considerations for designing a modern day data center network. • Infrastructure Services: Routing, switching, and server-farm architecture. • Application Services: Load balancing, Secure Socket Layer (SSL) offloading, and caching. • Security Services: Packet filtering and inspection, intrusion detection, and intrusion prevention. • Storage Services: SAN architecture, Fiber Channel switching, backup, and archival. • Campus Continuance: SAN extension, site selection, and Data Center interconnectivity. Data Center Roles: Figure 1 presents the different building blocks used in the enterprise network and illustrates the location of the Data Center within that architecture. The building blocks of this typical enterprise network include: • Campus Network: • Private WAN:
  • 9. Data Centre Network Design: • Remote Access: • Internet Server Farm: • Extranet Server Farm: • Intranet Server Farm: • Data Centers typically house many components that support the infrastructure building blocks, such as the core switches of the campus network or the edge routers of the private WAN. • Data Center designs can include any or all of the building blocks in Figure 1-1, including any or all server farm types. • Each type of server farm can be a separate physical entity, depending on the business requirements of the enterprise. • For example, a company might build a single Data Center and share all resources, such as servers, firewalls, routers, switches, and so on. Another company might require that the three server farms be physically separated with no shared equipment.
  • 11. Data Center Network Application Architecture Models: • Architectures are constantly evolving, adapting to new requirements, and using new technologies. • The most pervasive models are the client/server and n-tier models that refer to how applications use the functional elements of communication exchange. • The client/server model, in fact, has evolved to the n-tier model, which most enterprise software application vendors currently use in application architectures. The Client/Server Model and Its Evolution: The classic client/server model describes the communication between an application and a user through the use of a server and a client. The classic client/server model consists of the following: • A thick client that provides a graphical user interface (GUI) on top of an application or business logic where some processing occurs.
  • 12. The Client/Server Model and Its Evolution: • A server where the remaining business logic resides. • A thick client is then a portion of the application code running at the client’s computer that has the responsibility of retrieving data from the server and presenting it to the client. • The thick client code requires a fair amount of processing capacity and resources to run in addition to the management overhead caused by loading and maintaining it on the client base. • The server side is a single server running the presentation, application, and database code that uses multiple internal processes to communicate information across these distinct functions. • The most fundamental changes to the thick client and single- server model started when web-based applications first appeared.
  • 13. The Client/Server Model and Its Evolution: • Web-based applications rely on more standard interfaces and message formats where applications are easier to share. i.e. HTML and HTTP. • The migration from the classic client/server to a web-based architecture implies the use of thin clients (web browsers), web servers, application servers, and database servers. The web browser interacts with web servers and application servers, and the web servers interact with application servers and database servers.
  • 14. The n-tier Model: • Part b of Figure 2 shows the n-tier model. Figure 2 presents the evolution from the classic client/server model to the n-tier model. • The n-tier model uses a thin client and a web browser to access the data in many different ways. • The server side of the n-tier model is divided into distinct functional areas that include the web, applicationand database servers. • The n-tier model relies on a web architecture where the web browser formats and presents the information received from the web server. • The server side in the web architecture consists of multiple and distinct servers that are functionally separate. The n-tier model can be the client and a web server; or the client, the web server, and an application server. • This model is more scalable and manageable it enables application environments to evolve toward distributed computing environments.
  • 16. Multitier Architecture Application Environment: • Multitier architectures refer to the Data Center server farms supporting applications that provide a logical and physical separation between various application functions, such as web, application, and database (n-tier model). • For each server-side tier, there is a one-to-one mapping to a network segment that supports the specific application function and its requirements. • Figure 4 presents the mapping from the n-tier model to the supporting network segments used in a multitier design.
  • 17. Multitier Architecture Application Environment: • The web server tier is mapped to the front-end segment, the business logic to the application segment, and the database tier to the back-end segment. • Notice that all the segments supporting the server farm connect to access layer switches, which in a multitier architecture are different access switches supporting the various server functions. Types of Server Farms: • As depicted in Figure 1, three distinct types of server farms exist: • Internet Server Farm. • Extranet Server Farm. • Intranet Server Farm. • Server farms are at the heart of the Data Center. • In fact, Data Centers are built to support at least one type of server farm. • Although different types of server farms share many architectural requirements, their objectives differ.
  • 18. Types of Server Farms: • Each type of server farm has a distinct set of infrastructure, security, and management requirements that must be addressed in the design of the server farm. • Although each server farm design and its specific topology might be different, the design guidelines apply equally to them all. Internet Server Farms: • As their name indicates, Internet server farms face the Internet. This implies that users accessing the server farms primarily are located somewhere on the Internet and use the Internet to reach the server farm. • The server farm services and their users rely on the use of web interfaces and web browsers, which makes them pervasive on Internet environments. Two distinct types of Internet server farmsexist: • Dedicated Internet Server Farm. • DMZ Server Farms (demilitarized zone).
  • 19. Dedicated / DMZ Internet Server Farm : • The dedicated Internet server farm, shown in Figure is built to support large-scale Internet-facing applications that support the core business function. Typically, the core business function is based on an Internet presence or Internet commerce. • Security and scalability are a major concern in this type of server farm. On one hand, most users accessing the server farm are located on the Internet, thereby introducing higher security risks; on the other hand, the number of likely users is very high, which could easily cause scalability problems. • The Data Center that supports this type of server farm is often referred to as an Internet Data Center (IDC). • The next type of Internet server farm, shown in Figure 6, is built to support Internet-based applications in addition to Internet access from the enterprise. This means that the infrastructure supporting the server farms also is used to support Internet access from enterprise users. These server farms typically are located in the demilitarized zone (DMZ) because they are part of the enterprise network yet are accessible from the Internet. These server farms are referred to as DMZ server farms, to differentiate them from the dedicated Internet server farms.
  • 22. Intranet Server Farm : • The evolution of the client/server model and the wide adoption of web-based applications on the Internet was the foundation for building intranets. • Intranet server farms resemble the Internet server farms in their ease of access, yet they are available only to the enterprise’s internal users. • Notice that the intranet server farm module is connected to the core switches that form a portion of the enterprise backbone and provide connectivity between the private WAN and Internet Edge modules. • Internet users typically are not permitted access to the intranet; however, internal users using the Internet as transport have access to the intranet using virtual private network (VPN) technology. • The Internet Edge module supports several functions that include the following: • Securing the enterprise network • Controlling Internet access from the intranet • Controlling access to the Internet server farms • The Data Center provides additional security to further protect the data in the intranet server farm. This is accomplished by applying the security policies to the edge of the Data Center as well as to the applicable application tiers when attempting to harden communication between servers on different tiers.
  • 24. Extranet Server Farm : • From a functional perspective, extranet server farms sit between Internet and intranet server farms. Extranet server farms continue the trend of using web-based applications, but, unlike Internet- or intranet-based server farms, they are accessed only by a selected group of users that are neither Internet- nor intranet-based. • The main purpose for extranets is to improve business-to- business communication by allowing faster exchange of information in a user-friendly and secure environment. • The purpose of the extranet is to provide server farm services to trusted external end users, there are special security considerations. • Many factors must be considered in the design of the extranet topology, including scalability, availability, and security. Dedicated firewalls and routers in the extranet are the result of a highly secure and scalable network infrastructure for partner connectivity. • Notice that the extranet server farm is accessible to internal users, yet access from the extranet to the intranet is prevented or highly secured. Typically, access from the extranet to the intranet is restricted through the use of firewalls.
  • 27. Data Center Architecture • Aggregation Layer 1) aggregation point for switches, devices firewalls, that load provide balancers)services.(multilayer 2) multilayer switches referred as aggregation switches because of the aggregation function they perform. 3) Service devices are shared by all server farms. 4) Support traditional switching, packets on Layer 3 Layer2. 5) support Layer 3 and Layer 2 connectivity, protocols and features.
  • 29. Data Center Architecture Access Layer 1) Front-End Segment 2) Application Segment 3) Back-End Segment
  • 30. Data Center Architecture • Storage Layer 1) consists of the storage infrastructure (switches , routers, iSCSI, FCIP). 2) Storage network devices provide the connectivity to servers. 3) network used by these storage devices is referred to as a SAN. 4) The Data Center is the location where the consolidation of applications, servers, and storage occurs. 5) The current trends in server and storage consolidation are the result of the need for increased efficiency in the environments and for lower costs ofapplication operation.
  • 31. Data Center Architecture • Data Center environments are expected to support high-speed communication between servers and storage and between storage devices.
  • 32. Data Center Architecture Transport Layer • Builds on the network layer to deliver the data across the networks. • Provide end-to-end connectivity across the network. And segments carry the data from one network to another. • Different kind of transport services TCP and UDP. • 4) D-C transport layer includes the transport technologies such as, 1)Communication between distributed Data Centers for rerouting client-to-server traffic. 2)Communication between distributed server farms located in distributed Data Centers. • Transport technologies must support a wide range of requirements for bandwidth and latency depending on the traffic profiles.
  • 33. Data Center Architecture • For user-to-server communication, the possible technologies include Frame Relay, ATM, DS channels in the form of T1/E1 circuits, Metro Ethernet, and SONET. • For server-to-server and storage-to-storage communication, the technologies required are dictated by server media types and the transport technology that supports them transparently. Systems Connectivity (ESCON), GE, and ATM.
  • 34. Data Center Topologies • Generic Layer 3/Layer 2 Designs:
  • 35. Data Center Topologies • Forwarding packets based on Layer 3 information between the server farm and the rest of the network, 1) Maintaining a “view” of the routed network that is expected to change dynamically as network changes take place. 2) Supporting default gateways for the server farms. • The key Layer 2 functions aggregation switches are performed by the as follows, 1) Spanning Tree Protocol (STP) 802.1d between aggregation and access switches to build a loop-free forwarding topology. 2) STP enhancements beyond 802.1d that improve the default spanning-tree behavior, such as 802.1s, 802.1w, Uplink fast, Backbone fast, and Loop guard. 3) VLANs for logical separation of server farms. 4) Other services, such as multicast and ACLs for services such as QoS, security, rate limiting, broadcast suppression, and so on.
  • 37. Topic # 1 Multiple Tier Designs
  • 38. Multiple-tier designs Most applications conform to either the client/server model or the n-tier model, which implies most networks, and more server farms needed who support these application environments The tiers supported by the Data Center infrastructure are driven by the specific applications and could be any combination of applications from the client/server to the client/web server/application server/database server.  The communication requirements between tiers are typically highe security(firewalling), scalability and performance(load balancers).
  • 40. Example:: I. Suppose that you have multiple types of web servers supporting different applications, and some of these applications follow the n-tier model. II. The server farm could be partitioned along the lines of applications or functions.  All web servers, regardless of the application(s) they support, could be part of the same server farm  the application servers could be part of a separate server farm on a different subnet III. The same logic used to scale the web tier, a load balancer logically could be placed between the web tier and the application tier to scale the application tier from the web tier perspective.
  • 41. Topic # 2 Expanded Multi Tier Designs
  • 42. Expanded Multi Tier Design:  In Figure that there is physical separation between the tiersof servers.  Physical separation is used to achieve greater control overthe deployment and scalability of services.  The expanded design is more costly because it uses more devices, yet it allows for more control and better scalability  For example, placing a firewall between tiers is regarded as a more secure approach because of the physical separation between the Layer 2 switches
  • 44. Topic # 3 Collapsed Multi Tier Designs
  • 45. Collapsed Multitier Design  A collapsed multitier design is one in which all the server farms are directly connected.There Is no physical separation betweenthe Layer 2 switches  The services are concentrated at the aggregation layer  The service devices are used by the front-end tier and between tiers  Using a collapsed model, there is no need to have a set of load balancers dedicated to a particulartier.  This reduces cost but management of devices is more challenging and the performance demands are higher.  The service devices, such as the firewalls, protect all server tiers from outside the Data Center, but also from each other.
  • 47. Topic # 4 Fully Redundant Layer 2 and Layer 3 Designs
  • 48. Redundancy  Up to this point, all the topologies that have been presented are fully redundant. By Looking at these aspects we want to answer following question::  Why We Need Of Redundancy???  Answer It With An Example..
  • 49. The Need Of Redundancy  Following Figure explains the steps for building a redundant topology  We Will make the topology Redundant By FollowingSOME logical steps  There is a single NIC and a single switch, and if the NIC orswitch fails, the server and applications become unavailable  Step 1: Make dual power supplies Add a second switch (Figure Part b)  In options a and b, the port density is limited to the capacity ofthe two switches  Step 2: Add Layer 2 access switches to the topology to provide direct server connectivity.(Figure Part c)
  • 51. The need of redundancy  The design described in option c still has a problem If the Layer 2 switch fails, the servers lose their only means of communication.  Step 3: The solution is to dual-home servers to two different Layer 2 access switches (Figure Part d)
  • 53. Data Center Services • This section presents an overview of the services supported by the Data Center architecture Related technology and features make up each service. • Data Center Services is that – IP Infrastructure Services – Application Services – Security Services – Storage Services
  • 54. IP Infrastructure Services: A packet is like an envelope for mail. • The IP infrastructure represents a key boundary between a communications medium and the applications that are built upon this medium. • The basic unit of the IP infrastructure is the "packet". • • The IP infrastructure features are organized as follows: – Layer 2 – Layer 3 – Intelligent Network Services
  • 55. Layer 2 • Layer 2 is a data link layer • Layer 2 refers to the Data Link layer of the commonly-referenced multilayered communication model, Open Systems Interconnection (OSI). The Data Link layer is concerned with moving data across the physical links in the network. • The Open Systems Interconnection model (OSI model) is a conceptual model that characterizes and standardizes the communication functions of a telecommunication or computing. • Layer 2 features support the Layer 2 adjacency between the server farms and the service devices virtual local area network (VLANs),Media Access Control (MAC), Spanning Tree Protocol (STP).
  • 57. VLAN • A VLAN is a group of devices on one or more LANs that are configured to communicate as if they were attached to the same wire, when in fact they are located on a number of different LAN segments.
  • 58. Spanning Tree Protocol (STP) • Spanning Tree Protocol (STP) is a Layer 2 protocol that runs on bridges and switches. • The main purpose of STP is to ensure that you do not create loops when you have redundant paths in your network. • The specification for STP is IEEE(Institute of Electrical and Electronics Engineers) 802.1D
  • 59. Layer 3 • Layer 3 is a network layer • The network layer is responsible for packet forwarding including routing through intermediate routers, whereas the data link layer is responsible for media access control, flow control and error checking. • Connection model – connectionless communication • Host addressing – Every host in the network must have a unique address that determines where it is • Message forwarding – Since many networks are partitioned into sub-networks and connect to other networks for wide-area communications, networks use specialized hosts, called gateways or routers, to forward packets between networks
  • 61. Intelligent Network Services • The most common features are QoS and multicast • Quality of service (QoS) • is the overall performance of a telephony or computer network, particularly the performance seen by the users of the network. • important intelligent network services such as private VLANs (PVLANs) and policy-based routing (PBR) • private VLANs: Private VLANs also known as port isolation, is a technique in computer networking where a VLAN contains switch ports that are restricted such that they can only communicate with a given "uplink". The restricted ports are called "private ports" • policy-based routing: including source or destination network, source or destination address, source or destination port, packet size, and packet classification among others
  • 64. Multicast • multicast (one-to-many or many-to-many distribution) is group communication where information is addressed to a group of destination computers simultaneously • Multicast in the Data Center enables the capabilities needed to reach multiple users concurrently
  • 65. Application Services • The following is a list of those features • Load balancing • Caching • SSL termination • Load balancing: Load balancing is dividing the amount of work that a computer has to do between two or more computers so that more work gets done in the same amount of time and, in general, all users get served faster. • Load balancers perform two core functions: 1. Scale and distribute the load to serverfarms 2. Track server health to ensure highavailability. You also can add new servers, thus scaling the capacity of a server farm, without any disruption to existing services.
  • 66. • Caching: Caching is an area of a computer’s memory devoted to temporarily storing recently used information. • SSL(Secure Sockets Layer) termination: SSL termination refers to the process that occurs at the server end of an SSL connection, where the traffic transitions between encrypted and unencrypted forms.
  • 68. • Service Deployment Options • Design Considerations with Service Devices Intrusion Detection System
  • 69. Security Services • Access control lists An access control list (ACL), with respect to a computer file system, is a list of permissions attached to an object. An ACL specifies which users or system processes are granted access to objects , as well as what operations are allowed on given objects. ACLs filter packets. Packet filtering through ACLs can prevent unwanted access to network infrastructure devices. • Firewalls A firewall is a system designed to prevent unauthorized access to or from a private network. Firewalls can be implemented in both hardware and software, or a combination of both.
  • 70. Security Services • Secure management – Simple Network Management Protocol (SNMP) it is a standard way of monitoring hardware and software • Provide Read/Write abilities configure IP addresses • Collect information on how much bandwidth is beingused • devices can send alerts to a monitoring station on errorconditions – Secure shall (SSH) sometimes known as Secure Socket Shell, is a UNIX-based command interface and protocol for securely getting access to a remote computer. It is widely used by network administrators to control Web and other kinds of servers remotely. – authentication authorization and accounting(AAA) The transactions of all authorized and authenticated users are logged for accounting purposes, for billing, or for postmortem analysis
  • 71. Storage Services • Storage – storage is the place where data is held in an electromagnetic or optical form for access by a computer processor • Storage services include the capability of consolidating direct attached disks by using disk arrays that are connected to the network. • SAN(storage area network) is a high-speed network of storage devices that also connects those storage devices with servers. It provides block- level storage that can be accessed by the applications running on any networked servers. • Types of managed storage • locally managed storage Advantages of this type of storage include a high-speed access to data and greater control over data availability. A disadvantage is that additional space is required at local site to store the data • remotely managed storage Advantages of this type of storageare that it may be used an off site backup, it offers global access (depending upon configuration) and adding storage will not require additionalspace at the local site. However, if the network providing connectivity to the remote data is interrupted, there will be data availability issues, unless distributed file systems are in use.
  • 72. Cost: . Description Material cost Labor cost Total cost Engineering 3,00,000 2,00,000/ 5,00,000/- Web server 1,00,000 1,00,000 2,00,000/- All Devices & wire 12,00,000 8,00,000 20,00,000/- Network equipment 4,00,000 1,00,000 5,00,000/- Database Server 5,00,000 1,00,000 6,00,000/- App server 1,00,000 4,00,000 5,00,000/- CCTV system 2,00,000 50,000 2,50,000/- Total 45,50,000/-
  • 73. Thank you for giving your precious time.
