Remote sensing involves obtaining information about objects through analysis of data collected by instruments without physical contact. It uses electromagnetic radiation as a carrier to transmit data from objects to sensors. The process involves an energy source, interaction with the atmosphere and target, recording by sensors, transmission and processing of data, interpretation and analysis, and applications. Common applications include weather forecasting, mapping, geology, agriculture, hydrology and disaster management.

1. S.S.A.S.I.T, SURAT
GTU

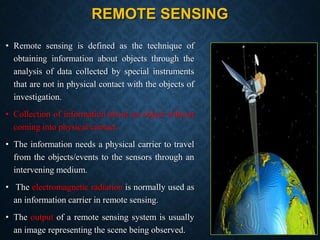

2. REMOTE SENSING
• Remote sensing is defined as the technique of
obtaining information about objects through the
analysis of data collected by special instruments
that are not in physical contact with the objects of
investigation.
• Collection of information about an object without
coming into physical contact.
• The information needs a physical carrier to travel
from the objects/events to the sensors through an
intervening medium.
• The electromagnetic radiation is normally used as
an information carrier in remote sensing.
• The output of a remote sensing system is usually
an image representing the scene being observed.

3. Remote Sensing
Weather forecasting
Google mapping

4. • The technology of modern remote sensing began with
the invention of the camera more than 150 years ago.
• The idea and practice of looking down at the Earth's
surface emerged in the 1840s when pictures were
taken from cameras secured to tethered balloons for
purposes of topographic mapping.
• Satellite remote sensing can be traced to the early days
of the space age (both Russian and American
programs) and actually began as a dual approach to
imaging surfaces using several types of sensors from
spacecraft.
• The term "remote sensing," first used in the United
States in the 1950s by Ms. Evelyn Pruitt of the U.S.
HISTORY

5. ELEMENTS INVOLVED IN REMOTE
SENSING
1. Energy Source or Illumination (A)
2. Radiation and the Atmosphere (B)
3. Interaction with the Object (C)
4. Recording of Energy by the Sensor
(D)
5. Transmission, Reception and
Processing (E)
6. Interpretation and Analysis (F)
7. Application (G)

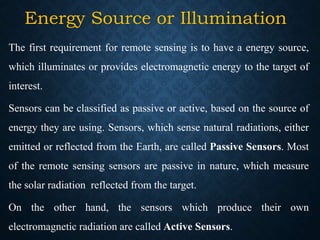

6. Energy Source or Illumination
The first requirement for remote sensing is to have a energy source,
which illuminates or provides electromagnetic energy to the target of
interest.
Sensors can be classified as passive or active, based on the source of
energy they are using. Sensors, which sense natural radiations, either
emitted or reflected from the Earth, are called Passive Sensors. Most
of the remote sensing sensors are passive in nature, which measure
the solar radiation reflected from the target.
On the other hand, the sensors which produce their own
electromagnetic radiation are called Active Sensors.

7. Interaction with the Target
As energy travels from its source to the target, it will come in contact
with & interact with the atmosphere it passes through. This interaction
may take place a second time as the energy travels from the target to
the sensor.
Once the energy makes its way to the target through the atmosphere,
it interacts with the target depending on the properties of both the
target & the radiation. A number of interactions are possible when
electromagnetic energy encounters matter, whether solid, liquid or
gas.

8. Recording of Energy by the sensors
After the energy has been scattered by or emitted from the target, we
require a sensor to collect and record the electromagnetic radiation.
The sensors are popularly known by the EMR region they sense. Remote
sensing can be broadly classified as Optical and Microwave.
In Optical Remote Sensing, sensors detect solar radiation in the visible,
near, middle & thermal infrared wavelength regions, reflected/scattered
or emitted from the Earth.
When Sensors work in the region of electromagnetic waves with
frequencies between 10⁹ and 10¹² Hz is called Microwave Remote
Sensing.

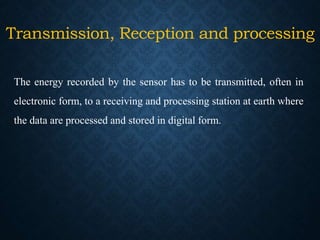

9. Transmission, Reception and processing
The energy recorded by the sensor has to be transmitted, often in
electronic form, to a receiving and processing station at earth where
the data are processed and stored in digital form.

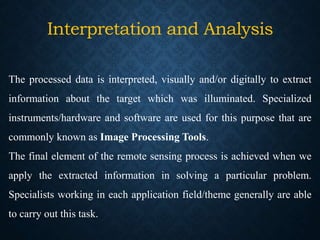

10. Interpretation and Analysis
The processed data is interpreted, visually and/or digitally to extract
information about the target which was illuminated. Specialized
instruments/hardware and software are used for this purpose that are
commonly known as Image Processing Tools.
The final element of the remote sensing process is achieved when we
apply the extracted information in solving a particular problem.
Specialists working in each application field/theme generally are able
to carry out this task.

11. REMOTE SENSING SENSORS
• Active Remote Sensors :-
Active remote sensing uses an artificial source for energy.
For example the satellite itself can send a pulse of energy which
can interact with the target.
In active remote sensing, humans can control the nature
(wavelength, power, duration) of the source energy. Active remote
sensing can be carried out during day and night and in all weather
conditions.

12. Passive remote sensing:-
Passive remote sensing depends on a natural source to provide
energy.
For example sun is the most powerful and commonly used
source of energy for passive remote sensing.
The satellite sensor in this case records primarily the radiation
that is reflected from the target.

13. ACTIVE & PASSIVE REMOTE SENSING

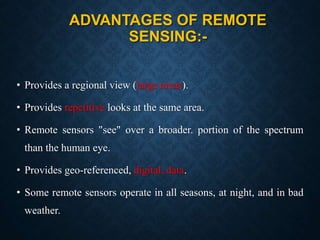

14. ADVANTAGES OF REMOTE
SENSING:-
• Provides a regional view (large areas).
• Provides repetitive looks at the same area.
• Remote sensors "see" over a broader. portion of the spectrum
than the human eye.
• Provides geo-referenced, digital, data.
• Some remote sensors operate in all seasons, at night, and in bad
weather.

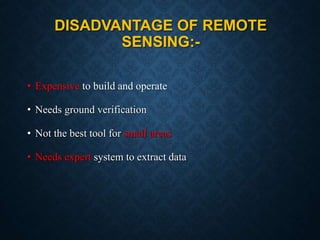

15. DISADVANTAGE OF REMOTE
SENSING:-
• Expensive to build and operate
• Needs ground verification
• Not the best tool for small areas
• Needs expert system to extract data

16. APPLICATIONS OF REMOTE SENSING
• Meteorology
Profiling of atmospheric temp. and water
vapor
Measuring wind velocity
• Oceanography
Measurements of sea surface temperature
Mapping ocean currents
• Glaciology
Mapping motion of sea ice and ice sheets
Determining the navigability of the sea
• Geology
Identification of rock types
Location of geological faults and anomalies

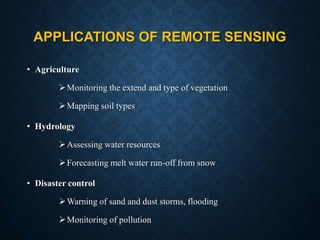

17. APPLICATIONS OF REMOTE SENSING
• Agriculture
Monitoring the extend and type of vegetation
Mapping soil types
• Hydrology
Assessing water resources
Forecasting melt water run-off from snow
• Disaster control
Warning of sand and dust storms, flooding
Monitoring of pollution
