The document discusses the fundamentals of GPS technology, including its history, components, and functionality. It outlines the segments of GPS, such as space, control, and user segments, as well as its method of determining location through signal timing from satellites. Additionally, it highlights the challenges and advancements in GPS applications for navigation and tracking.

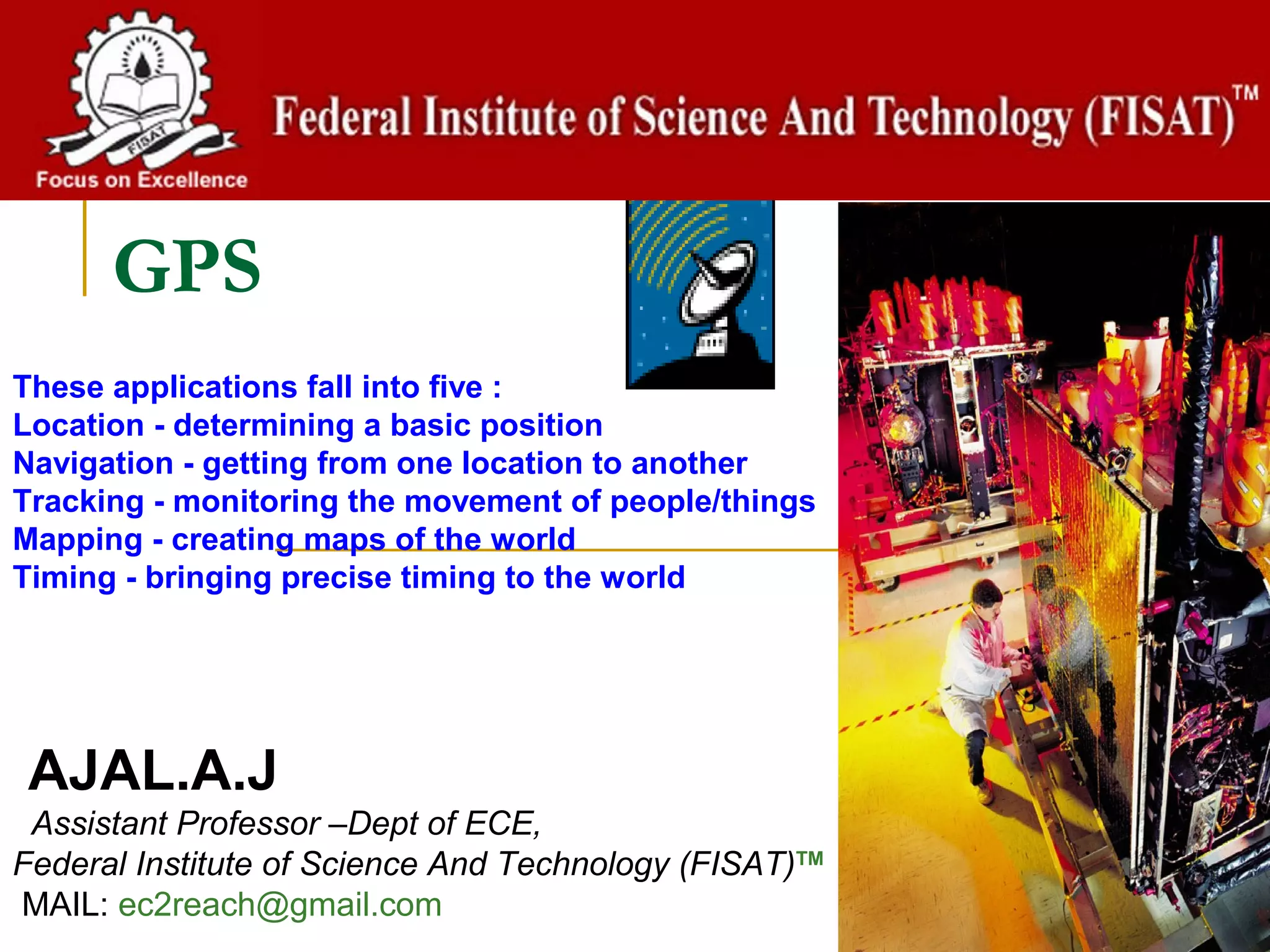

1. GPS
These applications fall into five :
Location - determining a basic position
Navigation - getting from one location to another
Tracking - monitoring the movement of people/things
Mapping - creating maps of the world
Timing - bringing precise timing to the world
AJAL.A.J
Assistant Professor –Dept of ECE,
Federal Institute of Science And Technology (FISAT)TM
MAIL: ec2reach@gmail.com

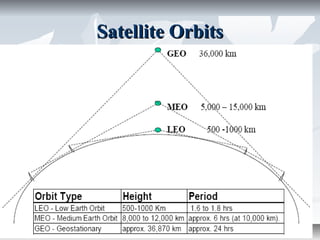

2. Satellite OrbitsSatellite Orbits

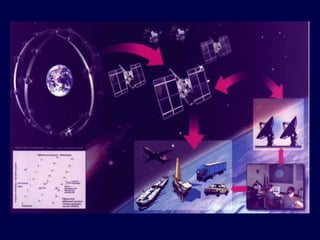

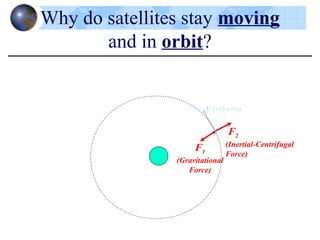

4. F1
(Gravitational
Force)
v (velocity)
Why do satellites stay moving
and in orbit?
F2
(Inertial-Centrifugal
Force)

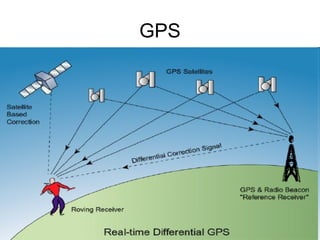

5.
GPS

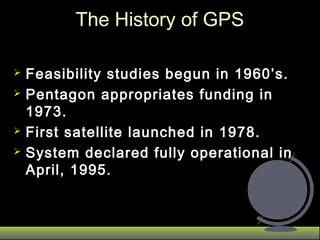

6.  Feasibility studies begun in 1960’s.Feasibility studies begun in 1960’s.
 Pentagon appropriates funding inPentagon appropriates funding in
1973.1973.
 First satellite launched in 1978.First satellite launched in 1978.
 System declared fully operational inSystem declared fully operational in
April, 1995.April, 1995.
The History of GPSThe History of GPS

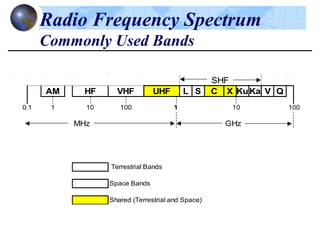

7. Radio Frequency Spectrum
Commonly Used Bands
AM HF VHF UHF L S C X KuKa V Q
1 10 100 1
MHz GHz
Terrestrial Bands
Space Bands
Shared (Terrestrial and Space)
SHF
0.1 10010

8. GPS is a medium earth orbit (MEO) satellite system
GPS satellites broadcast pulse trains with very
accurate time signals
A receiver able to “see” four GPS satellites can
calculate its position within 30 m anywhere in world
24 satellites in clusters of four, 12 hour orbital period
“You never need be lost again”
Every automobile and cellular phone will eventually
have a GPS location read-out
Satellite Navigation:
GPS

9.
S p a c e S e g m e n t C o n tro l S e g m e n t U s e r S e g m e n t
G P S
Components of GPS

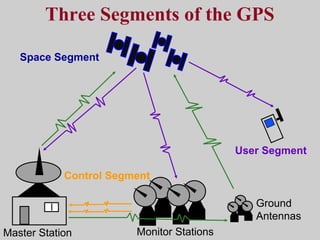

11. Control Segment
Space Segment
User Segment
Three Segments of the GPS
Monitor Stations
Ground
Antennas
Master Station

12. Space Segment:
 24 GPS space vehicles
(SVs). Now 27
 6 orbital planes inclined
at 55 degrees with the
equator.
 This constellation
provides 5 to 8 SVs
from any point on the
earth.

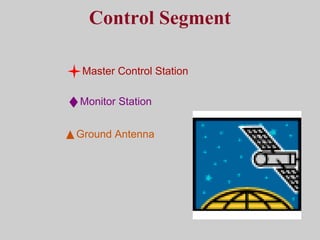

13. Control Segment
Ground Antenna
Master Control Station
Monitor Station

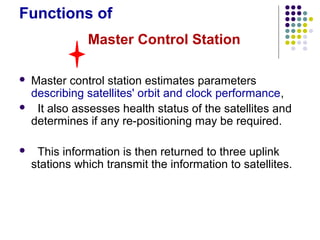

14. Functions of
 Master control station estimates parameters
describing satellites' orbit and clock performance,
 It also assesses health status of the satellites and
determines if any re-positioning may be required.
 This information is then returned to three uplink
stations which transmit the information to satellites.
Master Control Station

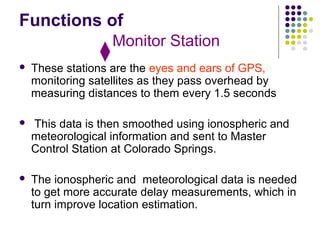

15. Functions of
 These stations are the eyes and ears of GPS,
monitoring satellites as they pass overhead by
measuring distances to them every 1.5 seconds
 This data is then smoothed using ionospheric and
meteorological information and sent to Master
Control Station at Colorado Springs.
 The ionospheric and meteorological data is needed
to get more accurate delay measurements, which in
turn improve location estimation.
Monitor Station

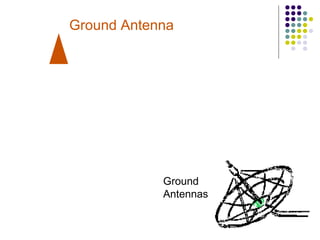

16. Ground Antenna
Ground
Antennas

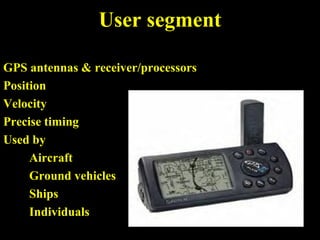

17. User segment
GPS antennas & receiver/processors
Position
Velocity
Precise timing
Used by
Aircraft
Ground vehicles
Ships
Individuals

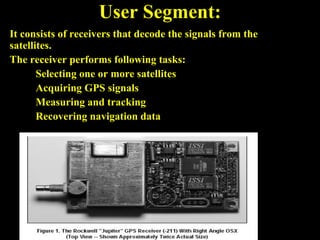

18. User Segment:
It consists of receivers that decode the signals from the
satellites.
The receiver performs following tasks:
Selecting one or more satellites
Acquiring GPS signals
Measuring and tracking
Recovering navigation data

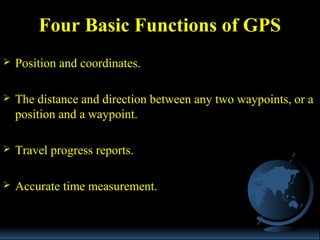

19.  Position and coordinates.
 The distance and direction between any two waypoints, or a
position and a waypoint.
 Travel progress reports.
 Accurate time measurement.
Four Basic Functions of GPS

20. – Each GPS satellite transmits an accurate position and
time signal.
– The user’s receiver measures the time delay for the
signal to reach the receiver.
– Measurements collected from 4 satellites are
processed to solve for the 3D position, velocity and
time.
How does GPS Work?

21. Sources of Signal Interference
Earth’s Atmosphere
Solid Structures
Metal Electro-magnetic Fields

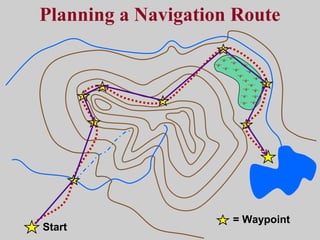

22. Planning a Navigation Route
Start
= Waypoint

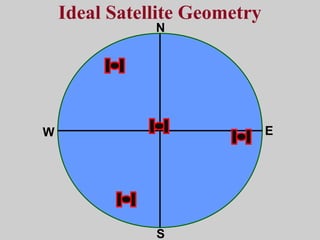

23. Ideal Satellite Geometry
N
S
W E

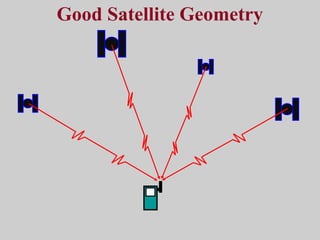

24. Good Satellite Geometry

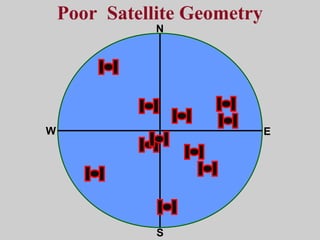

25. Poor Satellite Geometry
N
S
W E

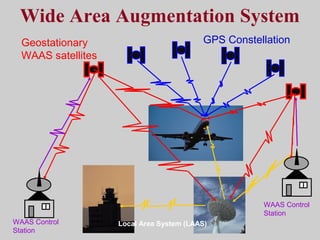

26. Wide Area Augmentation System
Geostationary
WAAS satellites
GPS Constellation
WAAS Control
Station
Local Area System (LAAS)
WAAS Control
Station

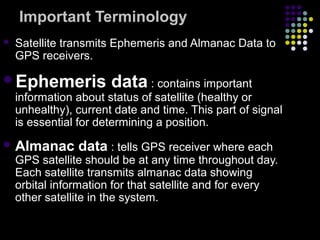

27. Important Terminology
 Satellite transmits Ephemeris and Almanac Data to
GPS receivers.
Ephemeris data : contains important
information about status of satellite (healthy or
unhealthy), current date and time. This part of signal
is essential for determining a position.
 Almanac data : tells GPS receiver where each
GPS satellite should be at any time throughout day.
Each satellite transmits almanac data showing
orbital information for that satellite and for every
other satellite in the system.

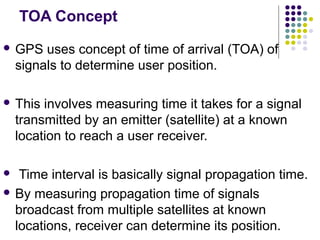

28. TOA Concept
 GPS uses concept of time of arrival (TOA) of
signals to determine user position.
 This involves measuring time it takes for a signal
transmitted by an emitter (satellite) at a known
location to reach a user receiver.
 Time interval is basically signal propagation time.
 By measuring propagation time of signals
broadcast from multiple satellites at known
locations, receiver can determine its position.

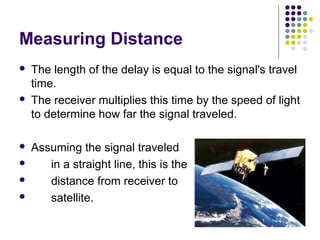

29. Measuring Distance
 The length of the delay is equal to the signal's travel
time.
 The receiver multiplies this time by the speed of light
to determine how far the signal traveled.
 Assuming the signal traveled
 in a straight line, this is the
 distance from receiver to
 satellite.

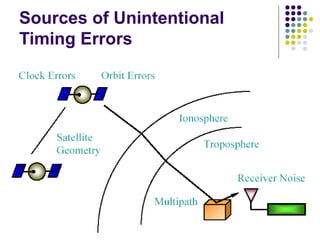

30. Sources of Unintentional
Timing Errors

31. Typical Errors
Source of Error Typical Error in Meters
(per satellite)
Satellite Clocks 1.5
Orbit Errors 2.5
Ionosphere 5.0
Troposphere 0.5
Receiver Noise 0.3
Multipath 0.6

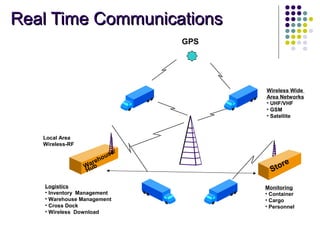

32. Real Time CommunicationsReal Time Communications
Local Area
Wireless-RF
Wireless Wide
Area Networks
• UHF/VHF
• GSM
• Satellite
Monitoring
• Container
• Cargo
• Personnel
Logistics
• Inventory Management
• Warehouse Management
• Cross Dock
• Wireless Download
Warehouse/
Hub
Store
GPS

33. GPS BasedGPS Based ElectronicElectronic DoorDoor LockLock
Container solenoid door lock power up and
data communication receptacle
User Identify GPS based PDA
Having a receptacle to power up
Container electronic door lock
and send GPS data to open door
Electronic Deadbolt lock releases when
Container and hand PDA actual location address is same
as container door lock processor
given destination address

34. 34
N. Sokolova, B.Forssell, HSGPS Tracking Performance in Indoor Environments

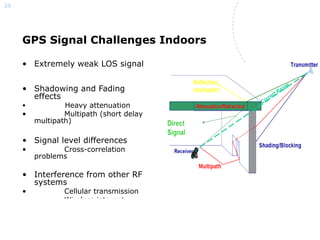

GPS Signal Challenges Indoors
• Extremely weak LOS signal
• Shadowing and Fading
effects
• Heavy attenuation
• Multipath (short delay
multipath)
• Signal level differences
• Cross-correlation
problems
• Interference from other RF
systems
• Cellular transmission
• Wireless internet

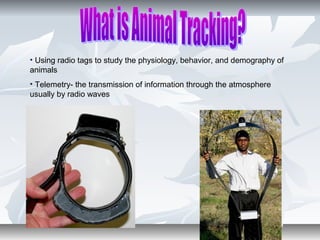

36. • Using radio tags to study the physiology, behavior, and demography of
animals
• Telemetry- the transmission of information through the atmosphere
usually by radio waves

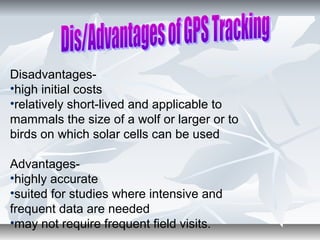

37. Disadvantages-
•high initial costs
•relatively short-lived and applicable to
mammals the size of a wolf or larger or to
birds on which solar cells can be used
Advantages-
•highly accurate
•suited for studies where intensive and
frequent data are needed
•may not require frequent field visits.
