This document discusses multiprocessor and multicomputer systems. It defines a multiprocessor system as having more than one processor that shares common memory, while a multicomputer has more than one processor each with local memory. Processors may be closely coupled on a shared bus or loosely coupled distributed on a network. The document also covers Flynn's taxonomy of computer architectures and examples of single instruction single data stream (SISD), single instruction multiple data stream (SIMD), multiple instruction single data stream (MISD), and multiple instruction multiple data stream (MIMD) systems.

1. Multiprocessor & Multicomputer
OrganisationOrganisation
Parallel and Distributed Computing
Multiprocessing :: Slide 1 of 25David Rye :: MTRX 3700

2. Multiprocessors and MulticomputersMultiprocessors and Multicomputers
 A multiprocessor system has more than oneA multiprocessor system has more than one
processor, with common memory shared between
processorsp
 A multicomputer system has more than one
processor, with each processor having localprocessor, with each processor having local
memory
 In either case processors may be on a commonIn either case, processors may be on a common
bus (close coupled), or distributed on a network
(loosely coupled)(loosely coupled)
Multiprocessing :: Slide 2 of 25David Rye :: MTRX 3700

3. Multiprocessing SystemsMultiprocessing Systems
 Generally accepted definition of a
lti i / lti ti tmultiprocessing/multicomputing system:
 Multiple processors, each with its own CPU and memory
I t ti h d Interconnection hardware
 Processors fail independently
 There exists a shared state There exists a shared state
 Appears to users as single system
Multiprocessing :: Slide 3 of 25David Rye :: MTRX 3700

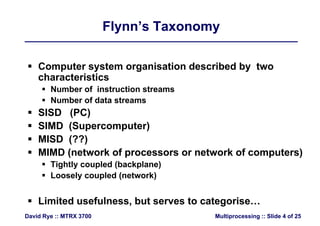

4. Flynn’s TaxonomyFlynn’s Taxonomy
 Computer system organisation described by two
h t i ticharacteristics
 Number of instruction streams
 Number of data streams Number of data streams
 SISD (PC)
 SIMD (Supercomputer) SIMD (Supercomputer)
 MISD (??)
MIMD (network of processors or network of computers) MIMD (network of processors or network of computers)
 Tightly coupled (backplane)
 Loosely coupled (network) Loosely coupled (network)
 Limited usefulness but serves to categorise
Multiprocessing :: Slide 4 of 25David Rye :: MTRX 3700
 Limited usefulness, but serves to categorise…

5. SISDSISD
 Single Instruction stream, Single Data stream
 All conventional uniprocessor systems are SISD,
from PCs to mainframes
 Examples: 8080 M6800 M68000 i8086 etc etc etc Examples: 8080, M6800, M68000, i8086, etc, etc, etc.
Multiprocessing :: Slide 5 of 25David Rye :: MTRX 3700

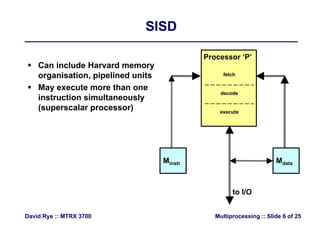

6. SISDSISD
 Can include Harvard memory
organisation pipelined units
Processor ‘P’
fetchorganisation, pipelined units
 May execute more than one
instruction simultaneously
fetch
decode
st uct o s u ta eous y
(superscalar processor) execute
Minstr Mdata
to I/O
Multiprocessing :: Slide 6 of 25David Rye :: MTRX 3700

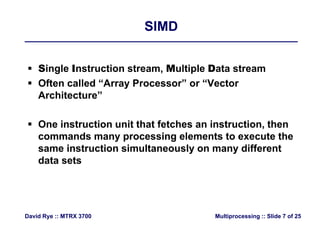

7. SIMDSIMD
 Single Instruction stream, Multiple Data stream
 Often called “Array Processor” or “Vector
Architecture”
 One instruction unit that fetches an instruction then One instruction unit that fetches an instruction, then
commands many processing elements to execute the
same instruction simultaneously on many differentsame instruction simultaneously on many different
data sets
Multiprocessing :: Slide 7 of 25David Rye :: MTRX 3700

8. SIMDSIMD
 Organisation is usually in the
form of a network of
MemoryMaster
CPU
I/O
form of a network of
processing elements with
local memory
CPU
I/O
 Various topologies are used,
and may be dynamically
fi d 64kconfigured - e.g. 64k
processors in the CM-2
Processing Elements with Local Memory
Multiprocessing :: Slide 8 of 25David Rye :: MTRX 3700

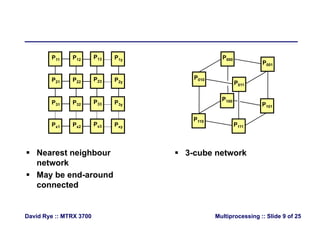

9. P11 P12 P13 P1y P000
P001
P21 P22 P23 P2y
P P P P
P010
P011
P100P31 P32 P33 P3y
P 1 P 2 P 3 P
P100
P101
P110
P111
N t i hb
Px1 Px2 Px3 Pxy P111
3 b t k Nearest neighbour
network
 May be end-around
 3-cube network
 May be end-around
connected
Multiprocessing :: Slide 9 of 25David Rye :: MTRX 3700

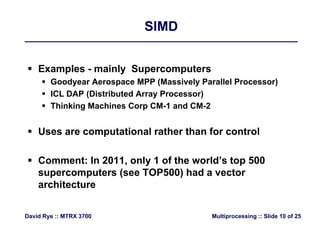

10. SIMDSIMD
 Examples - mainly Supercomputers
 Goodyear Aerospace MPP (Massively Parallel Processor)
 ICL DAP (Distributed Array Processor)
 Thinking Machines Corp CM-1 and CM-2
 Uses are computational rather than for control
 Comment: In 2011, only 1 of the world’s top 500
supercomputers (see TOP500) had a vectorsupercomputers (see TOP500) had a vector
architecture
Multiprocessing :: Slide 10 of 25David Rye :: MTRX 3700

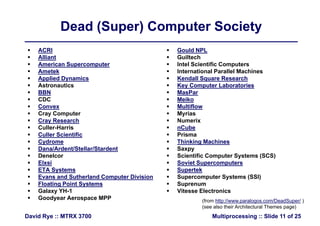

11. Dead (Super) Computer SocietyDead (Super) Computer Society
 ACRI  Gould NPL ACRI
 Alliant
 American Supercomputer
 Ametek
 Gould NPL
 Guiltech
 Intel Scientific Computers
 International Parallel Machines
 Applied Dynamics
 Astronautics
 BBN
 CDC
 Kendall Square Research
 Key Computer Laboratories
 MasPar
 MeikoCDC
 Convex
 Cray Computer
 Cray Research
C ll H i
Meiko
 Multiflow
 Myrias
 Numerix
C b Culler-Harris
 Culler Scientific
 Cydrome
 Dana/Ardent/Stellar/Stardent
 nCube
 Prisma
 Thinking Machines
 SaxpyDana/Ardent/Stellar/Stardent
 Denelcor
 Elxsi
 ETA Systems
E d S th l d C t Di i i
Saxpy
 Scientific Computer Systems (SCS)
 Soviet Supercomputers
 Supertek
S t S t (SSI) Evans and Sutherland Computer Division
 Floating Point Systems
 Galaxy YH-1
 Goodyear Aerospace MPP
 Supercomputer Systems (SSI)
 Suprenum
 Vitesse Electronics
(from http://www paralogos com/DeadSuper/ )
Multiprocessing :: Slide 11 of 25David Rye :: MTRX 3700
y p (from http://www.paralogos.com/DeadSuper/ )
(see also their Architectural Themes page)

12. MISDMISD
 Multiple Instruction stream, Single Data stream
 No true implementations
 Pipelined processors are sometimes regarded as
MISD (each data element is processed by sequentialMISD (each data element is processed by sequential
segments of the pipeline)
Fetch Decode Execute Write
 Examples: Cray-1, CDC Cyber 205, PIC18...
Multiprocessing :: Slide 12 of 25David Rye :: MTRX 3700

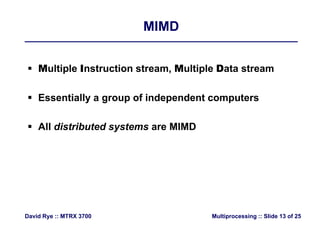

13. MIMDMIMD
 Multiple Instruction stream, Multiple Data stream
 Essentially a group of independent computersEssentially a group of independent computers
 All distributed systems are MIMD All distributed systems are MIMD
Multiprocessing :: Slide 13 of 25David Rye :: MTRX 3700

14. Parallel and Distributed Computers
Parallel &
distributed
computers
Tightly
L l
Multiprocessors Multicomputers
g y
coupled Loosely
coupled
Multiprocessors
(shared memory)
Multicomputers
(private memory)
Bus Switched Bus Switched
Sequent, Encore Ultracomputer,
RP3
Workstations
on a LAN
Hypercube,
Transputer
A taxonomy of parallel & distributed computer systems
Multiprocessing :: Slide 14 of 25David Rye :: MTRX 3700

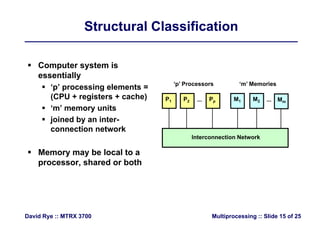

15. Structural ClassificationStructural Classification
 Computer system is
essentiallyessentially
 ‘p’ processing elements =
(CPU + registers + cache) P1 P2 P M1 M2 M
‘p’ Processors ‘m’ Memories
( g )
 ‘m’ memory units
 joined by an inter-
P1 P2 Pp M1 M2 Mm... ...
connection network
M b l l t
Interconnection Network
 Memory may be local to a
processor, shared or both
Multiprocessing :: Slide 15 of 25David Rye :: MTRX 3700

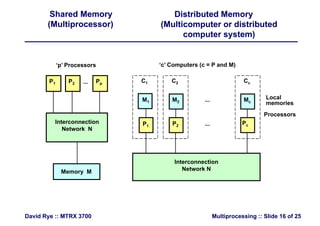

16. Shared Memory
(Multiprocessor)
Distributed Memory
(Multicomputer or distributed(Multiprocessor) (Multicomputer or distributed
computer system)
‘p’ Processors ‘c’ Computers (c = P and M)
P1 P2 Pp...
M M M Local
C1 C2 Cc
Interconnection
Processors
P1 P2 Pc
M1 M2 Mc memories
...
...
Network N
P1 P2 c...
Memory M
Interconnection
Network N
Multiprocessing :: Slide 16 of 25David Rye :: MTRX 3700

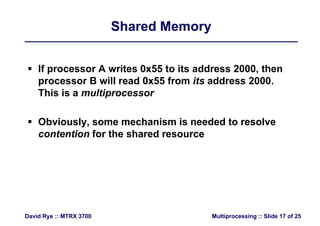

17. Shared MemoryShared Memory
 If processor A writes 0x55 to its address 2000, then
processor B will read 0x55 from its address 2000.
This is a multiprocessor
 Obviously, some mechanism is needed to resolvey,
contention for the shared resource
Multiprocessing :: Slide 17 of 25David Rye :: MTRX 3700

18. Multiprocessor interconnections may be
 Bussed (time shared)
 only one bus write at any timey y
 must prevent bus contention at the bus interface ports
 BREQ signals etc
 limited to about 64 processors
 Switched
 multiple simultaneous writes
 requires fast (parallel) bus switches - not cheap!
Multiprocessing :: Slide 18 of 25David Rye :: MTRX 3700

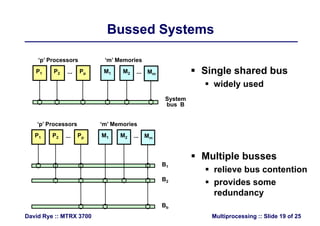

19. B d S tBussed Systems
 Single shared busP1 P2 Pp M1 M2 Mm
‘p’ Processors ‘m’ Memories
... ... g
 widely used
SystemSystem
bus B
‘p’ Processors ‘m’ Memories
P1 P2 Pp M1 M2 Mm
p Processors m Memories
... ...
 Multiple busses
 relieve bus contention
B1
 provides some
redundancy
B2
Multiprocessing :: Slide 19 of 25David Rye :: MTRX 3700
Bb

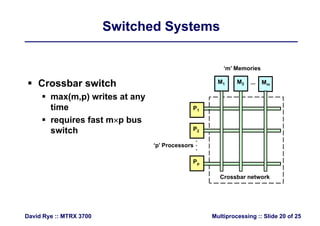

20. Switched SystemsSwitched Systems
‘m’ Memories
 Crossbar switch
 max(m,p) writes at any
M1 M2 Mm...
( ,p) y
time
 requires fast mp bus
P1
switch
‘p’ Processors
P2
.
.
.
Pp
C b t kCrossbar network
Multiprocessing :: Slide 20 of 25David Rye :: MTRX 3700

21. Switched SystemsSwitched Systems
 Crosspoint switch
 cheaper but slower!!
P1
2x2 switches
M1
p
 used in “Omega”
networks
P2
Proces
M2
Mem
ssors
P3 M3
mories
P4 M4
Multiprocessing :: Slide 21 of 25David Rye :: MTRX 3700

22. Interconnections (topology) may be either
 Static – fixed by hardwareStatic fixed by hardware
 Dynamic – re-configurable in software perhaps even Dynamic – re-configurable in software, perhaps even
during program execution
Multiprocessing :: Slide 22 of 25David Rye :: MTRX 3700

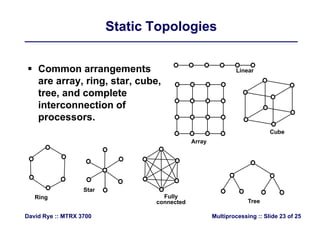

23. Static TopologiesStatic Topologies
 Common arrangements Linear
are array, ring, star, cube,
tree, and complete
interconnection of
processors.
Array
Cube
Ring
Star
Fully
t d Tree
Multiprocessing :: Slide 23 of 25David Rye :: MTRX 3700
connected Tree

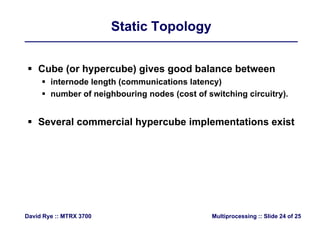

24. Static TopologyStatic Topology
 Cube (or hypercube) gives good balance between
 internode length (communications latency)
 number of neighbouring nodes (cost of switching circuitry).
 Several commercial hypercube implementations existyp p
Multiprocessing :: Slide 24 of 25David Rye :: MTRX 3700

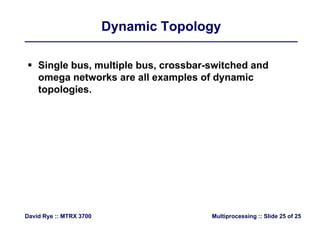

25. Dynamic TopologyDynamic Topology
 Single bus, multiple bus, crossbar-switched and
t k ll l f d iomega networks are all examples of dynamic
topologies.
Multiprocessing :: Slide 25 of 25David Rye :: MTRX 3700
