WDM principles

WDM Principles
February 2014

1

Anuradha Udunuwara | udunuwara@ieee.org | www.linkedin.com/in/anuradhau | @AnuradhU

How to increase network
capacity?
Space
Division
Multiplexing
(SDM)
• Add fiber &
equipment
• Time & Cost

Time
Division
Multiplexing
(TDM)
• PDH/SDH (STM16->STM-64(10G)>STM-256(40G)
• Cost & Complexity

Wavelength
Division
Multiplexing
(WDM)
• Economical, mature
& quick

2


What’s WDM?
• A technology that utilizes the properties of
refracted light to both combine and
separate optical signals based on their
wavelengths within the optical spectrum
• Different signals with specific wavelength
are multiplexed into a fiber for
transmission

3

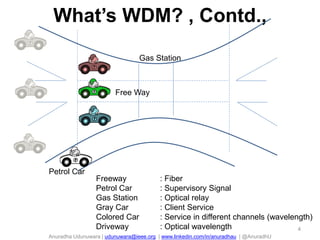

What’s WDM? , Contd.,
Gas Station

Free Way

Petrol Car

Freeway
Petrol Car
Gas Station
Gray Car
Colored Car
Driveway

: Fiber
: Supervisory Signal
: Optical relay
: Client Service
: Service in different channels (wavelength)
: Optical wavelength
4


Advantages of WDM
• Ultra high capacity
• Data transparency transmission
– Doesn’t change the structure or any byte in the frame
for the client signal

• Long haul transmission
• Compatible with existing optical fibers
• High performance-to-cost-ratio (unit traffic cost)
– However, projects get long time to break-even

• High networking flexibility, economy and reliability
• Smooth expansion
5


WDM system key technologies
• Optical multiplexer (MUX) and demultiplexer
• Optical Amplifier (Amp)
• Supervisory channel
• Optical Source

6


Optical Multiplexer Unit:
Multiplex several services
with different wavelength
into one main path signal

Optical Amplifier:
Amplifies the optical
signal

1

A

P

A
OLA

nm
OSC

Optical Transponder
Unit: Access the client
services & convert the
wavelength compiled with
ITU standard

OTU1

P
P

OA

n

A

P

P
OA

OTUn

Optical Line
Amplifier

O
M
U

2

1

A

1, 2..n

P
OTU2

System structure

1, 2..n

A
OTU1

Optical De-multiplexer
Unit: De-multiplex one
main path signal into
several individual signals

nm
OSC

O
D
U

2

n

OTU2

OTUn

OSC

Optical Supervisory
Channel: Terminate &
Re-generation. Not
amplification.

A
P

Active
Passive
7

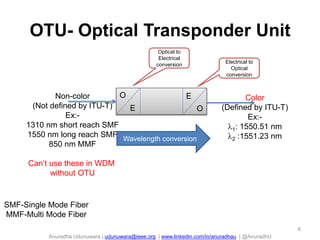

OTU- Optical Transponder Unit
Optical to
Electrical
conversion

O
Non-color
E
(Not defined by ITU-T)
E
O
Ex:1310 nm short reach SMF
1550 nm long reach SMF Wavelength conversion
850 nm MMF

Electrical to
Optical
conversion

Color
(Defined by ITU-T)
Ex:1: 1550.51 nm
2 :1551.23 nm

Can’t use these in WDM
without OTU

SMF-Single Mode Fiber
MMF-Multi Mode Fiber
8

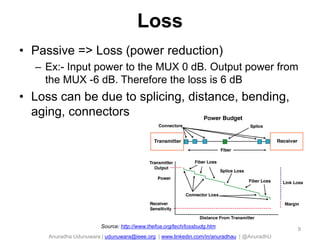

Loss
• Passive => Loss (power reduction)
– Ex:- Input power to the MUX 0 dB. Output power from
the MUX -6 dB. Therefore the loss is 6 dB

• Loss can be due to splicing, distance, bending,
aging, connectors

Source: http://www.thefoa.org/tech/lossbudg.htm


9

Transmission Modes
• Single fiber unidirectional
– 2 optical fibers

• Single fiber bidirectional
– Only 1 optical fiber
– Ex:- CWDM, to reduce cost

Coarse WDM

10


Application modes
• Open system
– NO special requirements for multiplex terminal
optical interface
– Only requirement is that these interfaces meet
the optical interface standards defined in ITU-T

• Integrated system
– Doesn’t adopt wavelength conversion technology
– Requires that the wavelength of the optical signal
at the multiplex terminal confirms to the
specifications for the WDM system
11

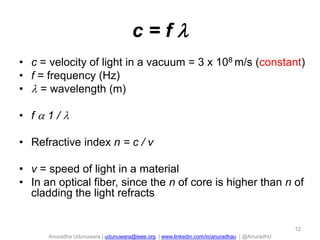

c=f
• c = velocity of light in a vacuum = 3 x 108 m/s (constant)
• f = frequency (Hz)
•  = wavelength (m)
• f1/
• Refractive index n = c / v
• v = speed of light in a material
• In an optical fiber, since the n of core is higher than n of
cladding the light refracts

12


Fiber cable types
• G.652
• G.653
– Main application: submarine

• G.655
– Best fiber for WDM
– Expensive

13


Single vs. multi mode

Source: http://osd.com.au/multimode-versus-singlemode/

High Attenuation (3 dB/km)
High dispersion
Expensive today (because of less demand)

Attenuation = 0.22 dB.km (G.652 @ 1550nm)
No mode dispersion

Mode=Path of light
14

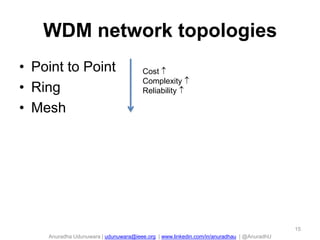

WDM network topologies
• Point to Point
• Ring
• Mesh

Cost 
Complexity 
Reliability 

15

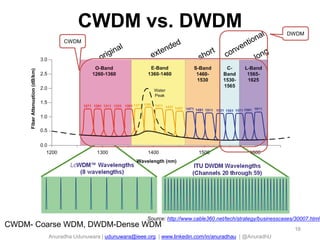

CWDM vs. DWDM
DWDM
CWDM

Source: http://www.cable360.net/tech/strategy/businesscases/30007.html

CWDM- Coarse WDM, DWDM-Dense WDM


16

Since f  1 / ,
channel
spacing can
be denotes as
both distance
and frequency

CWDM vs. DWDM, cont.,
Types

CWDM

DWDM

Channel spacing (Grid)

20 nm (fixed)

100 GHz/ 50 GHz/ 25 GHz

1311~1611 nm
(All bands)

C-band:
1529nm~1561nm
L-band:
1570nm~1603nm

18 x 10 Gbps

192 x 10 Gbps

Laser

Un-cooled Laser

Cooled Laser

Cost

70%

100%

100 km (max)

5000 km

Band

Capacity (max)

Application
As CWDM
works in all 5
bands,
amplification is
NOT possible

17

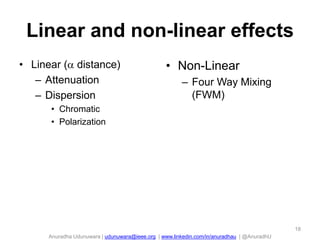

Linear and non-linear effects
• Linear ( distance)
– Attenuation
– Dispersion

• Non-Linear
– Four Way Mixing
(FWM)

• Chromatic
• Polarization

18

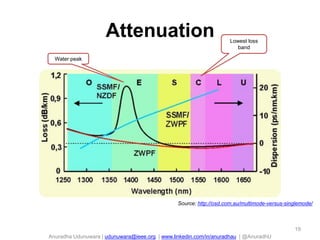

Attenuation

Lowest loss
band

Water peak

Source: http://osd.com.au/multimode-versus-singlemode/

19


Dispersion
•

Physical phenomenon of signal distortion caused when various modes
carrying signal energy or different frequencies of the signal have different
group velocity and disperse from each other during propagation

•

Digital modulation -> carrier frequency+ multiple other frequencies ->

different speeds -> Inter Symbol Interference (ISI) -> Bit errors
•
Color

2 types
–

Mode dispersion
•

–

Dominant in MMF

Chromatic dispersion (CD)
•
•

Dominant in SMF
Ex:- Rainbow
–

•

Light through water traverse at different speeds

Dispersion affects the own channel
Source: http://www.bubblews.com/news/2058509-somewhere-over-the-rainbow
20

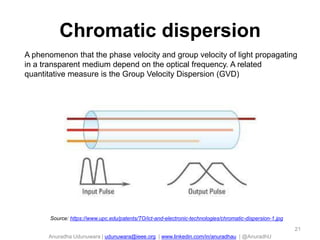

Chromatic dispersion
A phenomenon that the phase velocity and group velocity of light propagating
in a transparent medium depend on the optical frequency. A related
quantitative measure is the Group Velocity Dispersion (GVD)

Source: https://www.upc.edu/patents/TO/ict-and-electronic-technologies/chromatic-dispersion-1.jpg
21

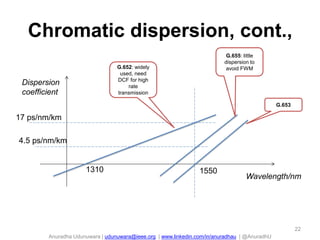

Chromatic dispersion, cont.,
G.655: little
dispersion to
avoid FWM

G.652: widely
used, need
DCF for high
rate
transmission

Dispersion
coefficient

G.653

17 ps/nm/km

4.5 ps/nm/km

1310

1550

Wavelength/nm

22

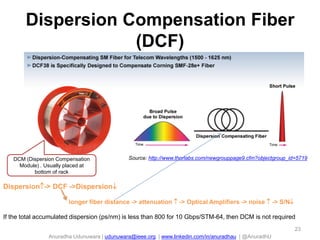

Dispersion Compensation Fiber
(DCF)

DCM (Dispersion Compensation
Module) . Usually placed at
bottom of rack

Source: http://www.thorlabs.com/newgrouppage9.cfm?objectgroup_id=5719

Dispersion-> DCF ->Dispersion
longer fiber distance -> attenuation  -> Optical Amplifiers -> noise  -> S/N
If the total accumulated dispersion (ps/nm) is less than 800 for 10 Gbps/STM-64, then DCM is not required
23

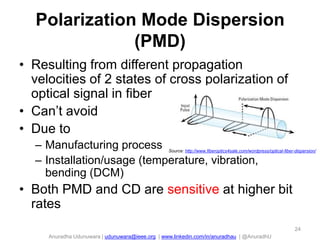

Polarization Mode Dispersion
(PMD)
• Resulting from different propagation
velocities of 2 states of cross polarization of
optical signal in fiber
• Can’t avoid
• Due to
– Manufacturing process
– Installation/usage (temperature, vibration,
bending (DCM)

Source: http://www.fiberoptics4sale.com/wordpress/optical-fiber-dispersion/

• Both PMD and CD are sensitive at higher bit
rates
24


Optical source
• Key requirements
– Large dispersion tolerance value
– Standard and stable wavelength
• ITU-T recommends the maximum deviation of the
channel frequency to be <=10% of channel
spacing

25


Modulators
• Direct
• Electro-Absorption (EA) External
– Ex:- for 40 G

• Mach-Zehnder (M-Z) External
– Ex:- for 40 G

• Coherent
– Ex:- for 100 G
– No DCM required
26

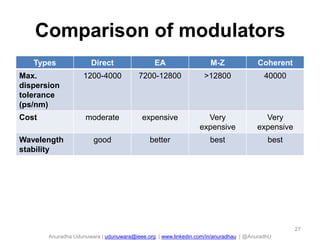

Comparison of modulators
Types

Direct

EA

M-Z

Coherent

Max.
dispersion
tolerance
(ps/nm)

1200-4000

7200-12800

>12800

40000

Cost

moderate

expensive

Very
expensive

Very
expensive

good

better

best

best

Wavelength
stability

27

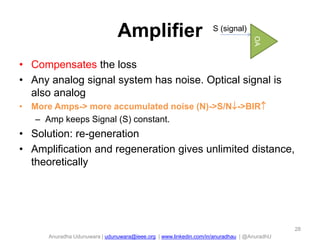

S (signal)
OA

Amplifier

• Compensates the loss
• Any analog signal system has noise. Optical signal is
also analog
• More Amps-> more accumulated noise (N)->S/N->BIR
– Amp keeps Signal (S) constant.

• Solution: re-generation
• Amplification and regeneration gives unlimited distance,
theoretically

28


Amplifier types
• EDFA - Erbium Doped Fiber Amplifier
– Widely used

• RFA - Raman Fiber Amplifier
– Uses non-linearity effect
– Uses high power class 4 laser
• Use APC (Angular Physical Contact) connectors instead of
PC
– Ex:-LC/APC (Lucent Connector), SC/APC, FC/APC

– 20 km distance
• Need to maintain splice loss <0.1dB within 1st 10 km and
<0.2dB within next 10 km

– Low noise
– Low gain efficiency (10~12 dB)
29

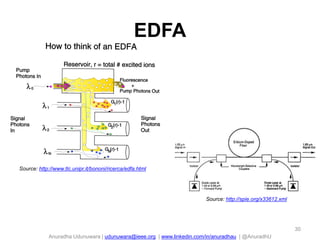

EDFA

Source: http://www.tlc.unipr.it/bononi/ricerca/edfa.html

Source: http://spie.org/x33612.xml

30

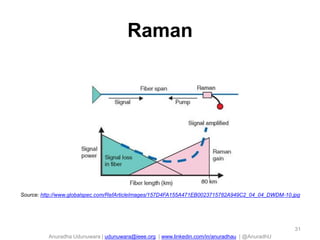

Raman

Source: http://www.globalspec.com/RefArticleImages/157D4FA155A471EB0023715782A949C2_04_04_DWDM-10.jpg

31

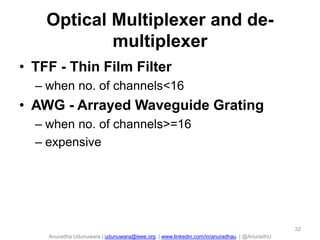

Optical Multiplexer and demultiplexer
• TFF - Thin Film Filter
– when no. of channels<16

• AWG - Arrayed Waveguide Grating
– when no. of channels>=16
– expensive

32

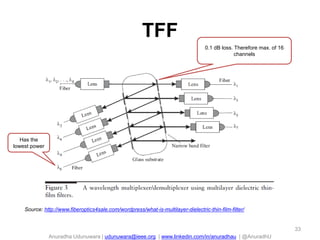

TFF
0.1 dB loss. Therefore max. of 16
channels

Has the
lowest power

Source: http://www.fiberoptics4sale.com/wordpress/what-is-multilayer-dielectric-thin-film-filter/

33


AWG

All have the same
power

Source: http://docstore.mik.ua/univercd/cc/td/doc/product/mels/cm1500/dwdm/dwdm_ovr.htm

34

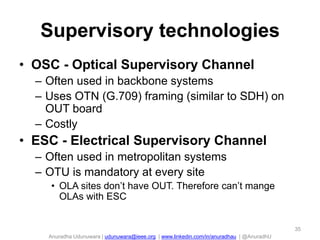

Supervisory technologies
• OSC - Optical Supervisory Channel
– Often used in backbone systems
– Uses OTN (G.709) framing (similar to SDH) on
OUT board
– Costly

• ESC - Electrical Supervisory Channel
– Often used in metropolitan systems
– OTU is mandatory at every site
• OLA sites don’t have OUT. Therefore can’t mange
OLAs with ESC

35


Related ITU-T recommendations
•
•
•
•
•
•

G.652
- SMF
G.655
- Dispersion-shifted SMF
G.661/G.662/G.663
- OAs
G.671
- Passive optical components
G.957
- SDH optical interfaces
G.691
- Optical interfaces for single channel STM64, STM-256 systems & other SDH systems
with OA
G.692
- Optical interfaces for multi-channel
systems with OA
G.709
- OTN interfaces
• G.975
- FEC for submarine systems
36


About the Author
37

Eng. Anuradha Udunuwara is a Chartered Engineer by profession based in Sri Lanka. He has
over a decade industry experience in strategy, architecture, engineering, design, plan,
implementation and maintenance of CSP Networks using both packet-switched (PS) and
Circuit-Switched (CS) technologies, along with legacy to NGN migration. Eng. Anuradha is a
well-known in the field of CSP industry, both locally and internationally.
Graduated from University of Peradeniya, Sri Lanka in 2001 with an honors in Electrical &
Electronic Engineering, Eng. Anuradha is a corporate member of the Institution of Engineers
Sri Lanka, a professional member of British Computer Society, a member of Institution of
Electrical & Electronic Engineers, a member of Institution of Engineering & Technology
(formerly Institution of Electrical Engineers), a member of the Computer Society of Sri Lanka,
a life member of Sri Lanka Association for the Advancement of Science, a senior member of
the Carrier Ethernet Forum, a member of the Internet Society, a member of the Internet
Strategy Forum, a member of the Internet Strategy Forum Network, a member & a senior
contributor of the Ethernet Academy, a member of the NGN/IMS forum and a member of the
Peradeniya Engineering Faculty Alumni Association. He is also an ITIL foundation certified
and the only MEF-CECP in the country.
In his spare time Anuradha enjoys spending time with his family, playing badminton,
photography, reading and travelling.


WDM principles

More Related Content

What's hot

Viewers also liked

Similar to WDM principles

More from Anuradha Udunuwara

Recently uploaded

WDM principles
