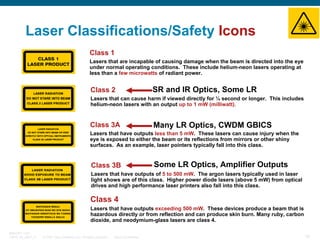

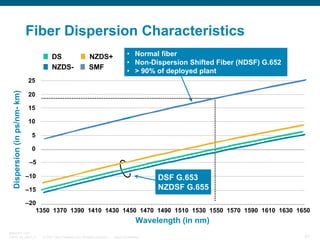

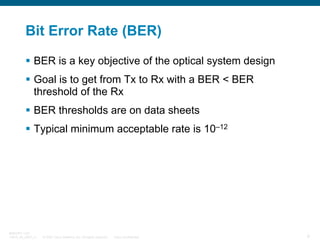

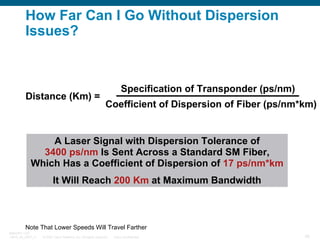

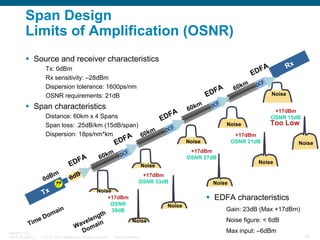

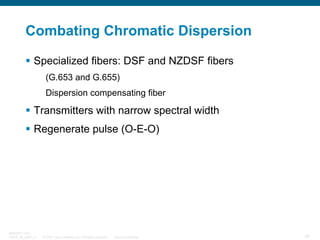

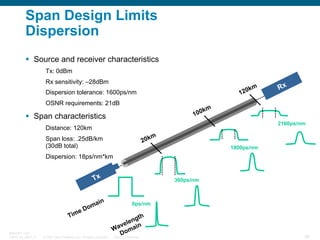

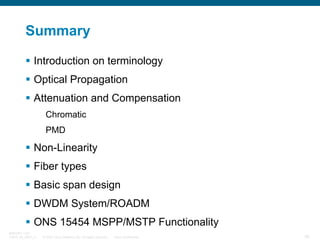

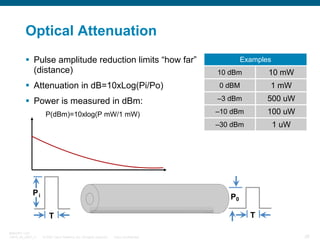

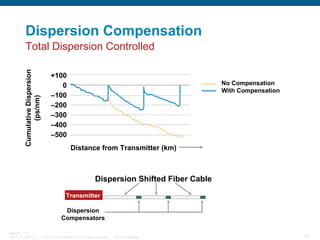

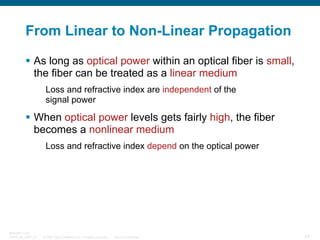

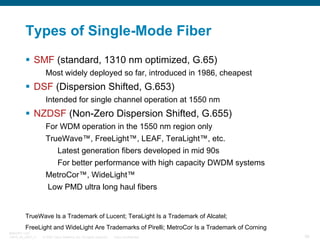

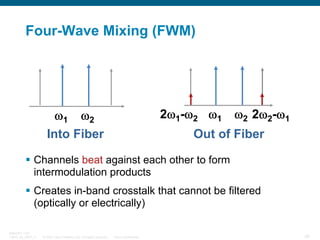

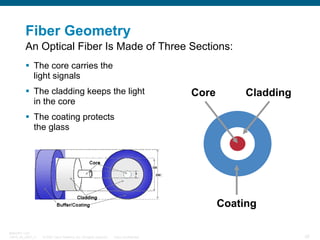

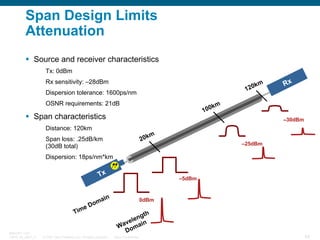

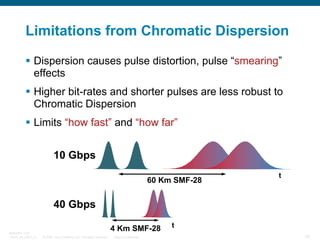

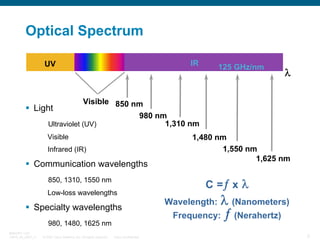

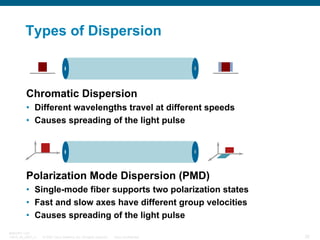

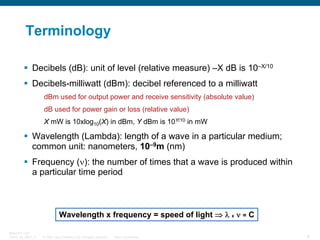

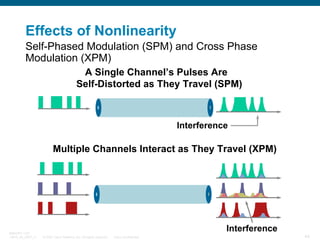

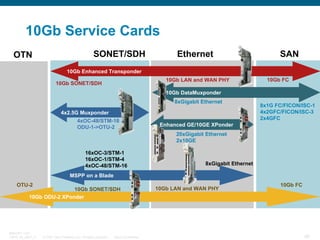

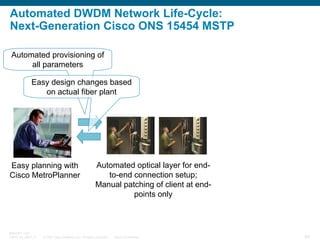

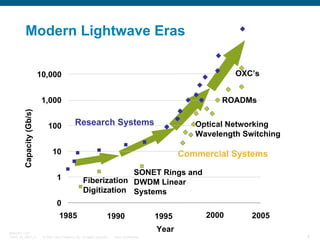

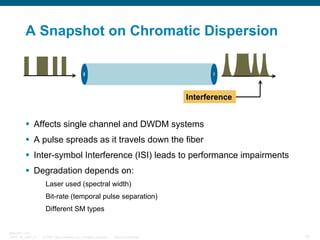

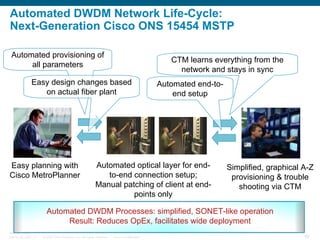

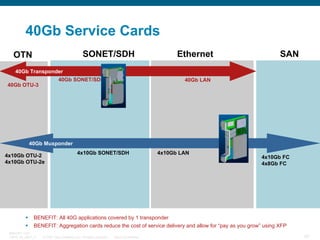

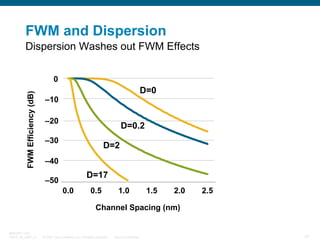

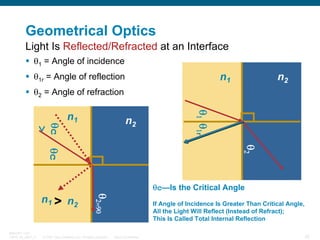

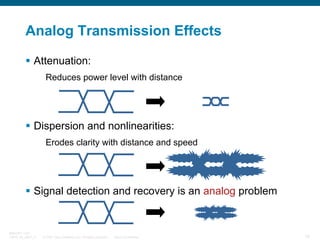

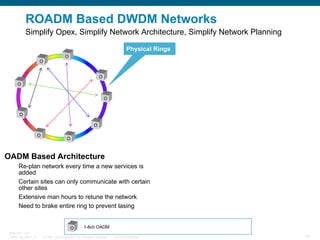

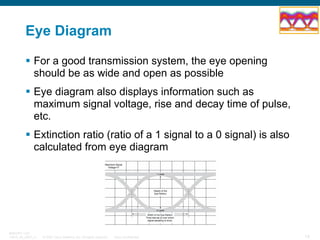

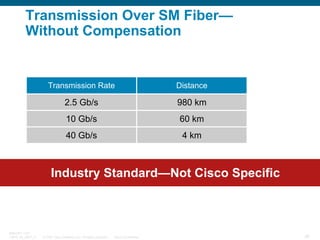

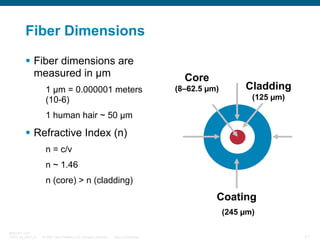

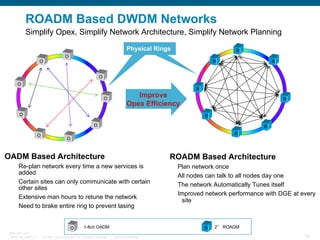

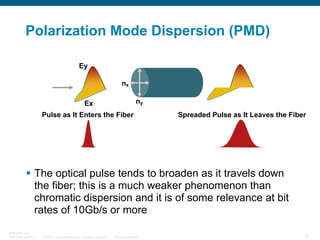

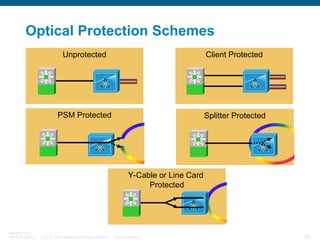

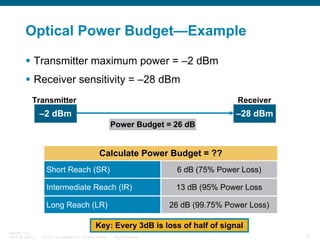

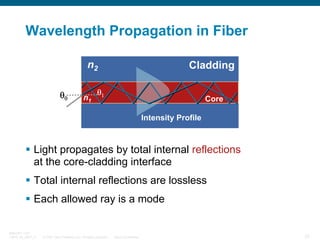

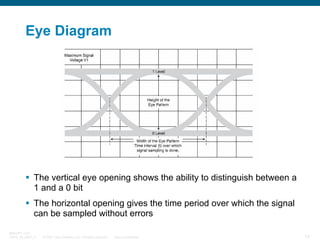

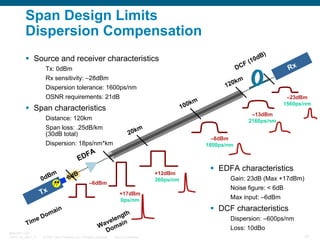

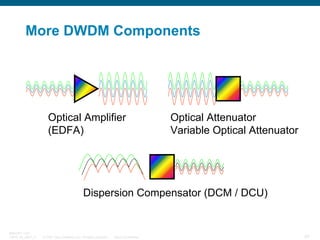

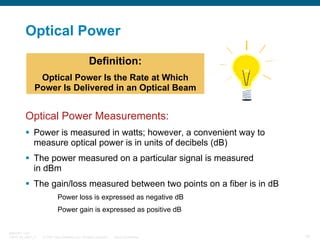

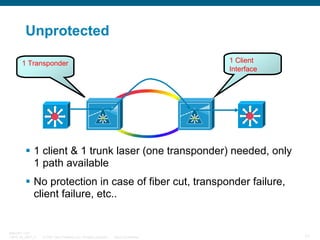

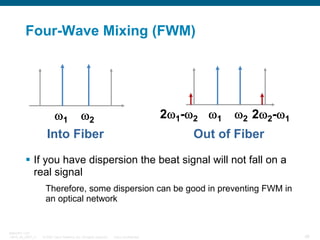

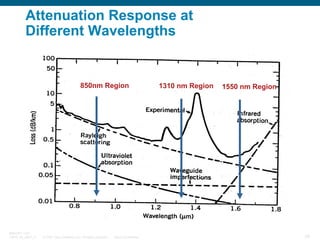

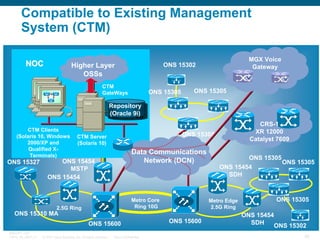

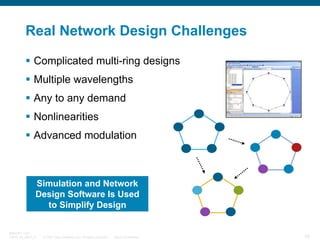

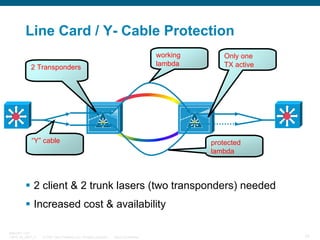

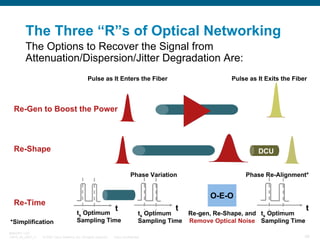

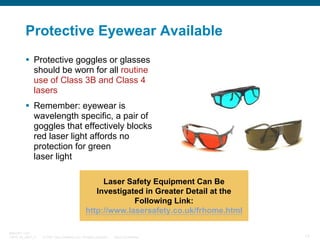

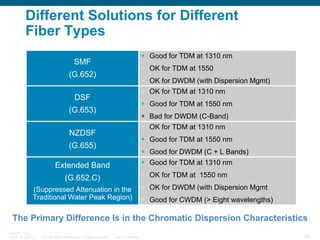

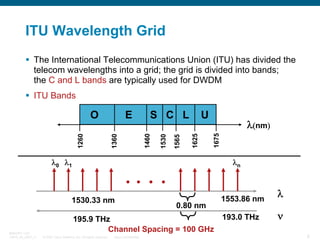

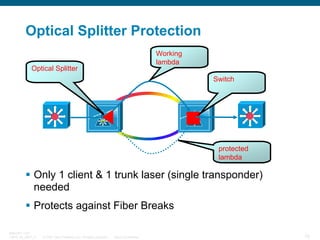

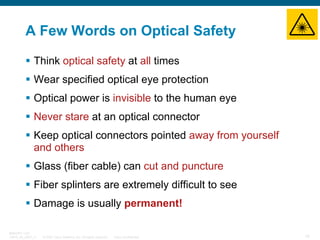

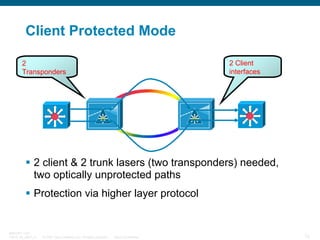

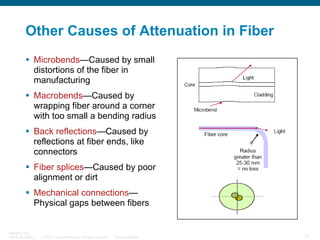

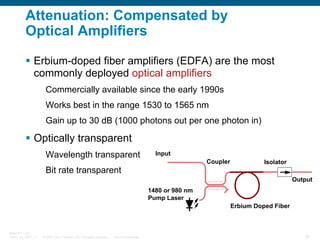

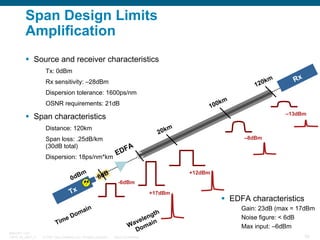

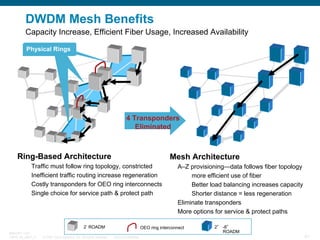

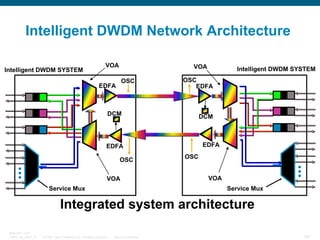

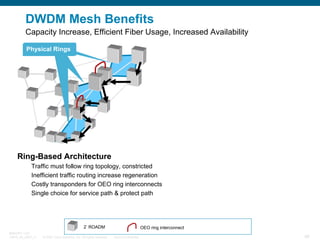

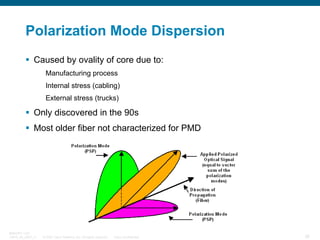

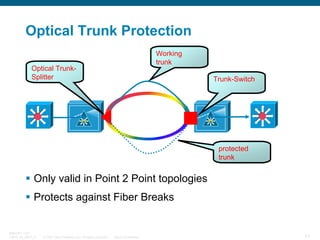

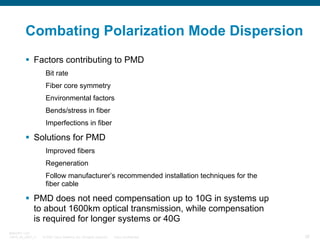

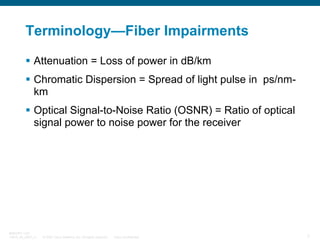

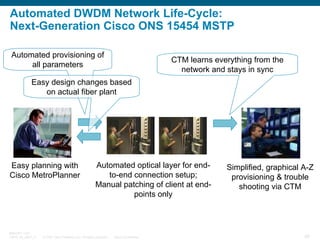

The document provides an overview of optical DWDM fundamentals, including terminology, fiber characteristics, and transmission effects. It discusses key topics such as optical propagation in fibers, attenuation and compensation using optical amplifiers, dispersion types and limitations, and wavelength grids. Diagrams and examples are used to illustrate optical power measurements, budgets, safety classifications, and the impacts of attenuation and dispersion on transmission performance.
Implications of super channels on CDC ROADM architecturesAnuj Malik
OFC 2014 Presentation
This study proposes CDC ROADM architecture compatible with emerging DWDM super-channel technology. A real world network model is used to quantify that this architecture requires fewer network components leading to less capital and operational costs.
The session begins with an overview on the basic impairments in a fiber based optical network. It will then cover what technologies are available to alleviate these linear and non-linear impairments. The fundamental components of DWDM (ie filters, optical amplifiers, lasers, & receivers) will also be covered. The basic design principles that go into designing DWDM networks will be discussed. Converged platforms based on OTN infrastructures have been introduced into the transport network recently and this will be covered. Lastly, innovations in DWDM transport such as 200G transmission, Flex Spectrum ROADM and control plane integration will be summarized.
Implications of super channels on CDC ROADM architecturesAnuj Malik
OFC 2014 Presentation
This study proposes CDC ROADM architecture compatible with emerging DWDM super-channel technology. A real world network model is used to quantify that this architecture requires fewer network components leading to less capital and operational costs.
The session begins with an overview on the basic impairments in a fiber based optical network. It will then cover what technologies are available to alleviate these linear and non-linear impairments. The fundamental components of DWDM (ie filters, optical amplifiers, lasers, & receivers) will also be covered. The basic design principles that go into designing DWDM networks will be discussed. Converged platforms based on OTN infrastructures have been introduced into the transport network recently and this will be covered. Lastly, innovations in DWDM transport such as 200G transmission, Flex Spectrum ROADM and control plane integration will be summarized.
