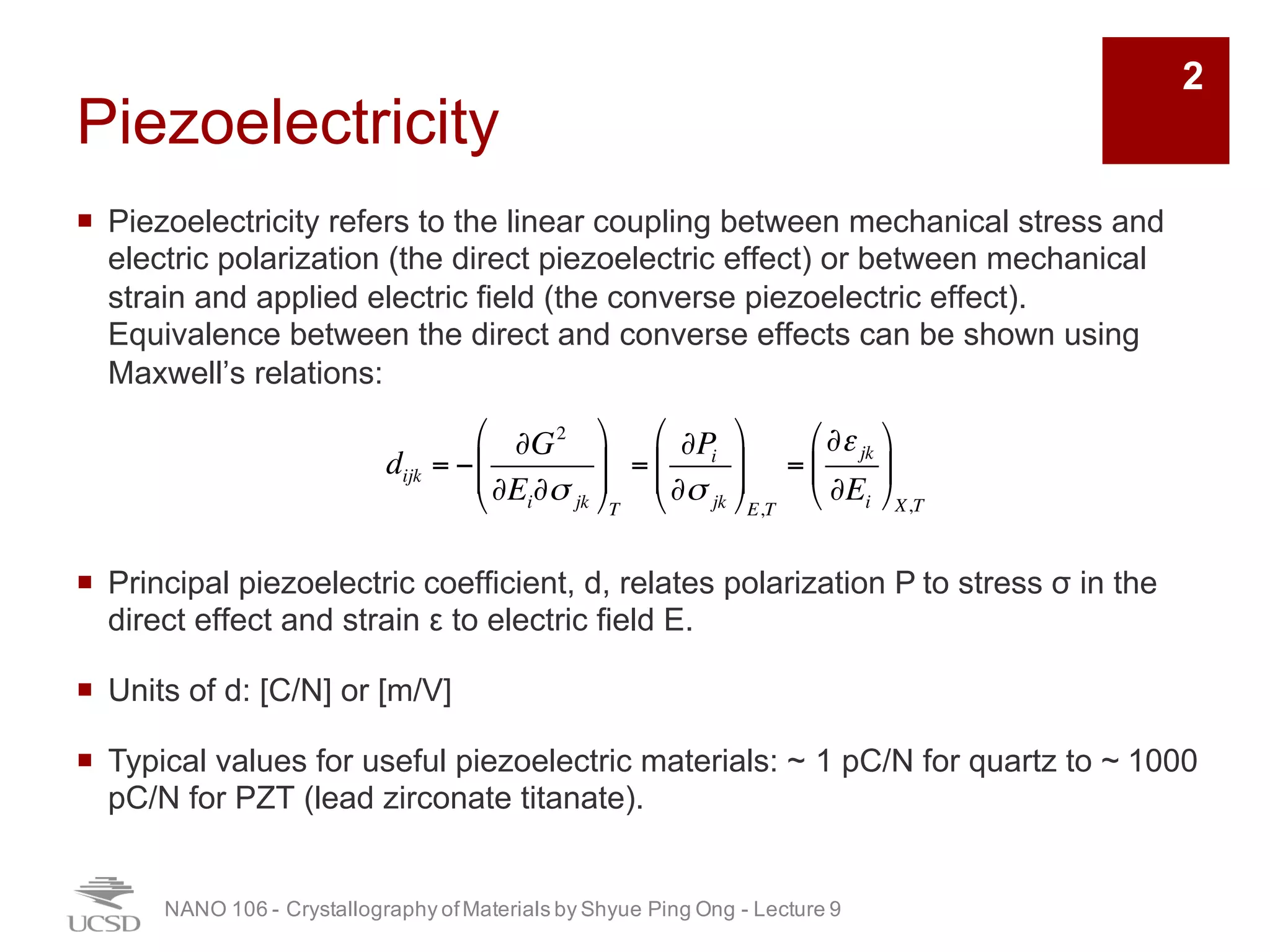

![Piezoelectricity
¡ Piezoelectricity refers to the linear coupling between mechanical stress and
electric polarization (the direct piezoelectric effect) or between mechanical
strain and applied electric field (the converse piezoelectric effect).
Equivalence between the direct and converse effects can be shown using
Maxwell’s relations:
¡ Principal piezoelectric coefficient, d, relates polarization P to stress σ in the
direct effect and strain ε to electric field E.
¡ Units of d: [C/N] or [m/V]
¡ Typical values for useful piezoelectric materials: ~ 1 pC/N for quartz to ~ 1000
pC/N for PZT (lead zirconate titanate).
NANO 106 - Crystallography ofMaterials by Shyue Ping Ong - Lecture 9
2
dijk = −
∂G2
∂Ei∂σ jk
#
$
%%
&
'
((
T
=
∂Pi
∂σ jk
#
$
%%
&
'
((
E,T
=
∂εjk
∂Ei
#
$
%
&
'
(
X,T](https://image.slidesharecdn.com/09-piezoelectricityandelasticity-160421231908/75/UCSD-NANO106-09-Piezoelectricity-and-Elasticity-2-2048.jpg)

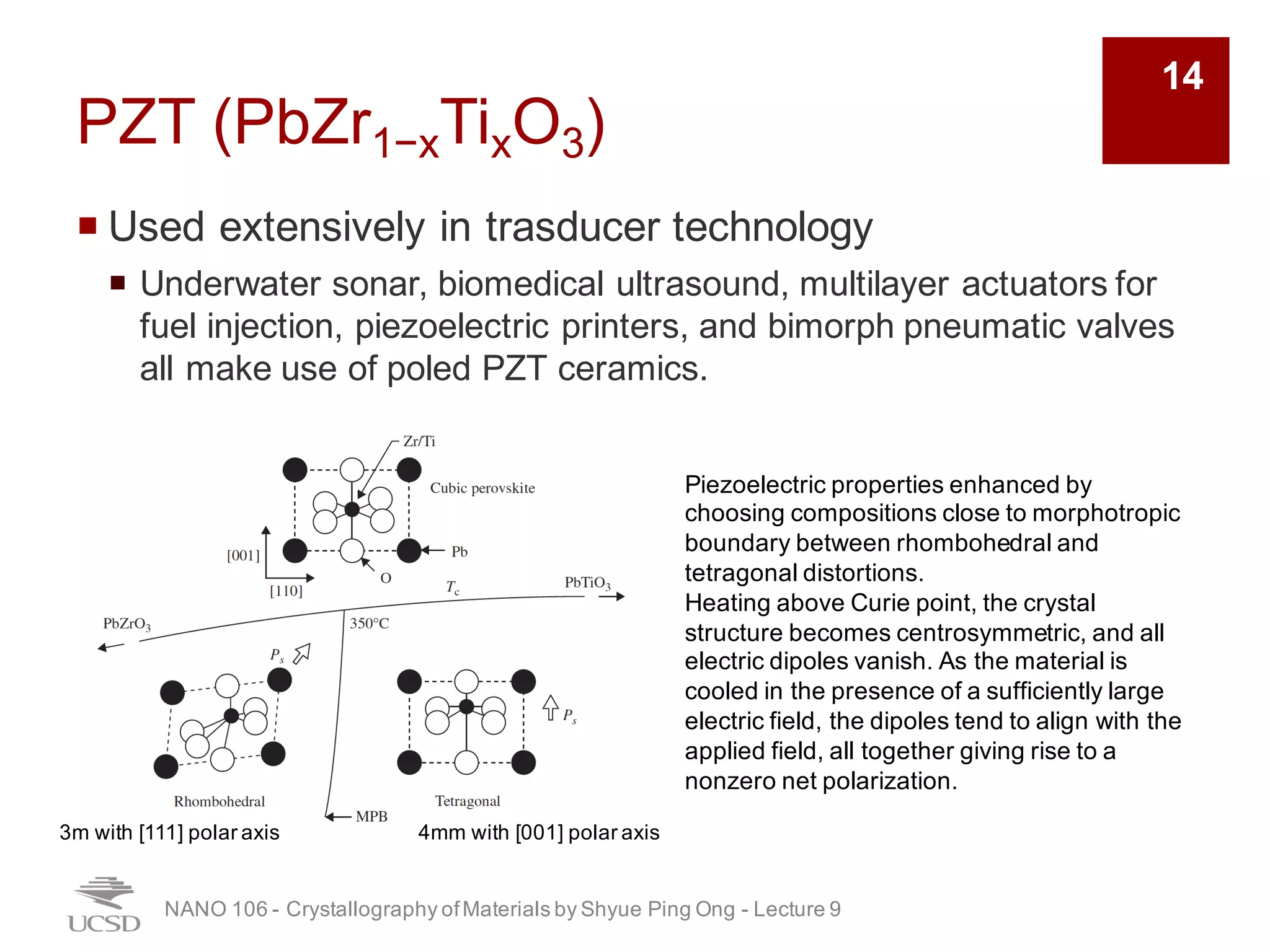

![PZT (PbZr1−xTixO3)
¡ Used extensively in trasducer technology
¡ Underwater sonar, biomedical ultrasound, multilayer actuators for
fuel injection, piezoelectric printers, and bimorph pneumatic valves
all make use of poled PZT ceramics.
NANO 106 - Crystallography ofMaterials by Shyue Ping Ong - Lecture 9
14
3m with [111] polar axis 4mm with [001] polar axis
Piezoelectric properties enhanced by
choosing compositions close to morphotropic
boundary between rhombohedral and
tetragonal distortions.
Heating above Curie point, the crystal
structure becomes centrosymmetric, and all
electric dipoles vanish. As the material is
cooled in the presence of a sufficiently large
electric field, the dipoles tend to align with the
applied field, all together giving rise to a
nonzero net polarization.](https://image.slidesharecdn.com/09-piezoelectricityandelasticity-160421231908/75/UCSD-NANO106-09-Piezoelectricity-and-Elasticity-14-2048.jpg)
![PZT, contd
¡ Electrically poled materials belong to Curie symmetry ∞m, which has
piezoelectric tensors of the following form:
NANO 106 - Crystallography ofMaterials by Shyue Ping Ong - Lecture 9
15
0 0 0 0 d15 0
0 0 0 d15 0 0
d31 d31 d33 0 0 0
!
"
#
#
##
$
%
&
&
&&
¡ Intrinsic effects: Under a tensile stress parallel to the dipole moment, there is
an enhancement of the polarization along [001] = Z3. When a tensile stress is
applied perpendicular to the dipole, the polarization along Z3 (d33 and d31) is
reduced. When the dipole is tilted by shear stress, charges appear on the side
faces (d15).
¡ Extrinsic contributions: Doping with higher or lower-valent ions.
¡ Nb5+ for Ti4+ gives soft PZT with easily movable domain walls and a large
piezoelectric coefficient. Used in hydrophones and other sensors.
¡ Fe3+ for Ti4+ gives hard PZTs, used in high-power transducers because they
will not depole under high fields in the reverse directions.](https://image.slidesharecdn.com/09-piezoelectricityandelasticity-160421231908/75/UCSD-NANO106-09-Piezoelectricity-and-Elasticity-15-2048.jpg)
Uploaded byUniversity of California, San Diego
UCSD NANO106 - 09 - Piezoelectricity and Elasticity
The document discusses piezoelectricity, highlighting both the direct and converse effects, and the mathematical relationships between mechanical stress, strain, electric field, and polarization. It presents examples of piezoelectric materials such as quartz and PZT, explaining their properties and applications, including sonar transducers and biomedical ultrasound. Additionally, it covers elasticity, including Hooke's law and the representation of stiffness and compliance coefficients in various tensor and matrix forms.
More Related Content
![Thin_Film_Technology_introduction[1]](https://cdn.slidesharecdn.com/ss_thumbnails/1b4496c8-2102-411b-8465-a3dd3f398327-150205034538-conversion-gate02-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to UCSD NANO106 - 09 - Piezoelectricity and Elasticity
UCSD NANO106 - 09 - Piezoelectricity and Elasticity
- 1. Piezoelectricity and Elasticity ShyuePing Ong Department of NanoEngineering University of California, San Diego
- 2. Piezoelectricity ¡ Piezoelectricity refersto the linear coupling between mechanical stress and electric polarization (the direct piezoelectric effect) or between mechanical strain and applied electric field (the converse piezoelectric effect). Equivalence between the direct and converse effects can be shown using Maxwell’s relations: ¡ Principal piezoelectric coefficient, d, relates polarization P to stress σ in the direct effect and strain ε to electric field E. ¡ Units of d: [C/N] or [m/V] ¡ Typical values for useful piezoelectric materials: ~ 1 pC/N for quartz to ~ 1000 pC/N for PZT (lead zirconate titanate). NANO 106 - Crystallography ofMaterials by Shyue Ping Ong - Lecture 9 2 dijk = − ∂G2 ∂Ei∂σ jk # $ %% & ' (( T = ∂Pi ∂σ jk # $ %% & ' (( E,T = ∂εjk ∂Ei # $ % & ' ( X,T
- 3. Direct piezoelectric effect ¡The piezoelectric moduli is a rank-3 tensor: ¡ It therefore transforms as ¡ As previously shown, the piezoelectric coefficients are zero for all centrosymmetric crystals (inversion center). NANO 106 - Crystallography ofMaterials by Shyue Ping Ong - Lecture 9 3 Pi = dijkσ jk dijk !i = cilcjmckndlmn
- 4. Voigt notation forpiezoelectric moduli ¡ The piezoelectric moduli always act in pairs. ¡ Earlier, we have shown that 3x3 symmetric tensors such as stress and strain can be represented as a 6-element vector. Using the same concept, we can simplify the piezoelectric moduli to a 3x6 matrix as follows. ¡ However, here we encounter a problem that we cannot apply a without a . In order to go to a matrix notation, the piezoelectric moduli is defined as: NANO 106 - Crystallography ofMaterials by Shyue Ping Ong - Lecture 9 4 Pi = dijkσ jk = di11σ11 + di22σ22 + di33σ33 + di23σ23 + di32σ32 …(total of 27 elements!) Pi = dijσ j = di1σ1 + di2σ2 + di3σ3 + di4σ4 + di5σ5 + di6σ6 σ23 σ32 dim = dijk for j=k dijk + dikj for j≠ k " # $ %$ Factor of 2 is absorbed into the matrix, which has 18 elements instead of 27.

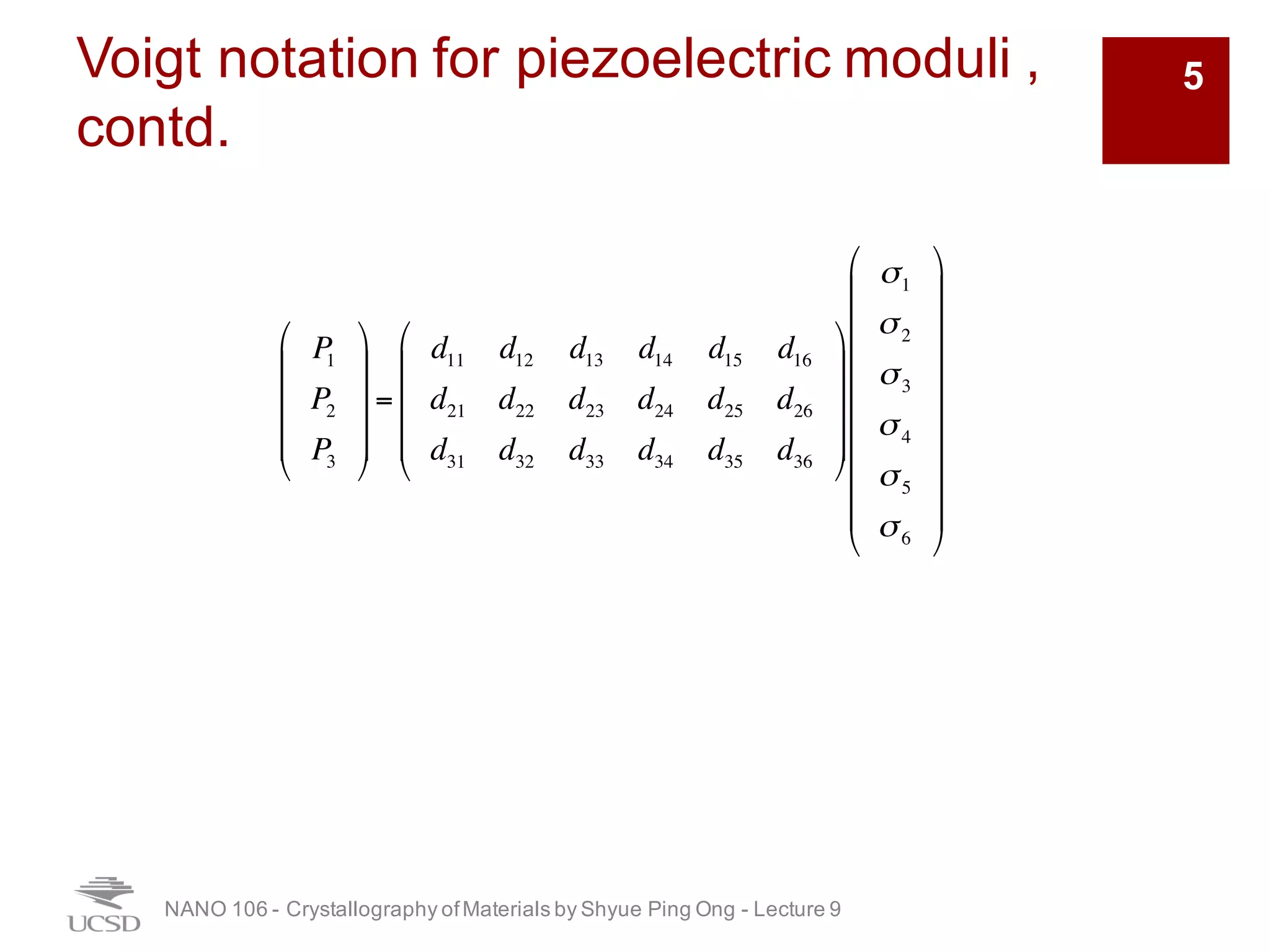

- 5. Voigt notation forpiezoelectric moduli , contd. NANO 106 - Crystallography ofMaterials by Shyue Ping Ong - Lecture 9 5 P1 P2 P3 ! " # # ## $ % & & && = d11 d12 d13 d14 d15 d16 d21 d22 d23 d24 d25 d26 d31 d32 d33 d34 d35 d36 ! " # # ## $ % & & && σ1 σ2 σ3 σ4 σ5 σ6 ! " # # # # # # # # $ % & & & & & & & &
- 6. Converse piezoelectric moduli ¡The same coefficients apply to the converse piezoelectric effect (note order of indices!) ¡ Similarly, ¡ Again, we note that by definition, NANO 106 - Crystallography ofMaterials by Shyue Ping Ong - Lecture 9 6 εjk = dijkEi ε11 = d111E1 + d211E2 + d311E3 ε22 = d122E1 + d222E2 + d322E3 ε33 = d133E1 + d233E2 + d333E3 ε23 = d123E1 + d223E2 + d323E3 ε32 = d132E1 + d232E2 + d332E3 ε23 =ε32 ε23 +ε32 = (d123 + d132 )E1 +(d223 + d232 )E2 +(d323 + d332 )E3 =γ4
- 7. Voigt notation forconverse piezoelectric effect ¡ Recall that we earlier defined the vector notation for the strain tensor to be the engineering shear strains (2 x strain) for the off-diagonals elements. This in fact allows us to retain the same form of the matrix for the converse piezoelectric effect as the direct piezoelectric effect! NANO 106 - Crystallography ofMaterials by Shyue Ping Ong - Lecture 9 7 ε1 ε2 ε3 γ4 γ5 γ6 ! " # # # # # # # # $ % & & & & & & & & = d11 d21 d31 d12 d22 d32 d13 d23 d33 d14 d24 d34 d15 d25 d35 d16 d26 d36 ! " # # # # # # # # $ % & & & & & & & & E1 E2 E3 ! " # # ## $ % & & &&
- 8. Symmetry restrictions onpiezoelectric moduli ¡ As there are many more terms, we are not going to go through the exercise of deriving all the possible piezoelectric moduli tensors / matrices. ¡ We will just go through a few examples to show how these can be derived, and state the different forms. ¡ Note that while the Voigt form is useful for performing computations, the information about how the tensor transforms is “lost”. You will need to go back to the full tensor form to determine the transformation. NANO 106 - Crystallography ofMaterials by Shyue Ping Ong - Lecture 9 8

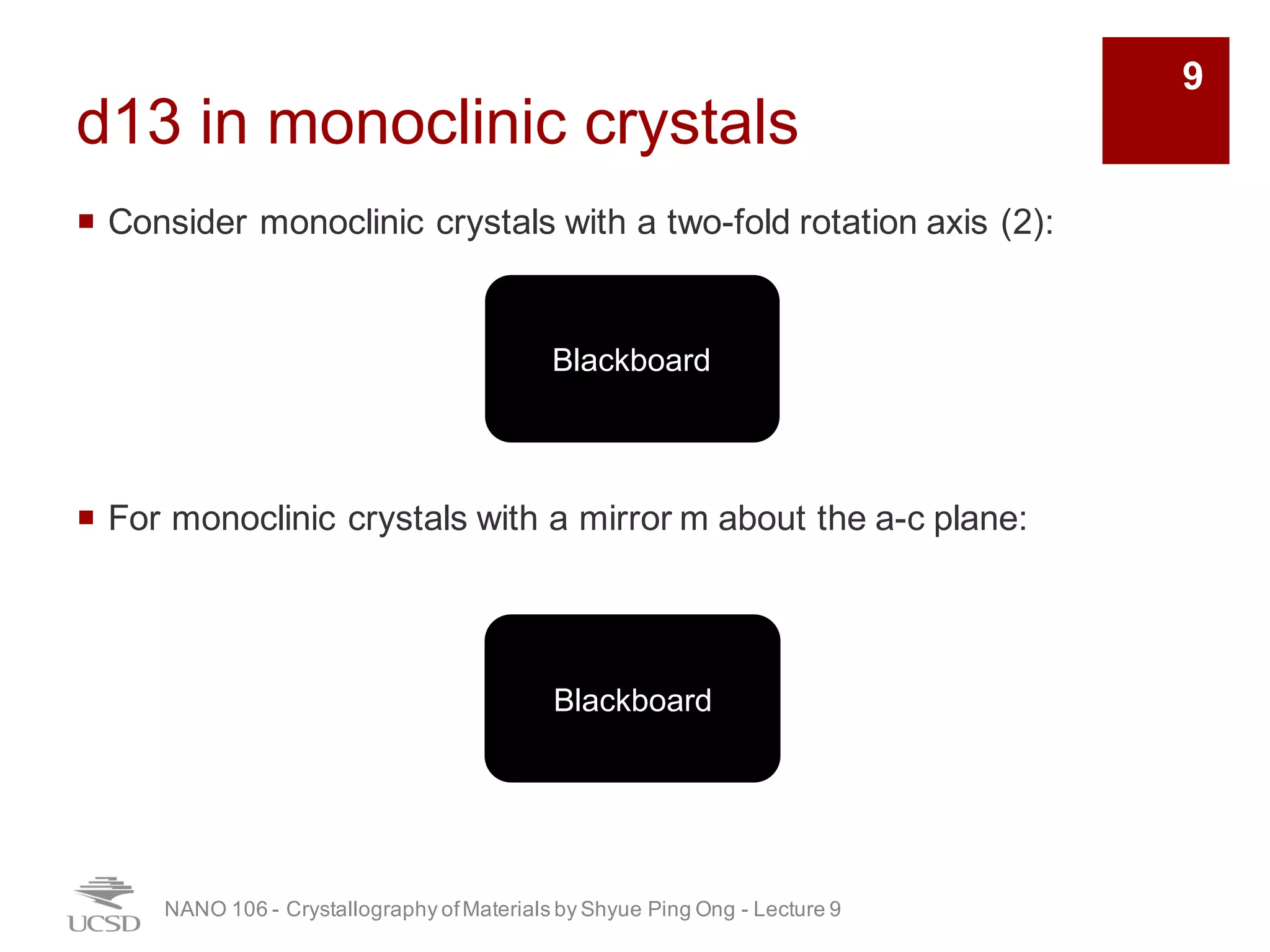

- 9. d13 in monocliniccrystals ¡ Consider monoclinic crystals with a two-fold rotation axis (2): ¡ For monoclinic crystals with a mirror m about the a-c plane: NANO 106 - Crystallography ofMaterials by Shyue Ping Ong - Lecture 9 9 Blackboard Blackboard

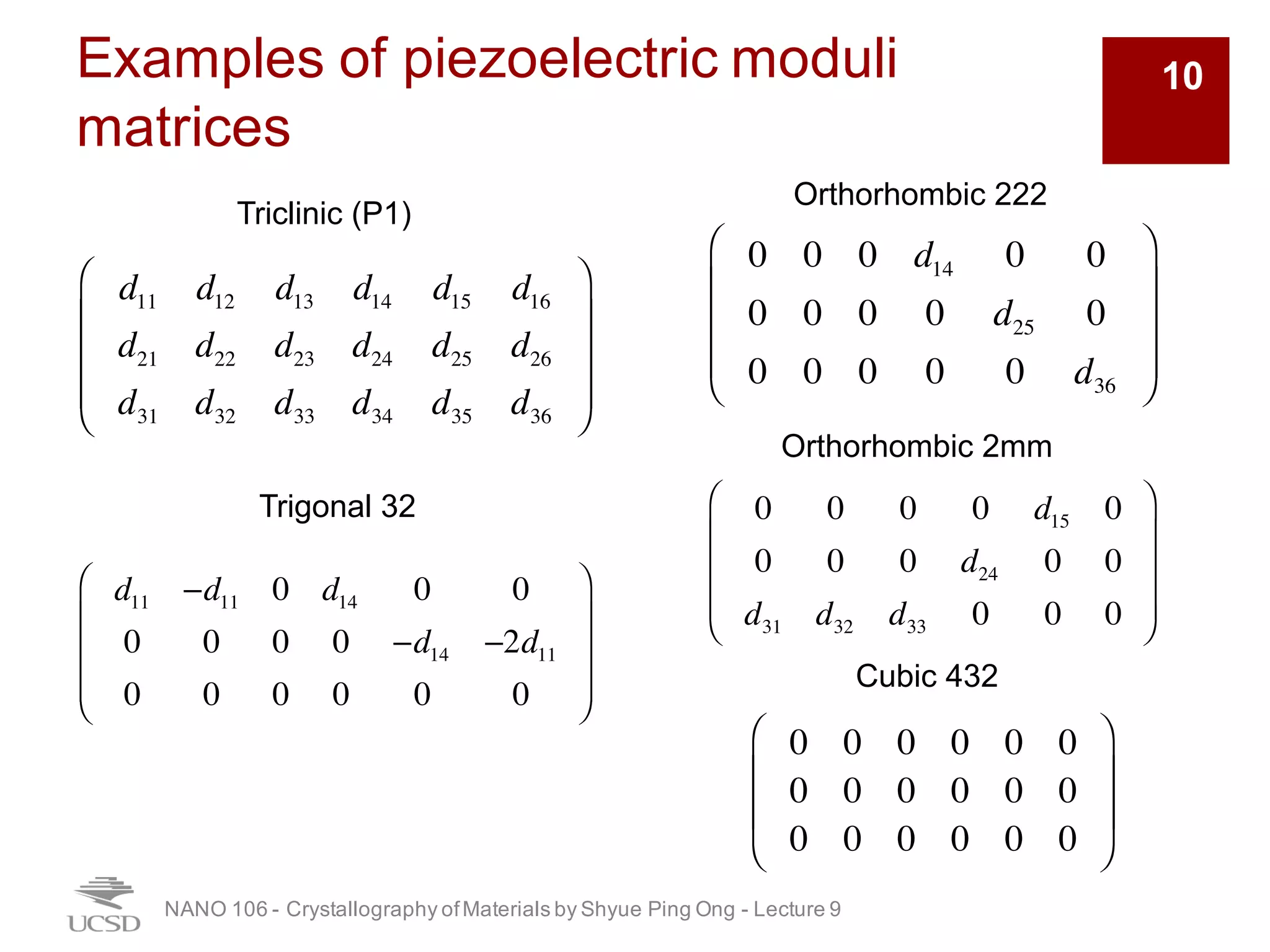

- 10. Examples of piezoelectricmoduli matrices NANO 106 - Crystallography ofMaterials by Shyue Ping Ong - Lecture 9 10 Triclinic (P1) Orthorhombic 222 Orthorhombic 2mm Trigonal 32 Cubic 432 d11 d12 d13 d14 d15 d16 d21 d22 d23 d24 d25 d26 d31 d32 d33 d34 d35 d36 ⎛ ⎝ ⎜ ⎜ ⎜ ⎞ ⎠ ⎟ ⎟ ⎟ d11 −d11 0 d14 0 0 0 0 0 0 −d14 −2d11 0 0 0 0 0 0 ⎛ ⎝ ⎜ ⎜ ⎜ ⎞ ⎠ ⎟ ⎟ ⎟ 0 0 0 d14 0 0 0 0 0 0 d25 0 0 0 0 0 0 d36 ⎛ ⎝ ⎜ ⎜ ⎜ ⎞ ⎠ ⎟ ⎟ ⎟ 0 0 0 0 d15 0 0 0 0 d24 0 0 d31 d32 d33 0 0 0 ⎛ ⎝ ⎜ ⎜ ⎜ ⎞ ⎠ ⎟ ⎟ ⎟ 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 ⎛ ⎝ ⎜ ⎜ ⎞ ⎠ ⎟ ⎟

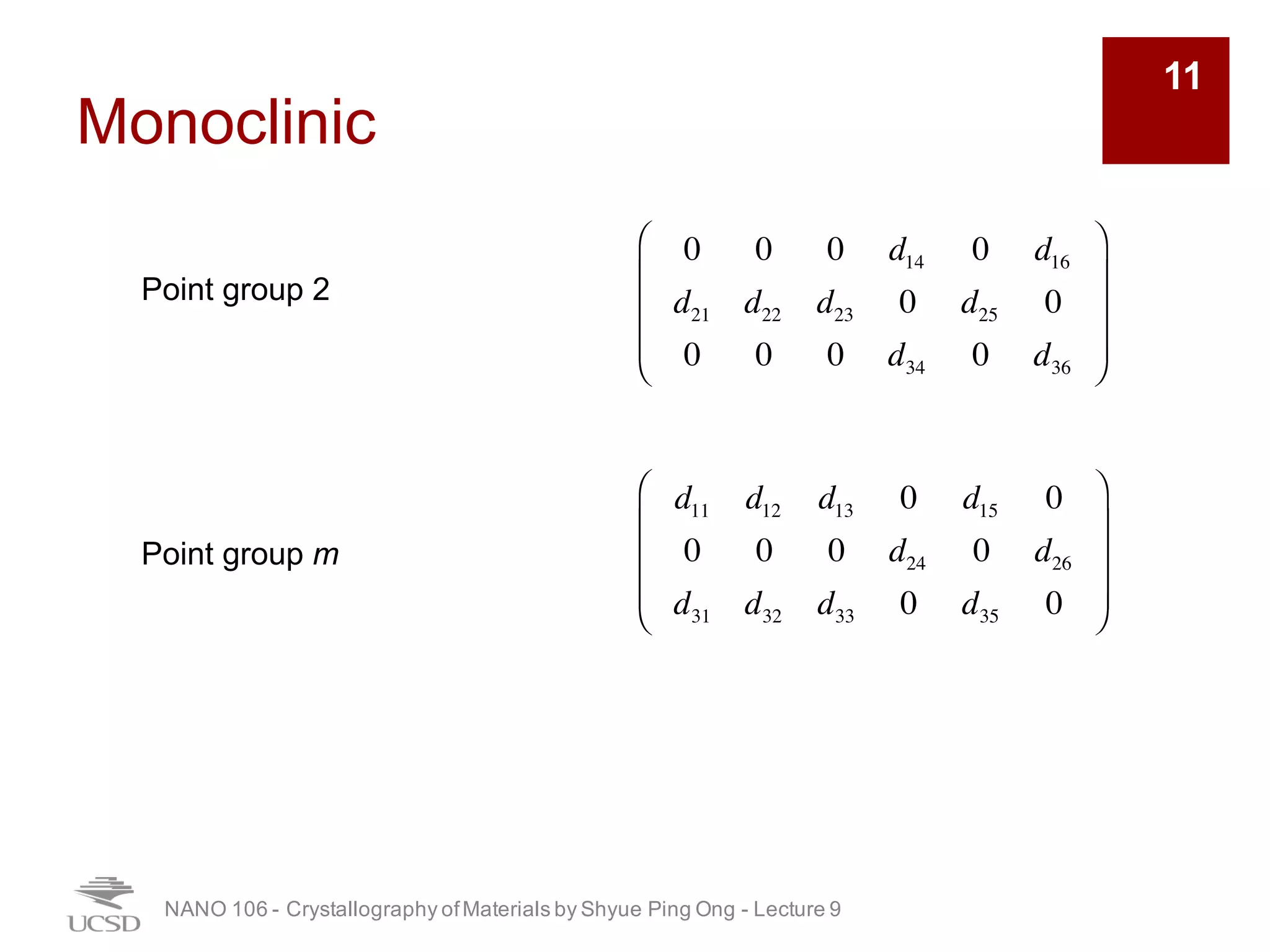

- 11. Monoclinic NANO 106 -Crystallography ofMaterials by Shyue Ping Ong - Lecture 9 11 0 0 0 d14 0 d16 d21 d22 d23 0 d25 0 0 0 0 d34 0 d36 ⎛ ⎝ ⎜ ⎜ ⎜ ⎞ ⎠ ⎟ ⎟ ⎟ Point group 2 d11 d12 d13 0 d15 0 0 0 0 d24 0 d26 d31 d32 d33 0 d35 0 ⎛ ⎝ ⎜ ⎜ ⎜ ⎞ ⎠ ⎟ ⎟ ⎟ Point group m

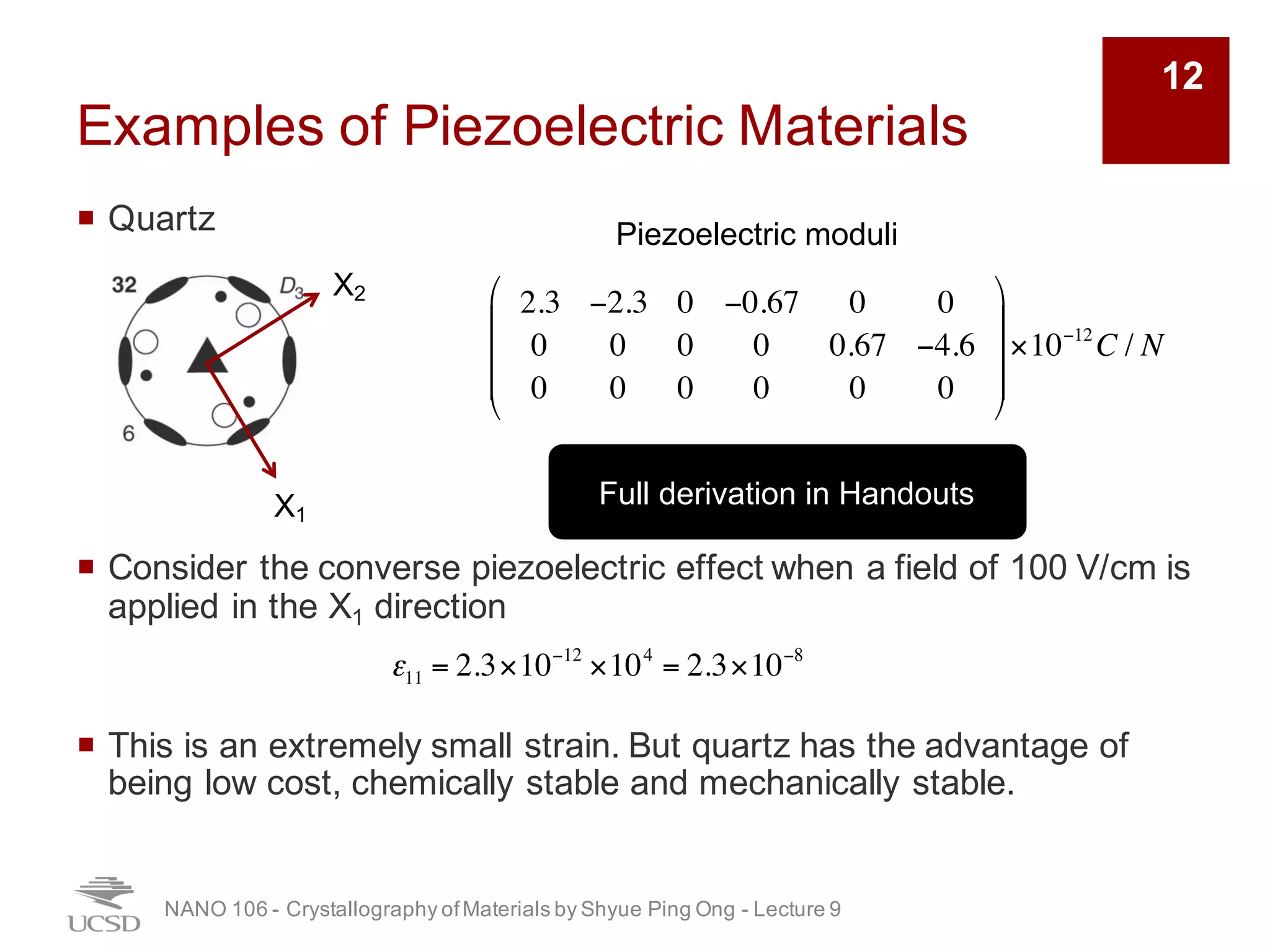

- 12. Examples of PiezoelectricMaterials ¡ Quartz ¡ Consider the converse piezoelectric effect when a field of 100 V/cm is applied in the X1 direction ¡ This is an extremely small strain. But quartz has the advantage of being low cost, chemically stable and mechanically stable. NANO 106 - Crystallography ofMaterials by Shyue Ping Ong - Lecture 9 12 2.3 −2.3 0 −0.67 0 0 0 0 0 0 0.67 −4.6 0 0 0 0 0 0 " # $ $ $ % & ' ' ' ×10−12 C / N Piezoelectric moduli X1 X2 ε11 = 2.3×10−12 ×104 = 2.3×10−8 Full derivation in Handouts
- 13. Examples of PiezoelectricMaterials ¡ Ammonium dihydrogen phosphate (ADP) ¡ Used in sonar trasducers ¡ Fairly large d33 (more than 10 times the largest moduli in quartz) ¡ However, fairly soft and moisture sensitive. NANO 106 - Crystallography ofMaterials by Shyue Ping Ong - Lecture 9 13 0 0 0 1.8 0 0 0 0 0 0 1.8 0 0 0 0 0 0 48 ! " # # # $ % & & & ×10−12 C / N Piezoelectric moduli
- 14. PZT (PbZr1−xTixO3) ¡ Usedextensively in trasducer technology ¡ Underwater sonar, biomedical ultrasound, multilayer actuators for fuel injection, piezoelectric printers, and bimorph pneumatic valves all make use of poled PZT ceramics. NANO 106 - Crystallography ofMaterials by Shyue Ping Ong - Lecture 9 14 3m with [111] polar axis 4mm with [001] polar axis Piezoelectric properties enhanced by choosing compositions close to morphotropic boundary between rhombohedral and tetragonal distortions. Heating above Curie point, the crystal structure becomes centrosymmetric, and all electric dipoles vanish. As the material is cooled in the presence of a sufficiently large electric field, the dipoles tend to align with the applied field, all together giving rise to a nonzero net polarization.
- 15. PZT, contd ¡ Electricallypoled materials belong to Curie symmetry ∞m, which has piezoelectric tensors of the following form: NANO 106 - Crystallography ofMaterials by Shyue Ping Ong - Lecture 9 15 0 0 0 0 d15 0 0 0 0 d15 0 0 d31 d31 d33 0 0 0 ! " # # ## $ % & & && ¡ Intrinsic effects: Under a tensile stress parallel to the dipole moment, there is an enhancement of the polarization along [001] = Z3. When a tensile stress is applied perpendicular to the dipole, the polarization along Z3 (d33 and d31) is reduced. When the dipole is tilted by shear stress, charges appear on the side faces (d15). ¡ Extrinsic contributions: Doping with higher or lower-valent ions. ¡ Nb5+ for Ti4+ gives soft PZT with easily movable domain walls and a large piezoelectric coefficient. Used in hydrophones and other sensors. ¡ Fe3+ for Ti4+ gives hard PZTs, used in high-power transducers because they will not depole under high fields in the reverse directions.

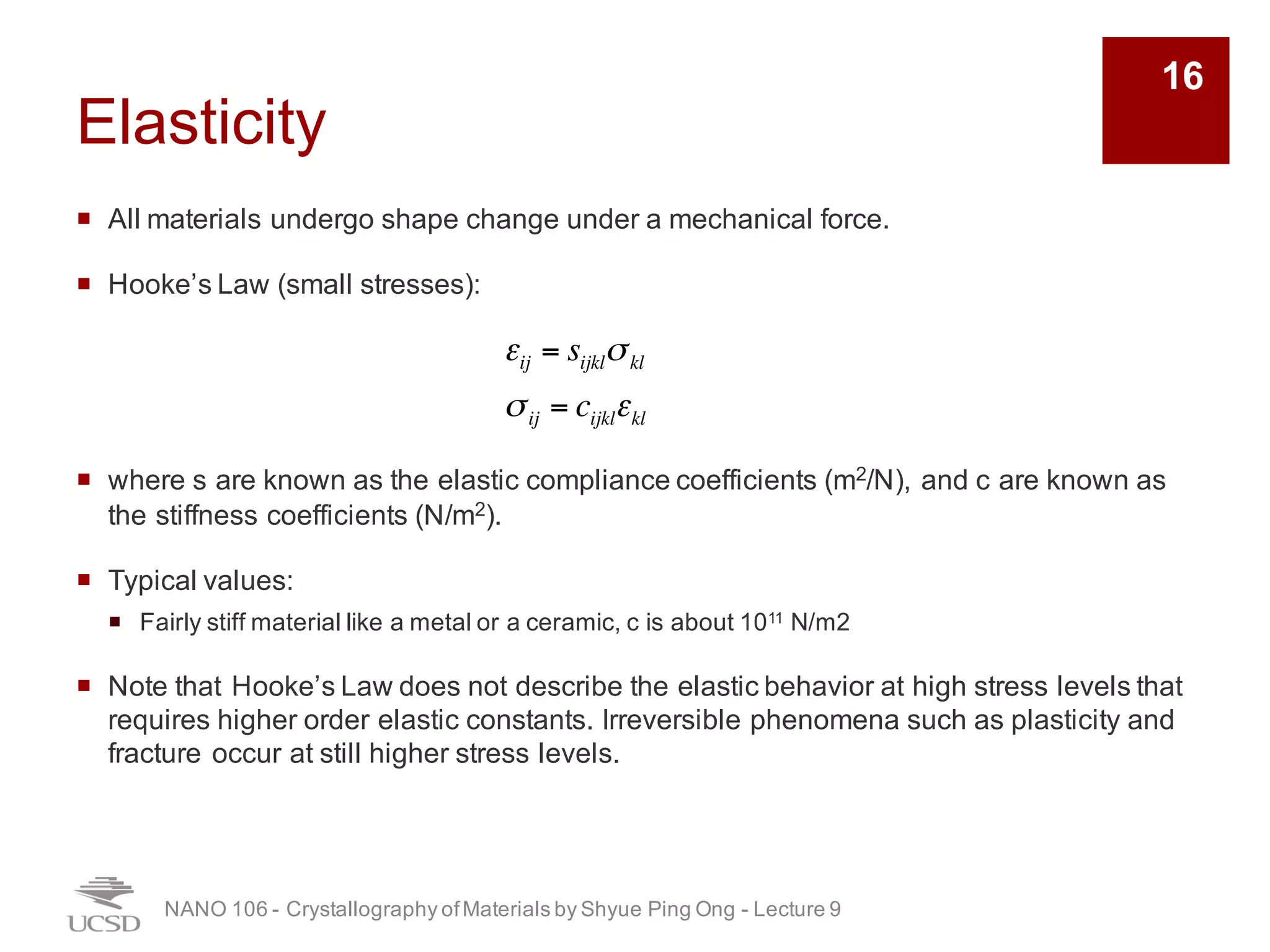

- 16. Elasticity ¡ All materialsundergo shape change under a mechanical force. ¡ Hooke’s Law (small stresses): ¡ where s are known as the elastic compliance coefficients (m2/N), and c are known as the stiffness coefficients (N/m2). ¡ Typical values: ¡ Fairly stiff material like a metal or a ceramic, c is about 1011 N/m2 ¡ Note that Hooke’s Law does not describe the elastic behavior at high stress levels that requires higher order elastic constants. Irreversible phenomena such as plasticity and fracture occur at still higher stress levels. NANO 106 - Crystallography ofMaterials by Shyue Ping Ong - Lecture 9 16 εij = sijklσkl σij = cijklεkl
- 17. Stiffness and compliancecoefficients ¡ The stiffness and compliance coefficients are rank 4 tensors and transform as: ¡ There are 81 (34) coefficients in total, though the actual number of non-zero independent coefficients is considerably reduced by the fact that both the strain and stress are symmetric rank 2 tensors. NANO 106 - Crystallography ofMaterials by Shyue Ping Ong - Lecture 9 17 cijkl ! = aimajnakoalpcmnop sijkl ! = aimajnakoalpsmnop

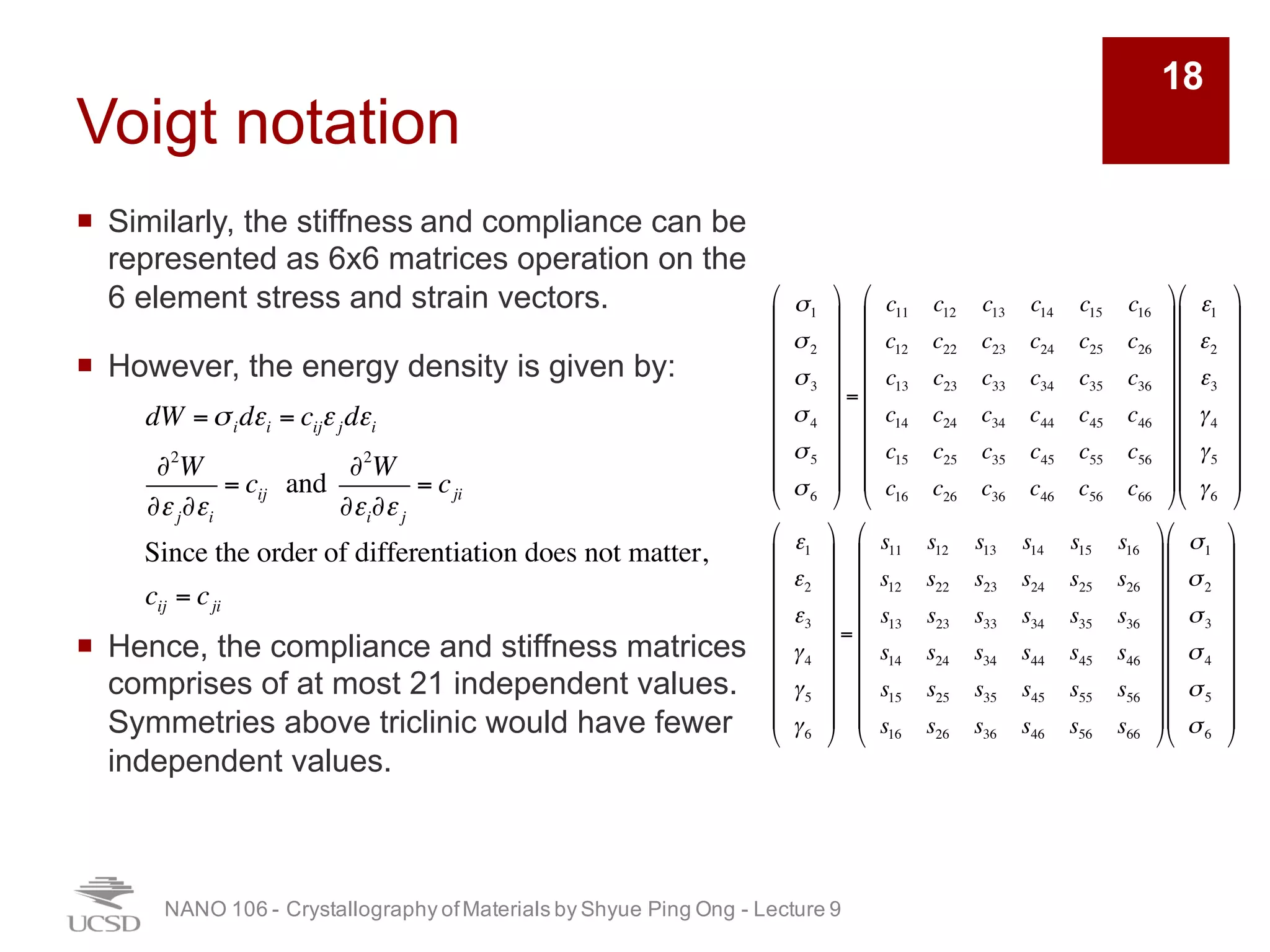

- 18. Voigt notation ¡ Similarly,the stiffness and compliance can be represented as 6x6 matrices operation on the 6 element stress and strain vectors. ¡ However, the energy density is given by: ¡ Hence, the compliance and stiffness matrices comprises of at most 21 independent values. Symmetries above triclinic would have fewer independent values. NANO 106 - Crystallography ofMaterials by Shyue Ping Ong - Lecture 9 18 dW =σidεi = cijεjdεi ∂2 W ∂εj∂εi = cij and ∂2 W ∂εi∂εj = cji Since the order of differentiation does not matter, cij = cji σ1 σ2 σ3 σ4 σ5 σ6 ! " # # # # # # # # $ % & & & & & & & & = c11 c12 c13 c14 c15 c16 c12 c22 c23 c24 c25 c26 c13 c23 c33 c34 c35 c36 c14 c24 c34 c44 c45 c46 c15 c25 c35 c45 c55 c56 c16 c26 c36 c46 c56 c66 ! " # # # # # # # # $ % & & & & & & & & ε1 ε2 ε3 γ4 γ5 γ6 ! " # # # # # # # # $ % & & & & & & & & ε1 ε2 ε3 γ4 γ5 γ6 ! " # # # # # # # # $ % & & & & & & & & = s11 s12 s13 s14 s15 s16 s12 s22 s23 s24 s25 s26 s13 s23 s33 s34 s35 s36 s14 s24 s34 s44 s45 s46 s15 s25 s35 s45 s55 s56 s16 s26 s36 s46 s56 s66 ! " # # # # # # # # $ % & & & & & & & & σ1 σ2 σ3 σ4 σ5 σ6 ! " # # # # # # # # $ % & & & & & & & &
- 19. Conversion between tensorand matrix notations ¡ Stiffness NANO 106 - Crystallography ofMaterials by Shyue Ping Ong - Lecture 9 19 σij = cijklεkl σ11 = c1111ε11 +c1112ε12 +c1121ε21 +c1122ε22 +… The corresponding matrix form is σ1 = c11ε1 +c16γ6 +c12ε2 +… (recall that γ6 =ε12 +ε21) Hence, there is no factor of 2 in the conversion for the stiffness tensor to matrix.
- 20. Conversion between tensorand matrix notations - Compliance NANO 106 - Crystallography ofMaterials by Shyue Ping Ong - Lecture 9 20 ε1 ε2 ε3 γ4 γ5 γ6 ! " # # # # # # # # $ % & & & & & & & & = s1111 s1122 s1133 2s1123 2s1113 2s1112 s1122 s2222 s2233 2s2223 2s2213 2s2212 s1133 s2233 s3333 2s3323 2s3313 2s3312 2s1123 2s2223 2s3323 4s2323 4s2313 4s2312 2s1113 2s2213 2s3313 4s2313 4s1313 4s1312 2s1112 2s2212 2s3312 4s2312 4s1312 4s1212 ! " # # # # # # # # $ % & & & & & & & & σ1 σ2 σ3 σ4 σ5 σ6 ! " # # # # # # # # $ % & & & & & & & & Blackboard
- 21. Symmetry restrictions oncompliance and stiffness coefficients ¡ Similar to piezoelectric coefficients, we need to use the full tensor notation to work out the effects on symmetry on the compliance and stiffness coefficients. ¡ Let’s consider a crystal with point group 4/m. Considering the 4 // Z3, we have X1’ = X2, X2’ = -X1, X3’ = X3. Hence, we can show that NANO 106 - Crystallography ofMaterials by Shyue Ping Ong - Lecture 9 21 s11 s12 s13 0 0 s16 s12 s11 s13 0 0 −s16 s13 s13 s33 0 0 0 0 0 0 s44 0 0 0 0 0 0 s44 0 s16 −s16 0 0 0 s66 " # $ $ $ $ $ $ $ $ % & ' ' ' ' ' ' ' ' Blackboard

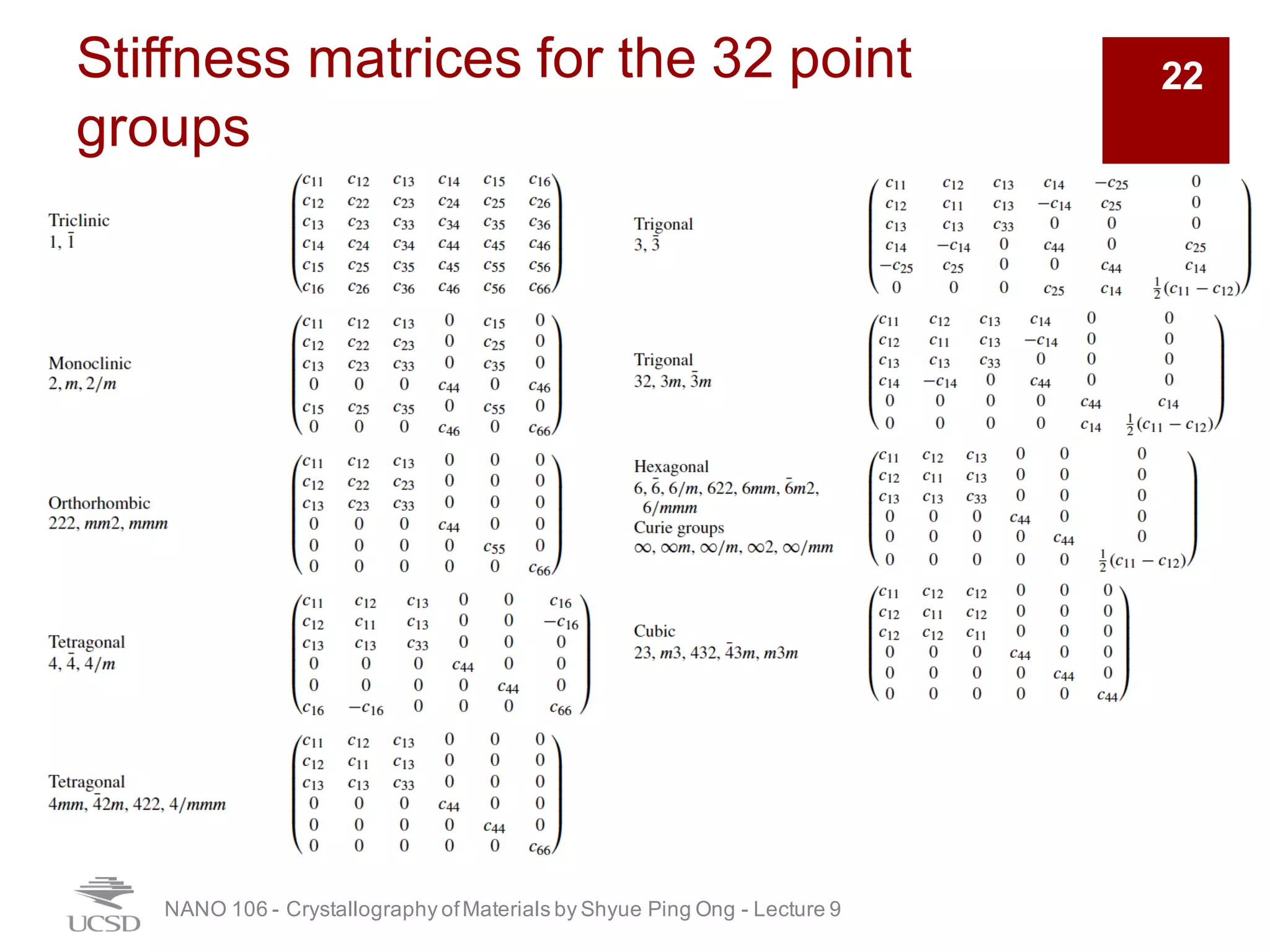

- 22. Stiffness matrices forthe 32 point groups NANO 106 - Crystallography ofMaterials by Shyue Ping Ong - Lecture 9 22
- 23. Stiffness and compliancerelations NANO 106 - Crystallography ofMaterials by Shyue Ping Ong - Lecture 9 23 Using the matrix notation, σ = cε = csσ Hence, cs =1 Converting to the Einstein notation, cijsjk =δik In full tensor notation, we have cijklsklmn =δimδjn Example: For cubic crystals with only three independent coefficients, it can be shown that: c11 = s11 + s12 (s11 − s12 )(s11 + 2s12 ) c12 = − s12 (s11 − s12 )(s11 + 2s12 ) c44 = 1 s44
- 24. Compressibility ¡ Compressibility isdefined as ¡ where V is volume and p is hydrostatic pressure. ¡ As noted earlier, change in volume per unit volume is: ¡ For hydrostatic pressure, we have NANO 106 - Crystallography ofMaterials by Shyue Ping Ong - Lecture 9 24 K = − 1 V dV dp ΔV V =ε11 +ε22 +ε33 =εii εii = siikl pδkl Hence, K = s1111 + s1122 + s1133 + s2211 + s2222 + s2233 + s3311 + s3322 + s3333 (sum of upper left 3x3 sub-matrix of compliance matrix) s11 s12 s13 0 0 s16 s12 s11 s13 0 0 −s16 s13 s13 s33 0 0 0 0 0 0 s44 0 0 0 0 0 0 s44 0 s16 −s16 0 0 0 s66 " # $ $ $ $ $ $ $ $ % & ' ' ' ' ' ' ' '
- 25. Typical compressibilities inrocksalt crystals ¡Crystals with long weak bonds tend to have higher compressibilities. NANO 106 - Crystallography ofMaterials by Shyue Ping Ong - Lecture 9 25

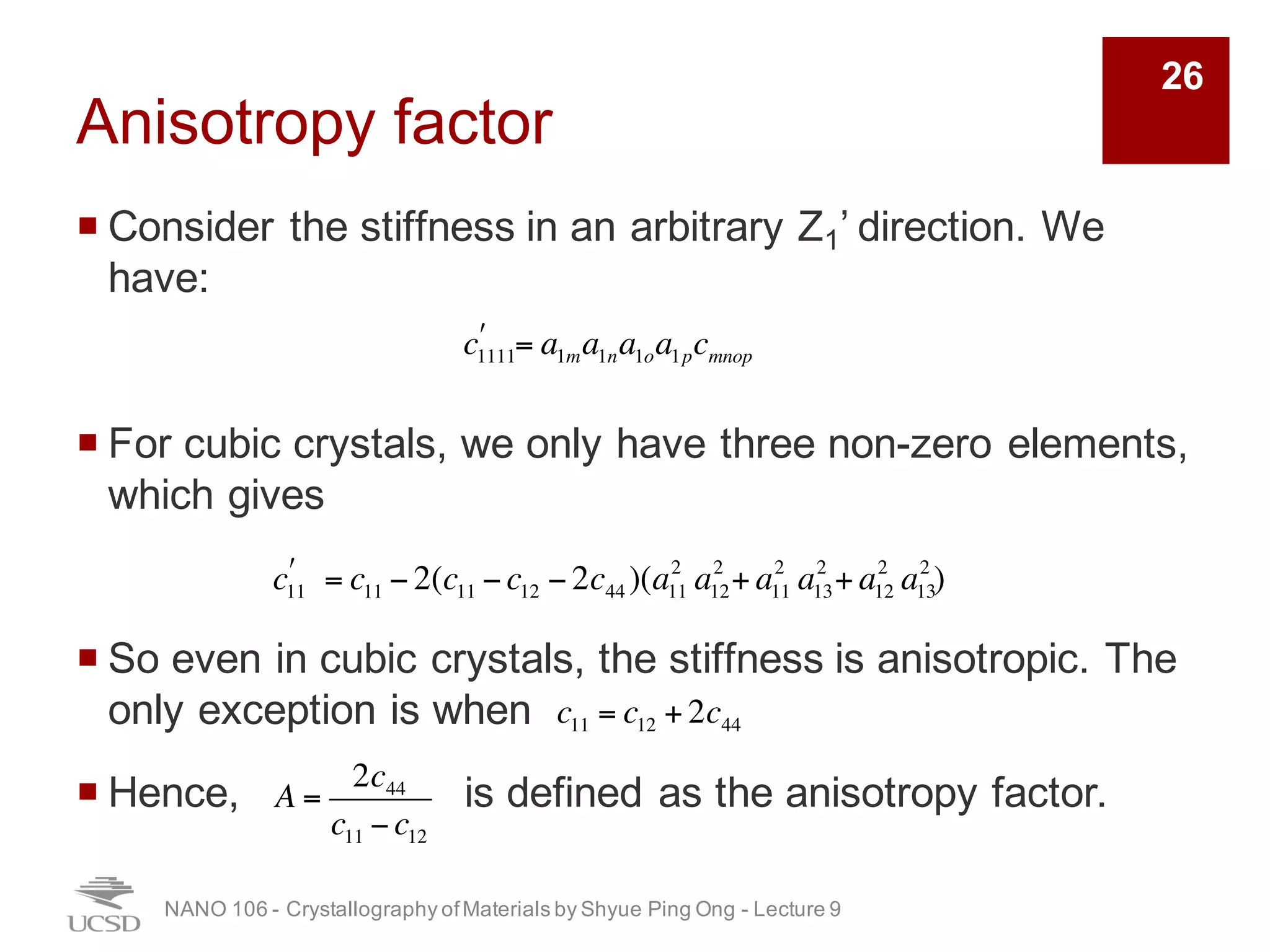

- 26. Anisotropy factor ¡ Considerthe stiffness in an arbitrary Z1’ direction. We have: ¡ For cubic crystals, we only have three non-zero elements, which gives ¡ So even in cubic crystals, the stiffness is anisotropic. The only exception is when ¡ Hence, is defined as the anisotropy factor. NANO 106 - Crystallography ofMaterials by Shyue Ping Ong - Lecture 9 26 c1111 ! = a1ma1na1oa1pcmnop c11 ! = c11 − 2(c11 −c12 − 2c44 )(a11 2 a12 2 + a11 2 a13 2 + a12 2 a13 2 ) c11 = c12 + 2c44 A = 2c44 c11 −c12

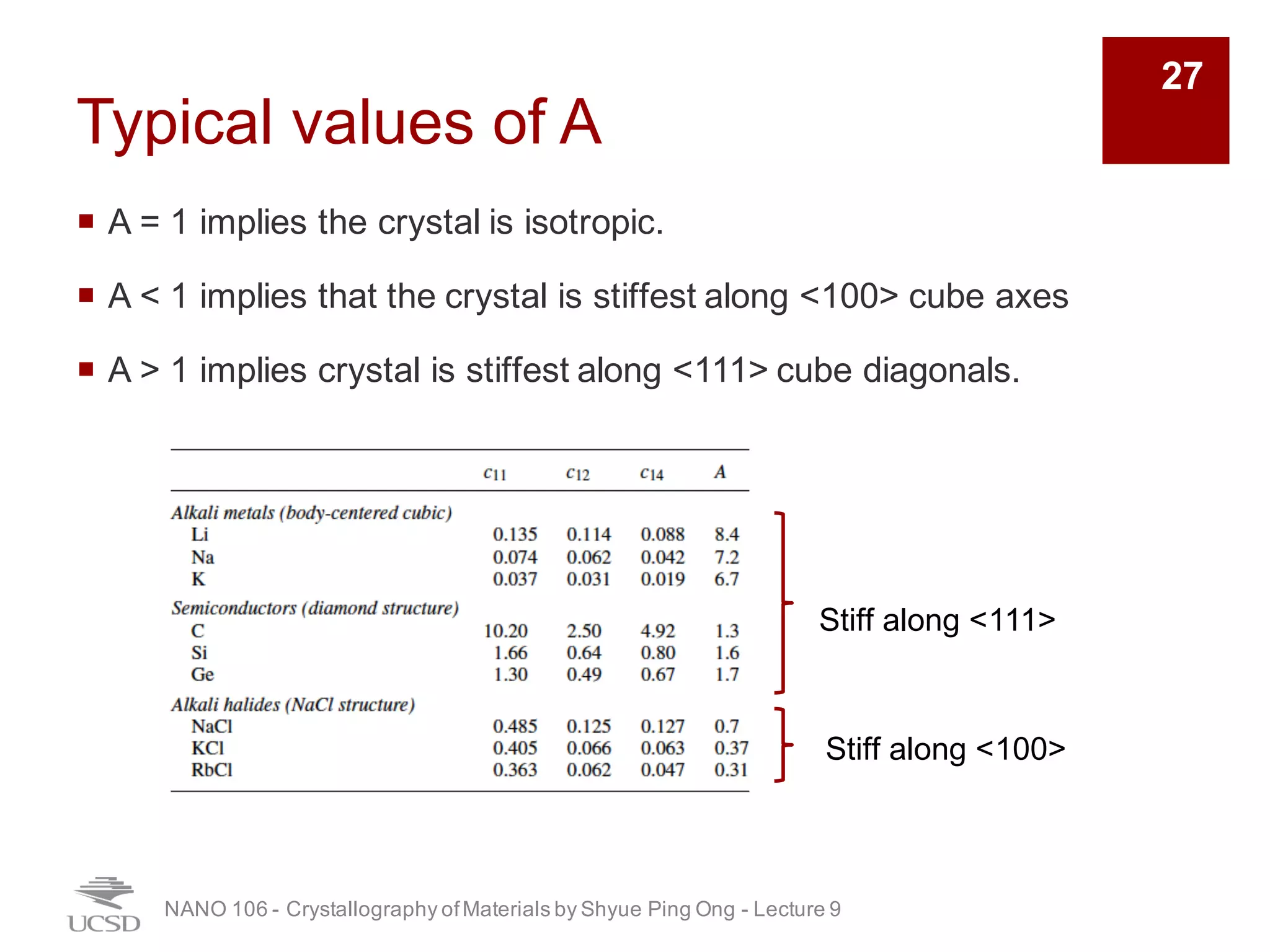

- 27. Typical values ofA ¡ A = 1 implies the crystal is isotropic. ¡ A < 1 implies that the crystal is stiffest along <100> cube axes ¡ A > 1 implies crystal is stiffest along <111> cube diagonals. NANO 106 - Crystallography ofMaterials by Shyue Ping Ong - Lecture 9 27 Stiff along <111> Stiff along <100>

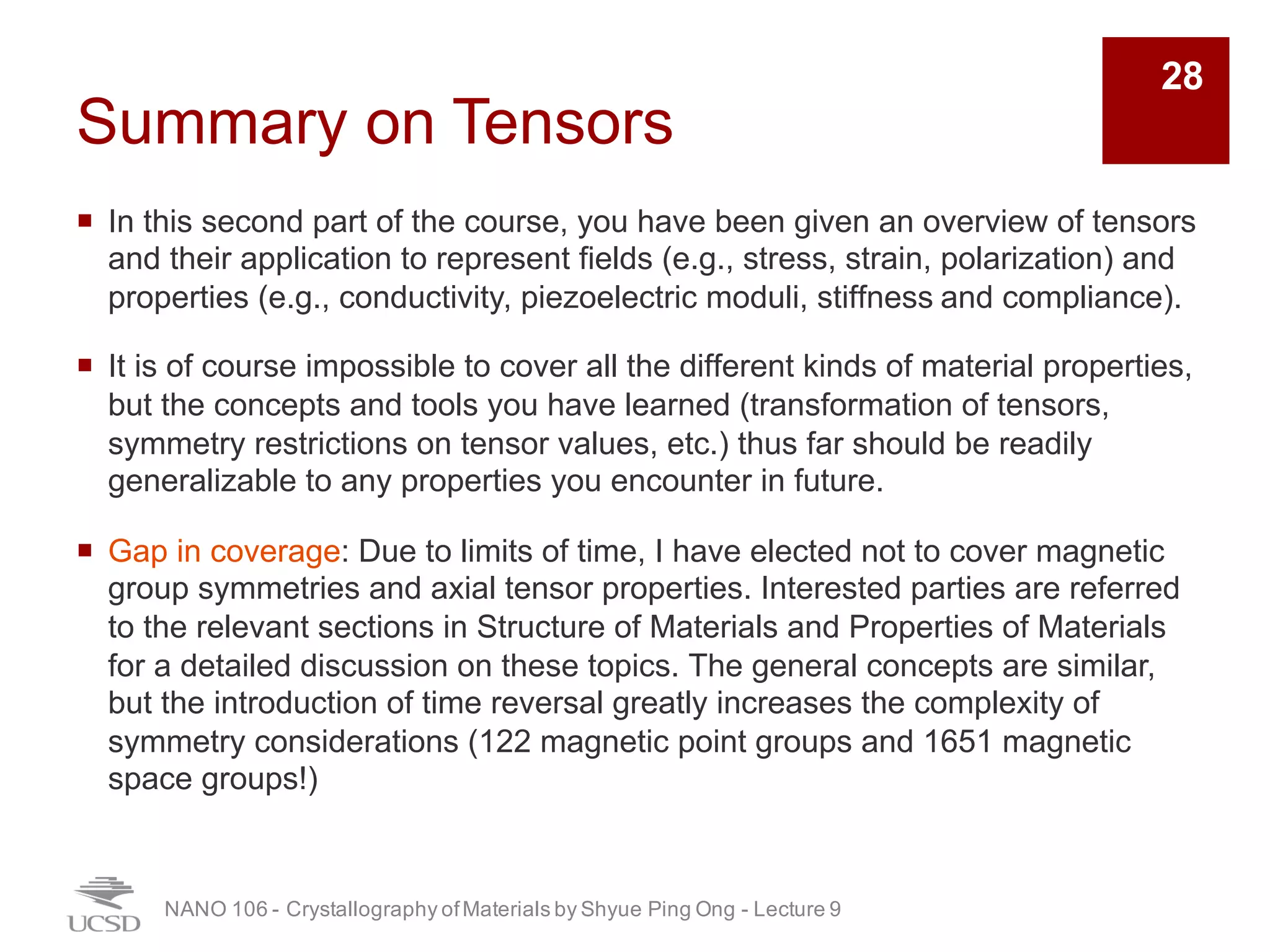

- 28. Summary on Tensors ¡In this second part of the course, you have been given an overview of tensors and their application to represent fields (e.g., stress, strain, polarization) and properties (e.g., conductivity, piezoelectric moduli, stiffness and compliance). ¡ It is of course impossible to cover all the different kinds of material properties, but the concepts and tools you have learned (transformation of tensors, symmetry restrictions on tensor values, etc.) thus far should be readily generalizable to any properties you encounter in future. ¡ Gap in coverage: Due to limits of time, I have elected not to cover magnetic group symmetries and axial tensor properties. Interested parties are referred to the relevant sections in Structure of Materials and Properties of Materials for a detailed discussion on these topics. The general concepts are similar, but the introduction of time reversal greatly increases the complexity of symmetry considerations (122 magnetic point groups and 1651 magnetic space groups!) NANO 106 - Crystallography ofMaterials by Shyue Ping Ong - Lecture 9 28
