TheAI Revolution in
Materials Science
Shyue Ping Ong
Jul 2 2020
IMRE Webinar
Jul 2 2020
Jul 2 2020

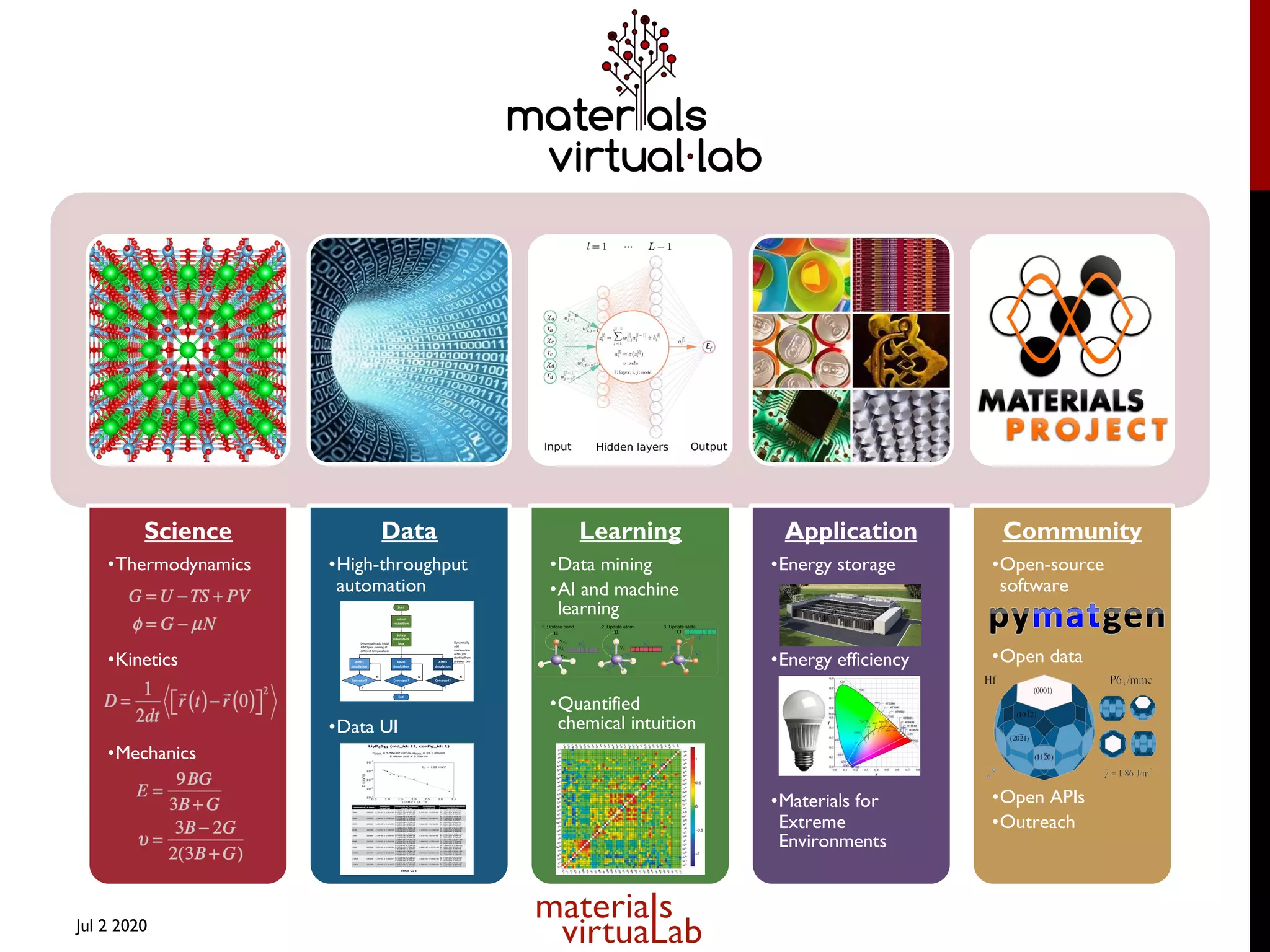

Science
•Thermodynamics
•Kinetics
•Mechanics
Data
•High-throughput
automation
•Data UI
Learning
•Data mining
•AI and machine
learning
•Quantified
chemical intuition
Application
•Energy storage
•Energy efficiency
•Materials for
Extreme
Environments
Community
•Open-source
software
•Open data
•Open APIs
•Outreach
Bond attributes
State attributes
Atom attributes
2. Update atom 3. Update state
New atom attributes
New bond attributes
New state attributes
MEGNet update steps
Outputs
MEGNet
1. Update bond
Dynamically
add
continuation
AIMD job
starting from
previous one
Dynamically add initial
AIMD jobs running at
different temperatures
Converged? Converged? Converged?
AIMD
simulation
AIMD
simulation
AIMD
simulation
Setup
simulation
box
Initial
relaxation
Start
End
N N N
Y Y Y
Machine learning (ML) is the scientific study of
algorithms and statistical models that computer
systems use to perform a specific task without
using explicit instructions, relying on patterns
and inference instead.
Jul 2 2020
Artificial
Intelligence
Machine
Learning
Supervised

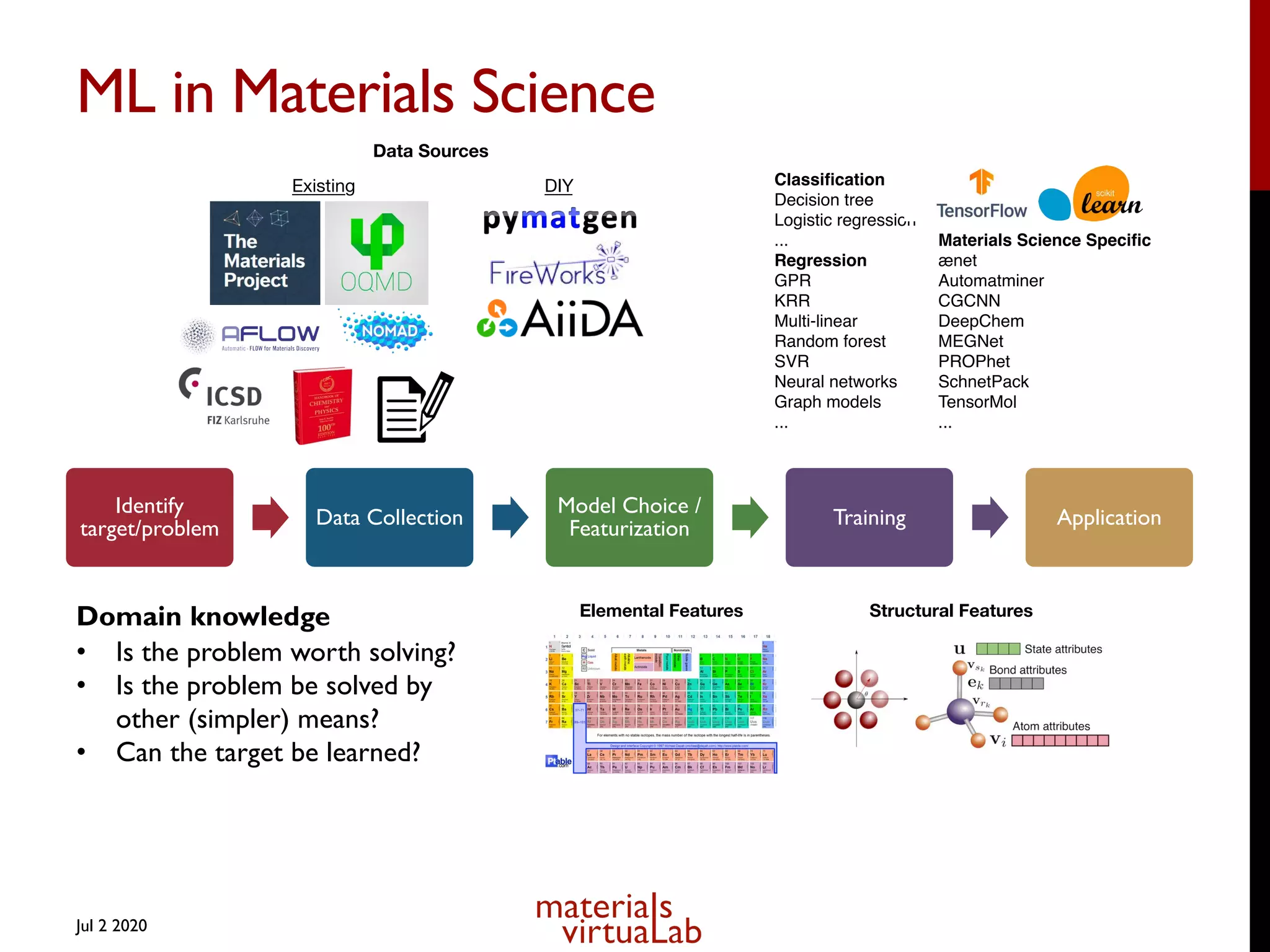

ML in Materials Science
Jul 2 2020
Identify
target/problem Data Collection
Model Choice /
Featurization Training Application
Domain knowledge
• Is the problem worth solving?
• Is the problem be solved by
other (simpler) means?
• Can the target be learned?
Data Sources
Existing DIY
Elemental Features Structural Features
Classification
Decision tree
Logistic regression
...
Regression
GPR
KRR
Multi-linear
Random forest
SVR
Neural networks
Graph models
...
Materials Science Specific
ænet
Automatminer
CGCNN
DeepChem
MEGNet
PROPhet
SchnetPack
TensorMol
...
Where is ML valuable in Materials Science?
Jul 2 2020 IMRE Webinar
Things that are too slow/difficult
to compute
Relationships that are beyond our
understanding (at the moment)
> 106 atoms
Element-wise classification model
Prediction
Predicted
Input
CN4 - Motif 1
CN5 - Mo
CN6
CN4
1: single bond 2: L-shaped 2: water-like
2: bent 120
degrees
2: bent 150
degrees
2: linear 3: T-shaped 3: trigonal planar
3: trigonal non-
coplanar
4: square co-
planar
4: tetrahedral
4: rectangular
see-saw
4: see-saw like
4: trigonal
pyramidal
5: pentagonal
planar
5: square
pyramidal
5: trigonal
bipyramidal
6: hexagonal
planar
6: octahedral
6: pentagonal
pyramidal
7: hexagonal
pyramidal
7: pentagonal
bipyramidal
8: body-centered
cubic
8: hexagonal
bipyramidal
12: cuboctahedra
??
AI Use Case 1:
Predicting Materials
Properties
Efficiently and Accurately
Jul 2 2020
IMRE Webinar

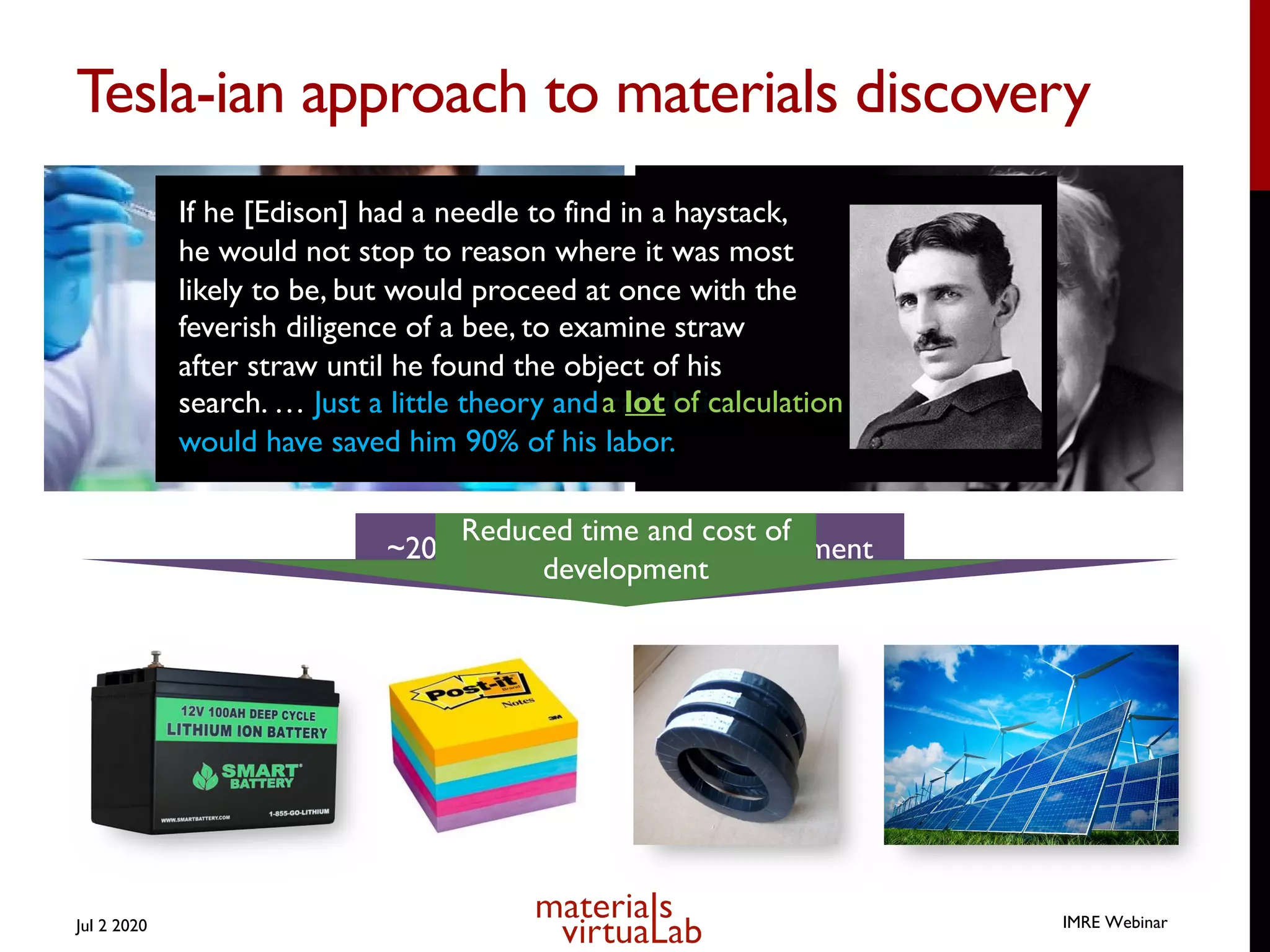

Tesla-ian approach to materials discovery
Jul 2 2020
~20 years + $ billions of development
Reduced time and cost of
development
IMRE Webinar
If he [Edison] had a needle to find in a haystack,
he would not stop to reason where it was most
likely to be, but would proceed at once with the
feverish diligence of a bee, to examine straw
after straw until he found the object of his
search. … Just a little theory and calculation
would have saved him 90% of his labor.
a lot of calculation
“First Principles” Property Prediction
Jul 2 2020
Eψ(r) = −
h 2
2m
∇2
ψ(r)+V(r)ψ(r)
Schrodinger Equation
0 0.2 0.4 0.6 0.8 1
0
50
100
150
200
250
Diffusion coordinate
Energy
(meV)
LCO
NCO
Material Properties
Phase stability1
Diffusion barriers2
Charge
densities6
Surface energies
and Wulff shape3
Density functional theory
(DFT) approximation
Generally applicable to any
chemistry
1 Ong et al., Chem. Mater., 2008, 20, 1798–1807.
2 Ong et al., Energy Environ. Sci., 2011, 4, 3680–3688.
3 Tran et al., Sci. Data, 2016, 3, 160080.
4 Deng et al., J. Electrochem. Soc., 2016, 163, A67–A74.
5 Wang et al., Chem. Mater., 2016, 28, 4024–4031.
6 Ong et al., Phys. Rev. B, 2012, 85, 2–5.
Mechanical
properties4
Electronic
structure5
Inherently
scalable
IMRE Webinar

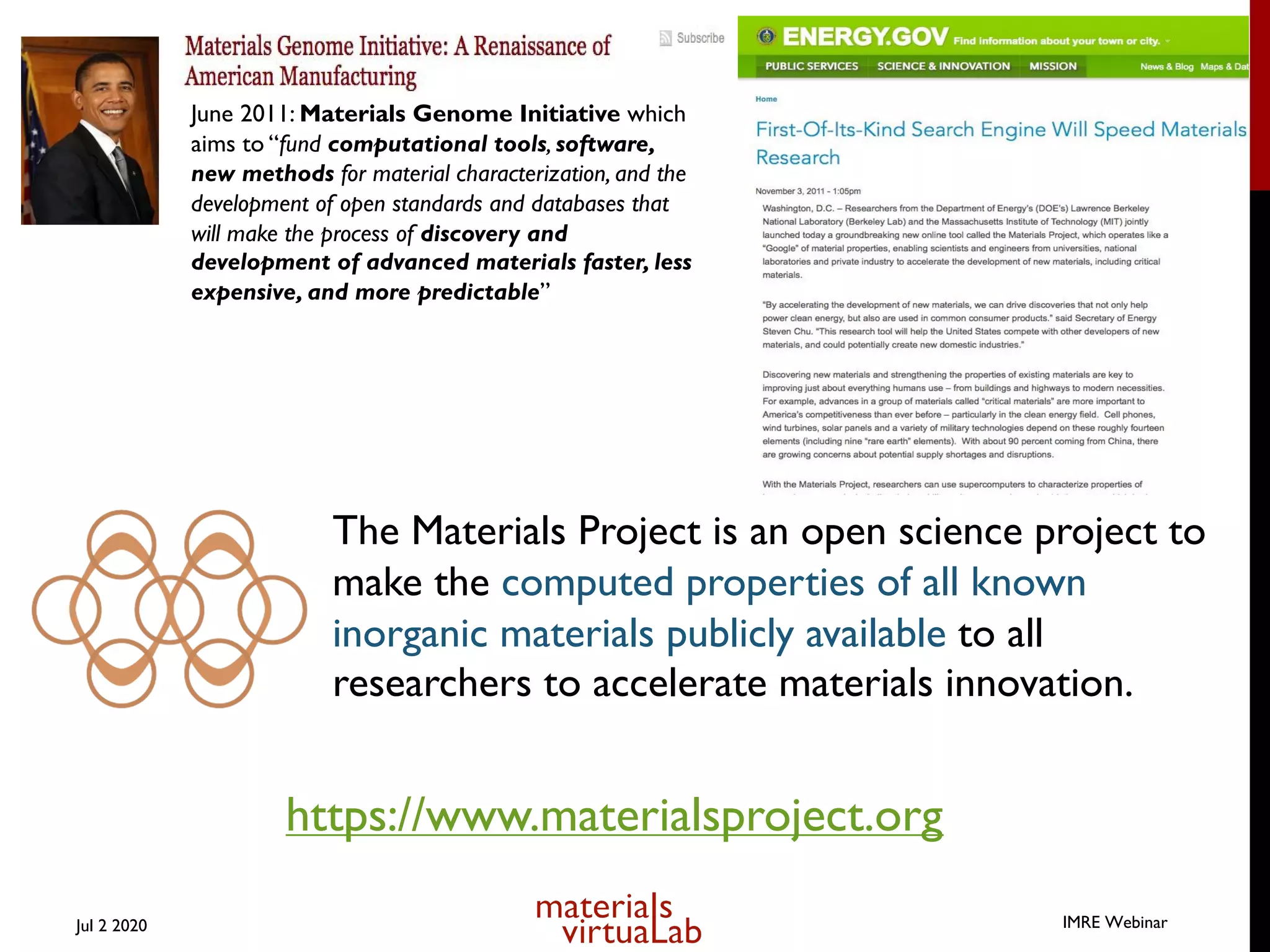

The Materials Project is an open science project to
make the computed properties of all known
inorganic materials publicly available to all
researchers to accelerate materials innovation.
June 2011: Materials Genome Initiative which
aims to “fund computational tools, software,
new methods for material characterization, and the
development of open standards and databases that
will make the process of discovery and
development of advanced materials faster, less
expensive, and more predictable”
https://www.materialsproject.org
Jul 2 2020 IMRE Webinar
IMRE Webinar
“Google” of Materials
Jul 2 2020
1 Jain et al. APL Mater. 2013, 1 (1), 11002. .
Structure
Electronic
Structure
Elastic
properties
XRD
Energetic
properties
First principles calculations are not enough!
Jul 2 2020
Reasonable ML
Deep learning
(AA’)0.5(BB’)0.5O3 perovskite
2 x 2 x 2 supercell,
10 A and 10 B species
= (10C2 x 8C4)2 ≈107
IMRE Webinar
ratio of (634 + 34)/485 ≈ 1.38 (Supplementary Table S-II) with b5%
difference in the experimental and theoretical values. This again
agree well with those calculated from the rule of mixture (Supplemen-
tary Table-III). The experimental XRD patterns also agree well with
Fig. 2. Atomic-resolution STEM ABF and HAADF images of a representative high-entropy perovskite oxide, Sr(Zr0.2Sn0.2Ti0.2Hf0.2Mn0.2)O3. (a, c) ABF and (b, d) HAADF images at (a, b) low
and (c, d) high magnifications showing nanoscale compositional homogeneity and atomic structure. The [001] zone axis and two perpendicular atomic planes (110) and (110) are marked.
Insets are averaged STEM images.
Jiang et al. A New Class of
High-Entropy Perovskite
Oxides. Scripta Materialia
2018, 142, 116–120.
Materials design is
combinatorial
Machine
Learn from
Here…
To predict
everything
else
Graphs as a natural representation for materials,
i.e.,molecules and crystals
Jul 2 2020
Global state (u)
ek1
vsk
vrk
IMRE Webinar
Zr … … … … … …
Zs … … ... … … …
… … … … … … …
T p S … … … …
𝑒
!
"!"!
"
#"
Chen et al. Chem. Mater. 2019, 31 (9), 3564–3572. doi: 10.1021/acs.chemmater.9b01294.

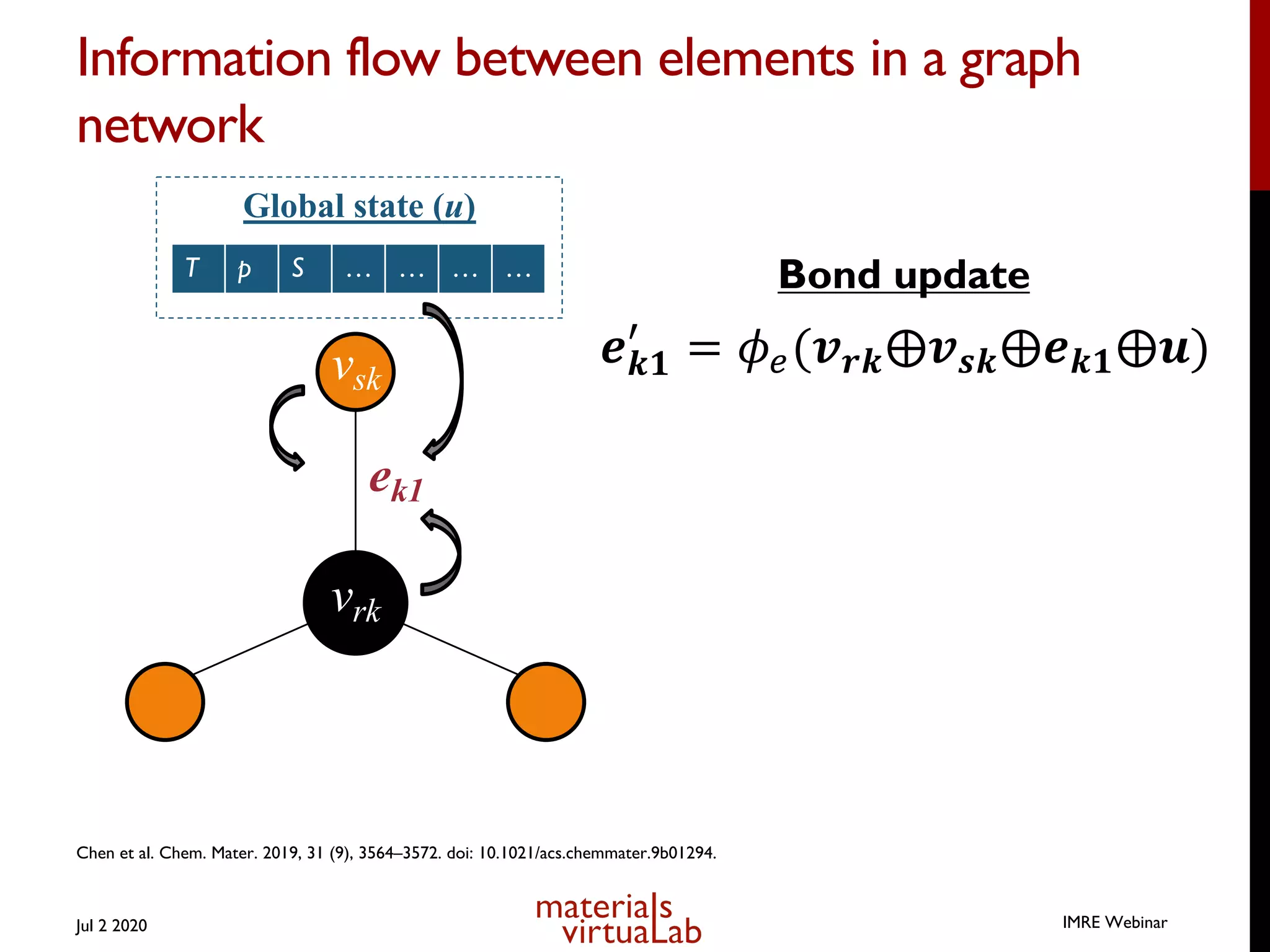

Information flow between elements in a graph
network
Jul 2 2020
Global state (u)
ek1
vsk
vrk
IMRE Webinar
T p S … … … …
𝒆𝒌𝟏
#
= 𝜙$(𝒗𝒓𝒌⨁𝒗𝒔𝒌⨁𝒆𝒌𝟏⨁𝒖)
Bond update
Chen et al. Chem. Mater. 2019, 31 (9), 3564–3572. doi: 10.1021/acs.chemmater.9b01294.
Information flow between elements in a graph
network
Jul 2 2020
Global state (u)
ek1
vsk
vrk
IMRE Webinar
T p S … … … …
ek2 ek3
Atom update
𝒆𝒌𝟏
#
= 𝜙$(𝒗𝒓𝒌⨁𝒗𝒔𝒌⨁𝒆𝒌𝟏⨁𝒖)
Bond update
𝒗𝒓𝒌
#
= 𝜙'(𝒗𝒓𝒌⨁𝒆𝒌𝒓⨁𝒖)
Chen et al. Chem. Mater. 2019, 31 (9), 3564–3572. doi: 10.1021/acs.chemmater.9b01294.
Information flow between elements in a graph
network
Jul 2 2020
Global state (u)
ek1
vsk
vrk
IMRE Webinar
T p S … … … …
ek2 ek3
Atom update
𝒆𝒌𝟏
#
= 𝜙$(𝒗𝒓𝒌⨁𝒗𝒔𝒌⨁𝒆𝒌𝟏⨁𝒖)
Bond update
State update
𝒖′ = 𝜙((𝑽⨁𝑬⨁𝒖)
𝜙 are approximated using
Universal
approximation
theorem
Cybenko et al. Math. Control Signal Systems
1989, 2 (4), 303–314.
𝒗𝒓𝒌
#
= 𝜙'(𝒗𝒓𝒌⨁𝒆𝒌𝒓⨁𝒖)
Chen et al. Chem. Mater. 2019, 31 (9), 3564–3572.
doi: 10.1021/acs.chemmater.9b01294.
MatErials Graph Networks (MEGNet)
Jul 2 2020 IMRE Webinar
Implementation is open source at https://github.com/materialsvirtuallab/megnet.
Modular blocks can be stacked
to generate models of arbitrary
complexity and “locality” of
interactions
Performance on Materials Project Crystals
Jul 2 2020 IMRE Webinar
Property MEGNet SchNet1 CGCNN2
Formation energy Ef (meV/atom) 28
(60,000)
35 39
(28,046)
Band gap Eg (eV) 0.330
(36,720)
- 0.388
(16,485)
log10 KVRH (GPa) 0.050
(4,664)
- 0.054
(2,041)
log10 GVRH (GPa) 0.079
(4,664)
- 0.087
(2,041)
Metal classifier 78.9%
(55,391)
- 80%
(28,046)
Non-metal classifier 90.6%
(55,391)
- 95%
(28,046)
1 Schutt et al. J. Chem. Phys. 148, 241722 (2018)
2 Xie et al. PRL. 120.14 (2018): 145301.
Chen et al. Chem. Mater. 2019, 31 (9), 3564–3572. doi: 10.1021/acs.chemmater.9b01294.

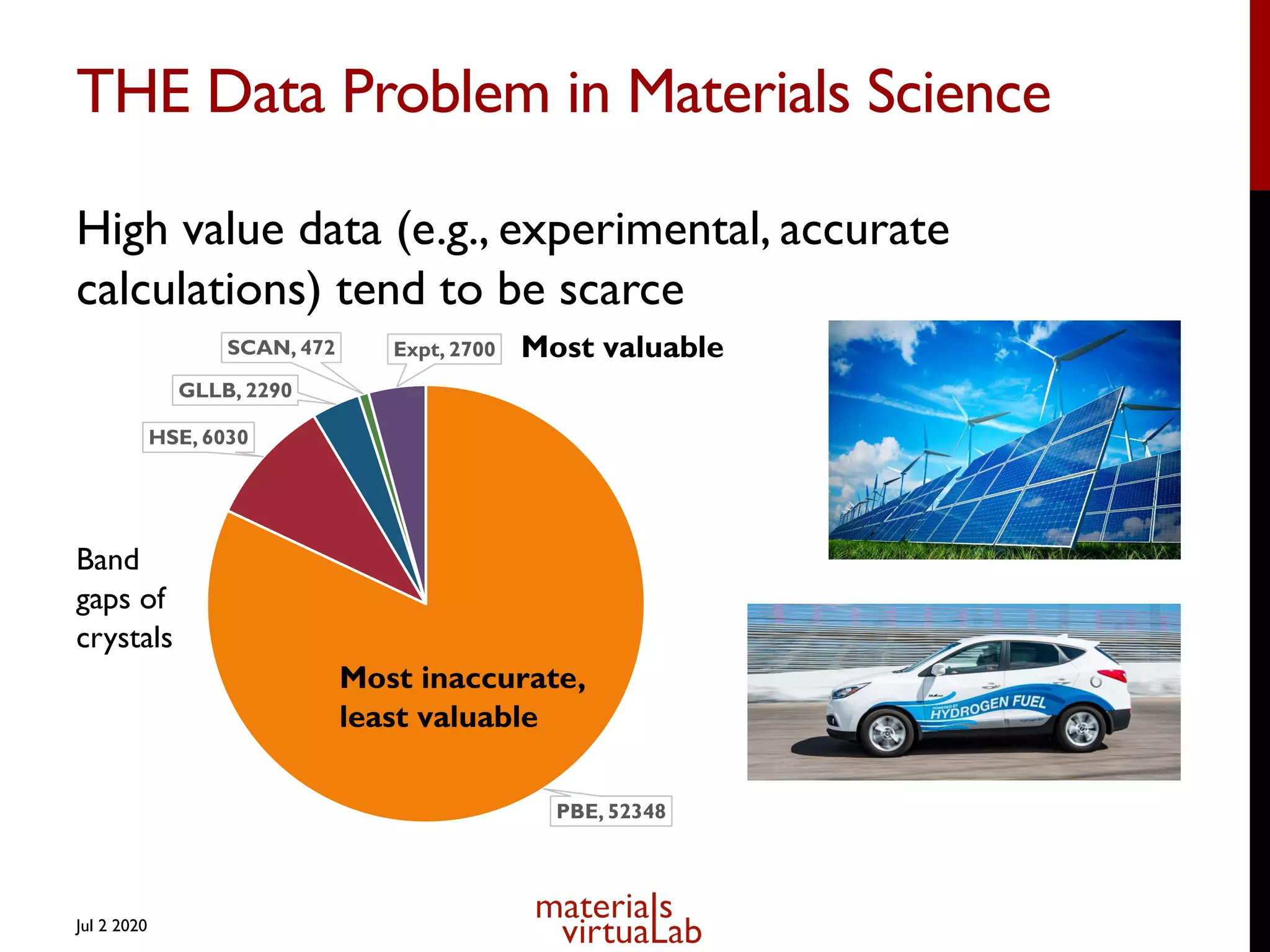

THE Data Problem in Materials Science
High value data (e.g., experimental, accurate
calculations) tend to be scarce
Jul 2 2020
PBE, 52348
HSE, 6030
GLLB, 2290
SCAN, 472 Expt, 2700
Most inaccurate,
least valuable
Most valuable
Band
gaps of
crystals

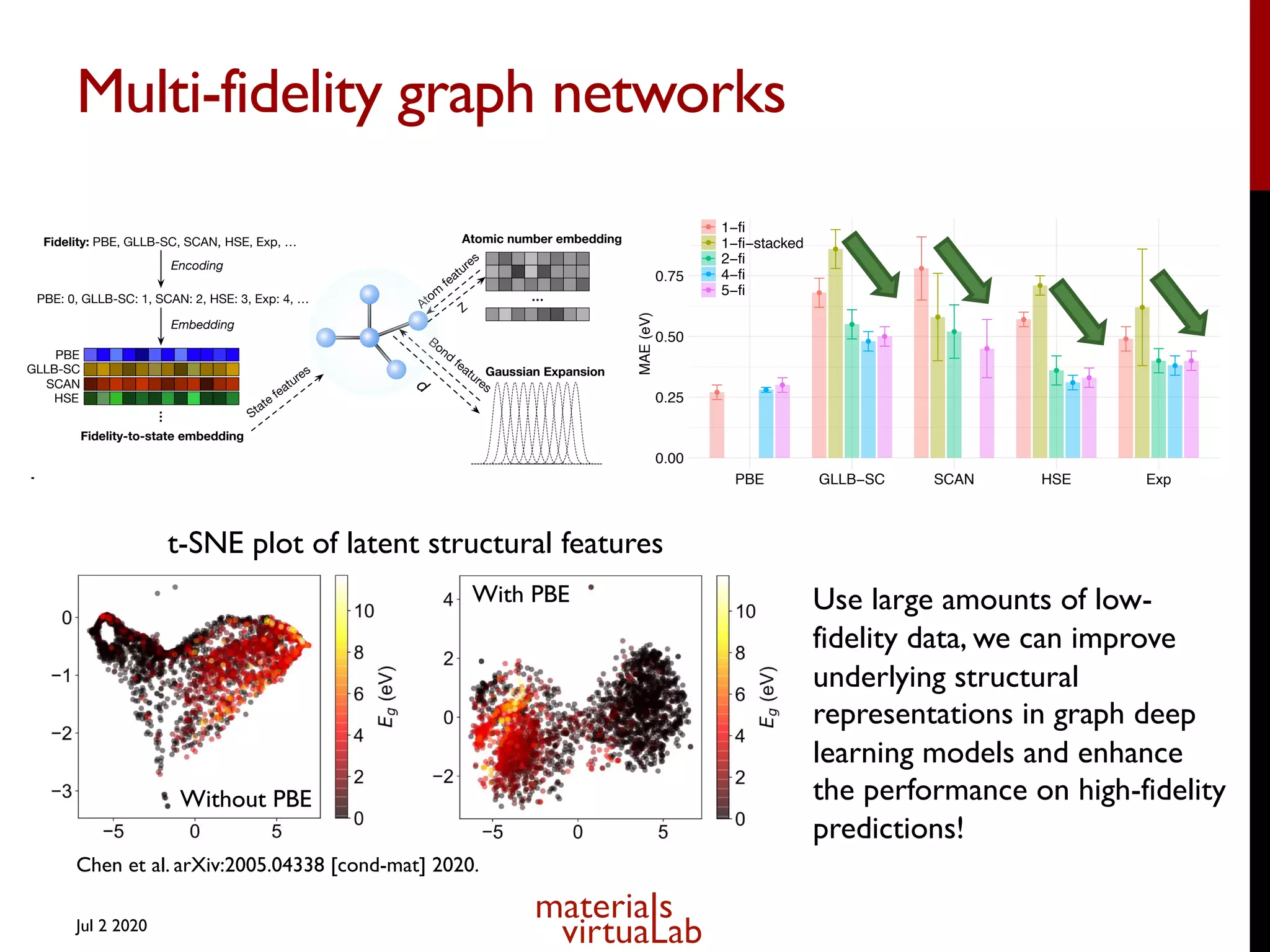

Multi-fidelity graph networks
Jul 2 2020
Fidelity: PBE, GLLB-SC, SCAN HSE, Exp, …
Embedding
PBE: 0, GLLB-SC: 1, SCAN: 2, HSE: 3, Exp: 4, …
Encoding
GLLB-SC
SCAN
PBE
HSE
Fidelity-to-state embedding
Gaussian Expansion
…
Atom
features
…
Structure graph
Graph convolution Graph convolution
Readout
Neural networks
Target
Latent feature vector
State
State
b
a
Bond
features
State
features
d
Atomic number embedding
Z
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
0.00
0.25
0.50
0.75
PBE GLLB−SC SCAN HSE Exp
MAE
(eV)
●
●
●
●
●
1−fi
1−fi−stacked
2−fi
4−fi
5−fi
b c
e
d
a
Use large amounts of low-
fidelity data, we can improve
underlying structural
representations in graph deep
learning models and enhance
the performance on high-fidelity
predictions!
t-SNE plot of latent structural features
Without PBE
With PBE
Chen et al. arXiv:2005.04338 [cond-mat] 2020.

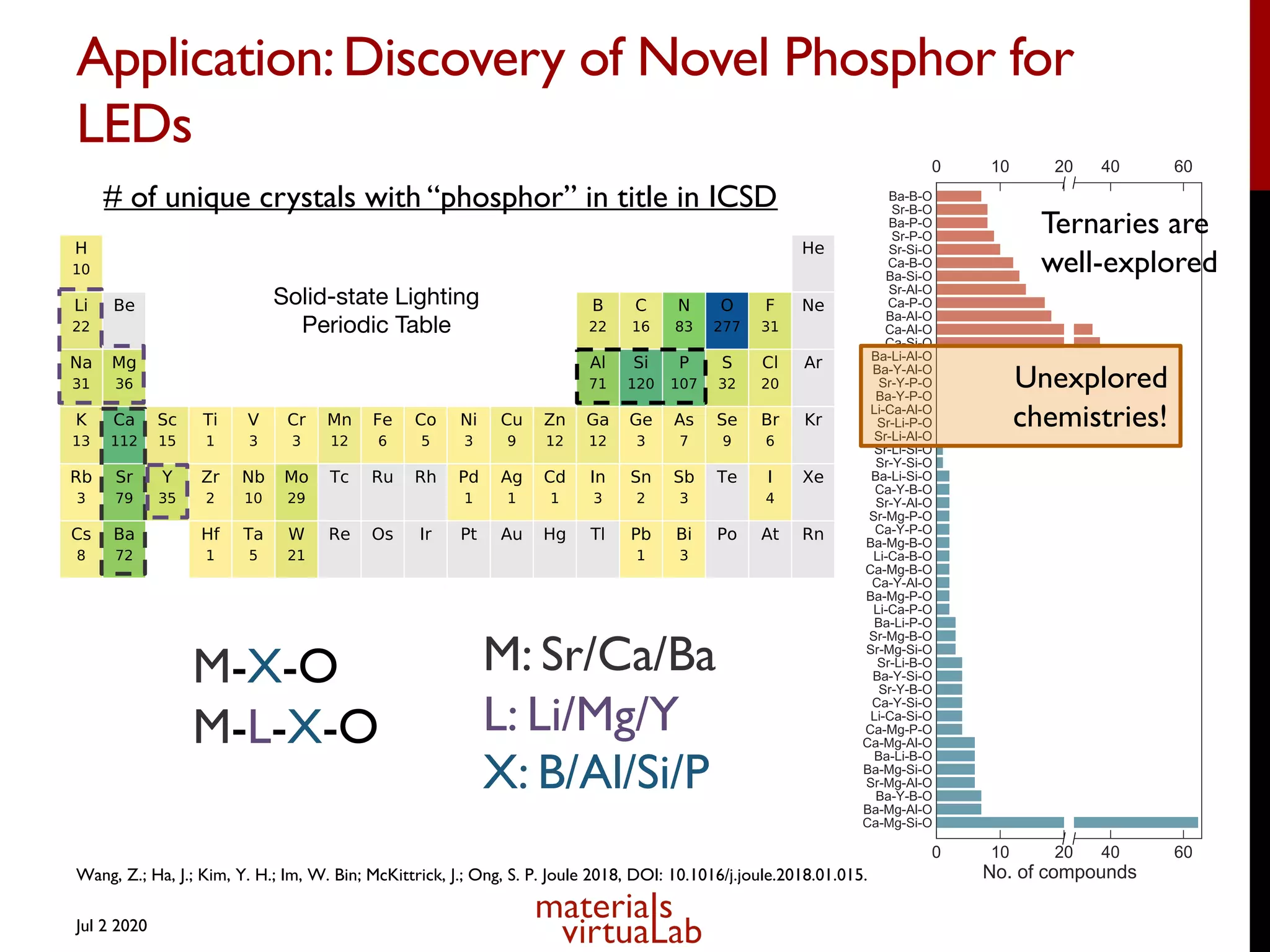

Application:Discovery of Novel Phosphor for
LEDs
A
Solid-state Lighting
Periodic Table
SrO
Sr3Al2O6
SrAl2O4
LiAl5O8
LiAlO2
Li5AlO4
Li2O
Al2O3
SrAl4O7
Sr2LiAlO4
Sr Li Al O
Sr1 Sr2
2.99
2.65
2.65 2.54
2.99
2.54
2.56
2.60
2.59
2.59
2.66
2.69
2.61
2.69
2.96
2.96
C
B
M-X-O
M-L-X-O
M: Sr/Ca/Ba
L: Li/Mg/Y
X: B/Al/Si/P
Unexplored
chemistries!
Ternaries are
well-explored
# of unique crystals with “phosphor” in title in ICSD
Wang, Z.; Ha, J.; Kim, Y. H.; Im, W. Bin; McKittrick, J.; Ong, S. P. Joule 2018, DOI: 10.1016/j.joule.2018.01.015.
Jul 2 2020
IMRE Webinar
Sr
Li
Al
O
Sr2LiAlO4(𝑃2!/𝑚)
Ba2LiReN4(ICSD#411453)
918 compounds
Jul 2 2020
AI-driven algorithm
AI-driven
predictions
for fast
screening
Prediction to LED device
Jul 2 2020
b
a c
Eu@Sr2 Eu@Sr1
CBM
5d
4f
Eu2+
/Ce3+
free ion
E
(eV)
d
Eu2+-activated
High color quality
(CRI > 90) LED
prototypes utilizing
SLAO phosphor
Wang, Z.; Ha, J.; Kim, Y. H.; Im, W. Bin; McKittrick, J.; Ong,
S. P. Joule 2018, DOI: 10.1016/j.joule.2018.01.015.
IMRE Webinar
It is not a fluke!
Jul 2 2020
AI Use Case 2:
Accessing scale and
complexity
Jul 2 2020
IMRE Webinar
Real-world materials are seldom isolated
molecules or bulk crystals
We are really good at calculating these:
But real-world materials look like these:
Jul 2 2020
Machine learning the potential energy surface
Jul 2 2020 IMRE Webinar
1 Behler et al. PRL. 98.14 (2007): 146401.
2 Shapeev MultiScale Modeling and Simulation 14, (2016).
3 Bart ́
ok et al. PRL. 104.13 (2010): 136403.
4 Thompson et al. J. Chem. Phys. 285, 316330 (2015)
the descriptors for these local environments and the ML approach/functional expression used
to map the descriptors to the potential energy. The detailed formalism of all four ML-IAPs
are provided in the Supplementary Information. Here, only a concise summary of the key
concepts and model parameters behind the ML-IAPs in chronological order of development,
is provided to aid the reader in following the remainder of this paper.
1. High-dimensional neural network potential (NNP). The NNP uses atom-centered
symmetry functions (ACSF)39
to represent the atomic local environments and fully con-
nected neural networks to describe the PES with respect to symmetry functions.11,12
A separate neural network is used for each atom. The neural network is defined by
the number of hidden layers and the nodes in each layer, while the descriptor space is
given by the following symmetry functions:
Gatom,rad
i =
Natom
X
j6=i
e ⌘(Rij Rs)2
· fc(Rij),
Gatom,ang
i = 21 ⇣
Natom
X
j,k6=i
(1 + cos ✓ijk)⇣
· e ⌘0(R2
ij+R2
ik+R2
jk)
· fc(Rij) · fc(Rik) · fc(Rjk),
where Rij is the distance between atom i and neighbor atom j, ⌘ is the width of the
Gaussian and Rs is the position shift over all neighboring atoms within the cuto↵
radius Rc, ⌘0
is the width of the Gaussian basis and ⇣ controls the angular resolution.
fc(Rij) is a cuto↵ function, defined as follows:
fc(Rij) =
8
>
>
< 0.5 · [cos (
⇡Rij
Rc
) + 1], for Rij  Rc
ZnO44
and Li3PO4.45
Gaussian Approximation Potential (GAP). The GAP calculates the similar-
ity between atomic configurations based on a smooth-overlap of atomic positions
(SOAP)10,46
kernel, which is then used in a Gaussian process model. In SOAP, the
Gaussian-smeared atomic neighbor densities ⇢i(R) are expanded in spherical harmonics
as follows:
⇢i(R) =
X
j
fc(Rij) · exp(
|R Rij|2
2 2
atom
) =
X
nlm
cnlm gn(R)Ylm(R̂),
The spherical power spectrum vector, which is in turn the square of expansion coeffi-
cients,
pn1n2l(Ri) =
l
X
c⇤
n1lmcn2lm,
Distances and angles
Neighbor density
𝐸𝑛𝑒𝑟𝑔𝑦 = 𝑓 𝑎𝑡𝑜𝑚 𝑝𝑜𝑠𝑖𝑡𝑖𝑜𝑛𝑠
𝐹𝑜𝑟𝑐𝑒 = 𝑓′ 𝑎𝑡𝑜𝑚 𝑝𝑜𝑠𝑖𝑡𝑖𝑜𝑛𝑠
Pymatgen
Fireworks + VASP
DFT static
Dataset
Elastic deformation Distorted
structures
Surface generation Surface
structures
Vacancy + AIMD Trajectory
snapshots
(low T, high T) AIMD Trajectory
snapshots
Crystal
structure
property fitting
E
e
e.g. elastic, phonon
···
energy weights
degrees of freedom
···
cutoff radius
expansion width
S1
S2
Sn
· · ·
rc
atomic descriptors
local
environment
sites
· · · · · ·
X1(r1j … r1n)
X2(r2k … r2m)
Xn(rnj … rnm)
machine learning
Y =f(X; !)
Y (energy, force, stress)
DFT properties
grid search
evolutionary algorithm
Automated workflow for
ML-IAP development

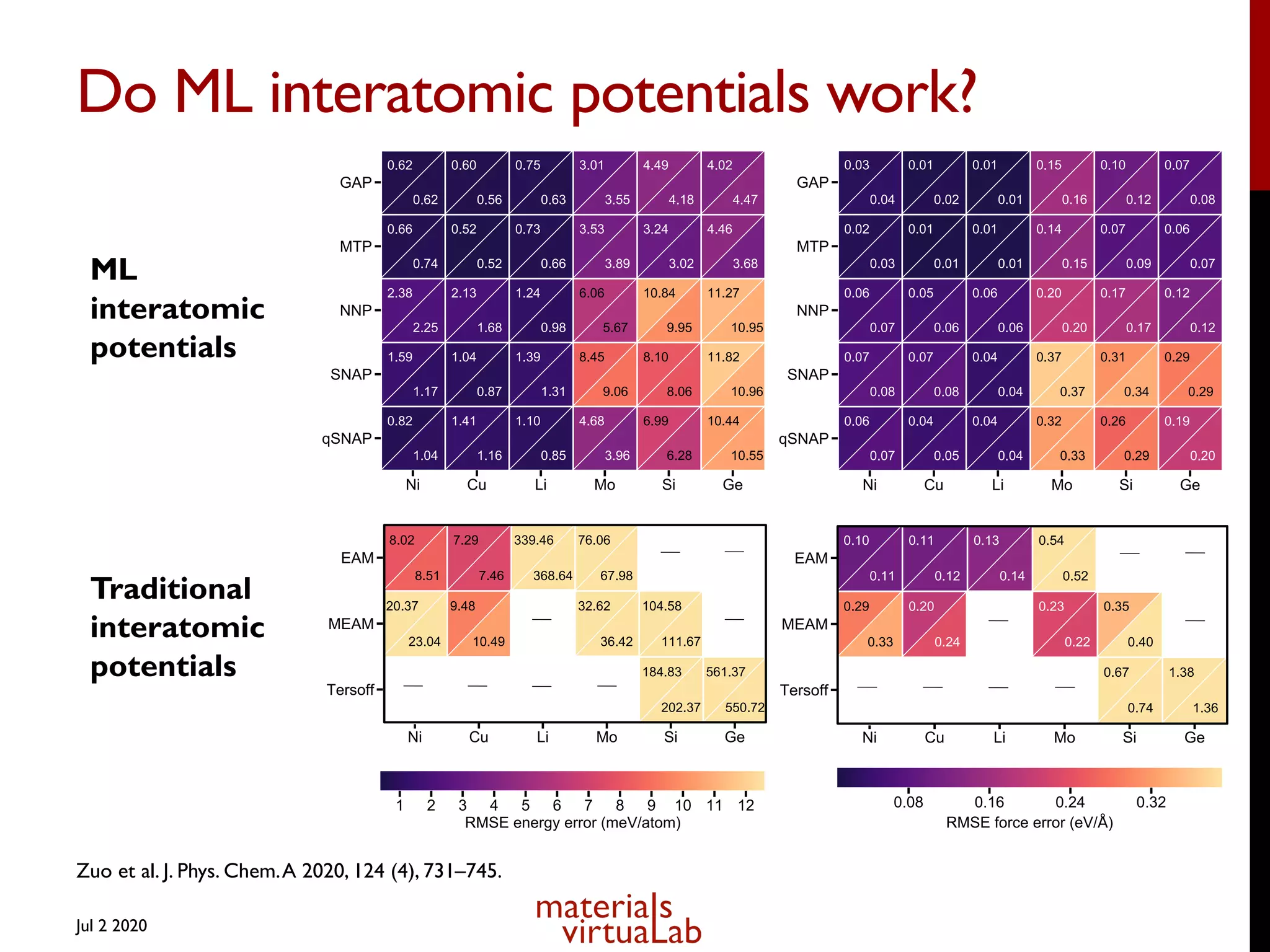

Do ML interatomic potentials work?
Jul 2 2020
ML
interatomic
potentials
Traditional
interatomic
potentials
Zuo et al. J. Phys. Chem.A 2020, 124 (4), 731–745.
Application:Multi-Principal ElementAlloys
(MPEAs),aka“High-Entropy”Alloys
Jul 2 2020
atoms of different sizes. This has important thermodynamic im-
plications. Ideal configurational entropy is based on populating
identical lattice sites with chemically different but equal-sized
atoms. Atoms with different sizes can bring some uncertainty in
atom location, thus giving an excess configurational entropy term.
This effect may be small in dilute solutions, where the location of
the minority atom is constrained by the surrounding majority
atoms (Fig. 5a). The uncertainty in atom location increases with
increasing size differences and concentrations. In multi-principal
2.3.4. Magnitudes of excess entropy terms relative to S∅;ideal
Several terms contribute to the total molar entropy of phase ∅,
S∅. Atomic configurations give an ideal component for SS phases via
the Boltzmann equation (SSS;ideal, Section 2.1.1) and for IM phases
with the sub-lattice model (SIM;ideal, Section 2.2.2). An excess
configurational term, conf S
∅
, can result from SRO (Section 2.1.1) or
differences in atom sizes (Section 2.3.3). Other excess entropy
terms come from atomic vibrations (vibS
∅
), magnetic moments
Fig. 5. The effect of atom size difference on atom positions in (a) a dilute solution, where solute atoms are constrained to occupy lattice sites by surrounding solvent atoms and (b) a
complex, concentrated solution, where there is no dominant atom species and atom positions usually deviate from mean lattice positions. The variability in atom positions in (b)
contributes to an excess configurational entropy.
Traditional Alloy MPE Alloy
23 273 714 38 [268]
200 215 582 34 [268]
400 195 496 28 [268]
Ni AC, 1100"
C/24 h, CR 90%, 1000"
C/1 h FCC, GS ¼ 36 mm 1 $ 10!3
!196 499 1283 62 [268]
!70 357 1006 54 [268]
23 280 699 43 [268]
200 215 582 36 [268]
400 186 555 28 [268]
Ni AC, 1100"
C/24 h, CR 90%, 1000"
C/1 h FCC, GS ¼ 48 mm 1 $ 10!3
!196 300 835 48 [268]
!70 210 656 44 [268]
23 175 551 41 [268]
200 135 488 36 [268]
400 116 465 37 [268]
lowing acronyms are used: AC (as-cast); CR (cold-rolled); GB (grain boundary); GS (grain size); HR (hot-rolled); SC (slow cooled); SX (single crystal); WQ (wat
Miracle et al., Acta Materialia 2017, 122, 448–511.

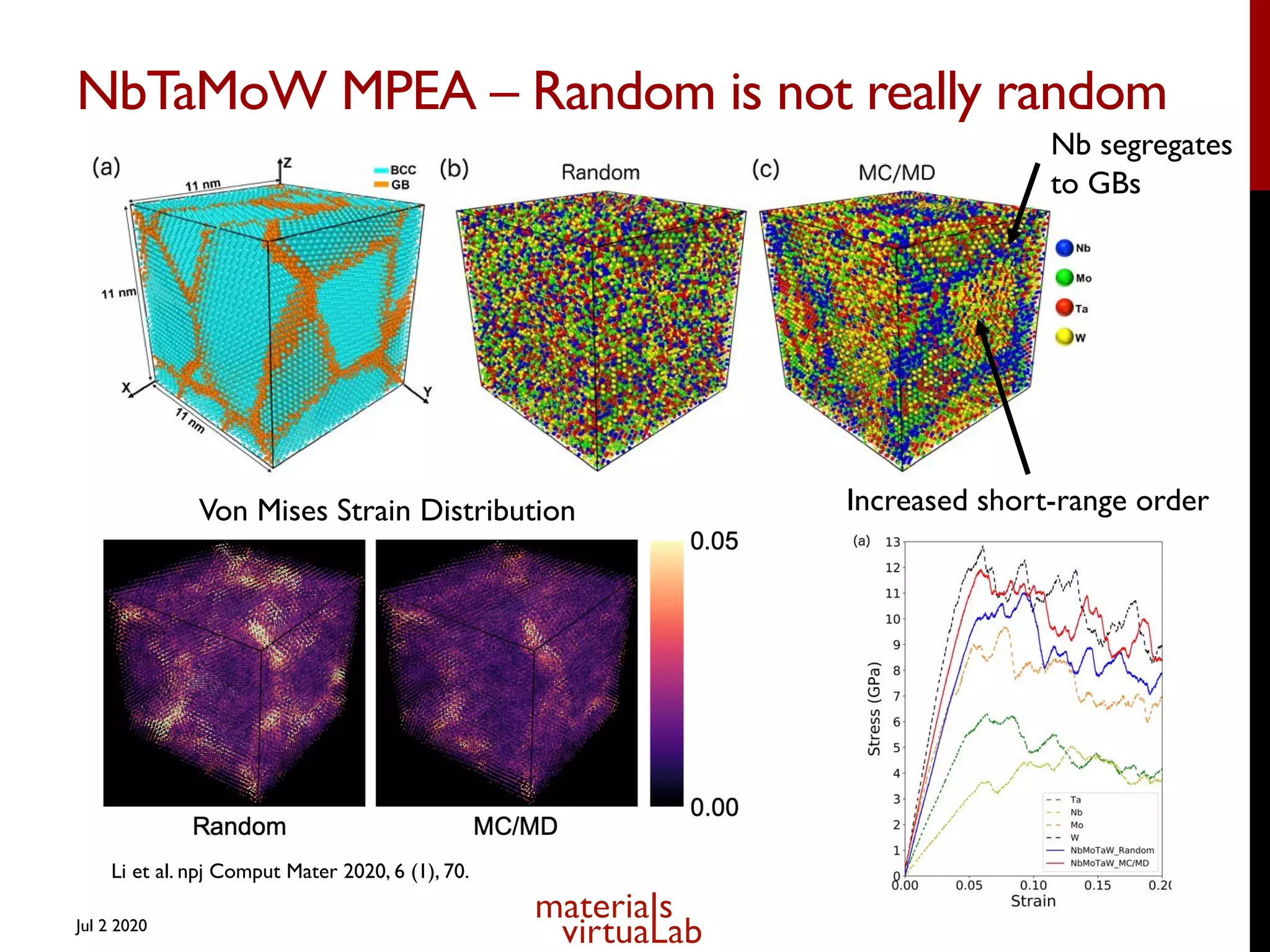

NbTaMoW MPEA – Random is not really random
Jul 2 2020
Nb segregates
to GBs
Increased short-range order
Von Mises Strain Distribution
Li et al. npj Comput Mater 2020, 6 (1), 70.

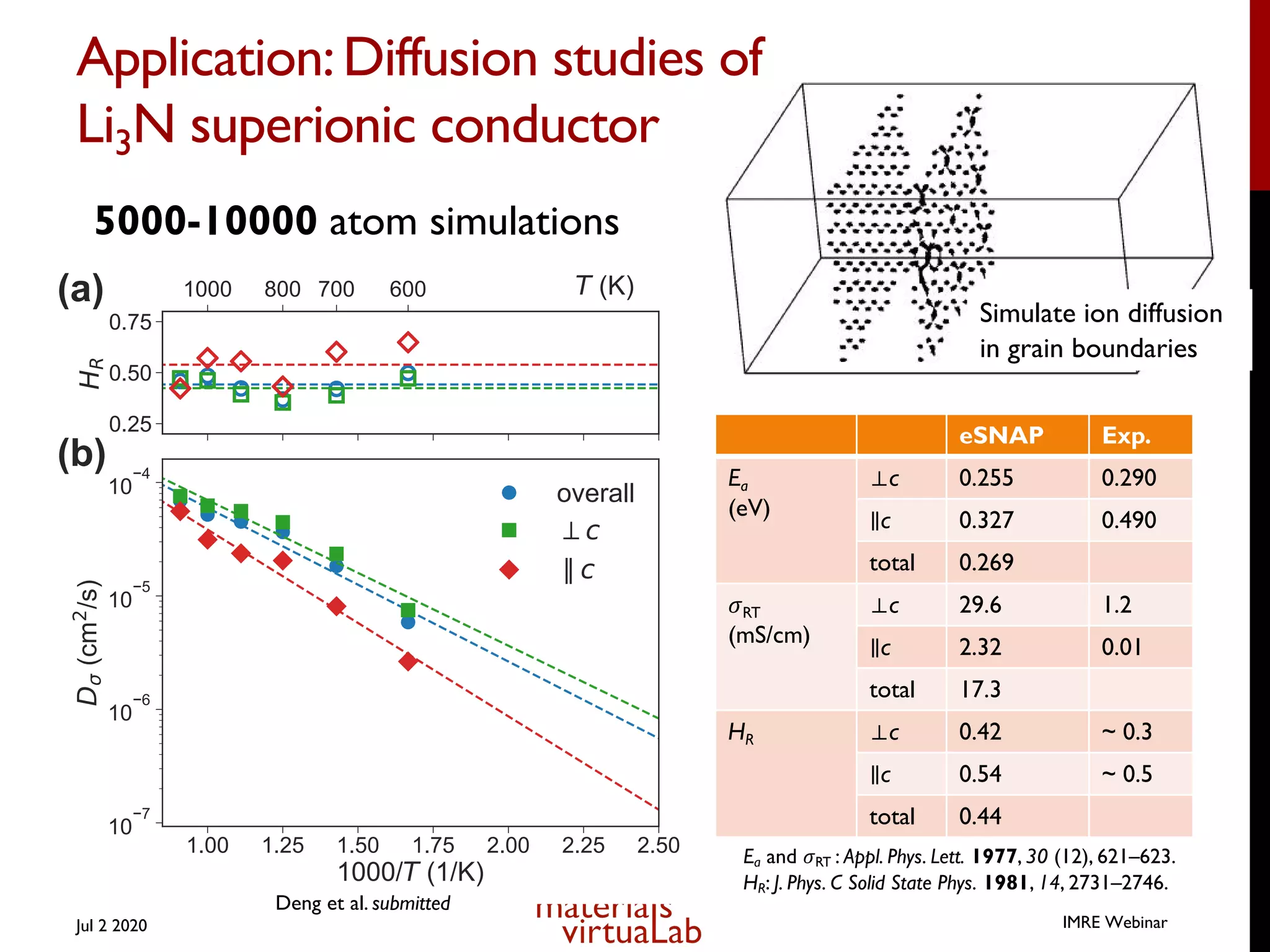

Application:Diffusion studies of
Li3N superionic conductor
Jul 2 2020
eSNAP Exp.
Ea
(eV)
⟂c 0.255 0.290
∥c 0.327 0.490
total 0.269
𝜎RT
(mS/cm)
⟂c 29.6 1.2
∥c 2.32 0.01
total 17.3
HR ⟂c 0.42 ~ 0.3
∥c 0.54 ~ 0.5
total 0.44
IMRE Webinar
Ea and 𝜎RT : Appl. Phys. Lett. 1977, 30 (12), 621–623.
HR: J. Phys. C Solid State Phys. 1981, 14, 2731–2746.
Deng et al. submitted
Simulate ion diffusion
in grain boundaries
5000-10000 atom simulations
AI Use Case 3:
Interpreting complex
relationships
Jul 2 2020
IMRE Webinar

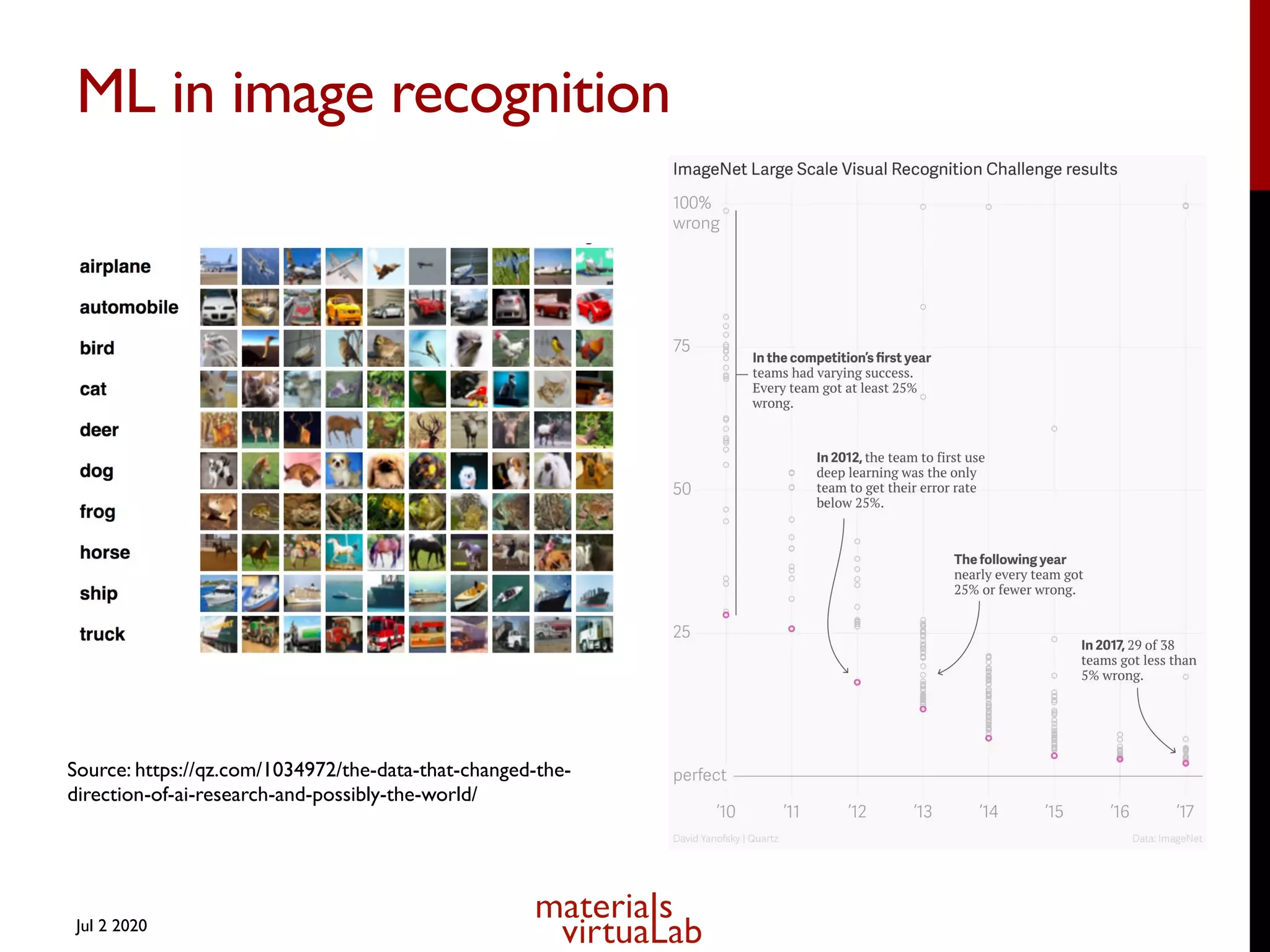

ML in image recognition
Jul 2 2020
Source: https://qz.com/1034972/the-data-that-changed-the-
direction-of-ai-research-and-possibly-the-world/

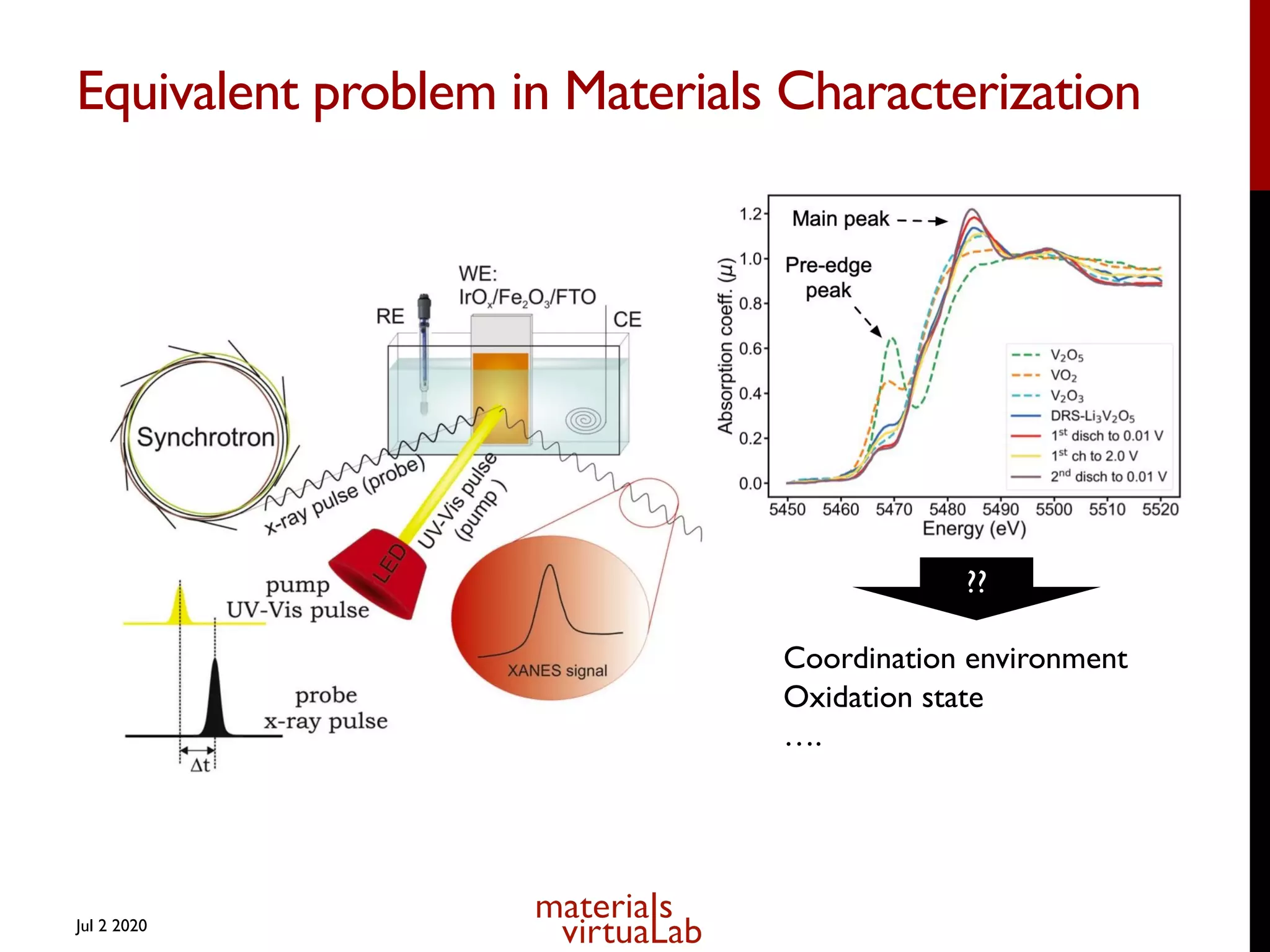

Equivalent problem in Materials Characterization
Jul 2 2020
??
Coordination environment
Oxidation state
….

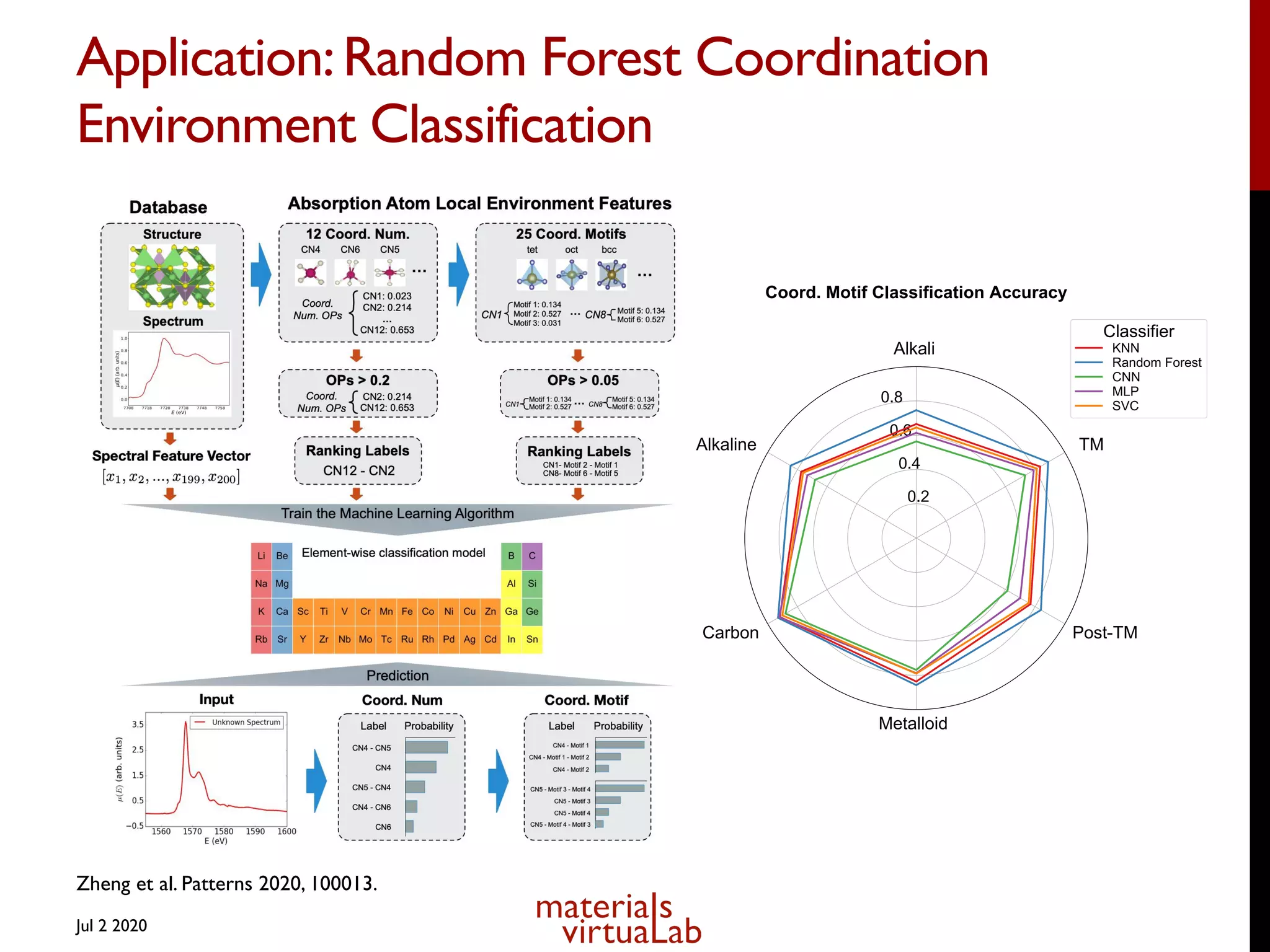

Application:Random Forest Coordination
Environment Classification
Jul 2 2020
Alkali
TM
Post-TM
Metalloid
Carbon
Alkaline
Zheng et al. Patterns 2020, 100013.

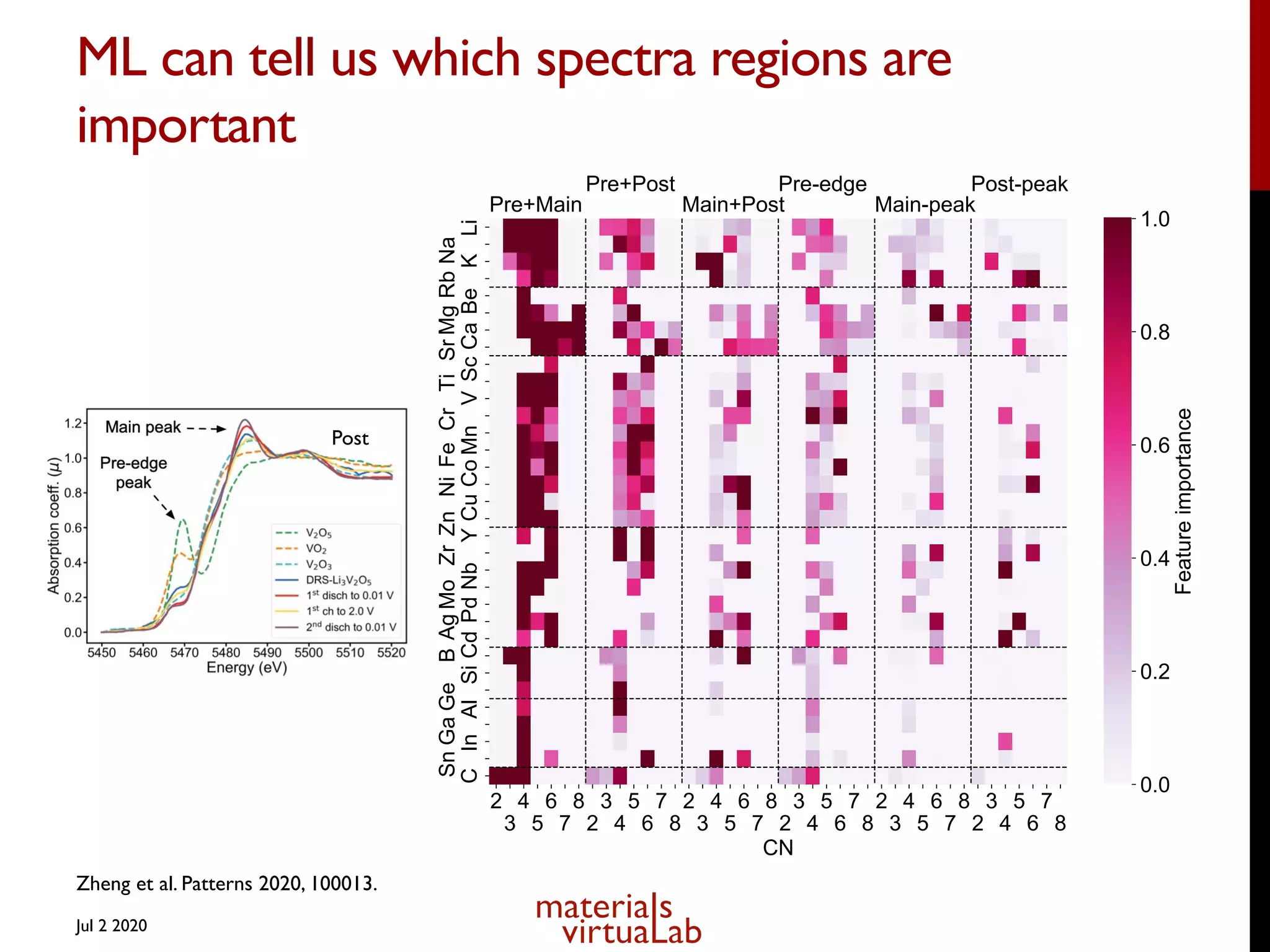

ML can tell us which spectra regions are
important
Jul 2 2020
Post
Zheng et al. Patterns 2020, 100013.
Challenges and
Opportunities for
AI in Materials Science
Jul 2 2020
IMRE Webinar
the score of the least abundant atom in the unit cell. The
atomic abundance ranks are given in Table S1 (ESI†). Although
we calculate the earth abundance index for each candidate
material, we do not use this as a screening criterion.
3. Ionic conductivity screening
3.1 Training set
We compiled a training set of 40 crystal structures and reported
experimentally measured ionic conductivity values available in
the literature. These structures and ionic conductivity values
are listed in Table 1. The atomic crystalline structures we
employ for these 40 materials were downloaded from the
Inorganic Crystal Structure Database (ICSD)85
which contains
experimentally derived measurements. The work of Raccuglia
et al.17
demonstrates the value of learning on negative examples;
this supports our inclusion of many poor conductors in the
training set. This is a relatively small set of available data from
which to build a predictive model, and it is n
there is sufficient information available to
are best if good candidates for underlying ph
good features can be chosen.
From these atomistic structures, we co
that characterize the local atomic arrangem
of the crystals. These features are chos
candidates for exhibiting some correlation
tivity. These features depend only on the
electronegativities, and atomic radii of the a
require minimal effort for computation. C
features from electronic structure requir
expensive simulations and quickly becom
the large number of candidate materials to
20 features and their individual Pearson cor
conductivity for the structures in the train
Table 2. The reference values we use for b
Challenge #1:Data,data,data
Jul 2 2020
Note:All identifying information hidden for diplomatic purposes….
Too little data
Data “prejudice”
Efficient Band Gap Prediction for Solids
M. K. Y. Chan1
and G. Ceder2
Engineering, Massachusetts Institute of Technology, Cambridge, Massachusetts 02139, USA
ineering, Massachusetts Institute of Technology, Cambridge, Massachusetts 02139, USA
(Received 27 March 2010; published 5 November 2010)
d for the prediction of fundamental band gaps in solids using density functional
osed. Generalizing the Delta self-consistent-field (!SCF) method to infinite solids,
ased on total-energy differences and derived from dielectric screening properties of
l and semilocal exchange-correlation functionals (local density and generalized
ons), we demonstrate a 70% reduction of mean absolute errors compared to Kohn-
00 compounds with experimental gaps of 0.5–4 eV, at computational costs similar to
ons.
Lett.105.196403 PACS numbers: 71.15.Dx, 71.15.Mb, 71.20.!b
DFT) [1], in the Kohn-
ocal density (LDA [2]) or
) approximations for the
tional, has been success-
, electronic, magnetic and
ondensed matter systems.
d gap problem’’, in which
rectly predict the energy
occupied states, is a hin-
ncluding semiconductors,
ls, and thermoelectrics.
the Kohn-Sham gap EKS,
ues of lowest unoccupied
s, is identified as the band
ates band gaps (EExp) of
strate the problem, we plot
for a test set of over 100
with room-temperature
rticular interest for appli-
large, there is no discern-
d EExp.
by EKS in local and semi-
uted to their inherent lack
d delocalization error [7].
d gap is an excited-state
described by ground state
evoted to solving the DFT
d in addition to the Kohn-
he GW approximation [9],
exchange [11], hybrid and
ls, and modified Becke-
ficient method for predict-
computationally efficient
The method is drawn upon
sistent-field (!SCF) [14]
o as !-sol. The predicted
(blue crosses) in Fig. 1. The underlying physical principle
of !-sol, as in GW and screened-hybrid functionals, is a
consideration of the dielectric screening properties of
electrons. In the implementation of !-sol, as in hybrid
functionals and MBJ, one or two parameters are fixed to
minimize errors in predicting EExp for a test set of com-
pounds. Like MBJ and unlike GW and hybrid functionals,
!-sol is as computationally expedient as standard DFT.
Unlike MBJ, any existing DFT code and functional can be
used in conjunction with !-sol without recoding.
The fundamental gap EFG of a system is defined as the
energy required to create an unbound electron-hole pair:
EFG ¼ EðN þ 1Þ þ EðN ! 1Þ ! 2EðNÞ; (1)
where N is the number of electrons in the system. The
evaluation of EFG from (1) by explicit calculations of
energies of the system with N, N þ 1 and N ! 1 electrons,
i.e., the !SCF method, produces reasonable results for
atoms and molecules [7,14]. The problem that arises, in
0 1 2 3 4
0
1
2
3
4 ∆−sol (PBE)
Kohn−Sham (PBE)
Experimental Gap (eV)
Predicted
Gap
(eV)
FIG. 1 (color online). Kohn-Sham (dots) and !-sol (crosses)
No good methods
(theoretical or
experimental) ….
Perovskite studies dominate (small sample of publications from
just the last 2 years or so….)
- Accelerated Development of Perovskite-Inspired Materials via High-Throughput Synthesis and Machine-Learning Diagnosis. Joule 2019, 3 (6),
1437–1451
- Machine Learning Bandgaps of Double Perovskites. Scientific Reports 2016, 6, 19375.
- Howard, J. M.; Tennyson, E. M.; Neves, B. R. A.; Leite, M. S. Machine Learning for Perovskites’ Reap-Rest-Recovery Cycle. Joule 2019, 3 (2),
325–337.
- Multi-Fidelity Machine Learning Models for Accurate Bandgap Predictions of Solids. Computational Materials Science 2017, 129, 156–163.
- Rapid Discovery of Ferroelectric Photovoltaic Perovskites and Material Descriptors via Machine Learning. Small Methods 0 (0), 1900360.
- Rationalizing Perovskite Data for Machine Learning and Materials Design. The Journal of Physical Chemistry Letters 2018, 9 (24), 6948–
6954.
- Thermodynamic Stability Landscape of Halide Double Perovskites via High-Throughput Computing and Machine Learning. Adv. Funct. Mater.
2019, 29 (9), 1807280.
- Thermodynamic Stability Trend of Cubic Perovskites. J. Am. Chem. Soc. 2017, 139 (42), 14905–14908.

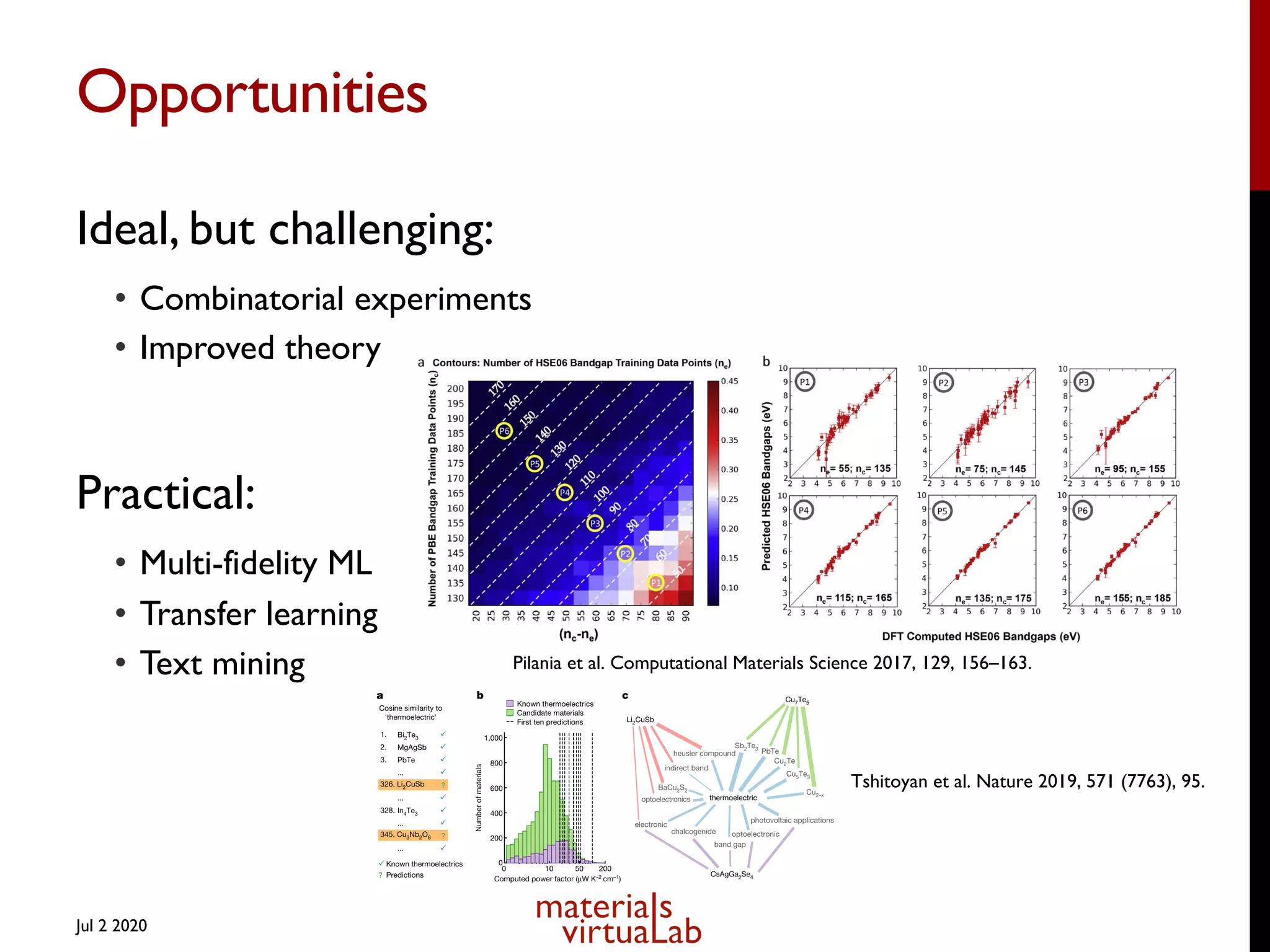

Opportunities
Ideal, but challenging:
• Combinatorial experiments
• Improved theory
Practical:
• Multi-fidelity ML
• Transfer learning
• Text mining
Jul 2 2020
Pilania et al. Computational Materials Science 2017, 129, 156–163.
LETTER RESEARCH
Fig. 2 | Prediction of new thermoelectric materials. a, A ranking of
thermoelectric materials can be produced using cosine similarities of
material embeddings with the embedding of the word ‘thermoelectric’.
Highly ranked materials that have not yet been studied for thermoelectric
applications (do not appear in the same abstracts as words ‘ZT’,
word thermoelectric. The width of the edges between ‘thermoelectric’
and the context words (blue) is proportional to the cosine similarity
between the word embeddings of the nodes, whereas the width of the
edges between the materials and the context words (red, green and purple)
is proportional to the cosine similarity between the word embeddings of
Tshitoyan et al. Nature 2019, 571 (7763), 95.
Challenge #2:Models
1. Need models to learn proper physics
and chemistry.
2. Avoid descriptor “soup” (LASSO and
feature importance are not magic
wands…).
3. Need to account for data uncertainty.
Jul 2 2020
Very bad for
interatomic potential
or generalization!
TABLE S2: Properties used in atom feature vector vi
Property Unit Range # of categories
Group number – 1,2, ..., 18 18
Period number – 1,2, ..., 9a 9
Electronegativity[7, 8] – 0.5–4.0 10
Covalent radius[3] pm 25–250 10
Valence electrons – 1, 2, ..., 12 12
First ionization energy[9]b eV 1.3–3.3 10
Electron affinity[10] eV -3–3.7 10
Block – s, p, d, f 4
Atomic volumeb cm3/mol 1.5–4.3 10
a
The lanthanide and actinide elements are considered as period 8 and 9 respectively.
b
Log scale is used for these properties.
TABLE S3: Properties used in bond feature vector u(i,j)k
MEGNet uses just Z for atomic feature
and achieved similar performance, for
both molecules AND crystals...
Another graph-based model….
Opportunities
Marrying physics/chemistry with ML models
Develop better model architectures, e.g., invertible
representations for true “inverse design”
𝑆𝑡𝑟𝑢𝑐𝑡𝑢𝑟𝑒 = 𝑓)*
(𝑝𝑟𝑜𝑝𝑒𝑟𝑡𝑖𝑒𝑠)
Jul 2 2020
Jul 2 2020
http://crystals.ai
IMRE Webinar

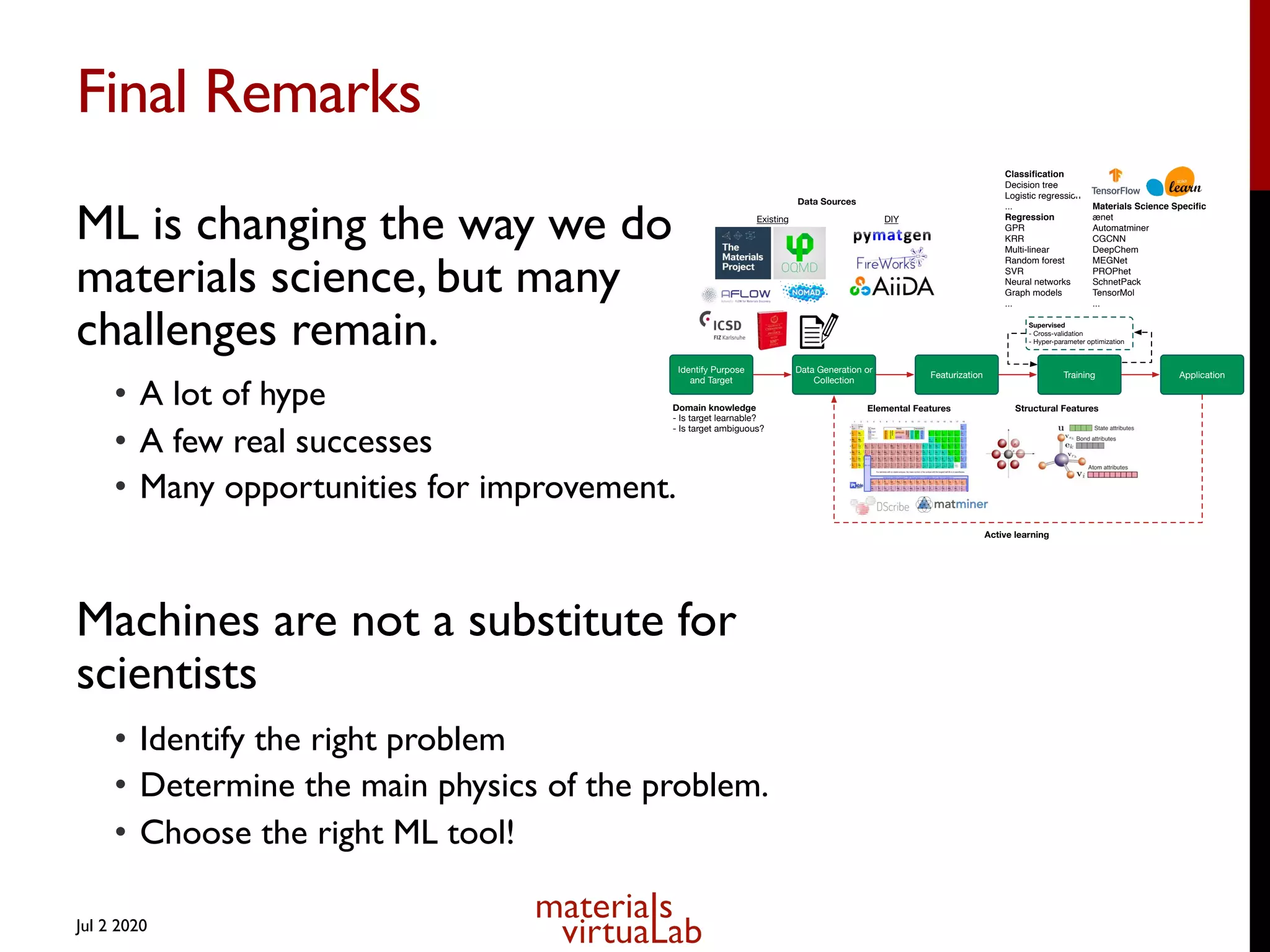

Final Remarks
ML is changing the way we do
materials science, but many
challenges remain.
• A lot of hype
• A few real successes
• Many opportunities for improvement.
Machines are not a substitute for
scientists
• Identify the right problem
• Determine the main physics of the problem.
• Choose the right ML tool!
Jul 2 2020
Identify Purpose
and Target
Data Generation or
Collection
Featurization Training Application
Active learning
Domain knowledge
- Is target learnable?
- Is target ambiguous?
Data Sources
Existing DIY
Elemental Features Structural Features
Classification
Decision tree
Logistic regression
...
Regression
GPR
KRR
Multi-linear
Random forest
SVR
Neural networks
Graph models
...
Supervised
- Cross-validation
- Hyper-parameter optimization
Materials Science Specific
ænet
Automatminer
CGCNN
DeepChem
MEGNet
PROPhet
SchnetPack
TensorMol
...
Discussion
Jul 2 2020
IMRE Webinar

More Related Content

What's hot

Graphene-based Biosensors
Graphene-based BiosensorsGraphene-based Biosensors
Graphene-based Biosensors Mohamed Labadi

Topological flat bands without magic angles in massive twisted bilayer graphe...
Topological flat bands without magic angles in massive twisted bilayer graphe...Topological flat bands without magic angles in massive twisted bilayer graphe...
Topological flat bands without magic angles in massive twisted bilayer graphe...JAVVAJI SRIVANI

Hexagonal Boron Nitride - Ubiquitous Layered dielectric for Two-Dimensional E...
Hexagonal Boron Nitride - Ubiquitous Layered dielectric for Two-Dimensional E...Hexagonal Boron Nitride - Ubiquitous Layered dielectric for Two-Dimensional E...
Hexagonal Boron Nitride - Ubiquitous Layered dielectric for Two-Dimensional E...Nikhil Jain

VASP And Wannier90: A Quick Tutorial
VASP And Wannier90: A Quick TutorialVASP And Wannier90: A Quick Tutorial
VASP And Wannier90: A Quick TutorialJonathan Skelton

Materials Modelling: From theory to solar cells (Lecture 1)
Materials Modelling: From theory to solar cells  (Lecture 1)Materials Modelling: From theory to solar cells  (Lecture 1)
Materials Modelling: From theory to solar cells (Lecture 1)cdtpv

Tensor Field Network (and other ConvNet Generalisations)
Tensor Field Network (and other ConvNet Generalisations)Tensor Field Network (and other ConvNet Generalisations)
Tensor Field Network (and other ConvNet Generalisations)Peng Cheng

Lattice Energy LLC- LENR Transmutation Networks Can Produce Gold-Dec 7 2012
Lattice Energy LLC- LENR Transmutation Networks Can Produce Gold-Dec 7 2012Lattice Energy LLC- LENR Transmutation Networks Can Produce Gold-Dec 7 2012
Lattice Energy LLC- LENR Transmutation Networks Can Produce Gold-Dec 7 2012Lewis Larsen

Lattice Energy LLC - Strategic importance of accelerating commercialization o...
Lattice Energy LLC - Strategic importance of accelerating commercialization o...Lattice Energy LLC - Strategic importance of accelerating commercialization o...
Lattice Energy LLC - Strategic importance of accelerating commercialization o...Lewis Larsen

Machine learning for materials design: opportunities, challenges, and methods
Machine learning for materials design: opportunities, challenges, and methodsMachine learning for materials design: opportunities, challenges, and methods
Machine learning for materials design: opportunities, challenges, and methodsAnubhav Jain

Mn alcu2 heusler compound
Mn alcu2 heusler compoundMn alcu2 heusler compound
Mn alcu2 heusler compoundogunmoyekehinde

Phonons & Phonopy: Pro Tips (2014)
Phonons & Phonopy: Pro Tips (2014)Phonons & Phonopy: Pro Tips (2014)
Phonons & Phonopy: Pro Tips (2014)Jonathan Skelton

Computational modeling of perovskites ppt
Computational modeling of perovskites pptComputational modeling of perovskites ppt
Computational modeling of perovskites ppttedoado

Perovskite solar cells - An Introduction, By Dawn John Mullassery
Perovskite solar cells - An Introduction, By Dawn John MullasseryPerovskite solar cells - An Introduction, By Dawn John Mullassery
Perovskite solar cells - An Introduction, By Dawn John MullasseryDawn John Mullassery


What's hot (20)

NANO266 - Lecture 4 - Introduction to DFT
NANO266 - Lecture 4 - Introduction to DFTNANO266 - Lecture 4 - Introduction to DFT
NANO266 - Lecture 4 - Introduction to DFT

Introduction to DFT Part 1
Introduction to DFT Part 1 Introduction to DFT Part 1
Introduction to DFT Part 1

Graphene-based Biosensors
Graphene-based BiosensorsGraphene-based Biosensors
Graphene-based Biosensors

Topological flat bands without magic angles in massive twisted bilayer graphe...
Topological flat bands without magic angles in massive twisted bilayer graphe...Topological flat bands without magic angles in massive twisted bilayer graphe...
Topological flat bands without magic angles in massive twisted bilayer graphe...

Hexagonal Boron Nitride - Ubiquitous Layered dielectric for Two-Dimensional E...
Hexagonal Boron Nitride - Ubiquitous Layered dielectric for Two-Dimensional E...Hexagonal Boron Nitride - Ubiquitous Layered dielectric for Two-Dimensional E...
Hexagonal Boron Nitride - Ubiquitous Layered dielectric for Two-Dimensional E...

VASP And Wannier90: A Quick Tutorial
VASP And Wannier90: A Quick TutorialVASP And Wannier90: A Quick Tutorial
VASP And Wannier90: A Quick Tutorial

Materials Modelling: From theory to solar cells (Lecture 1)
Materials Modelling: From theory to solar cells  (Lecture 1)Materials Modelling: From theory to solar cells  (Lecture 1)
Materials Modelling: From theory to solar cells (Lecture 1)

Nanotechnology in fuel cell
Nanotechnology in fuel cellNanotechnology in fuel cell
Nanotechnology in fuel cell

Tensor Field Network (and other ConvNet Generalisations)
Tensor Field Network (and other ConvNet Generalisations)Tensor Field Network (and other ConvNet Generalisations)
Tensor Field Network (and other ConvNet Generalisations)

NANO266 - Lecture 13 - Ab initio molecular dyanmics
NANO266 - Lecture 13 - Ab initio molecular dyanmicsNANO266 - Lecture 13 - Ab initio molecular dyanmics
NANO266 - Lecture 13 - Ab initio molecular dyanmics

Lattice Energy LLC- LENR Transmutation Networks Can Produce Gold-Dec 7 2012
Lattice Energy LLC- LENR Transmutation Networks Can Produce Gold-Dec 7 2012Lattice Energy LLC- LENR Transmutation Networks Can Produce Gold-Dec 7 2012
Lattice Energy LLC- LENR Transmutation Networks Can Produce Gold-Dec 7 2012

Lattice Energy LLC - Strategic importance of accelerating commercialization o...
Lattice Energy LLC - Strategic importance of accelerating commercialization o...Lattice Energy LLC - Strategic importance of accelerating commercialization o...
Lattice Energy LLC - Strategic importance of accelerating commercialization o...

Metamaterialsppt
MetamaterialspptMetamaterialsppt
Metamaterialsppt

Machine learning for materials design: opportunities, challenges, and methods
Machine learning for materials design: opportunities, challenges, and methodsMachine learning for materials design: opportunities, challenges, and methods
Machine learning for materials design: opportunities, challenges, and methods

Mn alcu2 heusler compound
Mn alcu2 heusler compoundMn alcu2 heusler compound
Mn alcu2 heusler compound

Phonons & Phonopy: Pro Tips (2014)
Phonons & Phonopy: Pro Tips (2014)Phonons & Phonopy: Pro Tips (2014)
Phonons & Phonopy: Pro Tips (2014)

Computational modeling of perovskites ppt
Computational modeling of perovskites pptComputational modeling of perovskites ppt
Computational modeling of perovskites ppt

Perovskite solar cells - An Introduction, By Dawn John Mullassery
Perovskite solar cells - An Introduction, By Dawn John MullasseryPerovskite solar cells - An Introduction, By Dawn John Mullassery
Perovskite solar cells - An Introduction, By Dawn John Mullassery

Nanosensors
NanosensorsNanosensors
Nanosensors

Thesis Presentation
Thesis PresentationThesis Presentation
Thesis Presentation


Similar to A*STAR Webinar on The AI Revolution in Materials Science

NIST-JARVIS infrastructure for Improved Materials Design
NIST-JARVIS infrastructure for Improved Materials DesignNIST-JARVIS infrastructure for Improved Materials Design
NIST-JARVIS infrastructure for Improved Materials DesignKAMAL CHOUDHARY

Ab initio simulation in materials science, Dierk Raabe, lecture at IHPC Singa...
Ab initio simulation in materials science, Dierk Raabe, lecture at IHPC Singa...Ab initio simulation in materials science, Dierk Raabe, lecture at IHPC Singa...
Ab initio simulation in materials science, Dierk Raabe, lecture at IHPC Singa...Dierk Raabe

Introduction (Part I): High-throughput computation and machine learning appli...
Introduction (Part I): High-throughput computation and machine learning appli...Introduction (Part I): High-throughput computation and machine learning appli...
Introduction (Part I): High-throughput computation and machine learning appli...Anubhav Jain

APS D63.00002 Tight Binding Simulation of Finite Temperature Electronic Struc...
APS D63.00002 Tight Binding Simulation of Finite Temperature Electronic Struc...APS D63.00002 Tight Binding Simulation of Finite Temperature Electronic Struc...
APS D63.00002 Tight Binding Simulation of Finite Temperature Electronic Struc...DavidAbramovitch1

Software tools for data-driven research and their application to thermoelectr...
Software tools for data-driven research and their application to thermoelectr...Software tools for data-driven research and their application to thermoelectr...
Software tools for data-driven research and their application to thermoelectr...Anubhav Jain

Transversely Isotropic Elastic Properties of Vacancy Defected Boron Nitride N...
Transversely Isotropic Elastic Properties of Vacancy Defected Boron Nitride N...Transversely Isotropic Elastic Properties of Vacancy Defected Boron Nitride N...
Transversely Isotropic Elastic Properties of Vacancy Defected Boron Nitride N...Vijay Choyal

Nanotechnology Progess And Pitfalls
Nanotechnology Progess And PitfallsNanotechnology Progess And Pitfalls
Nanotechnology Progess And Pitfallsphackettualberta

Theoretical and Applied Phase-Field: Glimpses of the activities in India
Theoretical and Applied Phase-Field: Glimpses of the activities in IndiaTheoretical and Applied Phase-Field: Glimpses of the activities in India
Theoretical and Applied Phase-Field: Glimpses of the activities in IndiaPFHub PFHub

Theoretical and Applied Phase-Field: Glimpses of the activities in India
Theoretical and Applied Phase-Field: Glimpses of the activities in IndiaTheoretical and Applied Phase-Field: Glimpses of the activities in India
Theoretical and Applied Phase-Field: Glimpses of the activities in IndiaDaniel Wheeler

SPIE 2009 - "Efficient Parameter Estimation Techniques for Hysteresis Models"...
SPIE 2009 - "Efficient Parameter Estimation Techniques for Hysteresis Models"...SPIE 2009 - "Efficient Parameter Estimation Techniques for Hysteresis Models"...
SPIE 2009 - "Efficient Parameter Estimation Techniques for Hysteresis Models"...Jon Ernstberger

Morgan uw maGIV v1.3 dist
Morgan uw maGIV v1.3 distMorgan uw maGIV v1.3 dist
Morgan uw maGIV v1.3 distddm314

Combinatorial Experimentation and Machine Learning for Materials Discovery
Combinatorial Experimentation and Machine Learning for Materials DiscoveryCombinatorial Experimentation and Machine Learning for Materials Discovery
Combinatorial Experimentation and Machine Learning for Materials Discoveryaimsnist

High-throughput computation and machine learning methods applied to materials...
High-throughput computation and machine learning methods applied to materials...High-throughput computation and machine learning methods applied to materials...
High-throughput computation and machine learning methods applied to materials...Anubhav Jain

博士論文口試-Ph.D. Defense (2013-06-19)-TH Wang.ppt
博士論文口試-Ph.D. Defense (2013-06-19)-TH Wang.ppt博士論文口試-Ph.D. Defense (2013-06-19)-TH Wang.ppt
博士論文口試-Ph.D. Defense (2013-06-19)-TH Wang.pptssuserfd013d

Accelerated Materials Discovery & Characterization with Classical, Quantum an...
Accelerated Materials Discovery & Characterization with Classical, Quantum an...Accelerated Materials Discovery & Characterization with Classical, Quantum an...
Accelerated Materials Discovery & Characterization with Classical, Quantum an...KAMAL CHOUDHARY

Autonomous experimental phase diagram acquisition
Autonomous experimental phase diagram acquisitionAutonomous experimental phase diagram acquisition
Autonomous experimental phase diagram acquisitionaimsnist

FINE CHARACTERIZATION OF NANOSCALE MATERIALS BY TEM METHODS
FINE CHARACTERIZATION OF NANOSCALE MATERIALS  BY TEM METHODSFINE CHARACTERIZATION OF NANOSCALE MATERIALS  BY TEM METHODS
FINE CHARACTERIZATION OF NANOSCALE MATERIALS BY TEM METHODSBMRS Meeting

Machine Learning in Materials Science and Chemistry, USPTO, Nathan C. Frey
Machine Learning in Materials Science and Chemistry, USPTO, Nathan C. FreyMachine Learning in Materials Science and Chemistry, USPTO, Nathan C. Frey
Machine Learning in Materials Science and Chemistry, USPTO, Nathan C. FreyNathan Frey, PhD

The Materials Project and computational materials discovery
The Materials Project and computational materials discoveryThe Materials Project and computational materials discovery
The Materials Project and computational materials discoveryAnubhav Jain


Similar to A*STAR Webinar on The AI Revolution in Materials Science (20)

NIST-JARVIS infrastructure for Improved Materials Design
NIST-JARVIS infrastructure for Improved Materials DesignNIST-JARVIS infrastructure for Improved Materials Design
NIST-JARVIS infrastructure for Improved Materials Design

Ab initio simulation in materials science, Dierk Raabe, lecture at IHPC Singa...
Ab initio simulation in materials science, Dierk Raabe, lecture at IHPC Singa...Ab initio simulation in materials science, Dierk Raabe, lecture at IHPC Singa...
Ab initio simulation in materials science, Dierk Raabe, lecture at IHPC Singa...

Introduction (Part I): High-throughput computation and machine learning appli...
Introduction (Part I): High-throughput computation and machine learning appli...Introduction (Part I): High-throughput computation and machine learning appli...
Introduction (Part I): High-throughput computation and machine learning appli...

APS D63.00002 Tight Binding Simulation of Finite Temperature Electronic Struc...
APS D63.00002 Tight Binding Simulation of Finite Temperature Electronic Struc...APS D63.00002 Tight Binding Simulation of Finite Temperature Electronic Struc...
APS D63.00002 Tight Binding Simulation of Finite Temperature Electronic Struc...

Software tools for data-driven research and their application to thermoelectr...
Software tools for data-driven research and their application to thermoelectr...Software tools for data-driven research and their application to thermoelectr...
Software tools for data-driven research and their application to thermoelectr...

Transversely Isotropic Elastic Properties of Vacancy Defected Boron Nitride N...
Transversely Isotropic Elastic Properties of Vacancy Defected Boron Nitride N...Transversely Isotropic Elastic Properties of Vacancy Defected Boron Nitride N...
Transversely Isotropic Elastic Properties of Vacancy Defected Boron Nitride N...

Nanotechnology Progess And Pitfalls
Nanotechnology Progess And PitfallsNanotechnology Progess And Pitfalls
Nanotechnology Progess And Pitfalls

Theoretical and Applied Phase-Field: Glimpses of the activities in India
Theoretical and Applied Phase-Field: Glimpses of the activities in IndiaTheoretical and Applied Phase-Field: Glimpses of the activities in India
Theoretical and Applied Phase-Field: Glimpses of the activities in India

Theoretical and Applied Phase-Field: Glimpses of the activities in India
Theoretical and Applied Phase-Field: Glimpses of the activities in IndiaTheoretical and Applied Phase-Field: Glimpses of the activities in India
Theoretical and Applied Phase-Field: Glimpses of the activities in India

SPIE 2009 - "Efficient Parameter Estimation Techniques for Hysteresis Models"...
SPIE 2009 - "Efficient Parameter Estimation Techniques for Hysteresis Models"...SPIE 2009 - "Efficient Parameter Estimation Techniques for Hysteresis Models"...
SPIE 2009 - "Efficient Parameter Estimation Techniques for Hysteresis Models"...

Morgan uw maGIV v1.3 dist
Morgan uw maGIV v1.3 distMorgan uw maGIV v1.3 dist
Morgan uw maGIV v1.3 dist

Combinatorial Experimentation and Machine Learning for Materials Discovery
Combinatorial Experimentation and Machine Learning for Materials DiscoveryCombinatorial Experimentation and Machine Learning for Materials Discovery
Combinatorial Experimentation and Machine Learning for Materials Discovery

High-throughput computation and machine learning methods applied to materials...
High-throughput computation and machine learning methods applied to materials...High-throughput computation and machine learning methods applied to materials...
High-throughput computation and machine learning methods applied to materials...

博士論文口試-Ph.D. Defense (2013-06-19)-TH Wang.ppt
博士論文口試-Ph.D. Defense (2013-06-19)-TH Wang.ppt博士論文口試-Ph.D. Defense (2013-06-19)-TH Wang.ppt
博士論文口試-Ph.D. Defense (2013-06-19)-TH Wang.ppt

Accelerated Materials Discovery & Characterization with Classical, Quantum an...
Accelerated Materials Discovery & Characterization with Classical, Quantum an...Accelerated Materials Discovery & Characterization with Classical, Quantum an...
Accelerated Materials Discovery & Characterization with Classical, Quantum an...

Autonomous experimental phase diagram acquisition
Autonomous experimental phase diagram acquisitionAutonomous experimental phase diagram acquisition
Autonomous experimental phase diagram acquisition

final_exam
final_examfinal_exam
final_exam

FINE CHARACTERIZATION OF NANOSCALE MATERIALS BY TEM METHODS
FINE CHARACTERIZATION OF NANOSCALE MATERIALS  BY TEM METHODSFINE CHARACTERIZATION OF NANOSCALE MATERIALS  BY TEM METHODS
FINE CHARACTERIZATION OF NANOSCALE MATERIALS BY TEM METHODS

Machine Learning in Materials Science and Chemistry, USPTO, Nathan C. Frey
Machine Learning in Materials Science and Chemistry, USPTO, Nathan C. FreyMachine Learning in Materials Science and Chemistry, USPTO, Nathan C. Frey
Machine Learning in Materials Science and Chemistry, USPTO, Nathan C. Frey

The Materials Project and computational materials discovery
The Materials Project and computational materials discoveryThe Materials Project and computational materials discovery
The Materials Project and computational materials discovery


More from University of California, San Diego

NANO281 Lecture 01 - Introduction to Data Science in Materials Science
NANO281 Lecture 01 - Introduction to Data Science in Materials ScienceNANO281 Lecture 01 - Introduction to Data Science in Materials Science
NANO281 Lecture 01 - Introduction to Data Science in Materials ScienceUniversity of California, San Diego

Creating It from Bit - Designing Materials by Integrating Quantum Mechanics, ...
Creating It from Bit - Designing Materials by Integrating Quantum Mechanics, ...Creating It from Bit - Designing Materials by Integrating Quantum Mechanics, ...
Creating It from Bit - Designing Materials by Integrating Quantum Mechanics, ...University of California, San Diego

UCSD NANO106 - 13 - Other Diffraction Techniques and Common Crystal Structures
UCSD NANO106 - 13 - Other Diffraction Techniques and Common Crystal StructuresUCSD NANO106 - 13 - Other Diffraction Techniques and Common Crystal Structures
UCSD NANO106 - 13 - Other Diffraction Techniques and Common Crystal StructuresUniversity of California, San Diego

NANO266 - Lecture 12 - High-throughput computational materials design
NANO266 - Lecture 12 - High-throughput computational materials designNANO266 - Lecture 12 - High-throughput computational materials design
NANO266 - Lecture 12 - High-throughput computational materials designUniversity of California, San Diego

UCSD NANO106 - 08 - Principal Directions and Representation Quadrics
UCSD NANO106 - 08 - Principal Directions and Representation QuadricsUCSD NANO106 - 08 - Principal Directions and Representation Quadrics
UCSD NANO106 - 08 - Principal Directions and Representation QuadricsUniversity of California, San Diego

UCSD NANO106 - 03 - Lattice Directions and Planes, Reciprocal Lattice and Coo...
UCSD NANO106 - 03 - Lattice Directions and Planes, Reciprocal Lattice and Coo...UCSD NANO106 - 03 - Lattice Directions and Planes, Reciprocal Lattice and Coo...
UCSD NANO106 - 03 - Lattice Directions and Planes, Reciprocal Lattice and Coo...University of California, San Diego


More from University of California, San Diego (20)

NANO281 Lecture 01 - Introduction to Data Science in Materials Science
NANO281 Lecture 01 - Introduction to Data Science in Materials ScienceNANO281 Lecture 01 - Introduction to Data Science in Materials Science
NANO281 Lecture 01 - Introduction to Data Science in Materials Science

Creating It from Bit - Designing Materials by Integrating Quantum Mechanics, ...
Creating It from Bit - Designing Materials by Integrating Quantum Mechanics, ...Creating It from Bit - Designing Materials by Integrating Quantum Mechanics, ...
Creating It from Bit - Designing Materials by Integrating Quantum Mechanics, ...

UCSD NANO106 - 13 - Other Diffraction Techniques and Common Crystal Structures
UCSD NANO106 - 13 - Other Diffraction Techniques and Common Crystal StructuresUCSD NANO106 - 13 - Other Diffraction Techniques and Common Crystal Structures
UCSD NANO106 - 13 - Other Diffraction Techniques and Common Crystal Structures

NANO266 - Lecture 14 - Transition state modeling
NANO266 - Lecture 14 - Transition state modelingNANO266 - Lecture 14 - Transition state modeling
NANO266 - Lecture 14 - Transition state modeling

NANO266 - Lecture 12 - High-throughput computational materials design
NANO266 - Lecture 12 - High-throughput computational materials designNANO266 - Lecture 12 - High-throughput computational materials design
NANO266 - Lecture 12 - High-throughput computational materials design

NANO266 - Lecture 11 - Surfaces and Interfaces
NANO266 - Lecture 11 - Surfaces and InterfacesNANO266 - Lecture 11 - Surfaces and Interfaces
NANO266 - Lecture 11 - Surfaces and Interfaces

NANO266 - Lecture 10 - Temperature
NANO266 - Lecture 10 - TemperatureNANO266 - Lecture 10 - Temperature
NANO266 - Lecture 10 - Temperature

UCSD NANO106 - 12 - X-ray diffraction
UCSD NANO106 - 12 - X-ray diffractionUCSD NANO106 - 12 - X-ray diffraction
UCSD NANO106 - 12 - X-ray diffraction

UCSD NANO106 - 11 - X-rays and their interaction with matter
UCSD NANO106 - 11 - X-rays and their interaction with matterUCSD NANO106 - 11 - X-rays and their interaction with matter
UCSD NANO106 - 11 - X-rays and their interaction with matter

UCSD NANO106 - 10 - Bonding in Materials
UCSD NANO106 - 10 - Bonding in MaterialsUCSD NANO106 - 10 - Bonding in Materials
UCSD NANO106 - 10 - Bonding in Materials

UCSD NANO106 - 09 - Piezoelectricity and Elasticity
UCSD NANO106 - 09 - Piezoelectricity and ElasticityUCSD NANO106 - 09 - Piezoelectricity and Elasticity
UCSD NANO106 - 09 - Piezoelectricity and Elasticity

UCSD NANO106 - 08 - Principal Directions and Representation Quadrics
UCSD NANO106 - 08 - Principal Directions and Representation QuadricsUCSD NANO106 - 08 - Principal Directions and Representation Quadrics
UCSD NANO106 - 08 - Principal Directions and Representation Quadrics

UCSD NANO106 - 07 - Material properties and tensors
UCSD NANO106 - 07 - Material properties and tensorsUCSD NANO106 - 07 - Material properties and tensors
UCSD NANO106 - 07 - Material properties and tensors

NANO266 - Lecture 9 - Tools of the Modeling Trade
NANO266 - Lecture 9 - Tools of the Modeling TradeNANO266 - Lecture 9 - Tools of the Modeling Trade
NANO266 - Lecture 9 - Tools of the Modeling Trade

NANO266 - Lecture 8 - Properties of Periodic Solids
NANO266 - Lecture 8 - Properties of Periodic SolidsNANO266 - Lecture 8 - Properties of Periodic Solids
NANO266 - Lecture 8 - Properties of Periodic Solids

NANO266 - Lecture 7 - QM Modeling of Periodic Structures
NANO266 - Lecture 7 - QM Modeling of Periodic StructuresNANO266 - Lecture 7 - QM Modeling of Periodic Structures
NANO266 - Lecture 7 - QM Modeling of Periodic Structures

UCSD NANO106 - 06 - Plane and Space Groups
UCSD NANO106 - 06 - Plane and Space GroupsUCSD NANO106 - 06 - Plane and Space Groups
UCSD NANO106 - 06 - Plane and Space Groups

UCSD NANO106 - 05 - Group Symmetry and the 32 Point Groups
UCSD NANO106 - 05 - Group Symmetry and the 32 Point GroupsUCSD NANO106 - 05 - Group Symmetry and the 32 Point Groups
UCSD NANO106 - 05 - Group Symmetry and the 32 Point Groups

UCSD NANO106 - 04 - Symmetry in Crystallography
UCSD NANO106 - 04 - Symmetry in CrystallographyUCSD NANO106 - 04 - Symmetry in Crystallography
UCSD NANO106 - 04 - Symmetry in Crystallography

UCSD NANO106 - 03 - Lattice Directions and Planes, Reciprocal Lattice and Coo...
UCSD NANO106 - 03 - Lattice Directions and Planes, Reciprocal Lattice and Coo...UCSD NANO106 - 03 - Lattice Directions and Planes, Reciprocal Lattice and Coo...
UCSD NANO106 - 03 - Lattice Directions and Planes, Reciprocal Lattice and Coo...


Recently uploaded

Environmental Acoustics- Speech interference level, acoustics calibrator.pptx
Environmental Acoustics- Speech interference level, acoustics calibrator.pptxEnvironmental Acoustics- Speech interference level, acoustics calibrator.pptx
Environmental Acoustics- Speech interference level, acoustics calibrator.pptxpriyankatabhane

6.1 Pests of Groundnut_Binomics_Identification_Dr.UPR
6.1 Pests of Groundnut_Binomics_Identification_Dr.UPR6.1 Pests of Groundnut_Binomics_Identification_Dr.UPR
6.1 Pests of Groundnut_Binomics_Identification_Dr.UPRPirithiRaju

DETECTION OF MUTATION BY CLB METHOD.pptx
DETECTION OF MUTATION BY CLB METHOD.pptxDETECTION OF MUTATION BY CLB METHOD.pptx
DETECTION OF MUTATION BY CLB METHOD.pptx201bo007

Observational constraints on mergers creating magnetism in massive stars
Observational constraints on mergers creating magnetism in massive starsObservational constraints on mergers creating magnetism in massive stars
Observational constraints on mergers creating magnetism in massive starsSérgio Sacani

Pests of Sunflower_Binomics_Identification_Dr.UPR
Pests of Sunflower_Binomics_Identification_Dr.UPRPests of Sunflower_Binomics_Identification_Dr.UPR
Pests of Sunflower_Binomics_Identification_Dr.UPRPirithiRaju

Oxo-Acids of Halogens and their Salts.pptx
Oxo-Acids of Halogens and their Salts.pptxOxo-Acids of Halogens and their Salts.pptx
Oxo-Acids of Halogens and their Salts.pptxfarhanvvdk

Environmental acoustics- noise criteria.pptx
Environmental acoustics- noise criteria.pptxEnvironmental acoustics- noise criteria.pptx
Environmental acoustics- noise criteria.pptxpriyankatabhane

FBI Profiling - Forensic Psychology.pptx
FBI Profiling - Forensic Psychology.pptxFBI Profiling - Forensic Psychology.pptx
FBI Profiling - Forensic Psychology.pptxPayal Shrivastava

Combining Asynchronous Task Parallelism and Intel SGX for Secure Deep Learning
Combining Asynchronous Task Parallelism and Intel SGX for Secure Deep LearningCombining Asynchronous Task Parallelism and Intel SGX for Secure Deep Learning
Combining Asynchronous Task Parallelism and Intel SGX for Secure Deep Learningvschiavoni

6.2 Pests of Sesame_Identification_Binomics_Dr.UPR
6.2 Pests of Sesame_Identification_Binomics_Dr.UPR6.2 Pests of Sesame_Identification_Binomics_Dr.UPR
6.2 Pests of Sesame_Identification_Binomics_Dr.UPRPirithiRaju

Advances in AI-driven Image Recognition for Early Detection of Cancer
Advances in AI-driven Image Recognition for Early Detection of CancerAdvances in AI-driven Image Recognition for Early Detection of Cancer
Advances in AI-driven Image Recognition for Early Detection of CancerLuis Miguel Chong Chong

GLYCOSIDES Classification Of GLYCOSIDES Chemical Tests Glycosides
GLYCOSIDES Classification Of GLYCOSIDES  Chemical Tests GlycosidesGLYCOSIDES Classification Of GLYCOSIDES  Chemical Tests Glycosides
GLYCOSIDES Classification Of GLYCOSIDES Chemical Tests GlycosidesNandakishor Bhaurao Deshmukh

Observation of Gravitational Waves from the Coalescence of a 2.5–4.5 M⊙ Compa...
Observation of Gravitational Waves from the Coalescence of a 2.5–4.5 M⊙ Compa...Observation of Gravitational Waves from the Coalescence of a 2.5–4.5 M⊙ Compa...
Observation of Gravitational Waves from the Coalescence of a 2.5–4.5 M⊙ Compa...Sérgio Sacani

Timeless Cosmology: Towards a Geometric Origin of Cosmological Correlations
Timeless Cosmology: Towards a Geometric Origin of Cosmological CorrelationsTimeless Cosmology: Towards a Geometric Origin of Cosmological Correlations
Timeless Cosmology: Towards a Geometric Origin of Cosmological CorrelationsDanielBaumann11

DNA isolation molecular biology practical.pptx
DNA isolation molecular biology practical.pptxDNA isolation molecular biology practical.pptx
DNA isolation molecular biology practical.pptxGiDMOh

KDIGO-2023-CKD-Guideline-Public-Review-Draft_5-July-2023.pdf
KDIGO-2023-CKD-Guideline-Public-Review-Draft_5-July-2023.pdfKDIGO-2023-CKD-Guideline-Public-Review-Draft_5-July-2023.pdf
KDIGO-2023-CKD-Guideline-Public-Review-Draft_5-July-2023.pdfGABYFIORELAMALPARTID1


Recently uploaded (20)

AZOTOBACTER AS BIOFERILIZER.PPTX
AZOTOBACTER AS BIOFERILIZER.PPTXAZOTOBACTER AS BIOFERILIZER.PPTX
AZOTOBACTER AS BIOFERILIZER.PPTX

Environmental Acoustics- Speech interference level, acoustics calibrator.pptx
Environmental Acoustics- Speech interference level, acoustics calibrator.pptxEnvironmental Acoustics- Speech interference level, acoustics calibrator.pptx
Environmental Acoustics- Speech interference level, acoustics calibrator.pptx

6.1 Pests of Groundnut_Binomics_Identification_Dr.UPR
6.1 Pests of Groundnut_Binomics_Identification_Dr.UPR6.1 Pests of Groundnut_Binomics_Identification_Dr.UPR
6.1 Pests of Groundnut_Binomics_Identification_Dr.UPR

DETECTION OF MUTATION BY CLB METHOD.pptx
DETECTION OF MUTATION BY CLB METHOD.pptxDETECTION OF MUTATION BY CLB METHOD.pptx
DETECTION OF MUTATION BY CLB METHOD.pptx

Observational constraints on mergers creating magnetism in massive stars
Observational constraints on mergers creating magnetism in massive starsObservational constraints on mergers creating magnetism in massive stars
Observational constraints on mergers creating magnetism in massive stars

Pests of Sunflower_Binomics_Identification_Dr.UPR
Pests of Sunflower_Binomics_Identification_Dr.UPRPests of Sunflower_Binomics_Identification_Dr.UPR
Pests of Sunflower_Binomics_Identification_Dr.UPR

Oxo-Acids of Halogens and their Salts.pptx
Oxo-Acids of Halogens and their Salts.pptxOxo-Acids of Halogens and their Salts.pptx
Oxo-Acids of Halogens and their Salts.pptx

Environmental acoustics- noise criteria.pptx
Environmental acoustics- noise criteria.pptxEnvironmental acoustics- noise criteria.pptx
Environmental acoustics- noise criteria.pptx

Interferons.pptx.
Interferons.pptx.Interferons.pptx.
Interferons.pptx.

FBI Profiling - Forensic Psychology.pptx
FBI Profiling - Forensic Psychology.pptxFBI Profiling - Forensic Psychology.pptx
FBI Profiling - Forensic Psychology.pptx

Combining Asynchronous Task Parallelism and Intel SGX for Secure Deep Learning
Combining Asynchronous Task Parallelism and Intel SGX for Secure Deep LearningCombining Asynchronous Task Parallelism and Intel SGX for Secure Deep Learning
Combining Asynchronous Task Parallelism and Intel SGX for Secure Deep Learning

6.2 Pests of Sesame_Identification_Binomics_Dr.UPR
6.2 Pests of Sesame_Identification_Binomics_Dr.UPR6.2 Pests of Sesame_Identification_Binomics_Dr.UPR
6.2 Pests of Sesame_Identification_Binomics_Dr.UPR

Advances in AI-driven Image Recognition for Early Detection of Cancer
Advances in AI-driven Image Recognition for Early Detection of CancerAdvances in AI-driven Image Recognition for Early Detection of Cancer
Advances in AI-driven Image Recognition for Early Detection of Cancer

GLYCOSIDES Classification Of GLYCOSIDES Chemical Tests Glycosides
GLYCOSIDES Classification Of GLYCOSIDES  Chemical Tests GlycosidesGLYCOSIDES Classification Of GLYCOSIDES  Chemical Tests Glycosides
GLYCOSIDES Classification Of GLYCOSIDES Chemical Tests Glycosides

Introduction Classification Of Alkaloids
Introduction Classification Of AlkaloidsIntroduction Classification Of Alkaloids
Introduction Classification Of Alkaloids

Observation of Gravitational Waves from the Coalescence of a 2.5–4.5 M⊙ Compa...
Observation of Gravitational Waves from the Coalescence of a 2.5–4.5 M⊙ Compa...Observation of Gravitational Waves from the Coalescence of a 2.5–4.5 M⊙ Compa...
Observation of Gravitational Waves from the Coalescence of a 2.5–4.5 M⊙ Compa...

PLASMODIUM. PPTX
PLASMODIUM. PPTXPLASMODIUM. PPTX
PLASMODIUM. PPTX

Timeless Cosmology: Towards a Geometric Origin of Cosmological Correlations
Timeless Cosmology: Towards a Geometric Origin of Cosmological CorrelationsTimeless Cosmology: Towards a Geometric Origin of Cosmological Correlations
Timeless Cosmology: Towards a Geometric Origin of Cosmological Correlations

DNA isolation molecular biology practical.pptx
DNA isolation molecular biology practical.pptxDNA isolation molecular biology practical.pptx
DNA isolation molecular biology practical.pptx

KDIGO-2023-CKD-Guideline-Public-Review-Draft_5-July-2023.pdf
KDIGO-2023-CKD-Guideline-Public-Review-Draft_5-July-2023.pdfKDIGO-2023-CKD-Guideline-Public-Review-Draft_5-July-2023.pdf
KDIGO-2023-CKD-Guideline-Public-Review-Draft_5-July-2023.pdf


A*STAR Webinar on The AI Revolution in Materials Science

  • 1. TheAI Revolution in Materials Science Shyue Ping Ong Jul 2 2020 IMRE Webinar
  • 3. Jul 2 2020 Science •Thermodynamics •Kinetics •Mechanics Data •High-throughput automation •Data UI Learning •Data mining •AI and machine learning •Quantified chemical intuition Application •Energy storage •Energy efficiency •Materials for Extreme Environments Community •Open-source software •Open data •Open APIs •Outreach Bond attributes State attributes Atom attributes 2. Update atom 3. Update state New atom attributes New bond attributes New state attributes MEGNet update steps Outputs MEGNet 1. Update bond Dynamically add continuation AIMD job starting from previous one Dynamically add initial AIMD jobs running at different temperatures Converged? Converged? Converged? AIMD simulation AIMD simulation AIMD simulation Setup simulation box Initial relaxation Start End N N N Y Y Y
  • 4. Machine learning (ML) is the scientific study of algorithms and statistical models that computer systems use to perform a specific task without using explicit instructions, relying on patterns and inference instead. Jul 2 2020 Artificial Intelligence Machine Learning Supervised
  • 5. ML in Materials Science Jul 2 2020 Identify target/problem Data Collection Model Choice / Featurization Training Application Domain knowledge • Is the problem worth solving? • Is the problem be solved by other (simpler) means? • Can the target be learned? Data Sources Existing DIY Elemental Features Structural Features Classification Decision tree Logistic regression ... Regression GPR KRR Multi-linear Random forest SVR Neural networks Graph models ... Materials Science Specific ænet Automatminer CGCNN DeepChem MEGNet PROPhet SchnetPack TensorMol ...
  • 6. Where is ML valuable in Materials Science? Jul 2 2020 IMRE Webinar Things that are too slow/difficult to compute Relationships that are beyond our understanding (at the moment) > 106 atoms Element-wise classification model Prediction Predicted Input CN4 - Motif 1 CN5 - Mo CN6 CN4 1: single bond 2: L-shaped 2: water-like 2: bent 120 degrees 2: bent 150 degrees 2: linear 3: T-shaped 3: trigonal planar 3: trigonal non- coplanar 4: square co- planar 4: tetrahedral 4: rectangular see-saw 4: see-saw like 4: trigonal pyramidal 5: pentagonal planar 5: square pyramidal 5: trigonal bipyramidal 6: hexagonal planar 6: octahedral 6: pentagonal pyramidal 7: hexagonal pyramidal 7: pentagonal bipyramidal 8: body-centered cubic 8: hexagonal bipyramidal 12: cuboctahedra ??
  • 7. AI Use Case 1: Predicting Materials Properties Efficiently and Accurately Jul 2 2020 IMRE Webinar
  • 8. Tesla-ian approach to materials discovery Jul 2 2020 ~20 years + $ billions of development Reduced time and cost of development IMRE Webinar If he [Edison] had a needle to find in a haystack, he would not stop to reason where it was most likely to be, but would proceed at once with the feverish diligence of a bee, to examine straw after straw until he found the object of his search. … Just a little theory and calculation would have saved him 90% of his labor. a lot of calculation
  • 9. “First Principles” Property Prediction Jul 2 2020 Eψ(r) = − h 2 2m ∇2 ψ(r)+V(r)ψ(r) Schrodinger Equation 0 0.2 0.4 0.6 0.8 1 0 50 100 150 200 250 Diffusion coordinate Energy (meV) LCO NCO Material Properties Phase stability1 Diffusion barriers2 Charge densities6 Surface energies and Wulff shape3 Density functional theory (DFT) approximation Generally applicable to any chemistry 1 Ong et al., Chem. Mater., 2008, 20, 1798–1807. 2 Ong et al., Energy Environ. Sci., 2011, 4, 3680–3688. 3 Tran et al., Sci. Data, 2016, 3, 160080. 4 Deng et al., J. Electrochem. Soc., 2016, 163, A67–A74. 5 Wang et al., Chem. Mater., 2016, 28, 4024–4031. 6 Ong et al., Phys. Rev. B, 2012, 85, 2–5. Mechanical properties4 Electronic structure5 Inherently scalable IMRE Webinar
  • 10. The Materials Project is an open science project to make the computed properties of all known inorganic materials publicly available to all researchers to accelerate materials innovation. June 2011: Materials Genome Initiative which aims to “fund computational tools, software, new methods for material characterization, and the development of open standards and databases that will make the process of discovery and development of advanced materials faster, less expensive, and more predictable” https://www.materialsproject.org Jul 2 2020 IMRE Webinar
  • 11. IMRE Webinar “Google” of Materials Jul 2 2020 1 Jain et al. APL Mater. 2013, 1 (1), 11002. . Structure Electronic Structure Elastic properties XRD Energetic properties
  • 12. First principles calculations are not enough! Jul 2 2020 Reasonable ML Deep learning (AA’)0.5(BB’)0.5O3 perovskite 2 x 2 x 2 supercell, 10 A and 10 B species = (10C2 x 8C4)2 ≈107 IMRE Webinar ratio of (634 + 34)/485 ≈ 1.38 (Supplementary Table S-II) with b5% difference in the experimental and theoretical values. This again agree well with those calculated from the rule of mixture (Supplemen- tary Table-III). The experimental XRD patterns also agree well with Fig. 2. Atomic-resolution STEM ABF and HAADF images of a representative high-entropy perovskite oxide, Sr(Zr0.2Sn0.2Ti0.2Hf0.2Mn0.2)O3. (a, c) ABF and (b, d) HAADF images at (a, b) low and (c, d) high magnifications showing nanoscale compositional homogeneity and atomic structure. The [001] zone axis and two perpendicular atomic planes (110) and (110) are marked. Insets are averaged STEM images. Jiang et al. A New Class of High-Entropy Perovskite Oxides. Scripta Materialia 2018, 142, 116–120. Materials design is combinatorial Machine Learn from Here… To predict everything else
  • 13. Graphs as a natural representation for materials, i.e.,molecules and crystals Jul 2 2020 Global state (u) ek1 vsk vrk IMRE Webinar Zr … … … … … … Zs … … ... … … … … … … … … … … T p S … … … … 𝑒 ! "!"! " #" Chen et al. Chem. Mater. 2019, 31 (9), 3564–3572. doi: 10.1021/acs.chemmater.9b01294.
  • 14. Information flow between elements in a graph network Jul 2 2020 Global state (u) ek1 vsk vrk IMRE Webinar T p S … … … … 𝒆𝒌𝟏 # = 𝜙$(𝒗𝒓𝒌⨁𝒗𝒔𝒌⨁𝒆𝒌𝟏⨁𝒖) Bond update Chen et al. Chem. Mater. 2019, 31 (9), 3564–3572. doi: 10.1021/acs.chemmater.9b01294.
  • 15. Information flow between elements in a graph network Jul 2 2020 Global state (u) ek1 vsk vrk IMRE Webinar T p S … … … … ek2 ek3 Atom update 𝒆𝒌𝟏 # = 𝜙$(𝒗𝒓𝒌⨁𝒗𝒔𝒌⨁𝒆𝒌𝟏⨁𝒖) Bond update 𝒗𝒓𝒌 # = 𝜙'(𝒗𝒓𝒌⨁𝒆𝒌𝒓⨁𝒖) Chen et al. Chem. Mater. 2019, 31 (9), 3564–3572. doi: 10.1021/acs.chemmater.9b01294.
  • 16. Information flow between elements in a graph network Jul 2 2020 Global state (u) ek1 vsk vrk IMRE Webinar T p S … … … … ek2 ek3 Atom update 𝒆𝒌𝟏 # = 𝜙$(𝒗𝒓𝒌⨁𝒗𝒔𝒌⨁𝒆𝒌𝟏⨁𝒖) Bond update State update 𝒖′ = 𝜙((𝑽⨁𝑬⨁𝒖) 𝜙 are approximated using Universal approximation theorem Cybenko et al. Math. Control Signal Systems 1989, 2 (4), 303–314. 𝒗𝒓𝒌 # = 𝜙'(𝒗𝒓𝒌⨁𝒆𝒌𝒓⨁𝒖) Chen et al. Chem. Mater. 2019, 31 (9), 3564–3572. doi: 10.1021/acs.chemmater.9b01294.
  • 17. MatErials Graph Networks (MEGNet) Jul 2 2020 IMRE Webinar Implementation is open source at https://github.com/materialsvirtuallab/megnet. Modular blocks can be stacked to generate models of arbitrary complexity and “locality” of interactions
  • 18. Performance on Materials Project Crystals Jul 2 2020 IMRE Webinar Property MEGNet SchNet1 CGCNN2 Formation energy Ef (meV/atom) 28 (60,000) 35 39 (28,046) Band gap Eg (eV) 0.330 (36,720) - 0.388 (16,485) log10 KVRH (GPa) 0.050 (4,664) - 0.054 (2,041) log10 GVRH (GPa) 0.079 (4,664) - 0.087 (2,041) Metal classifier 78.9% (55,391) - 80% (28,046) Non-metal classifier 90.6% (55,391) - 95% (28,046) 1 Schutt et al. J. Chem. Phys. 148, 241722 (2018) 2 Xie et al. PRL. 120.14 (2018): 145301. Chen et al. Chem. Mater. 2019, 31 (9), 3564–3572. doi: 10.1021/acs.chemmater.9b01294.
  • 19. THE Data Problem in Materials Science High value data (e.g., experimental, accurate calculations) tend to be scarce Jul 2 2020 PBE, 52348 HSE, 6030 GLLB, 2290 SCAN, 472 Expt, 2700 Most inaccurate, least valuable Most valuable Band gaps of crystals
  • 20. Multi-fidelity graph networks Jul 2 2020 Fidelity: PBE, GLLB-SC, SCAN HSE, Exp, … Embedding PBE: 0, GLLB-SC: 1, SCAN: 2, HSE: 3, Exp: 4, … Encoding GLLB-SC SCAN PBE HSE Fidelity-to-state embedding Gaussian Expansion … Atom features … Structure graph Graph convolution Graph convolution Readout Neural networks Target Latent feature vector State State b a Bond features State features d Atomic number embedding Z ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● 0.00 0.25 0.50 0.75 PBE GLLB−SC SCAN HSE Exp MAE (eV) ● ● ● ● ● 1−fi 1−fi−stacked 2−fi 4−fi 5−fi b c e d a Use large amounts of low- fidelity data, we can improve underlying structural representations in graph deep learning models and enhance the performance on high-fidelity predictions! t-SNE plot of latent structural features Without PBE With PBE Chen et al. arXiv:2005.04338 [cond-mat] 2020.
  • 21. Application:Discovery of Novel Phosphor for LEDs A Solid-state Lighting Periodic Table SrO Sr3Al2O6 SrAl2O4 LiAl5O8 LiAlO2 Li5AlO4 Li2O Al2O3 SrAl4O7 Sr2LiAlO4 Sr Li Al O Sr1 Sr2 2.99 2.65 2.65 2.54 2.99 2.54 2.56 2.60 2.59 2.59 2.66 2.69 2.61 2.69 2.96 2.96 C B M-X-O M-L-X-O M: Sr/Ca/Ba L: Li/Mg/Y X: B/Al/Si/P Unexplored chemistries! Ternaries are well-explored # of unique crystals with “phosphor” in title in ICSD Wang, Z.; Ha, J.; Kim, Y. H.; Im, W. Bin; McKittrick, J.; Ong, S. P. Joule 2018, DOI: 10.1016/j.joule.2018.01.015. Jul 2 2020
  • 22. IMRE Webinar Sr Li Al O Sr2LiAlO4(𝑃2!/𝑚) Ba2LiReN4(ICSD#411453) 918 compounds Jul 2 2020 AI-driven algorithm AI-driven predictions for fast screening
  • 23. Prediction to LED device Jul 2 2020 b a c Eu@Sr2 Eu@Sr1 CBM 5d 4f Eu2+ /Ce3+ free ion E (eV) d Eu2+-activated High color quality (CRI > 90) LED prototypes utilizing SLAO phosphor Wang, Z.; Ha, J.; Kim, Y. H.; Im, W. Bin; McKittrick, J.; Ong, S. P. Joule 2018, DOI: 10.1016/j.joule.2018.01.015. IMRE Webinar
  • 24. It is not a fluke! Jul 2 2020
  • 25. AI Use Case 2: Accessing scale and complexity Jul 2 2020 IMRE Webinar
  • 26. Real-world materials are seldom isolated molecules or bulk crystals We are really good at calculating these: But real-world materials look like these: Jul 2 2020
  • 27. Machine learning the potential energy surface Jul 2 2020 IMRE Webinar 1 Behler et al. PRL. 98.14 (2007): 146401. 2 Shapeev MultiScale Modeling and Simulation 14, (2016). 3 Bart ́ ok et al. PRL. 104.13 (2010): 136403. 4 Thompson et al. J. Chem. Phys. 285, 316330 (2015) the descriptors for these local environments and the ML approach/functional expression used to map the descriptors to the potential energy. The detailed formalism of all four ML-IAPs are provided in the Supplementary Information. Here, only a concise summary of the key concepts and model parameters behind the ML-IAPs in chronological order of development, is provided to aid the reader in following the remainder of this paper. 1. High-dimensional neural network potential (NNP). The NNP uses atom-centered symmetry functions (ACSF)39 to represent the atomic local environments and fully con- nected neural networks to describe the PES with respect to symmetry functions.11,12 A separate neural network is used for each atom. The neural network is defined by the number of hidden layers and the nodes in each layer, while the descriptor space is given by the following symmetry functions: Gatom,rad i = Natom X j6=i e ⌘(Rij Rs)2 · fc(Rij), Gatom,ang i = 21 ⇣ Natom X j,k6=i (1 + cos ✓ijk)⇣ · e ⌘0(R2 ij+R2 ik+R2 jk) · fc(Rij) · fc(Rik) · fc(Rjk), where Rij is the distance between atom i and neighbor atom j, ⌘ is the width of the Gaussian and Rs is the position shift over all neighboring atoms within the cuto↵ radius Rc, ⌘0 is the width of the Gaussian basis and ⇣ controls the angular resolution. fc(Rij) is a cuto↵ function, defined as follows: fc(Rij) = 8 > > < 0.5 · [cos ( ⇡Rij Rc ) + 1], for Rij  Rc ZnO44 and Li3PO4.45 Gaussian Approximation Potential (GAP). The GAP calculates the similar- ity between atomic configurations based on a smooth-overlap of atomic positions (SOAP)10,46 kernel, which is then used in a Gaussian process model. In SOAP, the Gaussian-smeared atomic neighbor densities ⇢i(R) are expanded in spherical harmonics as follows: ⇢i(R) = X j fc(Rij) · exp( |R Rij|2 2 2 atom ) = X nlm cnlm gn(R)Ylm(R̂), The spherical power spectrum vector, which is in turn the square of expansion coeffi- cients, pn1n2l(Ri) = l X c⇤ n1lmcn2lm, Distances and angles Neighbor density 𝐸𝑛𝑒𝑟𝑔𝑦 = 𝑓 𝑎𝑡𝑜𝑚 𝑝𝑜𝑠𝑖𝑡𝑖𝑜𝑛𝑠 𝐹𝑜𝑟𝑐𝑒 = 𝑓′ 𝑎𝑡𝑜𝑚 𝑝𝑜𝑠𝑖𝑡𝑖𝑜𝑛𝑠 Pymatgen Fireworks + VASP DFT static Dataset Elastic deformation Distorted structures Surface generation Surface structures Vacancy + AIMD Trajectory snapshots (low T, high T) AIMD Trajectory snapshots Crystal structure property fitting E e e.g. elastic, phonon ··· energy weights degrees of freedom ··· cutoff radius expansion width S1 S2 Sn · · · rc atomic descriptors local environment sites · · · · · · X1(r1j … r1n) X2(r2k … r2m) Xn(rnj … rnm) machine learning Y =f(X; !) Y (energy, force, stress) DFT properties grid search evolutionary algorithm Automated workflow for ML-IAP development
  • 28. Do ML interatomic potentials work? Jul 2 2020 ML interatomic potentials Traditional interatomic potentials Zuo et al. J. Phys. Chem.A 2020, 124 (4), 731–745.
  • 29. Application:Multi-Principal ElementAlloys (MPEAs),aka“High-Entropy”Alloys Jul 2 2020 atoms of different sizes. This has important thermodynamic im- plications. Ideal configurational entropy is based on populating identical lattice sites with chemically different but equal-sized atoms. Atoms with different sizes can bring some uncertainty in atom location, thus giving an excess configurational entropy term. This effect may be small in dilute solutions, where the location of the minority atom is constrained by the surrounding majority atoms (Fig. 5a). The uncertainty in atom location increases with increasing size differences and concentrations. In multi-principal 2.3.4. Magnitudes of excess entropy terms relative to S∅;ideal Several terms contribute to the total molar entropy of phase ∅, S∅. Atomic configurations give an ideal component for SS phases via the Boltzmann equation (SSS;ideal, Section 2.1.1) and for IM phases with the sub-lattice model (SIM;ideal, Section 2.2.2). An excess configurational term, conf S ∅ , can result from SRO (Section 2.1.1) or differences in atom sizes (Section 2.3.3). Other excess entropy terms come from atomic vibrations (vibS ∅ ), magnetic moments Fig. 5. The effect of atom size difference on atom positions in (a) a dilute solution, where solute atoms are constrained to occupy lattice sites by surrounding solvent atoms and (b) a complex, concentrated solution, where there is no dominant atom species and atom positions usually deviate from mean lattice positions. The variability in atom positions in (b) contributes to an excess configurational entropy. Traditional Alloy MPE Alloy 23 273 714 38 [268] 200 215 582 34 [268] 400 195 496 28 [268] Ni AC, 1100" C/24 h, CR 90%, 1000" C/1 h FCC, GS ¼ 36 mm 1 $ 10!3 !196 499 1283 62 [268] !70 357 1006 54 [268] 23 280 699 43 [268] 200 215 582 36 [268] 400 186 555 28 [268] Ni AC, 1100" C/24 h, CR 90%, 1000" C/1 h FCC, GS ¼ 48 mm 1 $ 10!3 !196 300 835 48 [268] !70 210 656 44 [268] 23 175 551 41 [268] 200 135 488 36 [268] 400 116 465 37 [268] lowing acronyms are used: AC (as-cast); CR (cold-rolled); GB (grain boundary); GS (grain size); HR (hot-rolled); SC (slow cooled); SX (single crystal); WQ (wat Miracle et al., Acta Materialia 2017, 122, 448–511.
  • 30. NbTaMoW MPEA – Random is not really random Jul 2 2020 Nb segregates to GBs Increased short-range order Von Mises Strain Distribution Li et al. npj Comput Mater 2020, 6 (1), 70.
  • 31. Application:Diffusion studies of Li3N superionic conductor Jul 2 2020 eSNAP Exp. Ea (eV) ⟂c 0.255 0.290 ∥c 0.327 0.490 total 0.269 𝜎RT (mS/cm) ⟂c 29.6 1.2 ∥c 2.32 0.01 total 17.3 HR ⟂c 0.42 ~ 0.3 ∥c 0.54 ~ 0.5 total 0.44 IMRE Webinar Ea and 𝜎RT : Appl. Phys. Lett. 1977, 30 (12), 621–623. HR: J. Phys. C Solid State Phys. 1981, 14, 2731–2746. Deng et al. submitted Simulate ion diffusion in grain boundaries 5000-10000 atom simulations
  • 32. AI Use Case 3: Interpreting complex relationships Jul 2 2020 IMRE Webinar
  • 33. ML in image recognition Jul 2 2020 Source: https://qz.com/1034972/the-data-that-changed-the- direction-of-ai-research-and-possibly-the-world/
  • 34. Equivalent problem in Materials Characterization Jul 2 2020 ?? Coordination environment Oxidation state ….
  • 35. Application:Random Forest Coordination Environment Classification Jul 2 2020 Alkali TM Post-TM Metalloid Carbon Alkaline Zheng et al. Patterns 2020, 100013.
  • 36. ML can tell us which spectra regions are important Jul 2 2020 Post Zheng et al. Patterns 2020, 100013.
  • 37. Challenges and Opportunities for AI in Materials Science Jul 2 2020 IMRE Webinar
  • 38. the score of the least abundant atom in the unit cell. The atomic abundance ranks are given in Table S1 (ESI†). Although we calculate the earth abundance index for each candidate material, we do not use this as a screening criterion. 3. Ionic conductivity screening 3.1 Training set We compiled a training set of 40 crystal structures and reported experimentally measured ionic conductivity values available in the literature. These structures and ionic conductivity values are listed in Table 1. The atomic crystalline structures we employ for these 40 materials were downloaded from the Inorganic Crystal Structure Database (ICSD)85 which contains experimentally derived measurements. The work of Raccuglia et al.17 demonstrates the value of learning on negative examples; this supports our inclusion of many poor conductors in the training set. This is a relatively small set of available data from which to build a predictive model, and it is n there is sufficient information available to are best if good candidates for underlying ph good features can be chosen. From these atomistic structures, we co that characterize the local atomic arrangem of the crystals. These features are chos candidates for exhibiting some correlation tivity. These features depend only on the electronegativities, and atomic radii of the a require minimal effort for computation. C features from electronic structure requir expensive simulations and quickly becom the large number of candidate materials to 20 features and their individual Pearson cor conductivity for the structures in the train Table 2. The reference values we use for b Challenge #1:Data,data,data Jul 2 2020 Note:All identifying information hidden for diplomatic purposes…. Too little data Data “prejudice” Efficient Band Gap Prediction for Solids M. K. Y. Chan1 and G. Ceder2 Engineering, Massachusetts Institute of Technology, Cambridge, Massachusetts 02139, USA ineering, Massachusetts Institute of Technology, Cambridge, Massachusetts 02139, USA (Received 27 March 2010; published 5 November 2010) d for the prediction of fundamental band gaps in solids using density functional osed. Generalizing the Delta self-consistent-field (!SCF) method to infinite solids, ased on total-energy differences and derived from dielectric screening properties of l and semilocal exchange-correlation functionals (local density and generalized ons), we demonstrate a 70% reduction of mean absolute errors compared to Kohn- 00 compounds with experimental gaps of 0.5–4 eV, at computational costs similar to ons. Lett.105.196403 PACS numbers: 71.15.Dx, 71.15.Mb, 71.20.!b DFT) [1], in the Kohn- ocal density (LDA [2]) or ) approximations for the tional, has been success- , electronic, magnetic and ondensed matter systems. d gap problem’’, in which rectly predict the energy occupied states, is a hin- ncluding semiconductors, ls, and thermoelectrics. the Kohn-Sham gap EKS, ues of lowest unoccupied s, is identified as the band ates band gaps (EExp) of strate the problem, we plot for a test set of over 100 with room-temperature rticular interest for appli- large, there is no discern- d EExp. by EKS in local and semi- uted to their inherent lack d delocalization error [7]. d gap is an excited-state described by ground state evoted to solving the DFT d in addition to the Kohn- he GW approximation [9], exchange [11], hybrid and ls, and modified Becke- ficient method for predict- computationally efficient The method is drawn upon sistent-field (!SCF) [14] o as !-sol. The predicted (blue crosses) in Fig. 1. The underlying physical principle of !-sol, as in GW and screened-hybrid functionals, is a consideration of the dielectric screening properties of electrons. In the implementation of !-sol, as in hybrid functionals and MBJ, one or two parameters are fixed to minimize errors in predicting EExp for a test set of com- pounds. Like MBJ and unlike GW and hybrid functionals, !-sol is as computationally expedient as standard DFT. Unlike MBJ, any existing DFT code and functional can be used in conjunction with !-sol without recoding. The fundamental gap EFG of a system is defined as the energy required to create an unbound electron-hole pair: EFG ¼ EðN þ 1Þ þ EðN ! 1Þ ! 2EðNÞ; (1) where N is the number of electrons in the system. The evaluation of EFG from (1) by explicit calculations of energies of the system with N, N þ 1 and N ! 1 electrons, i.e., the !SCF method, produces reasonable results for atoms and molecules [7,14]. The problem that arises, in 0 1 2 3 4 0 1 2 3 4 ∆−sol (PBE) Kohn−Sham (PBE) Experimental Gap (eV) Predicted Gap (eV) FIG. 1 (color online). Kohn-Sham (dots) and !-sol (crosses) No good methods (theoretical or experimental) …. Perovskite studies dominate (small sample of publications from just the last 2 years or so….) - Accelerated Development of Perovskite-Inspired Materials via High-Throughput Synthesis and Machine-Learning Diagnosis. Joule 2019, 3 (6), 1437–1451 - Machine Learning Bandgaps of Double Perovskites. Scientific Reports 2016, 6, 19375. - Howard, J. M.; Tennyson, E. M.; Neves, B. R. A.; Leite, M. S. Machine Learning for Perovskites’ Reap-Rest-Recovery Cycle. Joule 2019, 3 (2), 325–337. - Multi-Fidelity Machine Learning Models for Accurate Bandgap Predictions of Solids. Computational Materials Science 2017, 129, 156–163. - Rapid Discovery of Ferroelectric Photovoltaic Perovskites and Material Descriptors via Machine Learning. Small Methods 0 (0), 1900360. - Rationalizing Perovskite Data for Machine Learning and Materials Design. The Journal of Physical Chemistry Letters 2018, 9 (24), 6948– 6954. - Thermodynamic Stability Landscape of Halide Double Perovskites via High-Throughput Computing and Machine Learning. Adv. Funct. Mater. 2019, 29 (9), 1807280. - Thermodynamic Stability Trend of Cubic Perovskites. J. Am. Chem. Soc. 2017, 139 (42), 14905–14908.
  • 39. Opportunities Ideal, but challenging: • Combinatorial experiments • Improved theory Practical: • Multi-fidelity ML • Transfer learning • Text mining Jul 2 2020 Pilania et al. Computational Materials Science 2017, 129, 156–163. LETTER RESEARCH Fig. 2 | Prediction of new thermoelectric materials. a, A ranking of thermoelectric materials can be produced using cosine similarities of material embeddings with the embedding of the word ‘thermoelectric’. Highly ranked materials that have not yet been studied for thermoelectric applications (do not appear in the same abstracts as words ‘ZT’, word thermoelectric. The width of the edges between ‘thermoelectric’ and the context words (blue) is proportional to the cosine similarity between the word embeddings of the nodes, whereas the width of the edges between the materials and the context words (red, green and purple) is proportional to the cosine similarity between the word embeddings of Tshitoyan et al. Nature 2019, 571 (7763), 95.
  • 40. Challenge #2:Models 1. Need models to learn proper physics and chemistry. 2. Avoid descriptor “soup” (LASSO and feature importance are not magic wands…). 3. Need to account for data uncertainty. Jul 2 2020 Very bad for interatomic potential or generalization! TABLE S2: Properties used in atom feature vector vi Property Unit Range # of categories Group number – 1,2, ..., 18 18 Period number – 1,2, ..., 9a 9 Electronegativity[7, 8] – 0.5–4.0 10 Covalent radius[3] pm 25–250 10 Valence electrons – 1, 2, ..., 12 12 First ionization energy[9]b eV 1.3–3.3 10 Electron affinity[10] eV -3–3.7 10 Block – s, p, d, f 4 Atomic volumeb cm3/mol 1.5–4.3 10 a The lanthanide and actinide elements are considered as period 8 and 9 respectively. b Log scale is used for these properties. TABLE S3: Properties used in bond feature vector u(i,j)k MEGNet uses just Z for atomic feature and achieved similar performance, for both molecules AND crystals... Another graph-based model….
  • 41. Opportunities Marrying physics/chemistry with ML models Develop better model architectures, e.g., invertible representations for true “inverse design” 𝑆𝑡𝑟𝑢𝑐𝑡𝑢𝑟𝑒 = 𝑓)* (𝑝𝑟𝑜𝑝𝑒𝑟𝑡𝑖𝑒𝑠) Jul 2 2020
  • 43. Final Remarks ML is changing the way we do materials science, but many challenges remain. • A lot of hype • A few real successes • Many opportunities for improvement. Machines are not a substitute for scientists • Identify the right problem • Determine the main physics of the problem. • Choose the right ML tool! Jul 2 2020 Identify Purpose and Target Data Generation or Collection Featurization Training Application Active learning Domain knowledge - Is target learnable? - Is target ambiguous? Data Sources Existing DIY Elemental Features Structural Features Classification Decision tree Logistic regression ... Regression GPR KRR Multi-linear Random forest SVR Neural networks Graph models ... Supervised - Cross-validation - Hyper-parameter optimization Materials Science Specific ænet Automatminer CGCNN DeepChem MEGNet PROPhet SchnetPack TensorMol ...
