The merits of integrating renewables with smarter grid carilec

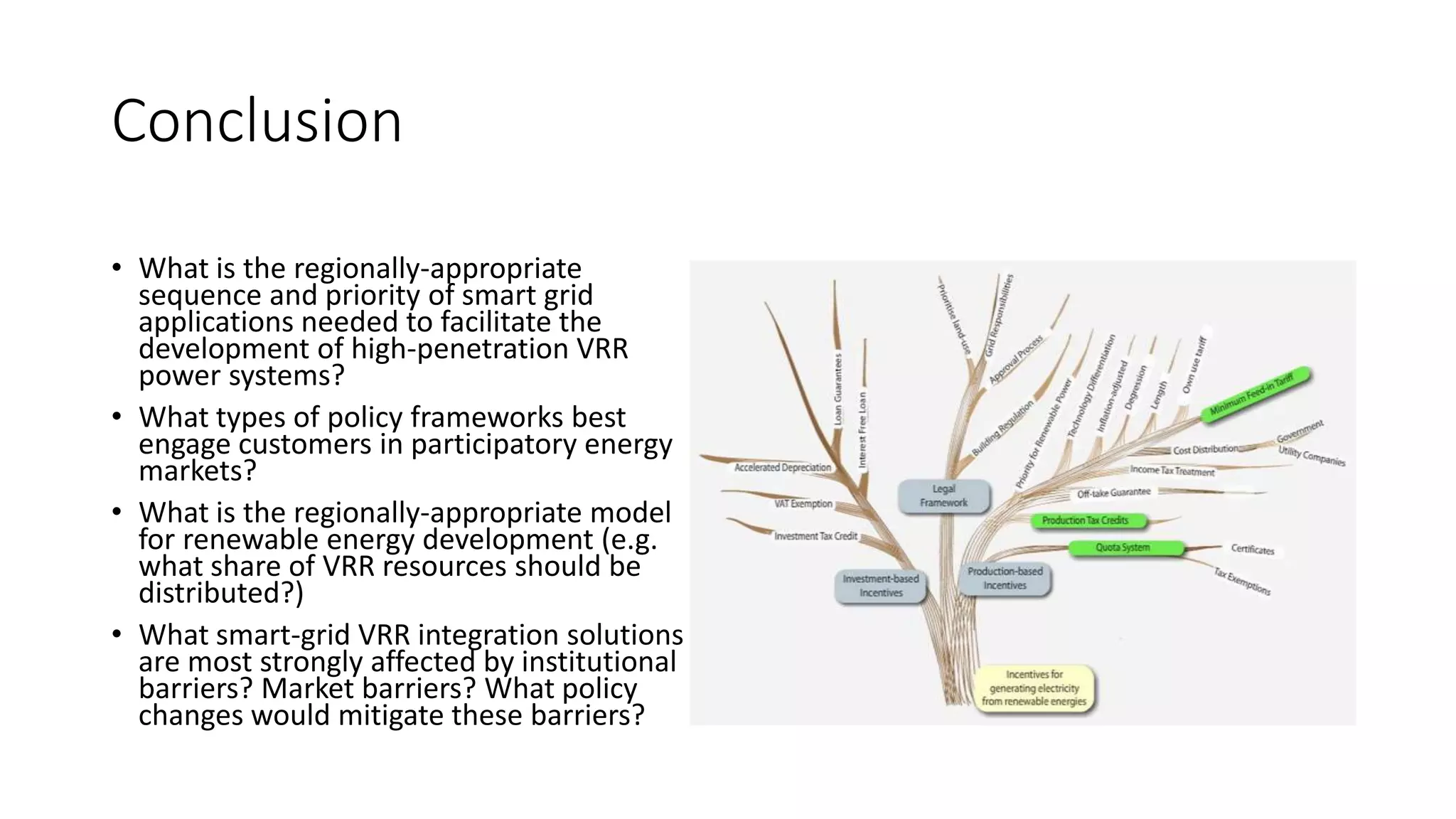

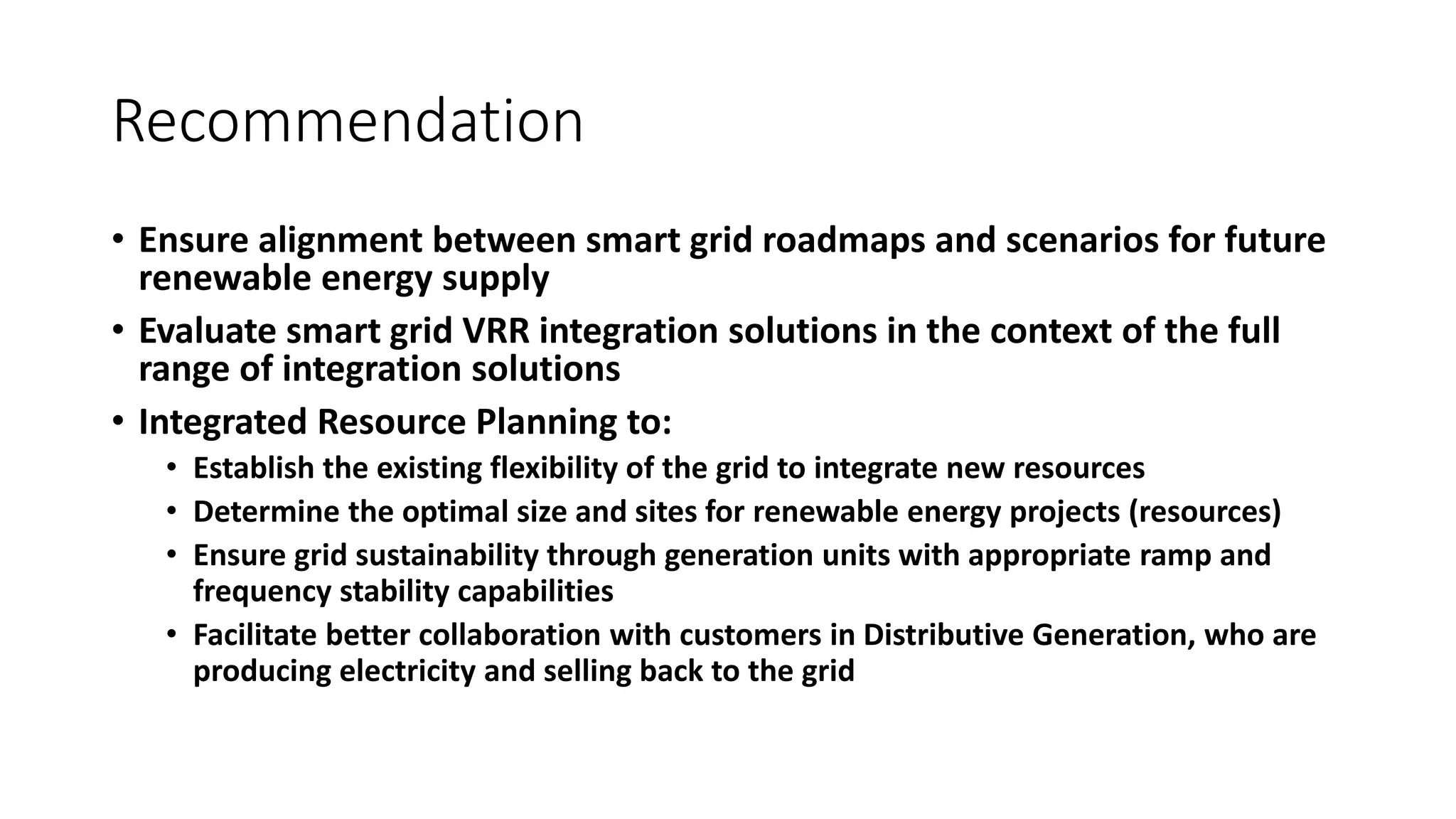

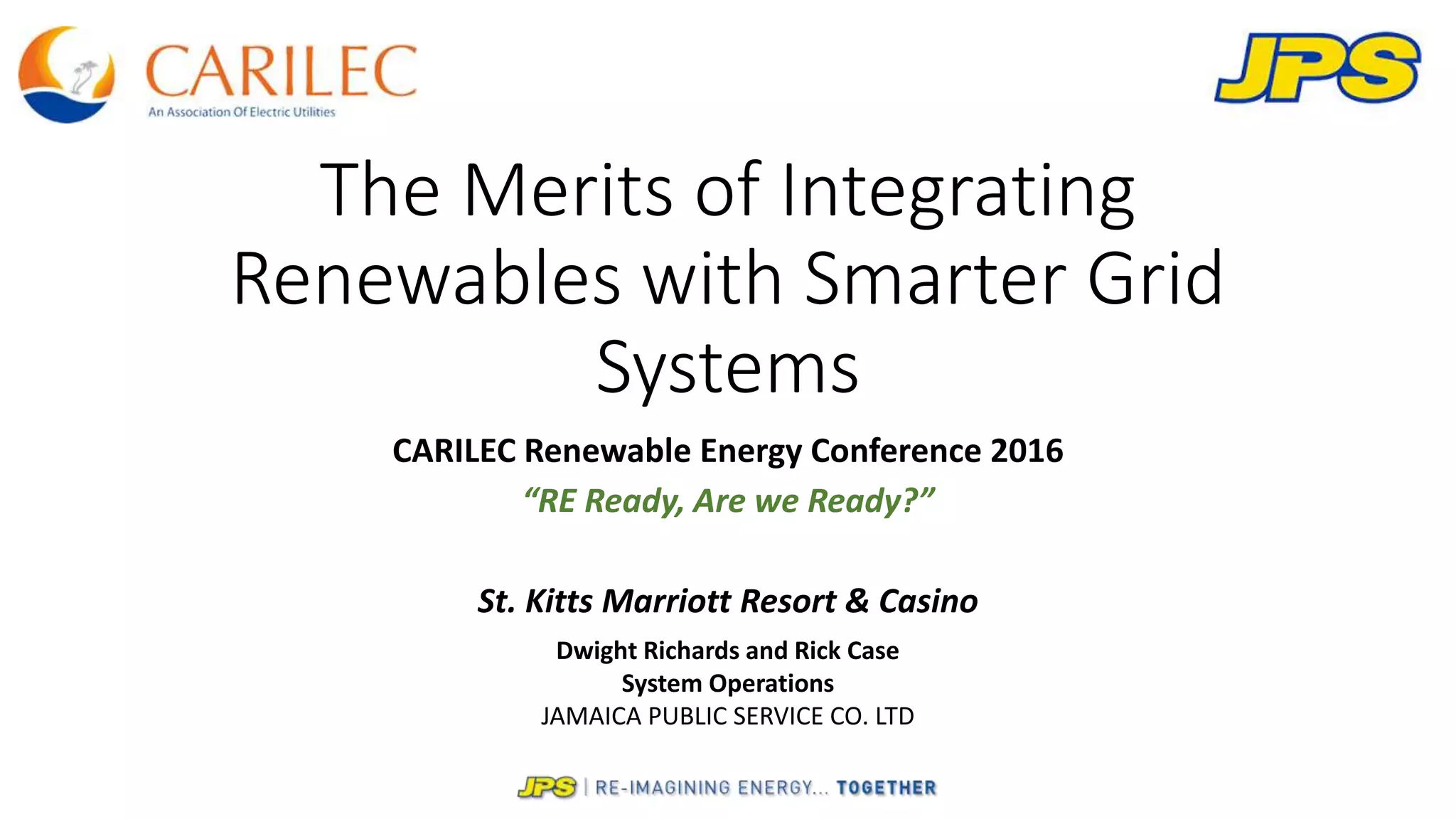

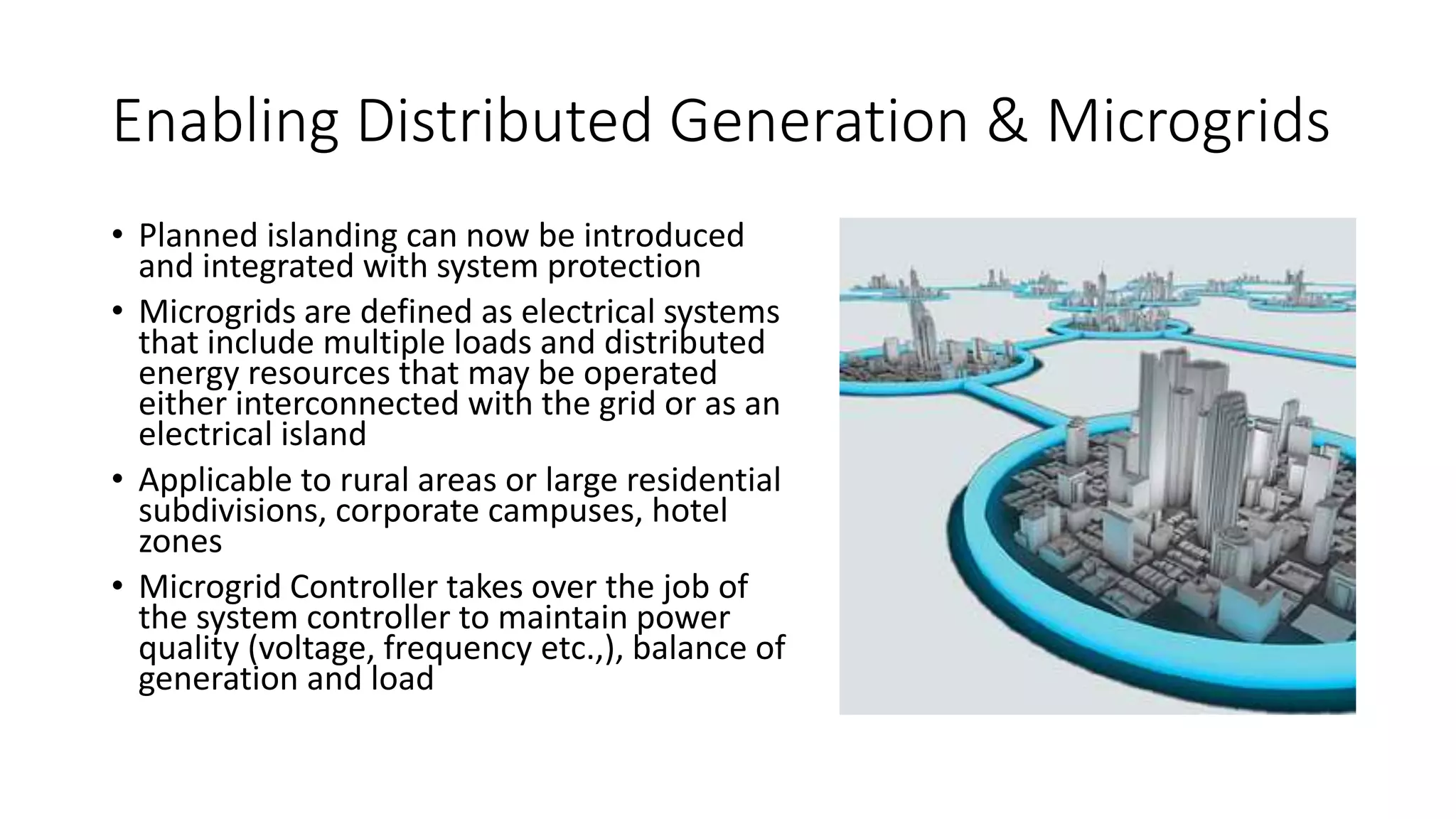

1. The Merits of Integrating
Renewables with Smarter Grid
Systems
CARILEC Renewable Energy Conference 2016
“RE Ready, Are we Ready?”
St. Kitts Marriott Resort & Casino
Dwight Richards and Rick Case
System Operations
JAMAICA PUBLIC SERVICE CO. LTD

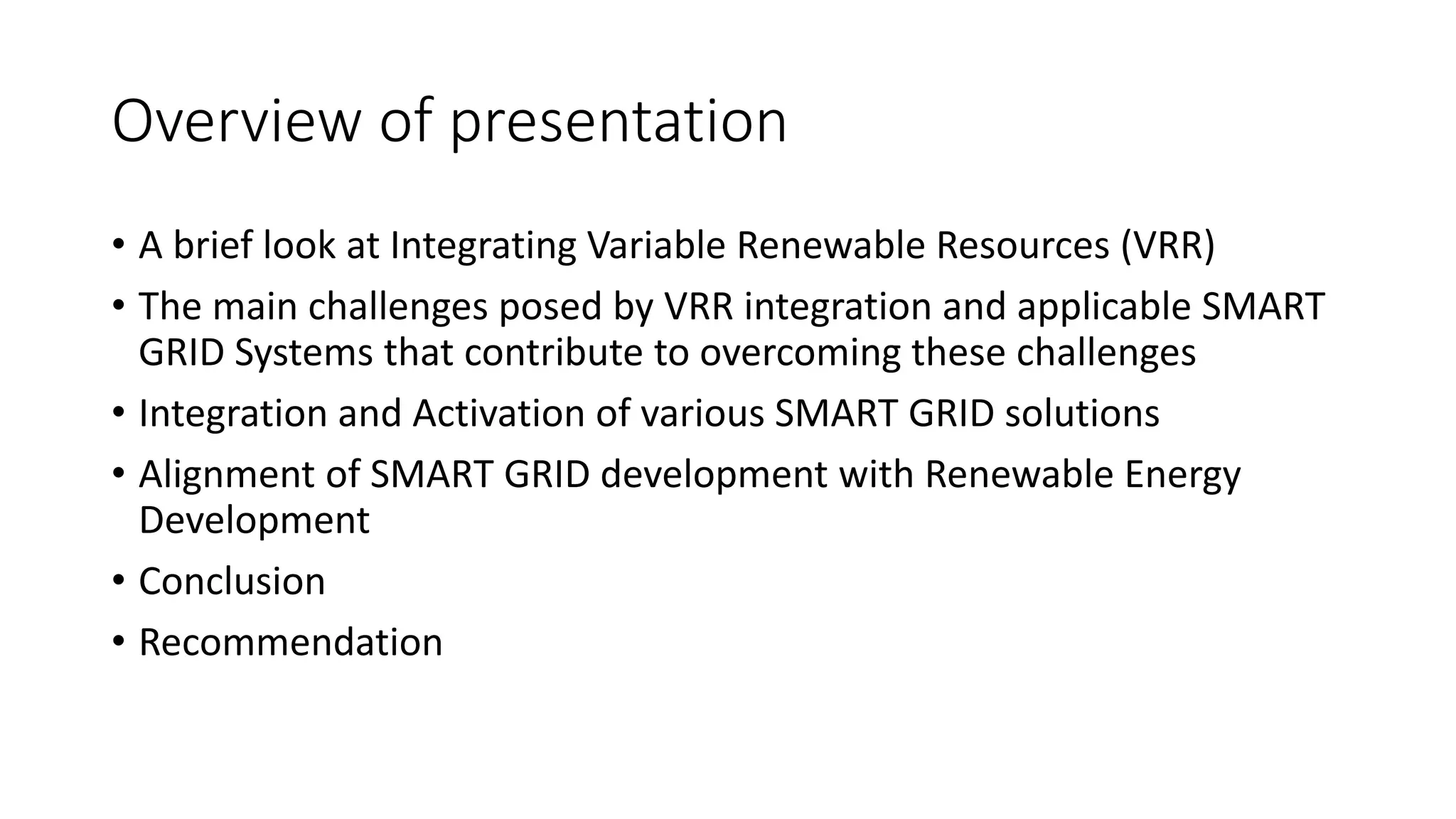

2. Overview of presentation
• A brief look at Integrating Variable Renewable Resources (VRR)
• The main challenges posed by VRR integration and applicable SMART
GRID Systems that contribute to overcoming these challenges
• Integration and Activation of various SMART GRID solutions
• Alignment of SMART GRID development with Renewable Energy
Development
• Conclusion
• Recommendation

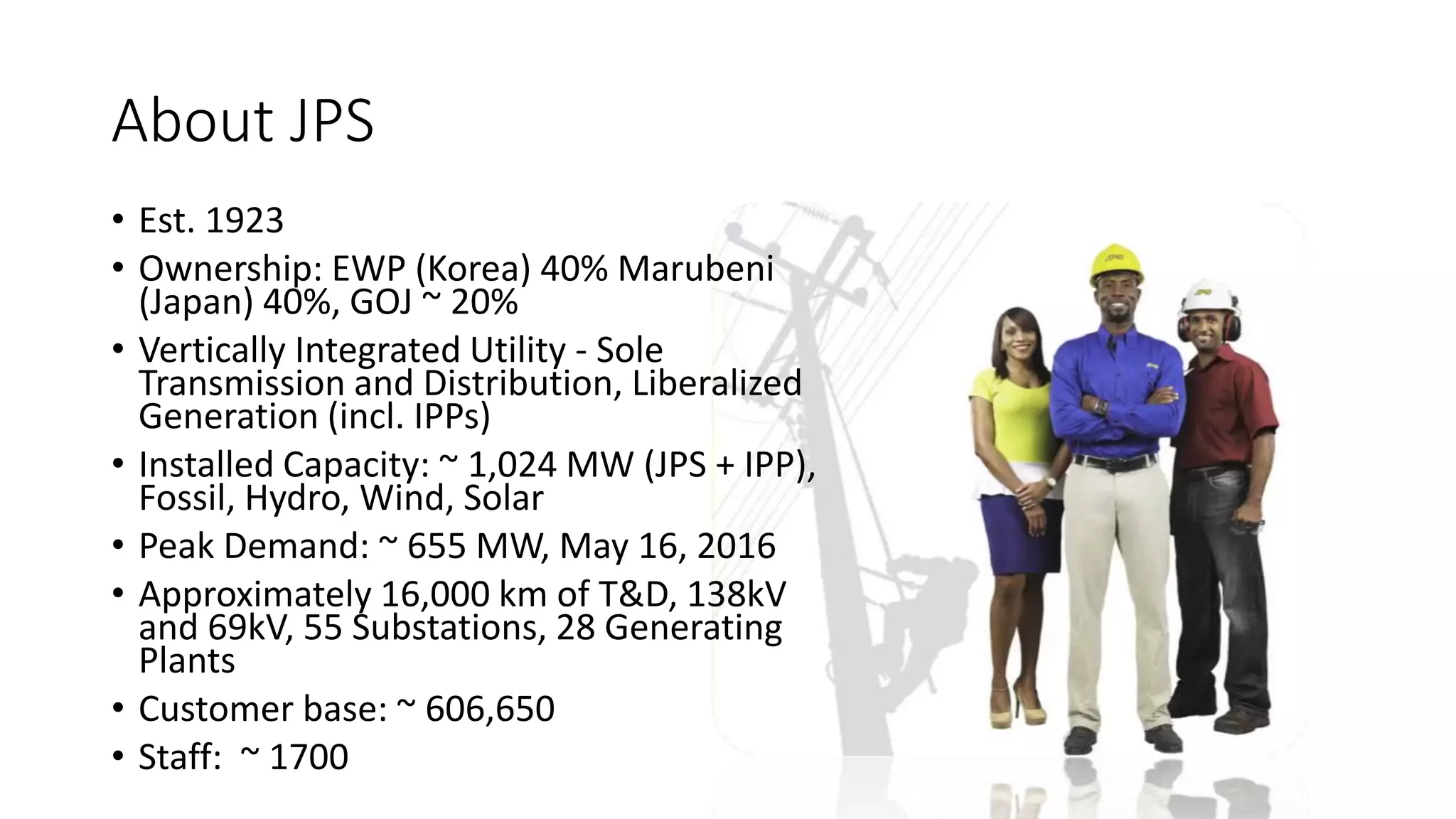

3. About JPS
• Est. 1923
• Ownership: EWP (Korea) 40% Marubeni
(Japan) 40%, GOJ ~ 20%
• Vertically Integrated Utility - Sole
Transmission and Distribution, Liberalized
Generation (incl. IPPs)
• Installed Capacity: ~ 1,024 MW (JPS + IPP),
Fossil, Hydro, Wind, Solar
• Peak Demand: ~ 655 MW, May 16, 2016
• Approximately 16,000 km of T&D, 138kV
and 69kV, 55 Substations, 28 Generating
Plants
• Customer base: ~ 606,650
• Staff: ~ 1700

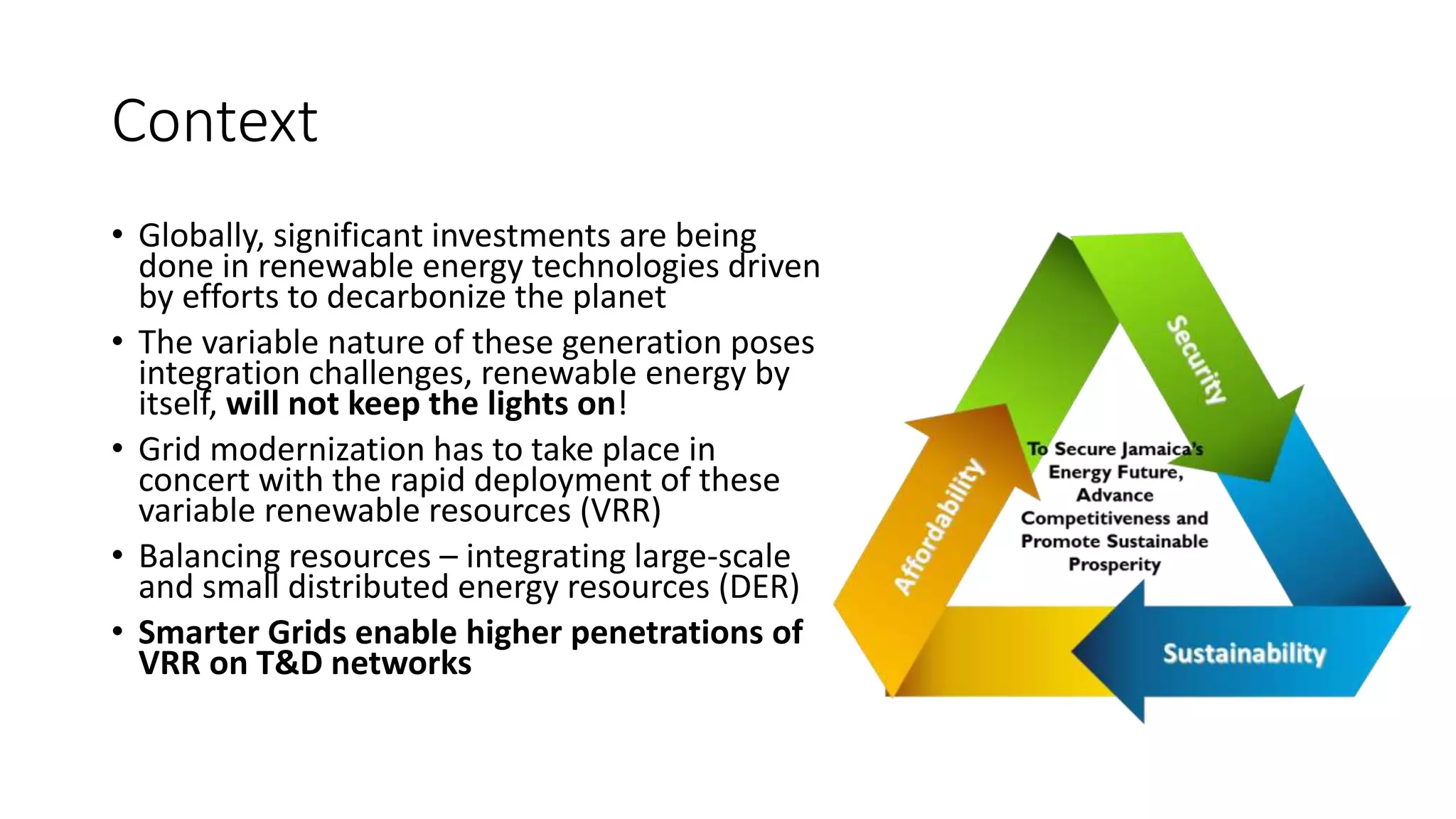

4. Context
• Globally, significant investments are being
done in renewable energy technologies driven
by efforts to decarbonize the planet
• The variable nature of these generation poses
integration challenges, renewable energy by
itself, will not keep the lights on!
• Grid modernization has to take place in
concert with the rapid deployment of these
variable renewable resources (VRR)
• Balancing resources – integrating large-scale
and small distributed energy resources (DER)
• Smarter Grids enable higher penetrations of
VRR on T&D networks

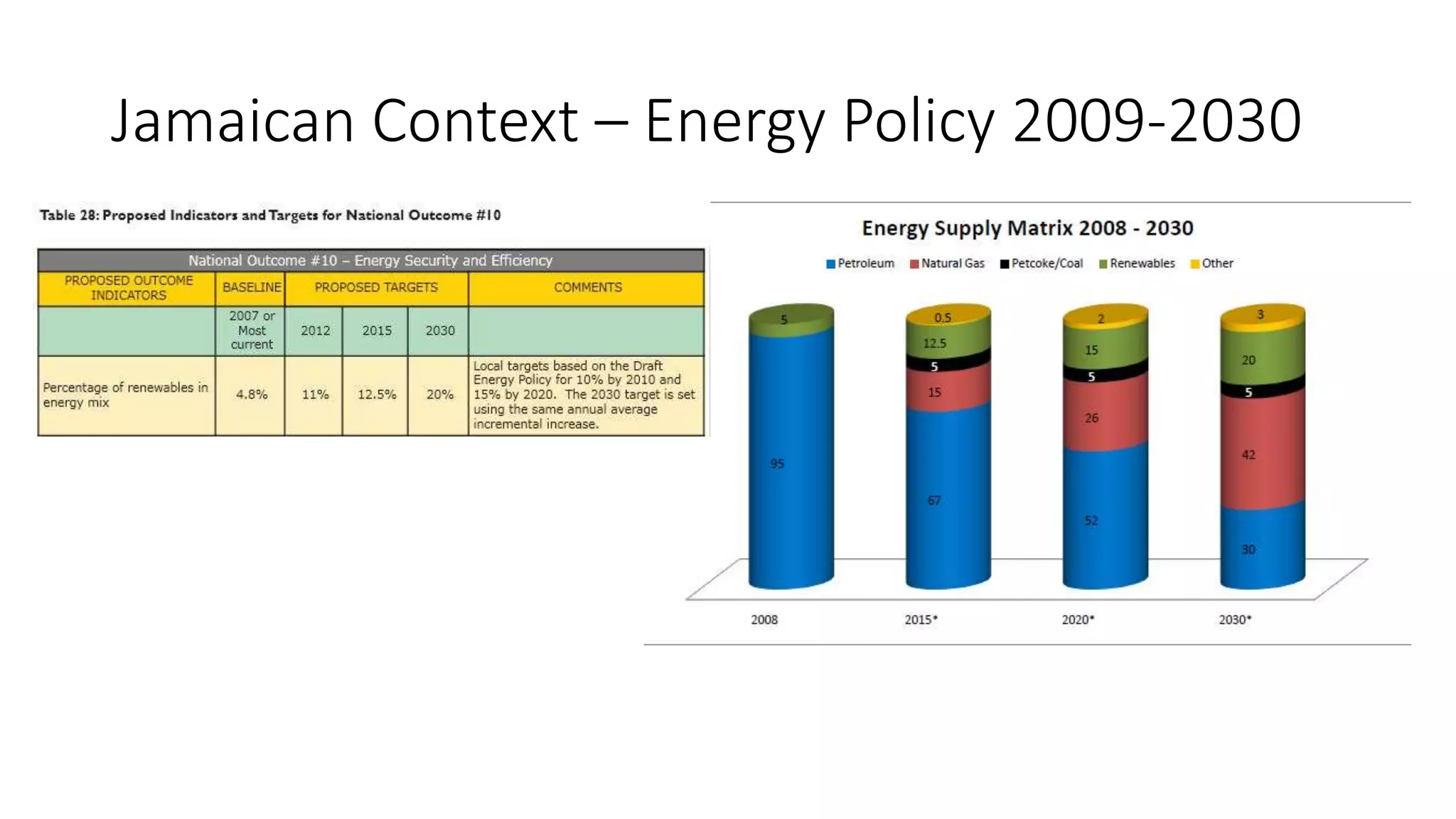

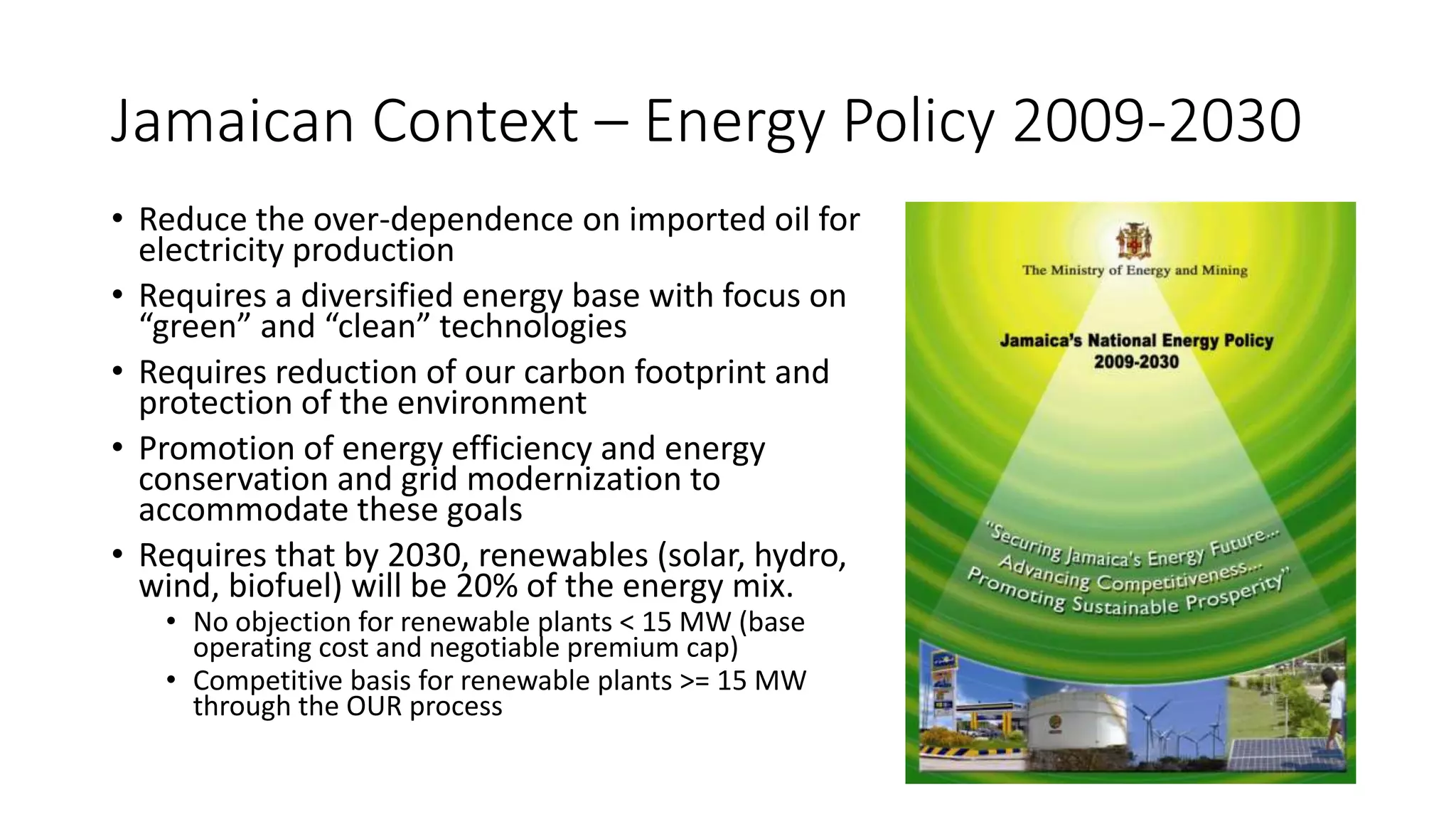

5. Jamaican Context – Energy Policy 2009-2030
• Reduce the over-dependence on imported oil for
electricity production
• Requires a diversified energy base with focus on
“green” and “clean” technologies
• Requires reduction of our carbon footprint and
protection of the environment
• Promotion of energy efficiency and energy
conservation and grid modernization to
accommodate these goals
• Requires that by 2030, renewables (solar, hydro,
wind, biofuel) will be 20% of the energy mix.
• No objection for renewable plants < 15 MW (base
operating cost and negotiable premium cap)
• Competitive basis for renewable plants >= 15 MW
through the OUR process

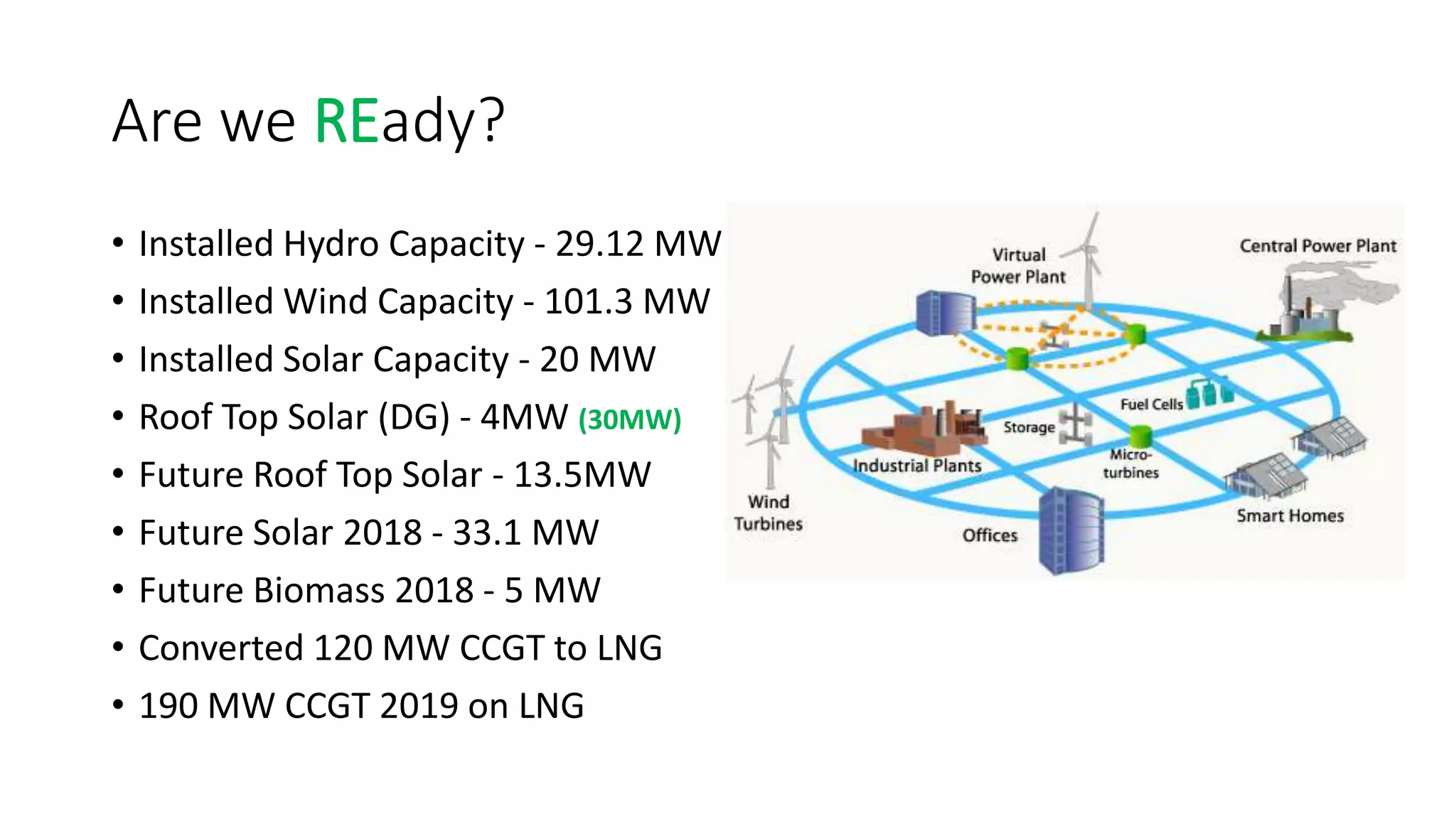

7. Are we REady?
• Installed Hydro Capacity - 29.12 MW
• Installed Wind Capacity - 101.3 MW
• Installed Solar Capacity - 20 MW
• Roof Top Solar (DG) - 4MW (30MW)
• Future Roof Top Solar - 13.5MW
• Future Solar 2018 - 33.1 MW
• Future Biomass 2018 - 5 MW
• Converted 120 MW CCGT to LNG
• 190 MW CCGT 2019 on LNG

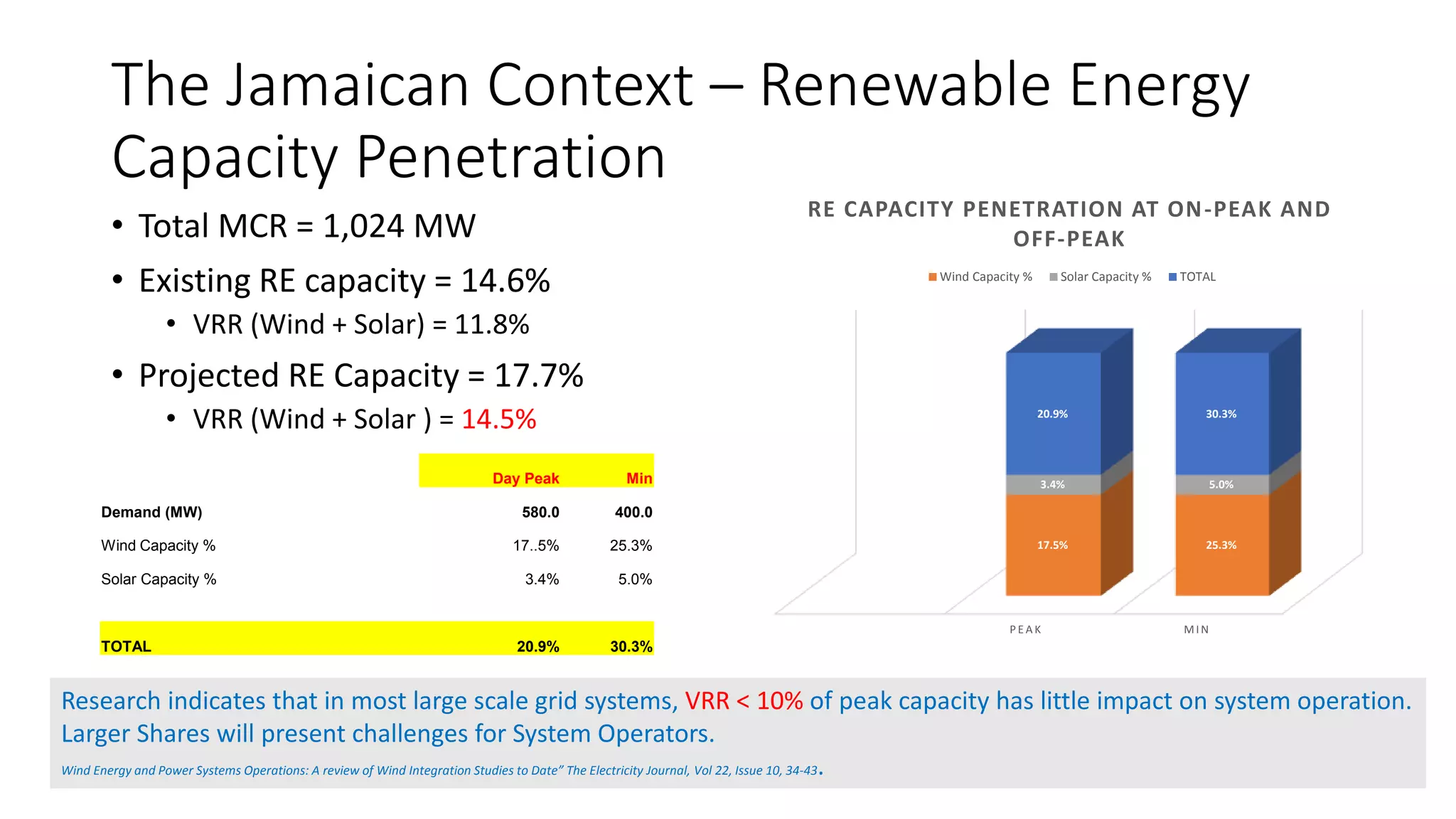

8. The Jamaican Context – Renewable Energy
Capacity Penetration
• Total MCR = 1,024 MW
• Existing RE capacity = 14.6%
• VRR (Wind + Solar) = 11.8%
• Projected RE Capacity = 17.7%
• VRR (Wind + Solar ) = 14.5%
Research indicates that in most large scale grid systems, VRR < 10% of peak capacity has little impact on system operation.
Larger Shares will present challenges for System Operators.
Wind Energy and Power Systems Operations: A review of Wind Integration Studies to Date” The Electricity Journal, Vol 22, Issue 10, 34-43.
Day Peak Min
Demand (MW) 580.0 400.0
Wind Capacity % 17..5% 25.3%
Solar Capacity % 3.4% 5.0%
TOTAL 20.9% 30.3%
P E A K MIN
17.5% 25.3%
3.4% 5.0%
20.9% 30.3%
RE CAPACITY PENETRATION AT ON-PEAK AND
OFF-PEAK
Wind Capacity % Solar Capacity % TOTAL

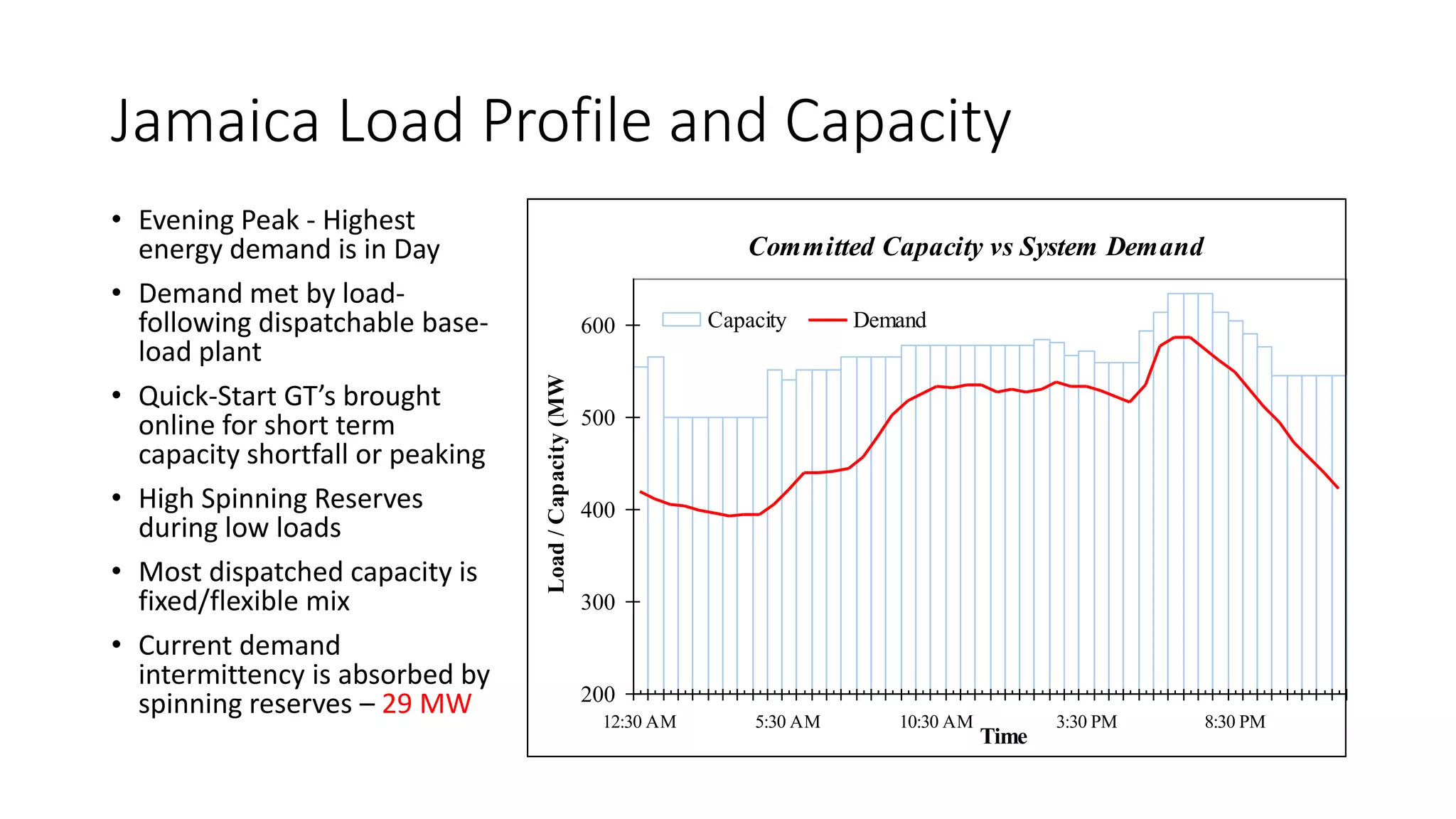

9. Jamaica Load Profile and Capacity
• Evening Peak - Highest
energy demand is in Day
• Demand met by load-
following dispatchable base-
load plant
• Quick-Start GT’s brought
online for short term
capacity shortfall or peaking
• High Spinning Reserves
during low loads
• Most dispatched capacity is
fixed/flexible mix
• Current demand
intermittency is absorbed by
spinning reserves – 29 MW
Committed Capacity vs System Demand
200
300
400
500
600
12:30 AM 5:30 AM 10:30 AM 3:30 PM 8:30 PM
Time
Load/Capacity(MW)
Capacity Demand

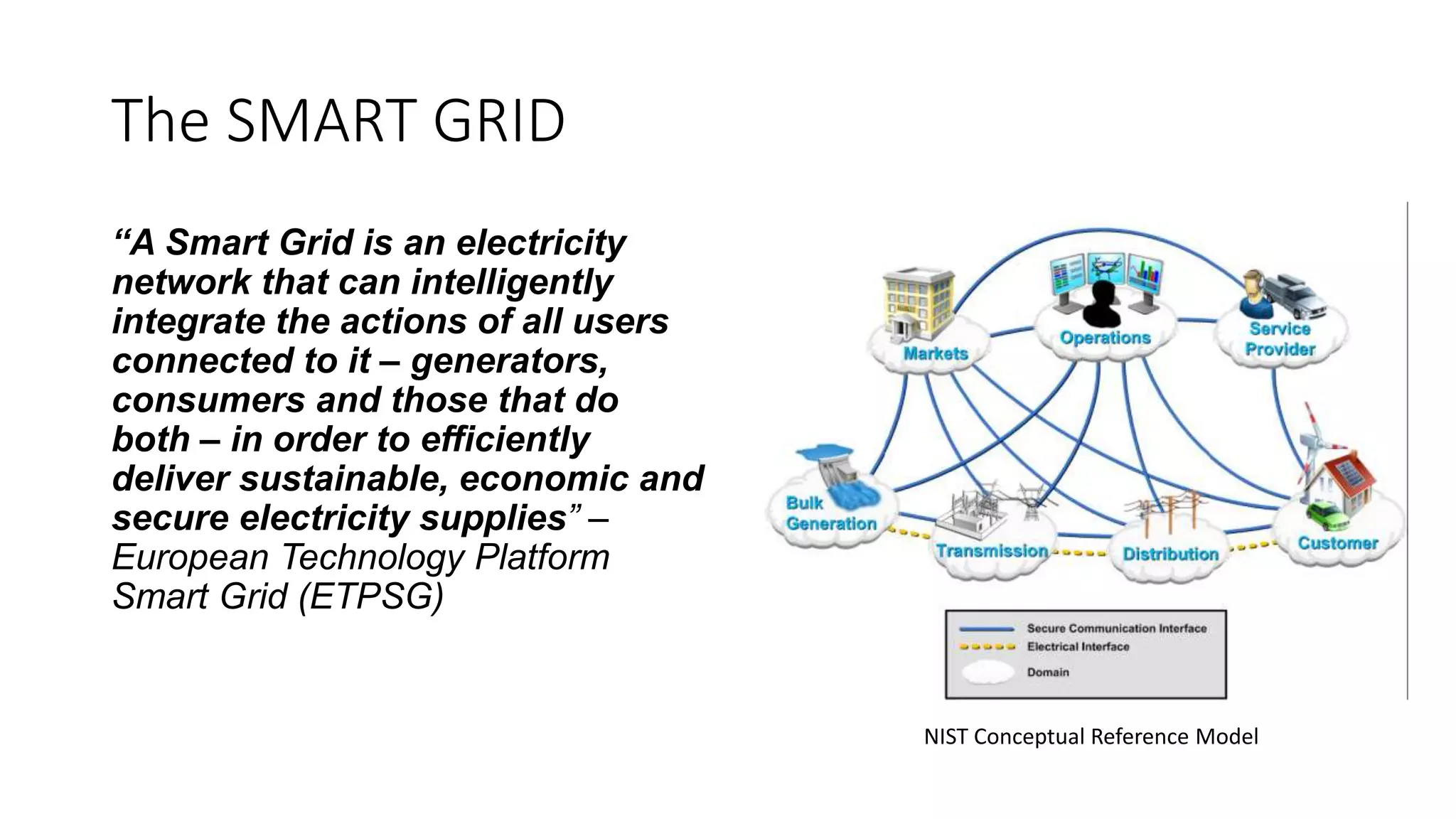

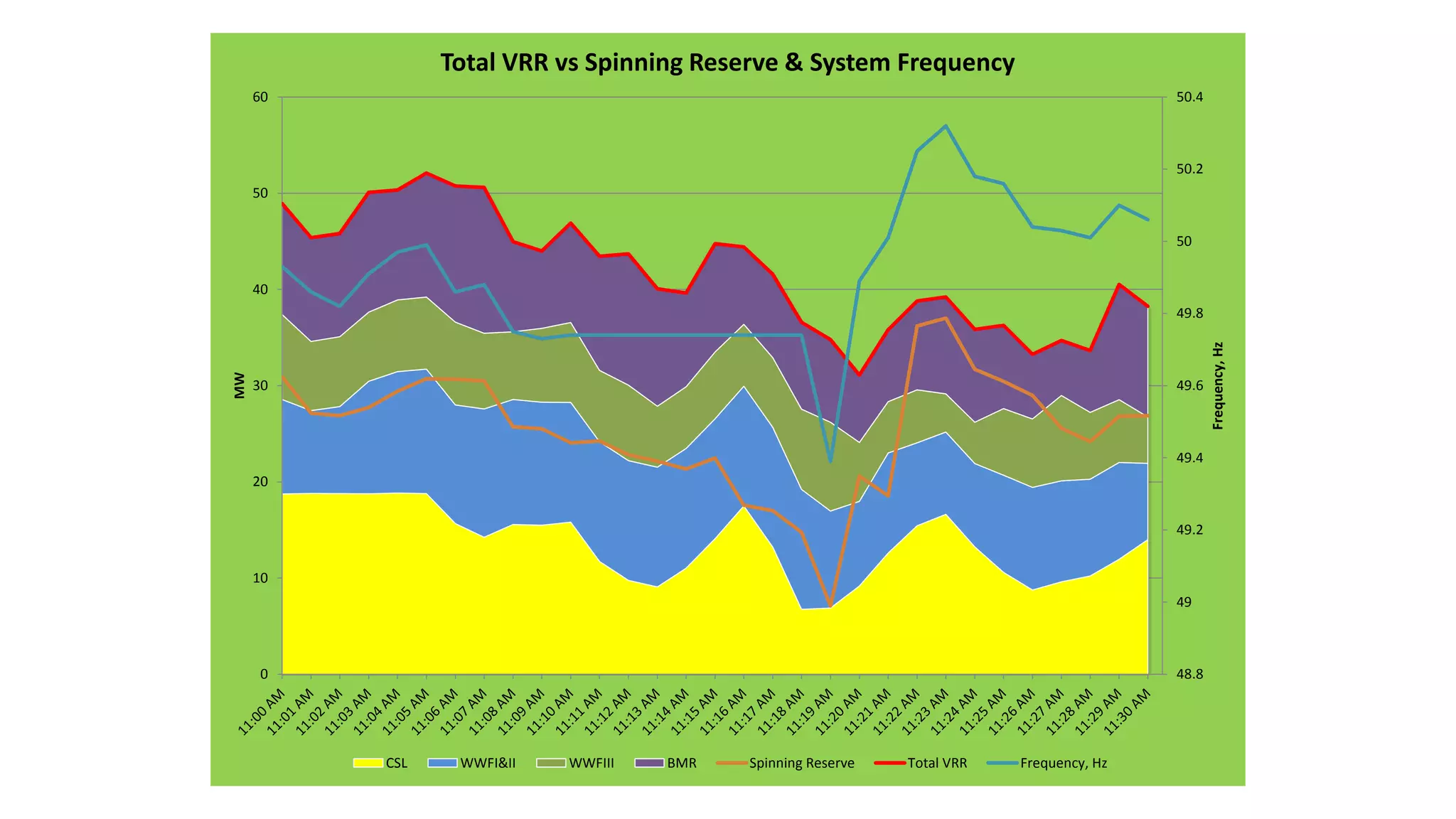

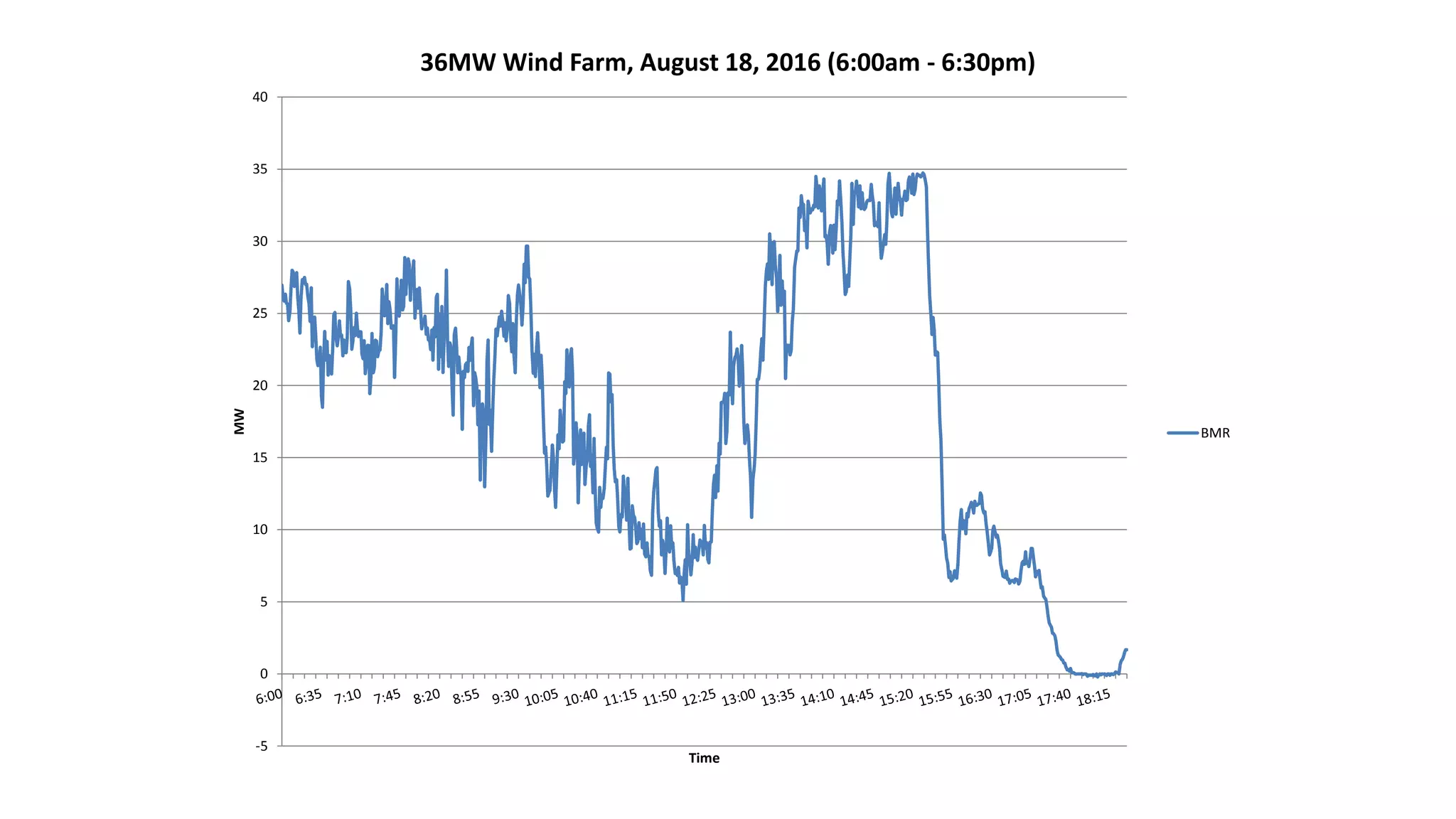

15. The SMART GRID
“A Smart Grid is an electricity
network that can intelligently
integrate the actions of all users
connected to it – generators,
consumers and those that do
both – in order to efficiently
deliver sustainable, economic and
secure electricity supplies” –
European Technology Platform
Smart Grid (ETPSG)
NIST Conceptual Reference Model

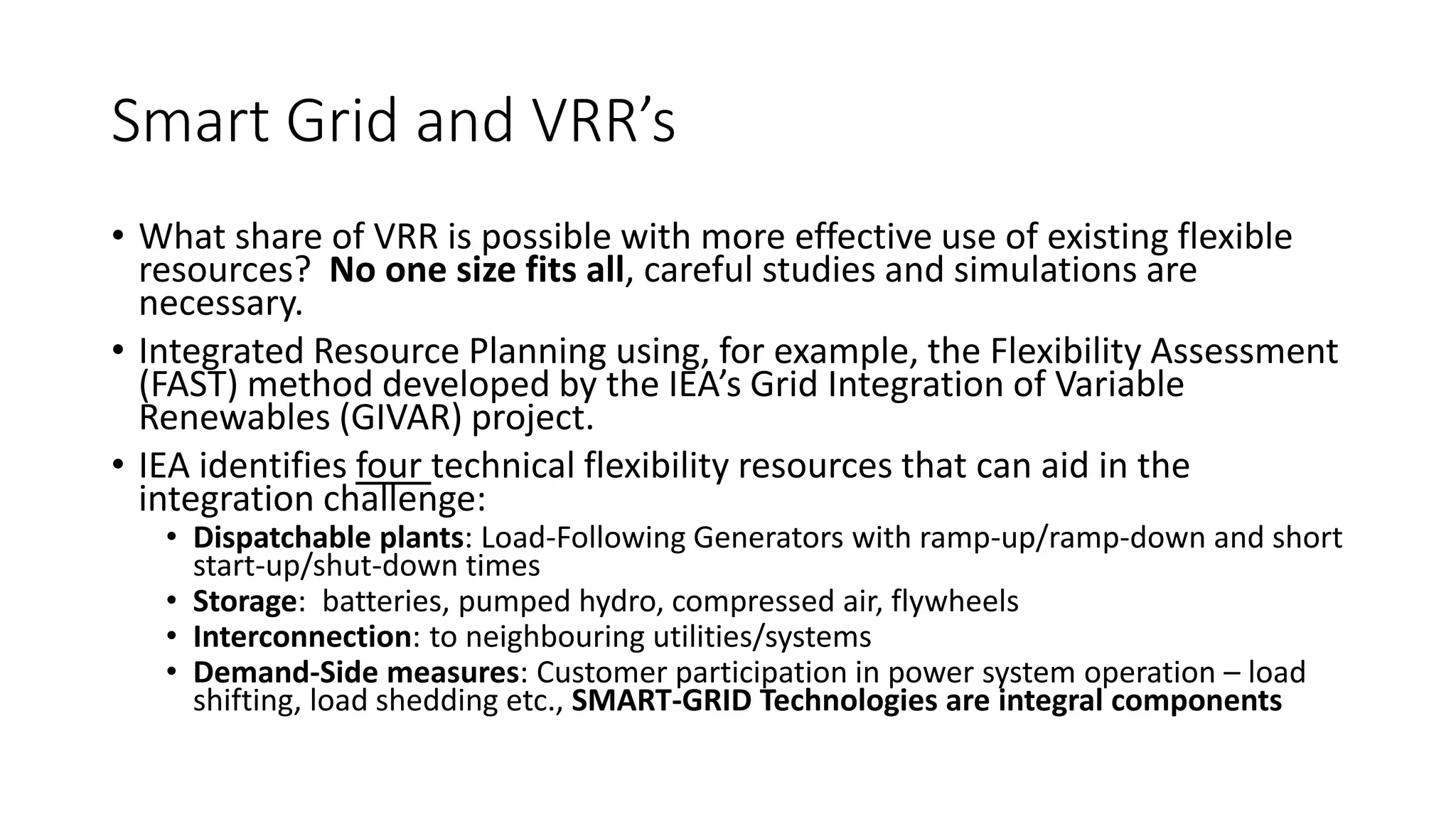

16. Smart Grid and VRR’s
• What share of VRR is possible with more effective use of existing flexible
resources? No one size fits all, careful studies and simulations are
necessary.
• Integrated Resource Planning using, for example, the Flexibility Assessment
(FAST) method developed by the IEA’s Grid Integration of Variable
Renewables (GIVAR) project.
• IEA identifies four technical flexibility resources that can aid in the
integration challenge:
• Dispatchable plants: Load-Following Generators with ramp-up/ramp-down and short
start-up/shut-down times
• Storage: batteries, pumped hydro, compressed air, flywheels
• Interconnection: to neighbouring utilities/systems
• Demand-Side measures: Customer participation in power system operation – load
shifting, load shedding etc., SMART-GRID Technologies are integral components

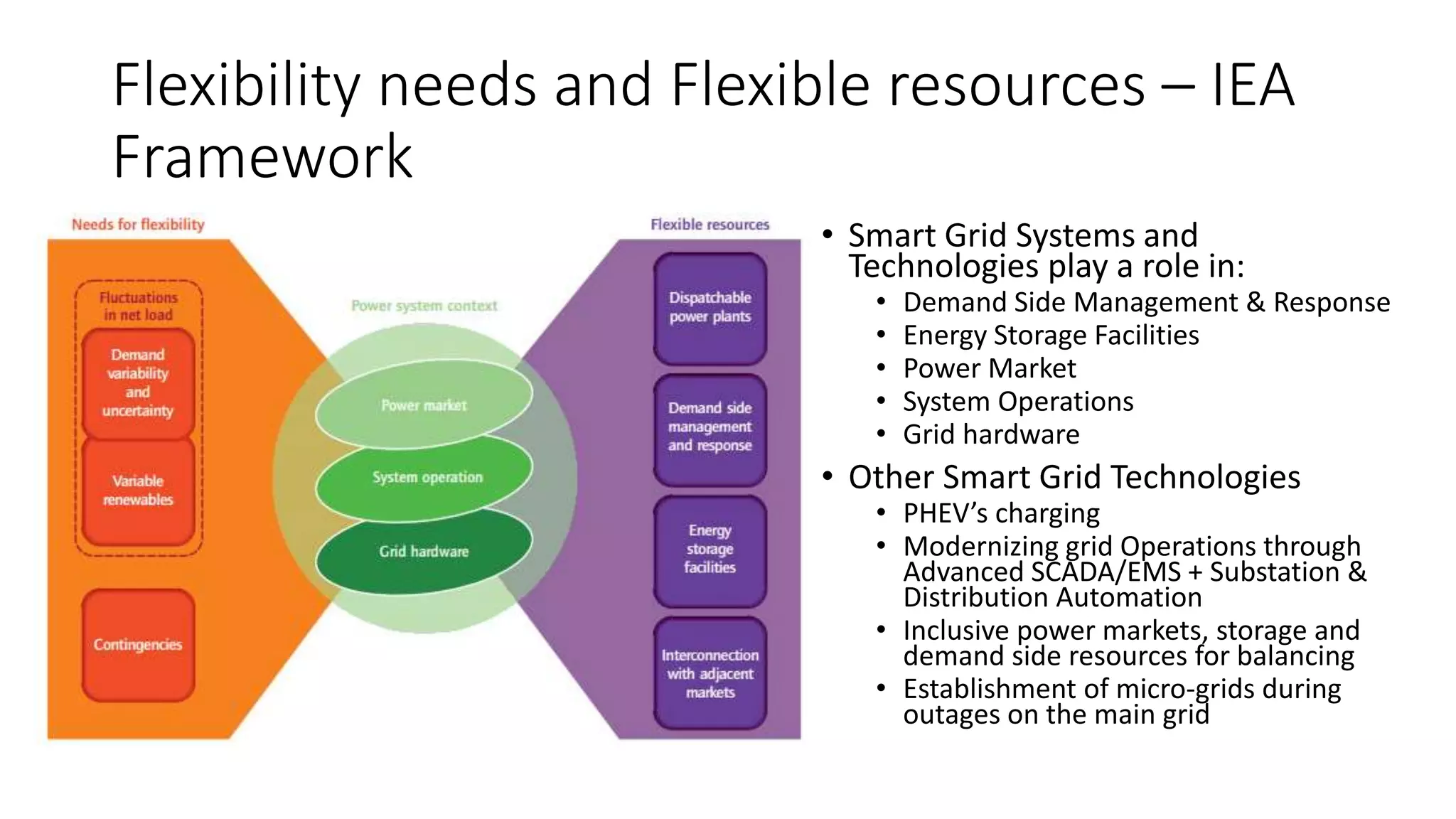

17. Flexibility needs and Flexible resources – IEA
Framework
• Smart Grid Systems and
Technologies play a role in:
• Demand Side Management & Response
• Energy Storage Facilities
• Power Market
• System Operations
• Grid hardware
• Other Smart Grid Technologies
• PHEV’s charging
• Modernizing grid Operations through
Advanced SCADA/EMS + Substation &
Distribution Automation
• Inclusive power markets, storage and
demand side resources for balancing
• Establishment of micro-grids during
outages on the main grid

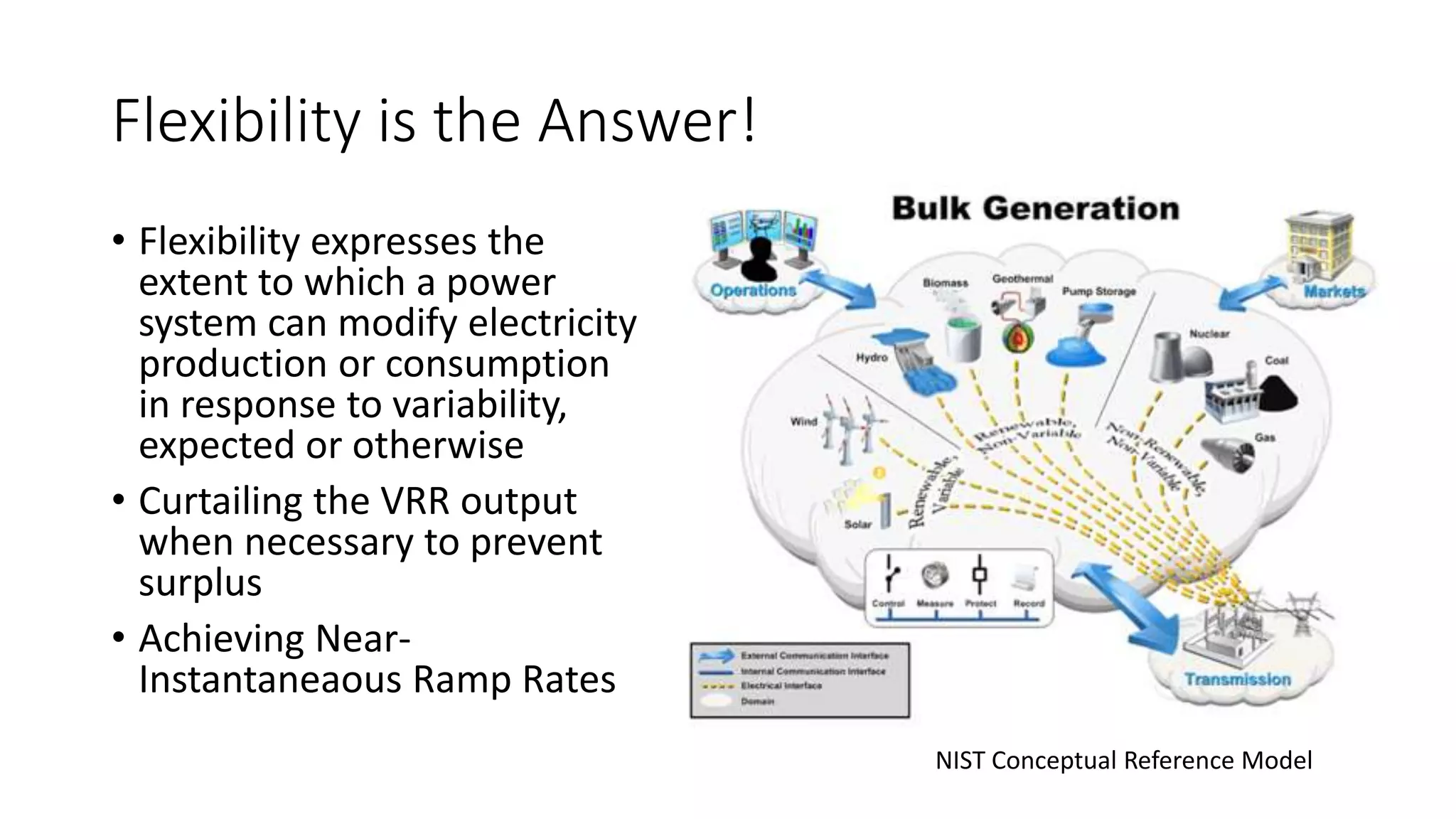

18. Flexibility is the Answer!
• Flexibility expresses the
extent to which a power
system can modify electricity
production or consumption
in response to variability,
expected or otherwise
• Curtailing the VRR output
when necessary to prevent
surplus
• Achieving Near-
Instantaneaous Ramp Rates
NIST Conceptual Reference Model

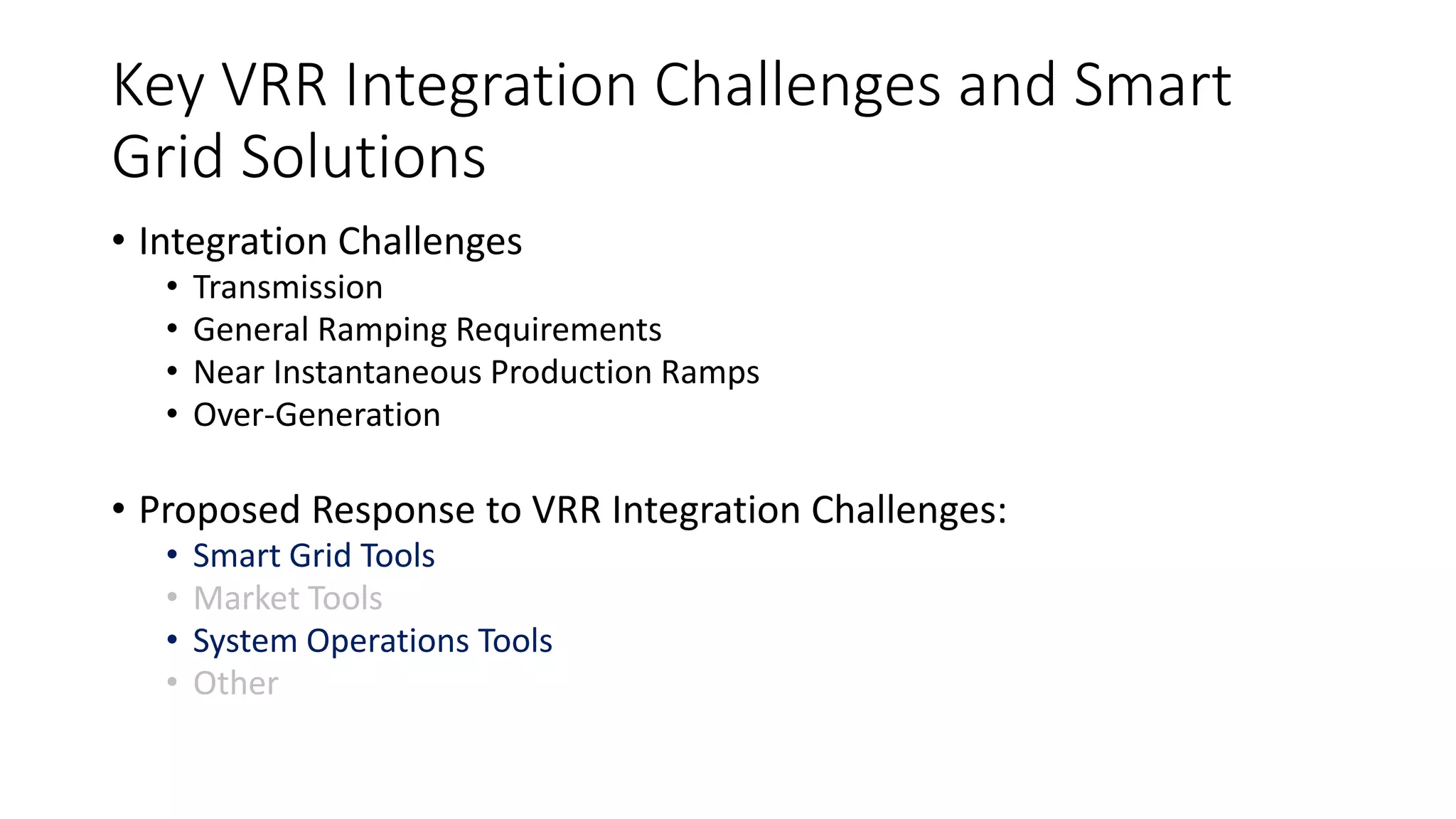

19. Key VRR Integration Challenges and Smart
Grid Solutions
• Integration Challenges
• Transmission
• General Ramping Requirements
• Near Instantaneous Production Ramps
• Over-Generation
• Proposed Response to VRR Integration Challenges:
• Smart Grid Tools
• Market Tools
• System Operations Tools
• Other

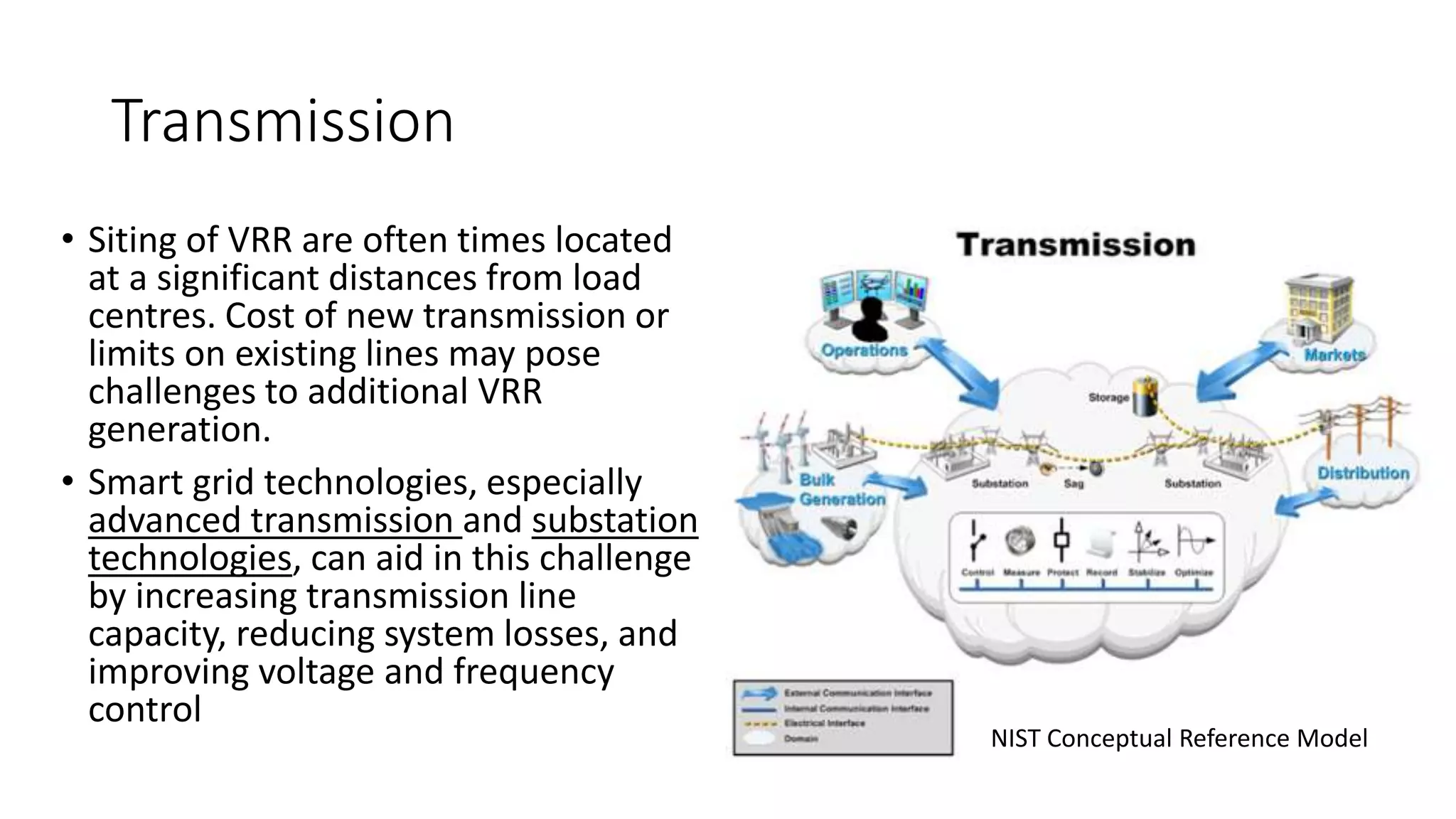

20. Transmission
• Siting of VRR are often times located
at a significant distances from load
centres. Cost of new transmission or
limits on existing lines may pose
challenges to additional VRR
generation.
• Smart grid technologies, especially
advanced transmission and substation
technologies, can aid in this challenge
by increasing transmission line
capacity, reducing system losses, and
improving voltage and frequency
control
NIST Conceptual Reference Model

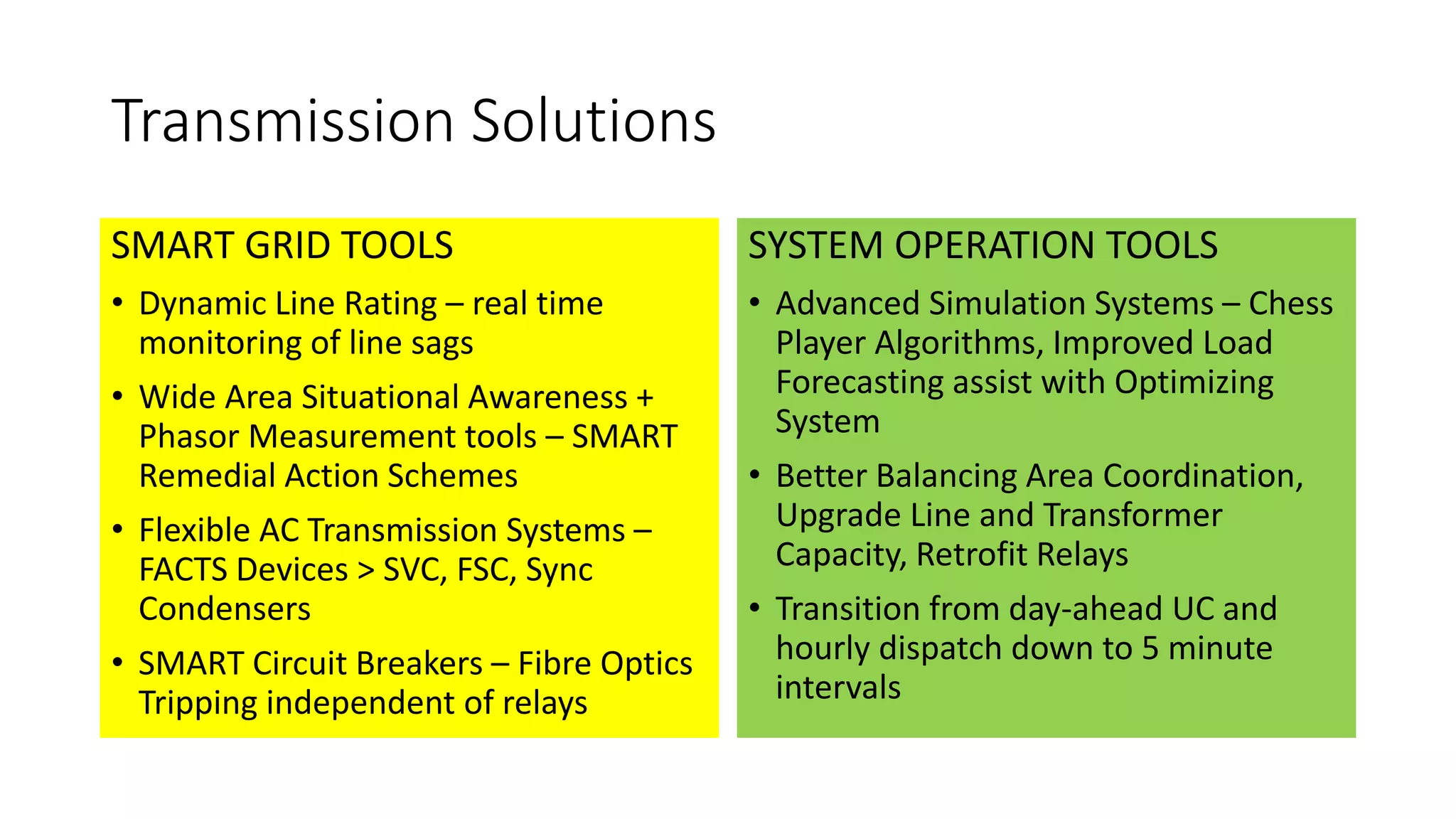

21. Transmission Solutions
SMART GRID TOOLS
• Dynamic Line Rating – real time
monitoring of line sags
• Wide Area Situational Awareness +
Phasor Measurement tools – SMART
Remedial Action Schemes
• Flexible AC Transmission Systems –
FACTS Devices > SVC, FSC, Sync
Condensers
• SMART Circuit Breakers – Fibre Optics
Tripping independent of relays
SYSTEM OPERATION TOOLS
• Advanced Simulation Systems – Chess
Player Algorithms, Improved Load
Forecasting assist with Optimizing
System
• Better Balancing Area Coordination,
Upgrade Line and Transformer
Capacity, Retrofit Relays
• Transition from day-ahead UC and
hourly dispatch down to 5 minute
intervals

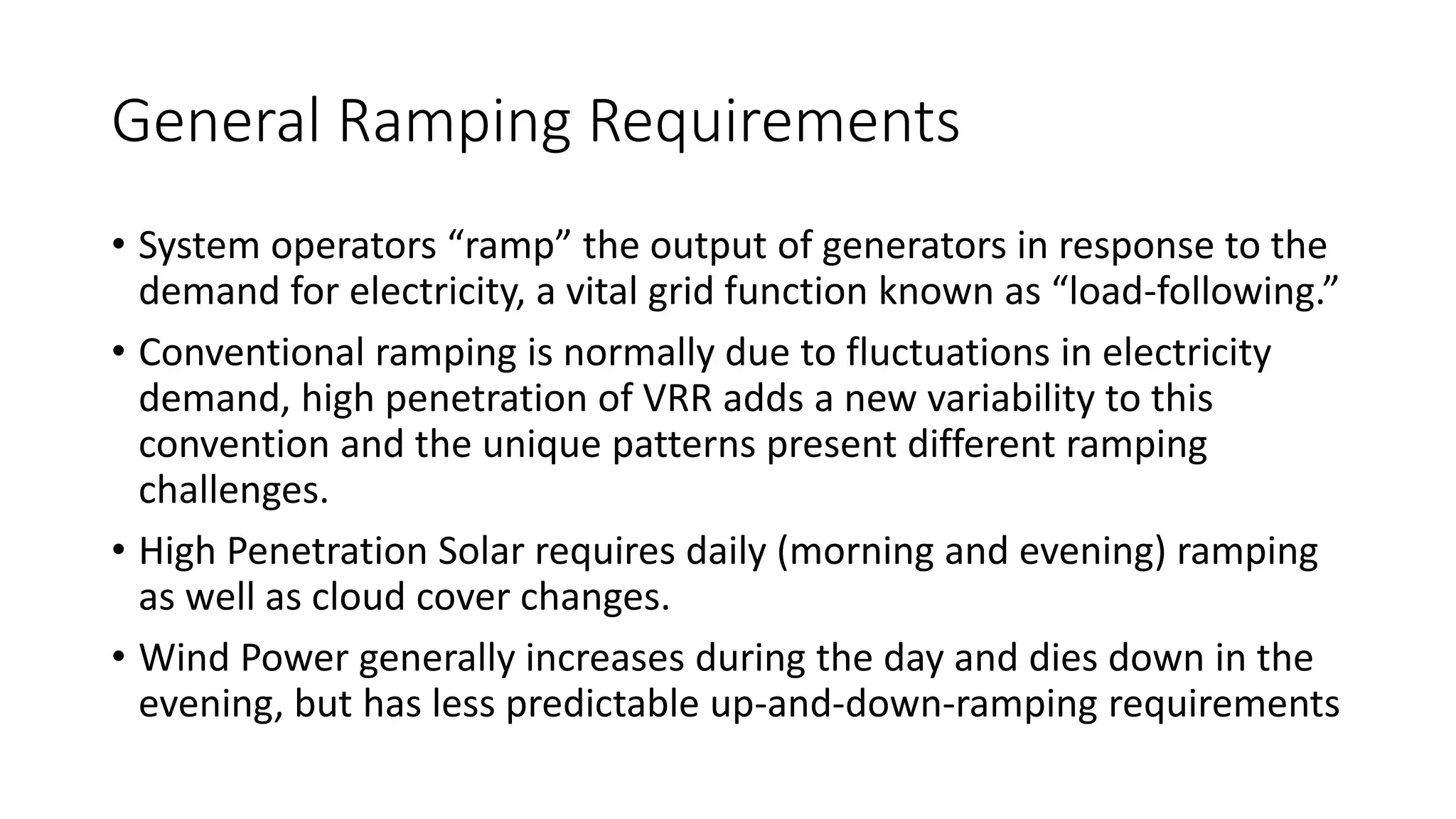

22. General Ramping Requirements
• System operators “ramp” the output of generators in response to the
demand for electricity, a vital grid function known as “load-following.”
• Conventional ramping is normally due to fluctuations in electricity
demand, high penetration of VRR adds a new variability to this
convention and the unique patterns present different ramping
challenges.
• High Penetration Solar requires daily (morning and evening) ramping
as well as cloud cover changes.
• Wind Power generally increases during the day and dies down in the
evening, but has less predictable up-and-down-ramping requirements

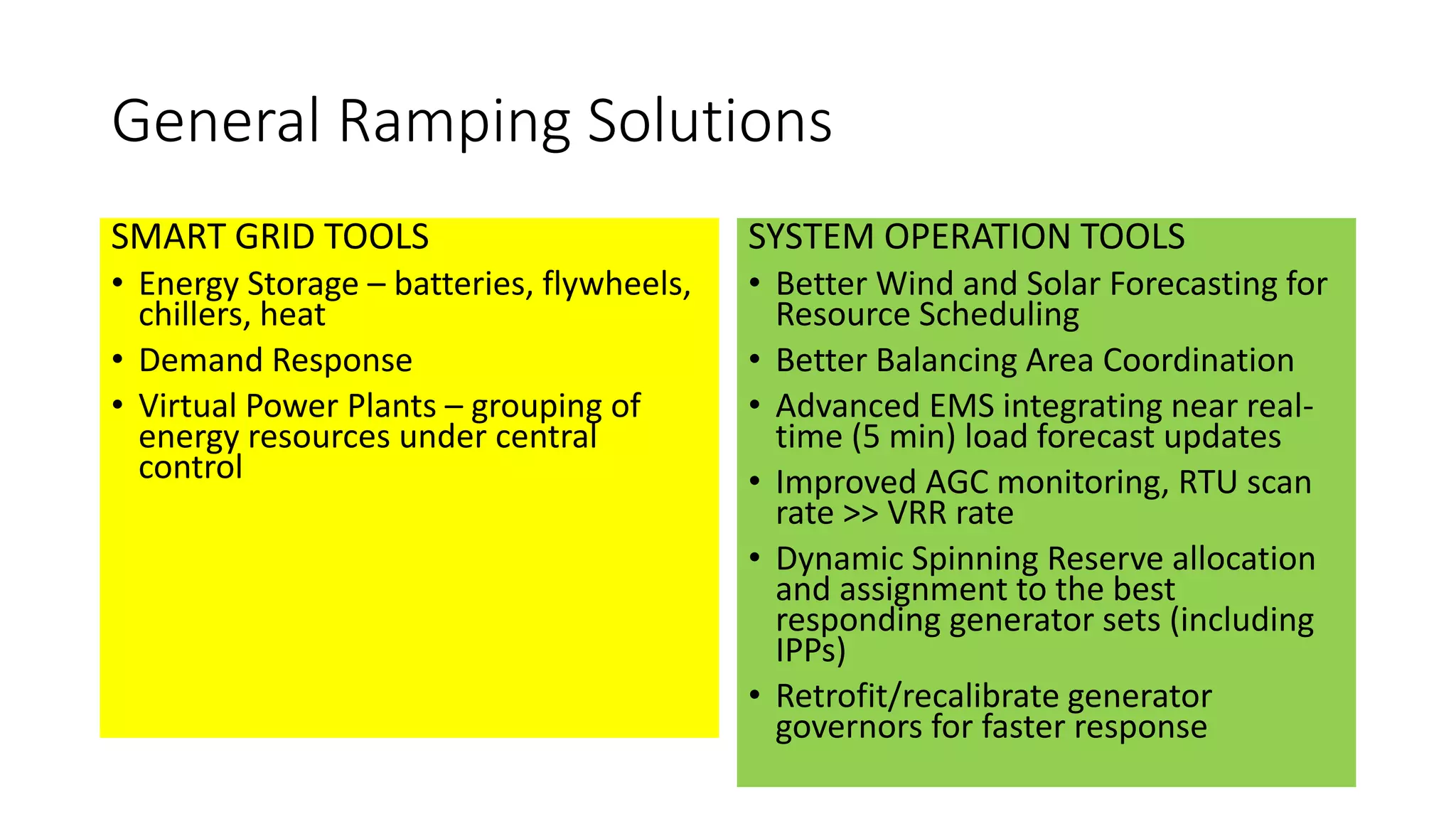

23. General Ramping Solutions
SMART GRID TOOLS
• Energy Storage – batteries, flywheels,
chillers, heat
• Demand Response
• Virtual Power Plants – grouping of
energy resources under central
control
SYSTEM OPERATION TOOLS
• Better Wind and Solar Forecasting for
Resource Scheduling
• Better Balancing Area Coordination
• Advanced EMS integrating near real-
time (5 min) load forecast updates
• Improved AGC monitoring, RTU scan
rate >> VRR rate
• Dynamic Spinning Reserve allocation
and assignment to the best
responding generator sets (including
IPPs)
• Retrofit/recalibrate generator
governors for faster response

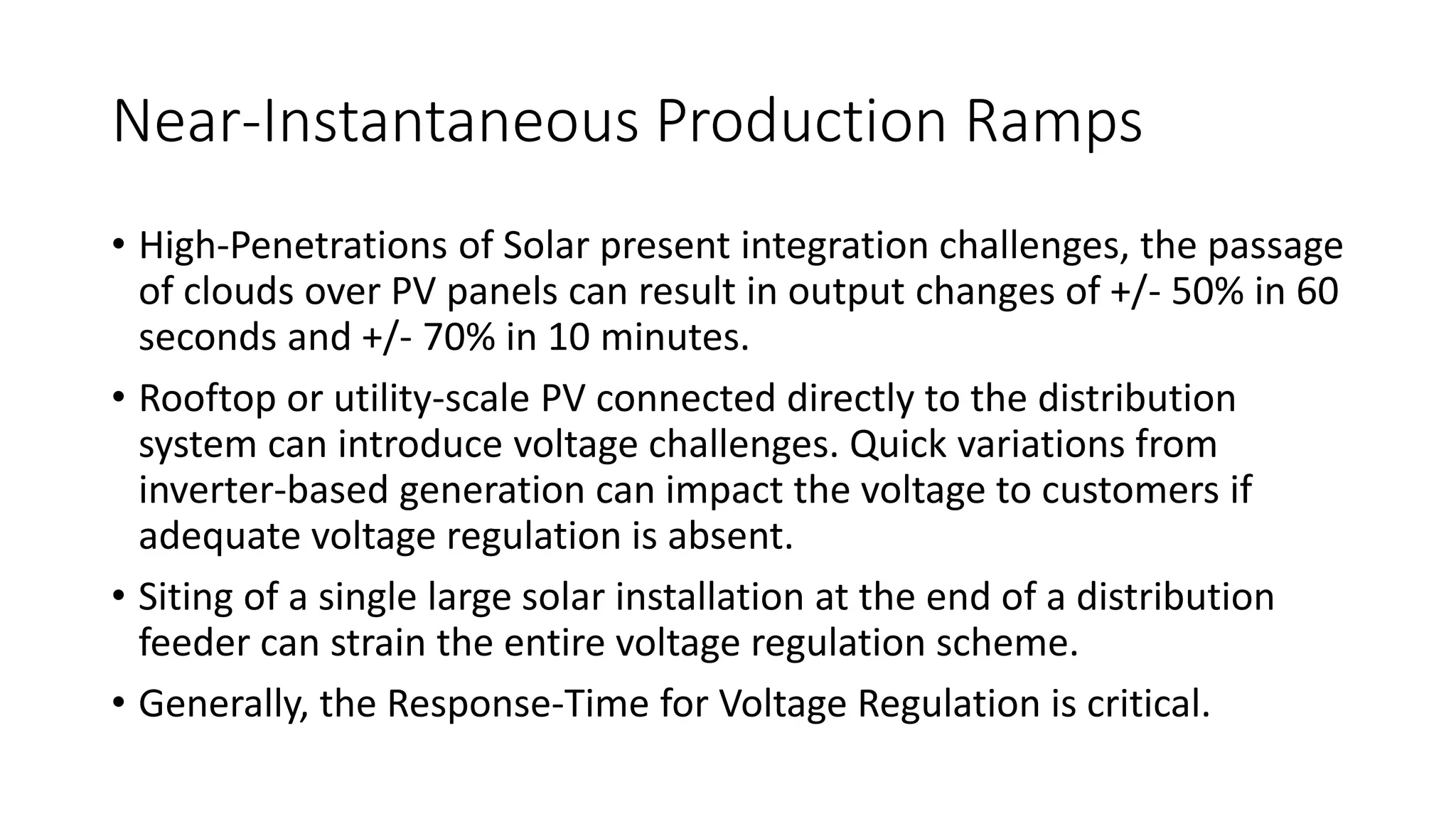

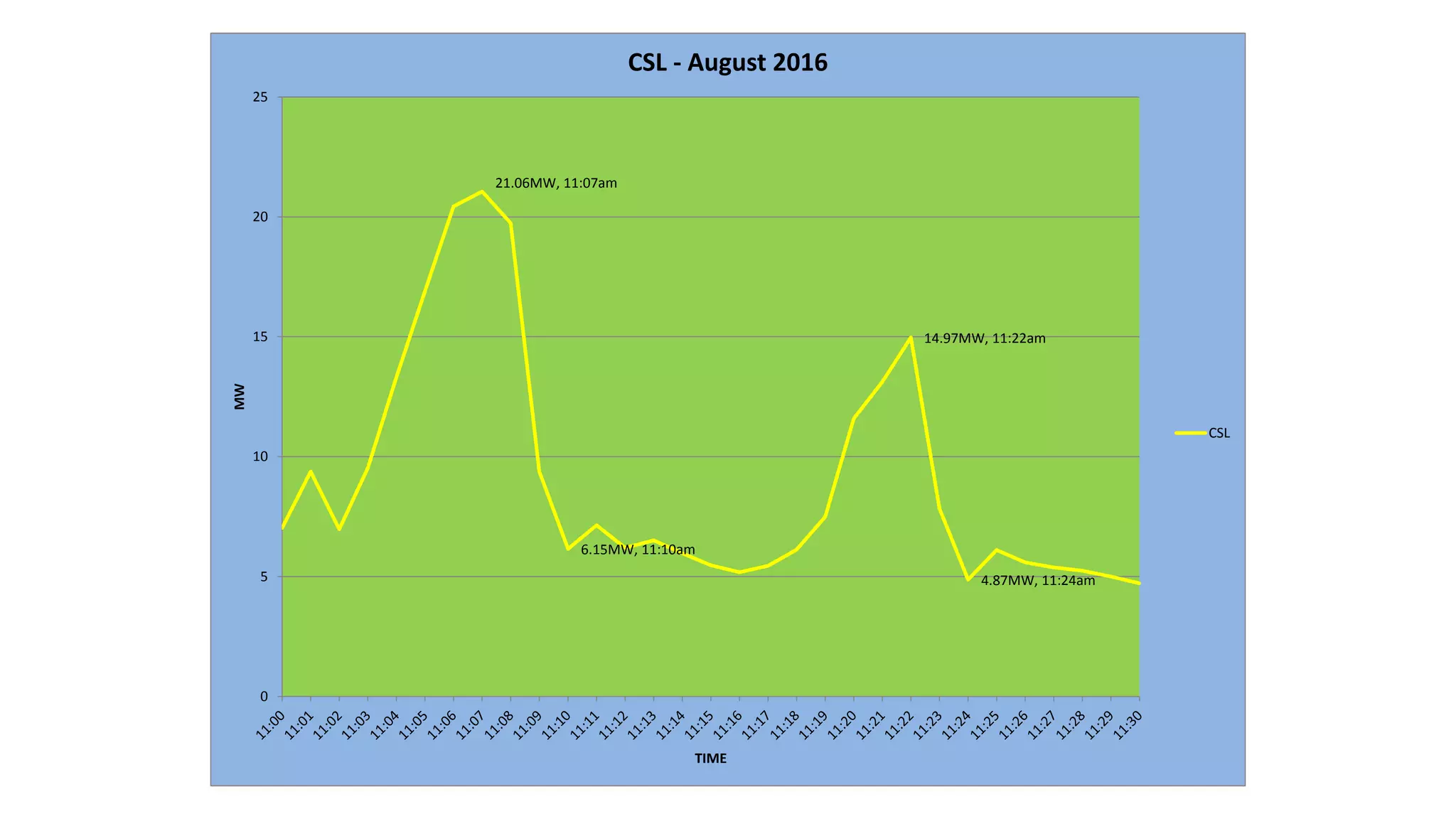

24. Near-Instantaneous Production Ramps

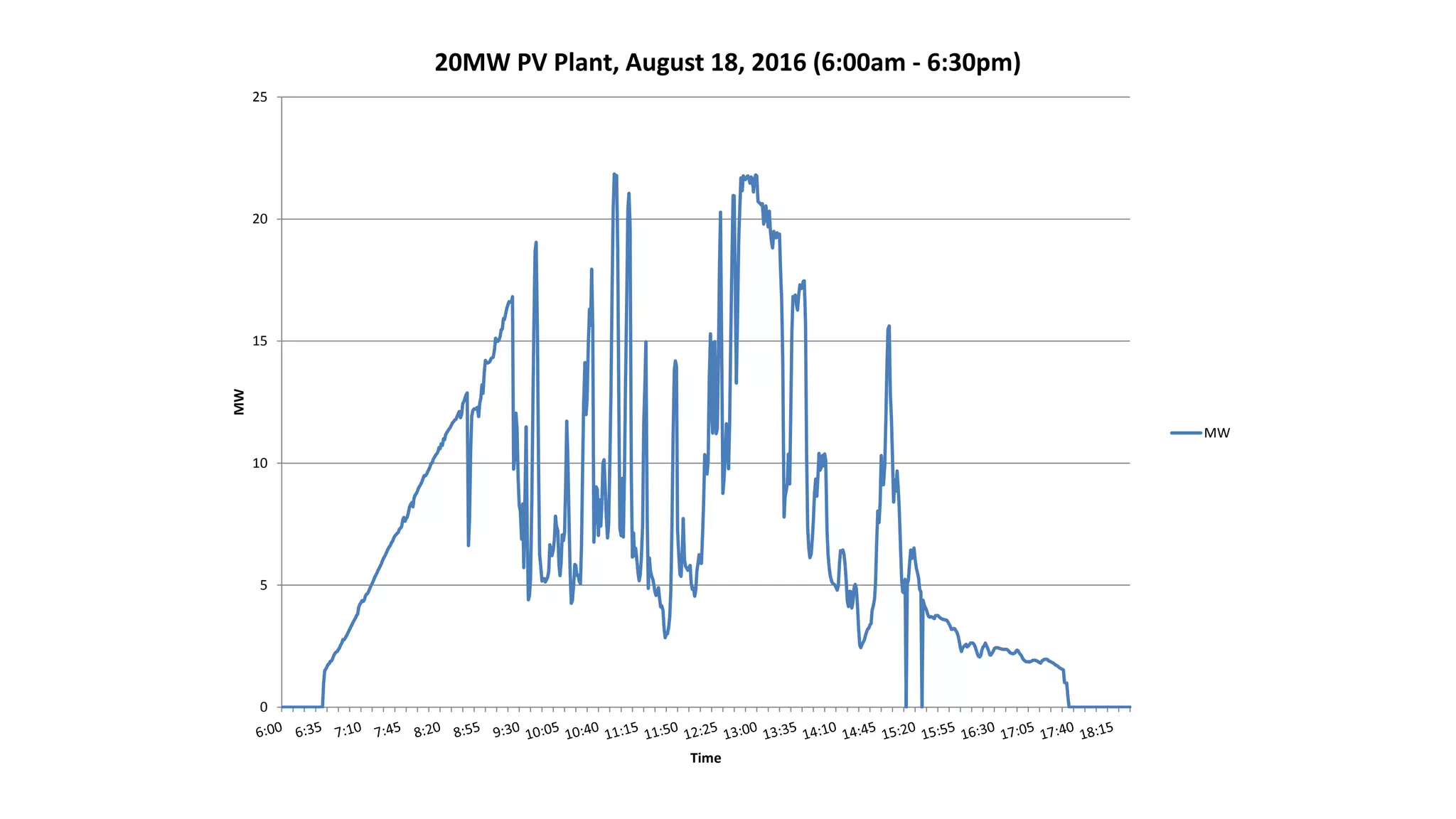

• High-Penetrations of Solar present integration challenges, the passage
of clouds over PV panels can result in output changes of +/- 50% in 60
seconds and +/- 70% in 10 minutes.
• Rooftop or utility-scale PV connected directly to the distribution
system can introduce voltage challenges. Quick variations from
inverter-based generation can impact the voltage to customers if
adequate voltage regulation is absent.
• Siting of a single large solar installation at the end of a distribution
feeder can strain the entire voltage regulation scheme.
• Generally, the Response-Time for Voltage Regulation is critical.

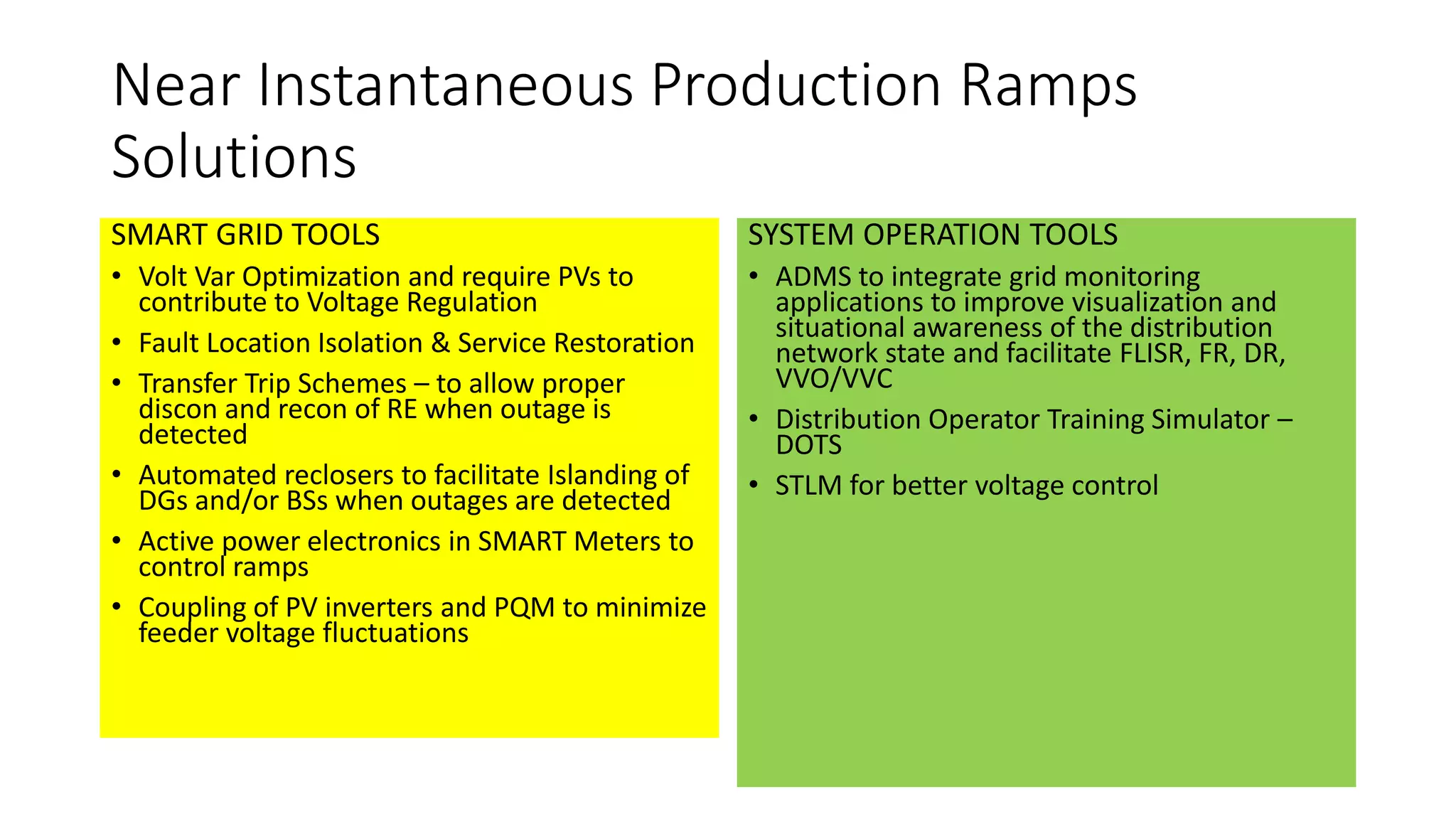

25. Near Instantaneous Production Ramps
Solutions
SMART GRID TOOLS
• Volt Var Optimization and require PVs to
contribute to Voltage Regulation
• Fault Location Isolation & Service Restoration
• Transfer Trip Schemes – to allow proper
discon and recon of RE when outage is
detected
• Automated reclosers to facilitate Islanding of
DGs and/or BSs when outages are detected
• Active power electronics in SMART Meters to
control ramps
• Coupling of PV inverters and PQM to minimize
feeder voltage fluctuations
SYSTEM OPERATION TOOLS
• ADMS to integrate grid monitoring
applications to improve visualization and
situational awareness of the distribution
network state and facilitate FLISR, FR, DR,
VVO/VVC
• Distribution Operator Training Simulator –
DOTS
• STLM for better voltage control

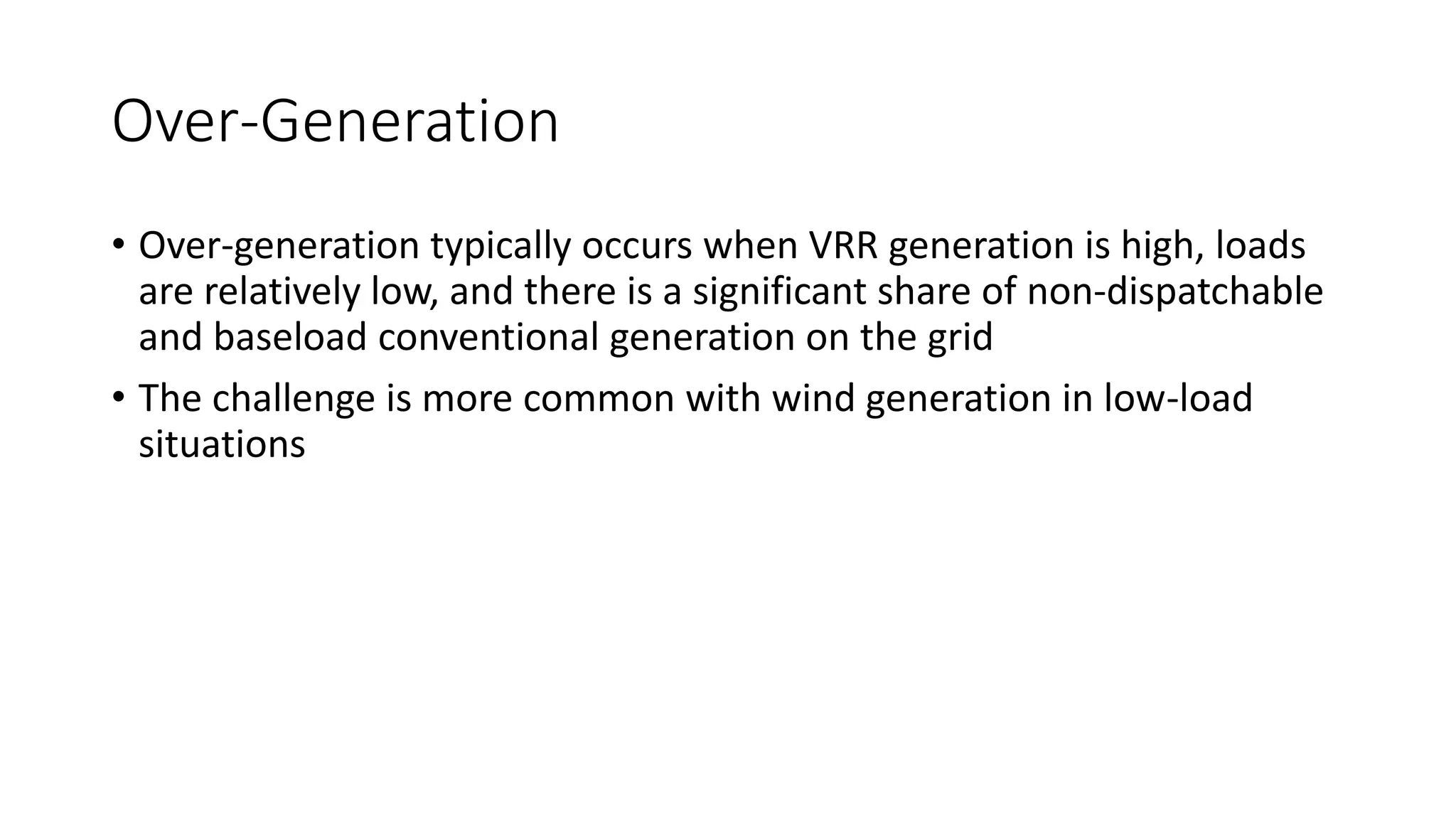

26. Over-Generation
• Over-generation typically occurs when VRR generation is high, loads
are relatively low, and there is a significant share of non-dispatchable
and baseload conventional generation on the grid
• The challenge is more common with wind generation in low-load
situations

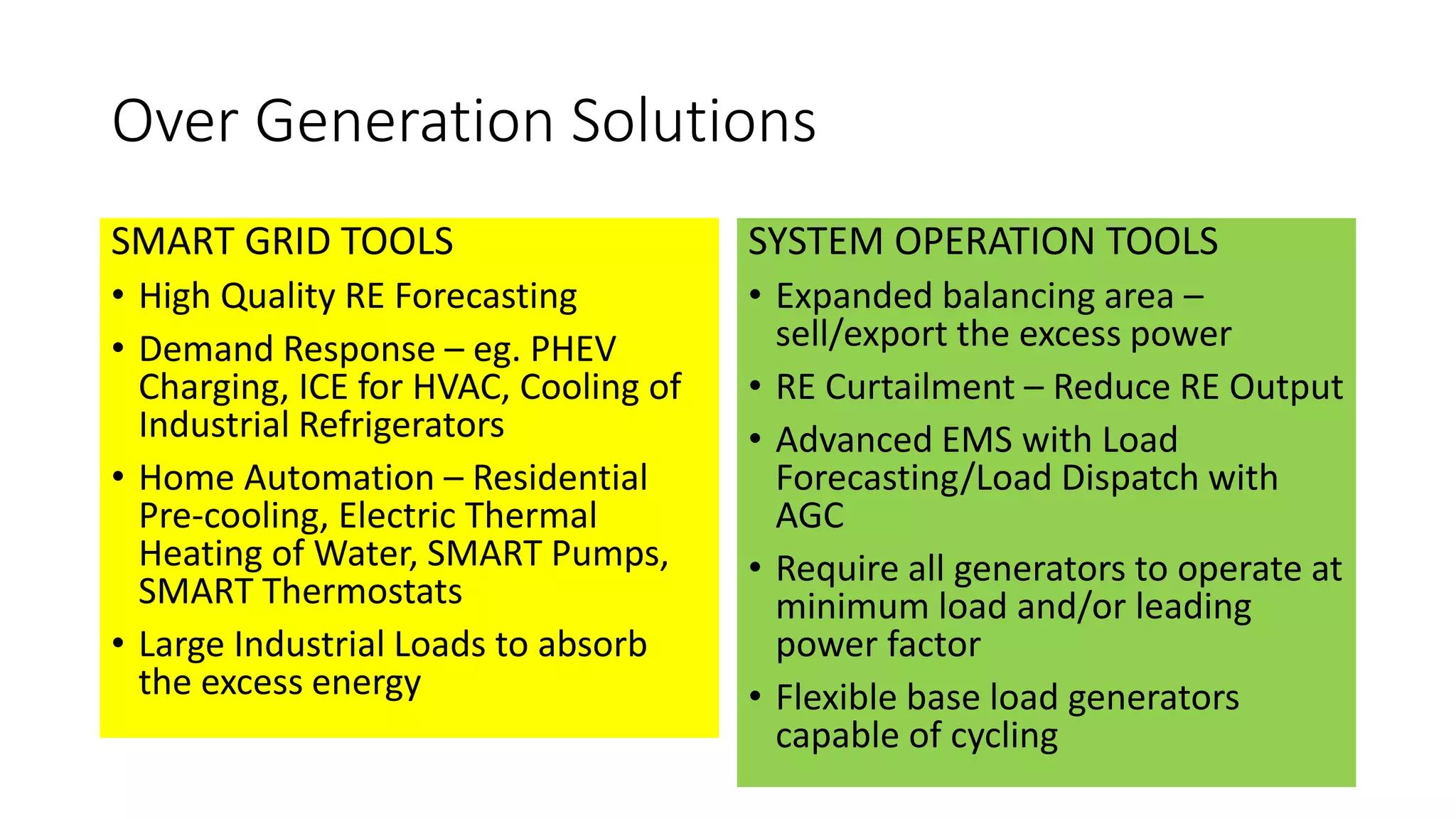

27. Over Generation Solutions
SMART GRID TOOLS
• High Quality RE Forecasting
• Demand Response – eg. PHEV
Charging, ICE for HVAC, Cooling of
Industrial Refrigerators
• Home Automation – Residential
Pre-cooling, Electric Thermal
Heating of Water, SMART Pumps,
SMART Thermostats
• Large Industrial Loads to absorb
the excess energy
SYSTEM OPERATION TOOLS
• Expanded balancing area –
sell/export the excess power
• RE Curtailment – Reduce RE Output
• Advanced EMS with Load
Forecasting/Load Dispatch with
AGC
• Require all generators to operate at
minimum load and/or leading
power factor
• Flexible base load generators
capable of cycling

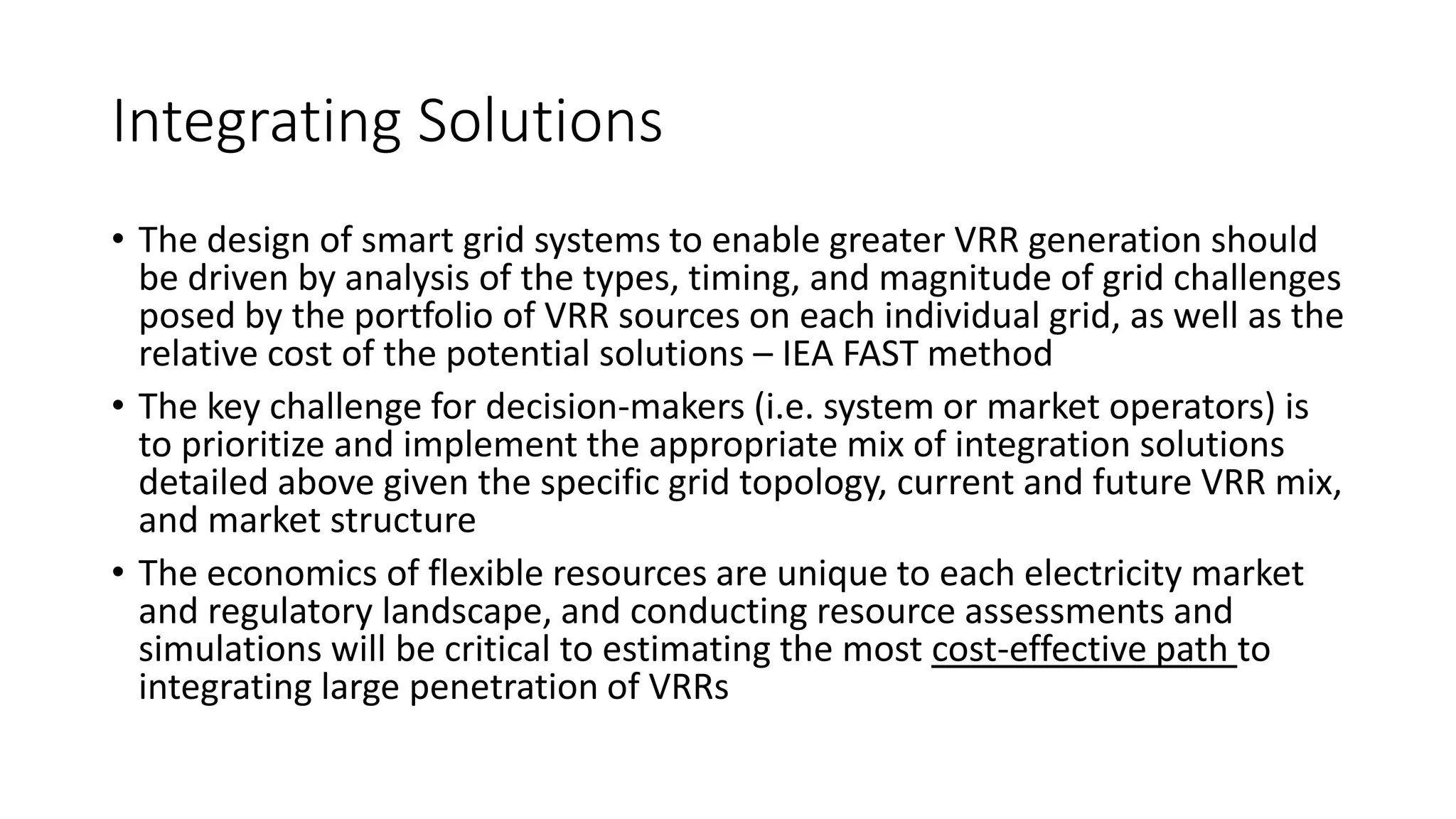

28. Integrating Solutions
• The design of smart grid systems to enable greater VRR generation should
be driven by analysis of the types, timing, and magnitude of grid challenges
posed by the portfolio of VRR sources on each individual grid, as well as the
relative cost of the potential solutions – IEA FAST method
• The key challenge for decision-makers (i.e. system or market operators) is
to prioritize and implement the appropriate mix of integration solutions
detailed above given the specific grid topology, current and future VRR mix,
and market structure
• The economics of flexible resources are unique to each electricity market
and regulatory landscape, and conducting resource assessments and
simulations will be critical to estimating the most cost-effective path to
integrating large penetration of VRRs

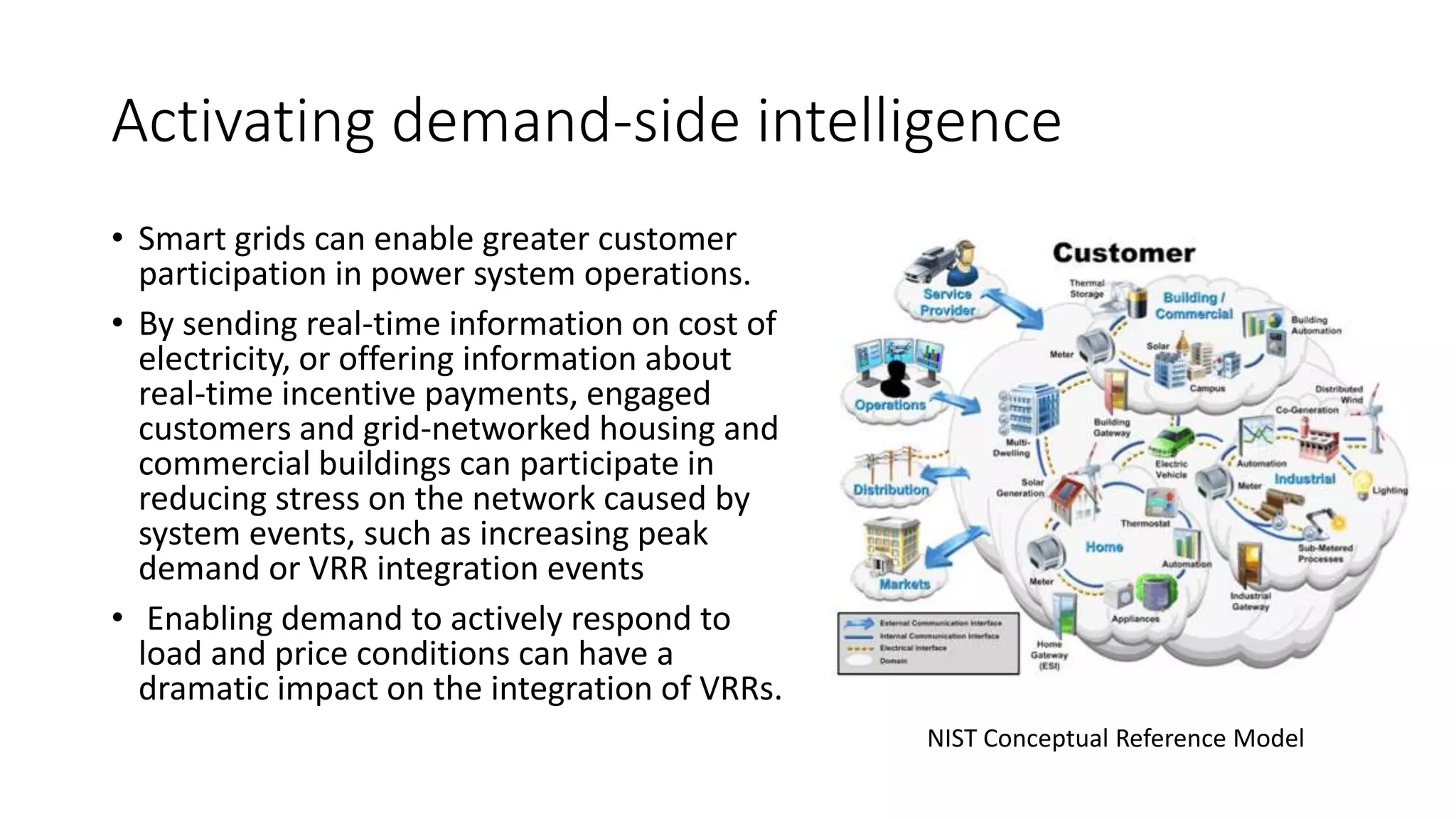

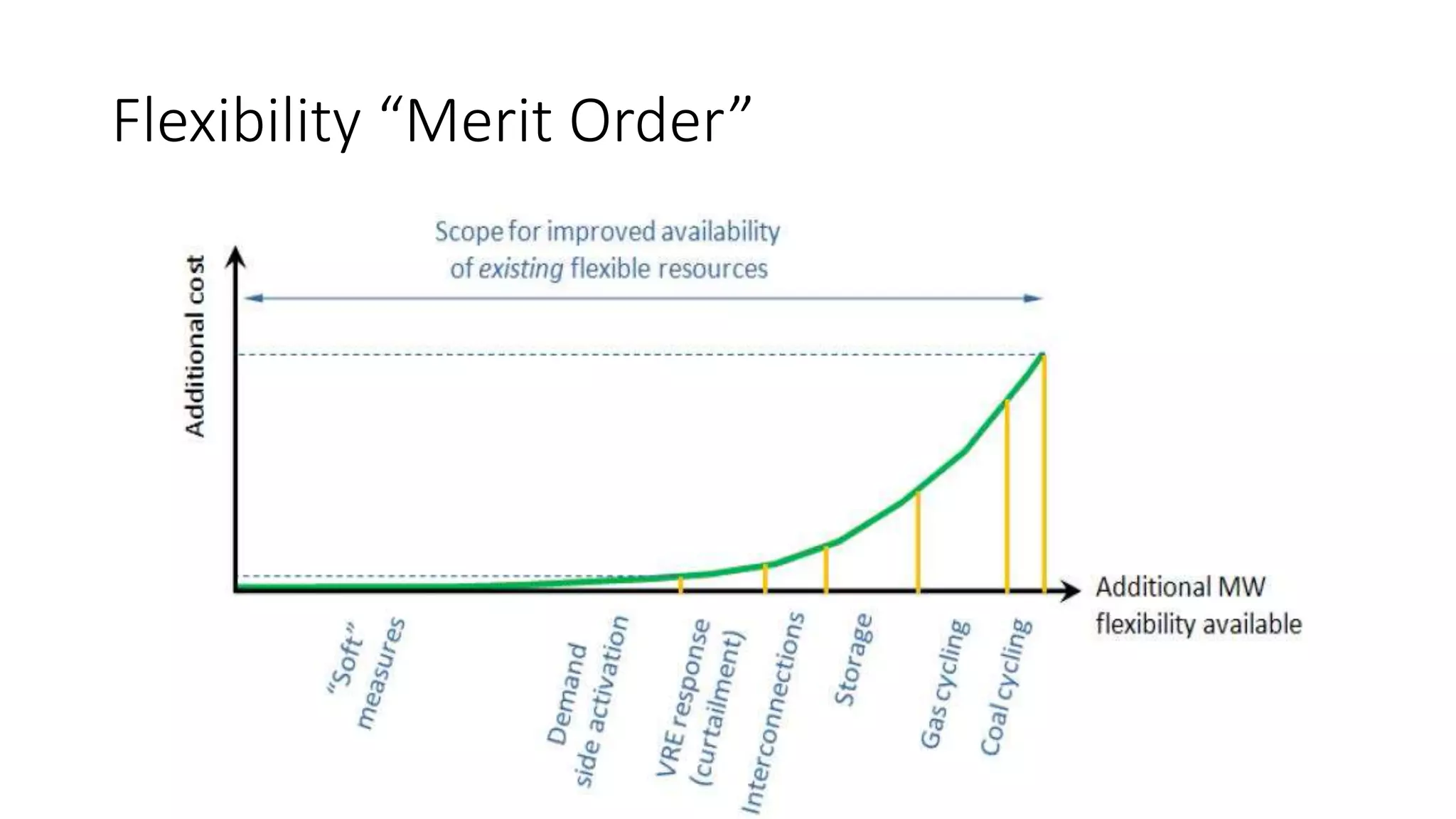

30. Activating demand-side intelligence
• Smart grids can enable greater customer
participation in power system operations.
• By sending real-time information on cost of
electricity, or offering information about
real-time incentive payments, engaged
customers and grid-networked housing and
commercial buildings can participate in
reducing stress on the network caused by
system events, such as increasing peak
demand or VRR integration events
• Enabling demand to actively respond to
load and price conditions can have a
dramatic impact on the integration of VRRs.
NIST Conceptual Reference Model

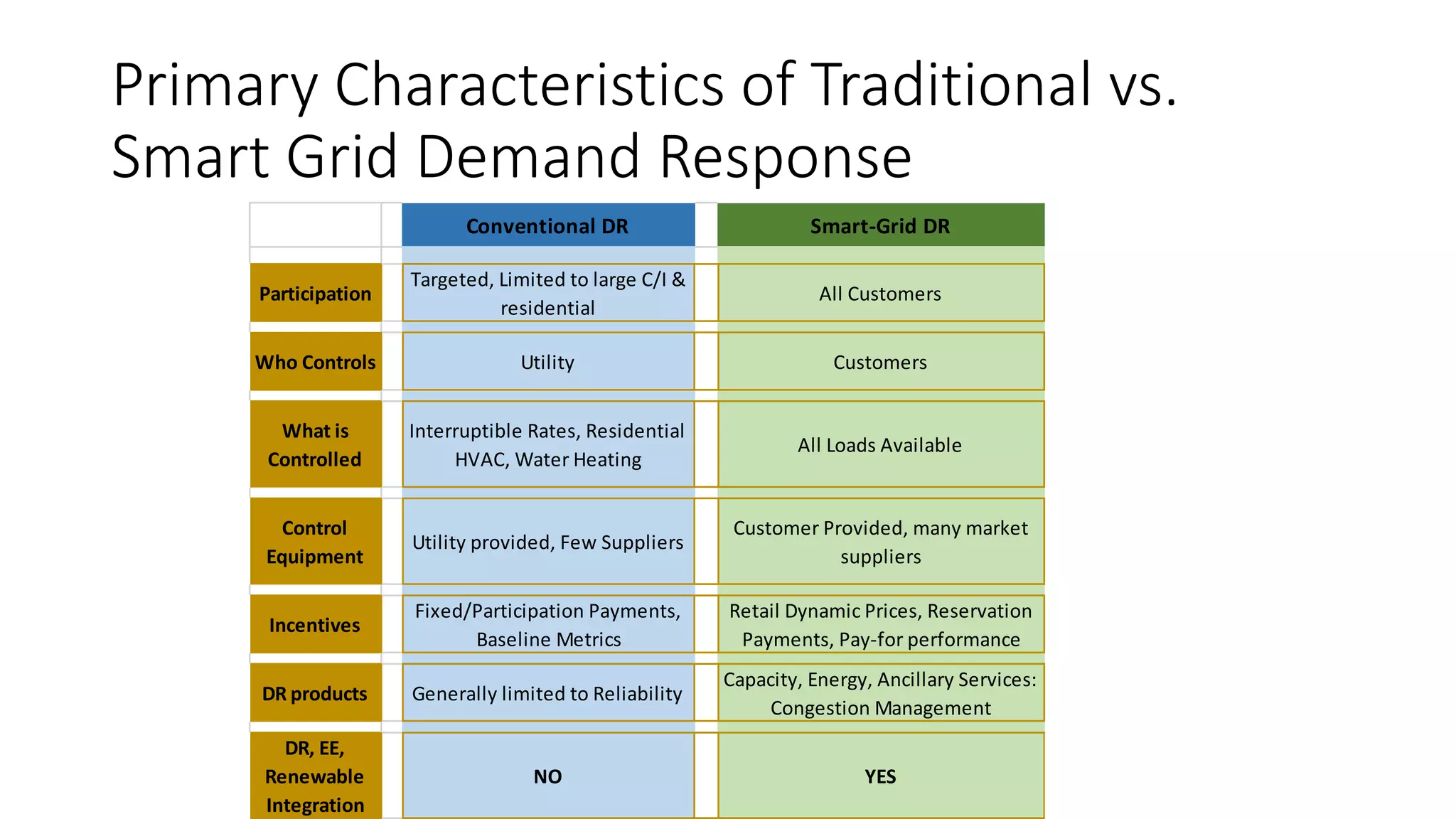

31. Primary Characteristics of Traditional vs.
Smart Grid Demand Response
Conventional DR Smart-Grid DR
Participation
Targeted, Limited to large C/I &
residential
All Customers
Who Controls Utility Customers
What is
Controlled
Interruptible Rates, Residential
HVAC, Water Heating
All Loads Available
Control
Equipment
Utility provided, Few Suppliers
Customer Provided, many market
suppliers
Incentives
Fixed/Participation Payments,
Baseline Metrics
Retail Dynamic Prices, Reservation
Payments, Pay-for performance
DR products Generally limited to Reliability
Capacity, Energy, Ancillary Services:
Congestion Management
DR, EE,
Renewable
Integration
NO YES

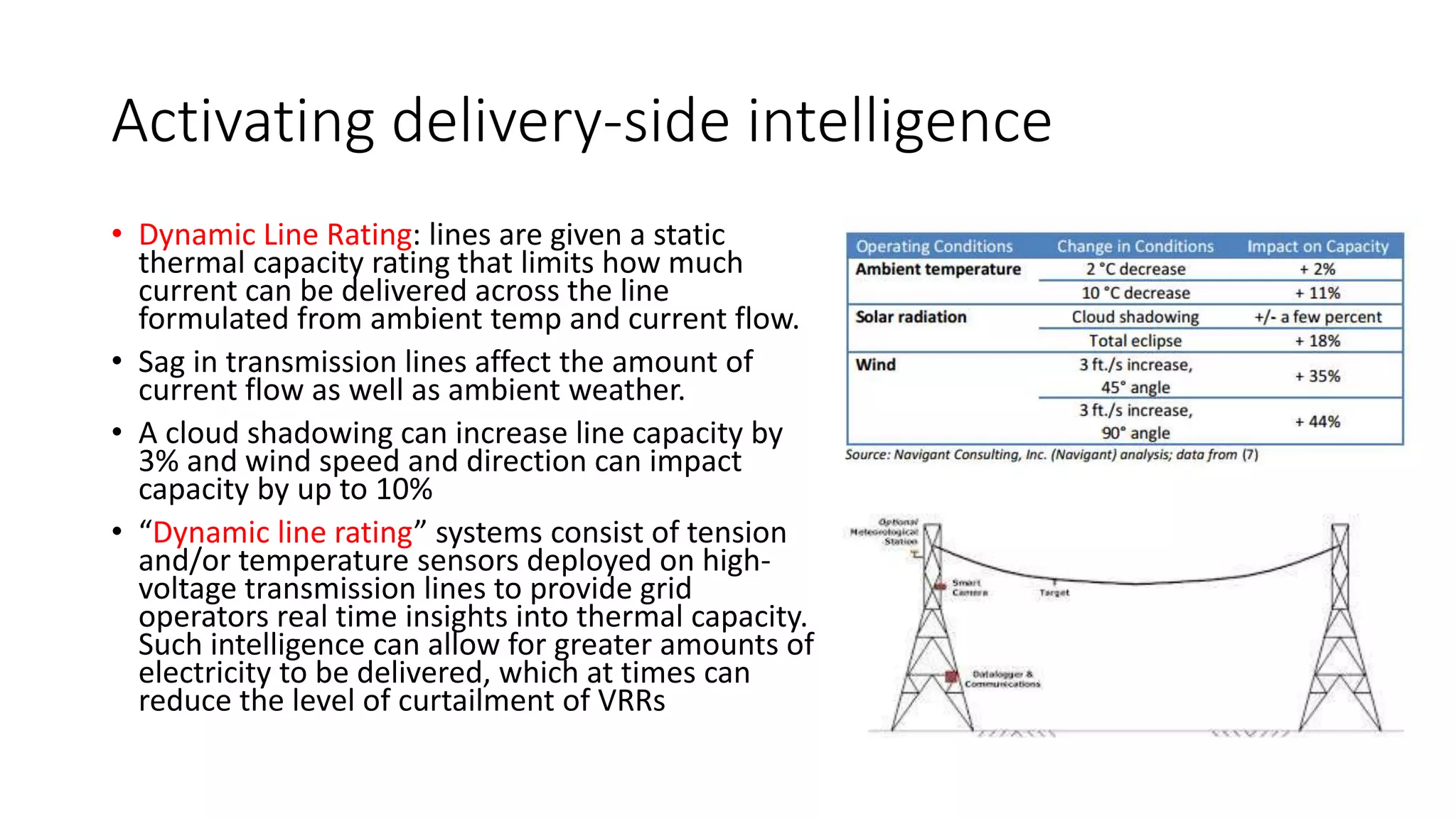

32. Activating delivery-side intelligence
• Dynamic Line Rating: lines are given a static
thermal capacity rating that limits how much
current can be delivered across the line
formulated from ambient temp and current flow.
• Sag in transmission lines affect the amount of
current flow as well as ambient weather.
• A cloud shadowing can increase line capacity by
3% and wind speed and direction can impact
capacity by up to 10%
• “Dynamic line rating” systems consist of tension
and/or temperature sensors deployed on high-
voltage transmission lines to provide grid
operators real time insights into thermal capacity.
Such intelligence can allow for greater amounts of
electricity to be delivered, which at times can
reduce the level of curtailment of VRRs
33. Enabling Distributed Generation & Microgrids
• Planned islanding can now be introduced
and integrated with system protection
• Microgrids are defined as electrical systems
that include multiple loads and distributed
energy resources that may be operated
either interconnected with the grid or as an
electrical island
• Applicable to rural areas or large residential
subdivisions, corporate campuses, hotel
zones
• Microgrid Controller takes over the job of
the system controller to maintain power
quality (voltage, frequency etc.,), balance of
generation and load

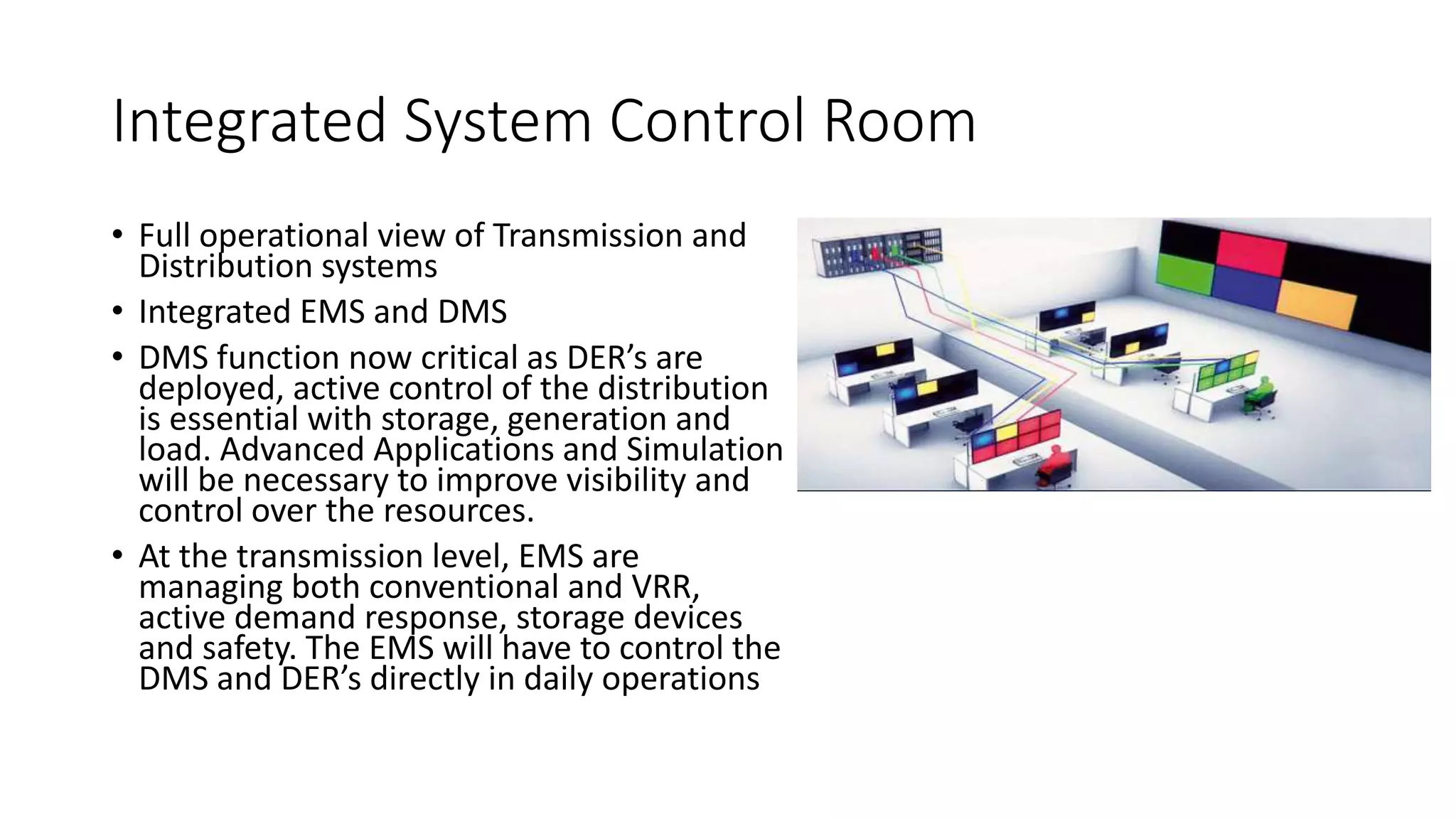

34. Integrated System Control Room
• Full operational view of Transmission and
Distribution systems
• Integrated EMS and DMS
• DMS function now critical as DER’s are
deployed, active control of the distribution
is essential with storage, generation and
load. Advanced Applications and Simulation
will be necessary to improve visibility and
control over the resources.
• At the transmission level, EMS are
managing both conventional and VRR,
active demand response, storage devices
and safety. The EMS will have to control the
DMS and DER’s directly in daily operations

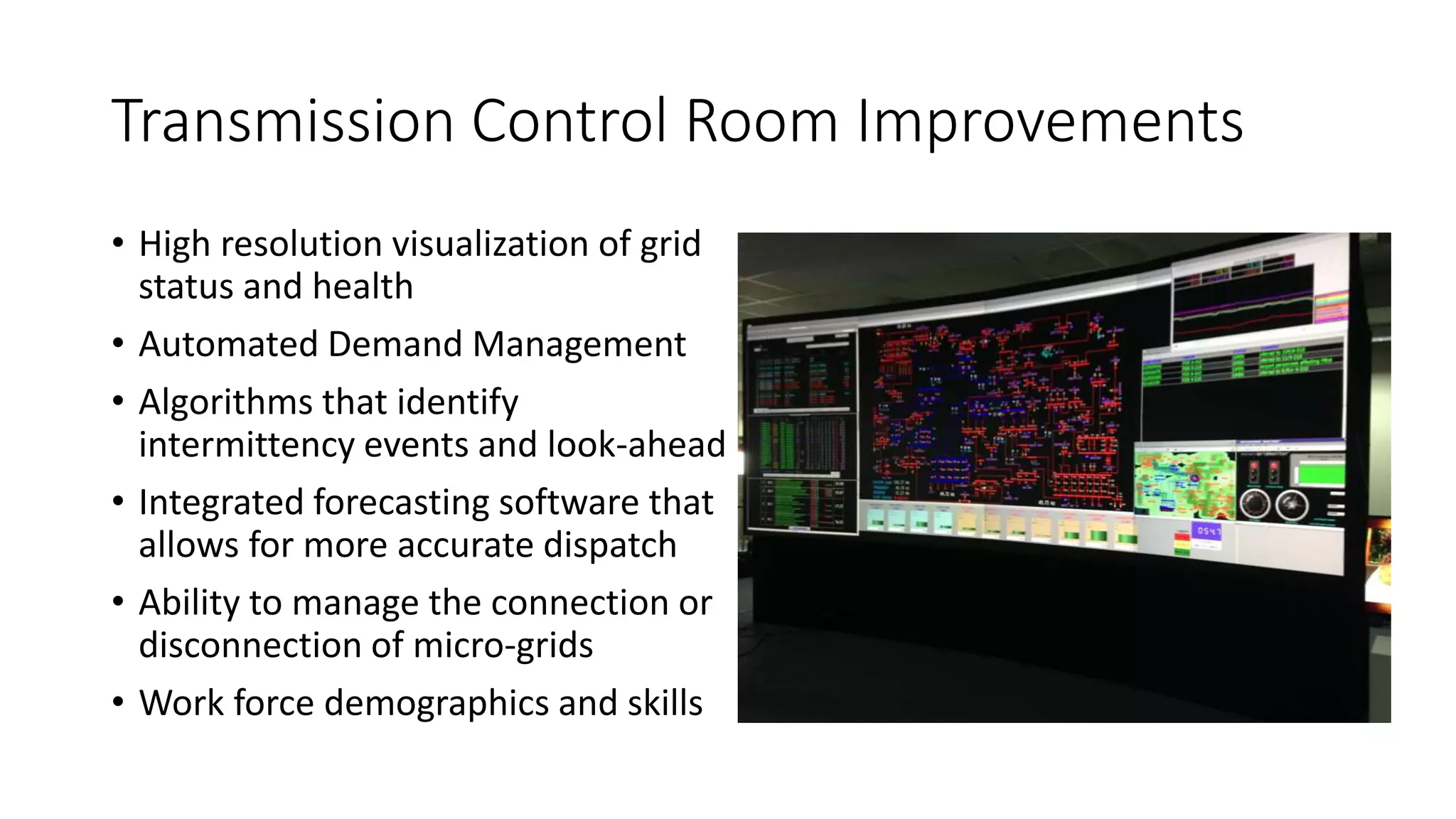

35. Transmission Control Room Improvements
• High resolution visualization of grid
status and health
• Automated Demand Management
• Algorithms that identify
intermittency events and look-ahead
• Integrated forecasting software that
allows for more accurate dispatch
• Ability to manage the connection or
disconnection of micro-grids
• Work force demographics and skills
36. Conclusion
• What is the regionally-appropriate
sequence and priority of smart grid
applications needed to facilitate the
development of high-penetration VRR
power systems?
• What types of policy frameworks best
engage customers in participatory energy
markets?
• What is the regionally-appropriate model
for renewable energy development (e.g.
what share of VRR resources should be
distributed?)
• What smart-grid VRR integration solutions
are most strongly affected by institutional
barriers? Market barriers? What policy
changes would mitigate these barriers?
37. Recommendation
• Ensure alignment between smart grid roadmaps and scenarios for future
renewable energy supply
• Evaluate smart grid VRR integration solutions in the context of the full
range of integration solutions
• Integrated Resource Planning to:
• Establish the existing flexibility of the grid to integrate new resources
• Determine the optimal size and sites for renewable energy projects (resources)
• Ensure grid sustainability through generation units with appropriate ramp and
frequency stability capabilities
• Facilitate better collaboration with customers in Distributive Generation, who are
producing electricity and selling back to the grid
38. Questions?
• Thank You
References:
ISGAN White paper: “Smart Grid Contribution to Variable Renewable Resource Integration”, 25 April 2012
Ministry of Energy and Mining, “National Renewable Energy Policy 2009-2030”, August 2010
IEA, “Harnessing Variable Renewables, A guide to the Balancing Challenge”, January 2011
US DOE, “Strategies and Decision Support Systems for Integrating Variable Energy Resources in Control Centres
for Reliable Grid Operations, Global Best Practices, Examples of Excellence and Lessons Learned”, Lawrence Jones
NIST, “Framework and Roadmap for Smart Grid Interoperability Standards”, 1.0. January 2010
Energy Institute at HAAS, “Renewable Integration Challenges create Demand Response Opportunity,” Meredith Fowlie, Sept 2, 2014
Editor's Notes
Ramping demands: Increased solar puts stress on the system when the sun rises and sets. Conventional generation must ramp down and up to compensate.
Over-generation can be a problem when solar output peaks in the early afternoon if demand levels are modest and inflexible base load generation bumps up against minimum output constraints.
Declining marginal value: As the level of renewables penetration (solar in particular) increases, renewable energy output becomes less coincident with peak net load. This drives down the marginal value of the electricity generated, in part by reducing the capacity value of solar on the build margin and in part by driving up the marginal cost of managing variable energy output.
In light of this definition, smarter grids play a role in several domains within the IEA categorization of flexible resources. We now focus on a deeper discussion of how smart grid applications and technologies could enable power system flexibility in support of VRR integration
Jamaica with VRR shares set to exceed 10% in 2016 has to seriously look toward smart grid solutions to maintain safety, security, reliability and economics
The challenges presented by VRR integration will vary significantly by region, grid topology, and type of VRR resources on the grid. Consequently, the appropriate portfolio of integration tools will be specific to each grid system. In order to better contextualize smart grid tools within the full toolbox available to system operators, the next section provides a broad overview of key VRR integration challenges and outlines four categories of available tools: smart grid, markets, system operation, and other.
‡
Power systems must be actively managed to maintain a steady balance between supply
and demand. This is already a complex task as demand varies continually. But what
happens when supply becomes more variable and less certain, as with some renewable
sources of electricity like wind and solar PV that fluctuate with the weather? To what
extent can the resources that help power systems cope with the challenge of variability
in demand also be applied to variability of supply? How large are these resources?
And what share of electricity supply from variable renewables can they make possible?
Power systems differ tremendously in design, operation and consumption patterns, in the natural resources that underpin them, the markets they contain, and the transmission grids that bind them together. Furthermore, and as this analysis shows, there is likely to be a wide gap between what is technically possible and what is possible at present. In other words, some systems are better able than others to manage large VRE shares of electricity production, and direct comparison among them of VRE deployment potential from the integration perspective is inappropriate.
Integrated Resource Planning using the Flexibility Assessment (FAST) method developed by the IEA’s Grid Integration of Variable Renewables (GIVAR) project.
● Step 1 assesses the maximum technical ability of the four flexible resources to ramp up and down over the balancing time frame.5 This is the Technical Flexible Resource.
● Step 2 captures the extent to which certain attributes of the power area in question will constrain the availability of the technical resource, to yield the Available Flexible Resource.
● Step 3 is to calculate the maximum Flexibility Requirement of the system, which is a combination of fluctuations in demand and VRE output (the net load)6 , and contingencies.
● Step 4 brings together the requirement for flexibility and the available flexible resource to establish the Present VRE Penetration Potential (PVP) of the system in question.
Grid hardware such as smart grid technologies can play several important roles to balance the fluctuation in “net load.”† Specifically, smart grid technologies are integral components of the categories of “Demand side management and response” and “Energy storage facilities.”
The integration challenges are taken in the context of other solutions that are available, some which are soft and already available..
SMART RAS
Most Modern Grids have to make do on the existing Transmission Systems, So reducing the flow or operating closer to the limits is key for utilities and a challenge for system operators
SMART RAS - the Smart RAS takes synchrophasor-measured real power of tie lines between two grid areas and is triggered using an AIEM (Adaptive Impact Energy Method) application.
Static Var Compensators The SVC is a shunt connected device injecting dynamically inductive or capacitive reactive power into the transmission grid. The main task is voltage stability and reactive power control of transmission systems and system nodes.
Series Compensators provide an increase in transmission system stability and capacity for power transmission. Applications of SC are Fixed Series Capacitors (FSC), Thyristor Controlled Series Capacitors (TCSC) and Thyristor Protected Series Capacitors (TPSC).
In some instances, the ramping requirements driven by variable generation and variable demand may offset each other, while in other cases they may combine to require even more ramping capacity. Additionally, the interplay between different VRR sources may be important, for example in regions where wind speeds tend to increase in the evening during the same time that solar begins to decrease. In Jamaica there is the potential for interplay between wind and solar peaking at the same time with a great degree of overlap.
US researchers report roughly 38,000 MW of existing demand response capacity in the United States.[17] Activating demand-side flexibility is not simply a technical question however -- it requires a mix of complementary policy, regulatory, and market measures, which should be coordinated with the desired type of demand-side participation in mind.
Smart grid technologies and systems can cost-effectively enable demand-side flexibility in several ways. On the one hand, traditional (or managed) DR leverages networks and machine-to-machine communication protocols to manage demand based on real time price and/or load conditions. On the other hand, price-responsive (or active) DR leverages consumer and market participant responses to price in order to shift load. Traditional demand response is centrally controlled by the vertically-integrated utility and has historically focused on reliability operations (e.g. managing load peaks). Price-based demand response, managed through a market with increased customer participation, encompasses a wider range of potential products, potentially playing significant roles in capacity, energy, and ancillary services markets, as well as in congestion management.
Automated demand response (“AutoDR” or “ADR”), which facilitates direct communication between building automation systems and electricity markets, is now technologically mature, but focuses mainly on demand response for peak demand reduction. Demonstration of technologies (including AutoDR) for load-following generation are now being conducted in several countries.
Active, smart grid–enabled DR promotes greater price-responsiveness of customers and market participants through real-time pricing delivered via machine-to-machine communication, in-home devices, or mobile devices. The magnitude and flexibility of such resources is potentially quite large, but significant hurdles remain to its mainstream adoption in VRR-relevant power market operations – not least of which are uncertainties around likely rates of consumer participation.
The critical policy issues facing greater activation of price-responsive, next-generation DR include market design, pricing, rules of participation, and technical resource assessments
Sedano, Levy & Goldman, 2010
The connection of small generators to the grid, such as rooftop PV, combined heat and power, diesel generators, gas turbines, fuel cells, and run-of-the-river hydro, is not a new phenomenon. For safety reasons, the traditional approach in integrating distributed generation is to set the protection and the voltage regulation of the generator to avoid cases of islanding during an outage. Islanding occurs when a generator is running, feeding the customers, while the main source is removed, either intentionally or through an unintentional service outage.
The adoption of advanced information and communication technologies into grid control rooms is enabling dramatic advances in power system management. Key enabling systems include high-resolution visualization of grid status and health, automated demand management, algorithms that identify critical (i.e. intermittency) events, integrated forecasting software that allows for more accurate market dispatch, and the ability to manage the connection (and disconnection) of large micro-grids
Considering the strong linkage between VRR and smart grid development and the magnitude of investments at stake, the following recommendations could help decision-makers in defining the appropriate course of action
Recommendation 1: Ensure alignment between smart grid roadmaps and scenarios for future renewable energy supply. Smart grid technologies will be an increasingly important resource for integrating both large-scale and distributed renewable energy resources. The specific types of renewable resources to be developed, as well as the target mix of utility-scale and distributed resources, should inform the development of smart grid policies and capital investments. Scenarios that prioritize large-scale VRR will require a special focus on intelligent transmission solutions, while programs that prioritize DER, such as feed-in tariffs for small scale VRR development, will require a special focus on the way distribution networks are upgraded and operated
Recommendation 2: Evaluate smart grid VRR integration solutions in the context of the full range of integration solutions. The pathway to successful VRR integration will be highly specific to each region, and will likely include various changes to system operation, power markets, and the cycling of dispatchable power plants. The integration of balancing areas, the development of efficient and open markets, and new or expanded transmission interconnections to dispatchable renewable plants (such as large hydro generators), may all be key candidates for addressing the VRR integration challenge. Smart grid solutions will typically complement these strategies, and in other cases they may represent cost-effective alternatives.
