HIL Co-simulation demonstration

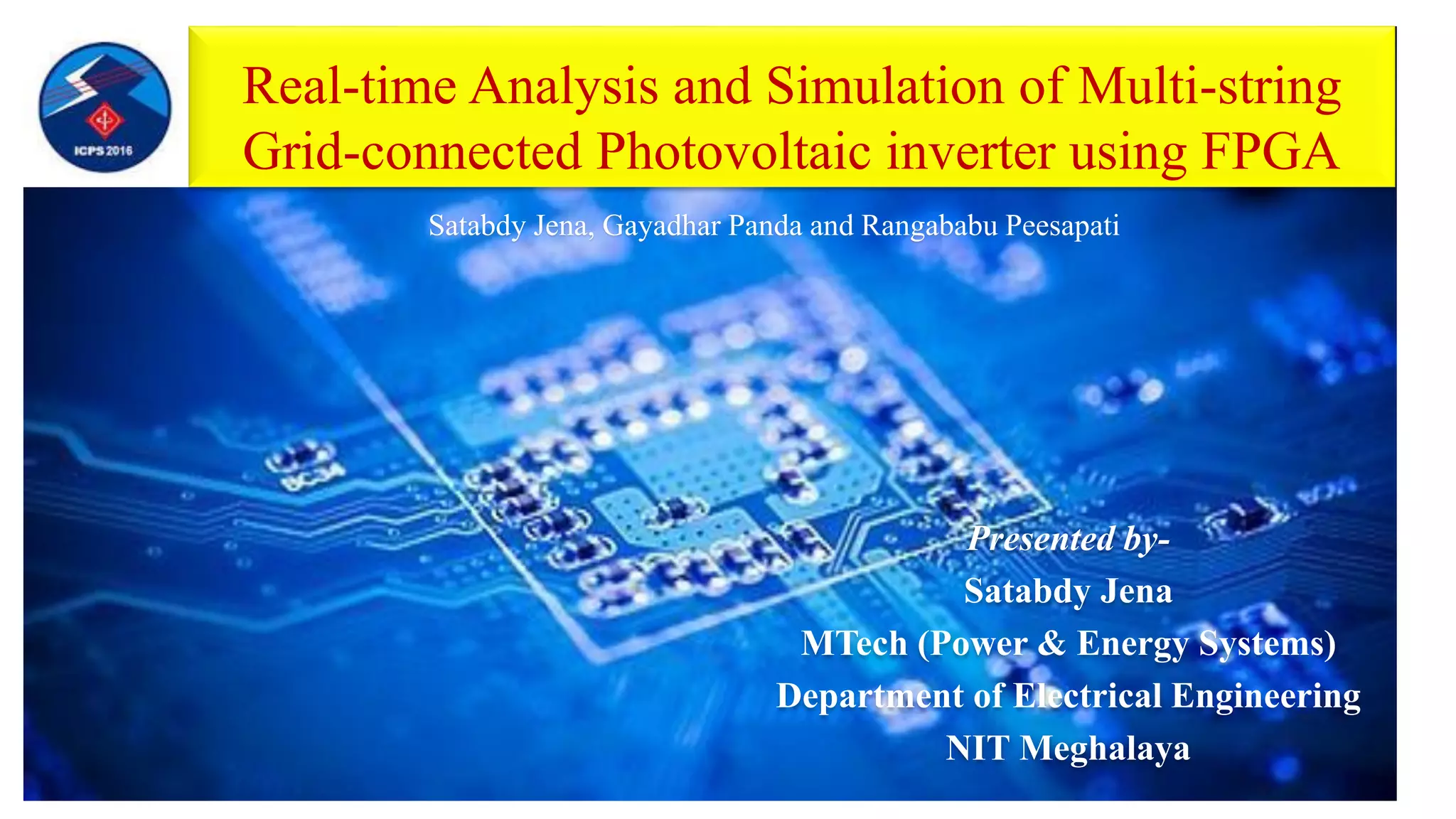

1. Real-time Analysis and Simulation of Multi-string
Grid-connected Photovoltaic inverter using FPGA
Presented by-
Satabdy Jena
MTech (Power & Energy Systems)
Department of Electrical Engineering
NIT Meghalaya
Satabdy Jena, Gayadhar Panda and Rangababu Peesapati

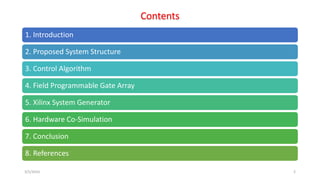

2. Contents
1. Introduction
2. Proposed System Structure
3. Control Algorithm
4. Field Programmable Gate Array
5. Xilinx System Generator
6. Hardware Co-Simulation
7. Conclusion
8. References
3/5/2016 2

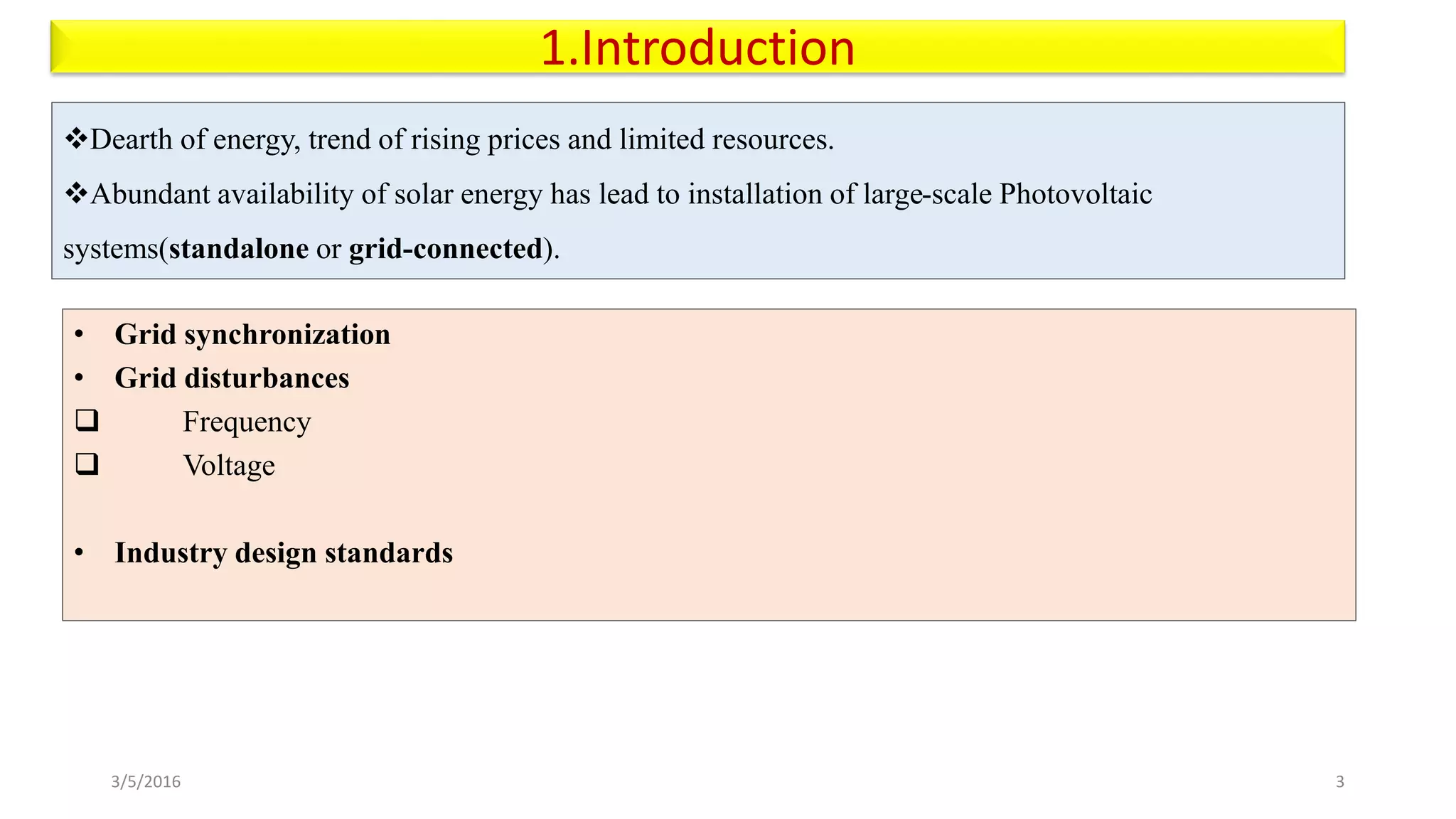

3. 1.Introduction
3/5/2016 3
Dearth of energy, trend of rising prices and limited resources.
Abundant availability of solar energy has lead to installation of large-scale Photovoltaic
systems(standalone or grid-connected).
• Grid synchronization
• Grid disturbances
 Frequency
 Voltage
• Industry design standards

4. 2.Proposed System Structure
3/5/2016 4
PV2
MPPT1
MPPT2
PWM1
PWM2
SPWM PLL
Modulating
Signal
Generation
CURRENT
CONTROLLER
VOLTAGE
CONTROLLER
PV1
+-
V*dc
Vdc
3-ф
3-Level
Central
Inverter
Filter
Inductance
Isolation
Transformer
ia,b,c ua,b,c
iq*
id* idq
udq
Utilty grid
abc
dq
ud* uq*
DC/DC
Boost Converter1
DC/DC
Boost Converter2
LfRf
Cf LtRt
ϴ
ϴ
Reference
Signal
Generation
mdq
FPGA Based Control Circuit
MULTI-STRING PV ARRAY
ipv1
ipv2
vpv1
vpv2
LOAD

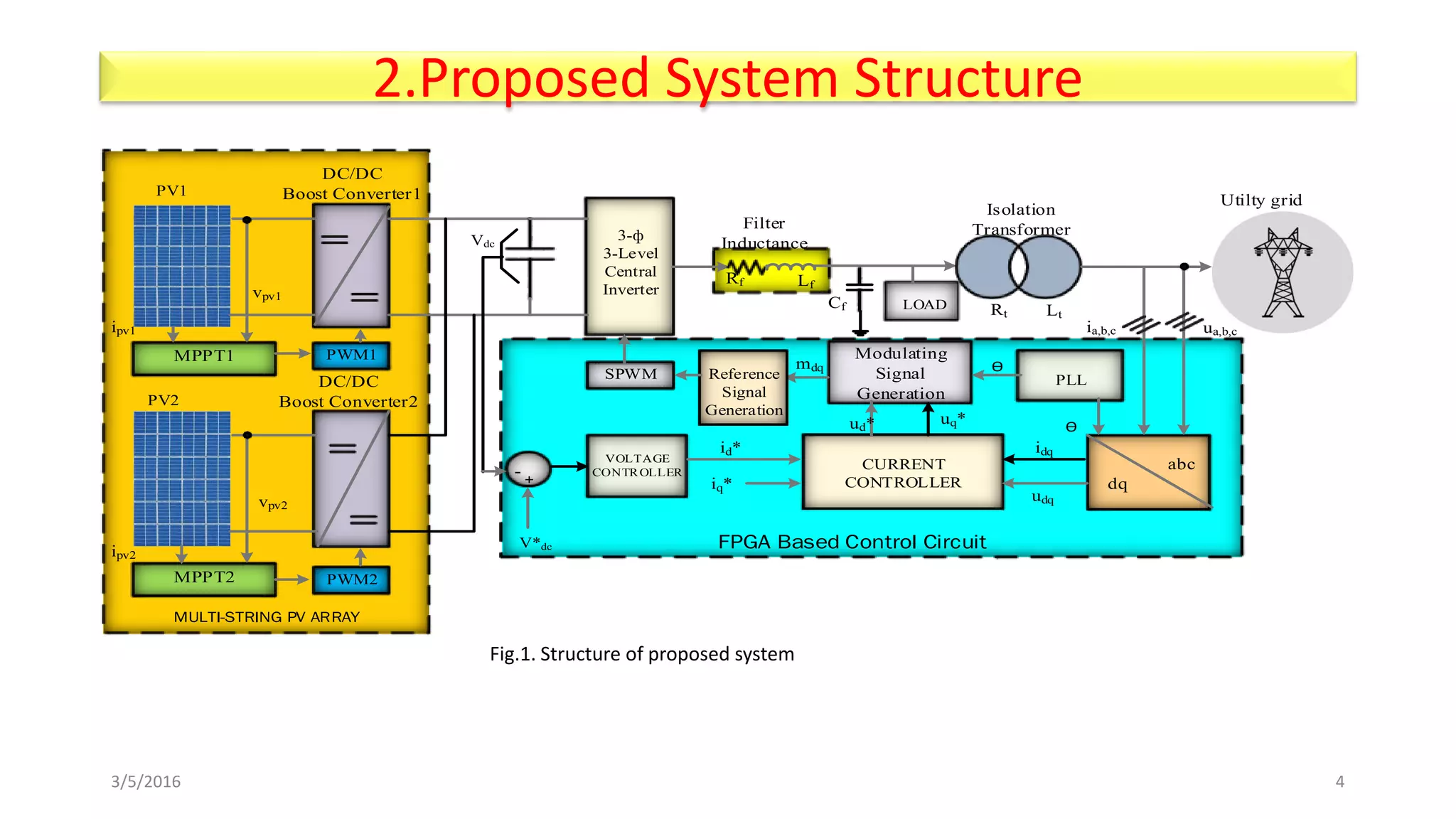

Fig.1. Structure of proposed system

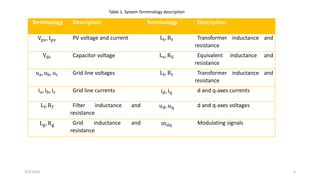

5. Terminology Description Terminology Description
Vpv, Ipv PV voltage and current Lt, Rt Transformer inductance and
resistance
Vdc Capacitor voltage Ls, RS Equivalent inductance and
resistance
ua, ub, uc Grid line voltages Lt, Rt Transformer inductance and
resistance
ia, ib, ic Grid line currents id, iq d and q-axes currents
Lf, Rf Filter inductance and
resistance
ud, uq d and q-axes voltages
Lg, Rg Grid inductance and
resistance
mdq Modulating signals
3/5/2016 5
Table 1. System Terminology description

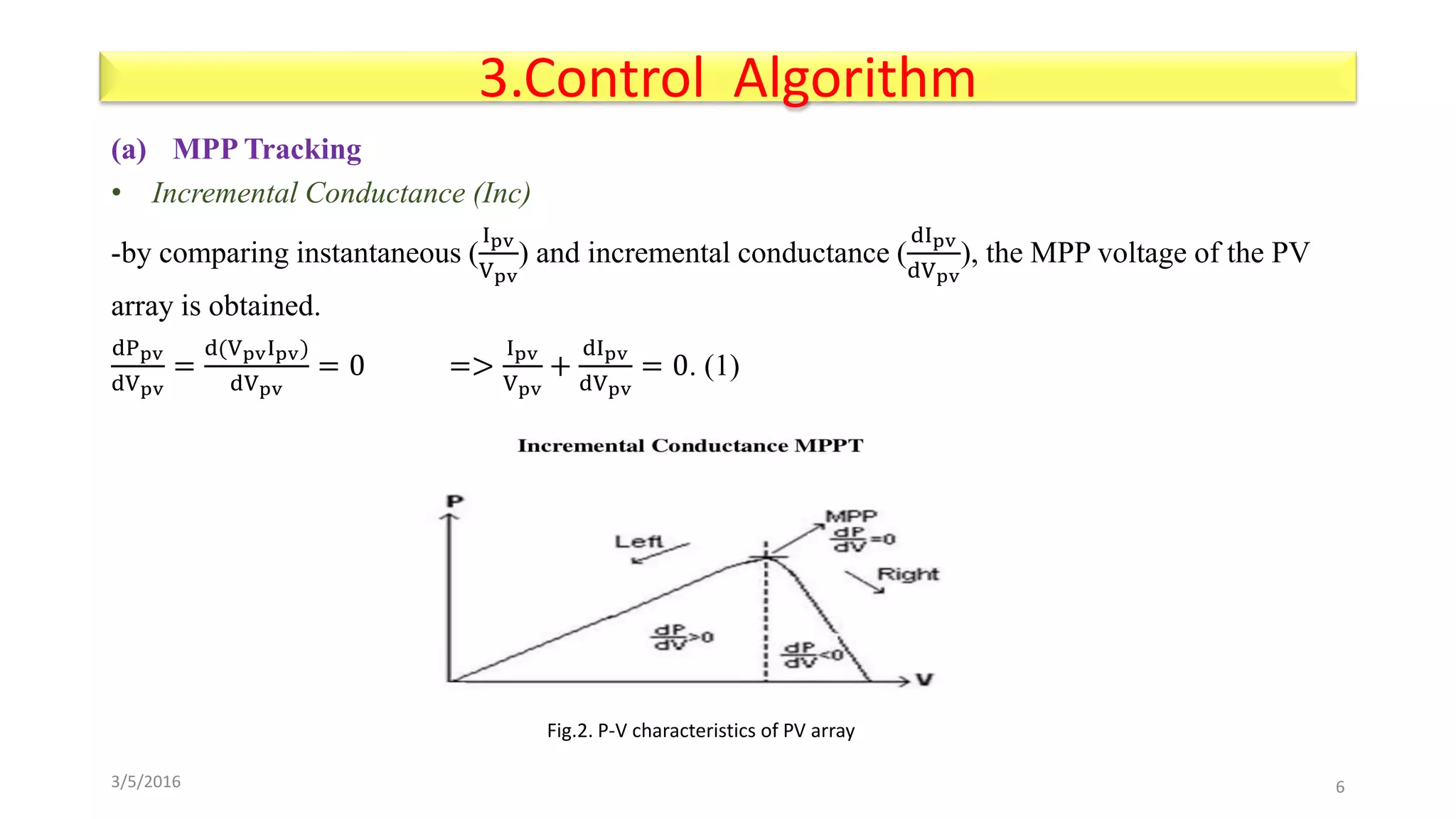

6. 3.Control Algorithm
(a) MPP Tracking
• Incremental Conductance (Inc)
-by comparing instantaneous (
Ipv
Vpv
) and incremental conductance (
dIpv
dVpv
), the MPP voltage of the PV
array is obtained.
dPpv
dVpv
=
d(VpvIpv)
dVpv
= 0 =>
Ipv
Vpv
+
dIpv
dVpv
= 0. (1)
3/5/2016 6
Fig.2. P-V characteristics of PV array

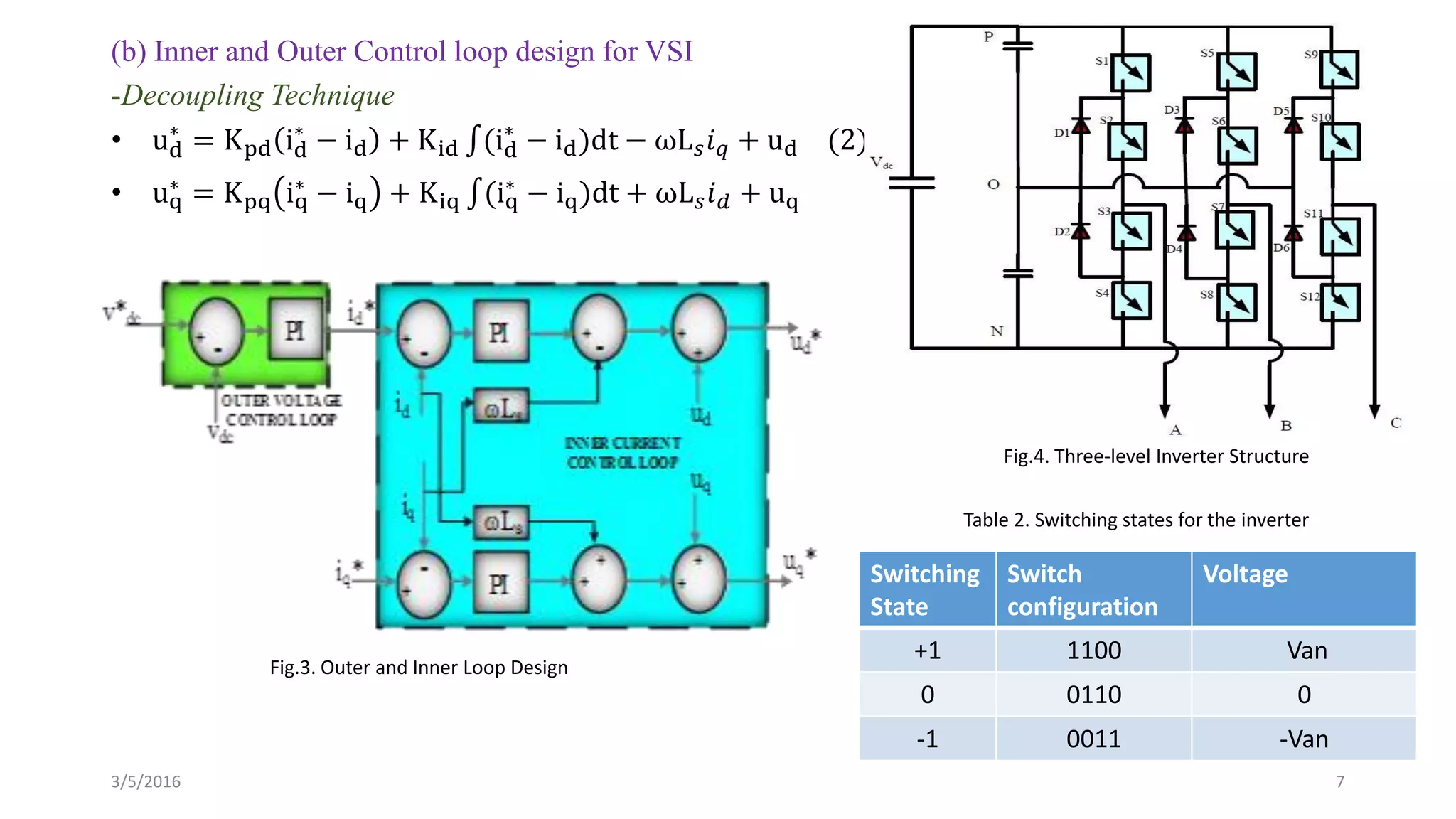

7. (b) Inner and Outer Control loop design for VSI
-Decoupling Technique
• ud
∗
= Kpd id
∗
− id + Kid (id
∗
− id)dt − ωL 𝑠 𝑖 𝑞 + ud (2)
• uq
∗ = Kpq iq
∗ − iq + Kiq (iq
∗ − iq)dt + ωL 𝑠 𝑖 𝑑 + uq
3/5/2016 7
Switching
State
Switch
configuration
Voltage
+1 1100 Van
0 0110 0
-1 0011 -Van

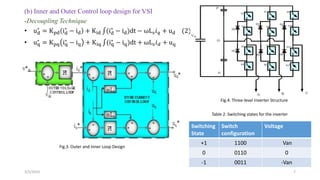

Fig.3. Outer and Inner Loop Design
Fig.4. Three-level Inverter Structure
Table 2. Switching states for the inverter

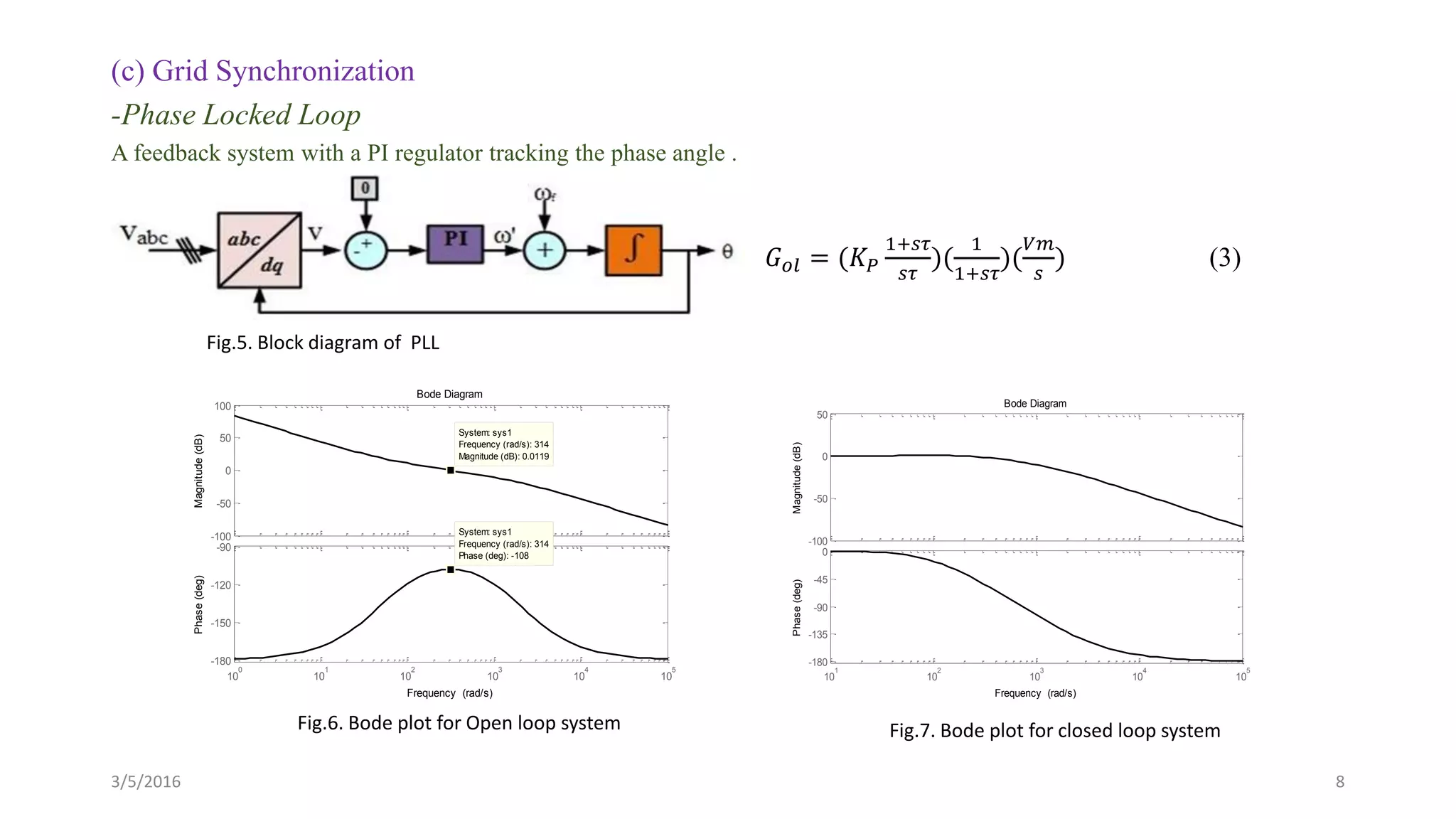

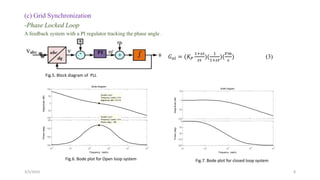

8. (c) Grid Synchronization
-Phase Locked Loop
A feedback system with a PI regulator tracking the phase angle .
3/5/2016 8
𝐺 𝑜𝑙 = (𝐾 𝑃
1+𝑠𝜏
𝑠𝜏
)(
1
1+𝑠𝜏
)(
𝑉𝑚
𝑠
) (3)
-100
-50
0
50
100
Magnitude(dB)
System: sys1
Frequency (rad/s): 314
Magnitude (dB): 0.0119
10
0
10
1
10
2
10
3
10
4
10
5
-180
-150
-120
-90
System: sys1
Frequency (rad/s): 314
Phase (deg): -108
Phase(deg)
Bode Diagram
Frequency (rad/s)
-100
-50
0
50
Magnitude(dB)
10
1
10
2
10
3
10
4
10
5
-180
-135
-90
-45
0
Phase(deg)
Bode Diagram
Frequency (rad/s)
Fig.5. Block diagram of PLL
Fig.6. Bode plot for Open loop system Fig.7. Bode plot for closed loop system

9. 4.Field Programmable Gate Array
3/5/2016 9
 An FPGA is a programmable breadboard for digital circuits-on-chip.
 It consists of:
 Programmable Logic Elements
 Programmable Interconnects
 Custom Circuitry

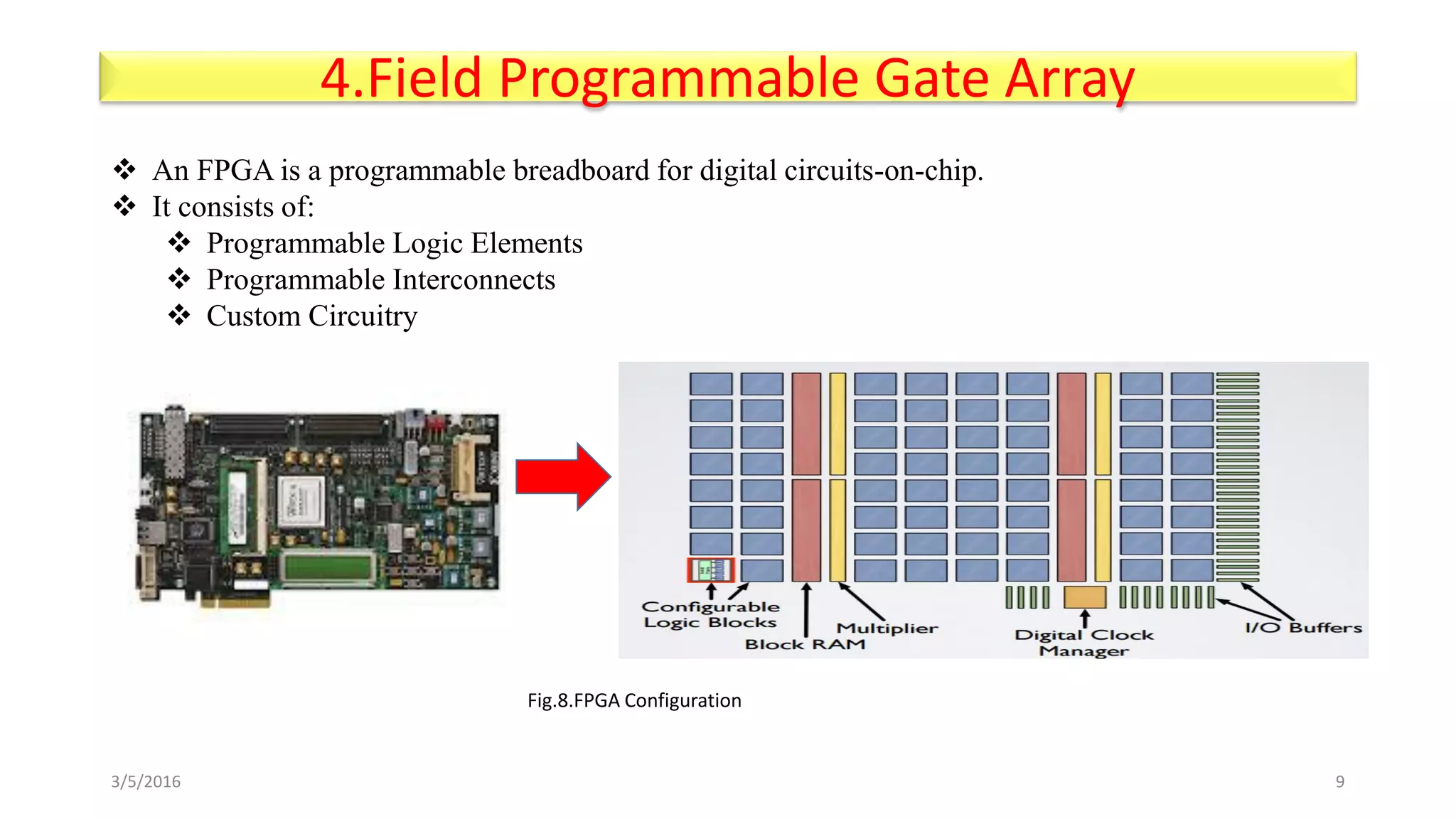

Fig.8.FPGA Configuration

10. 3/5/2016 10

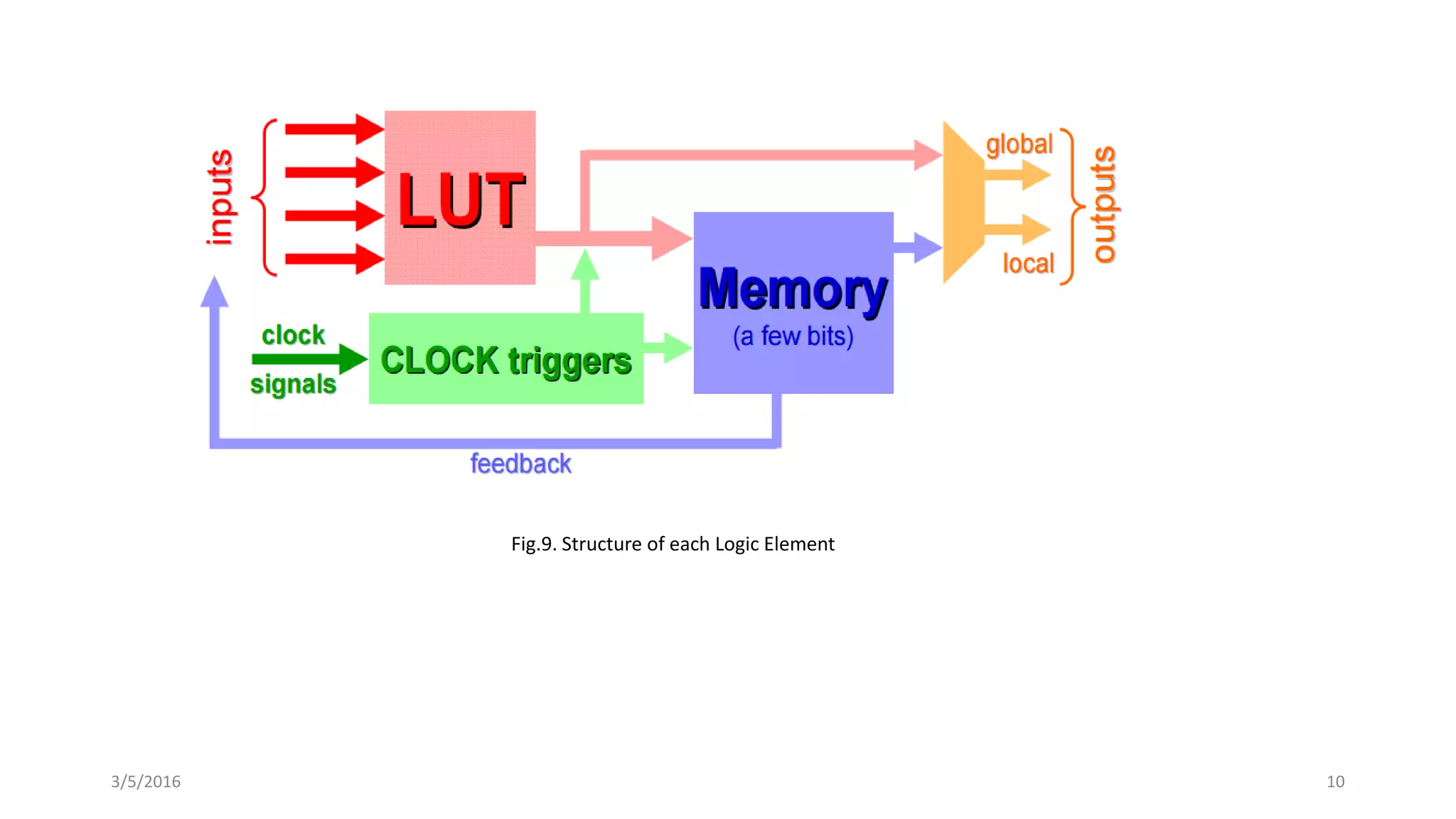

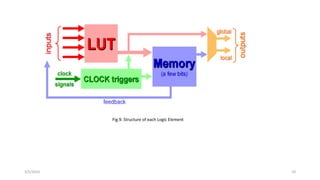

Fig.9. Structure of each Logic Element

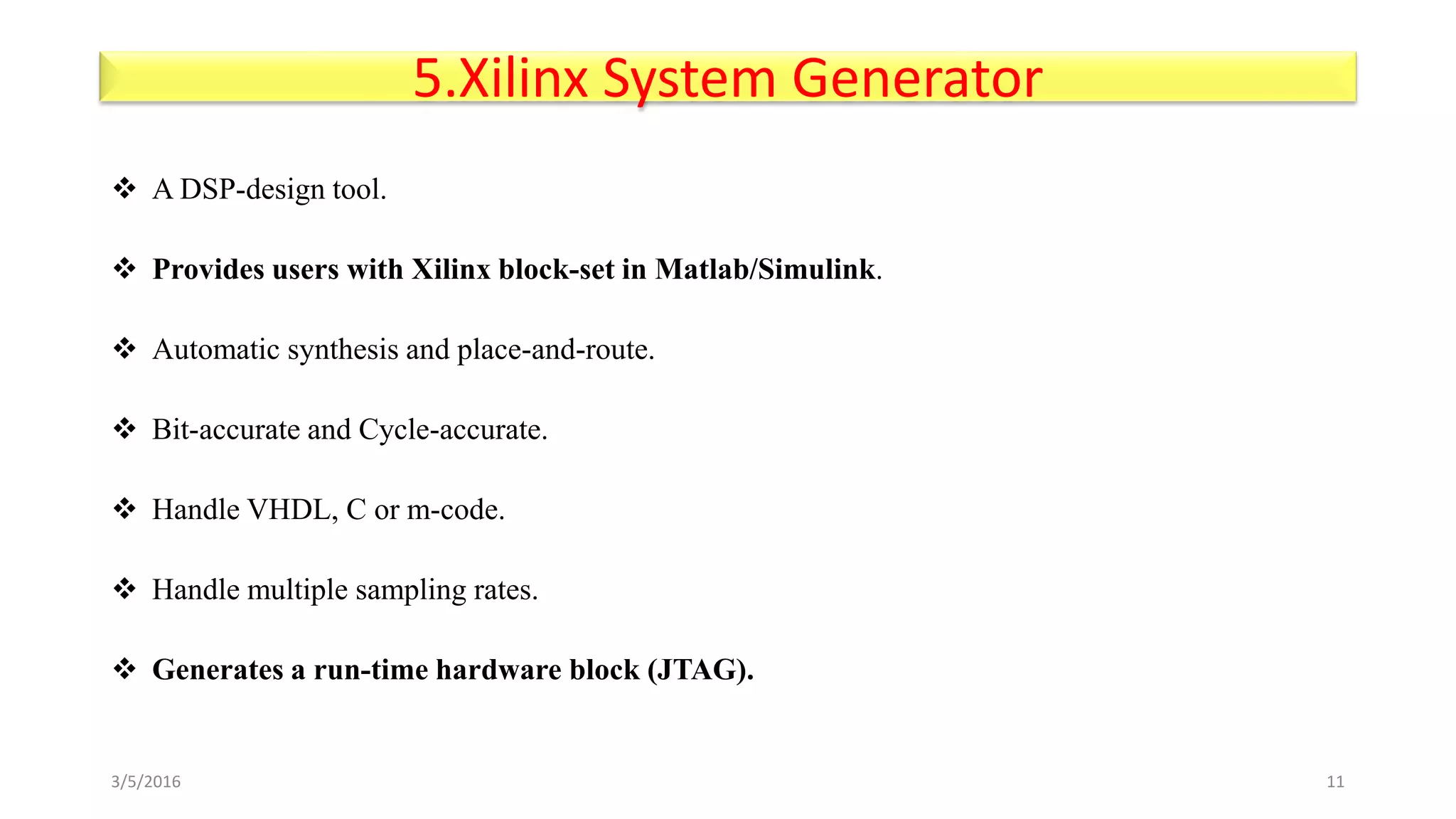

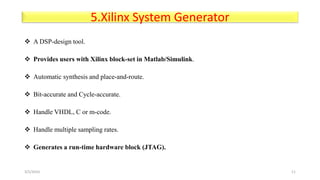

11. 5.Xilinx System Generator
 A DSP-design tool.
 Provides users with Xilinx block-set in Matlab/Simulink.
 Automatic synthesis and place-and-route.
 Bit-accurate and Cycle-accurate.
 Handle VHDL, C or m-code.
 Handle multiple sampling rates.
 Generates a run-time hardware block (JTAG).
3/5/2016 11

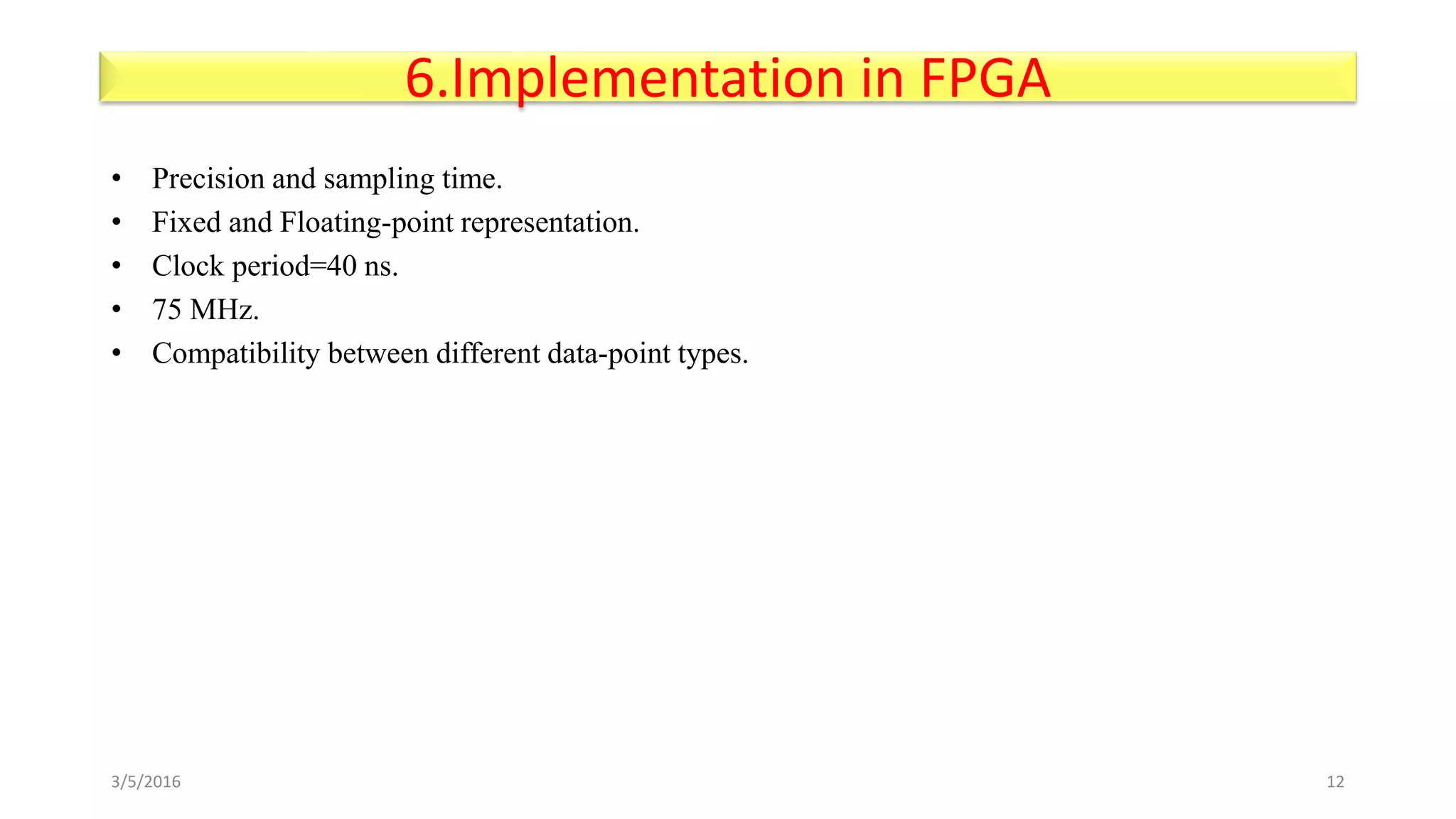

12. • Precision and sampling time.
• Fixed and Floating-point representation.
• Clock period=40 ns.
• 75 MHz.
• Compatibility between different data-point types.
3/5/2016 12
6.Implementation in FPGA

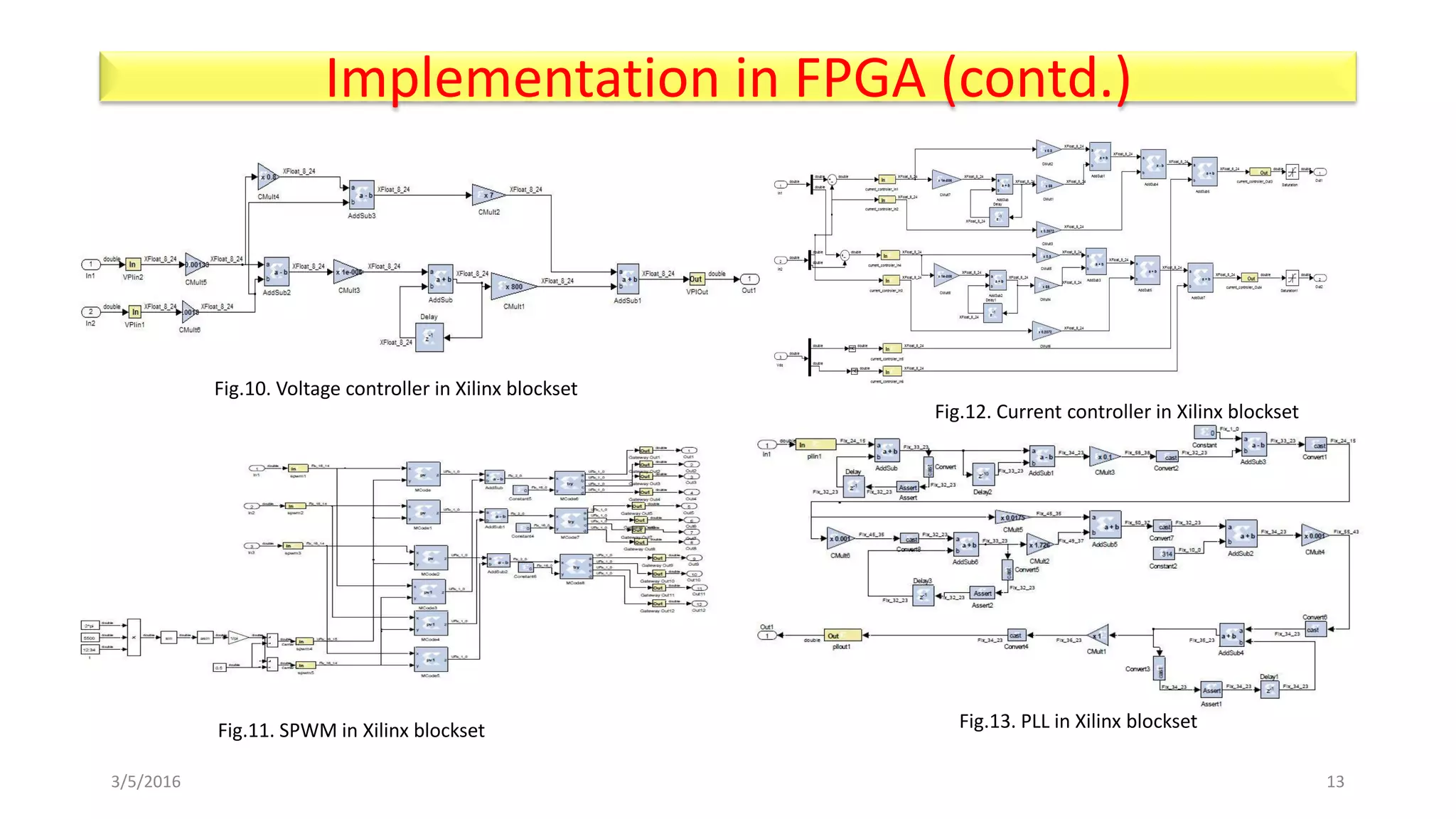

13. Implementation in FPGA (contd.)
3/5/2016 13

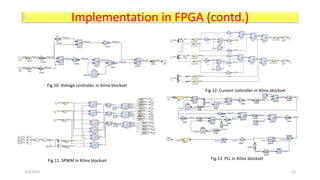

Fig.10. Voltage controller in Xilinx blockset
Fig.11. SPWM in Xilinx blockset
Fig.12. Current controller in Xilinx blockset
Fig.13. PLL in Xilinx blockset

14. 3/5/2016 14

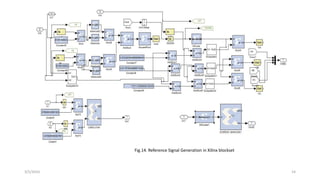

Fig.14. Reference Signal Generation in Xilinx blockset

15. 3/5/2016 15

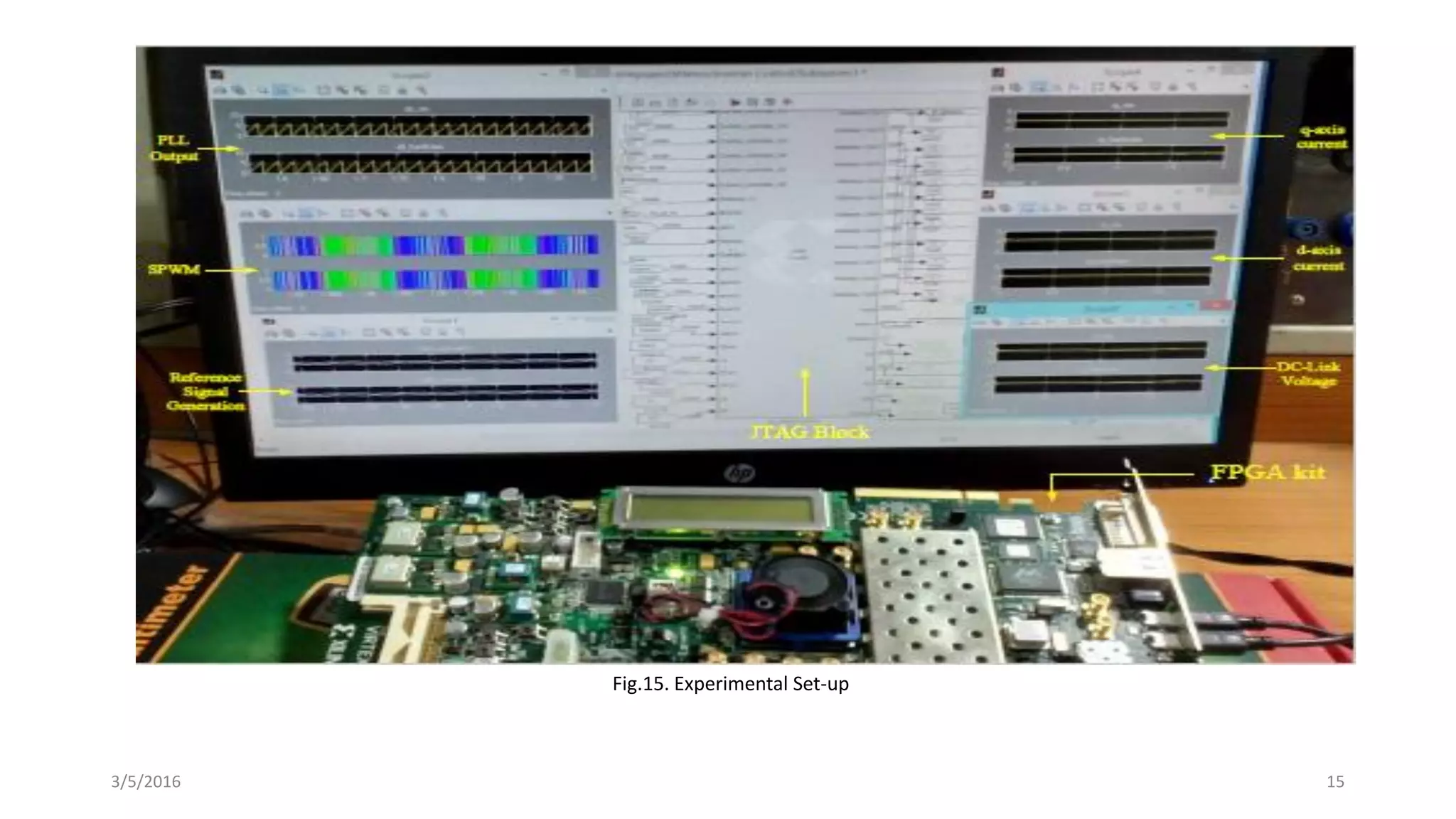

Fig.15. Experimental Set-up

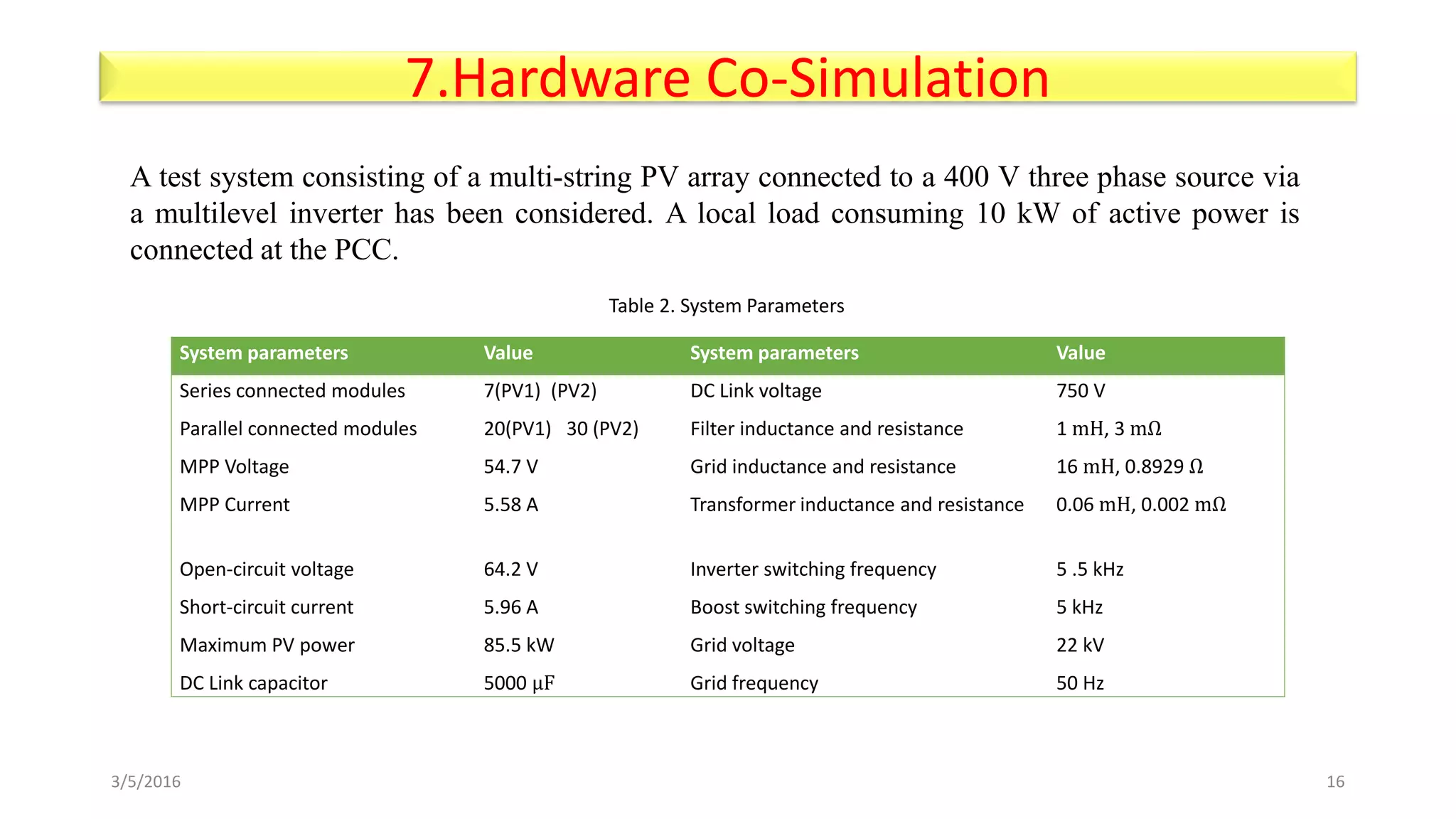

16. 7.Hardware Co-Simulation
System parameters Value System parameters Value
Series connected modules 7(PV1) (PV2) DC Link voltage 750 V
Parallel connected modules 20(PV1) 30 (PV2) Filter inductance and resistance 1 mH, 3 mΩ
MPP Voltage 54.7 V Grid inductance and resistance 16 mH, 0.8929 Ω
MPP Current 5.58 A Transformer inductance and resistance 0.06 mH, 0.002 mΩ
Open-circuit voltage 64.2 V Inverter switching frequency 5 .5 kHz
Short-circuit current 5.96 A Boost switching frequency 5 kHz
Maximum PV power 85.5 kW Grid voltage 22 kV
DC Link capacitor 5000 μF Grid frequency 50 Hz
3/5/2016 16
Table 2. System Parameters
A test system consisting of a multi-string PV array connected to a 400 V three phase source via
a multilevel inverter has been considered. A local load consuming 10 kW of active power is
connected at the PCC.

17. 3/5/2016 17

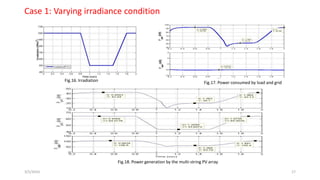

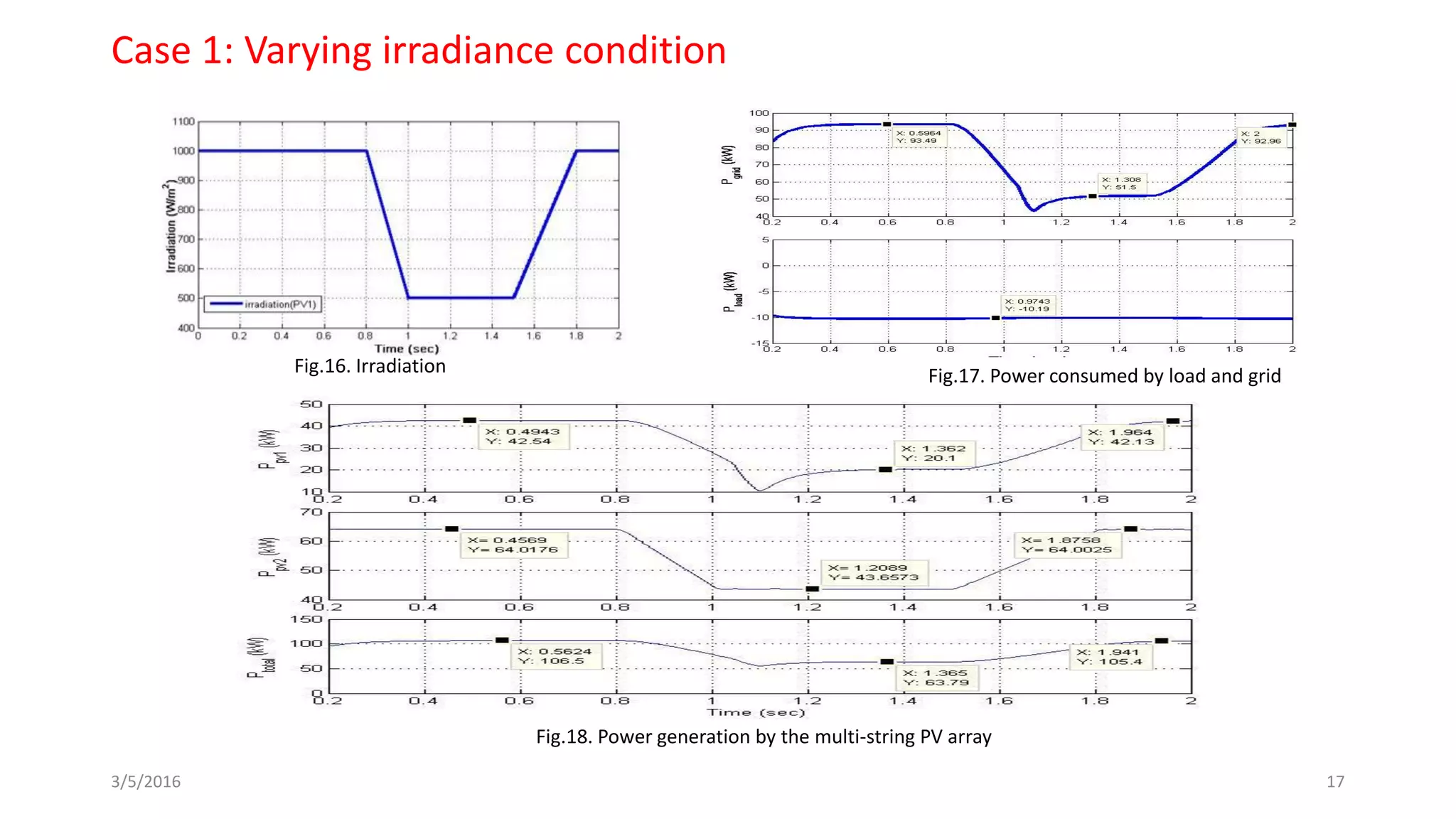

Fig.16. Irradiation Fig.17. Power consumed by load and grid
Fig.18. Power generation by the multi-string PV array
Case 1: Varying irradiance condition

18. 3/5/2016 18
0.8 0.9 1 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.8
-200
-150
-100
-50
0
50
100
150
200
X= 1.1846
Y= 77.2305
Time (sec)
i_a(A)
X= 0.80466
Y= 187.9812
1 1.05 1.1 1.15 1.2 1.25 1.3 1.35 1.4 1.45 1.5
-400
-300
-200
-100
0
100
200
300
400
i_a/u_a(A/V)
Time (sec)
ia
ua
Fig.19. Grid injected current
Fig.20. Grid voltage and current
Fig.21. Frequency
Fig.22. THD of grid injected currents

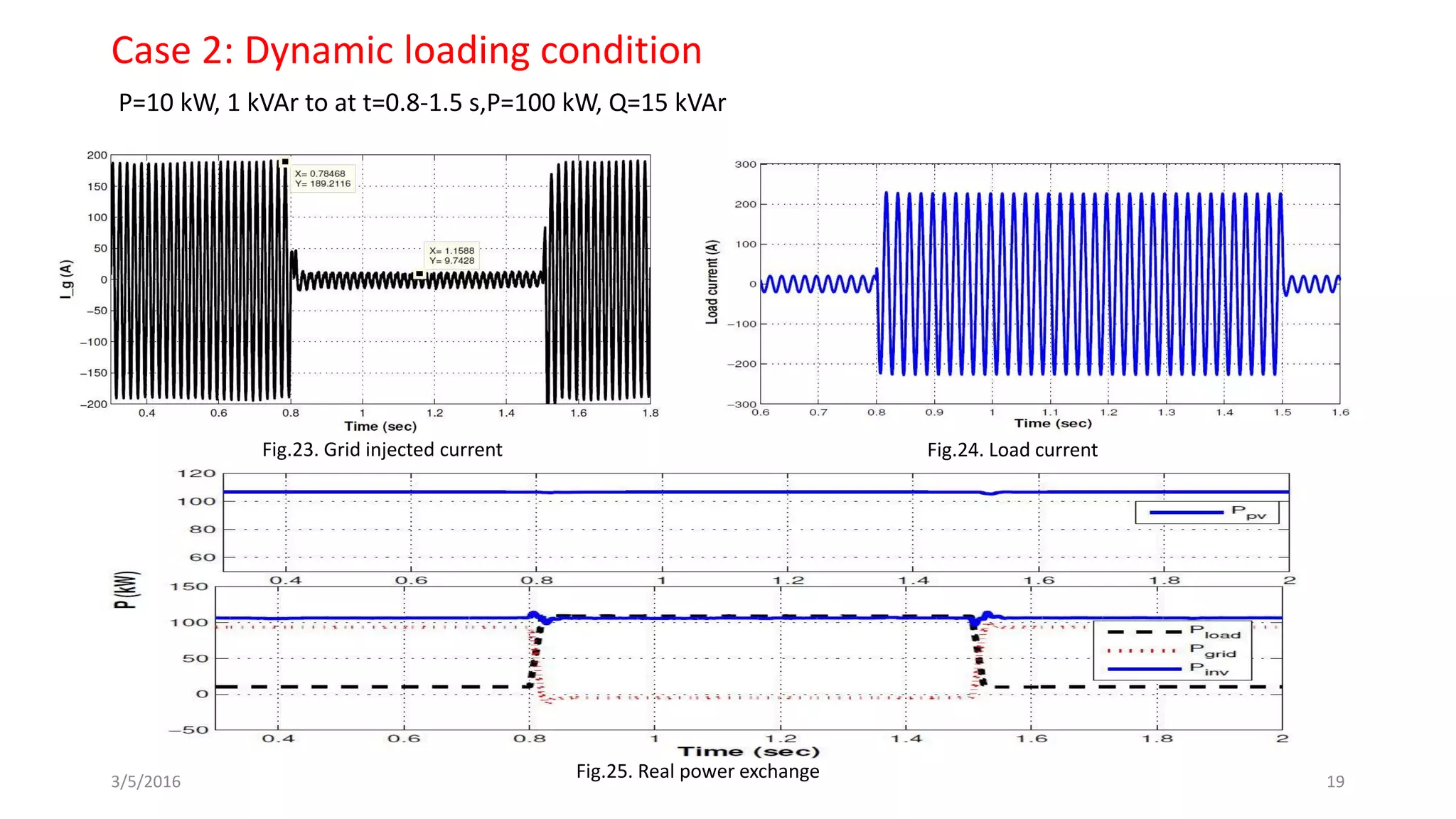

19. Case 2: Dynamic loading condition
3/5/2016 19
Fig.23. Grid injected current Fig.24. Load current
Fig.25. Real power exchange
P=10 kW, 1 kVAr to at t=0.8-1.5 s,P=100 kW, Q=15 kVAr

20. 3/5/2016 20

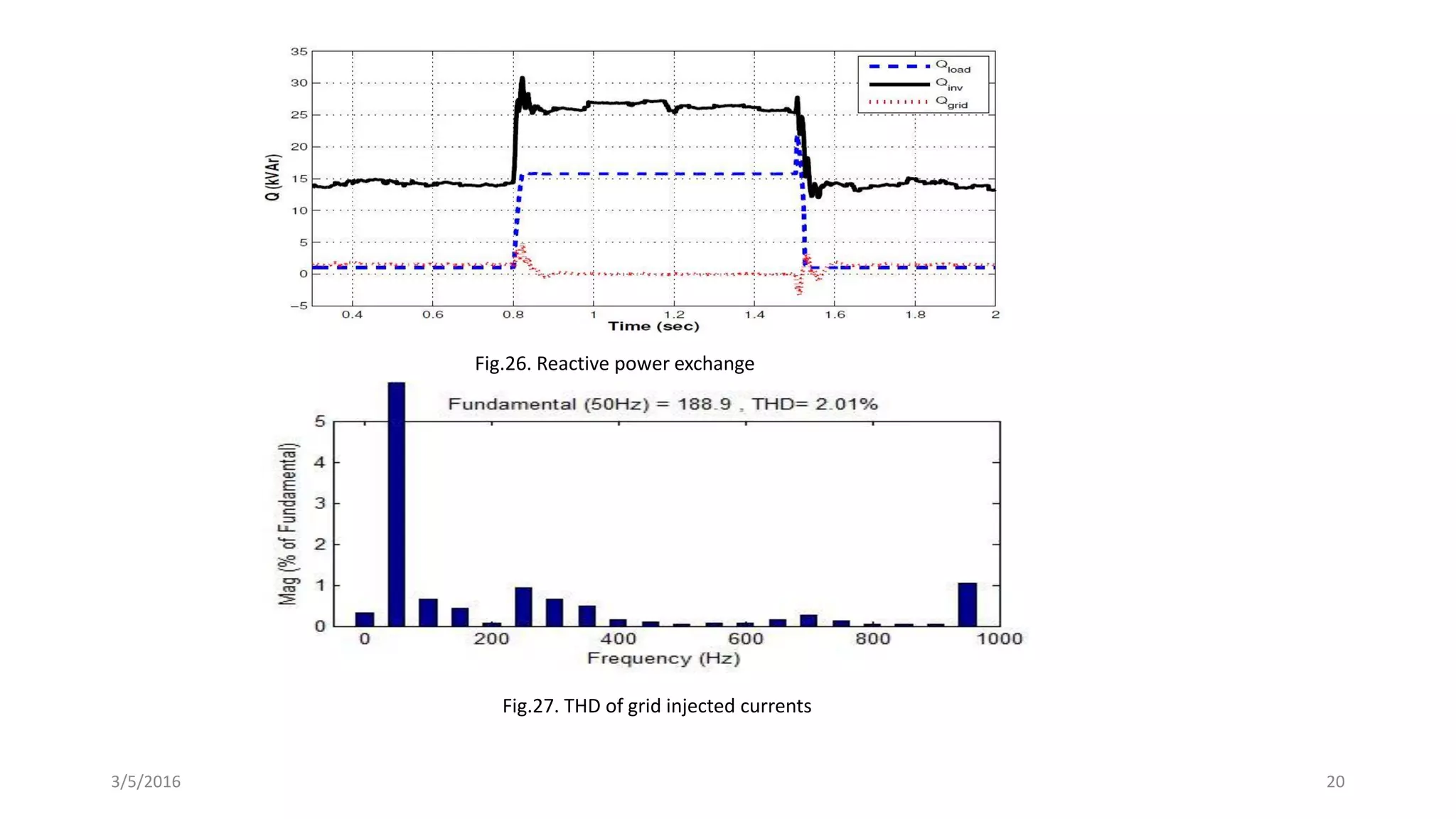

Fig.26. Reactive power exchange
Fig.27. THD of grid injected currents

21. 3/5/2016 21

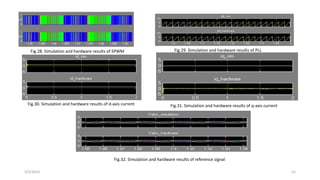

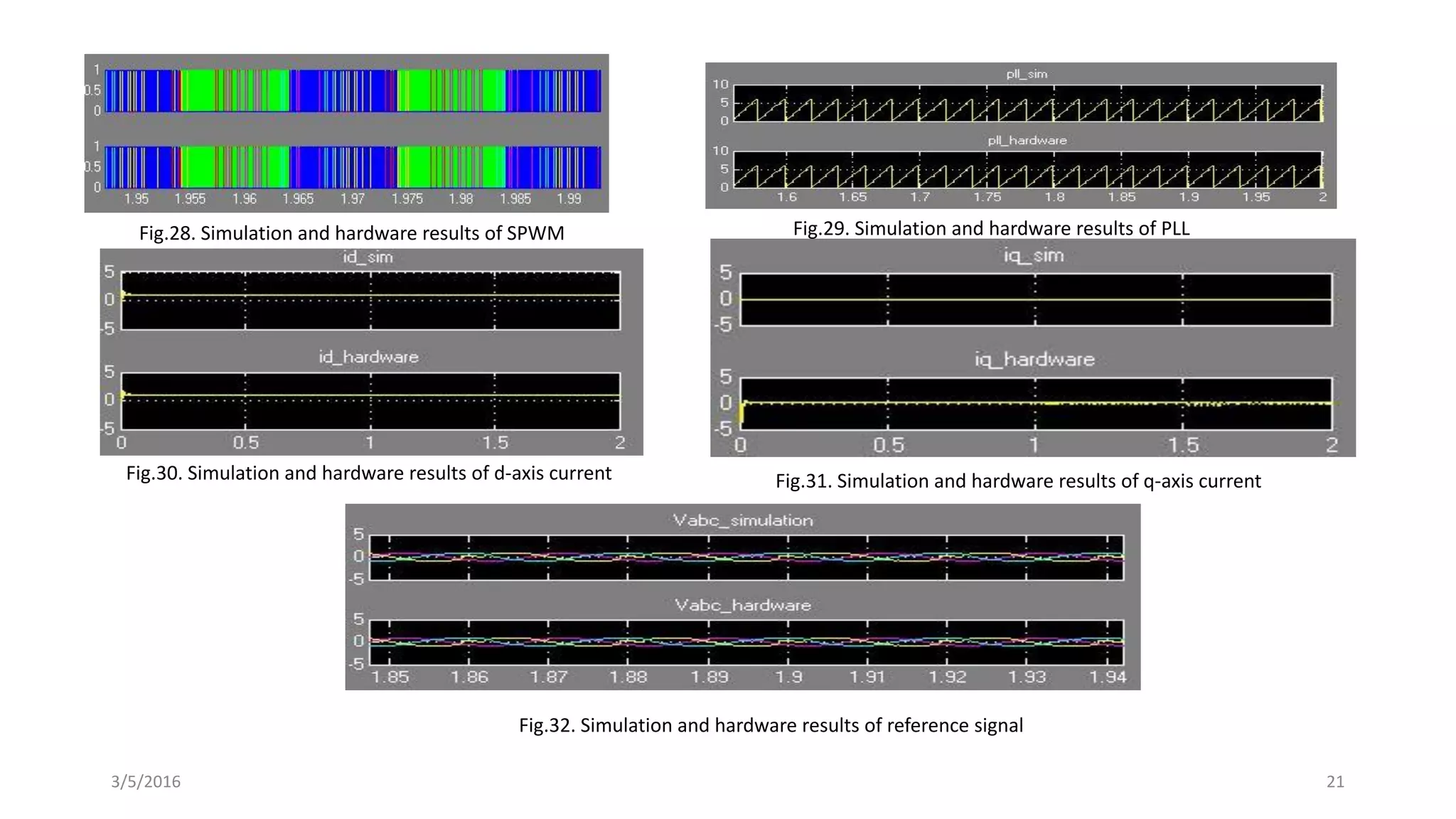

Fig.28. Simulation and hardware results of SPWM Fig.29. Simulation and hardware results of PLL
Fig.30. Simulation and hardware results of d-axis current Fig.31. Simulation and hardware results of q-axis current
Fig.32. Simulation and hardware results of reference signal

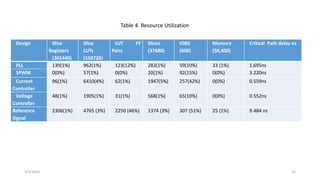

22. Design Slice
Registers
(301440)
Slice
LUTs
(150720)
LUT FF
Pairs
Slices
(37680)
IOBS
(600)
Memory
(58,400)
Critical Path delay ns
PLL 139(1%) 962(1%) 123(12%) 283(1%) 59(10%) 33 (1%) 1.695ns
SPWM 0(0%) 57(1%) 0(0%) 20(1%) 92(15%) 0(0%) 3.220ns
Current
Controller
96(1%) 6410(4%) 62(1%) 1947(5%) 257(42%) 0(0%) 0.559ns
Voltage
Controller
48(1%) 1905(1%) 31(1%) 568(1%) 65(10%) 0(0%) 0.552ns
Reference
Signal
2306(1%) 4765 (3%) 2250 (46%) 1374 (3%) 307 (51%) 25 (1%) 9.484 ns
3/5/2016 22
Table 4. Resource Utilization

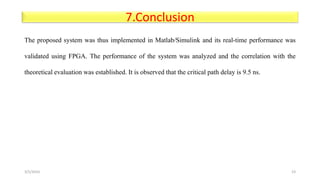

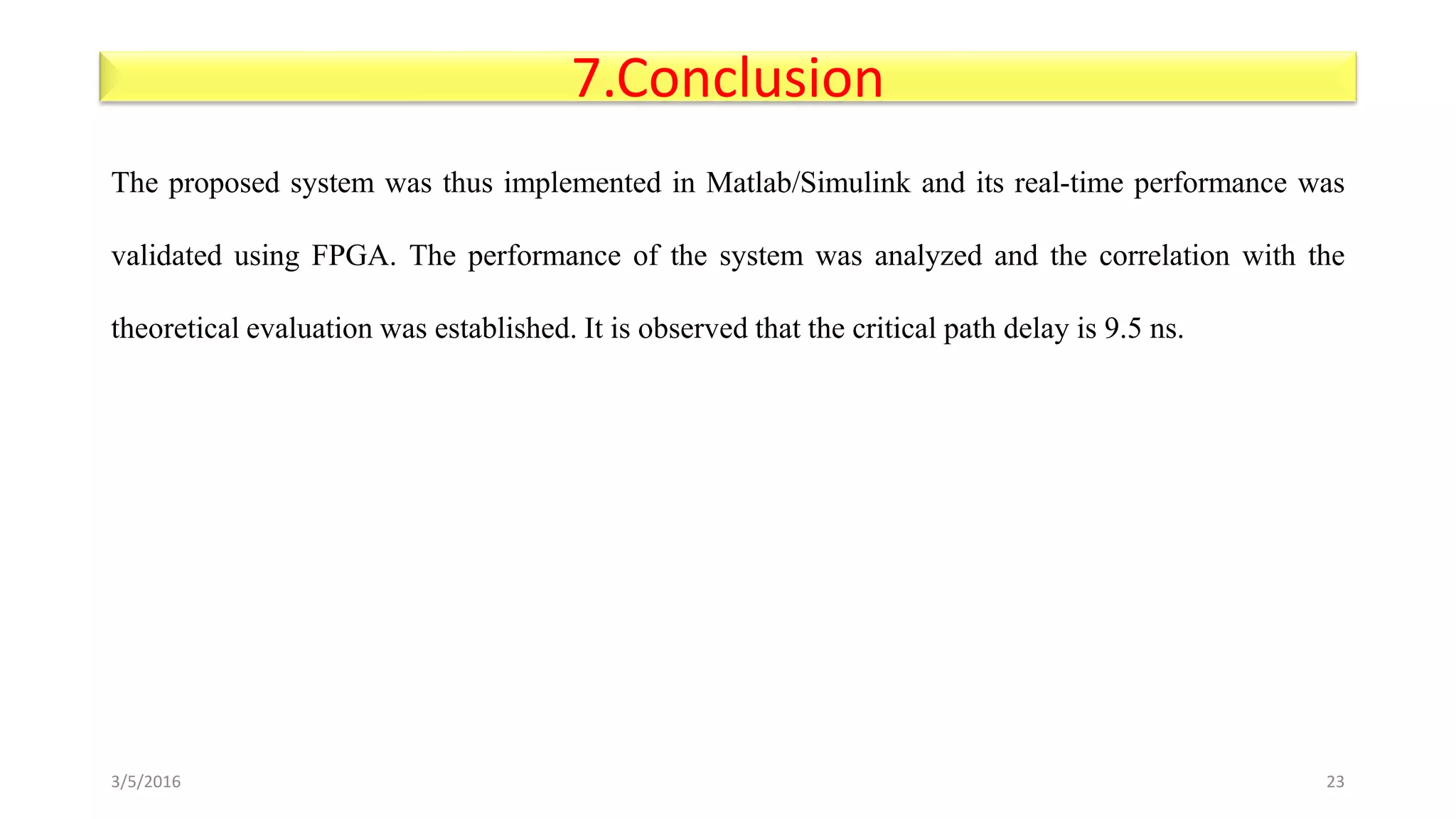

23. 7.Conclusion
The proposed system was thus implemented in Matlab/Simulink and its real-time performance was
validated using FPGA. The performance of the system was analyzed and the correlation with the
theoretical evaluation was established. It is observed that the critical path delay is 9.5 ns.
3/5/2016 23

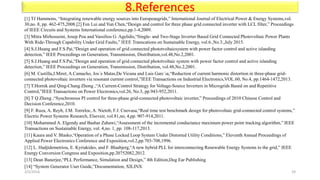

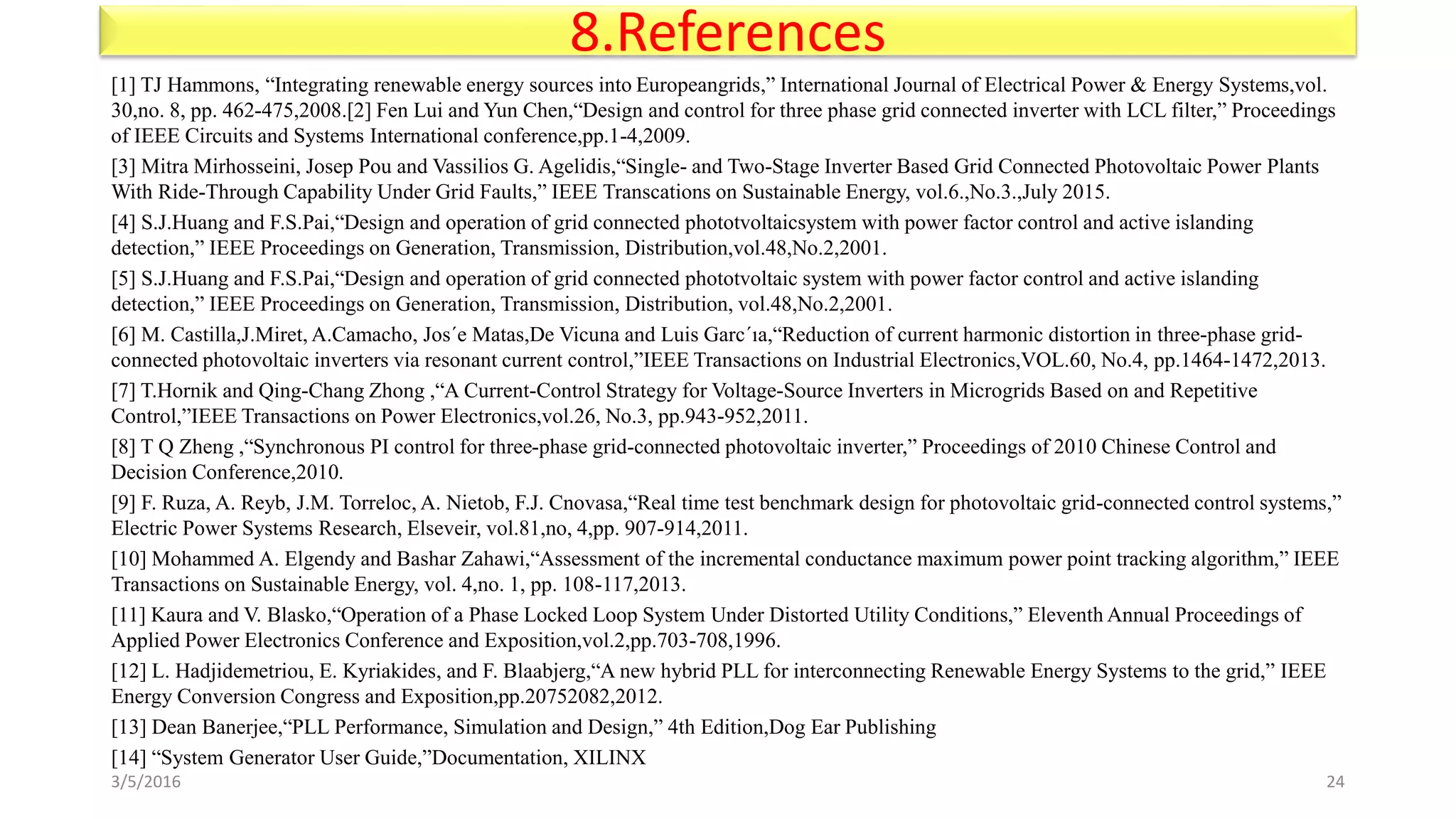

24. 8.References
[1] TJ Hammons, “Integrating renewable energy sources into Europeangrids,” International Journal of Electrical Power & Energy Systems,vol.
30,no. 8, pp. 462-475,2008.[2] Fen Lui and Yun Chen,“Design and control for three phase grid connected inverter with LCL filter,” Proceedings
of IEEE Circuits and Systems International conference,pp.1-4,2009.
[3] Mitra Mirhosseini, Josep Pou and Vassilios G. Agelidis,“Single- and Two-Stage Inverter Based Grid Connected Photovoltaic Power Plants
With Ride-Through Capability Under Grid Faults,” IEEE Transcations on Sustainable Energy, vol.6.,No.3.,July 2015.
[4] S.J.Huang and F.S.Pai,“Design and operation of grid connected phototvoltaicsystem with power factor control and active islanding
detection,” IEEE Proceedings on Generation, Transmission, Distribution,vol.48,No.2,2001.
[5] S.J.Huang and F.S.Pai,“Design and operation of grid connected phototvoltaic system with power factor control and active islanding
detection,” IEEE Proceedings on Generation, Transmission, Distribution, vol.48,No.2,2001.
[6] M. Castilla,J.Miret, A.Camacho, Jos´e Matas,De Vicuna and Luis Garc´ıa,“Reduction of current harmonic distortion in three-phase grid-
connected photovoltaic inverters via resonant current control,”IEEE Transactions on Industrial Electronics,VOL.60, No.4, pp.1464-1472,2013.
[7] T.Hornik and Qing-Chang Zhong ,“A Current-Control Strategy for Voltage-Source Inverters in Microgrids Based on and Repetitive
Control,”IEEE Transactions on Power Electronics,vol.26, No.3, pp.943-952,2011.
[8] T Q Zheng ,“Synchronous PI control for three-phase grid-connected photovoltaic inverter,” Proceedings of 2010 Chinese Control and
Decision Conference,2010.
[9] F. Ruza, A. Reyb, J.M. Torreloc, A. Nietob, F.J. Cnovasa,“Real time test benchmark design for photovoltaic grid-connected control systems,”
Electric Power Systems Research, Elseveir, vol.81,no, 4,pp. 907-914,2011.
[10] Mohammed A. Elgendy and Bashar Zahawi,“Assessment of the incremental conductance maximum power point tracking algorithm,” IEEE
Transactions on Sustainable Energy, vol. 4,no. 1, pp. 108-117,2013.
[11] Kaura and V. Blasko,“Operation of a Phase Locked Loop System Under Distorted Utility Conditions,” Eleventh Annual Proceedings of
Applied Power Electronics Conference and Exposition,vol.2,pp.703-708,1996.
[12] L. Hadjidemetriou, E. Kyriakides, and F. Blaabjerg,“A new hybrid PLL for interconnecting Renewable Energy Systems to the grid,” IEEE
Energy Conversion Congress and Exposition,pp.20752082,2012.
[13] Dean Banerjee,“PLL Performance, Simulation and Design,” 4th Edition,Dog Ear Publishing
[14] “System Generator User Guide,”Documentation, XILINX
3/5/2016 24
