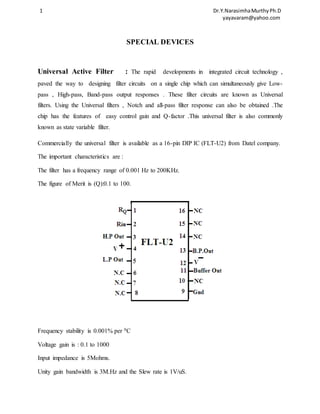

SPECIAL DEVICES
Universal Active Filter : The rapid developments in integrated circuit technology ,
paved the way to designing filter circuits on a single chip which can simultaneously give Low-pass
, High-pass, Band-pass output responses . These filter circuits are known as Universal
filters. Using the Universal filters , Notch and all-pass filter response can also be obtained .The
chip has the features of easy control gain and Q-factor .This universal filter is also commonly
known as state variable filter.
Commercially the universal filter is available as a 16-pin DIP IC (FLT-U2) from Datel company.
The important characteristics are :
The filter has a frequency range of 0.001 Hz to 200KHz.
The figure of Merit is (Q):0.1 to 100.
Frequency stability is 0.001% per 0C
Voltage gain is : 0.1 to 1000
Input impedance is 5Mohms.
Unity gain bandwidth is 3M.Hz and the Slew rate is 1V/uS.

yayavaram@yahoo.com
Working: The Datel’s FLT-U2 is the best example of a universal filter that uses the state state
variable active filter principle to implement second order low-pass, high-pass and band – pass
functions. The filter consists of four op-amps in which three are connected for filter action and
the fourth unconnected op-amp is used as a gain stage or buffer amplifier or used to raise the
order of the filter.
Two–pole (second order) low-pass ,high-pass and band-pass filter functions are obtained
simultaneously from three different outputs ,and notch and all-pass functions are available by
combining these outputs in the uncommitted operational amplifier.To realize higher order filters
several FLT-U2s can be cascaded.
Frequency tuning is done by using two external resistors and the Q-tuning is done by a third
resistor. By using suitable components externally any of the filter types like Butterworth,
Chebyshev or Bessel may also be implemented using this universal filter.

yayavaram@yahoo.com

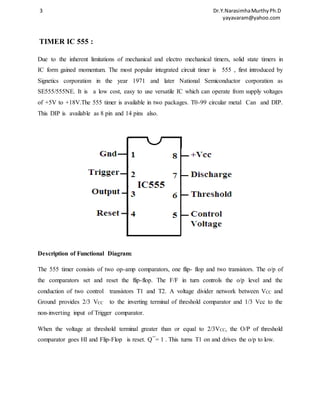

TIMER IC 555 :
Due to the inherent limitations of mechanical and electro mechanical timers, solid state timers in
IC form gained momentum. The most popular integrated circuit timer is 555 , first introduced by
Signetics corporation in the year 1971 and later National Semiconductor corporation as
SE555/555NE. It is a low cost, easy to use versatile IC which can operate from supply voltages
of +5V to +18V.The 555 timer is available in two packages. T0-99 circular metal Can and DIP.
This DIP is available as 8 pin and 14 pins also.
Description of Functional Diagram:
The 555 timer consists of two op-amp comparators, one flip- flop and two transistors. The o/p of
the comparators set and reset the flip-flop. The F/F in turn controls the o/p level and the
conduction of two control transistors T1 and T2. A voltage divider network between VCC and
Ground provides 2/3 VCC to the inverting terminal of threshold comparator and 1/3 Vcc to the
non-inverting input of Trigger comparator.
When the voltage at threshold terminal greater than or equal to 2/3VCC, the O/P of threshold
comparator goes HI and Flip-Flop is reset. Q¯= 1 . This turns T1 on and drives the o/p to low.

yayavaram@yahoo.com
When the voltage at the trigger input is less than 1/3 VCC , its O/P goes high. Which makes Q¯=
0 .AS a result T1 is cutoff and the output goes high. Once the circuit is triggered, it remains in
that state until the set time is elapsed (i.e. voltage at the threshold terminals reaches 2/3VCC) .The
circuit do not change for further triggering during this period. However application of varying
DC voltage to the pin 5 (Control voltage) alters the timing cycle. The output can be pulse width
modulated by applying a sinusoidal voltage to this terminal.
The 555 timer has two basic operational modes : (i) one shot and (ii) Astable . In the one-shot
mode, the 555 acts like a mono-stable multivibrator. A monostable has a single stable state--that
is the off state. Whenever it is triggered by an input pulse, the monostable switches to its
temporary state. It remains in that state for a period of time determined by an RC network. It then
returns to its stable state. In other words, the mono-stable circuit generates a single pulse of a
fixed time duration each time it receives an input trigger pulse. Hence the name one-shot. One-shot
multivibrators are used for turning some circuit or external component on or off for a
specific length of time. It is also used to generate delays. When multiple one-shots are cascaded,

yayavaram@yahoo.com
a variety of sequential timing pulses can be generated. Those pulses will allow you to time and
sequence a number of related operations.
The other operational mode of 555 is an astable multivibrator. An astable multivibrator is
simplly an oscillator. The astable multivibrator generates a continuous stream of rectangular off-on
pulses that switch between two voltage levels. The frequency of the pulses and their duty
cycles depend on the values of RC network .
The XR-2240 Programmable Timer/Counter :
The XR-2240, programmable timer/counter is a monolithic controller capable of producing
ultra long time delays without the loss of accuracy. It can generate accurate time delays from
seconds to days. Two such timing circuits can be cascaded to generate time delays of up to three
years.
The XR-2240 consists of one modified 555 timer(Time base circuit), one
8-bit programmable binary counter and control circuit (Flip-Flop). All these contained in a
single 16-pin DIP chip. The time delay is set by an external R-C network and can be
programmed to any value from IRC to 255RC. In astable operation ,the circuit can generate 256
separate frequencies from a single RC setting and can be synchronized with external clock
signals.Both the control inputs and outputs are compatible with TTL and DTL logic levels.The
time base works as an astable multivibrator with a period equal to RC .The eight bit binary
counter can divide the time base output by any integer value from 1 to 255.The counter may
operate independently of the time base.
Features:
 Generate time delays from microseconds to days
 Programmable delays: 1 RC to 255 RC
 Voltage Supply Range: 4V to 15V.
 TTL and DTL compatible outputs.
 Accuracy : 0.5%

yayavaram@yahoo.com

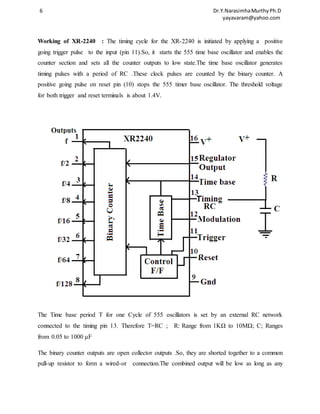

Working of XR-2240 : The timing cycle for the XR-2240 is initiated by applying a positive
going trigger pulse to the input (pin 11).So, it starts the 555 time base oscillator and enables the
counter section and sets all the counter outputs to low state.The time base oscillator generates
timing pulses with a period of RC .These clock pulses are counted by the binary counter. A
positive going pulse on reset pin (10) stops the 555 timer base oscillator. The threshold voltage
for both trigger and reset terminals is about 1.4V.
The Time base period T for one Cycle of 555 oscillators is set by an external RC network
connected to the timing pin 13. Therefore T=RC ; R: Range from 1KΩ to 10MΩ; C; Ranges
from 0.05 to 1000 μF
The binary counter outputs are open collector outputs .So, they are shorted together to a common
pull-up resistor to form a wired-or connection.The combined output will be low as long as any

yayavaram@yahoo.com

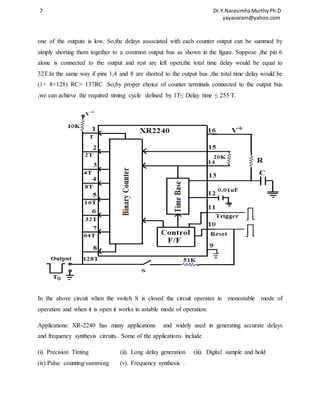

one of the outputs is low. So,the delays associated with each counter output can be summed by
simply shorting them together to a common output bus as shown in the figure. Suppose ,the pin 6
alone is connected to the output and rest are left open,the total time delay would be equal to
32T.In the same way if pins 1,4 and 8 are shorted to the output bus ,the total time delay would be
(1+ 8+128) RC= 137RC .So,by proper choice of counter terminals connected to the output bus
,we can achieve the required timing cycle defined by 1T≤ Delay time ≤ 255 T.
In the above circuit when the switch S is closed the circuit operates in monostable mode of
operation and when it is open it works in astable mode of operation.
Applications: XR-2240 has many applications and widely used in generating accurate delays
and frequency synthesis circuits. Some of the applications include
(i). Precision Timing (ii). Long delay generation (iii). Digital sample and hold
(iv).Pulse counting/summing (v). Frequency synthesis .

yayavaram@yahoo.com

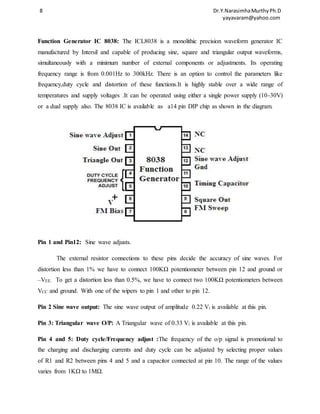

Function Generator IC 8038: The ICL8038 is a monolithic precision waveform generator IC
manufactured by Intersil and capable of producing sine, square and triangular output waveforms,
simultaneously with a minimum number of external components or adjustments. Its operating
frequency range is from 0.001Hz to 300kHz. There is an option to control the parameters like
frequency,duty cycle and distortion of these functions.It is highly stable over a wide range of
temperatures and supply voltages .It can be operated using either a single power supply (10-30V)
or a dual supply also. The 8038 IC is available as a14 pin DIP chip as shown in the diagram.
Pin 1 and Pin12: Sine wave adjusts.
The external resistor connections to these pins decide the accuracy of sine waves. For
distortion less than 1% we have to connect 100KΩ potentiometer between pin 12 and ground or
–VEE. To get a distortion less than 0.5%, we have to connect two 100KΩ potentiometers between
VCC and ground. With one of the wipers to pin 1 and other to pin 12.
Pin 2 Sine wave output: The sine wave output of amplitude 0.22 Vi is available at this pin.
Pin 3: Triangular wave O/P: A Triangular wave of 0.33 Vi is available at this pin.
Pin 4 and 5: Duty cycle/Frequency adjust :The frequency of the o/p signal is promotional to
the charging and discharging currents and duty cycle can be adjusted by selecting proper values
of R1 and R2 between pins 4 and 5 and a capacitor connected at pin 10. The range of the values
varies from 1KΩ to 1MΩ.

yayavaram@yahoo.com

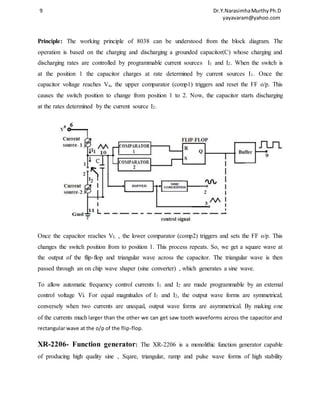

Principle: The working principle of 8038 can be understood from the block diagram. The
operation is based on the charging and discharging a grounded capacitor(C) whose charging and
discharging rates are controlled by programmable current sources I1 and I2. When the switch is
at the position 1 the capacitor charges at rate determined by current sources I1. Once the
capacitor voltage reaches Vu, the upper comparator (comp1) triggers and reset the FF o/p. This
causes the switch position to change from position 1 to 2. Now, the capacitor starts discharging
at the rates determined by the current source I2.
Once the capacitor reaches VL , the lower comparator (comp2) triggers and sets the FF o/p. This
changes the switch position from to position 1. This process repeats. So, we get a square wave at
the output of the flip-flop and triangular wave across the capacitor. The triangular wave is then
passed through an on chip wave shaper (sine converter) , which generates a sine wave.
To allow automatic frequency control currents I1 and I2 are made programmable by an external
control voltage Vi. For equal magnitudes of I1 and I2, the output wave forms are symmetrical;
conversely when two currents are unequal, output wave forms are asymmetrical. By making one
of the currents much larger than the other we can get saw tooth waveforms across the capacitor and
rectangular wave at the o/p of the flip-flop.
XR-2206- Function generator: The XR-2206 is a monolithic function generator capable
of producing high quality sine , Sqare, triangular, ramp and pulse wave forms of high stability

yayavaram@yahoo.com

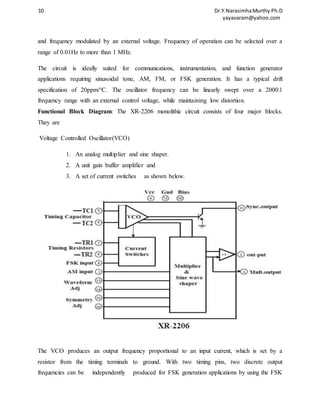

and frequency modulated by an external voltage. Frequency of operation can be selected over a
range of 0.01Hz to more than 1 MHz.
The circuit is ideally suited for communications, instrumentation, and function generator
applications requiring sinusoidal tone, AM, FM, or FSK generation. It has a typical drift
specification of 20ppm/°C. The oscillator frequency can be linearly swept over a 2000:1
frequency range with an external control voltage, while maintaining low distortion.
Functional Block Diagram: The XR-2206 monolithic circuit consists of four major blocks.
They are
Voltage Controlled Oscillator(VCO)
1. An analog multiplier and sine shaper.
2. A unit gain buffer amplifier and
3. A set of current switches as shown below.
The VCO produces an output frequency proportional to an input current, which is set by a
resistor from the timing terminals to ground. With two timing pins, two discrete output
frequencies can be independently produced for FSK generation applications by using the FSK

yayavaram@yahoo.com

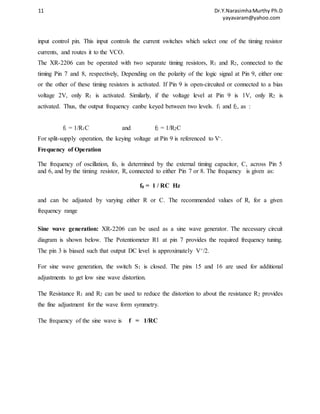

input control pin. This input controls the current switches which select one of the timing resistor
currents, and routes it to the VCO.
The XR-2206 can be operated with two separate timing resistors, R1 and R2, connected to the
timing Pin 7 and 8, respectively, Depending on the polarity of the logic signal at Pin 9, either one
or the other of these timing resistors is activated. If Pin 9 is open-circuited or connected to a bias
voltage 2V, only R1 is activated. Similarly, if the voltage level at Pin 9 is 1V, only R2 is
activated. Thus, the output frequency canbe keyed between two levels. f1 and f2, as :
f1 = 1/R1C and f2 = 1/R2C
For split-supply operation, the keying voltage at Pin 9 is referenced to V-.
Frequency of Operation
The frequency of oscillation, fo, is determined by the external timing capacitor, C, across Pin 5
and 6, and by the timing resistor, R, connected to either Pin 7 or 8. The frequency is given as:
f0 = 1 / RC Hz
and can be adjusted by varying either R or C. The recommended values of R, for a given
frequency range
Sine wave generation: XR-2206 can be used as a sine wave generator. The necessary circuit
diagram is shown below. The Potentiometer R1 at pin 7 provides the required frequency tuning.
The pin 3 is biased such that output DC level is approximately V+/2.
For sine wave generation, the switch S1 is closed. The pins 15 and 16 are used for additional
adjustments to get low sine wave distortion.
The Resistance R1 and R2 can be used to reduce the distortion to about the resistance R2 provides
the fine adjustment for the wave form symmetry.
The frequency of the sine wave is f = 1/RC

yayavaram@yahoo.com

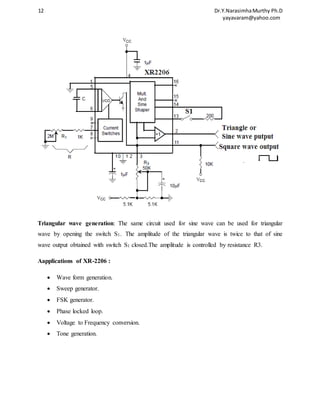

Triangular wave generation: The same circuit used for sine wave can be used for triangular
wave by opening the switch S1. The amplitude of the triangular wave is twice to that of sine
wave output obtained with switch S1 closed.The amplitude is controlled by resistance R3.
Aapplications of XR-2206 :
 Wave form generation.
 Sweep generator.
 FSK generator.
 Phase locked loop.
 Voltage to Frequency conversion.
 Tone generation.

yayavaram@yahoo.com

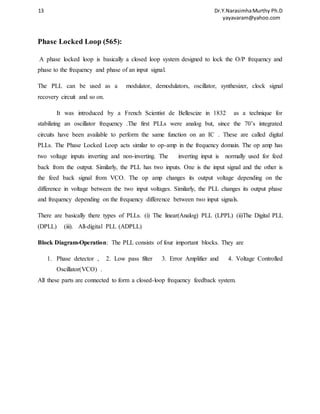

Phase Locked Loop (565):
A phase locked loop is basically a closed loop system designed to lock the O/P frequency and
phase to the frequency and phase of an input signal.
The PLL can be used as a modulator, demodulators, oscillator, synthesizer, clock signal
recovery circuit and so on.
It was introduced by a French Scientist de Bellescize in 1832 as a technique for
stabilizing an oscillator frequency .The first PLLs were analog but, since the 70’s integrated
circuits have been available to perform the same function on an IC . These are called digital
PLLs. The Phase Locked Loop acts similar to op-amp in the frequency domain. The op amp has
two voltage inputs inverting and non-inverting. The inverting input is normally used for feed
back from the output. Similarly, the PLL has two inputs. One is the input signal and the other is
the feed back signal from VCO. The op amp changes its output voltage depending on the
difference in voltage between the two input voltages. Similarly, the PLL changes its output phase
and frequency depending on the frequency difference between two input signals.
There are basically there types of PLLs. (i) The linear(Analog) PLL (LPPL) (ii)The Digital PLL
(DPLL) (iii). All-digital PLL (ADPLL)
Block Diagram-Operation: The PLL consists of four important blocks. They are
1. Phase detector , 2. Low pass filter 3. Error Amplifier and 4. Voltage Controlled
Oscillator(VCO) .
All these parts are connected to form a closed-loop frequency feedback system.

yayavaram@yahoo.com

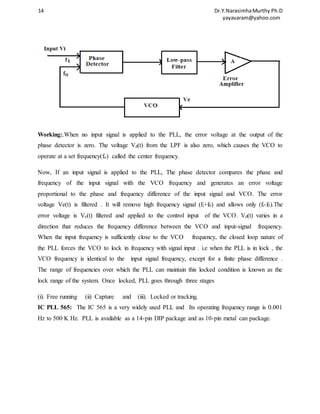

Working:.When no input signal is applied to the PLL, the error voltage at the output of the
phase detector is zero. The voltage Vd(t) from the LPF is also zero, which causes the VCO to
operate at a set frequency(fo) called the center frequency.
Now, If an input signal is applied to the PLL, The phase detector compares the phase and
frequency of the input signal with the VCO frequency and generates an error voltage
proportional to the phase and frequency difference of the input signal and VCO. The error
voltage Ve(t) is filtered . It will remove high frequency signal (fi+f0) and allows only (fi-f0).The
error voltage is Ve(t) filtered and applied to the control input of the VCO. Vd(t) varies in a
direction that reduces the frequency difference between the VCO and input-signal frequency.
When the input frequency is sufficiently close to the VCO frequency, the closed loop nature of
the PLL forces the VCO to lock in frequency with signal input . i.e when the PLL is in lock , the
VCO frequency is identical to the input signal frequency, except for a finite phase difference .
The range of frequencies over which the PLL can maintain this locked condition is known as the
lock range of the system. Once locked, PLL goes through three stages
(i). Free running (ii) Capture and (iii). Locked or tracking.
IC PLL 565: The IC 565 is a very widely used PLL and Its operating frequency range is 0.001
Hz to 500 K Hz. PLL is available as a 14-pin DIP package and as 10-pin metal can package.

yayavaram@yahoo.com
The input signals are fed to the phase detector through pins 2 and 3 in differential mode. The
input signals can be direct-coupled provided that the dc level at these two pins is made same and
dc resistances seen from pins 2 and 3 are equal. By shorting pins 4 and 5 output of VCO is
supplied back to the phase detector (PD) . The output of PD is internally connected to amplifier,
the output of which is available at pins 6 and 7 through a resistor of 3.6 k ( connected internally).
A capacitor C connected between pins 7 and 10 forms a low-pass filter with 3.6 k. resistor. The
filter capacitor C should be large enough so as to eliminate the variations in demodulated output
and stabilize the VCO frequency. Voltage available at pin 7 is connected internally to VCO as a
control signal. At pin 6 a reference voltage nominally equal to voltage at pin 7 is available
allowing both the differential stages to be biased. Pins 1 and 10 are supply pins.
The output frequency of the VCO is given by
f0= 0.25/ RTCT
Where RT and CT are external resistor and capacitors connected to pin 8 and 9. A value
between 2KΩ and 20KΩ is recommended for RT . The VCO free running frequency is adjusted
with RT and CT to be at the center of the input frequency range. A short circuit between pins 4
and 5 connects the VCO o/p to the phase comparator so as to compare fo with input signal fs.
The centre frequency of the PLL is determined by the free-running frequency of the VCO.

yayavaram@yahoo.com

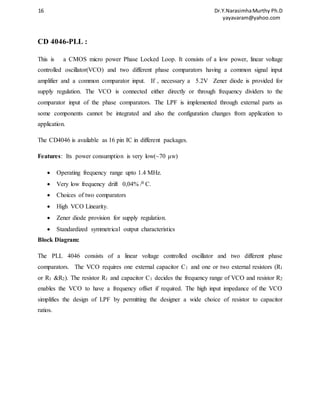

CD 4046-PLL :
This is a CMOS micro power Phase Locked Loop. It consists of a low power, linear voltage
controlled oscillator(VCO) and two different phase comparators having a common signal input
amplifier and a common comparator input. If , necessary a 5.2V Zener diode is provided for
supply regulation. The VCO is connected either directly or through frequency dividers to the
comparator input of the phase comparators. The LPF is implemented through external parts as
some components cannot be integrated and also the configuration changes from application to
application.
The CD4046 is available as 16 pin IC in different packages.
Features: Its power consumption is very low(~70 μw)
 Operating frequency range upto 1.4 MHz.
 Very low frequency drift 0,04% /0 C.
 Choices of two comparators
 High VCO Linearity.
 Zener diode provision for supply regulation.
 Standardized symmetrical output characteristics
Block Diagram:
The PLL 4046 consists of a linear voltage controlled oscillator and two different phase
comparators. The VCO requires one external capacitor C1 and one or two external resistors (R1
or R1 &R2). The resistor R1 and capacitor C1 decides the frequency range of VCO and resistor R2
enables the VCO to have a frequency offset if required. The high input impedance of the VCO
simplifies the design of LPF by permitting the designer a wide choice of resistor to capacitor
ratios.

yayavaram@yahoo.com

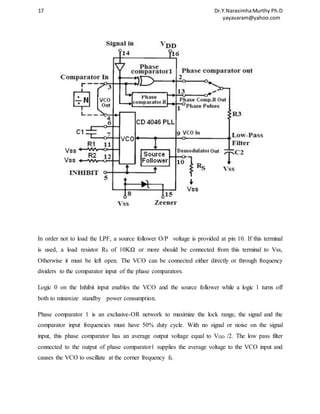

In order not to load the LPF, a source follower O/P voltage is provided at pin 10. If this terminal
is used, a load resistor RS of 10KΩ or more should be connected from this terminal to Vss,
Otherwise it must be left open. The VCO can be connected either directly or through frequency
dividers to the comparator input of the phase comparators.
Logic 0 on the Inhibit input enables the VCO and the source follower while a logic 1 turns off
both to minimize standby power consumption.
Phase comparator 1 is an exclusive-OR network to maximize the lock range, the signal and the
comparator input frequencies must have 50% duty cycle. With no signal or noise on the signal
input, this phase comparator has an average output voltage equal to VDD /2. The low pass filter
connected to the output of phase comparator1 supplies the average voltage to the VCO input and
causes the VCO to oscillate at the corner frequency f0.

yayavaram@yahoo.com

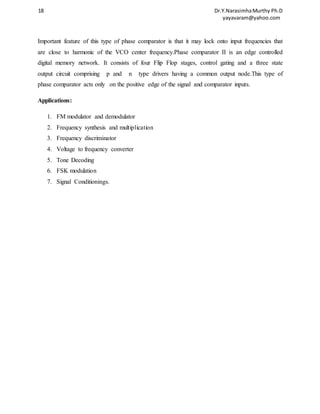

Important feature of this type of phase comparator is that it may lock onto input frequencies that
are close to harmonic of the VCO center frequency.Phase comparator II is an edge controlled
digital memory network. It consists of four Flip Flop stages, control gating and a three state
output circuit comprising p and n type drivers having a common output node.This type of
phase comparator acts only on the positive edge of the signal and comparator inputs.
Applications:
1. FM modulator and demodulator
2. Frequency synthesis and multiplication
3. Frequency discriminator
4. Voltage to frequency converter
5. Tone Decoding
6. FSK modulation
7. Signal Conditionings.

yayavaram@yahoo.com
LM 380 Audio Power Amplifier: It is an audio power amplifier widely used for consumer
applications. The output is short circuit proof with internal thermal limiting. In order to hold
system cost to a minimum, gain is internally fixed at 34 dB . It is a 40 PIN, DIP chip with the
following features
Features:
 Wide supply voltage range
 Low quiescent power drain
 Voltage gain fixed at 50.
 High peak current capabilities.
 Input reference to ground
 High input impedance
 Low distortion
 Quiescent output voltage at one half of the supply voltage
 Standard dual in line package.
Circuit Description: The input stage of LM380 is PNP emitter follower driving a PNP
differential pair with a slave current source load.
The second stage is a common emitter voltage gain amplifier with a current-source load.
Internal compensation is provided by the polar-splitting capacitor . This pole splitting
compensation is used to preserve the wide power band width.(100KHz at 2W,8Ω). The amplifier
gain is internally fixed to 50 or 34dB. This is achieved by the internal feedback network. The

yayavaram@yahoo.com

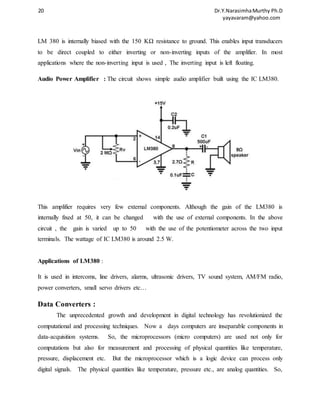

LM 380 is internally biased with the 150 KΩ resistance to ground. This enables input transducers
to be direct coupled to either inverting or non-inverting inputs of the amplifier. In most
applications where the non-inverting input is used , The inverting input is left floating.
Audio Power Amplifier : The circuit shows simple audio amplifier built using the IC LM380.
This amplifier requires very few external components. Although the gain of the LM380 is
internally fixed at 50, it can be changed with the use of external components. In the above
circuit , the gain is varied up to 50 with the use of the potentiometer across the two input
terminals. The wattage of IC LM380 is around 2.5 W.
Applications of LM380 :
It is used in intercoms, line drivers, alarms, ultrasonic drivers, TV sound system, AM/FM radio,
power converters, small servo drivers etc…
Data Converters :
The unprecedented growth and development in digital technology has revolutionized the
computational and processing techniques. Now a days computers are inseparable components in
data-acquisition systems. So, the microprocessors (micro computers) are used not only for
computations but also for measurement and processing of physical quantities like temperature,
pressure, displacement etc. But the microprocessor which is a logic device can process only
digital signals. The physical quantities like temperature, pressure etc., are analog quantities. So,

yayavaram@yahoo.com

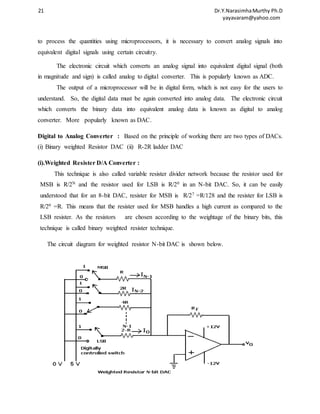

to process the quantities using microprocessors, it is necessary to convert analog signals into
equivalent digital signals using certain circuitry.
The electronic circuit which converts an analog signal into equivalent digital signal (both
in magnitude and sign) is called analog to digital converter. This is popularly known as ADC.
The output of a microprocessor will be in digital form, which is not easy for the users to
understand. So, the digital data must be again converted into analog data. The electronic circuit
which converts the binary data into equivalent analog data is known as digital to analog
converter. More popularly known as DAC.
Digital to Analog Converter : Based on the principle of working there are two types of DACs.
(i) Binary weighted Resistor DAC (ii) R-2R ladder DAC
(i).Weighted Resister D/A Converter :
This technique is also called variable resister divider network because the resistor used for
MSB is R/2N and the resistor used for LSB is R/20 in an N-bit DAC. So, it can be easily
understood that for an 8-bit DAC, resister for MSB is R/27 =R/128 and the resister for LSB is
R/20 =R. This means that the resister used for MSB handles a high current as compared to the
LSB resister. As the resistors are chosen according to the weightage of the binary bits, this
technique is called binary weighted resister technique.
The circuit diagram for weighted resistor N-bit DAC is shown below.

yayavaram@yahoo.com

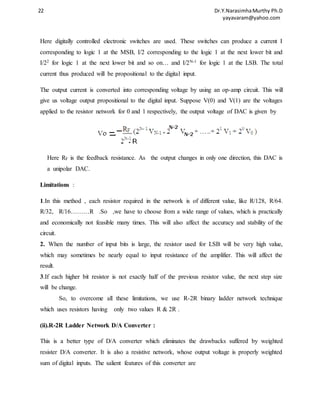

Here digitally controlled electronic switches are used. These switches can produce a current I
corresponding to logic 1 at the MSB, I/2 corresponding to the logic 1 at the next lower bit and
I/22 for logic 1 at the next lower bit and so on… and I/2N-1 for logic 1 at the LSB. The total
current thus produced will be propositional to the digital input.
The output current is converted into corresponding voltage by using an op-amp circuit. This will
give us voltage output propositional to the digital input. Suppose V(0) and V(1) are the voltages
applied to the resistor network for 0 and 1 respectively, the output voltage of DAC is given by
Here RF is the feedback resistance. As the output changes in only one direction, this DAC is
a unipolar DAC.
Limitations :
1.In this method , each resistor required in the network is of different value, like R/128, R/64.
R/32, R/16………R .So ,we have to choose from a wide range of values, which is practically
and economically not feasible many times. This will also affect the accuracy and stability of the
circuit.
2. When the number of input bits is large, the resistor used for LSB will be very high value,
which may sometimes be nearly equal to input resistance of the amplifier. This will affect the
result.
3.If each higher bit resistor is not exactly half of the previous resistor value, the next step size
will be change.
So, to overcome all these limitations, we use R-2R binary ladder network technique
which uses resistors having only two values R & 2R .
(ii).R-2R Ladder Network D/A Converter :
This is a better type of D/A converter which eliminates the drawbacks suffered by weighted
resister D/A converter. It is also a resistive network, whose output voltage is properly weighted
sum of digital inputs. The salient features of this converter are

yayavaram@yahoo.com
 It is constructed using the resistors of two values (R and 2R) only.
 These binary ladder networks are available on monolithic integrated chips thus giving a
high degree of precision.
 The only disadvantage is that one additional resistor is required for each bit as compared
to the weighted resistor network, where only one resistor is needed for each bit.
Functioning:
The circuit diagram of a 4-bit D/A converter using R-2R ladder network is shown in fig1.
below. The binary inputs are applied by switches b0 through b3 and the output is proportional to
the binary inputs. The binary inputs can be either high (+5V) or low(0V). Let us assume that the
MSB switch b3 is connected to +5V and other switches are connected to ground. Let
R=RL=10KΩ and RF =2R.
Applying Thevenin’s theorem to the left side of the switch b3, the equivalent Thevenin’s
resistance is
RTh =[ [ {[(2R║2R+R) ║2R] ║2R]+R}║2R]+R
RTh = 2R
The resultant circuit is as shown in fig.2 below. In the circuit, the non-inverting input is at virtual
ground .So V2 = 0 , and the current through RTh is zero. However current through the resistor 2R
connected to +5V is I = 5V/20 KΩ = 0.25mA.

yayavaram@yahoo.com

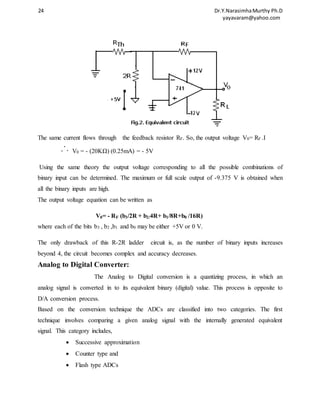

The same current flows through the feedback resistor RF. So, the output voltage V0= RF .I
V0 = - (20KΩ) (0.25mA) = - 5V
Using the same theory the output voltage corresponding to all the possible combinations of
binary input can be determined. The maximum or full scale output of -9.375 V is obtained when
all the binary inputs are high.
The output voltage equation can be written as
V0= - RF (b3/2R + b2/4R+ b1/8R+b0 /16R)
where each of the bits b3 , b2 ,b1 and b0 may be either +5V or 0 V.
The only drawback of this R-2R ladder circuit is, as the number of binary inputs increases
beyond 4, the circuit becomes complex and accuracy decreases.
Analog to Digital Converter:
The Analog to Digital conversion is a quantizing process, in which an
analog signal is converted in to its equivalent binary (digital) value. This process is opposite to
D/A conversion process.
Based on the conversion technique the ADCs are classified into two categories. The first
technique involves comparing a given analog signal with the internally generated equivalent
signal. This category includes,
 Successive approximation
 Counter type and
 Flash type ADCs

yayavaram@yahoo.com
The second type involves changing an analog signal into time or frequency and comparing these
new parameters to known values. This group includes
(a) Dual slope ADCs. and (ii) Voltage to frequency converters.
The successive approximation and Flash ADCs are faster but less accurate than the integrator
and voltage to frequency type converters. Also, the flash type are expensive and also difficult
to design, for high accuracy.
Principle of Successive Approximation : It is the most popular method of A/D conversion. It
has also excellent compromise between accuracy and speed. Here, the principle is ,an unknown
voltage Vin is compared with the fraction of the reference voltage (Vr). For n-bit digital output,
comparison is made for n times with different fractions of Vr. The value of the particular bit is
set to 1, if Vin is greater than the set fraction of Vr. The value of the particular bit is set to 0 , if
Vin is less than the set fraction of Vr.
Successive Approximation A/D Converter: The heart of the circuit is a successive
approximation register(SAR). If the output of ADC is to be 8-bit, we use an 8-bit successive
Approximation Register . The output of SAR is applied to an 8-bit D/A converter. The analog
output of the D/A converter is given to the inverting terminal of the comparator. A reference
voltage is applied to the non-inverting terminal. An 8-bit latch is used to store the digital output
after complete conversion. As shown in fig.below.

yayavaram@yahoo.com

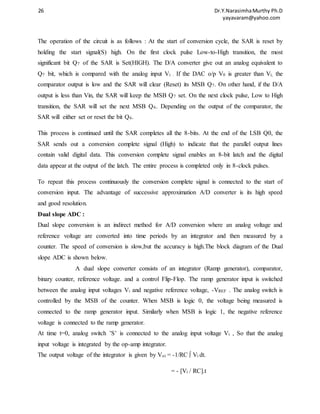

The operation of the circuit is as follows : At the start of conversion cycle, the SAR is reset by
holding the start signal(S) high. On the first clock pulse Low-to-High transition, the most
significant bit Q7 of the SAR is Set(HIGH). The D/A converter give out an analog equivalent to
Q7 bit, which is compared with the analog input Vi . If the DAC o/p V0 is greater than Vi, the
comparator output is low and the SAR will clear (Reset) its MSB Q7. On other hand, if the D/A
output is less than Vin, the SAR will keep the MSB Q7 set. On the next clock pulse, Low to High
transition, the SAR will set the next MSB Q6. Depending on the output of the comparator, the
SAR will either set or reset the bit Q6.
This process is continued until the SAR completes all the 8-bits. At the end of the LSB Q0, the
SAR sends out a conversion complete signal (High) to indicate that the parallel output lines
contain valid digital data. This conversion complete signal enables an 8-bit latch and the digital
data appear at the output of the latch. The entire process is completed only in 8-clock pulses.
To repeat this process continuously the conversion complete signal is connected to the start of
conversion input. The advantage of successive approximation A/D converter is its high speed
and good resolution.
Dual slope ADC :
Dual slope conversion is an indirect method for A/D conversion where an analog voltage and
reference voltage are converted into time periods by an integrator and then measured by a
counter. The speed of conversion is slow,but the accuracy is high.The block diagram of the Dual
slope ADC is shown below.
A dual slope converter consists of an integrator (Ramp generator), comparator,
binary counter, reference voltage. and a control Flip-Flop. The ramp generator input is switched
between the analog input voltages Vi and negative reference voltage, -VREF . The analog switch is
controlled by the MSB of the counter. When MSB is logic 0, the voltage being measured is
connected to the ramp generator input. Similarly when MSB is logic 1, the negative reference
voltage is connected to the ramp generator.
At time t=0, analog switch ’S’ is connected to the analog input voltage Vi , So that the analog
input voltage is integrated by the op-amp integrator.
The output voltage of the integrator is given by Voi = -1/RC ∫ Vi dt.
= - [Vi / RC].t

yayavaram@yahoo.com

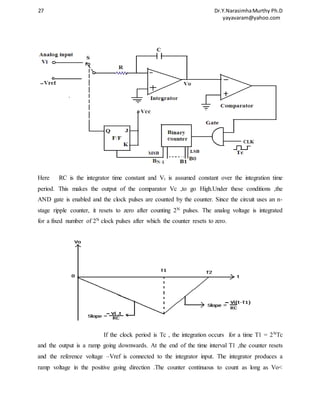

Here RC is the integrator time constant and Vi is assumed constant over the integration time
period. This makes the output of the comparator Vc ,to go High.Under these conditions ,the
AND gate is enabled and the clock pulses are counted by the counter. Since the circuit uses an n-stage
ripple counter, it resets to zero after counting 2N pulses. The analog voltage is integrated
for a fixed number of 2N clock pulses after which the counter resets to zero.
If the clock period is Tc , the integration occurs for a time T1 = 2NTc
and the output is a ramp going downwards. At the end of the time interval T1 ,the counter resets
and the reference voltage –Vref is connected to the integrator input. The integrator produces a
ramp voltage in the positive going direction .The counter continuous to count as long as Vo<

yayavaram@yahoo.com

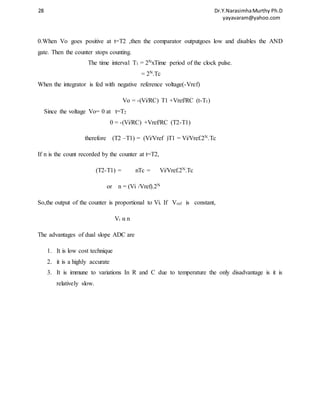

0.When Vo goes positive at t=T2 ,then the comparator outputgoes low and disables the AND
gate. Then the counter stops counting.
The time interval T1 = 2NxTime period of the clock pulse.
= 2N.Tc
When the integrator is fed with negative reference voltage(-Vref)
Vo = -(Vi/RC) T1 +Vref/RC (t-T1)
Since the voltage Vo= 0 at t=T2
0 = -(Vi/RC) +Vref/RC (T2-T1)
therefore (T2 –T1) = (Vi/Vref )T1 = Vi/Vref.2N.Tc
If n is the count recorded by the counter at t=T2,
(T2-T1) = nTc = Vi/Vref.2N.Tc
or n = (Vi /Vref).2N
So,the output of the counter is proportional to Vi. If Vref is constant,
Vi α n
The advantages of dual slope ADC are
1. It is low cost technique
2. it is a highly accurate
3. It is immune to variations In R and C due to temperature the only disadvantage is it is
relatively slow.

yayavaram@yahoo.com

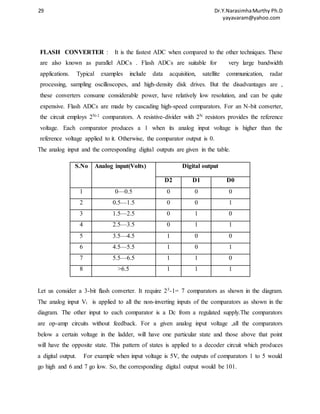

FLASH CONVERTER : It is the fastest ADC when compared to the other techniques. These
are also known as parallel ADCs . Flash ADCs are suitable for very large bandwidth
applications. Typical examples include data acquisition, satellite communication, radar
processing, sampling oscilloscopes, and high-density disk drives. But the disadvantages are ,
these converters consume considerable power, have relatively low resolution, and can be quite
expensive. Flash ADCs are made by cascading high-speed comparators. For an N-bit converter,
the circuit employs 2N-1 comparators. A resistive-divider with 2N resistors provides the reference
voltage. Each comparator produces a 1 when its analog input voltage is higher than the
reference voltage applied to it. Otherwise, the comparator output is 0.
The analog input and the corresponding digital outputs are given in the table.
S.No Analog input(Volts) Digital output
D2 D1 D0
1 0—0.5 0 0 0
2 0.5—1.5 0 0 1
3 1.5—2.5 0 1 0
4 2.5—3.5 0 1 1
5 3.5—4.5 1 0 0
6 4.5—5.5 1 0 1
7 5.5—6.5 1 1 0
8 >6.5 1 1 1
Let us consider a 3-bit flash converter. It require 23-1= 7 comparators as shown in the diagram.
The analog input Vi is applied to all the non-inverting inputs of the comparators as shown in the
diagram. The other input to each comparator is a Dc from a regulated supply.The comparators
are op-amp circuits without feedback. For a given analog input voltage ,all the comparators
below a certain voltage in the ladder, will have one particular state and those above that point
will have the opposite state. This pattern of states is applied to a decoder circuit which produces
a digital output. For example when input voltage is 5V, the outputs of comparators 1 to 5 would
go high and 6 and 7 go low. So, the corresponding digital output would be 101.

yayavaram@yahoo.com

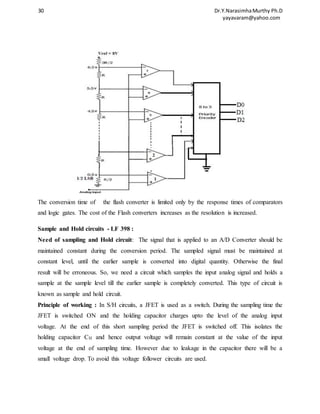

The conversion time of the flash converter is limited only by the response times of comparators
and logic gates. The cost of the Flash converters increases as the resolution is increased.
Sample and Hold circuits - LF 398 :
Need of sampling and Hold circuit: The signal that is applied to an A/D Converter should be
maintained constant during the conversion period. The sampled signal must be maintained at
constant level, until the earlier sample is converted into digital quantity. Otherwise the final
result will be erroneous. So, we need a circuit which samples the input analog signal and holds a
sample at the sample level till the earlier sample is completely converted. This type of circuit is
known as sample and hold circuit.
Principle of working : In S/H circuits, a JFET is used as a switch. During the sampling time the
JFET is switched ON and the holding capacitor charges upto the level of the analog input
voltage. At the end of this short sampling period the JFET is switched off. This isolates the
holding capacitor CH and hence output voltage will remain constant at the value of the input
voltage at the end of sampling time. However due to leakage in the capacitor there will be a
small voltage drop. To avoid this voltage follower circuits are used.

yayavaram@yahoo.com

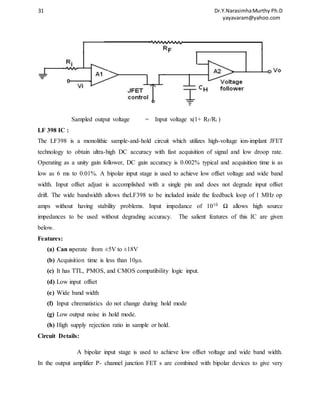

Sampled output voltage = Input voltage x(1+ RF/Ri )
LF 398 IC :
The LF398 is a monolithic sample-and-hold circuit which utilizes high-voltage ion-implant JFET
technology to obtain ultra-high DC accuracy with fast acquisition of signal and low droop rate.
Operating as a unity gain follower, DC gain accuracy is 0.002% typical and acquisition time is as
low as 6 ms to 0.01%. A bipolar input stage is used to achieve low offset voltage and wide band
width. Input offset adjust is accomplished with a single pin and does not degrade input offset
drift. The wide bandwidth allows theLF398 to be included inside the feedback loop of 1 MHz op
amps without having stability problems. Input impedance of 1010 Ω allows high source
impedances to be used without degrading accuracy. The salient features of this IC are given
below.
Features:
(a) Can operate from ±5V to ±18V
(b) Acquisition time is less than 10μs.
(c) It has TTL, PMOS, and CMOS compatibility logic input.
(d) Low input offset
(e) Wide band width
(f) Input chrematistics do not change during hold mode
(g) Low output noise in hold mode.
(h) High supply rejection ratio in sample or hold.
Circuit Details:
A bipolar input stage is used to achieve low offset voltage and wide band width.
In the output amplifier P- channel junction FET s are combined with bipolar devices to give very

yayavaram@yahoo.com

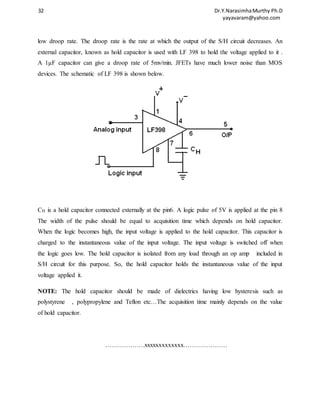

low droop rate. The droop rate is the rate at which the output of the S/H circuit decreases. An
external capacitor, known as hold capacitor is used with LF 398 to hold the voltage applied to it .
A 1μF capacitor can give a droop rate of 5mv/min. JFETs have much lower noise than MOS
devices. The schematic of LF 398 is shown below.
CH is a hold capacitor connected externally at the pin6. A logic pulse of 5V is applied at the pin 8
The width of the pulse should be equal to acquisition time which depends on hold capacitor.
When the logic becomes high, the input voltage is applied to the hold capacitor. This capacitor is
charged to the instantaneous value of the input voltage. The input voltage is switched off when
the logic goes low. The hold capacitor is isolated from any load through an op amp included in
S/H circuit for this purpose. So, the hold capacitor holds the instantaneous value of the input
voltage applied it.
NOTE: The hold capacitor should be made of dielectrics having low hysteresis such as
polystyrene , polypropylene and Teflon etc…The acquisition time mainly depends on the value
of hold capacitor.
……………….xxxxxxxxxxxxx…………………

Special Devices

More Related Content

What's hot

Viewers also liked

Similar to Special Devices

More from Dr.YNM

Recently uploaded

Special Devices
