Silicon Low Pressure Sensors
- 1. Silicon Low PressureSensors Source: Honeywell

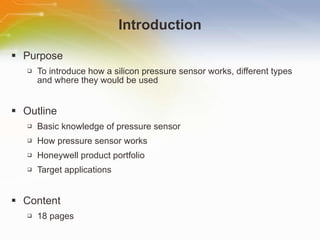

- 2. Introduction Purpose Tointroduce how a silicon pressure sensor works, different types and where they would be used Outline Basic knowledge of pressure sensor How pressure sensor works Honeywell product portfolio Target applications Content 18 pages

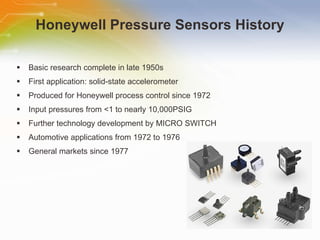

- 3. Honeywell Pressure SensorsHistory Basic research complete in late 1950s First application: solid-state accelerometer Produced for Honeywell process control since 1972 Input pressures from <1 to nearly 10,000PSIG Further technology development by MICRO SWITCH Automotive applications from 1972 to 1976 General markets since 1977
- 4. Piezoresistors vs. SiliconPressure Sensors Piezoresistors can be used as pressure sensors, much like wire strain gages. Gage factor 100 times greater than wire strain gages Piezoresistors implanted into silicon medium Integrated into silicon force-sensing member Perfect crystal, returns to original shape Better than metal for pressure-sensing diaphragms Extremely good elasticity Fail only by rupturing Compact, rugged, reliable

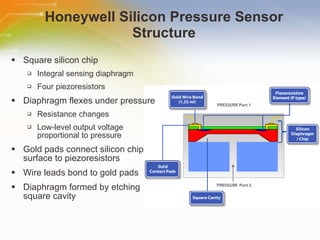

- 5. Honeywell Silicon PressureSensor Structure Square silicon chip Integral sensing diaphragm Four piezoresistors Diaphragm flexes under pressure Resistance changes Low-level output voltage proportional to pressure Gold pads connect silicon chip surface to piezoresistors Wire leads bond to gold pads Diaphragm formed by etching square cavity

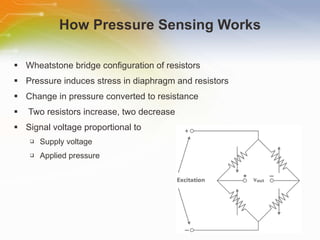

- 6. How Pressure SensingWorks Wheatstone bridge configuration of resistors Pressure induces stress in diaphragm and resistors Change in pressure converted to resistance Two resistors increase, two decrease Signal voltage proportional to Supply voltage Applied pressure

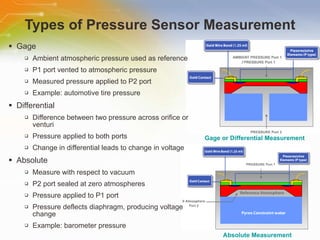

- 7. Types of PressureSensor Measurement Gage Ambient atmospheric pressure used as reference P1 port vented to atmospheric pressure Measured pressure applied to P2 port Example: automotive tire pressure Differential Difference between two pressure across orifice or venturi Pressure applied to both ports Change in differential leads to change in voltage Absolute Measure with respect to vacuum P2 port sealed at zero atmospheres Pressure applied to P1 port Pressure deflects diaphragm, producing voltage change Example: barometer pressure Gage or Differential Measurement Absolute Measurement

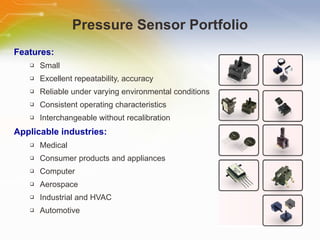

- 8. Pressure Sensor PortfolioFeatures: Small Excellent repeatability, accuracy Reliable under varying environmental conditions Consistent operating characteristics Interchangeable without recalibration Applicable industries: Medical Consumer products and appliances Computer Aerospace Industrial and HVAC Automotive

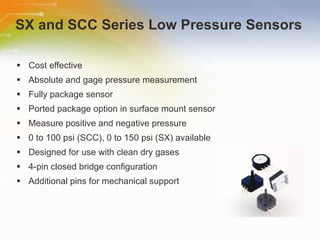

- 9. SX and SCCSeries Low Pressure Sensors Cost effective Absolute and gage pressure measurement Fully package sensor Ported package option in surface mount sensor Measure positive and negative pressure 0 to 100 psi (SCC), 0 to 150 psi (SX) available Designed for use with clean dry gases 4-pin closed bridge configuration Additional pins for mechanical support

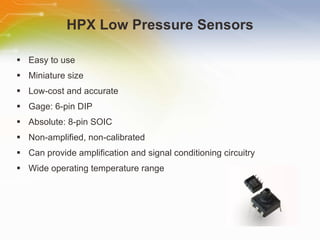

- 10. HPX Low PressureSensors Easy to use Miniature size Low-cost and accurate Gage: 6-pin DIP Absolute: 8-pin SOIC Non-amplified, non-calibrated Can provide amplification and signal conditioning circuitry Wide operating temperature range

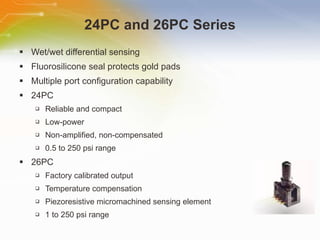

- 11. 24PC and 26PCSeries Wet/wet differential sensing Fluorosilicone seal protects gold pads Multiple port configuration capability 24PC Reliable and compact Low-power Non-amplified, non-compensated 0.5 to 250 psi range 26PC Factory calibrated output Temperature compensation Piezoresistive micromachined sensing element 1 to 250 psi range

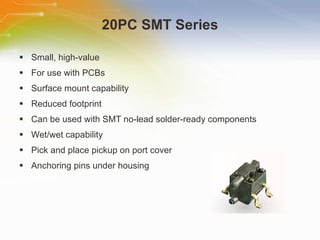

- 12. 20PC SMT SeriesSmall, high-value For use with PCBs Surface mount capability Reduced footprint Can be used with SMT no-lead solder-ready components Wet/wet capability Pick and place pickup on port cover Anchoring pins under housing
- 13. SDX and ASDXSeries SDX Integrated circuit sensor element Compact solvent-resistant case Parallel ports to PCB Corrosion resistant, isolated from stress DIP mounts on PC like standard IC Bridge output ratiometric, operates up to 20V Measures positive and negative pressure ASDX Amplified version of SDX 4 VDC span output On-board ASIC Digital output using I 2 C compatible interface

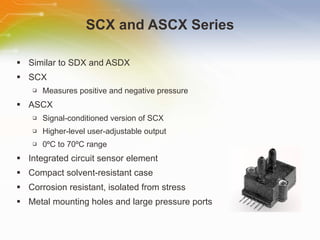

- 14. SCX and ASCXSeries Similar to SDX and ASDX SCX Measures positive and negative pressure ASCX Signal-conditioned version of SCX Higher-level user-adjustable output 0 º C to 70 º C range Integrated circuit sensor element Compact solvent-resistant case Corrosion resistant, isolated from stress Metal mounting holes and large pressure ports
- 15. CPX and XPXSeries Silicon micromachined sensing technology Low-cost packages Entry-level sensors Cost-effective where External signal conditioning available Compensation circuitry available Single in-line radial or axial ported packages Gage, differential, and absolute pressure ranges XPX compatible with Freescale pressure sensors

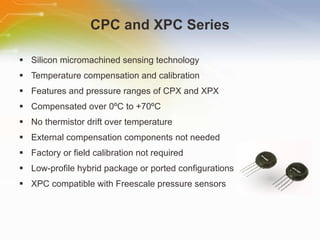

- 16. CPC and XPCSeries Silicon micromachined sensing technology Temperature compensation and calibration Features and pressure ranges of CPX and XPX Compensated over 0 º C to +70 º C No thermistor drift over temperature External compensation components not needed Factory or field calibration not required Low-profile hybrid package or ported configurations XPC compatible with Freescale pressure sensors

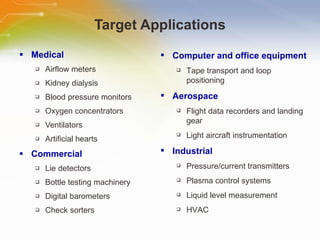

- 17. Target Applications MedicalAirflow meters Kidney dialysis Blood pressure monitors Oxygen concentrators Ventilators Artificial hearts Commercial Lie detectors Bottle testing machinery Digital barometers Check sorters Computer and office equipment Tape transport and loop positioning Aerospace Flight data recorders and landing gear Light aircraft instrumentation Industrial Pressure/current transmitters Plasma control systems Liquid level measurement HVAC

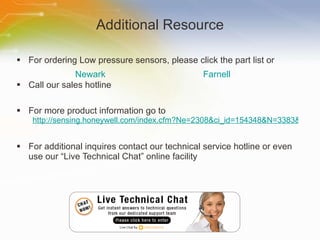

- 18. Additional Resource Forordering Low pressure sensors, please click the part list or Call our sales hotline For more product information go to http://sensing.honeywell.com/index.cfm?Ne=2308&ci_id=154348&N=3383&la_id=1 For additional inquires contact our technical service hotline or even use our “Live Technical Chat” online facility Newark Farnell
Editor's Notes
- #3 Welcome to the training module on Silicon Low Pressure Sensors. This training module introduces how a silicon pressure sensor works, different types and where they are used.
- #4 In the late 1950s, Honeywell’s Corporate Technology Center completed basic research on the piezo-resistive properties of silicon-diffused layers. The first Honeywell application of the piezo-resistive device was a solid-state accelerometer for the Avionics division. Pressure sensors have been produced for Honeywell’s Process Control Division since 1972, and have been applied over input pressures from less than one PSIG to nearly 10,000 PSIG. In 1972, MICRO SWITCH began to investigate piezo-resistive device characteristics, as a basis for further technology development. From 1972 to 1976, most of the MICRO SWITCH effort was concentrated on working with automobile manufacturers because of the unique and time-sensitive opportunities that existed. This experience gave Honeywell Sensing & Control an excellent base for moving into other markets. Since 1977, Honeywell has actively pursued the general sales markets.
- #5 Piezo-resistance of a semiconductor can be described as a change in resistance caused by an applied strain of the diaphragm. Thus, solid-state resistors can be used as pressure sensors, much like wire strain gages, but with several important differences and advantages. The high sensitivity, or gage factor, is perhaps 100 times that of wire strain gages. Piezo-resistors are implanted into a silicon medium, and the implanted resistors are integrated into the silicon force-sensing member. Silicon is an ideal material for receiving the applied force. It is a perfect crystal and does not become permanently stretched. After being strained, it returns to the original shape. Silicon wafers are better than metal for pressure-sensing diaphragms, and silicon has extremely good elasticity within its operating range. Silicon diaphragms normally fail only by rupturing. These pressure sensors offer state of the art benefits of hybrid IC devices, including compactness, ruggedness, and reliability.
- #6 Each Honeywell solid-state pressure sensor is developed around a square silicon chip with an integral sensing diaphragm and four piezo-resistors. Pressure applied on the diaphragm causes it to flex, changing the resistance, which results in a low-level output voltage proportional to pressure. The sensing resistors are connected as a four active-element-bridge for best linearity and sensitivity. Gold pads attached to the silicon chip surface provide connection to the piezo-resistors, and serve as pads for bonding of wire leads. The thin diaphragm is formed by chemically etching a square cavity into the surface opposite the piezo-resistors.
- #7 Sensing is accomplished by using a Wheat-stone bridge configuration of resistors. Pressure causes the thin diaphragm to flex, inducing a stress or strain in the diaphragm and in the buried resistors. The resistor values change depending on the amount of strain they undergo, which depends on the amount of pressure applied to the diaphragm. Therefore, a change in pressure is converted to a change in resistance. All four resistors change by approximately the same value. Note that two resistors increase and two decrease, depending on their orientation with respect to the pressure applied. The signal voltage generated by the bridge arrangement is proportional to the supply voltage and the pressure applied to generate the resistance change.
- #8 Honeywell offers three pressure sensor measurement types: Gage, Differential, and Absolute. Gage pressure is a form of differential pressure measurement in which ambient atmospheric pressure is used as the reference. In gage devices, the P1 port is vented to ambient atmospheric pressure, which is approximately 14.7 PSIA, and the measured pressure is applied to the P2 port. An example is measurement of auto tire pressure, where a pressure above atmosphere is needed to maintain tire performance characteristics. Differential pressure is the difference between two pressures. An example is the measurement of pressure dropped across an orifice or venturi used to compute flow rate. In differential devices, pressure is applied to both ports. A change in the differential between the top and bottom sides of the sensor leads to a proportional, plus or minus, change in voltage. Absolute pressure is measured with respect to a vacuum reference. In absolute devices, the P2 port is sealed with a vacuum representing a fixed reference of zero atmospheres. The difference in pressure between the vacuum reference and the pressure applied at the P1 port causes the deflection of the diaphragm, producing the output voltage change. An example of absolute pressure is the measurement of barometer pressure.
- #9 The Honeywell pressure portfolio includes the following product families: the SX and SCC series, the HPX series, the 24 and 26PC series, the 20PC SMT series, the SDX and ASDX series, the SCX and ASCX series, the CPX and XPX series, the CPC and XPC series, and the DUXL and DCXL SURE-SENSE series. Overall, Honeywell pressure sensors are small and low-cost, which keeps system cost down. They feature excellent repeatability, high accuracy, and reliability under varying environmental conditions. In addition, they feature highly consistent operating characteristics from one sensor to the next, and inter-changeability without recalibration. Applicable industries include medical equipment, consumer products and appliances, computer business equipment, aerospace, industrial and H-VAC, as well as automotive.
- #10 The SX and SCC series surface mount sensors provide a cost-effective method of measuring absolute and gage pressures in a fully packaged sensor. The unique package design also allows a ported package option in a true surface mount sensor. They can measure both a positive and a negative pressure. Convenient pressure ranges are available to measure pressures from zero psi to 100 psi and from 0 psi up to 150 psi. The CC designation stands for a constant current source device. SX and SCC surface mount sensors are designed primarily for use with clean dry gases such as air, nitrogen, and similar gases. They offer a 4-pin closed bridge configuration for electrical connection, with additional pins provided for mechanical support.
- #11 The HPX series pressure sensors provide easy to use, miniature size, low-cost and accurate sensing. The gage devices are available in a 6-pin dual-in-line package or DIP, and the absolute devices are available in an eight-pin surface-mount SOIC package. Both sensor styles are non-amplified and non-calibrated, with pressure ranges up to 100 psi. The user can provide the HPX series sensors with amplification and signal conditioning circuitry to meet specific application requirements. These devices have a wide operating temperature range.
- #12 The 24PC and 26PC series provides true wet-wet differential sensing capability. This means that a wet media can be applied to either the P1 or P2 port without damaging the sensor. This is accomplished by using a fluoro-silicone seal to protect the exposed gold pads of the silicon die. All sensors in the 20PC family are capable of multiple port configurations. The 24PC series miniature pressure sensors provide reliable differential pressure sensing performance and a compact package. It is a low-power, non-amplified, non-compensated device capable of sensing from 0.5 psi through 250 psi. The 26 PC series has a factory calibrated output and temperature compensation to provide reliable differential pressure-sensing performance in the same compact package. The sensor features a proven sensing technology that utilizes a specialized piezo-resistive micro-machined sensing element, which allows part interchangeability, high performance, reliability, and accuracy. These low-power circuit designs provide an inherently stable milli-volt output over 1 psi to 250 psi sensing ranges.
- #13 The 20PC series surface mount products are small, low-cost, high-value, pressure-sensing solutions for use with printed circuit boards or PCBs. Based on the long-established reliability and accuracy of the 26PC pressure sensor, the 20PC SMT offers reduced size with true surface mount capability. The smaller size reduces the sensor’s footprint on the PCB, thereby reducing the size of the PCB. The 20PC SMT is capable of being used with other SMT no-lead solder ready components, helping to lower installation costs and eliminate secondary operations. Along with true wet-wet capability, other features of the SMT product are the unique pick and place pickup feature on the port cover, and the anchoring pins under the housing. These pins help to ensure the unit does not shear off the solder pads when the pressure hose is attached.
- #14 The SDX family features an integrated circuit sensor element on a laser-trimmed thick film ceramic and housed in a compact solvent-resistant case. The package is a doublewide dual inline package with parallel ports to the PCB for low clearance. This extremely small size enables the use of multiple sensors and limited available space. The DIP provides excellent corrosion resistance and isolation from external package stress. The output of the bridge is ratio-metric to the supply voltage, and operates from any DC supply up to 20 volts, with millivolts as the output per psi. The SDX is capable of measuring both positive and negative pressure. The ASDX series is an amplified version of Honeywell’s proven performer and industry-leading SDX series sensor. The amplified ASDX sensor’s footprint is slightly larger than the SDX, but it offers a high-level output of 4 volts DC Span on a cost-effective basis. This series is fully calibrated and temperature compensated with on-board application specific integrated circuitry, also known as ASIC. These sensors are intended for use with non-corrosive, non-ionic working fluids, such as air and dry gases. The ASDX DO, for digital output device, is in the standard DIP package, and provides digital correction of sensor offset, sensitivity, temperature coefficients and non-linearity.
- #15 The SCX and ASCX series is similar to the SDX and ASDX. The SCX is a millivolt output device that measures both positive and negative pressure, and the ASCX series is a signal-conditioned version of the SCX series. The amplified ASDX device is in the same package as the SCX, but offers a higher-level user-adjustable output on a cost-effective basis. The ASCX is fully calibrated and temperature-compensated over a range of 0° C to 70° C. Both families measure absolute, differential and gage pressures from 1 psi up to 150 psi. The low-pressure SCXL series is also available in the 0 to 4 inch and 0 to 10 inch water ranges. The SCX and ASCX series features an integrated circuit sensor element and laser-trimmed thick film ceramic housed in a compact solvent-resistant case. It provides excellent corrosion resistance and isolation from external packaging stresses. The package has convenient metal mounting holes and large pressure ports for ease of use with standard plastic tubing for pressure connection.
- #16 The CPX and XPX Series sensors provide proven silicon micro-machined sensing technology in a complete family of low-cost packages. These entry-level sensors provide the most cost-effective solution for designs where external signal conditioning and compensation circuitry are available. Industry-standard packaging includes single in-line radial or axial ported packages to provide superior replacement value in printed circuit board mount applications. These sensors are available in gage, differential, and absolute pressure ranges. The XPX products are drop-in competitive replacements with pin-to-pin compatibility with Freescale pressure sensors.
- #17 The CPC and XPC series sensors integrate silicon micro-machined sensing technology, temperature compensation and calibration with the features and pressure ranges of the CPX and XPX series in a family of low-cost packages. These sensors are temperature compensated over 0° C to +70° C, and are non-temperature dependent, which means no thermistor drift over temperature. This sensor series offers the most cost-effective solution for designs requiring sensor calibration, as it eliminates the need for external compensation components and factory or field calibration. All ranges and performance levels are available in low-profile hybrid packages, or in ported configurations for use in printed circuit board mount applications. The XPC products are also drop-in competitive replacements with pin-to-pin compatibility with Freescale pressure sensors.
- #18 These pressure sensors are designed to be used in a diversity of applications. They are ideal for applications requiring precise measurement of pressure, where the benefits of repeatability, low hysteresis, and long-term stability are important. In medical equipment, where accuracy is often critical, solid-state pressure sensors are used in airflow meters, kidney dialysis, handheld blood pressure monitors, oxygen concentrators, ventilators, and artificial hearts. The commercial market finds pressure sensors perfect for lie detectors, automatic bottle testing machinery, digital barometers, and automatic check sorters. Fast response is important in computer and business equipment. Pressure sensors are used in air bearings for tape transport and for tape loop positioning. Honeywell pressure sensors are ideal for applications in the aerospace industry, where high standards for accuracy are needed and extreme temperature ranges are inherent in the application. In industrial applications, the broad sensing capabilities and ruggedness of these pressure sensors are well suited for use in pressure-current transmitters, automatic plasma control systems, liquid level measurement, and automatic heating, ventilating and air conditioning systems.
- #19 Thank you for taking the time to view this presentation on “ Silicon Low Pressure Sensors” . If you would like to learn more or go on to purchase some of these devices, you may either click on the part list link, or simply call our sales hotline. For more technical information you may either visit the Honeywell site, or if you would prefer to speak to someone live, please call our hotline number, or even use our ‘live chat’ online facility.
