This document summarizes several pressure transmitters. It describes a differential pressure transmitter model with various pressure ranges, corrosion resistance, and sensor design features. It also describes a "stick" pressure transmitter model with a hermetically sealed stainless steel enclosure, stainless steel sensors, accuracy of 0.25%, turn down ratios for different pressure ranges, and output options. Finally, it mentions another pressure transmitter with vacuum to high pressure ranges, scalable 4-20 mA output, accuracy of ±0.5% of full scale, an LED display, and ceramic pressure sensing system. References to websites and documents providing further information are listed at the end.

2. Pressure transmitter is
one piece of equipment
commonly used in the
industry to provide
information on the
amount of pressure
piping subsystems are
changed in the
electrical current signal
(tipycally using a range
of 4-20 mA)

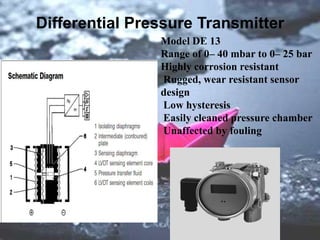

3. Differential Pressure Transmitter
Model DE 13
Range of 0– 40 mbar to 0– 25 bar
Highly corrosion resistant
Rugged, wear resistant sensor
design
Low hysteresis
Easily cleaned pressure chamber
Unaffected by fouling

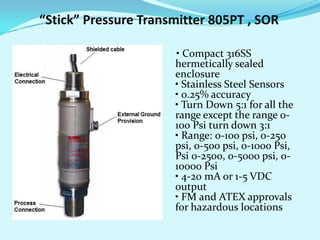

4. “Stick” Pressure Transmitter 805PT , SOR
• Compact 316SS
hermetically sealed
enclosure
• Stainless Steel Sensors
• 0.25% accuracy
• Turn Down 5:1 for all the
range except the range 0-
100 Psi turn down 3:1
• Range: 0-100 psi, 0-250
psi, 0-500 psi, 0-1000 Psi,
Psi 0-2500, 0-5000 psi, 0-
10000 Psi
• 4-20 mA or 1-5 VDC
output
• FM and ATEX approvals
for hazardous locations

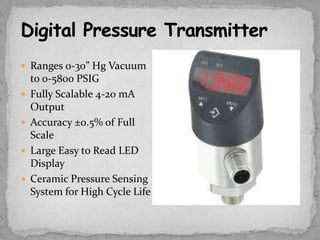

5.  Ranges 0-30” Hg Vacuum
to 0-5800 PSIG
 Fully Scalable 4-20 mA
Output
 Accuracy ±0.5% of Full
Scale
 Large Easy to Read LED
Display
 Ceramic Pressure Sensing
System for High Cycle Life

6. REFERENCE
http://almasdirektori.wordpress.com/2012/05/08/stick-
pressure-transmitter-805pt-sor/
www.oasisinstrument.com
http://syfaa.wordpress.com/author/syfaa
http://www.theinstrumentation.co.cc
http://digilib.its.ac.id/public/ITS-paper-19441-paperpdf.pdf
