ETRX3 ZigBee Module: ETRX3
The document introduces the ETRX3 ZigBee module from Telegesis, which features a 32-bit ARM Cortex-M3 processor, integrated antenna, and FCC and IC approval. It describes the hardware specifications and capabilities of the ETRX3 module, including its radio performance, power consumption, and development environment. Additionally, it outlines the included components of the ETRX357DVK development kit and lists several applications that can utilize the ETRX3 ZigBee module.
More Related Content
Similar to ETRX3 ZigBee Module: ETRX3
ETRX3 ZigBee Module: ETRX3
- 1. ETRX3 ZigBee Module:ETRX3 Source: TELEGESIS
- 2. Introduction Purpose Brief Introduction to Telegesis Wireless Zigbee Module Outline Introduction to Wireless Module ETRX3 ETRX- Module Portfolio and Product Approvals Hardware Description of ETRX3 ZigBee Compliant Stack & Development Environment TX Power Characteristics, ETRX357DVK Development Kit Content 12 pages
- 3. ETRX3 Series ModuleFeatures EM300 series ZigBee SOC featuring 32-bit ARM® Cortex-M3 processor Dimensions 19mm x 25 mm x 3 mm Up to 192k of Flash, 12k of RAM Estimated RX Sensitivity -99dBm (-100dBm Boost) Estimated TX Power 3dBm (5dBm Boost) 105dB link Budget Estimated Current Consumption: 20% better compared to ETRX2 128µS Wakeup Improved Hardware MAC Acceleration JTAG Interface for Programming and Debugging Improved Peripherals (ADC, timers etc.) Chip Antenna and U.FL coaxial Connector FCC Approval, tested for European Regulations

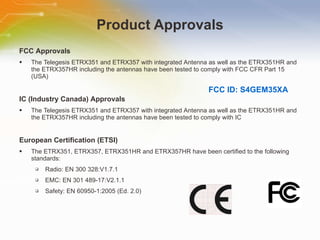

- 4. Product Approvals FCC Approvals The Telegesis ETRX351 and ETRX357 with integrated Antenna as well as the ETRX351HR and the ETRX357HR including the antennas have been tested to comply with FCC CFR Part 15 (USA) IC (Industry Canada) Approvals The Telegesis ETRX351 and ETRX357 with integrated Antenna as well as the ETRX351HR and the ETRX357HR including the antennas have been tested to comply with IC European Certification (ETSI) The ETRX351, ETRX357, ETRX351HR and ETRX357HR have been certified to the following standards: Radio: EN 300 328:V1.7.1 EMC: EN 301 489-17:V2.1.1 Safety: EN 60950-1:2005 (Ed. 2.0) FCC ID: S4GEM35XA

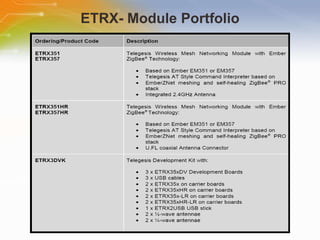

- 5.
- 6. Hardware Description ofETRX3 Hardware Diagram

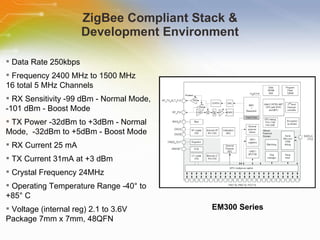

- 7. ZigBee Compliant Stack& Development Environment Data Rate 250kbps Frequency 2400 MHz to 1500 MHz 16 total 5 MHz Channels RX Sensitivity -99 dBm - Normal Mode, -101 dBm - Boost Mode TX Power -32dBm to +3dBm - Normal Mode, -32dBm to +5dBm - Boost Mode RX Current 25 mA TX Current 31mA at +3 dBm Crystal Frequency 24MHz Operating Temperature Range -40° to +85° C Voltage (internal reg) 2.1 to 3.6V Package 7mm x 7mm, 48QFN EM300 Series

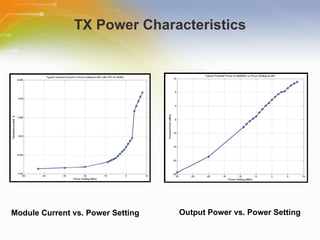

- 8. TX Power CharacteristicsOutput Power vs. Power Setting Module Current vs. Power Setting
- 9. ETRX357DVK Development KitDevelopment Kit Contents 3 x USB Development Boards 2 x ETRX357 on Carrier-Board 2 x ETRX357HR on Carrier-Board 2 x ETRX357LR on Carrier-Board 2 x ETRX357HR-LR on Carrier-Board 1 x ETRX2USB stick 2 x Large Antenna 2 x Small Stubby Antenna 3 x USB Cable
- 10. Development Board Features ZigBee Networking “Out-of-the-Box” Low cost evaluation platform for ZigBee wireless mesh networking Designed to set up a ZigBee mesh network in only a few minutes without the need for any embedded software The freely downloadable Telegesis Terminal Software application offers an easy to use interface to the modules on the development boards. Also works with 3rd party terminal software like HyperTerminal. Broad selection of modules allows range testing of any possible module/antenna combination. Seamlessly Integrates into the Ember InSight Toolchain Development boards can be used as hardware platform for trials

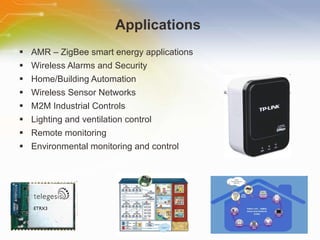

- 11. Applications AMR– ZigBee smart energy applications Wireless Alarms and Security Home/Building Automation Wireless Sensor Networks M2M Industrial Controls Lighting and ventilation control Remote monitoring Environmental monitoring and control

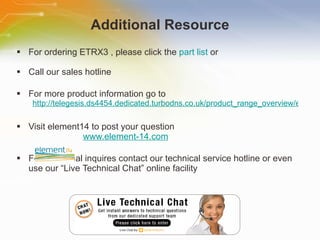

- 12. Additional Resource For ordering ETRX3 , please click the part list or Call our sales hotline For more product information go to http://telegesis.ds4454.dedicated.turbodns.co.uk/product_range_overview/etrx3_zigbee_module.htm Visit element14 to post your question www.element-14.com For additional inquires contact our technical service hotline or even use our “Live Technical Chat” online facility
Editor's Notes
- #2 Welcome to the training module on Brief Introduction to Telegesis Wireless Zigbee Module.
- #3 This training module will [ Introduce wireless module based on Zigbee Technology].
- #4 The Telegesis ETRX351 and ETRX357 modules are low power 2.4GHz ZigBee modules, based on the latest Ember EM351 and EM357 single chip ZigBeeTM / IEEE802.15.4 solutions. They have been designed to be integrated into any device without the need for RF experience and expertise. Utilizing the EmberZNet ZigBee stack, the ETRX35x enables to add powerful wireless networking capability to your products and quickly bring them to market.
- #5 This page gives in detail about the product approval for Telegesis ETRX3. It has FCC approval, Industry canada approval, European Certification (ETSI) approval
- #6 The ETRX3 series is the 3rd generation of advanced ZigBee modules from Telegesis and the first module family on the market to feature the EM357 and EM351- the latest ARM® Cortex M-3 SOC's from Ember. All Modules are preprogrammed with the Telegesis AT style command interpreter based on the EmberZNet stack. ETRX3 series modules have a footprint of just 19mm x 25mm for both standard and PA/LNA versions which represents a 40%reduction in size compared to the ETRX2 module.
- #7 The ETRX351, ETRX351HR, ETRX357 and ETRX357HR are based on the Ember EM351 and EM357 respectively. The EM351 and EM357 are fully integrated 2.4GHz ZigBee transceivers with a 32-bit ARM® Cortex M3TM microprocessor, flash and RAM memory, and peripherals. In addition to this a number of MAC functions are also implemented in hardware to help maintaining the strict timing requirements imposed by the ZigBee and IEEE 802.15.4 standards. The EM35x has fully integrated voltage regulators for both required 1.8V and 1.25V supply voltages. The voltages are monitored (brown-out detection) and the built in power-on-reset circuit eliminates the need for any external monitoring circuitry.
- #8 The main building blocks of the ETRX351 and ETRX357 are the single chip EM351 and EM357 SoCs from Ember. The EM351 and EM357 ZigBee chips from Ember are the industry's first ARM Cortex-M3 based family of SoCs delivering unmatched performance, power consumption and code density in a compact package. The EM351 and EM357 combine a 2.4 GHz IEEE 802.15.4 radio transceiver with a 32-bit microprocessor, Flash memory and RAM with powerful hardware supported network-level debugging features. This, combined with the powerful ecosystem of ARM tools, enables OEMs to simplify development and accelerate time to market.
- #9 This page shows the typical output power and module current in dependency on module EM35x power setting . Power settings above 3dBm have Boost Mode enabled. the output power is independent of the supply voltage as the radio is supplied by an internally regulated voltage.
- #10 The two Telegesis ETRX351-DVK and ETRX357-DVK development kits are an ideal starting point for development and evaluation of the ETRX351 and ETRX357 series low power 2.4GHz ZigBee modules.
- #11 The ETRX3DVK Development Kit has been designed to allow quick evaluation and prototyping using the ETRX3 wireless mesh networking modules. The Long Range modules will allow you to test their greater outdoor range and within-building penetration.
- #12 The EM357 SOC used in the ETRX3 is a fully integrated 2.4GHz IEEE 802.15.4 ZigBee transceiver based on a 32bit ARM Cortex M-3 core which exceeds the dynamic range of requirements imposed by the 802.15.4 spec by over 15dB. The integrated 32-bit ARM Corex-M3 processor provides a very high code density allowing larger applications, while delivering exceptional performance in a small, power efficient RISC core. It can be used in broader application like smart energy application, wireless alarm security system, wireless sensor network, lighting and ventilation control, remote monitoring, etc.
- #13 Thank you for taking the time to view this presentation on “ETRX3 ZigBee Module ” . If you would like to learn more or go on to purchase some of these devices, you may either click on the part list link right beside the play button on the TechCast portal, or simply call our sales hotline. For more technical information you may either visit the Telegesis site, or if you would prefer to speak to someone live, please call our hotline number, or even use our ‘live chat’ online facility. You may visit element14 e-community to post your questions.
