![Run chart 1
Run chart
A run chart, also known as a run-sequence
plot is a graph that displays observed data in
a time sequence. Often, the data displayed
represent some aspect of the output or
performance of a manufacturing or other
business process.
Overview
Run sequence plots[1] are an easy way to
graphically summarize an univariate data
set. A common assumption of univariate
data sets is that they behave like:[2]
A simple run chart showing data collected over time. The median of the observed
• random drawings;
data (73) is also shown on the chart.
• from a fixed distribution;
• with a common location; and
• with a common scale.
With run sequence plots, shifts in location and scale are typically quite evident. Also, outliers can easily be detected.
Examples could include measurements of
the fill level of bottles filled at a bottling
plant or the water temperature of a
dishwashing machine each time it is run.
Time is generally represented on the
horizontal (x) axis and the property under
observation on the vertical (y) axis. Often,
some measure of central tendency (mean or
median) of the data is indicated by a
horizontal reference line.
Run charts are analyzed to find anomalies in
data that suggest shifts in a process over
time or special factors that may be
influencing the variability of a process. Run chart of eight random walks in one dimension starting at 0. The plot shows the
current position on the line (vertical axis) versus the time steps (horizontal axis).
Typical factors considered include unusually
long "runs" of data points above or below
the average line, the total number of such runs in the data set, and unusually long series of consecutive increases or
decreases.[1]
Run charts are similar in some regards to the control charts used in statistical process control, but do not show the
control limits of the process. They are therefore simpler to produce, but do not allow for the full range of analytic
techniques supported by control charts.](https://image.slidesharecdn.com/runchart-110419224538-phpapp01/85/Run-chart-1-320.jpg)
![Run chart 1
Run chart
A run chart, also known as a run-sequence
plot is a graph that displays observed data in
a time sequence. Often, the data displayed
represent some aspect of the output or
performance of a manufacturing or other
business process.
Overview
Run sequence plots[1] are an easy way to
graphically summarize an univariate data
set. A common assumption of univariate
data sets is that they behave like:[2]
A simple run chart showing data collected over time. The median of the observed
• random drawings;
data (73) is also shown on the chart.
• from a fixed distribution;
• with a common location; and
• with a common scale.
With run sequence plots, shifts in location and scale are typically quite evident. Also, outliers can easily be detected.
Examples could include measurements of
the fill level of bottles filled at a bottling
plant or the water temperature of a
dishwashing machine each time it is run.
Time is generally represented on the
horizontal (x) axis and the property under
observation on the vertical (y) axis. Often,
some measure of central tendency (mean or
median) of the data is indicated by a
horizontal reference line.
Run charts are analyzed to find anomalies in
data that suggest shifts in a process over
time or special factors that may be
influencing the variability of a process. Run chart of eight random walks in one dimension starting at 0. The plot shows the
current position on the line (vertical axis) versus the time steps (horizontal axis).
Typical factors considered include unusually
long "runs" of data points above or below
the average line, the total number of such runs in the data set, and unusually long series of consecutive increases or
decreases.[1]
Run charts are similar in some regards to the control charts used in statistical process control, but do not show the
control limits of the process. They are therefore simpler to produce, but do not allow for the full range of analytic
techniques supported by control charts.](https://image.slidesharecdn.com/runchart-110419224538-phpapp01/75/Run-chart-1-2048.jpg)

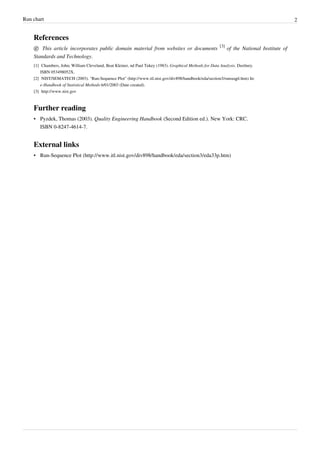

![Run chart 2
References
This article incorporates public domain material from websites or documents [3] of the National Institute of
Standards and Technology.
[1] Chambers, John; William Cleveland, Beat Kleiner, nd Paul Tukey (1983). Graphical Methods for Data Analysis. Duxbury.
ISBN 053498052X.
[2] NIST/SEMATECH (2003). "Run-Sequence Plot" (http:/ / www. itl. nist. gov/ div898/ handbook/ eda/ section3/ runseqpl. htm) In:
e-Handbook of Statistical Methods 6/01/2003 (Date created).
[3] http:/ / www. nist. gov
Further reading
• Pyzdek, Thomas (2003). Quality Engineering Handbook (Second Edition ed.). New York: CRC.
ISBN 0-8247-4614-7.
External links
• Run-Sequence Plot (http://www.itl.nist.gov/div898/handbook/eda/section3/eda33p.htm)](https://image.slidesharecdn.com/runchart-110419224538-phpapp01/85/Run-chart-2-320.jpg)
Uploaded byRoy Antony Arnold G
Run chart
A run chart, or run sequence plot, is a graph that displays observed data over time to identify patterns or anomalies. It plots the observed variable on the y-axis and time on the x-axis. A central reference line, like the median, is often included. Run charts are used to detect shifts or outliers in processes over time that could indicate factors influencing variability. They provide a simple way to visualize univariate time series data and identify changes without the control limits of statistical process control charts.
More Related Content
Run chart
- 1. Run chart 1 Run chart A run chart, also known as a run-sequence plot is a graph that displays observed data in a time sequence. Often, the data displayed represent some aspect of the output or performance of a manufacturing or other business process. Overview Run sequence plots[1] are an easy way to graphically summarize an univariate data set. A common assumption of univariate data sets is that they behave like:[2] A simple run chart showing data collected over time. The median of the observed • random drawings; data (73) is also shown on the chart. • from a fixed distribution; • with a common location; and • with a common scale. With run sequence plots, shifts in location and scale are typically quite evident. Also, outliers can easily be detected. Examples could include measurements of the fill level of bottles filled at a bottling plant or the water temperature of a dishwashing machine each time it is run. Time is generally represented on the horizontal (x) axis and the property under observation on the vertical (y) axis. Often, some measure of central tendency (mean or median) of the data is indicated by a horizontal reference line. Run charts are analyzed to find anomalies in data that suggest shifts in a process over time or special factors that may be influencing the variability of a process. Run chart of eight random walks in one dimension starting at 0. The plot shows the current position on the line (vertical axis) versus the time steps (horizontal axis). Typical factors considered include unusually long "runs" of data points above or below the average line, the total number of such runs in the data set, and unusually long series of consecutive increases or decreases.[1] Run charts are similar in some regards to the control charts used in statistical process control, but do not show the control limits of the process. They are therefore simpler to produce, but do not allow for the full range of analytic techniques supported by control charts.
- 2. Run chart 2 References This article incorporates public domain material from websites or documents [3] of the National Institute of Standards and Technology. [1] Chambers, John; William Cleveland, Beat Kleiner, nd Paul Tukey (1983). Graphical Methods for Data Analysis. Duxbury. ISBN 053498052X. [2] NIST/SEMATECH (2003). "Run-Sequence Plot" (http:/ / www. itl. nist. gov/ div898/ handbook/ eda/ section3/ runseqpl. htm) In: e-Handbook of Statistical Methods 6/01/2003 (Date created). [3] http:/ / www. nist. gov Further reading • Pyzdek, Thomas (2003). Quality Engineering Handbook (Second Edition ed.). New York: CRC. ISBN 0-8247-4614-7. External links • Run-Sequence Plot (http://www.itl.nist.gov/div898/handbook/eda/section3/eda33p.htm)

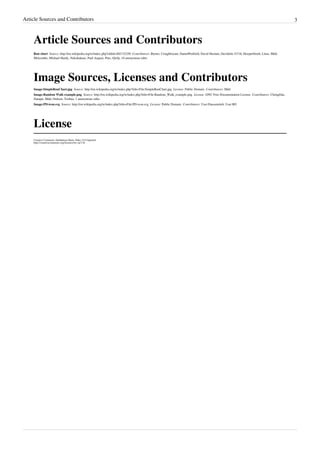

- 3. Article Sources andContributors 3 Article Sources and Contributors Run chart Source: http://en.wikipedia.org/w/index.php?oldid=402132258 Contributors: Btyner, Craigkbryant, DanielPenfield, David Haslam, Davidelit, G716, Hooperbloob, Linas, Mdd, Melcombe, Michael Hardy, Nekohakase, Paul August, Pmc, Qwfp, 10 anonymous edits Image Sources, Licenses and Contributors Image:SimpleRunChart.jpg Source: http://en.wikipedia.org/w/index.php?title=File:SimpleRunChart.jpg License: Public Domain Contributors: Mdd Image:Random Walk example.png Source: http://en.wikipedia.org/w/index.php?title=File:Random_Walk_example.png License: GNU Free Documentation License Contributors: ChongDae, Darapti, Mdd, Ordoon, Toobaz, 1 anonymous edits Image:PD-icon.svg Source: http://en.wikipedia.org/w/index.php?title=File:PD-icon.svg License: Public Domain Contributors: User:Duesentrieb, User:Rfl License Creative Commons Attribution-Share Alike 3.0 Unported http:/ / creativecommons. org/ licenses/ by-sa/ 3. 0/
