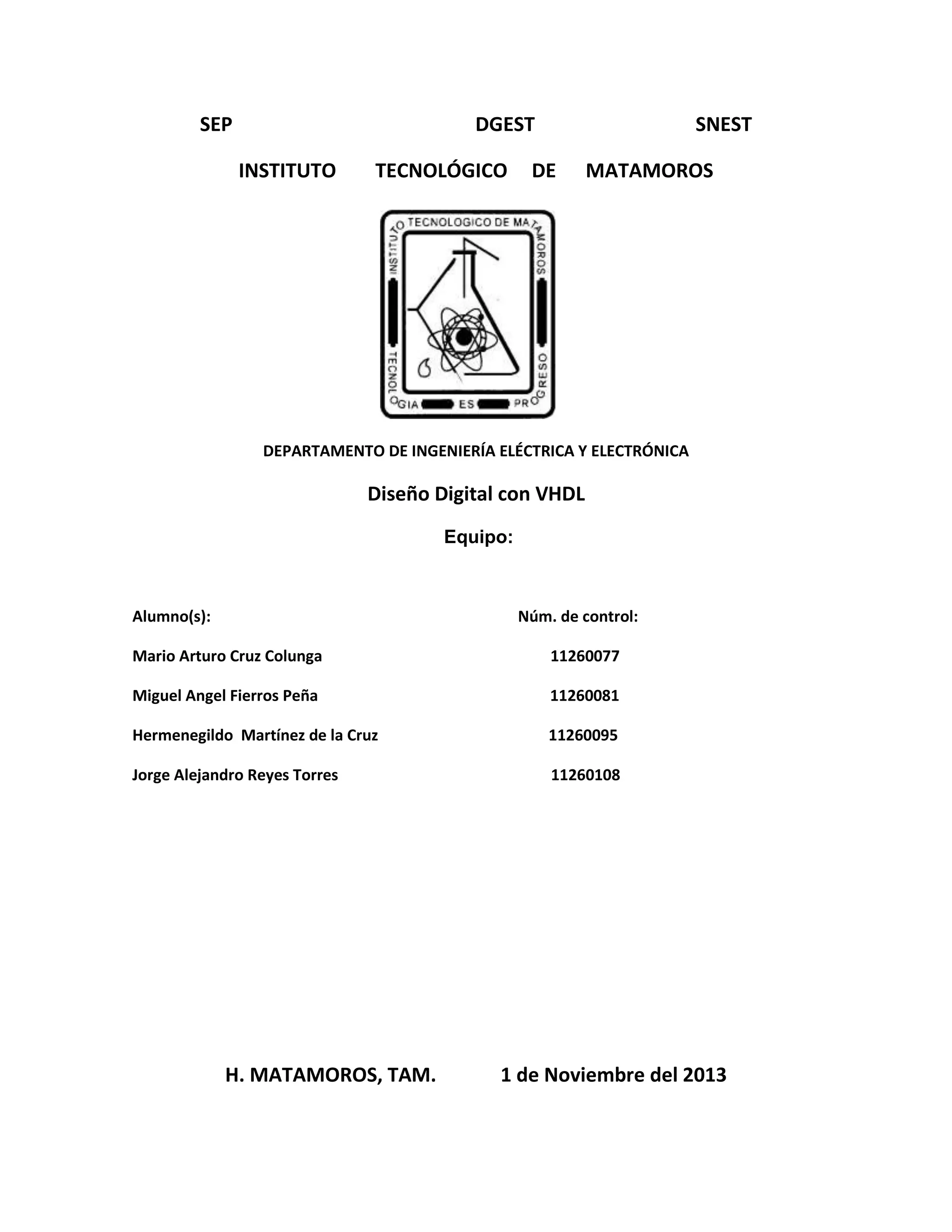

1. SEP
DGEST
INSTITUTO
TECNOLÓGICO
SNEST
DE
MATAMOROS
DEPARTAMENTO DE INGENIERÍA ELÉCTRICA Y ELECTRÓNICA
Diseño Digital con VHDL
Equipo:
Alumno(s):
Núm. de control:
Mario Arturo Cruz Colunga
11260077
Miguel Angel Fierros Peña
11260081
Hermenegildo Martínez de la Cruz
11260095
Jorge Alejandro Reyes Torres
11260108
H. MATAMOROS, TAM.
1 de Noviembre del 2013

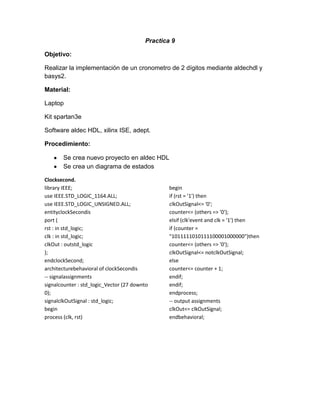

2. Practica 9
Objetivo:
Realizar la implementación de un cronometro de 2 dígitos mediante aldechdl y
basys2.
Material:
Laptop
Kit spartan3e
Software aldec HDL, xilinx ISE, adept.
Procedimiento:
Se crea nuevo proyecto en aldec HDL
Se crea un diagrama de estados
Clocksecond.
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;
entityclockSecondis
port (
rst : in std_logic;
clk : in std_logic;
clkOut : outstd_logic
);
endclockSecond;
architecturebehavioral of clockSecondis
-- signalassignments
signalcounter : std_logic_Vector (27 downto
0);
signalclkOutSignal : std_logic;
begin
process (clk, rst)
begin
if (rst = '1') then
clkOutSignal<= '0';
counter<= (others => '0');
elsif (clk'event and clk = '1') then
if (counter =
"1011111010111100001000000")then
counter<= (others => '0');
clkOutSignal<= notclkOutSignal;
else
counter<= counter + 1;
endif;
endif;
endprocess;
-- output assignments
clkOut<= clkOutSignal;
endbehavioral;

3. Counter7seg
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;
entity binary7decoder is
port (
binaryIn : in std_logic_vector (3 downto 0);
sevenSegment : outstd_logic_vector (7 downto 0));
end binary7decoder;
architecturebehavioral of binary7decoder is
-- signaldeclerations
signalsevenSegmentSignal : std_logic_vector (7 downto 0);
begin
process (binaryIn)
begin
casebinaryInis
when "0000" =>
sevenSegmentSignal (6 downto 0) <= "1000000";
when "0001" =>
sevenSegmentSignal (6 downto 0) <= "1111001";
when "0010" =>
sevenSegmentSignal (6 downto 0) <= "0100100";
when "0011" =>
sevenSegmentSignal (6 downto 0) <= "0110000";
when "0100" =>
sevenSegmentSignal (6 downto 0) <= "0011001";
when "0101" =>
sevenSegmentSignal (6 downto 0) <= "0010010";
when "0110" =>
sevenSegmentSignal (6 downto 0) <= "0000010";
when "0111" =>
sevenSegmentSignal (6 downto 0) <= "1111000";
when "1000" =>
sevenSegmentSignal (6 downto 0) <= "0000000";
whenothers =>
sevenSegmentSignal (6 downto 0) <= "0010000";
end case;
endprocess;
-- dpisalwayszero
sevenSegmentSignal(7) <= '1';
-- output assignments
sevenSegment<= sevenSegmentSignal;
endbehavioral;

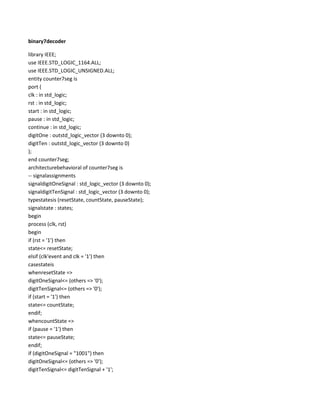

4. binary7decoder
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;
entity counter7seg is
port (
clk : in std_logic;
rst : in std_logic;
start : in std_logic;
pause : in std_logic;
continue : in std_logic;
digitOne : outstd_logic_vector (3 downto 0);
digitTen : outstd_logic_vector (3 downto 0)
);
end counter7seg;
architecturebehavioral of counter7seg is
-- signalassignments
signaldigitOneSignal : std_logic_vector (3 downto 0);
signaldigitTenSignal : std_logic_vector (3 downto 0);
typestatesis (resetState, countState, pauseState);
signalstate : states;
begin
process (clk, rst)
begin
if (rst = '1') then
state<= resetState;
elsif (clk'event and clk = '1') then
casestateis
whenresetState =>
digitOneSignal<= (others => '0');
digitTenSignal<= (others => '0');
if (start = '1') then
state<= countState;
endif;
whencountState =>
if (pause = '1') then
state<= pauseState;
endif;
if (digitOneSignal = "1001") then
digitOneSignal<= (others => '0');
digitTenSignal<= digitTenSignal + '1';

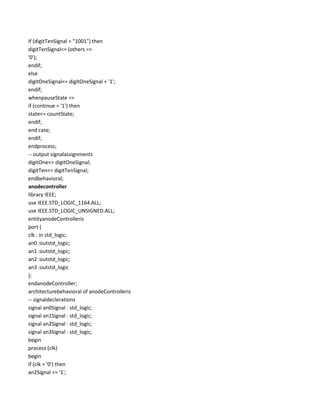

5. if (digitTenSignal = "1001") then
digitTenSignal<= (others =>
'0');
endif;
else
digitOneSignal<= digitOneSignal + '1';
endif;
whenpauseState =>
if (continue = '1') then
state<= countState;
endif;
end case;
endif;
endprocess;
-- output signalassignments
digitOne<= digitOneSignal;
digitTen<= digitTenSignal;
endbehavioral;
anodecontroller
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;
entityanodeControlleris
port (
clk : in std_logic;
an0 :outstd_logic;
an1 :outstd_logic;
an2 :outstd_logic;
an3 :outstd_logic
);
endanodeController;
architecturebehavioral of anodeControlleris
-- signaldeclerations
signal an0Signal : std_logic;
signal an1Signal : std_logic;
signal an2Signal : std_logic;
signal an3Signal : std_logic;
begin
process (clk)
begin
if (clk = '0') then
an2Signal <= '1';

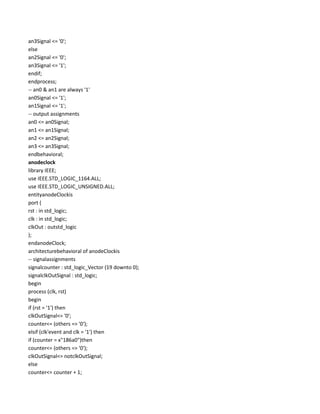

6. an3Signal <= '0';
else
an2Signal <= '0';
an3Signal <= '1';
endif;
endprocess;
-- an0 & an1 are always '1'
an0Signal <= '1';
an1Signal <= '1';
-- output assignments
an0 <= an0Signal;
an1 <= an1Signal;
an2 <= an2Signal;
an3 <= an3Signal;
endbehavioral;
anodeclock
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;
entityanodeClockis
port (
rst : in std_logic;
clk : in std_logic;
clkOut : outstd_logic
);
endanodeClock;
architecturebehavioral of anodeClockis
-- signalassignments
signalcounter : std_logic_Vector (19 downto 0);
signalclkOutSignal : std_logic;
begin
process (clk, rst)
begin
if (rst = '1') then
clkOutSignal<= '0';
counter<= (others => '0');
elsif (clk'event and clk = '1') then
if (counter = x"186a0")then
counter<= (others => '0');
clkOutSignal<= notclkOutSignal;
else
counter<= counter + 1;

7. endif;
endif;
endprocess;
clkOut<= clkOutSignal;
endbehavioral;
sevenselect
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;
entitysevenSelectis
port (
an2 : in std_logic;
an3 : in std_logic;
sevenOne : in std_logic_vector (7 downto 0);
sevenTen : in std_logic_vector (7 downto 0);
sevenOut : outstd_logic_vector (7 downto 0)
);
endsevenSelect;
architecturebehavioral of sevenSelectis
-- signaldeclerations
signalsevenOutSignal : std_logic_vector (7 downto 0);
begin
process (an2, an3, sevenOne, sevenTen)
begin
if (an2 = '1' and an3 = '0') then
sevenOutSignal<= sevenTen;
else
sevenOutSignal<= sevenOne;
endif;
endprocess;
-- output assignments
sevenOut<= sevenOutSignal;
endbehavioral;

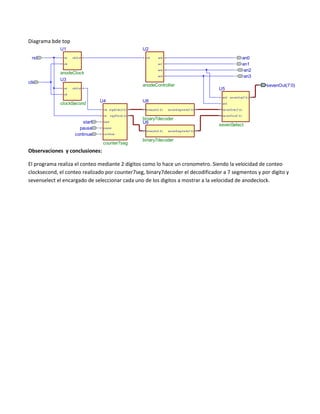

8. Diagrama bde top
U1
rst
rs t
U2
c lk O ut
c lk
c lk
clk
an0
an1
an2
an3
an0
an1
an2
anodeClock
U3
an3
anodeController
rs t
c lk O ut
sevenOut(7:0)
U5
c lk
an2
clockSecond
U4
U8
c lk
start
pause
continue
d ig itO ne (3:0 )
rs t
d ig itT e n(3 :0 )
s tart
b inary In(3 :0 )
s e v enO ut(7:0 )
an3
s e v enS eg m e nt(7:0 )
binary7decoder
U6
s e v enO ne (7:0 )
s e v e nT e n(7 :0 )
sevenSelect
p aus e
b inary In(3 :0 )
s e v enS eg m e nt(7:0 )
c o ntinue
counter7seg
binary7decoder
Observaciones y conclusiones:
El programa realiza el conteo mediante 2 dígitos como lo hace un cronometro. Siendo la velocidad de conteo
clocksecond, el conteo realizado por counter7seg, binary7decoder el decodificador a 7 segmentos y por digito y
sevenselect el encargado de seleccionar cada uno de los digitos a mostrar a la velocidad de anodeclock.
