The document contains VHDL code for generating a square wave signal. It includes an entity that defines the ports and architecture for a square_wave module. The module uses a counter and flip-flop to toggle a signal on each clock cycle, producing a square wave output. A testbench is provided to simulate the module and check its output waveform.

1. Code:
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.std_logic_arith.all;
use IEEE.std_logic_unsigned.all;
entity square_wave is
Port ( clk_m : in STD_LOGIC;
rst : in STD_LOGIC;
clk_d : inout STD_LOGIC;
square_out : out STD_LOGIC_vector(7 downto 0));
end square_wave;
architecture Behavioral of square_wave is
signal scale: std_logic_vector(30 downto 0);
signal temp: std_logic_vector(7 downto 0);
begin
clk_d<=scale(26);
process(clk_m,rst)
begin
if rst='1' then
scale<= (others =>'0');
elsif clk_m'event and clk_m='1' then
scale <= scale + 1;
end if ;
end process;

2. process(clk_d,rst)
begin
if rst='1' then
temp<=(others=>'0');
elsif clk_d'event and clk_d='1' then
temp<=not temp;
end if;
end process;
square_out<=temp;
end Behavioral;
TEST BENCH CODE FOR SQUARE WAVE:
LIBRARY ieee;
USE ieee.std_logic_1164.ALL;
USE ieee.std_logic_unsigned.all;
USE ieee.numeric_std.ALL;
ENTITY tb_vhd IS
END tb_vhd;
ARCHITECTURE behavior OF tb_vhd IS
COMPONENT square_wave
PORT(
clk_m : IN std_logic;
rst : IN std_logic;
clk_d : INOUT std_logic;

3. square_out : OUT std_logic_vector(7 downto 0));
END COMPONENT;
SIGNAL clk_m : std_logic := '0';
SIGNAL rst : std_logic := '0';
SIGNAL clk_d : std_logic;
SIGNAL square_out : std_logic_vector(7 downto 0);
BEGIN
uut: square_wave PORT MAP(
clk_m => clk_m,
rst => rst,
clk_d => clk_d,
square_out => square_out);
PROCESS
BEGIN
rst<='1';
wait for 10 ns;
rst<='0';
wait; -- will wait forever
END PROCESS;
PROCESS
BEGIN
clk_m<='1';
wait for 10 ns;
clk_m<='0';
wait for 10 ns; -- will wait forever
END PROCESS;
END;

4. Simulation diagram for square wave:
RTL Schematic:

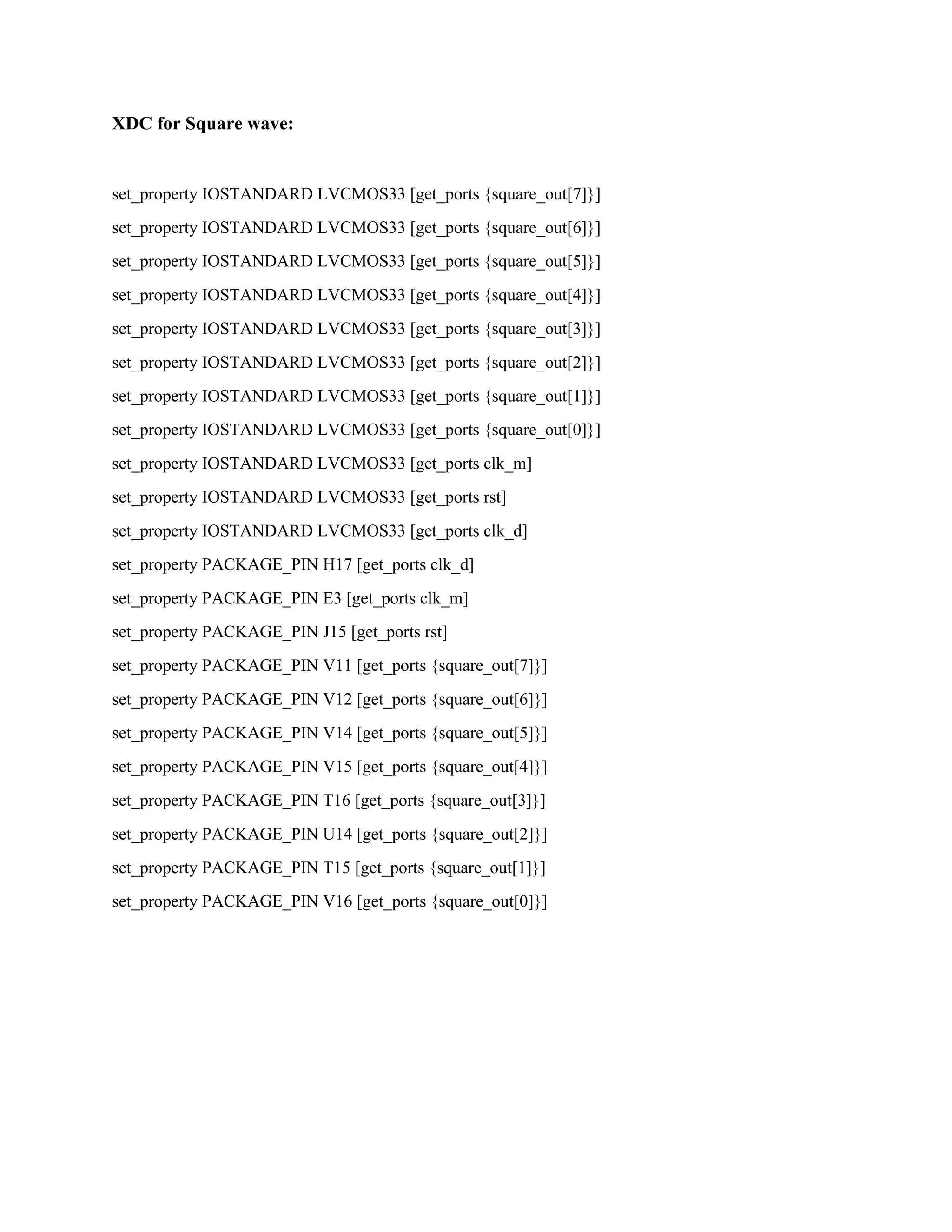

5. XDC for Square wave:
set_property IOSTANDARD LVCMOS33 [get_ports {square_out[7]}]
set_property IOSTANDARD LVCMOS33 [get_ports {square_out[6]}]
set_property IOSTANDARD LVCMOS33 [get_ports {square_out[5]}]
set_property IOSTANDARD LVCMOS33 [get_ports {square_out[4]}]
set_property IOSTANDARD LVCMOS33 [get_ports {square_out[3]}]
set_property IOSTANDARD LVCMOS33 [get_ports {square_out[2]}]
set_property IOSTANDARD LVCMOS33 [get_ports {square_out[1]}]
set_property IOSTANDARD LVCMOS33 [get_ports {square_out[0]}]
set_property IOSTANDARD LVCMOS33 [get_ports clk_m]
set_property IOSTANDARD LVCMOS33 [get_ports rst]
set_property IOSTANDARD LVCMOS33 [get_ports clk_d]
set_property PACKAGE_PIN H17 [get_ports clk_d]
set_property PACKAGE_PIN E3 [get_ports clk_m]
set_property PACKAGE_PIN J15 [get_ports rst]
set_property PACKAGE_PIN V11 [get_ports {square_out[7]}]
set_property PACKAGE_PIN V12 [get_ports {square_out[6]}]
set_property PACKAGE_PIN V14 [get_ports {square_out[5]}]
set_property PACKAGE_PIN V15 [get_ports {square_out[4]}]
set_property PACKAGE_PIN T16 [get_ports {square_out[3]}]
set_property PACKAGE_PIN U14 [get_ports {square_out[2]}]
set_property PACKAGE_PIN T15 [get_ports {square_out[1]}]
set_property PACKAGE_PIN V16 [get_ports {square_out[0]}]
