VHDL Coding Syntax
1. ___________________________________________________________________________VHDL Syntax
1 Prepared by : Mr. A. B. Shinde, P.V.P.I.T., Budhgaon
Dr. V. P. Shetkari Shikshan Mandal’s
Padmabhooshan Vasantraodada Patil Institute of Technology,
Budhgaon-416304

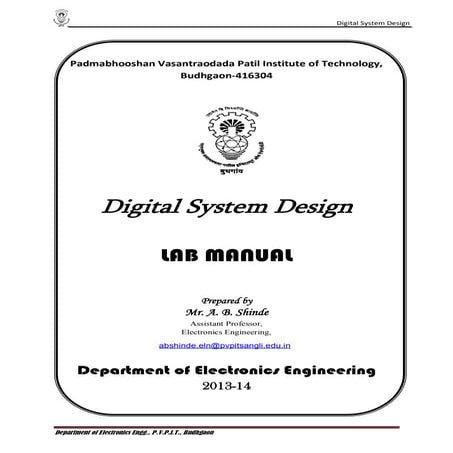

Digital System Design
LAB MANUAL
Prepared by
Mr. A. B. Shinde
Assiatant Profesor,
Electronics Engineering
abshinde.eln@pvpitsangli,edu.in
Department of Electronics Engineering
2013-14
2. ___________________________________________________________________________VHDL Syntax
2 Prepared by : Mr. A. B. Shinde, P.V.P.I.T., Budhgaon
ADDER / SUBTRACTOR
process (<input1>, <input2>)
begin
if <add_sub> = '1' then
<addsub_output> <= <input1> + <input2>;
else
<addsub_output> <= <input1> - <input2>;
end if;
end process;
Adder with carry in
<output> <= <input1> + <input2> + <one_bit_carry_in>;
Adder with carry out
<temp_value> <= <input1> + <input2>;
<output_sum> <= <temp_value>((<adder_width>-1) downto 0);
<carry_out> <= <temp_value>(<adder_width>);
Simple Adder
<output> <= <input1> + <input2>;
3. ___________________________________________________________________________VHDL Syntax
3 Prepared by : Mr. A. B. Shinde, P.V.P.I.T., Budhgaon
COMPARATOR
Equal
process(<clock>,<reset>)
begin
if (<reset> = '1') then
<output> <= '0';
elsif (<clock>'event and <clock> ='1') then
if ( <input1> = <input2> ) then
<output> <= '1';
else
<output> <= '0';
end if;
end if;
end process;
Greater than
process(<clock>,<reset>)
begin
if (<reset> = '1') then
<output> <= '0';
elsif (<clock>'event and <clock> ='1') then
if ( <input1> > <input2> ) then
<output> <= '1';
else
<output> <= '0';
end if;
end if;
end process;
Greater than or equal
process(<clock>,<reset>)
begin
if (<reset> = '1') then
<output> <= '0';
elsif (<clock>'event and <clock> ='1') then
if ( <input1> >= <input2> ) then
<output> <= '1';
else
<output> <= '0';
end if;
end if;
end process;
4. ___________________________________________________________________________VHDL Syntax
4 Prepared by : Mr. A. B. Shinde, P.V.P.I.T., Budhgaon
Less than
process(<clock>,<reset>)
begin
if (<reset> = '1') then
<output> <= '0';
elsif (<clock>'event and <clock> ='1') then
if ( <input1> < <input2> ) then
<output> <= '1';
else
<output> <= '0';
end if;
end if;
end process;
Less than or equal
process(<clock>,<reset>)
begin
if (<reset> = '1') then
<output> <= '0';
elsif (<clock>'event and <clock> ='1') then
if ( <input1> <= <input2> ) then
<output> <= '1';
else
<output> <= '0';
end if;
end if;
end process;
Not equal
process(<clock>,<reset>)
begin
if (<reset> = '1') then
<output> <= '0';
elsif (<clock>'event and <clock> ='1') then
if ( <input1> /= <input2> ) then
<output> <= '1';
else
<output> <= '0';
end if;
end if;
end process;
5. ___________________________________________________________________________VHDL Syntax
5 Prepared by : Mr. A. B. Shinde, P.V.P.I.T., Budhgaon
Synchronous Multiplier
process (<clock>)
begin
if <clock>='1' and <clock>'event then
<output> <= <input1> * <input2>;
end if;
end process;
Asynchronous Multiplier
<output> <= <input1> * <input2>;
Subtractor
<output> <= <input1> - <input2>;
Logic gates
AND
<output> <= <input1> and <input2> and <input3>;
INVETER
<output> <= not <input1>;
NAND
<output> <= not (<input1> and <input2> and <input3>);
OR
<output> <= <input1> or <input2> or <input3>;
NOR
<output> <= not (<input1> or <input2> or <input3>);
XNOR
<output> <= not(<input1> xor <input2> xor <input3>);
XOR
<output> <= <input1> xor <input2> xor <input3>;
6. ___________________________________________________________________________VHDL Syntax
6 Prepared by : Mr. A. B. Shinde, P.V.P.I.T., Budhgaon
Counters
Binary Down Counter
process (<clock>)
begin
if <clock>='1' and <clock>'event then
if <clock_enable>='1' then
<count> <= <count> - 1;
end if;
end if;
end process;
CE, Asynchronous active high Reset
process (<clock>, <reset>)
begin
if <reset>='1' then
<count> <= (others => '0');
elsif <clock>='1' and <clock>'event then
if <clock_enable>='1' then
<count> <= <count> - 1;
end if;
end if;
end process;
CE Asynchronous active low Reset
process (<clock>, <reset>)
begin
if <reset>='0' then
<count> <= (others => '0');
elsif <clock>='1' and <clock>'event then
if <clock_enable>='1' then
<count> <= <count> - 1;
end if;
end if;
end process;
7. ___________________________________________________________________________VHDL Syntax
7 Prepared by : Mr. A. B. Shinde, P.V.P.I.T., Budhgaon
process (<clock>, <reset>)
begin
if <reset>='1' then
<count> <= (others => '0');
elsif <clock>='1' and <clock>'event then
if <clock_enable>='1' then
if <load_enable>='1' then
<count> <= <input>;
else
<count> <= <count> - 1;
end if;
end if;
end if;
end process;
process (<clock>, <reset>)
begin
if <reset>='0' then
<count> <= (others => '0');
elsif <clock>='1' and <clock>'event then
if <clock_enable>='1' then
if <load_enable>='1' then
<count> <= <input>;
else
<count> <= <count> - 1;
end if;
end if;
end if;
end process;
Simple Counter
process (<clock>)
begin
if <clock>='1' and <clock>'event then
<count> <= <count> - 1;
end if;
end process;
8. ___________________________________________________________________________VHDL Syntax
8 Prepared by : Mr. A. B. Shinde, P.V.P.I.T., Budhgaon
Up Counters
process (<clock>)
begin
if <clock>='1' and <clock>'event then
if <clock_enable>='1' then
if <count_direction>='1' then
<count> <= <count> + 1;
else
<count> <= <count> - 1;
end if;
end if;
end if;
end process;
process (<clock>, <reset>)
begin
if <reset>='1' then
<count> <= (others => '0');
elsif <clock>='1' and <clock>'event then
if <clock_enable>='1' then
if <count_direction>='1' then
<count> <= <count> + 1;
else
<count> <= <count> - 1;
end if;
end if;
end if;
end process;
process (<clock>, <reset>)
begin
if <reset>='0' then
<count> <= (others => '0');
elsif <clock>='1' and <clock>'event then
if <clock_enable>='1' then
if <count_direction>='1' then
<count> <= <count> + 1;
else
<count> <= <count> - 1;
end if;
end if;
9. ___________________________________________________________________________VHDL Syntax
9 Prepared by : Mr. A. B. Shinde, P.V.P.I.T., Budhgaon
end if;
end process;
process (<clock>, <reset>)
begin
if <reset>='1' then
<count> <= (others => '0');
elsif <clock>='1' and <clock>'event then
if <clock_enable>='1' then
if <load_enable>='1' then
<count> <= <input>;
else
if <count_direction>='1' then
<count> <= <count> + 1;
else
<count> <= <count> - 1;
end if;
end if;
end if;
end if;
end process;
process (<clock>, <reset>)
begin
if <reset>='0' then
<count> <= (others => '0');
elsif <clock>='1' and <clock>'event then
if <clock_enable>='1' then
if <load_enable>='1' then
<count> <= <input>;
else
if <count_direction>='1' then
<count> <= <count> + 1;
else
<count> <= <count> - 1;
end if;
end if;
end if;
end if;
end process;
10. ___________________________________________________________________________VHDL Syntax
10 Prepared by : Mr. A. B. Shinde, P.V.P.I.T., Budhgaon
process (<clock>)
begin
if <clock>='1' and <clock>'event then
if <count_direction>='1' then
<count> <= <count> + 1;
else
<count> <= <count> - 1;
end if;
end if;
end process;
Gray Code Converter
<next_binary_count> <= <binary_count> + 1;
process(<clock>,<reset>)
begin
if ( <reset> = '1') then
<binary_count> <= (others => '0');
<gray_count> <= (others =>'0');
elsif ( <clock>'event and <clock> ='1') then
if <clock_enable>='1' then
<binary_count> <= <next_binary_count>;
<gray_count> <= (('0' & next_binary_count(<width-1> downto 1))
XOR <next_binary_count>);
end if;
end if;
end process;
11. ___________________________________________________________________________VHDL Syntax
11 Prepared by : Mr. A. B. Shinde, P.V.P.I.T., Budhgaon
LFSR
16 bit
process(<clock>,<reset>)
begin
if ( <reset> = '1') then
<reg_name> <= (others => '0');
elsif ( <clock>'event and <clock> ='1') then
if <clock_enable>='1' then
<reg_name>(15 downto 1) <= <reg_name>(14 downto 0) ;
<reg_name>(0) <= not(<reg_name>(15) XOR <reg_name>(14) XOR
<reg_name>(13) XOR <reg_name>(4));
end if;
end if;
end process;
32 bit
process(<clock>,<reset>)
begin
if ( <reset> = '1') then
<reg_name> <= (others => '0');
elsif ( <clock>'event and <clock> ='1') then
if <clock_enable>='1' then
<reg_name>(31 downto 1) <= <reg_name>(30 downto 0) ;
<reg_name>(0) <= not(<reg_name>(31) XOR <reg_name>(22) XOR
<reg_name>(2) XOR <reg_name>(1));
end if;
end if;
end process;
4 bit
process(<clock>,<reset>)
begin
if ( <reset> = '1') then
<reg_name> <= (others => '0');
elsif ( <clock>'event and <clock> ='1') then
if <clock_enable>='1' then
<reg_name>(3 downto 1) <= <reg_name>(2 downto 0) ;
<reg_name>(0) <= not(<reg_name>(4) XOR <reg_name>(3));
end if;
end if;
end process;
12. ___________________________________________________________________________VHDL Syntax
12 Prepared by : Mr. A. B. Shinde, P.V.P.I.T., Budhgaon
8 bit
process(<clock>,<reset>)
begin
if ( <reset> = '1') then
<reg_name> <= (others => '0');
elsif ( <clock>'event and <clock> ='1') then
if <clock_enable>='1' then
<reg_name>(7 downto 1) <= <reg_name>(6 downto 0) ;
<reg_name>(0) <= not(<reg_name>(7) XOR <reg_name>(6) XOR
<reg_name>(4));
end if;
end if;
end process;
Decoders
2:4
process(<clock>,<reset>,<input>)
begin
if ( <reset> = '1') then
<output> <= "0000";
elsif ( <clock>'event and <clock> ='1') then
case <input> is
when "00" => <output> <= "0001";
when "01" => <output> <= "0010";
when "10" => <output> <= "0100";
when "11" => <output> <= "1000";
when others => "0000";
end case;
end if;
end process;
13. ___________________________________________________________________________VHDL Syntax
13 Prepared by : Mr. A. B. Shinde, P.V.P.I.T., Budhgaon
3:8
process(<clock>,<reset>,<input>)
begin
if ( <reset> = '1') then
<output> <= "00000000";
elsif ( <clock>'event and <clock> ='1') then
case <input> is
when "000" => <output> <= "00000001";
when "001" => <output> <= "00000010";
when "010" => <output> <= "00000100";
when "011" => <output> <= "00001000";
when "100" => <output> <= "00010000";
when "101" => <output> <= "00100000";
when "110" => <output> <= "01000000";
when "111" => <output> <= "10000000";
when others => "00000000";
end case;
end if;
end process;
Encoders
2:4
process(<clock>,<reset>,<input>)
begin
if ( <reset> = '1') then
<output> <= "00";
elsif ( <clock>'event and <clock> ='1') then
case <input> is
when "0001" => <output> <= "00";
when "0010" => <output> <= "01";
when "0100" => <output> <= "10";
when "1000" => <output> <= "11";
when others => "00";
end case;
end if;
end process;
14. ___________________________________________________________________________VHDL Syntax
14 Prepared by : Mr. A. B. Shinde, P.V.P.I.T., Budhgaon
8:3
process(<clock>,<reset>,<input>)
begin
if ( <reset> = '1') then
<output> <= "000";
elsif ( <clock>'event and <clock> ='1') then
case <input> is
when "00000001" => <output> <= "000";
when "00000010" => <output> <= "001";
when "00000100" => <output> <= "010";
when "00001000" => <output> <= "011";
when "00010000" => <output> <= "100";
when "00100000" => <output> <= "101";
when "01000000" => <output> <= "110";
when "10000000" => <output> <= "111";
when others => "000";
end case;
end if;
end process;
D-FF
process (<clock>)
begin
if <clock>'event and <clock>='0' then
<output> <= <input>;
end if;
end process;
process (<clock>, <reset>)
begin
if <reset>='1' then
<output> <= '0';
elsif (<clock>'event and <clock>='0') then
<output> <= <input>;
end if;
end process;
15. ___________________________________________________________________________VHDL Syntax
15 Prepared by : Mr. A. B. Shinde, P.V.P.I.T., Budhgaon
process (<clock>, <reset>)
begin
if <reset>='1' then
<output> <= '0';
elsif (<clock>'event and <clock>='0') then
if <clock_enable> = '1' then
<output> <= <input>;
end if;
end if;
end process;
process (<clock>, <reset>)
begin
if <reset>='0' then
<output> <= '0';
elsif (<clock>'event and <clock>='0') then
<output> <= <input>;
end if;
end process;
process (<clock>, <reset>)
begin
if <reset>='0' then
<output> <= '0';
elsif (<clock>'event and <clock>='0') then
if <clock_enable> = '1' then
<output> <= <input>;
end if;
end if;
end process;
process (<clock>)
begin
if <clock>'event and <clock>='0' then
if <reset>='1' then
<output> <= '0';
else
<output> <= <input>;
end if;
end if;
end process;
16. ___________________________________________________________________________VHDL Syntax
16 Prepared by : Mr. A. B. Shinde, P.V.P.I.T., Budhgaon
process (<clock>)
begin
if <clock>'event and <clock>='0' then
if <reset>='1' then
<output> <= '0';
elsif <clock_enable> ='1' then
<output> <= <input>;
end if;
end if;
end process;
process (<clock>)
begin
if <clock>'event and <clock>='0' then
if <reset>='0' then
<output> <= '0';
else
<output> <= <input>;
end if;
end if;
end process;
process (<clock>)
begin
if <clock>'event and <clock>='0' then
if <reset>='0' then
<output> <= '0';
elsif <clock_enable> ='1' then
<output> <= <input>;
end if;
end if;
end process;
T-FF
process (<clock>)
begin
if <clock>'event and <clock>='1' then
<output> <= not(<output>);
end if;
end process;
17. ___________________________________________________________________________VHDL Syntax
17 Prepared by : Mr. A. B. Shinde, P.V.P.I.T., Budhgaon
process (<clock>, <reset>)
begin
if <reset>='1' then
<output> <= '0';
elsif (<clock>'event and <clock>='1') then
<output> <= not(<output>);
end if;
end process;
process (<clock>, <reset>)
begin
if <reset>='1' then
<output> <= '0';
elsif (<clock>'event and <clock>='1') then
if <clock_enable> = '1' then
<output> <= not(<output>);
end if;
end if;
end process;
process (<clock>, <reset>)
begin
if <reset>='0' then
<output> <= '0';
elsif (<clock>'event and <clock>='1') then
<output> <= not(<output>);
end if;
end process;
process (<clock>, <reset>)
begin
if <reset>='0' then
<output> <= '0';
elsif (<clock>'event and <clock>='1') then
if <clock_enable> = '1' then
<output> <= not(<output>);
end if;
end if;
end process;
18. ___________________________________________________________________________VHDL Syntax
18 Prepared by : Mr. A. B. Shinde, P.V.P.I.T., Budhgaon
process (<clock>)
begin
if <clock>'event and <clock>='1' then
if <reset>='1' then
<output> <= '0';
else
<output> <= not(<output>);
end if;
end if;
end process;
process (<clock>)
begin
if <clock>'event and <clock>='1' then
if <reset>='1' then
<output> <= '0';
elsif <clock_enable> ='1' then
<output> <= not(<output>);
end if;
end if;
end process;
process (<clock>)
begin
if <clock>'event and <clock>='1' then
if <reset>='0' then
<output> <= '0';
else
<output> <= not(<output>);
end if;
end if;
end process;
process (<clock>)
begin
if <clock>'event and <clock>='1' then
if <reset>='0' then
<output> <= '0';
elsif <clock_enable> ='1' then
<output> <= not(<output>);
end if;
19. ___________________________________________________________________________VHDL Syntax
19 Prepared by : Mr. A. B. Shinde, P.V.P.I.T., Budhgaon
end if;
end process;
Logical Shifters
2bit
--use IEEE.numeric_std.all;
process(<clock>,<reset>,<input>)
begin
if ( <reset> = '1') then
<output> <= (others => '0');
elsif ( <clock>'event and <clock> ='1') then
case <selector> is
when "00" => <output> <= <input> ;
when "01" => <output> <= <input> sll 1;
when "10" => <output> <= <input> sll 2;
when "11" => <output> <= <input> sll 3;
when others => <output> <= <input> ;
end case;
end if;
end process;
3 bit
--use IEEE.numeric_std.all;
process(<clock>,<reset>,<input>)
begin
if ( <reset> = '1') then
<output> <= (others => '0');
elsif ( <clock>'event and <clock> ='1') then
case <selector> is
when "000" => <output> <= <input> ;
when "001" => <output> <= <input> sll 1;
when "010" => <output> <= <input> sll 2;
when "011" => <output> <= <input> sll 3;
when "100" => <output> <= <input> sll 4;
when "101" => <output> <= <input> sll 5;
when "110" => <output> <= <input> sll 6;
when "111" => <output> <= <input> sll 7;
when others => <output> <= <input> ;
end case;
end if;
end process;
20. ___________________________________________________________________________VHDL Syntax
20 Prepared by : Mr. A. B. Shinde, P.V.P.I.T., Budhgaon
4 bit
--use IEEE.numeric_std.all;
process(<clock>,<reset>,<input>)
begin
if ( <reset> = '1') then
<output> <= (others => '0');
elsif ( <clock>'event and <clock> ='1') then
case <selector> is
when "0000" => <output> <= <input> ;
when "0001" => <output> <= <input> sll 1;
when "0010" => <output> <= <input> sll 2;
when "0011" => <output> <= <input> sll 3;
when "0100" => <output> <= <input> sll 4;
when "0101" => <output> <= <input> sll 5;
when "0110" => <output> <= <input> sll 6;
when "0111" => <output> <= <input> sll 7;
when "1000" => <output> <= <input> sll 8;
when "1001" => <output> <= <input> sll 9;
when "1010" => <output> <= <input> sll 10;
when "1011" => <output> <= <input> sll 11;
when "1100" => <output> <= <input> sll 12;
when "1101" => <output> <= <input> sll 13;
when "1110" => <output> <= <input> sll 14;
when "1111" => <output> <= <input> sll 15;
when others => <output> <= <input> ;
end case;
end if;
end process;
HEX to SEVEN SEGMENT CONVERSION
-- HEX: in STD_LOGIC_VECTOR (3 downto 0);
-- LED: out STD_LOGIC_VECTOR (6 downto 0);
-- segment encoinputg
-- 0
-- 5 | | 1
-- --- <- 6
-- 4 | | 2
-- 3
21. ___________________________________________________________________________VHDL Syntax
21 Prepared by : Mr. A. B. Shinde, P.V.P.I.T., Budhgaon
with HEX SELect
LED<= "1111001" when "0001", --1
"0100100" when "0010", --2
"0110000" when "0011", --3
"0011001" when "0100", --4
"0010010" when "0101", --5
"0000010" when "0110", --6
"1111000" when "0111", --7
"0000000" when "1000", --8
"0010000" when "1001", --9
"0001000" when "1010", --A
"0000011" when "1011", --b
"1000110" when "1100", --C
"0100001" when "1101", --d
"0000110" when "1110", --E
"0001110" when "1111", --F
"1000000" when others; --0
Barrel Shifter
-- 16-bit right shift barrel shifter
-- SEL: in STD_LOGIC_VECTOR(3 downto 0);
-- B_INPUT: in STD_LOGIC_VECTOR(15 downto 0);
-- B_OUTPUT: out STD_LOGIC_VECTOR(15 downto 0);
--**Insert the following between the 'architecture' and
---'begin' keywords**
signal SEL_A, SEL_B: STD_LOGIC_VECTOR(1 downto 0);
signal C: STD_LOGIC_VECTOR(15 downto 0);
--**Insert the following after the 'begin' keyword**
SEL_A <= SEL(1 downto 0);
SEL_B <= SEL(3 downto 2);
process(SEL_A,B_INPUT)
begin
case SEL_A is
when "00" => --shift by 0
C <= B_INPUT;
when "01" => --shift by 1
C(15) <= B_INPUT(0);
22. ___________________________________________________________________________VHDL Syntax
22 Prepared by : Mr. A. B. Shinde, P.V.P.I.T., Budhgaon
C(14 downto 0) <= B_INPUT(15 downto 1);
when "10" => --shift by 2
C(15 downto 14) <= B_INPUT(1 downto 0);
C(13 downto 0) <= B_INPUT(15 downto 2);
when "11" => --shift by 3
C(15 downto 13) <= B_INPUT(2 downto 0);
C(12 downto 0) <= B_INPUT(15 downto 3);
when others =>
C <= B_INPUT;
end case;
end process;
process(SEL_B,C)
begin
case SEL_B is
when "00" => --shift by 0 more
B_OUTPUT <= C;
when "01" => --shift by 4 more
B_OUTPUT(15 downto 12) <= C(3 downto 0);
B_OUTPUT(11 downto 0) <= C(15 downto 4);
when "10" => --shift by 8 more
B_OUTPUT(15 downto 8) <= C(7 downto 0);
B_OUTPUT(7 downto 0) <= C(15 downto 8);
when "11" => --shift by 12 more
B_OUTPUT(15 downto 4) <= C(11 downto 0);
B_OUTPUT(3 downto 0) <= C(15 downto 12);
when others =>
B_OUTPUT <= C;
end case;
end process;
Debounce Circuit
-- Provides a one-shot pulse from a non-clock input, with reset
-- D_IN: in STD_LOGIC;
-- RESET: in STD_LOGIC;
-- clock: in STD_LOGIC;
-- Q_OUT: out STD_LOGIC);
--**Insert the following between the 'architecture' and
---'begin' keywords**
signal Q1, Q2, Q3 : std_logic;
23. ___________________________________________________________________________VHDL Syntax
23 Prepared by : Mr. A. B. Shinde, P.V.P.I.T., Budhgaon
--**Insert the following after the 'begin' keyword**
process(clock, RESET)
begin
if (RESET = '1') then
Q1 <= '0';
Q2 <= '0';
Q3 <= '0';
elsif (<clock>'event and <clock> = '1') then
Q1 <= D_IN;
Q2 <= Q1;
Q3 <= Q2;
end if;
end process;
Q_OUT <= Q1 and Q2 and (not Q3);
Multiplexers
2:1
<output> <= <input1> WHEN <selector> ='1' ELSE
<input2>;
4:1
process (<selector>,<input1>,<input2>,<input3>,<input4>)
begin
case <selector> is
when "00" => <output> <= <input1>;
when "01" => <output> <= <input2>;
when "10" => <output> <= <input3>;
when "11" => <output> <= <input4>;
when others => <output> <= <input1>;
end case;
end process;
24. ___________________________________________________________________________VHDL Syntax
24 Prepared by : Mr. A. B. Shinde, P.V.P.I.T., Budhgaon
8:1
process(<selector>,<input1>,<input2>,<input3>,<input4>,<input5>,<input6>,<input7>,
<in put8>)
begin
case <selector> is
when "000" => <output> <= <input1>;
when "001" => <output> <= <input2>;
when "010" => <output> <= <input3>;
when "011" => <output> <= <input4>;
when "100" => <output> <= <input5>;
when "101" => <output> <= <input6>;
when "110" => <output> <= <input7>;
when "111" => <output> <= <input8>;
when others => <output> <= <input1>;
end case;
end process;
BLOCK RAM
Dual port
1 clock
process (<clock>)
begin
if (<clock>'event and <clock> = '1') then
if (<enableA> = '1') then
if (<write_enableA> = '1') then
<ram_name>(conv_integer(<addressA>)) <= <input_dataA>;
end if;
<ram_outputA> <= <ram_name>(conv_integer(<addressA>));
<ram_outputB> <= <ram_name>(conv_integer(<addressB>));
end if;
end if;
end process;
25. ___________________________________________________________________________VHDL Syntax
25 Prepared by : Mr. A. B. Shinde, P.V.P.I.T., Budhgaon
1 clock
process (<clock>)
begin
if (<clock>'event and <clock> = '1') then
if (<write_enable> = '1') then
<ram_name>(conv_integer(<write_address>)) <= <input_data>;
<ram_output> <= <ram_name>(conv_integer(<read_address>));
end if;
end if;
end process;
2 clocks
process (<clockA>)
begin
if (<clockA>'event and <clockA> = '1') then
if (<enableA> = '1') then
if (<write_enableA> = '1') then
<ram_name>(conv_integer(<addressA>)) <= <input_dataA>;
<ram_outputA> <= <ram_name>(conv_integer(<addressA>));
end if;
end if;
end if;
end process;
process (<clockB>)
begin
if (<clockB>'event and <clockB> = '1') then
if (<enableB> = '1') then
<ram_outputB> <= <ram_name>(conv_integer(<addressB>));
end if;
end if;
end process;
26. ___________________________________________________________________________VHDL Syntax
26 Prepared by : Mr. A. B. Shinde, P.V.P.I.T., Budhgaon
Single Port RAM
process (<clock>)
begin
if (<clock>'event and <clock> = '1') then
if (<ram_enable> = '1') then"
if (<write_enable> = '1') then
<ram_name>(conv_integer(<address>)) <= <input_data>;
else
<ram_output> <= <ram_name>(conv_integer(<address>));
end if;
end if;
end if;
end process;
Read first
process (<clock>)
begin
if (<clock>'event and <clock> = '1') then
if (<ram_enable> = '1') then"
if (<write_enable> = '1') then
<ram_name>(conv_integer(<address>)) <= <input_data>;
<ram_output> <= <ram_name>(conv_integer(<address>));
end if;
end if;
end if;
end process;
write first
process (<clock>)
begin
if (<clock>'event and <clock> = '1') then
if (<ram_enable> = '1') then"
if (<write_enable> = '1') then
<ram_name>(conv_integer(<address>)) <= <input_data>;
<ram_output> <= <input_data>;
else
<ram_output> <= <ram_name>(conv_integer(<address>));
end if;
end if;
end if;
end process;
27. ___________________________________________________________________________VHDL Syntax
27 Prepared by : Mr. A. B. Shinde, P.V.P.I.T., Budhgaon
DITRIBUTED RAM
Dual port, Asynch read
process (<clock>)
begin
if (<clock>'event and <clock> = '1') then
if (<write_enable> = '1') then
<ram_name>(conv_integer(<write_address>)) <= <input_data>;
end if;
end if;
end process;
<ram_output> <= <ram_name>(conv_integer(<read_address>));
Single port, Asynch read
process (<clock>)
begin
if (<clock>'event and <clock> = '1') then
if (<write_enable> = '1') then
<ram_name>(conv_integer(<address>)) <= <input_data>;
end if;
end if;
end process;
<ram_output> <= <ram_name>(conv_integer(<address>));
SHIFT REGISTERS
Dynamic
process (<clock>,<reset>)
begin
if <clock>'event and <clock>='1' then
if <clock_enable> = '1' then
<reg_name> <= reg_name((<width>-2) downto 0) & <input>;
end if;
end if;
end process;
<output> <= <reg_name>(<index>);
28. ___________________________________________________________________________VHDL Syntax
28 Prepared by : Mr. A. B. Shinde, P.V.P.I.T., Budhgaon
PIPO
process (<clock>,<reset>)
begin
if <reset> ='1' then
<reg_name> <= (others => '0');
elsif <load_enable> = '1' then
<reg_name> <= <input>;
elsif <clock>'event and <clock>='1' then
if <clock_enable> = '1' then
<reg_name> <= reg_name((<width>-2) downto 0) & '0';
end if;
end if;
<output> <= <reg_name>;
end process;
PISO
process (<clock>,<reset>)
begin
if <reset> ='1' then
<reg_name> <= (others => '0');
elsif <load_enable> = '1' then
<reg_name> <= <input>;
elsif <clock>'event and <clock>='1' then
if <clock_enable> = '1' then
<reg_name> <= reg_name((<width>-2) downto 0) & '0';
end if;
end if;
<output> <= <reg_name>(<width> - 1);
end process;
SIPO
process (<clock>,<reset>)
begin
if <reset> ='1' then
<reg_name> <= (others => '0');
elsif <clock>'event and <clock>='1' then
if <clock_enable> = '1' then
<reg_name> <= reg_name((<width>-2) downto 0) & <input>;
end if;
end if;
<output> <= <reg_name>;
end process;
29. ___________________________________________________________________________VHDL Syntax
29 Prepared by : Mr. A. B. Shinde, P.V.P.I.T., Budhgaon
SISO
process (<clock>,<reset>)
begin
if <reset> ='1' then
<reg_name> <= (others => '0');
elsif <clock>'event and <clock>='1' then
if <clock_enable> = '1' then
<reg_name> <= reg_name((<width>-2) downto 0) & <input>;
end if;
end if;
<output> <= <reg_name>(<width> - 1);
end process;
CASE STATEMENT
case (<2-bit select>) is
when "000" =>
<statement>;
when "001" =>
<statement>;
when "010" =>
<statement>;
when others =>
<statement>;
end case;
IF-ELSIF-ELSE
if <condition> then
<statement>
elsif <condition> then
<statement>
else
<statement>
end if;
WITH _____ SELECT
with <choice_expression> select
<name> <= <expression> when <choices>,
<expression> when <choices>,
<expression> when others;
30. ___________________________________________________________________________VHDL Syntax
30 Prepared by : Mr. A. B. Shinde, P.V.P.I.T., Budhgaon
WHEN _ELSE
<name> <= <expression> when <condition> else
<expression> when <condition> else
<expression>;
Generate
Conditional
<LABEL_1>:
if <condition> generate
begin
<statement>;
end generate;
Multiple
<LABEL_1>:
for <name> in <lower_limit> to <upper_limit> generate
begin
<statement>;
<statement>;
end generate;
LOOP
For Loop
for <name> in <lower_limit> to <upper_limit> loop
<statement>;
<statement>;
end loop;
While Loop
while <condition> loop
<statement>;
<statement>;
end loop;
Process
Combinatorial
process (<all_input_signals_seperated_by_commas>)
begin
<statements>;
end process;
31. ___________________________________________________________________________VHDL Syntax
31 Prepared by : Mr. A. B. Shinde, P.V.P.I.T., Budhgaon
process (<clock>,<async_reset>)
begin
if <async_reset> = '1' then
<statements>;
elsif (<clock>'event and <clock> = '1') then
if <sync_reset> = '1' then
<statements>;
else
<statements>;
end if;
end if;
end process;
process (<clock>,<async_reset>)
begin
if <async_reset> = '0' then
<statements>;
elsif (<clock>'event and <clock> = '1') then
if <sync_reset> = '0' then
<statements>;
else
<statements>;
end if;
end if;
end process;
process (<clock>,<reset>)
begin
if <reset> = '1' then
<statements>;
elsif (<clock>'event and <clock> = '1') then
<statements>;
end if;
end process;
32. ___________________________________________________________________________VHDL Syntax
32 Prepared by : Mr. A. B. Shinde, P.V.P.I.T., Budhgaon
process (<clock>,<reset>)
begin
if <reset> = '1' then
<statements>;
elsif (<clock>'event and <clock> = '1') then
if <clock_enable> = '1' then
<statements>;
end if;
end if;
end process;
process (<clock>,<reset>)
begin
if <reset> = '0' then
<statements>;
elsif (<clock>'event and <clock> = '1') then
<statements>;
end if;
end process;
process (<clock>,<reset>)
begin
if <reset> = '0' then
<statements>;
elsif (<clock>'event and <clock> = '1') then
if <clock_enable> = '1' then
<statements>;
end if;
end if;
end process;
process (<clock>)
begin
if (<clock>'event and <clock> = '1'>) then
if <reset> = '1' then
<statements>;
else
<statements>;
end if;
end if;
end process;
33. ___________________________________________________________________________VHDL Syntax
33 Prepared by : Mr. A. B. Shinde, P.V.P.I.T., Budhgaon
process (<clock>)
begin
if (<clock>'event and <clock> = '1'>) then
if <reset> = '0' then
<statements>;
else
<statements>;
end if;
end if;
end process;
Constant Declaration
constant <name>: <type> := <value>;
Signal Dec
signal <name>: <type> := <value>;
Signal Dec Multiple
signal <name>: std_logic:= '0';
signal <name>: std_logic_vector(15 downto 0):= x"0000";
signal <name>: std_logic_vector(1 downto 0):= "00";
signal <name>: std_logic_vector(2 downto 0):= "000";
signal <name>: std_logic_vector(31 downto 0):= x"00000000";
signal <name>: std_logic_vector(3 downto 0):= "0000";
Variable Dec
variable <name>: <type> := <value>;
Variable Dec Multiple
variable <name>: std_logic:= '0';
variable <name>: std_logic_vector(15 downto 0):= x"0000";
variable <name>: std_logic_vector(1 downto 0):= "00";
variable <name>: std_logic_vector(2 downto 0):= "000";
variable <name>: std_logic_vector(31 downto 0):= x"00000000";
variable <name>: std_logic_vector(3 downto 0):= "0000";
34. ___________________________________________________________________________VHDL Syntax
34 Prepared by : Mr. A. B. Shinde, P.V.P.I.T., Budhgaon
Mealy State Machine
-- This is a sample state machine using enumerated types.
-- This will allow the synthesis tool to select the appropriate
-- encoding style and will make the code more readable.
--Insert the following in the architecture before the begin keyword
--Use descriptive names for the states, like st1_reset, st2_search
type state_type is (st1_<name_state>, st2_<name_state>, ...);
signal state, next_state : state_type;
--Declare internal signals for all outputs of the state machine
signal <output>_i : std_logic; -- example output signal
--other outputs
--Insert the following in the architecture after the begin keyword
SYNC_PROC: process (CLOCK, RESET)
begin
if (<reset>='1') then
state <= st1_<name_state>;
<output> <= '0';
-- assign other outputs to reset value
elsif (<clock>'event and <clock> = '1') then
state <= next_state;
<output> <= <output>_i;
-- assign other outputs to internal signals
end if;
end process;
--MEALY State Machine - Outputs based on state and inputs
OUTPUT_DECODE: process (state, <input1>, <input2>, ...)
begin
--insert statements to decode internal output signals
--below is simple example
if (state = st3_<name> and <input1> = '1') then
<output>_i <= '1';
else
<output>_i <= '0';
end if;
end process;
35. ___________________________________________________________________________VHDL Syntax
35 Prepared by : Mr. A. B. Shinde, P.V.P.I.T., Budhgaon
NEXT_STATE_DECODE: process (state, <input1>, <input2>, ...)
begin
--declare default state for next_state to avoid latches
next_state <= state; --default is to stay in current state
--insert statements to decode next_state
--below is a simple example
case (state) is
when st1_<name> =>
if <input_1> = '1' then
next_state <= st2_<name>;
end if;
when st2_<name> =>
if <input_2> = '1' then
next_state <= st3_<name>;
end if;
when st3_<name> =>
next_state <= st1_<name>;
when others =>
next_state <= st1_<name>;
end case;
end process;
Moore State Machine
-- This is a sample state machine using enumerated types.
-- This will allow the synthesis tool to select the appropriate
-- encoding style and will make the code more readable.
--Insert the following in the architecture before the begin keyword
--Use descriptive names for the states, like st1_reset, st2_search
type state_type is (st1_<name_state>, st2_<name_state>, ...);
signal state, next_state : state_type;
--Declare internal signals for all outputs of the state machine
signal <output>_i : std_logic; -- example output signal
--other outputs
--Insert the following in the architecture after the begin keyword
SYNC_PROC: process (CLOCK, RESET)
begin
if (<reset>='1') then
state <= st1_<name_state>;
<output> <= '0';
36. ___________________________________________________________________________VHDL Syntax
36 Prepared by : Mr. A. B. Shinde, P.V.P.I.T., Budhgaon
-- assign other outputs to reset value
elsif (<clock>'event and <clock> = '1') then
state <= next_state;
<output> <= <output>_i;
-- assign other outputs to internal signals
end if;
end process;
--MOORE State Machine - Outputs based on state only
OUTPUT_DECODE: process (state)
begin
--insert statements to decode internal output signals
--below is simple example
if state = st3_<name> then
<output>_i <= '1';
else
<output>_i <= '0';
end if;
end process;
NEXT_STATE_DECODE: process (state, <input1>, <input2>, ...)
begin
--declare default state for next_state to avoid latches
next_state <= state; --default is to stay in current state
--insert statements to decode next_state
--below is a simple example
case (state) is
when st1_<name> =>
if <input_1> = '1' then
next_state <= st2_<name>;
end if;
when st2_<name> =>
if <input_2> = '1' then
next_state <= st3_<name>;
end if;
when st3_<name> =>
next_state <= st1_<name>;
when others =>
next_state <= st1_<name>;
end case;
end process;
