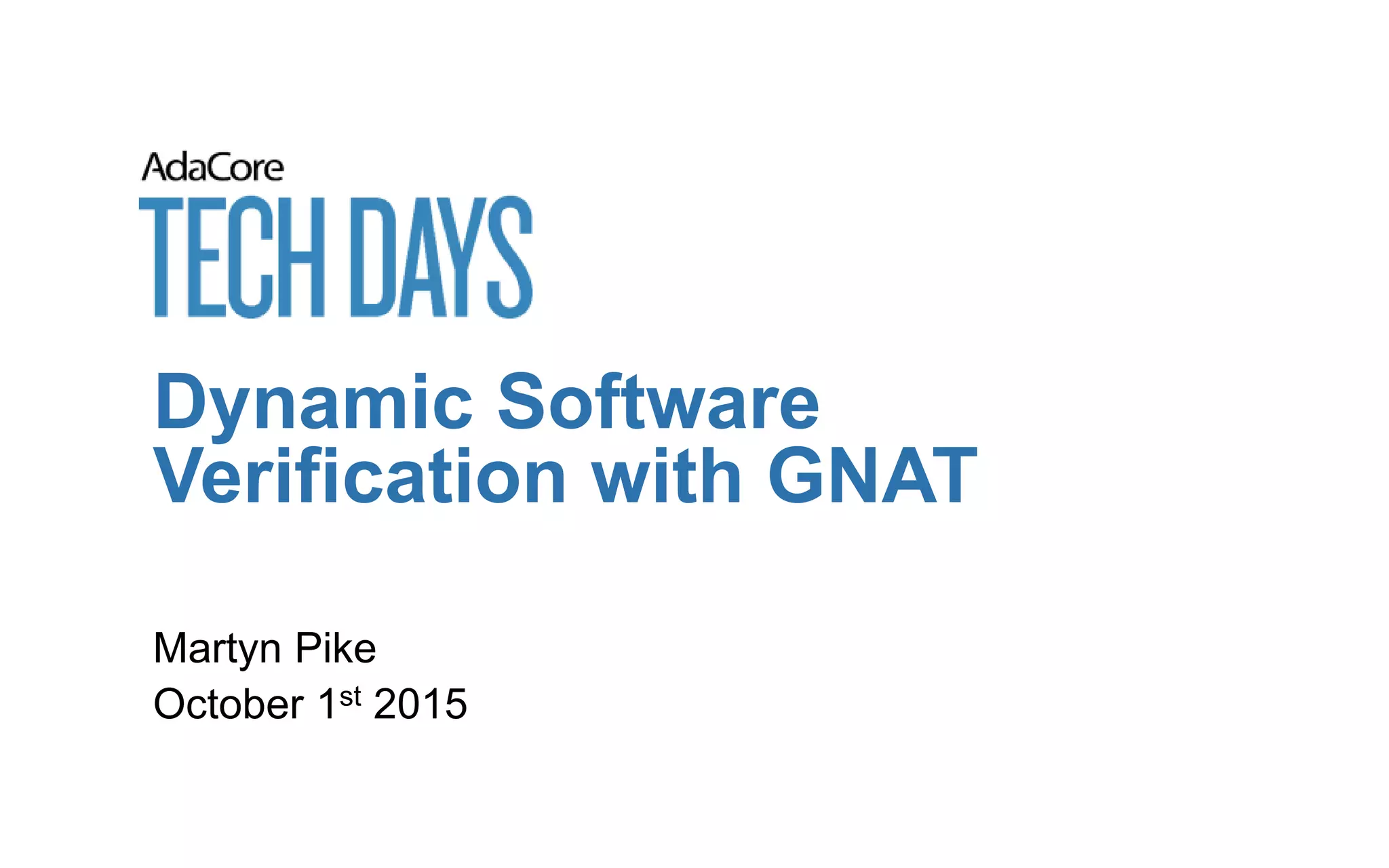

2. Dynamic Software
Verification with GNAT
Martyn Pike
October 1st 2015

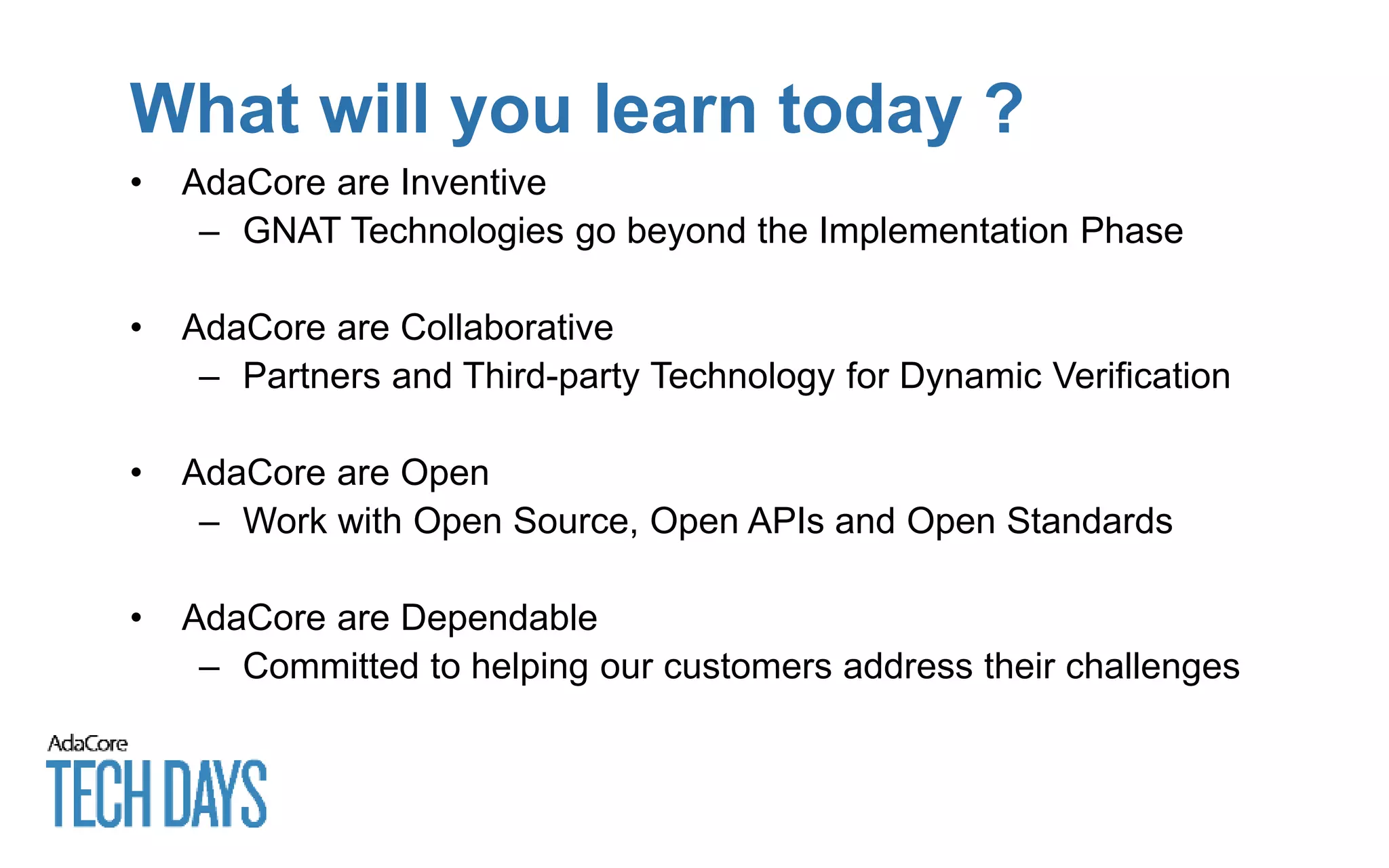

3. What will you learn today ?
• AdaCore are Inventive
– GNAT Technologies go beyond the Implementation Phase
• AdaCore are Collaborative
– Partners and Third-party Technology for Dynamic Verification
• AdaCore are Open
– Work with Open Source, Open APIs and Open Standards
• AdaCore are Dependable
– Committed to helping our customers address their challenges

4. Dynamic Verification Challenges
• Run Cross Compiled Code on Target Hardware
– Solution : Target Architecture Emulation
• Achieve a Planned Level of Code Coverage
– Solution : Coverage Analysis Tool
• Managing the Verification Environment
– Solution : Unit Test Harness Generator
• Monitoring the Verification Process
– Solution : Monitoring Technical Debt

5. GNAT for Dynamic Verification
TARGET EMULATION COVERAGE ANALYSIS
UNIT TEST GENERATION
GNATemulator GNATcoverage
GNATtest MANAGEMENTGNATdashboard

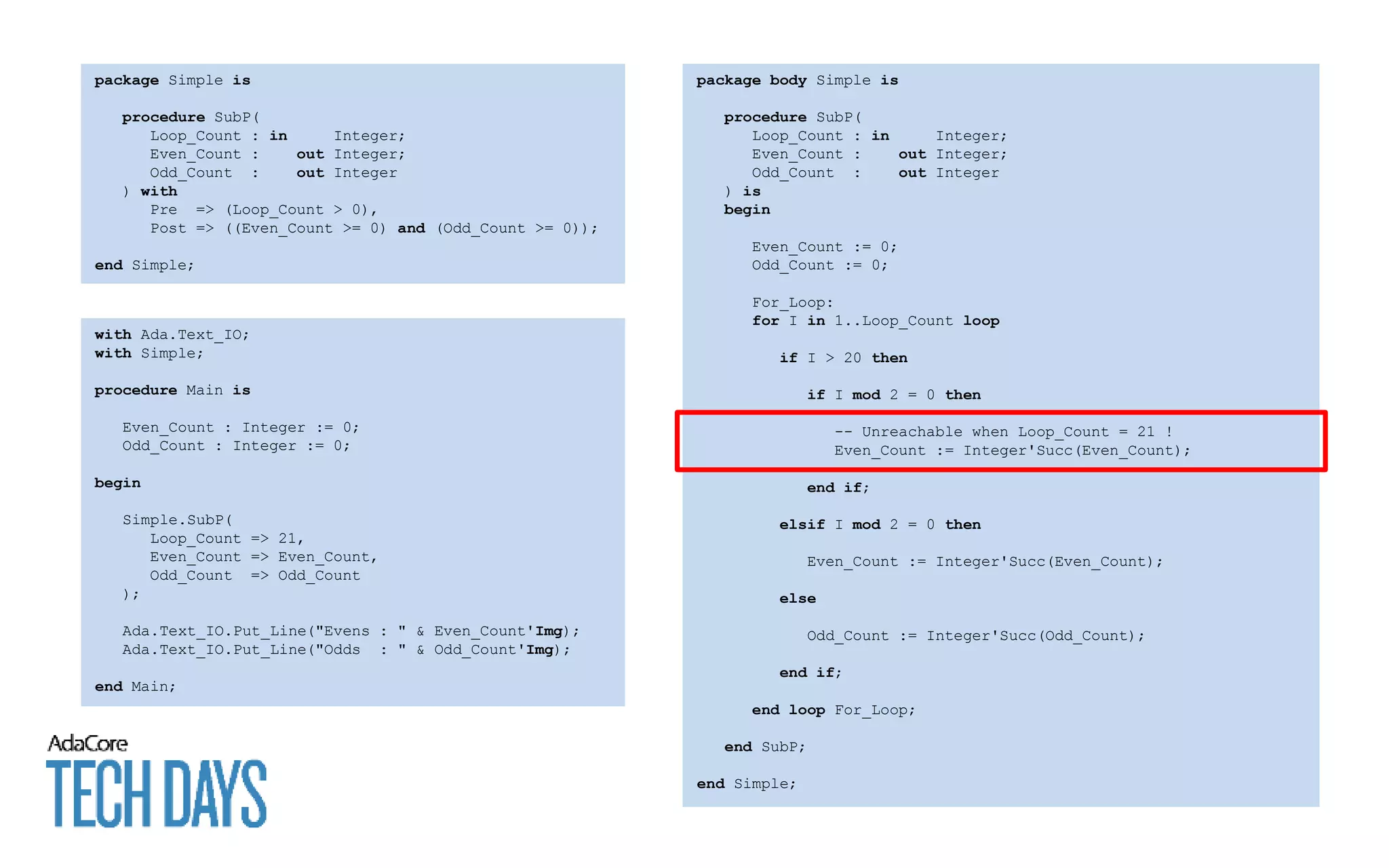

6. with Ada.Text_IO;
with Simple;
procedure Main is
Even_Count : Integer := 0;
Odd_Count : Integer := 0;
begin
Simple.SubP(
Loop_Count => 21,
Even_Count => Even_Count,
Odd_Count => Odd_Count
);
Ada.Text_IO.Put_Line("Evens : " & Even_Count'Img);
Ada.Text_IO.Put_Line("Odds : " & Odd_Count'Img);
end Main;
package Simple is
procedure SubP(
Loop_Count : in Integer;
Even_Count : out Integer;
Odd_Count : out Integer
) with
Pre => (Loop_Count > 0),
Post => ((Even_Count >= 0) and (Odd_Count >= 0));
end Simple;
package body Simple is
procedure SubP(
Loop_Count : in Integer;
Even_Count : out Integer;
Odd_Count : out Integer
) is
begin
Even_Count := 0;
Odd_Count := 0;
For_Loop:
for I in 1..Loop_Count loop
if I > 20 then
if I mod 2 = 0 then
-- Unreachable when Loop_Count = 21 !
Even_Count := Integer'Succ(Even_Count);
end if;
elsif I mod 2 = 0 then
Even_Count := Integer'Succ(Even_Count);
else
Odd_Count := Integer'Succ(Odd_Count);
end if;
end loop For_Loop;
end SubP;
end Simple;

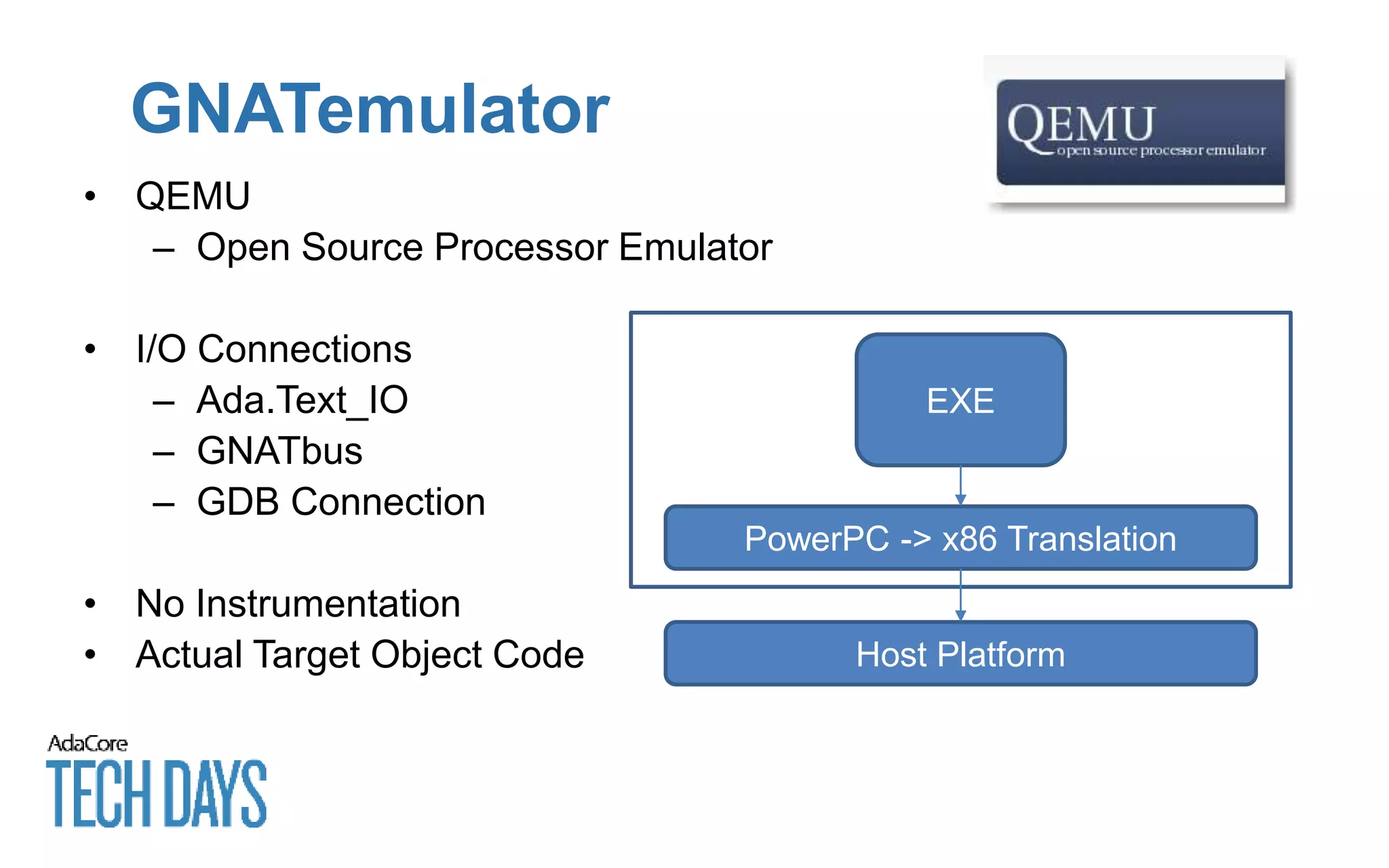

7. GNATemulator
• QEMU
– Open Source Processor Emulator
• I/O Connections
– Ada.Text_IO
– GNATbus
– GDB Connection
• No Instrumentation
• Actual Target Object Code
EXE
PowerPC -> x86 Translation
Host Platform

8. GNATemulator Platform Support
• VxWorks 6
• VxWorks 653
• VxWorks 7 (coming soon)
• PowerPC ELF Bareboard
• LEON ELF Bareboard
• ARM ELF Bareboard (coming soon)

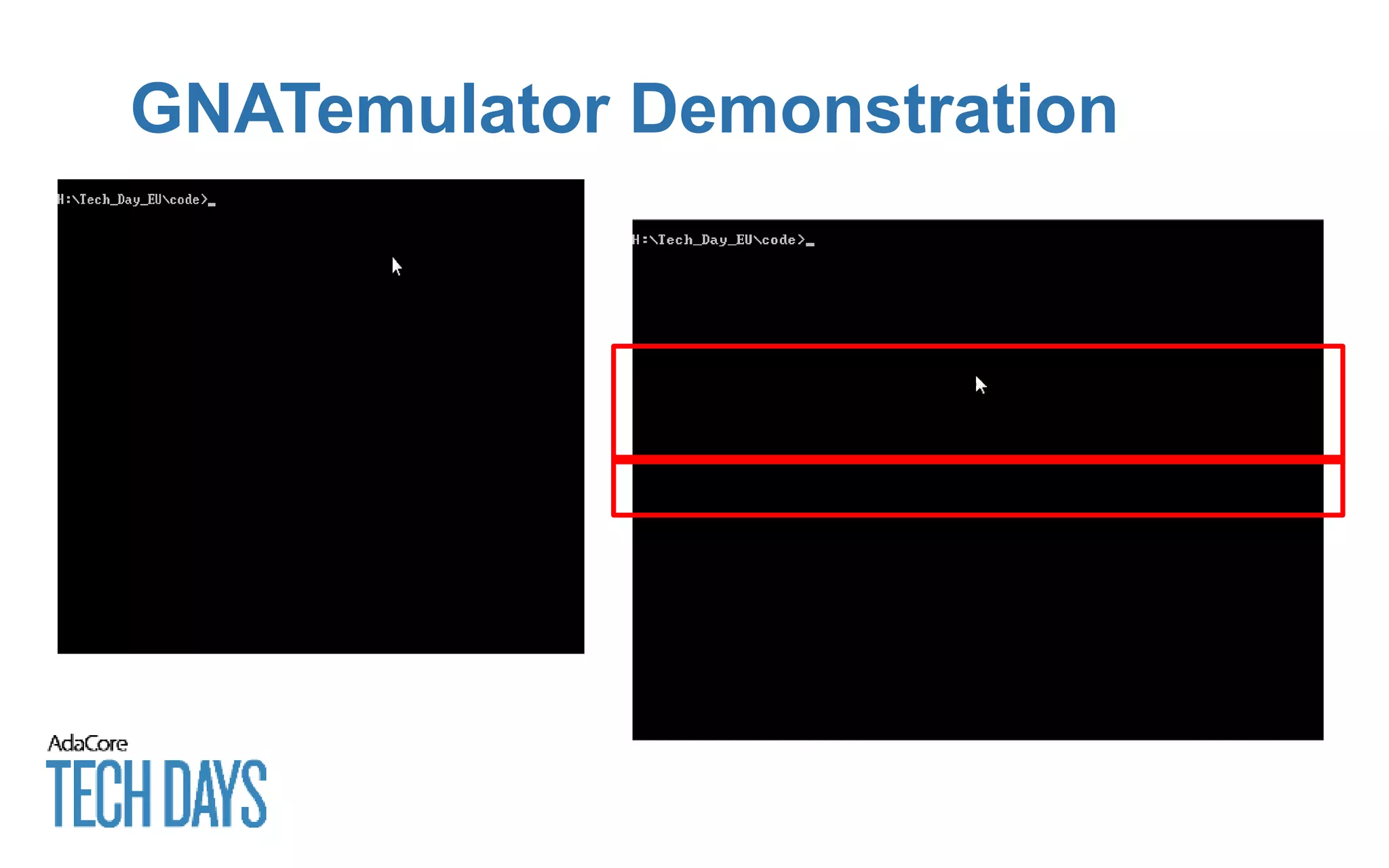

9. GNATemulator Demonstration

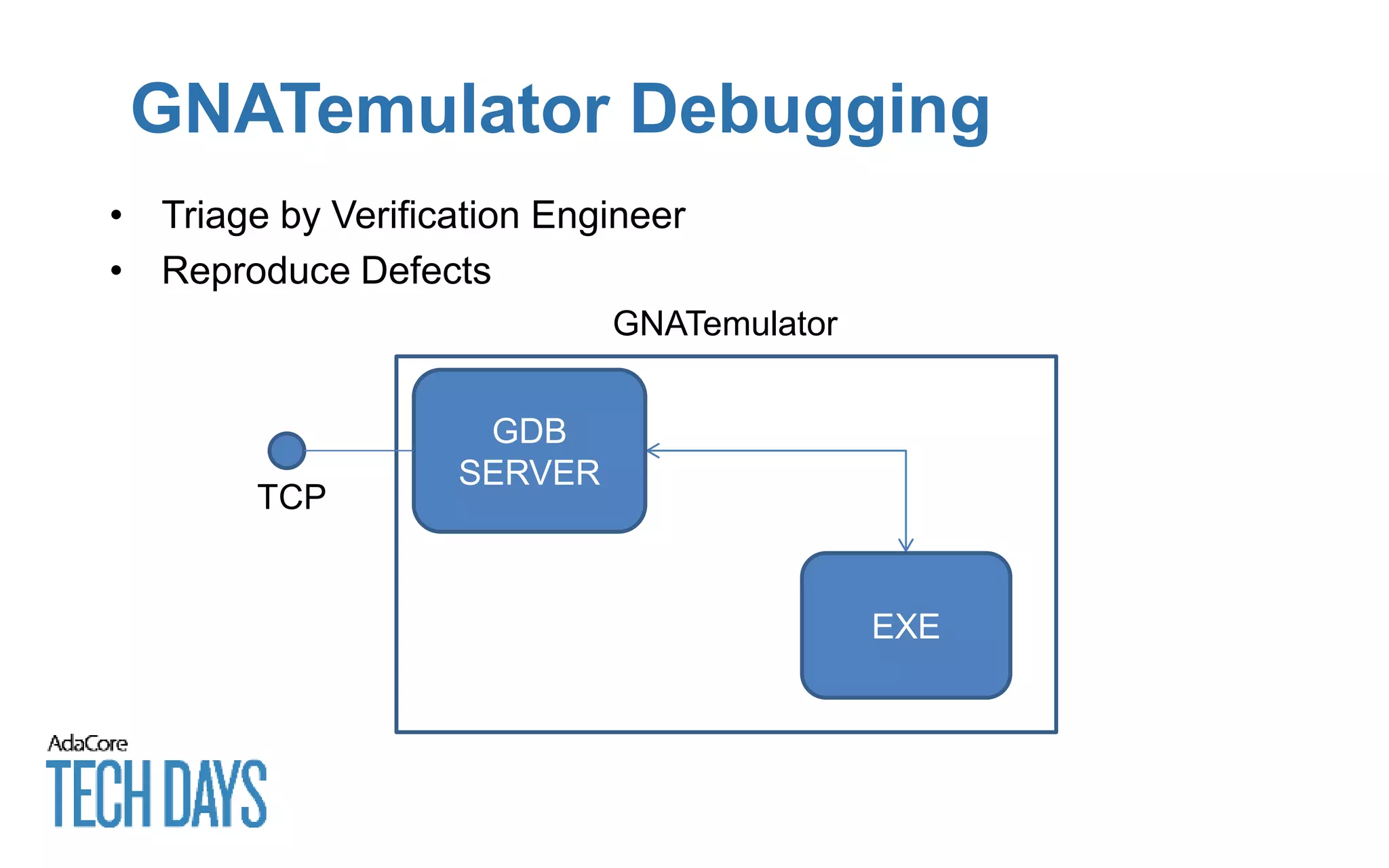

10. • Triage by Verification Engineer
• Reproduce Defects
GNATemulator Debugging
EXE
GNATemulator
GDB
SERVER
TCP

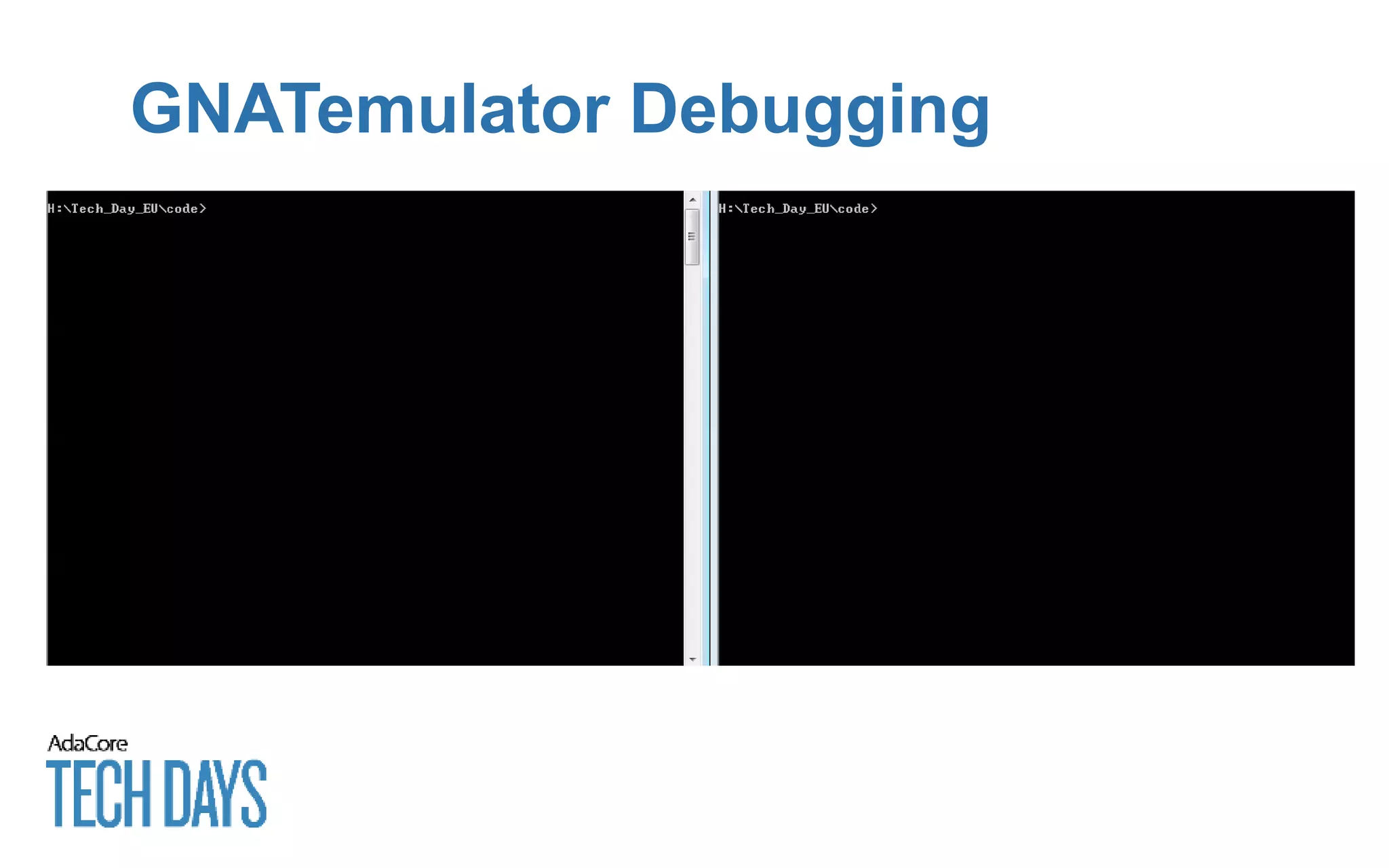

11. GNATemulator Debugging

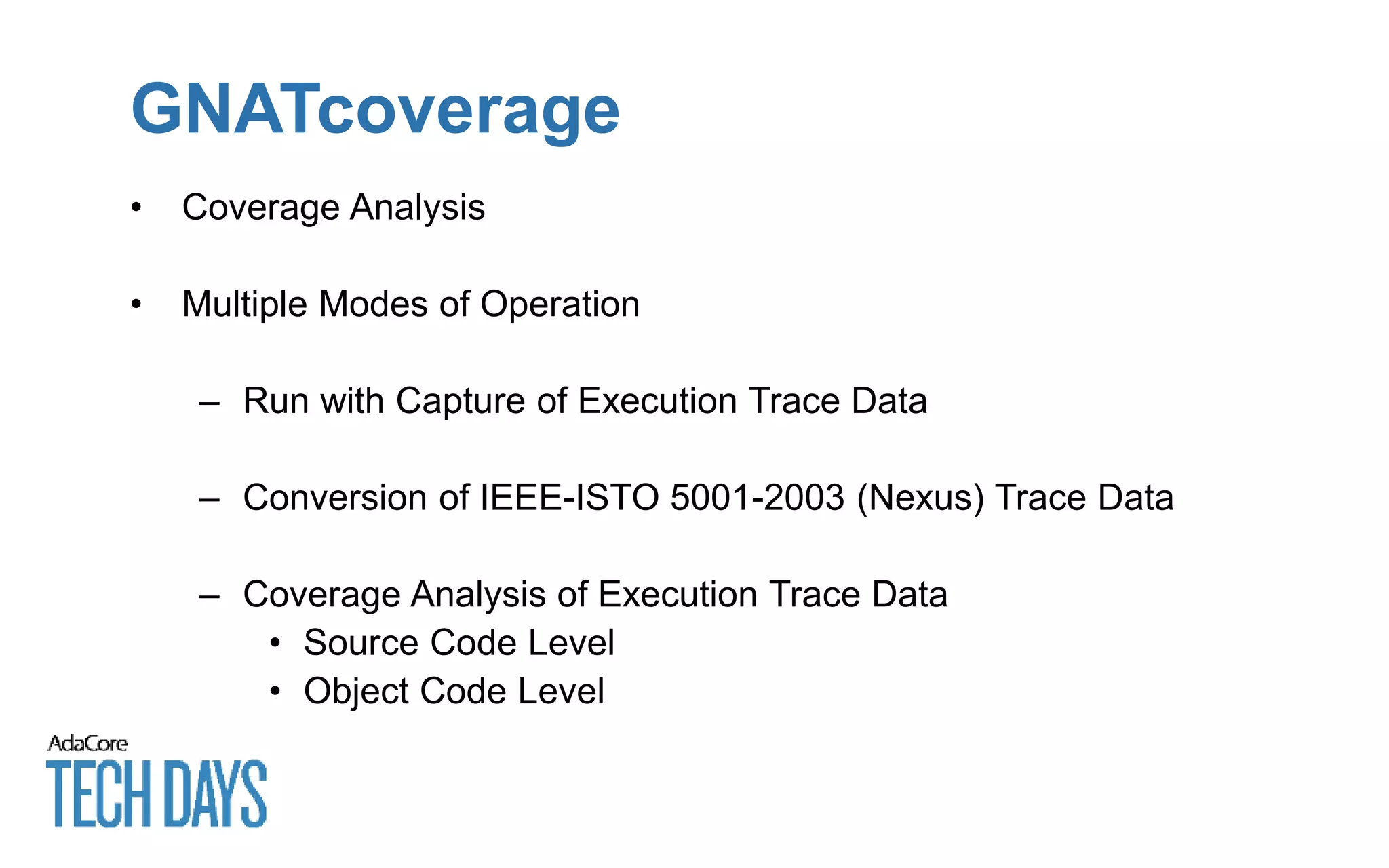

12. GNATcoverage
• Coverage Analysis
• Multiple Modes of Operation
– Run with Capture of Execution Trace Data
– Conversion of IEEE-ISTO 5001-2003 (Nexus) Trace Data
– Coverage Analysis of Execution Trace Data
• Source Code Level
• Object Code Level

13. GNATcoverage Platform Support
• Intel 32-bit and 64-bit
• PowerPC ELF Bareboard
• LEON 2 & LEON 3 ELF Bareboard

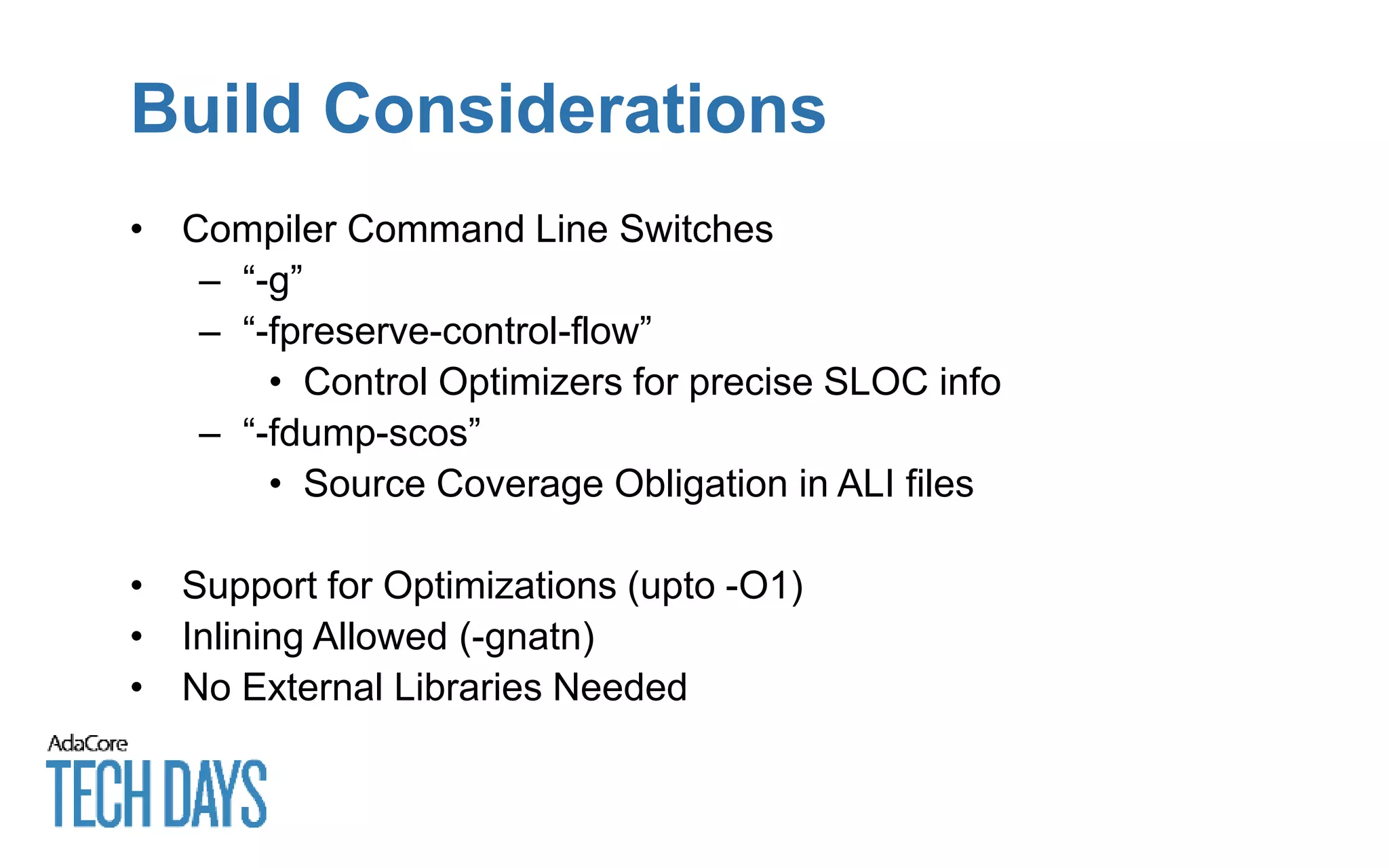

14. Build Considerations
• Compiler Command Line Switches
– “-g”
– “-fpreserve-control-flow”
• Control Optimizers for precise SLOC info
– “-fdump-scos”
• Source Coverage Obligation in ALI files
• Support for Optimizations (upto -O1)
• Inlining Allowed (-gnatn)
• No External Libraries Needed

15. GNATcoverage Execution

16. GNATcoverage Analysis Levels
• Source Level
– gnatcov coverage --level=stmt
– gnatcov coverage --level=stmt+decision
– gnatcov coverage --level=stmt+mcdc
• Object Level
– gnatcov coverage --level=insn
– gnatcov coverage --level=branch

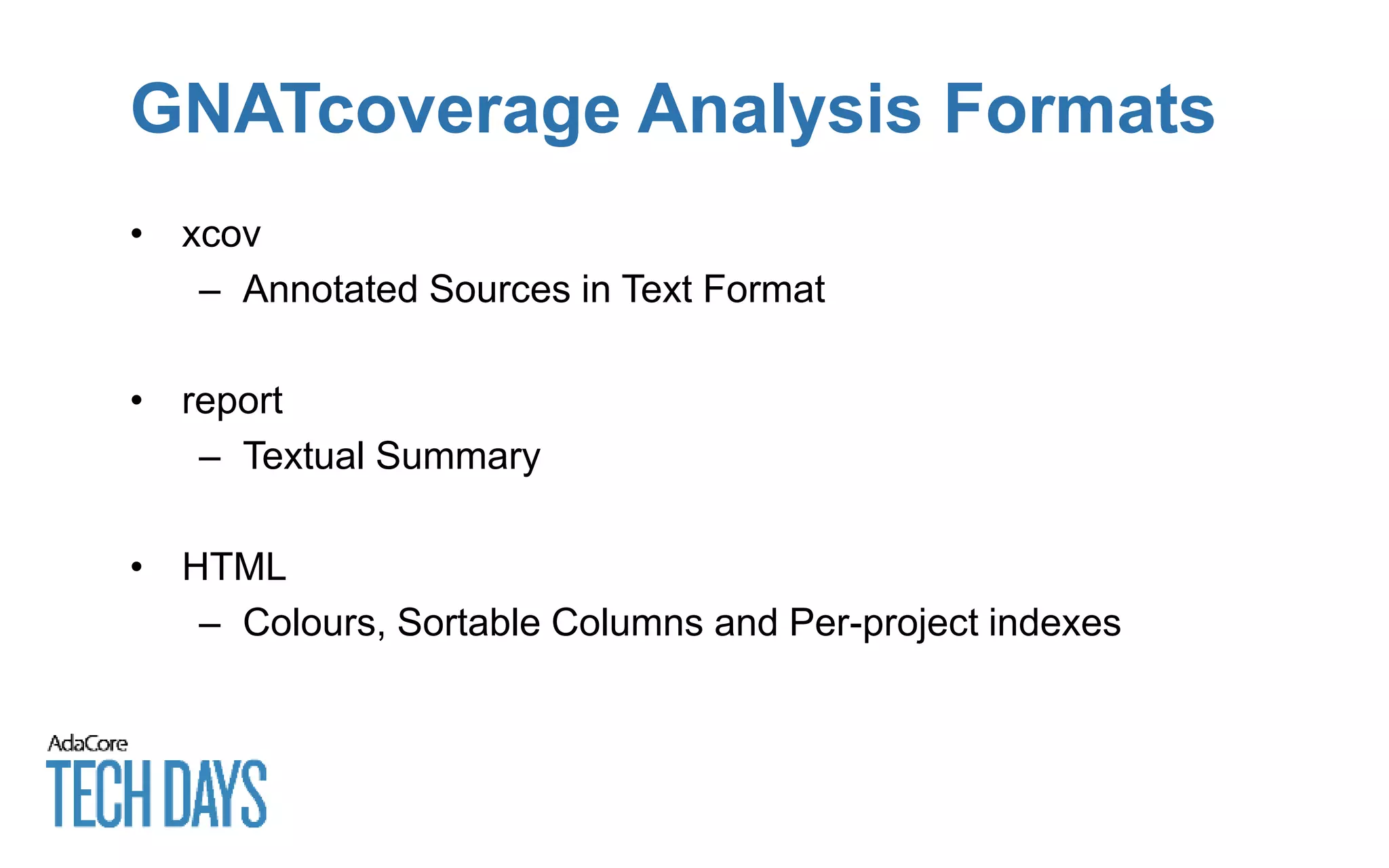

17. GNATcoverage Analysis Formats
• xcov
– Annotated Sources in Text Format
• report
– Textual Summary
• HTML
– Colours, Sortable Columns and Per-project indexes

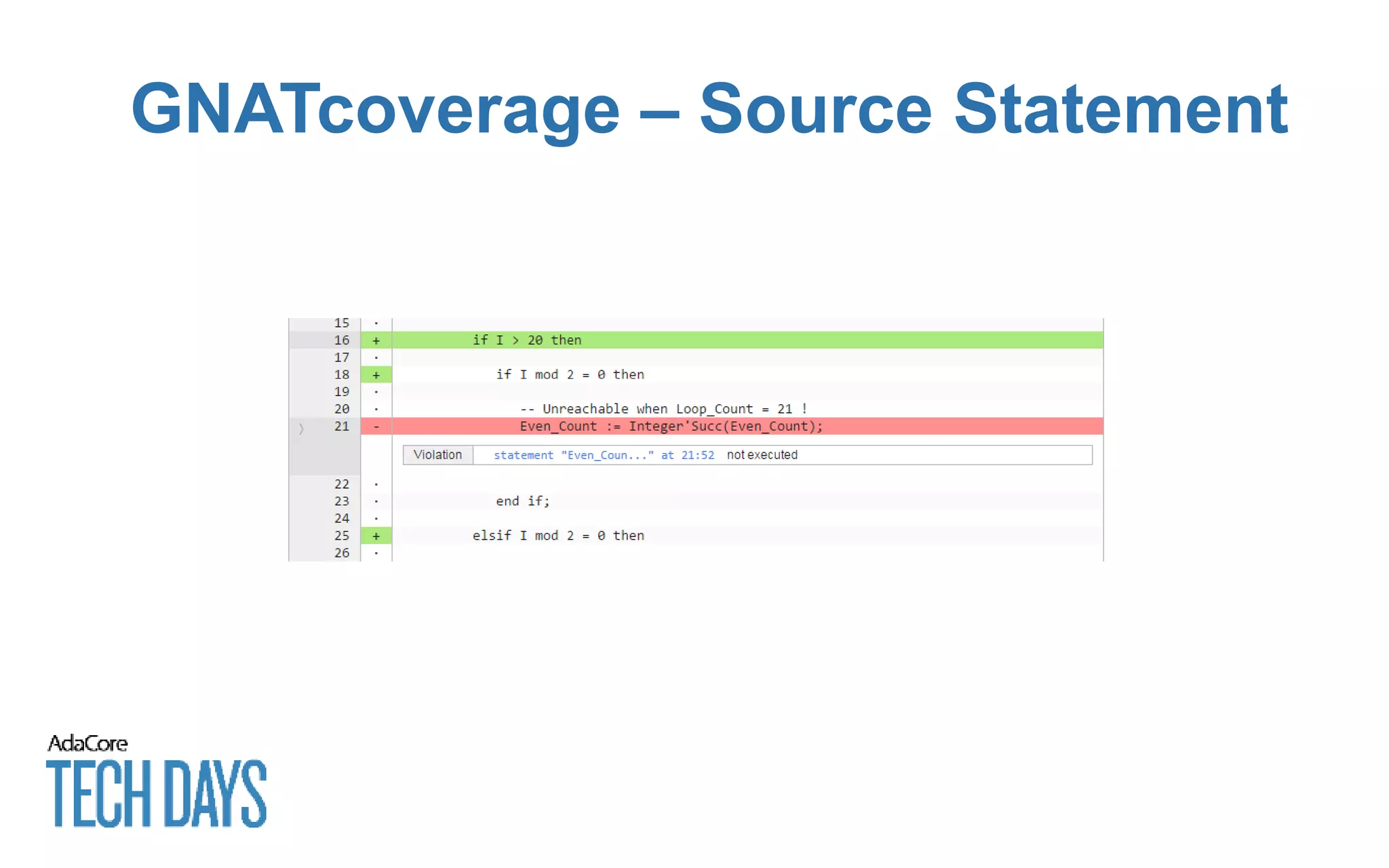

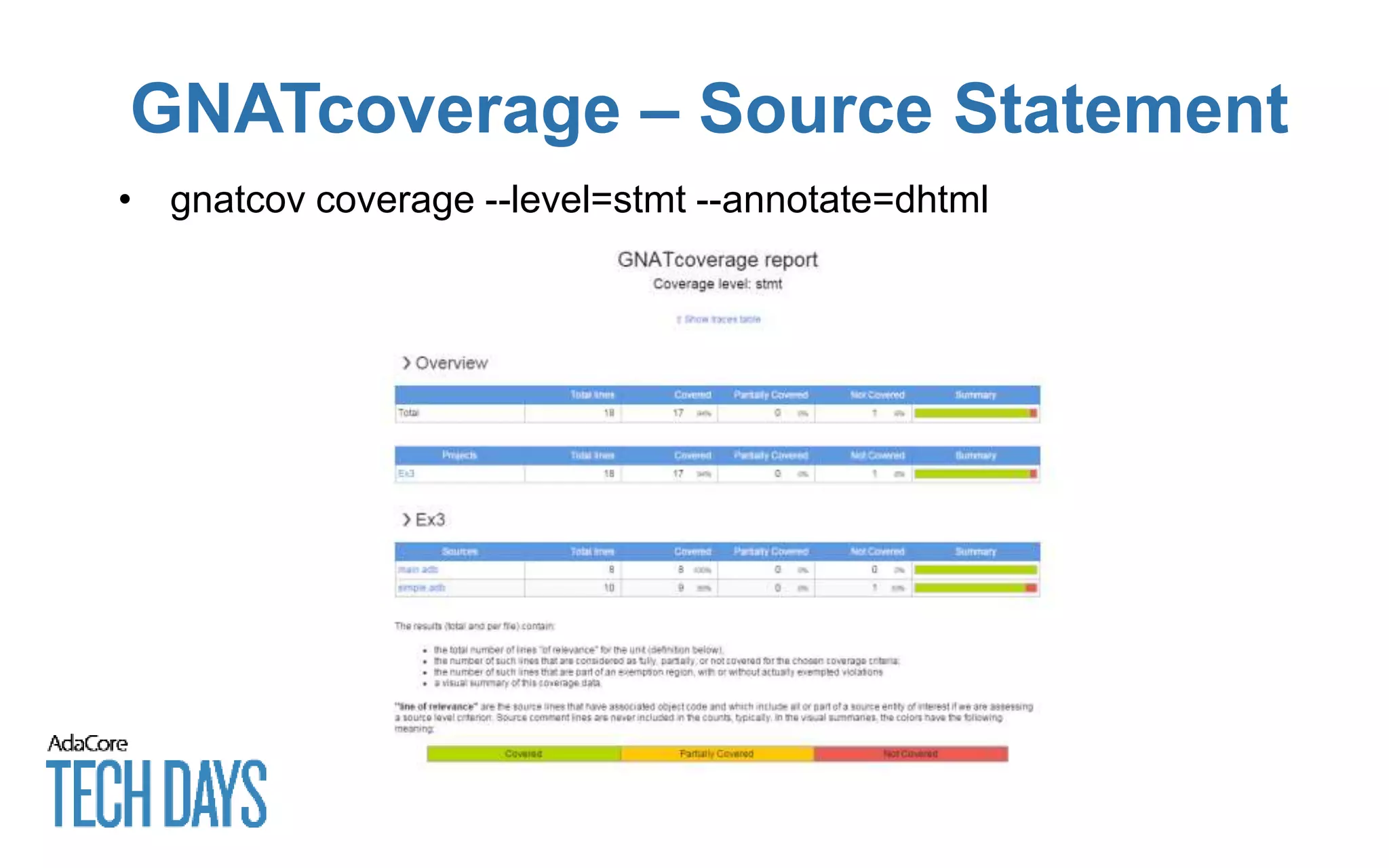

18. GNATcoverage – Source Statement
• gnatcov coverage --level=stmt --annotate=dhtml

19. GNATcoverage – Source Statement

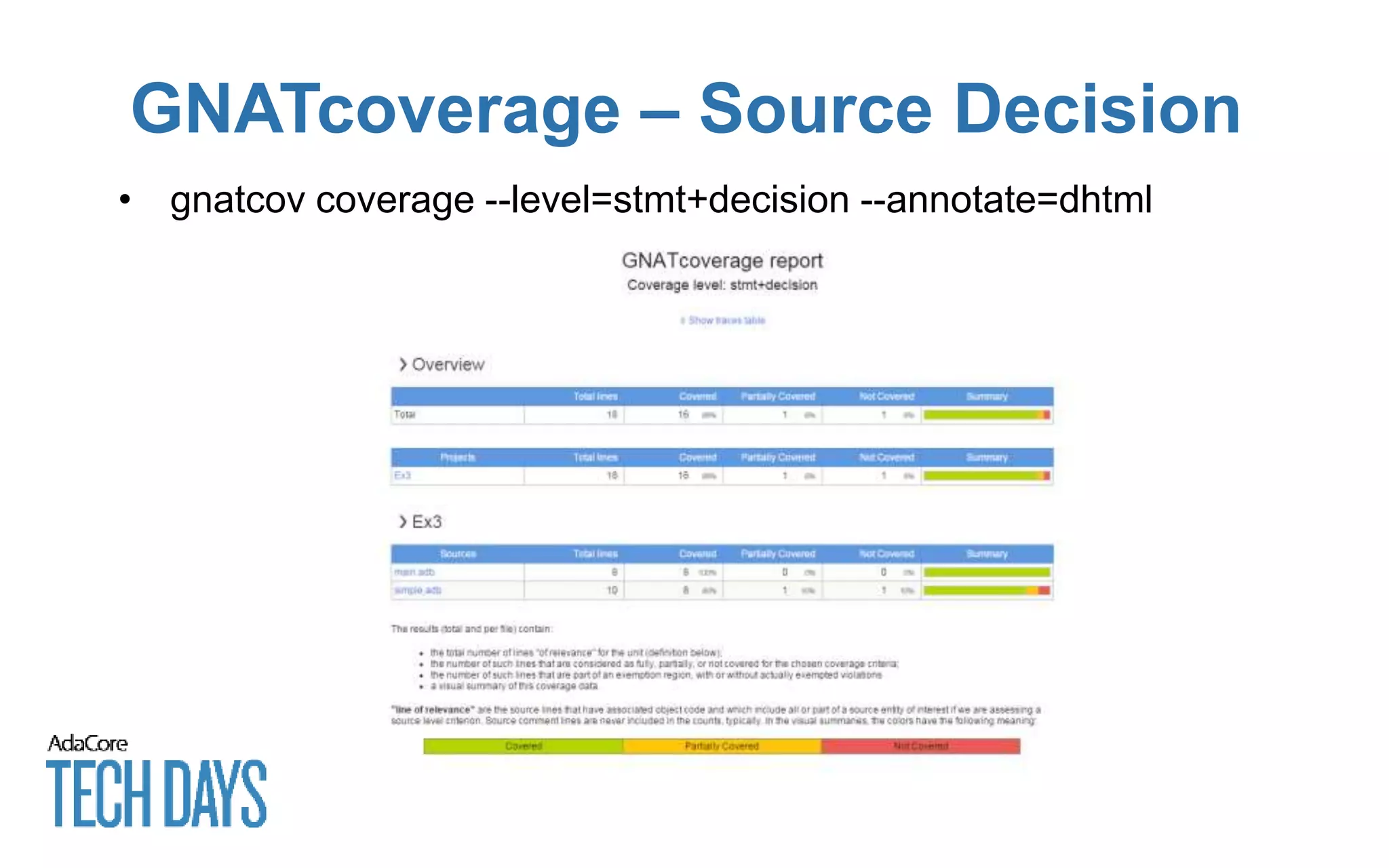

20. GNATcoverage – Source Decision
• gnatcov coverage --level=stmt+decision --annotate=dhtml

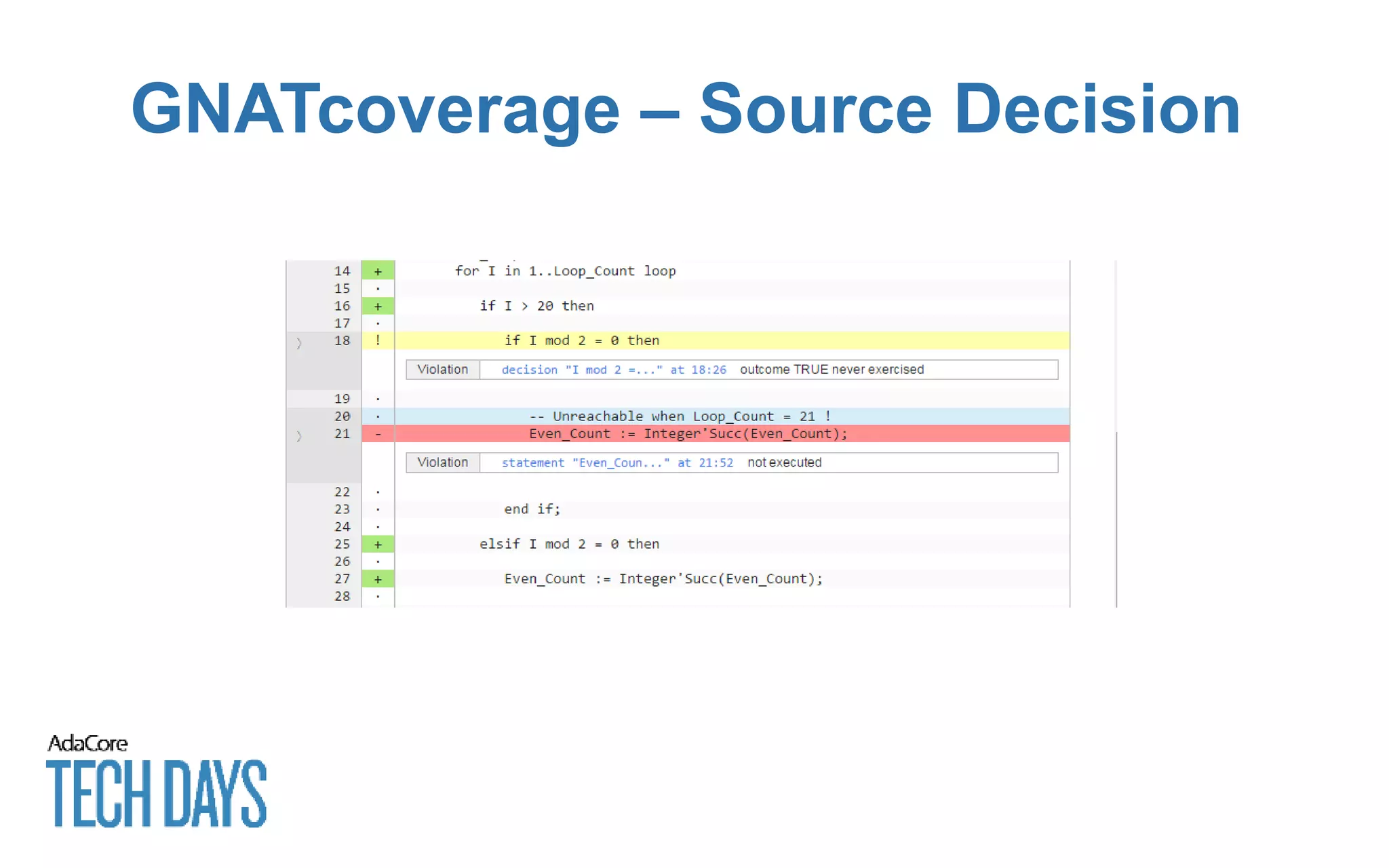

21. GNATcoverage – Source Decision

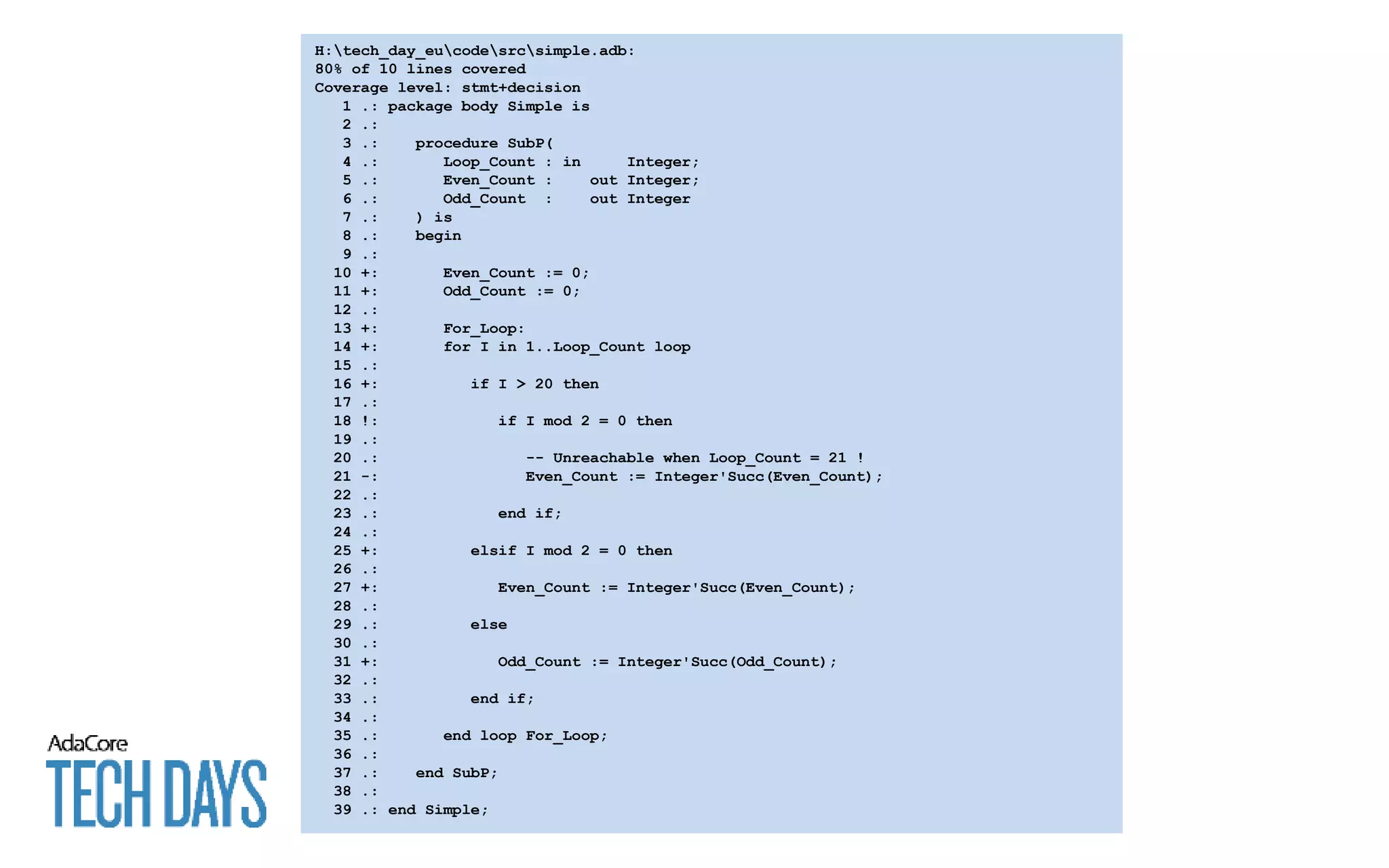

22. H:tech_day_eucodesrcsimple.adb:
80% of 10 lines covered
Coverage level: stmt+decision
1 .: package body Simple is
2 .:
3 .: procedure SubP(
4 .: Loop_Count : in Integer;
5 .: Even_Count : out Integer;
6 .: Odd_Count : out Integer
7 .: ) is
8 .: begin
9 .:
10 +: Even_Count := 0;
11 +: Odd_Count := 0;
12 .:
13 +: For_Loop:
14 +: for I in 1..Loop_Count loop
15 .:
16 +: if I > 20 then
17 .:
18 !: if I mod 2 = 0 then
19 .:
20 .: -- Unreachable when Loop_Count = 21 !
21 -: Even_Count := Integer'Succ(Even_Count);
22 .:
23 .: end if;
24 .:
25 +: elsif I mod 2 = 0 then
26 .:
27 +: Even_Count := Integer'Succ(Even_Count);
28 .:
29 .: else
30 .:
31 +: Odd_Count := Integer'Succ(Odd_Count);
32 .:
33 .: end if;
34 .:
35 .: end loop For_Loop;
36 .:
37 .: end SubP;
38 .:
39 .: end Simple;

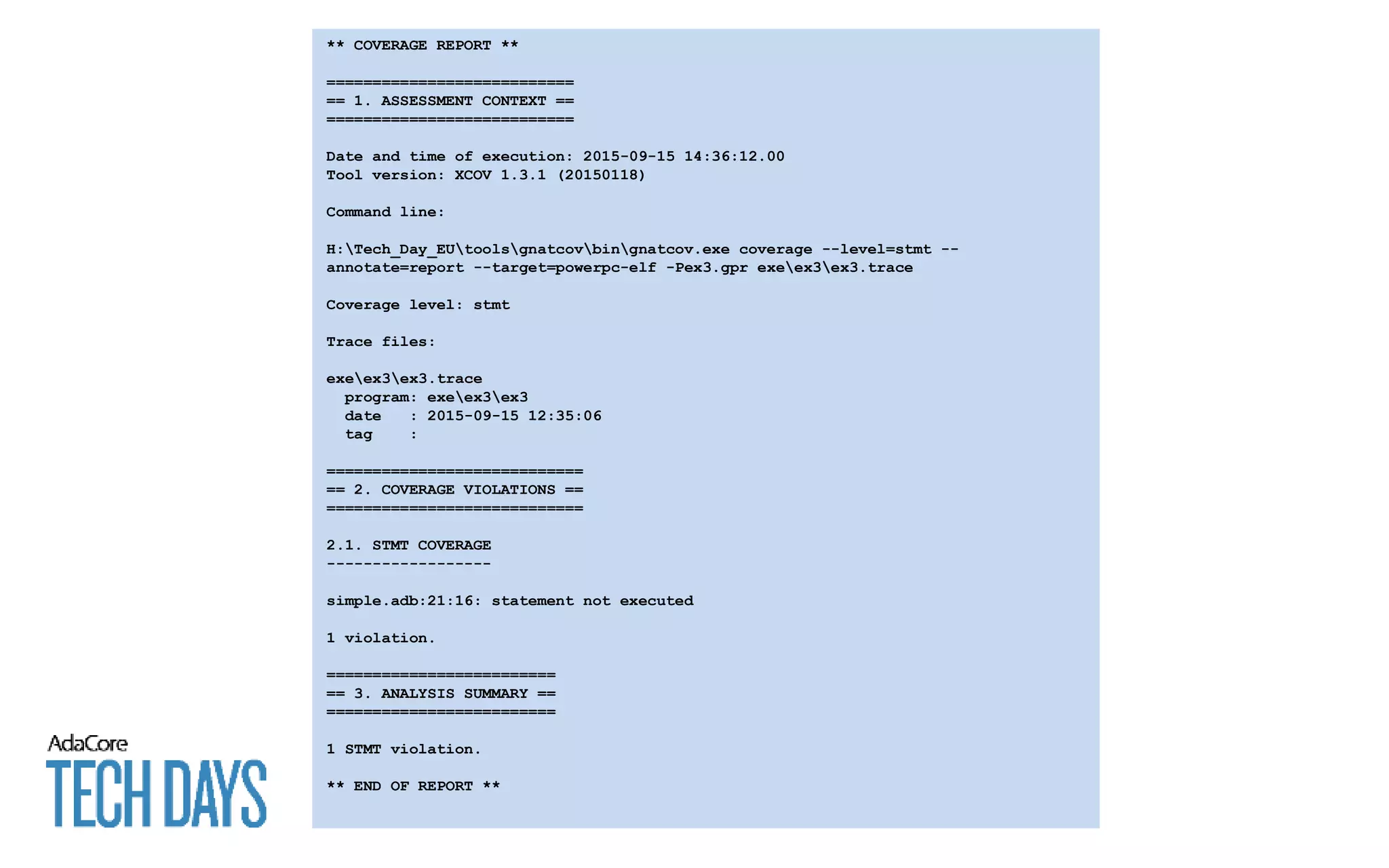

23. ** COVERAGE REPORT **
===========================
== 1. ASSESSMENT CONTEXT ==
===========================
Date and time of execution: 2015-09-15 14:36:12.00
Tool version: XCOV 1.3.1 (20150118)
Command line:
H:Tech_Day_EUtoolsgnatcovbingnatcov.exe coverage --level=stmt --
annotate=report --target=powerpc-elf -Pex3.gpr exeex3ex3.trace
Coverage level: stmt
Trace files:
exeex3ex3.trace
program: exeex3ex3
date : 2015-09-15 12:35:06
tag :
============================
== 2. COVERAGE VIOLATIONS ==
============================
2.1. STMT COVERAGE
------------------
simple.adb:21:16: statement not executed
1 violation.
=========================
== 3. ANALYSIS SUMMARY ==
=========================
1 STMT violation.
** END OF REPORT **

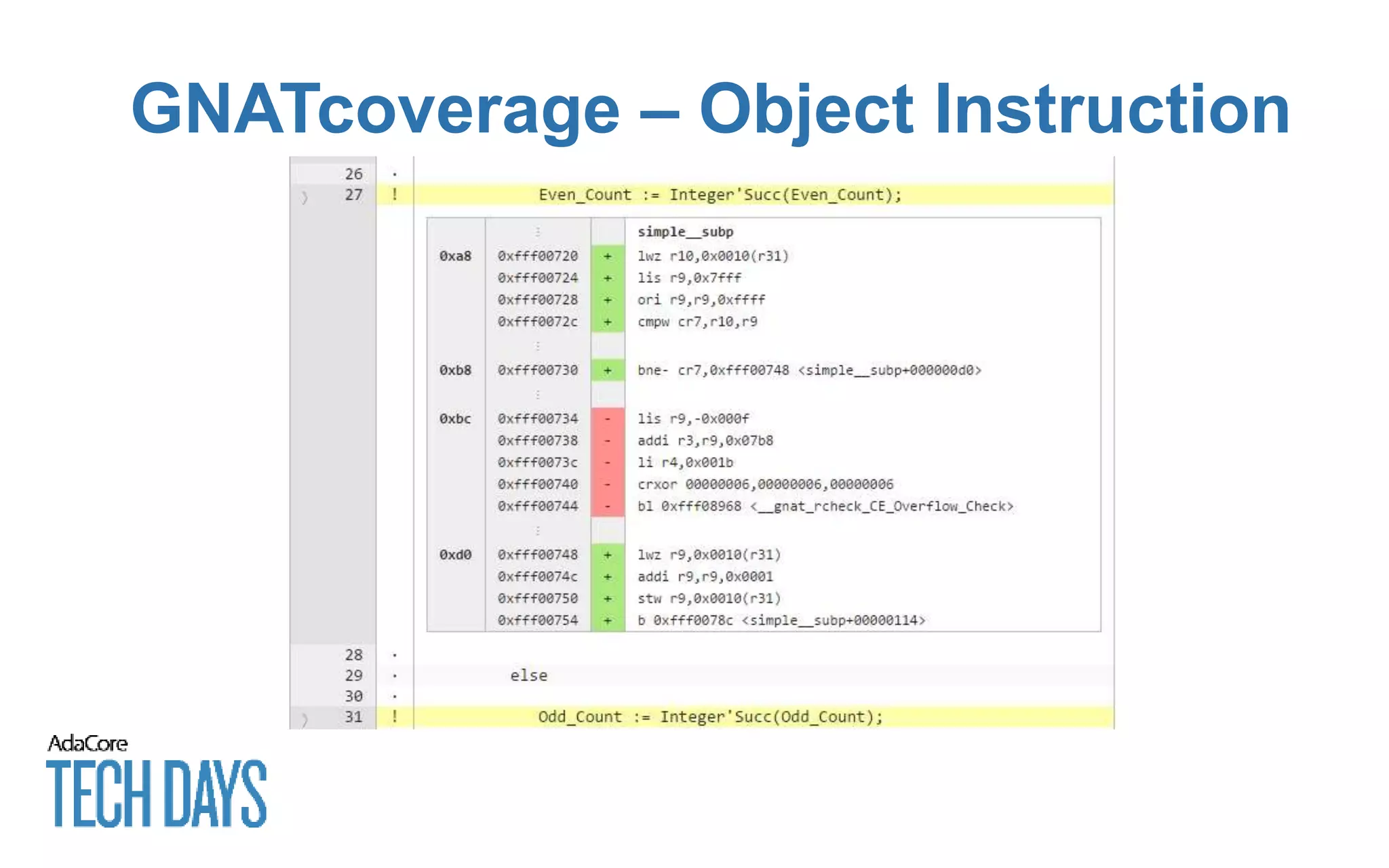

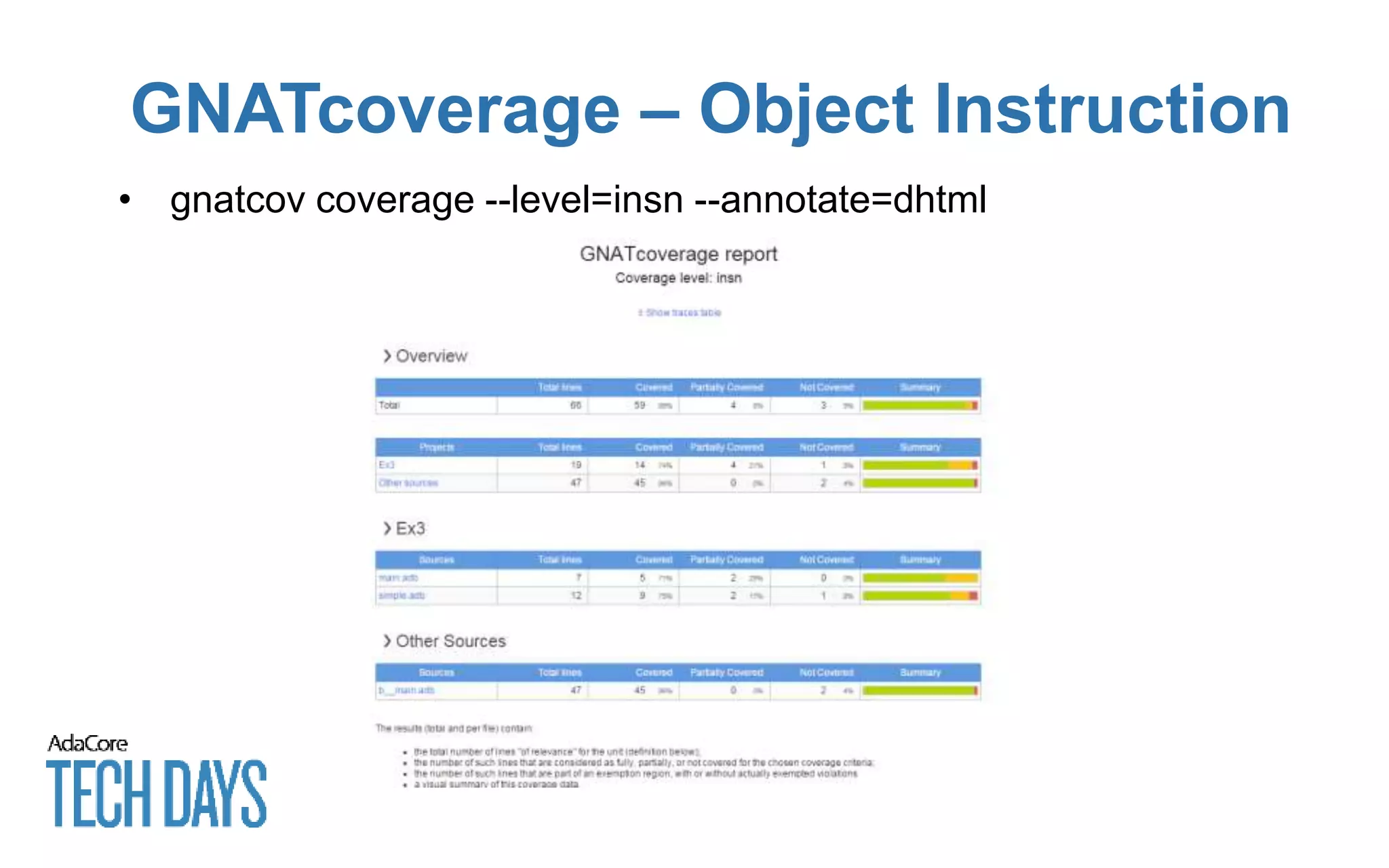

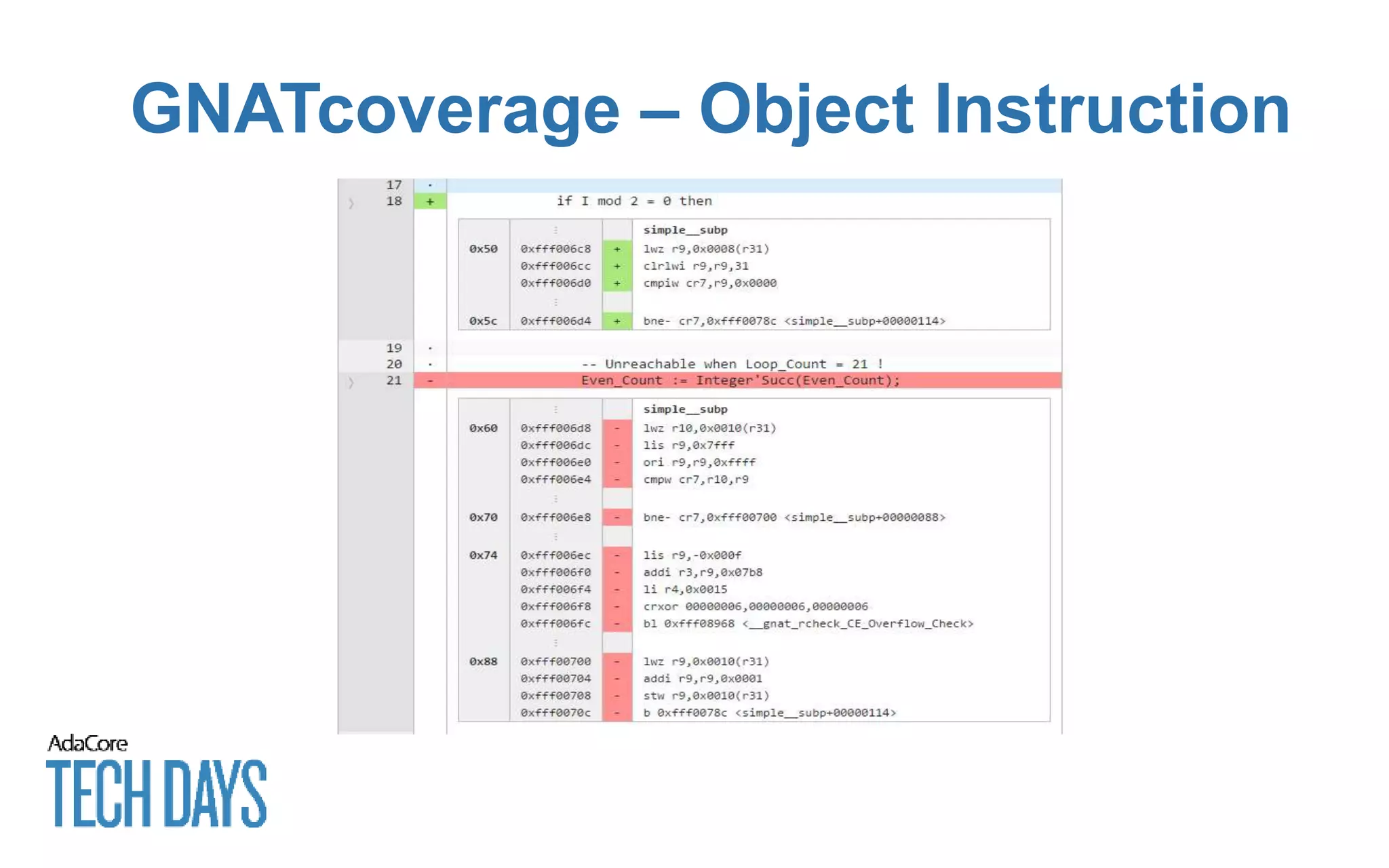

24. GNATcoverage – Object Instruction
• gnatcov coverage --level=insn --annotate=dhtml

25. GNATcoverage – Object Instruction

26. GNATcoverage – Object Instruction

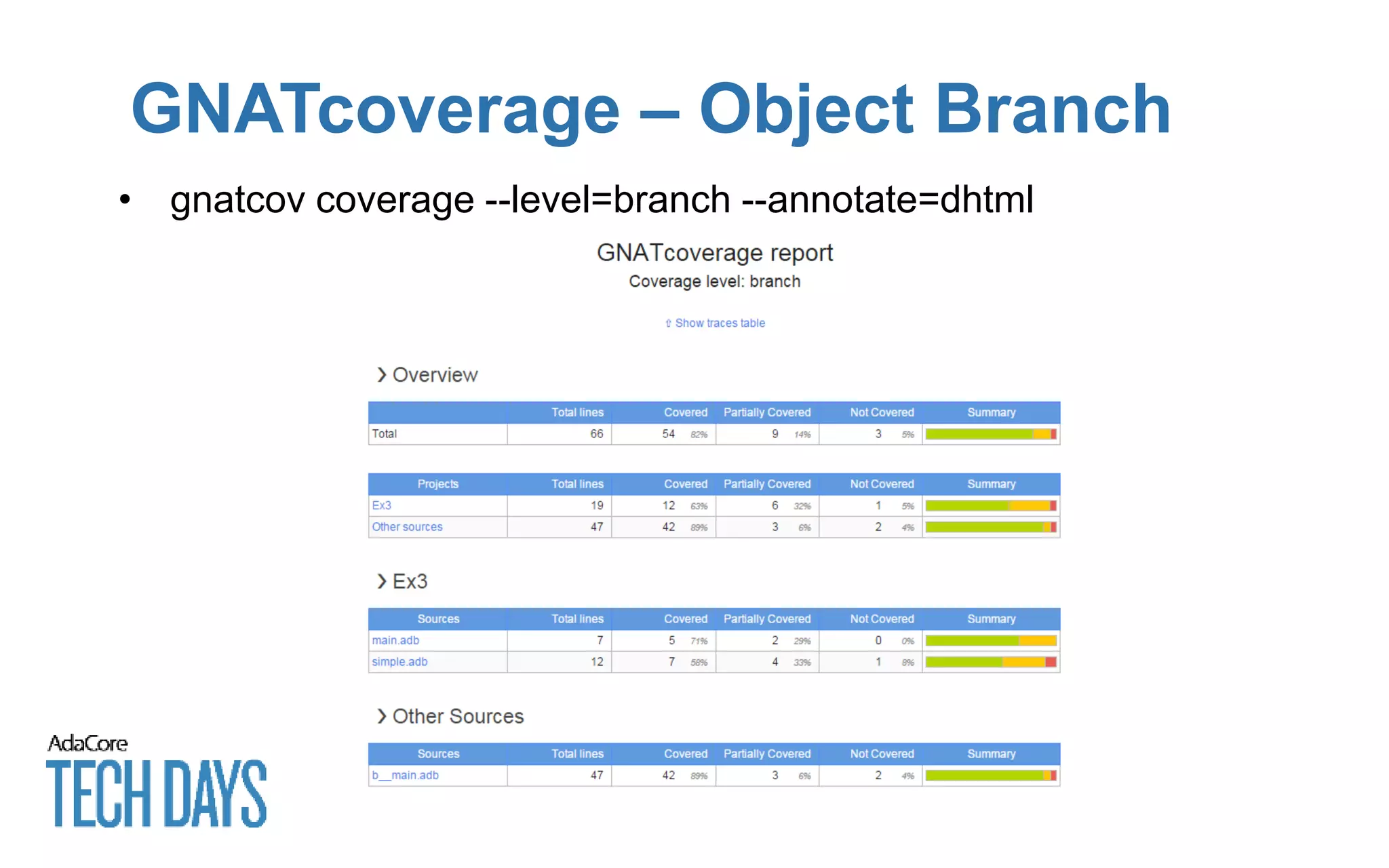

27. GNATcoverage – Object Branch
• gnatcov coverage --level=branch --annotate=dhtml

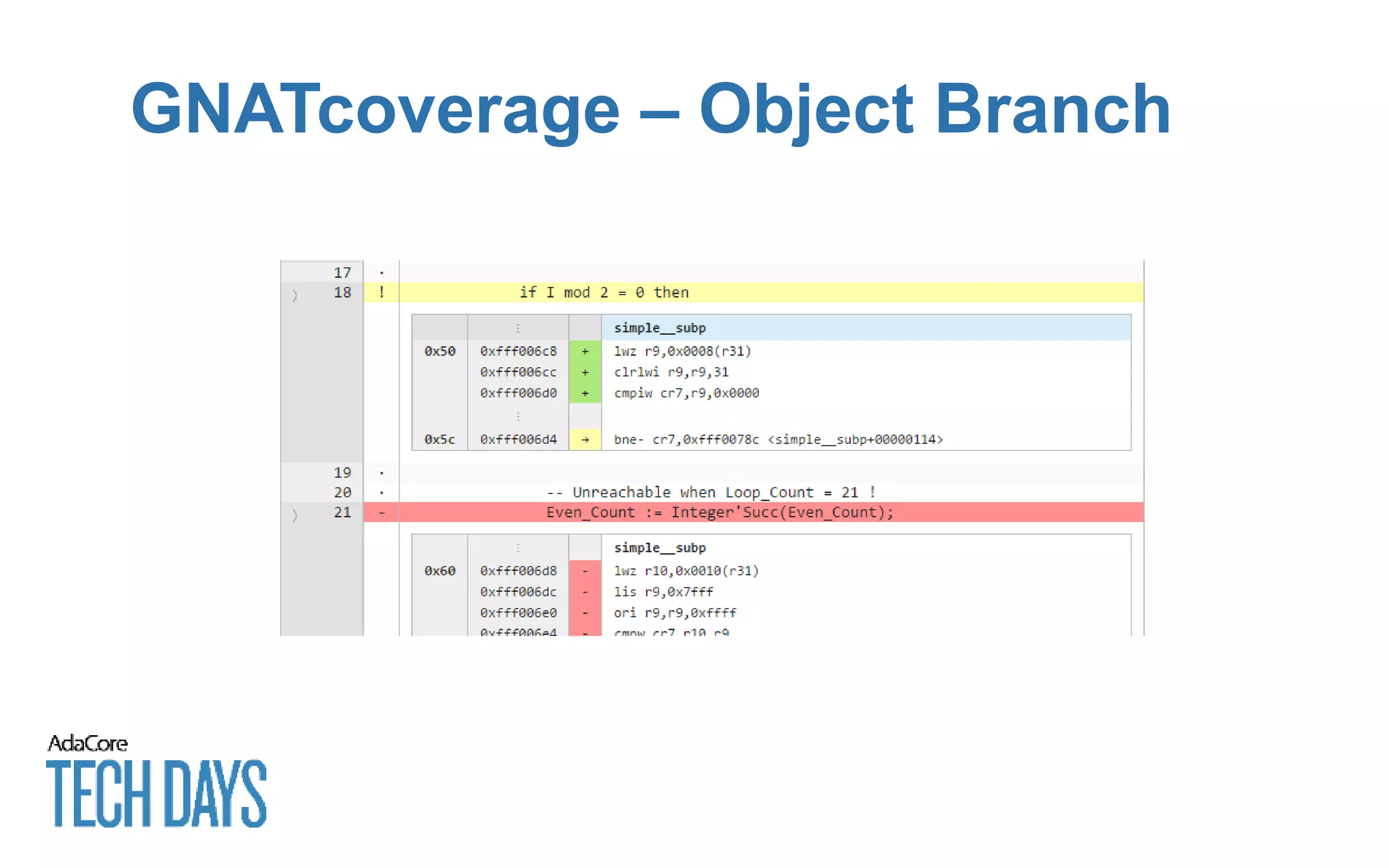

28. GNATcoverage – Object Branch

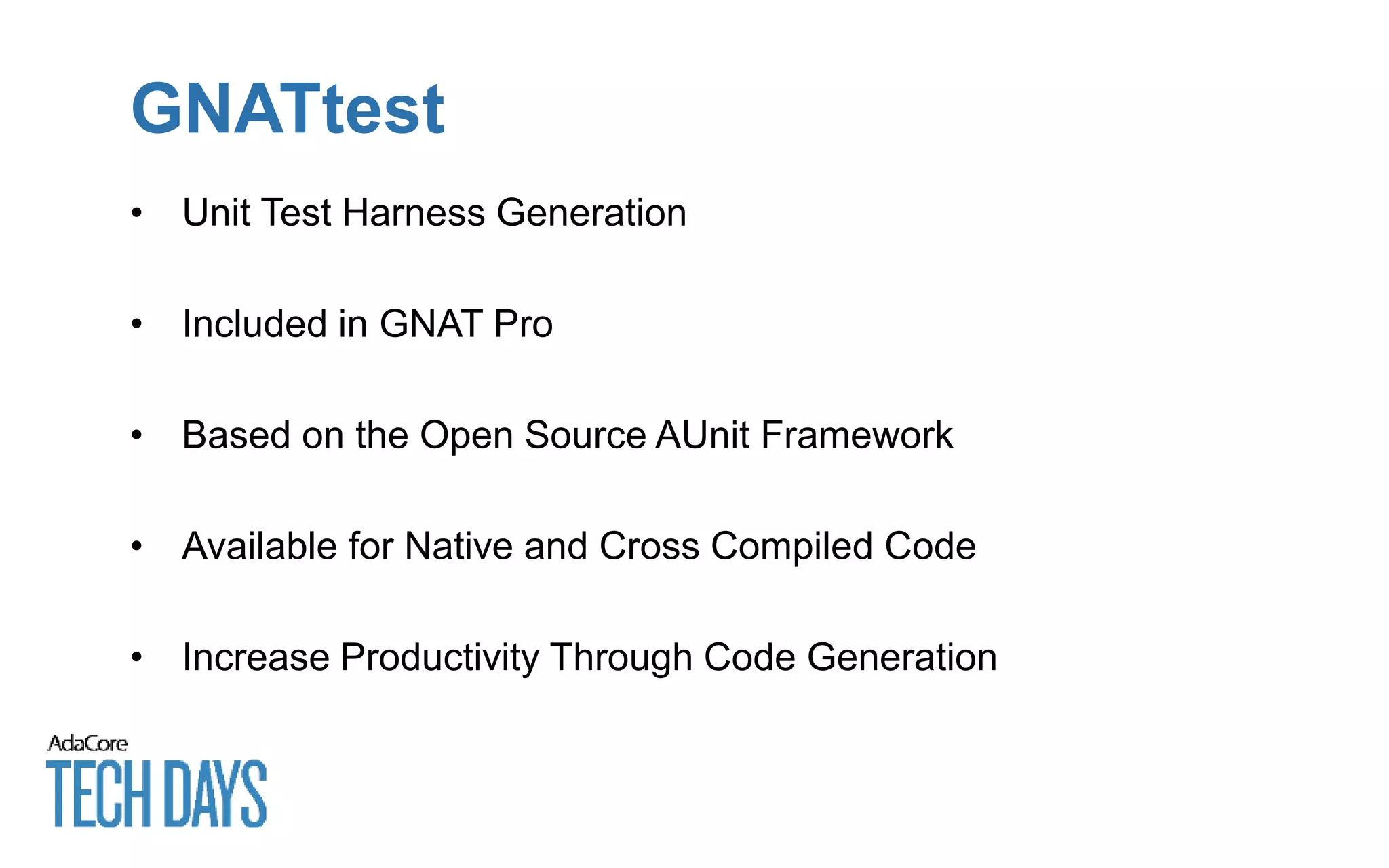

29. GNATtest
• Unit Test Harness Generation
• Included in GNAT Pro
• Based on the Open Source AUnit Framework
• Available for Native and Cross Compiled Code
• Increase Productivity Through Code Generation

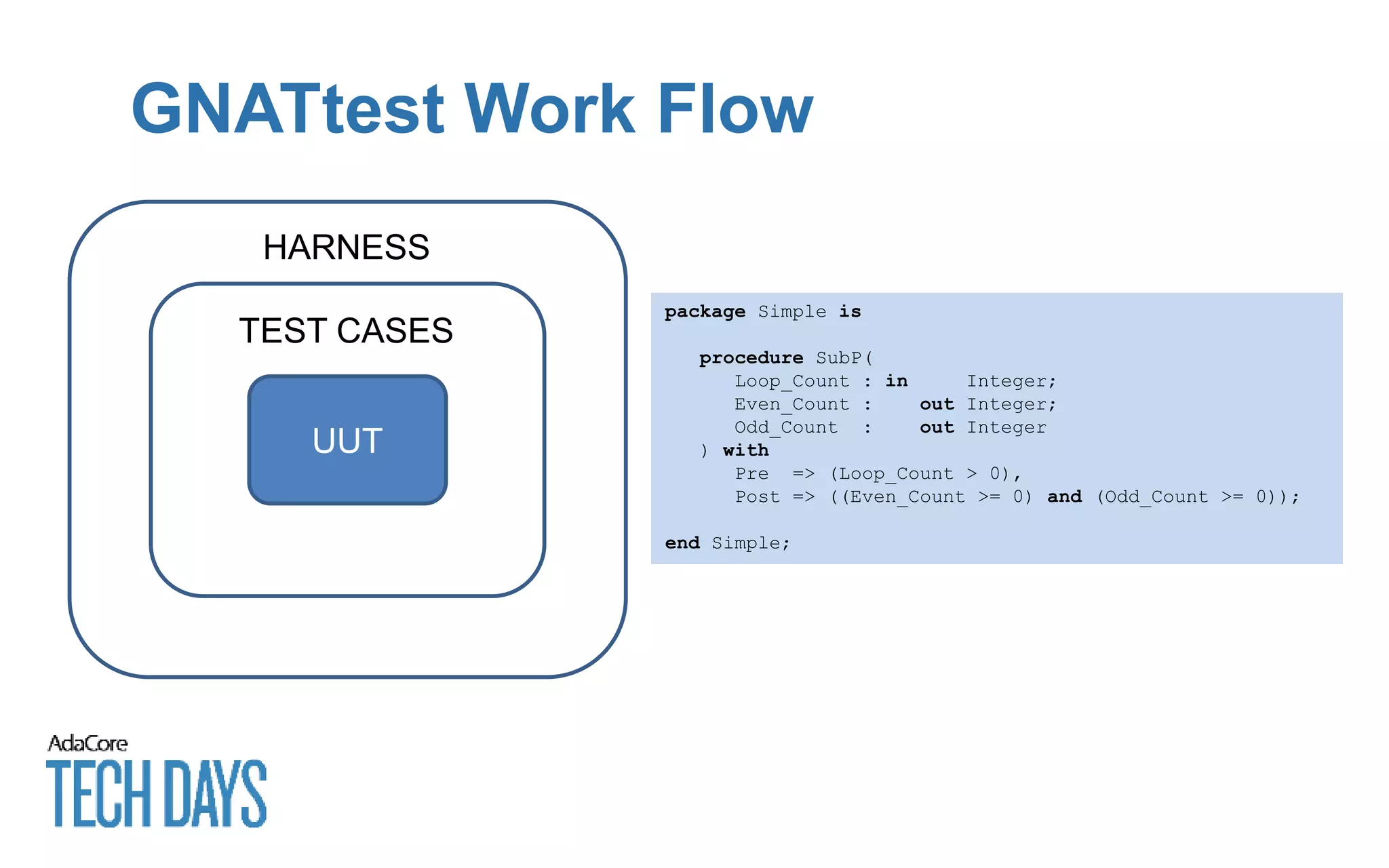

30. GNATtest Work Flow
HARNESS
TEST CASES
UUT
package Simple is
procedure SubP(
Loop_Count : in Integer;
Even_Count : out Integer;
Odd_Count : out Integer
) with
Pre => (Loop_Count > 0),
Post => ((Even_Count >= 0) and (Odd_Count >= 0));
end Simple;

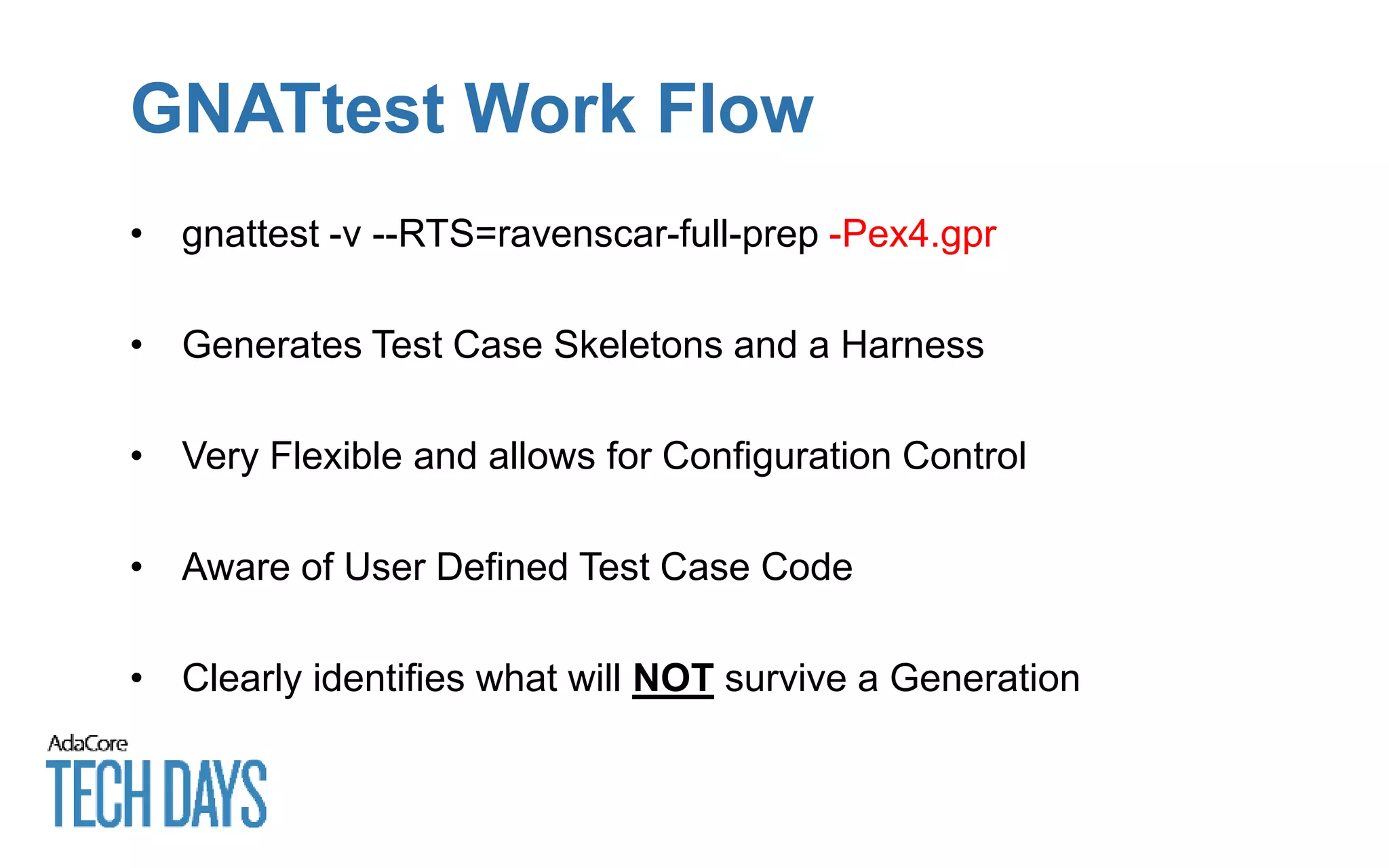

31. GNATtest Work Flow
• gnattest -v --RTS=ravenscar-full-prep -Pex4.gpr
• Generates Test Case Skeletons and a Harness
• Very Flexible and allows for Configuration Control
• Aware of User Defined Test Case Code
• Clearly identifies what will NOT survive a Generation

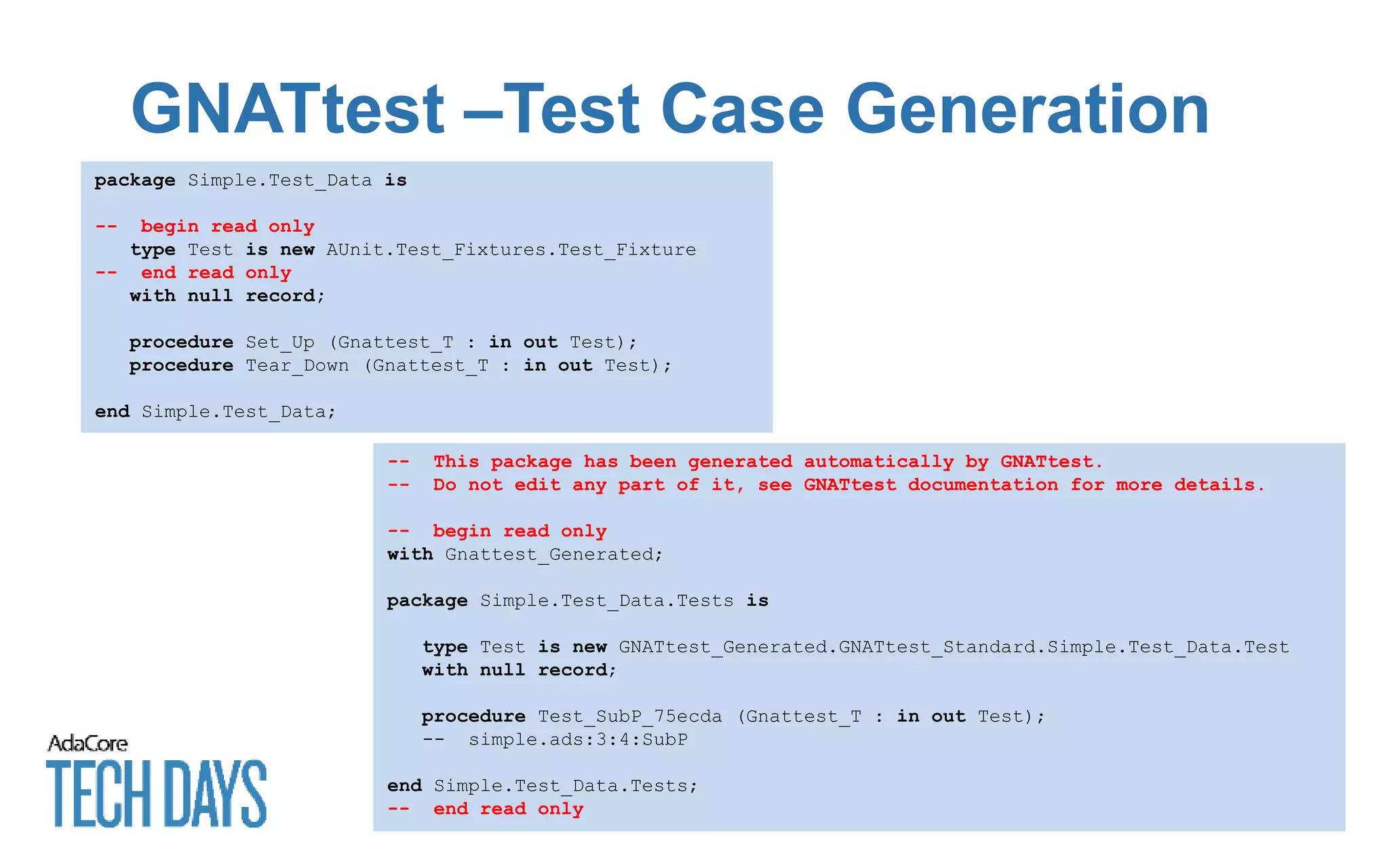

32. GNATtest –Test Case Generation
package Simple.Test_Data is
-- begin read only
type Test is new AUnit.Test_Fixtures.Test_Fixture
-- end read only
with null record;
procedure Set_Up (Gnattest_T : in out Test);
procedure Tear_Down (Gnattest_T : in out Test);
end Simple.Test_Data;
-- This package has been generated automatically by GNATtest.
-- Do not edit any part of it, see GNATtest documentation for more details.
-- begin read only
with Gnattest_Generated;
package Simple.Test_Data.Tests is
type Test is new GNATtest_Generated.GNATtest_Standard.Simple.Test_Data.Test
with null record;
procedure Test_SubP_75ecda (Gnattest_T : in out Test);
-- simple.ads:3:4:SubP
end Simple.Test_Data.Tests;
-- end read only

33. GNATtest –Test Case Generation

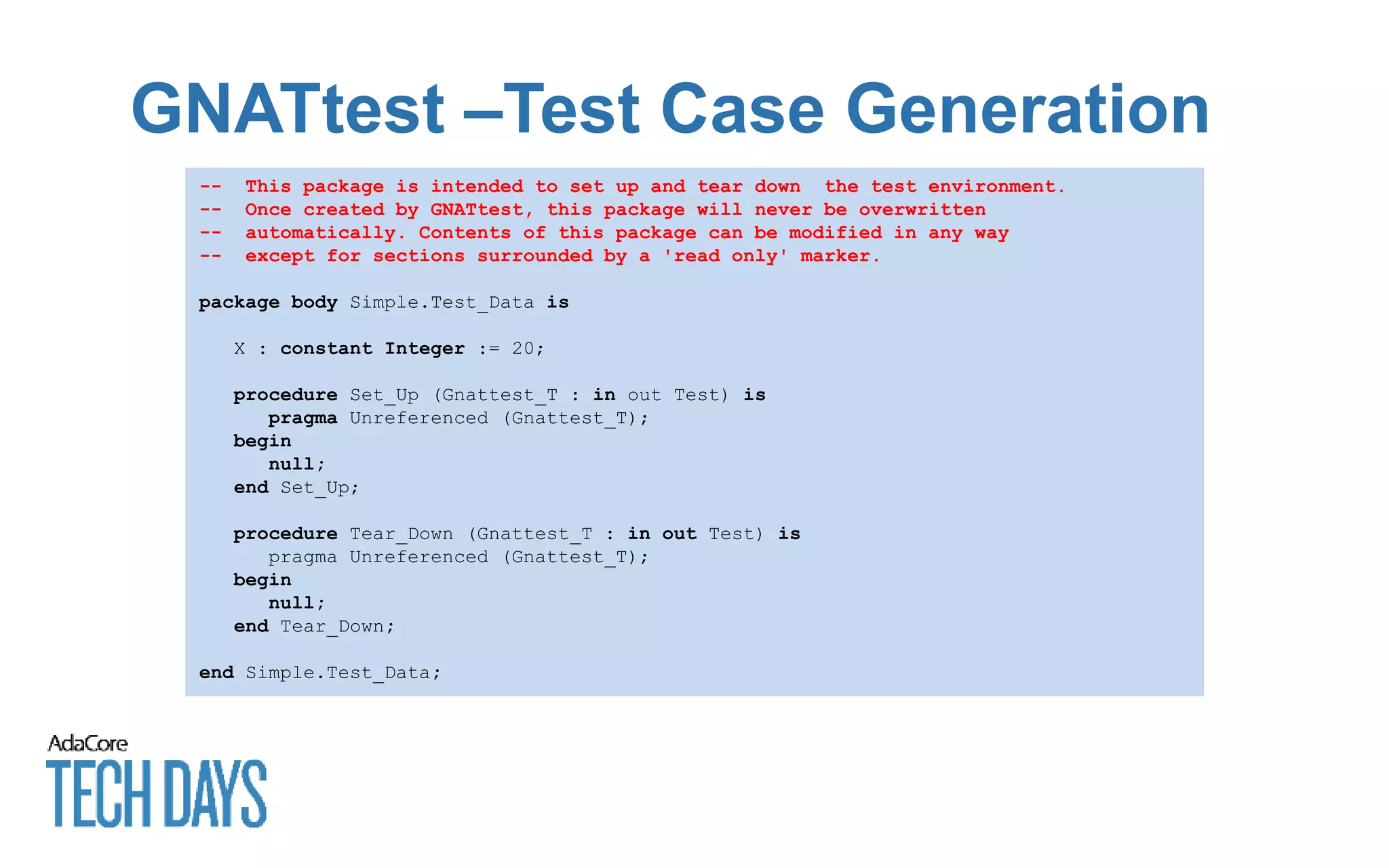

-- This package is intended to set up and tear down the test environment.
-- Once created by GNATtest, this package will never be overwritten
-- automatically. Contents of this package can be modified in any way
-- except for sections surrounded by a 'read only' marker.
package body Simple.Test_Data is
X : constant Integer := 20;
procedure Set_Up (Gnattest_T : in out Test) is
pragma Unreferenced (Gnattest_T);
begin
null;
end Set_Up;
procedure Tear_Down (Gnattest_T : in out Test) is
pragma Unreferenced (Gnattest_T);
begin
null;
end Tear_Down;
end Simple.Test_Data;

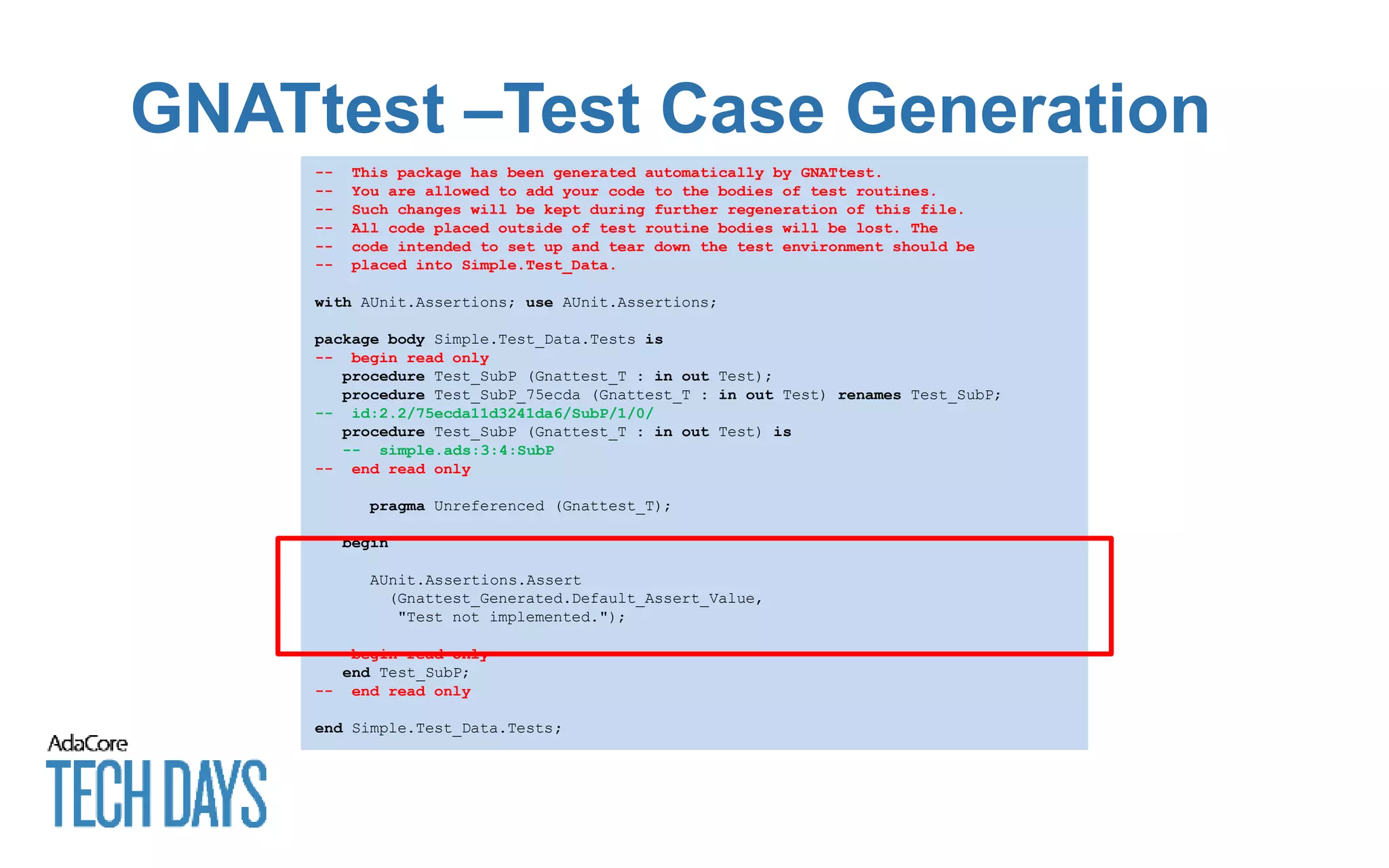

34. GNATtest –Test Case Generation
-- This package has been generated automatically by GNATtest.
-- You are allowed to add your code to the bodies of test routines.
-- Such changes will be kept during further regeneration of this file.
-- All code placed outside of test routine bodies will be lost. The
-- code intended to set up and tear down the test environment should be
-- placed into Simple.Test_Data.
with AUnit.Assertions; use AUnit.Assertions;
package body Simple.Test_Data.Tests is
-- begin read only
procedure Test_SubP (Gnattest_T : in out Test);
procedure Test_SubP_75ecda (Gnattest_T : in out Test) renames Test_SubP;
-- id:2.2/75ecda11d3241da6/SubP/1/0/
procedure Test_SubP (Gnattest_T : in out Test) is
-- simple.ads:3:4:SubP
-- end read only
pragma Unreferenced (Gnattest_T);
begin
AUnit.Assertions.Assert
(Gnattest_Generated.Default_Assert_Value,
"Test not implemented.");
-- begin read only
end Test_SubP;
-- end read only
end Simple.Test_Data.Tests;

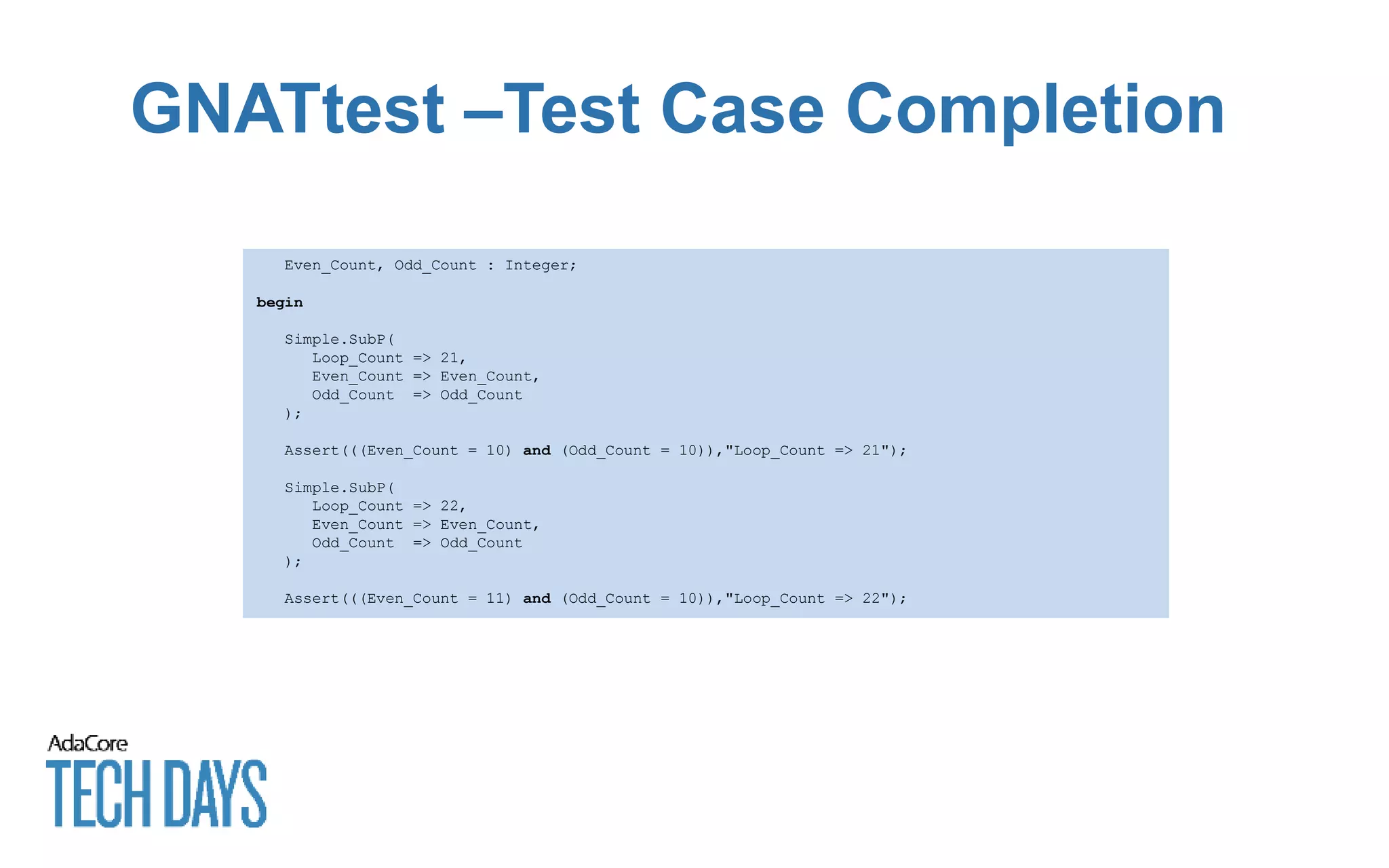

35. GNATtest –Test Case Completion
Even_Count, Odd_Count : Integer;
begin
Simple.SubP(
Loop_Count => 21,
Even_Count => Even_Count,
Odd_Count => Odd_Count
);
Assert(((Even_Count = 10) and (Odd_Count = 10)),"Loop_Count => 21");
Simple.SubP(
Loop_Count => 22,
Even_Count => Even_Count,
Odd_Count => Odd_Count
);
Assert(((Even_Count = 11) and (Odd_Count = 10)),"Loop_Count => 22");

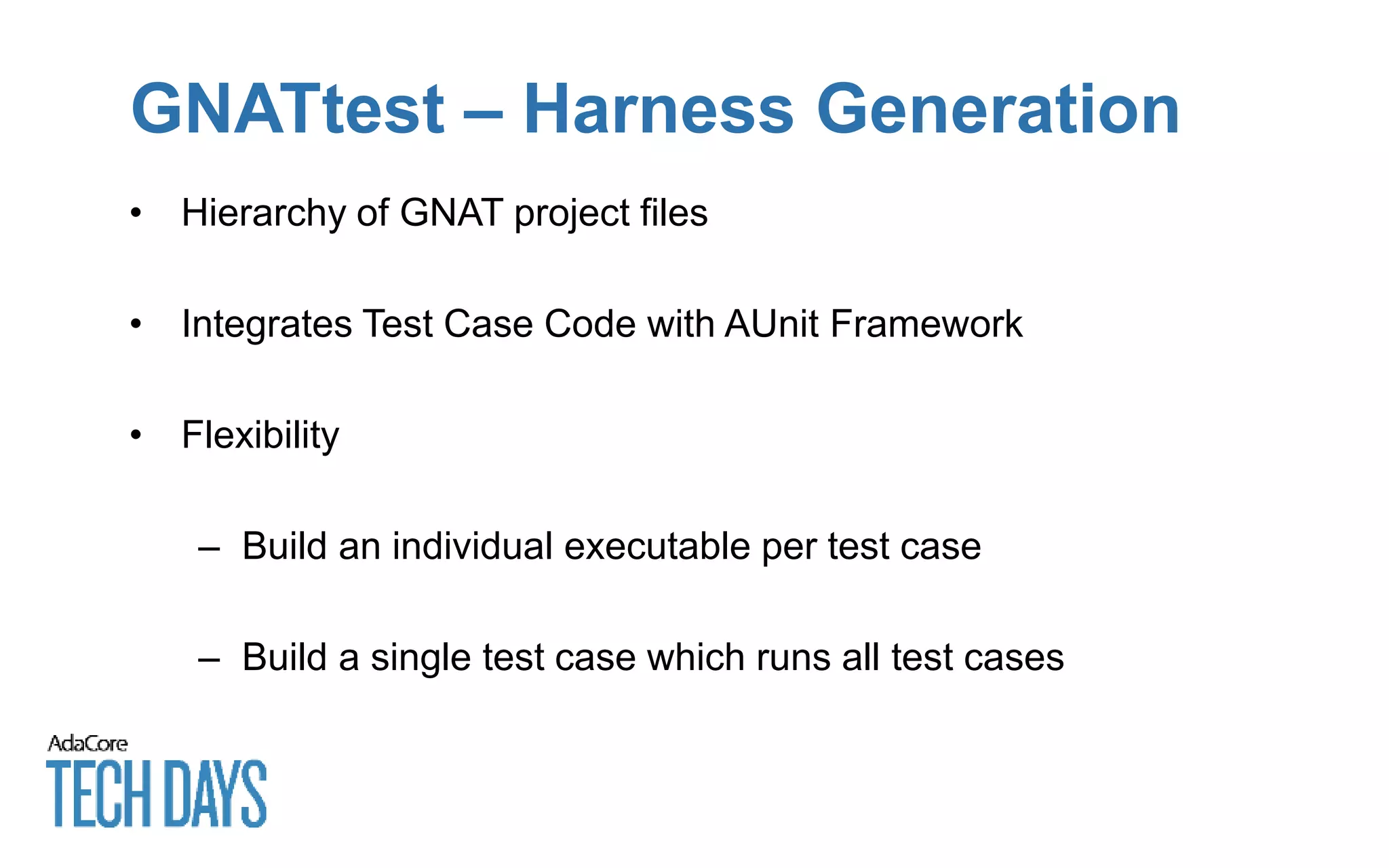

36. GNATtest – Harness Generation
• Hierarchy of GNAT project files
• Integrates Test Case Code with AUnit Framework
• Flexibility
– Build an individual executable per test case
– Build a single test case which runs all test cases

37. GNATtest – Harness Execution

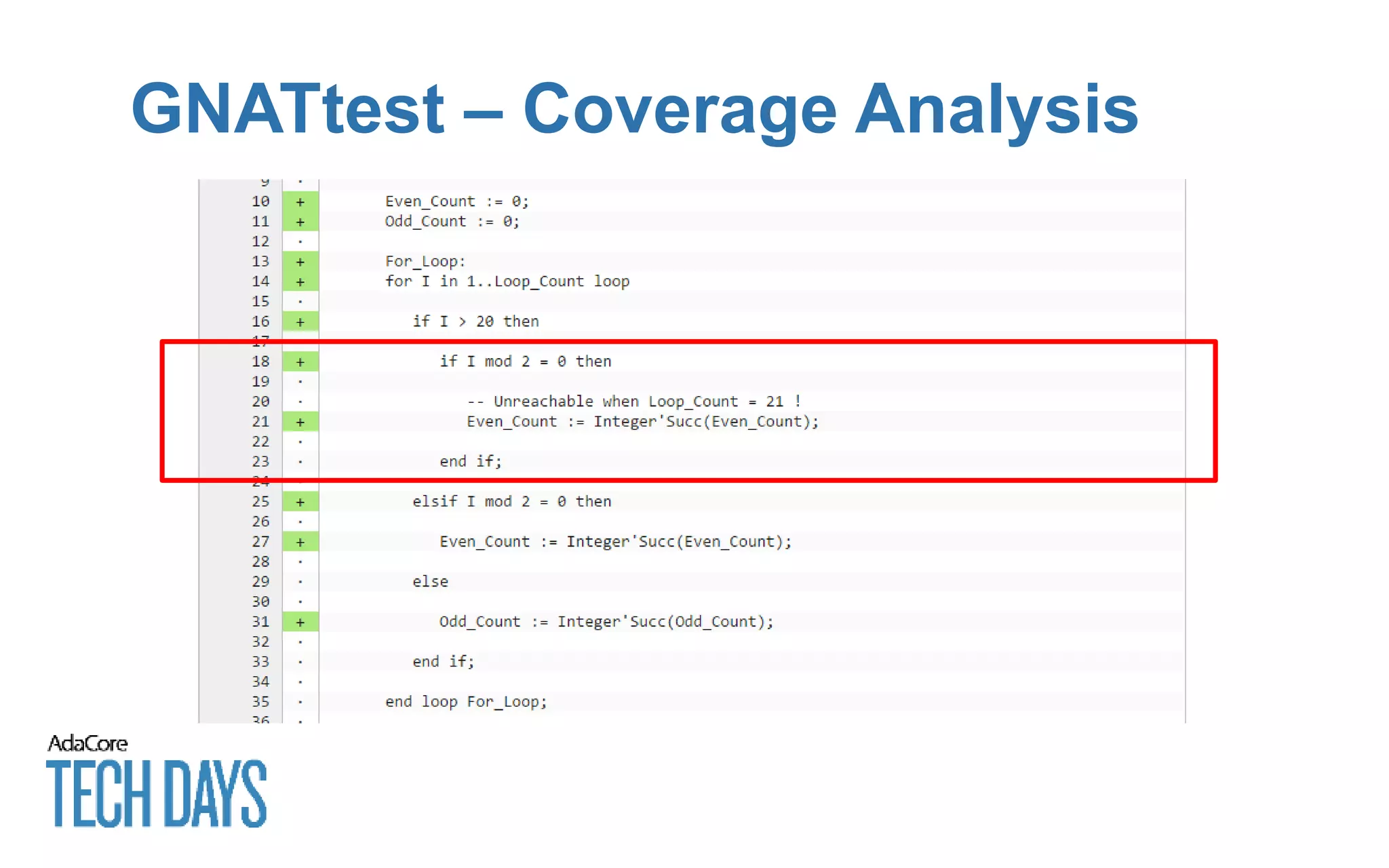

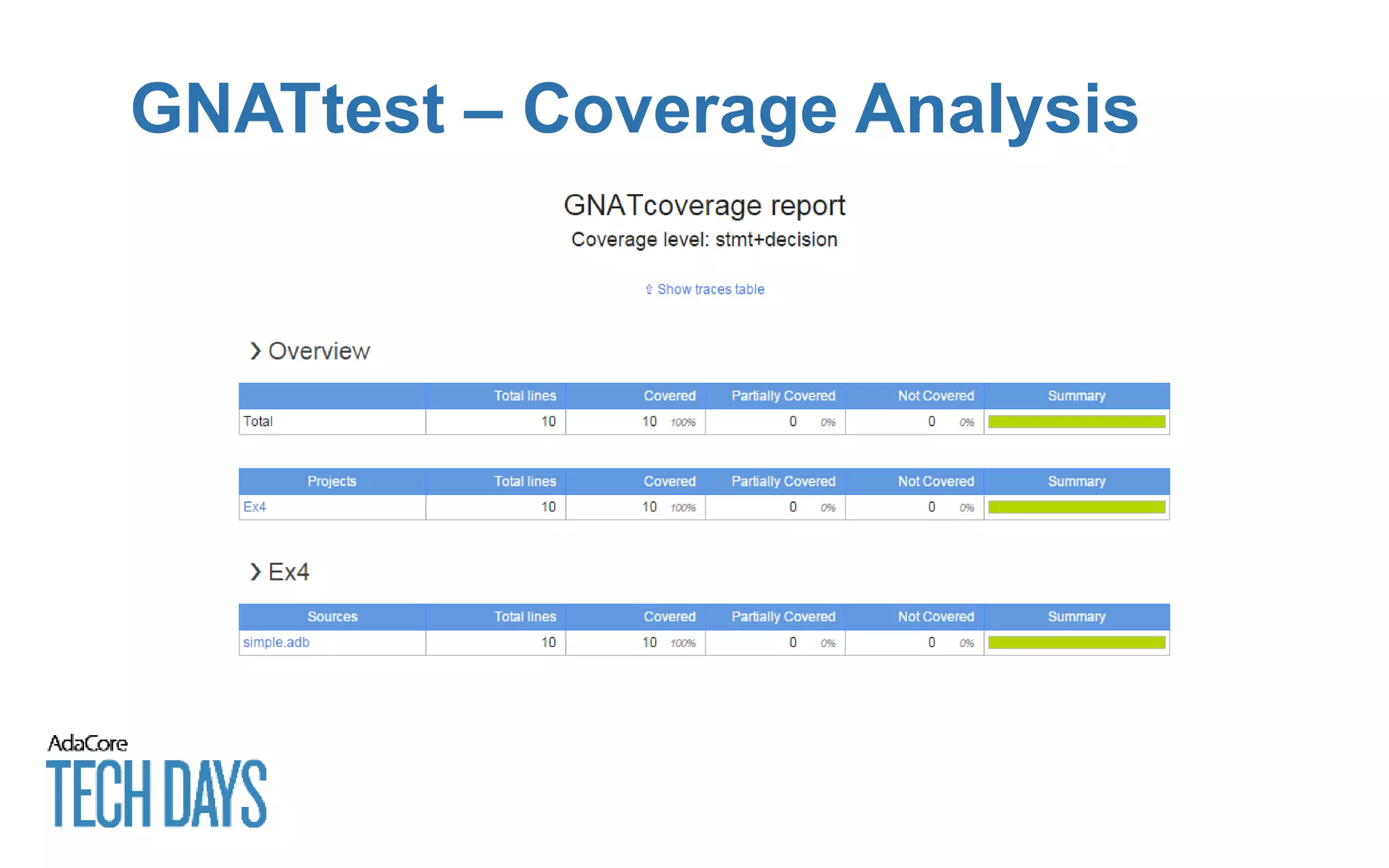

38. GNATtest – Coverage Analysis

39. GNATtest – Coverage Analysis

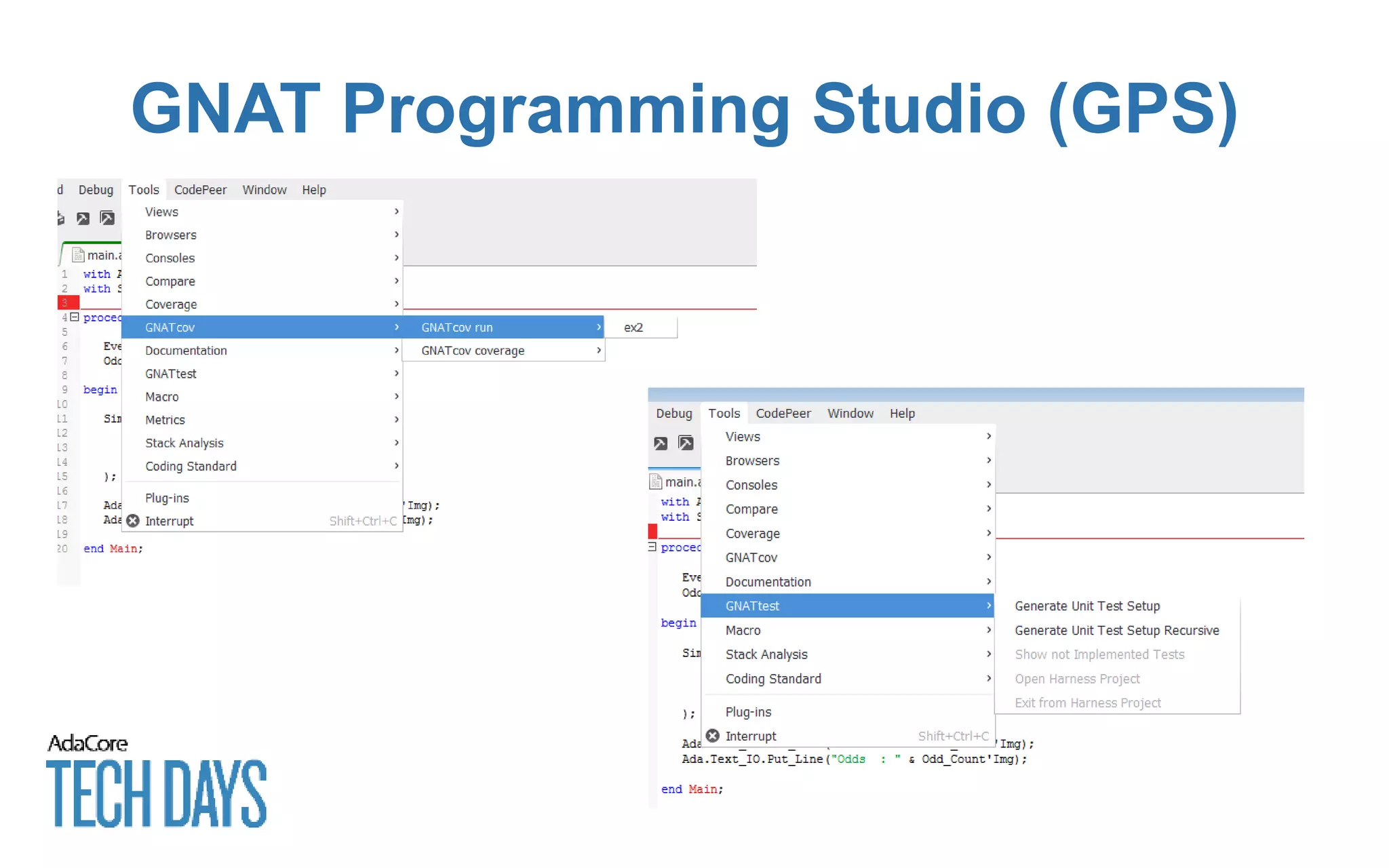

40. GNAT Programming Studio (GPS)

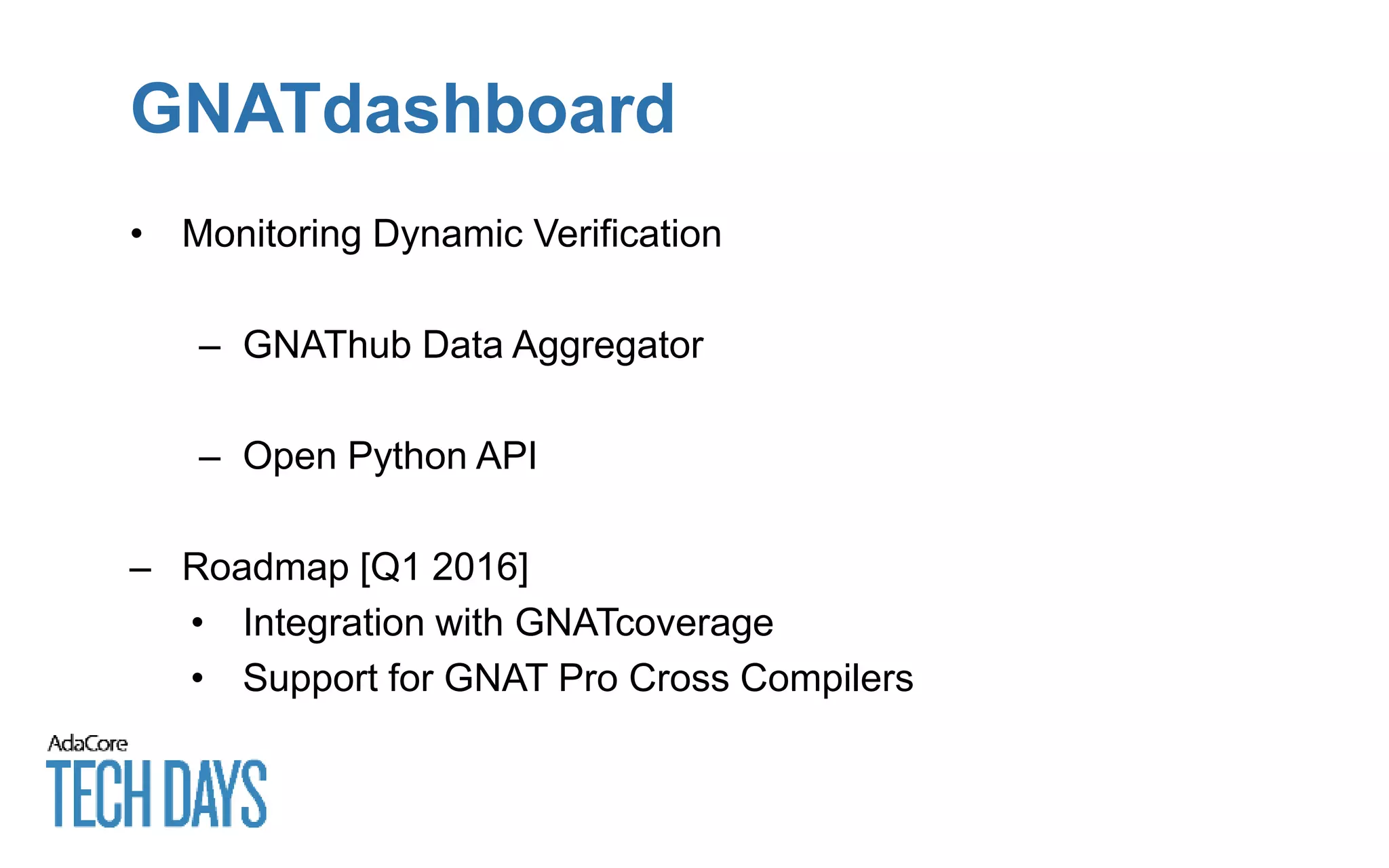

41. GNATdashboard
• Monitoring Dynamic Verification
– GNAThub Data Aggregator
– Open Python API
– Roadmap [Q1 2016]
• Integration with GNATcoverage
• Support for GNAT Pro Cross Compilers

42. GNAThub Data Aggregator

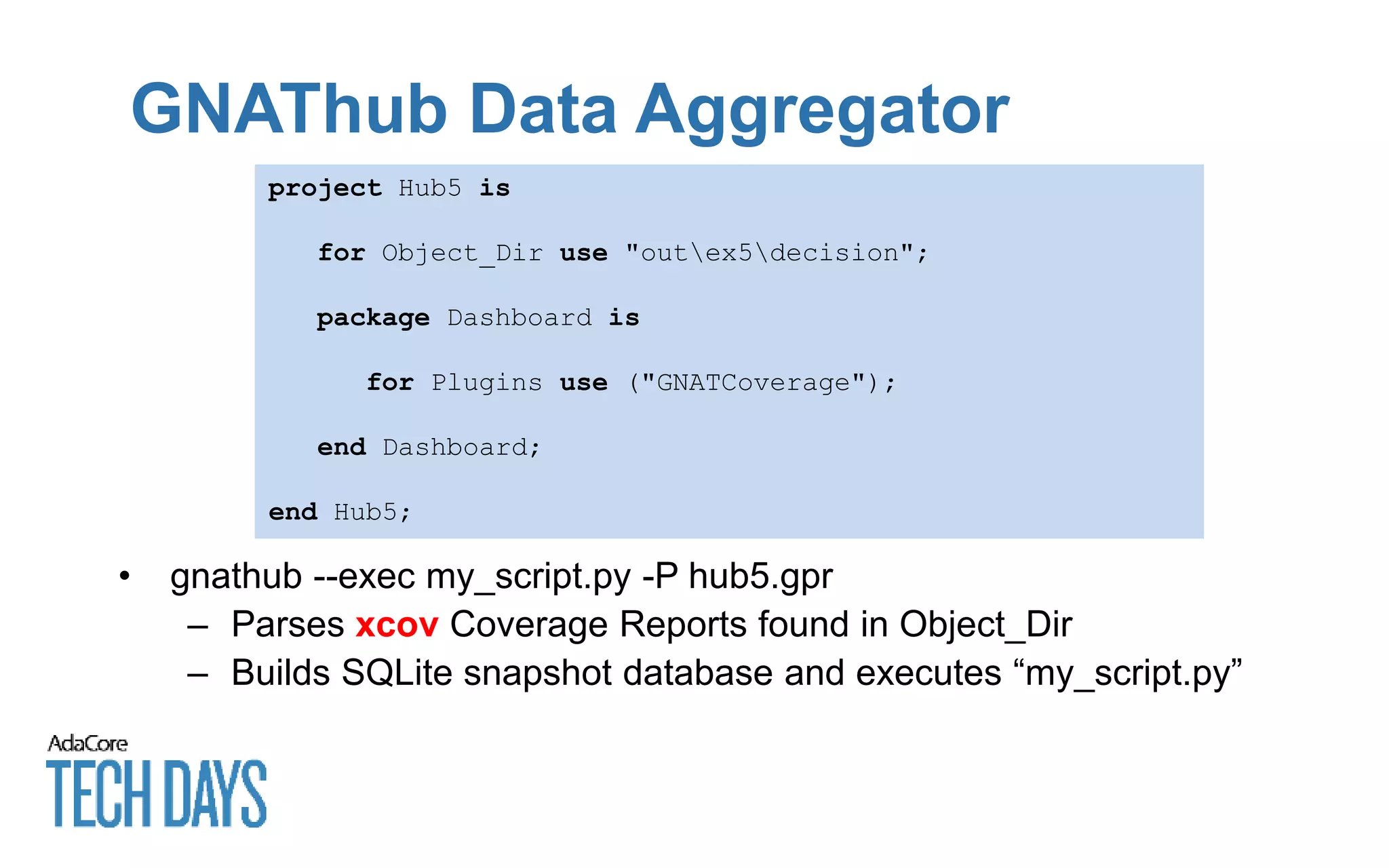

project Hub5 is
for Object_Dir use "outex5decision";
package Dashboard is
for Plugins use ("GNATCoverage");
end Dashboard;
end Hub5;
• gnathub --exec my_script.py -P hub5.gpr
– Parses xcov Coverage Reports found in Object_Dir
– Builds SQLite snapshot database and executes “my_script.py”

43. Open Python API
• Generated SQLite Database can be accessed by Python script
• GNAThub API
• Implemented in Ada and exported to Python
• Integrate the GNAThub Data into customer QA environment
• Databases Delivered from External Teams or put under SCM

45. Partner Solutions
• GNATcoverage Integration
• On-Chip Analyser
• Freescale MPC5634M SoC
• IEEE-ISTO 5001-200 (Nexus)

46. Partner Solutions
• VectorCAST/Ada
– Ada 2012 support Q1’2016
• VectorCAST/Cover
– Joint Webinar on CodePeer 3.0 Integration
• Fully Integrated with GNATemulator supporting VxWorks

47. Partner Solutions
• Rapita Verification Suite (RVS)
– On-target timing analysis (RapiTime)
– RTOS-independent visualization of scheduling and event
tracing (RapiTask)
– On-target code coverage measurement (RapiCover)
• Tools are actually built using Ada, including some Ada 2012

48. • Integration with GNAThub Open Python API
Partner Solutions

49. What you have learnt today ?
• AdaCore are Inventive
– GNAT Technologies go beyond the Implementation Phase
• AdaCore are Collaborative
– Partners and Third-party Technology
• AdaCore are Open
– Open Source, Open APIs and Open Standards
• AdaCore are Dependable
– Committed to helping our customers address their challenges

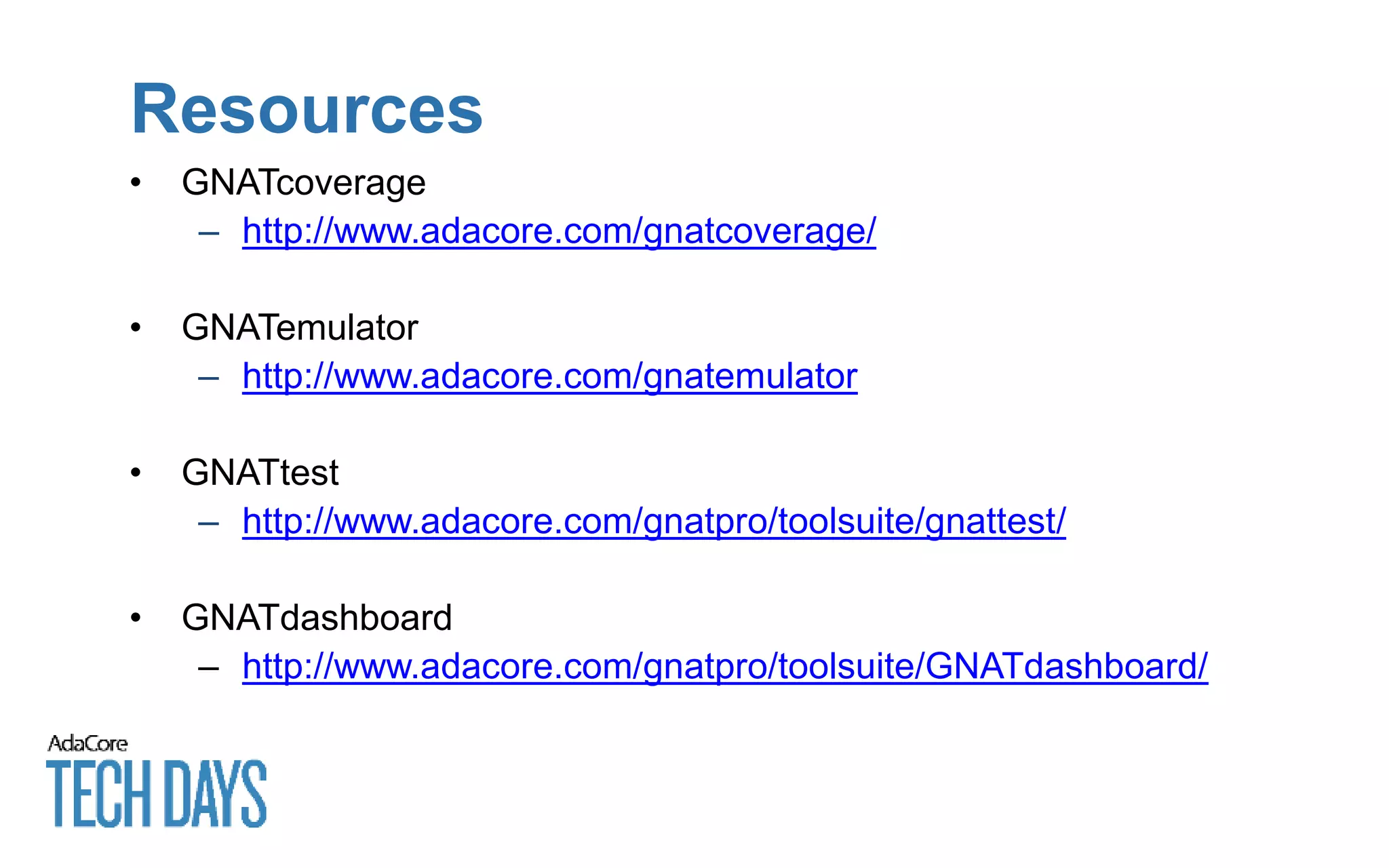

50. Resources
• GNATcoverage
– http://www.adacore.com/gnatcoverage/
• GNATemulator
– http://www.adacore.com/gnatemulator
• GNATtest
– http://www.adacore.com/gnatpro/toolsuite/gnattest/
• GNATdashboard
– http://www.adacore.com/gnatpro/toolsuite/GNATdashboard/
