1. Absorbent Paper and Cotton Products
2. Rubber Dam.
Methods of isolation
Rubber Dam Materials
• Improves access and visualization.
• Superior moisture control.
• Prevents aspiration or swallowing of foreign
bodies.
• Protects soft tissues.
• Aids behavior management.
• Child becomes nasal breather.
• Helps dentist educate parents.
Advantages of Rubber Dam
Composition
Rubber dam material
Ruber dam material colour ranging from green to
lavender to grey to ivory.
Use a dam colour that contrasts with the colour of teeth.
Napkin
It is a piece of strong, absorbant cloth or paper laced
between the rubber dam and the patient’s face.
Punch
A tool for making a hole on rubber dam.
Punch

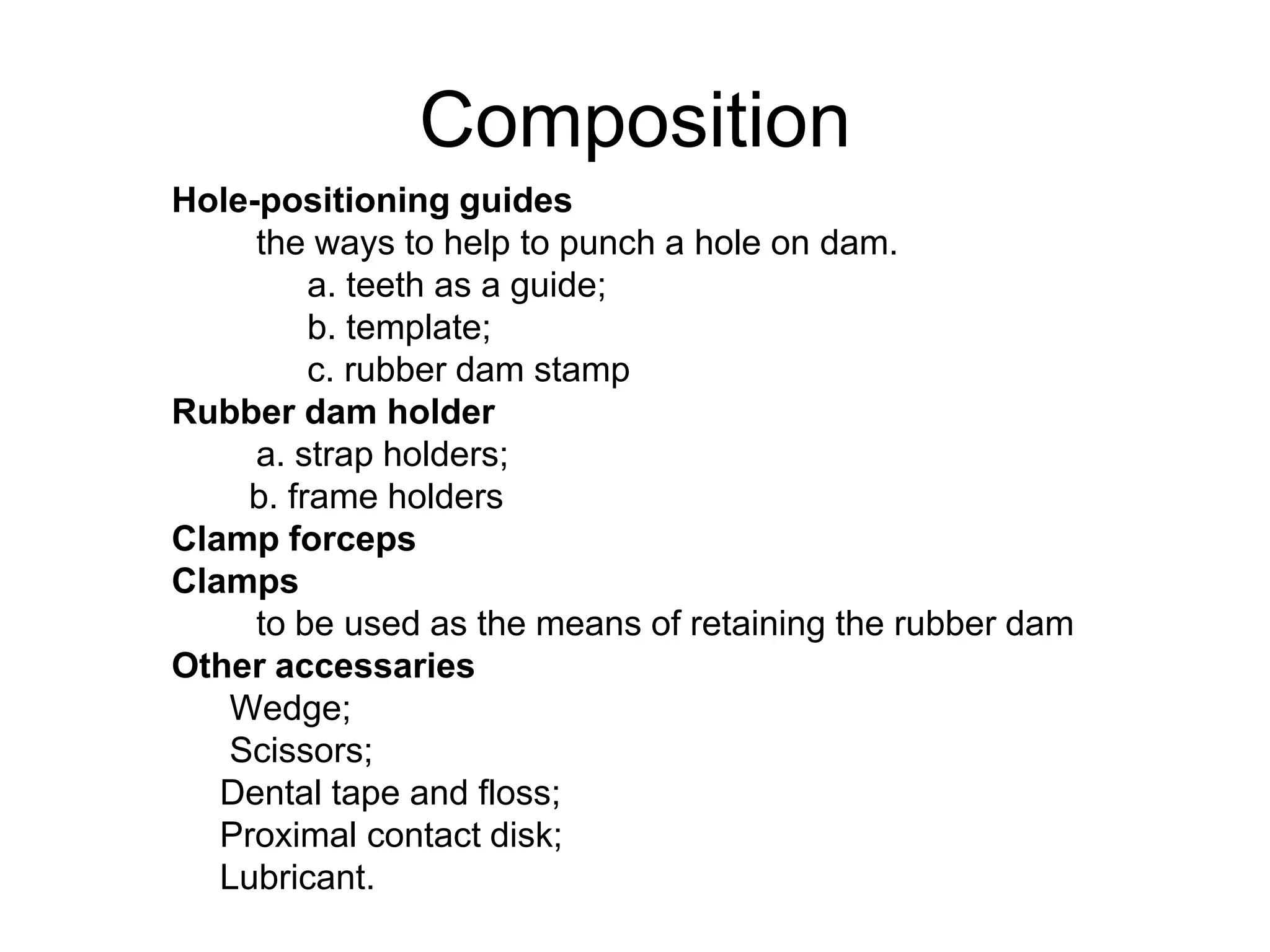

Composition
Hole-positioning guides
the ways to help to punch a hole on dam.
a. teeth as a guide;
b. template;
c. rubber dam stamp
Rubber dam holder
a. strap holders;
b. frame holders
Clamp forceps

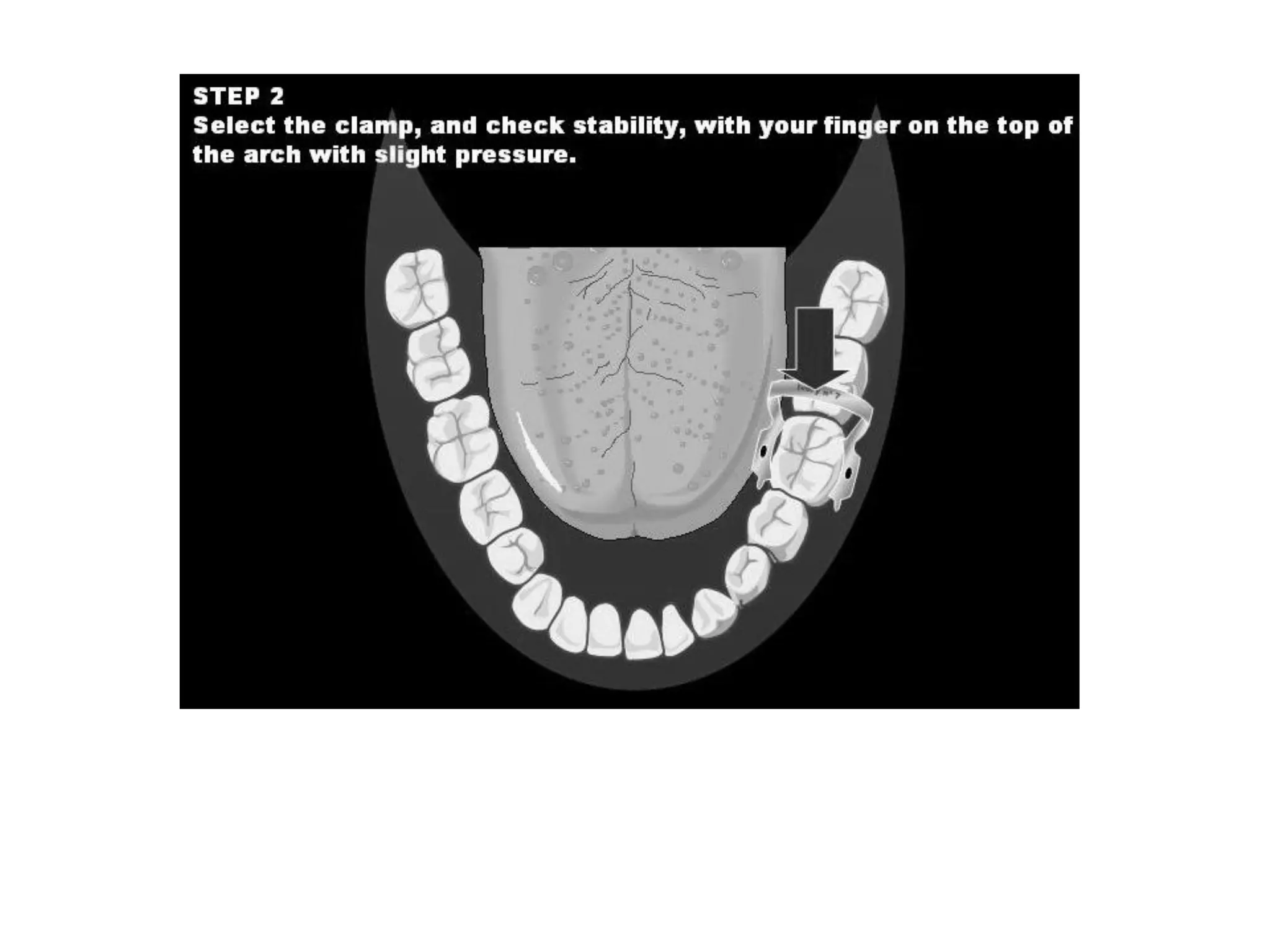

Clamps
to be used as the means of retaining the rubber dam
Other accessaries
Wedge;
Scissors;
Dental tape and floss;
Proximal contact disk;
Lubricant.
Holes positioning guidance
Stamp
Template

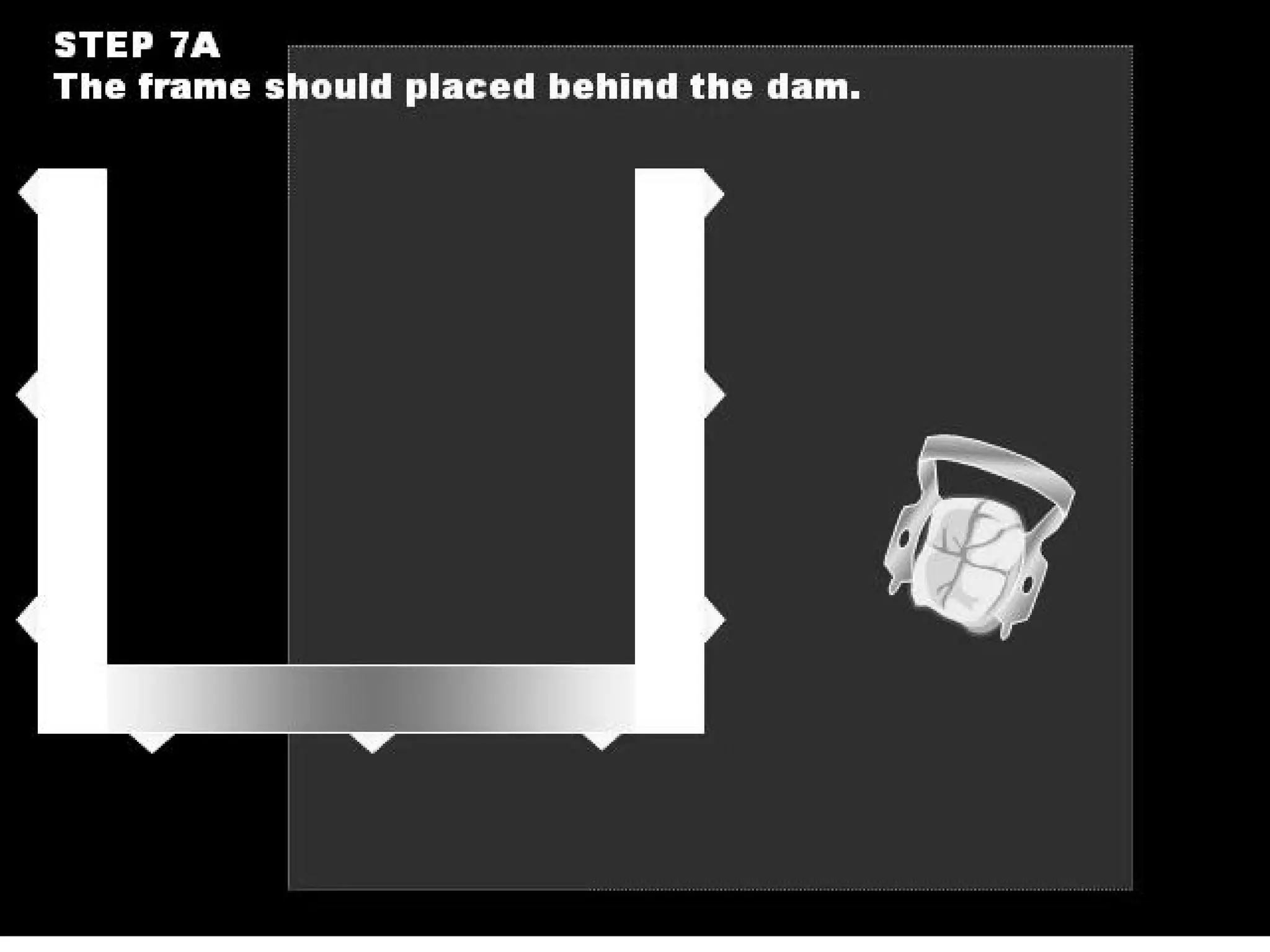

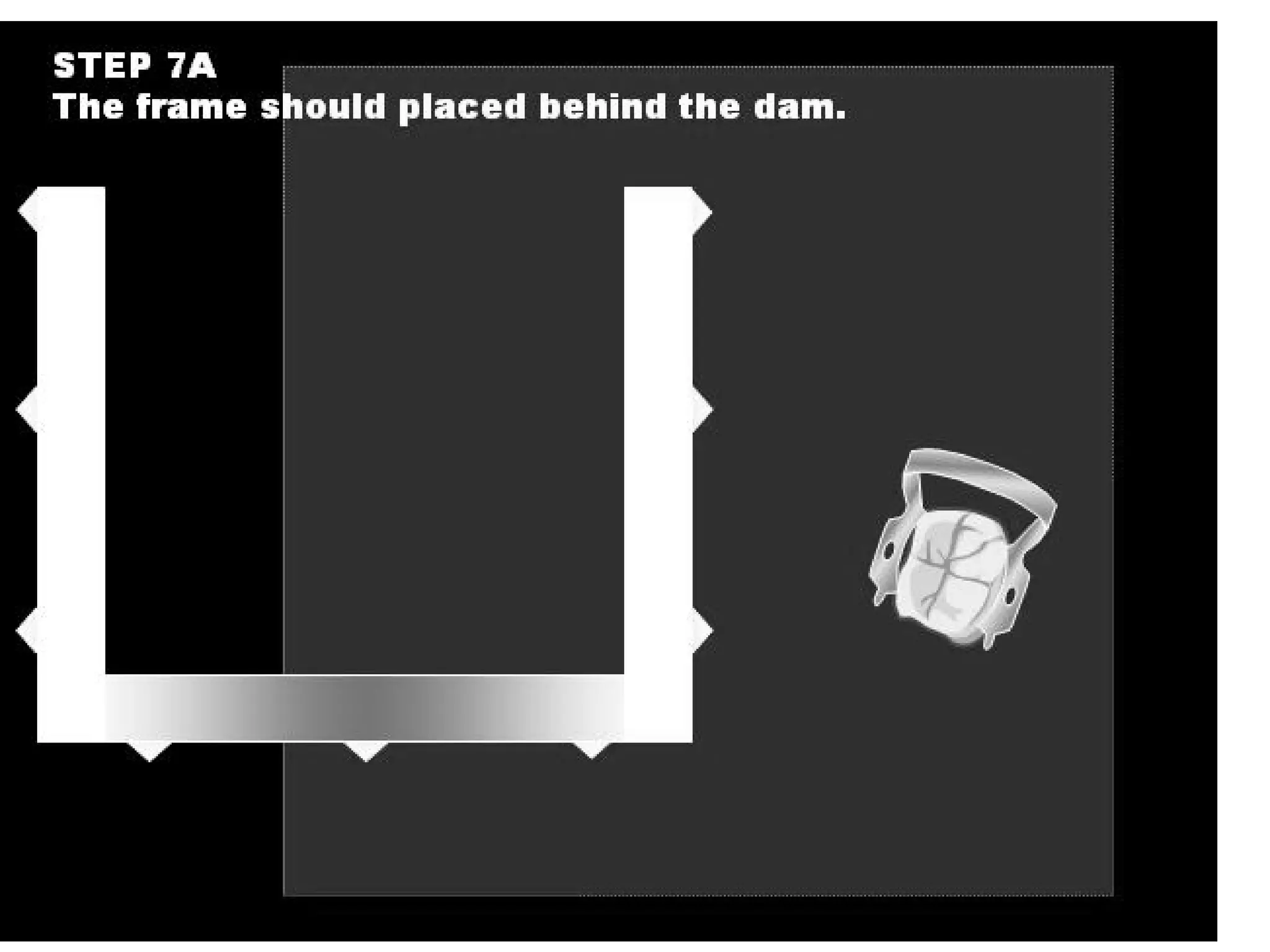

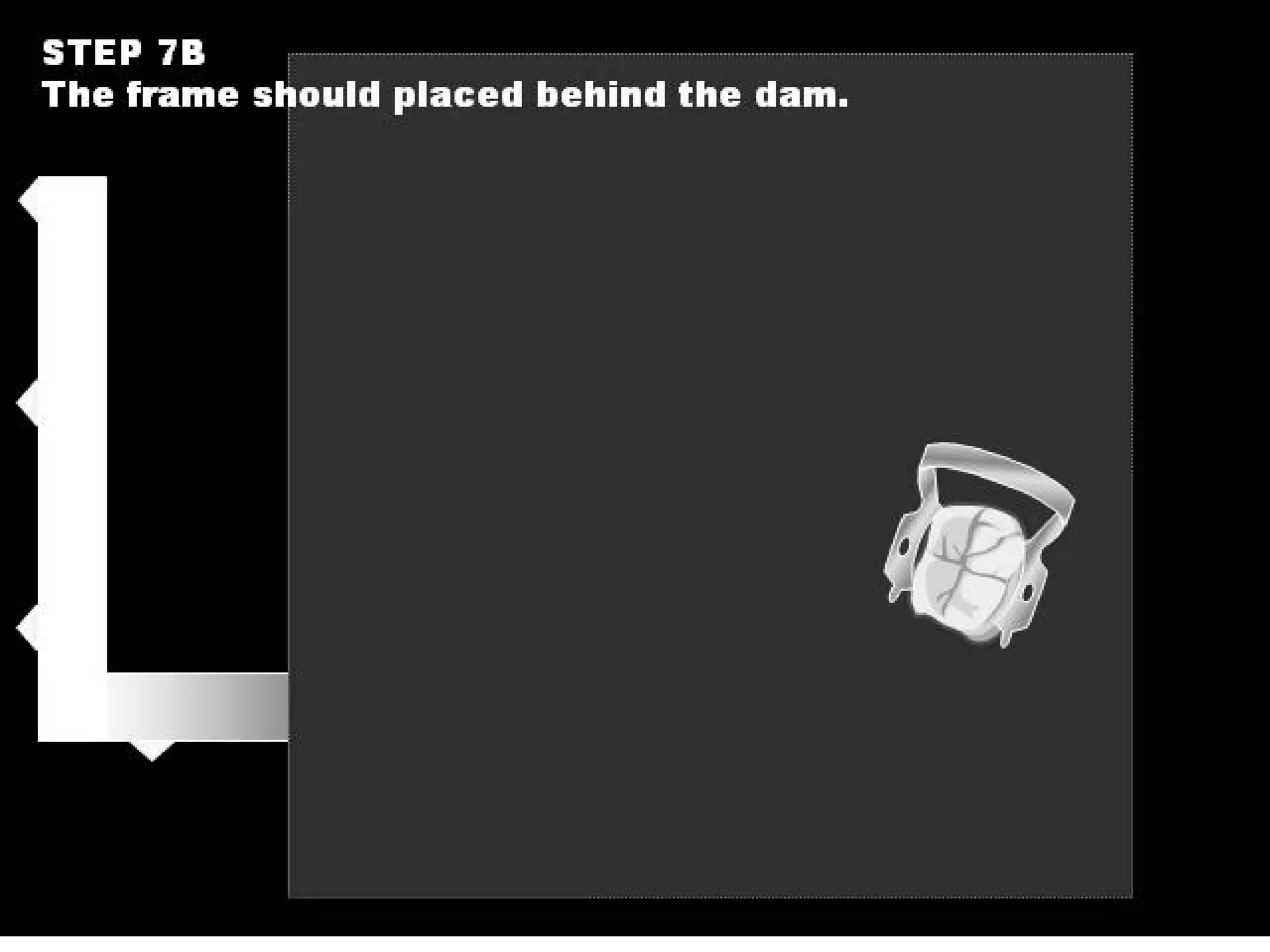

Rubber dam frame
Rubber dam holders

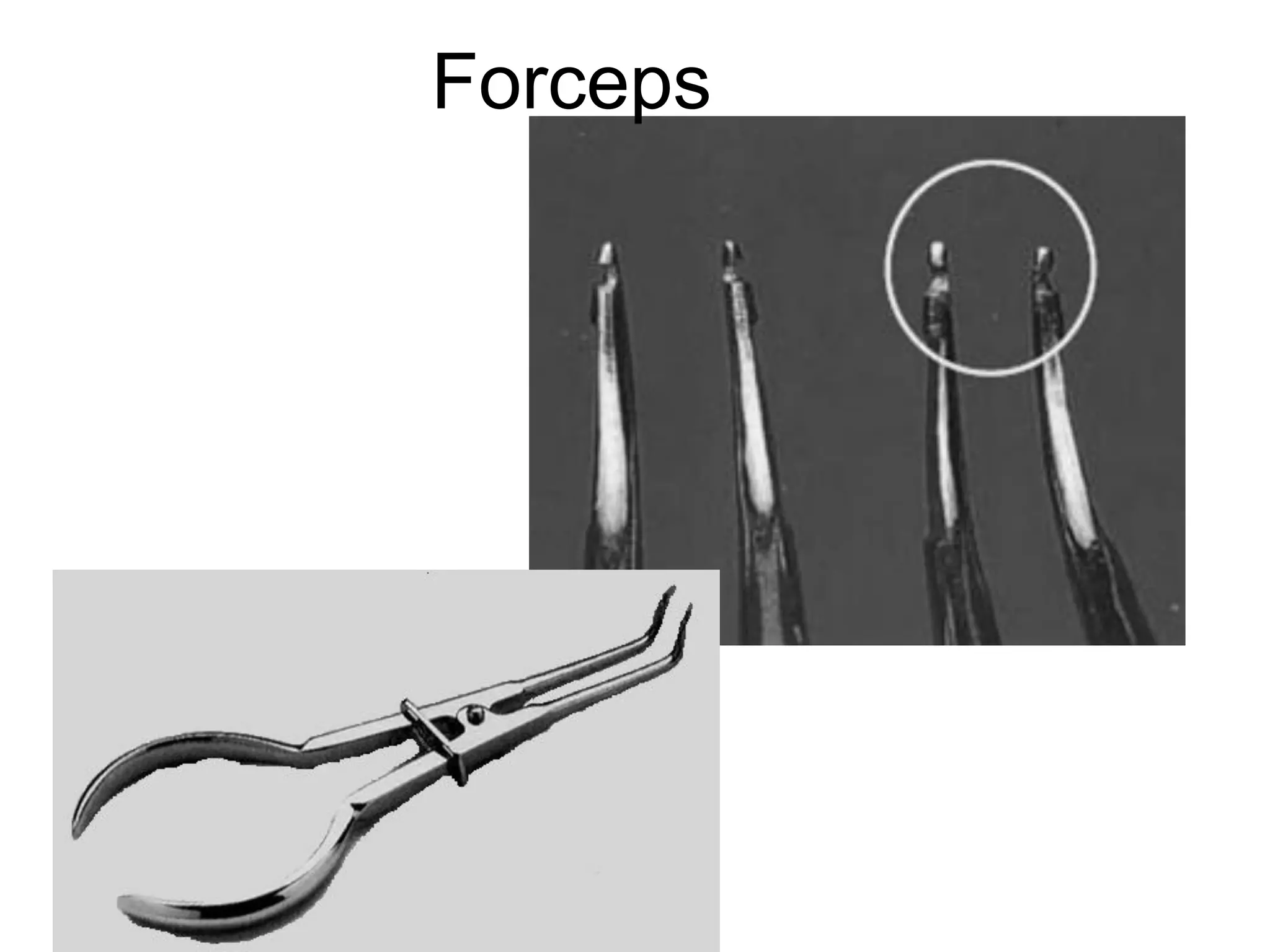

Forceps

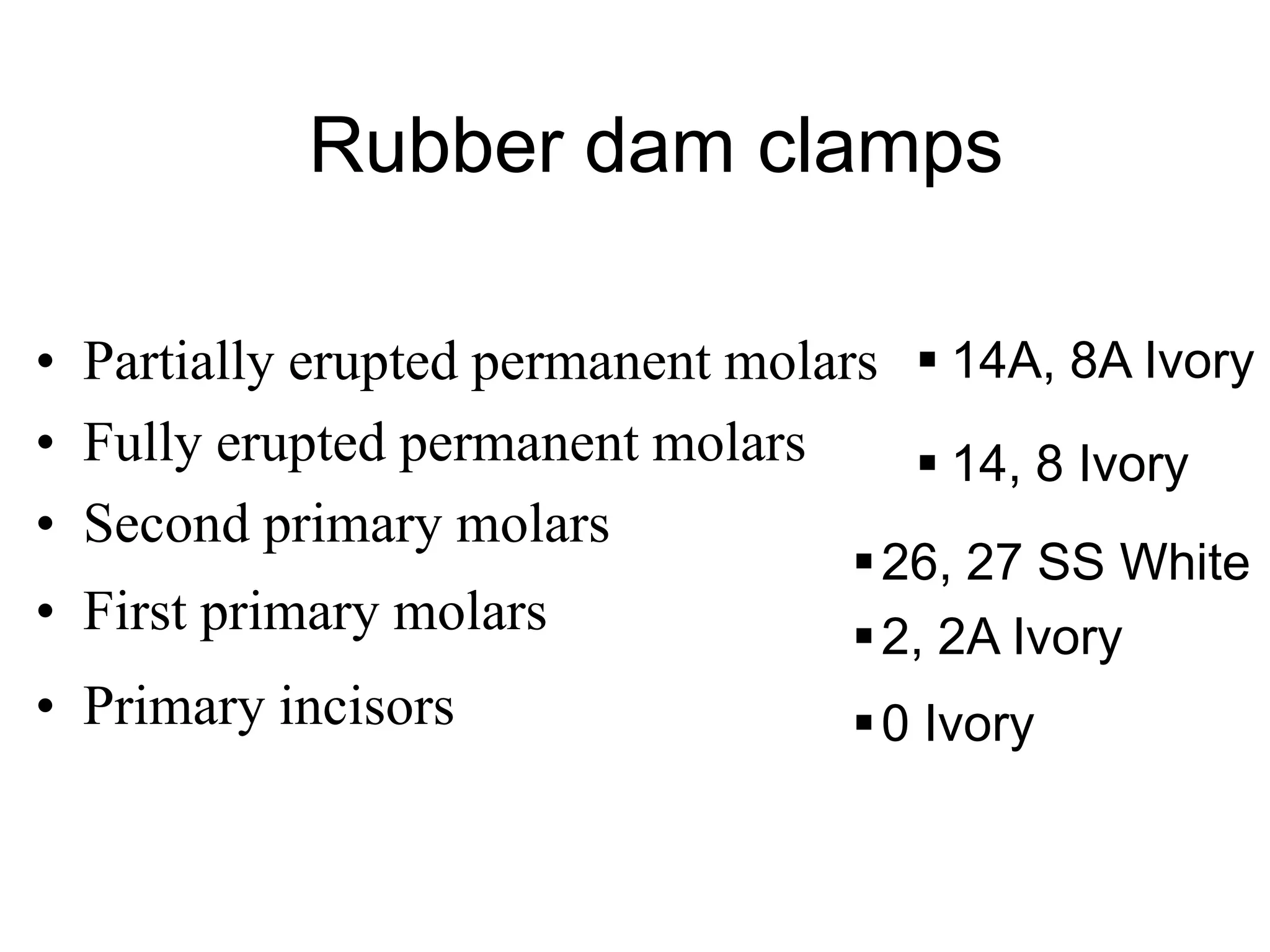

• Partially erupted permanent molars
• Fully erupted permanent molars
• Second primary molars
• First primary molars
• Primary incisors
 14A, 8A Ivory
 14, 8 Ivory
26, 27 SS White
2, 2A Ivory
0 Ivory
Rubber dam clamps

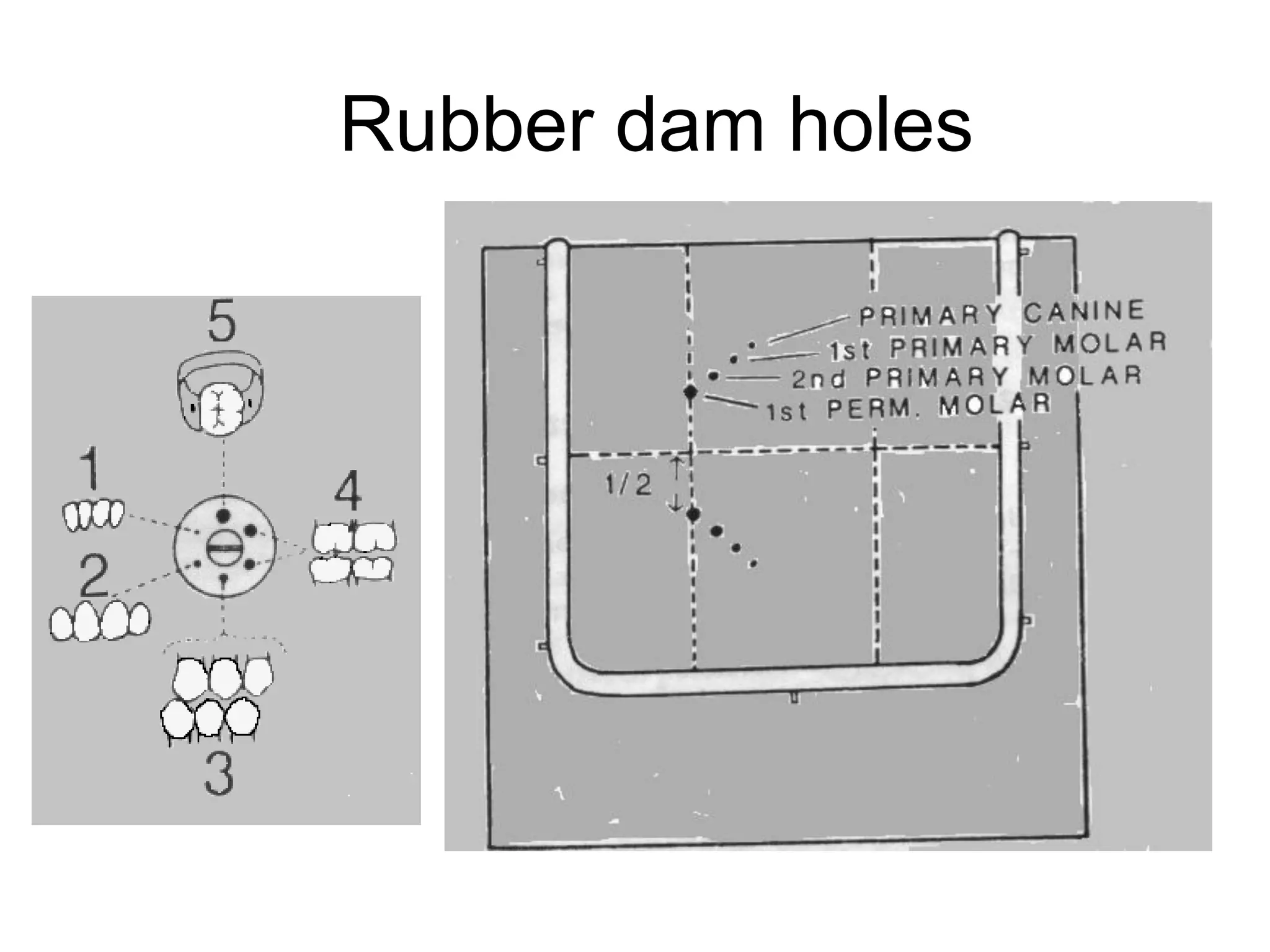

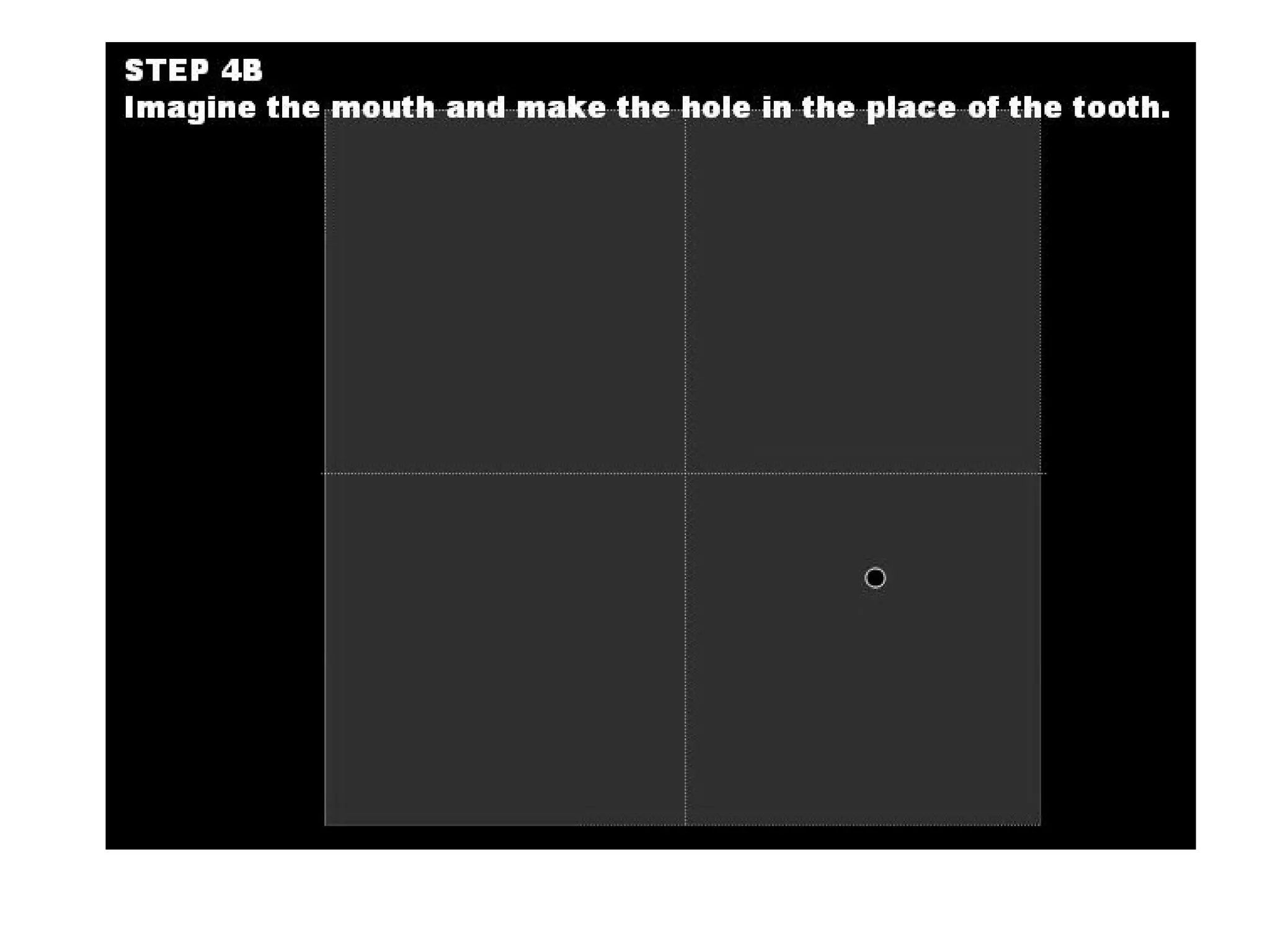

Rubber dam holes

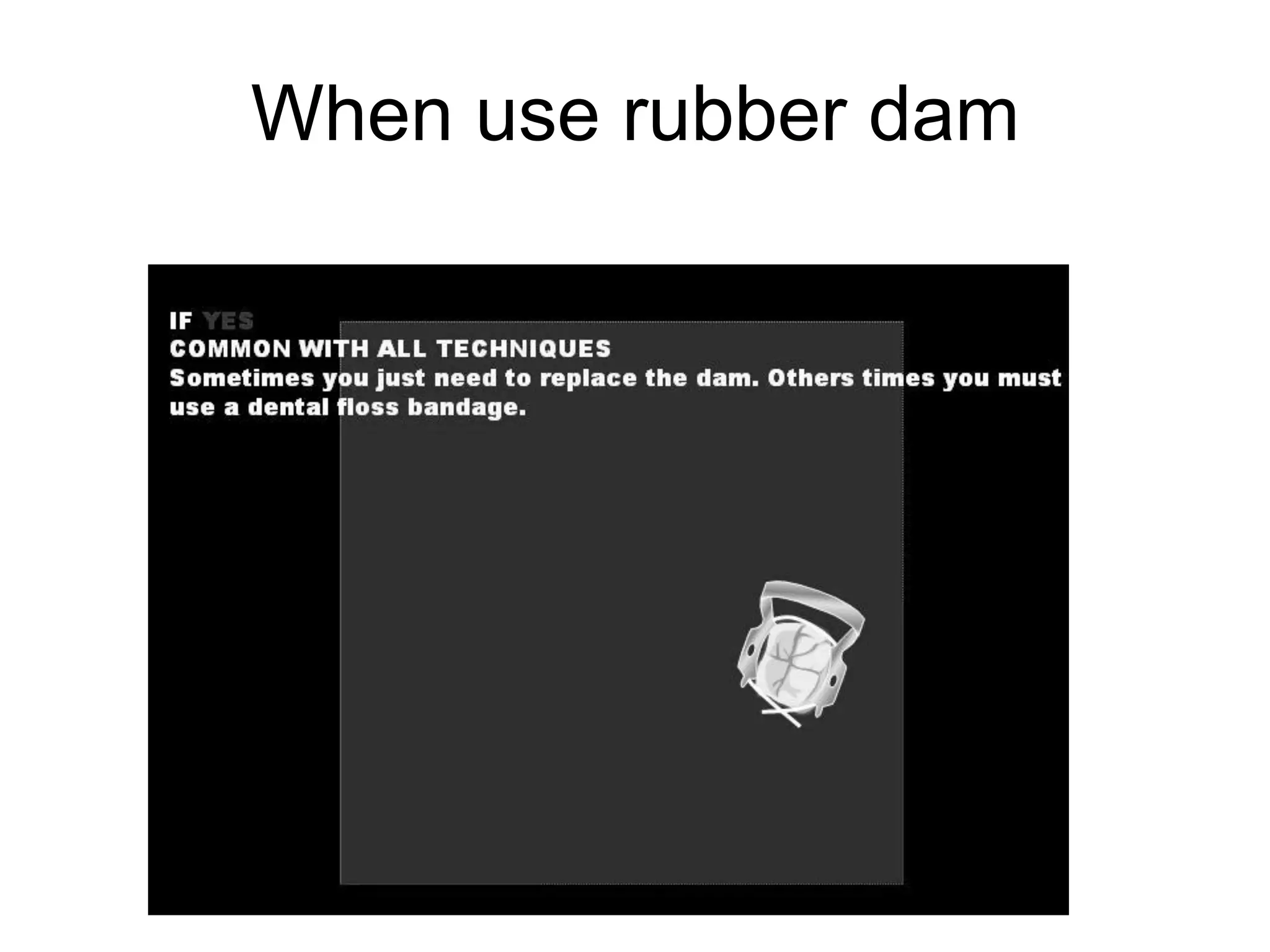

When use rubber dam

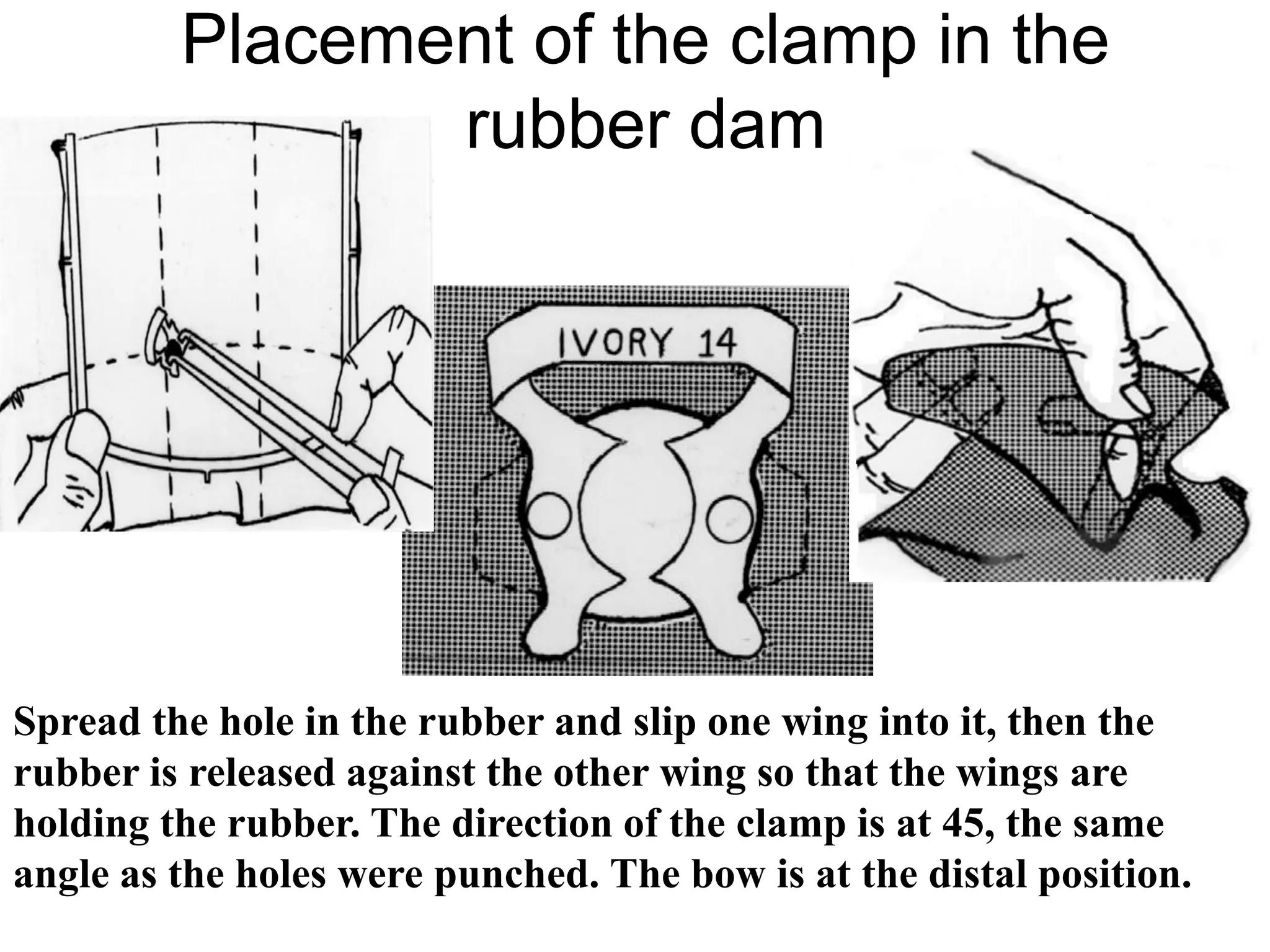

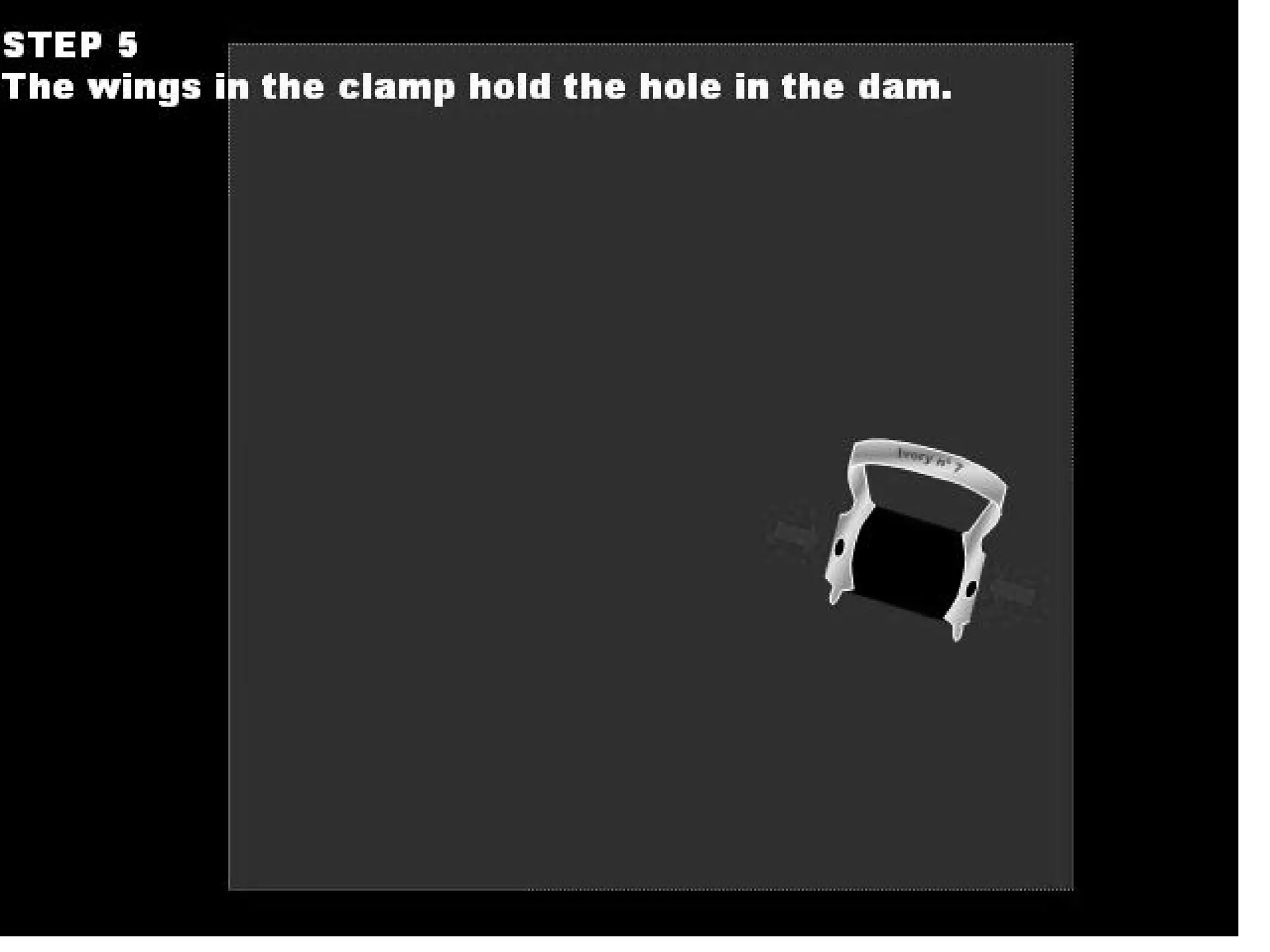

Spread the hole in the rubber and slip one wing into it, then the
rubber is released against the other wing so that the wings are
holding the rubber. The direction of the clamp is at 45, the same
angle as the holes were punched. The bow is at the distal position.

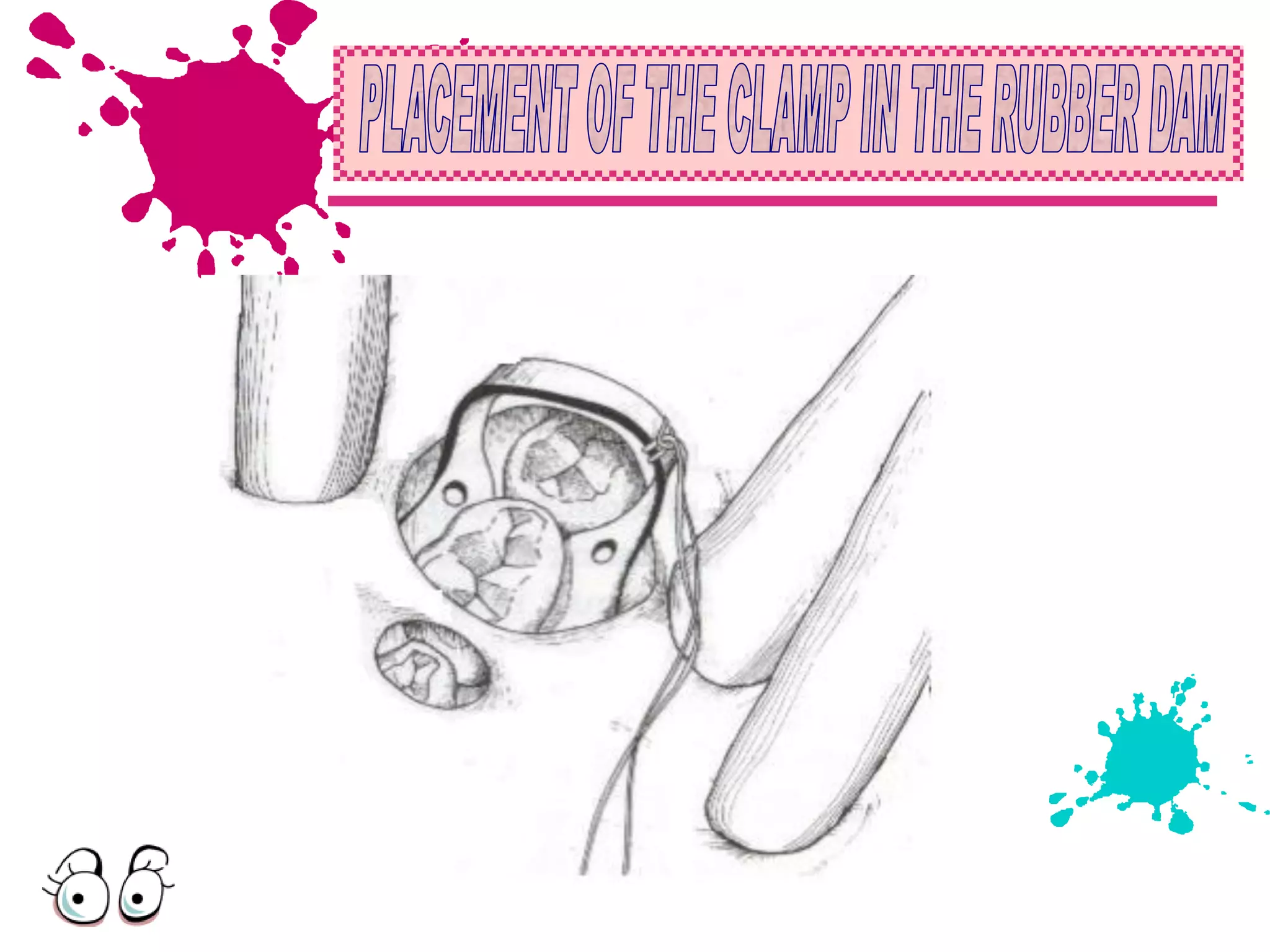

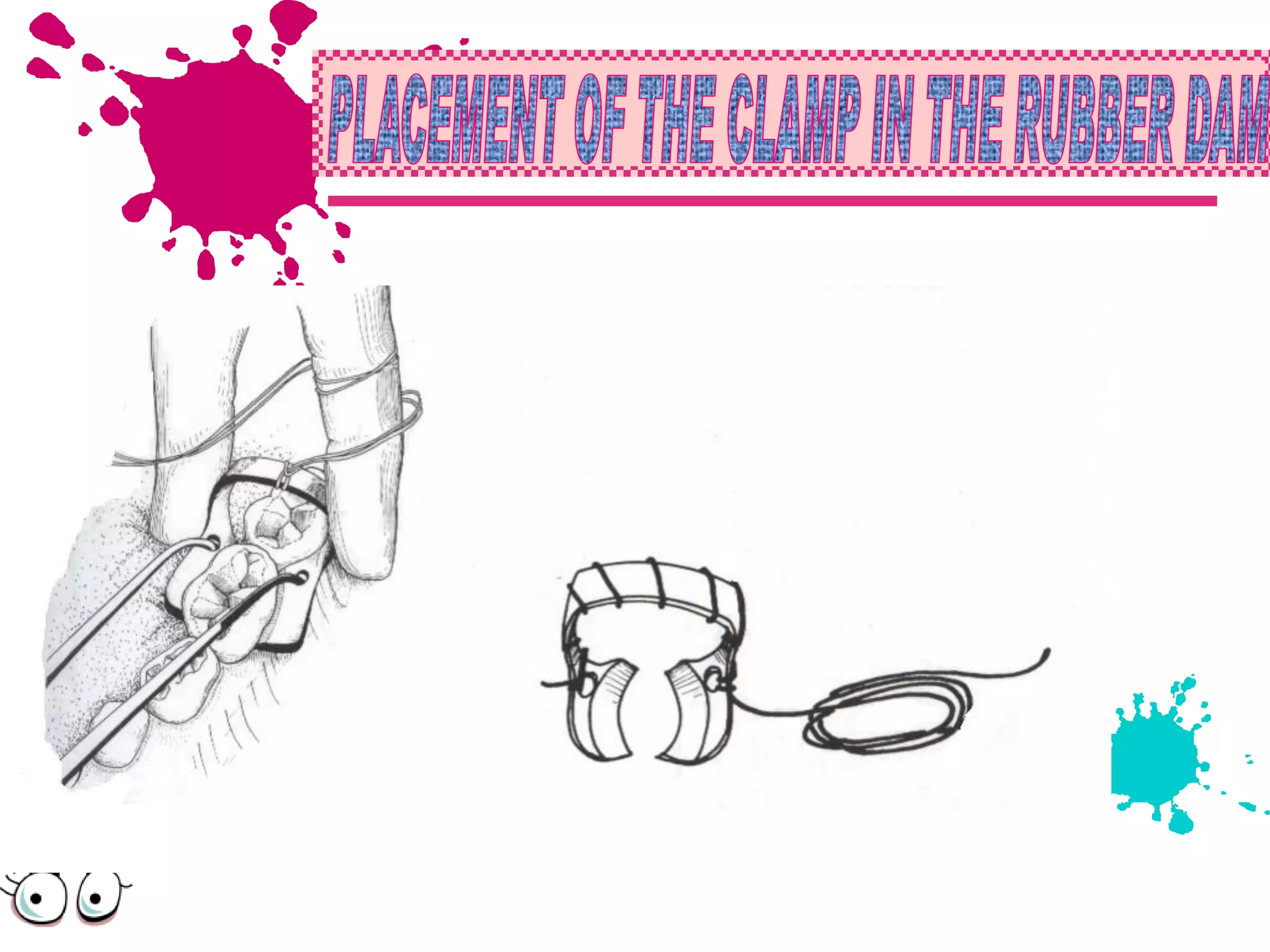

Placement of the clamp in the
rubber dam
Pedia Rubber Dam application
Pedia Rubber Dam application
Pedia Rubber Dam application
Pedia Rubber Dam application
Pedia Rubber Dam application
Pedia Rubber Dam application
Pedia Rubber Dam application
Pedia Rubber Dam application
