1. Operating Systems Principles Process Management and Coordination Lecture 5: Process and Thread Scheduling 主講人：虞台文

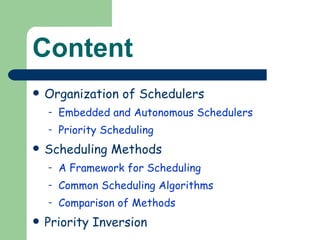

2. Content Organization of Schedulers Embedded and Autonomous Schedulers Priority Scheduling Scheduling Methods A Framework for Scheduling Common Scheduling Algorithms Comparison of Methods Priority Inversion

3. Operating Systems Principles Process Management and Coordination Lecture 5: Process and Thread Scheduling Organization of Schedulers

4. Process Scheduling/Dispatching Process scheduling Long term scheduling Move process to Ready List (“RL”) after creation (When and in which order?) Process Dispatching Short term scheduling Select process from Ready List to run We use “ scheduling ” to refer to both .

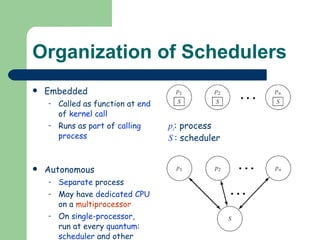

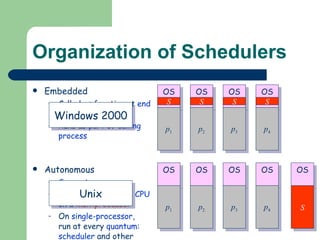

5. Organization of Schedulers Embedded Called as function at end of kernel call Runs as part of calling process Autonomous Separate process May have dedicated CPU on a multiprocessor On single-processor , run at every quantum : scheduler and other processes alternate p i : process S : scheduler

6. Organization of Schedulers Embedded Called as function at end of kernel call Runs as part of calling process Autonomous Separate process May have dedicated CPU on a multiprocessor On single-processor , run at every quantum : scheduler and other processes alternate S S S S OS S Unix Windows 2000 OS p 1 OS p 2 OS p 3 OS p 4 OS p 1 OS p 2 OS p 3 OS p 4

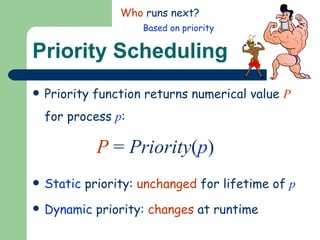

7. Priority Scheduling Priority function returns numerical value P for process p : P = Priority ( p ) Static priority: unchanged for lifetime of p Dynamic priority: changes at runtime Who runs next? Based on priority

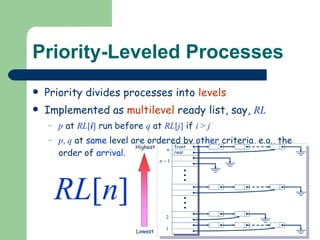

8. Priority-Leveled Processes Priority divides processes into levels Implemented as multilevel ready list, say, RL p at RL [ i ] run before q at RL [ j ] if i > j p , q at same level are ordered by other criteria, e.g., the order of arrival . RL [ n ]

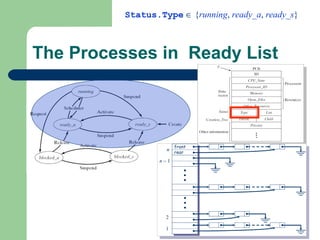

9. The Processes in Ready List Status.Type  { running , ready_a , ready_s }

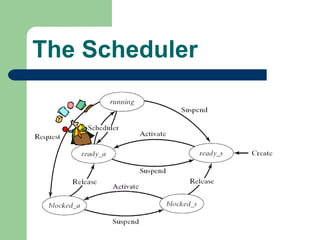

10. The Scheduler

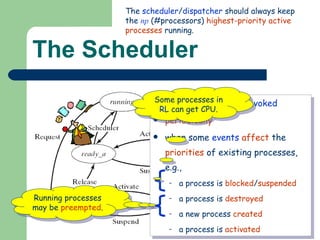

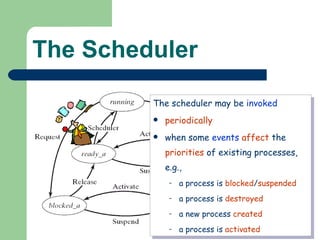

11. The Scheduler The scheduler may be invoked periodically when some events affect the priorities of existing processes, e.g., a process is blocked / suspended a process is destroyed a new process created a process is activated

12. The Scheduler The scheduler may be invoked periodically when some events affect the priorities of existing processes, e.g., a process is blocked / suspended a process is destroyed a new process created a process is activated Some processes in RL can get CPU. Running processes may be preempted . The scheduler / dispatcher should always keep the np (#processors) highest-priority active processes running.

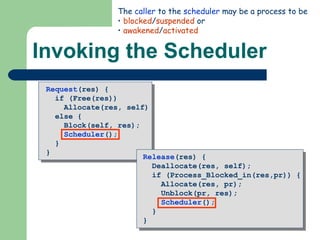

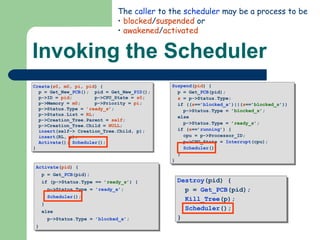

13. Invoking the Scheduler The caller to the scheduler may be a process to be blocked / suspended or awakened / activated

14. Invoking the Scheduler The caller to the scheduler may be a process to be blocked / suspended or awakened / activated

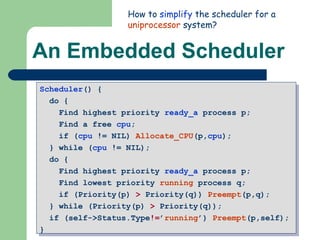

15. An Embedded Scheduler Scheduler () { do { Find highest priority ready_a process p; Find a free cpu; if (cpu != NIL) Allocate_CPU (p,cpu); } while (cpu != NIL); do { Find highest priority ready_a process p; Find lowest priority running process q; if (Priority(p) > Priority(q)) Preempt (p,q); } while (Priority(p) > Priority(q)); if (self->Status.Type!=’running’) Preempt (p,self); } The caller to the scheduler may be a process to be blocked / suspended or awakened / activated If free CPUs are available, allocate these free CPUs to high-priority processes in ready_a state To preempt low-priority running processes by high-priority ready_a ones. If the caller is going to be idled , preempt itself .

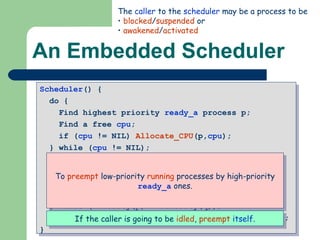

16. An Embedded Scheduler Scheduler () { do { Find highest priority ready_a process p; Find a free cpu ; if ( cpu != NIL) Allocate_CPU (p, cpu ); } while ( cpu != NIL); do { Find highest priority ready_a process p; Find lowest priority running process q; if (Priority(p) > Priority(q)) Preempt (p,q); } while (Priority(p) > Priority(q)); if (self->Status.Type!=’running’) Preempt (p,self); } The caller to the scheduler may be a process to be blocked / suspended or awakened / activated To preempt low-priority running processes by high-priority ready_a ones. If the caller is going to be idled , preempt itself .

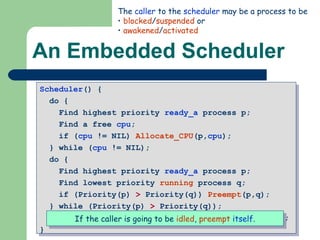

17. An Embedded Scheduler Scheduler () { do { Find highest priority ready_a process p; Find a free cpu ; if ( cpu != NIL) Allocate_CPU (p, cpu ); } while ( cpu != NIL); do { Find highest priority ready_a process p; Find lowest priority running process q; if (Priority(p) > Priority(q)) Preempt (p,q); } while (Priority(p) > Priority(q)); if (self->Status.Type!=’running’) Preempt (p,self); } The caller to the scheduler may be a process to be blocked / suspended or awakened / activated If the caller is going to be idled , preempt itself .

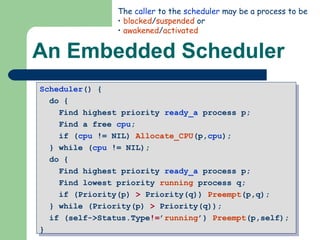

18. An Embedded Scheduler Scheduler () { do { Find highest priority ready_a process p; Find a free cpu ; if ( cpu != NIL) Allocate_CPU (p, cpu ); } while ( cpu != NIL); do { Find highest priority ready_a process p; Find lowest priority running process q; if (Priority(p) > Priority(q)) Preempt (p,q); } while (Priority(p) > Priority(q)); if (self->Status.Type != ’ running ’) Preempt (p,self); } The caller to the scheduler may be a process to be blocked / suspended or awakened / activated

19. An Embedded Scheduler Scheduler () { do { Find highest priority ready_a process p; Find a free cpu ; if ( cpu != NIL) Allocate_CPU (p, cpu ); } while ( cpu != NIL); do { Find highest priority ready_a process p; Find lowest priority running process q; if (Priority(p) > Priority(q)) Preempt (p,q); } while (Priority(p) > Priority(q)); if (self->Status.Type != ’ running ’) Preempt (p,self); } How to simplify the scheduler for a uniprocessor system?

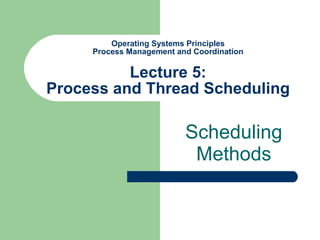

20. Operating Systems Principles Process Management and Coordination Lecture 5: Process and Thread Scheduling Scheduling Methods

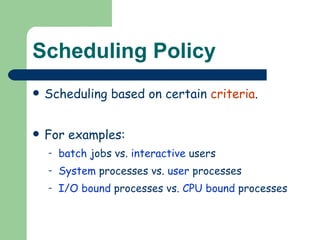

21. Scheduling Policy Scheduling based on certain criteria . For examples: batch jobs vs. interactive users System processes vs. user processes I/O bound processes vs. CPU bound processes

22. The General Framework When to schedule? Preemptive Nonpreemptive Who to schedule? Priority evaluation Arbitration to break ties Decision Mode Decision mode Priority function Arbitration Rule A scheduling policy is determined by:

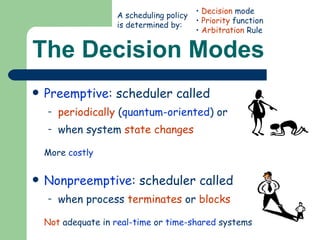

23. The Decision Modes Preemptive : scheduler called periodically ( quantum-oriented ) or when system state changes More costly Nonpreemptive : scheduler called when process terminates or blocks Not adequate in real-time or time-shared systems Decision mode Priority function Arbitration Rule A scheduling policy is determined by:

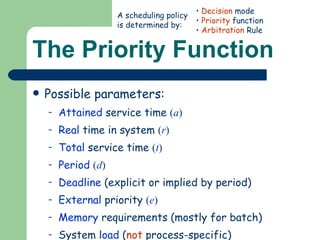

24. The Priority Function Possible parameters: Attained service time ( a ) Real time in system ( r ) Total service time ( t ) Period ( d ) Deadline (explicit or implied by period) External priority ( e ) Memory requirements (mostly for batch) System load ( not process-specific) Decision mode Priority function Arbitration Rule A scheduling policy is determined by:

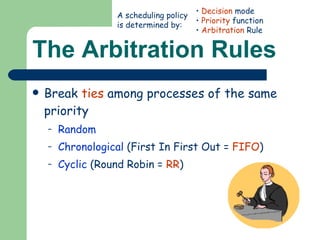

25. The Arbitration Rules Break ties among processes of the same priority Random Chronological (First In First Out = FIFO ) Cyclic (Round Robin = RR ) Decision mode Priority function Arbitration Rule A scheduling policy is determined by:

26. Common Scheduling Algorithms First-In/First-Out (FIFO) Shortest-Job-First (SJF) Shortest-Remaining-Time (SRT) Round-Robin (RR) Multilevel Priority (ML) Multilevel Feedback (MLF) Rate Monotonic (RM) Earliest Deadline (EDF)

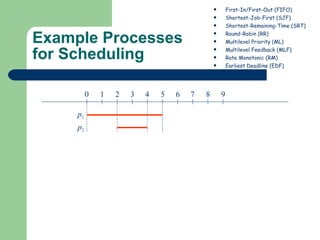

27. Example Processes for Scheduling First-In/First-Out (FIFO) Shortest-Job-First (SJF) Shortest-Remaining-Time (SRT) Round-Robin (RR) Multilevel Priority (ML) Multilevel Feedback (MLF) Rate Monotonic (RM) Earliest Deadline (EDF) 0 1 2 3 4 5 6 7 8 9 p 1 p 2

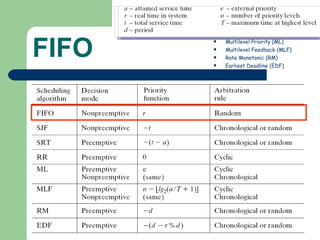

28. FIFO First-In/First-Out (FIFO) Shortest-Job-First (SJF) Shortest-Remaining-Time (SRT) Round-Robin (RR) Multilevel Priority (ML) Multilevel Feedback (MLF) Rate Monotonic (RM) Earliest Deadline (EDF) 0 1 2 3 4 5 6 7 8 9 p 1 p 2 CPU does other things Start Scheduling p 1 p 2

29. FIFO First-In/First-Out (FIFO) Shortest-Job-First (SJF) Shortest-Remaining-Time (SRT) Round-Robin (RR) Multilevel Priority (ML) Multilevel Feedback (MLF) Rate Monotonic (RM) Earliest Deadline (EDF) 0 1 2 3 4 5 6 7 8 9 p 1 p 2 CPU does other things Start Scheduling p 1 p 2

30. SJF First-In/First-Out (FIFO) Shortest-Job-First (SJF) Shortest-Remaining-Time (SRT) Round-Robin (RR) Multilevel Priority (ML) Multilevel Feedback (MLF) Rate Monotonic (RM) Earliest Deadline (EDF) 0 1 2 3 4 5 6 7 8 9 p 1 p 2 CPU does other things Start Scheduling p 1 p 2

31. SJF First-In/First-Out (FIFO) Shortest-Job-First (SJF) Shortest-Remaining-Time (SRT) Round-Robin (RR) Multilevel Priority (ML) Multilevel Feedback (MLF) Rate Monotonic (RM) Earliest Deadline (EDF) 0 1 2 3 4 5 6 7 8 9 p 1 p 2 CPU does other things Start Scheduling p 1 p 2

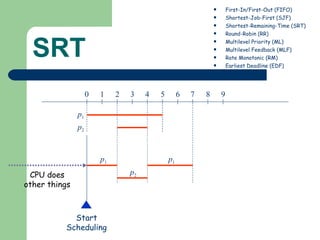

32. SRT First-In/First-Out (FIFO) Shortest-Job-First (SJF) Shortest-Remaining-Time (SRT) Round-Robin (RR) Multilevel Priority (ML) Multilevel Feedback (MLF) Rate Monotonic (RM) Earliest Deadline (EDF) 0 1 2 3 4 5 6 7 8 9 p 1 p 2 CPU does other things Start Scheduling p 1 p 2 p 1

33. SRT First-In/First-Out (FIFO) Shortest-Job-First (SJF) Shortest-Remaining-Time (SRT) Round-Robin (RR) Multilevel Priority (ML) Multilevel Feedback (MLF) Rate Monotonic (RM) Earliest Deadline (EDF) 0 1 2 3 4 5 6 7 8 9 p 1 p 2 CPU does other things Start Scheduling p 1 p 2 p 1

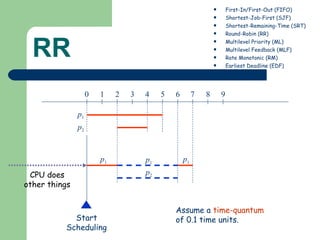

34. RR First-In/First-Out (FIFO) Shortest-Job-First (SJF) Shortest-Remaining-Time (SRT) Round-Robin (RR) Multilevel Priority (ML) Multilevel Feedback (MLF) Rate Monotonic (RM) Earliest Deadline (EDF) Assume a time-quantum of 0.1 time units. 0 1 2 3 4 5 6 7 8 9 p 1 p 2 CPU does other things Start Scheduling p 1 p 1 p 2 p 1

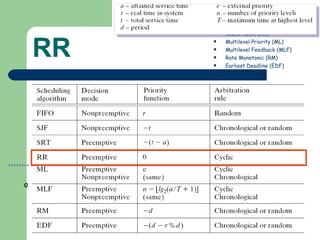

35. RR First-In/First-Out (FIFO) Shortest-Job-First (SJF) Shortest-Remaining-Time (SRT) Round-Robin (RR) Multilevel Priority (ML) Multilevel Feedback (MLF) Rate Monotonic (RM) Earliest Deadline (EDF) Assume a time-quantum of 0.1 time units. 0 1 2 3 4 5 6 7 8 9 p 1 p 2 CPU does other things Start Scheduling p 1 p 1 p 2 p 1

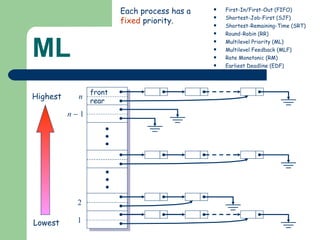

36. ML First-In/First-Out (FIFO) Shortest-Job-First (SJF) Shortest-Remaining-Time (SRT) Round-Robin (RR) Multilevel Priority (ML) Multilevel Feedback (MLF) Rate Monotonic (RM) Earliest Deadline (EDF)

37. ML First-In/First-Out (FIFO) Shortest-Job-First (SJF) Shortest-Remaining-Time (SRT) Round-Robin (RR) Multilevel Priority (ML) Multilevel Feedback (MLF) Rate Monotonic (RM) Earliest Deadline (EDF) Each process has a fixed priority. 1 2 n  1 n front rear Lowest Highest

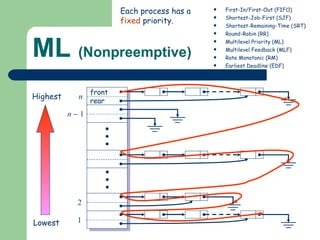

38. ML (Nonpreemptive) First-In/First-Out (FIFO) Shortest-Job-First (SJF) Shortest-Remaining-Time (SRT) Round-Robin (RR) Multilevel Priority (ML) Multilevel Feedback (MLF) Rate Monotonic (RM) Earliest Deadline (EDF) Each process has a fixed priority. 1 2 n  1 n front rear Lowest Highest

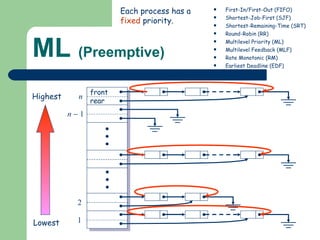

39. ML (Preemptive) First-In/First-Out (FIFO) Shortest-Job-First (SJF) Shortest-Remaining-Time (SRT) Round-Robin (RR) Multilevel Priority (ML) Multilevel Feedback (MLF) Rate Monotonic (RM) Earliest Deadline (EDF) Each process has a fixed priority. 1 2 n  1 n front rear Lowest Highest

40. ML (Nonpreemptive) First-In/First-Out (FIFO) Shortest-Job-First (SJF) Shortest-Remaining-Time (SRT) Round-Robin (RR) Multilevel Priority (ML) Multilevel Feedback (MLF) Rate Monotonic (RM) Earliest Deadline (EDF) e p 1 = 15 e p 2 = 14 0 1 2 3 4 5 6 7 8 9 p 1 p 2 CPU does other things Start Scheduling p 1 p 2

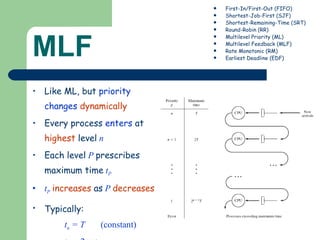

41. MLF Like ML, but priority changes dynamically Every process enters at highest level n Each level P prescribes maximum time t P t P increases as P decreases Typically: t n = T (constant) t P = 2  t P+1 First-In/First-Out (FIFO) Shortest-Job-First (SJF) Shortest-Remaining-Time (SRT) Round-Robin (RR) Multilevel Priority (ML) Multilevel Feedback (MLF) Rate Monotonic (RM) Earliest Deadline (EDF)

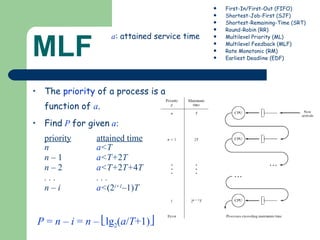

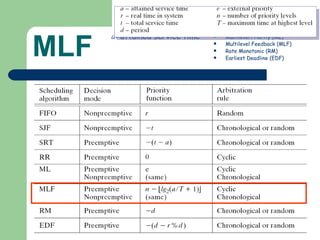

42. MLF The priority of a process is a function of a . Find P for given a : priority attained time n a <T n – 1 a <T+ 2 T n – 2 a <T+ 2 T+ 4 T . . . . . . n – i a < (2 i+1 – 1) T First-In/First-Out (FIFO) Shortest-Job-First (SJF) Shortest-Remaining-Time (SRT) Round-Robin (RR) Multilevel Priority (ML) Multilevel Feedback (MLF) Rate Monotonic (RM) Earliest Deadline (EDF) a : attained service time P = n – i = n –  lg 2 ( a / T +1) 

43. MLF The priority of a process is a function of a . Find P for given a : priority attained time n a <T n – 1 a <T+ 2 T n – 2 a <T+ 2 T+ 4 T . . . . . . n – i a < (2 i+1 – 1) T First-In/First-Out (FIFO) Shortest-Job-First (SJF) Shortest-Remaining-Time (SRT) Round-Robin (RR) Multilevel Priority (ML) Multilevel Feedback (MLF) Rate Monotonic (RM) Earliest Deadline (EDF) a : attained service time P = n – i = n –  lg 2 ( a / T +1) 

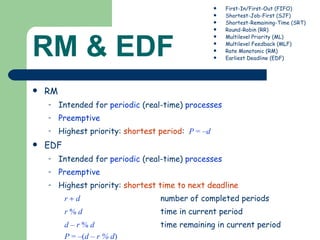

44. RM & EDF RM Intended for periodic (real-time) processes Preemptive Highest priority: shortest period : P = – d EDF Intended for periodic (real-time) processes Preemptive Highest priority: shortest time to next deadline r  d number of completed periods r % d time in current period d – r % d time remaining in current period P = –( d – r % d ) First-In/First-Out (FIFO) Shortest-Job-First (SJF) Shortest-Remaining-Time (SRT) Round-Robin (RR) Multilevel Priority (ML) Multilevel Feedback (MLF) Rate Monotonic (RM) Earliest Deadline (EDF)

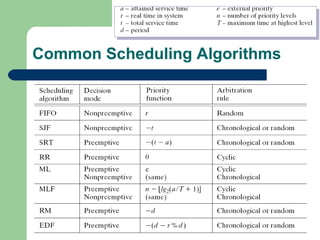

45. Common Scheduling Algorithms

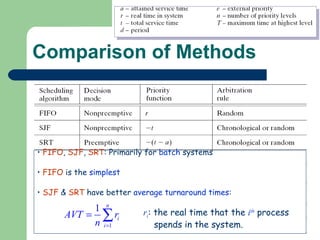

46. Comparison of Methods FIFO , SJF , SRT : Primarily for batch systems FIFO is the simplest SJF & SRT have better average turnaround times : r i : the real time that the i th process spends in the system.

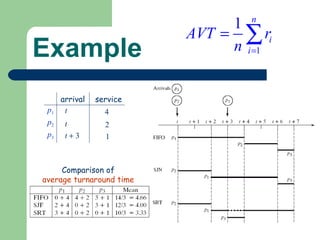

47. Example arrival service p 1 p 2 p 3 t t t  3 4 2 1 Comparison of average turnaround time

48. Comparison of Methods Time-sharing systems Response time is critical RR or MLF with RR within each queue are suitable

49. Comparison of Methods Time-sharing systems Response time is critical RR or MLF with RR within each queue are suitable Choice of quantum determines overhead When q   , RR approaches FIFO When q  0 , context switch overhead  100% When q >> context switch overhead , n processes run concurrently at 1/ n CPU speed

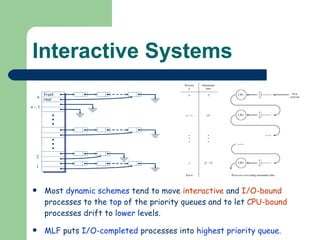

50. Interactive Systems Most dynamic schemes tend to move interactive and I/O-bound processes to the top of the priority queues and to let CPU-bound processes drift to lower levels. MLF puts I/O-completed processes into highest priority queue .

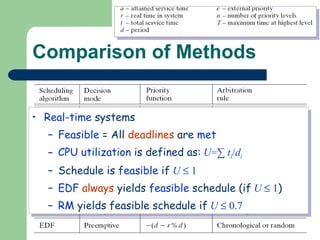

51. Comparison of Methods Real-time systems Feasible = All deadlines are met CPU utilization is defined as: U = ∑ t i / d i Schedule is feasible if U  1 EDF always yields feasible schedule (if U  1 ) RM yields feasible schedule if U  0.7

52. Example: RM and EDF CPU Utilization 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 p 1 p 2 p 1 p 2 RM p 1 p 2 EDF

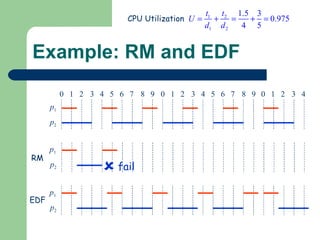

53. Example: RM and EDF CPU Utilization  fail 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 p 2 p 1 p 2 RM p 1 p 2 EDF p 1

54. Operating Systems Principles Process Management and Coordination Lecture 5: Process and Thread Scheduling Priority Inversion

55. Priority Inversion Problem Assume priority order p 1 > p 2 > p 3 . p 1 and p 3 share common resource. p 2 is independent of p 1 and p 3 . p 1 P(mutex) CS_1 V(mutex) Program1 p 2 Program2 p 3 P(mutex) CS_3 V(mutex) Program3

56. Priority Inversion Problem Assume priority order p 1 > p 2 > p 3 . p 1 and p 3 share common resource. p 2 is independent of p 1 and p 3 .

57. Priority Inversion Problem Assume priority order p 1 > p 2 > p 3 . p 1 and p 3 share common resource. p 2 is independent of p 1 and p 3 .              

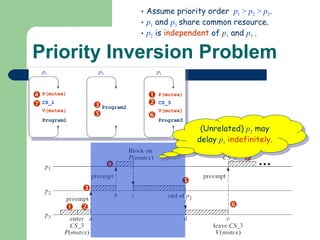

58. Priority Inversion Problem Assume priority order p 1 > p 2 > p 3 . p 1 and p 3 share common resource. p 2 is independent of p 1 and p 3 .               (Unrelated) p 2 may delay p 1 indefinitely .

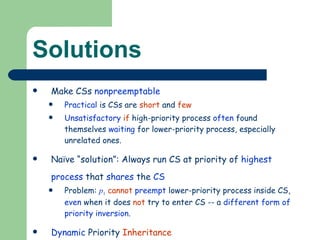

59. Solutions Make CSs nonpreemptable Practical is CSs are short and few Unsatisfactory if high-priority process often found themselves waiting for lower-priority process, especially unrelated ones. Naïve “solution”: Always run CS at priority of highest process that shares the CS Problem: p 1 cannot preempt lower-priority process inside CS, even when it does not try to enter CS -- a different form of priority inversion . Dynamic Priority Inheritance See Next

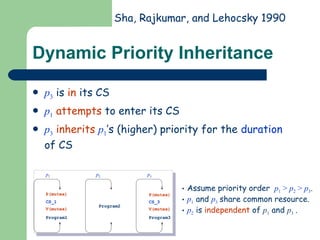

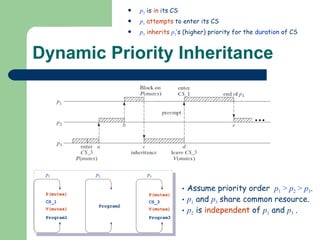

60. Dynamic Priority Inheritance p 3 is in its CS p 1 attempts to enter its CS p 3 inherits p 1 ’s (higher) priority for the duration of CS Sha, Rajkumar, and Lehocsky 1990 Assume priority order p 1 > p 2 > p 3 . p 1 and p 3 share common resource. p 2 is independent of p 1 and p 3 .

61. Dynamic Priority Inheritance p 3 is in its CS p 1 attempts to enter its CS p 3 inherits p 1 ’s (higher) priority for the duration of CS Assume priority order p 1 > p 2 > p 3 . p 1 and p 3 share common resource. p 2 is independent of p 1 and p 3 .

62. Dynamic Priority Inheritance p 3 is in its CS p 1 attempts to enter its CS p 3 inherits p 1 ’s (higher) priority for the duration of CS Assume priority order p 1 > p 2 > p 3 . p 1 and p 3 share common resource. p 2 is independent of p 1 and p 3 .              

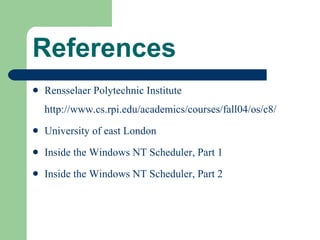

63. References Rensselaer Polytechnic Institute http://www.cs.rpi.edu/academics/courses/fall04/os/c8/ University of east London Inside the Windows NT Scheduler, Part 1 Inside the Windows NT Scheduler, Part 2

64. Reading Assignment Chapter 6 CPU Scheduling in Operating System Concepts , Seventh Edition, by Abraham Silberschatz, Peter Baer Galvin, Greg Gagne, John Wiley & Sons, Inc.
