1. Operating Systems
Lecture#4
Scheduler and its types,
Scheduling Algorithms
Week#2,Aug,23rd

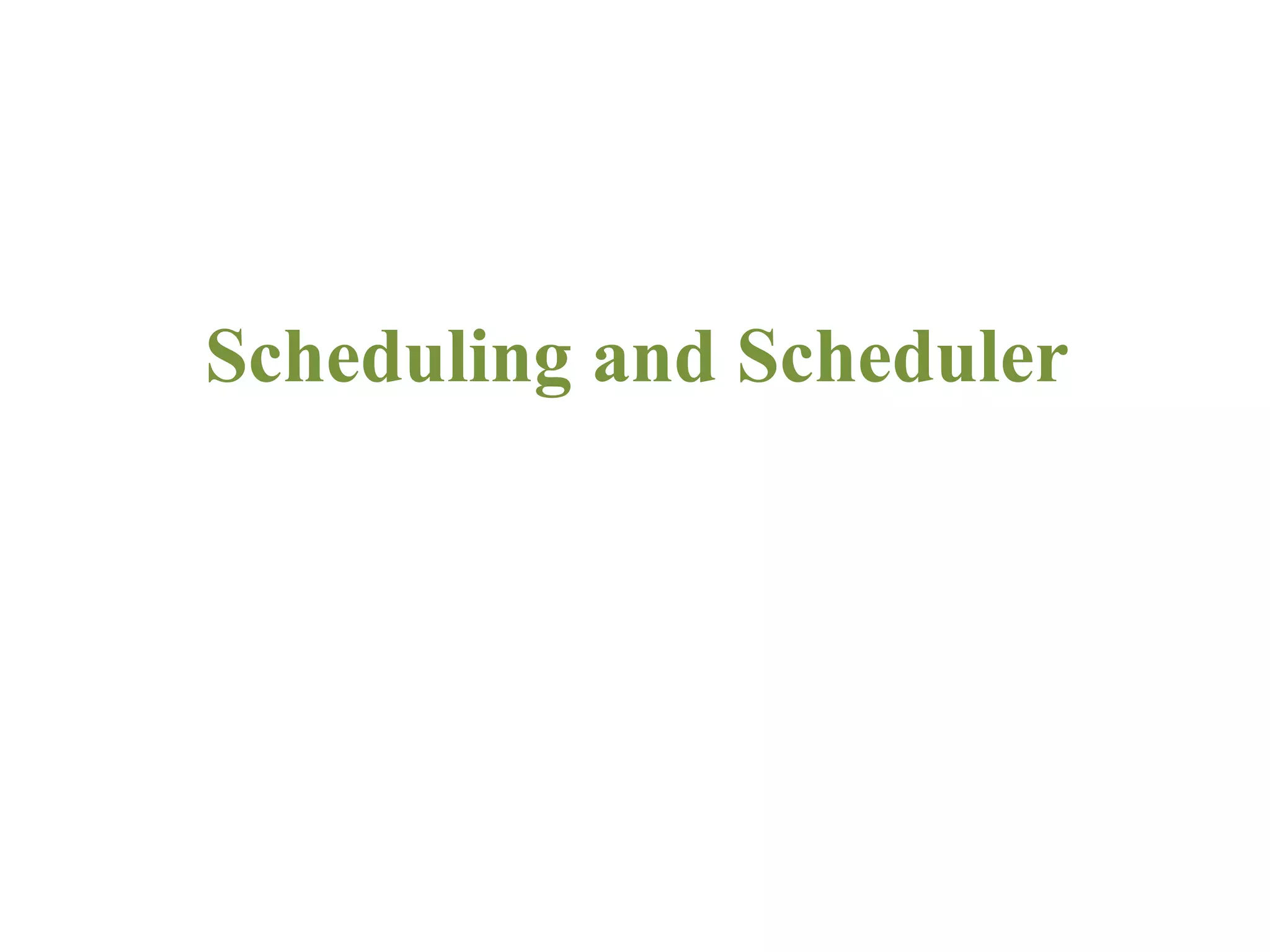

2. Scheduling and Scheduler

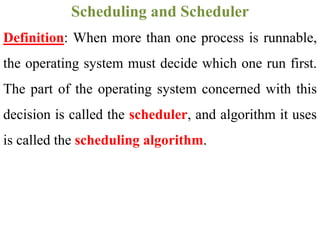

3. Definition: When more than one process is runnable,
the operating system must decide which one run first.
The part of the operating system concerned with this
decision is called the scheduler, and algorithm it uses
is called the scheduling algorithm.
Scheduling and Scheduler

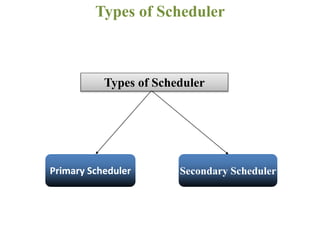

4. Types of Scheduler
Types of Scheduler
Primary Scheduler Secondary Scheduler

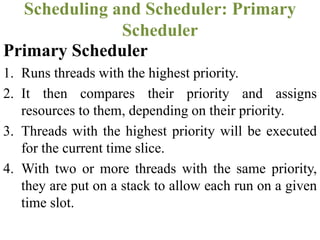

5. Primary Scheduler
1. Runs threads with the highest priority.
2. It then compares their priority and assigns
resources to them, depending on their priority.
3. Threads with the highest priority will be executed
for the current time slice.
4. With two or more threads with the same priority,
they are put on a stack to allow each run on a given
time slot.
Scheduling and Scheduler: Primary
Scheduler

6. Secondary Scheduler
1. It is responsible for increasing the priority of non-
executing threads.
2. It is important that those low-priority threads are
given a chance to run on the operating system and
this is the function of this type of scheduler.
Scheduling and Scheduler: Secondary
Scheduler

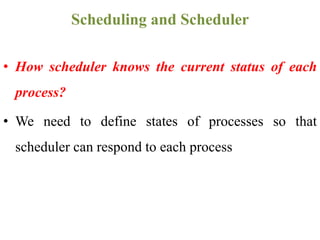

7. • How scheduler knows the current status of each
process?
• We need to define states of processes so that
scheduler can respond to each process
Scheduling and Scheduler

8. FOUR STATES OF PROCESS

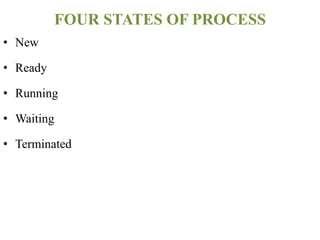

9. • New
• Ready
• Running
• Waiting
• Terminated
FOUR STATES OF PROCESS

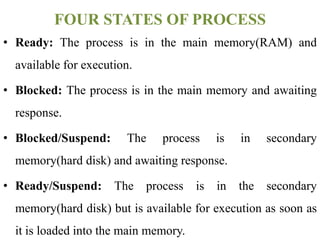

10. • Ready: The process is in the main memory(RAM) and
available for execution.
• Blocked: The process is in the main memory and awaiting
response.
• Blocked/Suspend: The process is in secondary
memory(hard disk) and awaiting response.
• Ready/Suspend: The process is in the secondary
memory(hard disk) but is available for execution as soon as
it is loaded into the main memory.
FOUR STATES OF PROCESS

11. • These four states helps the scheduler to respond
to each process according to its current state so
that process can be handled efficiently.
FOUR STATES OF PROCESS

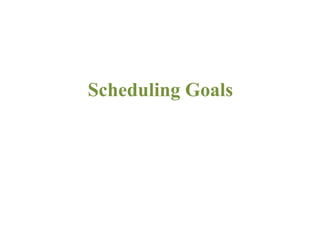

12. Scheduling Goals

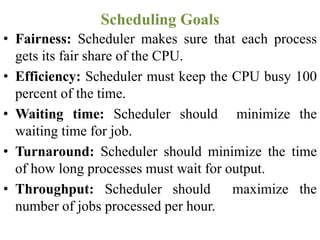

13. • Fairness: Scheduler makes sure that each process
gets its fair share of the CPU.
• Efficiency: Scheduler must keep the CPU busy 100
percent of the time.
• Waiting time: Scheduler should minimize the
waiting time for job.
• Turnaround: Scheduler should minimize the time
of how long processes must wait for output.
• Throughput: Scheduler should maximize the
number of jobs processed per hour.
Scheduling Goals

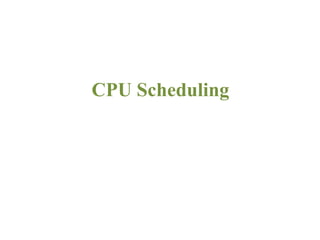

14. CPU Scheduling

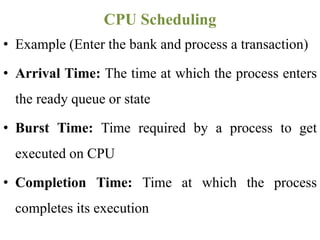

15. • Example (Enter the bank and process a transaction)
• Arrival Time: The time at which the process enters
the ready queue or state
• Burst Time: Time required by a process to get
executed on CPU
• Completion Time: Time at which the process
completes its execution
CPU Scheduling

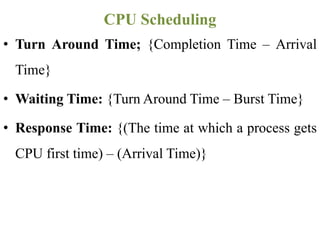

16. • Turn Around Time; {Completion Time – Arrival
Time}
• Waiting Time: {Turn Around Time – Burst Time}
• Response Time: {(The time at which a process gets
CPU first time) – (Arrival Time)}
CPU Scheduling

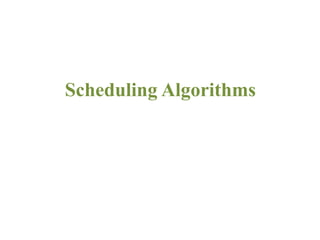

17. Scheduling Algorithms

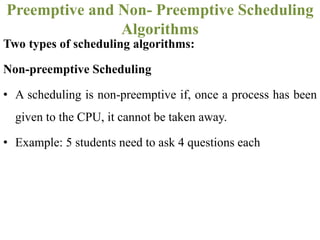

18. Two types of scheduling algorithms:
Non-preemptive Scheduling
• A scheduling is non-preemptive if, once a process has been
given to the CPU, it cannot be taken away.
• Example: 5 students need to ask 4 questions each
Preemptive and Non- Preemptive Scheduling
Algorithms

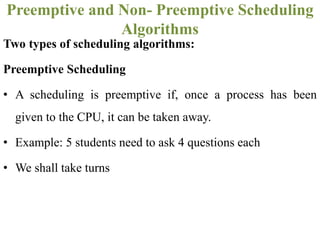

19. Two types of scheduling algorithms:
Preemptive Scheduling
• A scheduling is preemptive if, once a process has been
given to the CPU, it can be taken away.
• Example: 5 students need to ask 4 questions each
• We shall take turns
Preemptive and Non- Preemptive Scheduling
Algorithms

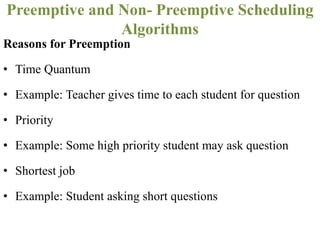

20. Reasons for Preemption
• Time Quantum
• Example: Teacher gives time to each student for question
• Priority
• Example: Some high priority student may ask question
• Shortest job
• Example: Student asking short questions
Preemptive and Non- Preemptive Scheduling
Algorithms

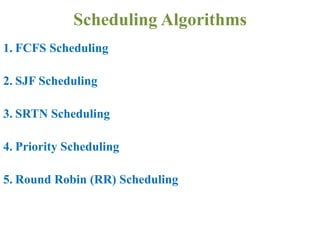

21. 1. FCFS Scheduling
2. SJF Scheduling
3. SRTN Scheduling
4. Priority Scheduling
5. Round Robin (RR) Scheduling
Scheduling Algorithms

22. FCFS(First Come First Serve)
Scheduling algorithm

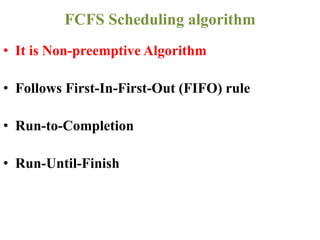

23. • It is Non-preemptive Algorithm
• Follows First-In-First-Out (FIFO) rule
• Run-to-Completion
• Run-Until-Finish
FCFS Scheduling algorithm

24. • Runs the processes in the order they arrive.
• Removes a process from the processor only if it is in block
state or terminates.
• Advantage: Good for long processes when they finally
get on.
• Disadvantage: Bad for short processes if they are behind
a long process.
FCFS Scheduling algorithm

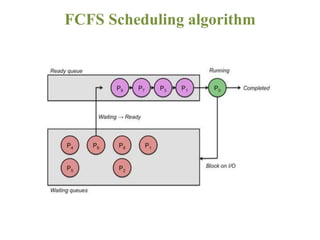

25. FCFS Scheduling algorithm

26. Process
No.
Arrival
Time
Burst
Time
Compl
etion
Time
Turnar
ound
Time
Waitin
g Time
Respon
se Time
P1 0 2 2 2 0 0
P2 1 2 4 3 1 1
P3 5 3 8 3 0 0
P4 6 4 12 6 2 2
FCFS Scheduling algorithm
P1 P2 P3 P4
0 2 4 5 8 12

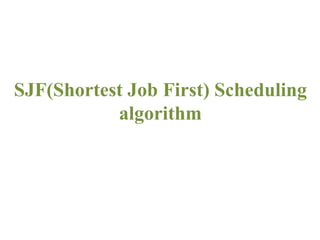

27. SJF(Shortest Job First) Scheduling
algorithm

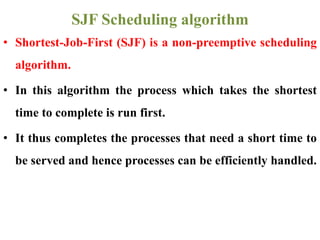

28. • Shortest-Job-First (SJF) is a non-preemptive scheduling
algorithm.
• In this algorithm the process which takes the shortest
time to complete is run first.
• It thus completes the processes that need a short time to
be served and hence processes can be efficiently handled.
SJF Scheduling algorithm

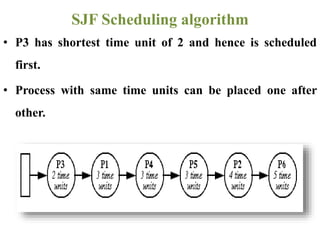

29. • P3 has shortest time unit of 2 and hence is scheduled
first.
• Process with same time units can be placed one after
other.
SJF Scheduling algorithm

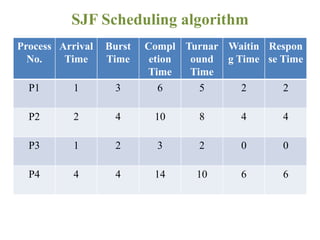

30. Process
No.
Arrival
Time
Burst
Time
Compl
etion
Time
Turnar
ound
Time
Waitin
g Time
Respon
se Time
P1 1 3 6 5 2 2
P2 2 4 10 8 4 4
P3 1 2 3 2 0 0
P4 4 4 14 10 6 6
SJF Scheduling algorithm

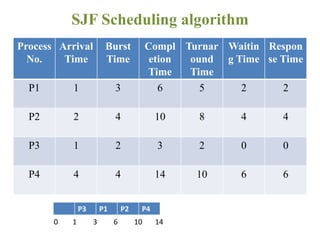

31. Process
No.
Arrival
Time
Burst
Time
Compl
etion
Time
Turnar
ound
Time
Waitin
g Time
Respon
se Time
P1 1 3 6 5 2 2
P2 2 4 10 8 4 4
P3 1 2 3 2 0 0
P4 4 4 14 10 6 6
SJF Scheduling algorithm
P3 P1 P2 P4
0 1 3 6 10 14

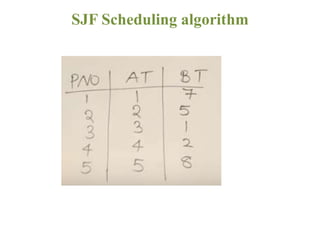

32. SJF Scheduling algorithm

33. SRTN(Shortest Remaining Time Next)
Scheduling algorithm

34. 1. It is preemptive version of SJF.
2. Short job is given immediate preference to a running
longer job.
3. The scheduler always chooses the process whose
remaining run time is the shortest.
4. Must estimate expected remaining processing time
5. If the new job needs less time to finish than the current
process, the current SJF process is suspended and the new
job is finished by SRTN.
SRTN Scheduling algorithm

35. Process
No.
Arrival
Time
Burst
Time
Compl
etion
Time
Turnar
ound
Time
Waitin
g Time
Respon
se Time
P1 0 5 9 9 4 0
P2 1 3 4 3 0 0
P3 2 4 13 11 7 7
P4 4 1 5 1 0 0
SRTN Scheduling algorithm

36. Process
No.
Arrival
Time
Burst
Time
Compl
etion
Time
Turnar
ound
Time
Waitin
g Time
Respon
se Time
P1 0 5 9 9 4 0
P2 1 3 4 3 0 0
P3 2 4 13 11 7 7
P4 4 1 5 1 0 0
SRTN Scheduling algorithm
0 1 2 3 4 5 6 7 8 9 10 11 12 13
P1 P2 P2 P2 P4 P1 P1 P1 P1 P3 P3 P3 P3

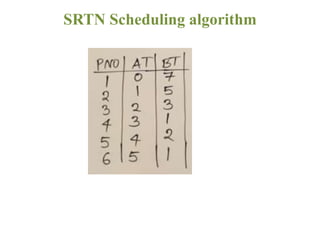

37. SRTN Scheduling algorithm

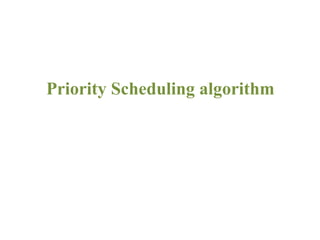

38. Priority Scheduling algorithm

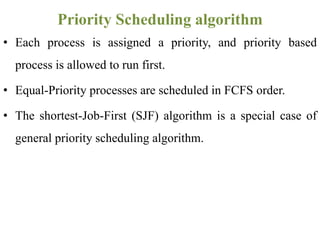

39. • Each process is assigned a priority, and priority based
process is allowed to run first.
• Equal-Priority processes are scheduled in FCFS order.
• The shortest-Job-First (SJF) algorithm is a special case of
general priority scheduling algorithm.
Priority Scheduling algorithm

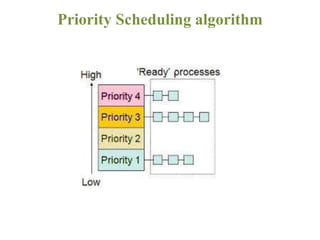

40. Priority Scheduling algorithm

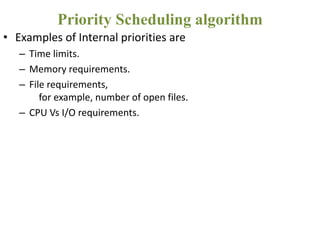

41. • Examples of Internal priorities are
– Time limits.
– Memory requirements.
– File requirements,
for example, number of open files.
– CPU Vs I/O requirements.
Priority Scheduling algorithm

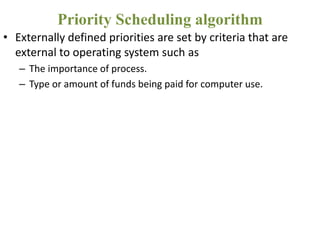

42. • Externally defined priorities are set by criteria that are
external to operating system such as
– The importance of process.
– Type or amount of funds being paid for computer use.
Priority Scheduling algorithm

43. • Priority scheduling can be either preemptive or non
preemptive
– A preemptive priority algorithm will preempt the CPU if the
priority of the newly arrival process is higher than the priority of
the currently running process.
– A non-preemptive priority algorithm will simply put the new
process at the head of the ready queue.
Priority Scheduling algorithm

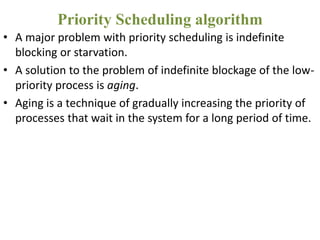

44. • A major problem with priority scheduling is indefinite
blocking or starvation.
• A solution to the problem of indefinite blockage of the low-
priority process is aging.
• Aging is a technique of gradually increasing the priority of
processes that wait in the system for a long period of time.
Priority Scheduling algorithm

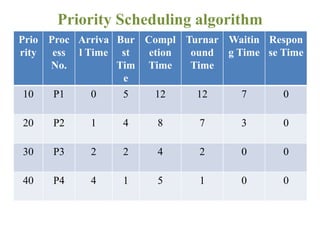

45. Prio
rity
Proc
ess
No.
Arriva
l Time
Bur
st
Tim
e
Compl
etion
Time
Turnar
ound
Time
Waitin
g Time
Respon
se Time
10 P1 0 5 12 12 7 0
20 P2 1 4 8 7 3 0
30 P3 2 2 4 2 0 0
40 P4 4 1 5 1 0 0
Priority Scheduling algorithm

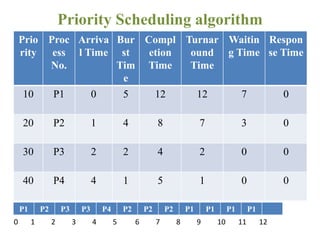

46. Prio
rity
Proc
ess
No.
Arriva
l Time
Bur
st
Tim
e
Compl
etion
Time
Turnar
ound
Time
Waitin
g Time
Respon
se Time
10 P1 0 5 12 12 7 0
20 P2 1 4 8 7 3 0
30 P3 2 2 4 2 0 0
40 P4 4 1 5 1 0 0
Priority Scheduling algorithm
0 1 2 3 4 5 6 7 8 9 10 11 12
P1 P2 P3 P3 P4 P2 P2 P2 P1 P1 P1 P1

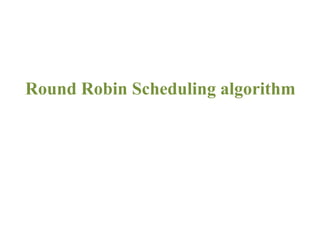

47. Round Robin Scheduling algorithm

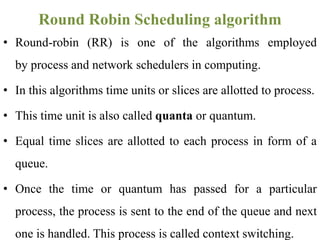

48. • Round-robin (RR) is one of the algorithms employed
by process and network schedulers in computing.
• In this algorithms time units or slices are allotted to process.
• This time unit is also called quanta or quantum.
• Equal time slices are allotted to each process in form of a
queue.
• Once the time or quantum has passed for a particular
process, the process is sent to the end of the queue and next
one is handled. This process is called context switching.
Round Robin Scheduling algorithm

49. • Here q is quantum or time slice.
Round Robin Scheduling algorithm

50. Advantage of RR Algorithm: It is fair because each process
gets equal share of CPU.
Disadvantage of RR Algorithm: If time slice is too short for
any process, the CPU will get overloaded and it will also cause
delay in process handling.
Round Robin Scheduling algorithm

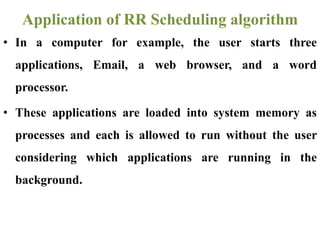

51. • In a computer for example, the user starts three
applications, Email, a web browser, and a word
processor.
• These applications are loaded into system memory as
processes and each is allowed to run without the user
considering which applications are running in the
background.
Application of RR Scheduling algorithm

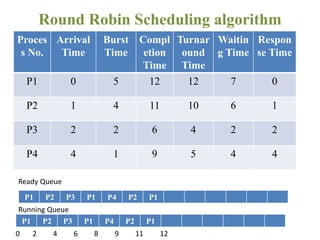

52. Proces
s No.
Arrival
Time
Burst
Time
Compl
etion
Time
Turnar
ound
Time
Waitin
g Time
Respon
se Time
P1 0 5 12 12 7 0
P2 1 4 11 10 6 1
P3 2 2 6 4 2 2
P4 4 1 9 5 4 4
Round Robin Scheduling algorithm
0 2 4 6 8 9 11 12
P1 P2 P3 P1 P4 P2 P1
P1 P2 P3 P1 P4 P2 P1
Ready Queue
Running Queue

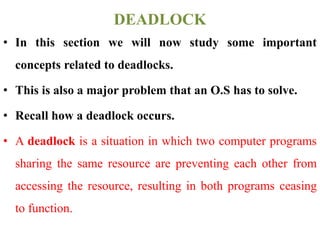

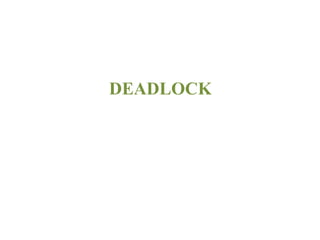

53. DEADLOCK

54. • In this section we will now study some important
concepts related to deadlocks.
• This is also a major problem that an O.S has to solve.
• Recall how a deadlock occurs.
• A deadlock is a situation in which two computer programs
sharing the same resource are preventing each other from
accessing the resource, resulting in both programs ceasing
to function.
DEADLOCK

55. RESOURCE

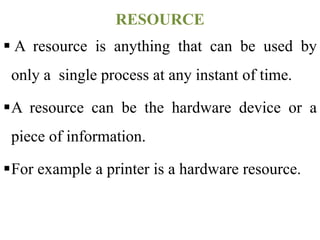

56.  A resource is anything that can be used by
only a single process at any instant of time.
A resource can be the hardware device or a
piece of information.
For example a printer is a hardware resource.
RESOURCE

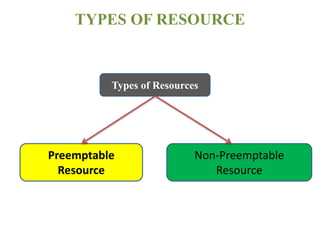

57. TYPES OF RESOURCE
Types of Resources
Preemptable
Resource
Non-Preemptable
Resource

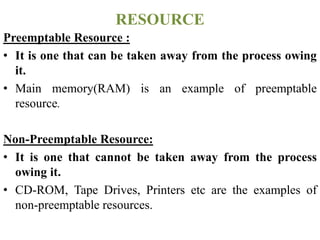

58. Preemptable Resource :
• It is one that can be taken away from the process owing
it.
• Main memory(RAM) is an example of preemptable
resource.
Non-Preemptable Resource:
• It is one that cannot be taken away from the process
owing it.
• CD-ROM, Tape Drives, Printers etc are the examples of
non-preemptable resources.
RESOURCE
