1. Rushdi Shams, Dept of CSE, KUET 1

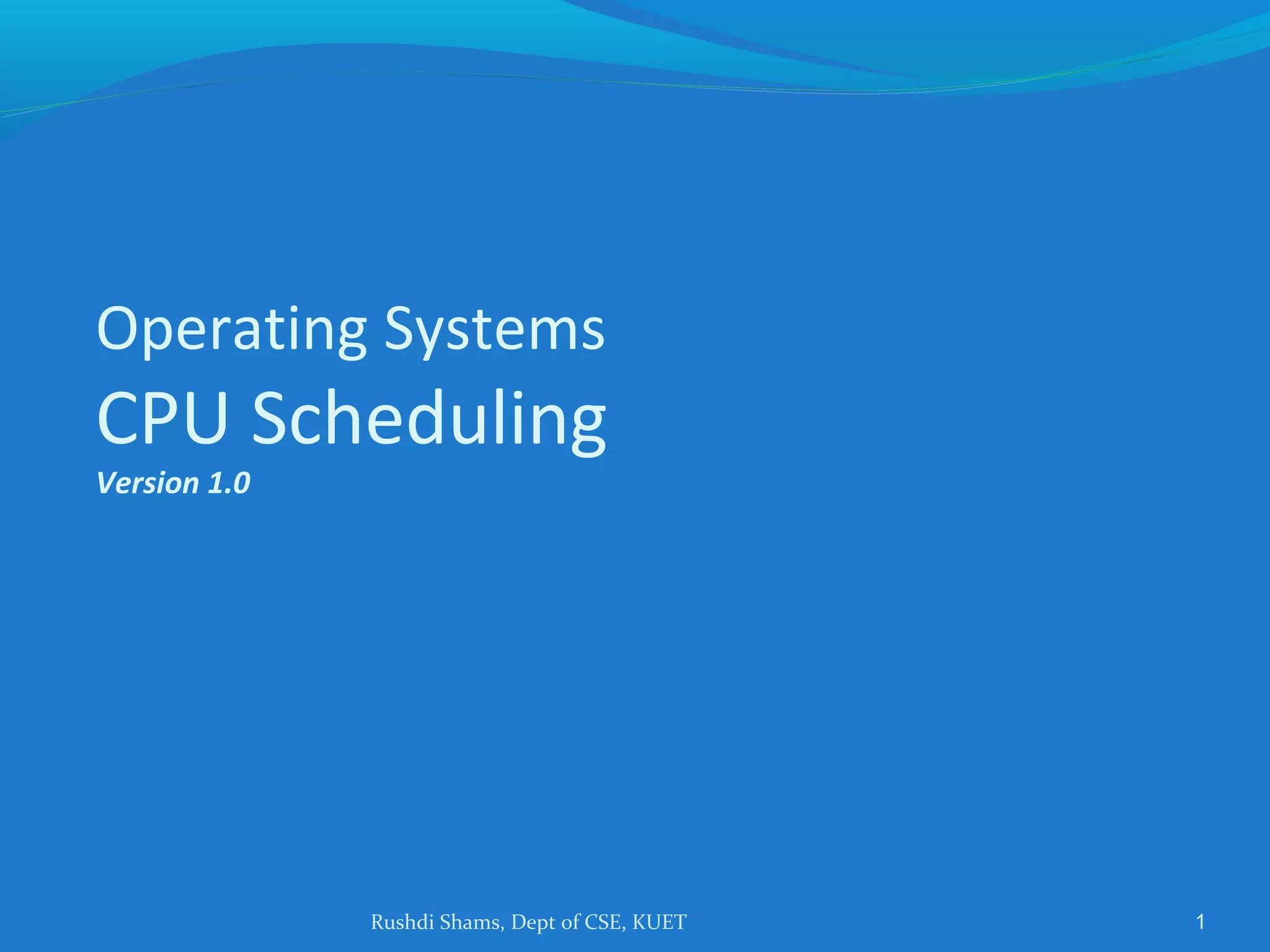

Operating Systems
CPU Scheduling
Version 1.0

2. Rushdi Shams, Dept of CSE, KUET 2

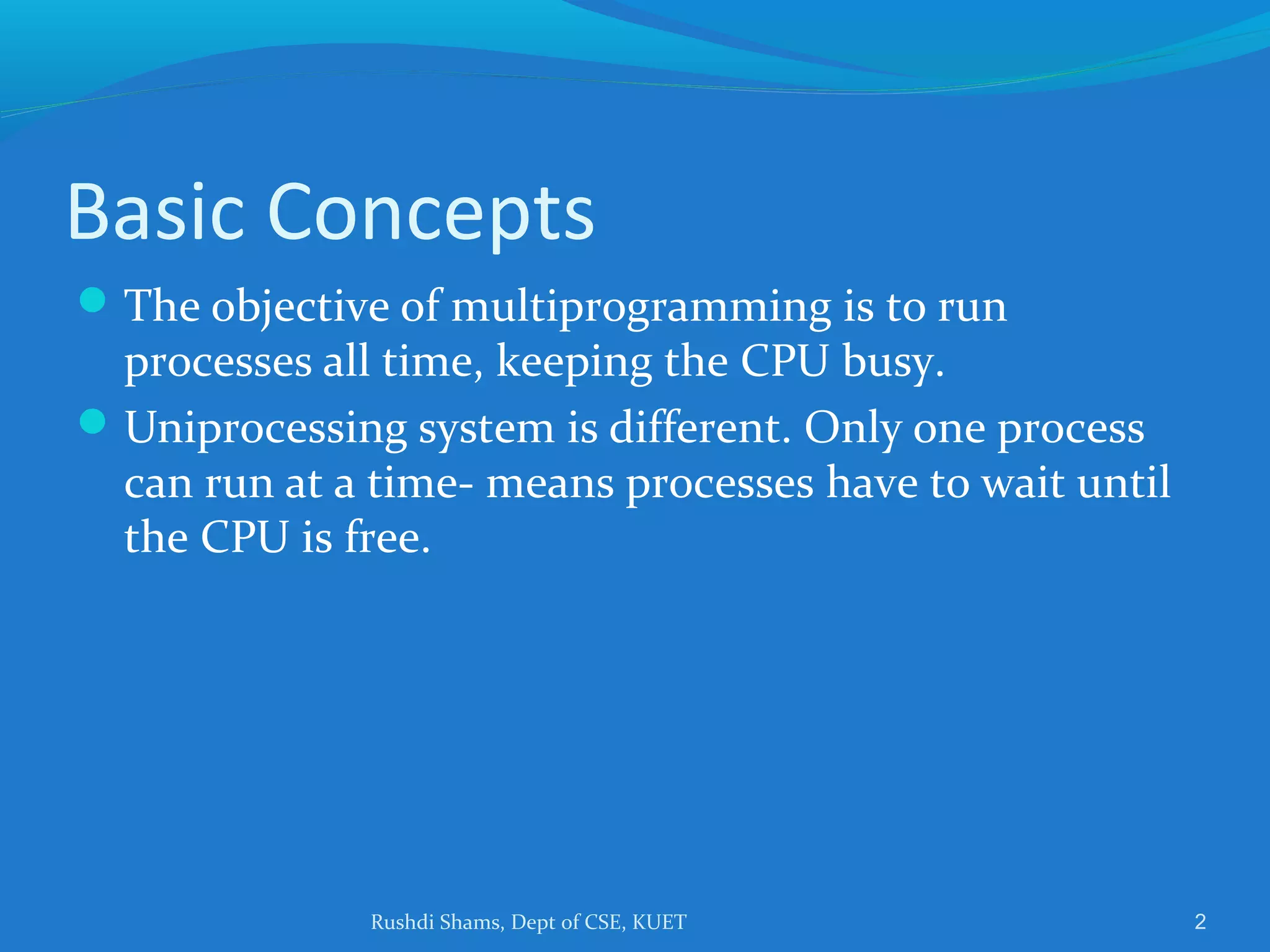

Basic Concepts
The objective of multiprogramming is to run
processes all time, keeping the CPU busy.
Uniprocessing system is different. Only one process
can run at a time- means processes have to wait until
the CPU is free.

3. Rushdi Shams, Dept of CSE, KUET 3
Basic Concepts
A process is executed until the completion of an IO
request
The CPU then sits idle and all this waiting time is
wasted
With multiprogramming, we keep several processes
in memory at one time.
When one process has to wait, the OS takes the CPU
away from that process and gives the CPU to another
process

4. Rushdi Shams, Dept of CSE, KUET 4
Basic Concepts
Almost all computer resources are scheduled before
use. The CPU is one of the primary resources. Thus,
its scheduling is central to operating systems

5. Rushdi Shams, Dept of CSE, KUET 5

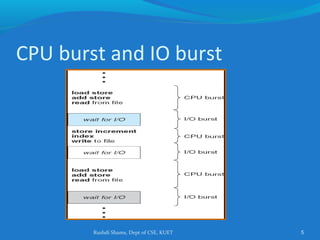

CPU burst and IO burst

6. Rushdi Shams, Dept of CSE, KUET 6

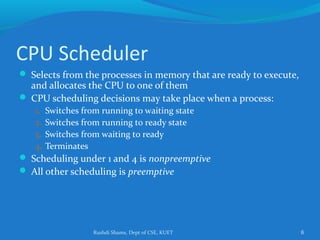

CPU Scheduler
 Selects from the processes in memory that are ready to execute,
and allocates the CPU to one of them
 CPU scheduling decisions may take place when a process:
1. Switches from running to waiting state
2. Switches from running to ready state
3. Switches from waiting to ready
4. Terminates
 Scheduling under 1 and 4 is nonpreemptive
 All other scheduling is preemptive

7. Rushdi Shams, Dept of CSE, KUET 7
CPU Scheduler

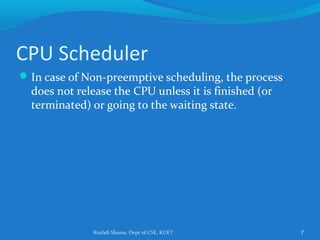

In case of Non-preemptive scheduling, the process
does not release the CPU unless it is finished (or
terminated) or going to the waiting state.

8. Rushdi Shams, Dept of CSE, KUET 8
Dispatcher
Dispatcher module gives control of the CPU to the
process selected by the short-term scheduler; this
involves:
switching context
jumping to the proper location in the user program to
restart that program
Dispatch latency – time it takes for the dispatcher to
stop one process and start another running

9. Rushdi Shams, Dept of CSE, KUET 9

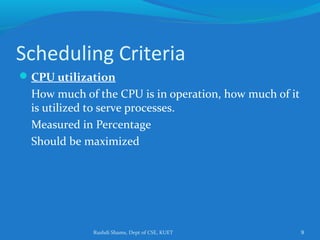

Scheduling Criteria
CPU utilization
How much of the CPU is in operation, how much of it
is utilized to serve processes.
Measured in Percentage
Should be maximized

10. Rushdi Shams, Dept of CSE, KUET 10

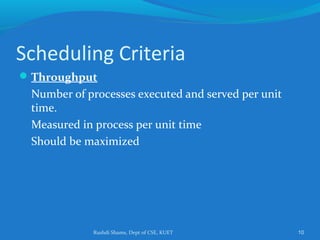

Scheduling Criteria
Throughput
Number of processes executed and served per unit
time.
Measured in process per unit time
Should be maximized

11. Rushdi Shams, Dept of CSE, KUET 11

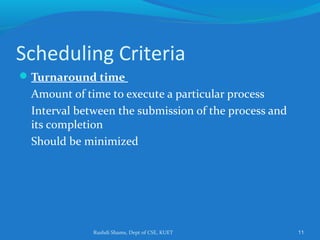

Scheduling Criteria
Turnaround time
Amount of time to execute a particular process
Interval between the submission of the process and
its completion
Should be minimized

12. Rushdi Shams, Dept of CSE, KUET 12

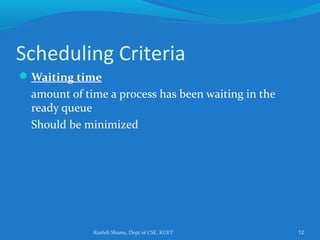

Scheduling Criteria
Waiting time
amount of time a process has been waiting in the
ready queue
Should be minimized

13. Rushdi Shams, Dept of CSE, KUET 13

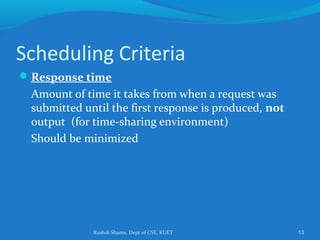

Scheduling Criteria
Response time
Amount of time it takes from when a request was
submitted until the first response is produced, not
output (for time-sharing environment)
Should be minimized

14. Rushdi Shams, Dept of CSE, KUET 14
First Come, First Served (FCFS)
The simplest CPU Scheduling algorithm
The process that requests CPU first is allocated the
CPU first
Easily managed with a FIFO queue

15. Rushdi Shams, Dept of CSE, KUET 15

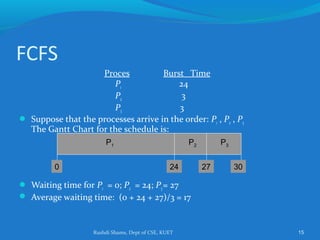

FCFS
Proces Burst Time
P1 24
P2 3
P3 3
 Suppose that the processes arrive in the order: P1 , P2 , P3
The Gantt Chart for the schedule is:
 Waiting time for P1 = 0; P2 = 24; P3= 27
 Average waiting time: (0 + 24 + 27)/3 = 17
P1 P2 P3
24 27 300

16. Rushdi Shams, Dept of CSE, KUET 16

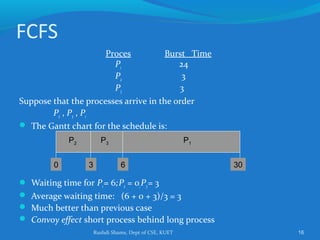

FCFS
Proces Burst Time
P1 24
P2 3
P3 3
Suppose that the processes arrive in the order
P2 , P3 , P1
 The Gantt chart for the schedule is:
 Waiting time for P1= 6;P2 = 0;P3= 3
 Average waiting time: (6 + 0 + 3)/3 = 3
 Much better than previous case
 Convoy effect short process behind long process
P1P3P2
63 300

17. Rushdi Shams, Dept of CSE, KUET 17

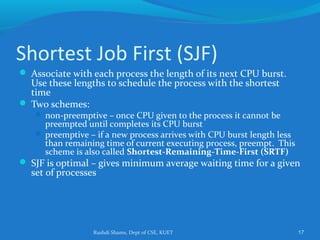

Shortest Job First (SJF)
 Associate with each process the length of its next CPU burst.
Use these lengths to schedule the process with the shortest
time
 Two schemes:
 non-preemptive – once CPU given to the process it cannot be
preempted until completes its CPU burst
 preemptive – if a new process arrives with CPU burst length less
than remaining time of current executing process, preempt. This
scheme is also called Shortest-Remaining-Time-First (SRTF)
 SJF is optimal – gives minimum average waiting time for a given
set of processes

18. Rushdi Shams, Dept of CSE, KUET 18

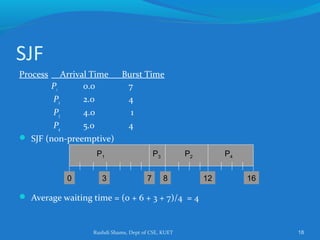

SJF
Process Arrival Time Burst Time
P1 0.0 7
P2 2.0 4
P3 4.0 1
P4 5.0 4
 SJF (non-preemptive)
 Average waiting time = (0 + 6 + 3 + 7)/4 = 4
P1 P3 P2
73 160
P4
8 12

19. Rushdi Shams, Dept of CSE, KUET 19

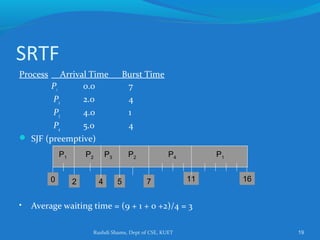

SRTF
Process Arrival Time Burst Time
P1 0.0 7
P2 2.0 4
P3 4.0 1
P4 5.0 4
 SJF (preemptive)
• Average waiting time = (9 + 1 + 0 +2)/4 = 3
P1 P3P2
42 110
P4
5 7
P2 P1
16

20. Rushdi Shams, Dept of CSE, KUET 20

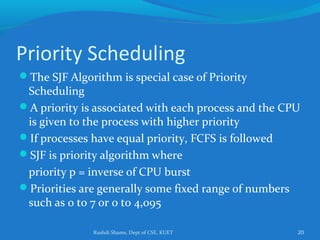

Priority Scheduling
The SJF Algorithm is special case of Priority
Scheduling
A priority is associated with each process and the CPU
is given to the process with higher priority
If processes have equal priority, FCFS is followed
SJF is priority algorithm where
priority p = inverse of CPU burst
Priorities are generally some fixed range of numbers
such as 0 to 7 or 0 to 4,095

21. Rushdi Shams, Dept of CSE, KUET 21

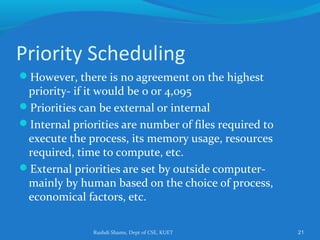

Priority Scheduling
However, there is no agreement on the highest
priority- if it would be 0 or 4,095
Priorities can be external or internal
Internal priorities are number of files required to
execute the process, its memory usage, resources
required, time to compute, etc.
External priorities are set by outside computer-
mainly by human based on the choice of process,
economical factors, etc.

22. Rushdi Shams, Dept of CSE, KUET 22

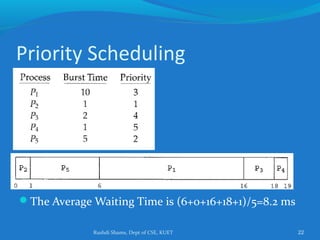

Priority Scheduling
The Average Waiting Time is (6+0+16+18+1)/5=8.2 ms

23. Rushdi Shams, Dept of CSE, KUET 23

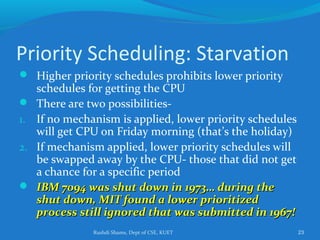

Priority Scheduling: Starvation
 Higher priority schedules prohibits lower priority
schedules for getting the CPU
 There are two possibilities-
1. If no mechanism is applied, lower priority schedules
will get CPU on Friday morning (that’s the holiday)
2. If mechanism applied, lower priority schedules will
be swapped away by the CPU- those that did not get
a chance for a specific period
 IBM 7094 was shut down in 1973… during theIBM 7094 was shut down in 1973… during the
shut down, MIT found a lower prioritizedshut down, MIT found a lower prioritized
process still ignored that was submitted in 1967!process still ignored that was submitted in 1967!

24. Rushdi Shams, Dept of CSE, KUET 24
Priority Scheduling: Aging
Technique to increase the priority of the processes
If priorities are ranged from 0 to 127 (127 is the highest
priority), then we can increase the priority of a process
for every 15 minutes.
The lowest prioritized process will now take no more
than 32 hours to get the CPU! 

25. Rushdi Shams, Dept of CSE, KUET 25

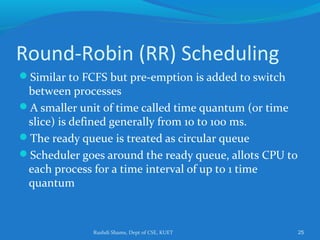

Round-Robin (RR) Scheduling
Similar to FCFS but pre-emption is added to switch
between processes
A smaller unit of time called time quantum (or time
slice) is defined generally from 10 to 100 ms.
The ready queue is treated as circular queue
Scheduler goes around the ready queue, allots CPU to
each process for a time interval of up to 1 time
quantum

26. Rushdi Shams, Dept of CSE, KUET 26
Round-Robin (RR) Scheduling
We need to treat the ready queue as FIFO
New processes are added at the end of the queue.
The CPU scheduler picks the first process from the
queue, sets a timer to interrupt the process after 1
time quantum and dispatches the process

27. Rushdi Shams, Dept of CSE, KUET 27
RR Scheduling
2 things may happen-
The process may have a CPU burst less than time
quantum- the process will release the CPU
voluntarily.
CPU burst of the process is longer than time
quantum-the process will be put at the end of the
queue.

28. Rushdi Shams, Dept of CSE, KUET 28
RR Scheduling
Time quantum is of 4 ms
Average waiting time: ((10-4)+4+7)/3 = 5.66 ms
Typically, higher average turnaround than SJF, but
better response

29. Rushdi Shams, Dept of CSE, KUET 29
RR Scheduling
The performance heavily depends on the size of time
quantum
If the time quantum is very large, at one extreme, it
would be similar to FCFS
If the time quantum is very small, the RR approach is
called processor sharing- as it seems every process has
its own CPU
Smaller time quantum requires more context
switching.

30. Rushdi Shams, Dept of CSE, KUET 30
Context switch with Quantum

31. Rushdi Shams, Dept of CSE, KUET 31

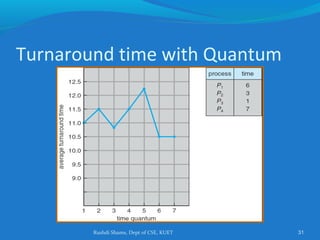

Turnaround time with Quantum

32. Rushdi Shams, Dept of CSE, KUET 32

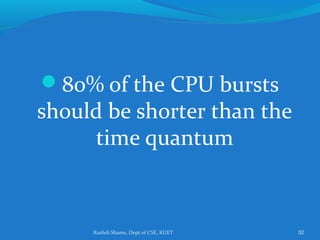

80% of the CPU bursts
should be shorter than the
time quantum
