This document summarizes key aspects of file systems and distributed file systems. It discusses hierarchical file system models, file directories and operations on directories. It also covers physical file organization methods like contiguous, linked and indexed organization. For distributed file systems, it discusses directory structures, location transparency and implementing a global directory across multiple servers.

1. File System and Input/Output Lecture 10: File Systems 主講人：虞台文

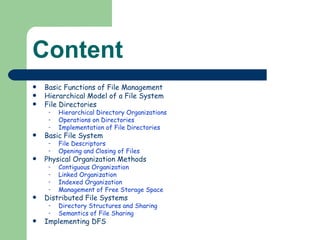

2. Content Basic Functions of File Management Hierarchical Model of a File System File Directories Hierarchical Directory Organizations Operations on Directories Implementation of File Directories Basic File System File Descriptors Opening and Closing of Files Physical Organization Methods Contiguous Organization Linked Organization Indexed Organization Management of Free Storage Space Distributed File Systems Directory Structures and Sharing Semantics of File Sharing Implementing DFS

3. File System and Input/Output Lecture 10: File Systems Basic Functions of File Management

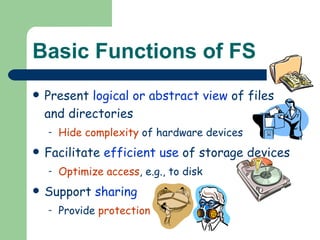

4. Basic Functions of FS Present logical or abstract view of files and directories Hide complexity of hardware devices Facilitate efficient use of storage devices Optimize access , e.g., to disk Support sharing Provide protection

5. File System and Input/Output Lecture 10: File Systems Hierarchical Model of a File System

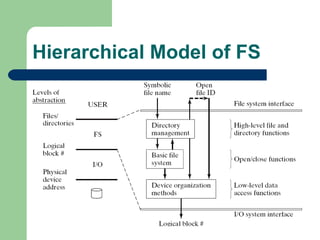

6. Hierarchical Model of FS

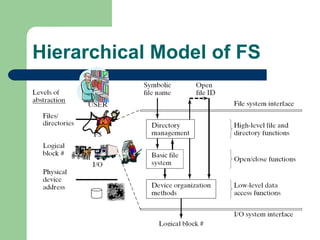

7. Hierarchical Model of FS

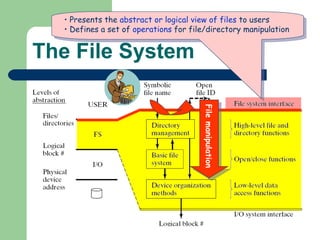

8. The File System Presents the abstract or logical view of files to users Defines a set of operations for file/directory manipulation File manipulation

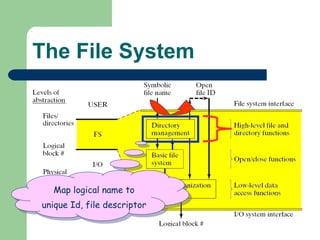

9. The File System Map logical name to unique Id, file descriptor

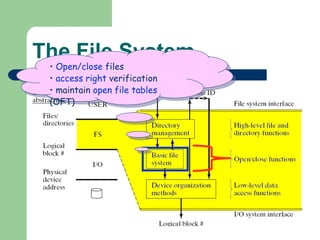

10. The File System Open/close files access right verification maintain open file tables (OFT)

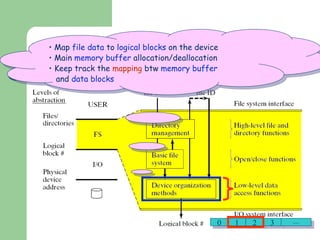

11. The File System Map file data to logical blocks on the device Main memory buffer allocation/deallocation Keep track the mapping btw memory buffer and data blocks 0 1 2 3 

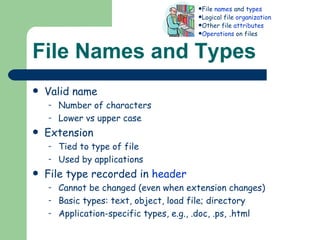

12. File Names and Types Valid name Number of characters Lower vs upper case Extension Tied to type of file Used by applications File type recorded in header Cannot be changed (even when extension changes) Basic types: text, object, load file; directory Application-specific types, e.g., .doc, .ps, .html File names and types Logical file organization Other file attributes Operations on files

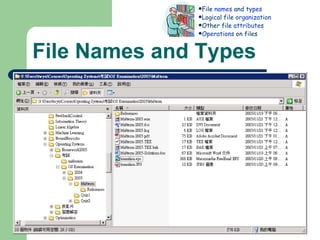

13. File Names and Types Valid name Number of characters Lower vs upper case Extension Tied to type of file Used by applications File type recorded in header Cannot be changed (even when extension changes) Basic types: text, object, load file; directory Application-specific types, e.g., .doc, .ps, .html File names and types Logical file organization Other file attributes Operations on files

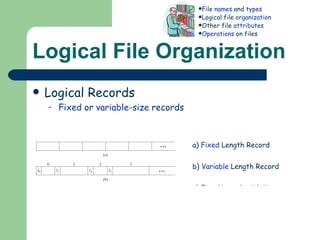

14. Logical File Organization Logical Records Fixed or variable-size records Keyed or unkeyed records File names and types Logical file organization Other file attributes Operations on files a) Fixed Length Record b) Variable Length Record c) Fixed Length with Key d) Variable Length with Key

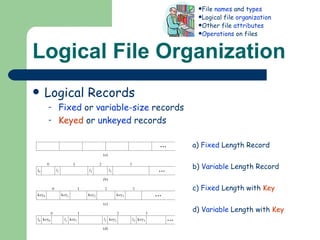

15. Logical File Organization Logical Records Fixed or variable-size records Keyed or unkeyed records File names and types Logical file organization Other file attributes Operations on files a) Fixed Length Record b) Variable Length Record c) Fixed Length with Key d) Variable Length with Key

16. Logical File Organization Record Addressing Implicitly (sequential access) Explicitly by position or key (direct or random access) File names and types Logical file organization Other file attributes Operations on files a) Fixed Length Record b) Variable Length Record c) Fixed Length with Key d) Variable Length with Key

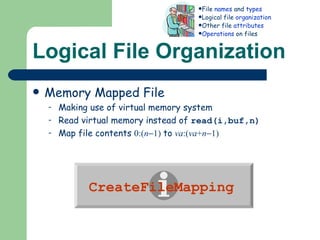

17. Logical File Organization Memory Mapped File Making use of virtual memory system Read virtual memory instead of read(i,buf,n) Map file contents 0:( n  1) to va :( va + n  1) File names and types Logical file organization Other file attributes Operations on files CreateFileMapping

18. Other file attributes Ownership File Size File Use Time of creation , last access , last modification File Disposition Permanent or Temporary Protection Who can access and what type of access Location File names and types Logical file organization Other file attributes Operations on files

19. Operations on files Create/Delete Create/delete file descriptor Modify directory Open/Close Open  Setup open file table (“OFT”) & buffer Close  Reverse the effect of open Read/Write (sequential or direct) Modify file descriptor Transfer data between disk and buffer Seek/Rewind Modify open file table File names and types Logical file organization Other file attributes Operations on files

20. File System and Input/Output Lecture 10: File Systems File Directories

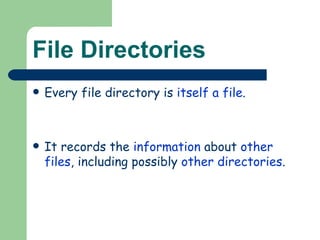

21. File Directories Every file directory is itself a file . It records the information about other files , including possibly other directories .

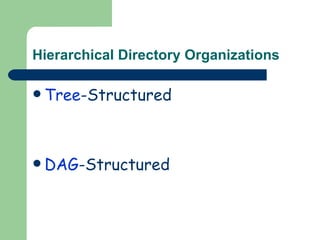

22. Hierarchical Directory Organizations Tree -Structured DAG -Structured

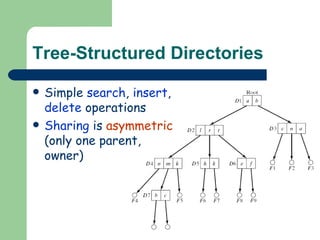

23. Tree-Structured Directories Simple search , insert , delete operations Sharing is asymmetric (only one parent, owner)

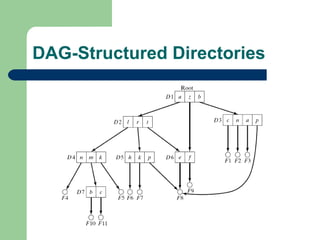

24. DAG-Structured Directories

25. DAG-Structured Directories \a\r\p \b\p \a\t\e File F8 shared

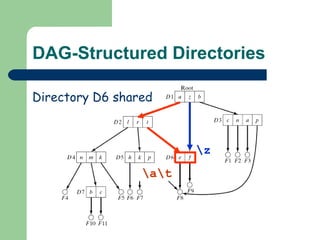

26. DAG-Structured Directories \a\t \z Directory D6 shared

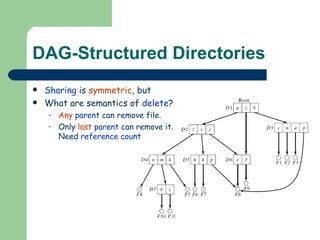

27. DAG-Structured Directories Sharing is symmetric , but What are semantics of delete ? Any parent can remove file. Only last parent can remove it. Need reference count

28. DAG-Structured Directories Must prevent cycles

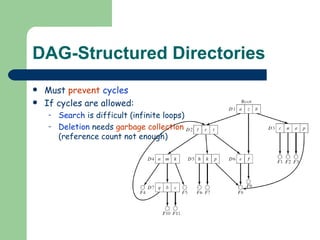

29. DAG-Structured Directories Must prevent cycles If cycles are allowed: Search is difficult (infinite loops) Deletion needs garbage collection (reference count not enough)

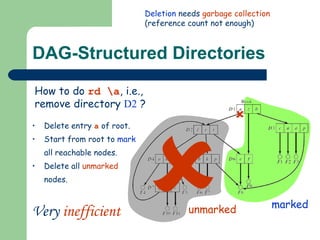

30. DAG-Structured Directories How to do rd \a , i.e., remove directory D2 ? Deletion needs garbage collection (reference count not enough)  Delete entry a of root. Start from root to mark all reachable nodes. Delete all unmarked nodes. marked unmarked  Very inefficient

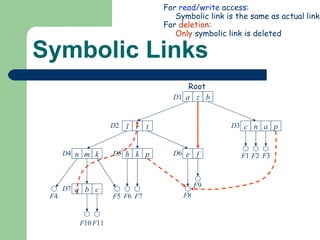

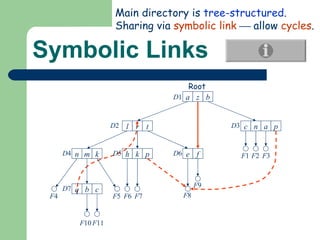

31. Symbolic Links Main directory is tree-structured . Sharing via symbolic link  allow cycles . F 4 a z b c n a p l r t e f h k p n m k q b c D 1 D 2 D 3 D 4 D 5 D 6 D 7 F 1 F 2 F 3 F 5 F 6 F 7 F 8 F 9 F 10 F 11 Root

32. Symbolic Links For read / write access: Symbolic link is the same as actual link For deletion : Only symbolic link is deleted Root F 4 a z b c n a p l r t e f h k p n m k q b c D 1 D 2 D 3 D 4 D 5 D 6 D 7 F 1 F 2 F 3 F 5 F 6 F 7 F 8 F 9 F 10 F 11

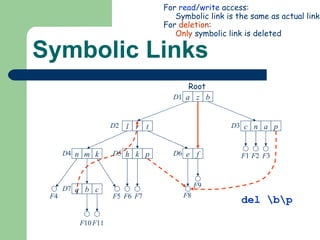

33. Symbolic Links F 4 a z b c n a p l r t e f h k p n m k q b c D 1 D 2 D 3 D 4 D 5 D 6 D 7 F 1 F 2 F 3 F 5 F 6 F 7 F 8 F 9 F 10 F 11 For read / write access: Symbolic link is the same as actual link For deletion : Only symbolic link is deleted del \b\p Root

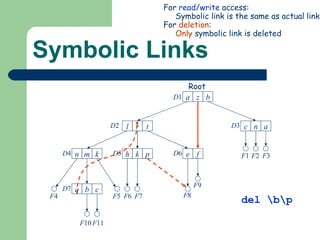

34. Symbolic Links F 4 a z b c n a l r t e f h k p n m k q b c D 1 D 2 D 3 D 4 D 5 D 6 D 7 F 1 F 2 F 3 F 5 F 6 F 7 F 8 F 9 F 10 F 11 For read / write access: Symbolic link is the same as actual link For deletion : Only symbolic link is deleted del \b\p Root

35. Symbolic Links F 4 a z b c n a p l r t e f h k p n m k q b c D 1 D 2 D 3 D 4 D 5 D 6 D 7 F 1 F 2 F 3 F 5 F 6 F 7 F 8 F 9 F 10 F 11 For read / write access: Symbolic link is the same as actual link For deletion : Only symbolic link is deleted del \a\t\e Root

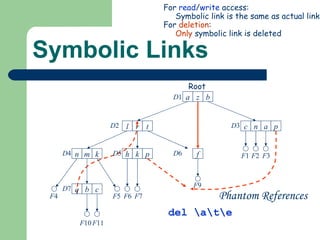

36. Symbolic Links F 4 a z b c n a l r t f h k n m k q b c D 1 D 2 D 3 D 4 D 5 D 6 D 7 F 1 F 2 F 3 F 5 F 6 F 7 F 9 F 10 F 11 For read / write access: Symbolic link is the same as actual link For deletion : Only symbolic link is deleted del \a\t\e Phantom References Root p p

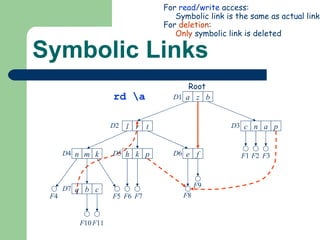

37. Symbolic Links F 4 a z b c n a p l r t e f h k p n m k q b c D 1 D 2 D 3 D 4 D 5 D 6 D 7 F 1 F 2 F 3 F 5 F 6 F 7 F 8 F 9 F 10 F 11 For read / write access: Symbolic link is the same as actual link For deletion : Only symbolic link is deleted rd \a Root

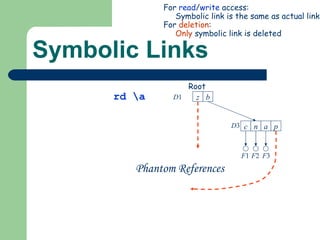

38. Symbolic Links b c n a D 1 D 3 F 1 F 2 F 3 For read / write access: Symbolic link is the same as actual link For deletion : Only symbolic link is deleted rd \a Phantom References Root z p

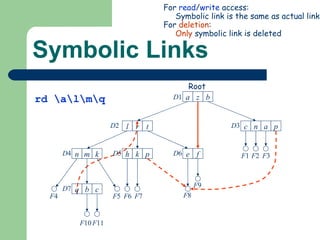

39. Symbolic Links F 4 a z b c n a p l r t e f h k p n m k q b c D 1 D 2 D 3 D 4 D 5 D 6 D 7 F 1 F 2 F 3 F 5 F 6 F 7 F 8 F 9 F 10 F 11 For read / write access: Symbolic link is the same as actual link For deletion : Only symbolic link is deleted rd \a\l\m\q Root

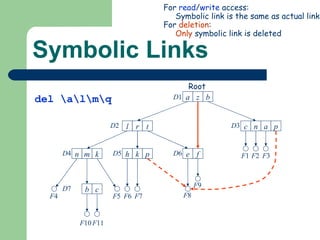

40. Symbolic Links F 4 a z b c n a p l r t e f h k p n m k b c D 1 D 2 D 3 D 4 D 5 D 6 D 7 F 1 F 2 F 3 F 5 F 6 F 7 F 8 F 9 F 10 F 11 For read / write access: Symbolic link is the same as actual link For deletion : Only symbolic link is deleted del \a\l\m\q Root

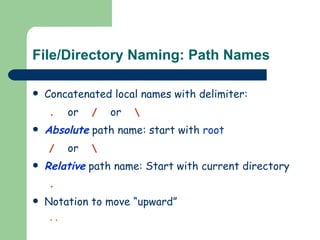

41. File/Directory Naming: Path Names Concatenated local names with delimiter: . or / or \ Absolute path name: start with root / or \ Relative path name: Start with current directory . Notation to move “upward” ..

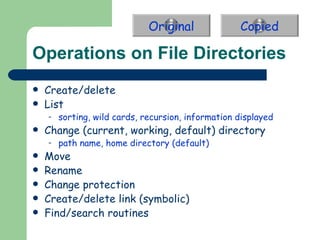

42. Operations on File Directories Create/delete List sorting, wild cards, recursion, information displayed Change (current, working, default) directory path name, home directory (default) Move Rename Change protection Create/delete link (symbolic) Find/search routines Original Copied

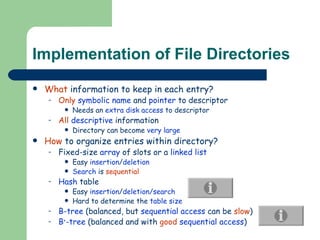

43. Implementation of File Directories What information to keep in each entry? Only symbolic name and pointer to descriptor Needs an extra disk access to descriptor All descriptive information Directory can become very large How to organize entries within directory? Fixed-size array of slots or a linked list Easy insertion / deletion Search is sequential Hash table Easy insertion / deletion/search Hard to determine the table size B-tree (balanced, but sequential access can be slow ) B + -tree (balanced and with good sequential access )

44. File System and Input/Output Lecture 10: File Systems Basic File System

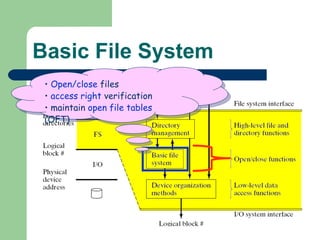

45. Basic File System Open/close files access right verification maintain open file tables (OFT)

46. Open/Close Files Retrieve and set up descriptive information for efficient access . FILE * fopen ( const char *filename, const char *mode ); int fclose ( FILE * stream ); size_t fread ( void *buffer, size_t size, size_t count, FILE * stream ); size_t fwrite ( const void *buffer, size_t size, size_t count, FILE * stream ); Block-oriented I/O in UNIX Low-level I/O in Windows Stream I/O in Windows

47. File Descriptors (Unix i-node) Owner id File type Protection information Mapping to physical disk blocks Time of creation, last use, last modification Reference counter

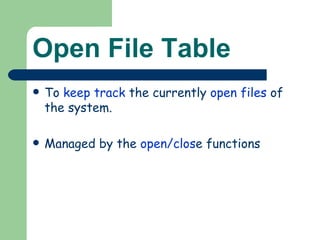

48. Open File Table To keep track the currently open files of the system. Managed by the open/clos e functions

49. Open Verify access rights Allocate OFT entry Allocate read/write buffers Fill in OFT entry Initialization (e.g., current position) Information from descriptor (e.g. file length, disk location) Pointers to allocated buffers Return OFT index

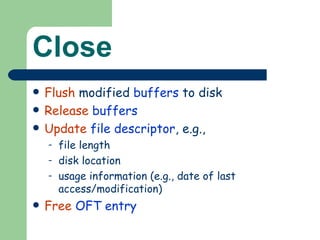

50. Close Flush modified buffers to disk Release buffers Update file descriptor , e.g., file length disk location usage information (e.g., date of last access/modification) Free OFT entry

51. Example: Open File Tables in Unix Unbuffered access fd= open (name,rw,…) stat= read (fd,mem,n) stat= write (fd,mem,n ) Buffered access fp= fopen (name,rwa) c= readc (fp )

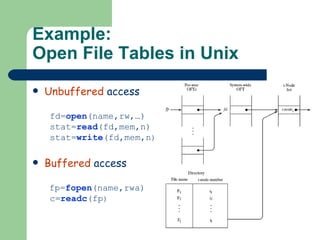

52. Example: Open File Tables in Unix Unbuffered access fd= open (name,rw,…) stat= read (fd,mem,n) stat= write (fd,mem,n ) Buffered access fp= fopen (name,rwa) c= readc (fp )

53. File System and Input/Output Lecture 10: File Systems Physical Organization Methods

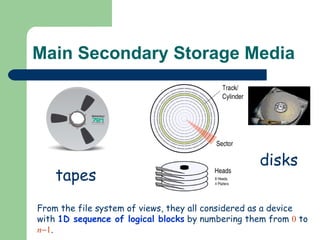

54. Main Secondary Storage Media tapes disks From the file system of views, they all considered as a device with 1D sequence of logical blocks by numbering them from 0 to n  1 .

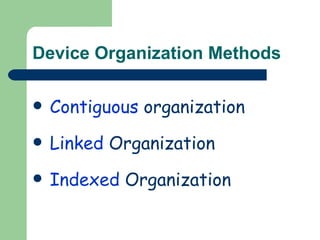

55. Device Organization Methods Contiguous organization Linked Organization Indexed Organization

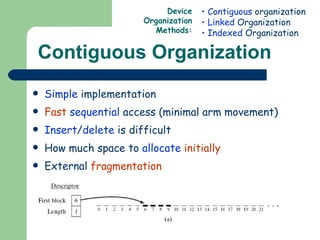

56. Contiguous Organization Simple implementation Fast sequential access (minimal arm movement) Insert / delete is difficult How much space to allocate initially External fragmentation Contiguous organization Linked Organization Indexed Organization Device Organization Methods:

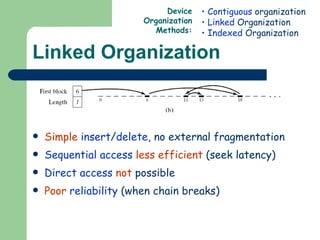

57. Linked Organization Simple insert / delete , no external fragmentation Sequential access less efficient (seek latency) Direct access not possible Poor reliability (when chain breaks) Contiguous organization Linked Organization Indexed Organization Device Organization Methods:

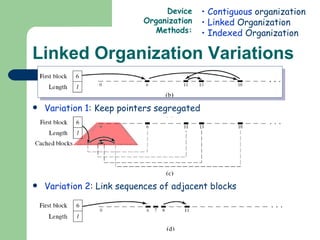

58. Linked Organization Variations Variation 1 : Keep pointers segregated Variation 2 : Link sequences of adjacent blocks Contiguous organization Linked Organization Indexed Organization Device Organization Methods:

59. Indexed Organization Variations Multi-level index hierarchy Primary index points to secondary indices Problem: number of disk accesses increases with depth of hierarchy Incremental indexing Fixed number of entries at top-level index When insufficient , allocate additional index levels E.g., Unix  3-level expansion (see next) Contiguous organization Linked Organization Indexed Organization Device Organization Methods:

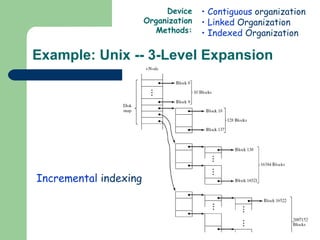

60. Example: Unix -- 3-Level Expansion Contiguous organization Linked Organization Indexed Organization Device Organization Methods: Incremental indexing

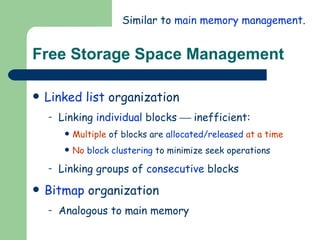

61. Free Storage Space Management Linked list organization Linking individual blocks  inefficient: Multiple of blocks are allocated/released at a time No block clustering to minimize seek operations Linking groups of consecutive blocks Bitmap organization Analogous to main memory Similar to main memory management .

62. File System and Input/Output Lecture 10: File Systems Distributed File Systems

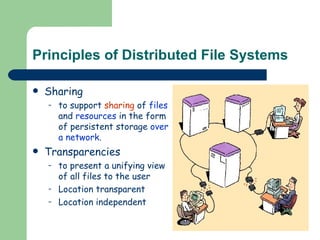

63. Principles of Distributed File Systems Sharing to support sharing of files and resources in the form of persistent storage over a network . Transparencies to present a unifying view of all files to the user Location transparent Location independent

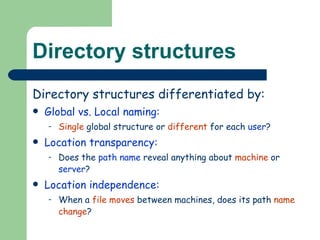

64. Directory structures Directory structures differentiated by: Global vs. Local naming: Single global structure or different for each user ? Location transparency: Does the path name reveal anything about machine or server ? Location independence: When a file moves between machines, does its path name change ?

65. Global Directory Structure Server S 1 Server S 2 usr mp    u 1       root directory (/)    usr loc    u 2          root directory (/) x y S 1 S 2

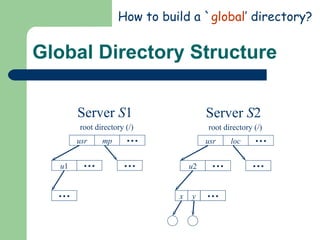

66. Global Directory Structure Server S 1 Server S 2 How to build a ` global ’ directory? usr loc    u 2          root directory (/) x y usr mp    u 1       root directory (/)   

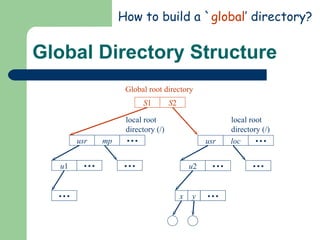

67. Global Directory Structure Server S 1 Server S 2 How to build a ` global ’ directory? local root directory (/) local root directory (/) Global root directory S 1 S 2 usr mp    u 1       root directory (/)    usr loc    u 2          root directory (/) x y

68. How to Name a File/Directory? usr mp    u 1       root directory (/)    Server S 1 Server S 2 root directory (/) local root directory (/) local root directory (/) Global root directory S 1 S 2 /S1/usr/u1 Problem with “Combine under new common root:” Using “ / ” for new root invalidates existing local names . usr loc    u 2          root directory (/) x y

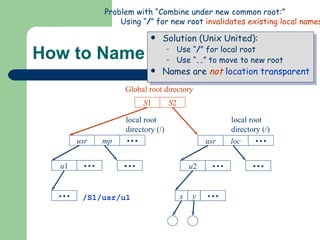

69. How to Name a File/Directory? Solution (Unix United): Use “ / ” for local root Use “ .. ” to move to new root Names are not location transparent usr mp    u 1       root directory (/)    Server S 1 Server S 2 root directory (/) local root directory (/) local root directory (/) Global root directory S 1 S 2 /S1/usr/u1 Problem with “Combine under new common root:” Using “ / ” for new root invalidates existing local names . usr loc    u 2          root directory (/) x y
