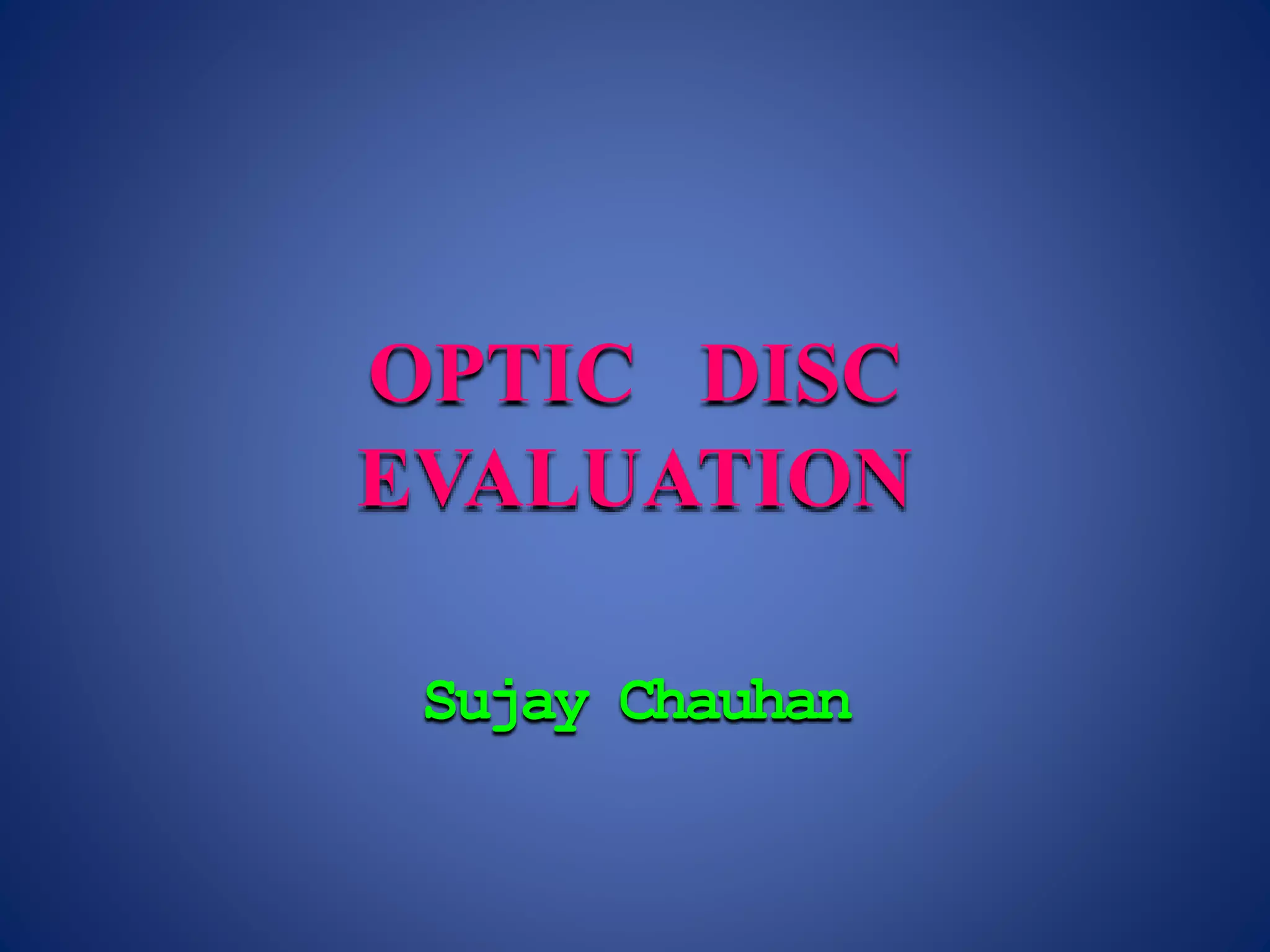

OPTIC DISC
EVALUATION
TERMINOLOGIES
Optic disc - Intraocular portion of optic nerve. Termination of all retinal layers
except nerve fibres, which pass through lamina cribrosa into the optic nerve.
Optic nerve head - Optic disc along with underlying pre-laminar layer of optic
nerve and region of lamina cribrosa
Optic papilla - Slightly elevated periphery of optic disc.
Physiological cup - Depression seen in optic disc
GENERAL FEATURES
Shape
Circular or ovoid
Location
Centre of disc lies 4 mm nasally and 1 mm superiorly to fovea
Colour
• Optic cup is white - due to lamina cribrosa and medullated nerve fibres behind it
and absence of vascular choroid
• Neural rim is yellow-pink - rich capillary network
• Fair-skinned, blond, myopic people with large optic discs have a light coloured
discs, and vice versa
Zones of the optic nerve head and peripapillary pigmentation
CUP
NRR
SCLERAL LIP
ZONE β
ZONE α
Margin
• Nasal margin - not well defined
• Margins at superior and inferior poles and in small optic discs - obscured due to
crowding of nerve fiber bundles
• Choroidal crescent - gap in RPE revealing underlying choroid because of oblique
insertion of optic nerve and tilting of disc
• Scleral crescent - when both RPE and choroid are deficient
• Both crescents mostly arise on temporal aspect of disc
Dimensions
Vertical diameter = 1.8 mm
Horizontal diameter = 1.5 mm
Depth = 1 mm
Cup : Disc ratio - Ratio of vertical diameter of optic cup
to that of optic disc
May vary from 0.1 - 0.9
Correction factors for estimating optic disc diameter:
Volk +78 D = 1.1 x
Volk +90 D = 1.3 x
ISNT rule - Inferior NRR is broadest followed by superior, nasal and temporal
Small and moderate sized optic discs follow the rule, large discs may not
• Physiologic cupping - horizontally oval and deeper in nasal quadrant
• Only 2 % of normal population have C:D ratio > 0.7
• Number of optic nerve fibres, and area of neural rim they comprise, is constant.
Thus, small optic discs have small cup because of concentration of nerve fibres
at their point of confluence
• Small discs - 0.35
Large discs - 0.55
• Early glaucomatous changes can be missed in small discs
Cupping over diagnosed in large discs
Retinal vessels on and near optic disc
• CRA enters globe through physiological cup - divides dichotomously within cup
and on surface of disc - 4 branches (ST, SN, IT, IN)
• May divide within optic nerve head - 2 or 4 branches emerging separately from
within the physiological cup
• Veins lie temporal to arteries
• Cilioretinal artery - in 40% people and emerge from temporal aspect of optic
disc
Spontaneous vascular pulsations
• Venous pulsation - seen at sharp bend in the vein as it turns into lamina cribrosa
• Absent in 20% healthy people
• Can be elicited by elevating IOP by pressing gently on globe
• Indication of normal ICP, if IOP is normal
• Can be seen in presence of elevated ICP if IOP is high
• Arterial pulsation - raised IOP or elevated pulse pressure
Other important observations
• Copper-wire appearance - reflection of light at vessel centre
• Relative sizes of arteries and veins (normally - 2:3)
• Thickening of arterioles - ageing, arteriosclerosis, hypertension
• Very narrow, thready arterioles - tapetoretinal degenerations
• Changes at AV crossings
OPTIC DISC ANOMALIES
SMALL OPTIC DISC
• Hypermetropia
• Aphakia
• Tilted optic disc
• Optic disc hypoplasia
LARGE OPTIC DISC
• High myopia
• Congenital optic disc pit
• Optic disc coloboma
• Morning glory anomaly
• Megalopapilla
NON-PROGRESSIVE CONGENITAL OPTIC DISC ANOMALIES
COLOBOMA
• Enlarged optic disc, partially or almost totally excavated
• Deepest part of coloboma is usually situated inferiorly
• Glistening white, tinged with grey on its surface
• Increased number of blood vessels cross border of coloboma - represent
branches of central retinal vessels which have divided on optic disc surface
before reaching retina
• Peripapillary pigmentary changes (hyper or hypo)
TILTED OPTIC DISC / NASAL FUNDUS ECTASIA SYNDROME /
FUCH'S COLOBOMA / DYSVERSION OF THE OPTIC DISC
• Usually inferiorly or inferonasally
• Choroidal or scleral crescent
• Situs inversus - in 80% of eyes with tilted disc. Temporal retinal vessels first turn
nasally before curving temporally towards macula
OPTIC DISC PIT
• Round or oval
• Pigmented (usually)
• 1 pit per optic disc, occasionally 2 or 3
• Size = 1/4 - 1/2 DD
• Larger optic disc with distinct physiological cup
• Base of pit may pulsate - underlying blood vessels, or transmission from
subarachnoid space
• Peripapillary chorioretinal atrophy
• Retinal vessels cross the pit - running superficially or dipping below its surface
• 60% cases - cilioretinal artery arises from periphery of pit
• Serous RD develops in 30% cases - resolves spontaneously
APLASIA AND HYPOPLASIA
• Abnormally small optic disc with pathologically low number of nerve fibers
• Grey or pale
• Double ring sign - peripapillary halo bordered by ring of increased or
decreased pigmentation
• Deficit visual function
ALTITUDINAL HEMIHYPOPLASIA
• Hypoplasia restricted to upper half of disc
• In children of severe diabetic mothers with poor control during pregnancy
• Little or no visual field below horizontal meridian
MICROPAPILLA
• Smaller optic disc
• Blurred margins
• Small or absent cup
• Normal visual function
MEGALOPAPILLA / MACROPAPILLA
• Extraordinarily large optic disc
• Very large central cup and narrow but healthy neuroretinal rim
• Bilateral
• Peripapillary pigmentary changes may be present
• Normal optic nerve function
MORNING GLORY OPTIC DISC
• Enlarged, nearly circular optic disc containing a deep conical depression with
white to pink glial tissue at its base
• Grey or black halo
• Retinal vessels loop over the edge of optic disc in a radial fashion (origin and
early branching obscured by glial tissue)
• Serous RD - may fluctuate and resolve spontaneously
MYELINATED NERVE FIBRES
• 1% of normal population
• Not present at birth; develop post-natally
• White, highly reflective lesion with feathery margins. Dark slits within the
lesion represent normal, unmyelinated fibres
CONGENITAL VASCULAR ANOMALIES
PERSISTENT HYALOID ARTERY
• Bloodless, transparent, thread-like remnant extending forwards from optic disc
• Portion near the disc may contain blood
Anteriorly the artery may retain its attachment to posterior lens capsule - Mittendorf's dot
BERGMEISTER'S PAPILLA (PERSISTENT HYPERPLASTIC PRIMARY
VITREOUS)
• Faint grey or yellow-white protuberance over the optic disc
• Nasally in 90% cases
• Physiological optic cup is reduced or absent
PREPAPILLARY VASCULAR LOOPS
• Short and simple, or may be long with several spiral twists
• Never reach the posterior surface of lens
• Loop usually originates from, and returns to the vessels on the optic disc;
occasionally may arise from an artery on disc and return to a retinal branch
• Arterial loops generally affect inferior central retinal vessels (may pulsate)
• Venous loops usually affect superior retinal veins
ACQUIRED VASCULAR ANOMALIES
NEOVASCULARISATION AT DISC
• Fine network of vessels lying flat on disc or protruding into vitreous
• Do not branch dichotomously
Causes -
• Proliferative diabetic retinopathy
• Retinal vein occlusion
• Old retinal artery occlusion
• Ocular ischemic syndrome
• Radiation retinopathy
• Carotid-cavernous fistula
DISC HAEMORRHAGES
• Acute papilloedema
• Arteritic AION
• Papillitis
• Diabetic papillopathy
• Chronic glaucoma
• Optic disc drusen
OPTIC NEURITIS
RETROBULBAR NEURITIS
Early phase - disc appears normal; later - primary optic atrophy
PAPILLITIS
• Early phase - disc is moderately swollen and hyperemic
• Indistinct margins
• Splinter haemorrhages on the disc surface
• Later - secondary optic atrophy
NEURORETINITIS
• Early phase - disc may appear swollen; later - consecutive optic atrophy
OPTIC NEUROPATHY
RETROBULBAR OPTIC NEUROPATHY
Early phase - disc appears normal; later - primary optic atrophy
ISCHEMIC PAPILLOPATHY
Acute phase - swollen and pale optic disc (usually sectorial), superficial splinter
haemorrhages
Chronic phase - secondary optic atrophy
ARTERITIC PAPILLOPATHY
Features same as in ischemic papillopathy
DIABETIC PAPILLOPATHY
• Optic disc may be hyperemic and swollen, indistinct margins
• In severe cases – papilledema
LEBER'S HEREDITARY OPTIC NEUROPATHY
• Swollen and hyperaemic optic disc
• Dilated telangiectatic capillaries mainly on, and extending from, temporal side
of optic disc
• Chronic stage - secondary optic atrophy, marked reduction in vascularity
OPTIC ATROPHY
PRIMARY OPTIC ATROPHY
• Chalky white optic disc with clearly defined margins
• Disc pallor, more on temporal side
• Atrophied neural rim - loss of physiological cup and flattening of optic disc
• No gliotic or vascular changes
SECONDARY OPTIC ATROPHY
• Grayish white swollen optic disc
• Poorly defined margin
• Partially or completely filled physiological cup
• Gliotic changes may or may not be present
CONSECUTIVE OPTIC ATROPHY
• Pale yellow, waxy looking flat optic disc
• Well defined margins
• Minimal gliotic changes
• e.g. Retinitis pigmentosa
CAVERNOUS OPTIC ATROPHY OF SCHNABEL
• Seen in ischemic lesions of optic nerve head
• Diffusely enlargement and bean pot like cupping
PERIPAPILLARY ATROPHY
Alpha Zone:
• Hypo and hyper-pigmented areas
• Present in glaucomatous as well as non-glaucomatous eyes
Beta Zone:
• Large choroidal vessels become visible
• Larger beta zone often has thin NRR in the same area
• More common in glaucomatous eyes and progression of beta zone is
associated with glaucoma progression
MYOPIA
• Optic disc is sometimes distorted
• Tilting of optic disc, usually temporally
• Retinal vessels appear dragged
• Nasal vessels curve around the elevated nasal sector of disc, temporal vessels
pursue a straightened course
• Myopic crescent
HYPERMETROPIA
• Small, pink optic disc, appears elevated and congested, but capillaries are not
dilated
• Central retinal vessels crowd the centre of small optic disc; spontaneous venous
pulsation not affected
• Severe cases - horizontal choroidal folds in peripheral fundus
GLAUCOMA
Focal atrophy
• Polar notching - small, discrete neural atrophy, usually in inferotemporal
quadrant
• Selective loss of neural rim tissue in inferotemporal and superotemporal
sectors - vertical or oblique enlargement of cup
• With progression temporal neural rim is involved followed by nasal quadrant
• Bayoneting sign - Retinal vessel bending sharply at the edge of disc
Concentric atrophy
• Less common
• Begins temporally, progresses circumferentially - temporal unfolding
LARGE OPTIC DISC WITH LARGE
PHYSIOLOGIC CUPPING
GLAUCOMATOUS CUPPING
Preserved healthy NRR widest at inferior
pole and narrowest in temporal quadrant
(I>S>N>T)
Cup extends to the disc margin
Deepening of cup
• Overpass cupping - vessels initially bridge the deepened cup, later collapse into it
• Laminar dot sign - Exposure of underlying lamina cribrosa. Fenestration with
striate appearance has higher association with glaucomatous damage than dot-
like appearance
Pallor/cup discrepancy
• In early stages of glaucomatous optic atrophy - size of cup > area of pallor
• Other causes of optic atrophy - area of pallor > size of cup
• Area of cupping recognized by observing kinking of vessels at cup margin
• Saucerisation - diffuse, shallow cupping extending to disc margins
• Focal saucerisation - localized shallow, sloping cup, usually in inferotemporal
quadrant
• Tinted hollow - normal NRR colour in area of focal saucerisation
• Shadow sign - grayish hue of NRR
Advanced glaucomatous cupping
• Total cupping - white disc with loss of all neural rim tissue
• Bending of vessels at disc margin
Optic disc haemorrhages
• NTG > COAG
• Most commonly in inferior quadrant
• Resolve spontaneously and reappear at same or different location
• Cross the disc margin - papillary portion often disappears first during
resorption, leaving the appearance of an extrapapillary haemorrhage
• Decline in frequency with advanced damage
• Associated with progressive changes of visual field
Peripapillary pigmentary disturbance
• Scleral lip or peripapillary halo
• Peripapillary atrophy (both zone beta and zone alpha)
PAPILLOEDEMA
Early phase
• Swollen optic disc with indistinct margin
• First seen in nasal quadrant and then in superior and inferior sectors (because
of variation in density of nerve fibres in NRR)
• Physiological cup is maintained giving the disc a cylindrical appearance
• Disc is hyperemic due to capillary dilatation
• Retinal veins are congested and non-pulsatile
• Circumpapillary accumulation of fluid - concentric retinal folds (Paton’s lines)
and choroidal folds (best seen with red-free filter)
Acute phase
• Optic disc becomes increasingly swollen and elevated
• Physiological cup may still be maintained
• Retinal venous congestion more pronounced.
• Some blood vessels partially obscured at the edge of disc
• Flame-shaped haemorrhages on disc margin
• Macular star - accumulation of fluid and exudates, most prominent on nasal
aspect of macula
Long standing phase
• Disc markedly swollen and physiological cup obliterated – Champagne cork
appearance
• Circulatory adjustments lead to resolution of venous congestion and retinal
edema
Atrophic stage
• Pale optic disc (Secondary optic atrophy)
• Neuronal degenerative changes - punctate white opacities in superficial nerve
fibre layer
• Attenuated retinal arteries
• Circumpapillary choroidal pallor and RPE atrophy with areas of pigmentary
clumping
OPTIC DISC DRUSEN
Children
• Small optic disc
• Drusen hidden within substance of nerve head
• Pseudopapilledema
• Retinal veins not distended, spontaneous retinal pulsation not affected
• Central retinal vessels may show anomalous branching (10% cases)
• Cilioretinal arteries commonly occur
Adolescents and adults
• Drusen - single or multiple, glistening, semi-translucent; may coalesce – give
disc a yellow-pink appearance
• Optic disc may become enlarged and its border indistinct or irregular
• Physiological cup is obliterated
• Splinter haemorrhages on disc surface, subretinal haemorrhages in
peripapillary area
TUMOURS AND TUMOUR-LIKE CONDITIONS
MELANOCYTOMA
• Grey to jet-black
• Eccentrically placed on optic disc, extending over disc margin
• Optic disc adjacent to the tumour is normal, may be swollen
ASTROCYTIC HAMARTOMA
• Early stage - Smooth semi-translucent mass
• Mature stage - Mulberry-like white reflective mass, may become calcified
• Very vascular; blood vessels can be seen coursing through their substance
CAPILLARY HAEMANGIOMA
• Localised, round, orange-pink
• Vascular
• Situated eccentrically on disc overlapping the disc margin and extending
forwards into vitreous
CAVERNOUS HAEMANGIOMA
• Grape-like saccular aneurysms lying flat on the retina
• Circulation through haemangioma is sluggish and blood tends to stagnate in
each saccule, with red blood cells sedimenting in response to gravity, leaving
a pale layer of plasma above
GLIOMA
• Smooth, elevated, white mass partially or completely obscuring the disc
• Compression of disc may cause occlusion of central retinal vessels
• Glioma situated posterior to lamina cribrosa may cause primary optic atrophy
MENINGIOMA
Direct involvement of optic nerve
• Elevated, pale mass obscuring the optic disc and displacing the peripapillary
retina
• Splinter haemorrhages may be seen over the surface of the mass
Optic nerve compression
• Pale, swollen optic disc
• Optociliary shunt vessels
OPTIC DISC GRANULOMA
Acute stage
• Raised, irregular, hyperaemic lesion affecting the optic disc and extending into
the adjacent retina
• Peripapillary sub-retinal fluid accumulation
Later stage
White mass of scar tissue overlying the disc causing traction retinal folds
Optic disc evaluation

More Related Content

What's hot

Abnormalities of pupil
Abnormalities of pupilAbnormalities of pupil
Abnormalities of pupil
Imrul Morshed

Congenital infantile esotropia
Congenital infantile esotropiaCongenital infantile esotropia
Congenital infantile esotropia
Om Patel

CENTRAL SEROUS CHORIO RETINOPATHY
CENTRAL SEROUS CHORIO RETINOPATHYCENTRAL SEROUS CHORIO RETINOPATHY
CENTRAL SEROUS CHORIO RETINOPATHY
SSSIHMS-PG

Visual Field in Glaucoma
Visual Field in GlaucomaVisual Field in Glaucoma
Visual Field in Glaucoma
docsarsi

Evaluation of ptosis
Evaluation of ptosis Evaluation of ptosis
Evaluation of ptosis
Nikita Jaiswal

Anatomy Of Cornea
Anatomy Of  CorneaAnatomy Of  Cornea
Anatomy Of Cornea
Husain Patanwala

Binocular Single Vision Tests
Binocular Single Vision TestsBinocular Single Vision Tests
Binocular Single Vision Tests
Rabia Ammer

Cycloplegic refraction ppt
Cycloplegic refraction pptCycloplegic refraction ppt
Cycloplegic refraction ppt
Mehedi Hasan

Coloboma
ColobomaColoboma
Cover tests
Cover testsCover tests
Cover tests
Dr Samarth Mishra

Specular microscopy
Specular microscopySpecular microscopy
Specular microscopy
Ruchi sood

Lenses in ophthalmology
Lenses in ophthalmologyLenses in ophthalmology
Lenses in ophthalmology
Reshma Peter

Amsler grid
Amsler gridAmsler grid
Amsler grid
Suhail Wahab

Glaucoma optic disc changes
Glaucoma optic disc changesGlaucoma optic disc changes
Glaucoma optic disc changes
pragati jain

Dry eye diagnosis and management
Dry eye diagnosis and managementDry eye diagnosis and management
Dry eye diagnosis and management
NIKHIL GOTMARE

Corneal Topography
Corneal TopographyCorneal Topography
Corneal Topography
Raman Gupta

Sturm's conoid
Sturm's conoidSturm's conoid
Sturm's conoid
Dr Samarth Mishra

Esotropia , classification , diagnosis and management
Esotropia , classification , diagnosis and managementEsotropia , classification , diagnosis and management
Esotropia , classification , diagnosis and management
DrAzmat Ali

Visual field testing and interpretation
Visual field testing and interpretationVisual field testing and interpretation
Visual field testing and interpretation
Hira Dahal

Slit lamp examination lecture
Slit lamp examination lectureSlit lamp examination lecture
Slit lamp examination lecture
Prashant Patel


What's hot (20)

Abnormalities of pupil
Abnormalities of pupilAbnormalities of pupil
Abnormalities of pupil

Congenital infantile esotropia
Congenital infantile esotropiaCongenital infantile esotropia
Congenital infantile esotropia

CENTRAL SEROUS CHORIO RETINOPATHY
CENTRAL SEROUS CHORIO RETINOPATHYCENTRAL SEROUS CHORIO RETINOPATHY
CENTRAL SEROUS CHORIO RETINOPATHY

Visual Field in Glaucoma
Visual Field in GlaucomaVisual Field in Glaucoma
Visual Field in Glaucoma

Evaluation of ptosis
Evaluation of ptosis Evaluation of ptosis
Evaluation of ptosis

Anatomy Of Cornea
Anatomy Of  CorneaAnatomy Of  Cornea
Anatomy Of Cornea

Binocular Single Vision Tests
Binocular Single Vision TestsBinocular Single Vision Tests
Binocular Single Vision Tests

Cycloplegic refraction ppt
Cycloplegic refraction pptCycloplegic refraction ppt
Cycloplegic refraction ppt

Coloboma
ColobomaColoboma
Coloboma

Cover tests
Cover testsCover tests
Cover tests

Specular microscopy
Specular microscopySpecular microscopy
Specular microscopy

Lenses in ophthalmology
Lenses in ophthalmologyLenses in ophthalmology
Lenses in ophthalmology

Amsler grid
Amsler gridAmsler grid
Amsler grid

Glaucoma optic disc changes
Glaucoma optic disc changesGlaucoma optic disc changes
Glaucoma optic disc changes

Dry eye diagnosis and management
Dry eye diagnosis and managementDry eye diagnosis and management
Dry eye diagnosis and management

Corneal Topography
Corneal TopographyCorneal Topography
Corneal Topography

Sturm's conoid
Sturm's conoidSturm's conoid
Sturm's conoid

Esotropia , classification , diagnosis and management
Esotropia , classification , diagnosis and managementEsotropia , classification , diagnosis and management
Esotropia , classification , diagnosis and management

Visual field testing and interpretation
Visual field testing and interpretationVisual field testing and interpretation
Visual field testing and interpretation

Slit lamp examination lecture
Slit lamp examination lectureSlit lamp examination lecture
Slit lamp examination lecture


Similar to Optic disc evaluation

Lesions of retina
Lesions of retina Lesions of retina
Lesions of retina
Shruti Laddha

optic disc anomaly
 optic disc anomaly optic disc anomaly
optic disc anomaly
Shreeji Shrestha

PAPILLEDEMA
PAPILLEDEMAPAPILLEDEMA
PAPILLEDEMA
Nikitha Crasta

Lesions of retina
Lesions of retinaLesions of retina
Lesions of retina
abhishek ghelani

Vitreoretinal Disease
Vitreoretinal DiseaseVitreoretinal Disease
Vitreoretinal Disease
OphthalmicDocs Chiong

Examination of the optic nerve
Examination of the optic nerveExamination of the optic nerve
Examination of the optic nerve
Akshay Nayak

Papilledema
Papilledema Papilledema
Papilledema
Ishta Thakur

Primary open angle glaucoma
Primary open angle glaucomaPrimary open angle glaucoma
Primary open angle glaucoma
Sampda Sharma

20. Neuro-Ophthalmology .pptx
20. Neuro-Ophthalmology .pptx20. Neuro-Ophthalmology .pptx
20. Neuro-Ophthalmology .pptx
Lydiahkawira1

Optic disc ( very good book by Dr . Kathleen B. Digre )
Optic disc ( very good book by Dr . Kathleen B. Digre )Optic disc ( very good book by Dr . Kathleen B. Digre )
Optic disc ( very good book by Dr . Kathleen B. Digre )
Vinitkumar MJ

Retinal artery occlusion
Retinal artery occlusionRetinal artery occlusion
Retinal artery occlusion
SAMEEKSHA AGRAWAL

Funduscopy evaluation in glaucomatous optic
Funduscopy evaluation in glaucomatous opticFunduscopy evaluation in glaucomatous optic
Funduscopy evaluation in glaucomatous optic
rikhaerina

Is This Disc Normal ?
Is This Disc Normal ?Is This Disc Normal ?
Is This Disc Normal ?
neurophq8

Fundus examination
Fundus examinationFundus examination
Fundus examination
akhil deshmukh

Clinical features of glaucoma
Clinical features of glaucomaClinical features of glaucoma
Clinical features of glaucoma
sidesh Hendavitharana

Vascular disorders of retina
Vascular disorders of retinaVascular disorders of retina
Vascular disorders of retina
Haris Khan

Clinical approach to acute vision loss
Clinical approach to acute vision loss  Clinical approach to acute vision loss
Clinical approach to acute vision loss
neurophq8

Some problem solving in neuro imaging - Vincent Batista Lemaire
Some problem solving in neuro imaging  - Vincent Batista LemaireSome problem solving in neuro imaging  - Vincent Batista Lemaire
Some problem solving in neuro imaging - Vincent Batista Lemaire
Niela Valdez

Approach to Disc Pallor and Automated Fields in Neuro-ophthalmology
Approach to Disc Pallor and Automated Fields in Neuro-ophthalmology  Approach to Disc Pallor and Automated Fields in Neuro-ophthalmology
Approach to Disc Pallor and Automated Fields in Neuro-ophthalmology
Dr. Shah Noor Hassan

Primary Glaucoma
Primary GlaucomaPrimary Glaucoma
Primary Glaucoma
John Paul Taday


Similar to Optic disc evaluation (20)

Lesions of retina
Lesions of retina Lesions of retina
Lesions of retina

optic disc anomaly
 optic disc anomaly optic disc anomaly
optic disc anomaly

PAPILLEDEMA
PAPILLEDEMAPAPILLEDEMA
PAPILLEDEMA

Lesions of retina
Lesions of retinaLesions of retina
Lesions of retina

Vitreoretinal Disease
Vitreoretinal DiseaseVitreoretinal Disease
Vitreoretinal Disease

Examination of the optic nerve
Examination of the optic nerveExamination of the optic nerve
Examination of the optic nerve

Papilledema
Papilledema Papilledema
Papilledema

Primary open angle glaucoma
Primary open angle glaucomaPrimary open angle glaucoma
Primary open angle glaucoma

20. Neuro-Ophthalmology .pptx
20. Neuro-Ophthalmology .pptx20. Neuro-Ophthalmology .pptx
20. Neuro-Ophthalmology .pptx

Optic disc ( very good book by Dr . Kathleen B. Digre )
Optic disc ( very good book by Dr . Kathleen B. Digre )Optic disc ( very good book by Dr . Kathleen B. Digre )
Optic disc ( very good book by Dr . Kathleen B. Digre )

Retinal artery occlusion
Retinal artery occlusionRetinal artery occlusion
Retinal artery occlusion

Funduscopy evaluation in glaucomatous optic
Funduscopy evaluation in glaucomatous opticFunduscopy evaluation in glaucomatous optic
Funduscopy evaluation in glaucomatous optic

Is This Disc Normal ?
Is This Disc Normal ?Is This Disc Normal ?
Is This Disc Normal ?

Fundus examination
Fundus examinationFundus examination
Fundus examination

Clinical features of glaucoma
Clinical features of glaucomaClinical features of glaucoma
Clinical features of glaucoma

Vascular disorders of retina
Vascular disorders of retinaVascular disorders of retina
Vascular disorders of retina

Clinical approach to acute vision loss
Clinical approach to acute vision loss  Clinical approach to acute vision loss
Clinical approach to acute vision loss

Some problem solving in neuro imaging - Vincent Batista Lemaire
Some problem solving in neuro imaging  - Vincent Batista LemaireSome problem solving in neuro imaging  - Vincent Batista Lemaire
Some problem solving in neuro imaging - Vincent Batista Lemaire

Approach to Disc Pallor and Automated Fields in Neuro-ophthalmology
Approach to Disc Pallor and Automated Fields in Neuro-ophthalmology  Approach to Disc Pallor and Automated Fields in Neuro-ophthalmology
Approach to Disc Pallor and Automated Fields in Neuro-ophthalmology

Primary Glaucoma
Primary GlaucomaPrimary Glaucoma
Primary Glaucoma


More from Sujay Chauhan

Subretinal hemorrhage
Subretinal hemorrhageSubretinal hemorrhage
Subretinal hemorrhage
Sujay Chauhan

Polypoidal choroidal vasculopathy
Polypoidal choroidal vasculopathyPolypoidal choroidal vasculopathy
Polypoidal choroidal vasculopathy
Sujay Chauhan

Assessment of Anterior Chamber Angle
Assessment of Anterior Chamber AngleAssessment of Anterior Chamber Angle
Assessment of Anterior Chamber Angle
Sujay Chauhan

Diabetic retinopathy
Diabetic retinopathyDiabetic retinopathy
Diabetic retinopathy
Sujay Chauhan

Phacomachine and its dynamics
Phacomachine and its dynamicsPhacomachine and its dynamics
Phacomachine and its dynamics
Sujay Chauhan

Binocular vision
Binocular visionBinocular vision
Binocular vision
Sujay Chauhan

Microsporidiosis
MicrosporidiosisMicrosporidiosis
Microsporidiosis
Sujay Chauhan


More from Sujay Chauhan (7)

Subretinal hemorrhage
Subretinal hemorrhageSubretinal hemorrhage
Subretinal hemorrhage

Polypoidal choroidal vasculopathy
Polypoidal choroidal vasculopathyPolypoidal choroidal vasculopathy
Polypoidal choroidal vasculopathy

Assessment of Anterior Chamber Angle
Assessment of Anterior Chamber AngleAssessment of Anterior Chamber Angle
Assessment of Anterior Chamber Angle

Diabetic retinopathy
Diabetic retinopathyDiabetic retinopathy
Diabetic retinopathy

Phacomachine and its dynamics
Phacomachine and its dynamicsPhacomachine and its dynamics
Phacomachine and its dynamics

Binocular vision
Binocular visionBinocular vision
Binocular vision

Microsporidiosis
MicrosporidiosisMicrosporidiosis
Microsporidiosis


Recently uploaded

Top 10 Best Ayurvedic Kidney Stone Syrups in India
Top 10 Best Ayurvedic Kidney Stone Syrups in IndiaTop 10 Best Ayurvedic Kidney Stone Syrups in India
Top 10 Best Ayurvedic Kidney Stone Syrups in India
Swastik Ayurveda

OCT Training Course for clinical practice Part 1
OCT Training Course for clinical practice Part 1OCT Training Course for clinical practice Part 1
OCT Training Course for clinical practice Part 1
KafrELShiekh University

CHEMOTHERAPY_RDP_CHAPTER 4_ANTI VIRAL DRUGS.pdf
CHEMOTHERAPY_RDP_CHAPTER 4_ANTI VIRAL DRUGS.pdfCHEMOTHERAPY_RDP_CHAPTER 4_ANTI VIRAL DRUGS.pdf
CHEMOTHERAPY_RDP_CHAPTER 4_ANTI VIRAL DRUGS.pdf
rishi2789

Netter's Atlas of Human Anatomy 7.ed.pdf
Netter's Atlas of Human Anatomy 7.ed.pdfNetter's Atlas of Human Anatomy 7.ed.pdf
Netter's Atlas of Human Anatomy 7.ed.pdf
BrissaOrtiz3

Hemodialysis: Chapter 4, Dialysate Circuit - Dr.Gawad
Hemodialysis: Chapter 4, Dialysate Circuit - Dr.GawadHemodialysis: Chapter 4, Dialysate Circuit - Dr.Gawad
Hemodialysis: Chapter 4, Dialysate Circuit - Dr.Gawad
NephroTube - Dr.Gawad

8 Surprising Reasons To Meditate 40 Minutes A Day That Can Change Your Life.pptx
8 Surprising Reasons To Meditate 40 Minutes A Day That Can Change Your Life.pptx8 Surprising Reasons To Meditate 40 Minutes A Day That Can Change Your Life.pptx
8 Surprising Reasons To Meditate 40 Minutes A Day That Can Change Your Life.pptx
Holistified Wellness

ABDOMINAL TRAUMA in pediatrics part one.
ABDOMINAL TRAUMA in pediatrics part one.ABDOMINAL TRAUMA in pediatrics part one.
ABDOMINAL TRAUMA in pediatrics part one.
drhasanrajab

The Electrocardiogram - Physiologic Principles
The Electrocardiogram - Physiologic PrinciplesThe Electrocardiogram - Physiologic Principles
The Electrocardiogram - Physiologic Principles
MedicoseAcademics

Novas diretrizes da OMS para os cuidados perinatais de mais qualidade
Novas diretrizes da OMS para os cuidados perinatais de mais qualidadeNovas diretrizes da OMS para os cuidados perinatais de mais qualidade
Novas diretrizes da OMS para os cuidados perinatais de mais qualidade
Prof. Marcus Renato de Carvalho

Journal Article Review on Rasamanikya
Journal Article Review on RasamanikyaJournal Article Review on Rasamanikya
Journal Article Review on Rasamanikya
Dr. Jyothirmai Paindla

Adhd Medication Shortage Uk - trinexpharmacy.com
Adhd Medication Shortage Uk - trinexpharmacy.comAdhd Medication Shortage Uk - trinexpharmacy.com
Adhd Medication Shortage Uk - trinexpharmacy.com
reignlana06

Muscles of Mastication by Dr. Rabia Inam Gandapore.pptx
Muscles of Mastication by Dr. Rabia Inam Gandapore.pptxMuscles of Mastication by Dr. Rabia Inam Gandapore.pptx
Muscles of Mastication by Dr. Rabia Inam Gandapore.pptx
Dr. Rabia Inam Gandapore

Top Effective Soaps for Fungal Skin Infections in India
Top Effective Soaps for Fungal Skin Infections in IndiaTop Effective Soaps for Fungal Skin Infections in India
Top Effective Soaps for Fungal Skin Infections in India
SwisschemDerma

CHEMOTHERAPY_RDP_CHAPTER 6_Anti Malarial Drugs.pdf
CHEMOTHERAPY_RDP_CHAPTER 6_Anti Malarial Drugs.pdfCHEMOTHERAPY_RDP_CHAPTER 6_Anti Malarial Drugs.pdf
CHEMOTHERAPY_RDP_CHAPTER 6_Anti Malarial Drugs.pdf
rishi2789

Light House Retreats: Plant Medicine Retreat Europe
Light House Retreats: Plant Medicine Retreat EuropeLight House Retreats: Plant Medicine Retreat Europe
Light House Retreats: Plant Medicine Retreat Europe
Lighthouse Retreat

Chapter 11 Nutrition and Chronic Diseases.pptx
Chapter 11 Nutrition and Chronic Diseases.pptxChapter 11 Nutrition and Chronic Diseases.pptx
Chapter 11 Nutrition and Chronic Diseases.pptx
Earlene McNair

Histololgy of Female Reproductive System.pptx
Histololgy of Female Reproductive System.pptxHistololgy of Female Reproductive System.pptx
Histololgy of Female Reproductive System.pptx
AyeshaZaid1

REGULATION FOR COMBINATION PRODUCTS AND MEDICAL DEVICES.pptx
REGULATION FOR COMBINATION PRODUCTS AND MEDICAL DEVICES.pptxREGULATION FOR COMBINATION PRODUCTS AND MEDICAL DEVICES.pptx
REGULATION FOR COMBINATION PRODUCTS AND MEDICAL DEVICES.pptx
LaniyaNasrink

CHEMOTHERAPY_RDP_CHAPTER 1_ANTI TB DRUGS.pdf
CHEMOTHERAPY_RDP_CHAPTER 1_ANTI TB DRUGS.pdfCHEMOTHERAPY_RDP_CHAPTER 1_ANTI TB DRUGS.pdf
CHEMOTHERAPY_RDP_CHAPTER 1_ANTI TB DRUGS.pdf
rishi2789

Top-Vitamin-Supplement-Brands-in-India List
Top-Vitamin-Supplement-Brands-in-India ListTop-Vitamin-Supplement-Brands-in-India List
Top-Vitamin-Supplement-Brands-in-India List
SwisschemDerma


Recently uploaded (20)

Top 10 Best Ayurvedic Kidney Stone Syrups in India
Top 10 Best Ayurvedic Kidney Stone Syrups in IndiaTop 10 Best Ayurvedic Kidney Stone Syrups in India
Top 10 Best Ayurvedic Kidney Stone Syrups in India

OCT Training Course for clinical practice Part 1
OCT Training Course for clinical practice Part 1OCT Training Course for clinical practice Part 1
OCT Training Course for clinical practice Part 1

CHEMOTHERAPY_RDP_CHAPTER 4_ANTI VIRAL DRUGS.pdf
CHEMOTHERAPY_RDP_CHAPTER 4_ANTI VIRAL DRUGS.pdfCHEMOTHERAPY_RDP_CHAPTER 4_ANTI VIRAL DRUGS.pdf
CHEMOTHERAPY_RDP_CHAPTER 4_ANTI VIRAL DRUGS.pdf

Netter's Atlas of Human Anatomy 7.ed.pdf
Netter's Atlas of Human Anatomy 7.ed.pdfNetter's Atlas of Human Anatomy 7.ed.pdf
Netter's Atlas of Human Anatomy 7.ed.pdf

Hemodialysis: Chapter 4, Dialysate Circuit - Dr.Gawad
Hemodialysis: Chapter 4, Dialysate Circuit - Dr.GawadHemodialysis: Chapter 4, Dialysate Circuit - Dr.Gawad
Hemodialysis: Chapter 4, Dialysate Circuit - Dr.Gawad

8 Surprising Reasons To Meditate 40 Minutes A Day That Can Change Your Life.pptx
8 Surprising Reasons To Meditate 40 Minutes A Day That Can Change Your Life.pptx8 Surprising Reasons To Meditate 40 Minutes A Day That Can Change Your Life.pptx
8 Surprising Reasons To Meditate 40 Minutes A Day That Can Change Your Life.pptx

ABDOMINAL TRAUMA in pediatrics part one.
ABDOMINAL TRAUMA in pediatrics part one.ABDOMINAL TRAUMA in pediatrics part one.
ABDOMINAL TRAUMA in pediatrics part one.

The Electrocardiogram - Physiologic Principles
The Electrocardiogram - Physiologic PrinciplesThe Electrocardiogram - Physiologic Principles
The Electrocardiogram - Physiologic Principles

Novas diretrizes da OMS para os cuidados perinatais de mais qualidade
Novas diretrizes da OMS para os cuidados perinatais de mais qualidadeNovas diretrizes da OMS para os cuidados perinatais de mais qualidade
Novas diretrizes da OMS para os cuidados perinatais de mais qualidade

Journal Article Review on Rasamanikya
Journal Article Review on RasamanikyaJournal Article Review on Rasamanikya
Journal Article Review on Rasamanikya

Adhd Medication Shortage Uk - trinexpharmacy.com
Adhd Medication Shortage Uk - trinexpharmacy.comAdhd Medication Shortage Uk - trinexpharmacy.com
Adhd Medication Shortage Uk - trinexpharmacy.com

Muscles of Mastication by Dr. Rabia Inam Gandapore.pptx
Muscles of Mastication by Dr. Rabia Inam Gandapore.pptxMuscles of Mastication by Dr. Rabia Inam Gandapore.pptx
Muscles of Mastication by Dr. Rabia Inam Gandapore.pptx

Top Effective Soaps for Fungal Skin Infections in India
Top Effective Soaps for Fungal Skin Infections in IndiaTop Effective Soaps for Fungal Skin Infections in India
Top Effective Soaps for Fungal Skin Infections in India

CHEMOTHERAPY_RDP_CHAPTER 6_Anti Malarial Drugs.pdf
CHEMOTHERAPY_RDP_CHAPTER 6_Anti Malarial Drugs.pdfCHEMOTHERAPY_RDP_CHAPTER 6_Anti Malarial Drugs.pdf
CHEMOTHERAPY_RDP_CHAPTER 6_Anti Malarial Drugs.pdf

Light House Retreats: Plant Medicine Retreat Europe
Light House Retreats: Plant Medicine Retreat EuropeLight House Retreats: Plant Medicine Retreat Europe
Light House Retreats: Plant Medicine Retreat Europe

Chapter 11 Nutrition and Chronic Diseases.pptx
Chapter 11 Nutrition and Chronic Diseases.pptxChapter 11 Nutrition and Chronic Diseases.pptx
Chapter 11 Nutrition and Chronic Diseases.pptx

Histololgy of Female Reproductive System.pptx
Histololgy of Female Reproductive System.pptxHistololgy of Female Reproductive System.pptx
Histololgy of Female Reproductive System.pptx

REGULATION FOR COMBINATION PRODUCTS AND MEDICAL DEVICES.pptx
REGULATION FOR COMBINATION PRODUCTS AND MEDICAL DEVICES.pptxREGULATION FOR COMBINATION PRODUCTS AND MEDICAL DEVICES.pptx
REGULATION FOR COMBINATION PRODUCTS AND MEDICAL DEVICES.pptx

CHEMOTHERAPY_RDP_CHAPTER 1_ANTI TB DRUGS.pdf
CHEMOTHERAPY_RDP_CHAPTER 1_ANTI TB DRUGS.pdfCHEMOTHERAPY_RDP_CHAPTER 1_ANTI TB DRUGS.pdf
CHEMOTHERAPY_RDP_CHAPTER 1_ANTI TB DRUGS.pdf

Top-Vitamin-Supplement-Brands-in-India List
Top-Vitamin-Supplement-Brands-in-India ListTop-Vitamin-Supplement-Brands-in-India List
Top-Vitamin-Supplement-Brands-in-India List


Optic disc evaluation

  • 2. TERMINOLOGIES Optic disc - Intraocular portion of optic nerve. Termination of all retinal layers except nerve fibres, which pass through lamina cribrosa into the optic nerve. Optic nerve head - Optic disc along with underlying pre-laminar layer of optic nerve and region of lamina cribrosa Optic papilla - Slightly elevated periphery of optic disc. Physiological cup - Depression seen in optic disc
  • 3. GENERAL FEATURES Shape Circular or ovoid Location Centre of disc lies 4 mm nasally and 1 mm superiorly to fovea Colour • Optic cup is white - due to lamina cribrosa and medullated nerve fibres behind it and absence of vascular choroid • Neural rim is yellow-pink - rich capillary network • Fair-skinned, blond, myopic people with large optic discs have a light coloured discs, and vice versa
  • 4. Zones of the optic nerve head and peripapillary pigmentation CUP NRR SCLERAL LIP ZONE β ZONE α
  • 5. Margin • Nasal margin - not well defined • Margins at superior and inferior poles and in small optic discs - obscured due to crowding of nerve fiber bundles • Choroidal crescent - gap in RPE revealing underlying choroid because of oblique insertion of optic nerve and tilting of disc • Scleral crescent - when both RPE and choroid are deficient • Both crescents mostly arise on temporal aspect of disc
  • 6. Dimensions Vertical diameter = 1.8 mm Horizontal diameter = 1.5 mm Depth = 1 mm Cup : Disc ratio - Ratio of vertical diameter of optic cup to that of optic disc May vary from 0.1 - 0.9 Correction factors for estimating optic disc diameter: Volk +78 D = 1.1 x Volk +90 D = 1.3 x ISNT rule - Inferior NRR is broadest followed by superior, nasal and temporal Small and moderate sized optic discs follow the rule, large discs may not
  • 7. • Physiologic cupping - horizontally oval and deeper in nasal quadrant • Only 2 % of normal population have C:D ratio > 0.7 • Number of optic nerve fibres, and area of neural rim they comprise, is constant. Thus, small optic discs have small cup because of concentration of nerve fibres at their point of confluence • Small discs - 0.35 Large discs - 0.55 • Early glaucomatous changes can be missed in small discs Cupping over diagnosed in large discs
  • 8. Retinal vessels on and near optic disc • CRA enters globe through physiological cup - divides dichotomously within cup and on surface of disc - 4 branches (ST, SN, IT, IN) • May divide within optic nerve head - 2 or 4 branches emerging separately from within the physiological cup • Veins lie temporal to arteries • Cilioretinal artery - in 40% people and emerge from temporal aspect of optic disc
  • 9. Spontaneous vascular pulsations • Venous pulsation - seen at sharp bend in the vein as it turns into lamina cribrosa • Absent in 20% healthy people • Can be elicited by elevating IOP by pressing gently on globe • Indication of normal ICP, if IOP is normal • Can be seen in presence of elevated ICP if IOP is high • Arterial pulsation - raised IOP or elevated pulse pressure
  • 10. Other important observations • Copper-wire appearance - reflection of light at vessel centre • Relative sizes of arteries and veins (normally - 2:3) • Thickening of arterioles - ageing, arteriosclerosis, hypertension • Very narrow, thready arterioles - tapetoretinal degenerations • Changes at AV crossings
  • 11. OPTIC DISC ANOMALIES SMALL OPTIC DISC • Hypermetropia • Aphakia • Tilted optic disc • Optic disc hypoplasia LARGE OPTIC DISC • High myopia • Congenital optic disc pit • Optic disc coloboma • Morning glory anomaly • Megalopapilla
  • 12. NON-PROGRESSIVE CONGENITAL OPTIC DISC ANOMALIES COLOBOMA • Enlarged optic disc, partially or almost totally excavated • Deepest part of coloboma is usually situated inferiorly • Glistening white, tinged with grey on its surface • Increased number of blood vessels cross border of coloboma - represent branches of central retinal vessels which have divided on optic disc surface before reaching retina • Peripapillary pigmentary changes (hyper or hypo)
  • 13. TILTED OPTIC DISC / NASAL FUNDUS ECTASIA SYNDROME / FUCH'S COLOBOMA / DYSVERSION OF THE OPTIC DISC • Usually inferiorly or inferonasally • Choroidal or scleral crescent • Situs inversus - in 80% of eyes with tilted disc. Temporal retinal vessels first turn nasally before curving temporally towards macula
  • 14. OPTIC DISC PIT • Round or oval • Pigmented (usually) • 1 pit per optic disc, occasionally 2 or 3 • Size = 1/4 - 1/2 DD • Larger optic disc with distinct physiological cup • Base of pit may pulsate - underlying blood vessels, or transmission from subarachnoid space • Peripapillary chorioretinal atrophy • Retinal vessels cross the pit - running superficially or dipping below its surface • 60% cases - cilioretinal artery arises from periphery of pit • Serous RD develops in 30% cases - resolves spontaneously
  • 15.
  • 16. APLASIA AND HYPOPLASIA • Abnormally small optic disc with pathologically low number of nerve fibers • Grey or pale • Double ring sign - peripapillary halo bordered by ring of increased or decreased pigmentation • Deficit visual function
  • 17. ALTITUDINAL HEMIHYPOPLASIA • Hypoplasia restricted to upper half of disc • In children of severe diabetic mothers with poor control during pregnancy • Little or no visual field below horizontal meridian MICROPAPILLA • Smaller optic disc • Blurred margins • Small or absent cup • Normal visual function
  • 18. MEGALOPAPILLA / MACROPAPILLA • Extraordinarily large optic disc • Very large central cup and narrow but healthy neuroretinal rim • Bilateral • Peripapillary pigmentary changes may be present • Normal optic nerve function
  • 19. MORNING GLORY OPTIC DISC • Enlarged, nearly circular optic disc containing a deep conical depression with white to pink glial tissue at its base • Grey or black halo • Retinal vessels loop over the edge of optic disc in a radial fashion (origin and early branching obscured by glial tissue) • Serous RD - may fluctuate and resolve spontaneously
  • 20. MYELINATED NERVE FIBRES • 1% of normal population • Not present at birth; develop post-natally • White, highly reflective lesion with feathery margins. Dark slits within the lesion represent normal, unmyelinated fibres
  • 21. CONGENITAL VASCULAR ANOMALIES PERSISTENT HYALOID ARTERY • Bloodless, transparent, thread-like remnant extending forwards from optic disc • Portion near the disc may contain blood Anteriorly the artery may retain its attachment to posterior lens capsule - Mittendorf's dot
  • 22. BERGMEISTER'S PAPILLA (PERSISTENT HYPERPLASTIC PRIMARY VITREOUS) • Faint grey or yellow-white protuberance over the optic disc • Nasally in 90% cases • Physiological optic cup is reduced or absent
  • 23. PREPAPILLARY VASCULAR LOOPS • Short and simple, or may be long with several spiral twists • Never reach the posterior surface of lens • Loop usually originates from, and returns to the vessels on the optic disc; occasionally may arise from an artery on disc and return to a retinal branch • Arterial loops generally affect inferior central retinal vessels (may pulsate) • Venous loops usually affect superior retinal veins
  • 24. ACQUIRED VASCULAR ANOMALIES NEOVASCULARISATION AT DISC • Fine network of vessels lying flat on disc or protruding into vitreous • Do not branch dichotomously Causes - • Proliferative diabetic retinopathy • Retinal vein occlusion • Old retinal artery occlusion • Ocular ischemic syndrome • Radiation retinopathy • Carotid-cavernous fistula
  • 25. DISC HAEMORRHAGES • Acute papilloedema • Arteritic AION • Papillitis • Diabetic papillopathy • Chronic glaucoma • Optic disc drusen
  • 26. OPTIC NEURITIS RETROBULBAR NEURITIS Early phase - disc appears normal; later - primary optic atrophy
  • 27. PAPILLITIS • Early phase - disc is moderately swollen and hyperemic • Indistinct margins • Splinter haemorrhages on the disc surface • Later - secondary optic atrophy NEURORETINITIS • Early phase - disc may appear swollen; later - consecutive optic atrophy
  • 28. OPTIC NEUROPATHY RETROBULBAR OPTIC NEUROPATHY Early phase - disc appears normal; later - primary optic atrophy ISCHEMIC PAPILLOPATHY Acute phase - swollen and pale optic disc (usually sectorial), superficial splinter haemorrhages Chronic phase - secondary optic atrophy ARTERITIC PAPILLOPATHY Features same as in ischemic papillopathy
  • 29. DIABETIC PAPILLOPATHY • Optic disc may be hyperemic and swollen, indistinct margins • In severe cases – papilledema
  • 30. LEBER'S HEREDITARY OPTIC NEUROPATHY • Swollen and hyperaemic optic disc • Dilated telangiectatic capillaries mainly on, and extending from, temporal side of optic disc • Chronic stage - secondary optic atrophy, marked reduction in vascularity
  • 31. OPTIC ATROPHY PRIMARY OPTIC ATROPHY • Chalky white optic disc with clearly defined margins • Disc pallor, more on temporal side • Atrophied neural rim - loss of physiological cup and flattening of optic disc • No gliotic or vascular changes
  • 32. SECONDARY OPTIC ATROPHY • Grayish white swollen optic disc • Poorly defined margin • Partially or completely filled physiological cup • Gliotic changes may or may not be present
  • 33. CONSECUTIVE OPTIC ATROPHY • Pale yellow, waxy looking flat optic disc • Well defined margins • Minimal gliotic changes • e.g. Retinitis pigmentosa CAVERNOUS OPTIC ATROPHY OF SCHNABEL • Seen in ischemic lesions of optic nerve head • Diffusely enlargement and bean pot like cupping
  • 34. PERIPAPILLARY ATROPHY Alpha Zone: • Hypo and hyper-pigmented areas • Present in glaucomatous as well as non-glaucomatous eyes Beta Zone: • Large choroidal vessels become visible • Larger beta zone often has thin NRR in the same area • More common in glaucomatous eyes and progression of beta zone is associated with glaucoma progression
  • 35. MYOPIA • Optic disc is sometimes distorted • Tilting of optic disc, usually temporally • Retinal vessels appear dragged • Nasal vessels curve around the elevated nasal sector of disc, temporal vessels pursue a straightened course • Myopic crescent
  • 36. HYPERMETROPIA • Small, pink optic disc, appears elevated and congested, but capillaries are not dilated • Central retinal vessels crowd the centre of small optic disc; spontaneous venous pulsation not affected • Severe cases - horizontal choroidal folds in peripheral fundus
  • 37. GLAUCOMA Focal atrophy • Polar notching - small, discrete neural atrophy, usually in inferotemporal quadrant • Selective loss of neural rim tissue in inferotemporal and superotemporal sectors - vertical or oblique enlargement of cup • With progression temporal neural rim is involved followed by nasal quadrant • Bayoneting sign - Retinal vessel bending sharply at the edge of disc Concentric atrophy • Less common • Begins temporally, progresses circumferentially - temporal unfolding
  • 38. LARGE OPTIC DISC WITH LARGE PHYSIOLOGIC CUPPING GLAUCOMATOUS CUPPING Preserved healthy NRR widest at inferior pole and narrowest in temporal quadrant (I>S>N>T) Cup extends to the disc margin
  • 39. Deepening of cup • Overpass cupping - vessels initially bridge the deepened cup, later collapse into it • Laminar dot sign - Exposure of underlying lamina cribrosa. Fenestration with striate appearance has higher association with glaucomatous damage than dot- like appearance Pallor/cup discrepancy • In early stages of glaucomatous optic atrophy - size of cup > area of pallor • Other causes of optic atrophy - area of pallor > size of cup • Area of cupping recognized by observing kinking of vessels at cup margin • Saucerisation - diffuse, shallow cupping extending to disc margins • Focal saucerisation - localized shallow, sloping cup, usually in inferotemporal quadrant • Tinted hollow - normal NRR colour in area of focal saucerisation • Shadow sign - grayish hue of NRR
  • 40. Advanced glaucomatous cupping • Total cupping - white disc with loss of all neural rim tissue • Bending of vessels at disc margin
  • 41. Optic disc haemorrhages • NTG > COAG • Most commonly in inferior quadrant • Resolve spontaneously and reappear at same or different location • Cross the disc margin - papillary portion often disappears first during resorption, leaving the appearance of an extrapapillary haemorrhage • Decline in frequency with advanced damage • Associated with progressive changes of visual field Peripapillary pigmentary disturbance • Scleral lip or peripapillary halo • Peripapillary atrophy (both zone beta and zone alpha)
  • 42. PAPILLOEDEMA Early phase • Swollen optic disc with indistinct margin • First seen in nasal quadrant and then in superior and inferior sectors (because of variation in density of nerve fibres in NRR) • Physiological cup is maintained giving the disc a cylindrical appearance • Disc is hyperemic due to capillary dilatation • Retinal veins are congested and non-pulsatile • Circumpapillary accumulation of fluid - concentric retinal folds (Paton’s lines) and choroidal folds (best seen with red-free filter)
  • 43. Acute phase • Optic disc becomes increasingly swollen and elevated • Physiological cup may still be maintained • Retinal venous congestion more pronounced. • Some blood vessels partially obscured at the edge of disc • Flame-shaped haemorrhages on disc margin • Macular star - accumulation of fluid and exudates, most prominent on nasal aspect of macula
  • 44. Long standing phase • Disc markedly swollen and physiological cup obliterated – Champagne cork appearance • Circulatory adjustments lead to resolution of venous congestion and retinal edema
  • 45. Atrophic stage • Pale optic disc (Secondary optic atrophy) • Neuronal degenerative changes - punctate white opacities in superficial nerve fibre layer • Attenuated retinal arteries • Circumpapillary choroidal pallor and RPE atrophy with areas of pigmentary clumping
  • 46. OPTIC DISC DRUSEN Children • Small optic disc • Drusen hidden within substance of nerve head • Pseudopapilledema • Retinal veins not distended, spontaneous retinal pulsation not affected • Central retinal vessels may show anomalous branching (10% cases) • Cilioretinal arteries commonly occur
  • 47. Adolescents and adults • Drusen - single or multiple, glistening, semi-translucent; may coalesce – give disc a yellow-pink appearance • Optic disc may become enlarged and its border indistinct or irregular • Physiological cup is obliterated • Splinter haemorrhages on disc surface, subretinal haemorrhages in peripapillary area
  • 48. TUMOURS AND TUMOUR-LIKE CONDITIONS MELANOCYTOMA • Grey to jet-black • Eccentrically placed on optic disc, extending over disc margin • Optic disc adjacent to the tumour is normal, may be swollen
  • 49. ASTROCYTIC HAMARTOMA • Early stage - Smooth semi-translucent mass • Mature stage - Mulberry-like white reflective mass, may become calcified • Very vascular; blood vessels can be seen coursing through their substance
  • 50. CAPILLARY HAEMANGIOMA • Localised, round, orange-pink • Vascular • Situated eccentrically on disc overlapping the disc margin and extending forwards into vitreous
  • 51. CAVERNOUS HAEMANGIOMA • Grape-like saccular aneurysms lying flat on the retina • Circulation through haemangioma is sluggish and blood tends to stagnate in each saccule, with red blood cells sedimenting in response to gravity, leaving a pale layer of plasma above
  • 52. GLIOMA • Smooth, elevated, white mass partially or completely obscuring the disc • Compression of disc may cause occlusion of central retinal vessels • Glioma situated posterior to lamina cribrosa may cause primary optic atrophy
  • 53. MENINGIOMA Direct involvement of optic nerve • Elevated, pale mass obscuring the optic disc and displacing the peripapillary retina • Splinter haemorrhages may be seen over the surface of the mass Optic nerve compression • Pale, swollen optic disc • Optociliary shunt vessels
  • 54. OPTIC DISC GRANULOMA Acute stage • Raised, irregular, hyperaemic lesion affecting the optic disc and extending into the adjacent retina • Peripapillary sub-retinal fluid accumulation Later stage White mass of scar tissue overlying the disc causing traction retinal folds
