Switches direct and control much of the data flowing across computer networks.
Conventional network security often focuses more on routers and blocking traffic from the outside.
Switches are internal to the organization and designed to allow ease of connectivity, therefore only
limited or no security measures are applied.
Routers R1 and R2 were configured with OSPF routing and subnets were created for different departments on each router. Router R0 was configured as the central router to connect R1 and R2 along with providing DHCP and DNS services. Ping tests verified connectivity between devices on different subnets routing through the OSPF configured routers.
This chapter discusses wide area network (WAN) technologies including HDLC, PPP, Frame Relay, and virtual private networks (VPNs). It defines WAN terminology and components. PPP is described as a protocol used to transport network layer packets over point-to-point links. Frame Relay is introduced as a high-performance WAN protocol that uses virtual circuits to transmit data between network devices. Finally, VPNs are summarized as secured connections used for remote access, site-to-site networking, and business partnerships over public networks like the Internet.
CCNA Routing and Switching Lessons 08-09 - Routing Protocols - Eric VanderburgEric Vanderburg
The document discusses several routing protocols, including RIP, IGRP, OSPF, IS-IS, and EIGRP. RIP uses hop count as its metric and has a maximum of 15 hops. IGRP is a proprietary distance vector protocol from Cisco that uses bandwidth and delay as its metric. OSPF is an open standard link state protocol that uses the SPF algorithm to calculate the best routes and converges quickly. EIGRP is a hybrid routing protocol from Cisco that has characteristics of both distance vector and link state protocols.
IP addresses are used to route packets to the correct network and device. There are two main versions: IPv4 uses 32-bit addresses divided into four groups, while IPv6 uses 128-bit hexadecimal addresses. IP addresses are classified and divided into network and host portions based on their class. Private IP ranges are used internally while public IPs are used for internet communication. Subnet masks identify the network and host portions of an IP.
A PROJECT REPORT
On
CISCO CERTIFIED NETWORK ASSOCIATE
A computer network, or simply a network, is a collection of computer and other hardware components interconnected by communication channels that allow sharing of resources and information. Where at least one process in one device is able to send/receive data to/from at least one process residing in a remote device, then the two devices are said to be in a network. Simply, more than one computer interconnected through a communication medium for information interchange is called a computer network.
Step by Step guide to set up a simple network in Packet TracerSorath Asnani
This document shows the detailed Steps to set up a simple network inside Packet Tracer. You will get familiarity with the software after following the Steps.
The document provides an overview of the OSI model, TCP/IP protocols, Cisco IOS modes, router components, cabling, router management, LAN switching concepts, IP addressing, routing protocols, and IPv6 migration methods. It summarizes key topics for the CCNA exam in 10 sentences or less per section.
Routers R1 and R2 were configured with OSPF routing and subnets were created for different departments on each router. Router R0 was configured as the central router to connect R1 and R2 along with providing DHCP and DNS services. Ping tests verified connectivity between devices on different subnets routing through the OSPF configured routers.
This chapter discusses wide area network (WAN) technologies including HDLC, PPP, Frame Relay, and virtual private networks (VPNs). It defines WAN terminology and components. PPP is described as a protocol used to transport network layer packets over point-to-point links. Frame Relay is introduced as a high-performance WAN protocol that uses virtual circuits to transmit data between network devices. Finally, VPNs are summarized as secured connections used for remote access, site-to-site networking, and business partnerships over public networks like the Internet.
CCNA Routing and Switching Lessons 08-09 - Routing Protocols - Eric VanderburgEric Vanderburg
The document discusses several routing protocols, including RIP, IGRP, OSPF, IS-IS, and EIGRP. RIP uses hop count as its metric and has a maximum of 15 hops. IGRP is a proprietary distance vector protocol from Cisco that uses bandwidth and delay as its metric. OSPF is an open standard link state protocol that uses the SPF algorithm to calculate the best routes and converges quickly. EIGRP is a hybrid routing protocol from Cisco that has characteristics of both distance vector and link state protocols.
IP addresses are used to route packets to the correct network and device. There are two main versions: IPv4 uses 32-bit addresses divided into four groups, while IPv6 uses 128-bit hexadecimal addresses. IP addresses are classified and divided into network and host portions based on their class. Private IP ranges are used internally while public IPs are used for internet communication. Subnet masks identify the network and host portions of an IP.
A PROJECT REPORT
On
CISCO CERTIFIED NETWORK ASSOCIATE
A computer network, or simply a network, is a collection of computer and other hardware components interconnected by communication channels that allow sharing of resources and information. Where at least one process in one device is able to send/receive data to/from at least one process residing in a remote device, then the two devices are said to be in a network. Simply, more than one computer interconnected through a communication medium for information interchange is called a computer network.
Step by Step guide to set up a simple network in Packet TracerSorath Asnani
This document shows the detailed Steps to set up a simple network inside Packet Tracer. You will get familiarity with the software after following the Steps.
The document provides an overview of the OSI model, TCP/IP protocols, Cisco IOS modes, router components, cabling, router management, LAN switching concepts, IP addressing, routing protocols, and IPv6 migration methods. It summarizes key topics for the CCNA exam in 10 sentences or less per section.
Lab view the switch mac address table lab - view the switchADDY50
This document describes a lab to view network device MAC addresses. It provides a topology with two devices: a switch (S1) and PC (PC-A). The objectives are to configure the devices and verify connectivity, then display, describe, and analyze the Ethernet MAC addresses of the devices. The document provides instructions to configure the IP addresses of the devices, verify connectivity through ping tests, and use commands like ipconfig and show interfaces on the devices to view and analyze their MAC addresses, including identifying the organizationally unique identifier (OUI) and serial number portions of each address.
The document discusses Cisco CCNA topics including the OSI and TCP/IP models, Cisco IOS, IPv4 addressing, subnetting, and password recovery procedures.
It provides details on each layer of the OSI and TCP/IP models, components of a Cisco router like ROM, RAM, NVRAM, and flash memory. It also covers Cisco IOS boot commands, router modes, and cursor commands.
The document also explains IPv4 addressing fundamentals like address classes, private addressing, subnet masks, CIDR notation, and provides examples of converting between binary and decimal.
Finally, it discusses subnetting concepts and provides examples of determining subnet masks and number of subnets based on given host or subnet requirements
The document provides an overview of the Open Shortest Path First (OSPF) routing protocol. It describes how OSPF routers exchange link state advertisements to maintain a synchronized topological database. The database allows each router to calculate the shortest path to all destinations within the autonomous system. The document also discusses OSPF packet types, the process of forming adjacencies between neighbors, and the election of designated routers on multi-access networks.
This chapter discusses network security concepts like types of attacks, mitigation techniques, and access control lists. Standard access lists filter based on source IP addresses while extended lists can filter on additional attributes like destination address, protocol, and port numbers. Access lists are applied to router interfaces to permit or deny traffic and help implement security policies. The document provides examples of how to configure standard and extended access lists on Cisco routers to control network access.
Internet Routing Protocols: Fundamental Concepts of Distance-Vector and Link-...Vishal Sharma, Ph.D.
This document discusses internet routing protocols and provides an overview of distance vector and link state routing. It begins by outlining the talk and explaining the importance of routing in the internet. It then describes the routing process at a router and how routers build routing tables by exchanging information with routing protocols. The document proceeds to illustrate the operation of distance vector routing, including how routers calculate and update their routing tables. It notes some drawbacks of distance vector routing, such as slow convergence after topology changes and problems with unequal link costs. Finally, it provides examples of how these drawbacks, like counting to infinity and bouncing effects, can occur.
Access lists are used in routers to identify and control traffic by applying permit and deny conditions to IP addresses or protocols. There are standard and extended IP access lists. Standard lists filter based on source IP while extended lists can filter on source/destination IP, protocol, and port information. Wildcard masking allows filtering for groups of addresses by specifying which IP bits to check or ignore.
This document provides an overview of dynamic routing protocols. It discusses interior gateway protocols like RIP, IGRP, and EIGRP which are used within an autonomous system to share routing information. Exterior gateway protocols like BGP are used between autonomous systems. Key concepts covered include autonomous systems, administrative distance, distance vector protocols, routing metrics, loop avoidance techniques, and configuration of RIP, IGRP and EIGRP.
- OSPF is a link-state routing protocol that was developed in 1991 as an improvement over the distance vector routing protocol RIP. It is based on the Bellman-Ford algorithm.
- OSPF networks can be divided into sub-domains called areas. Areas limit the scope of route information distribution and reduce the number of routes that need to be propagated. All routers within an area must be connected.
- The backbone area, with an ID of 0.0.0.0, acts as a hub that connects all other areas and distributes routing information between them. It must remain continuously connected.
- OSPF is a link-state routing protocol that is more scalable than RIP. It builds a complete "map" of the network to avoid routing loops.
- OSPF uses link-state advertisements and flooding to exchange routing information between routers. It elects a designated router and backup designated router to optimize this exchange.
- Routers using OSPF establish neighbor relationships, synchronize their link-state databases, and calculate the shortest path to all known destinations using an algorithm on the link-state database.
CCNA Routing Fundamentals - EIGRP, OSPF and RIPsushmil123
- Basics of Routing
- Static Routing/Dynamic Routing
- Classification of Dynamic Routing
- Administrative Distance and Metric
- Link State Routing and Distance Vector Routing
- Routing Information Protocol (RIP)
- Enhanced Interior Gateway Routing Protocol (EIGRP)
- Open Shortest Path First (OSPF)
The document is a sample exam for CCNA certification that contains multiple choice questions about networking concepts. Some of the questions test knowledge of protocols like TCP, UDP, HTTP, SNMP, and protocols used for routing like OSPF, EIGRP, RIP. Other questions cover topics like VLANs, trunking, STP, and IP addressing schemes.
Day 3 ENHANCED IGRP (EIGRP) AND OPEN SHORTEST PATH FIRST (OSPF)anilinvns
This document provides an overview of the Enhanced Interior Gateway Routing Protocol (EIGRP) and Open Shortest Path First (OSPF) routing protocols. It describes the key characteristics of EIGRP including that it is a hybrid routing protocol that uses metrics like bandwidth and delay to determine the best path. It also explains how to configure and verify EIGRP. For OSPF, the document outlines that it is an open standard link-state protocol, defines common OSPF terminology, and describes how to configure OSPF areas and verify the protocol. Loopback interfaces and troubleshooting OSPF are also briefly covered.
The document provides an overview of configuring the Enhanced Interior Gateway Routing Protocol (EIGRP). It describes the basic operation and components of EIGRP, including its tables, metrics, neighbor discovery, and packet types. The objectives are to describe EIGRP functionality, plan and implement EIGRP routing, and configure and verify EIGRP implementations in enterprise networks.
Lab practice 1 configuring basic routing and switching (with answer) Arz Sy
This document describes a lab activity to configure basic routing and switching between two routers and connected devices. The objectives are to configure static routes and RIP routing between the routers, configure VLAN and management interfaces on a switch, and test connectivity between hosts connected to each network. Students will configure interfaces, IP addresses, routing protocols and verify connectivity using commands like ping, show ip route and show cdp neighbors.
Switching – A Process of using the MAC address on LAN is called Layer 2 Switching.
Layer 2 Switching is the process of using hardware address of devices on a LAN to segment a network.
Switching breaks up large collision domains into smaller ones and that a collision domain is a network
segment with two or more devices sharing the same bandwidth.
This document discusses configuring VLAN trunking and routing on a stick between two switches and a router. It explains that VLAN trunking is used to separate broadcast domains and transmit VLAN traffic between switches and routers. The trunk ports between the switches and the switch to router link are configured, as well as subinterfaces on the router with different IP addresses for each VLAN. The configuration of the switches and router is shown, along with ping tests verifying connectivity between hosts in different VLANs works after routing is configured.
The document provides an overview of the Open Shortest Path First (OSPF) routing protocol, including that it is an interior gateway protocol that uses link state routing to establish neighbor relationships and exchange routing information within an autonomous system in order to determine the shortest path between any two routers on a network. OSPF detects changes in network topology quickly and converges on a new loop-free routing structure within seconds, and it has been widely implemented in large enterprise networks to provide efficient routing.
The document discusses the OSI model and TCP/IP model for networking. It provides details on the seven layers of the OSI model and five layers of the TCP/IP model. Key points covered include functions of each layer like the physical layer dealing with physical connections, data link layer dealing with MAC addresses, network layer dealing with logical addressing, and transport layer dealing with reliable data transmission.
This document provides an overview of switches, including:
1. Switches come in manageable and non-manageable varieties and can use cut-through or store-and-forward switching techniques.
2. Switches learn device MAC addresses through address learning and forward frames according to their MAC tables. Spanning Tree Protocol (STP) prevents network loops.
3. Switches have components like processors, memory, and ports that can be configured as access or trunk ports to carry one or multiple VLANs respectively. VLANs virtualize the network into multiple broadcast domains.
VLANs logically group users and resources together without being restricted by physical network segments. There are static and dynamic VLANs, with static VLAN port assignments always remaining fixed while dynamic VLANs are created through management software. Frame tagging allows VLANs to span multiple switches by uniquely assigning a VLAN ID to each frame. The VLAN Trunking Protocol (VTP) manages VLAN configurations across switches to provide benefits like consistent VLAN setup, accurate monitoring, and dynamic reporting of new VLANs. Configuring VLANs involves creating VLANs, assigning switch ports, configuring trunk ports between switches, and setting up inter-VLAN routing using subinterfaces on a router interface.
The document describes configuring VRRP (Virtual Router Redundancy Protocol) on routers R1 and R2. It involves:
1. Configuring R1 as the master for VRRP group 1 using virtual IP 10.0.0.254 and authentication.
2. Configuring R2 as the master for load-balanced VRRP group 2 using virtual IP 10.0.0.193 and a different authentication string.
3. Enabling tracking on both routers so that the priority of the backup router decreases if the route to the opposite network fails, allowing it to take over as master.
The document provides the configuration steps for a lab exercise on BGP. The steps include:
1. Configuring IBGP and EBGP neighborships between routers as shown in the topology diagram using loopback addresses.
2. Advertising loopback networks in BGP to ensure all routers have the routing information.
3. Configuring route reflectors to reduce the number of neighbor relationships needed.
4. Setting preferences for best paths between routers for certain networks.
Lab view the switch mac address table lab - view the switchADDY50
This document describes a lab to view network device MAC addresses. It provides a topology with two devices: a switch (S1) and PC (PC-A). The objectives are to configure the devices and verify connectivity, then display, describe, and analyze the Ethernet MAC addresses of the devices. The document provides instructions to configure the IP addresses of the devices, verify connectivity through ping tests, and use commands like ipconfig and show interfaces on the devices to view and analyze their MAC addresses, including identifying the organizationally unique identifier (OUI) and serial number portions of each address.
The document discusses Cisco CCNA topics including the OSI and TCP/IP models, Cisco IOS, IPv4 addressing, subnetting, and password recovery procedures.
It provides details on each layer of the OSI and TCP/IP models, components of a Cisco router like ROM, RAM, NVRAM, and flash memory. It also covers Cisco IOS boot commands, router modes, and cursor commands.
The document also explains IPv4 addressing fundamentals like address classes, private addressing, subnet masks, CIDR notation, and provides examples of converting between binary and decimal.
Finally, it discusses subnetting concepts and provides examples of determining subnet masks and number of subnets based on given host or subnet requirements
The document provides an overview of the Open Shortest Path First (OSPF) routing protocol. It describes how OSPF routers exchange link state advertisements to maintain a synchronized topological database. The database allows each router to calculate the shortest path to all destinations within the autonomous system. The document also discusses OSPF packet types, the process of forming adjacencies between neighbors, and the election of designated routers on multi-access networks.
This chapter discusses network security concepts like types of attacks, mitigation techniques, and access control lists. Standard access lists filter based on source IP addresses while extended lists can filter on additional attributes like destination address, protocol, and port numbers. Access lists are applied to router interfaces to permit or deny traffic and help implement security policies. The document provides examples of how to configure standard and extended access lists on Cisco routers to control network access.
Internet Routing Protocols: Fundamental Concepts of Distance-Vector and Link-...Vishal Sharma, Ph.D.
This document discusses internet routing protocols and provides an overview of distance vector and link state routing. It begins by outlining the talk and explaining the importance of routing in the internet. It then describes the routing process at a router and how routers build routing tables by exchanging information with routing protocols. The document proceeds to illustrate the operation of distance vector routing, including how routers calculate and update their routing tables. It notes some drawbacks of distance vector routing, such as slow convergence after topology changes and problems with unequal link costs. Finally, it provides examples of how these drawbacks, like counting to infinity and bouncing effects, can occur.
Access lists are used in routers to identify and control traffic by applying permit and deny conditions to IP addresses or protocols. There are standard and extended IP access lists. Standard lists filter based on source IP while extended lists can filter on source/destination IP, protocol, and port information. Wildcard masking allows filtering for groups of addresses by specifying which IP bits to check or ignore.
This document provides an overview of dynamic routing protocols. It discusses interior gateway protocols like RIP, IGRP, and EIGRP which are used within an autonomous system to share routing information. Exterior gateway protocols like BGP are used between autonomous systems. Key concepts covered include autonomous systems, administrative distance, distance vector protocols, routing metrics, loop avoidance techniques, and configuration of RIP, IGRP and EIGRP.
- OSPF is a link-state routing protocol that was developed in 1991 as an improvement over the distance vector routing protocol RIP. It is based on the Bellman-Ford algorithm.
- OSPF networks can be divided into sub-domains called areas. Areas limit the scope of route information distribution and reduce the number of routes that need to be propagated. All routers within an area must be connected.
- The backbone area, with an ID of 0.0.0.0, acts as a hub that connects all other areas and distributes routing information between them. It must remain continuously connected.
- OSPF is a link-state routing protocol that is more scalable than RIP. It builds a complete "map" of the network to avoid routing loops.
- OSPF uses link-state advertisements and flooding to exchange routing information between routers. It elects a designated router and backup designated router to optimize this exchange.
- Routers using OSPF establish neighbor relationships, synchronize their link-state databases, and calculate the shortest path to all known destinations using an algorithm on the link-state database.
CCNA Routing Fundamentals - EIGRP, OSPF and RIPsushmil123
- Basics of Routing
- Static Routing/Dynamic Routing
- Classification of Dynamic Routing
- Administrative Distance and Metric
- Link State Routing and Distance Vector Routing
- Routing Information Protocol (RIP)
- Enhanced Interior Gateway Routing Protocol (EIGRP)
- Open Shortest Path First (OSPF)
The document is a sample exam for CCNA certification that contains multiple choice questions about networking concepts. Some of the questions test knowledge of protocols like TCP, UDP, HTTP, SNMP, and protocols used for routing like OSPF, EIGRP, RIP. Other questions cover topics like VLANs, trunking, STP, and IP addressing schemes.
Day 3 ENHANCED IGRP (EIGRP) AND OPEN SHORTEST PATH FIRST (OSPF)anilinvns
This document provides an overview of the Enhanced Interior Gateway Routing Protocol (EIGRP) and Open Shortest Path First (OSPF) routing protocols. It describes the key characteristics of EIGRP including that it is a hybrid routing protocol that uses metrics like bandwidth and delay to determine the best path. It also explains how to configure and verify EIGRP. For OSPF, the document outlines that it is an open standard link-state protocol, defines common OSPF terminology, and describes how to configure OSPF areas and verify the protocol. Loopback interfaces and troubleshooting OSPF are also briefly covered.
The document provides an overview of configuring the Enhanced Interior Gateway Routing Protocol (EIGRP). It describes the basic operation and components of EIGRP, including its tables, metrics, neighbor discovery, and packet types. The objectives are to describe EIGRP functionality, plan and implement EIGRP routing, and configure and verify EIGRP implementations in enterprise networks.
Lab practice 1 configuring basic routing and switching (with answer) Arz Sy
This document describes a lab activity to configure basic routing and switching between two routers and connected devices. The objectives are to configure static routes and RIP routing between the routers, configure VLAN and management interfaces on a switch, and test connectivity between hosts connected to each network. Students will configure interfaces, IP addresses, routing protocols and verify connectivity using commands like ping, show ip route and show cdp neighbors.
Switching – A Process of using the MAC address on LAN is called Layer 2 Switching.
Layer 2 Switching is the process of using hardware address of devices on a LAN to segment a network.
Switching breaks up large collision domains into smaller ones and that a collision domain is a network
segment with two or more devices sharing the same bandwidth.
This document discusses configuring VLAN trunking and routing on a stick between two switches and a router. It explains that VLAN trunking is used to separate broadcast domains and transmit VLAN traffic between switches and routers. The trunk ports between the switches and the switch to router link are configured, as well as subinterfaces on the router with different IP addresses for each VLAN. The configuration of the switches and router is shown, along with ping tests verifying connectivity between hosts in different VLANs works after routing is configured.
The document provides an overview of the Open Shortest Path First (OSPF) routing protocol, including that it is an interior gateway protocol that uses link state routing to establish neighbor relationships and exchange routing information within an autonomous system in order to determine the shortest path between any two routers on a network. OSPF detects changes in network topology quickly and converges on a new loop-free routing structure within seconds, and it has been widely implemented in large enterprise networks to provide efficient routing.
The document discusses the OSI model and TCP/IP model for networking. It provides details on the seven layers of the OSI model and five layers of the TCP/IP model. Key points covered include functions of each layer like the physical layer dealing with physical connections, data link layer dealing with MAC addresses, network layer dealing with logical addressing, and transport layer dealing with reliable data transmission.
This document provides an overview of switches, including:
1. Switches come in manageable and non-manageable varieties and can use cut-through or store-and-forward switching techniques.
2. Switches learn device MAC addresses through address learning and forward frames according to their MAC tables. Spanning Tree Protocol (STP) prevents network loops.
3. Switches have components like processors, memory, and ports that can be configured as access or trunk ports to carry one or multiple VLANs respectively. VLANs virtualize the network into multiple broadcast domains.
VLANs logically group users and resources together without being restricted by physical network segments. There are static and dynamic VLANs, with static VLAN port assignments always remaining fixed while dynamic VLANs are created through management software. Frame tagging allows VLANs to span multiple switches by uniquely assigning a VLAN ID to each frame. The VLAN Trunking Protocol (VTP) manages VLAN configurations across switches to provide benefits like consistent VLAN setup, accurate monitoring, and dynamic reporting of new VLANs. Configuring VLANs involves creating VLANs, assigning switch ports, configuring trunk ports between switches, and setting up inter-VLAN routing using subinterfaces on a router interface.
The document describes configuring VRRP (Virtual Router Redundancy Protocol) on routers R1 and R2. It involves:
1. Configuring R1 as the master for VRRP group 1 using virtual IP 10.0.0.254 and authentication.
2. Configuring R2 as the master for load-balanced VRRP group 2 using virtual IP 10.0.0.193 and a different authentication string.
3. Enabling tracking on both routers so that the priority of the backup router decreases if the route to the opposite network fails, allowing it to take over as master.
The document provides the configuration steps for a lab exercise on BGP. The steps include:
1. Configuring IBGP and EBGP neighborships between routers as shown in the topology diagram using loopback addresses.
2. Advertising loopback networks in BGP to ensure all routers have the routing information.
3. Configuring route reflectors to reduce the number of neighbor relationships needed.
4. Setting preferences for best paths between routers for certain networks.
The document describes the steps to configure dynamic routing, site-to-site VPN, and network access between devices in a lab topology. The tasks include: 1) Configuring IP addresses and dynamic routing protocols on routers and firewalls, 2) Establishing connectivity between all devices, 3) Implementing NAT and VPN services on the firewalls to allow communication between specified subnets, and 4) Opening a non-standard port for remote access between two routers via one of the firewalls.
1. The document provides instructions for configuring OSPF routing, filtering LSAs, and summarizing routes between OSPF areas on a network with multiple routers.
2. Tasks include configuring OSPF on each router, filtering routes between areas, redistributing EIGRP routes into OSPF, and using prefix lists and route summarization.
3. The solution shows the OSPF and redistribution configurations needed on each router to implement the requested tasks and filters.
1. The document describes the configuration steps for a lab exercise involving BGP routing. It includes tasks to configure IP addresses, IBGP, HSRP, servers, and BGP routing on multiple routers as shown in the given topology diagram.
2. Key steps are to configure IBGP between routers R1-R4, HSRP between R5-R6, servers on R6, and BGP routing between all routers as specified in the tasks and topology, including IBGP, EBGP, route reflectors, and BGP confederations.
3. The goal is to verify connectivity between loopbacks and servers across the different BGP and IBGP domains as configured.
This document provides instructions for completing 12 tasks to configure access control lists on routers. The tasks include configuring IP addresses, inter-VLAN routing, EIGRP routing, DNS, Telnet/SSH access, and ACLs to restrict traffic between VLANs and access to websites based on the VLAN. Detailed configuration steps are provided for each router to implement the access controls and routing as outlined in the tasks.
Remote VPNs allow secure access to corporate networks from remote locations by establishing an encrypted tunnel over the Internet. They provide secure communications and access rights tailored to individual users, enhancing productivity by extending corporate networks and applications while reducing costs and increasing flexibility. The example configuration shows a remote client (R1) connecting to a VPN server (R3) using IKE and IPsec to securely access resources on R3's network.
1. The document describes configuring EIGRP routing on a network topology. This includes configuring EIGRP routing processes and interfaces, adjusting EIGRP timers, enabling authentication, setting metric weights, redistributing routes between EIGRP processes, summarizing routes, and filtering routes.
In Computer Networking, the term port can refer to either physical or virtual connection points. In
computer terms, a port generally refers to the female part of connection. Computer ports have many
uses, to connect a monitor, webcam, speakers, or other peripheral devices.
Route redistribution involves sharing routes between different routing protocols. Challenges include incompatible metrics between protocols and routing loops or suboptimal paths that can occur from redistributing routes back into their origin domain. Route maps, distribution lists, and adjusting administrative distances can control redistribution and prevent issues like feedback of routes into their source protocol.
The document provides instructions for configuring an ASA firewall to:
1. Configure security levels and interfaces for DMZ and DMZ1 subnets.
2. Enable ping access between the DMZ and DMZ1 interfaces.
3. Restrict telnet access to the ASA to only the R2 host.
4. Enable SSH access to the ASA from the ISP subnet only.
5. Apply PAT for the Inside, DMZ and DMZ1 interfaces.
6. Allow the ISP to telnet to the R2 host using port 2487.
This document outlines tasks for configuring access lists on routers R1-R6. The tasks include: 1) configuring EIGRP routing, 2) configuring PAT on R1 and R2, 3) restricting Telnet/SSH access between routers, 4) preventing certain routes and pings from being sent between routers, and 5) restricting a router's commands when accessing another router via Telnet.
This document provides instructions for configuring cut-through proxy on an ASA firewall. It includes steps to configure interfaces, ACLs, AAA authentication with an ISE server, a virtual Telnet IP, and verification tests. The goal is to allow a client to Telnet to a virtual IP on the ASA that will authenticate with ISE and cut through to permit access to a real host IP if authentication succeeds.
This document describes the configuration of a network topology with VLANs, trunking, routing, and NAT. The key tasks are:
1. Configure switches and routing with VLANs, VTP, EIGRP, and trunking to separate traffic from different client groups.
2. Perform PAT on routers R1 and R2 to allow clients to access the internet.
3. Configure a web server for clients to access via its IP address or domain name.
RADIUS uses UDP for authentication and authorization, encrypting only the password field, while TACACS+ uses TCP and encrypts the entire payload. TACACS+ separates authentication, authorization, and accounting functions, allowing for different authentication mechanisms to be used, while RADIUS combines these steps. TACACS+ supports additional network protocols and provides more granular control over authorized commands.
1. The document describes tasks for configuring OSPF routing on a network topology.
2. Key configurations include enabling OSPF on each router, configuring authentication for Area 1, summarizing loopback routes on R4, and preventing Area 3 routers from receiving routes from other areas.
3. PAT is configured on routers R1 and R11 to allow traffic from multiple private networks to use a single public IP address.
The document describes tasks for configuring a zone-based firewall on Router 1:
1. Create an inside and outside zone on Router 1's interfaces; apply an inspect policy between the zones to allow necessary traffic.
2. Configure R2 to ping R3 by name by adding DNS and host entries.
3. Configure R2 to copy a file from R4's HTTP server using the file path and name.
4. Configure R2 as the NTP server and have the other routers synchronize to it after applying necessary firewall policies.
A network consists of a collection of computers, printers and other compatible equipment/ hardware
that is connected together so that they can communicate with each other.
1. The document describes configuring EIGRP routing on a network topology. This includes configuring EIGRP routing processes and interfaces, modifying timers, enabling authentication, adjusting metrics, ensuring all routes are learned, implementing route summarization, and filtering routes.
2. Key tasks are configuring EIGRP routing processes on each router with associated networks, changing timers on EIGRP process 200, enabling MD5 authentication between R4 and R5, adjusting metrics for EIGRP 100, redistributing between EIGRP processes, and summarizing loopback routes on R5 and R7.
3. The solution provides the configuration commands needed to complete each task, such as enabling EIGRP routing on
IP Address is a unique identification given to Host, network device, server for data communication. IP
Address stand for Internet Protocol address, it is an addressing scheme used to identify a system on a
network. It is a unique address that certain electronic devices currently use to communicate with each
other on a network using internet protocol.
This document provides recommendations for securing Cisco routers by tightening access controls and permissions. It recommends:
1. Creating a written router security policy that defines who can access and configure the router.
2. Commenting and organizing offline copies of router configurations and keeping them in sync with the live configurations.
3. Implementing access lists that only allow necessary protocols, ports, and IP addresses and deny all others.
4. Running the latest available IOS version and regularly testing router security.
Cisco Internetworking Operating System (ios)Netwax Lab
Cisco IOS (originally Internetwork Operating
System) is software used on most Cisco Systems
routers and current Cisco network switches.
(Earlier switches ran CatOS.) IOS is a package of
routing, switching, internetworking and
telecommunications functions integrated into a
multitasking operating system.
The document provides information on configuring Cisco routers, including:
- Cisco IOS software uses different command modes to access groups of commands, including user EXEC, privileged EXEC, and configuration modes.
- IP addresses, routing protocols, and other settings are configured in privileged EXEC or configuration modes using commands like interface, ip address, router rip/ospf/eigrp, and more.
- Router and link status can be checked using LED indicators on ports and transceiver modules.
This document provides a summary of a presentation on CCNA (Cisco Certified Network Associate). It includes:
1. An introduction to CCNA, which stands for Cisco Certified Network Associate and provides information about networking, its types and applications. Networking is important for communication and resource sharing.
2. Descriptions of different types of networking including LAN, MAN, and WAN. It also lists common networking devices like LAN cards, bridges, hubs, switches, and routers.
3. Overviews of topics covered in CCNA including subnetting, supernetting, Classless Interdomain Routing (CIDR), the differences between hubs and switches, what routers are used for,
10 Command Line quan trọng để giao tiếp với Cisco IOsNhóc Nhóc
The document discusses 10 important commands for working with the Cisco IOS including: show running-configuration to view the current router configuration; copy running-configuration startup-configuration to save configuration changes; show interface to view interface status; and config terminal, enable, interface, and router to navigate between configuration modes. The commands provide essential information for configuring, monitoring, and troubleshooting routers.
ccna summer training ppt ( Cisco certified network analysis) ppt. by Traun k...Tarun Khaneja
This document provides a summary of a presentation on CCNA (Cisco Certified Network Associate). It was trained by Ravinder Kumar from Gurukul Technical Institute and submitted by Tarun Khaneja with roll number 2110045 and contact number 09034406598. The presentation introduces CCNA and discusses networking types and applications. It also covers networking devices, subnetting, routing protocols like RIP, EIGRP, OSPF, ACLs, VLANs, and inter-VLAN routing. Configuration examples are provided for EIGRP and RIP routing on the same network.
LAN to LAN VPN also known as Site to Site VPN is the most basic and the most simplest of all the VPN’s used on CISCO devices. It helps in connecting networks in different geographical location.
The document provides information about configuring a router, including:
- Configuring passwords, interfaces, banners, and host tables
- Using commands like hostname, enable password, interface type, ip address, no shut, banner motd, clock timezone, and ip host
- Verifying configurations with show commands
- Saving configurations to NVRAM and erasing startup configurations
Network Design on cisco packet tracer 6.0Saurav Pandey
This document proposes a network design using access controls and VoIP. It includes configuration of routers, switches, VLANs, DHCP, RIP routing protocol, frame relay, telnet, ACLs and VoIP protocols like Call Manager Express. The network connects three locations - a head office and two branch offices - using routers, switches, frame relay, VLANs and access controls to filter unauthorized traffic and allow only genuine users. VoIP is implemented using protocols like DHCP, Call Manager Express, phone directory and dial peer configuration to enable voice calls between the locations over the IP network.
This document discusses setting up an Internet access server using MikroTik RouterOS and the ISP billing system NetUP UTM5. It provides instructions for configuring MikroTik RouterOS on the access server, including setting IP addresses, default gateway, DNS, and SNAT. It also describes configuring the utm5_rfw daemon to allow the billing system to control Internet access by adding and removing firewall rules via scripts. The billing system is then configured to define firewall rules and tariffs to automate enabling and limiting bandwidth for user accounts.
ccna project on topic company infrastructurePrince Gautam
Prince Gautam submitted a presentation on CCNA that introduces CCNA and networking. It defines CCNA, describes the importance of networking for communication and resource sharing. It also summarizes different types of networking including LAN, MAN, WAN and common networking devices like hubs, switches, routers. The presentation further explains concepts like subnetting, supernetting, routing protocols like RIP, EIGRP, OSPF and basic router configuration.
Here are the key steps:
1. Configure RIP as a backup routing protocol on all routers (R0, R1, R2, R3) and redistribute it into EIGRP using the redistribute rip command.
2. Configure EIGRP as the main routing protocol on all routers and include all connected networks in EIGRP using the network command.
3. Verify connectivity by pinging between subnets and checking routing tables to ensure routes are learned through EIGRP and RIP is acting as a backup.
The key points are:
- Use RIP as a backup routing protocol on all routers to prevent loss of connectivity if EIGRP fails
- Configure EIGRP as the main
This document provides information on commands and configuration for Cisco routers and switches. It discusses commands for viewing interface status, configuration files, routing tables, and protocols like OSPF, EIGRP, VTP, and ACLs. It also covers basic router configuration, IP addressing, static and dynamic routing, switch port configuration, and CDP for gathering neighbor device information.
The document discusses important show commands for Cisco routers and switches. It provides a cheat sheet of the most useful show commands including show running-config, show version, show ip route, show interfaces, show cdp neighbors, and show clock. Each command is briefly described in terms of the key information it displays about the device, interfaces, configurations, or network.
The document provides an overview of the CCNA certification and covers topics like internetworking, IP addressing, routing protocols, Cisco IOS, and more. It begins with an introduction to computer networks and protocols. Then it discusses the OSI reference model, IP addressing fundamentals, routing protocols like RIP, IGRP, EIGRP and OSPF, Cisco IOS configuration, and IP routing. The document serves as a study guide for CCNA exam topics at a high level.
Router connects different networks located at geographical locations. It has various interfaces like Ethernet, Serial and supports protocols like RIP, OSPF for dynamic routing. The document provides details about Cisco router components, configuration, interfaces, routing protocols, troubleshooting commands and backup/restoration process using TFTP server.
This document contains questions about router security configuration and concepts. It covers topics like AAA configuration, SSH, SNMP, SDM wizards, and Cisco IOS resilience features. The questions ask about commands, default settings, and characteristics related to securing and hardening a Cisco router.
This document provides a quick installation guide for L3 Multi-Port Full Gigabit Stackable Managed Switches. It includes instructions on package contents, switch management, terminal and network setup, configuring IP addresses, setting port speeds for SFP and SFP+ ports, saving configurations, and accessing the web UI. The guide also provides contact information for customer support.
The document describes setting up static routes on 7 routers (R1-R7) to allow connectivity between all routers and PCs in a network topology. It involves configuring IP addresses and static routes on each router's interfaces according to the topology diagram, so that each router has a route to every other subnet and can ping all other routers and PCs.
This document outlines the steps to configure HSRP (Hot Standby Router Protocol) on two multi-layer switches (MLS1 and MLS2) including: configuring IP addresses, EIGRP routing, web server and NTP server, setting MLS1 as the active router, tracking the state of interfaces, using HSRP for load balancing between the routers, and enabling NAT on the border router for internal traffic.
The document provides instructions for a lab on route redistribution between OSPF, EIGRP and RIP routing protocols. It involves configuring the routing protocols on various routers as specified in the topology, including redistributing routes between protocols. It also requires summarizing loopback routes between areas and protocols.
The document describes the tasks and solution for a lab on VLANs and trunking. The tasks are to: 1) Configure IP addresses as shown in the topology, 2) Create DHCP servers for VLANs 10 and 20, 3) Configure SW1 as the VTP server and the others as clients with the domain "netwaxlab.com", 4) Ensure PCs get IP addresses via DHCP, and 5) Allow communication between PCs 9 and 10 which have different IPs on the same VLAN. The solution describes the configurations needed on the switches to accomplish these tasks.
The document describes tasks to configure NAT on routers R1 and R2. This includes dynamically NATing internal networks and loopbacks to external IP ranges, PAT for some internal networks, and static NAT for R7's loopbacks. EIGRP is configured internally with redistribution. Access-lists are used to define the NAT source addresses and pools are used to map them to external IP ranges. Connectivity to external sites is tested with ping.
1. The document describes configuring IP addresses, DNS, a site-to-site GRE VPN between routers R5 and R6, and a DMVPN network between routers R1, R2, and R3.
2. For the GRE VPN, ISAKMP and IPsec are configured on R5 and R6 using a preshared key of "netwaxlab" to secure the GRE tunnel.
3. For the DMVPN, R1 is configured as a hub router and R2 and R3 as spoke routers. ISAKMP and IPsec are configured using a preshared key of "netwaxlab" to secure the GRE tunnels between the routers.
1. The document describes tasks for configuring a role-based CLI, including configuring IP addresses, routing protocols, VPN tunnels, and access privileges for different devices.
2. It provides configuration steps for R2 and R3 to enable PAT for inside networks and configure a site-to-site VPN between them with IPsec.
3. PC5 is given full access to R13 but can only use show commands on R14, while PC4 is limited to the show history command on R11.
1. The document describes configuring high availability routing between two firewalls (ASA1 and ASA2) using failover, and between two routers (MLS3 and R2) using HSRP.
2. It provides configuration examples for failover on the ASAs, HSRP on MLS3 and R2, PAT on the ASA and R2, and EIGRP routing between the ASA and MLS3.
3. It also specifies default gateways for different PCs to reach R1 via the active HSRP router.
The document provides instructions for configuring IPv6 on a network topology. It includes tasks to configure IPv6 addresses on routers, configure Frame-Relay over IPv6, assign IPv6 addresses to routers through autoconfiguration, and configure OSPF routing between the routers.
The document provides the configuration steps to complete an IPv6 lab topology including:
1. Configure routing protocols EIGRP, OSPF, and RIP on each router as specified in the topology.
2. Enable tunneling between IPv6 and IPv4 interfaces to allow communication across the different address families.
3. Configure specific routing protocols over the tunnels, including EIGRP 111 between R4 and R5 and RIP between R2 and R6.
4. Redistribute routes between protocols to ensure all routers receive routes from each other protocol.
Eincop Netwax Lab: Site 2 Site VPN with Routing ProtocolsNetwax Lab
This document provides instructions for configuring routing protocols and a site-to-site VPN between HQ and BR1 networks. The tasks include: 1) configuring EIGRP and RIP routing with redistribution to ensure HQ_R2 learns all routes, 2) enabling MD5 authentication on EIGRP 200, 3) establishing an IPsec VPN between HQ and BR1 to permit access only to BR1 loopback addresses from HQ_R2, and 4) summarizing the BR1 loopback routes into OSPF area 0 on BR1.
Kerberos is a computer network authentication protocol which works on the basis of 'tickets' to allow
nodes communicating over a non-secure network to prove their identity to one another in a secure
manner. Its designers aimed it primarily at a client–server model and it provides mutual
authentication—both the user and the server verify each other's identity. Kerberos protocol messages
are protected against eavesdropping and replay attacks.
Terminal Access Controller Access-Control System (TACACS, usually pronounced like tack-axe) refers to a
family of related protocols handling remote authentication and related services for networked access
control through a centralized server. The original TACACS protocol, which dates back to 1984, was used
for communicating with an authentication server, common in older UNIX networks;
RADIUS is a protocol for carrying information related to authentication, authorization, and configuration
between a Network Access Server that desires to authenticate its links and a shared Authentication
Server.
RADIUS stands for Remote Authentication Dial In User Service.
RADIUS is an AAA protocol for applications such as Network Access or IP Mobility
It works in both situations, Local and Mobile.
It uses Password Authentication Protocol (PAP), Challenge Handshake Authentication Protocol
(CHAP), or Extensible Authentication Protocol (EAP) protocols to authenticate users.
It look in text file, LDAP Servers, Database for authentication.
Ivanti’s Patch Tuesday breakdown goes beyond patching your applications and brings you the intelligence and guidance needed to prioritize where to focus your attention first. Catch early analysis on our Ivanti blog, then join industry expert Chris Goettl for the Patch Tuesday Webinar Event. There we’ll do a deep dive into each of the bulletins and give guidance on the risks associated with the newly-identified vulnerabilities.
Dandelion Hashtable: beyond billion requests per second on a commodity serverAntonios Katsarakis
This slide deck presents DLHT, a concurrent in-memory hashtable. Despite efforts to optimize hashtables, that go as far as sacrificing core functionality, state-of-the-art designs still incur multiple memory accesses per request and block request processing in three cases. First, most hashtables block while waiting for data to be retrieved from memory. Second, open-addressing designs, which represent the current state-of-the-art, either cannot free index slots on deletes or must block all requests to do so. Third, index resizes block every request until all objects are copied to the new index. Defying folklore wisdom, DLHT forgoes open-addressing and adopts a fully-featured and memory-aware closed-addressing design based on bounded cache-line-chaining. This design offers lock-free index operations and deletes that free slots instantly, (2) completes most requests with a single memory access, (3) utilizes software prefetching to hide memory latencies, and (4) employs a novel non-blocking and parallel resizing. In a commodity server and a memory-resident workload, DLHT surpasses 1.6B requests per second and provides 3.5x (12x) the throughput of the state-of-the-art closed-addressing (open-addressing) resizable hashtable on Gets (Deletes).
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdfChart Kalyan
A Mix Chart displays historical data of numbers in a graphical or tabular form. The Kalyan Rajdhani Mix Chart specifically shows the results of a sequence of numbers over different periods.
For the full video of this presentation, please visit: https://www.edge-ai-vision.com/2024/06/how-axelera-ai-uses-digital-compute-in-memory-to-deliver-fast-and-energy-efficient-computer-vision-a-presentation-from-axelera-ai/
Bram Verhoef, Head of Machine Learning at Axelera AI, presents the “How Axelera AI Uses Digital Compute-in-memory to Deliver Fast and Energy-efficient Computer Vision” tutorial at the May 2024 Embedded Vision Summit.
As artificial intelligence inference transitions from cloud environments to edge locations, computer vision applications achieve heightened responsiveness, reliability and privacy. This migration, however, introduces the challenge of operating within the stringent confines of resource constraints typical at the edge, including small form factors, low energy budgets and diminished memory and computational capacities. Axelera AI addresses these challenges through an innovative approach of performing digital computations within memory itself. This technique facilitates the realization of high-performance, energy-efficient and cost-effective computer vision capabilities at the thin and thick edge, extending the frontier of what is achievable with current technologies.
In this presentation, Verhoef unveils his company’s pioneering chip technology and demonstrates its capacity to deliver exceptional frames-per-second performance across a range of standard computer vision networks typical of applications in security, surveillance and the industrial sector. This shows that advanced computer vision can be accessible and efficient, even at the very edge of our technological ecosystem.
Monitoring and Managing Anomaly Detection on OpenShift.pdfTosin Akinosho
Monitoring and Managing Anomaly Detection on OpenShift
Overview
Dive into the world of anomaly detection on edge devices with our comprehensive hands-on tutorial. This SlideShare presentation will guide you through the entire process, from data collection and model training to edge deployment and real-time monitoring. Perfect for those looking to implement robust anomaly detection systems on resource-constrained IoT/edge devices.
Key Topics Covered
1. Introduction to Anomaly Detection
- Understand the fundamentals of anomaly detection and its importance in identifying unusual behavior or failures in systems.
2. Understanding Edge (IoT)
- Learn about edge computing and IoT, and how they enable real-time data processing and decision-making at the source.
3. What is ArgoCD?
- Discover ArgoCD, a declarative, GitOps continuous delivery tool for Kubernetes, and its role in deploying applications on edge devices.
4. Deployment Using ArgoCD for Edge Devices
- Step-by-step guide on deploying anomaly detection models on edge devices using ArgoCD.
5. Introduction to Apache Kafka and S3
- Explore Apache Kafka for real-time data streaming and Amazon S3 for scalable storage solutions.
6. Viewing Kafka Messages in the Data Lake
- Learn how to view and analyze Kafka messages stored in a data lake for better insights.
7. What is Prometheus?
- Get to know Prometheus, an open-source monitoring and alerting toolkit, and its application in monitoring edge devices.
8. Monitoring Application Metrics with Prometheus
- Detailed instructions on setting up Prometheus to monitor the performance and health of your anomaly detection system.
9. What is Camel K?
- Introduction to Camel K, a lightweight integration framework built on Apache Camel, designed for Kubernetes.
10. Configuring Camel K Integrations for Data Pipelines
- Learn how to configure Camel K for seamless data pipeline integrations in your anomaly detection workflow.
11. What is a Jupyter Notebook?
- Overview of Jupyter Notebooks, an open-source web application for creating and sharing documents with live code, equations, visualizations, and narrative text.
12. Jupyter Notebooks with Code Examples
- Hands-on examples and code snippets in Jupyter Notebooks to help you implement and test anomaly detection models.
5th LF Energy Power Grid Model Meet-up SlidesDanBrown980551
5th Power Grid Model Meet-up
It is with great pleasure that we extend to you an invitation to the 5th Power Grid Model Meet-up, scheduled for 6th June 2024. This event will adopt a hybrid format, allowing participants to join us either through an online Mircosoft Teams session or in person at TU/e located at Den Dolech 2, Eindhoven, Netherlands. The meet-up will be hosted by Eindhoven University of Technology (TU/e), a research university specializing in engineering science & technology.
Power Grid Model
The global energy transition is placing new and unprecedented demands on Distribution System Operators (DSOs). Alongside upgrades to grid capacity, processes such as digitization, capacity optimization, and congestion management are becoming vital for delivering reliable services.
Power Grid Model is an open source project from Linux Foundation Energy and provides a calculation engine that is increasingly essential for DSOs. It offers a standards-based foundation enabling real-time power systems analysis, simulations of electrical power grids, and sophisticated what-if analysis. In addition, it enables in-depth studies and analysis of the electrical power grid’s behavior and performance. This comprehensive model incorporates essential factors such as power generation capacity, electrical losses, voltage levels, power flows, and system stability.
Power Grid Model is currently being applied in a wide variety of use cases, including grid planning, expansion, reliability, and congestion studies. It can also help in analyzing the impact of renewable energy integration, assessing the effects of disturbances or faults, and developing strategies for grid control and optimization.
What to expect
For the upcoming meetup we are organizing, we have an exciting lineup of activities planned:
-Insightful presentations covering two practical applications of the Power Grid Model.
-An update on the latest advancements in Power Grid -Model technology during the first and second quarters of 2024.
-An interactive brainstorming session to discuss and propose new feature requests.
-An opportunity to connect with fellow Power Grid Model enthusiasts and users.
Connector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectorsDianaGray10
Join us to learn how UiPath Apps can directly and easily interact with prebuilt connectors via Integration Service--including Salesforce, ServiceNow, Open GenAI, and more.
The best part is you can achieve this without building a custom workflow! Say goodbye to the hassle of using separate automations to call APIs. By seamlessly integrating within App Studio, you can now easily streamline your workflow, while gaining direct access to our Connector Catalog of popular applications.
We’ll discuss and demo the benefits of UiPath Apps and connectors including:
Creating a compelling user experience for any software, without the limitations of APIs.
Accelerating the app creation process, saving time and effort
Enjoying high-performance CRUD (create, read, update, delete) operations, for
seamless data management.
Speakers:
Russell Alfeche, Technology Leader, RPA at qBotic and UiPath MVP
Charlie Greenberg, host
Have you ever been confused by the myriad of choices offered by AWS for hosting a website or an API?
Lambda, Elastic Beanstalk, Lightsail, Amplify, S3 (and more!) can each host websites + APIs. But which one should we choose?
Which one is cheapest? Which one is fastest? Which one will scale to meet our needs?
Join me in this session as we dive into each AWS hosting service to determine which one is best for your scenario and explain why!
Digital Banking in the Cloud: How Citizens Bank Unlocked Their MainframePrecisely
Inconsistent user experience and siloed data, high costs, and changing customer expectations – Citizens Bank was experiencing these challenges while it was attempting to deliver a superior digital banking experience for its clients. Its core banking applications run on the mainframe and Citizens was using legacy utilities to get the critical mainframe data to feed customer-facing channels, like call centers, web, and mobile. Ultimately, this led to higher operating costs (MIPS), delayed response times, and longer time to market.
Ever-changing customer expectations demand more modern digital experiences, and the bank needed to find a solution that could provide real-time data to its customer channels with low latency and operating costs. Join this session to learn how Citizens is leveraging Precisely to replicate mainframe data to its customer channels and deliver on their “modern digital bank” experiences.
zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...Alex Pruden
Folding is a recent technique for building efficient recursive SNARKs. Several elegant folding protocols have been proposed, such as Nova, Supernova, Hypernova, Protostar, and others. However, all of them rely on an additively homomorphic commitment scheme based on discrete log, and are therefore not post-quantum secure. In this work we present LatticeFold, the first lattice-based folding protocol based on the Module SIS problem. This folding protocol naturally leads to an efficient recursive lattice-based SNARK and an efficient PCD scheme. LatticeFold supports folding low-degree relations, such as R1CS, as well as high-degree relations, such as CCS. The key challenge is to construct a secure folding protocol that works with the Ajtai commitment scheme. The difficulty, is ensuring that extracted witnesses are low norm through many rounds of folding. We present a novel technique using the sumcheck protocol to ensure that extracted witnesses are always low norm no matter how many rounds of folding are used. Our evaluation of the final proof system suggests that it is as performant as Hypernova, while providing post-quantum security.
Paper Link: https://eprint.iacr.org/2024/257
zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...

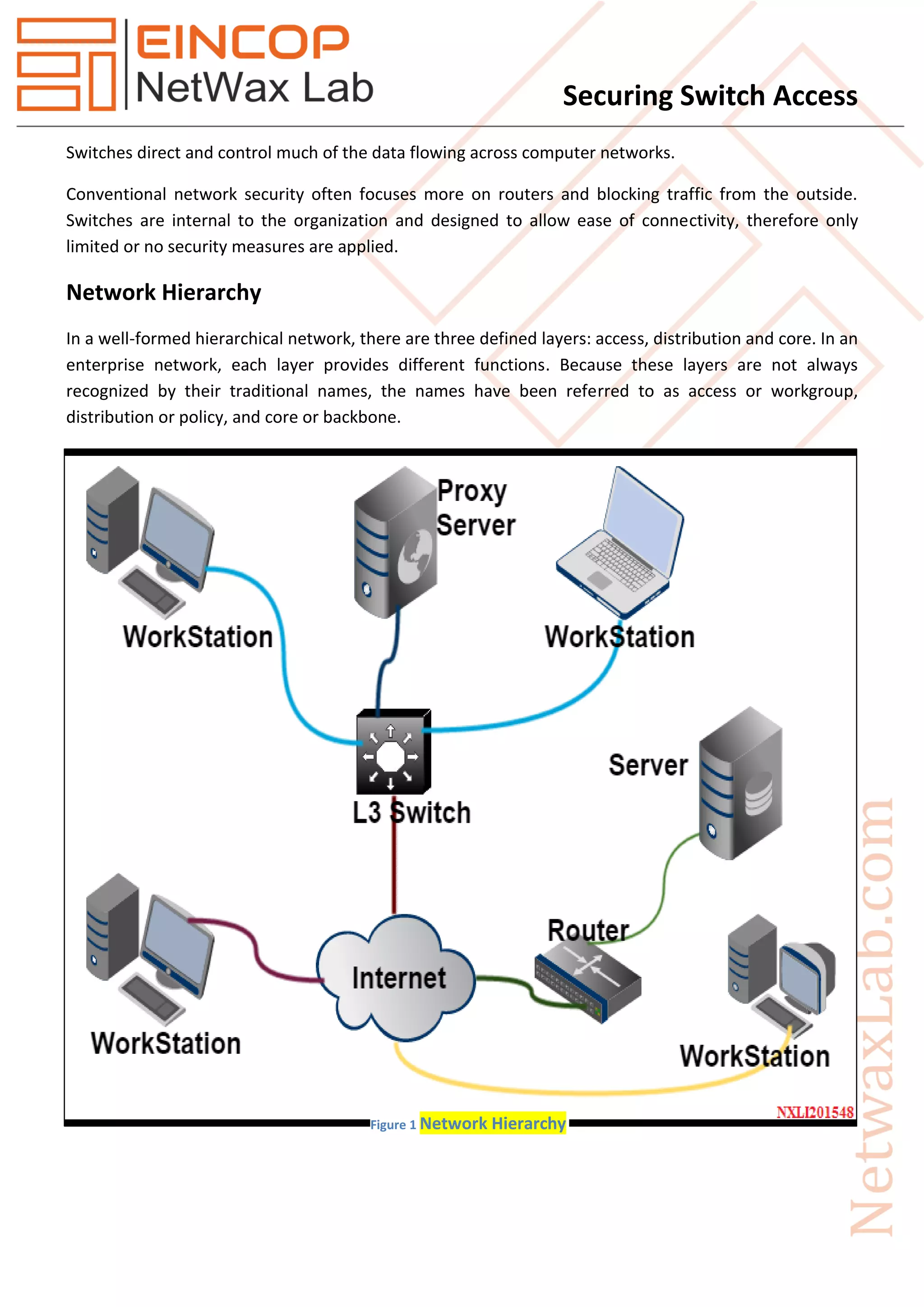

Securing Switch Access
1. Securing Switch Access
Switches direct and control much of the data flowing across computer networks.
Conventional network security often focuses more on routers and blocking traffic from the outside.
Switches are internal to the organization and designed to allow ease of connectivity, therefore only
limited or no security measures are applied.
Network Hierarchy
In a well-formed hierarchical network, there are three defined layers: access, distribution and core. In an
enterprise network, each layer provides different functions. Because these layers are not always
recognized by their traditional names, the names have been referred to as access or workgroup,
distribution or policy, and core or backbone.
Figure 1 Network Hierarchy
2. Securing Switch Access
Configure Switch Security
1. Operating System
If an operating system on a switch is not kept current then the switch may be susceptible to information
gathering and network attacks. Attackers find weaknesses in versions of an operating system over time.
New security features are added to each new version of an operating system.
Install the latest stable version of the IOS on each Switch.
2. Passwords
One password is used for the enable password and the other will later be assigned to the console port.
SWITCH(config)#enable secret [password]
SWITCH(config)#username admin password [password]
A password should be required to access the console line. Even the basic user EXEC mode can provide
significant information to a malicious user. In addition, the VTY lines must have a password before users
can access the switch remotely.
SWITCH(coanfig)#line console 0
SWITCH(config-line)#password cisco
SWITCH(config-line)#login
SWITCH(config-line)#line vty 0 15
SWITCH(config-line)#password cisco
SWITCH(config-line)#login
SWITCH(config-line)#exit
At this stage, the privileged EXEC password is already encrypted. To encrypt the line passwords that you
just configured, enter the service password-encryption command in global configuration mode.
SWITCH(config)#service password-encryption
Set the exec-timeout period to 9 minutes or less to disconnect idle connections to the console line on
each switch. Do not set the timeout period to zero because on Cisco switches that will disable the
timeout. The following example sets the timeout period for the console line to 9 minutes and 0 seconds.
SWITCH(config)# line con 0
SWITCH(config-line)# exec-timeout 9 0
Configure the message-of-the-day (MOTD) using Authorized Access Only as the text. Follow these
guidelines:
3. Securing Switch Access
i. The banner text is case sensitive. Make sure you do not add any spaces before or after
the banner text.
ii. Use a delimiting character before and after the banner text to indicate where the text
begins and ends. The delimiting character used in the example below is %, but you can
use any character that is not used in the banner text.
iii. After you have configured the MOTD, log out of the switch to verify that the banner
displays when you log back in.
SWITCH(config)#banner motd %Authorized Access Only%
SWITCH(config)#end
SWITCH#exit
3. Network Services
Switches can have a number of network services enabled. Many of these services are typically not
necessary for a switch’s normal operation; however if these services are enabled then the switch may be
susceptible to information gathering or to network attacks. The characteristics or the poor configuration
of the network services on a switch can lead to compromise. Most of these services use one of the
following transport mechanisms at Layer 4 of the OSI RM: Transmission Control Protocol (TCP) and User
Datagram Protocol (UDP).
If possible, instead of using a network service (e.g., telnet) to perform in-band management of a switch,
use out-of-band management (e.g., via the console port) for each switch. Out-of-band management
reduces the exposure of configuration information and passwords better than in-band management.
3.1. Unnecessary Network Services
If possible, disable each unnecessary network service on each switch. The following
commands will disable services of concern. In some cases, the commands affect the switch
globally, while in other cases the commands affect only a single interface.
Below is an example for the set of interfaces that includes GigabitEthernet 6/1 through 6/3.
SWITCH(config)# interface range gigabitethernet 6/1 – 3
3.1.1. TCP and UDP Small Servers - TCP/UDP Ports 7, 9, 13, 19
Cisco provides support for “small servers” (e.g., echo, discard, daytime and chargen). Two of
these servers, echo and chargen, can be used in denial-of-service attacks against one or
more switches. These services can be disabled using the following commands.
SWITCH(config)# no service tcp-small-servers
SWITCH(config)# no service udp-small-servers
4. Securing Switch Access
3.1.2. Bootp Server - UDP Port 67
A Cisco switch can act as a bootp server to distribute system images to other Cisco systems.
Unless this is an operational requirement, it is best to disable this service with the following
command to minimize unauthorized access to the switch’s system image.
Switch(config)# no ip bootp server
3.1.3. Finger - TCP Port 79
Cisco switches support the finger service, which can provide information about users
currently logged onto the switch. Either of the following commands will disable finger
service. The first command will replace the second command in future versions of IOS.
Switch(config)# no ip finger
Switch(config)# no service finger
3.1.4. Configuration Autoload
A Cisco switch can obtain its configuration from a network server via a few methods. These
methods are not recommended because configuration information is passed in cleartext
during the boot process and can be collected by unauthorized users. Use the following
commands to disable these methods.
Switch(config)# no service config
Switch(config)# no boot host
Switch(config)# no boot network
Switch(config)# no boot system
3.1.5. Packet Assembler/Disassembler (PAD)
PAD enables X.25 connections between network systems. Unless a network requires this
capability the PAD service should be disabled with the following command.
Switch(config)# no service pad
3.1.6. Address Resolution Protocol (ARP)
Normally, ARP messages are confined to a single broadcast domain, but a switch can proxy
ARP messages from one domain to another. Unless a switch is required to be an
intermediary for ARP requests, this feature should be disabled with the following commands
on each interface where it is not required.
Switch(config-if)# no ip proxy-arp
5. Securing Switch Access
3.1.7. Internet Control Message Protocol (ICMP) Messages
A Cisco switch can generate automatically three types of ICMP messages: Host Unreachable,
Redirect and Mask Reply. The Mask Reply message provides the subnet mask for a particular
network to the requestor. An attacker can use these messages to aid in mapping a network.
Disabling these messages with the following commands is recommended for each interface
and for the Null 0 interface.
Switch(config-if)# no ip unreachables
Switch(config-if)# no ip redirects
Switch(config-if)# no ip mask-reply
The Null 0 interface deserves particular attention. This interface is a packet sink. It is
sometimes utilized in denial-of-service attack prevention and all blocked packets are
forwarded to this interface. It will generate Host Unreachable messages that could flood the
network unless the facility is disabled. Attackers might also be able to use these messages to
determine access-control list configuration by identifying blocked packets.
Directed broadcasts allow broadcast messages initiated from different broadcast domains
than are locally attached to the switch. For example, attackers have used ICMP directed
broadcasts for this purpose. It is recommended that this broadcast capability be turned off,
using the following command on each interface.
Switch(config-if)# no ip directed-broadcast
3.2. Potentially Necessary Network Services
Certain network services may be necessary for the administration of a switch. If in-band
management or a specific network service is necessary, then consider the following
subsections for configuring network services more securely.
Set up a unique account for each administrator for access to any necessary network service.
The following commands present an example that creates an account (e.g., ljones) with a
privilege level (e.g., 0). This account is local to the switch only. Privilege level 0 is the lowest
level on Cisco switches and allows a very small set of commands. The administrator can go to
a higher level (e.g., 15) from level 0 using the enable command.
Switch(config)# username ljones privilege 0
Switch(config)# username ljones secret g00d-P5WD
6. Securing Switch Access
3.2.1. Domain Name System (DNS) - TCP Port 53 and UDP Port 53
To specify a DNS server for name resolution, use the ip name-server command. This
command can be used to set up to six DNS servers. The following example sets the IP
address of 10.1.200.97 as the DNS server.
Switch(config)# ip name-server 10.1.200.97
To enable the DNS-based hostname-to-address translation, use the ip domain-lookup
command. This command allows DNS broadcast queries from the switch to be resolved by a
DNS server.
Switch(config)# ip domain-lookup
In some cases, the administrator may not want this DNS query capability. For example, if the
administrator types a command incorrectly, then the switch may attempt to resolve the
mistyped string to an IP address. This attribute can cause undesirable delay. Thus, use the
following command to disable the capability if necessary.
Switch(config)# no ip domain-lookup
To specify a default domain name to complete unqualified hostnames, use the ip domain-
name command. The following example sets the domain name to test.lab using this
command.
Switch(config)# ip domain-name test.lab
3.2.2. Secure Shell (SSH) - TCP Port 22
If remote access to a switch is necessary, then consider using SSH instead of telnet. SSH
provides encrypted connections remotely. However, only IOS versions that include
encryption support SSH. Also, to include SSH capability the switch may need to have its IOS
updated.
Before using SSH on the switch, the administrator must configure the switch with the
following commands: hostname, ip domain-name, and crypto key generate rsa. The
following example sets the hostname to Switch.
Switch(config)# hostname Switch
Refer to the previous subsection on DNS for an example using the ip domain-name
command.
The crypto key generate rsa command depends on the hostname and ip domain-name
commands. This crypto command generates a Rivest, Shamir, Adleman (RSA) key pair, which
includes one public RSA key and one private RSA key.
7. Securing Switch Access
The following example shows this crypto command, including the two parameters, the name
for the keys (e.g., switch.test.lab) and the size of the key modulus (e.g., 1024), that are
prompted for.
Switch(config)# crypto key generate rsa
The name for the keys will be: switch.test.lab
Choose the size of the key modulus in the range of 360 to 2048 for your General Purpose
Keys. Choosing a key modulus greater than 512 may take a few minutes.
How many bits in the modulus[512]? 1024
Generating RSA keys.... [OK].
To restrict SSH access to the switch, configure an extended access-list (e.g., 101) that allows
only the administrators’ systems to make these connections and apply this access-list to the
virtual terminal lines. Allow only SSH connections to these lines by using the transport input
ssh command. Set the privilege level to 0, and set the exec-timeout period to 9 minutes and
0 seconds to disconnect idle connections to these lines. Finally, use the login local command
to enable local account checking at login that will prompt for a username and a password.
The following commands show the example configuration for SSH on the virtual terminal
lines.
Switch(config)# no access-list 101
Switch(config)# access-list 101 remark Permit SSH access from
administrators’ systems
Switch(config)# access-list 101 permit tcp host 10.1.6.1 any eq 22 log
Switch(config)# access-list 101 permit tcp host 10.1.6.2 any eq 22 log
Switch(config)# access-list 101 deny ip any any log
Switch(config)# line vty 0 4
Switch(config-line)# access-class 101 in
Switch(config-line)# transport input ssh
Switch(config-line)# privilege level 0
Switch(config-line)# exec-timeout 9 0
Switch(config-line)# login local
The login local command cannot be used with AAA. Instead, use the login authentication
command.
3.2.3. Telnet Server - TCP Port 23
If the administrator cannot upgrade the switch to an IOS version with SSH, then restrict
telnet access to the switch. Configure an extended access-list (e.g., 102) that allows only the
administrators’ systems to make these connections and apply this access-list to the virtual
terminal lines. Allow only telnet connections to these lines by using the transport input
8. Securing Switch Access
telnet command. Set the privilege level to 0, and set the exec-timeout period to 9 minutes
and 0 seconds to disconnect idle connections to these lines. Finally, use the login local
command to enable local account checking at login that will prompt for a username and a
password.
The following commands show the example configuration for telnet on the virtual terminal
lines.
Switch(config)# no access-list 102
Switch(config)# access-list 102 remark Permit telnet access from
administrators’ systems
Switch(config)# access-list 102 permit tcp host 10.1.6.1 any eq 23 log
Switch(config)# access-list 102 permit tcp host 10.1.6.2 any eq 23 log
Switch(config)# access-list 102 deny ip any any log
Switch(config)# line vty 0 4
Switch(config-line)# access-class 102 in
Switch(config-line)# transport input telnet
Switch(config-line)# privilege level 0
Switch(config-line)# exec-timeout 9 0
Switch(config-line)# login local
The login local command cannot be used with AAA. Instead, use the login authentication
command.
3.2.4. Hyper Text Transfer Protocol (HTTP) - TCP Port 80
An HTTP server is included in IOS to allow remote administration of the switch through a
web interface. If web-based administration of the switch is not necessary, then disable the
HTTP server using the following command.
Switch(config)# no ip http server
3.2.5. Simple Network Management Protocol (SNMP) - UDP Ports 161, 162
SNMP is a service used to perform network management functions using a data structure
called a Management Information Base (MIB). Unfortunately, SNMP version 1 is widely
implemented but not very secure, using only clear-text community strings for access to
information on the switch, including its configuration file.
If SNMP is not being used, then executing the following commands will disable the service:
Switch(config)# no snmp-server community
Switch(config)# no snmp-server enable traps
Switch(config)# no snmp-server system-shutdown
9. Securing Switch Access
Switch(config)# no snmp-server
3.2.6. Cisco Discovery Protocol (CDP)
CDP provides a capability for sharing system information between Cisco routers, switches
and other products. Some of this information includes VLAN Trunking Protocol (VTP) domain
name, native VLAN and duplex. If this information is not required for operational needs,
then it should be disabled globally and disabled on each interface (e.g., physical, Virtual LAN
{VLAN}). To disable CDP globally on a switch, use the no cdp run command. To disable CDP
on an interface on a switch, use the no cdp enable command. The following commands
provide an example, including how to disable advertising CDP version 2 on a switch.
Switch(config)# no cdp run
Switch(config)# no cdp advertise-v2
Switch(config)# interface range fastethernet 0/1 - 24
Switch(config-if)# no cdp enable
If CDP is necessary, then it needs to be enabled globally and enabled only on interfaces
where it is necessary. The following commands provide an example of disabling CDP on one
interface while enabling CDP on another interface.
Switch(config)# cdp run
Switch(config)# interface VLAN10
Switch(config-if)# no cdp enable
Switch(config)# interface VLAN101
Switch(config-if)# cdp enable
4. Port Security
Layer 2 interfaces on a Cisco switch are referred to as ports. A switch that does not provide port security
allows an attacker to attach a system to an unused, enabled port and to perform information gathering
or attacks. A switch can be configured to act like a hub, which means that every system connected to
the switch can potentially view all network traffic passing through the switch to all systems connected to
the switch. Thus, an attacker could collect traffic that contains usernames, passwords or configuration
information about the systems on the network.
Port security limits the number of valid MAC addresses allowed on a port. All switch ports or interfaces
should be secured before the switch is deployed. In this way the security features are set or removed as
required instead of adding and strengthening features randomly or as the result of a security incident.
Note that port security cannot be used for dynamic access ports or destination ports for Switched Port
Analyzer. Still, use port security for active ports on the switch as much as possible.
The following examples show the commands to shut down a single interface or a range of interfaces.
10. Securing Switch Access
Single interface:
Switch(config)# interface fastethernet 0/1
Switch(config-if)# shutdown
Range of interfaces:
Switch(config)# interface range fastethernet 0/2 - 8
Switch(config-if-range)# shutdown
The administrator can enable aging for statically configured MAC addresses on a port using the
switchport port-security aging static command. The aging time command (e.g., switchport port-security
aging time time) can be set in terms of minutes. Also, the aging type command can be set for inactivity
(e.g., switchport port-security aging type inactivity), which means that the addresses on the configured
port age out only if there is no data traffic from these addresses for the period defined by the aging time
command. This feature allows continuous access to a limited number of addresses.
The following example shows the commands for restricting a port statically on a Catalyst 3550 switch.
Switch(config-if)# switchport port-security
Switch(config-if)# switchport port-security violation shutdown
Switch(config-if)# switchport port-security maximum 1
Switch(config-if)# switchport port-security mac-address 0000.0200.0088
Switch(config-if)# switchport port-security aging time 10
Switch(config-if)# switchport port-security aging type inactivity
To restrict a port dynamically on a Catalyst 3550 switch use the following commands. Note that the
aging commands cannot be used with sticky MAC addresses.
Switch(config-if)# switchport port-security
Switch(config-if)# switchport port-security violation shutdown
Switch(config-if)# switchport port-security maximum 1
Switch(config-if)# switchport port-security mac-address sticky
Note that when a port security violation occurs, the port will immediately become error-disabled and its
LED will turn off. The switch also sends an SNMP trap, logs a syslog message and increments the
violation counter. When a port is in the error-disabled state, the administrator can bring it out of this
state by entering the errdisable recovery cause psecure-violation global configuration command or by
entering the shutdown and no shutdown interface configuration commands.
The following example creates a strict security macro called unused to secure the ports, or interfaces, on
a 3550 switch:
11. Securing Switch Access
Switch(config)# macro name unused
macro description unused
shutdown
description *** UNUSED Port ***
no ip address
switchport
# Set secure defaults for access mode
switchport mode access
switchport access vlan 999
switchport nonegotiate
# Set secure defaults for trunking mode
switchport trunk encapsulation dot1q
switchport trunk native vlan 999
switchport trunk allowed vlan none
# Only learn source MAC addresses
switchport block multicast
switchport block unicast
# Enable MAC control and set secure options
switchport port-security
switchport port-security maximum 1
switchport port-security aging time 10
switchport port-security aging type inactivity
# Apply any switch-wide access-lists
ip access-group ip-device-list in
mac access-group mac-device-list in
# Set secure defaults for misc. flags and protocols
mls qos cos override
dot1x port-control force-unauthenticated
storm-control broadcast level 0.00
storm-control multicast level 0.00
storm-control unicast level 0.00
no cdp enable
# Default Spanning-tree to secure host settings
spanning-tree portfast
spanning-tree bpdufilter enable
spanning-tree bpduguard enable
spanning-tree guard root
@
12. Securing Switch Access
After creating this strict security macro, unused, apply the macro to all switch ports as a secure baseline
with the following commands:
Switch(config)# interface range fasteth0/1 – 24 , giga0/1 – 2
Switch(config-if-range)# macro apply unused
5. System Availability
Many attacks exist and more are being created that cause denial of service, either partially or
completely, to systems or networks. Switches are just as susceptible to these attacks. These attacks
focus on making resources (e.g., system processor, bandwidth) unavailable.
The following countermeasures will mitigate the vulnerabilities to system availability on each switch:
To prevent fast flooding attacks and to guarantee that even the lowest priority processes get
some processor time use the scheduler interval command. The following example sets the
maximum time before running the lowest priority process to 500 milliseconds access.
Switch(config)# scheduler interval 500
Another way to guarantee processor time for processes is to use the scheduler allocate
command. This command sets the interrupt time and the process time
The following example makes 10 percent of the processor available for process tasks, with an
interrupt time of 4000 microseconds and a process time of 400 microseconds.
Switch(config)# scheduler allocate 4000 400
Use the following command on each interface to turn Flow Control off.
Switch(config-if)# flowcontrol receive off
UDLD should be disabled globally and on every interface where it is not required. To disable
UDLD globally use the following command.
Switch(config)# no udld enable
To disable UDLD on each interface use one of the following commands, depending on the switch
model and IOS version.
Switch(config-if)# no udld port
Switch(config-if)# udld disabled
To help prevent the SYN Flood attack the administrator can set the amount of time the switch
will wait while attempting to establish a TCP connection. The following command sets the wait
time to 10 seconds.
13. Securing Switch Access
Switch(config)# ip tcp synwait-time 10
In order for voice traffic to have priority through a network it must be easy to determine which
packets are voice, even if the voice signaling and data are encrypted. However, anyone with a
network analyzer can also easily pick out the voice traffic. This additional risk must be considered
in order to decide if Quality of Service (QoS) parameters will be configured for voice traffic.
The following command will turn on QoS features:
Switch(config)# mls qos
The following command will force best effort priority for an untrusted system.
Switch(config-if)# mls qos cos 0
Switch(config-if)# mls qos cos override
The following command will accept the priority assigned by a trusted system (e.g., voice
gateway).
Switch(config-if)# mls qos trust dscp
The following commands will accept the priority assigned by an IP Phone but will force best
effort priority for any attached computer.
Switch(config-if)# mls qos trust dscp
Switch(config-if)# mls qos trust device cisco-phone
Switch(config-if)# switchport priority extend cos 0
Isolate voice traffic in separate subnets using VLANs, and control the interactions between voice
and data subnets.
6. Virtual Local Area Networks
A Virtual Local Area Network (VLAN) is a broadcast domain. All members of a VLAN receive every
broadcast packet sent by members of the same VLAN, but they do not receive packets sent by members
of a different VLAN. All members of a VLAN are grouped logically into the same broadcast domain
independent of their physical location. Adding, moving or changing members is achieved via software
within a switch. Routing is required for communication among members of different VLANs.
The next subsections describe the vulnerabilities and corresponding countermeasures for the following
areas: VLAN 1, Private VLAN, VTP, Trunk Auto-Negotiation, VLAN Hopping and Dynamic VLAN
Assignment.
14. Securing Switch Access
6.1. VLAN1
Cisco switches use VLAN 1 as the default VLAN to assign to their ports, including their
management ports. Additionally, Layer 2 protocols, such as CDP and VTP, need to be sent on
a specific VLAN on trunk links, so VLAN 1 was selected. In some cases, VLAN 1 may span the
entire network if not appropriately pruned. It also provides attackers easier access and
extended reach for their attacks.
Do not use VLAN 1 for either out-of-band management or in-band management.
To provide out-of-band management that separates management traffic from user traffic,
use the following commands as an example.
Create the out-of-band management VLAN.
Switch(config)# vlan 6
Switch(config-vlan)# name ADMINISTRATION-VLAN
Create a management IP address and restrict access to it. Also, enable the interface.
Switch(config)# no access-list 10
Switch(config)# access-list 10 permit 10.1.6.1
Switch(config)# access-list 10 permit 10.1.6.2
Switch(config)# interface vlan 6
Switch(config-if)# description ADMIN-VLAN
Switch(config-if)# ip address 10.1.6.121 255.255.255.0
Switch(config-if)# ip access-group 10 in
Switch(config-if)# no shutdown
Assign the management VLAN to the dedicated interface.
Switch(config)# interface fastethernet 4/1
Switch(config-if)# description Out-Of-Band Admin
Switch(config-if)# switchport mode access
Switch(config-if)# switchport access vlan 6
Switch(config-if)# no shutdown
Ensure all trunk ports will not carry the management VLAN (e.g., 6).
Switch(config)# interface range gigabitethernet 6/15 - 16
Switch(config-if)# switchport trunk allowed vlan remove 6
Assigned the following name for VLAN 1.
15. Securing Switch Access
Switch# vlan 1
Switch(vlan)# name *** DEFAULT VLAN - Do NOT Use! ***
Assign all inactive interfaces to an unused VLAN other than VLAN 1 and shut down these
interfaces. Note that unused VLANs are not routable.
Switch# vlan 999
Switch(vlan)# name *** BIT BUCKET for unused ports ***
Switch(vlan)# shutdown
Switch(vlan)# exit
Switch(config)# interface range fastethernet 5/45 - 48
Switch(config-if)# switchport mode access
Switch(config-if)# switchport access vlan 999
Switch(config-if)# shutdown
Assign all interfaces to VLANs other than VLAN 1.
Switch(config)# interface fastethernet 0/1
Switch(config-if)# switchport mode access
Switch(config-if)# switchport access vlan 999
6.2. Private VLAN (PVLAN)
In certain instances where similar systems do not need to interact directly, PVLANs provide
additional protection. A primary PVLAN defines the broadcast domain with which the
secondary PVLANs are associated. The secondary PVLANs may either be isolated PVLANs or
community PVLANs. Hosts on isolated PVLANs communicate only with promiscuous ports,
and hosts on community PVLANs communicate only among themselves and with associated
promiscuous ports. This configuration provides fine-grained Layer 2 isolation control for
each system.
A configuration with multiple servers on a single VLAN should use PVLANs for Layer 2
separation among the servers. Routers should be on promiscuous ports and servers on an
isolated PVLAN. Only servers that need to communicate directly with other servers should
be on a community PVLAN. Implement VACLs on the primary PVLAN to filter traffic
originated by and routed to the same segment.
The following example creates a PVLAN with an NTP server on a promiscuous port and two
isolated servers.
Switch# vlan 200
Switch(vlan)# name SERVERS-PRIVATE
Switch(vlan)# private-vlan primary
16. Securing Switch Access
Switch(vlan)# private-vlan association 201
Switch# vlan 201
Switch(vlan)# name SERVERS-ISOLATED
Switch(vlan)# private-vlan isolated
Switch(config)# interface GigabitEthernet6/1
Switch(config-if)# description SERVER 1
Switch(config-if)# switchport private-vlan host-association 200 201
Switch(config-if)# switchport mode private-vlan host
Switch(config-if)# no shutdown
Switch(config)# interface GigabitEthernet6/2
Switch(config-if)# description SERVER 2
Switch(config-if)# switchport private-vlan host-association 200 201
Switch(config-if)# switchport mode private-vlan host
Switch(config-if)# no shutdown
Switch(config)# interface GigabitEthernet6/6
Switch(config-if)# description SERVER NTP Server
Switch(config-if)# switchport mode private-vlan promiscuous
Switch(config-if)# switchport private-vlan mapping 200 201
Switch(config-if)# no shutdown
6.3. Virtual Trunking Protocol (VTP)
VTP is a Cisco-proprietary Layer 2 messaging protocol used to distribute VLAN configuration
information over trunks. VTP allows the addition, deletion and renaming of VLANs on a
network-wide basis, which allows switches to have a consistent VLAN configuration within a
VTP management domain. All switches in the same management domain share their VLAN
information, and a switch may participate in only one VTP management domain.
A switch may be in one of three VTP modes: server, transparent and client.
By default, switches share VLAN information without any authentication. Thus, inaccurate
VLAN settings can propagate throughout a VTP domain. Compounding this problem,
switches come with VTP in server mode by default, and a server with a higher configuration
revision number in its VTP database supersedes one with a lower number. It is entirely
possible for a single switch, which has undergone a sufficient number of VTP
reconfigurations, to completely overwrite or eliminate all VLAN assignments of an
operational network by just connecting it to the network. Such an attack would not
necessarily have to be malicious; simply moving a lab switch to an operational network could
have this effect.
17. Securing Switch Access
It is clear that VTP simplifies administration, particularly where large numbers of VLANs are
deployed. Nevertheless, VTP is sufficiently dangerous that its use is discouraged. If possible,
turn off VTP by using the following commands.
Switch(config)# no vtp mode
Switch(config)# no vtp password
Switch(config)# no vtp pruning
If VTP is necessary, then consider the following settings. Set up VTP management domains
appropriately. All switches in the same management domain share their VLAN information.
A switch can only participate in one VTP management domain. Use the following command
as an example to set the VTP management domain.
Switch(config)# vtp domain test.lab
Assign a strong password to the VTP management domain. All switches within the domain
must be assigned the same password. This prevents unauthorized switches from adding
themselves to the VTP management domain and passing incorrect VLAN information. Use
password protection on VTP domains as shown in the command in the following example.
Switch(config)# vtp password g00d-P5WD
Enable VTP pruning and use it on appropriate ports. By default, VLANs numbered 2 through
1000 are pruning-eligible.
Switch(config)# vtp pruning
Set VTP to transparent mode with the following command.
Switch(config)# vtp transparent
6.4. Trunk Auto-Negotiation
A trunk is a point-to-point link between two ports, typically on different network systems,
that aggregates packets from multiple VLANs. Cisco implements two types of trunks: IEEE
802.1q, which is an open standard; and ISL, which is a Cisco proprietary standard.
A port may use the Dynamic Trunking Protocol (DTP) to automatically negotiate which
trunking protocol it will use, and how the trunking protocol will operate. By default, a Cisco
Ethernet port's default DTP mode is "dynamic desirable", which allows the port to actively
attempt to convert the link into a trunk. Even worse, the member VLANs of the new trunk
are all the available VLANs on the switch. If a neighboring port's DTP mode becomes "trunk",
"dynamic auto", or "dynamic desirable", and if the two switches support a common trunking
protocol, then the line will become a trunk automatically, giving each switch full access to all
18. Securing Switch Access
VLANs on the neighboring switch. An attacker who can exploit DTP may be able to obtain
useful information from these VLANs.
Do not use DTP if possible. Assign trunk interfaces to a native VLAN other than VLAN 1.
Switch(config)# interface fastethernet 0/1
Switch(config-if)# switchport mode trunk
Switch(config-if)# switchport trunk native vlan 998
Put non-trunking interfaces in permanent non-trunking mode without negotiation.
Switch(config)# interface fastethernet 0/1
Switch(config-if)# switchport mode access
Switch(config-if)# switchport nonegotiate
Put trunking interfaces in permanent trunking mode, without negotiation.
Switch(config)# interface fastethernet 0/1
Switch(config-if)# switchport mode trunk
Switch(config-if)# switchport nonegotiate
Specifically list all VLANs that are part of the trunk.
Switch(config)# interface fastethernet 0/1
Switch(config-if)# switchport trunk allowed vlan 6, 10, 20, 101
Use a unique native VLAN for each trunk on a switch.
Switch(config)# interface fastethernet 0/1
Switch(config-if)# switchport trunk native vlan 998
Switch(config)# interface fastethernet 0/2
Switch(config-if)# switchport trunk native vlan 997
6.5. VLAN Hopping
In certain situations it is possible to craft a packet in such a way that a port in trunking mode
will interpret a native VLAN packet as though it were from another VLAN, allowing the
packet to become a member of a different VLAN. This technique is known as VLAN hopping.
Using VLAN hopping, a malicious intruder who has access to one local network might inject
packets into another local network in order to attack machines on the target network.
Disable CDP, VTP and DTP on each switch if possible. Assign a shutdown VLAN as the 'native'
VLAN of each of the trunks, and do not use this VLAN for any other purpose.
19. Securing Switch Access
Switch(config)# interface fastethernet 0/1
Switch(config-if)# switchport trunk native vlan 998
Switch(config-if)# no cdp enable
Restrict the VLANs on a trunk to only those that are necessary for that trunk, as described in
the Trunk Auto-Negotiation subsection previously.
7. Spanning Tree Protocol
Spanning Tree Protocol (STP), also known as 802.1d, is a Layer 2 protocol designed to prevent loops
within switched networks. Typically, STP goes through a number of states (e.g., block, listen, learn, and
forward) before a port is able to pass user traffic.
A vulnerability associated with STP is that a system within the network can actively modify the STP
topology. There is no authentication that would prevent such an action. The bridge ID, a combination of
a two-byte priority and a six-byte MAC address, determines the root bridge within a network.
7.1. STP Portfast Bridge Protocol Data Unit (BPDU) Guard
The STP Portfast BPDU Guard allows network administrators to enforce the STP topology on
ports enabled with Portfast. Systems attached to ports with the Portfast BPDU Guard
enabled will not be allowed to modify the STP topology. Upon reception of a BPDU message,
the port is disabled and stops passing all network traffic.
This feature can be enabled both globally and individually for ports configured with Portfast.
By default, STP BPDU guard is disabled. The following command is used to globally enable
this feature on a Cisco 3550 series switch.
Switch(config)# spanning-tree portfast bpduguard default
Use the following command to verify the configuration.
Switch> show spanning-tree summary totals
To enable this feature at the interface level on a Cisco 3550 series switch, use the following
command.
Switch(config-if)# spanning-tree bpduguard enable
When STP BPDU guard disables a switch port, it can be configured to recover automatically,
or it can be manually re-enabled by a network administrator. The following commands can
be used to configure a port to automatically recover when placed in a disabled state.
In the example below, a port placed in an error-disabled state will recover after 400 seconds.
20. Securing Switch Access
Switch(config)# errdisable recovery cause bpduguard
Switch(config)# errdisable recovery interval 400
7.2. STP Root Guard
The STP Root Guard feature is another mechanism used to protect the STP topology. Unlike
the BPDU Guard, STP Root Guard allows participation in STP as long as the attached system
does not attempt to become the root. If the Root Guard is activated, then the port recovers
automatically after it quits receiving the superior BPDUs that would make it the root. Root
Guard can be applied to one or more ports on edge switches and on internal switches on a
network. In general, apply this feature to those ports on each switch that should not become
the root.
The following command is used within the interface configuration mode to enable STP Root
Guard on the Cisco 3550 series switch.
Switch(config-if)# spanning-tree guard root
8. Access Control Lists
A switch with either no access control list (ACL) or a permissive ACL applied to its interfaces allows broad
access for TCP/IP connections (e.g., FTP, telnet, DNS, HTTP, SNMP, ICMP) through the switch to any
system (e.g., critical server) on the protected network.
In preparation for implementing ACLs, categorize systems attached to the switches into groups that use
the same network services. Grouping systems this way helps reduce the size and complexity of
associated ACLs.
ACLs can permit or deny each packet based on the first access control statement that the packet
matches. There are different types of access control lists: Port Access Control List (PACL), Router Access
Control List (RACL) and VLAN Access Control List (VACL).
8.1. Port Access Control List (PACL)
PACLs are used to restrict the packets allowed into a given port. There are two types of
PACLs, IP PACLs based on IP access lists and MAC PACLs based on MAC access lists. IP PACLs
only filter packets with an IP ethertype. Creating a standard or extended IP access list and
applying the access list to a switchport interface is all that is required to implement IP PACLs.
Given an IOS that supports Unicast MAC Filtering, the following commands are an example
of using PACLs to restrict port access to one specific MAC address and IP access to one
specific IP address from that MAC address.
Switch(config)# mac access-list extended host-mac
21. Securing Switch Access
Switch(config-ext-macl)# permit host 0000.0101.0011 any
Switch(config-ext-macl)# exit
Switch(config)# ip access-list extended host-ip
Switch(config-ext-nacl)# permit ip host 10.1.101.11 any
Switch(config-ext-nacl)# exit
Switch(config)# interface fa0/2
Switch(config-if)# mac access-group host-mac in
Switch(config-if)# ip access-group host-ip in
Another way to use PACLs is in place of static MAC addresses and port security. Allowed
MAC and IP addresses could be pooled and viewed from a switch wide perspective. Consider
the following commands as an example of this pooled addressing security.
Switch(config)# mac access-list extended mac-device-list
Switch(config-ext-macl)# permit host 0000.0101.0011 any
Switch(config-ext-macl)# permit host 0000.0101.0012 any
Switch(config-ext-macl)# permit host 0000.0101.0013 any
Switch(config-ext-macl)# permit host 0000.0101.0014 any
Switch(config-ext-macl)# permit host 0000.0010.0003 any
Switch(config-ext-macl)# permit host 0000.0020.0005 any
Switch(config)# ip access-list extended ip-device-list
Switch(config-ext-nacl)# permit ip host 10.1.101.11 any
Switch(config-ext-nacl)# permit ip host 10.1.101.12 any
Switch(config-ext-nacl)# permit ip host 10.1.101.13 any
Switch(config-ext-nacl)# permit ip host 10.1.101.14 any
Switch(config-ext-nacl)# permit ip host 10.1.10.3 any
Switch(config-ext-nacl)# permit ip host 10.1.20.5 any
Switch(config)# interface range fa0/1 - 24
Switch(config-if-range)# ip access-group ip-device-list in
Switch(config-if-range)# mac access-group mac-device-list in
8.2. Router Access Control List (RACL)
A RACL can restrict packets into or out of a given Layer 3 interface. A RACL is configured and
applied identically to a router ACL, except a RACL is applied to a VLAN interface.
Switch(config)# access-list 1 remark Simple Example
Switch(config)# access-list 1 permit any
Switch(config)# interface vlan 6
Switch(config-if)# ip access-group 1 in
22. Securing Switch Access
8.3. VLAN Access Control List (VACL)
VACLs use VLAN Maps that are configured like route-maps on routers. VLAN Maps can be
applied to filter all traffic into, through and out of a specific VLAN. The same VLAN Map
filters bridged, inbound and outbound packets for the VLAN. The following example will
block all TCP packets from VLAN 6 while allowing all other packets through.
Switch(config)# no access-list 101
Switch(config)# access-list 101 remark Simple TCP Example
Switch(config)# access-list 101 permit tcp any any
Switch(config)# vlan access-map vlan6-map 10
Switch(config-access-map)# match ip address 101
Switch(config-access-map)# action drop
Switch(config-access-map)# exit
Switch(config)# vlan access-map vlan6-map 20
Switch(config-access-map)# action forward
Switch(config-access-map)# exit
Switch(config)# vlan filter vlan6-map vlan-list 6
9. Logging and Debugging
Poor configuration and monitoring of the logging and debugging capabilities on a switch may lead to
inadequate information when an attack occurs against the switch or the networks connected to it.
Problems can also arise if logging is enabled but not managed properly. Log files maintained on the
switch are at risk of being overwritten since there is limited space on the switch itself to store logging
information. Also, logs that reside on the switch may be subject to erasure or compromise by an
attacker.
9.1. Logging Configuration
Enable logging on each switch with the following command.
Switch(config)# logging on
The following command shows how to direct logs to a log host. Note that IOS can support
multiple log hosts; the administrator just uses the logging <IP address> command for each
log host on the network.
Switch(config)# logging 10.1.6.89
For each access-list on each switch, set the log keyword for each access-list statement that
denies network traffic through the switch or that allows or denies access to the switch itself.
The following command shows an example access-list statement with the log keyword.
23. Securing Switch Access
Switch(config)# access-list 101 deny ip any any log
The administrator needs to configure the trap level for syslog on each switch to determine
which logs will be sent to the log host. The following shows the command to set the trap
level, along with description of the various trap levels.
Switch(config)# logging trap level
where level is the number or keyword that corresponds to one of the following eight syslog
severity levels
Number Keyword Message Examples
0 Emergencies System is unusable
1 Alerts Immediate action needed
2 Critical Critical conditions
3 Errors Error conditions
4 Warnings Warning conditions
5 Notifications Exit global configuration mode
6 Informational Access-list statement match
7 Debugging Debugging messages
The syslog facility can also be set on the switch. Use the following command to do this.
Switch(config)# logging facility facility-type
where facility-type is one of the following keywords
local0 local3 local6
local1 local4 local7 (default)
local2 local5 syslog
Each system status message logged in the system logging process has a sequence reference
number applied. The following command makes the sequence number for each message
visible by displaying the number with the message.
Switch(config)# service sequence-numbers
9.2. Time Information
Configure each switch and each log host to point to at least two different reliable
timeservers to ensure accuracy and availability of time information and to protect against
denial-of-service attacks against a single timeserver.
24. Securing Switch Access
For example, the following command designates the addresses of a timeserver and the
interface for the source address to be used in the NTP messages sent from the switch to the
timeserver.
Switch(config)# ntp server 10.1.200.94 source Loopback0 prefer
Cisco switches offer support for NTP authentication to prevent accidental or malicious
changes of the system clock. For example, the following commands enable NTP
authentication, create an authentication key (e.g., aGr8key!) associated with a key number
(e.g., 42), identify that key number as required for authentication, and configure an NTP
server with associated key.
Switch(config)# ntp authenticate
Switch(config)# ntp authentication-key 42 md5 aGr8key!
Switch(config)# ntp trusted-key 42
Switch(config)# ntp server 10.1.200.94 key 42 prefer
Note that when a switch is configured to use NTP for time synchronization, the switch also
becomes an NTP server. Unless the switch is meant to act as an NTP server on the network,
NTP should be disabled on all interfaces that do not pass NTP traffic.
Switch(config-if)# ntp disable
In addition to referencing timeservers, the switch should include the date and the time when
a log message or a debug message is sent. To reflect the date and the time in these
messages, timestamps need to be set on the switch. Configure timestamps for logging and
debugging with the following commands.
Switch(config)# service timestamp log datetime msec localtime show-timezone
Switch(config)# service timestamp debug datetime msec localtime show-timezone
where
datetime– Provides the date and the time
msec– Include milliseconds with the time
localtime– Shows time in terms of the local time
show-timezone– Indicates the time zone
If the switches being managed are in multiple timezones, then use Greenwich Mean Time
(GMT) for the timezone for all the switches. Otherwise, use the local timezone on the switch.
The following commands show an example of setting the timezone for Eastern Standard
Time (e.g., EST) and setting the switch to automatically change for daylight savings time
(e.g., EDT).
25. Securing Switch Access
Switch(config)# clock timezone EST –5
Switch(config)# clock summer-time EDT recurring
10. Authentication, Authorization, and Accounting
Typically, remote administrator access to a Cisco switch requires a password but no username. There is
no accountability for which administrator has connected to the switch. Also, no mechanism is set by
default for what an administrator is allowed to do.
Cisco provides three security mechanisms called Authentication, Authorization and Accounting (AAA)
that can address these vulnerabilities. Configure AAA on a switch in conjunction with a security server.
Use of AAA with a security server provides the security mechanisms described below.
Authentication– This mechanism identifies remote and local users before granting access to
the switch.
Authorization– This mechanism controls access to remote services based on defined attributes
associated with the authenticated user.
Accounting– This mechanism provides a secure logging capability for recording services accessed
by a user as well as a user’s bandwidth consumption
AAA allows for security servers to use three types of protocols: RADIUS, TACACS+ and Kerberos.
This setting is important, especially if the administrator is configuring the switch remotely.
The following command shows an example of how to create a local user, including the username (e.g.,
ljones) with a privilege level (e.g., 0) and a password (e.g., g00d-P5WD) that will be MD5-encrypted.
Switch(config)# username ljones privilege 0 secret g00d-P5WD
To enable AAA, use the following command.
Switch(config)# aaa new-model
Specifying a security server or set of security servers can be done using the following commands for
TACACS+ and RADIUS:
{tacacs-server | radius-server} host ip-address
{tacacs-server | radius-server} key key
One important difference to note about using Kerberos, versus RADIUS or TACACS+, is that additional
configuration is required to allow the switch to communicate with the key distribution center (KDC).
26. Securing Switch Access
10.1. Authentication
It is necessary to create a login authentication method list(s) (specifying which types of
security server protocols will be used and in what order). The following shows the syntax for
the command to enable authentication at login at the switch, using either the default list or
a custom list and using authentication methods.
aaa authentication login {default | list-name } method1 [method2...]
where the methods include the following
group radius: uses all RADIUS servers listed
group tacacs+: uses all TACACS+ servers listed
group group-name: uses servers defined by group-name (RADIUS or TACACS+)
krb5: uses Kerberos
An example for configuring a switch to provide TACACS+ authentication using a group name
of aaa-admin-servers is the following:
Switch(config)# aaa group server tacacs+ aaa-admin-servers
Switch(config)# aaa authentication login default group aaa-admin-servers
The switch can provide a local login method if for some reason the AAA server is unavailable.
It will not allow a user that has been denied access by the AAA server to login using the local
authentication mechanism.
The following example shows the use of local as a fallback.
Switch(config)# aaa authentication login aaa-fallback group aaa-admin-servers local
The last step is to apply the authentication method list(s) to the desired lines. The following
shows the syntax for the command to enable authentication services to a specific line or a
group of lines, applying either the default list or a custom list.
login authentication {default | list-name}
The following example would apply the named list, aaa-fallback, to the console line.
Switch(config)# line con 0
Switch(config-line)# login authentication aaa-fallback
10.2. Authorization
Similar to authentication, configuring authorization requires the security administrator to
define method lists. The following shows the syntax for the command to enable
27. Securing Switch Access
authorization of user access to systems on a network, using either the default list or a
custom list and using
aaa authorization {auth-proxy | network | exec | commands level | reverse-access |
configuration | ipmobile} {default | list-name} method1 [method2...]
Recommended authorization types include enabling authorization for the following:
auth-proxy: security policies are applied on a per-user basis
network: service requests
exec: initiation of an EXEC session
commands level: EXEC command execution at specified levels
reverse-access: reverse telnet session
configuration: download configurations from security server
ipmobile: IP Mobile services
An example of configuring a switch to provide TACACS+ authorization, using the aaa-admin-
servers group for EXEC and privileged EXEC commands, is the following:
Switch(config)# aaa authorization exec default group aaa-admin-servers
Switch(config)# aaa authorization commands 15 aaa-config group aaa-admin-servers if
authenticated
Applying named authorization lists is the final authorization configuration step. The
following shows the syntax for the command to enable authorization services to a specific
line or a group of lines.
authorization {arap | commands level | exec | reverse-access} {default | list-name}
To enable authorization services to the console line for commands at privilege level 15 (e.g.,
commands 15) with an authorization list (e.g., aaa-config), the administrator would use the
following example:
Switch(config)# line con 0
Switch(config-line)# authorization commands 15 aaa-config
10.3. Accounting
The final piece of AAA to configure is accounting. Cisco switches support accounting records
only for TACACS+ and RADIUS security servers. The following shows the syntax for the
command to enable accounting of requested services for security purposes when using
RADIUS or TACACS+.
28. Securing Switch Access
aaa accounting {system | network | exec | connection | commands level} {default | list-
name } {start-stop | stop-only | none} [method1 [method2...]]
The five types of accounting that can be specified include the following:
System: information for all system events (no support for named lists, must be default)
Network: information on all network service requests
Exec: information on user EXEC terminal sessions
Connection: information on all outbound connections
Commands level: information about all EXEC commands, at a certain privilege level, that are
issued
To control the amount of accounting records for events specified by a method list, use the
following:
start-stop: notices begin at start of event and continue until the end of the event
stop-only: send only a stop notice related to the event
none: no accounting
It is recommended that accounting be enabled for all five types, in particular accounting for
level 15 commands. The following example enables all five types and uses the default
accounting method, start-stop:
Switch(config)# aaa accounting exec default start-stop group aaa-admin-servers
Switch(config)# aaa accounting commands 15 default start-stop group aaa-admin-servers
Switch(config)# aaa accounting network default start-stop group aaa-admin-servers
Switch(config)# aaa accounting connection default start-stop group aaaadmin-servers
Switch(config)# aaa accounting system default start-stop group aaaadmin-servers
The following shows the syntax for the command to enable accounting services to a specific
line or a group of lines:
accounting {arap | commands level | exec | connection} {default | listname}
To enable accounting services to the console line for commands at privilege level 15 (e.g.,
commands 15) and for system-level events (e.g., exec), the administrator would use the
following example:
Switch(config)# line con 0
Switch(config-line)# accounting commands 15 default
Switch(config-line)# accounting exec default
To specify when accounting records are sent to security servers, enable interim accounting
records.
29. Securing Switch Access
Switch(config)# aaa accounting update {newinfo | periodic minutes}
By default, Cisco switches do not generate accounting records for failed login authentication
attempts when accounting is enabled. To enable these accounting records, use the following
command.
Switch(config)# aaa accounting send stop-record authentication failure
10.4. 802.1X Port-Based Authentication
The IEEE 802.1X standard is a port-based access control and authentication protocol.
Although the implementation of this standard is still evolving, it is currently available on
many of Cisco’s switches. It forces a client that is connected to a switch port to authenticate
to a server, such as Cisco’s Access Control Server, before gaining access to a network. The
client must be running 802.1X compliant software, which is available on certain operating
systems (e.g., Windows XP).
The following example enables 802.1X on a Cisco IOS switch on the interface Ethernet 1/0:
Switch(config)# aaa authentication dot1x default group radius
Switch(config)# dot1x system-auth-control
Switch(config)# interface Ethernet 1/0
Switch(config-if)# dot1x port-control auto
Switch(config-if)# dot1x host-mode single-host
