Muscles 3 McKinley and O’Laughlin Chapter 12

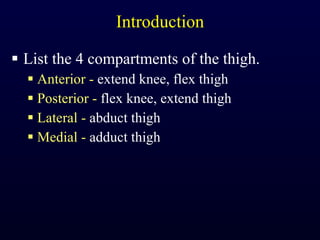

Introduction List the 4 compartments of the thigh. Anterior -  extend knee, flex thigh Posterior -  flex knee, extend thigh Lateral -  abduct thigh Medial -  adduct thigh

Introduction What structure forms the compartments of the thigh? Fascia lata

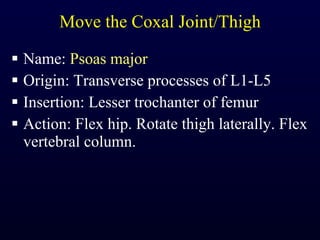

Move the Coxal Joint/Thigh Name:  Psoas major Origin: Transverse processes of L1-L5 Insertion: Lesser trochanter of femur Action: Flex hip. Rotate thigh laterally. Flex vertebral column.

Move the Coxal Joint/Thigh Name:  Iliacus Origin: Iliac fossa Insertion: Lesser trochanter of femur Action: Flex hip. Rotate thigh laterally.

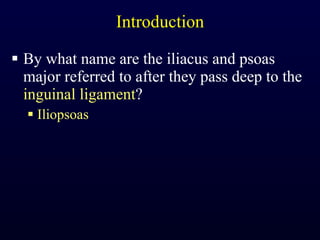

Introduction By what name are the iliacus and psoas major referred to after they pass deep to the  inguinal ligament ? Iliopsoas

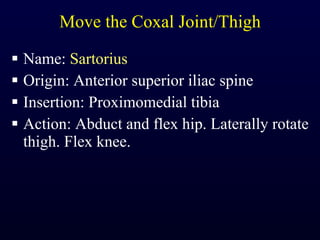

Move the Coxal Joint/Thigh Name:  Sartorius Origin: Anterior superior iliac spine Insertion: Proximomedial tibia Action: Abduct and flex hip. Laterally rotate thigh. Flex knee.

Move the Coxal Joint/Thigh Name:  Adductor longus Origin: Pubis (below crest) Insertion: Linea aspera (middle) Action: Adduct and flex hip. Laterally rotate thigh

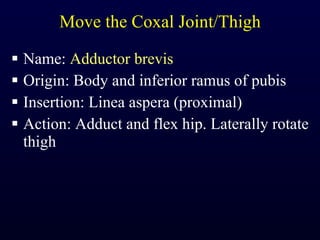

Move the Coxal Joint/Thigh Name:  Adductor brevis Origin: Body and inferior ramus of pubis Insertion: Linea aspera (proximal) Action: Adduct and flex hip. Laterally rotate thigh

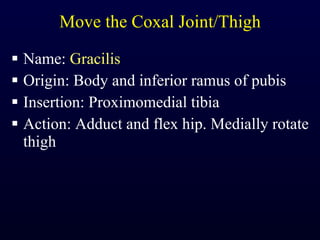

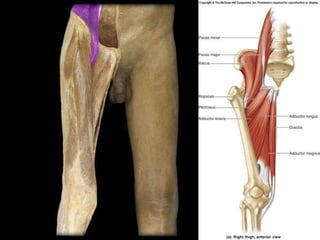

Move the Coxal Joint/Thigh Name:  Gracilis Origin: Body and inferior ramus of pubis Insertion: Proximomedial tibia Action: Adduct and flex hip. Medially rotate thigh

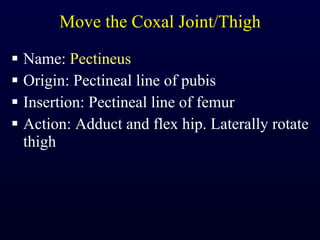

Move the Coxal Joint/Thigh Name:  Pectineus Origin: Pectineal line of pubis Insertion: Pectineal line of femur Action: Adduct and flex hip. Laterally rotate thigh

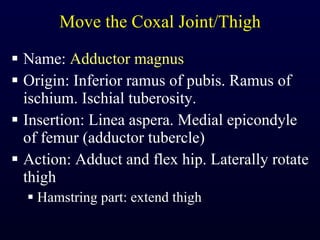

Move the Coxal Joint/Thigh Name:  Adductor magnus Origin: Inferior ramus of pubis. Ramus of ischium. Ischial tuberosity. Insertion: Linea aspera. Medial epicondyle of femur (adductor tubercle) Action: Adduct and flex hip. Laterally rotate thigh Hamstring part: extend thigh



Move the Coxal Joint/Thigh Name:  Tensor Fasciae Latae Origin: Anterior superior iliac spine. Anterior iliac crest. Insertion: Lateral tibial condyle via iliotibial tract. Action: Abduct hip. Medially rotate thigh.

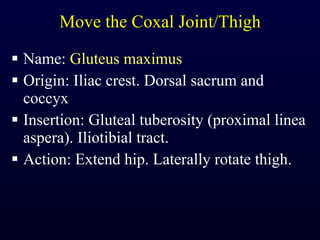

Move the Coxal Joint/Thigh Name:  Gluteus maximus Origin: Iliac crest. Dorsal sacrum and coccyx Insertion: Gluteal tuberosity (proximal linea aspera). Iliotibial tract. Action: Extend hip. Laterally rotate thigh.

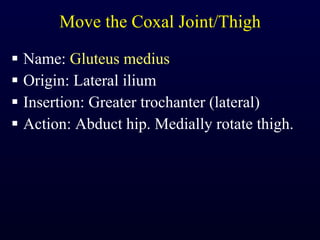

Move the Coxal Joint/Thigh Name:  Gluteus medius Origin: Lateral ilium Insertion: Greater trochanter (lateral) Action: Abduct hip. Medially rotate thigh.

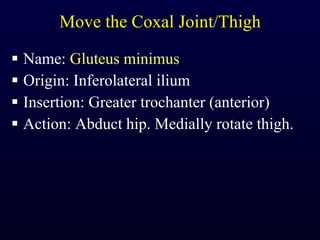

Move the Coxal Joint/Thigh Name:  Gluteus minimus Origin: Inferolateral ilium Insertion: Greater trochanter (anterior) Action: Abduct hip. Medially rotate thigh.

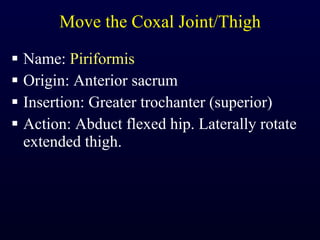

Move the Coxal Joint/Thigh Name:  Piriformis Origin: Anterior sacrum Insertion: Greater trochanter (superior) Action: Abduct flexed hip. Laterally rotate extended thigh.

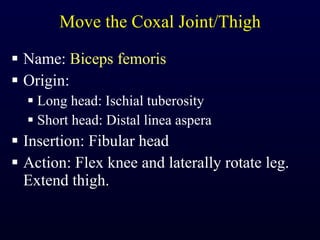

Move the Coxal Joint/Thigh Name:  Biceps femoris Origin:  Long head: Ischial tuberosity Short head: Distal linea aspera Insertion: Fibular head Action: Flex knee and laterally rotate leg. Extend thigh.


Move the Coxal Joint/Thigh Name:  Semimembranosus Origin: Ischial tuberosity Insertion: Posterior to medial tibial condyle Action: Flex knee and medially rotate leg. Extend thigh.

Move the Coxal Joint/Thigh Name:  Semitendinosus Origin: Ischial tuberosity Insertion: Proximomedial tibia Action: Flex knee and medially rotate leg. Extend thigh.



Move the Knee/Leg What is the collective name of the group of 4 extensors of the knee in the anterior compartment of the thigh? Quadriceps femoris group

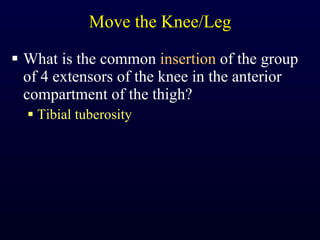

Move the Knee/Leg What is the common  insertion  of the group of 4 extensors of the knee in the anterior compartment of the thigh? Tibial tuberosity

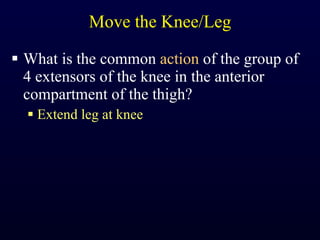

Move the Knee/Leg What is the common  action  of the group of 4 extensors of the knee in the anterior compartment of the thigh? Extend leg at knee
Move the Knee/Leg Of the 4 extensors in the anterior comportment of the thigh, which crosses the hip joint and is a flexor of the hip? Rectus femoris

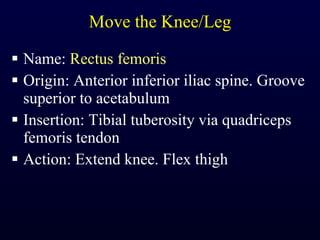

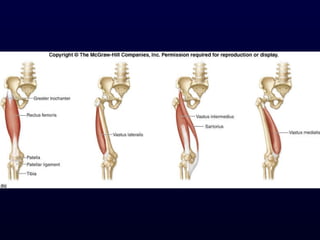

Move the Knee/Leg Name:  Rectus femoris Origin: Anterior inferior iliac spine. Groove superior to acetabulum Insertion: Tibial tuberosity via quadriceps femoris tendon Action: Extend knee. Flex thigh

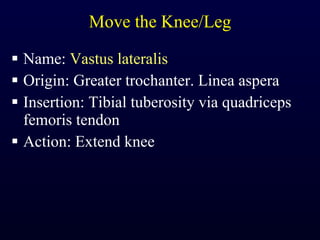

Move the Knee/Leg Name:  Vastus lateralis Origin: Greater trochanter. Linea aspera Insertion: Tibial tuberosity via quadriceps femoris tendon Action: Extend knee

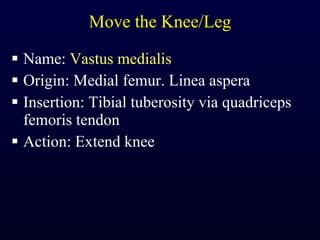

Move the Knee/Leg Name:  Vastus medialis Origin: Medial femur. Linea aspera Insertion: Tibial tuberosity via quadriceps femoris tendon Action: Extend knee

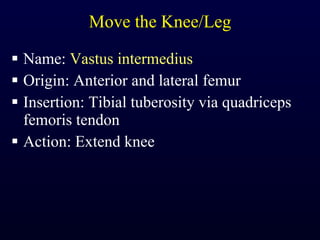

Move the Knee/Leg Name:  Vastus intermedius Origin: Anterior and lateral femur Insertion: Tibial tuberosity via quadriceps femoris tendon Action: Extend knee


Compartments of the Thigh List all of the muscles of the  anterior  compartment of the thigh that cross the knee joint? 4 Quads Rectus femoris Vastus intermedius, lateralis, medialis Sartorius

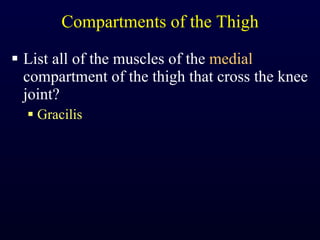

Compartments of the Thigh List all of the muscles of the  medial  compartment of the thigh that cross the knee joint? Gracilis

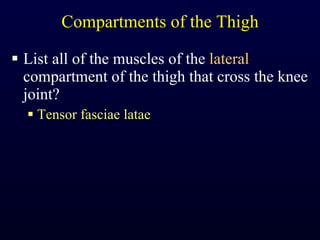

Compartments of the Thigh List all of the muscles of the  lateral  compartment of the thigh that cross the knee joint? Tensor fasciae latae

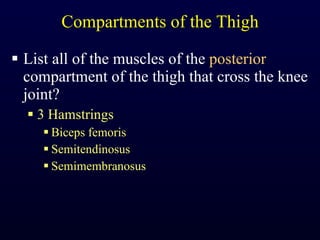

Compartments of the Thigh List all of the muscles of the  posterior  compartment of the thigh that cross the knee joint? 3 Hamstrings Biceps femoris Semitendinosus Semimembranosus

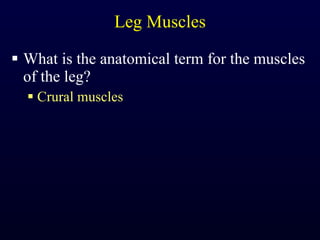

Leg Muscles What is the anatomical term for the muscles of the leg? Crural muscles

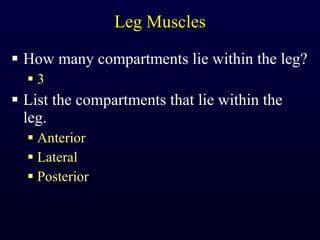

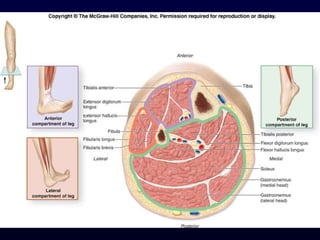

Leg Muscles How many compartments lie within the leg? 3 List the compartments that lie within the leg. Anterior Lateral Posterior

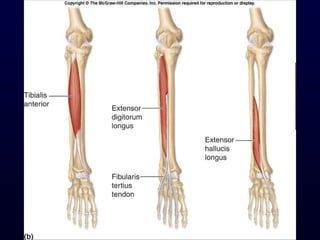

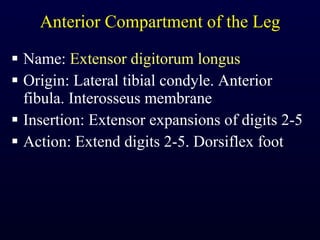

Anterior Compartment of the Leg Name:  Extensor digitorum longus Origin: Lateral tibial condyle. Anterior fibula. Interosseus membrane Insertion: Extensor expansions of digits 2-5 Action: Extend digits 2-5. Dorsiflex foot

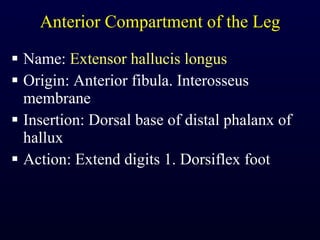

Anterior Compartment of the Leg Name:  Extensor hallucis longus Origin: Anterior fibula. Interosseus membrane Insertion: Dorsal base of distal phalanx of hallux Action: Extend digits 1. Dorsiflex foot

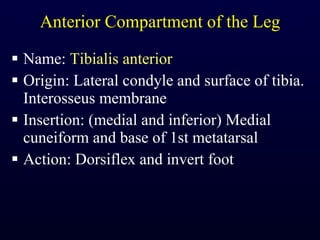

Anterior Compartment of the Leg Name:  Tibialis anterior Origin: Lateral condyle and surface of tibia. Interosseus membrane Insertion: (medial and inferior) Medial cuneiform and base of 1st metatarsal Action: Dorsiflex and invert foot

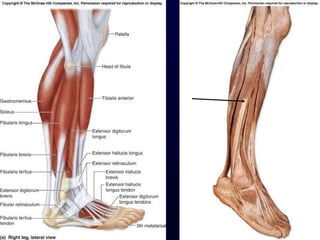

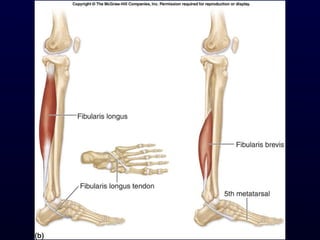

Lateral Compartment of the Leg Name:  Fibularis longus Origin: Head and lateral fibula Insertion: (inferior) Medial cuneiform and base of 1st metatarsal Action: Plantar flex and evert foot

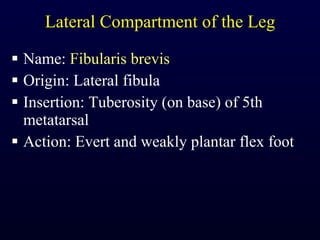

Lateral Compartment of the Leg Name:  Fibularis brevis Origin: Lateral fibula Insertion: Tuberosity (on base) of 5th metatarsal Action: Evert and weakly plantar flex foot

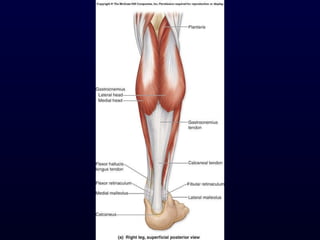

Posterior Compartment of the Leg Name:  Gastrocnemius Origin: Lateral head: Lateral to lateral femoral condyle Medial head: Superior to medial femoral condyle Insertion: Tuberosity of calcaneus via tendo calcaneus (Achilles tendon) Action: Plantar flex foot. Flex knee

Posterior Compartment of the Leg Name:  Soleus Origin: Soleal line (posterior tibia). Posterior fibula Insertion: Tuberosity of calcaneus via tendo calcaneus (Achilles tendon) Action: Plantar flex foot

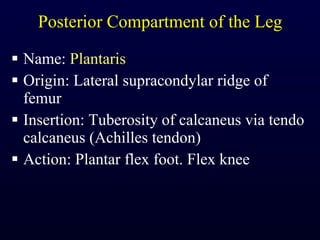

Posterior Compartment of the Leg Name:  Plantaris Origin: Lateral supracondylar ridge of femur Insertion: Tuberosity of calcaneus via tendo calcaneus (Achilles tendon) Action: Plantar flex foot. Flex knee

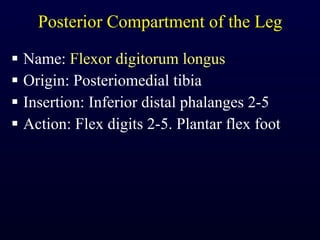

Posterior Compartment of the Leg Name:  Flexor digitorum longus Origin: Posteriomedial tibia Insertion: Inferior distal phalanges 2-5 Action: Flex digits 2-5. Plantar flex foot

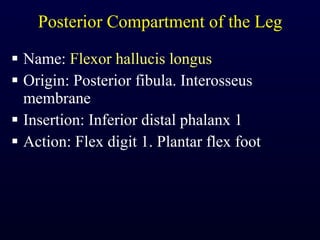

Posterior Compartment of the Leg Name:  Flexor hallucis longus Origin: Posterior fibula. Interosseus membrane Insertion: Inferior distal phalanx 1 Action: Flex digit 1. Plantar flex foot

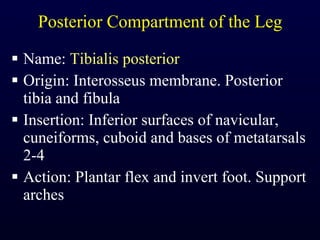

Posterior Compartment of the Leg Name:  Tibialis posterior Origin: Interosseus membrane. Posterior tibia and fibula Insertion: Inferior surfaces of navicular, cuneiforms, cuboid and bases of metatarsals 2-4 Action: Plantar flex and invert foot. Support arches

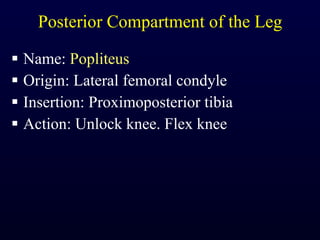

Posterior Compartment of the Leg Name:  Popliteus Origin: Lateral femoral condyle Insertion: Proximoposterior tibia Action: Unlock knee. Flex knee











Muscles 3

  • 1.
    Muscles 3 McKinleyand O’Laughlin Chapter 12
  • 2.
    Introduction List the4 compartments of the thigh. Anterior - extend knee, flex thigh Posterior - flex knee, extend thigh Lateral - abduct thigh Medial - adduct thigh
  • 3.
  • 4.
    Introduction What structureforms the compartments of the thigh? Fascia lata
  • 5.
    Move the CoxalJoint/Thigh Name: Psoas major Origin: Transverse processes of L1-L5 Insertion: Lesser trochanter of femur Action: Flex hip. Rotate thigh laterally. Flex vertebral column.
  • 6.
  • 7.
    Move the CoxalJoint/Thigh Name: Iliacus Origin: Iliac fossa Insertion: Lesser trochanter of femur Action: Flex hip. Rotate thigh laterally.
  • 8.
  • 9.
    Introduction By whatname are the iliacus and psoas major referred to after they pass deep to the inguinal ligament ? Iliopsoas
  • 10.
  • 11.
    Move the CoxalJoint/Thigh Name: Sartorius Origin: Anterior superior iliac spine Insertion: Proximomedial tibia Action: Abduct and flex hip. Laterally rotate thigh. Flex knee.
  • 12.
  • 13.

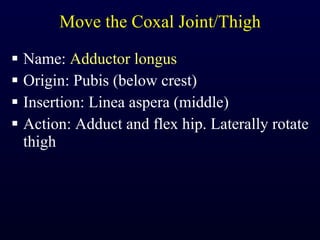

    Move the CoxalJoint/Thigh Name: Adductor longus Origin: Pubis (below crest) Insertion: Linea aspera (middle) Action: Adduct and flex hip. Laterally rotate thigh
  • 14.
  • 15.
  • 16.
    Move the CoxalJoint/Thigh Name: Adductor brevis Origin: Body and inferior ramus of pubis Insertion: Linea aspera (proximal) Action: Adduct and flex hip. Laterally rotate thigh
  • 17.
  • 18.
  • 19.
    Move the CoxalJoint/Thigh Name: Gracilis Origin: Body and inferior ramus of pubis Insertion: Proximomedial tibia Action: Adduct and flex hip. Medially rotate thigh
  • 20.
  • 21.
    Move the CoxalJoint/Thigh Name: Pectineus Origin: Pectineal line of pubis Insertion: Pectineal line of femur Action: Adduct and flex hip. Laterally rotate thigh
  • 22.
  • 23.
  • 24.
    Move the CoxalJoint/Thigh Name: Adductor magnus Origin: Inferior ramus of pubis. Ramus of ischium. Ischial tuberosity. Insertion: Linea aspera. Medial epicondyle of femur (adductor tubercle) Action: Adduct and flex hip. Laterally rotate thigh Hamstring part: extend thigh
  • 25.
  • 26.
  • 27.
  • 28.
    Move the CoxalJoint/Thigh Name: Tensor Fasciae Latae Origin: Anterior superior iliac spine. Anterior iliac crest. Insertion: Lateral tibial condyle via iliotibial tract. Action: Abduct hip. Medially rotate thigh.
  • 29.
  • 30.
    Move the CoxalJoint/Thigh Name: Gluteus maximus Origin: Iliac crest. Dorsal sacrum and coccyx Insertion: Gluteal tuberosity (proximal linea aspera). Iliotibial tract. Action: Extend hip. Laterally rotate thigh.
  • 31.
  • 32.
    Move the CoxalJoint/Thigh Name: Gluteus medius Origin: Lateral ilium Insertion: Greater trochanter (lateral) Action: Abduct hip. Medially rotate thigh.
  • 33.
  • 34.
    Move the CoxalJoint/Thigh Name: Gluteus minimus Origin: Inferolateral ilium Insertion: Greater trochanter (anterior) Action: Abduct hip. Medially rotate thigh.
  • 35.
  • 36.
    Move the CoxalJoint/Thigh Name: Piriformis Origin: Anterior sacrum Insertion: Greater trochanter (superior) Action: Abduct flexed hip. Laterally rotate extended thigh.
  • 37.
  • 38.
  • 39.
  • 40.
  • 41.
  • 42.
  • 43.
  • 44.
  • 45.
    Move the CoxalJoint/Thigh Name: Biceps femoris Origin: Long head: Ischial tuberosity Short head: Distal linea aspera Insertion: Fibular head Action: Flex knee and laterally rotate leg. Extend thigh.
  • 46.
  • 47.
  • 48.

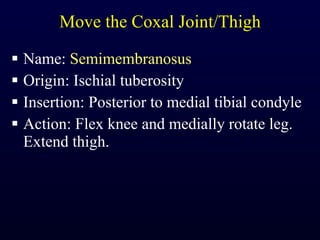

    Move the CoxalJoint/Thigh Name: Semimembranosus Origin: Ischial tuberosity Insertion: Posterior to medial tibial condyle Action: Flex knee and medially rotate leg. Extend thigh.
  • 49.
  • 50.

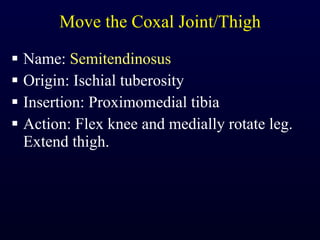

    Move the CoxalJoint/Thigh Name: Semitendinosus Origin: Ischial tuberosity Insertion: Proximomedial tibia Action: Flex knee and medially rotate leg. Extend thigh.
  • 51.
  • 52.
  • 53.
  • 54.

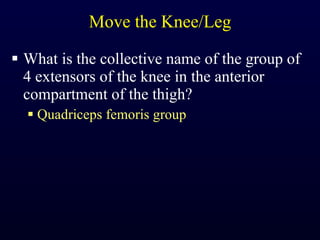

    Move the Knee/LegWhat is the collective name of the group of 4 extensors of the knee in the anterior compartment of the thigh? Quadriceps femoris group
  • 55.
  • 56.
    Move the Knee/LegWhat is the common insertion of the group of 4 extensors of the knee in the anterior compartment of the thigh? Tibial tuberosity
  • 57.
    Move the Knee/LegWhat is the common action of the group of 4 extensors of the knee in the anterior compartment of the thigh? Extend leg at knee
  • 58.
    Move the Knee/LegOf the 4 extensors in the anterior comportment of the thigh, which crosses the hip joint and is a flexor of the hip? Rectus femoris
  • 59.
    Move the Knee/LegName: Rectus femoris Origin: Anterior inferior iliac spine. Groove superior to acetabulum Insertion: Tibial tuberosity via quadriceps femoris tendon Action: Extend knee. Flex thigh
  • 60.
    Move the Knee/LegName: Vastus lateralis Origin: Greater trochanter. Linea aspera Insertion: Tibial tuberosity via quadriceps femoris tendon Action: Extend knee
  • 61.
    Move the Knee/LegName: Vastus medialis Origin: Medial femur. Linea aspera Insertion: Tibial tuberosity via quadriceps femoris tendon Action: Extend knee
  • 62.
    Move the Knee/LegName: Vastus intermedius Origin: Anterior and lateral femur Insertion: Tibial tuberosity via quadriceps femoris tendon Action: Extend knee
  • 63.
  • 64.
  • 65.

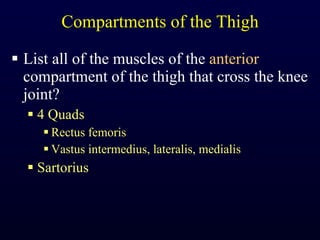

    Compartments of theThigh List all of the muscles of the anterior compartment of the thigh that cross the knee joint? 4 Quads Rectus femoris Vastus intermedius, lateralis, medialis Sartorius
  • 66.
  • 67.

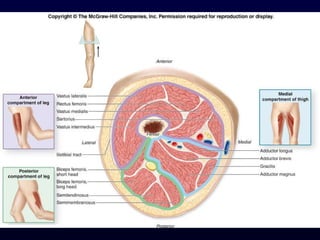

    Compartments of theThigh List all of the muscles of the medial compartment of the thigh that cross the knee joint? Gracilis
  • 68.
  • 69.
    Compartments of theThigh List all of the muscles of the lateral compartment of the thigh that cross the knee joint? Tensor fasciae latae
  • 70.
  • 71.
    Compartments of theThigh List all of the muscles of the posterior compartment of the thigh that cross the knee joint? 3 Hamstrings Biceps femoris Semitendinosus Semimembranosus
  • 72.
  • 73.
    Leg Muscles Whatis the anatomical term for the muscles of the leg? Crural muscles
  • 74.
    Leg Muscles Howmany compartments lie within the leg? 3 List the compartments that lie within the leg. Anterior Lateral Posterior
  • 75.
  • 76.
    Anterior Compartment ofthe Leg Name: Extensor digitorum longus Origin: Lateral tibial condyle. Anterior fibula. Interosseus membrane Insertion: Extensor expansions of digits 2-5 Action: Extend digits 2-5. Dorsiflex foot
  • 77.
  • 78.
    Anterior Compartment ofthe Leg Name: Extensor hallucis longus Origin: Anterior fibula. Interosseus membrane Insertion: Dorsal base of distal phalanx of hallux Action: Extend digits 1. Dorsiflex foot
  • 79.
  • 80.
    Anterior Compartment ofthe Leg Name: Tibialis anterior Origin: Lateral condyle and surface of tibia. Interosseus membrane Insertion: (medial and inferior) Medial cuneiform and base of 1st metatarsal Action: Dorsiflex and invert foot
  • 81.
  • 82.
  • 83.
  • 84.
  • 85.
  • 86.
  • 87.
    Lateral Compartment ofthe Leg Name: Fibularis longus Origin: Head and lateral fibula Insertion: (inferior) Medial cuneiform and base of 1st metatarsal Action: Plantar flex and evert foot
  • 88.
    Lateral Compartment ofthe Leg Name: Fibularis brevis Origin: Lateral fibula Insertion: Tuberosity (on base) of 5th metatarsal Action: Evert and weakly plantar flex foot
  • 89.
  • 90.
  • 91.
  • 92.
    Posterior Compartment ofthe Leg Name: Gastrocnemius Origin: Lateral head: Lateral to lateral femoral condyle Medial head: Superior to medial femoral condyle Insertion: Tuberosity of calcaneus via tendo calcaneus (Achilles tendon) Action: Plantar flex foot. Flex knee
  • 93.
  • 94.

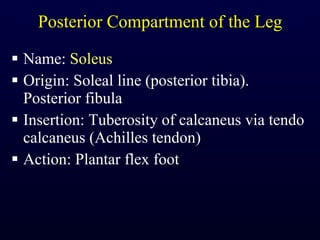

    Posterior Compartment ofthe Leg Name: Soleus Origin: Soleal line (posterior tibia). Posterior fibula Insertion: Tuberosity of calcaneus via tendo calcaneus (Achilles tendon) Action: Plantar flex foot
  • 95.
  • 96.
    Posterior Compartment ofthe Leg Name: Plantaris Origin: Lateral supracondylar ridge of femur Insertion: Tuberosity of calcaneus via tendo calcaneus (Achilles tendon) Action: Plantar flex foot. Flex knee
  • 97.
  • 98.
  • 99.
    Posterior Compartment ofthe Leg Name: Flexor digitorum longus Origin: Posteriomedial tibia Insertion: Inferior distal phalanges 2-5 Action: Flex digits 2-5. Plantar flex foot
  • 100.
  • 101.
    Posterior Compartment ofthe Leg Name: Flexor hallucis longus Origin: Posterior fibula. Interosseus membrane Insertion: Inferior distal phalanx 1 Action: Flex digit 1. Plantar flex foot
  • 102.
  • 103.
    Posterior Compartment ofthe Leg Name: Tibialis posterior Origin: Interosseus membrane. Posterior tibia and fibula Insertion: Inferior surfaces of navicular, cuneiforms, cuboid and bases of metatarsals 2-4 Action: Plantar flex and invert foot. Support arches
  • 104.
  • 105.
    Posterior Compartment ofthe Leg Name: Popliteus Origin: Lateral femoral condyle Insertion: Proximoposterior tibia Action: Unlock knee. Flex knee
  • 106.
  • 107.
  • 108.
  • 109.
  • 110.
  • 111.
  • 112.
  • 113.
  • 114.
  • 115.
