1. HOW TO PERFORM
INTERNAL AUDITS FOR
ISO/TS16949
ISO/TS16949
Present By
Present By
Nukool Thanuanram
Senior Consultant & Instructor
E‐Mail: nukool2001@hotmail.com
Twitter & Facebook.com/nukool2001
Mobile Phone: 081 400 3954
Nukool Thanuanram E-Mail Address : nukool2001@hotmail.com Mobile Phone : 081.400.3954 1
AUDITS REQUIREMENTS
 SYSTEM AUDIT
 MANUFACTURING PROCESS AUDIT
 PRODUCT AUDIT
Nukool Thanuanram E-Mail Address : nukool2001@hotmail.com Mobile Phone : 081.400.3954 2
1

2. COMPARISION

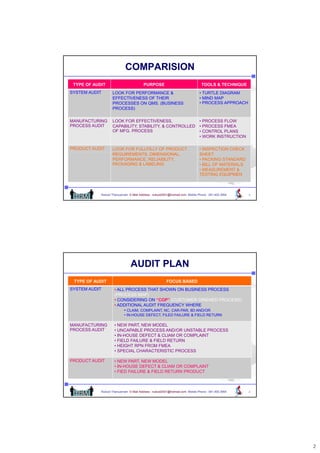

TYPE OF AUDIT PURPOSE TOOLS & TECHNIQUE
SYSTEM AUDIT LOOK FOR PERFORMANCE & • TURTLE DIAGRAM
EFFECTIVENESS OF THEIR • MIND MAP
PROCESSES ON QMS (BUSINESS
QMS. • PROCESS APPROACH
PROCESS)
MANUFACTURING LOOK FOR EFFECTIVENESS, • PROCESS FLOW
PROCESS AUDIT CAPABILITY, STABILITY, & CONTROLLED • PROCESS FMEA
OF MFG. PROCESS • CONTROL PLANS
• WORK INSTRUCTION
PRODUCT AUDIT LOOK FOR FULLFILLY OF PRODUCT • INSPECTION CHECK
REQUIREMENTS, DIMENSIONAL, SHEET
PERFORMANCE, RELIABILITY, • PACKING STANDARD
PACKAGING & LABELING • BILL OF MATERIALS
• MEASUREMENT &
TESTING EQUIPMEN
Nukool Thanuanram E-Mail Address : nukool2001@hotmail.com Mobile Phone : 081.400.3954 3
AUDIT PLAN
TYPE OF AUDIT FOCUS BASED
SYSTEM AUDIT • ALL PROCESS THAT SHOWN ON BUSINESS PROCESS
(PROCESS MAP)
• CONSIDERING ON “COP” (CUSTOMER ORIENED PROCESS)
COP
• ADDITIONAL AUDIT FREQUENCY WHERE
• CLAIM, COMPLAINT, NC, CAR-PAR, 8D AND/OR
• IN-HOUSE DEFECT, FILED FAILURE & FIELD RETURN
MANUFACTURING • NEW PART, NEW MODEL
PROCESS AUDIT • UNCAPABLE PROCESS AND/OR UNSTABLE PROCESS
• IN-HOUSE DEFECT & CLIAM OR COMPLAINT
• FIELD FAILURE & FIELD RETURN
• HEIGHT RPN FROM FMEA
• SPECIAL CHARACTERISTIC PROCESS
PRODUCT AUDIT • NEW PART, NEW MODEL
• IN-HOUSE DEFECT & CLIAM OR COMPLAINT
• FIED FAILURE & FIELD RETURN PRODUCT
Nukool Thanuanram E-Mail Address : nukool2001@hotmail.com Mobile Phone : 081.400.3954 4
2

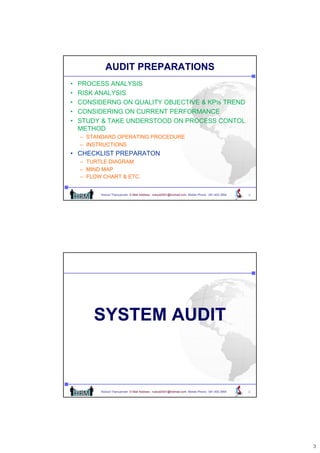

3. AUDIT PREPARATIONS
• PROCESS ANALYSIS
• RISK ANALYSIS
• CONSIDERNG ON QUALITY OBJECTIVE & KPIs TREND
• CONSIDERING ON CURRENT PERFORMANCE
• STUDY & TAKE UNDERSTOOD ON PROCESS CONTOL
METHOD
– STANDARD OPERATING PROCEDURE
– INSTRUCTIONS
• CHECKLIST PREPARATON
– TURTLE DIAGRAM
– MIND MAP
– FLOW CHART & ETC.
Nukool Thanuanram E-Mail Address : nukool2001@hotmail.com Mobile Phone : 081.400.3954 5
SYSTEM AUDIT
Nukool Thanuanram E-Mail Address : nukool2001@hotmail.com Mobile Phone : 081.400.3954 6
3

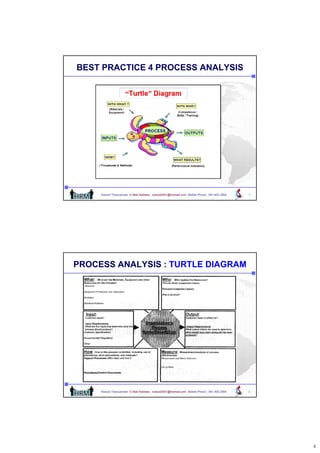

4. BEST PRACTICE 4 PROCESS ANALYSIS
Nukool Thanuanram E-Mail Address : nukool2001@hotmail.com Mobile Phone : 081.400.3954 7
PROCESS ANALYSIS : TURTLE DIAGRAM
Nukool Thanuanram E-Mail Address : nukool2001@hotmail.com Mobile Phone : 081.400.3954 8
4

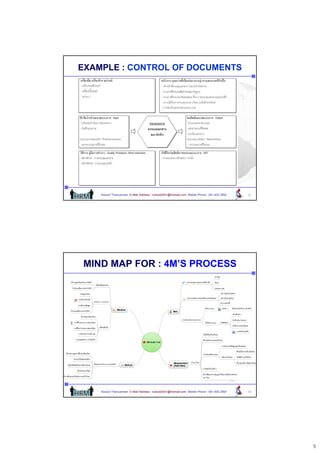

5. EXAMPLE : CONTROL OF DOCUMENTS
Nukool Thanuanram E-Mail Address : nukool2001@hotmail.com Mobile Phone : 081.400.3954 9
MIND MAP FOR : 4M’S PROCESS
Nukool Thanuanram E-Mail Address : nukool2001@hotmail.com Mobile Phone : 081.400.3954 10
5

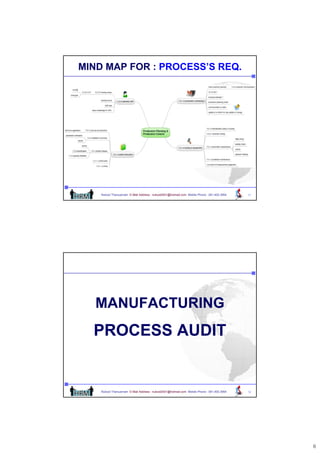

6. MIND MAP FOR : PROCESS’S REQ.
Nukool Thanuanram E-Mail Address : nukool2001@hotmail.com Mobile Phone : 081.400.3954 11
MANUFACTURING
PROCESS AUDIT
Nukool Thanuanram E-Mail Address : nukool2001@hotmail.com Mobile Phone : 081.400.3954 12
6

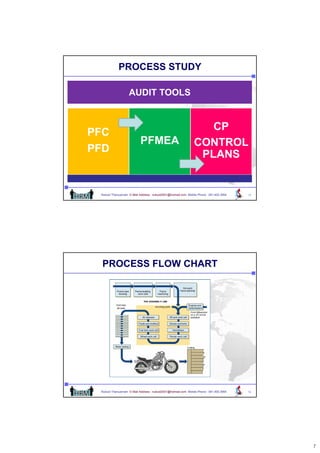

7. PROCESS STUDY
AUDIT TOOLS
CP
PFC
PFMEA CONTROL
PFD
PLANS
Nukool Thanuanram E-Mail Address : nukool2001@hotmail.com Mobile Phone : 081.400.3954 13
PROCESS FLOW CHART
Nukool Thanuanram E-Mail Address : nukool2001@hotmail.com Mobile Phone : 081.400.3954 14
7

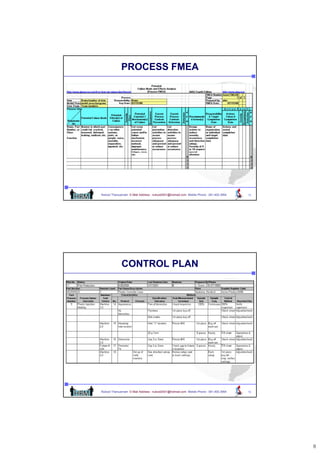

8. PROCESS FMEA
Nukool Thanuanram E-Mail Address : nukool2001@hotmail.com Mobile Phone : 081.400.3954 15
CONTROL PLAN
Nukool Thanuanram E-Mail Address : nukool2001@hotmail.com Mobile Phone : 081.400.3954 16
8

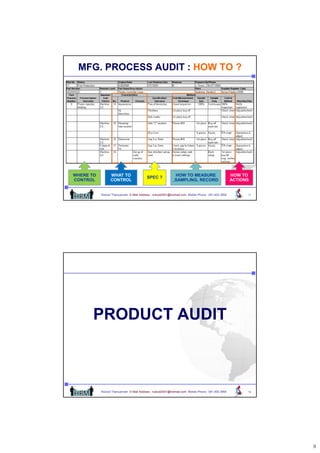

9. MFG. PROCESS AUDIT : HOW TO ?
WHERE TO WHAT TO SPEC ? HOW TO MEASURE HOW TO
CONTROL CONTROL ,SAMPLING, RECORD ACTIONS
Nukool Thanuanram E-Mail Address : nukool2001@hotmail.com Mobile Phone : 081.400.3954 17
PRODUCT AUDIT
Nukool Thanuanram E-Mail Address : nukool2001@hotmail.com Mobile Phone : 081.400.3954 18
9

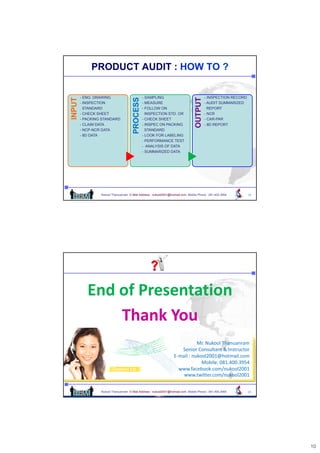

10. PRODUCT AUDIT : HOW TO ?
- ENG. DRAWING - SAMPLING - INSPECTION RECORD
UT
SS
UT
- INSPECTION - MEASURE - AUDIT SUMMARIZED
INPU
OUTPU
PROCES
STANDARD - FOLLOW ON REPORT
- CHECK SHEET INSPECTION STD. OR - NCR
- PACKING STANDARD - CHECK SHEET - CAR-PAR
- CLAIM DATA - INSPEC ON PACKING - 8D REPORT
- NCP-NCR DATA STANDARD
- 8D DATA - LOOK FOR LABELING
- PERFORMANCE TEST
- ANALYSIS OF DATA
- SUMMARIZED DATA
Nukool Thanuanram E-Mail Address : nukool2001@hotmail.com Mobile Phone : 081.400.3954 19
