The document describes System 100, a single control system that can control multiple avionics systems in an airplane. System 100 requires less space than separate controls for each system and less training. It has a graphical screen and keys to select different avionics systems like communications, navigation, and radar. The system connects to radios, transponders, and GPS using communication interfaces and receives power from the airplane's power source.

1. and
The System
100
PRESENTED BY:
AHSAN ZAFAR 12063122-087
NAEEM RAZA 12063122-084

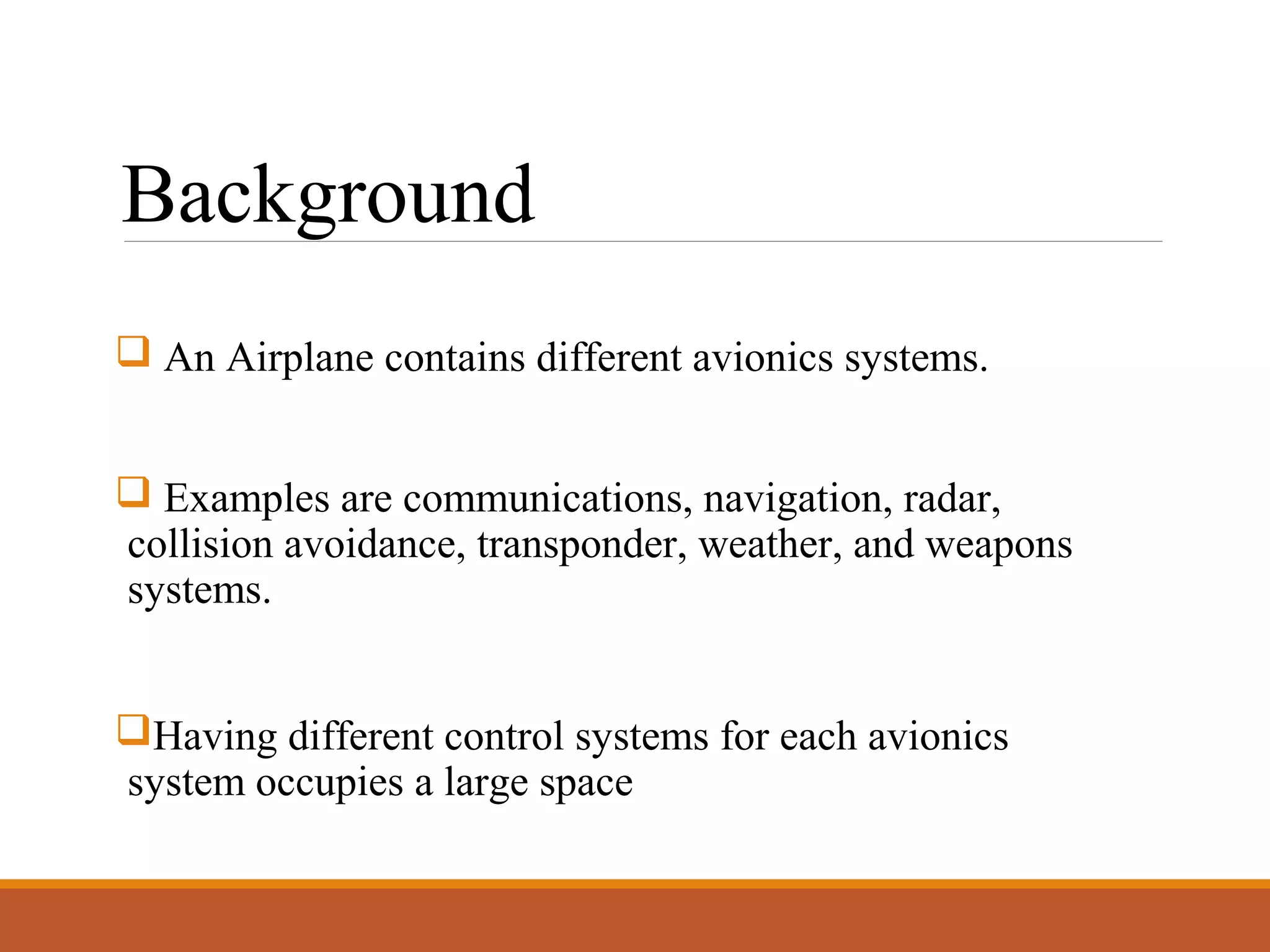

2. Background
 An Airplane contains different avionics systems.
 Examples are communications, navigation, radar,
collision avoidance, transponder, weather, and weapons
systems.
Having different control systems for each avionics
system occupies a large space

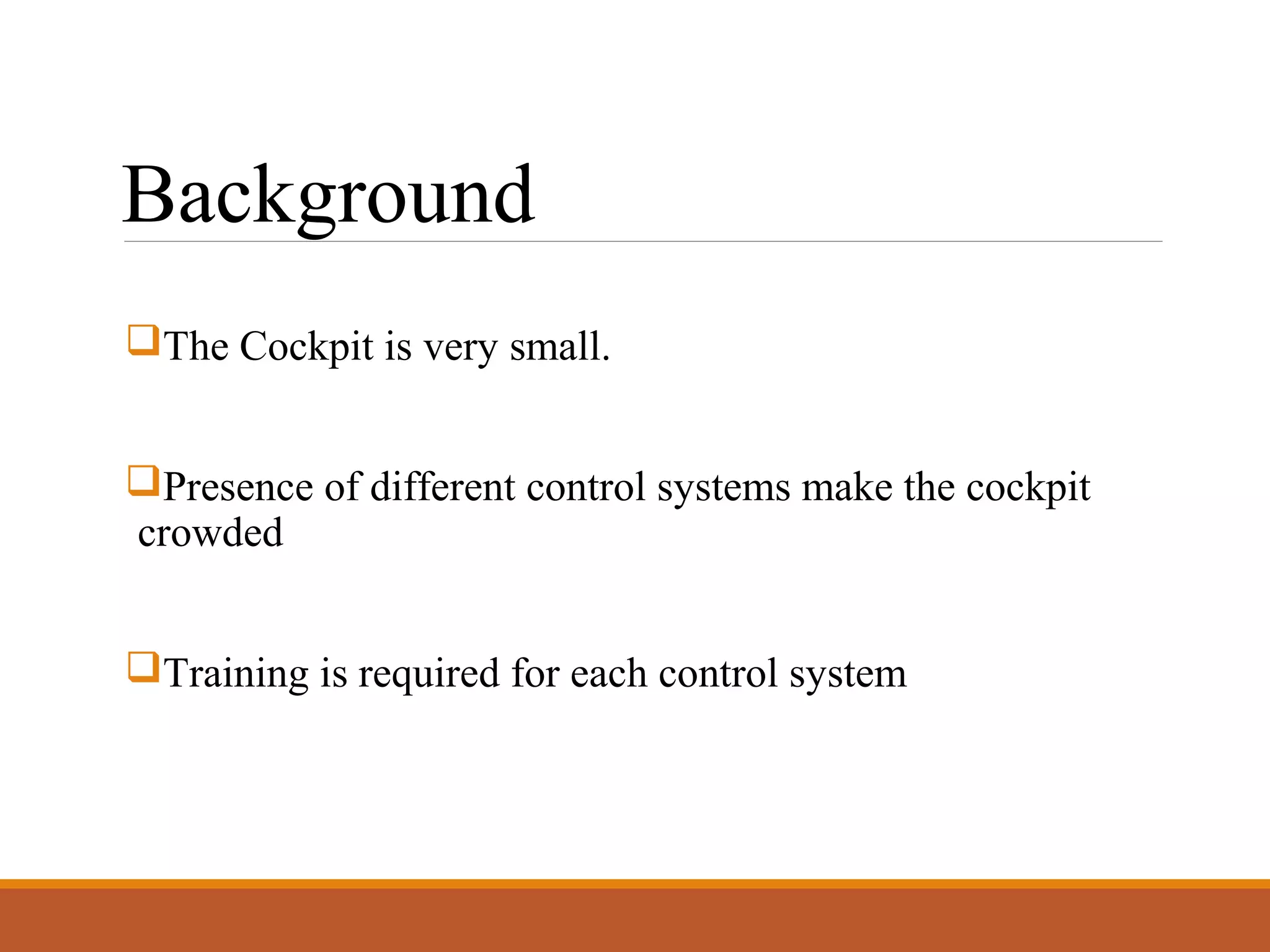

3. Background
The Cockpit is very small.
Presence of different control systems make the cockpit
crowded
Training is required for each control system

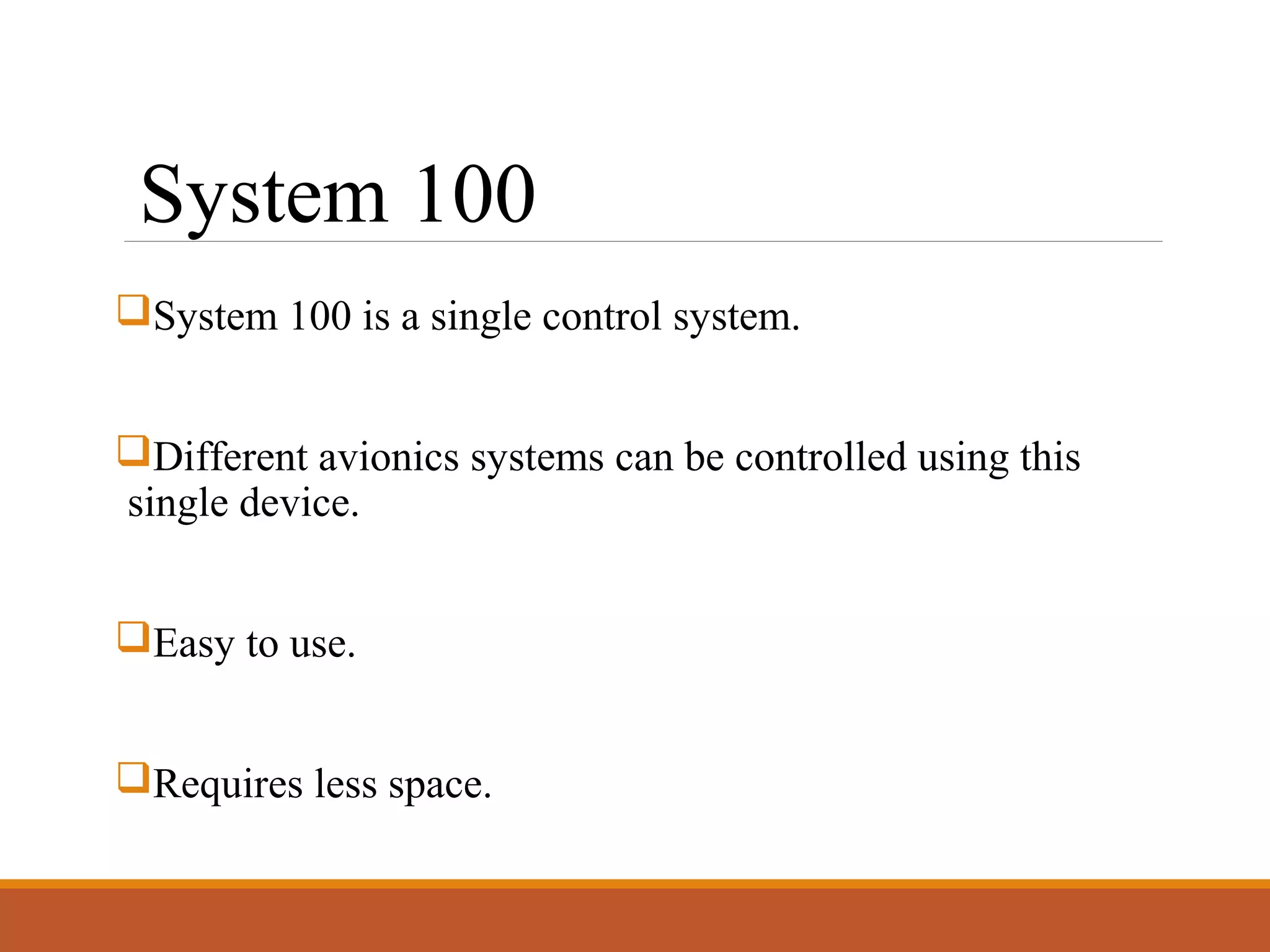

4. System 100
System 100 is a single control system.
Different avionics systems can be controlled using this
single device.
Easy to use.
Requires less space.

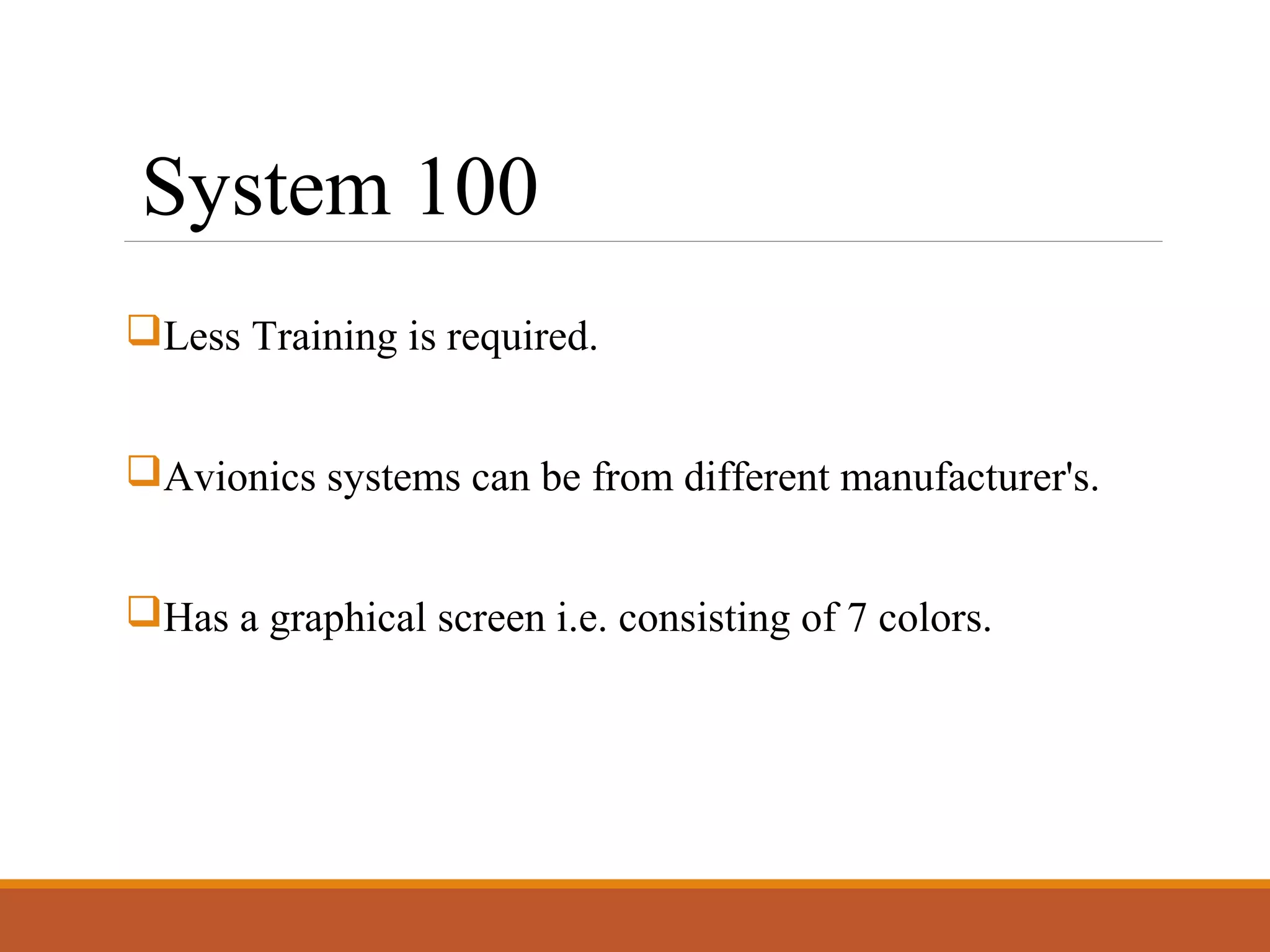

5. System 100
Less Training is required.
Avionics systems can be from different manufacturer's.
Has a graphical screen i.e. consisting of 7 colors.

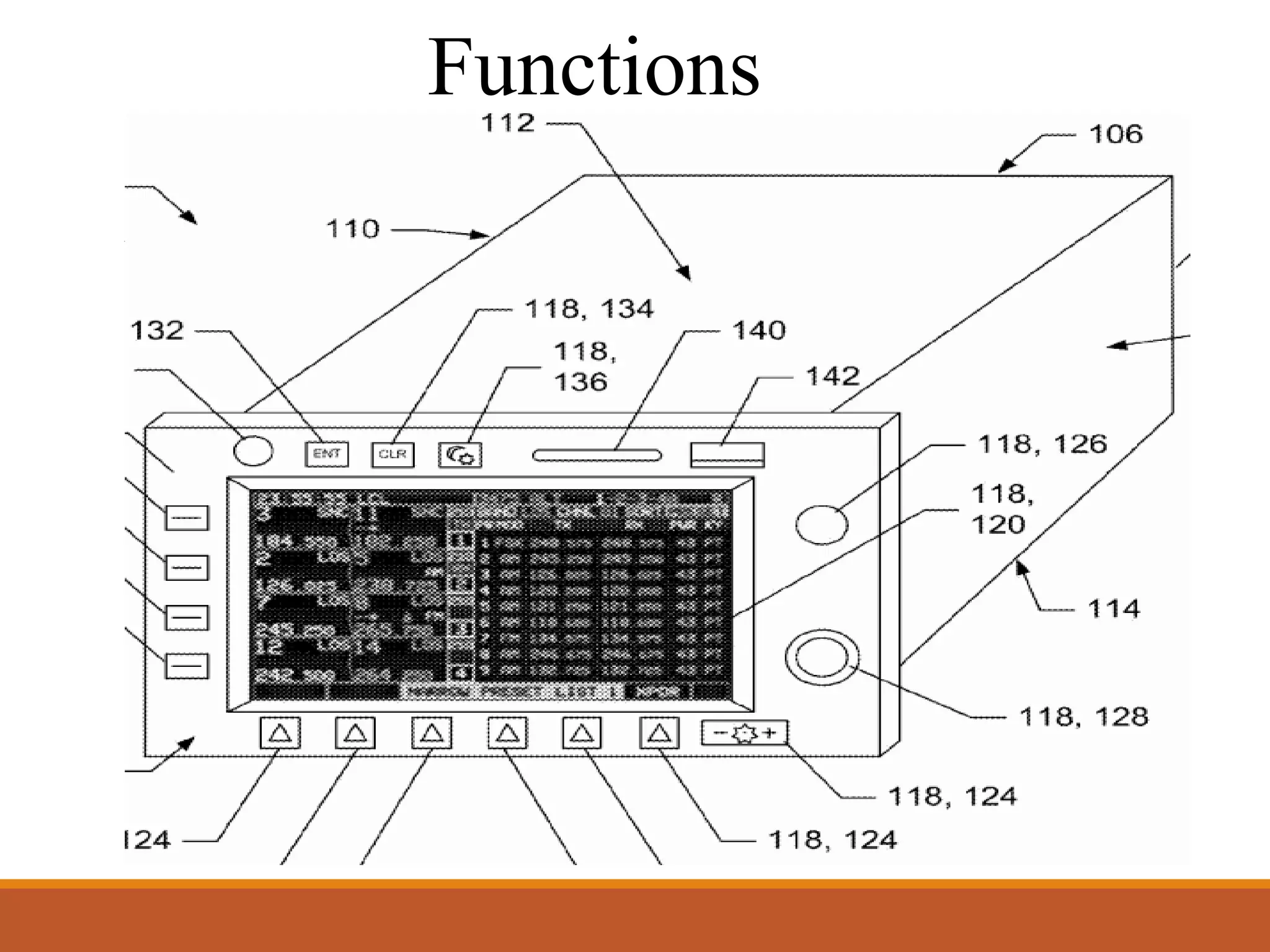

6. Functions

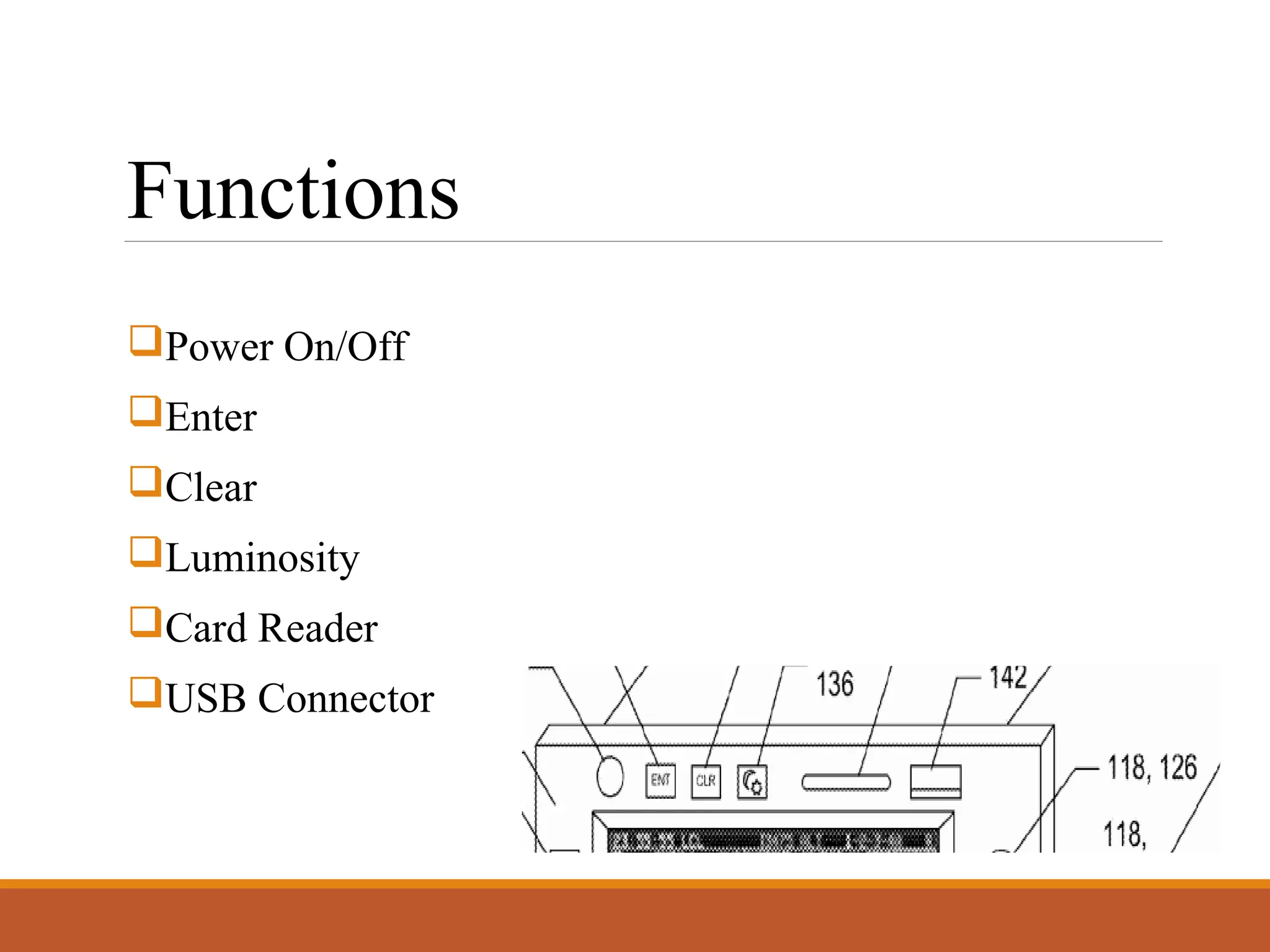

7. Functions
Power On/Off
Enter
Clear
Luminosity
Card Reader
USB Connector

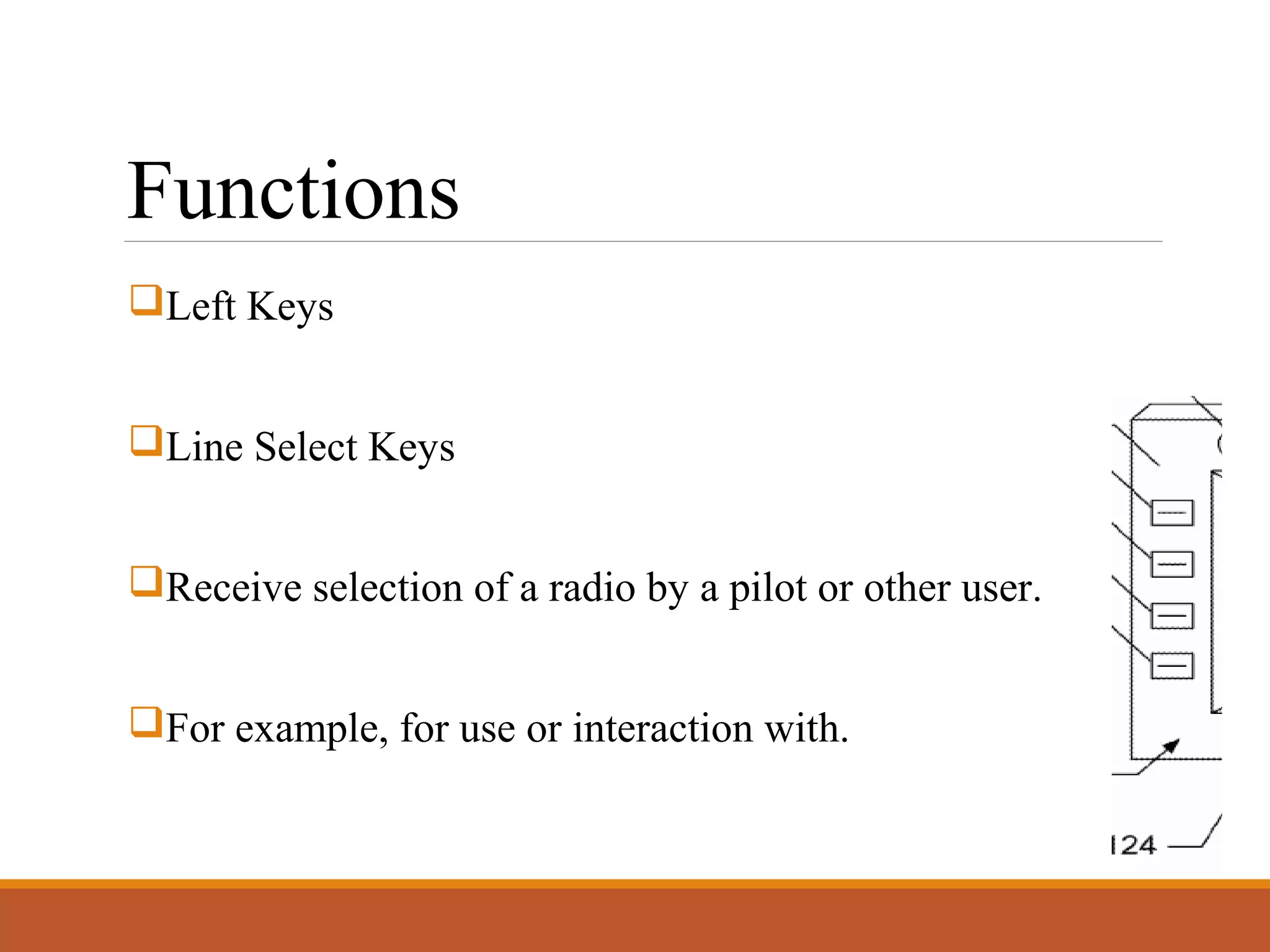

8. Functions
Left Keys
Line Select Keys
Receive selection of a radio by a pilot or other user.
For example, for use or interaction with.

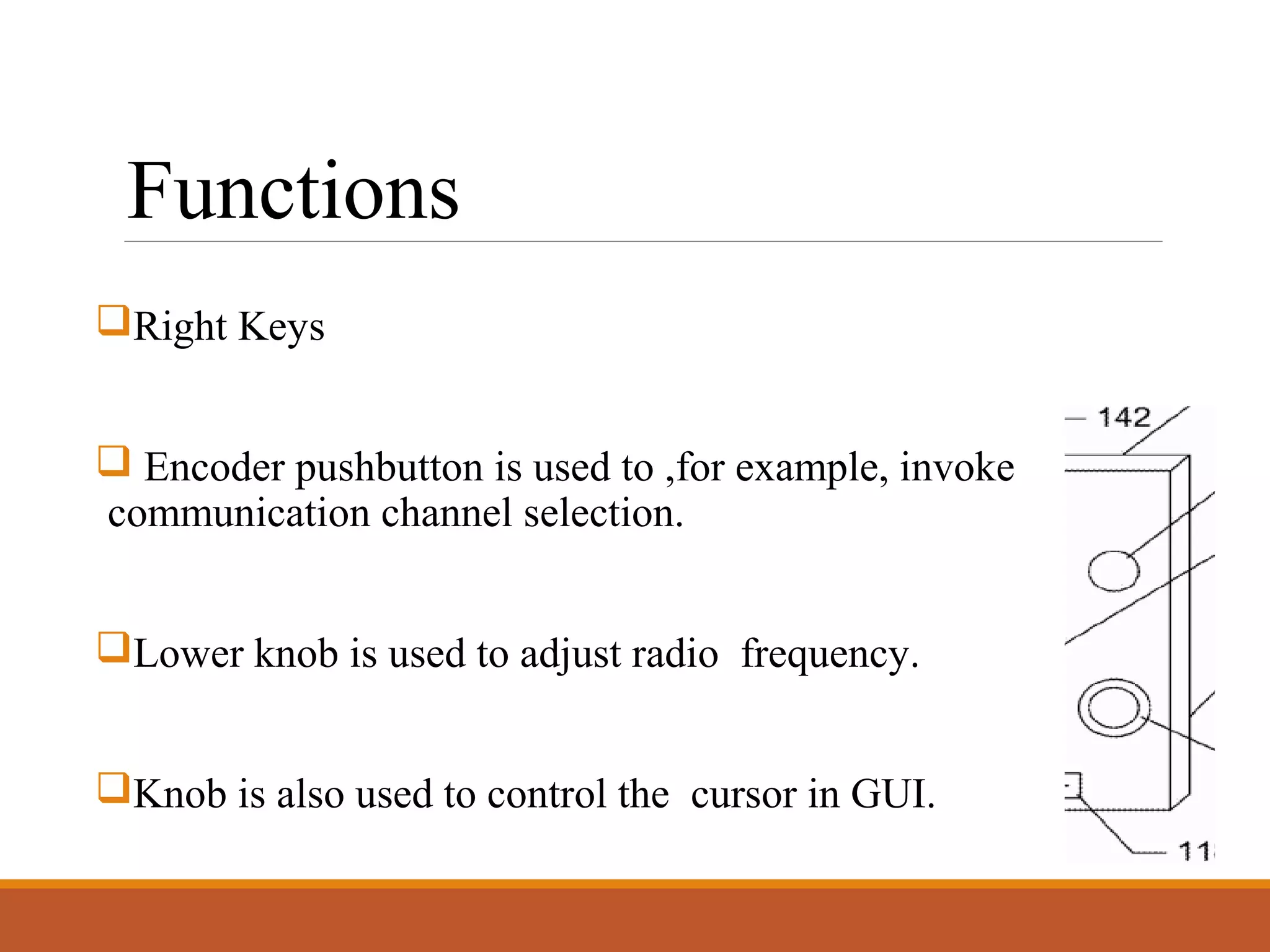

9. Functions
Right Keys
 Encoder pushbutton is used to ,for example, invoke
communication channel selection.
Lower knob is used to adjust radio frequency.
Knob is also used to control the cursor in GUI.

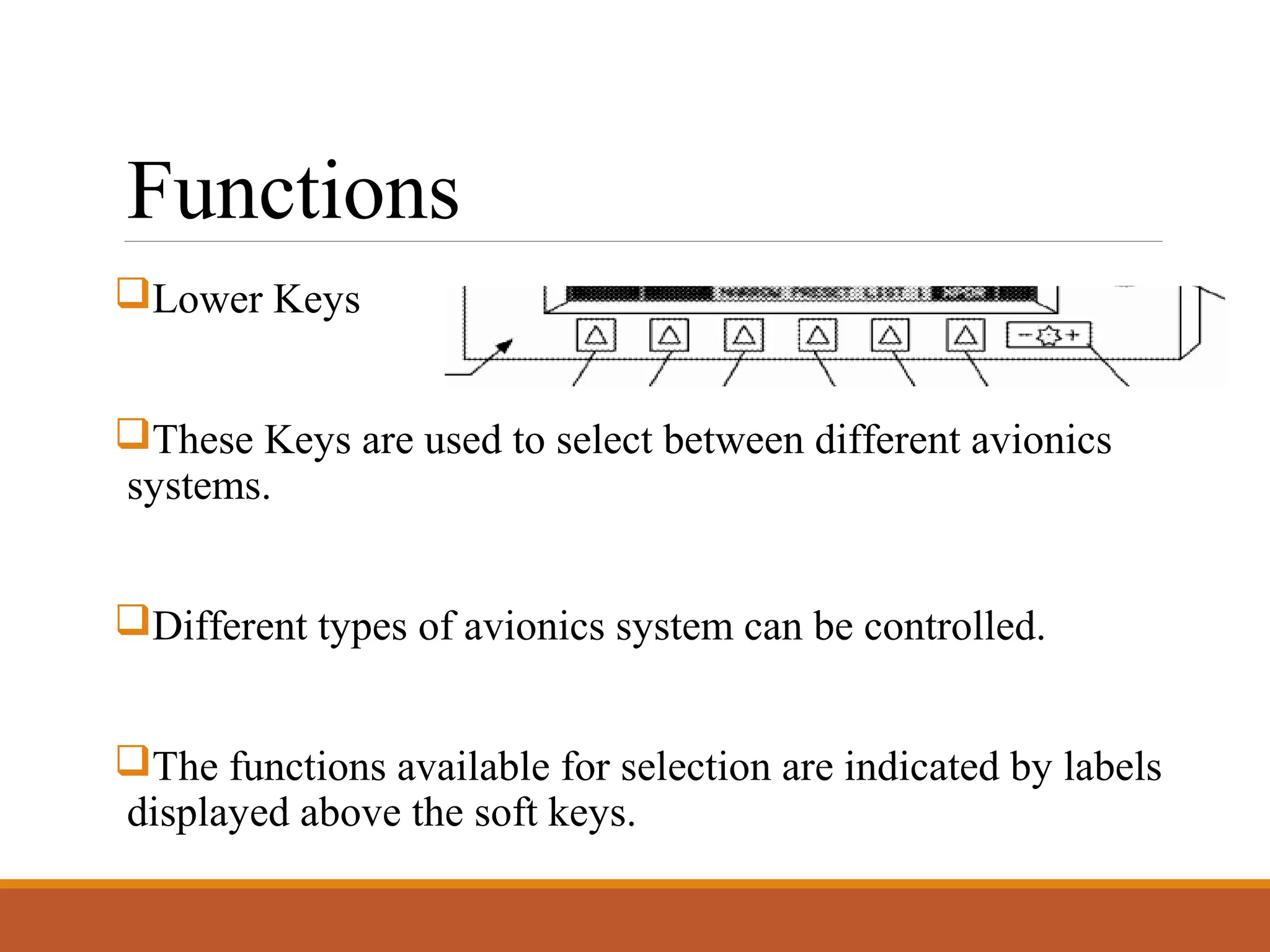

10. Functions
Lower Keys
These Keys are used to select between different avionics
systems.
Different types of avionics system can be controlled.
The functions available for selection are indicated by labels
displayed above the soft keys.

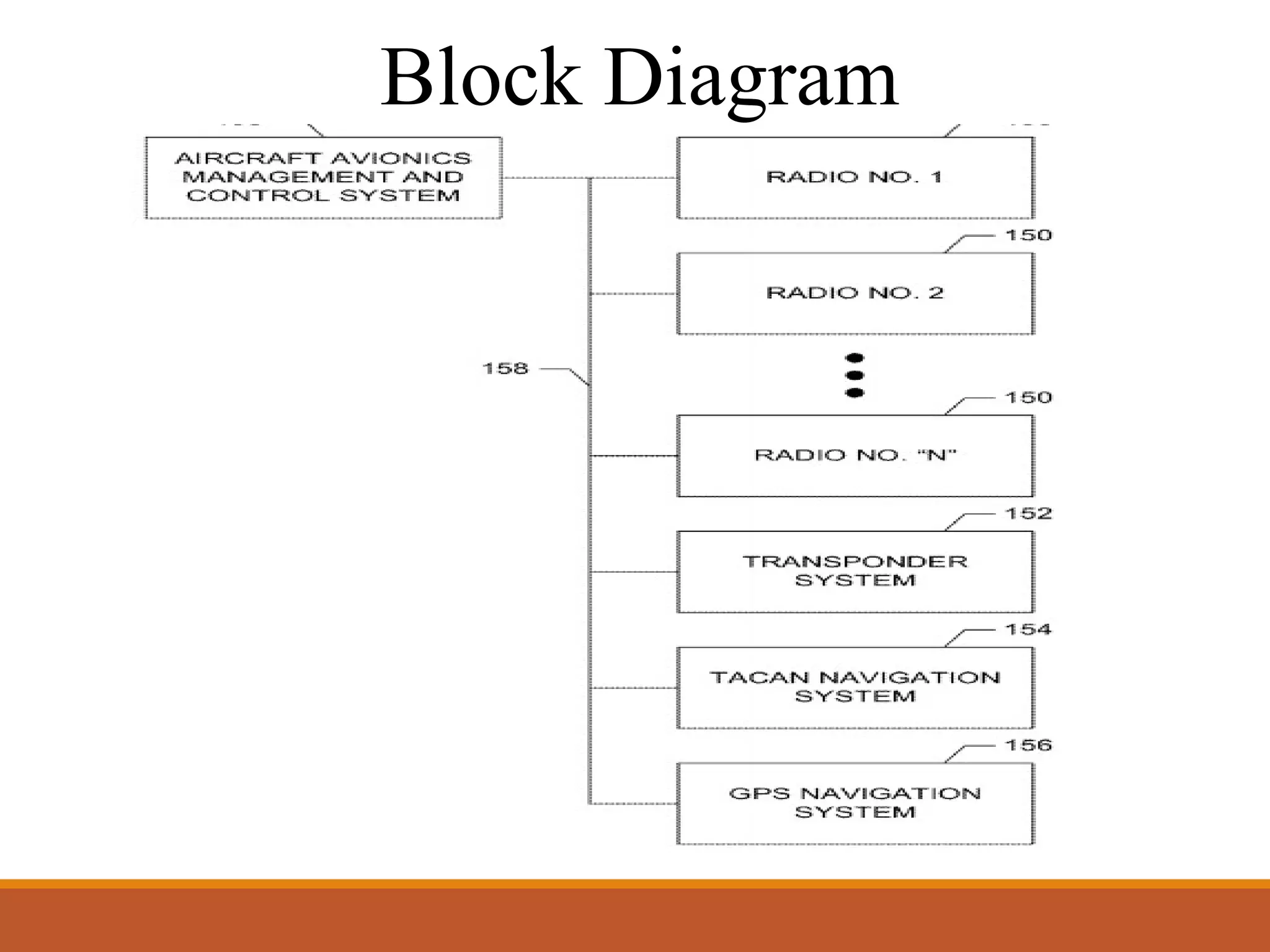

11. Block Diagram

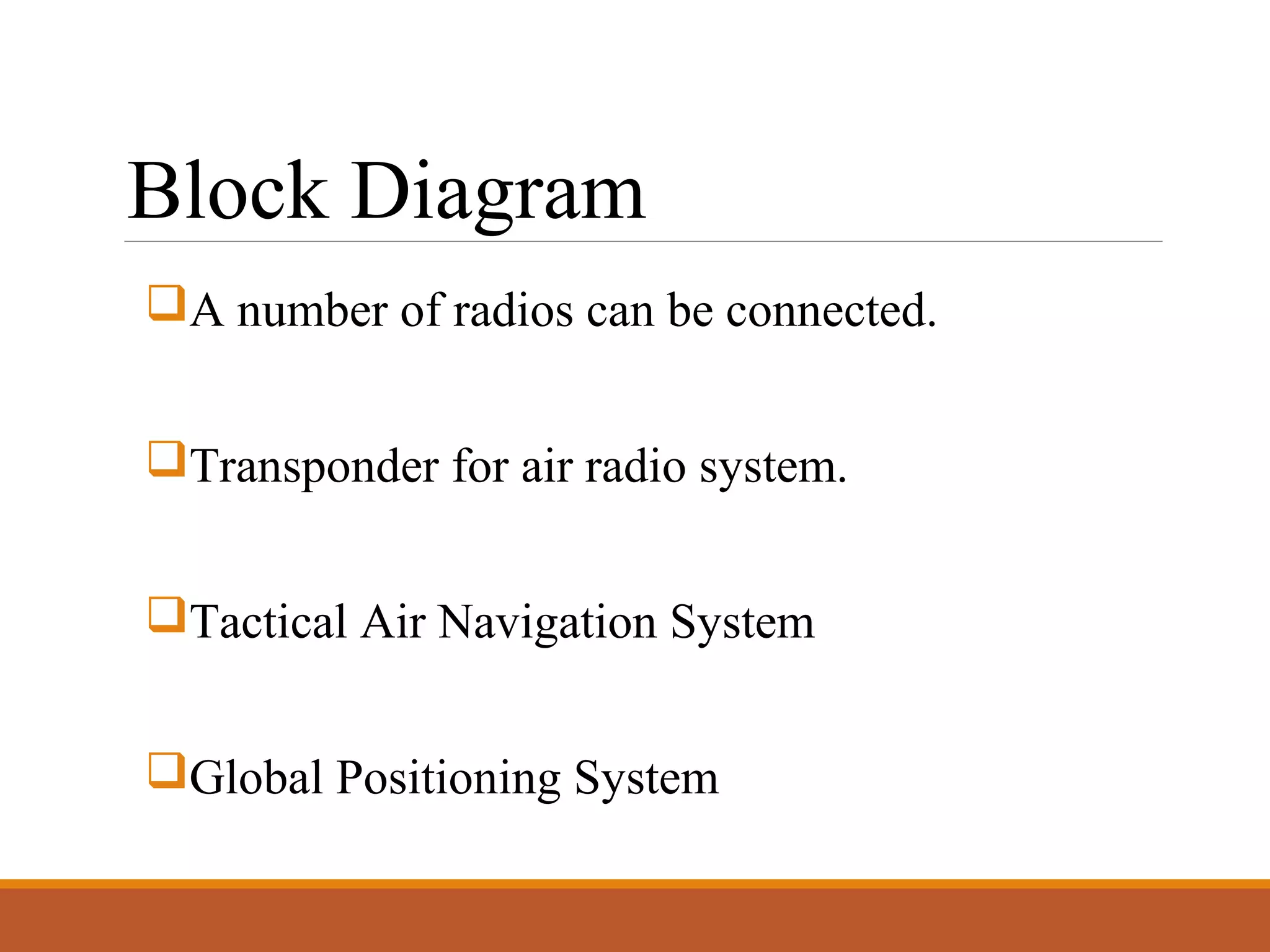

12. Block Diagram
A number of radios can be connected.
Transponder for air radio system.
Tactical Air Navigation System
Global Positioning System

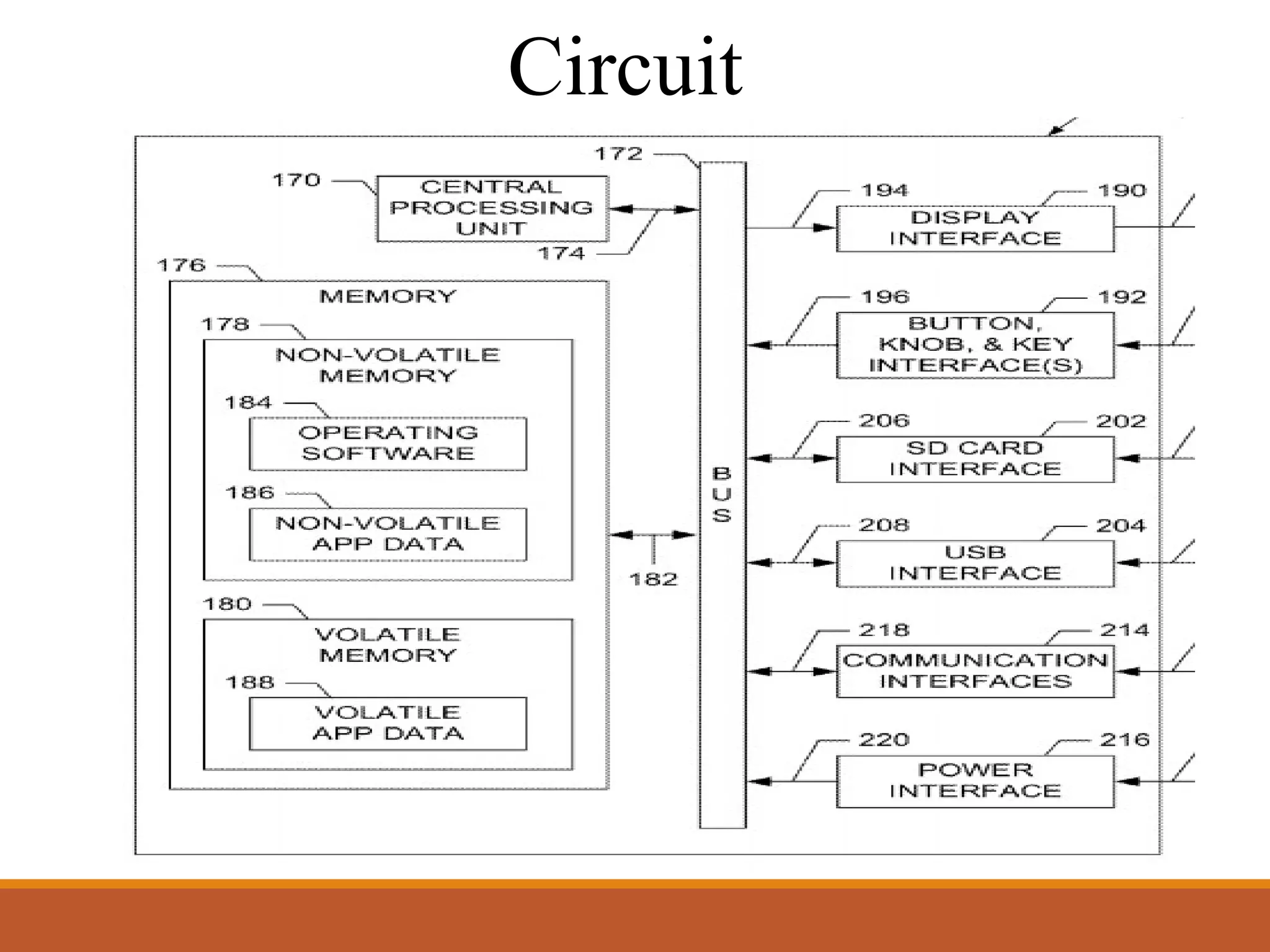

13. Circuit

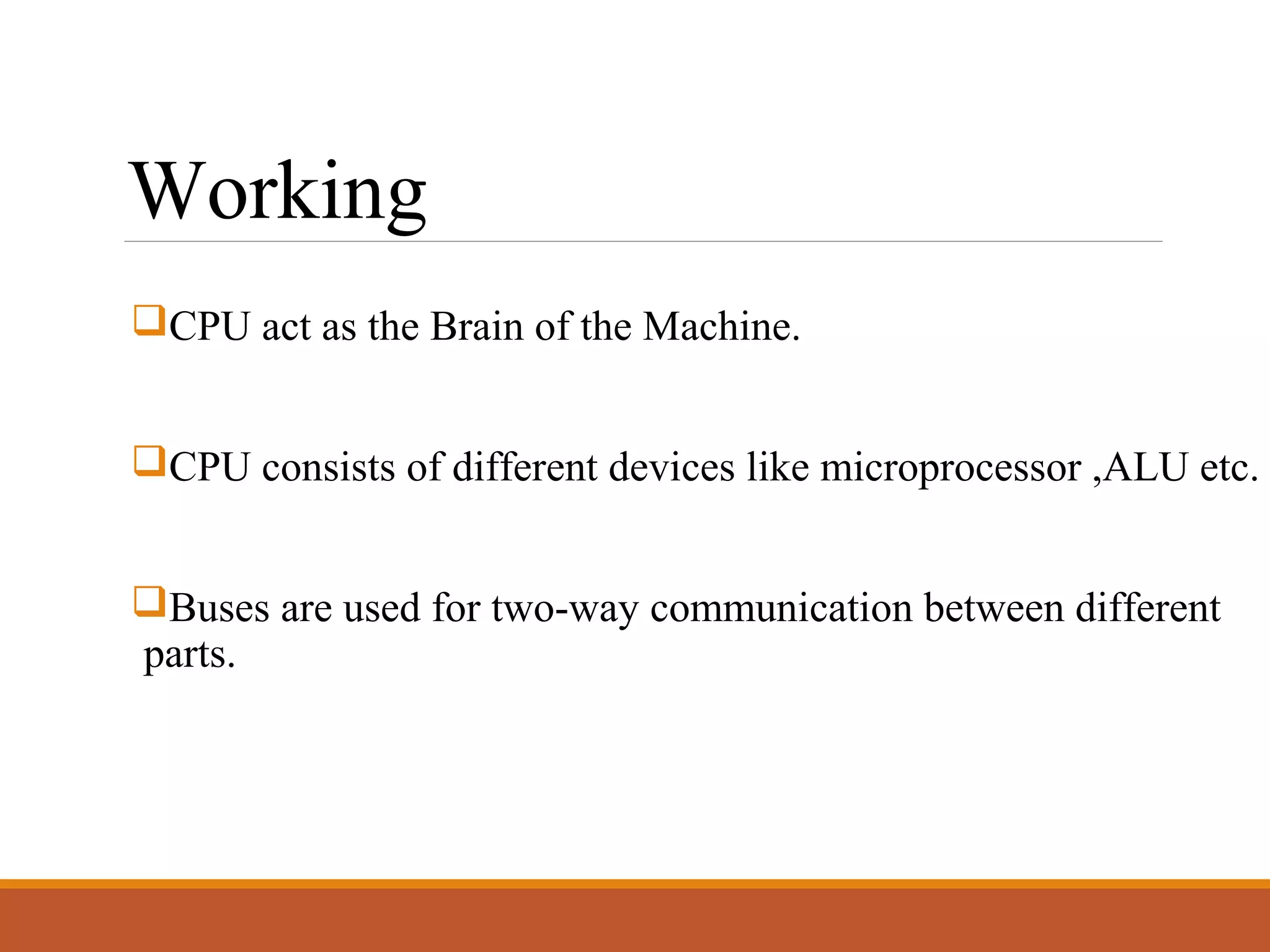

14. Working
CPU act as the Brain of the Machine.
CPU consists of different devices like microprocessor ,ALU etc.
Buses are used for two-way communication between different
parts.

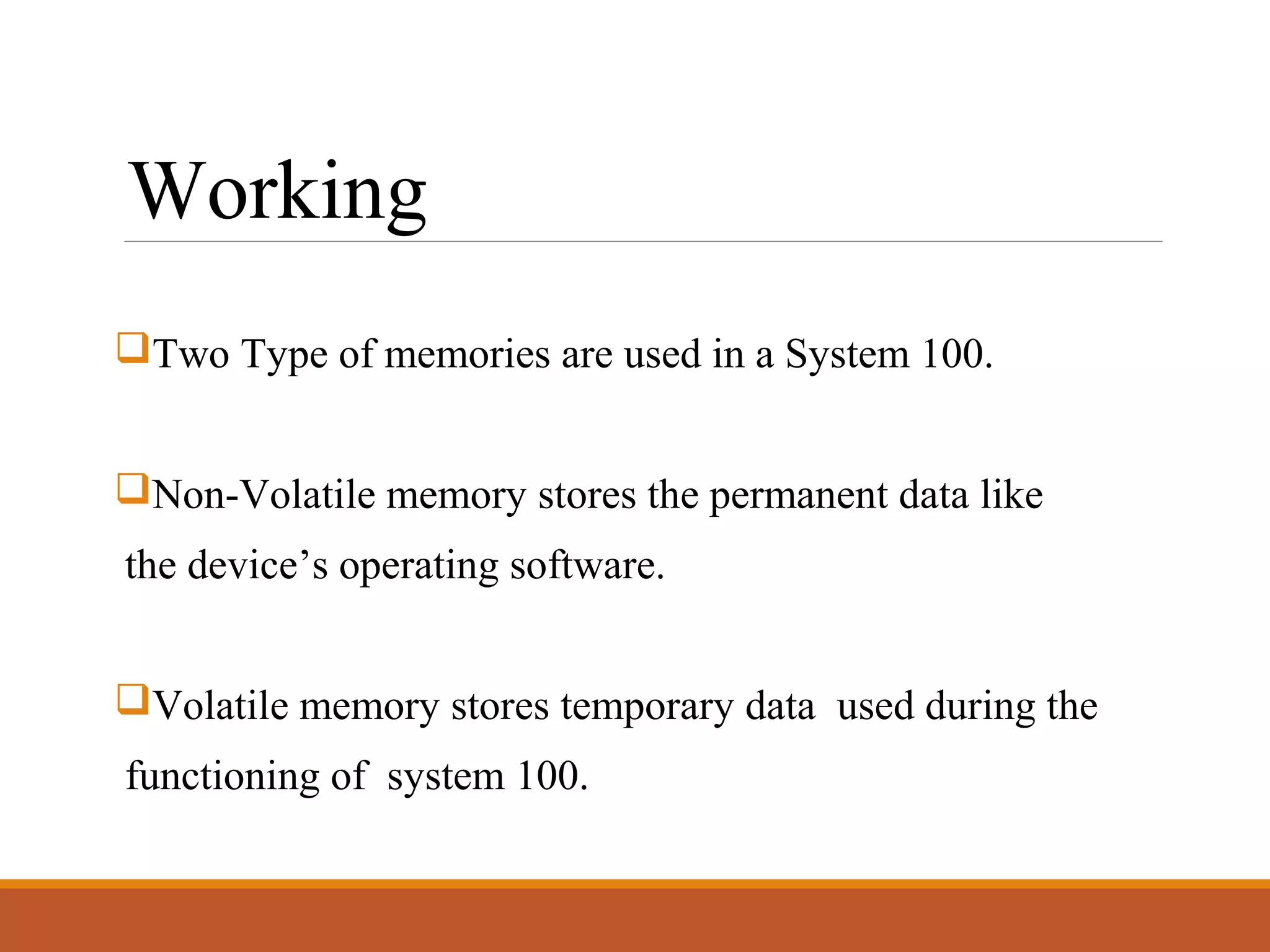

15. Working
Two Type of memories are used in a System 100.
Non-Volatile memory stores the permanent data like
the device’s operating software.
Volatile memory stores temporary data used during the
functioning of system 100.

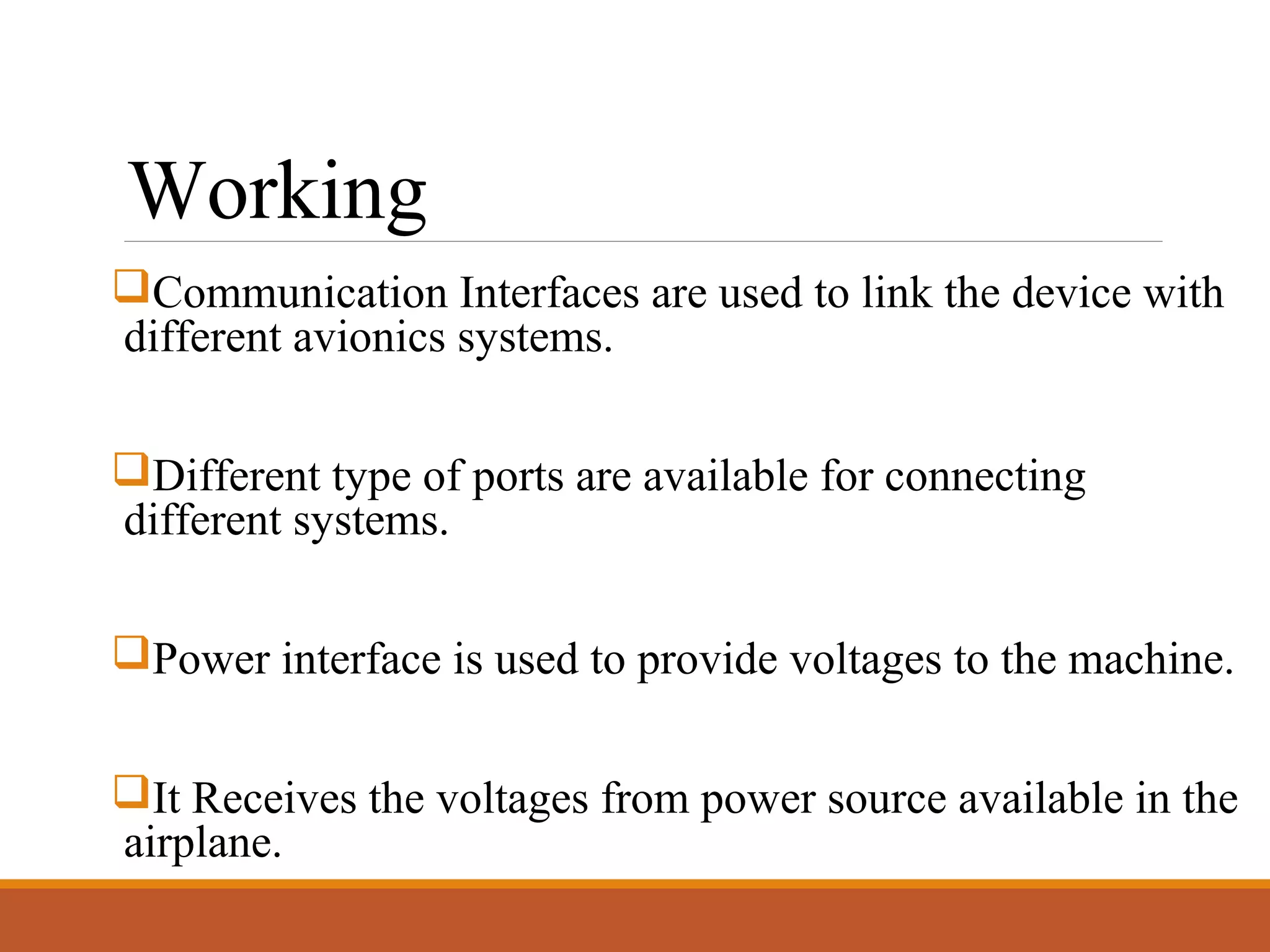

16. Working
Communication Interfaces are used to link the device with
different avionics systems.
Different type of ports are available for connecting
different systems.
Power interface is used to provide voltages to the machine.
It Receives the voltages from power source available in the
airplane.
